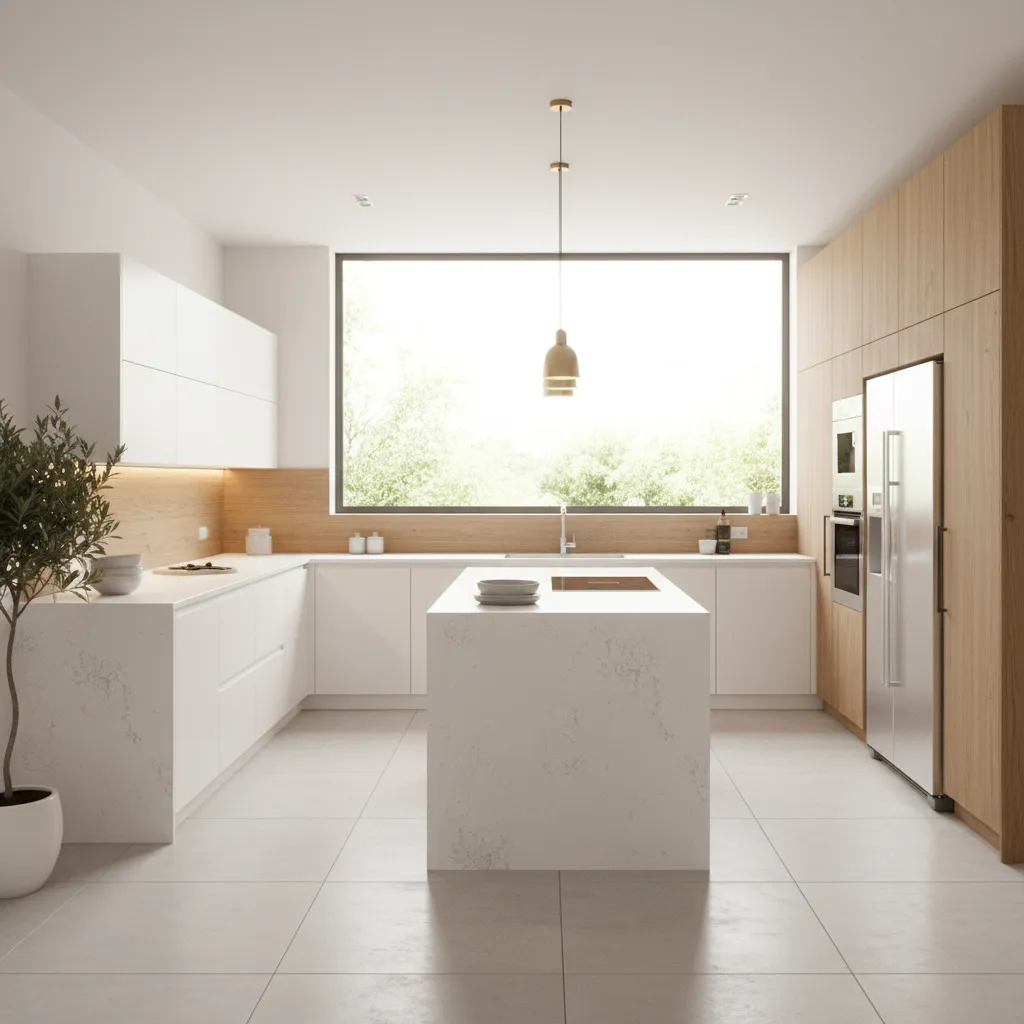

5 C Shaped Modular Kitchen Designs That Truly Work: Smart C shaped modular kitchen layouts that improve workflow, storage, and comfort in real homes

Direct Answer

C shaped modular kitchen designs work best when the layout balances three things: efficient movement, smart corner storage, and clear prep zones. When designed correctly, a C layout can provide more storage and counter space than L or straight kitchens without needing a large room.

In my projects, the most successful C shaped kitchens use one side for tall storage, one side for cooking, and one side for prep or cleaning.

Quick Takeaways

1. C shaped kitchens maximize counter space while keeping everything within a short reach.
2. The biggest design mistake is overcrowding corners without smart storage solutions.
3. A C layout works surprisingly well even in medium sized apartments.
4. Separating cooking, prep, and cleaning zones dramatically improves workflow.
5. Lighting and upper cabinet placement determine whether the kitchen feels open or cramped.

Introduction

After designing dozens of kitchens over the past decade, I’ve learned that a well planned C shaped modular kitchen designcan outperform many larger layouts. Most homeowners assume they need a huge island kitchen to get efficiency, but that’s not always true.

The C layout wraps around the user, which means tools, appliances, and ingredients stay within a few steps. But it only works if the layout avoids two common problems I see all the time: dead corners and overcrowded cabinets.

In this guide I’ll walk through five C shaped modular kitchen designs that actually work in real homes, not just in showroom renders.

save pin

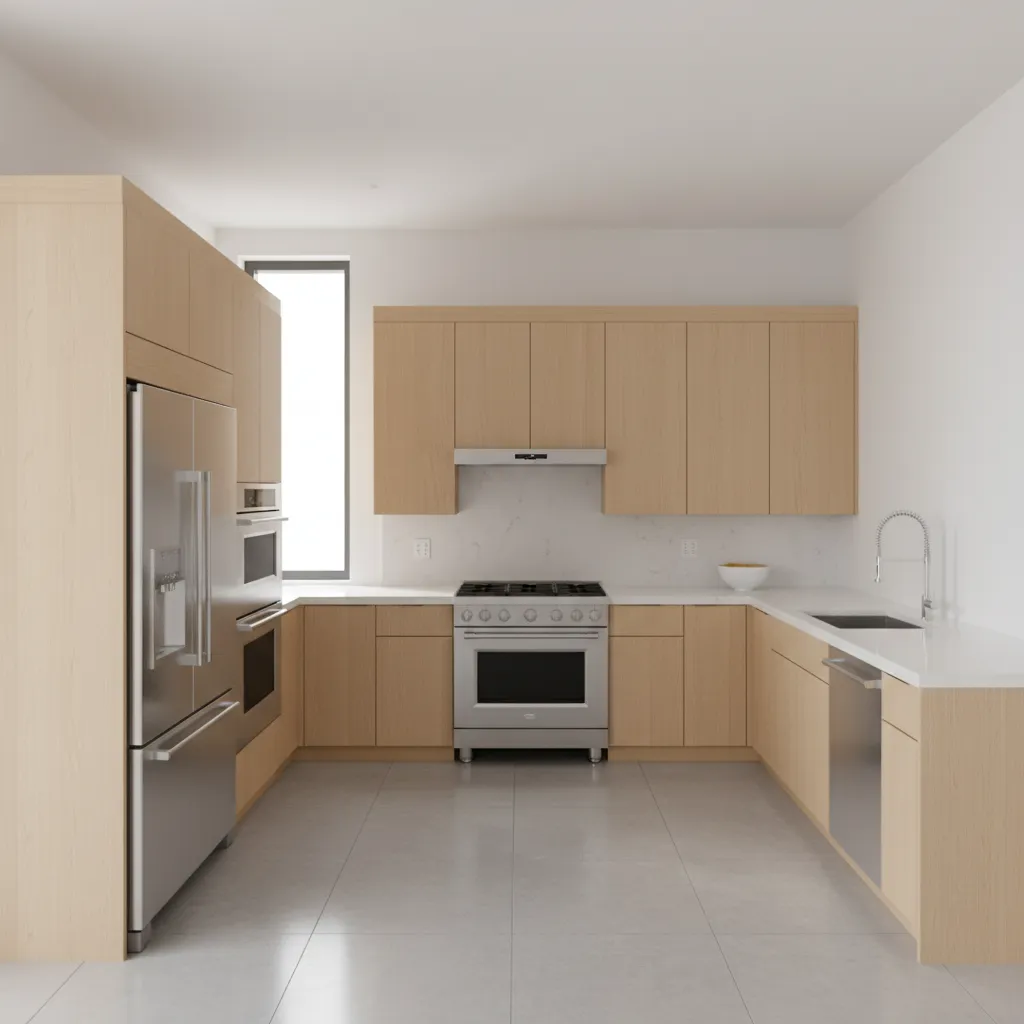

Why C Shaped Modular Kitchen Designs Work So Well

Key Insight: The C layout creates a compact working triangle that reduces movement and increases usable counter space.

Unlike straight or L shaped kitchens, the C configuration surrounds the user on three sides. In practical terms, that means less walking and faster meal prep.

In many projects I’ve measured workflow distances between sink, stove, and refrigerator. A well designed C layout usually keeps these points within 4–7 feet.

1. More continuous counter space
2. Better separation of work zones
3. More upper and lower cabinet capacity
4. Ideal for wall mounted storage systems

Design publications like Architectural Digest often highlight open kitchens, but in everyday homes, compact efficiency often wins.

What Makes a C Shaped Kitchen Layout Fail

Key Insight: Most poorly performing C shaped kitchens fail because designers ignore corner usability.

The biggest hidden issue in C shaped layouts is corner congestion. Without the right storage system, corners become dead space.

Common mistakes I see during renovations:

1. Standard cabinets blocking corner access
2. Too many upper cabinets creating visual heaviness
3. Poor lighting inside deep work areas
4. Appliances placed inside the corner curve

Practical fixes that work better:

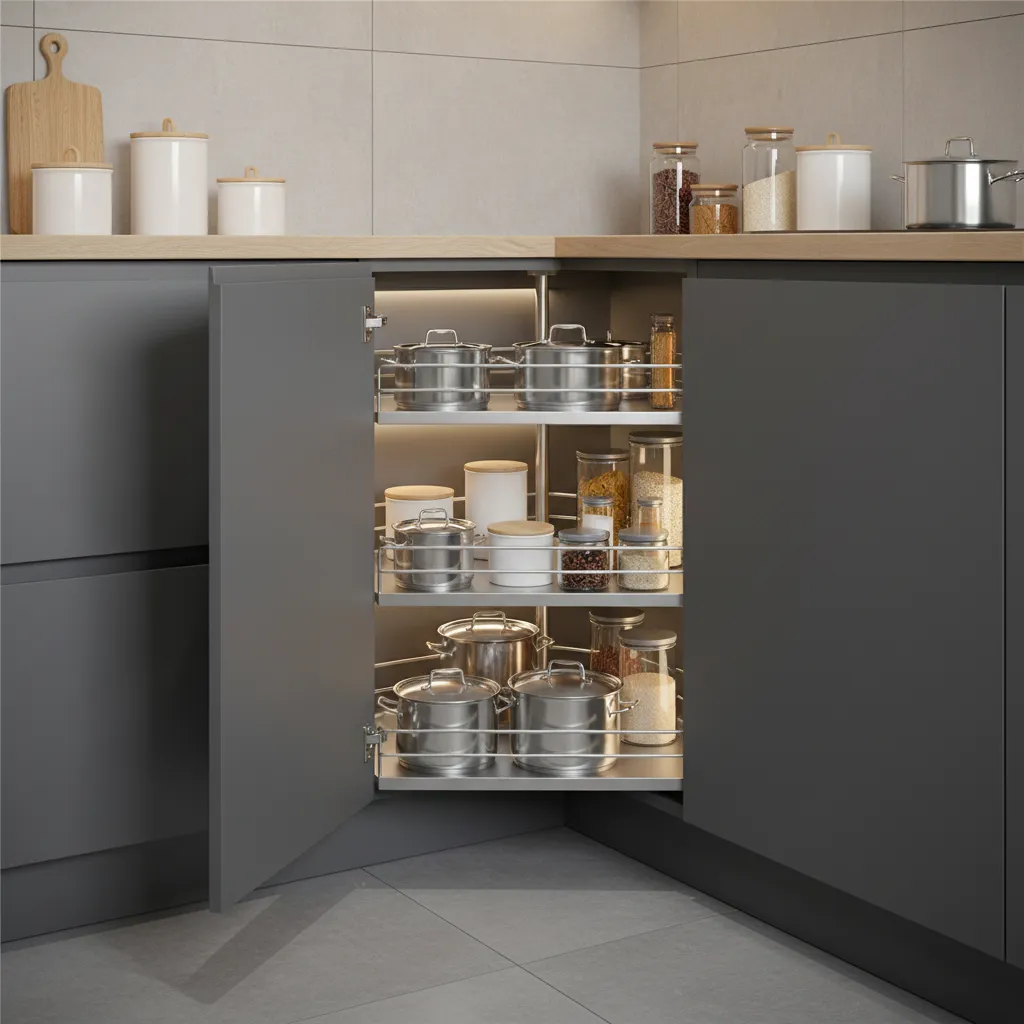

1. Lazy Susan corner units
2. Pull out corner drawers
3. Diagonal sink placement
4. Open shelving on one side of the C

save pin

5 C Shaped Modular Kitchen Designs That Work in Real Homes

Key Insight: The best C shaped kitchens dedicate each side of the layout to a specific function.

Below are five layouts I regularly recommend depending on space and lifestyle.

1. Storage Heavy C Layout

1. One wall: tall pantry cabinets
2. Second wall: stove and hood
3. Third wall: sink and dishwasher

Perfect for families that cook often and need maximum storage.

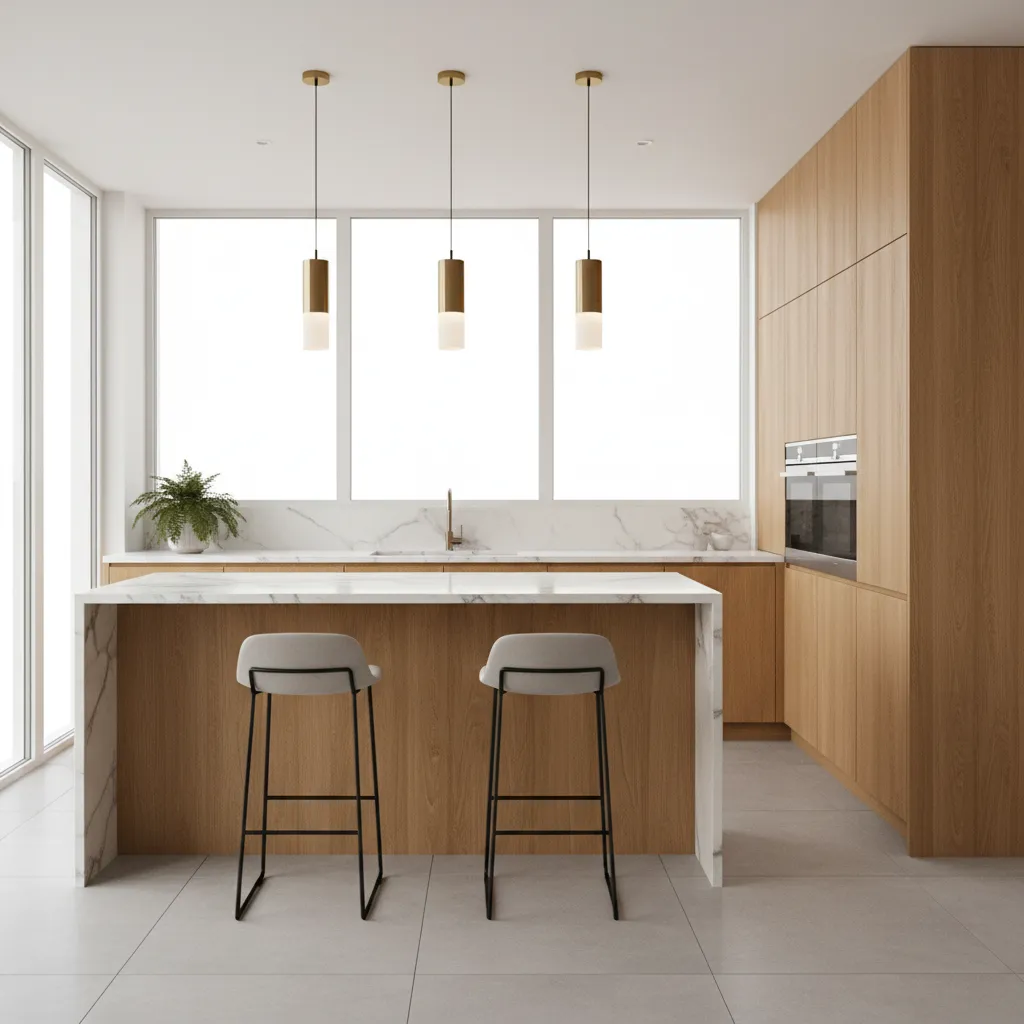

2. Open C With Breakfast Counter

1. One short side becomes a peninsula counter
2. Seating for two stools
3. Upper cabinets only on two walls

This layout prevents the kitchen from feeling boxed in.

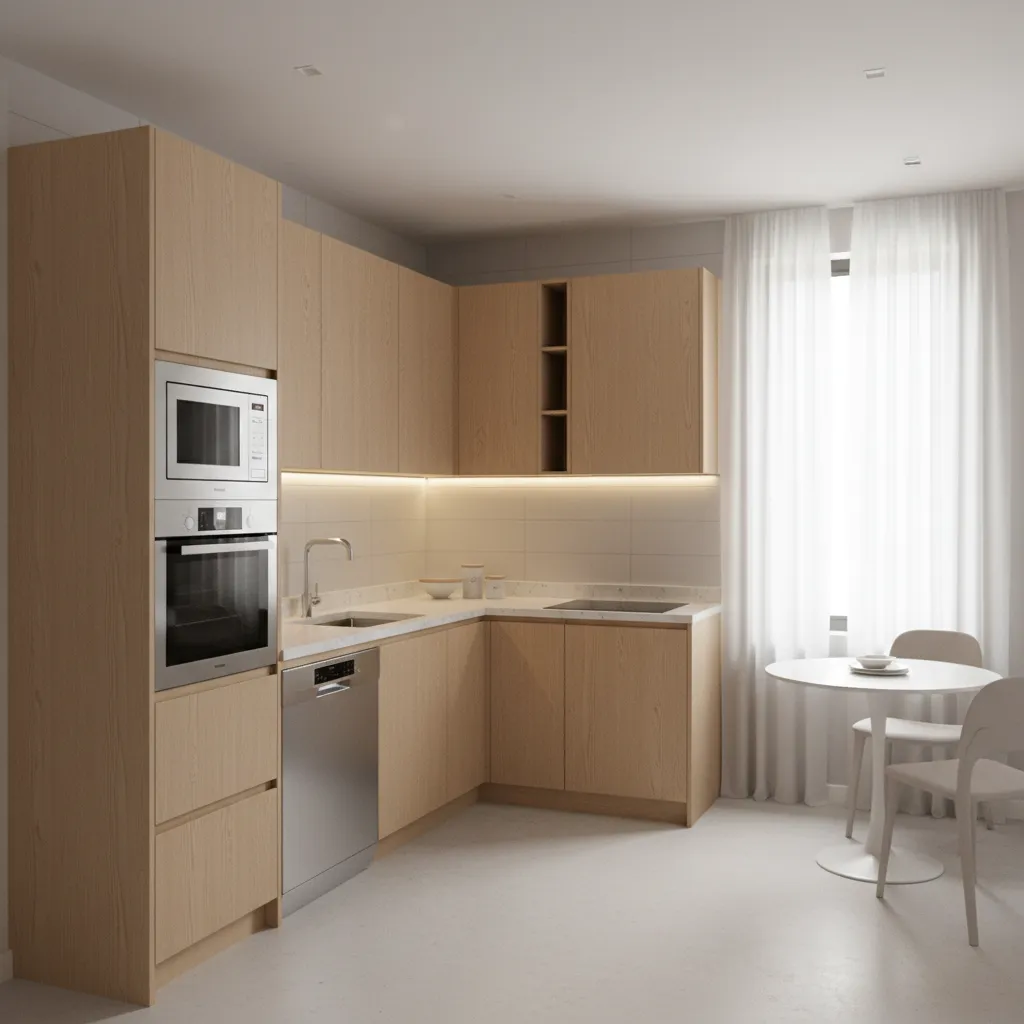

3. Apartment Compact C Layout

1. 24 inch deep cabinets
2. Integrated appliances
3. Vertical pantry storage

Works well in apartments between 80–120 square feet.

4. Dual Prep Zone C Kitchen

1. Main prep near sink
2. Secondary prep near fridge
3. Large uninterrupted counter

Great for households with two people cooking simultaneously.

5. Light Focused C Kitchen

1. Open shelves on one wall
2. Under cabinet lighting
3. Light reflective materials

This design solves the common "closed in" feeling.

save pin

How Much Space Does a C Shaped Kitchen Need

Key Insight: A functional C shaped modular kitchen usually needs at least 8–10 feet of wall width and 4–5 feet of aisle space.

Based on planning guidelines from the National Kitchen and Bath Association, safe kitchen aisles should remain at least 42 inches wide for single cooks and 48 inches for multi cook kitchens.

Typical planning dimensions:

1. Minimum aisle width: 42 inches
2. Counter depth: 24 inches
3. Recommended counter length per side: 6–8 feet
4. Tall cabinet zone: one side of the C

Many homeowners think they need a huge kitchen for this layout, but I’ve installed efficient C shaped kitchens in spaces under 100 square feet.

Answer Box

The best C shaped modular kitchen designs divide the layout into three zones: storage, cooking, and cleaning. When each wall serves a clear function, the kitchen becomes faster, more organized, and easier to use.

save pin

Which Materials Work Best in C Shaped Modular Kitchens

Key Insight: Because C kitchens have more cabinetry and corners, materials must balance durability and visual lightness.

Materials I consistently recommend:

1. Quartz countertops for durability
2. Matte laminate cabinets for easy maintenance
3. Gloss backsplashes to reflect light
4. LED under cabinet lighting

One surprising insight from recent projects: darker lower cabinets combined with light upper cabinets make C shaped kitchens feel significantly more spacious.

Final Summary

1. C shaped kitchens provide excellent workflow when zones are clearly defined.
2. Corner storage solutions determine whether the layout succeeds.
3. Even medium sized kitchens can support an efficient C layout.
4. Lighting and cabinet balance prevent the space from feeling closed.
5. Functional zoning matters more than kitchen size.

FAQ

Is a C shaped modular kitchen good for small homes?

Yes. A compact C shaped modular kitchen works well in small homes if the aisle width stays above 42 inches and tall cabinets are limited to one wall.

What is the difference between U shaped and C shaped kitchens?

A C shaped kitchen usually has one shorter side or a partial peninsula, while U shaped kitchens typically use three equal walls.

How wide should a C shaped kitchen be?

Most C shaped modular kitchen designs work best with at least 8–10 feet of wall width and 42–48 inches of walking space.

Are C shaped kitchens outdated?

No. Modern C shaped modular kitchen layouts remain popular because they maximize storage and counter space.

Can a C shaped kitchen include seating?

Yes. A peninsula extension can create a small breakfast bar for two people.

What cabinets work best for C shaped kitchens?

Pull out drawers, carousel corner cabinets, and vertical pantry units improve usability in a C shaped modular kitchen.

Is a C shaped kitchen better than an L shaped kitchen?

It depends on the room size. C layouts provide more storage, while L shaped kitchens feel more open.

How do you make a C shaped kitchen feel bigger?

Use light colored cabinets, reflective backsplashes, open shelving on one wall, and strong under cabinet lighting.
