5 Chimney Ideas for Window Kitchen Design: My field-tested ways to add a kitchen chimney near a window—without blocking light, airflow, or style

[Section: Meta 信息] Meta Title: 5 chimney ideas for window kitchen design Meta Description: Discover 5 chimney ideas for window kitchen design—smart placements, vent tricks, and materials that keep light and airflow while boosting extraction. Meta Keywords: chimney for window kitchen design, kitchen chimney near window, window kitchen ventilation, ductless chimney filter, L-shaped kitchen chimney, glass backsplash, compact kitchen ventilation [Section: 引言] I’ve remodeled more than a dozen small kitchens where the range sits by a window—great for light, tricky for a chimney. Window kitchen design pushes us to balance daylight, grease control, and safe venting. Small spaces spark big creativity, and a chimney for a window kitchen design is the perfect test. Today I’m sharing 5 design inspirations I’ve used on real jobs, backed by expert data where relevant. You’ll see where to place the chimney, how to route air without blocking the sash, and which materials keep the view clear. I’ll mix personal wins (and a few flops) so you can skip the pain and keep the breeze. [Section: 灵感列表]

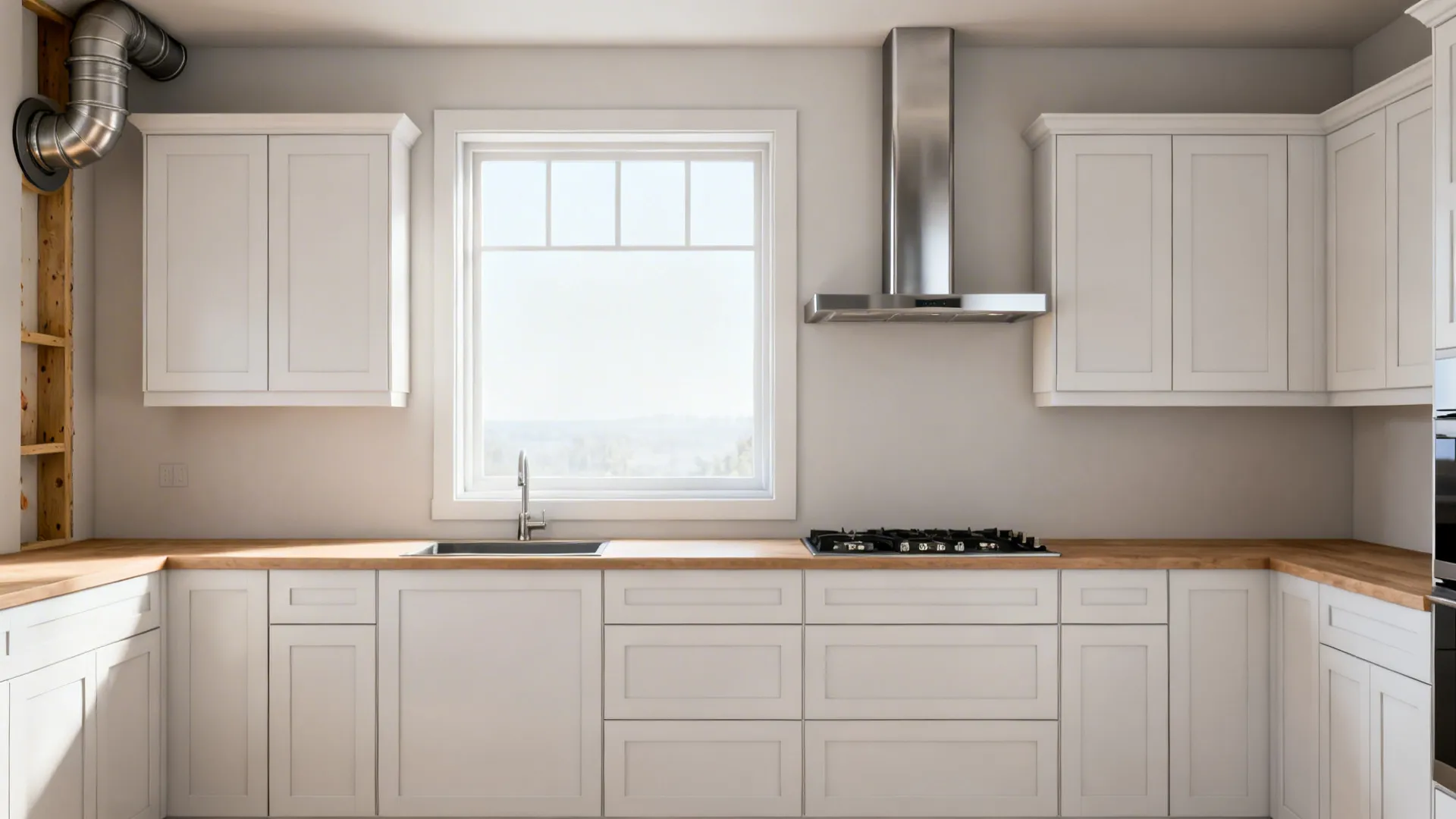

1) Offset mount to keep the window clear

My Take On a 6.5‑ft wall with a central window, I slid the cooktop 8–12 inches off-center and mounted a slim chimney to one side. The view stayed open, and the duct ran straight out through a side wall stud bay—clean, short, quiet. Pros - Shorter duct runs reduce pressure loss, which improves suction and lowers noise—a long-tail benefit for kitchen chimney near window scenarios. - You avoid drilling the window lintel and preserve natural light, a key window kitchen ventilation win. - Side-wall penetration keeps maintenance simple; filters stay cleaner with steady airflow. Cons - The cooktop and chimney are visually off-center; symmetry lovers may twitch (I did at first!). - Wall cabinets may need custom widths to frame the shift, nudging up costs. - On ultra-narrow walls, offsetting can bump elbows near adjacent corners. Tips / Cost - Aim for a 6–12 inch offset from window trim; test with painter’s tape. - Keep duct runs under 10–12 feet with two or fewer elbows for best performance. - Budget: $350–$900 for hood; $200–$600 for duct and wall cap; more if cabinets shift. [Inline link #1 at ~20%] If you’re visualizing cabinet changes with an offset, I mocked mine up using an online case: "L 型布局释放更多台面空间" that illustrates side-shift scenarios: https://www.coohom.com/case/kitchen-layout-planner

save pin

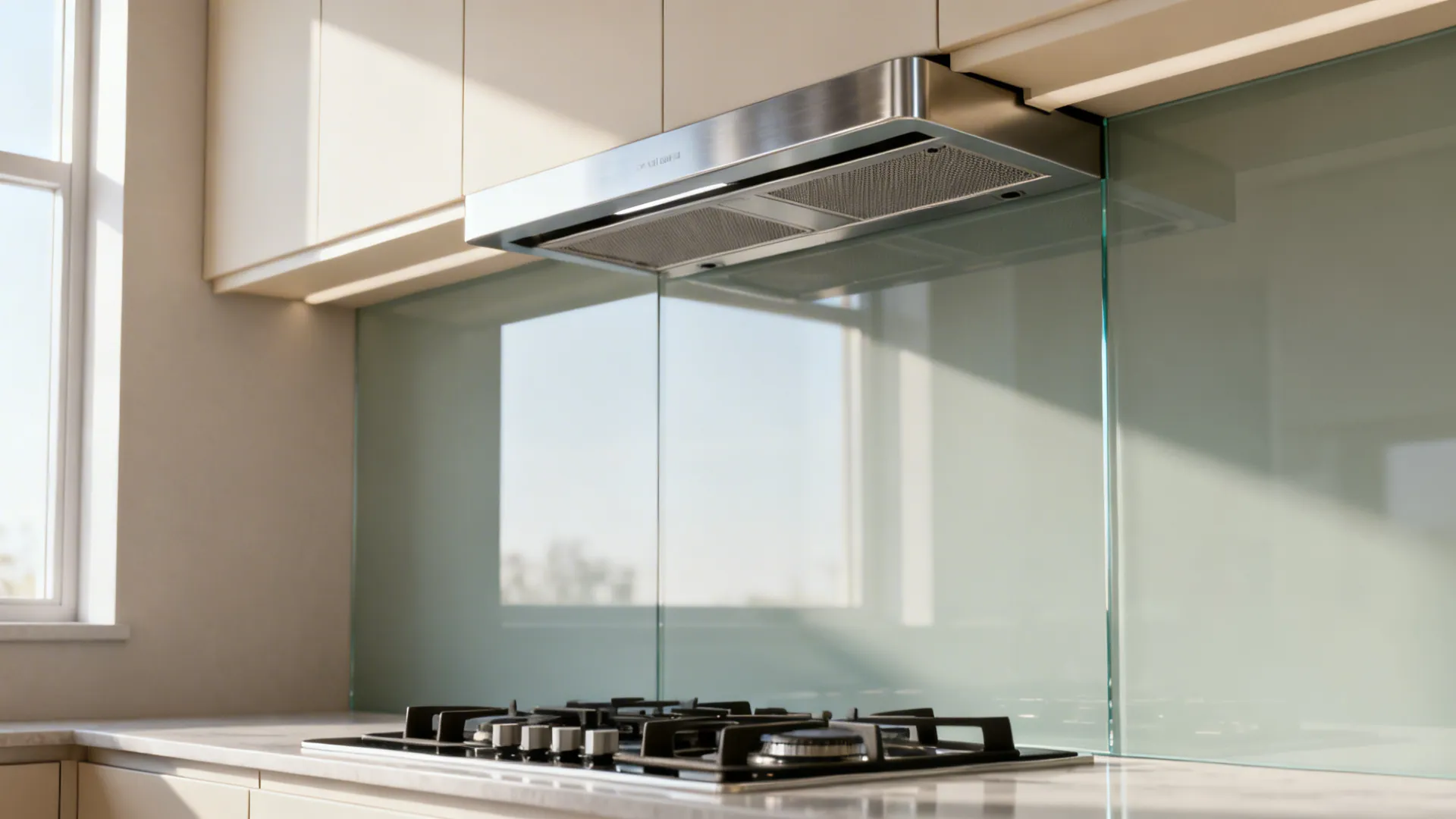

2) Low-profile canopy + glass backsplash

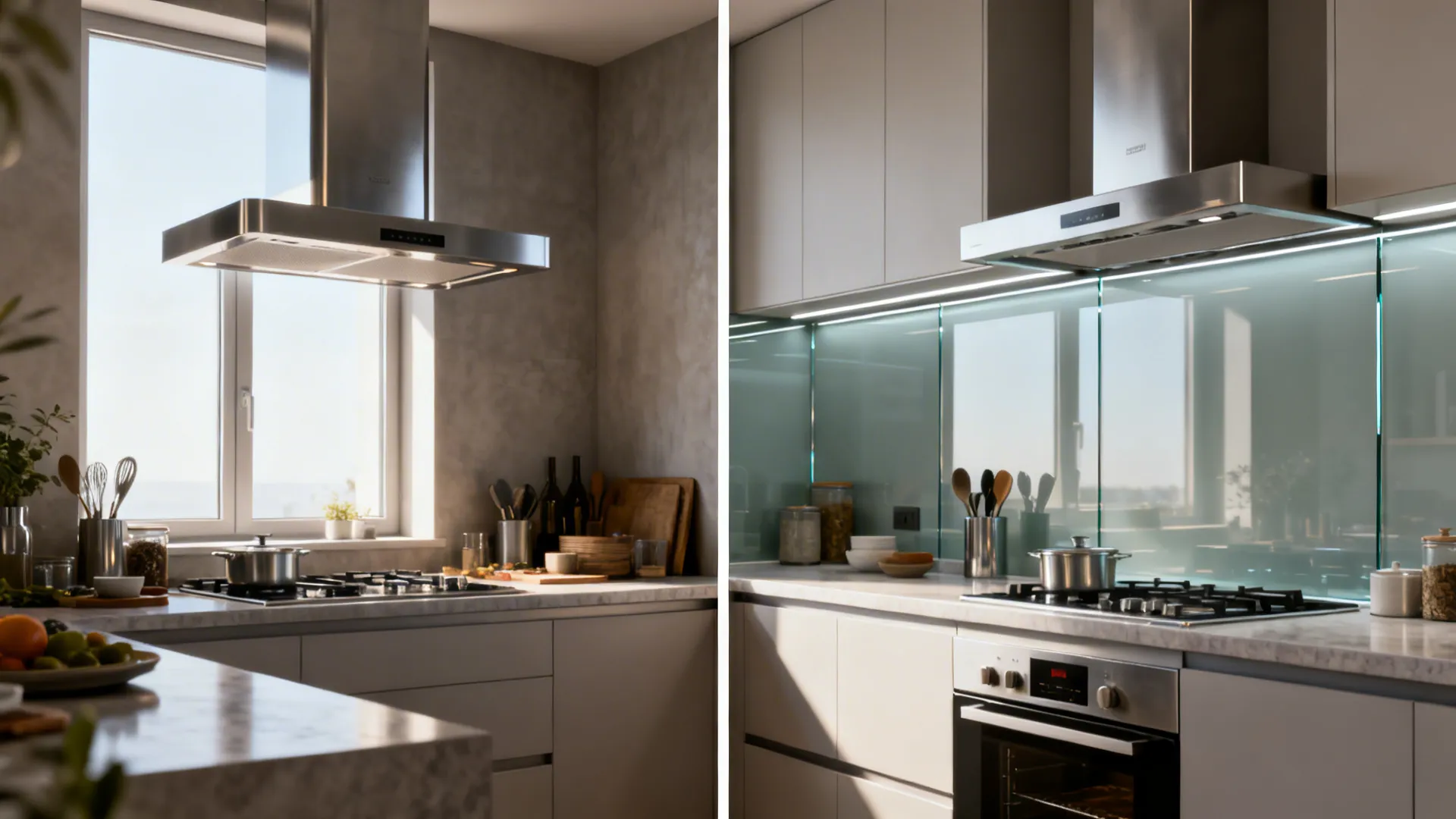

My Take In a bright rental, I swapped a bulky hood for a 60mm low-profile canopy and installed a full-height tempered glass backsplash. The chimney tucked under the valance, and the glass practically disappeared—daylight stayed king. Pros - A slim canopy reduces visual clutter—a smart approach for chimney for window kitchen design where light is precious. - Glass reflects daylight and makes tight kitchens feel deeper; it’s easy to wipe, even near splatters. - With a recirculating kit, you avoid cutting the facade—useful for apartments. Cons - Recirculating (ductless) kits rely on carbon filters, which need replacement every 3–6 months with heavy frying. - Thin canopies can be louder at high speed due to smaller blowers. - Glass shows every smudge—you’ll keep a microfiber handy. Tips / Case - Tempered glass (6–8mm) with low-iron spec keeps a true color wall behind. - For ductless, pick at least 400–600 m³/h (or 250–350 CFM) with multi-stage filters. - Mount bottom of hood 24–30 inches over cooktop, per manufacturer specs.

save pin

save pin

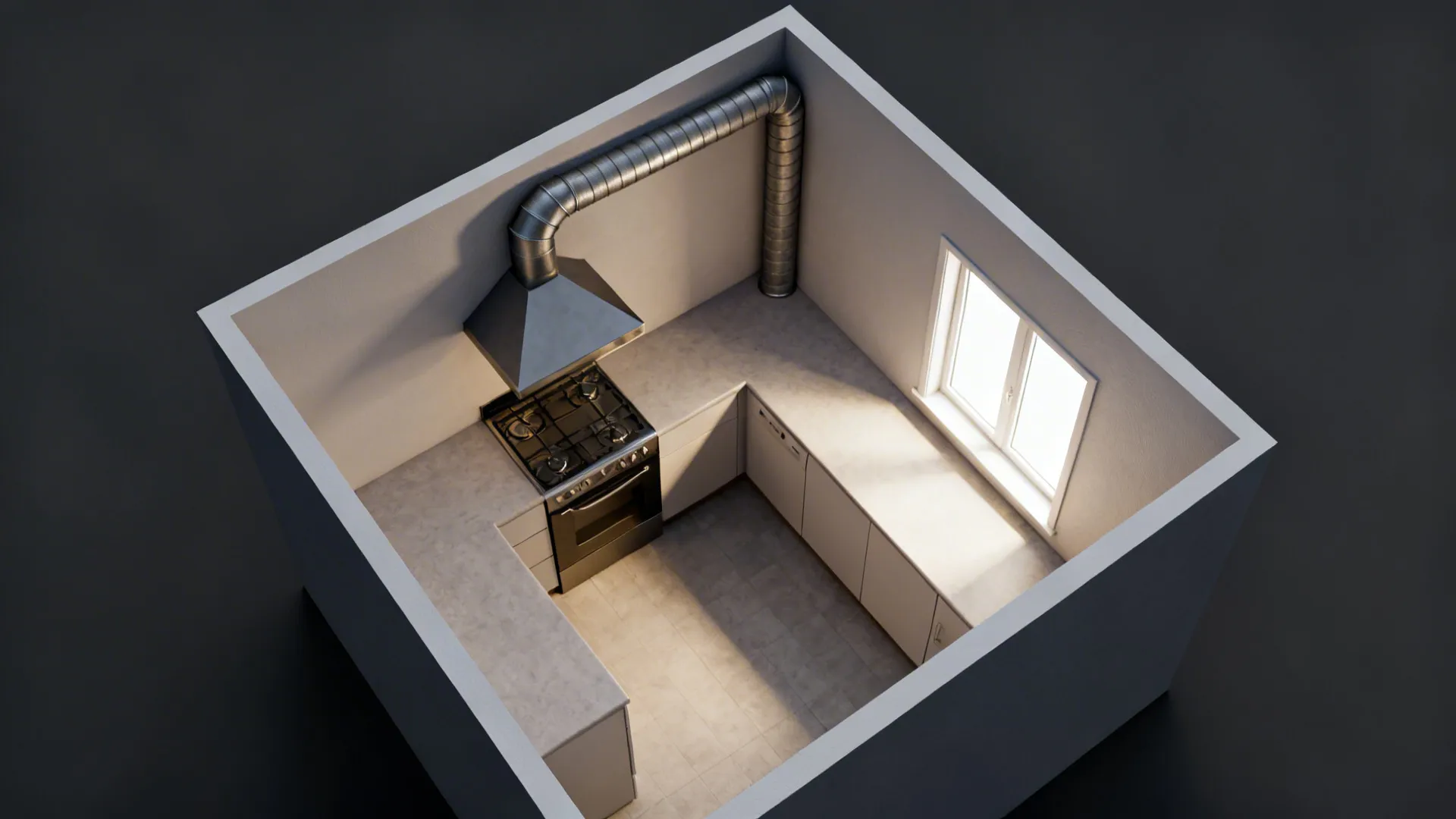

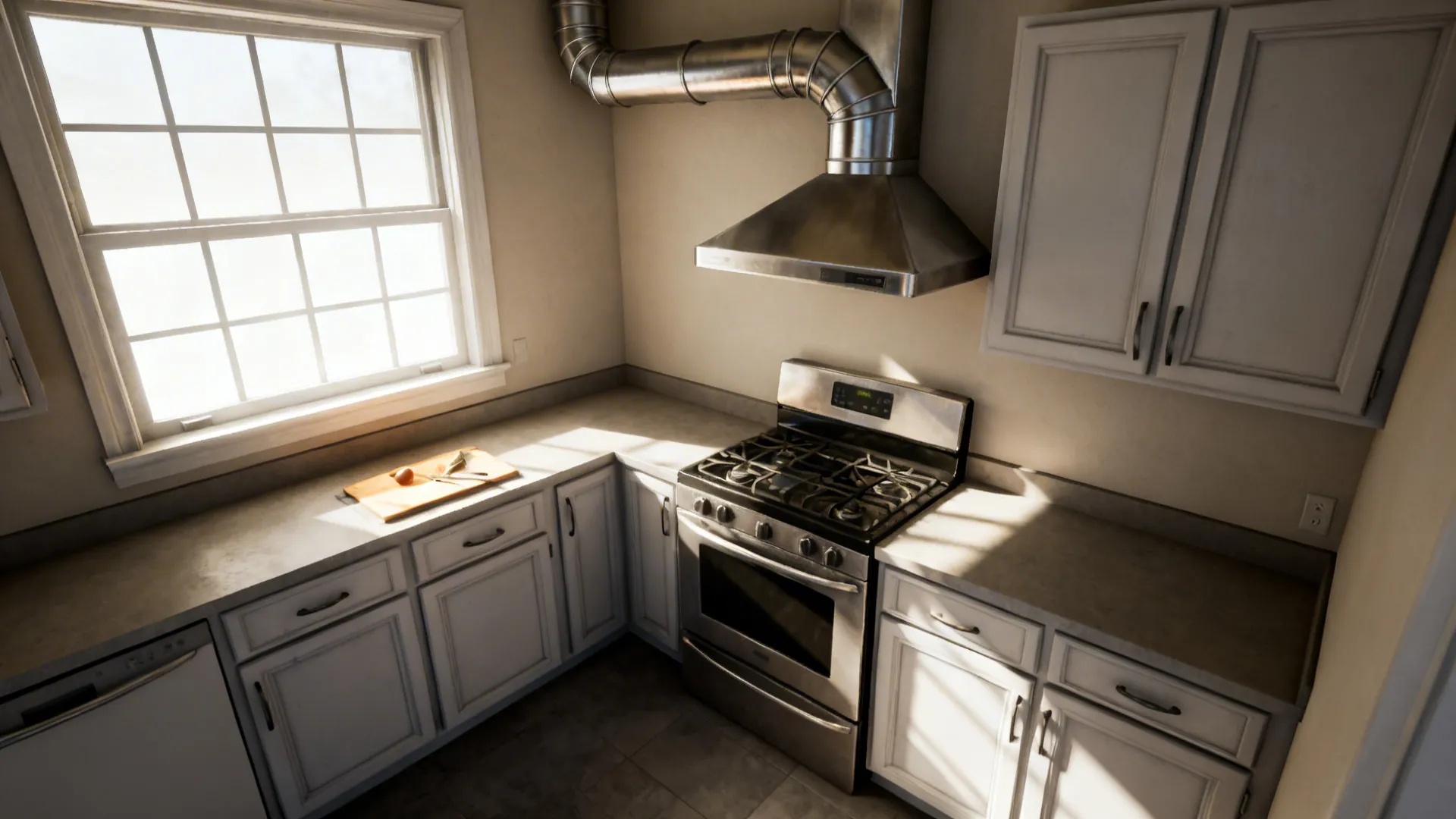

3) Corner range with diagonal duct

My Take When a window dominated the cook wall, I pivoted the range into the near corner. A corner hood captured fumes, and a 45° duct shot to the side wall between studs—no sill cutting, no blocked light. Pros - Corner placement clears the window entirely while maintaining efficient capture—ideal for small kitchens with windows. - Diagonal ducting can stay short, improving effective flow rate in L-shaped kitchens. - Counter runs get longer; you’ll gain a prep zone by the window. Cons - Corner hoods cost more and need precise cabinet angles. - Fitted corner cabinets can be pricier due to custom doors and fillers. - The diagonal duct may require one extra elbow if the stud layout is tight. Tips / Cost - Choose a hood at least as wide as the corner range; 30–36 inches is typical. - Use smooth-wall rigid duct (not flex) for better airflow. - Budget: $700–$1,500 for hood; $300–$800 for ducting and cap. [Inline link #2 at ~50%] To test a corner pivot with measured clearances, I often reference a planning case that models diagonal transitions: "玻璃背板让厨房更通透" in this layout planner example: https://www.coohom.com/case/3d-floor-planner

save pin

save pin

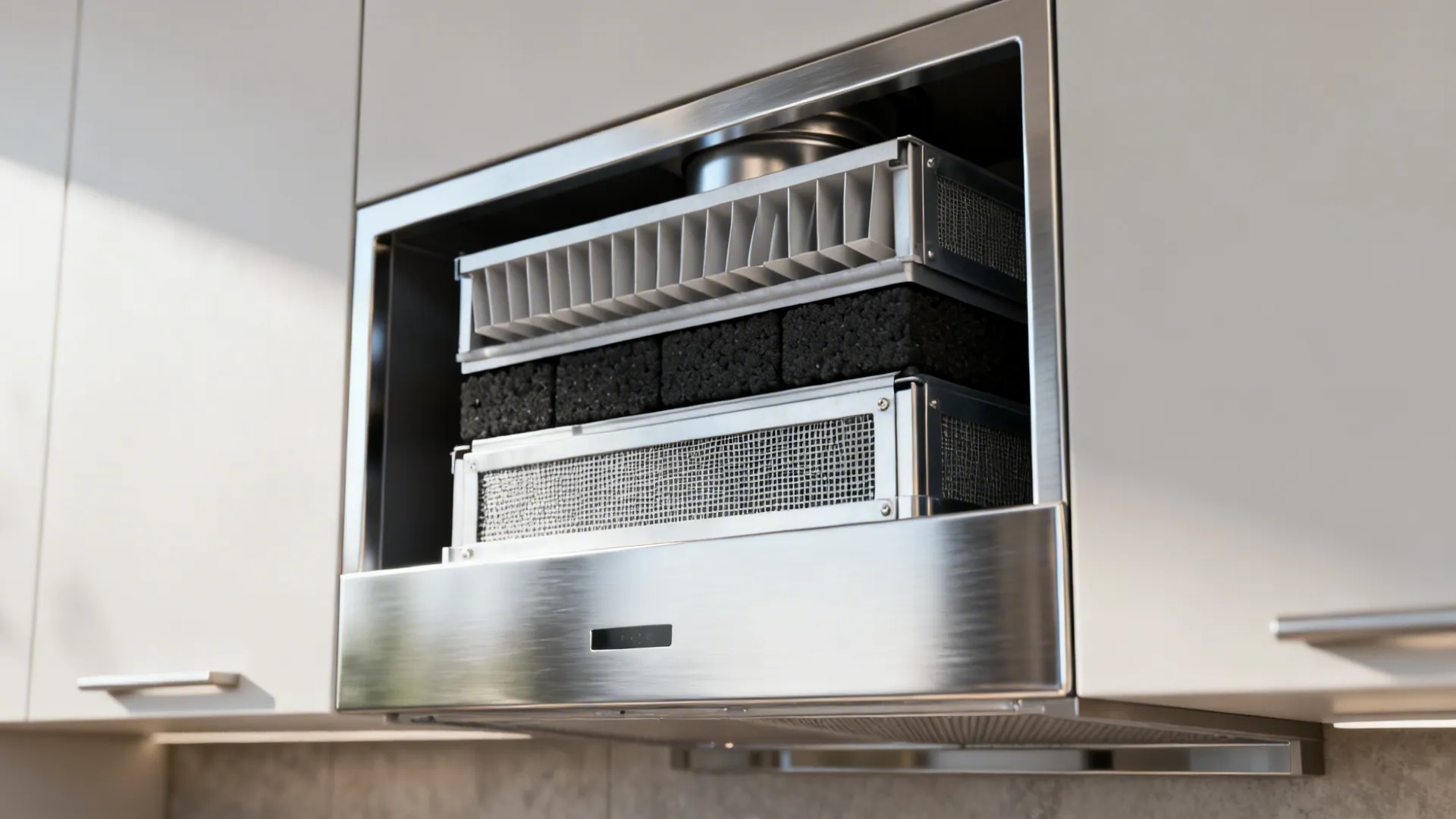

4) Ductless chimney with hybrid filtration

My Take In a prewar building where the facade was sacred, I spec’d a ductless chimney with a hybrid filter stack: baffle + aluminum mesh + activated carbon. We kept the sash functional and still cut odors down to livable levels. Pros - No exterior vent means no window frame cuts—a lifesaver for rentals and landmarked buildings in window kitchen design. - Modern multi-stage filters trap grease and reduce odor when cooking light-to-moderate fare. - Install is fast; maintenance is just regular filter swaps. Cons - Not ideal for heavy wok or deep-fry; odor control is finite. - Replacement filters add ongoing cost; performance dips if you forget. - Noise can be higher at top speed since the motor works against filter resistance. Authority Note - ASHRAE recommends 100+ CFM for typical hoods and higher for gas ranges; ductless models rely on capture and filtration rather than exhausting to the exterior, so choose higher advertised CFM and good capture area for best results (Source: ASHRAE Standard 62.2 Residential Ventilation). Tips / Cost - Replace carbon filters every 3–6 months with frequent frying; clean metal filters monthly. - Consider models with auto-sensing or delayed-off timers. - Budget: $200–$800 for units; $30–$80 per filter set per change.

save pin

save pin

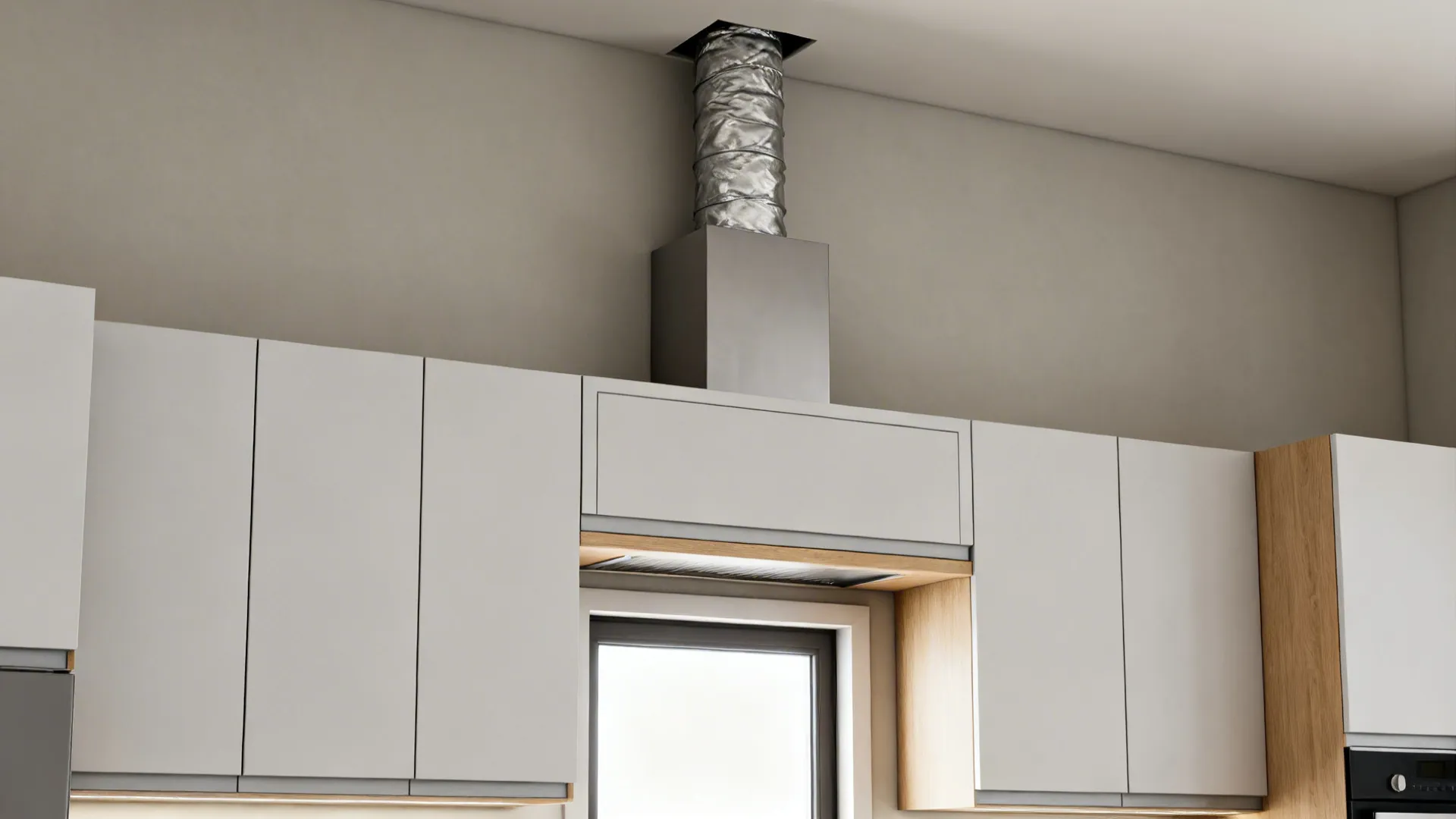

5) Top-vent through upper cabinet with insulated duct

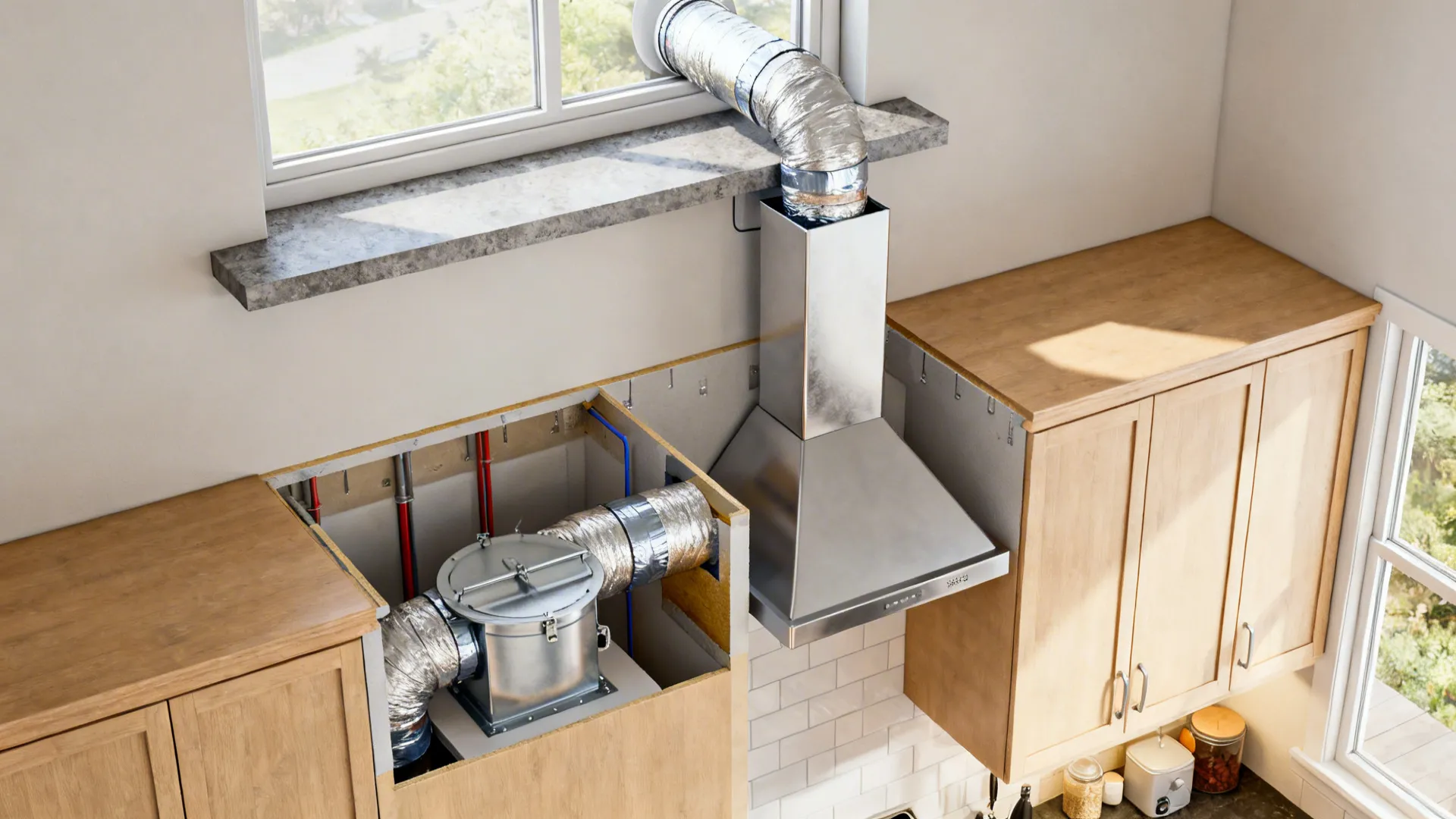

My Take When the window sits too low for a rear exit, I route vertically through an upper cabinet, then out above the lintel. We box the duct neatly with a matching panel and add acoustic insulation to keep things hush. Pros - Vertical runs often improve draft and clear the window while staying hidden—great for chimney for window kitchen design where sills are high. - Insulated rigid duct reduces condensation and humming; a backdraft damper keeps cold air out. - Cabinet-integrated chase looks seamless in modern and classic kitchens. Cons - Upper cabinet storage is reduced; tall stock pots may need a new home. - Roof or high wall penetrations require careful flashing and weatherproofing. - More labor than a simple rear-ducted run. Tips / Case - Use 6-inch rigid duct when possible; every step down in diameter increases resistance. - Seal all joints with UL 181 metal tape and mastic, not cloth duct tape. - If you cook with strong spices, pick a hood with a deep capture area and baffle filters. [Inline link #3 at ~80%] For a quick visual on vertical chases and soffit integration, this case shows a neat top-vent approach—"极简风的厨房收纳设计": https://www.coohom.com/case/free-floor-plan-creator [Section: 总结] A small kitchen by a window doesn’t limit you; it nudges you toward smarter chimney choices. Whether you offset the cooktop, go slim and glassy, pivot to a corner, choose ductless with hybrid filtration, or run top-vent with insulated duct, the right chimney for window kitchen design keeps light, air, and style in balance. The U.S. Department of Energy also notes that effective kitchen ventilation reduces pollutants and moisture, improving indoor air quality over time. Which idea would you try first—offset, slim canopy, corner, ductless, or top-vent? [Section: FAQ 常见问题] 1) What size chimney do I need for a window kitchen design? Aim for a hood at least as wide as the cooktop (30–36 inches for most ranges). For gas ranges or heavy frying, target 350–600 CFM; match capture area and install height per the manufacturer. 2) Is ductless viable for a window kitchen? Yes, especially in rentals or protected facades. Use multi-stage filters (baffle/mesh + carbon) and replace carbon every 3–6 months. It won’t equal exterior venting for heavy wok cooking. 3) How far from the window should the chimney be? Keep at least 6–12 inches from trim to avoid interfering with sash operation and reduce grease on glass. Test with tape before drilling any holes. 4) Can I place the cooktop in front of the window? It’s possible, but check local codes and safety: curtains and low sills can be hazards. A heat-proof glass splash panel across the lower sash can protect the glazing if needed. 5) What duct is best for a window kitchen chimney? Use 6-inch rigid, smooth-wall metal duct where possible and minimize elbows. Seal with UL 181 metal tape and mastic; add a backdraft damper to block cold air. 6) Do I still need a chimney if I have an operable window? A window helps, but it’s not targeted capture. A chimney for window kitchen design provides consistent removal of grease and smoke, especially in winter or during high-heat searing. 7) Any standards on kitchen ventilation I should know? ASHRAE 62.2 offers guidance on residential ventilation and recommends mechanical kitchen ventilation for pollutant control; confirm local code adoption and hood specs. (Source: ASHRAE Standard 62.2) 8) How loud will a slim, low-profile canopy be? Low-profile hoods can be louder at high speed due to compact blowers. Look for sone ratings under 6 at working speeds and consider hoods with variable speed or boost modes.
