5 Civil Drawing Tips for Kitchen AutoCAD Blocks: A senior interior designer’s take on small-kitchen civil drawings, with 5 practical inspirations and real-world pros & cons

When clients ask me about civil drawing of kitchen in AutoCAD blocks, I smile—this is where small space sparks big creativity. Over the last decade, I’ve learned that detailed CAD blocks for plumbing, drainage, gas lines, and electrical points can make or break a compact kitchen. In this guide, I’ll share 5 design inspirations drawn from my own projects and backed by expert references, so you can plan smarter and build cleaner. We’ll also look at how to keep layers tidy, dimensions consistent, and coordination tight from concept to site.

Before we dive in, here’s a quick example of how precise block libraries helped me tidy an 8 m² galley kitchen: standardized sinks, trap clearances, and appliance connection blocks shaved two site visits off the schedule. If you’d like to visualize how minimalism informs real-world storage and service points, check this reference example: minimalist kitchen storage detailing. It’s not about flashy renders—clarity in the civil drawing is what keeps the plumber, electrician, and carpenter aligned.

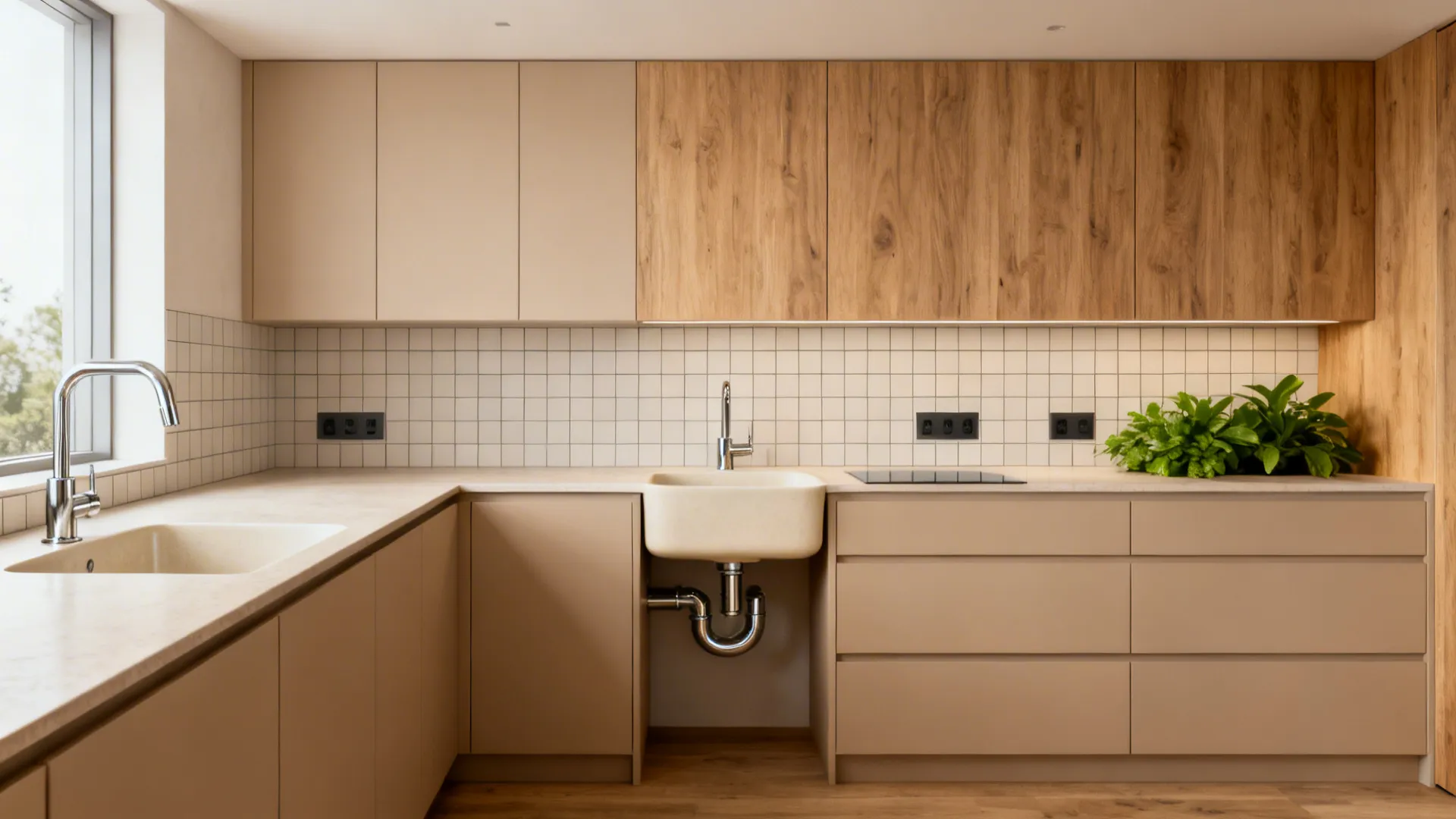

Minimalist storage meets service points

My Take: I once reworked a tiny rental kitchen where every centimeter mattered. I used compact AutoCAD blocks for sink, trap, and wall outlets, then aligned them to a simple grid so the cabinetmaker wasn’t guessing. The minimalist look came from hiding services smartly, not ignoring them.

Pros: A “less is more” approach reduces clashes—fewer open shelves mean fewer penetrations, and consistent block sizes help with repeatable layouts. Long-tail planning keywords like “compact sink block with P-trap clearance” or “wall outlet block aligned to backsplash grid” might sound nerdy, but they save time. According to the National Kitchen & Bath Association (NKBA) planning guidelines, clearances around appliances and sinks directly impact usability and safety.

Cons: Minimalism can hide mistakes—if the block library is wrong, you’ll replicate the error everywhere. Also, ultra-tight storage might require custom millwork, raising costs and lead times. I’ve had to redesign corner units after discovering a concealed valve couldn’t be accessed without removing a drawer—my bad.

Tips / Case / Cost: Build a small “services sheet” in your CAD set with standard sink, faucet, trap, valve, and outlet blocks. Keep layer names human-readable (e.g., PLM_DRAIN, ELEC_OUTLET). For renters, cost-saving PVC traps and snap-on access panels work; just annotate maintenance access clearly.

save pin

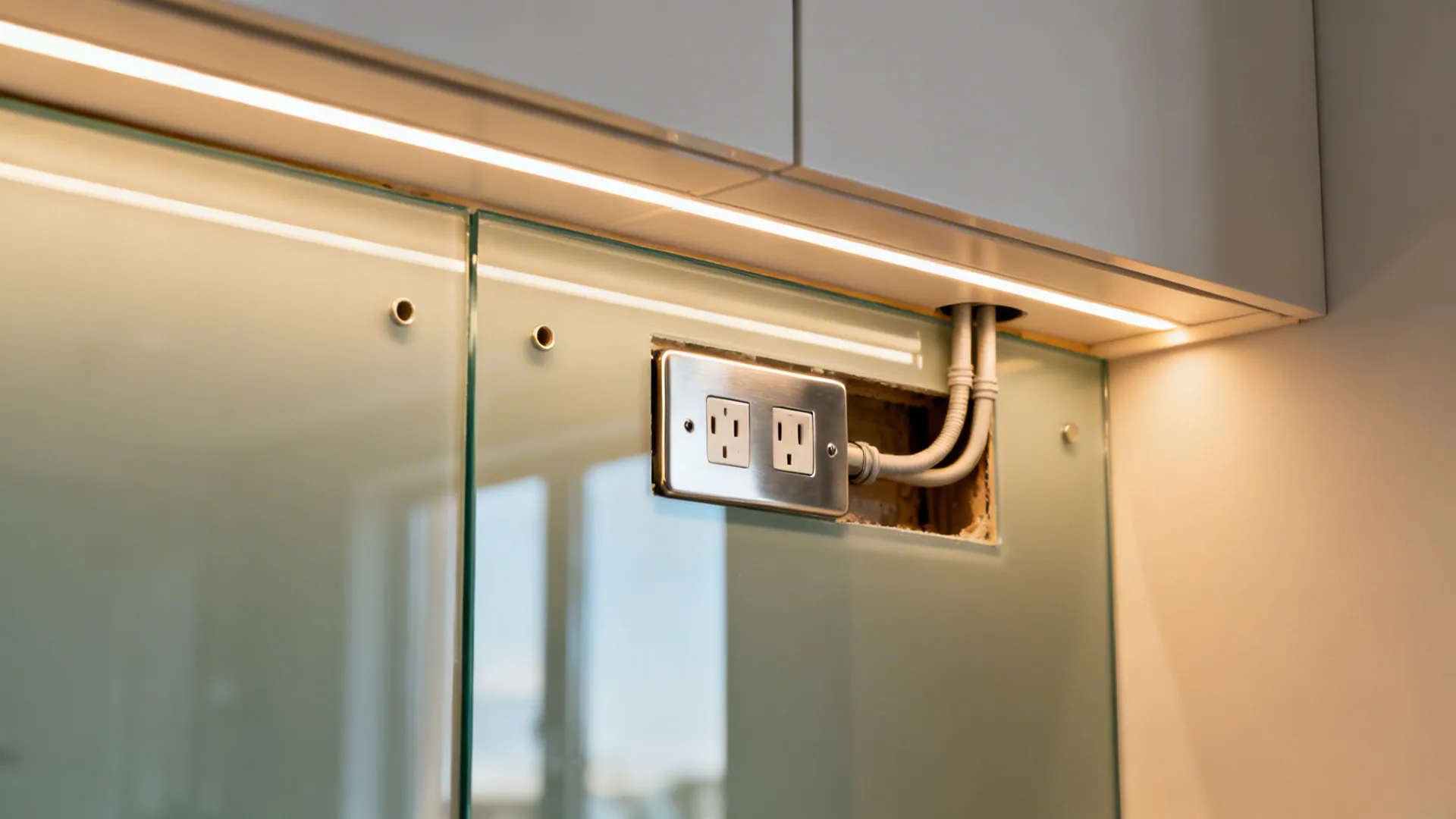

Transparent splashbacks, tidy conduit routes

My Take: I’m a fan of glass backsplashes in compact kitchens because they visually double the space. But glass demands accuracy: I dimension every outlet block and conduit route so the glazier isn’t drilling blind. One millimeter off, and you’ll stare at a chipped panel for years.

Pros: Using “glass backsplash outlet blocks with drill-hole callouts” keeps the service map precise. Clean conduit paths reduce wall chasing, and the reflective surface brightens prep zones without adding fixtures. A 2700–3000 K under-cabinet strip coordinated with outlet blocks can reduce glare and flicker.

Cons: Glass is unforgiving—if your AutoCAD blocks aren’t to true size with edge offsets, you’ll pay for remakes. Also, conduits on external walls can sweat in humid climates; sloppy routing can telegraph through the glass. I once had to swap to back-painted tempered glass after an overzealous electrician left a conduit hump.

Tips / Case / Cost: Dimension outlet centerlines from fixed references (countertop datum, cabinet edges) and include hole diameter and edge clearances. Tempered glass is a must; back-painting hides conduit shadows. Mid-range glass panels cost more than tiles, but save time on grout maintenance. Around the halfway point of your planning, consider how a different layout could clean up your service runs—this example shows how L-shaped layouts free up more counter run without compromising outlets behind glass.

save pin

L-shaped layouts that declutter service routes

My Take: On tight projects, L-shapes often yield the best appliance triangle without crossing plumbing and electrical lines. I use AutoCAD blocks for water inlet, drain, gas valve, and 20A circuits placed along the longer leg, then reserve the shorter leg for prep and small appliances.

Pros: With “L-shaped kitchen service mapping blocks,” it’s easier to keep water away from power runs, reducing site conflicts. You get longer uninterrupted countertop segments, which helps with meal prep and small appliance parking. Long-tail planning like “staggered drain and power line blocks to avoid overlap” keeps drawings approval-ready.

Cons: Corners can be tricky—if your corner cabinet block isn’t matched with the drain orientation, you’ll hit the back panel. Also, in micro-apartments, an L might steal circulation space from the entry. I’ve had to notch a corner shelf to clear a waste line that arrived 30 mm higher than expected.

Tips / Case / Cost: Place the sink on the longer leg near the stack; keep the cooktop adjacent but separated by a prep zone. Annotate gas valve blocks with ventilation gaps and access. If you’re retrofitting, expect a small premium for rerouting drains to the longer leg, but it pays back in fewer call-backs.

save pin

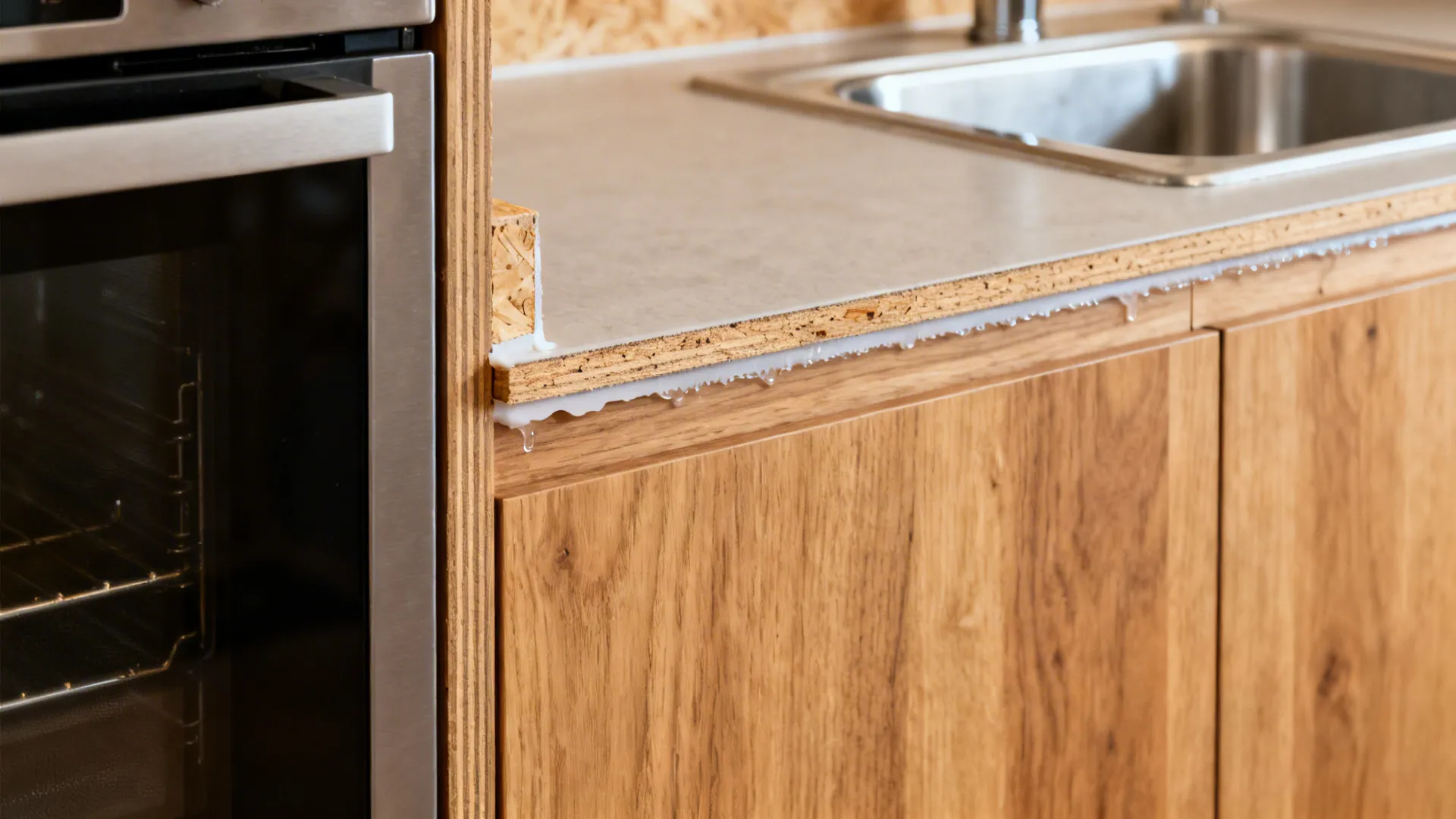

Warmth with wood, safeguarded by smart detailing

My Take: Clients love wood textures, but the civil drawing must protect them from moisture and heat. I standardize blocks for backsplash upstands, drip edges, and appliance clearances, then call out sealant specs in notes tied to the blocks.

Pros: “Wood-adjacent clearance blocks for ovens and dishwashers” keep veneer from peeling. Specifying “sink cutout blocks with waterproofing notes” anchors the detail to the service plan. According to BSI and many manufacturer guides, maintaining specified clearances and edge sealing prolongs finish life.

Cons: Wood moves—if you haven’t left expansion margins in your block definitions, panels will squeak or cup. Sealing schedules can be ignored onsite unless your drawing hammers them in. I once had a beautiful oak front warp slightly because a plumber ran a too-hot line hugging the panel.

Tips / Case / Cost: Use plywood or HPL for sink base carcasses and specify edge banding in the block’s attribute notes. Add a small section detail keyed from your sink block showing membrane and sealant type. If you plan to render your layout for clients, a simple 3D view helps them see the service clearances—here’s a reference that demonstrates how 3D planning clarifies service conflicts before you order cabinets.

save pin

Block libraries that installers actually trust

My Take: The most useful feedback I’ve had from contractors is that consistent, readable block libraries matter more than photorealism. I create scaled blocks with attributes: manufacturer, model, connection height, and required clearances. Then I lock layers for services so no one “nudges” a valve block during late-night edits.

Pros: Using “attribute-rich kitchen AutoCAD blocks for plumbing and electrical” reduces RFIs and change orders. Clear layer naming (PLM_SUPPLY, PLM_DRAIN, GAS, ELEC_PWR, ELEC_LIGHT) accelerates on-site interpretation. The U.S. National Institute of Building Sciences and NCS encourage standardized layer conventions for better coordination.

Cons: Building a block library takes time—you’ll curse the first Saturday you spend drafting six different traps. Also, if you don’t audit scales and units (mm vs inch), legends and schedules go haywire. I’ve had a rogue imperial block sneak into a metric sheet; the electrician called me a poet, not a planner.

Tips / Case / Cost: Start with 15–20 high-use blocks: single bowl sink, double bowl sink, faucet, trap, shutoff valve, dishwasher, cooktop, oven, hood, fridge (counter depth and full depth), 20A outlet, GFCI outlet, switch, ceiling light, under-cab LED strip. Add dynamic blocks for adjustable heights. Maintain a “CHANGELOG” on the cover sheet so installers see updates.

save pin

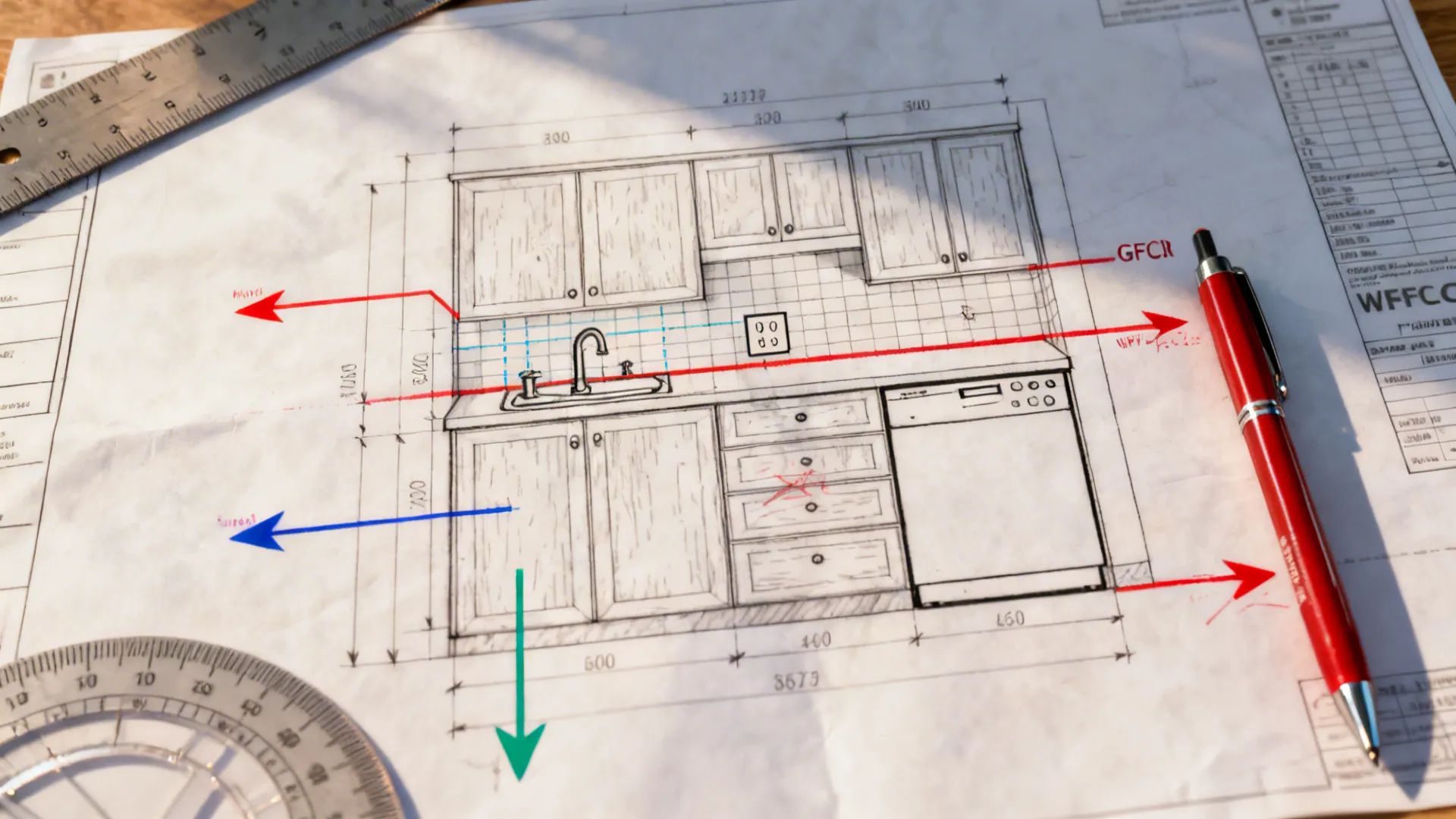

How to annotate for fewer surprises

My Take: The art isn’t only in symbols—it’s in notes. I pair each block with concise annotation: centerline dimensions, mounting heights, and access clearances. On a recent studio project, a simple callout “DW drain high loop: 750 mm AFF” prevented a smelly backflow issue.

Pros: “Clear annotation blocks with mounting heights and centerlines” slash onsite queries. Callouts like “sink drain CL at 520 mm AFF” and “GFCI outlet at 1150 mm AFF” get copied faithfully. According to manufacturer install manuals (e.g., Bosch, IKEA METOD), height and clearance adherence directly affects warranty validity.

Cons: Too many notes can clutter drawings and hide critical dimensions. If you reuse old annotation styles without checking text height and plot scale, installers will squint—and guess. Been there, printed that, apologized for it.

Tips / Case / Cost: Use a hierarchy: dimensions in one layer, critical notes in another, general notes in a third. Keep text height at a legible plotted size (typically 2.5–3 mm at 1:50). Place a small key plan showing service zones. About eighty percent into your planning, sanity-check outlet-to-appliance alignment; this case shows how visual AI iterations resolve outlet conflicts with appliances before finalizing the block set.

save pin

Practical workflow for civil drawing of kitchen in AutoCAD blocks

Step 1: Site data capture. Measure rough openings, wall plumbness, floor levels, and stack positions. Photograph valves and meters. Confirm supply pressures and electrical capacity with a licensed pro.

Step 2: Base plan and layers. Draft walls and datum lines. Set up standardized layers for plumbing, electrical, gas, cabinetry, dimensions, and notes. Lock Xrefs to avoid accidental edits.

Step 3: Insert scaled blocks. Use metric or imperial consistently. Start with sink, appliance, and outlet blocks. Add attribute data for heights, diameters, and clearances. Align to a 100-mm or 4-inch grid for predictability.

Step 4: Dimension and annotate. Provide centerlines from fixed datums: edges, walls, or cabinet grids. Call out mounting heights (AFF), pipe diameters, breaker ratings, and access panels. Keep abbreviations consistent and include a legend.

Step 5: Clash check. Section through hotspots (sink base, oven stack, fridge niche). Look for overlaps between drains and drawers, or hood ducts and beams. Update blocks with constraints if needed.

Step 6: Print test and review. Plot a test at final scale and check legibility. Ask your contractor to redline. Adjust text, lineweights, and hatches for field readability.

Step 7: As-built feedback loop. After install, photograph and measure. Update your block library with real heights and clearances observed onsite—future you will thank present you.

save pin

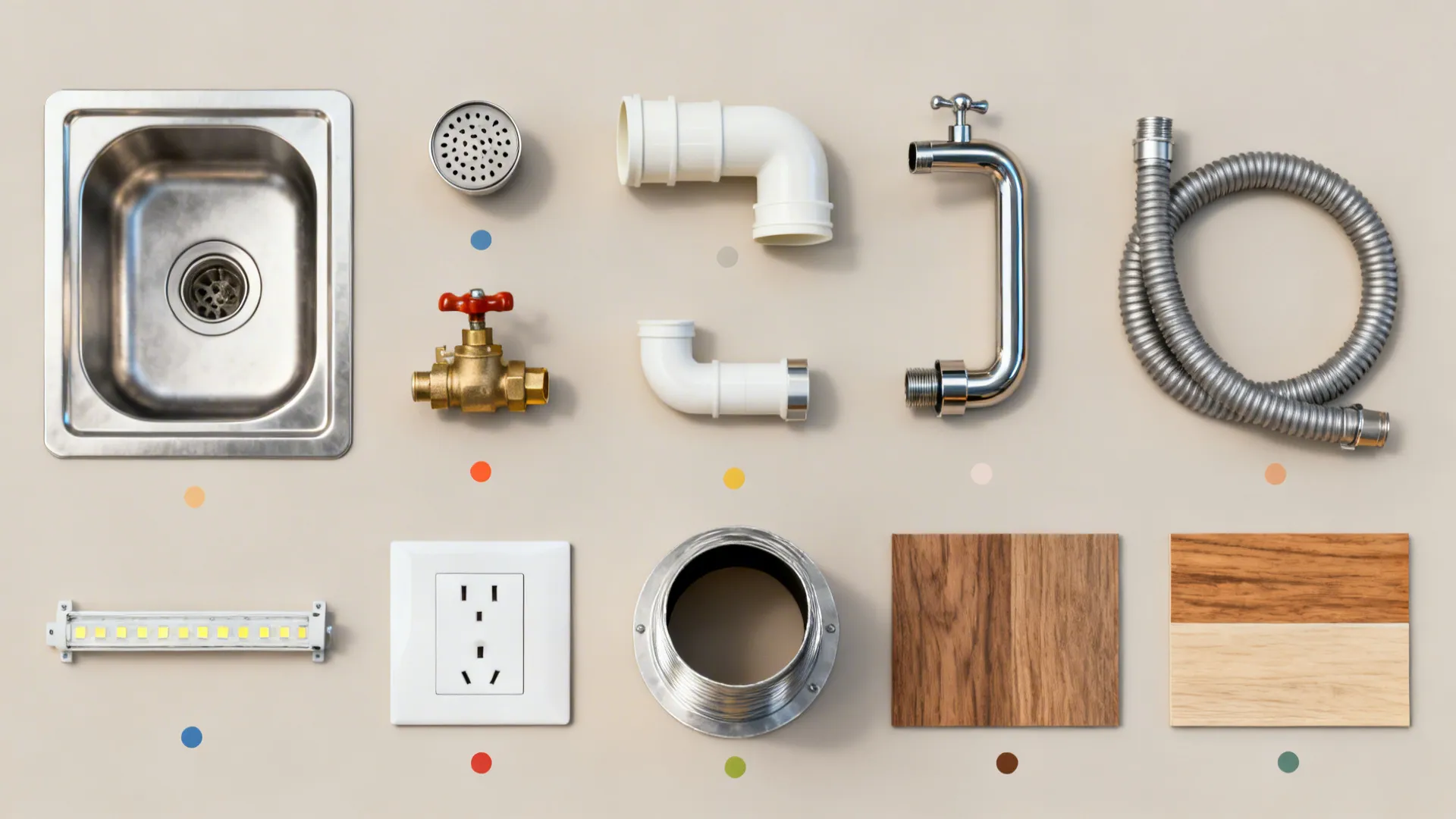

Material and fixture quick references

- Sinks: Confirm trap centerline and wall thickness. Note if wall-hung or base-cab supported.

- Faucets: Call out hole count and spacing; include shutoff valve access.

- Dishwashers: Reserve drain high loop and GFCI location; avoid corner installs with tight traps.

- Cooktops & ovens: Follow ventilation and clearance blocks; specify gas shutoff and flex-hose access.

- Hoods: Keep duct diameters and transition blocks consistent; avoid over-compressing flex duct.

- Refrigerators: Annotate water line blocks for ice makers; leave coil ventilation space as per manufacturer.

- Lighting: Plan task and ambient layers; coordinate under-cab LED power with junction box blocks.

- Finishes: For wood or laminate near wet zones, specify sealants and drip edges tied to sink block notes.

save pin

Layer naming and CAD hygiene

- Use clear, short names: A-CAB, P-SUP, P-DRA, E-PWR, E-LGT, G-GAS, D-DIM, N-NOTE.

- Keep block origins logical: centerline of drain, face of wall for outlets, valve handle center for gas.

- Dynamic blocks: Add stretch and flip parameters for left/right valves and reversible appliances.

- Legends: Include block thumbnails and abbreviations on every sheet set.

- Units: Lock your template to mm or inches and audit external blocks upon insertion.

save pin

Cost and time considerations

- Library build: 8–12 hours for a basic set; 25–40 hours for a robust, attribute-rich library.

- Coordination: Expect 1–2 review cycles with trades; factor in one site visit for verification.

- Materials: Glass splashbacks and upgraded valves cost more upfront but reduce maintenance.

- Contingency: Keep 5–10% labor buffer for unforeseen reroutes, especially in older buildings.

save pin

References

- National Kitchen & Bath Association (NKBA) Kitchen Planning Guidelines with Access Standards.

- National CAD Standard (NCS) / AIA Layer Guidelines for consistent layering.

- Manufacturer Install Manuals (Bosch, Whirlpool, IKEA METOD) for appliance-specific heights and clearances.

save pin

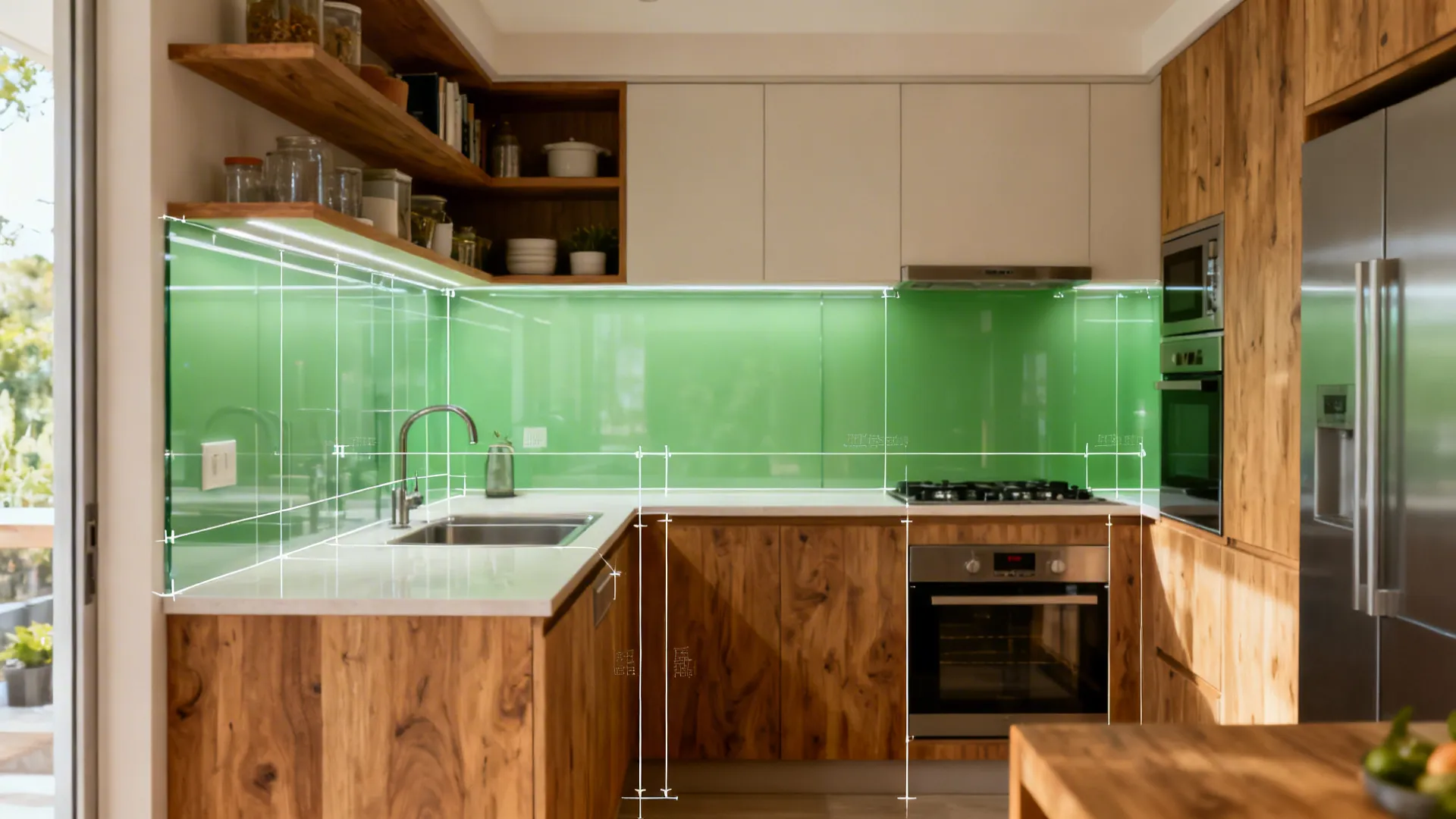

Summary

Small kitchens aren’t limits—they’re invitations to smarter civil drawing of kitchen in AutoCAD blocks. Tight, attribute-rich blocks, clear layers, and legible annotations reduce clashes and protect your finishes. Industry guidelines like NKBA and NCS back this up: when dimensions and clearances are respected, installs go smoother, warranties stay valid, and your space feels bigger than it measures. Which of these five design inspirations are you most excited to try in your next kitchen?

save pin

FAQ

1) What are the must-have AutoCAD blocks for a small kitchen?

Include sink and trap, shutoff valves, dishwasher drain/high loop, cooktop and oven with clearance, hood duct, fridge with water line, GFCI outlets, task lighting, and access panels. Attribute each with heights and clearances to simplify coordination.

2) How do I avoid clashes between plumbing and drawers?

Use section views through sink bases and apply “drain centerline blocks” tied to cabinet grids. Keep the trap centerline above drawer rails or specify false backs. Dynamic blocks with set offsets prevent guesswork onsite.

3) What’s the recommended height for outlets along a backsplash?

Common practice is 1000–1150 mm AFF for countertop outlets in many regions; verify local codes. Follow manufacturer and code guidance for GFCI/RCD-protected circuits near sinks.

4) Are there standards for layer naming in civil drawings?

Yes. The U.S. National CAD Standard (NCS) and AIA guidelines provide structured layer conventions. Adopting a consistent scheme (e.g., P-SUP, P-DRA, E-PWR, G-GAS) improves coordination across teams.

5) How can I coordinate a glass backsplash with outlets?

Dimension outlet centerlines and drilling diameters in the CAD file and share a shop drawing with the glazier. Use back-painted tempered glass to hide conduits and reduce the risk of visible shadows.

6) What clearances should I note for wood near heat and moisture?

Call out oven and dishwasher clearances per manufacturer manuals and add sealing notes tied to your sink cutout blocks. Regularly annotate expansion gaps to accommodate seasonal movement.

7) Do L-shaped kitchens improve service routing?

Often, yes. Keeping sink, dishwasher, and cooktop along one leg reduces crossovers, while the other leg becomes a clean prep zone. This layout supports longer continuous countertops and clearer conduit runs.

8) Where can I visualize a small-kitchen layout before drafting details?

Start with a quick space plan and iterate the service points. If you need a visual reference, exploring examples that demonstrate how L-shaped layouts free more counter space can help you anticipate outlet and valve placement before final CAD detailing.
