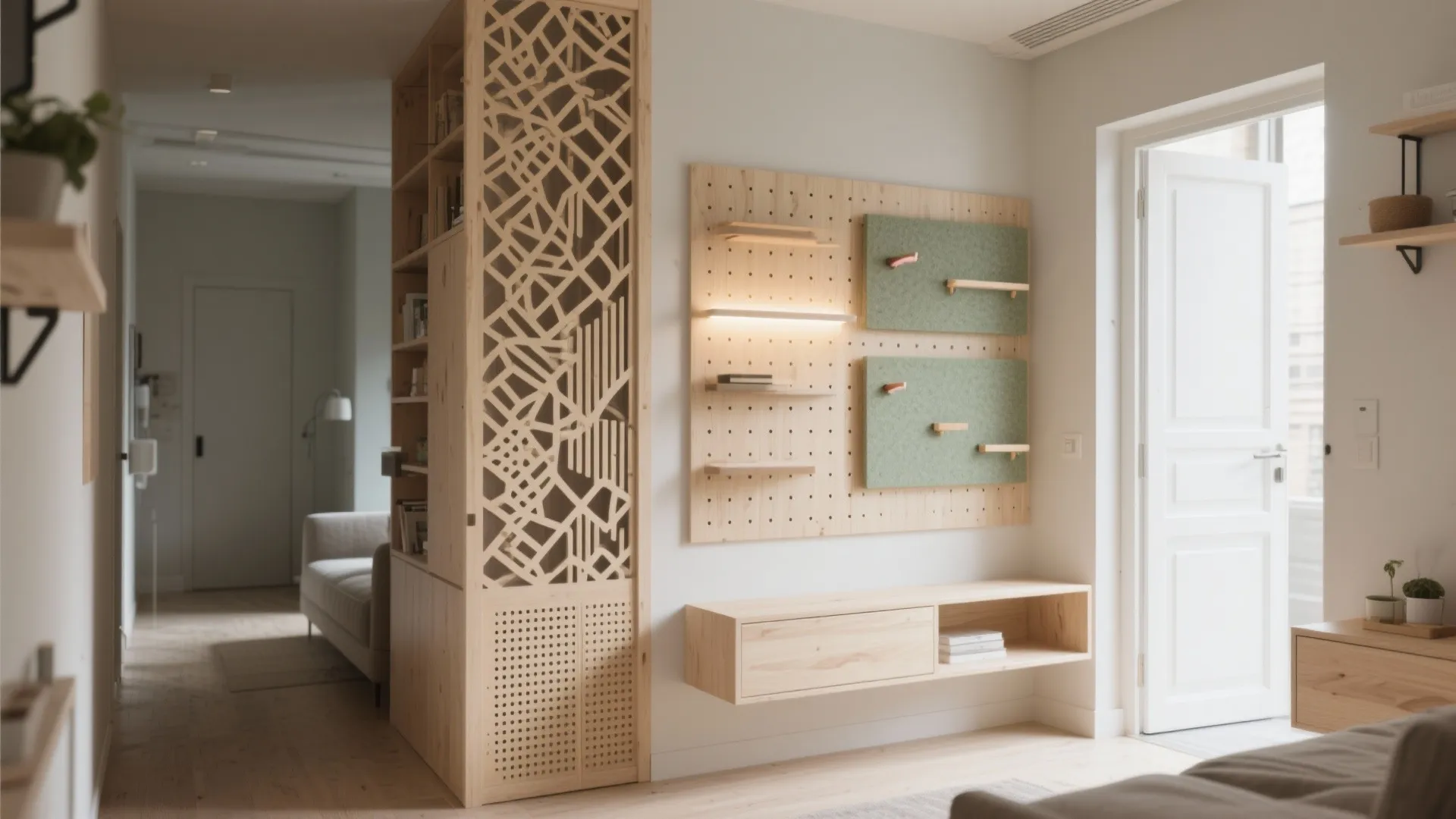

5 CNC Cutting Wall Design Ideas for Small Spaces: Pro-backed inspiration, real trade-offs, and buildable tips to make CNC wall panels work hard in compact homes

[Section: Introduction]

I’ve spent the last decade helping clients rethink tight homes, and one trend I keep returning to is cnc cutting wall design. When space is scarce, a well-cut panel can be art, storage, lighting, and airflow all in one. In my last 28 m² studio redesign, a lightweight geometric room divider opened sightlines without closing off the entry—proof that small spaces spark big creativity.

In this guide, I’ll share 5 cnc cutting wall design ideas I actually use on projects. I’ll walk you through my take, honest pros and cons, and quick build notes—plus a few data points from standards bodies and labs to back up choices. By the end, you’ll have a practical playbook to make walls work smarter, not bigger.

[Section: Idea List]

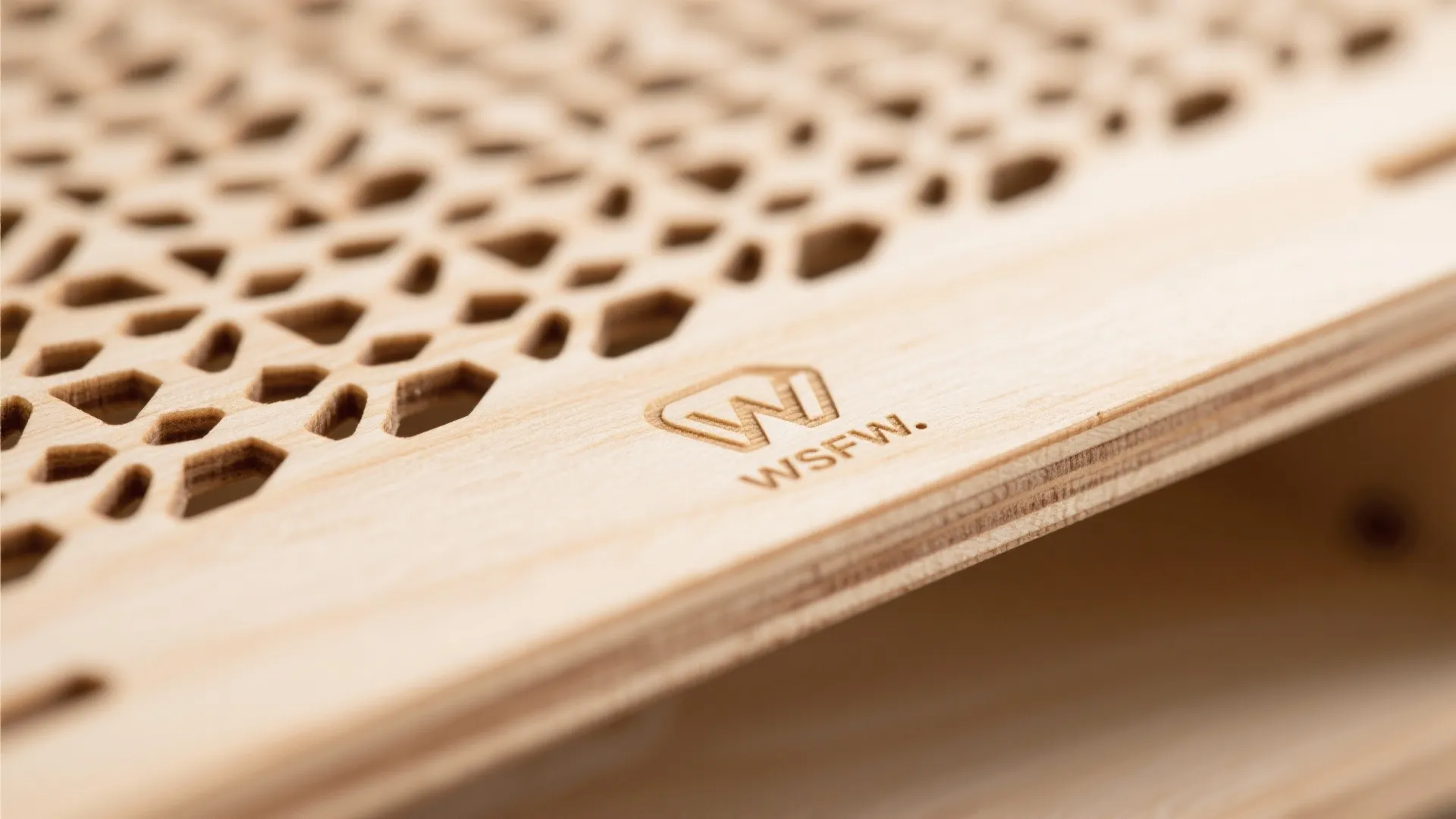

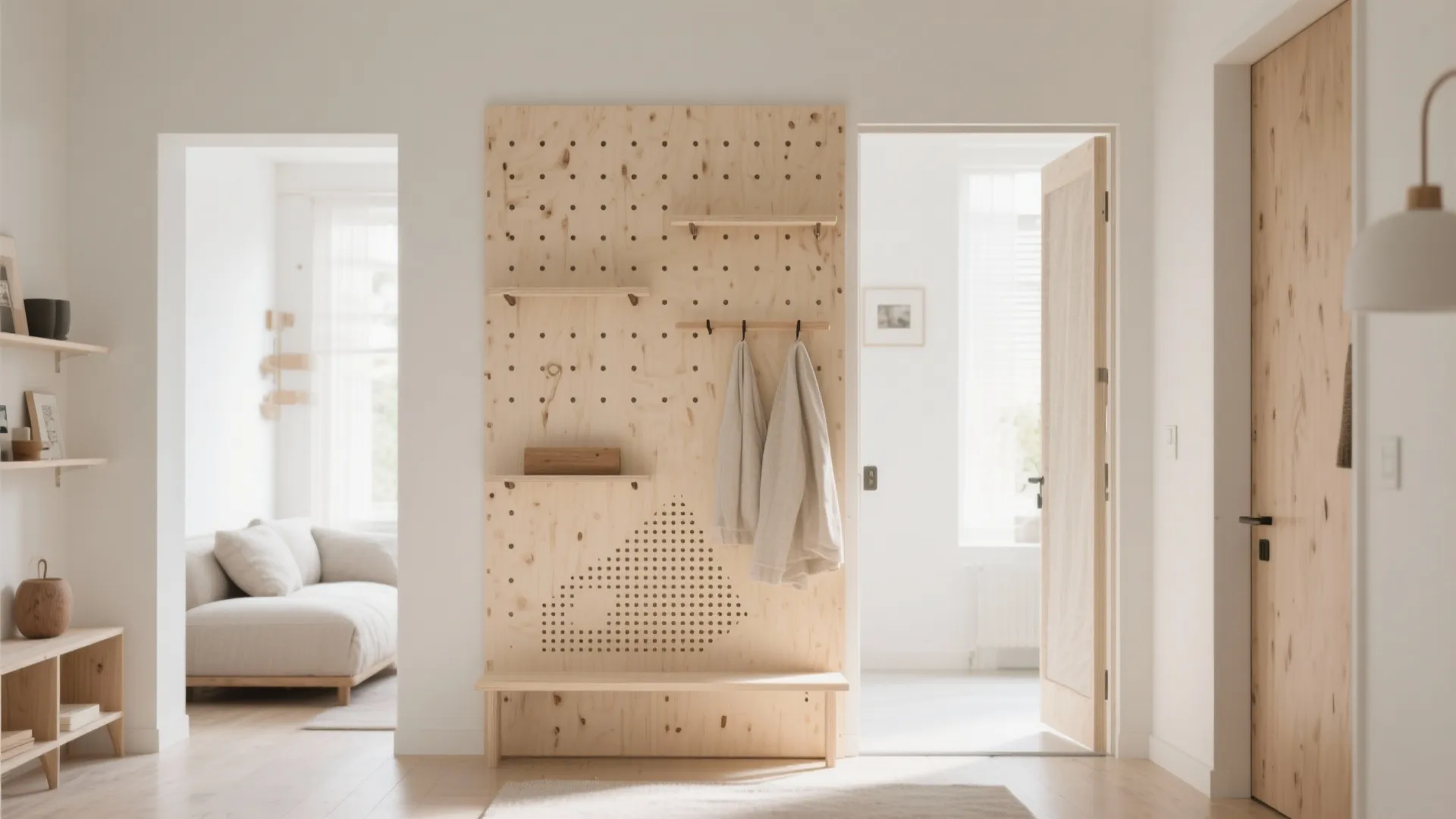

Perforated Minimalist Panels for Light and Air

My Take

Perforated MDF, birch ply, or powder-coated steel can turn a flat wall into a breathable, lightweight feature. I lean on geometric hole patterns to bring daylight deep into the plan while sneaking in hooks and shelves. In rentals, I often mount them on cleats, so we can reconfigure without tearing up the wall.

Pros

Great for cross-ventilation and daylighting; you can dial in openness by adjusting hole size or density. As a small-apartment move, a perforated cnc wall panel design doubles as a flexible peg system for entry gear. The look plays nicely with Scandinavian, Japandi, and minimalist interiors, and the material list is wallet-friendly.

Cons

Perforations reveal clutter quickly; you’ll need tidy habits or a backing fabric. MDF edges can fuzz after CNC routing; expect extra sanding and a durable seal coat. If sound privacy is key, open patterns won’t help—neighbors can overhear phone calls through a perforated screen.

Tips / Case / Cost

For durable rental-friendly panels, I spec 12–18 mm birch ply with a matte waterborne polyurethane. If you need partial privacy, place a removable acoustic felt or linen behind the pattern. Budget: $25–$60 per sq ft for MDF or plywood, $50–$120 per sq ft for powder-coated aluminum depending on finish.

save pin

save pin

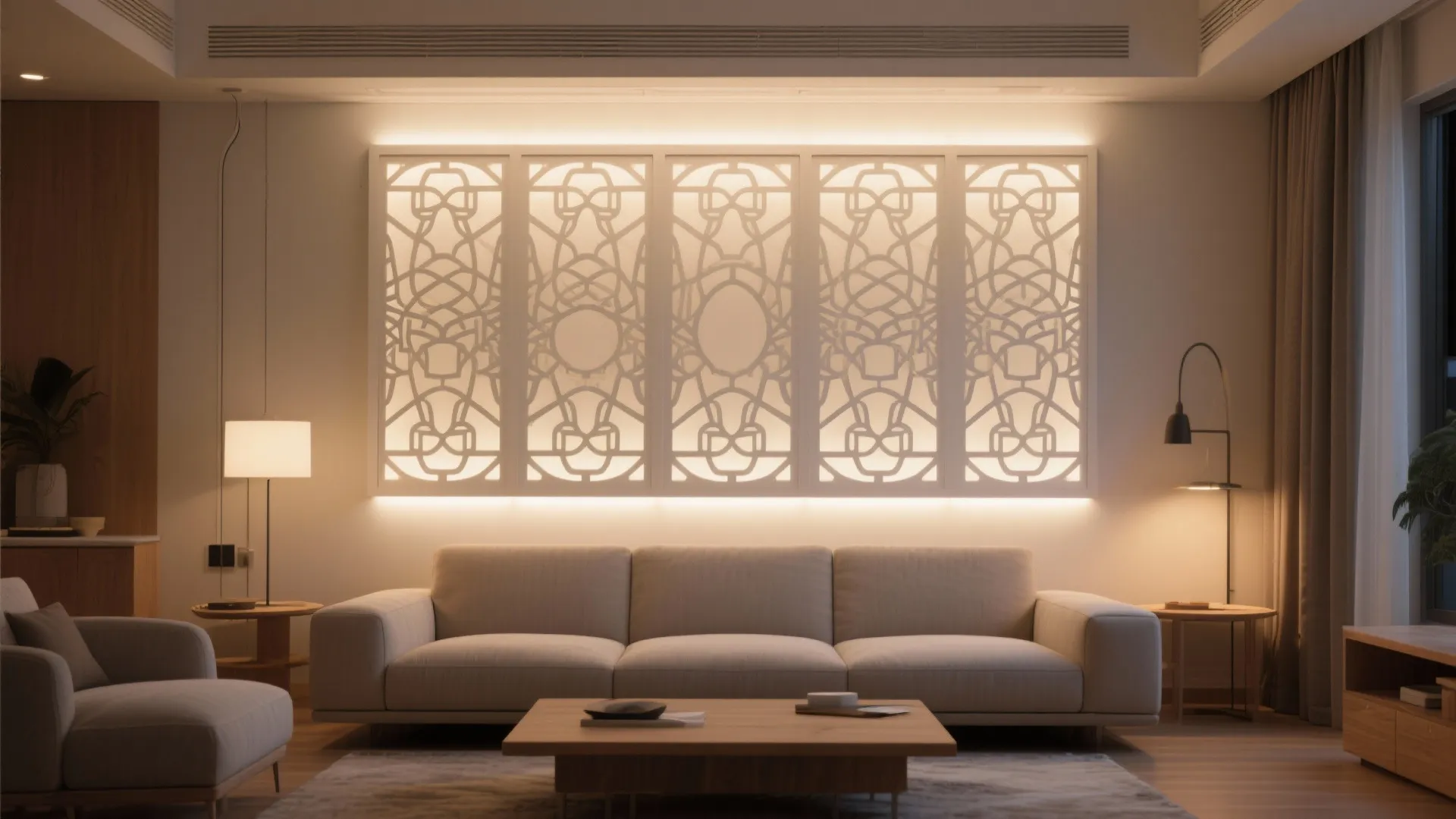

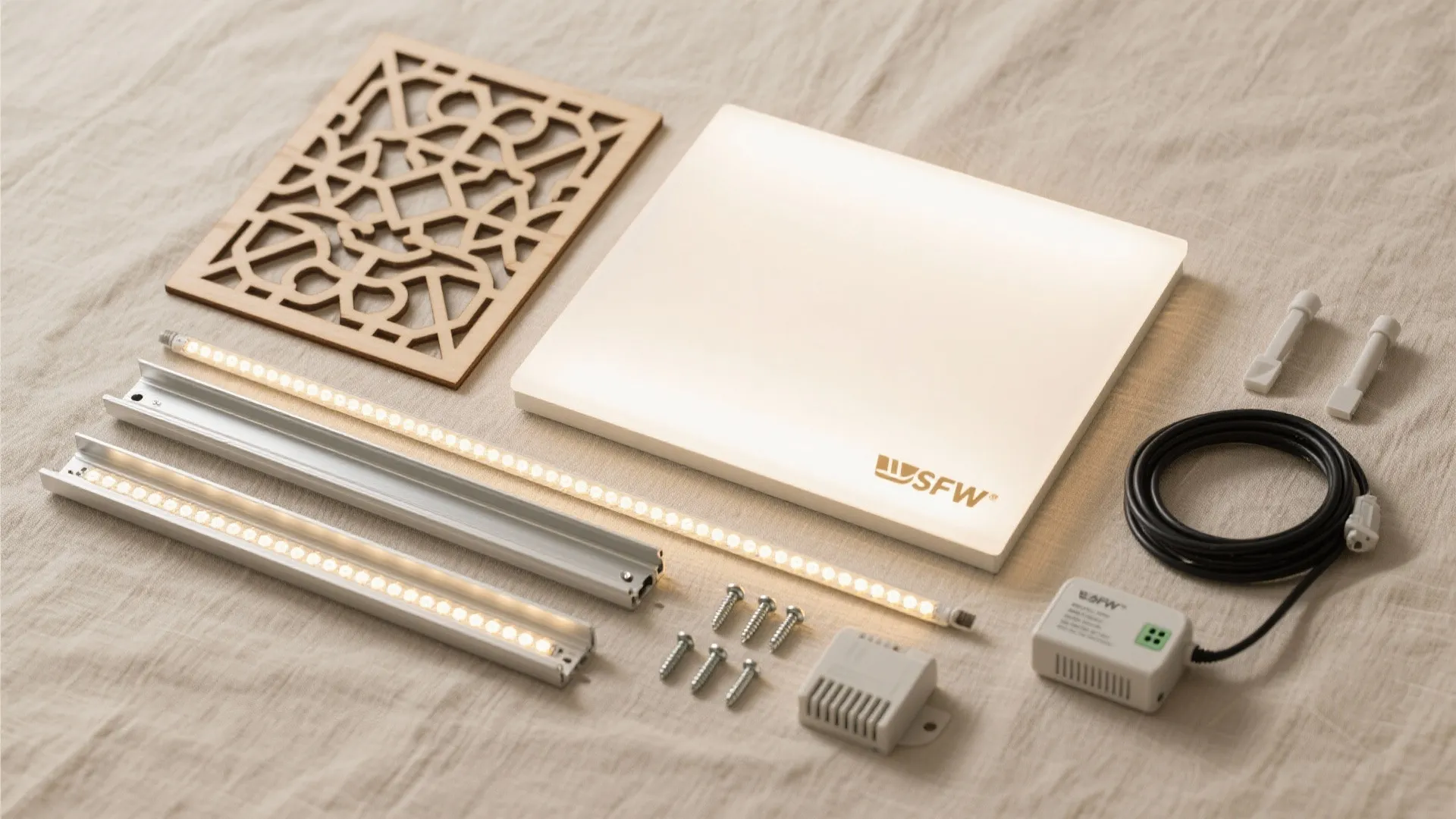

Backlit Fretwork as a Soft Glow Feature

My Take

When clients want a “wow” moment without bulky fixtures, I design a cnc cut feature wall with fretwork and backlighting. The trick is to balance pattern density with a soft LED halo, so it reads calm rather than nightclub. I usually place this behind a sofa or bed to add depth and evening ambience.

Pros

Backlit cnc panel designs can replace multiple lamps and free floor space—ideal for compact living rooms. Edge-lit LEDs behind a thin opal acrylic diffuser give even illumination with low energy use. The look also hides cable clutter and can conceal minor wall imperfections.

Cons

Overly intricate patterns can create harsh hotspots; diffuser spacing and LED density matter. If you use MDF, heat management and ventilation are necessary to avoid long-term warping. You’ll also need a clean cable route and an accessible driver, which can be tricky in masonry walls.

Tips / Case / Cost

Target 150–300 lux ambient in living areas per IES recommendations; think 4–6 W/ft of high-efficiency LED strips with 90+ CRI for accurate colors. Use aluminum channels as heat sinks and keep a 20–30 mm air gap between LEDs and diffuser. Budget: $45–$100 per sq ft inclusive of LEDs, diffuser, and routing; add 10–15% for dimmer and smart control.

save pin

save pin

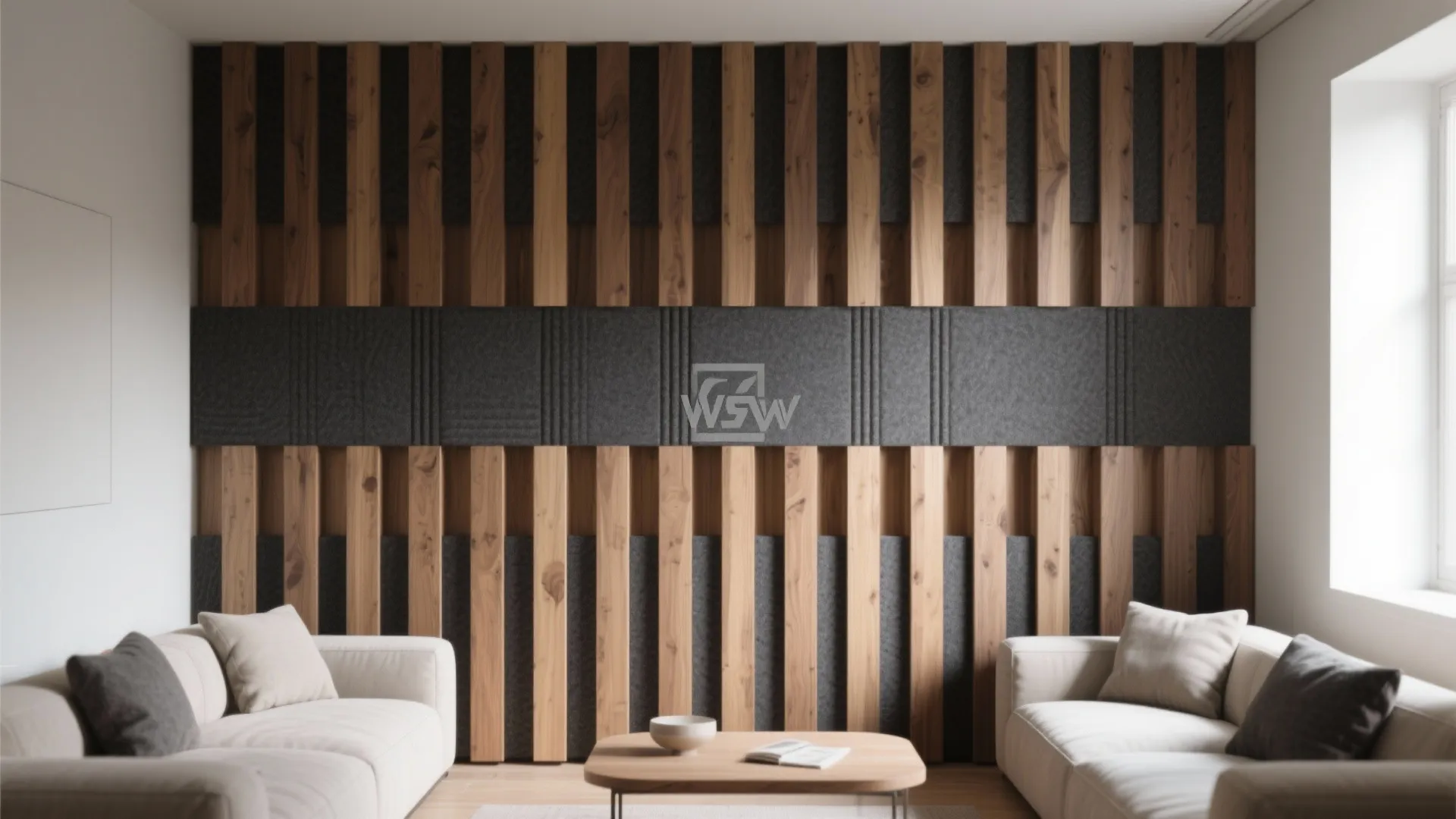

Modular Acoustic Slat and Felt Hybrid

My Take

For echoey concrete shells, I pair CNC-milled wood slats with acoustic felt backers. It’s a two-for-one: sculptural rhythm plus real sound absorption. In tiny homes, better acoustics make the space feel bigger because speech is clearer and fatigue drops.

Pros

Per ASTM C423 measurements, slat-and-felt systems with a 25–50 mm air cavity can achieve NRC in the 0.65–0.90 range, depending on spacing and thickness. That means a cnc wall panel design isn’t just pretty; it tames flutter echo and TV harshness. The modular nature lets you replace a damaged slat without tearing down the whole feature.

Cons

Wood slats need finishing maintenance in kitchens or near windows; UV and grease are not their friends. If you push deep ribs for drama, the panel can eat into valuable inches—measure twice in small hallways. Also, cheaper PET felts vary in density; inconsistent absorption can lead to uneven results.

Tips / Case / Cost

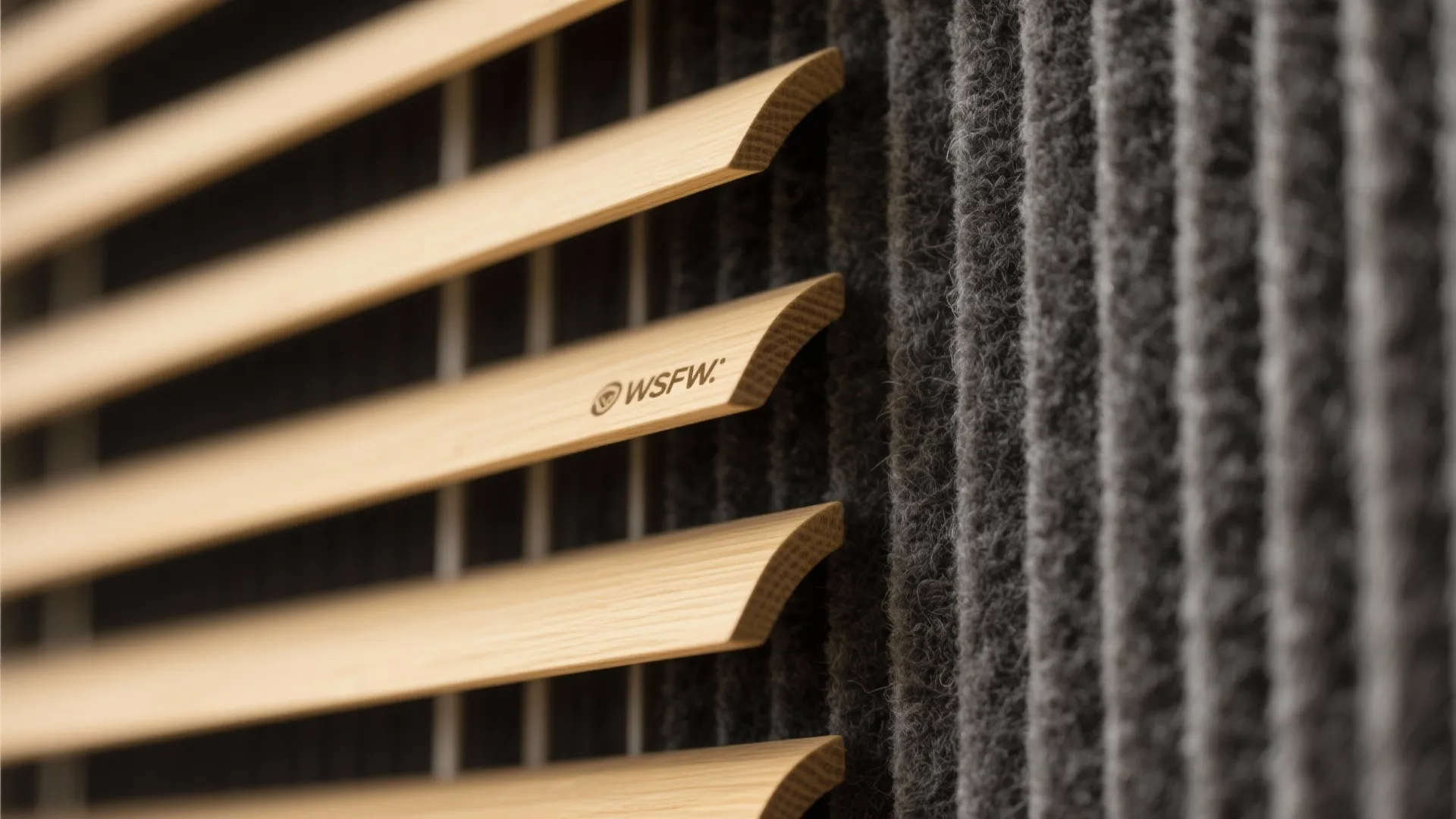

For balanced performance, I like 18–21 mm slats at 20–30 mm spacing over 9–12 mm felt, with a 25 mm cavity. Stain slats before assembly to avoid visible raw edges in reveals. Budget: $35–$80 per sq ft for wood-and-felt modules; premium hardwoods run higher. See how a photoreal workflow helps evaluate light and shadow on an acoustic slat wall with CNC grooves before you commit to the final spacing.

save pin

save pin

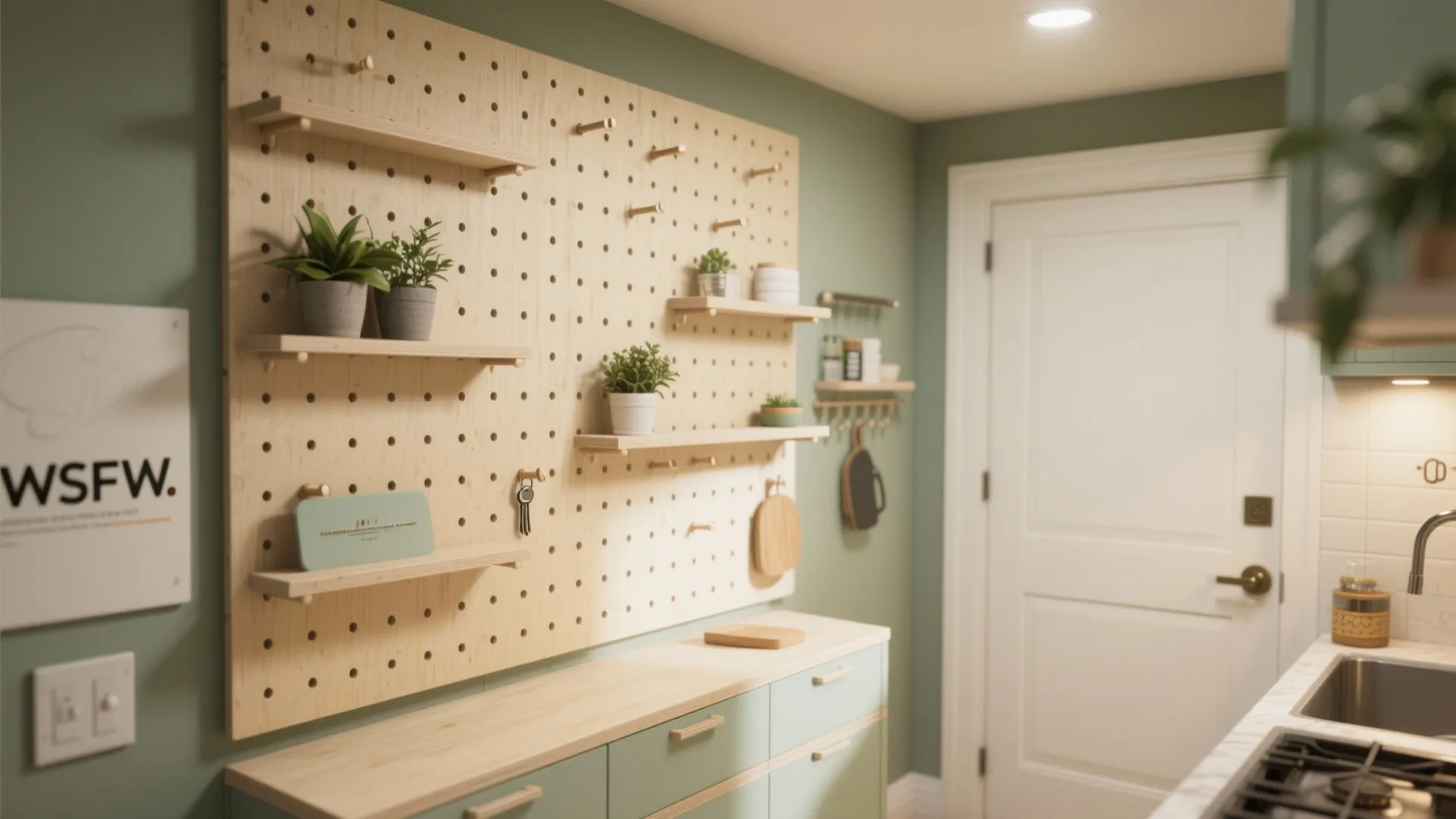

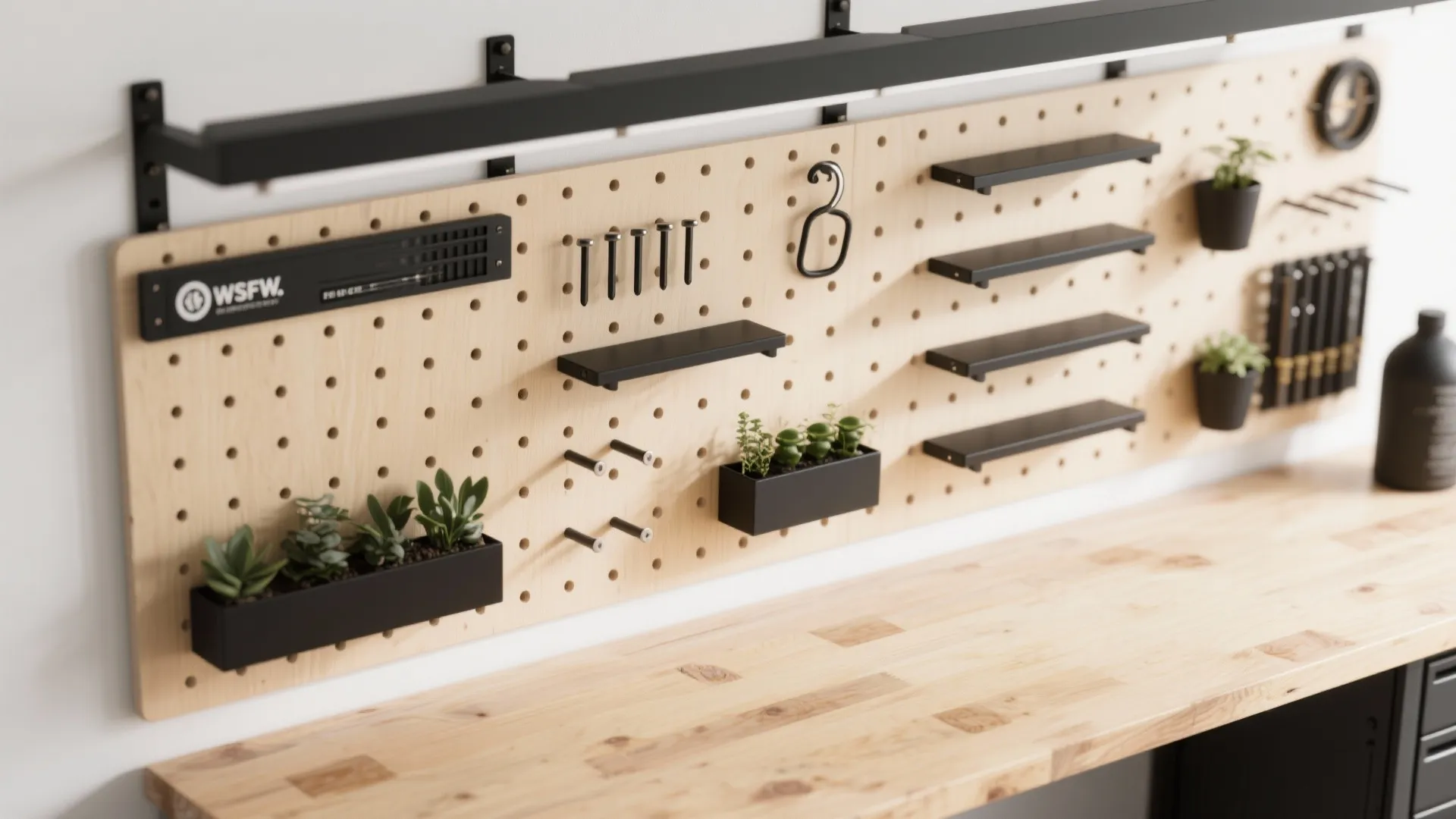

Oversized CNC Pegboard Wall for Flexible Storage

My Take

Think of this as pegboard, leveled up. I route 20–32 mm panels with a grid of custom slots so we can drop in shelves, planters, and hooks. It’s perfect for micro kitchens, entries, or craft nooks—one wall morphs with the seasons.

Pros

A custom cnc cut feature wall can carry slimline shelves right where you need them—keys near the door, spices near the hob, helmets above the bench. In rentals, you can swap accessories without repainting or drilling new holes. Add a tone-on-tone finish and it reads like millwork, not garage storage.

Cons

Load capacity lives and dies by anchors and stud engagement; drywall alone won’t cut it. Deep shelves risk bumping circulation in narrow corridors; keep depth under 150 mm in tight spots. Dust collects in slots; a quick weekly wipe is part of the deal.

Tips / Case / Cost

Use a French cleat or continuous plywood ledger locked into studs, then hang the panel as a skin. I size shelf pegs 12–16 mm with friction-fit sleeves to prevent wiggle. Budget: $18–$45 per sq ft for MDF/birch ply; add $5–$10 per accessory shelf/hook. If moisture is a concern (bath entries), upgrade to marine ply or a sealed high-pressure laminate face.

save pin

save pin

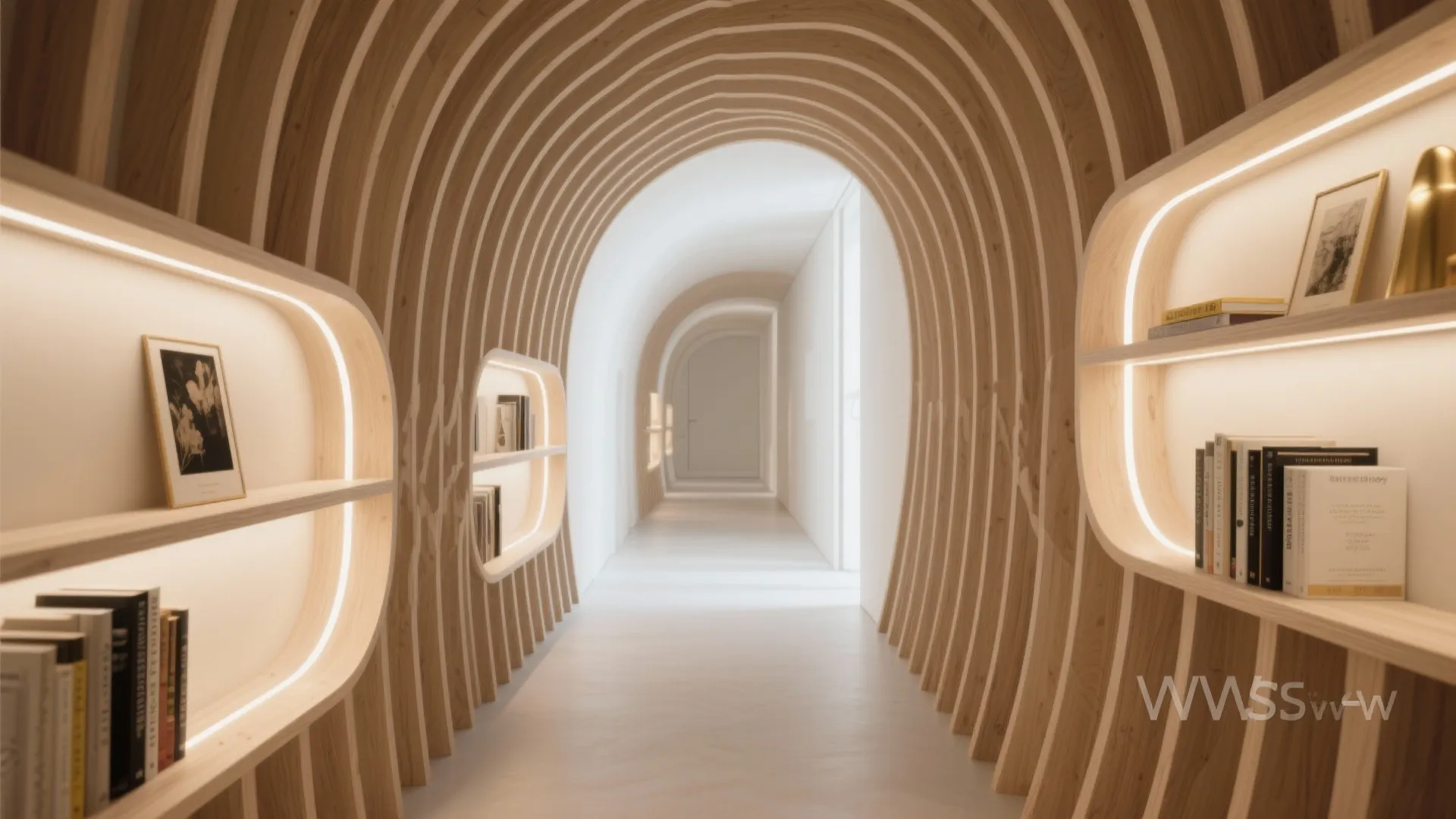

Curved Ribs with Integrated Niches

My Take

When a room needs softness and storage, I design a rib-and-skin wall: CNC-cut ribs define the curve, then kerf-bent skins wrap over, with niches carved between ribs. It’s a boutique-hotel vibe that hides tech and cable runs elegantly. In a 2.2 m wide hallway, a gentle 2000 mm radius turned a dead zone into a lit display of books and art.

Pros

The form factor increases perceived space—shadows and highlights make walls feel dynamic. Niches can be pre-wired for charging and LEDs, turning a cnc plywood slat wall into functional cabinetry. Carefully placed curves also improve flow, helping bags and elbows glide along without scuffs.

Cons

Curves are less forgiving; any mismatch in rib spacing telegraphs through the skin. Kerf-bending has a learning curve, and veneer face sheets can crack if pushed too tight. Expect more offcuts and longer install hours than a flat feature.

Tips / Case / Cost

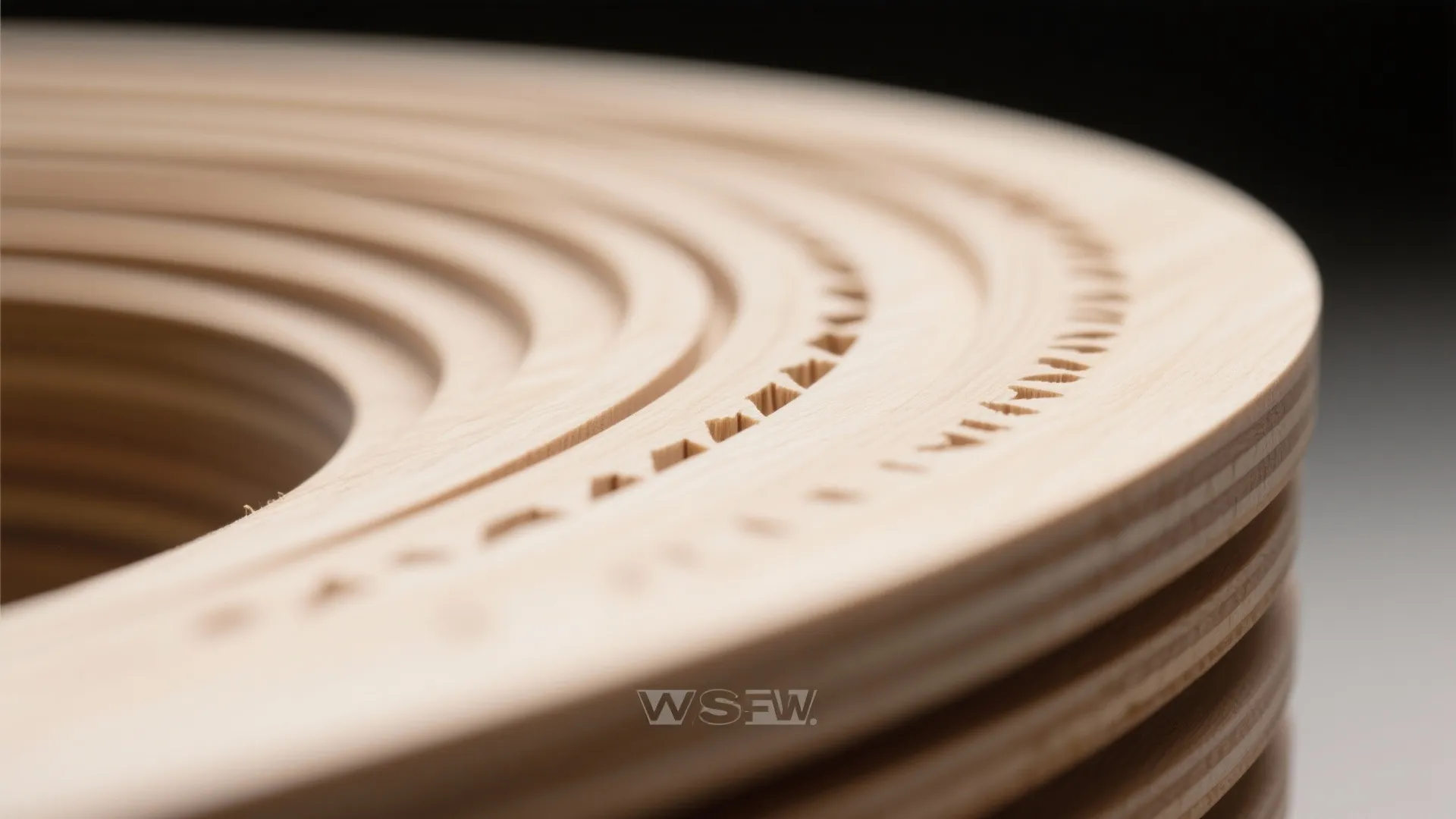

Space ribs at 200–300 mm centers and mock up the radius in cardboard first. Use 9–12 mm ply for skins with 4–6 mm kerfs at 10–12 mm spacing; backfill kerfs with flexible filler after bending. Budget: $60–$140 per sq ft depending on radius and number of lit niches. I often preview the rhythm with curved plywood ribs and kerf-bent skins to confirm proportions and sightlines before we cut.

[Section: Practical Specs, Safety, and Finishes]

Materials: For cost-effective builds, MDF routes cleanly but needs edge sealing; birch ply offers stronger screw hold and prettier end grain. In wet areas, consider HDPE or sealed aluminum composite. Aluminum or steel panels excel for perforated partitions and can go razor-thin without sagging.

Fire and Codes: For multi-family or commercial settings, check ASTM E84/UL 723 surface burning classifications and local codes for decorative panels. In kitchens, avoid backlighting materials that trap heat; aluminum LED channels help dissipate warmth. Always follow manufacturer guidance for clearances behind LEDs and drivers.

Acoustics: If you’re chasing quieter rooms, prioritize thickness, air cavities, and lateral seals. Slats over felt are great, but even a perforated panel with a 25 mm mineral wool backer can lift absorption at key speech frequencies (ASTM C423). Seal panel perimeters lightly to prevent flanking paths.

Indoor Air Quality: Low-VOC waterborne finishes and formaldehyde-compliant sheet goods (e.g., CARB Phase 2/TSCA Title VI) keep small homes healthier. Per the U.S. EPA, proper ventilation during finishing is essential to reduce pollutant build-up in tight interiors.

Hardware: Use threaded inserts in plywood for long-life shelf pins; they tolerate reconfiguration. For metal panels, specify hidden Z-clips for a clean float. In seismic areas, add anti-lift tabs or safety cables on large panels.

Tolerances: CNC accuracy is only as good as your measuring—site walls often aren’t square. I scan with a laser measurer and leave 5–8 mm scribe margins at edges, then finish with trim battens or shadow gaps.

[Section: Mini Case Stories]

- 26 m² Rental Entry: We mounted a 15 mm birch ply perforated wall with a linen backing to hide a breaker box. The tenant gained a landing spot for keys and mail, and the linen softened the geometric pattern.

- 32 m² Living Room: A backlit fretwork panel replaced two floor lamps, freeing circulation around a small sofa. We set a warm 2700 K tone to keep evenings cozy, dimming to 10% for movie nights.

- 18 m² Bedroom: Slat-and-felt behind the headboard tamed HVAC hiss. The client reported less “tinny” morning echo—exactly what we wanted.

[Section: Evidence Corner]- Lighting: The Illuminating Engineering Society (IES) recommends roughly 150–300 lux for living areas; backlit features can contribute significantly to that baseline when diffused well.

- Acoustics: ASTM C423 defines absorption testing; slat/felt panels with air gaps routinely measure NRC values above 0.65, depending on geometry and materials.

- Air Quality: The U.S. EPA advises adequate ventilation and low-emitting materials to reduce indoor pollutants in tight homes; waterborne finishes and certified sheet goods help.

[Section: Summary]

Small kitchens and living rooms aren’t limits—they’re invitations to design smarter. With cnc cutting wall design, a single surface can diffuse light, tune sound, and store daily essentials without crowding the floor. Backed by sensible specs and a bit of testing, these five ideas can make small homes feel refined and intentional. Which of these would you try first in your space?

[Section: FAQ]

save pin

save pin

FAQ

1) What is cnc cutting wall design, exactly?

It’s the use of computer-controlled routers or mills to carve patterns, grooves, and shapes into panels for walls or partitions. Think perforations, fretwork, slats, or rib structures that bring function and style in compact footprints.

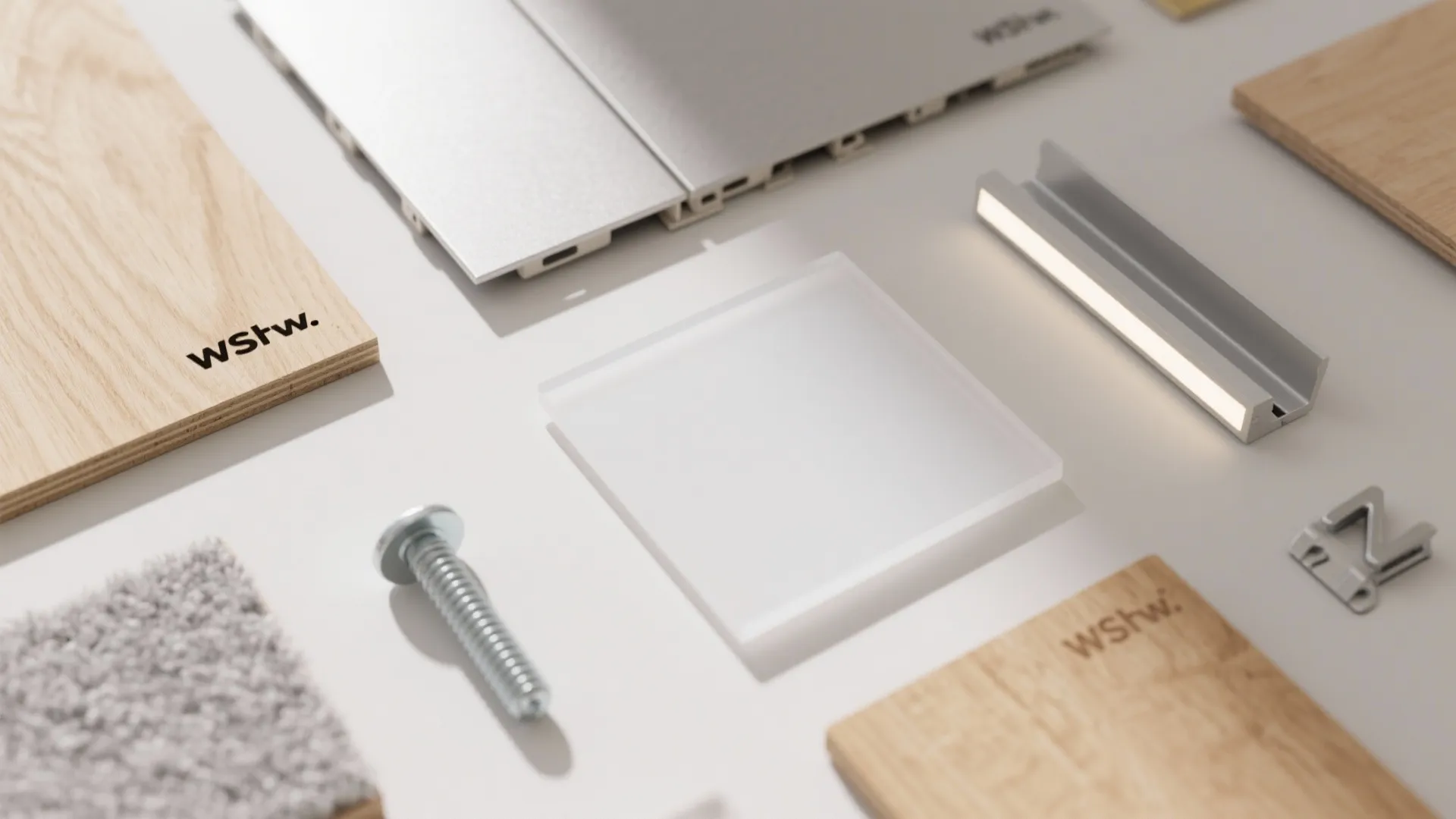

2) Which materials work best for a cnc cut feature wall in small apartments?

Birch plywood, MDF, PET acoustic felt, and aluminum are common. In damp areas, use marine ply or HDPE. For low-VOC goals, choose CARB Phase 2/TSCA Title VI-compliant sheet goods and waterborne finishes.

3) Will a backlit cnc panel provide enough light for living areas?

Yes, if designed well. As a rule of thumb, 150–300 lux is suitable for living rooms (IES guidance), and diffuse LED backlighting can contribute a significant portion when spaced correctly and paired with a proper diffuser.

4) How do I improve acoustics with cnc wall panel design?

Combine slats or perforations with absorptive backers and an air cavity. Per ASTM C423 test data, such assemblies can reach NRC around 0.65–0.90 depending on geometry and material density.

5) Is it safe to use MDF for backlit fretwork?

It can be, with good heat management. Use aluminum LED channels as heat sinks, maintain airflow behind the panel, and follow driver/strip manufacturer guidelines. In code-sensitive areas, verify ASTM E84/UL 723 classifications and local requirements.

6) How much does a cnc cutting wall design usually cost?

Perforated MDF or ply features often land at $18–$60 per sq ft. Backlit fretwork and curved rib builds can climb to $60–$140 per sq ft based on finish, lighting, and complexity.

7) Can cnc wall panels handle load for shelves and hooks?

Yes, if you mount to studs or a robust plywood substrate. For peg-style shelves, size pins appropriately and use threaded inserts in plywood for durability. Avoid relying on drywall anchors alone for heavy loads.

8) Any authoritative resources I should check before building?

Review IES lighting recommendations for target lux levels, ASTM C423 for acoustic performance context, and ASTM E84/UL 723 for surface burning characteristics. The U.S. EPA also provides guidance on ventilation and low-emitting materials for healthy interiors.
