5 Commercial Kitchen Exhaust Design Ideas: Small spaces, big creativity: my 5 expert-backed ideas for commercial kitchen exhaust design

[Section: Meta Information] Meta Title: 5 Commercial Kitchen Exhaust Design Ideas Meta Description: Explore 5 expert-backed commercial kitchen exhaust design ideas for small spaces. Practical tips, pros and cons, and real-world insights to improve airflow and safety. Meta Keywords: commercial kitchen exhaust design, kitchen ventilation for small spaces, ductwork optimization, grease management, make-up air strategies, hood capture efficiency, airflow balancing, NFPA 96 compliance [Section: Introduction] As a senior interior designer who’s led multiple compact kitchen retrofits, I’ve seen how commercial kitchen exhaust design can make or break a space. Trends today favor smarter airflow, quieter systems, and cleaner grease management—perfect for small kitchens that demand efficiency. Small spaces spark big creativity, and in this guide I’ll share 5 design inspirations, blending my hands-on experience with expert data so you can plan with confidence. In my own projects, getting the exhaust right often means the difference between a calm line and frustration at peak service. We’ll talk capture efficiency, make-up air, ductwork, filtration, and controls—built specifically for tight footprints. [Section: Inspiration List]

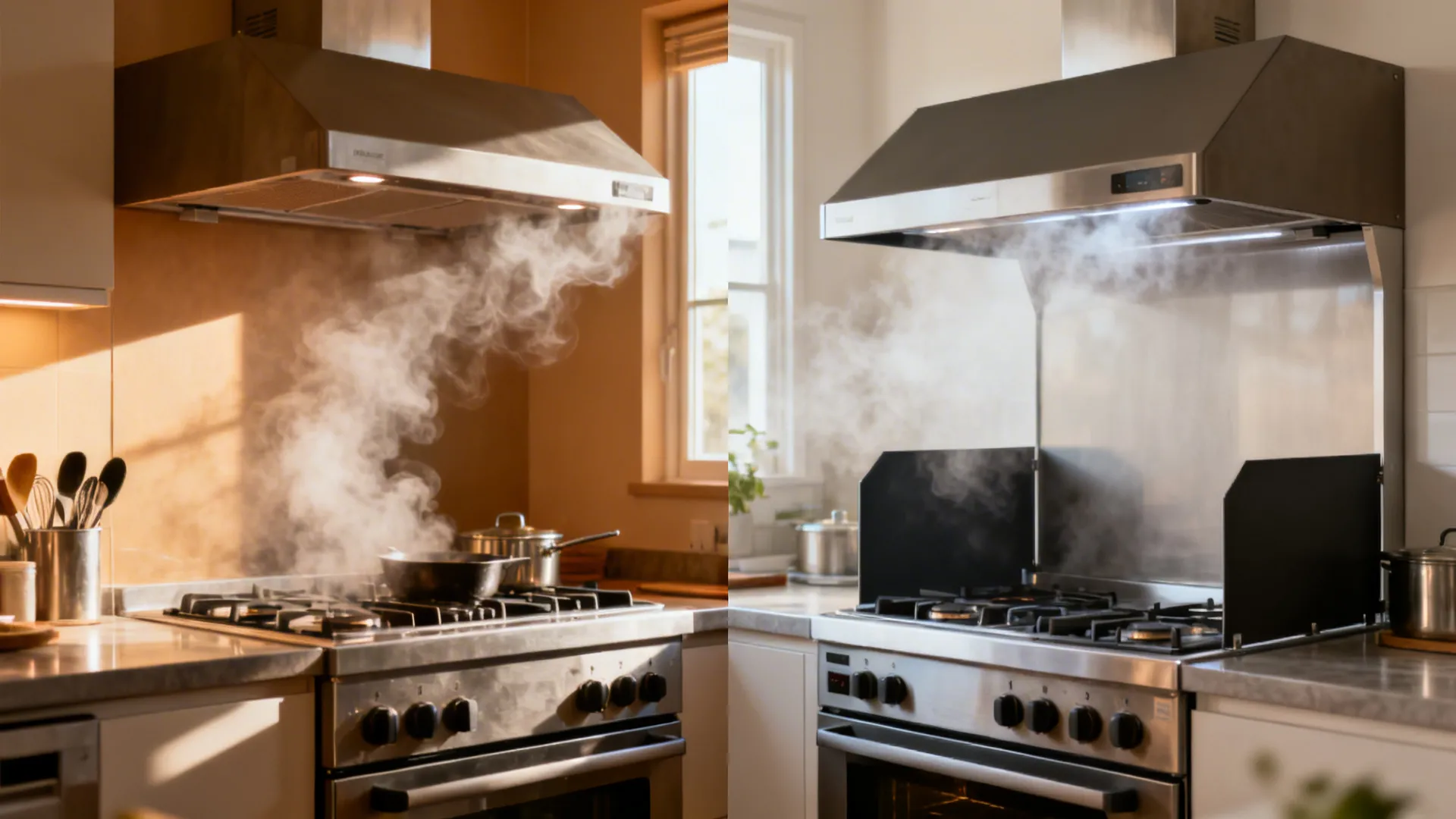

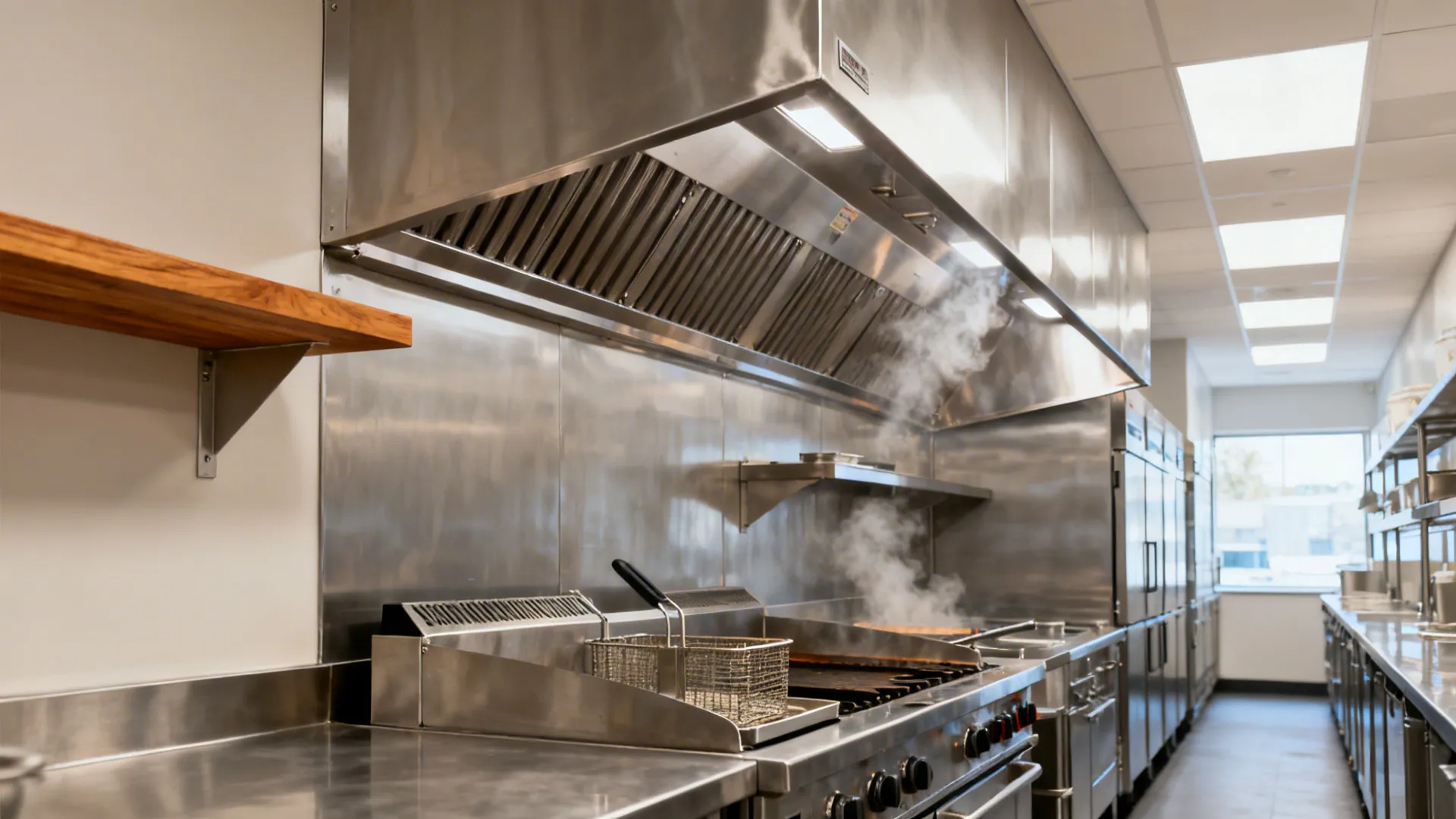

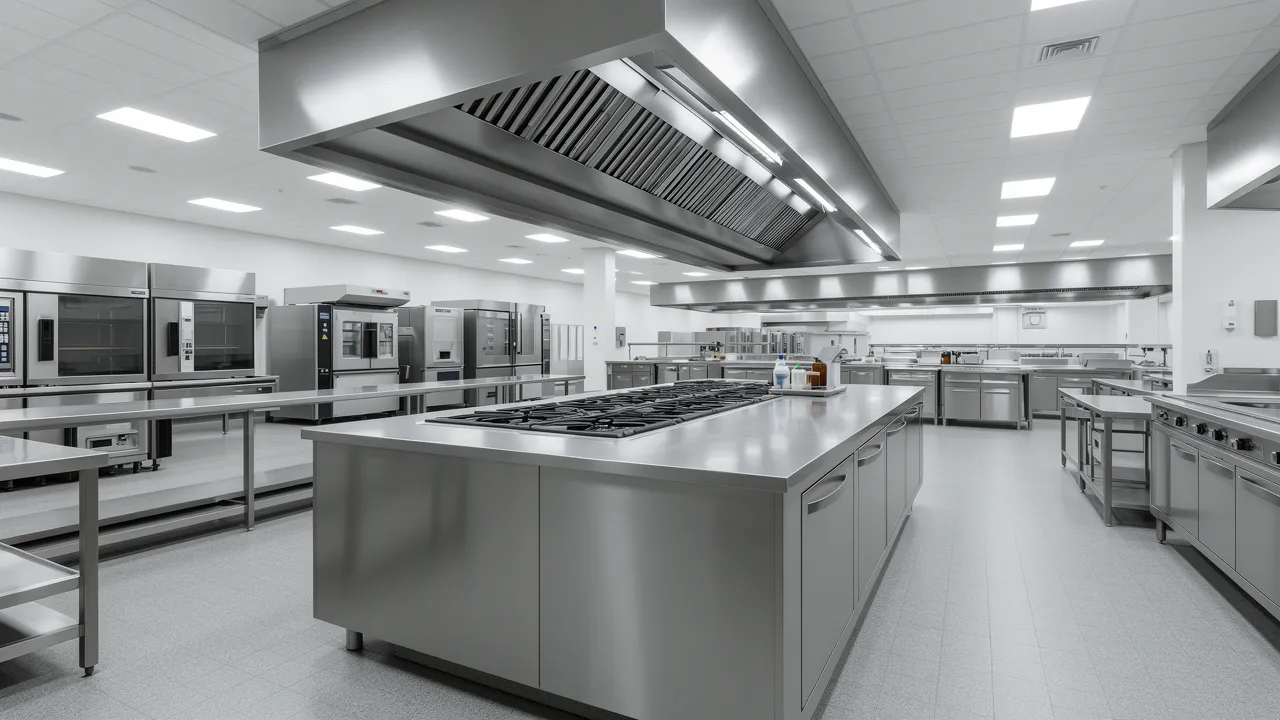

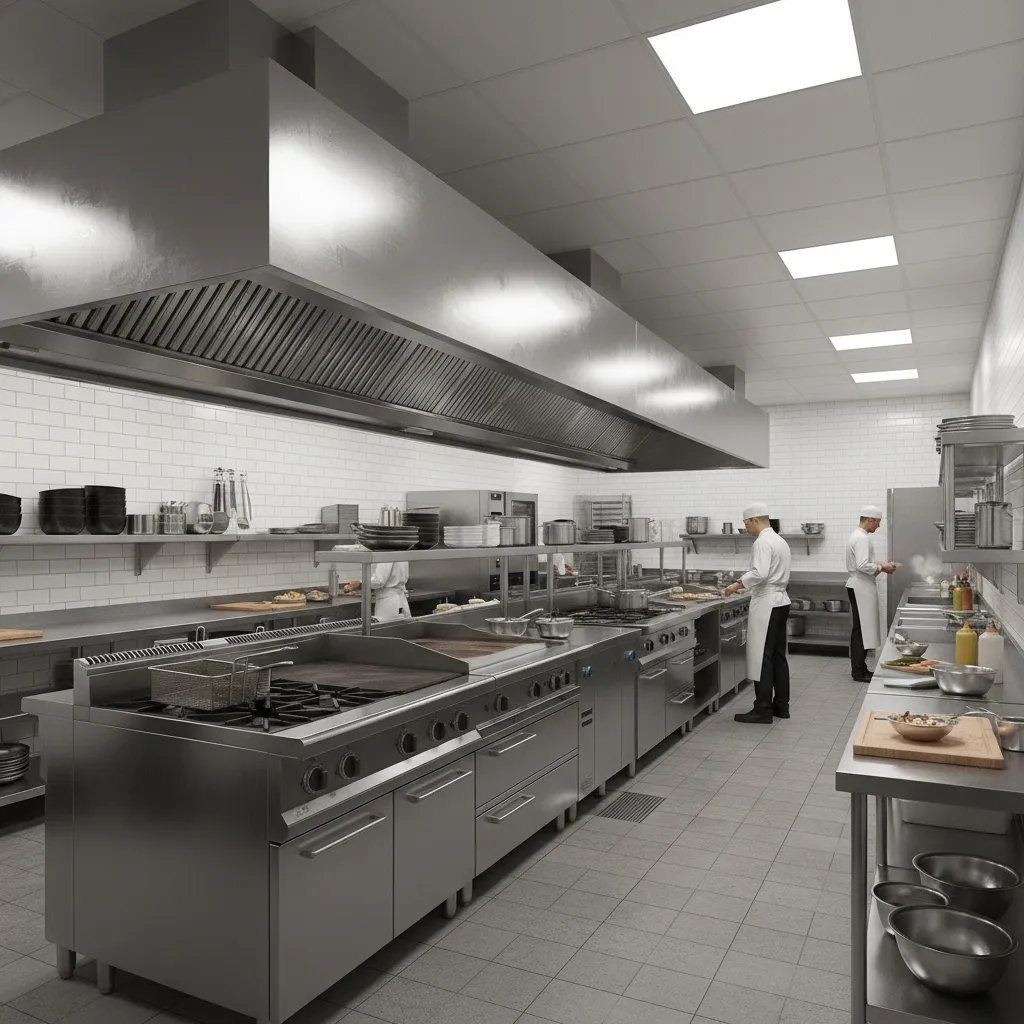

High-Capture Canopy Hoods in Tight Lines

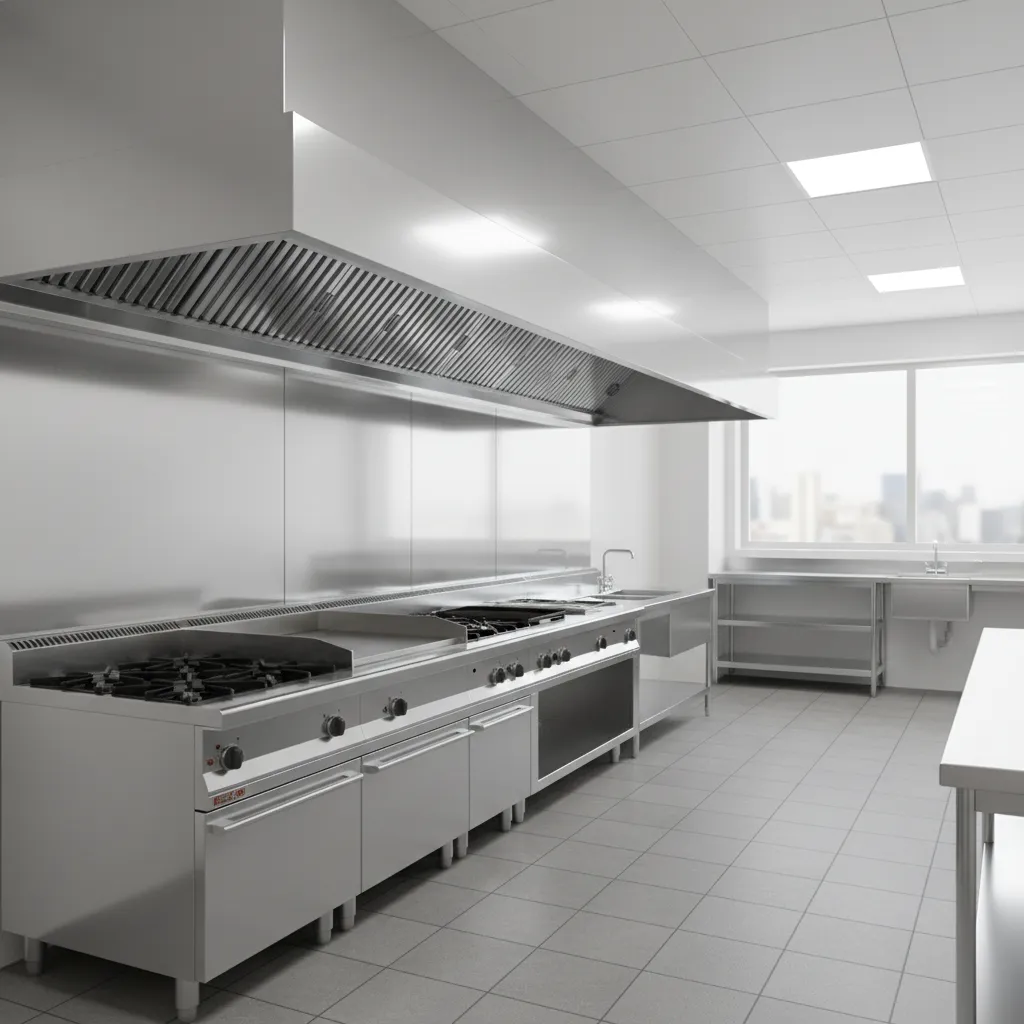

My Take I learned early that a well-sized canopy hood with good overhang saves you more headache than any fancy gadget. In a 16-foot galley kitchen we retrofitted, better capture meant fewer complaints and a cooler cookline, even on double-fryer nights. Pros - Higher hood capture efficiency reduces spillage and fugitive grease, improving commercial kitchen exhaust design performance and cleanliness. - Deeper canopies with side panels boost containment, a long-tail win for small-space ventilation planning. - According to ASHRAE Kitchen Ventilation guidelines, proper hood geometry and placement can lower exhaust rates without sacrificing capture. Cons - Bigger canopy profiles can feel bulky and need careful sightline management; I sometimes pair them with lighter finishes to avoid a “tank” look. - If incorrectly sized, you’ll waste fan energy or under-capture—both expensive mistakes. Tips / Case / Cost - Aim for 6–12 inches of overhang beyond appliances; verify appliance diversity and duty rating. - First internal link at ~20%: I often show clients “L 型布局释放更多台面空间” as a layout benchmark with ventilation tweaks—see the anchor in English: L-shaped layout frees more counter space—to visualize hood placement and capture zones.

save pin

save pin

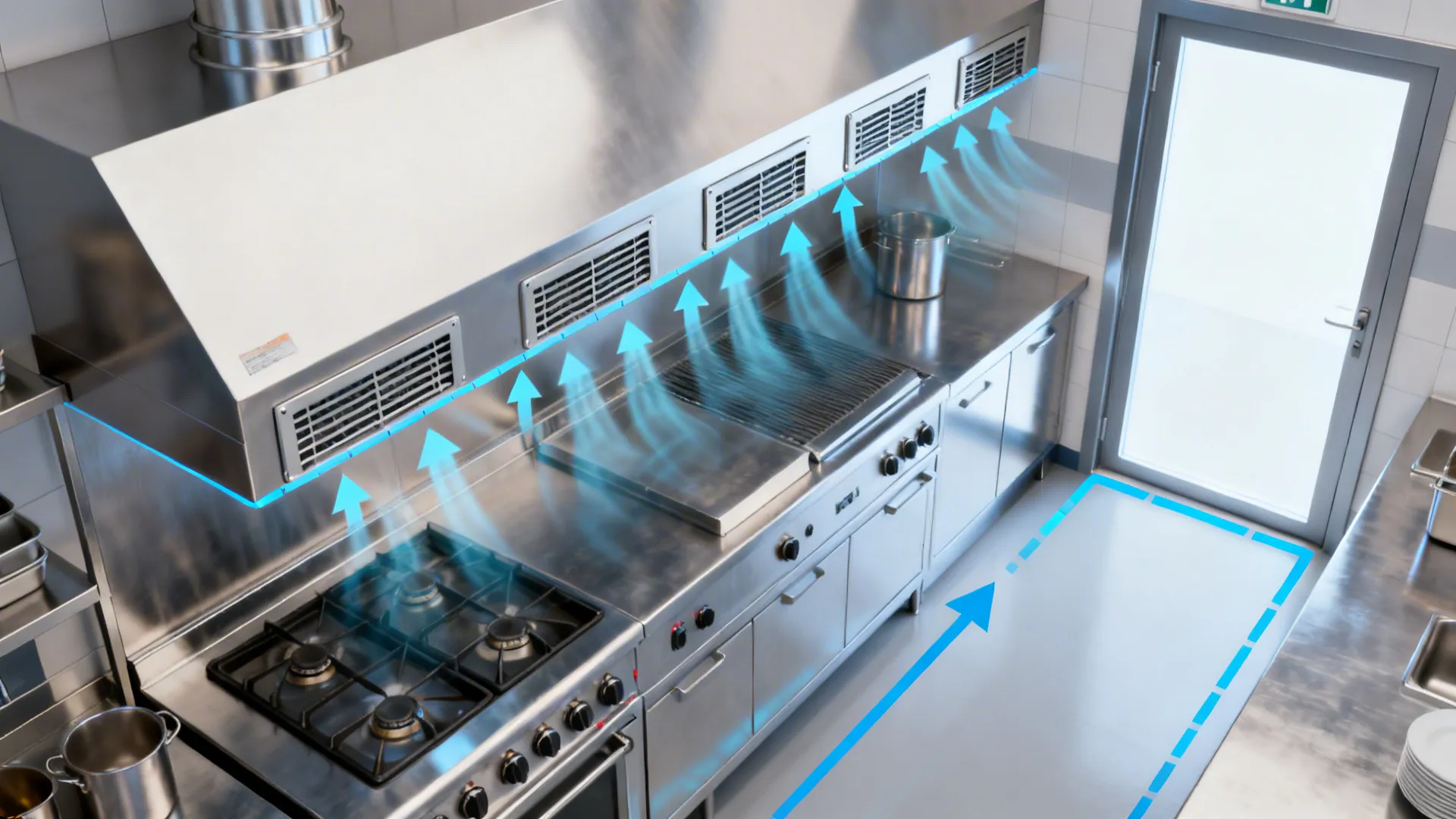

Balanced Make-Up Air That Doesn’t Blast the Line

My Take I once walked into a kitchen where the make-up air was basically a wind tunnel. Chefs were shivering, and the hood lost capture because of cross-drafts. We rebalanced with front-edge diffusers, and the complaints vanished overnight. Pros - Properly tempered make-up air reduces negative pressure, stabilizing hood performance and improving airflow in commercial kitchen exhaust design for small spaces. - Displacement or low-velocity supply along the hood front enhances capture while keeping the line comfortable—great for compact kitchens. - The U.S. EPA and ASHRAE note that balanced ventilation mitigates contaminant migration to dining areas. Cons - Tempering costs add up; electric or gas heat can strain budgets in colder climates. - Poor diffuser choice can create drafts that push smoke into the room—ironically undoing the exhaust work. Tips / Case / Cost - Target neutral to slight negative pressure; coordinate with building HVAC to prevent door slamming and odor leaks. - Mid-article internal link at ~50%: For visual planning of supply and return, I reference “玻璃背板让厨房更通透”—English anchor: Glass backsplash for a more open kitchen—to mock up diffuser positions in context.

save pin

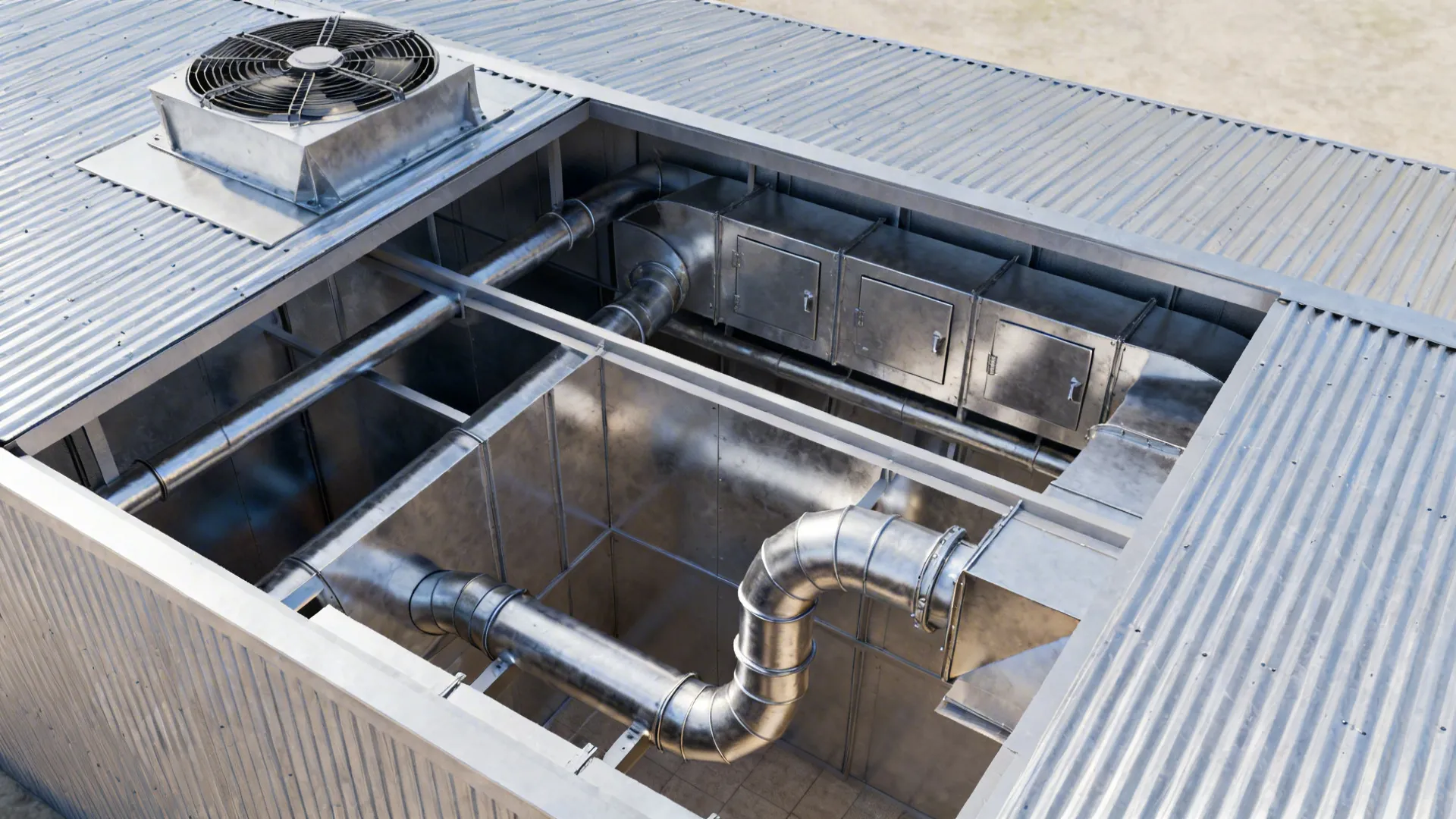

Short, Smooth Duct Runs with Smart Turns

My Take Ductwork is where small kitchens either win on efficiency or lose on maintenance. In one renovation, trimming 12 feet of duct and one extra elbow dropped static pressure enough to downsize the fan, saving both energy and noise. Pros - Minimizing duct length and elbows reduces static pressure, allowing lower fan horsepower and quieter commercial kitchen exhaust design. - Smooth, welded grease ducts per NFPA 96 improve fire safety and simplify cleaning—critical in compact builds. - ASHRAE data shows optimized duct geometry can maintain capture at lower cubic feet per minute, a cost saver. Cons - Structural constraints sometimes force awkward routes; you’ll negotiate with beams, tenants, and code all at once. - Tight shafts complicate access panels—maintenance crews will thank you if you plan these early. Tips / Case / Cost - Keep turns to 45° where possible; include cleanouts at changes in direction. Budget for heavier-gauge steel in high-load lines.

save pin

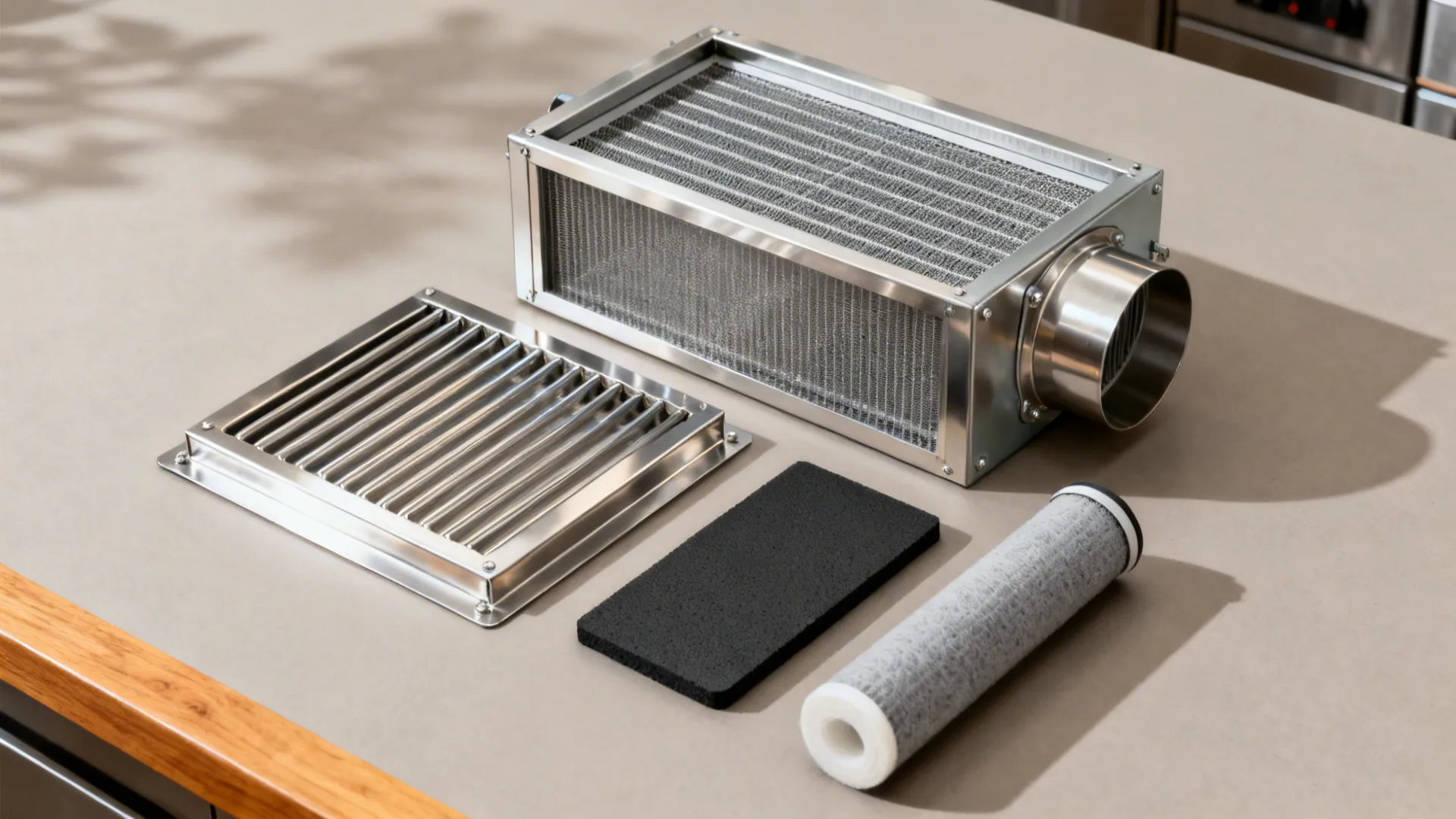

Grease and Odor Filtration That Actually Gets Cleaned

My Take Filters that look great on opening day but never get cleaned are a ticking time bomb. We standardized on baffle filters up front and cartridges for odor downstream, plus a maintenance calendar—no surprises, no “foggy” dining room. Pros - Multi-stage filtration (baffle + cartridge + carbon) reduces grease carryover and odor, a long-tail strategy for commercial kitchen exhaust design in mixed-use buildings. - Electrostatic precipitators can capture fine particles; several city guidelines cite improved indoor air quality outcomes when maintained. - Reference: NFPA 96 (Standard for Ventilation Control and Fire Protection of Commercial Cooking Operations) supports grease removal practices for safety. Cons - ESP units and carbon beds need disciplined maintenance; costs can creep if service is deferred. - Heavier filtration raises static pressure—coordinate with fan selection to avoid noise and energy spikes. Tips / Case / Cost - Track pressure drop across filters; set calendar reminders based on hours of operation. For landlords above kitchens, invest in odor control early—it’s cheaper than disputes.

save pin

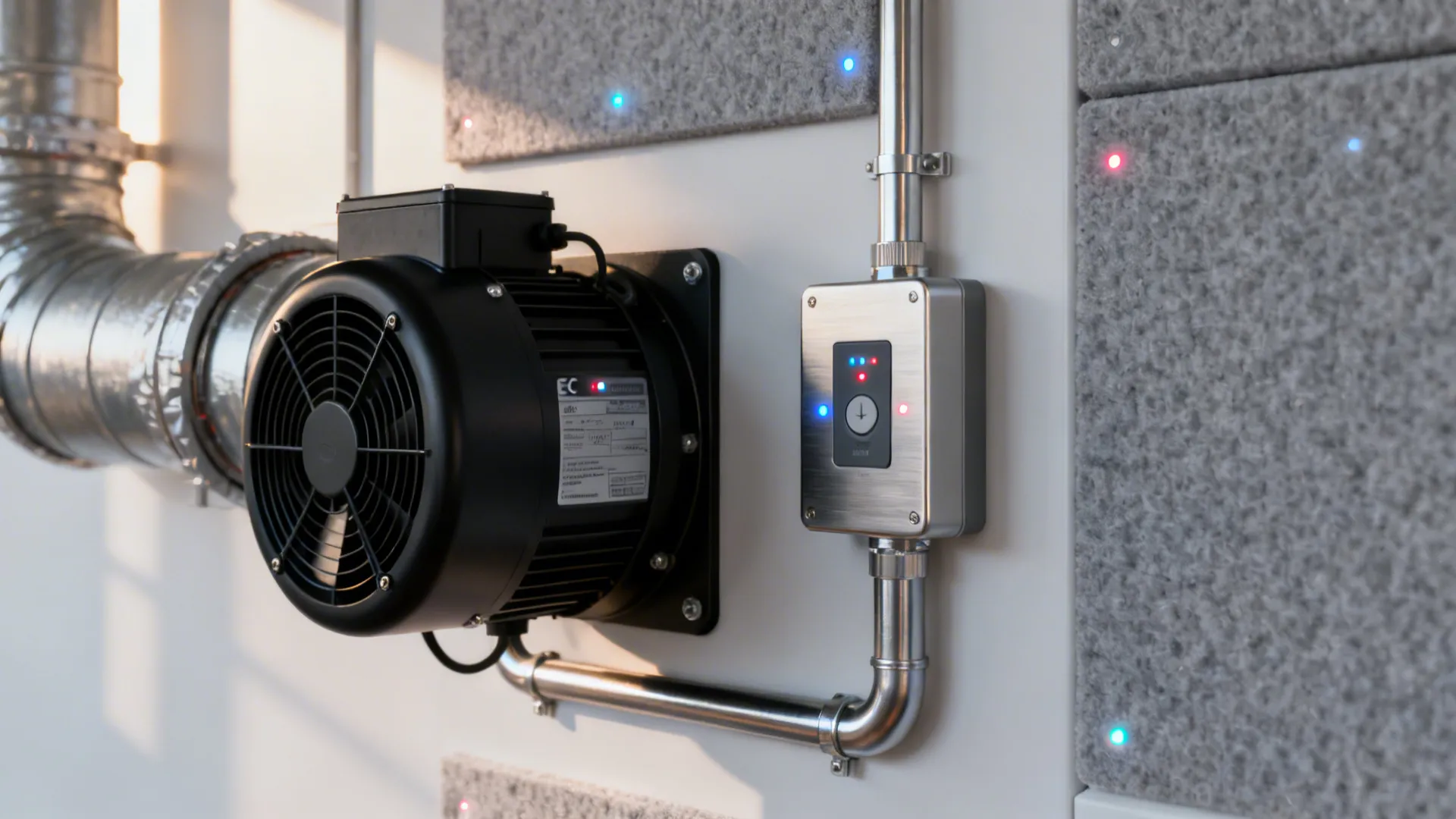

Quiet, Variable-Control Fans and Real Monitoring

My Take After we installed EC fans with demand control in a boutique café, chefs noticed how the room “breathed” with them—quiet at prep, stronger at peak, then gentle at close. My favorite compliment: “I can finally hear the ticket printer.” Pros - Variable speed and demand-control ventilation tune exhaust rates to actual load, reducing energy use and improving comfort in commercial kitchen exhaust design. - EC motors run quieter and more efficiently; pairing with hood sensors helps maintain capture without overventilating. - ASHRAE case studies show demand control can cut fan energy by double digits while maintaining IAQ. Cons - Controls require calibration; if sensors drift, you might under-exhaust during heavy searing. - Upfront cost is higher, though lifecycle savings typically offset it. Tips / Case / Cost - Commissioning is key—log airflow, static pressure, and temperature under different menus. At ~80% of the article, a third internal link: I often mock up equipment lines alongside controls using “木质元素带来的温暖氛围”—English anchor: Warm wood elements for a welcoming atmosphere—to visualize acoustic and comfort impacts. [Section: Summary] Small kitchens don’t limit you—they push smarter design. With high-capture hoods, balanced make-up air, optimized ducts, disciplined filtration, and variable fans, you’ll elevate performance without bloating the footprint. NFPA 96 remains the backbone for safety, and ASHRAE guidance helps fine-tune efficiency. Which of these five ideas are you most excited to try in your commercial kitchen exhaust design? [Section: FAQ] 1) What is the core principle of commercial kitchen exhaust design in small spaces? - Ensure reliable capture and containment first, then balance make-up air to avoid negative pressure. Optimize ducts and choose fans that match real cooking loads. 2) How much hood overhang should I plan? - Typically 6–12 inches beyond appliance edges improves capture, especially over fryers and griddles. Deeper canopies with side panels help in tight lines. 3) Do I need tempered make-up air? - In most commercial kitchens, yes. Tempered supply protects comfort and stabilizes capture; coordinate with building HVAC to maintain slight negative pressure. 4) Which standards should I follow for safety? - NFPA 96 is the primary standard for ventilation control and fire protection of commercial cooking operations. ASHRAE guides cover hood design, airflow, and energy. 5) How can I reduce noise from the exhaust system? - Use EC fans, variable speed control, and properly sized ductwork to lower static pressure. Consider acoustic treatment near diffusers if the room is reflective. 6) Are electrostatic precipitators worth it? - They can significantly reduce fine particulate and odor, but only if maintained. Check local code acceptance and budget for regular service; NFPA 96 provides guidance. 7) What maintenance schedule should I set? - Inspect baffle filters weekly, clean per usage; monitor pressure drop across cartridges monthly. Schedule duct cleaning per NFPA 96 and local health codes. 8) Can I visualize layout and ventilation together? - Yes. Planning tools help map appliances, hood zones, and diffuser locations. If helpful, preview airflow interactions using this English anchor: Minimalist kitchen storage design to conceptually align layout and exhaust early.
