5 Correct Ways to Make Kitchen 2D Drawings in AutoCAD: My field-tested workflow for accurate kitchen plans, elevations, and details—5 ideas to boost clarity, speed, and constructability

As a senior interior designer, I’ve seen kitchen projects succeed or stall based on the quality of their 2D drawings in AutoCAD. Lately, tighter spaces and multi-functional homes are the trend, and small kitchens push us to be smarter: compact layouts, integrated appliances, and cleaner detailing. Small space sparks big creativity. In this guide, I’ll share 5 design inspirations—practical, field-tested ways to build correct, consistent kitchen 2D drawings in AutoCAD—combining my experience and expert data so you can move from concept to construction with confidence. To kick off, I often validate early layouts with a quick planning reference like L shape layout opens more counter space before drafting standards into AutoCAD.

Layer Discipline for Clean, Buildable Plans

My Take

I learned the hard way that messy layers cost real time on site. Years ago, a contractor called me at 8 p.m. because the water line was on a furniture layer—my bad. Since then, I use a strict naming and color system for every kitchen, and my RFIs dropped dramatically.

Pros

- Consistent layer naming (e.g., A-WALL, A-CASE, P-PLMB, E-POWR, D-DIMS) speeds edits and eliminates misreads; this is a cornerstone for correct kitchen 2D drawings in AutoCAD.

- Using color-by-layer and lineweights (0.18 mm furniture, 0.25 mm casework outlines, 0.35 mm walls) ensures legibility in plotted sets and aligns with common CAD standards.

- Long-tail benefit: a well-structured kitchen floor plan in AutoCAD exports cleanly to consultants and BIM teams, reducing coordination time.

Cons

- Setting up standards feels slow on the first project; you’ll crave shortcuts. But chaos later is slower—trust me.

- Inherited DWGs from vendors rarely match your layers. You’ll spend time cleaning blocks and purging line types.

Tips / Cost

- Build a template (DWT) with layers, dimension styles, text styles, and plotting CTB/ STB. One hour upfront can save five later.

- Create block libraries for common items: sinks, cooktops, ovens, fridges, pull-out bins, and hoods at standard sizes—with clear insertion points.

save pin

Dimensioning That Installers Can Build From

My Take

I draft with the installer in mind. If they can tape-measure it on site, it belongs in the drawing. I dimension to finish faces, centerlines of plumbing, and appliance rough-ins—never to fuzzy edges.

Pros

- Clear, buildable dimension strings—overall, wall-to-wall, and chain dimensions to cabinet boxes—cut site guesswork; this is a best-practice for accurate kitchen AutoCAD detailing.

- Annotating appliance cutouts (e.g., 600 mm DW, 910 mm fridge niche) and service clearances meets manufacturer specs; see NKBA guidelines for minimum clearances and reach ranges (NKBA, 2023).

- Long-tail benefit: standardized dimension styles (arrowheads, text height 2.5–3.0 mm plotted) make your sheets consistent across projects.

Cons

- Over-dimensioning clutters drawings; I’ve done it, and it confuses everyone. Less, but smarter, is better.

- Converting imperial/metric across vendors can produce rounding errors; double-check against spec sheets.

Tips / Case

- Use centerlines for sink and cooktop: note gas stub, waste, and water lines with exact offsets from finished walls.

- Keep a typical: base cabs 600 mm deep, counters 630–650 mm, toe-kick 100 mm, worktop height 860–920 mm depending on region/users.

save pin

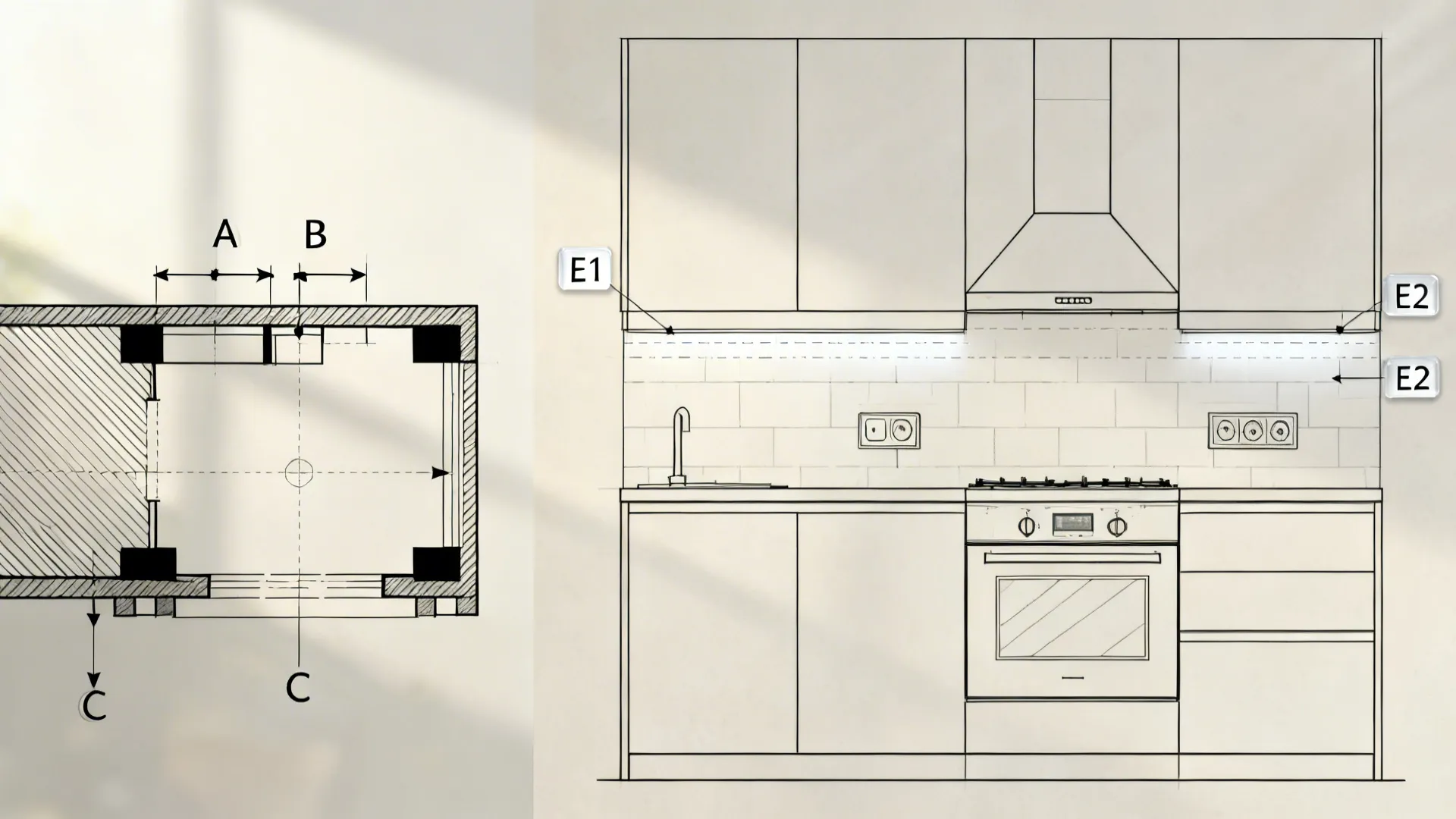

Plan + Elevation Pairing for Every Run

My Take

One of my first mentors drilled this in: “If you draw a plan, you owe the builder an elevation.” I now pair each cabinet run (A, B, C) with a keyed elevation, and issues that used to surface on site get solved at my desk.

Pros

- Elevations reveal vertical conflicts—backsplash height vs. window sill, hood duct vs. beam, or stacked oven clearances—critical for correct kitchen 2D drawings in AutoCAD.

- Coordinating section cuts through sink, range, and tall units captures plumbing and electrical zones with precise heights; the International Residential Code (IRC) and appliance manuals are valuable references for service heights.

- Long-tail: consistent keynotes (E1, E2, etc.) and a sheet index make navigation easy for trades.

Cons

- More views mean more work to keep synchronized; if you change the plan, update the elevation—no exceptions.

- Crowding elevations with textures and hatches can obscure dimensions; keep them lean for construction sets.

Tips / Cost

- Standardize backsplash: 450–600 mm above counter, align with outlet heights (usually 1050–1150 mm AFF to center in many regions; verify locally).

- Add a simple key plan: Run A (sink), Run B (cooktop), Run C (tall) so the installer can cross-reference instantly.

save pin

Appliance and Service Coordination Early

My Take

On a compact apartment kitchen I remodeled, we lost a day because the dishwasher door hit a radiator valve. Since then, I place appliance specs into the DWG on day one and block swing paths and clearances. Small spaces demand big foresight.

Pros

- Inserting manufacturer blocks with exact depths, ventilation gaps, and door swings prevents clash and keeps the triangle efficient—a core of small kitchen layout optimization.

- Plumbing and electrical callouts (GFCI/RCD notes, shutoff valves, isolators) aligned with local code reduce inspection issues; the National Kitchen & Bath Association (NKBA) work triangle and zone guidelines remain a solid benchmark (NKBA, 2023).

- Long-tail keyword benefit: coordinating kitchen appliance rough-ins in AutoCAD streamlines shop drawings and procurement.

Cons

- Vendor blocks vary in detail; some are too heavy and slow your file. Clean them or redraw simplified profiles.

- Suppliers update models mid-project; confirm final cut sheets before issuing construction drawings.

Tips / Case

- For tight galley kitchens, keep 1000–1200 mm between runs where possible; minimum 900 mm if constraints demand, and annotate it clearly.

- Consider a quick 3D check for vent routes and tall units using a fast reference like glass backsplash makes the kitchen airier to visualize conflicts before locking your 2D sections.

save pin

Annotation, Blocks, and Plot Styles That Communicate

My Take

Great drawings read like a story. I keep callouts terse, use consistent tags, and avoid decorative hatching. When the foreman can glance once and understand, you’ve nailed it.

Pros

- Using annotative text and dimensions ensures consistent plotted sizes across scales—vital for readable kitchen plan sheets.

- Standard block libraries for sinks, taps, drains, and accessories with clear insertion points reduce drafting time and enhance accuracy in AutoCAD kitchen details.

- A disciplined CTB/STB with plotted lineweights yields a crisp hierarchy—walls bold, casework medium, fixtures light—improving construction readability.

Cons

- Annotative objects can confuse teams if not documented; include a quick legend or standards note page.

- Over-reliance on hatches increases file size and slows regen; use sparingly for material cues only.

Tips / Cost

- Keep a one-page graphic legend: lineweights, hatch patterns, and tag conventions. New collaborators will thank you.

- Test plot at full scale before issuing: what reads on screen may be muddy on paper.

Midway through any kitchen set, I often sanity-check circulation and storage with a quick external reference. Visualizing a compact galley or peninsula can inspire better sections—see how wood accents add welcoming warmth in a tight layout before you finalize finish tags and cabinet notations.

save pin

Putting It All Together: A Mini Workflow

My Take

My best results come from a repeatable routine. Think of it as your kitchen drawing checklist: brief, block, dimension, elevate, coordinate, and publish.

Pros

- A step-by-step workflow (template setup → base plan → appliances → services → dimensions → elevations/sections → QA plot) improves speed and accuracy for correct kitchen 2D drawings in AutoCAD.

- QA with a redline pass against appliance cut sheets and NKBA clearances catches issues before they reach site; project risk drops and schedule stays intact.

- Long-tail: consistent naming and print standards make archiving and future renovations far easier.

Cons

- Discipline is unglamorous; you won’t get Instagram likes for lineweights. But you will get fewer change orders.

- Template drift happens over time; schedule seasonal audits to keep standards tight.

Tips / Case

- Final checklist: grid dimensions to finished walls; confirm counter overhangs; toe kicks and filler panels; appliance ventilation clearances; backsplash terminations; outlet and switch heights; sink centerline and P-trap position.

- When testing alternative arrangements, I sometimes prototype the plan using references like minimalist kitchen storage planning to benchmark circulation before locking the AutoCAD set.

Summary

A small kitchen isn’t a limitation—it’s a prompt to design smarter. The correct way to make kitchen 2D drawings in AutoCAD is about clarity: disciplined layers, buildable dimensions, paired plans and elevations, early appliance/service coordination, and plot styles that communicate. NKBA’s published planning guidelines remain a reliable baseline for clearances and ergonomics (NKBA, 2023). Which of these five ideas are you most excited to try on your next kitchen set?

save pin

FAQ

1) What is the correct starting point for kitchen 2D drawings in AutoCAD?

Begin with a clean template (DWT) that includes layers, dimension styles, and plot styles. Trace or import the measured shell, then place fixed items (windows/doors), appliances, and services before dimensioning.

2) How do I ensure dimensions are buildable for installers?

Dimension to finished faces and centerlines for sinks, cooktops, and outlets. Keep a clear hierarchy: overall, wall-to-wall, then cabinet chain dimensions, with appliance niches and service heights called out.

3) What clearances should I follow for small kitchens?

Use NKBA guidance for work aisles (ideally 42–48 in / 1065–1220 mm; minimums may be tighter in small spaces). Confirm appliance-specific ventilation and door-swing clearances from manufacturer data.

4) Should I draw elevations for every cabinet run?

Yes. Pair each plan run with a keyed elevation and add sections at sinks, cooktops, and tall units. Elevations catch vertical conflicts before construction and clarify finish extents.

5) How do I manage layers and lineweights for clarity?

Use disciplined layer names (A-WALL, A-CASE, P-PLMB, E-POWR) with color-by-layer plotting. Keep walls heavier, casework medium, fixtures lighter; test plot to confirm readability.

6) What’s the best way to coordinate appliances in AutoCAD?

Insert vendor blocks or trace from cut sheets at exact sizes, including door swings and ventilation. Note electrical and plumbing points with heights and offsets; recheck if models change.

7) Do I need to follow any standards or authorities?

Yes. NKBA’s Kitchen Planning Guidelines and your local building/electrical codes guide clearances and service requirements. Manufacturer installation manuals are definitive for rough-ins and ventilation.

8) How can I quickly visualize options before finalizing 2D?

Create a rough option study and sanity-check circulation or storage. If helpful, reference an external visualizer to preview effects like a brighter backsplash or warmer wood before tagging finishes.
