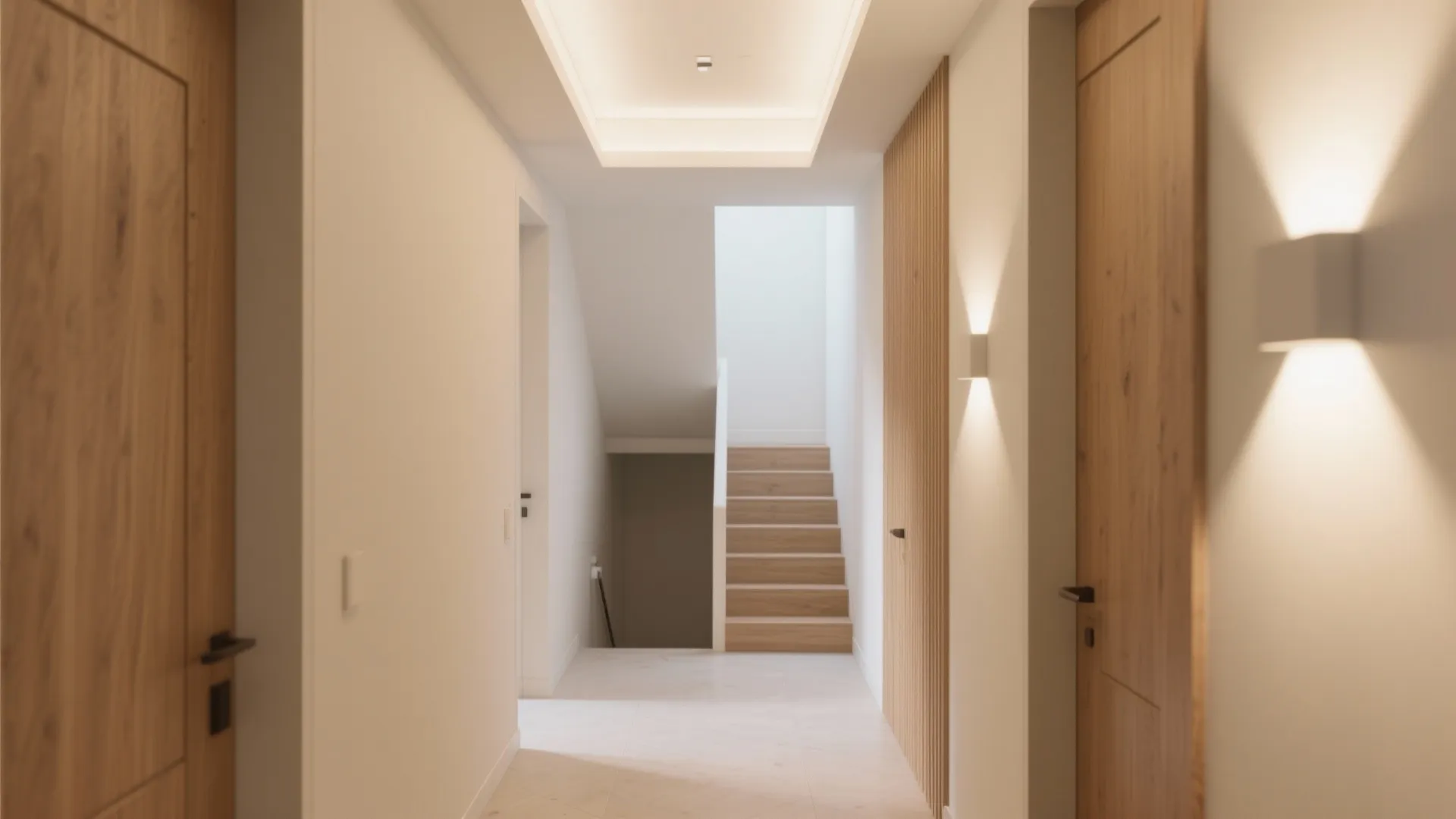

5 Duplex Hall Ceiling Designs That Transform Small Spaces: An interior designer’s take on duplex hall ceiling designs: 5 smart, stylish ideas with real-world tips, costs, and SEO-friendly insights

As a designer who’s remodeled more duplexes than I can count, I’ve seen how duplex hall ceiling designs can make or break first impressions. This year, warm minimalism, sculptural lighting, and acoustic comfort are trending—and small spaces are pushing us to be smarter, not louder. Small spaces spark big creativity, and in this guide I’ll share 5 design inspirations I actually use, backed by client stories and solid data.

We’ll walk through five duplex hall ceiling design ideas, why they work, where they struggle, and how to budget. I’ll weave in my on-site lessons (including a few near-disasters) plus trusted sources so you can move confidently from mood board to build.

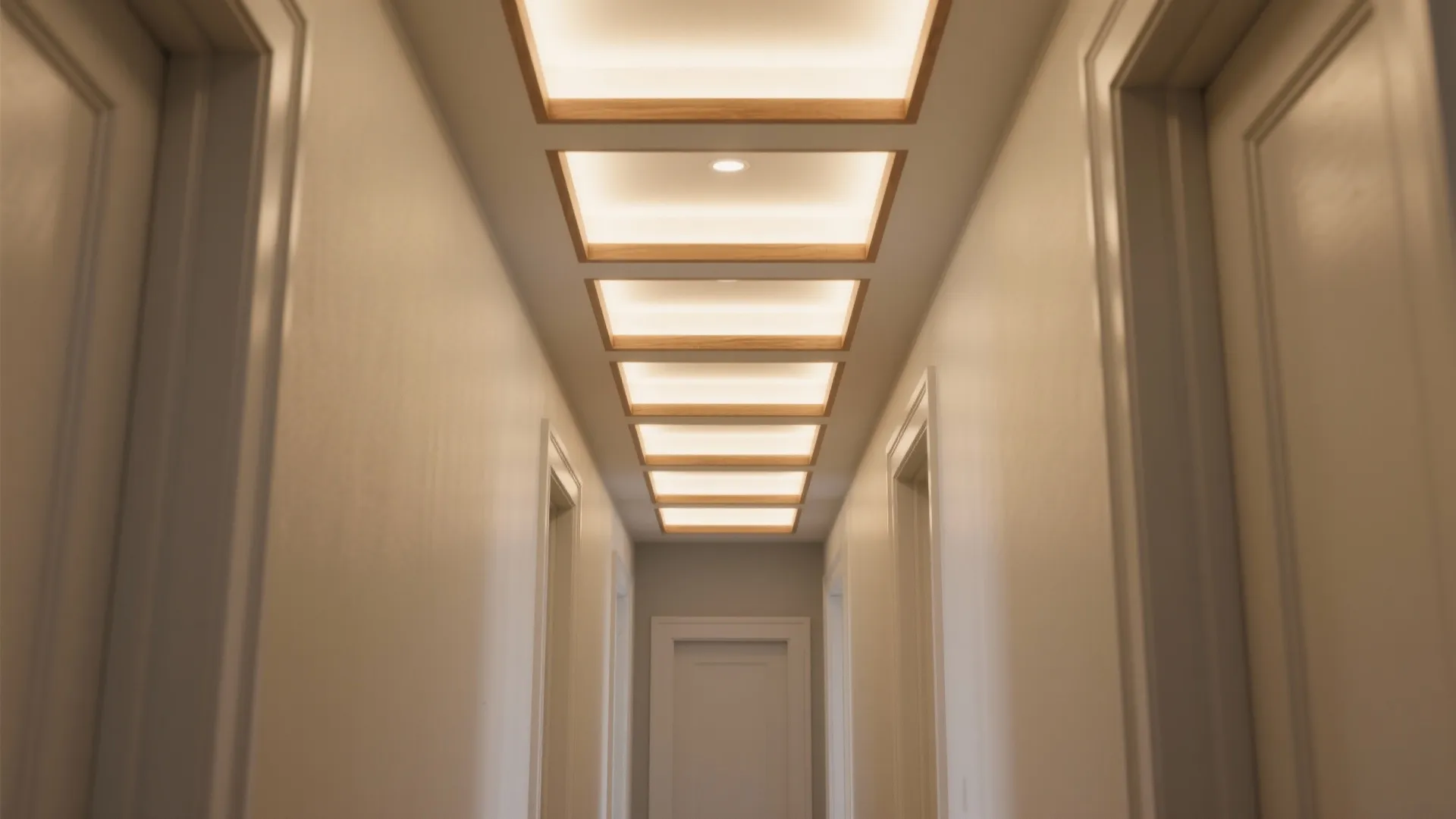

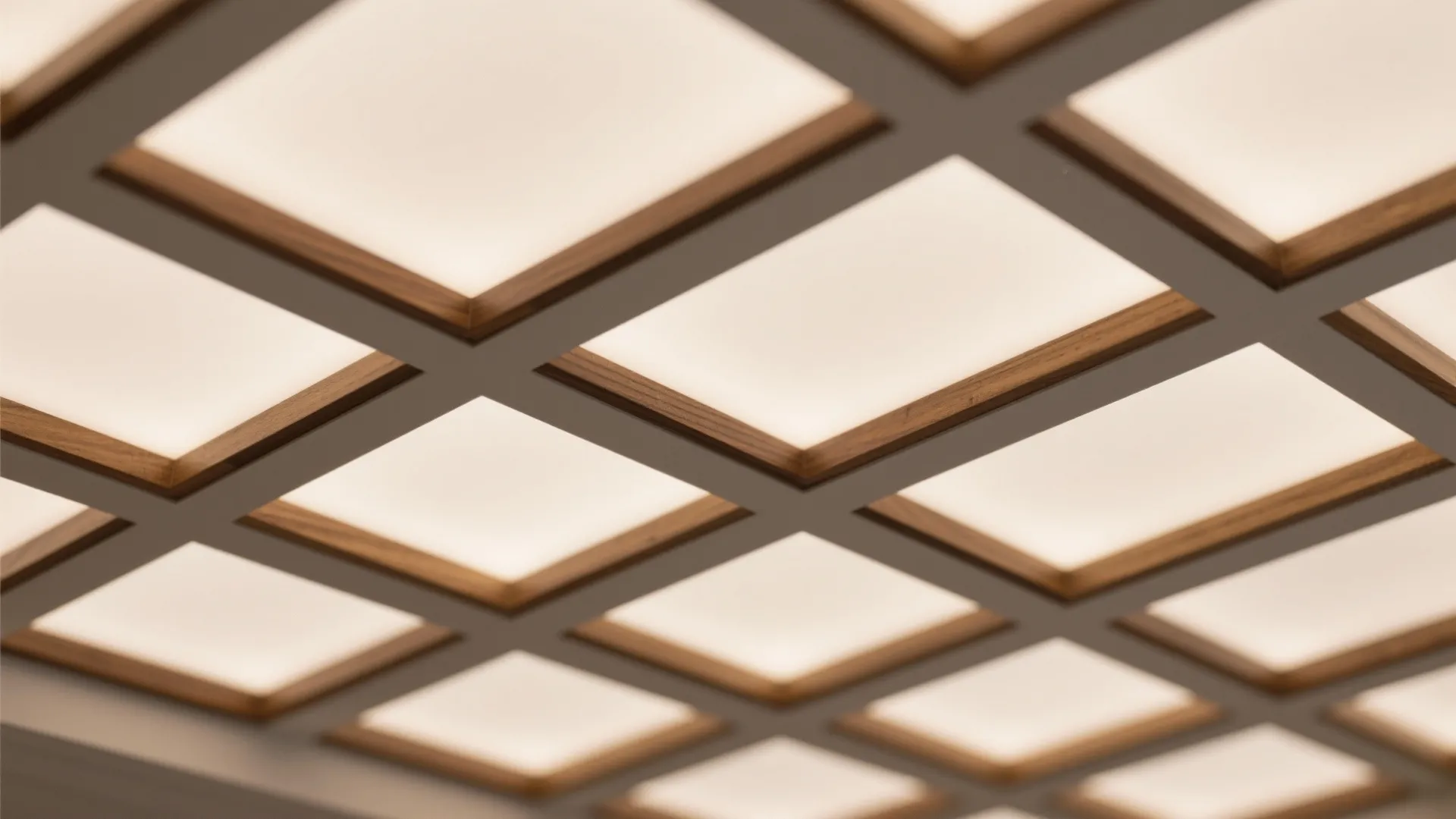

Backlit Coffered Ceiling

My Take

I fell for backlit coffers during a tight hallway project in Shanghai: low ceiling, zero daylight. We nested shallow coffers (65 mm depth) with warm 3000K LED strips, and the hall instantly felt taller and calmer. It’s my go-to when a duplex stair landing needs quiet drama without visual clutter.

Pros

The diffused glow washes planes evenly, a boon for “duplex hall ceiling designs” where vertical space is limited. LED coffers help elongate narrow corridors and pair beautifully with matte paint, a long-tail win for modern duplex hallway lighting ideas. Energy-wise, high-CRI LED strips (90+) keep art and wood tones honest while sipping power—ideal for multi-level homes.

Cons

Precision is everything: sloppy miters or light leaks will show at night. Shallow voids can cause hotspots if your LED density is too low; I learned the hard way and had to double the LED strip density on a retrofit.

Tips / Cost

Specify 12–14 mm opal diffusers and 120–160 LED/m for uniformity; aim for 6–8 W/m at 3000K. Typical cost: $35–$60/sq ft including carpentry and lighting. For planning, I often test proportions with a quick 2D to 3D mockup via minimalist coffer layout in 3D to preview shadow lines.

save pin

save pin

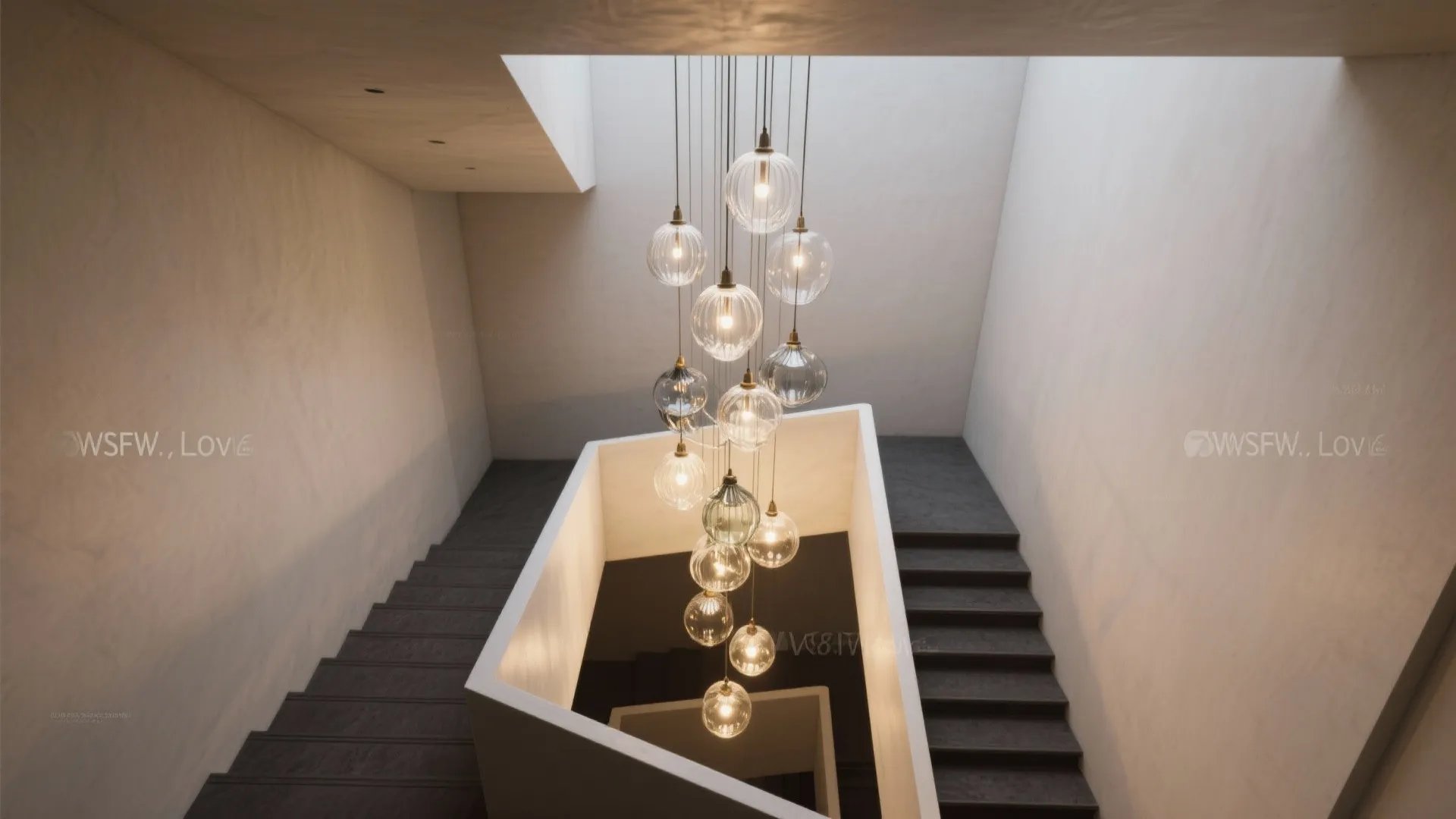

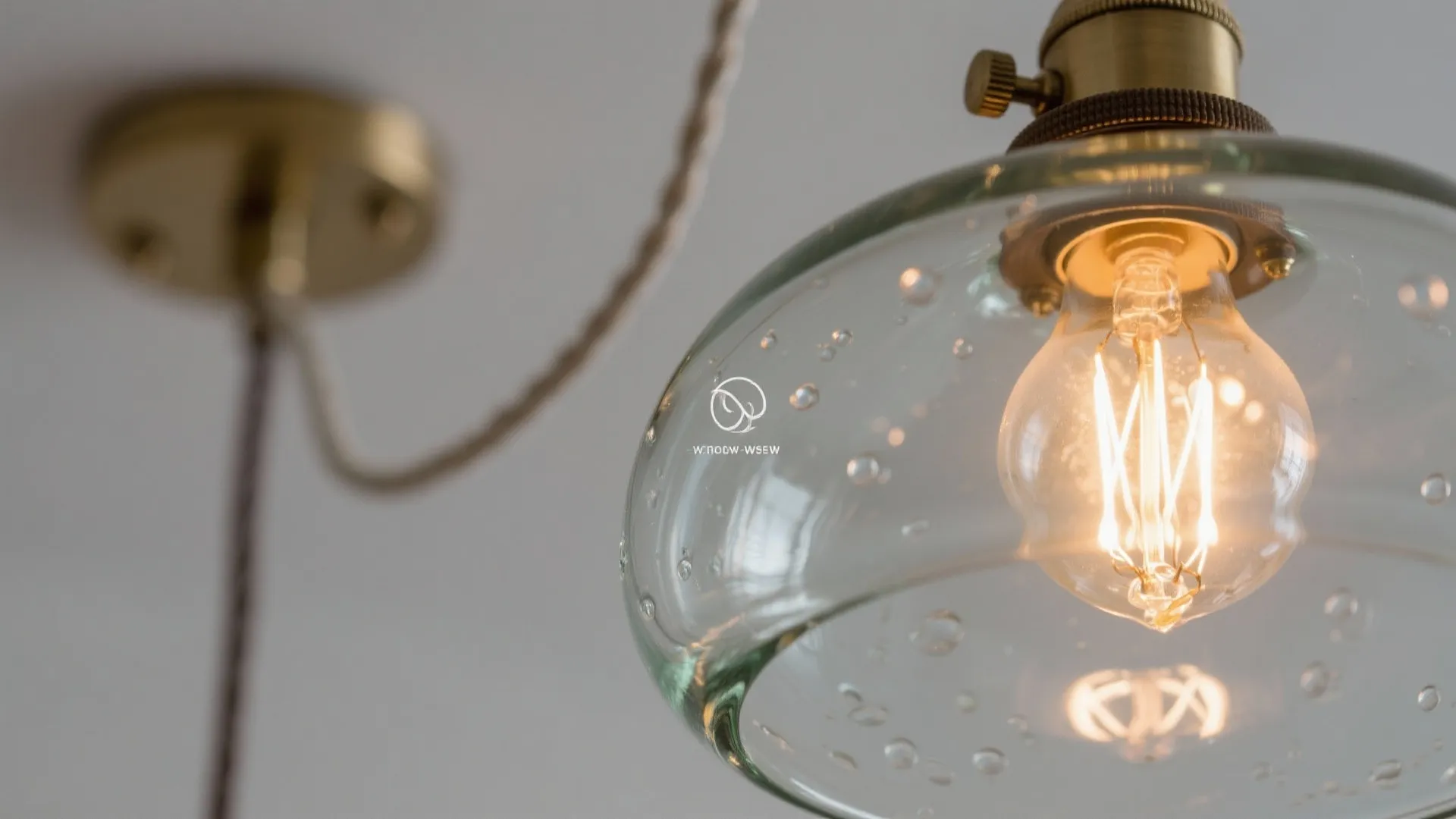

Sculptural Pendant Cluster Over Stair Void

My Take

In a recent duplex, the hall wraps a stair void. We floated a cluster of mouth-blown glass pendants at staggered drops—think 1.8 m to 4.2 m—so the composition reads from both levels. Guests pause on the landing every single time.

Pros

A pendant cluster creates vertical rhythm and becomes a wayfinding beacon, a strong solution within duplex hallway ceiling design ideas that need a focal point. You can fine-tune heights to dodge doors and sprinklers, and dimming extends ambience from daytime to night. Research on visual attention shows vertical accents increase perceived spatial richness (see Pallasmaa’s perspective on materiality and atmosphere).

Cons

Dust happens—especially with clear glass. Also, clusters demand proper canopy engineering; I once had to add a hidden spreader plate after drywall, which meant rework and a tense call with the GC.

Tips / Cost

Map sightlines from both floors and set the lowest pendant at 2100–2200 mm above finished floor where people pass. Budget $1,500–$6,000 for a custom cluster. Around mid-project, I like to validate circulation clearances using a neutral plan scenario like stair void pendant sightlines to ensure no swing doors clip the composition.

save pin

save pin

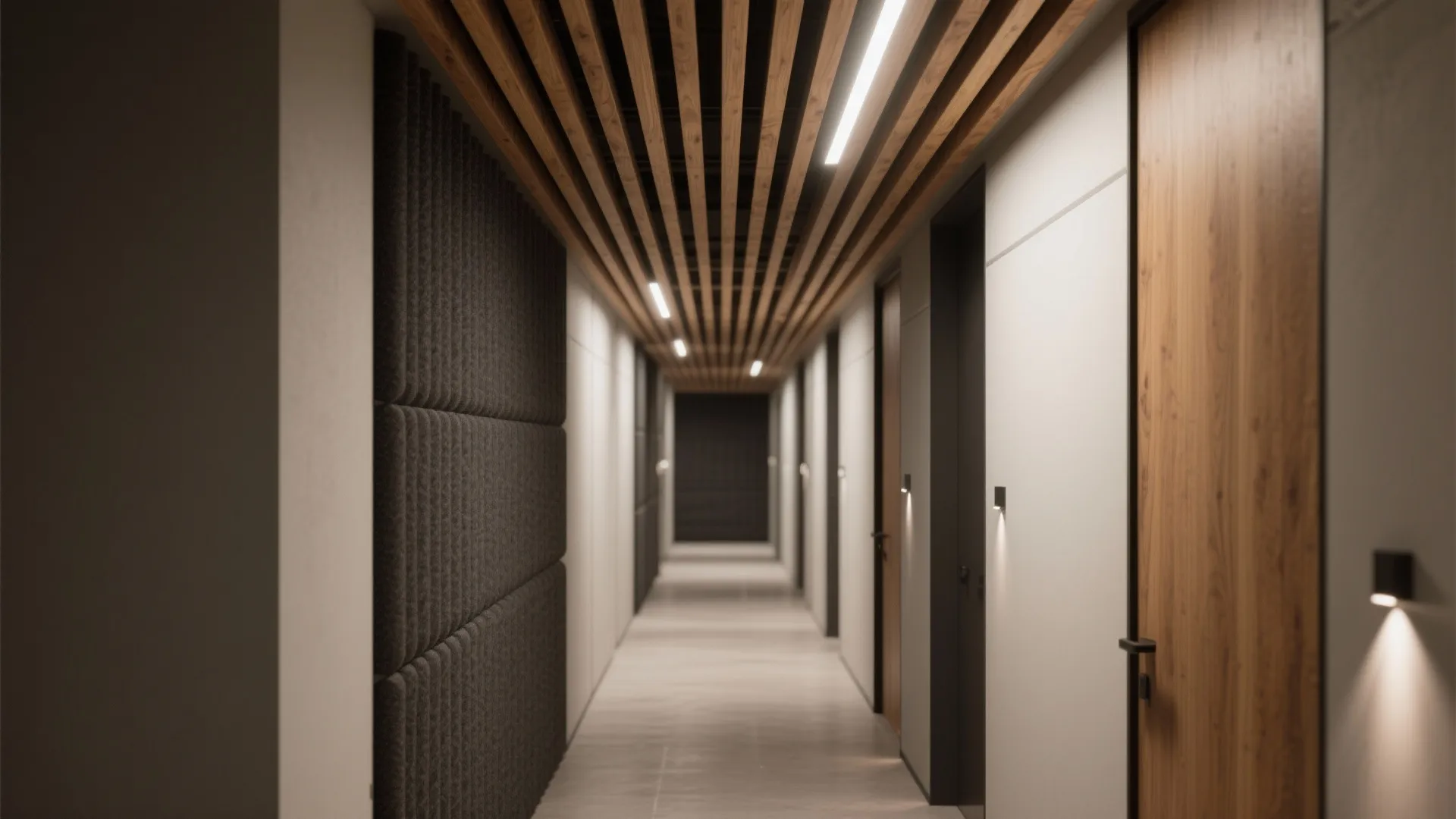

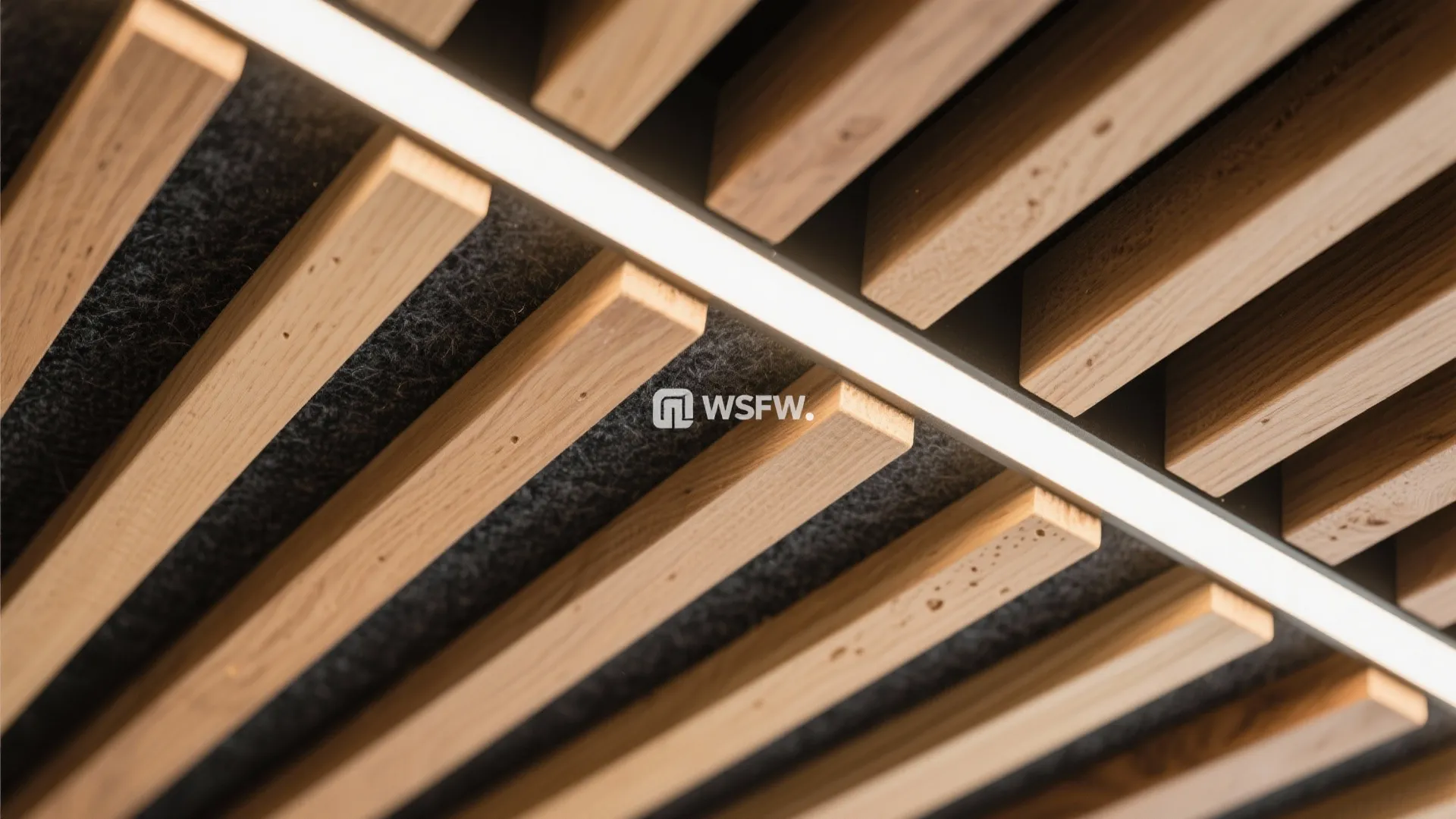

Acoustic Wood Slat Ceiling With Integrated Lighting

My Take

Duplex halls are echo-prone because of hard floors and parallel walls. I installed a 20 mm acoustic felt backing with 27 mm oak slats in a narrow hall, and conversations stopped bouncing. The linear grain also nudged people forward—subtle but real.

Pros

Acoustic slats can drop RT60 by 0.2–0.4 s in small corridors, improving clarity and comfort—key for duplex hall ceiling designs with kids or home offices nearby. Linear slots let you tuck in low-glare linears or tiny adjustable pin spots, a flexible long-tail solution for wood slat ceiling lighting ideas. According to the WELL Building Standard (IWBI), better acoustic control supports comfort and mental well-being; pairing slats with soft floors compounds benefits.

Cons

Wood moves. If HVAC supply blasts directly across the slats, expect slight seasonal gaps unless you pre-acclimate. Also, true oak slats add weight—coordinate anchors in advance.

Tips / Cost

Choose Class A acoustic backing (typically PET felt) and specify 3000–3500K for a warmer, residential feel. Costs run $18–$40/sq ft installed; faux-wood PET slats cost less and resist warping. At the halfway point in planning, I often sanity-check fixture spacing using a simple corridor template like linear lighting spacing mockup so we don’t over-light and kill the vibe.

save pin

save pin

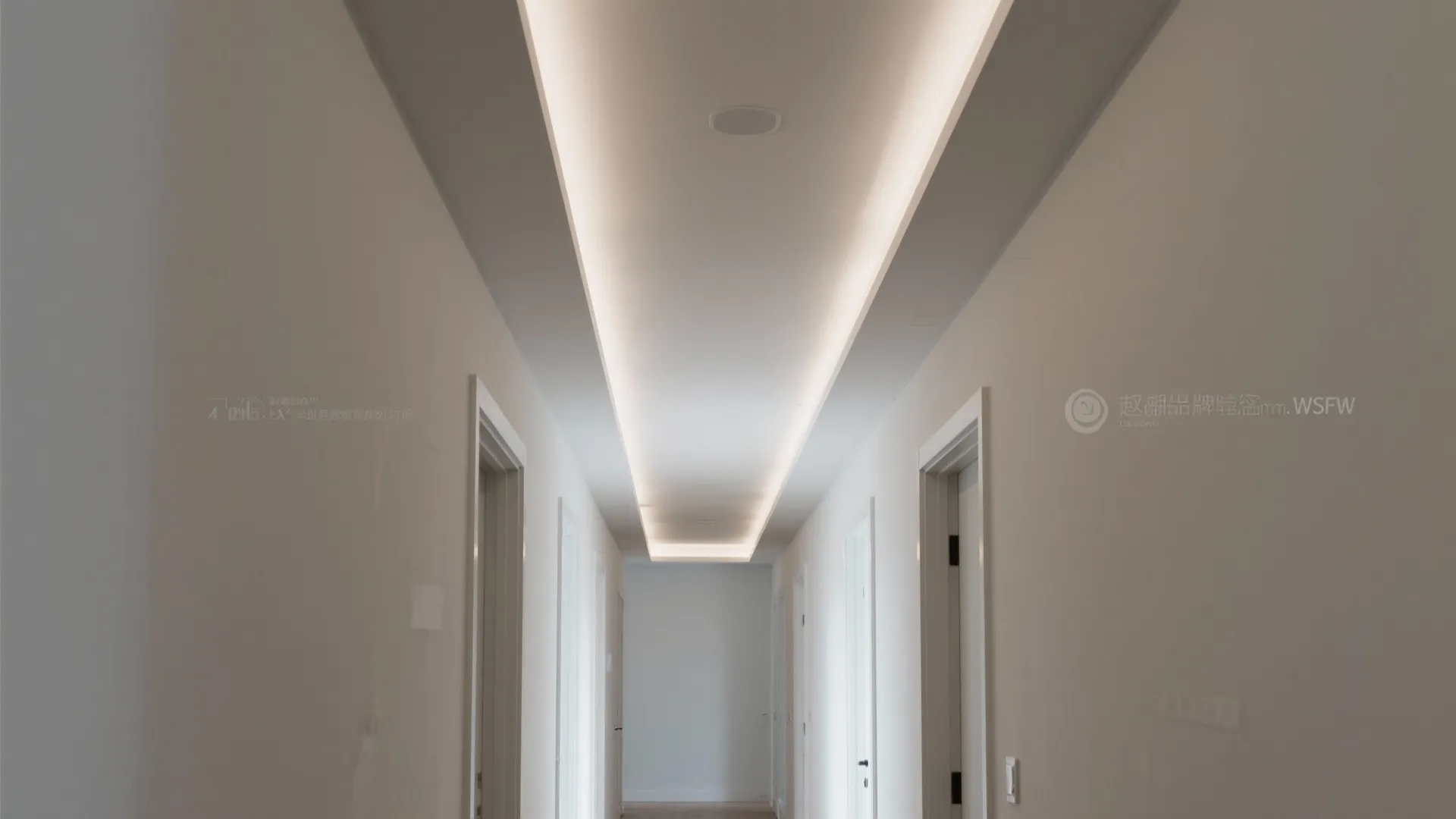

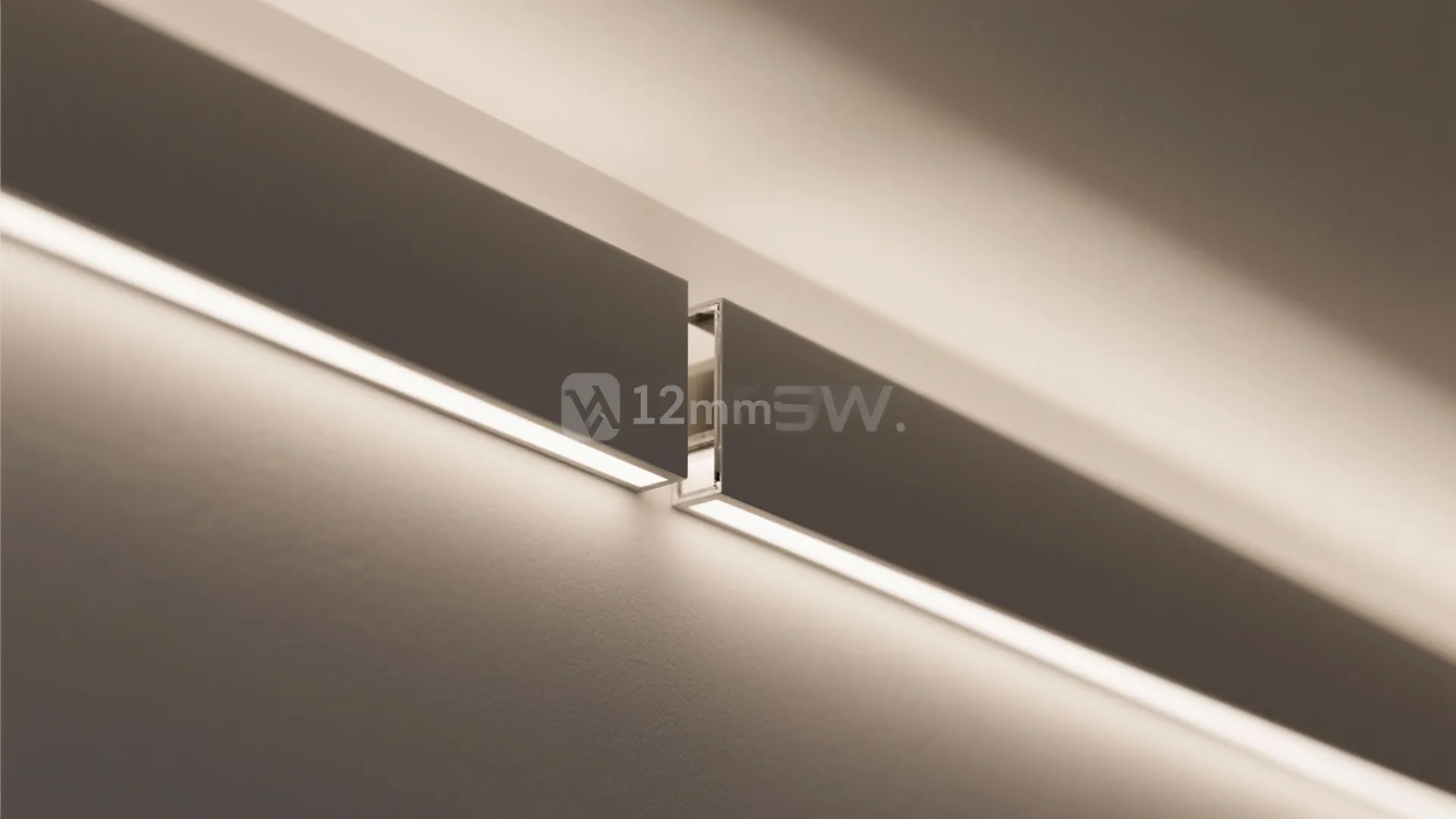

Shadow Gap and Floating Edge Detail

My Take

When a ceiling is low, I avoid heavy profiles. A 10–15 mm shadow gap with a “floating” edge makes the ceiling read lighter. On one duplex reno, we ran the gap around a curved corner—tiny move, big elegance.

Pros

Shadow gaps hide slight drywall imperfections and create a gallery-like finish, a refined tactic within modern duplex hallway ceiling trim ideas. The floating effect increases perceived ceiling height by separating wall-ceiling planes. It’s also friendly to future repainting since edges are crisp and masked by the reveal.

Cons

Dust loves reveals. If you skip a paintable insert or don’t seal the upper edge, you’ll be vacuuming with a soft brush every few weeks. And yes, laser levels are a must—waves will show.

Tips / Cost

Use aluminum trim reveals with primed flanges; keep the gap consistent at 12 mm. Pair with semi-matte wall paint for a subtle contrast. Budget $8–$15/linear ft for materials and labor. In tight halls, try a micro-wash from concealed LEDs to graze the reveal—aim for 45° to minimize glare.

save pin

save pin

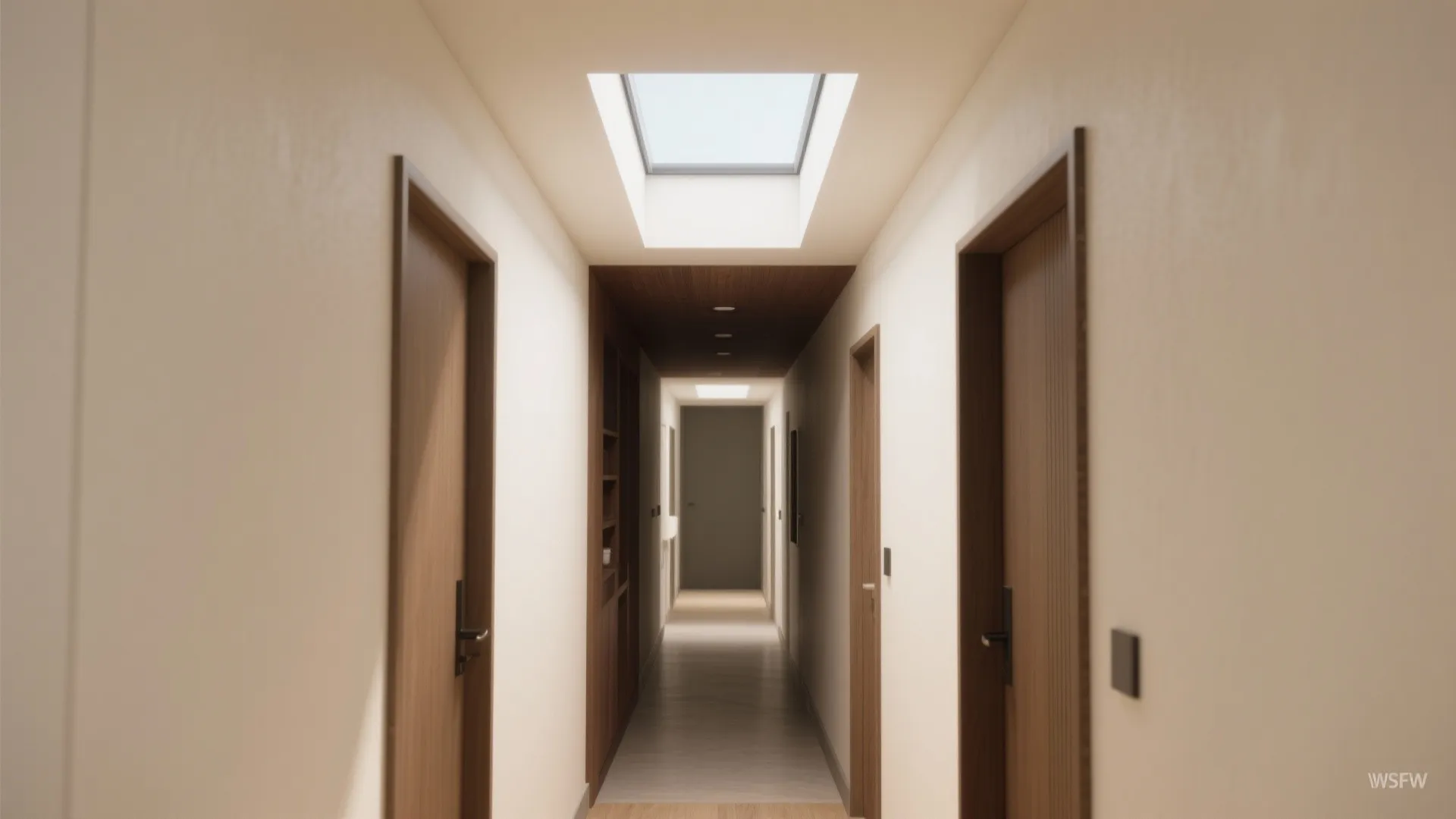

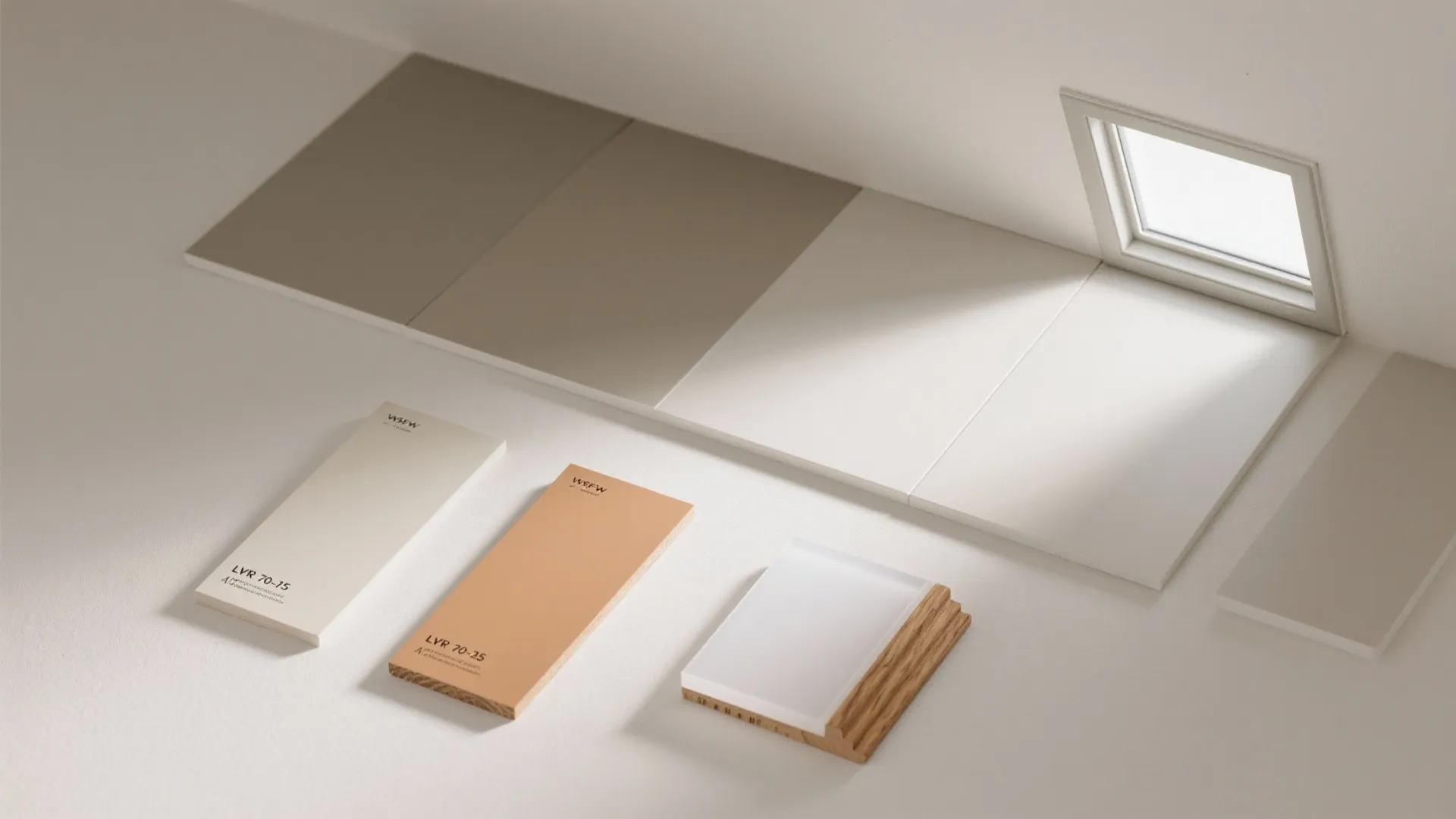

Two-Tone Ceiling Zones With Skylight or Lightwell

My Take

A duplex hall often bridges different moods—quiet bedrooms upstairs, livelier living below. I’ve used two-tone ceilings to “zone” the path and then punched a compact skylight to pull daylight down the spine. The color break guides movement better than any sign could.

Pros

Color zoning anchors circulation and supports wayfinding, a strong long-tail approach for duplex hallway paint and ceiling ideas. A small skylight (Velux-type) can deliver 20–60 foot-candles at midday, reducing daytime lighting loads. Studies from the Illuminating Engineering Society (IES) show daylight exposure improves visual comfort and can reduce lighting energy use.

Cons

Color can fight with art; keep saturation moderate and mind LRV (Light Reflectance Value) so ceilings don’t feel heavy. Skylights need proper curb flashing—ask me about the one that leaked during a summer storm and taught me humility.

Tips / Cost

Target a ceiling LRV of 70–85 for the lighter zone and 40–55 for the accent. If a skylight isn’t feasible, consider a tubular daylighting device. Expect $1,200–$3,500 for a standard skylight install depending on roof type and shafting. For late-stage visualization, I like to preview how a lightwell washes walls using natural light render tests to get the paint values right.

save pin

save pin

Summary

Great duplex hall ceiling designs aren’t about spending big—they’re about thinking smart. A small hallway asks us to edit, layer light, and tune acoustics so every step feels intentional. As the WELL and IES guidelines suggest, comfort and light quality matter as much as looks. Which of these five ideas are you most excited to try in your own duplex hall?

FAQ

1) What is the best ceiling type for a narrow duplex hall?

Backlit coffers or a clean shadow-gap ceiling work well because they elongate sightlines and minimize visual clutter. Both can integrate dimmable LEDs and keep maintenance manageable.

2) How high should pendant lights hang in a duplex stair hall?

Keep pass-through clearances at 2100–2200 mm for the lowest pendant, then stagger others to animate the vertical space. Always check door swings and handrail projections before finalizing drops.

3) Are acoustic wood slats effective in small corridors?

Yes. With acoustic felt backing, slats can reduce reverberation and make speech clearer. WELL and various acoustic studies support using absorptive finishes to improve comfort in residential circulation zones.

4) What color temperature works best for duplex hall lighting?

For residential warmth, 2700K–3000K is a safe range; pair with high CRI (90+) for accurate color rendering. Cooler temperatures can feel clinical in tight halls.

5) How do I avoid glare with linear lights in a low ceiling?

Use diffusers, lower output (6–8 W/m), and setback from walls by 100–150 mm to prevent bright streaks. A micro-baffle or asymmetric optic also helps maintain comfort.

6) What’s a realistic budget for duplex hall ceiling designs?

Simple shadow gaps can be a few hundred dollars in materials; slat ceilings or coffered lighting can run $18–$60/sq ft installed. Custom pendant clusters vary widely, often $1,500–$6,000.

7) How can I visualize options before committing?

Create quick 3D mockups to test height, spacing, and brightness. A neutral planning workflow—like setting up a simple corridor model—lets you catch issues early and iterate fast.

8) Is there any guidance from authorities on lighting quality?

Yes. The Illuminating Engineering Society (IES) provides recommended practices for residential lighting, and the WELL Building Standard outlines comfort and light quality considerations. Both are reliable references when planning duplex hall ceiling designs.
