5 Easy Living Room Drawing Ideas for Small Spaces: My pro designer’s guide: five beginner-friendly ways to sketch a living room layout that actually works—grounded in real projects and smart space tactics

[Section: 引言]

I’ve spent over a decade sketching small living rooms for clients and for my own apartments, and the current interior design trend is clear: clean lines, multifunctional pieces, and light-filled palettes. Small spaces spark big creativity, and a simple drawing is the fastest way to test your ideas before buying anything. In this guide, I’ll share 5 easy living room drawing ideas—practical, beginner-friendly, and backed by my project experience and expert data—to help you plan with confidence.

[Section: 灵感列表]

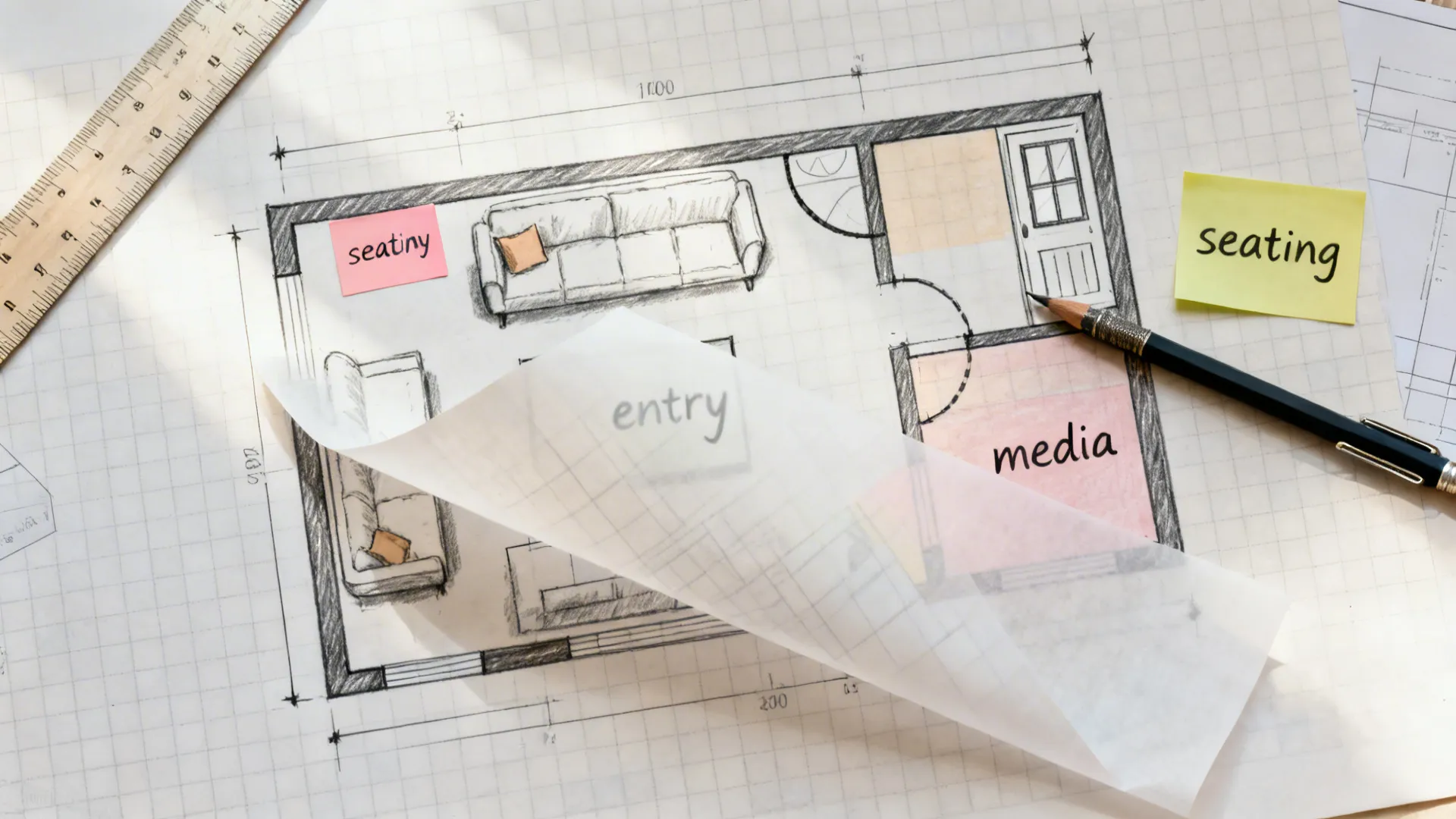

Start with a Scaled Box and Zones

My Take: I always begin with a simple scaled rectangle of the room—pencil, ruler, and one sticky note for each zone (seating, media, entry). When I first drew my 18’ x 10’ living room, breaking it into zones stopped me from forcing a sofa against every wall. It made decisions feel lighter and faster.

Pros: A scaled base plan helps you fit real furniture footprints without guessing, a classic long-tail approach to how to draw a living room easy for small spaces. Zoning clarifies flow lines and reduces clutter; you’ll see where walking paths need 30–36 inches. Research from the American Society of Interior Designers notes that clear circulation improves perceived spaciousness and comfort.

Cons: Drawing to scale can feel fussy the first time—yes, the 1/4" = 1' rule looks like math homework. Zones can also tempt you into over-planning; not every corner needs a label, or you’ll end up designing a museum instead of a home.

Tip / Case / Cost: Use graph paper: each square can equal 6 inches to keep math friendly. Trace paper lets you try multiple seating ideas over the same base. If you want to see a neat reference, my client loved how L shaped layout frees more counter space as a planning concept; similarly, L-shaped seating can free visual space in living rooms. (I’m borrowing the spatial principle, not the kitchen layout.)

save pin

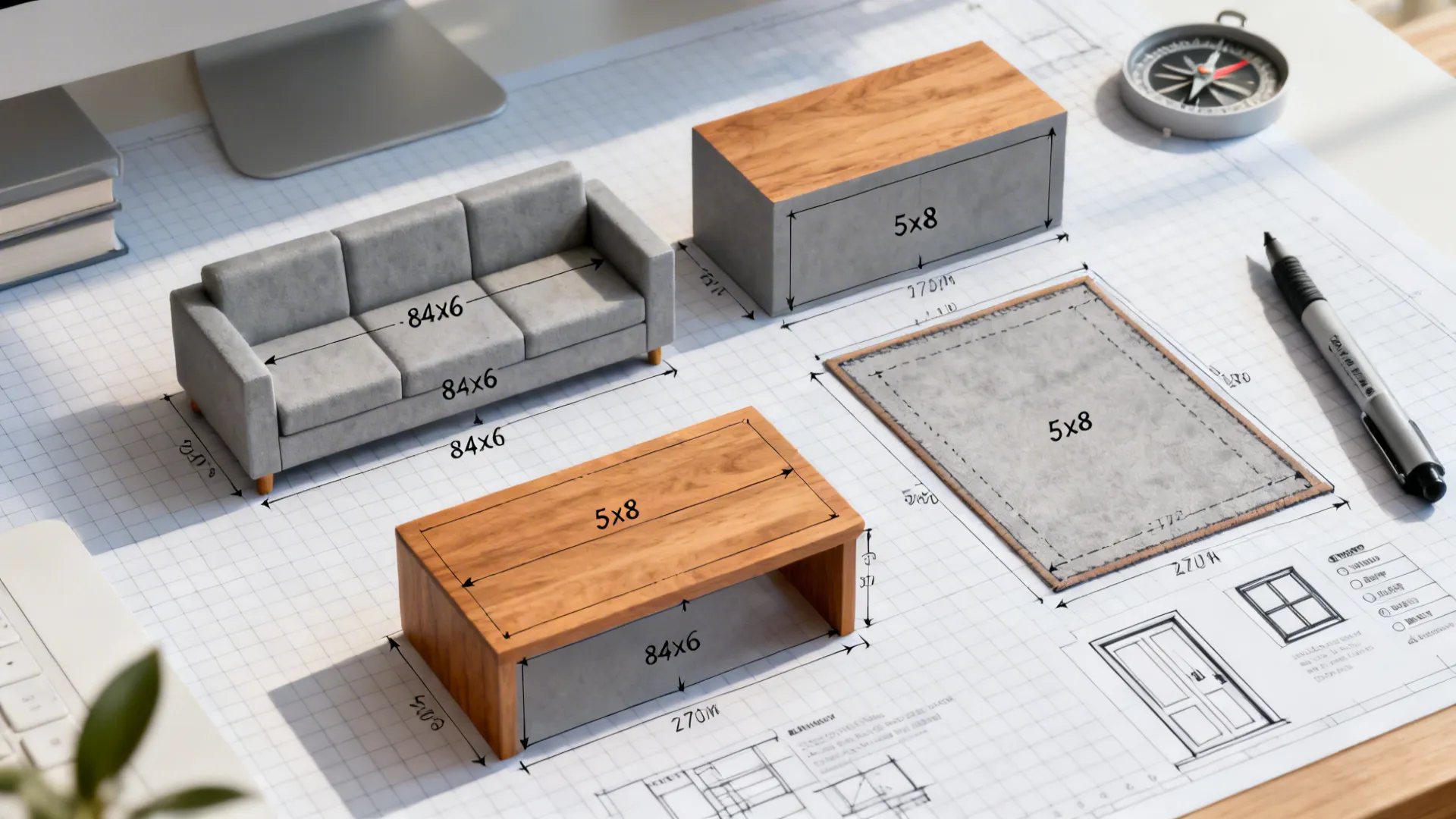

Sketch Furniture as Simple Blocks

My Take: I draw sofas as clean rectangles, coffee tables as boxes, and rugs as frames—no art-school shading required. In one micro-loft, I realized the coffee table was the space hog only after I blocked it in; swapping to a 24" ottoman saved the flow.

Pros: Block shapes force clarity: dimensions > decoration, which is the essence of how to draw a living room easy without overcomplicating. Long-tail win: standard sofa depths (34–38 inches) and walkway widths (30–36 inches) fit neatly as rectangles. The National Kitchen & Bath Association-type clearances are often echoed in living areas; planning with blocks keeps you honest about comfort distances.

Cons: Blocks can make the plan look colder than the final room—don’t panic. I sometimes forgot to mark furniture heights, which later affected TV sightlines. Remember: a block is a placeholder, not the vibe.

Tip / Case / Cost: Write sizes right inside the blocks: “Sofa 84 × 36,” “Rug 5 × 8.” It stops future confusion. Keep a quick legend for doors and windows so your blocks never intrude into swing arcs.

save pin

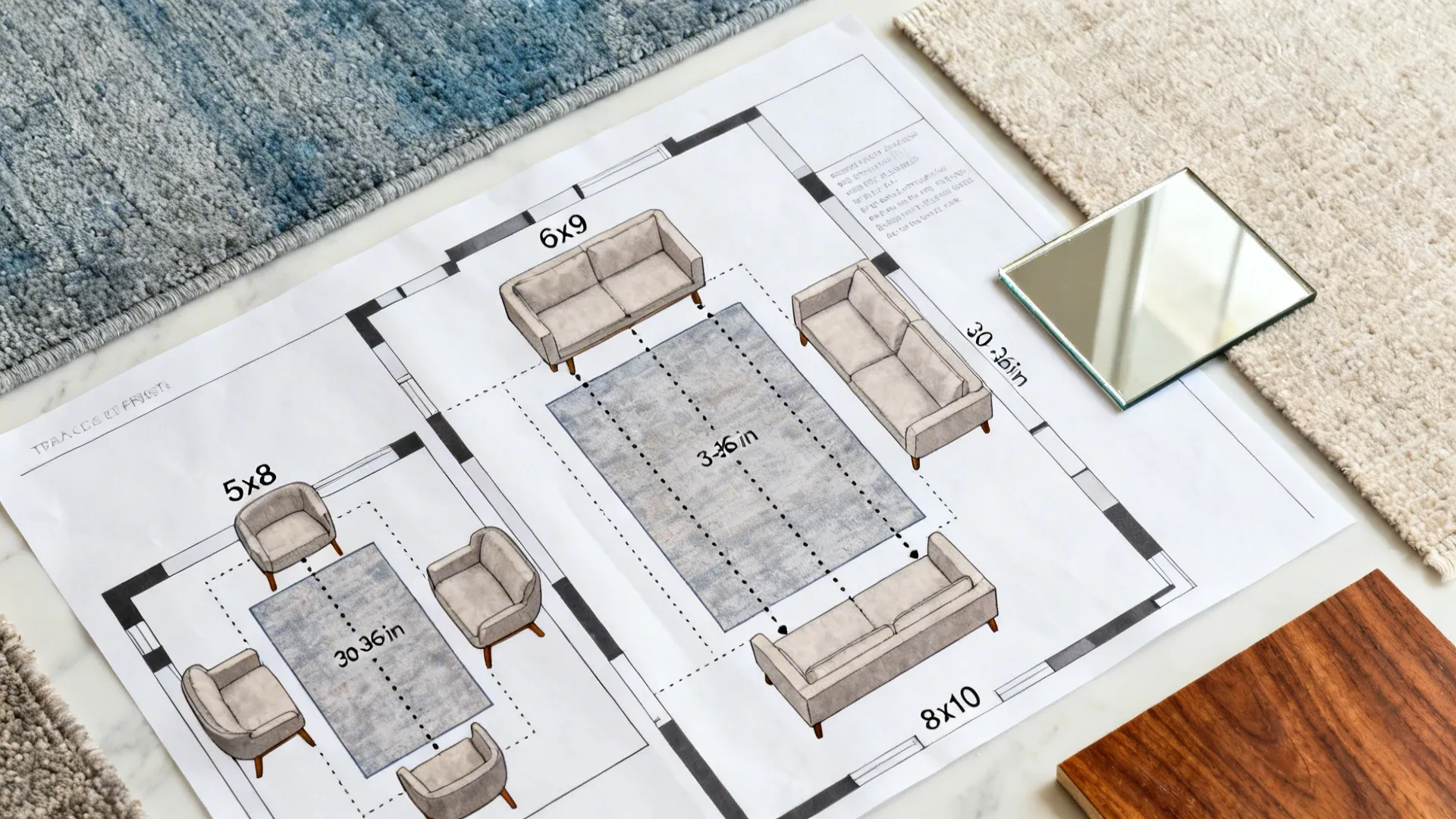

Use a Rug as the Composition Anchor

My Take: In tight rooms, I sketch the rug first, then center the seating around it. In a 9’ x 12’ rental, a 5’ x 8’ rug drawn first gave me an instant focal zone and prevented the “floating furniture” syndrome.

Pros: Anchoring with a rug keeps your composition cohesive and simplifies how to draw a living room easy for beginners—place the sofa with front legs on the rug, flank with chairs as needed. Larger rugs visually expand space by unifying pieces, a perception trick frequently cited in design education and retailer guidelines (e.g., minimum rug sizes that anchor seating groups).

Cons: The wrong rug size on paper looks okay until you add traffic lines—then you’ll see trip hazards. Also, centering everything on the rug can over-symmetrize the room; asymmetry around the anchor looks more natural in narrow spaces.

Tip / Case / Cost: Try tracing three rug sizes (5’x8’, 6’x9’, 8’x10’) on separate layers of trace. Swap them to see how the seating breathes. Around the midpoint of planning, I often pull up references like glass backsplash makes the kitchen more open to remind clients how reflective surfaces increase “visual volume”; in living rooms, mirror panels or glossy media cabinets can play the same expansion trick.

save pin

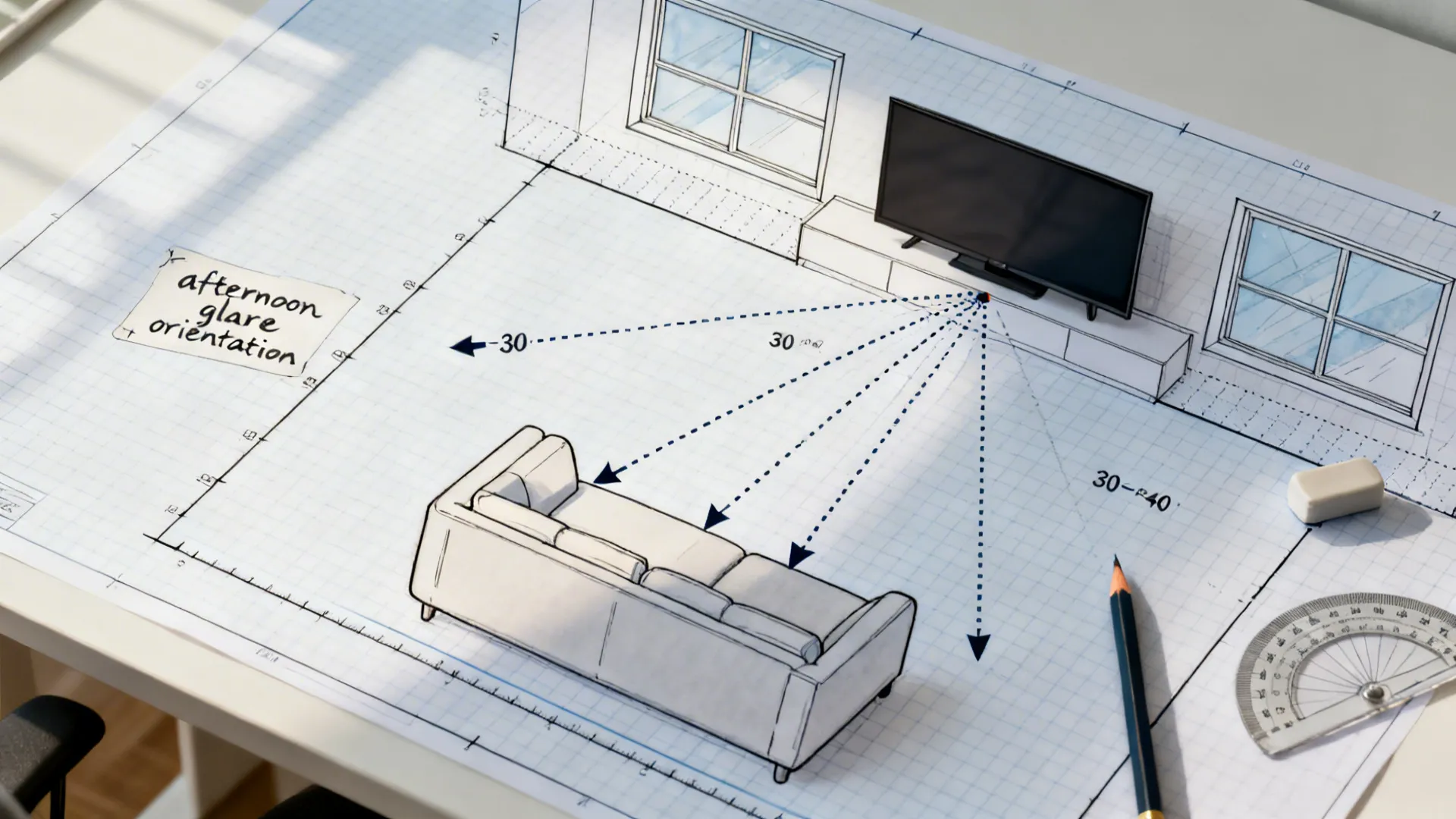

Plan Sightlines and Focal Points

My Take: I draw an arrow from the main seat to the focal point—TV, fireplace, or window—and then I sketch cone lines (roughly 30–40 degrees) to check if the view is blocked. In one project, moving the media console 12 inches left solved a neck-craning problem we’d lived with for months.

Pros: Clear sightlines reduce visual noise and make a small room feel organized, a long-tail principle baked into how to draw a living room easy and stay ergonomic. The WELL Building Standard emphasizes view quality and glare control; aligning seating with balanced focal points contributes to comfort and reduces eye strain.

Cons: Over-focusing on one focal point (say, the TV) can flatten the room’s personality. Also, real life includes reflections and afternoon glare; paper plans don’t show sunlight, so you’ll need a note for window orientation.

Tip / Case / Cost: Use dotted lines to mark “no-block zones” in front of windows and around the TV perimeter. For renters with a single wall, angle a chair at 15 degrees to relax the grid without losing the view.

save pin

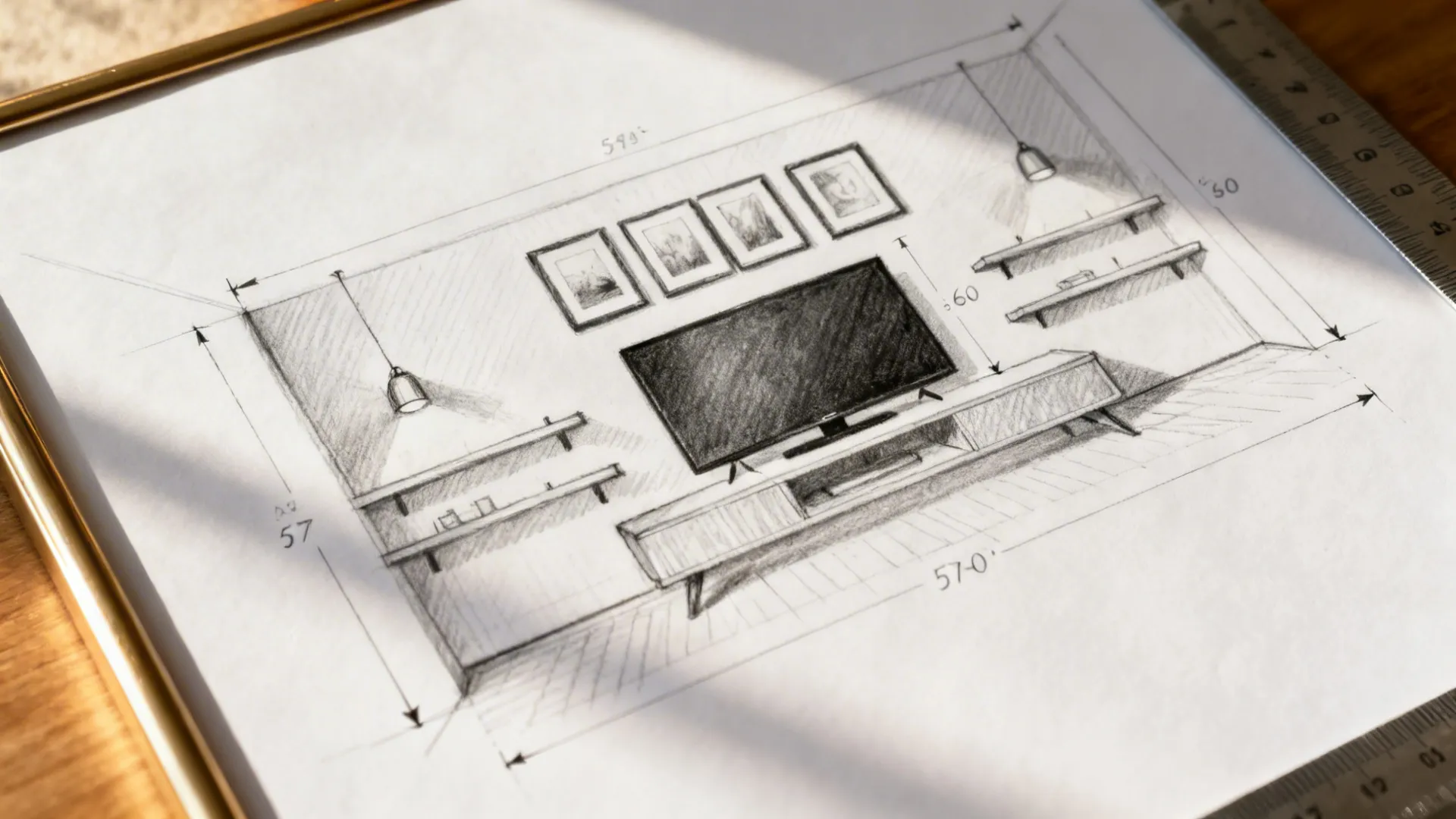

Layer Height: Elevations in Simple Lines

My Take: Once the plan feels right, I do one quick elevation—just a straight-on line sketch of the TV wall or sofa wall. This catches shelf heights, art spacing, and sconce placement before a single hole hits the drywall.

Pros: Adding a basic elevation turns a flat plan into a real room strategy and is a smart long-tail tactic for how to draw a living room easy yet complete. Vertical planning avoids “too-low art syndrome” and aligns lighting with seating. Studies in environmental psychology note that balanced vertical rhythms (repeated heights, aligned edges) improve visual calm.

Cons: Elevations can feel like extra homework. I’ve definitely sketched one at midnight and misread a dimension the next morning—double-check before drilling.

Tip / Case / Cost: Mark centerlines for art and TV mounting heights (e.g., 57–60 inches to center for art; eye-level from primary seat for TV). When I’m nearly done, I like to sanity-check proportions against a clean reference board—something like wood accents bring a warm atmosphere—and then translate the idea back to the sketch: thin wood shelves, warm frame tones, gentle contrast.

[Section: 方法细化与实操]

Now let’s stitch the five ideas into a simple routine you can follow in under an hour:

1) Measure the room: length, width, door swings, radiators, and window widths. Jot down ceiling height; it matters for tall shelving.

2) Draw the scaled box. Use 1 square = 6 inches or 1/4" = 1'. Add doors and windows; show swing arcs.

3) Block the big three: sofa, media, rug. Start with your ideal rug size, then fit sofa depth, then confirm walkway widths.

4) Zone light and traffic: sketch 30–36 inch paths; avoid pinching to less than 28 inches except in tight corners.

5) Add secondary pieces: side tables (18–24 inches), accent chairs (30–34 inches), lamps and plants. Keep scale honest.

6) Check sightlines: draw arrows from the primary seat to the focal point; adjust angles; mark glare sources if known.

7) Draft one elevation of your feature wall. Verify art heights, TV mounting, and shelf spacing.

8) Final pass: remove one item. Minimal editing almost always improves flow—small rooms love restraint.

Along the way, here are the dimensions I use most:

- Sofa depth: 34–38" standard; 30–32" for tight rooms (apartment sofas).

- Coffee table: leave 16–18" from sofa for knee room; 12–24" works across styles.

- Rug: aim for front legs of seating on the rug; 6’x9’ often beats 5’x8’ in living rooms over 10’ wide.

- Media distance: roughly 1.5–2.5× the TV diagonal for softer viewing (varies by 4K/8K and personal comfort).

- Lamps/sconces: center at 60–66" for reading zones; adjust to seating height.

Common pitfalls I see on first sketches:

- Drawing furniture too small, then “discovering” extra space that isn’t real.

- Ignoring door swings—your beautiful console gets decapitated by the door.

- Placing the rug so small it looks like a bath mat; it makes the room feel chopped.

Corrections are simple: re-block with true sizes, redraw door arcs, and upsize the rug or rotate the seating. I like to keep spare cutouts (paper furniture pieces) to shuffle on the base plan—like analog drag-and-drop.

Color and texture don’t need perfect sketches. Add a few color notes: “light oat walls,” “linen sofa,” “walnut shelves,” “blue-gray rug.” Circles for plants, triangles for lamps—fast symbols help without over-detailing. If you want to explore depth or perspective later, start with a single-corner sketch: draw the floor as a rectangle receding to one vanishing point; keep furniture heights consistent.

If you crave a quick digital sanity check around the 80% mark, translate your blocks into a simple planner and assess proportions. I sometimes verify scale using case references that echo a concept like “L shaped seating opens the floor,” similar to how minimalist kitchen storage design demonstrates clarity and order; the principle applies across rooms: one strong organizing idea reduces visual noise.

[Section: 权威与数据]

You don’t need to memorize codes, but a few expert-backed concepts help:

- Circulation and comfort clearances around 30–36 inches are widely recommended in professional guidelines and design education. ASID and NKBA references often align on practical walking space for residential layouts.

- The WELL Building Standard and environmental psychology literature point to the importance of balanced light, view quality, and visual organization for perceived comfort—sightlines and glare planning matter.

- Retail and A&D guides consistently show larger rugs unify zones and make small rooms feel bigger by visually linking seating elements.

My rule of thumb: if it’s hard to draw, it’s probably awkward to live with. Keep the layout simple, scale accurate, and circulation honest; your living room will feel calmer the day you move things into place.

[Section: 总结]

Small living rooms aren’t limitations—they’re invitations to think smarter. The core of how to draw a living room easy is to scale the room, block the big pieces, anchor with a rug, align sightlines, and sanity-check the verticals with a quick elevation. As ASID-aligned clearance guidance and WELL-focused view principles suggest, comfort starts on the page and ends in how the room feels. Which of these five ideas are you most excited to try in your next sketch?

[Section: FAQ 常见问题]

save pin

FAQ

1) What is the easiest way to start—how to draw a living room easy for beginners?

Begin with a scaled rectangle of your room, add doors/windows, then block in sofa, rug, and media as simple rectangles. Keep walkways at 30–36 inches and refine from there.

2) How big should my rug be in a small living room drawing?

Aim for at least the front legs of your seating on the rug. Try 6’x9’ if your room is around 10’ wide; it often feels more cohesive than 5’x8’.

3) What clearances do I need around furniture?

Plan 16–18 inches between sofa and coffee table and 30–36 inches for walking paths. These ranges are commonly cited in residential planning and align with professional comfort guidelines.

4) How do I place the TV in my drawing?

Draw sightline arrows from the primary seat to the screen and avoid blocking cones of view. Keep the center of the screen near seated eye level to reduce neck strain.

5) Do I need to draw elevations for a simple living room plan?

Not always, but one quick elevation of your feature wall helps you set art heights and shelf spacing. It prevents the “too-low art” problem before it happens.

6) What’s the best scale to use on paper?

Use 1 square = 6 inches on graph paper or 1/4" = 1' for clarity. Label dimensions directly on your furniture blocks to avoid mistakes later.

7) Any authoritative references I should know?

ASID- and NKBA-aligned guidance on comfort clearances (e.g., 30–36 inch walkways) and the WELL Building Standard’s focus on view quality support the planning methods above. These frameworks prioritize human comfort and usability.

8) Can I try a digital check after sketching?

Yes—after you block on paper, transfer measurements into a simple planner for proportion checks. If you like exploring styles, case libraries that show principles like “L-shaped seating opens the floor” can provide visual benchmarks.
