5 Essentials for 3-hour fire wall UL design: A senior designer’s field-tested guide to UL-rated 3-hour fire walls, from assemblies and continuity to firestopping and openings—practical, human, and code-aware

[Section: 引言]

In recent projects, I’ve seen a clear trend: code-informed interiors where life-safety and aesthetics co-exist, especially in mixed-use buildings and compact tenant spaces. Small spaces spark big creativity—tight footprints push us to plan smarter, detail cleaner, and select the right assemblies. In this guide, I’ll share 5 design insights for 3-hour fire wall UL design, grounded in my experience and backed by expert sources, with a quick 3D render of compartmentation concepts that helps clients visualize the impact early on.

[Section: 灵感列表]

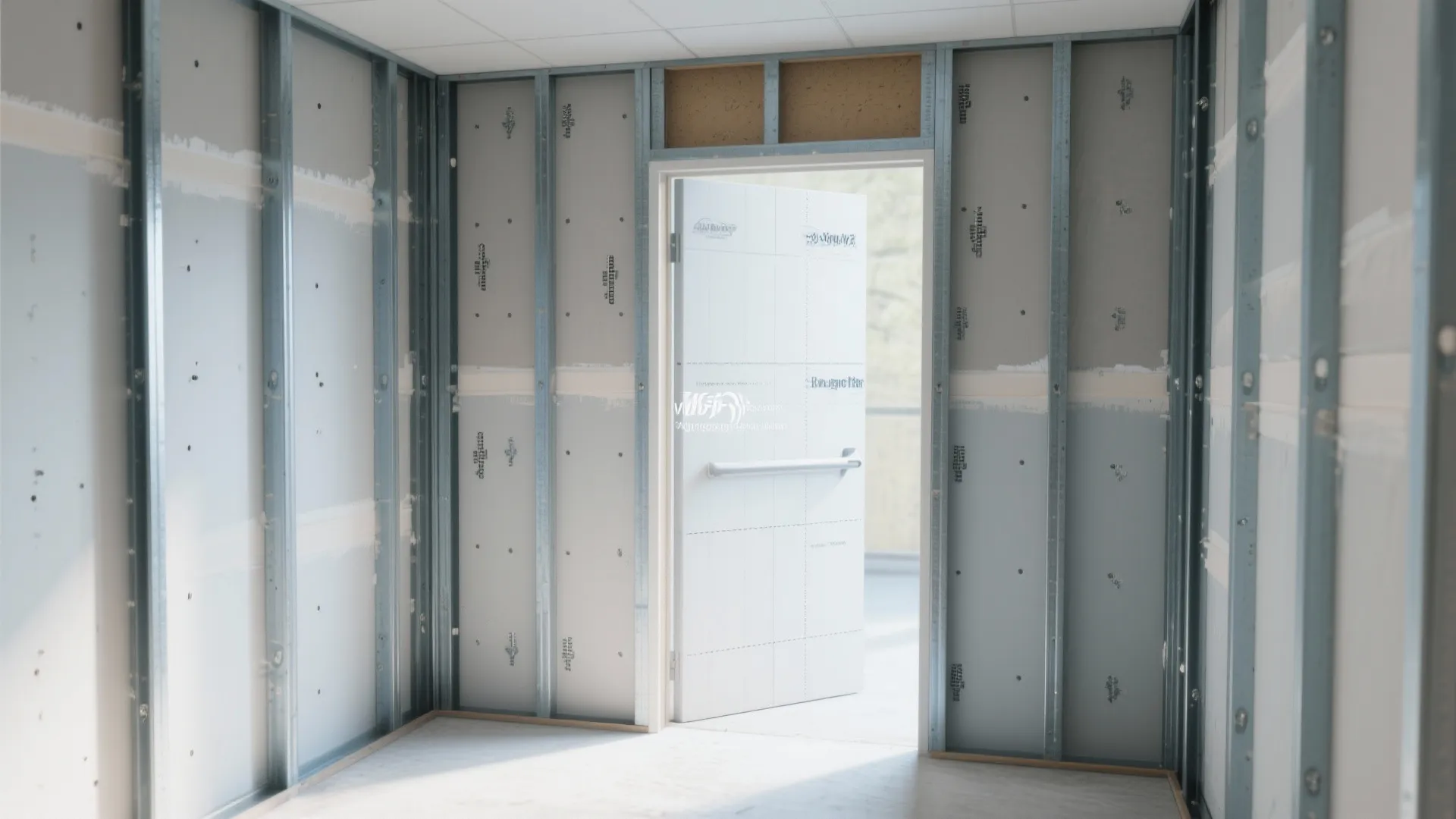

Steel stud gypsum assemblies for a UL 3-hour rating

My Take

On several urban fit-outs, a multi-layer gypsum assembly on steel studs was the most practical path to a 3-hour wall without the weight of masonry. I’ve learned that planning the layer schedule early saves headaches later—especially around penetrations and door frames.

Pros

A UL 3-hour gypsum wall assembly can be built efficiently with commonly available materials, often using three layers of 5/8-inch Type X gypsum per side on heavier-gauge studs. Long-tail search-wise, “UL 3-hour gypsum wall assembly” and “multi-layer Type X drywall 3-hour rating” typically lead to tested UL Wall & Partition Designs (e.g., U-series) on UL Product iQ; always verify the exact stud gauge and layer schedule.

With careful detailing, this approach reduces structural load compared to CMU, which is helpful in renovations. It also coordinates nicely with finishes—acoustics, paint specs, and even integrated millwork—if you plan the reveal depths and edge trims around the multiple layers.

Cons

It’s not light on labor—three layers per side mean more screws, more seams, and more opportunities to miss a detail. In small rooms, staging material and maintaining clearances around a multi-layer build-up can feel like a drywall Tetris game.

Because layer count, screw spacing, and board type are critical, coordination lapses can invalidate the rating. I’ve done the walk-through where we discovered a non-Type-X board mixed in—cue the sigh and a Saturday fix.

Tips / Case / Cost

Plan access for inspection and photos of each layer—some GCs use a sign-off sheet per layer to avoid mistakes. Keep a printed copy of the UL design on site; clarify stud gauge, board type, and joint treatments with your team before boarding starts.

save pin

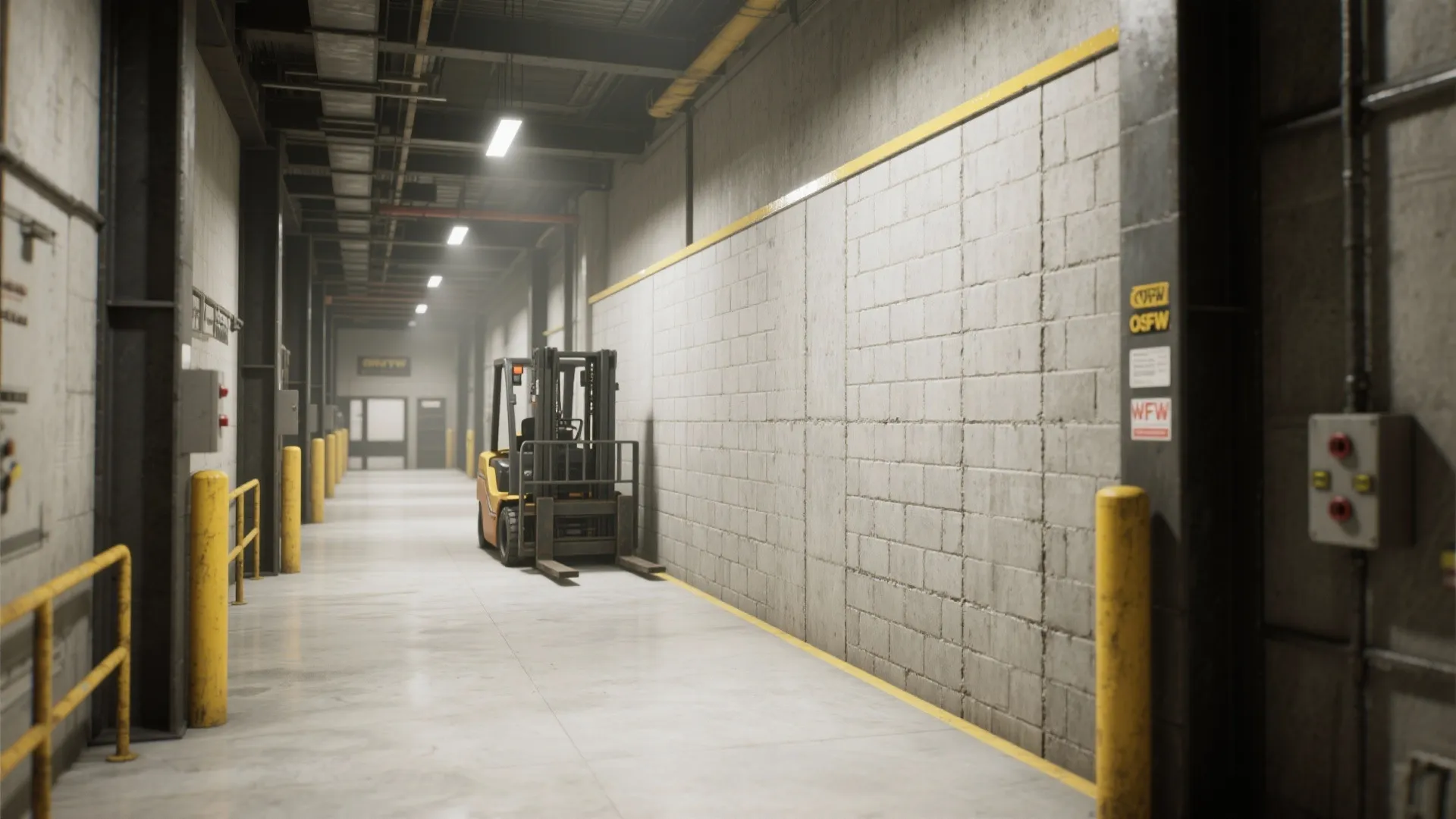

CMU masonry fire walls when robustness is king

My Take

When durability, impact resistance, and long-term stability are priorities, I reach for CMU. In a distribution retrofit, a 3-hour CMU fire wall handled forklift traffic nearby and kept deflection worries at bay.

Pros

CMU fire walls offer inherent mass and resilience—ideal where abuse is expected. Long-tail keywords like “3-hour CMU fire wall details” and “grouted CMU fire-resistance rating” will point you to UL Wall & Partition Designs in the U200 series; verify block density, grout schedule, and thickness for the 3-hour rating. Concrete and CMU also simplify continuity—easier to extend through ceilings to the deck under tighter tolerances.

Maintenance is minimal compared to multi-layer gypsum. In high-traffic service corridors, the surface can take hits better, and touch-ups are simpler.

Cons

Heavier structure means you need to check foundations and floor capacity. In existing buildings, bringing in block and grout adds logistics—think hoists, staging, and access that aren’t charming in a small footprint.

Detailing openings and interfaces (e.g., at steel beams) can become complex and may require embeds. If your team is more accustomed to drywall, the learning curve shows up in schedule.

Tips / Case / Cost

Evaluate total cost of ownership—CMU can be a wiser long-term investment where impacts are frequent. Coordinate MEP sleeves early; sleeving and proper firestopping later will be far cleaner if you plan penetrations before grouting.

save pin

Continuity and structural independence per NFPA 221

My Take

On a mixed-use project, our 3-hour fire wall had to carry through the roof deck, with parapet and structural independence. Getting continuity right upstream saved us from late-stage RFIs and expensive rework.

Pros

Clear continuity—foundation to roof (and sometimes parapet)—is the backbone of code compliance. Long-tail terms like “NFPA 221 fire wall continuity” and “structurally independent 3-hour wall” reflect the requirement to ensure the wall remains standing if adjacent structures collapse. NFPA 221 (e.g., Section 4 on construction and structural stability) and IBC 2021 Table 706.4 are reliable anchors for minimum ratings and continuity criteria.

Planning continuity early aligns structural engineering, roofing, and firestopping teams. I’ve seen smoother inspections when our BIM showed the wall through deck, with defined joint systems and parapet details.

Cons

Continuity can clash with aesthetic ambitions—soffits, floating ceilings, or complex lighting coves often need redesign. In small spaces, getting the wall to the deck may mean creative routing of MEP and a few compromises.

Expect more time in coordination meetings. If your parapet detail isn’t nailed, wind load and thermal movement become a late headache.

Tips / Case / Cost

Model the wall above ceilings and into the roof assembly. Establish where expansion joints or seismic joints occur and specify tested joint systems accordingly. At the halfway point of design, share a simple diagram or detailing for gypsum multi-layer assemblies to align the whole team.

save pin

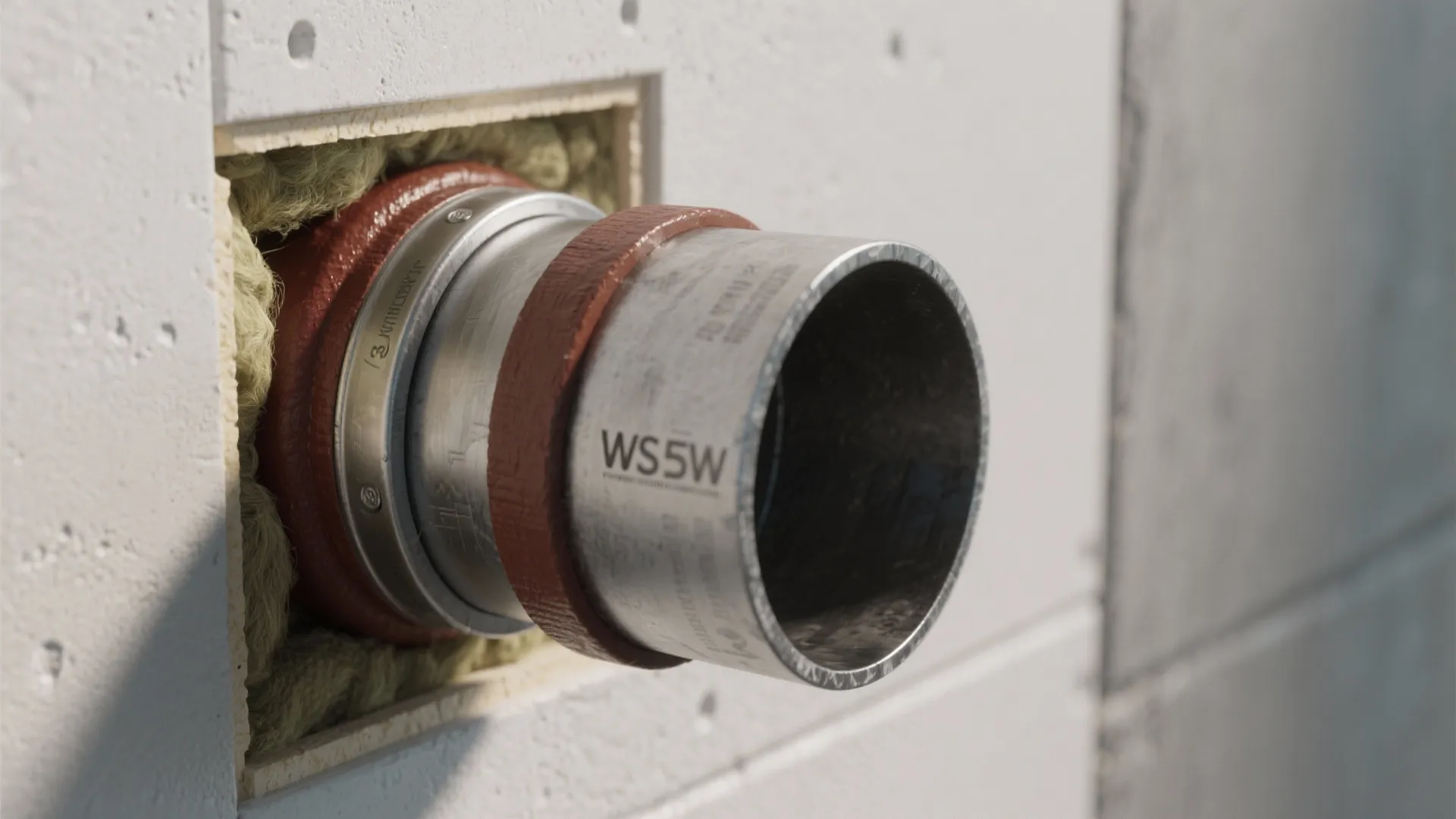

Penetrations, joints, and firestopping: tested UL systems

My Take

On almost every 3-hour wall, penetrations are where things go sideways. I keep a curated set of UL firestop systems handy—by wall type and penetration type—so the foreman can confirm a system before cutting.

Pros

Using tested UL systems (e.g., categories for wall penetrations like W-L or C-AJ, and head-of-wall joints like HW-D) ensures the fire-resistance rating holds through real-world conditions. Long-tail keywords such as “UL firestop system for 3-hour wall” and “head-of-wall joint UL HW system” will lead you to approved assemblies. UL Product iQ is the authoritative directory; it’s worth setting up saved lists of systems for your typical MEP runs.

Preselecting systems streamlines submittals and avoids site improvisation. For small rooms, planning cable trays and plumbing stacks to minimize penetrations across the 3-hour wall reduces risk and speeds inspections.

Cons

Firestopping can be fiddly—annular space, sleeve details, and insulation types matter. When a supplier swaps a pipe material late, you may need a different UL system; cue the scramble.

Costs add up if every trade routes through the 3-hour wall. I’ve politely redirected more than one contractor to run in parallel bays to keep the wall clean.

Tips / Case / Cost

Create a routing plan that shows “no-go” zones on the 3-hour wall and an approved list of systems per penetration type. Photograph installed firestopping with system numbers—this helps with as-builts and future maintenance.

save pin

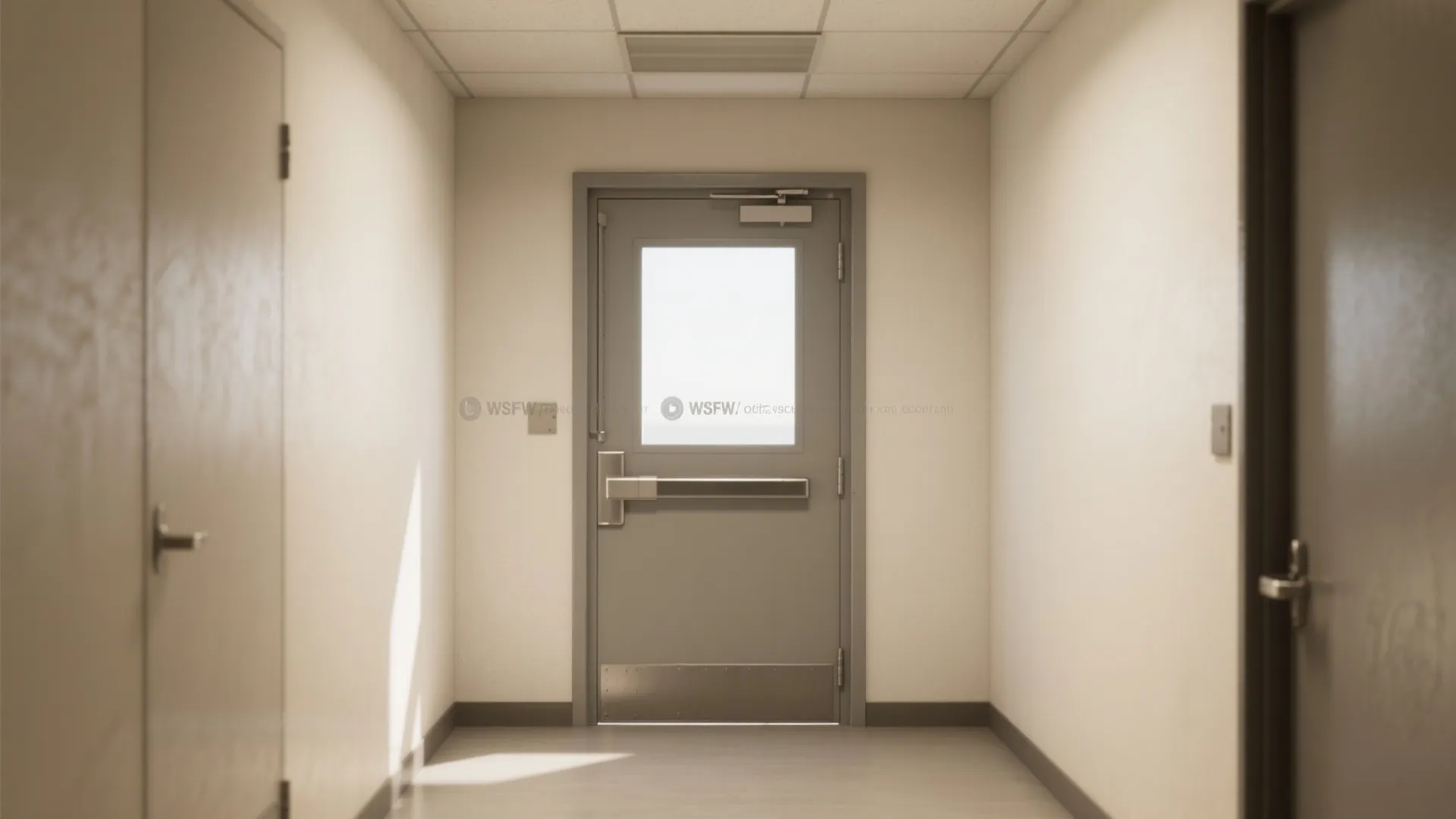

Openings, doors, and finishes that respect the rating

My Take

We once had a beautiful corridor concept almost derail because the door schedule missed that a 3-hour wall typically needs a 3-hour fire door assembly. The fix worked—but confirming ratings early is a lesson I never forgot.

Pros

Coordinating openings for a 3-hour firewall—frames, hardware, glazing, and closers—gives you confidence at inspection. Long-tail phrases like “3-hour fire door assembly in firewall” and “fire-resistive glazing in 3-hour wall” help you find NFPA 80 and UL listings that match your door/frame package. Keeping finishes simple around openings (no deep reveals that cut into the assembly) avoids untested conditions.

If you design the interior around these constraints—color, lighting, and signage—you can maintain the concept without risking compliance. In compact spaces, smart finish choices can make a robust wall feel purposeful rather than utilitarian.

Cons

Fire-rated glazing sizes may be limited or cost-prohibitive, and heavy frames change the feel of the space. Hardware packages for 3-hour doors add complexity; budget and lead times need attention.

Sometimes a coveted minimalist detail conflicts with listing requirements. I keep a “design alternates” list handy in case we need to pivot without losing the vibe.

Tips / Case / Cost

Coordinate with your supplier on UL-listed assemblies and NFPA 80 compliance. Provide graphics to clients showing how the rated opening fits the concept; a quick mockup or code-compliant wall continuity visuals can calm nerves when constraints feel abstract.

[Authority Notes]

Authoritative references worth bookmarking: UL Product iQ (for Wall & Partition Designs and firestop systems), NFPA 221 (for firewall definition, continuity, and structural independence), NFPA 80 (for opening protectives), and the 2021 IBC—see Table 706.4 for minimum firewall ratings and Chapter 7 for assemblies. The Gypsum Association’s GA-600 Fire Resistance Design Manual also catalogs gypsum assemblies tested for various ratings. Always verify the exact UL design number and configuration before specifying.

[Section: 总结]

A 3-hour fire wall UL design isn’t a constraint—it’s a call for smarter coordination. In small spaces, we can do more with less: pick the right assembly, ensure continuity, and tame penetrations and openings with tested systems. Done right, the 3-hour rating supports safety and still lets the interior sing.

Whether you go gypsum or CMU, keep the core keyword in mind—3-hour fire wall UL design—and lean on authoritative sources like NFPA 221 and UL Product iQ throughout. Which of these five strategies would you try first in your next project?

[Section: FAQ 常见问题]

save pin

FAQ

1) What is the difference between a firewall and a fire barrier?

A firewall (per NFPA 221) is structurally independent and designed to remain standing if adjacent construction collapses; a fire barrier is not necessarily structurally independent. For 3-hour fire wall UL design, continuity and independence are key.

2) Which UL designs can achieve a 3-hour gypsum wall?

Several UL Wall & Partition Designs list 3-hour configurations with multi-layer Type X gypsum on steel studs. Verify the exact design number and layer schedule on UL Product iQ before specifying, as requirements vary by stud gauge, board type, and fastener spacing.

3) Do 3-hour CMU walls need to be fully grouted?

It depends on the UL design and block type. Some 3-hour CMU assemblies require specific grout patterns, densities, or thicknesses; check the applicable UL U-series design and the project’s structural requirements to confirm.

4) What door rating is required in a 3-hour firewall?

Typically, 3-hour fire doors are used in 3-hour firewalls; confirm with NFPA 80 and the listing for your door/frame assembly. Hardware and closer selections must match the listing to maintain the rating.

5) How do I handle head-of-wall joints for a 3-hour wall?

Use tested UL joint systems (e.g., HW-series) that match your wall type and deck condition. The system must accommodate movement while maintaining the 3-hour rating; coordinate with structural and roofing teams to pick the right detail.

6) Where can I find authoritative ratings and assemblies?

UL Product iQ provides tested assemblies and firestop systems. The 2021 IBC Table 706.4 outlines minimum firewall ratings, and NFPA 221 (e.g., Section 4.3 on structural stability) defines firewall performance and continuity—these are primary sources for 3-hour fire wall UL design.

7) Can I use fire-resistive glazing in a 3-hour wall?

Yes, in some conditions—glazing must be listed for the intended rating and application. Size and framing options may be limited, so coordinate early with suppliers and verify UL/NFPA compliance.

8) How should penetrations be documented for inspection?

Create a matrix listing each penetration type with its UL system number, take installation photos, and include cut sheets in the submittal package. This speeds approvals and ensures the 3-hour rating is preserved through all penetrations.
