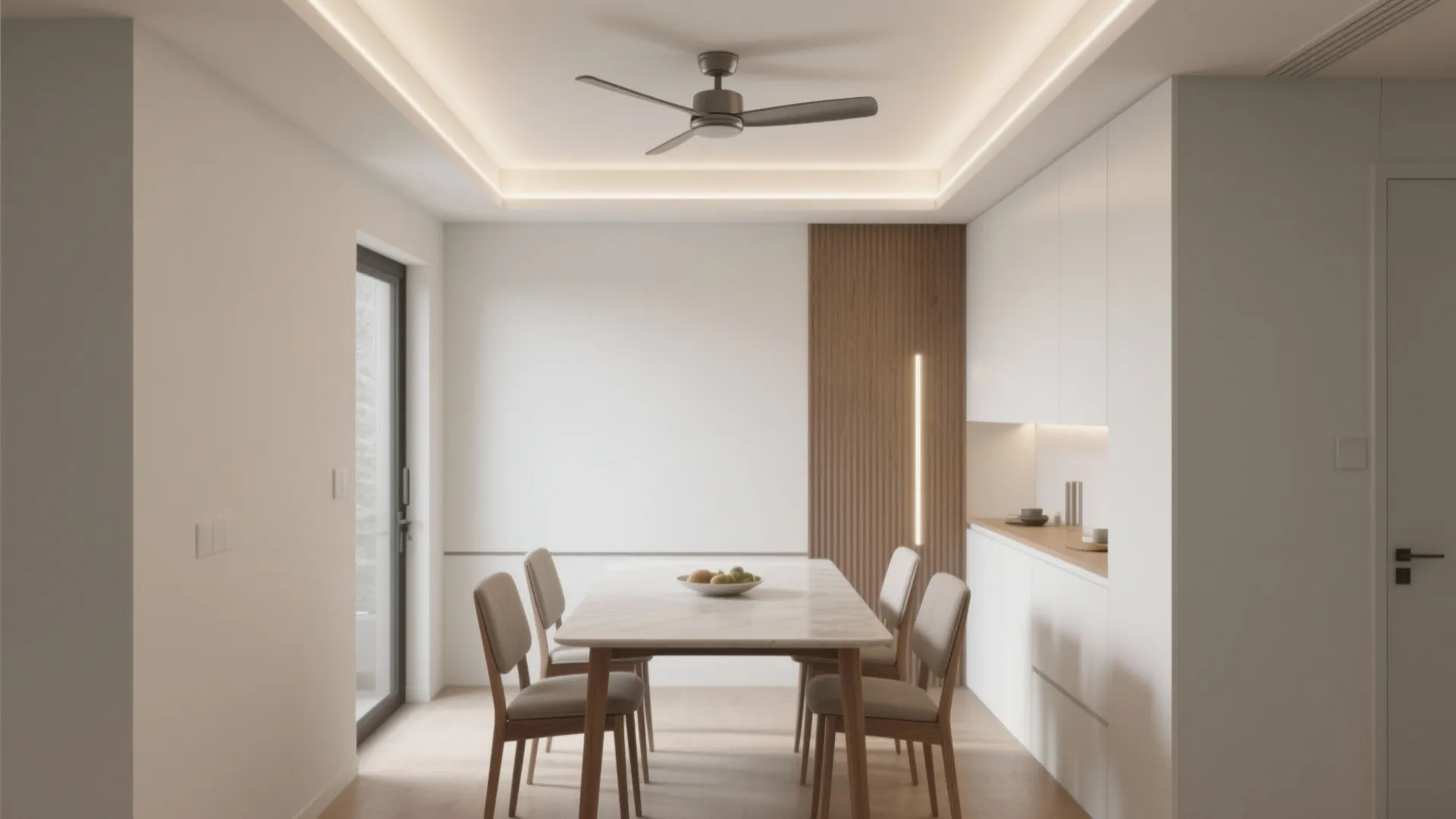

5 False Ceiling Designs for Dining Room with Fan: My field-tested ideas to blend fans, lighting, and style in compact dining rooms—without losing headroom or comfort

[Section: 引言]

I’ve redesigned more dining rooms than I can count, and lately I’m seeing two big trends in ceilings: slimmer profiles and smarter integration. That’s especially true for false ceiling designs for dining room with fan, where every inch and airflow pattern matters. Instead of fighting the fan, I plan the ceiling around it.

Small spaces always spark big creativity. When we don’t have height to waste, clever layers, precise lighting, and the right fan placement make all the difference. In apartments and compact homes, a thoughtful false ceiling can create intimacy over the table while keeping the room cool and well-lit.

Today I’m sharing 5 design inspirations I use with clients, mixing my own site-tested experience with expert guidance and data. You’ll see what works, what to watch for, and how to budget smartly—so you can make a ceiling your dinner guests actually notice (for the right reasons).

[Section: 灵感列表]

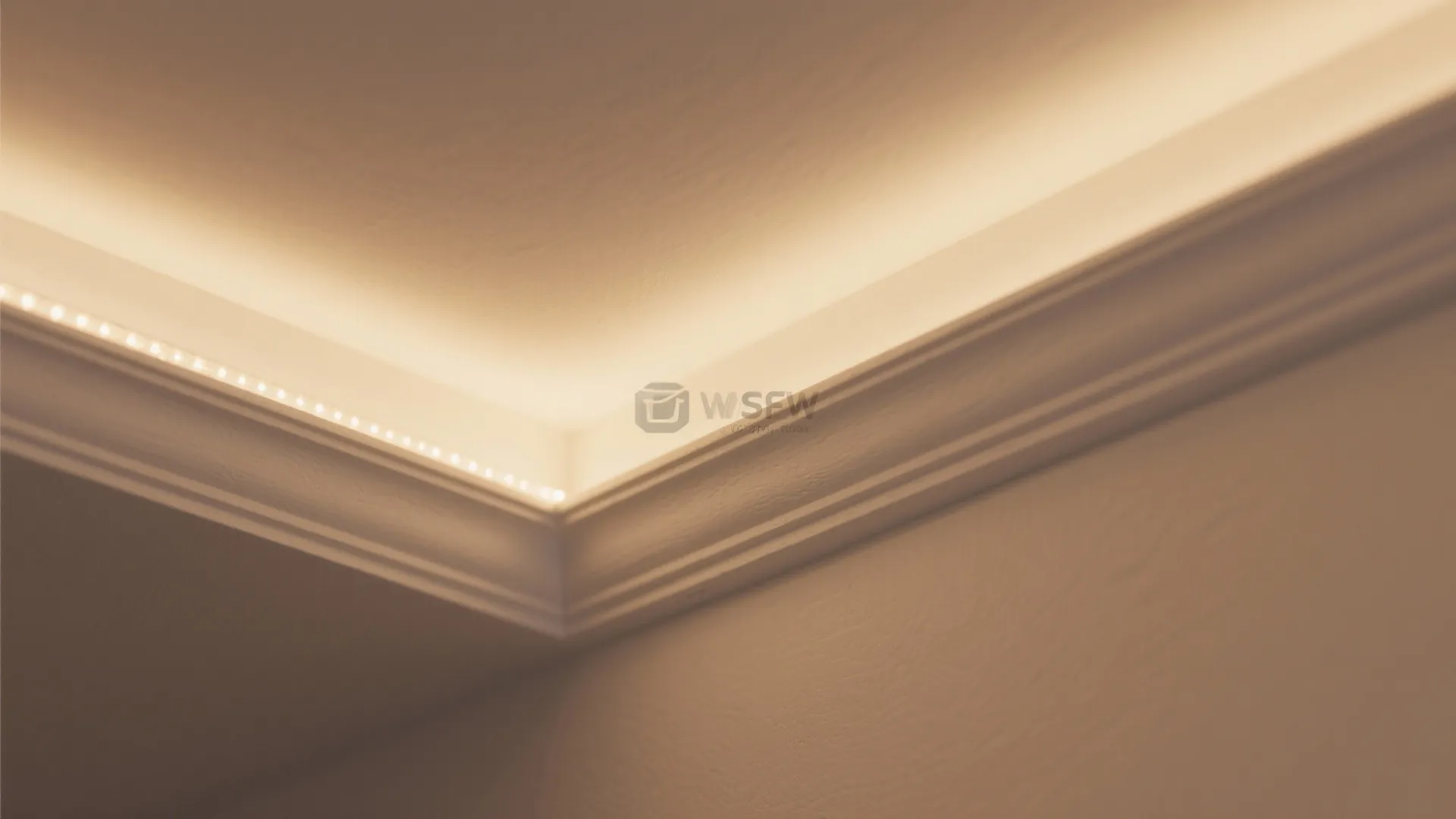

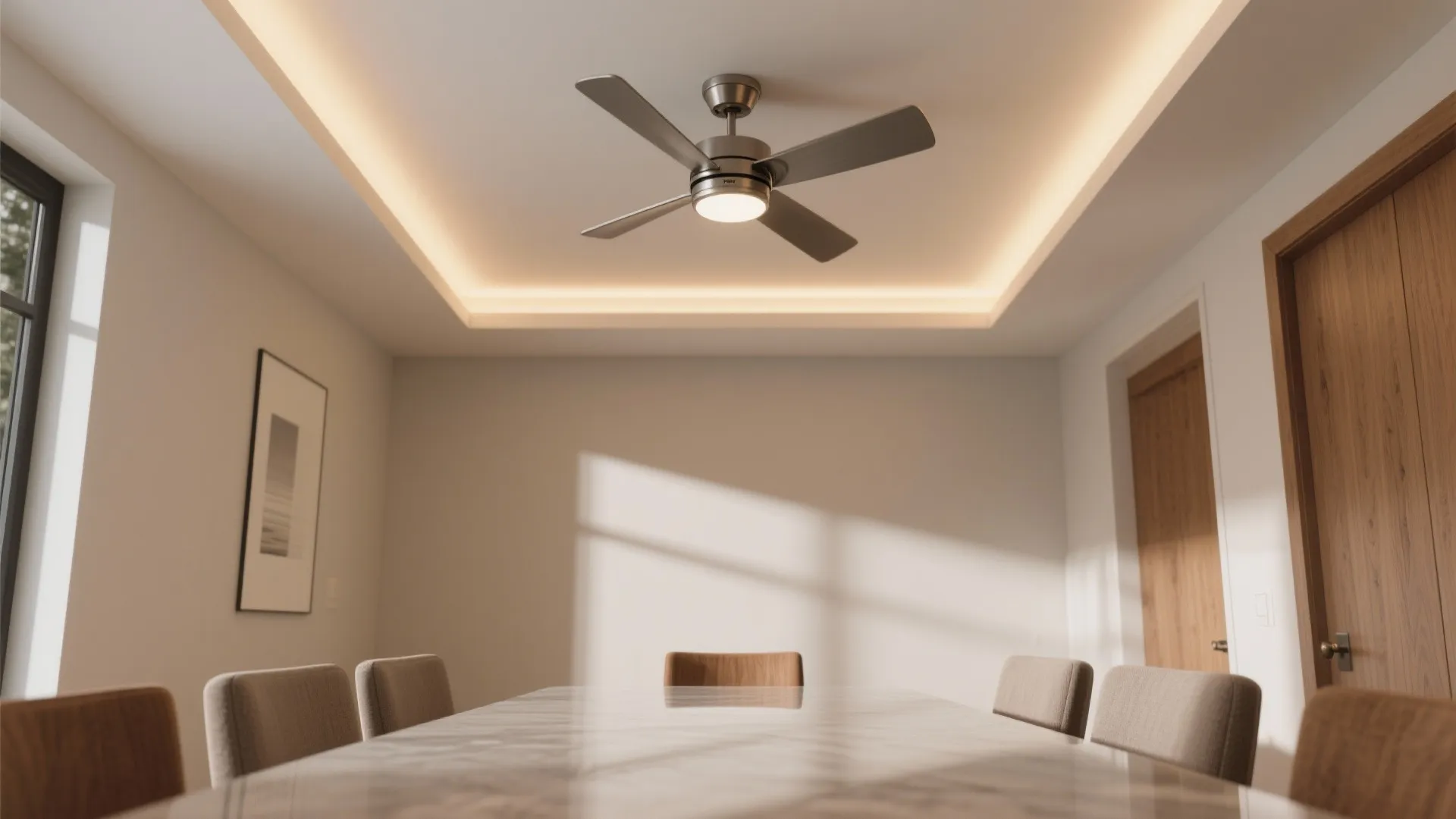

1) Slim Cove Rectangle with a Flush-Mount Fan

My Take — When I first tried this in a 9-foot dining room, I used a shallow gypsum drop (about 3 inches) to create a glowing cove and centered a compact 48-inch flush-mount fan. The room instantly felt calmer because the indirect light softened the walls and the fan blades stayed above eye level. It’s my go-to when clients want a modern look without lowering the ceiling too much.

Pros — Indirect cove lighting reduces glare on glossy tables and helps define the dining zone. It’s a great way to execute a gypsum false ceiling for dining room without sacrificing headroom, especially when paired with a low-profile fan. For comfort and safety, I follow the ENERGY STAR ceiling fan guidance to keep blades about 7–9 feet above the floor and roughly 10–12 inches below the ceiling where possible.

Cons — Coves collect dust, so they need occasional vacuuming with a soft brush. If you pack too many LED drivers into a tight plenum, maintenance gets tricky. Also, very shallow drops can limit the visual drama—go too thin and the effect can feel timid rather than elegant.

Tips / Cost — I usually spec 2700–3000K LED strips to keep the food looking warm and inviting. Budget roughly $12–20 per sq ft for the gypsum scope, plus $150–$300 for quality dimmable LED strips and drivers (brand and CRI matter). If you’re visual-first like me, mock up a floating ceiling trim with hidden LEDs before committing to the final coving height and width—seeing the glow in context saves revisions.

save pin

save pin

save pin

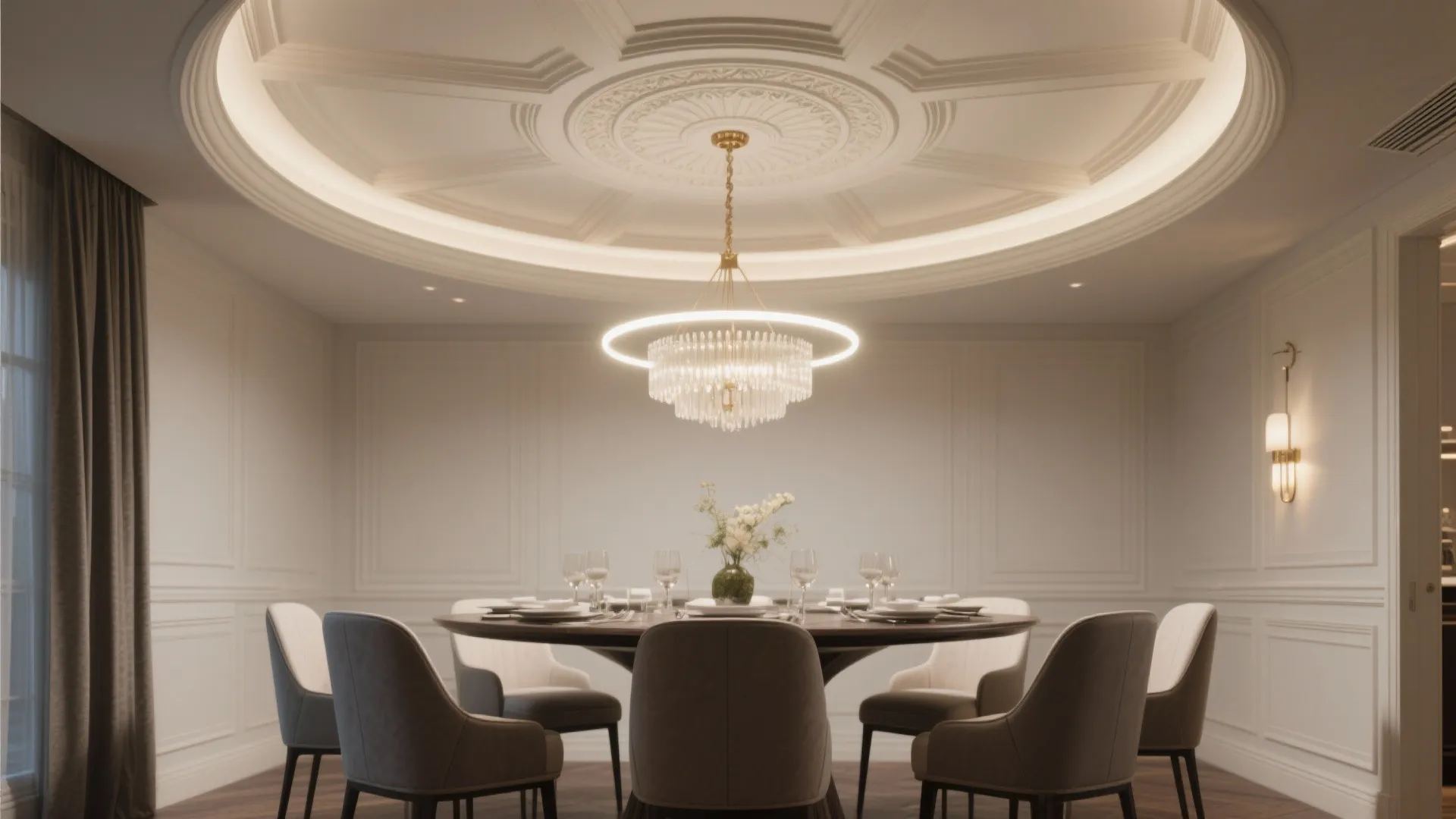

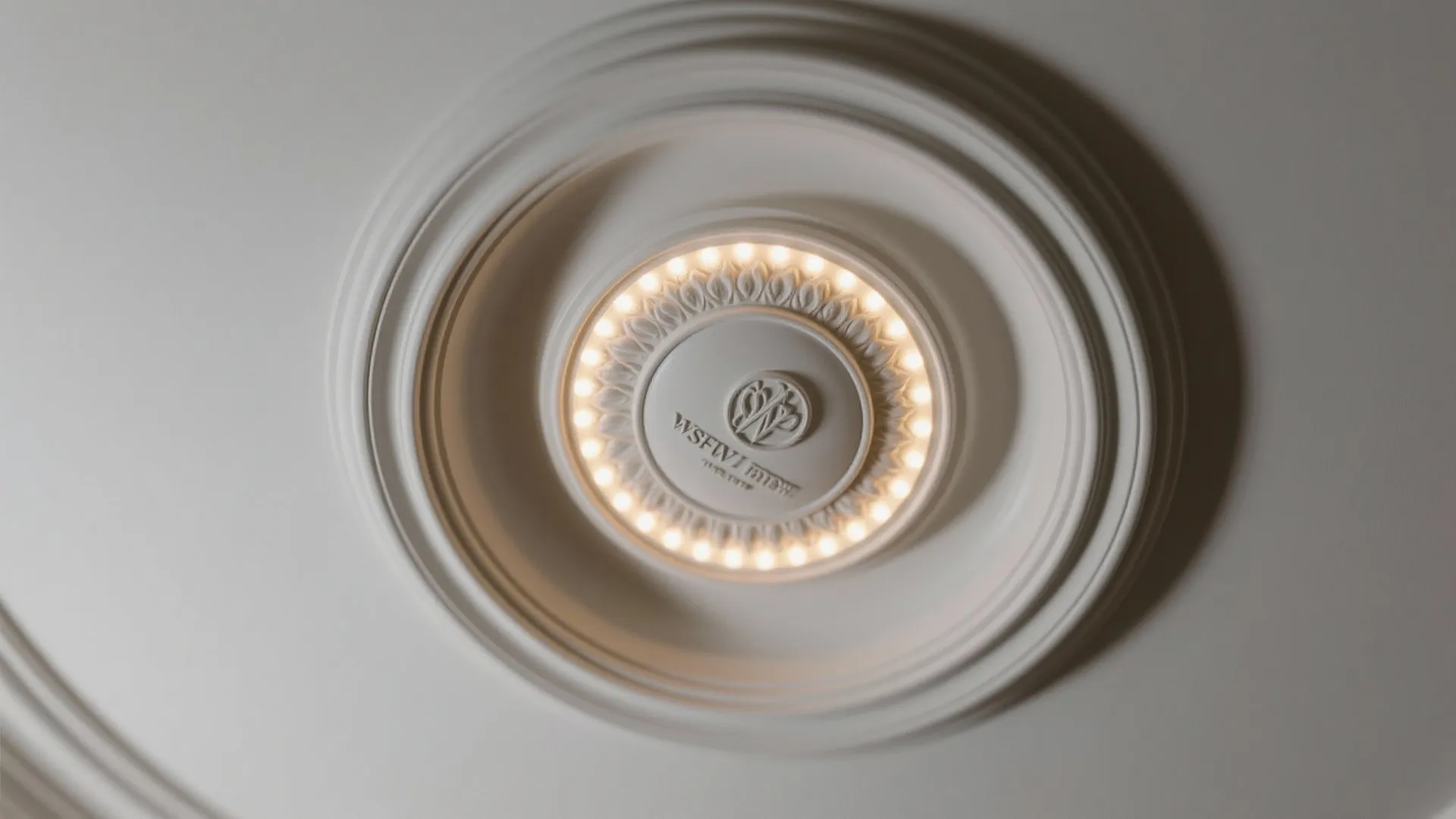

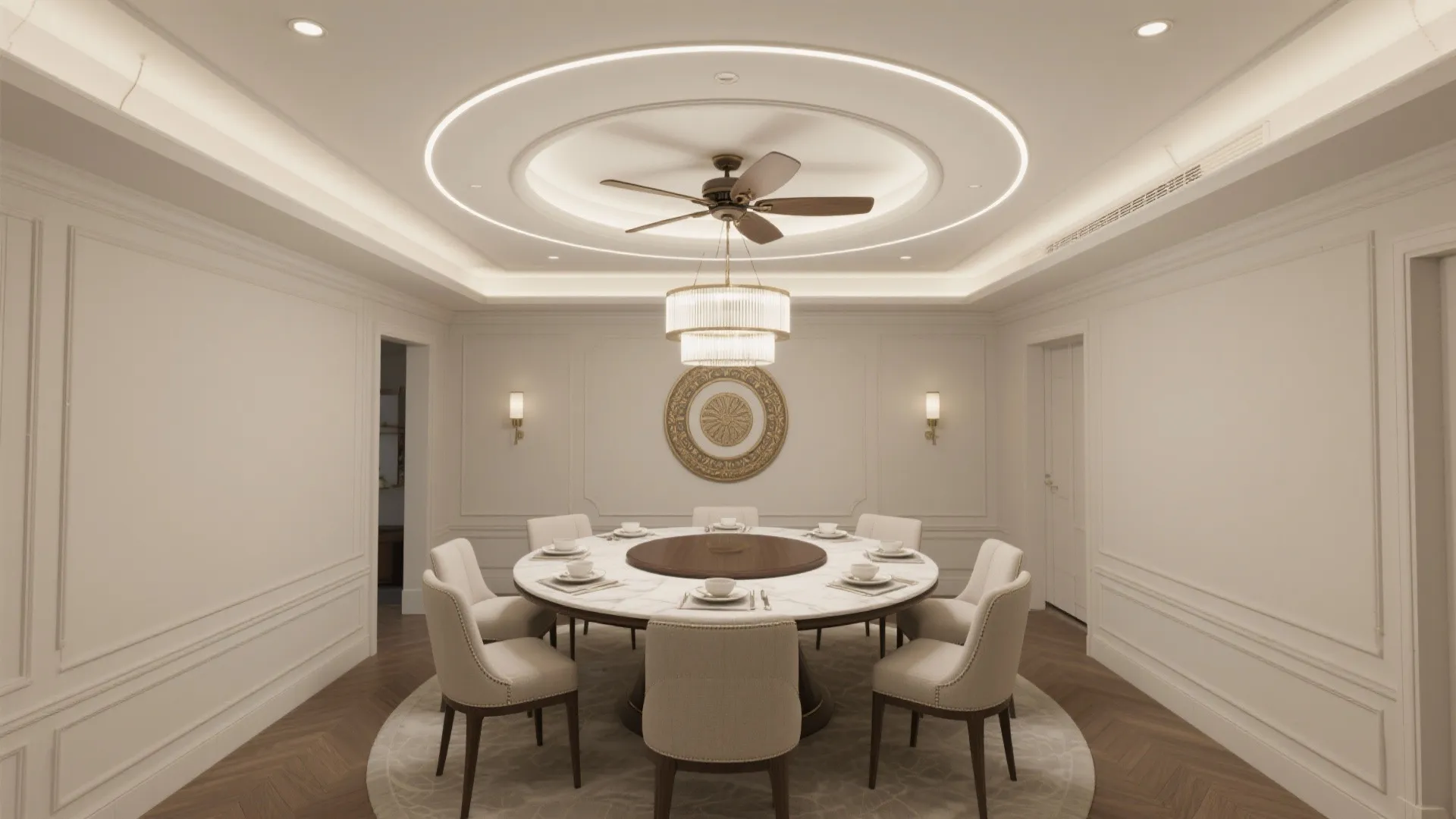

2) Circular Medallion Coffered Center with Fan + Chandelier (Fandelier Option)

My Take — This idea is perfect for clients who say, “We want a chandelier but can’t live without a fan.” I design a slim circular coffer or medallion and either use a fandelier (fan + light in one) or a separate chandelier with a short downrod fan. The circle centers the room visually and keeps both pieces from looking like they’re competing.

Pros — A circular false ceiling design for dining room with fan and chandelier can give you that restaurant-worthy focal point while managing airflow across the table. When air speed and comfort come up, I reference ASHRAE Standard 55, which recognizes that moderate air movement can enhance thermal comfort in warmer conditions. The coffer edge also hides wiring and gives you a neat place to tuck a small LED ring for a halo effect.

Cons — Combine two fixtures and you add weight and coordination; you’ll need solid blocking in the ceiling and careful spacing. If the chandelier hangs too low, it competes with the fan—and nobody loves a breeze that turns crystal pendants into a wind chime. Fan wobble is more noticeable when it’s near a heavy light, so balance and proper mounting matter.

Tips / Case — For rooms under 12x12 feet, I like 42–48-inch fans and chandelier diameters around 24–30 inches, centered over the table. In tight heights (under 8'6"), a fandelier often wins because it consolidates volume and keeps the profile clean. Paint the medallion the same color as the ceiling or just one shade warmer for a subtle, custom look.

save pin

save pin

save pin

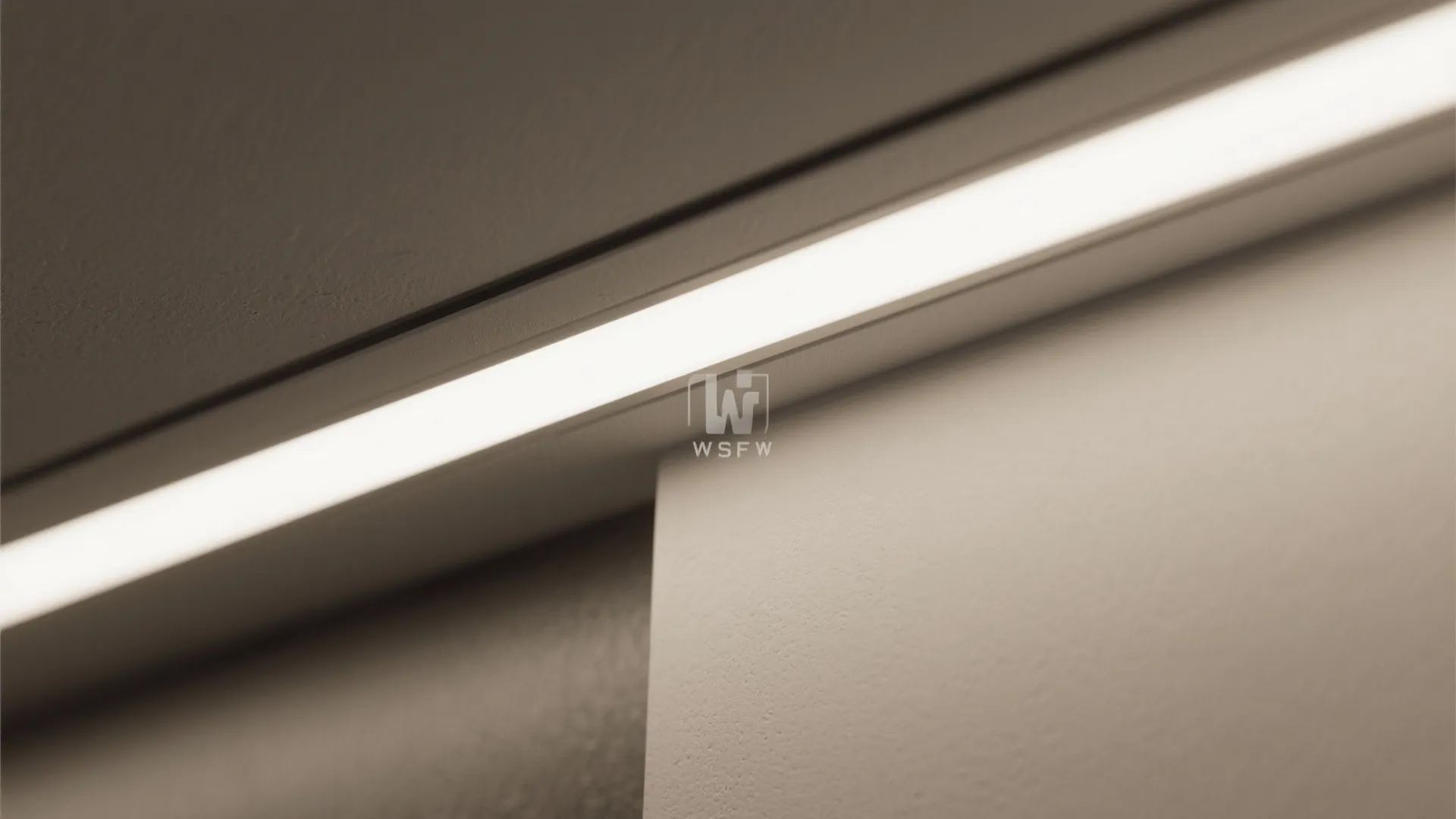

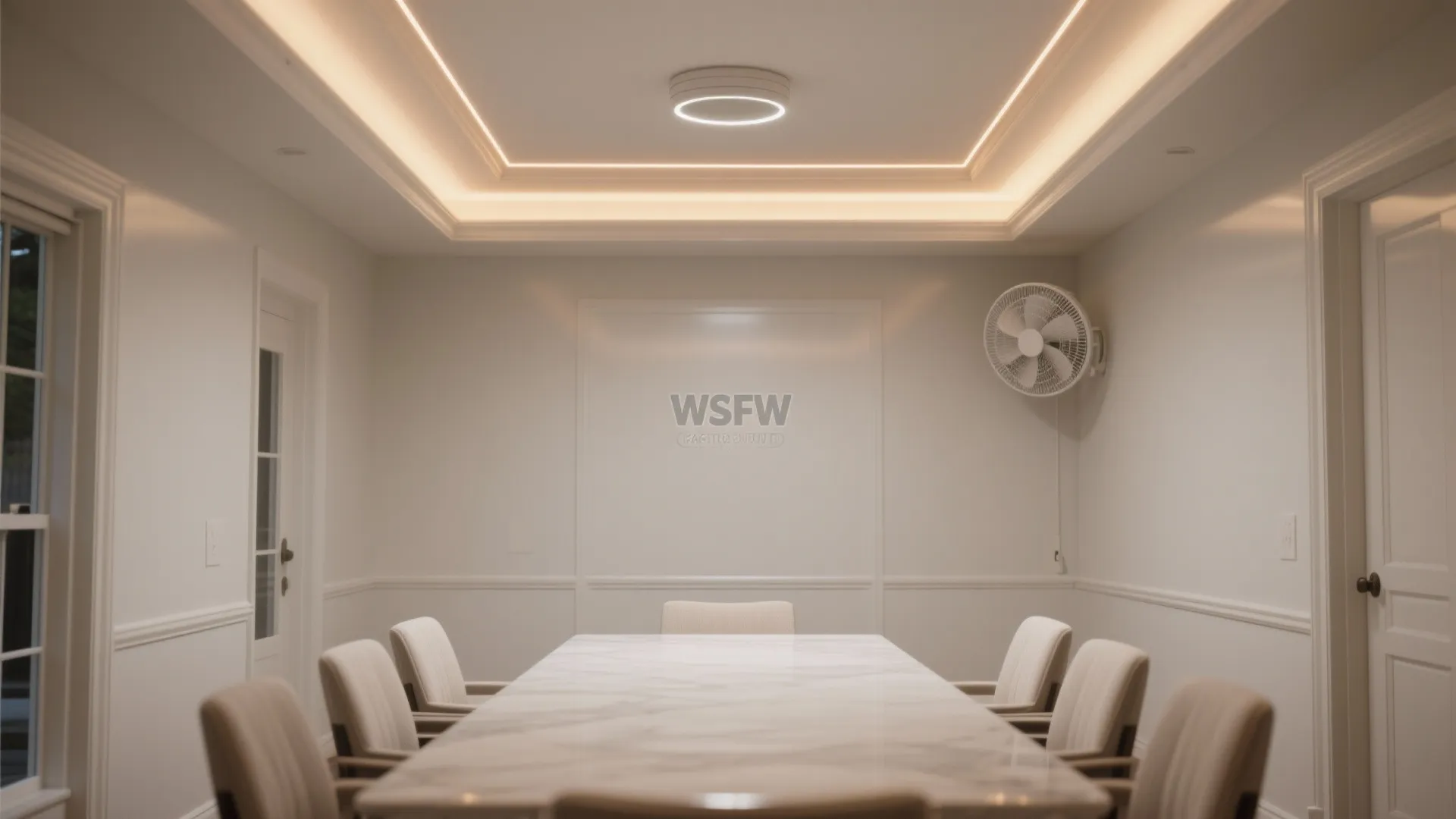

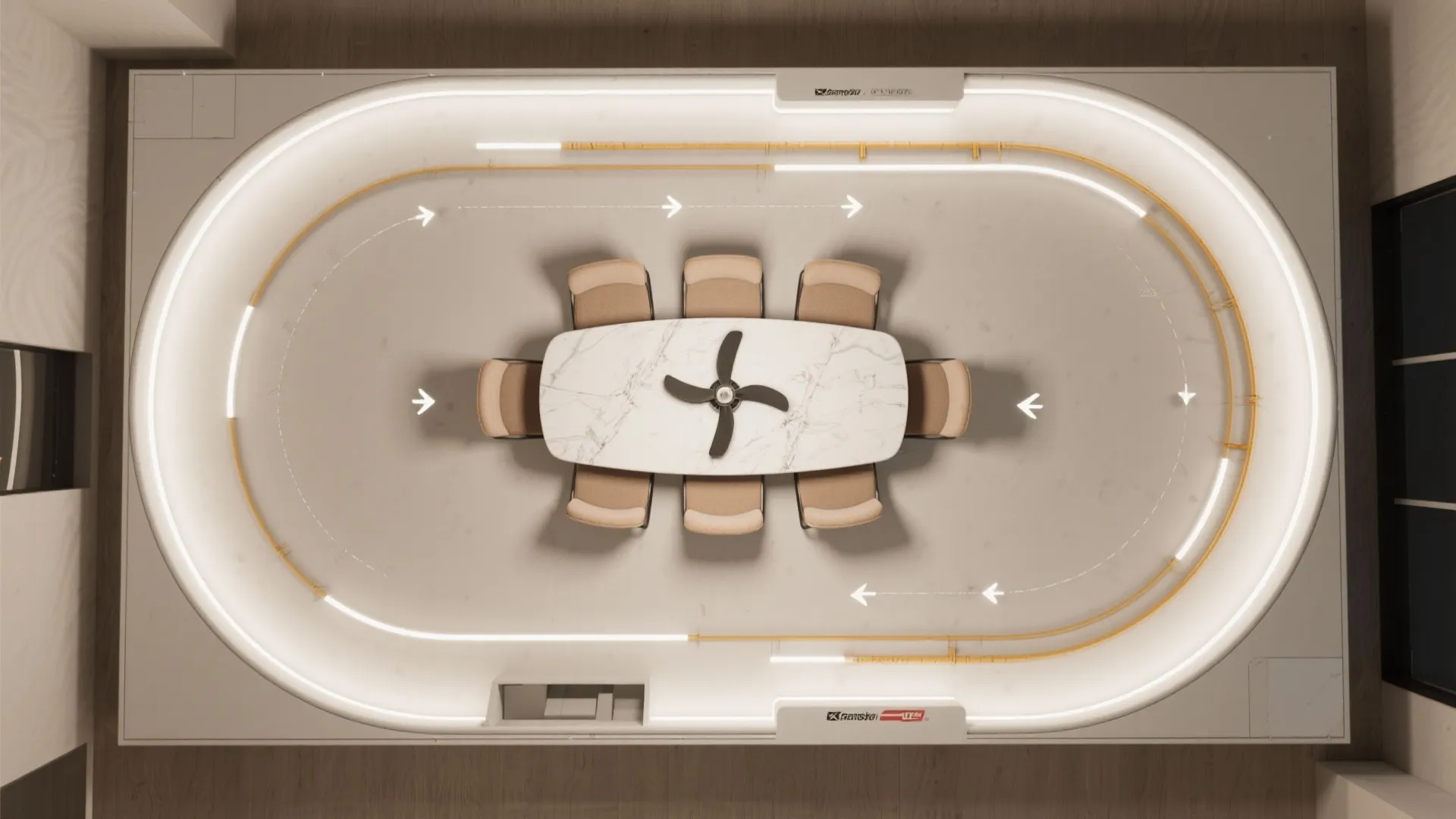

3) Long Tray (Racetrack) Ceiling with an Offset Fan

My Take — In rectangular dining rooms, a racetrack tray ceiling elongates the space and creates a visual “runway” above the table. I’ll often offset the fan slightly toward the side where people sit less, which maintains airflow but reduces the draft over hot dishes. The result feels tailored—less like a generic center fixture, more like a ceiling that understands how you dine.

Pros — A tray ceiling with fan for rectangular dining room lets you scale the drop to the table’s footprint and add perimeter lighting for soft glow. It also helps route wiring for multiple scenes—pendant, cove, and even picture lights—to make your art and walls pop. If you use a micro-bezel fan in white, it visually disappears into the tray.

Cons — Trays need crisp edges; sloppy drywall work shows immediately under grazing light. If you offset the fan too far, you’ll feel uneven cooling—one guest will hog the breeze while another barely feels it. Also, higher perimeter light without enough center fill can make faces shadowy in photos.

Tips / Cost — I keep tray drops shallow (2–4 inches) in 8–9-foot rooms; more than that can feel heavy. Add a dimmable center light or a small surface disk to brighten faces when you’re taking family pictures. When I’m testing proportions, I quickly visualize a shadow-line tray that frames the table to judge how the reveal reads from seated eye height.

save pin

save pin

save pin

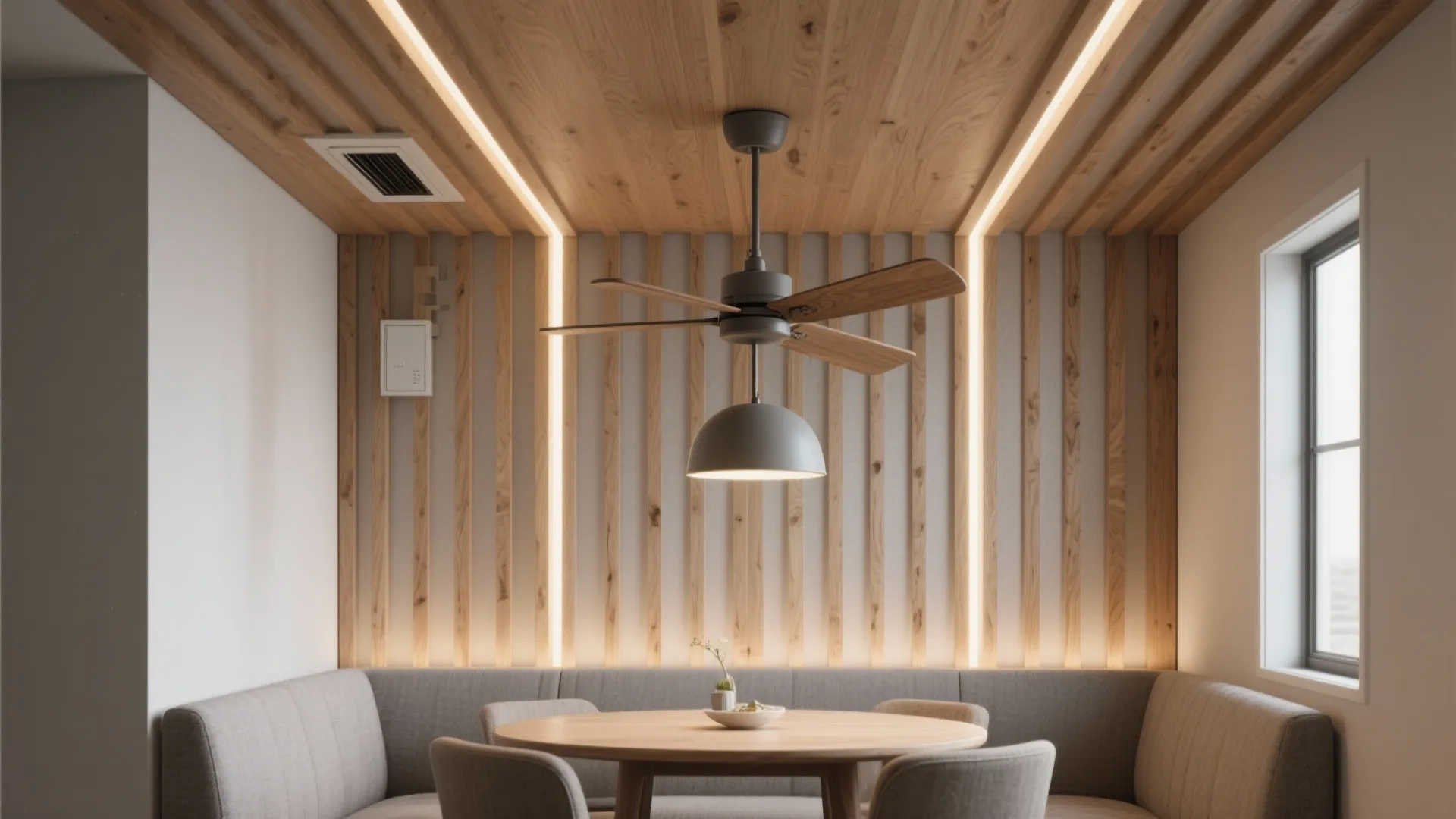

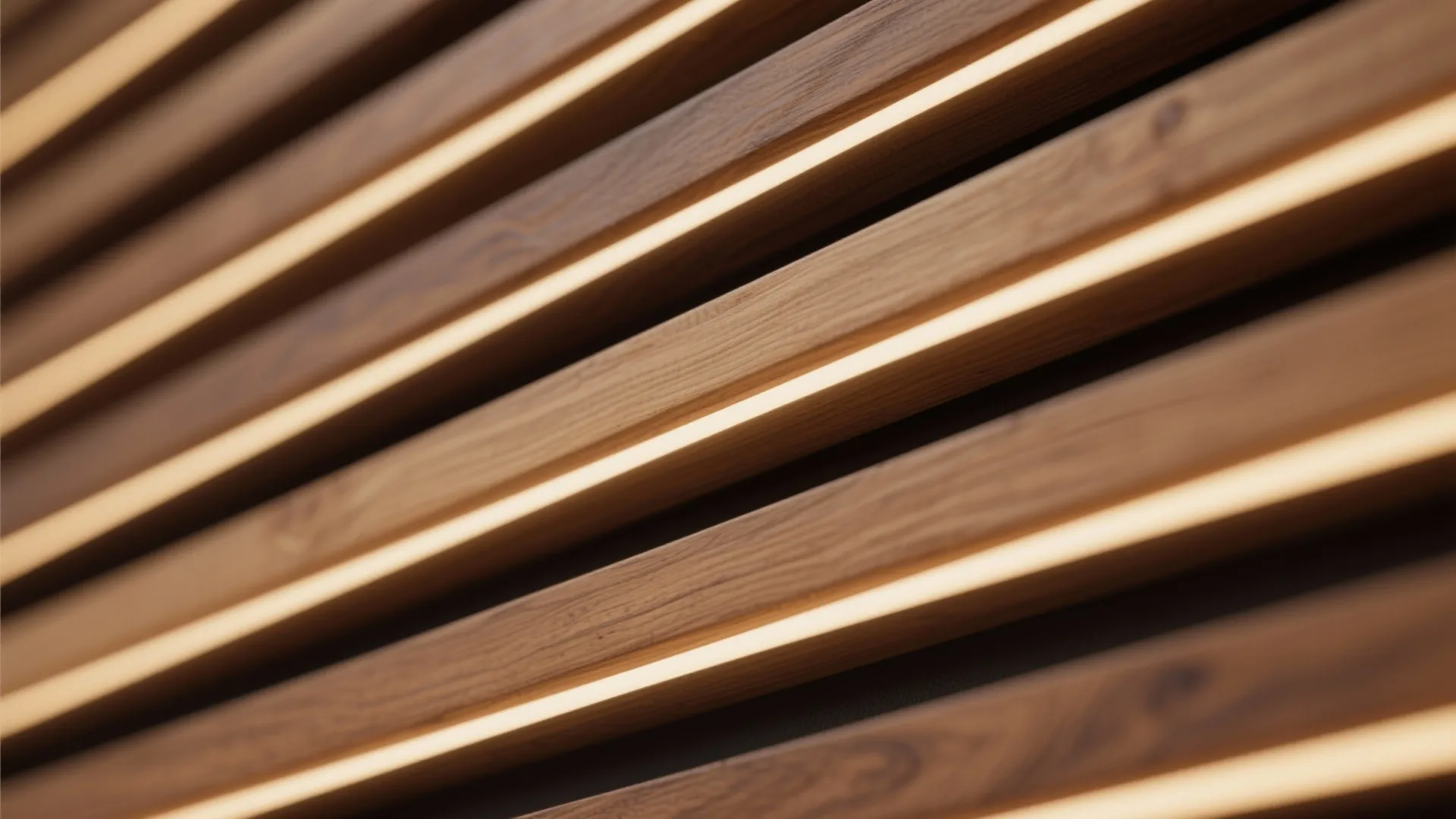

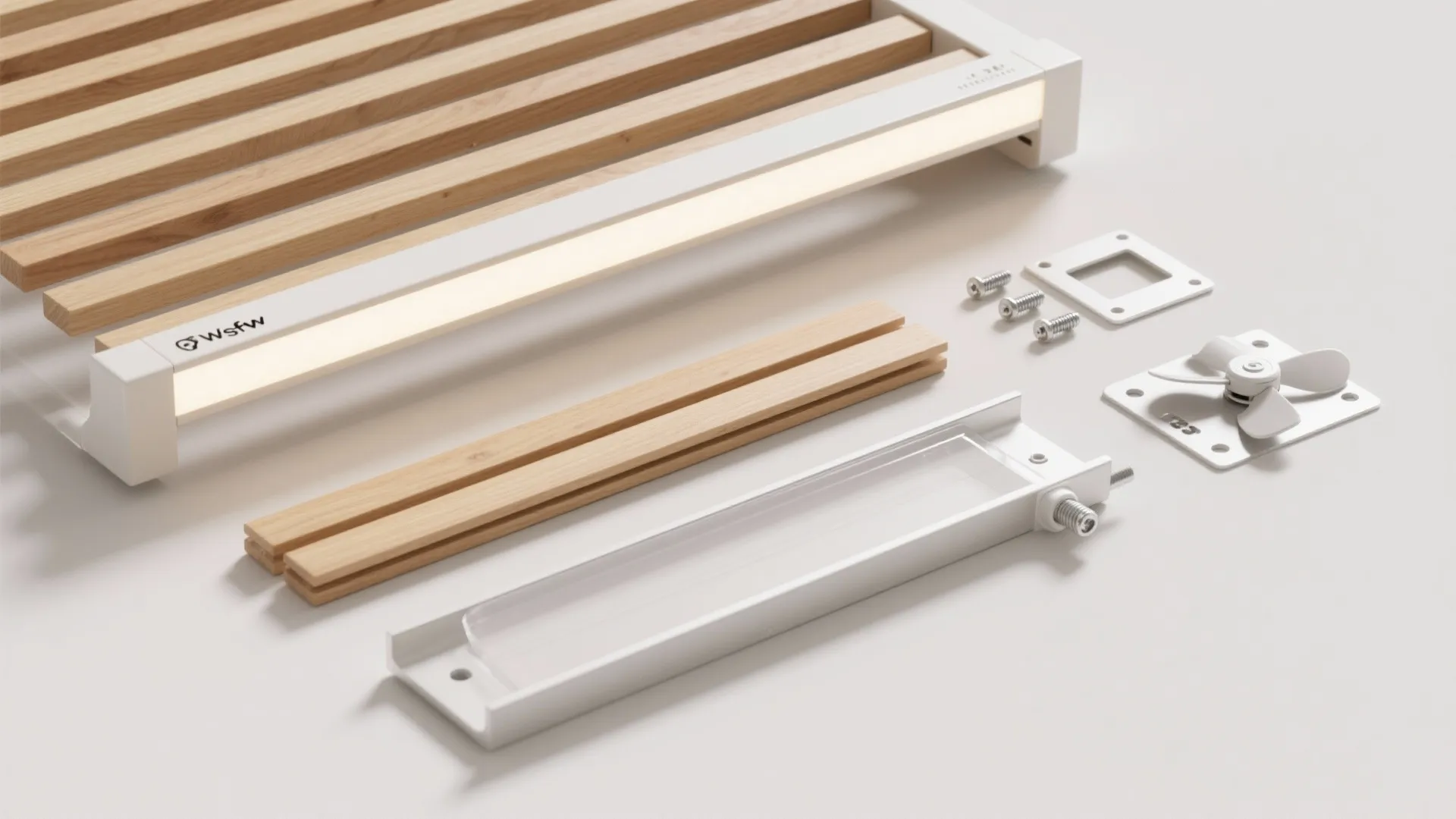

4) Wood Slat Canopy with a Discreet Fan Pocket

My Take — In my own apartment dining nook, I used a narrow wood slat canopy to warm the space and mask a compact fan’s junction box. The slats run perpendicular to the table so the ceiling feels taller, and a slim downrod drops the fan just below the slats for proper clearance. Guests notice the cozy vibe first—the fan second.

Pros — A wood slat ceiling dining room with fan adds acoustic softness and lovely texture, especially in open-plan spaces where sound can bounce. Linear LEDs between select slats give that “restaurant gentle glow” without glare. It’s a tactile way to zone your dining area without building walls.

Cons — Slats collect dust; choose a sealed finish and schedule a quick monthly dusting. Depending on wood species and spacing, the fan can sound a touch louder because of reflections off the slats. If you crowd the fan too close to the canopy, airflow drops and you’ll feel underwhelmed on hot days.

Tips / Case — I use 1x2 or 1x3 slats in white oak or ash, spaced 1–1.5 inches apart to keep things airy. Warm 3000K LED strips lift wood grain beautifully, while CRI 90+ keeps food looking appetizing. When laying out the canopy, I often sketch a wood slat canopy over the dining table to confirm where the fan can breathe and the lights won’t glare into eyes.

save pin

save pin

save pin

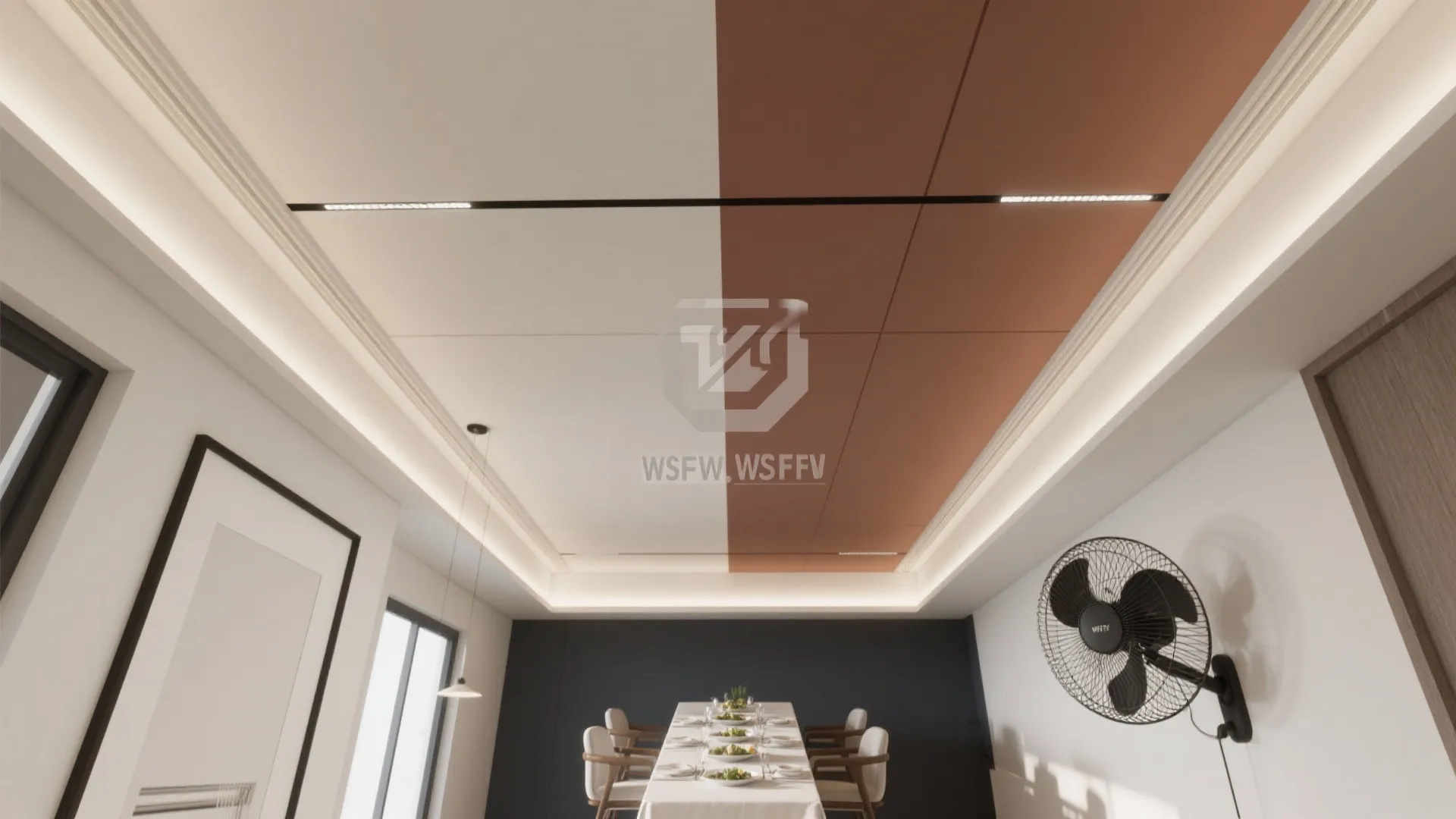

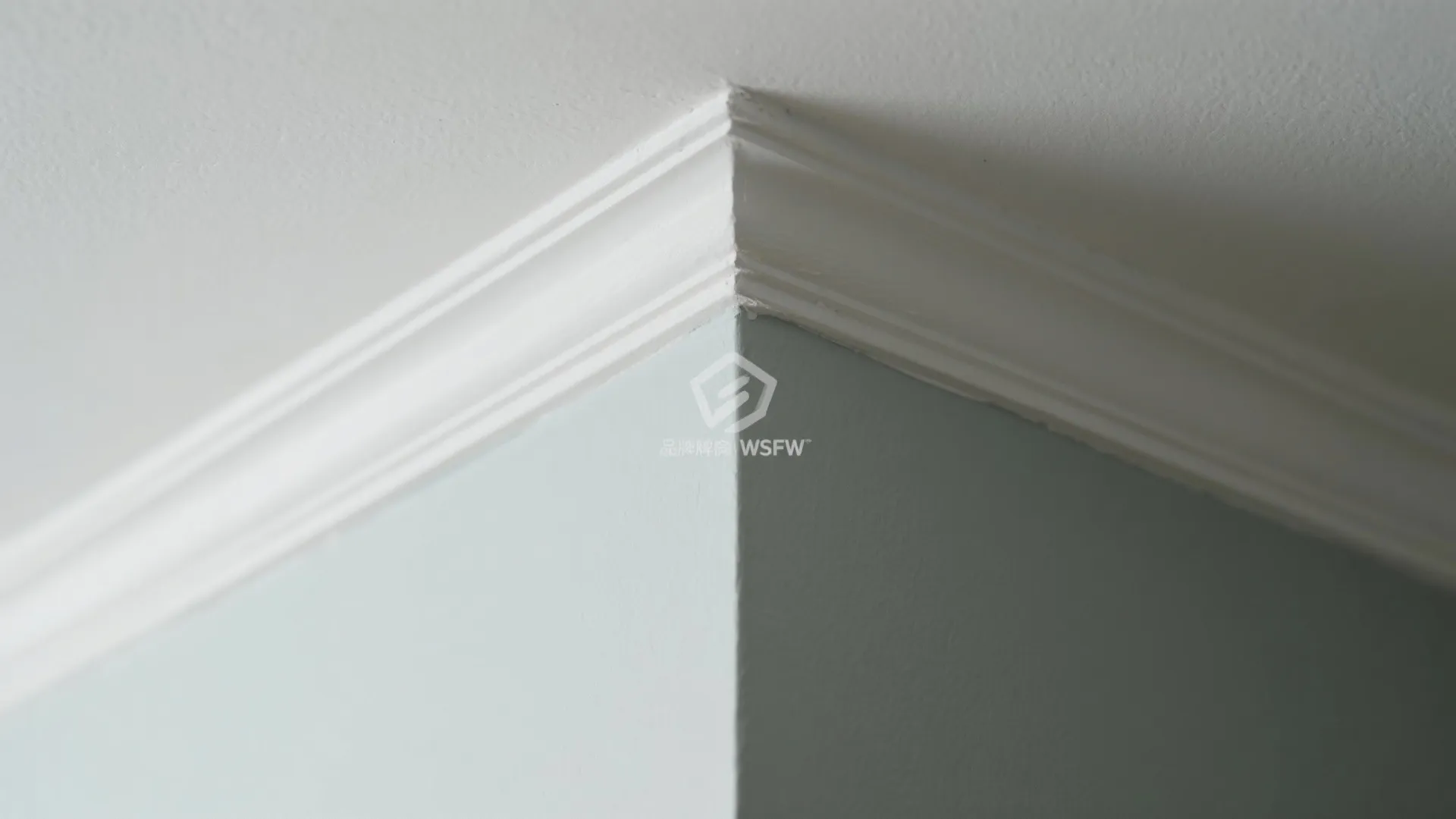

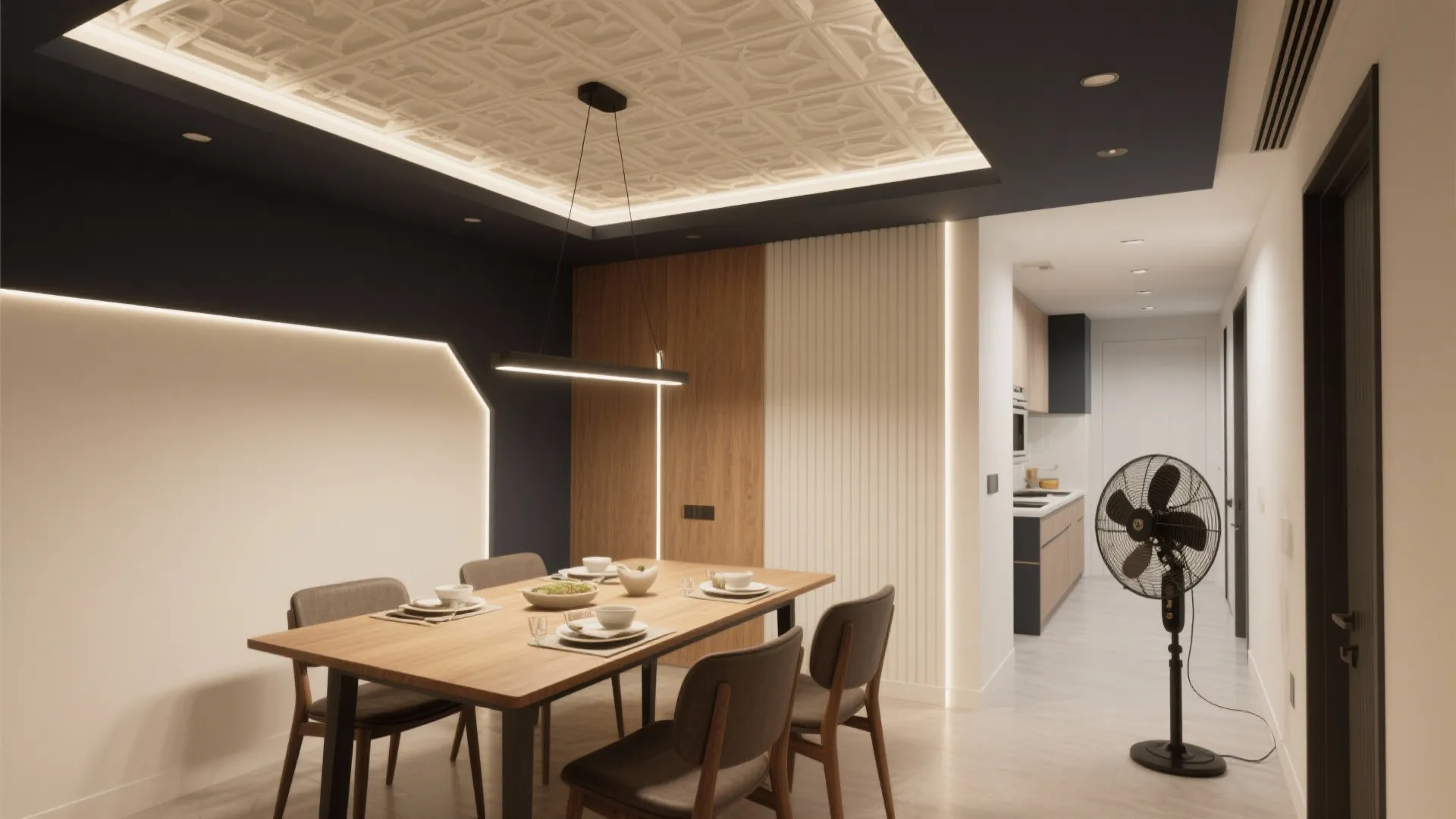

5) Two-Tone POP Geometry with an Offset Breeze Zone

My Take — In many small homes, the dining area sits close to a passage or living zone. I’ll paint a two-tone POP (gypsum) false ceiling pattern so the darker color frames the table and the lighter color continues into the walkway. The fan sits just outside the darkest zone, encouraging airflow across the table without blasting it directly.

Pros — This POP ceiling design with fan offset gives you visual zoning and practical comfort. It’s great for open plans where you want the table area to feel intentional without boxing it in. You also get tidy spaces to run surface-mounted linear lights in contrasting colors for a bit of graphic punch.

Cons — Geometric ceilings demand precise painting and alignment; any wobble shows. If you change table size later, your painted frame might feel off—so plan for a flexible central area. Too many colors can feel busy; I usually cap it at two tones and let the table and art add character.

Tips / Cost — Keep the drop shallow, then rely on paint contrast for drama—that protects headroom while still delivering a strong look. In humid climates, use moisture-resistant gypsum and a premium primer to maintain crisp edges. For lighting, energy-efficient, high-CRI LEDs are worth it long term; per ENERGY STAR guidance, certified LED bulbs use significantly less energy and last much longer than incandescents, which helps offset your ceiling investment over time.

[Section: 总结]

Designing false ceiling designs for dining room with fan is about strategy, not compromise. A smaller dining room isn’t a limitation—it’s an invitation to layer light, airflow, and texture more intelligently. When you respect clearances, tune the lighting, and plan the fan’s breeze path, even an 8-foot room can feel tailored and comfortable.

I lean on manufacturer specs and independent guidance like ENERGY STAR and ASHRAE 55 to keep the design as functional as it is beautiful. Which one of these five ideas are you most excited to try at home?

[Section: FAQ 常见问题]

save pin

save pin

save pin

FAQ

1) What is the best height for a ceiling fan in a dining room with a false ceiling?

Most rooms feel good with blades 7–9 feet above the floor and about 10–12 inches below the ceiling if possible. I follow ENERGY STAR guidance and confirm with the fan maker’s specs before finalizing the drop.

2) Can I combine a chandelier and a fan in one dining room ceiling?

Yes—either use a fandelier (integrated design) or a compact chandelier plus a low-profile fan. Keep clearances tidy and dim both so you can switch between mood lighting and brighter task scenes.

3) Will a false ceiling reduce airflow from my fan?

If the fan is too close to coves or slats, yes. Plan at least a few inches of breathing room around the blades, avoid tight pockets, and test the fan at various speeds before closing the ceiling.

4) What size fan should I choose for a small dining room?

For rooms around 10x10 to 12x12 feet, I often use 42–48-inch fans. In narrow rooms, an oval or racetrack table pairs nicely with a 44-inch fan to keep proportions balanced.

5) Which lighting color temperature works best above a dining table?

Warm light is your friend. I typically spec 2700–3000K high-CRI LEDs so food looks inviting and skin tones feel natural, and I add dimming to shift from dinner to cleanup.

6) Are gypsum (POP) false ceilings durable near kitchens and dining areas?

Yes, with the right finish. Use moisture-resistant boards in humid climates and a good primer; avoid bulky drops near open kitchens to keep grease and dust from settling.

7) How do I avoid glare from LEDs in a cove ceiling?

Choose diffused strips, set the strip away from the lip to hide diodes, and aim the light toward the ceiling rather than down. Dimming and a slightly warmer color temperature also help curb harshness.

8) Is there a way to visualize my dining room ceiling before building it?

Absolutely. I always create quick 3D mockups to check proportions, light spill, and fan placement from seated eye level. Seeing the glow and shadows before drywall goes up prevents expensive revisions.
