5 False Ceiling Designs with Fans for Your Drawing Room: My top 5 drawing room false ceiling ideas with fans—real-world tips, costs, and pitfalls to avoid

As an interior designer who’s remodeled more living rooms than I can count, I’ve seen how a smart false ceiling design with fan can transform a drawing room from “nice” to “wow.” Lately, layered ceilings, integrated lighting, and compact DC-motor fans are trending—and for small spaces, these choices really shine. Small spaces spark big creativity; with the right planning, your ceiling can add style, improve airflow, and even dampen noise. In this guide, I’m sharing 5 design inspirations I’ve used in real projects, blending personal experience with expert-backed data.

Before we dive in, I’ll start with a quick wins tip: map your fan sweep and lighting zones early. In one 18 m² apartment, I avoided strobing light and fan blade shadows by staggering linear lights and using a matte white finish on the blades—simple, but a game changer. If you’re into visualizing ideas, this gallery of L shaped layout opens more counter space is a good reminder that planning flow—even on ceilings—pays off.

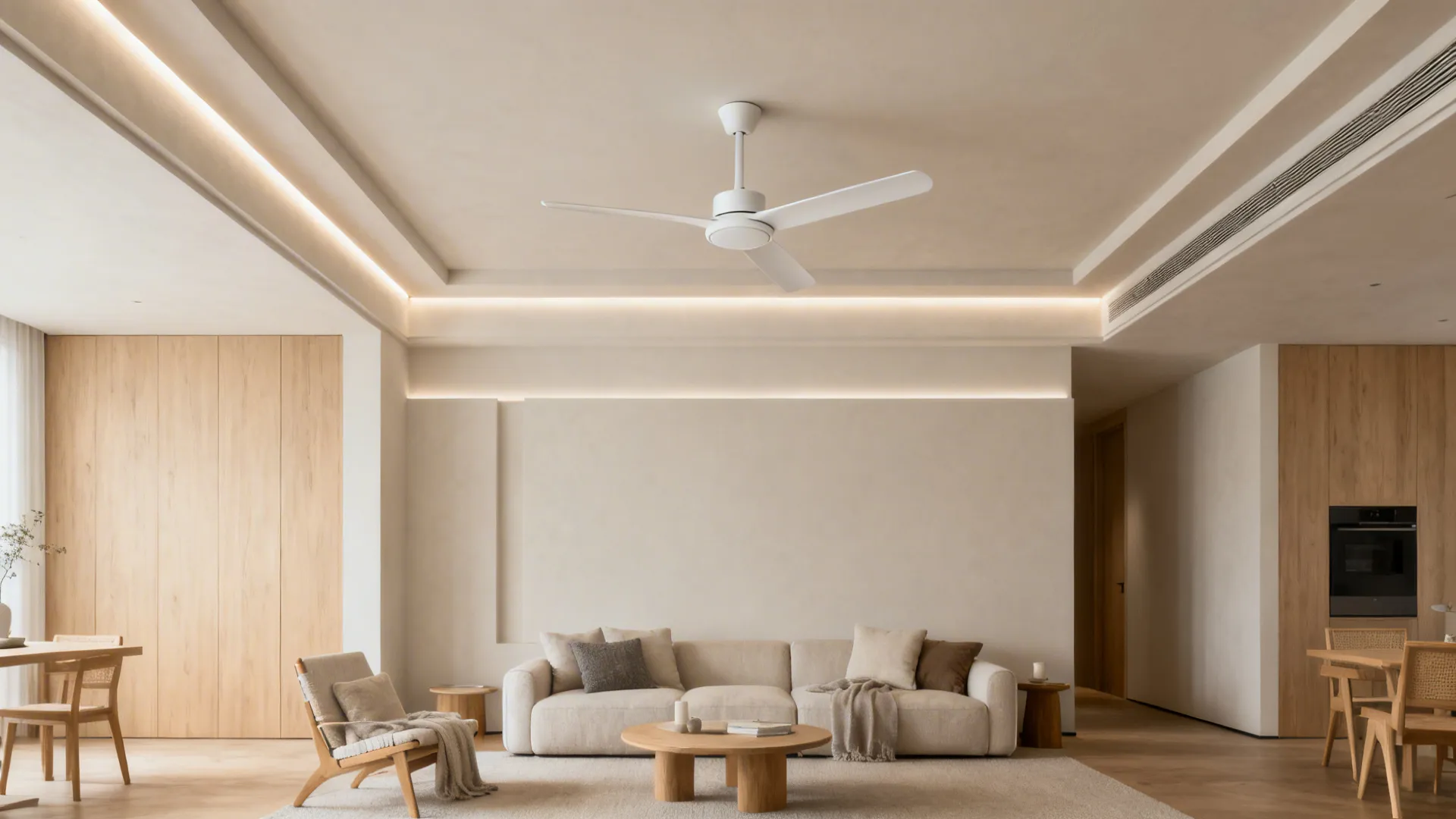

Minimalist Tray Ceiling with a Slim DC Fan

My Take: I love this for modern drawing rooms where we want quiet elegance. I once paired a 2-step tray (60 mm + 40 mm) with a 48-inch DC fan in a 3.0 m ceiling—clean lines, great air, zero visual clutter.

Pros: A tray ceiling naturally frames the room, and a compact DC-motor fan reduces noise and energy use while improving comfort—ideal for a small drawing room false ceiling with fan. Shallow drops (under 120 mm) keep the design light and work in lower ceilings. With indirect LED strips on the tray lip, you prevent fan shadowing and achieve soft ambient glow.

Cons: Too deep a tray can visually lower the ceiling and make the fan feel closer than it is. If your tray is too narrow, maintenance around the fan canopy can be awkward—I’ve bumped my knuckles more than once.

Tips/Cost: Aim for a 44–48 inch fan in rooms under 20 m²; keep 2300–2400 mm minimum clearance from finished floor to fan blades. Material and install for a simple tray with cove LEDs typically runs $10–$18/ft² (regional variance applies). Use matte blades to reduce glare and flicker.

save pin

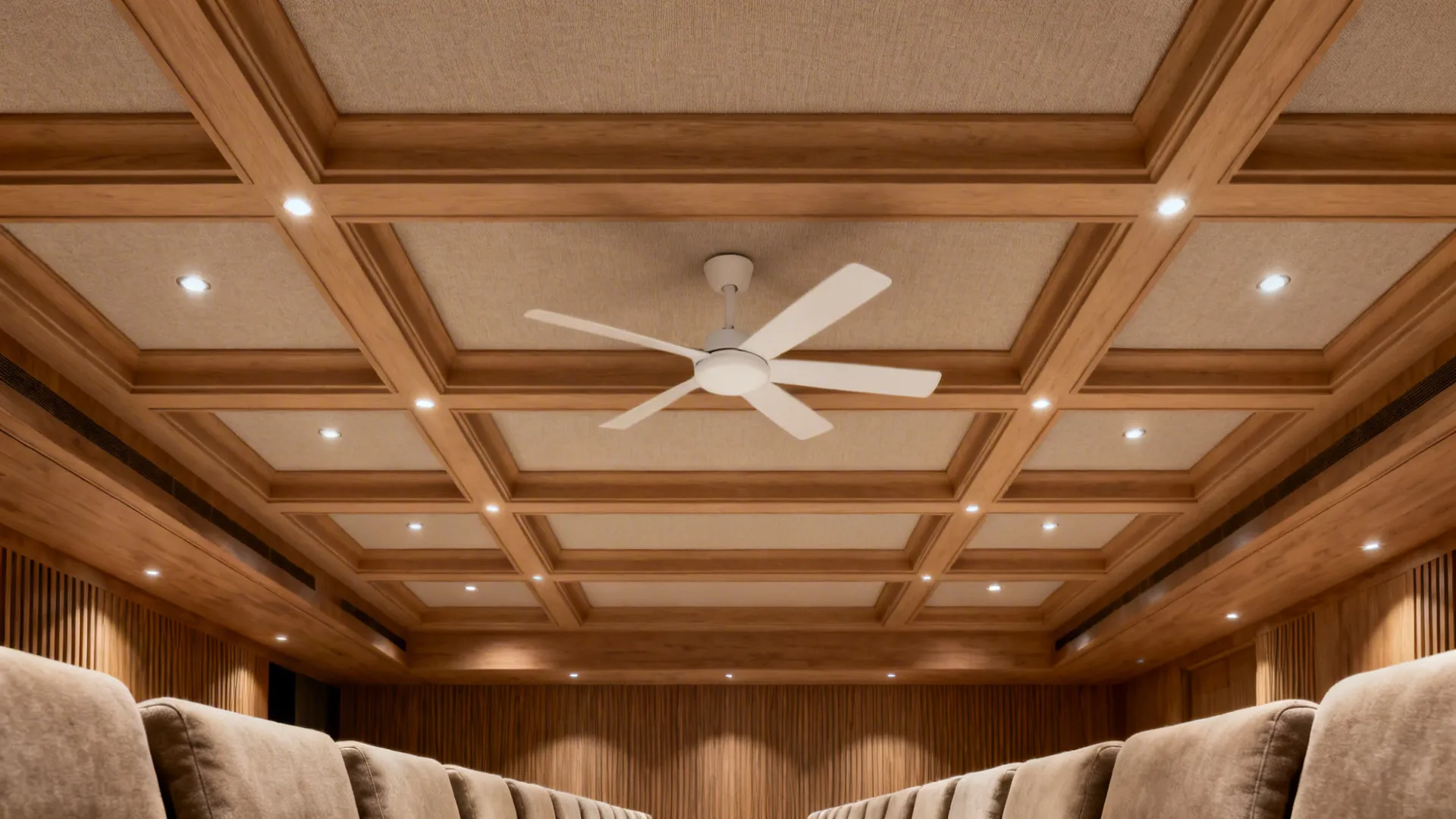

Coffered Grid with Center Fan and Sound Control

My Take: In a family home where movie nights got loud, we used a lightweight coffered grid with acoustic backers and a central fan. It looked refined and hushed the room by a surprising margin.

Pros: Coffers add depth and visual rhythm while a fan in the central bay keeps airflow consistent. The recessed bays are perfect for downlights aimed to avoid fan strobing—great for a false ceiling design with fan in living spaces where lighting matters.

Cons: Overly heavy grids can feel formal or fussy in compact rooms. You’ll need careful layout so the fan canopy doesn’t crowd a coffer beam—been there, adjusted that.

Tips/Cost: Use MDF or lightweight gypsum beams; keep beam depth around 60–80 mm for small rooms. Add 10–12 mm acoustic panels above selected bays if noise is an issue. Expect $14–$25/ft² depending on detailing and paint grade.

save pin

Linear Slot Lighting with Centered Fan (No Flicker Plan)

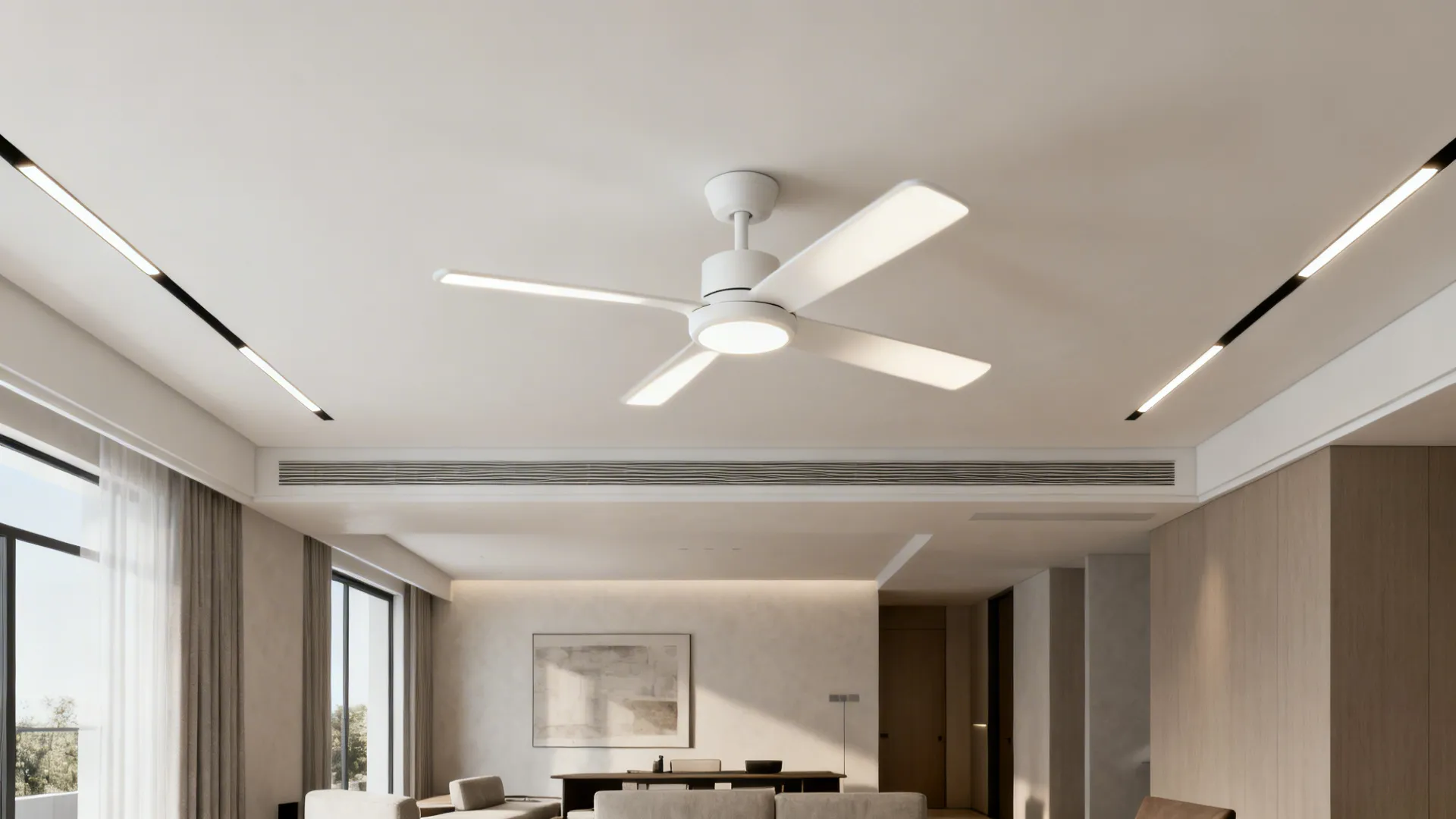

My Take: One of my favorite “architectural” looks is a clean plane with two parallel slot lights and a centered fan. In a 5.2 m × 3.4 m drawing room, we kept the slots 700 mm off-centerlines to avoid blades crossing light paths.

Pros: Slot lighting gives even, glare-controlled illumination while the fan stays functional and understated—ideal for a modern drawing room false ceiling with fan and recessed lighting. Aligning slots away from the blade arc minimizes the strobe effect; CRI 90+ LEDs make colors pop on art and textiles.

Cons: Precision is everything. If your fan box and slots aren’t coordinated, you’ll end up compromising on one or moving the fan late (I’ve done both, and it’s not fun). Dust can gather in slots—plan easy-to-clean diffusers.

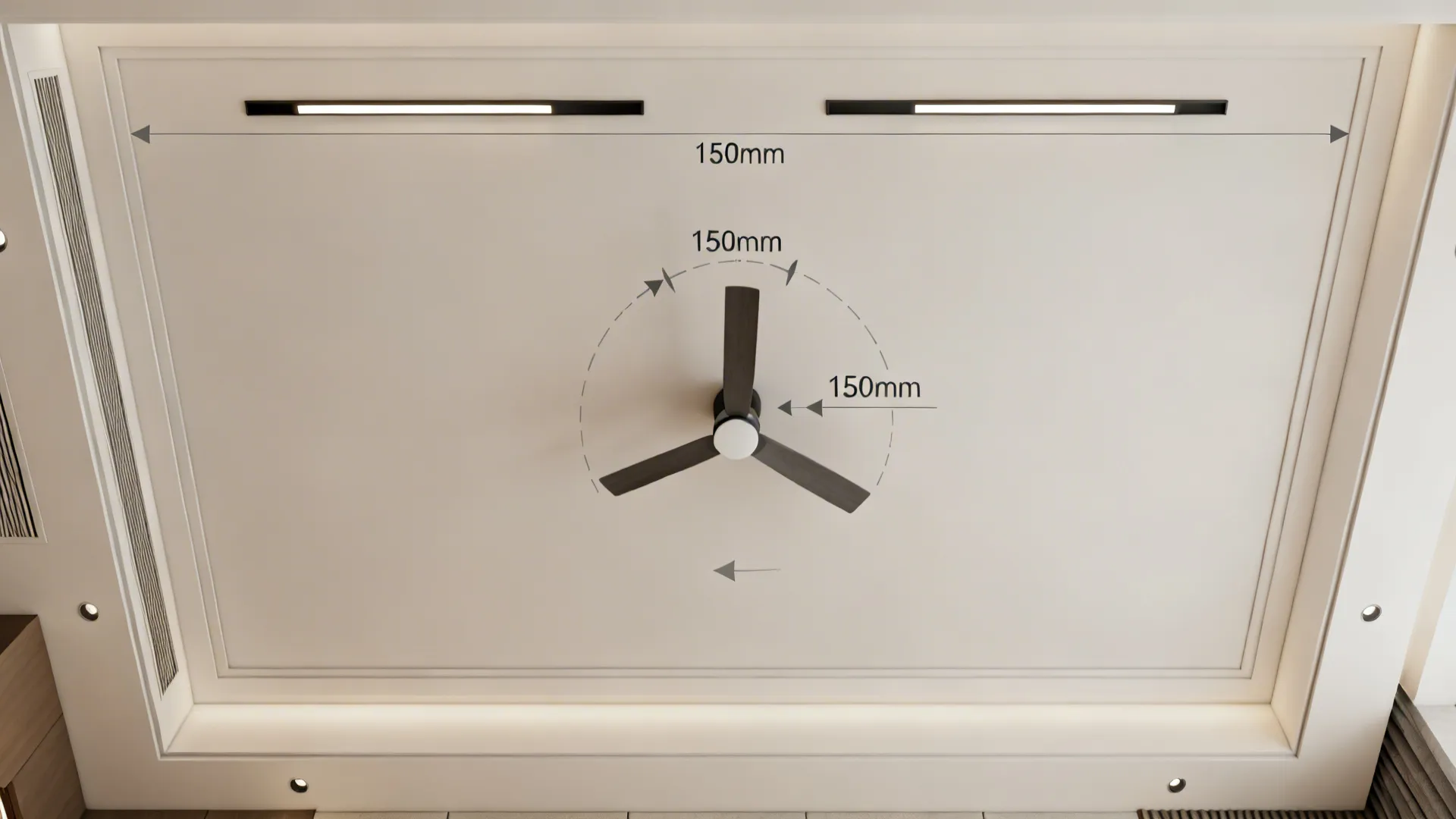

Tips/Cost: Map fan sweep: fan radius + 150 mm buffer should not intersect the light slots. Use dimmable drivers to set mood. This ceiling typically costs $16–$28/ft² including linear fixtures. For planning complex lighting/fan geometry, see project visuals like glass backsplash feels more airy to understand how sightlines and reflections play together across surfaces.

save pin

save pin

Floating Perimeter Cove with Compact Fan and Center Medallion

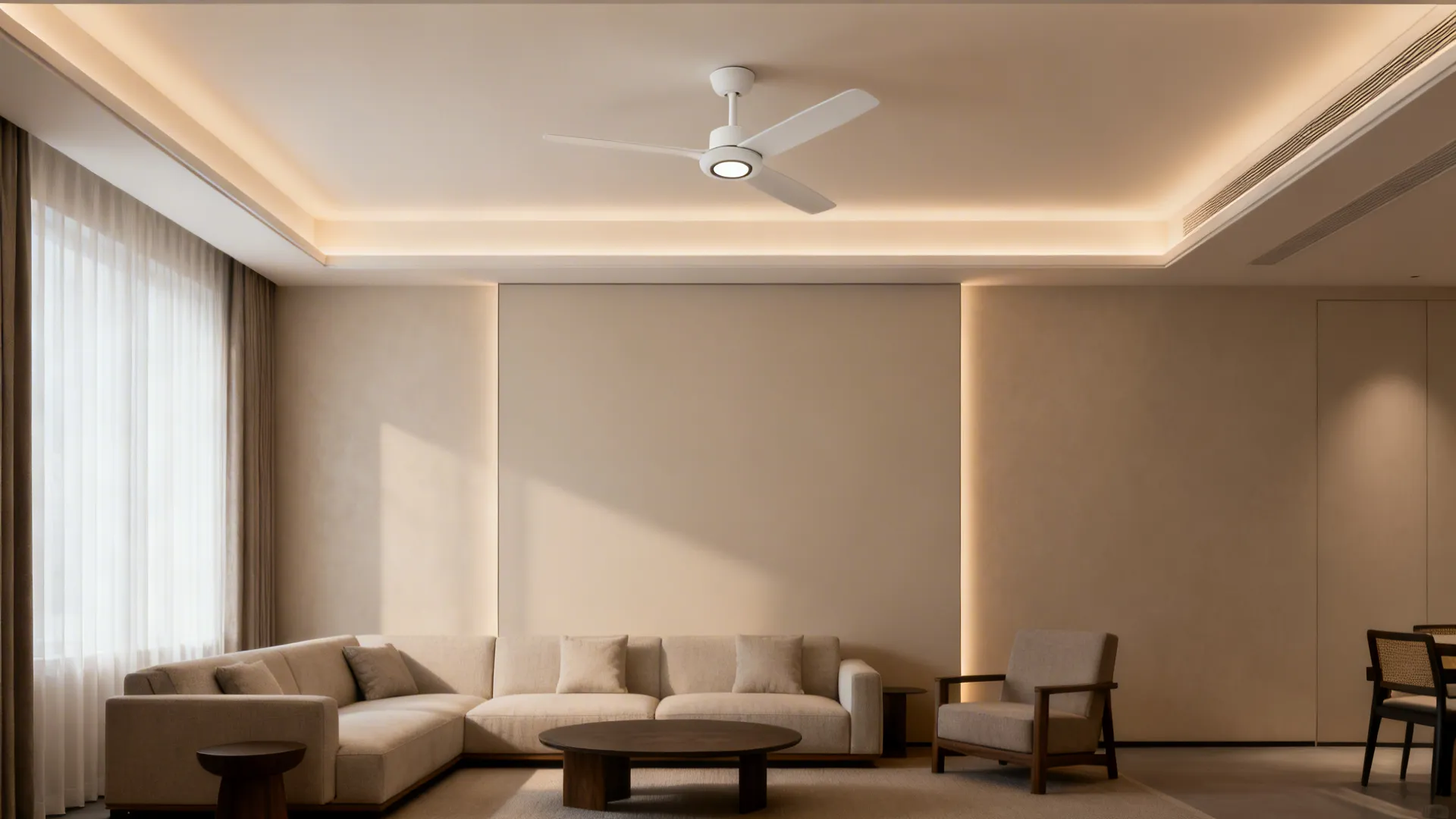

My Take: In apartments with lower ceilings, I float only the perimeter by 60–80 mm, keep the center at full height, and mount a compact fan on a neat round medallion. It reads light, bright, and intentional.

Pros: A floating cove produces soft, indirect light that makes the room feel taller while preserving maximum fan clearance. The central plane remains uncluttered, perfect for a subtle medallion that hides the fan canopy and wiring—an elegant false ceiling design with fan for drawing room settings aiming for hotel-like calm.

Cons: If the cove is too wide, the center can feel isolated. Medallions that are overly ornate fight with minimalist furniture—I’ve retired more than one “fancy” medallion after client second thoughts.

Tips/Cost: Keep cove width between 250–400 mm; run warm dim LEDs (2700–3000K). Choose a 44–48 inch fan with slim profile (look for < 280 mm overall height). Costs average $12–$20/ft² depending on cove detail and medallion material.

save pin

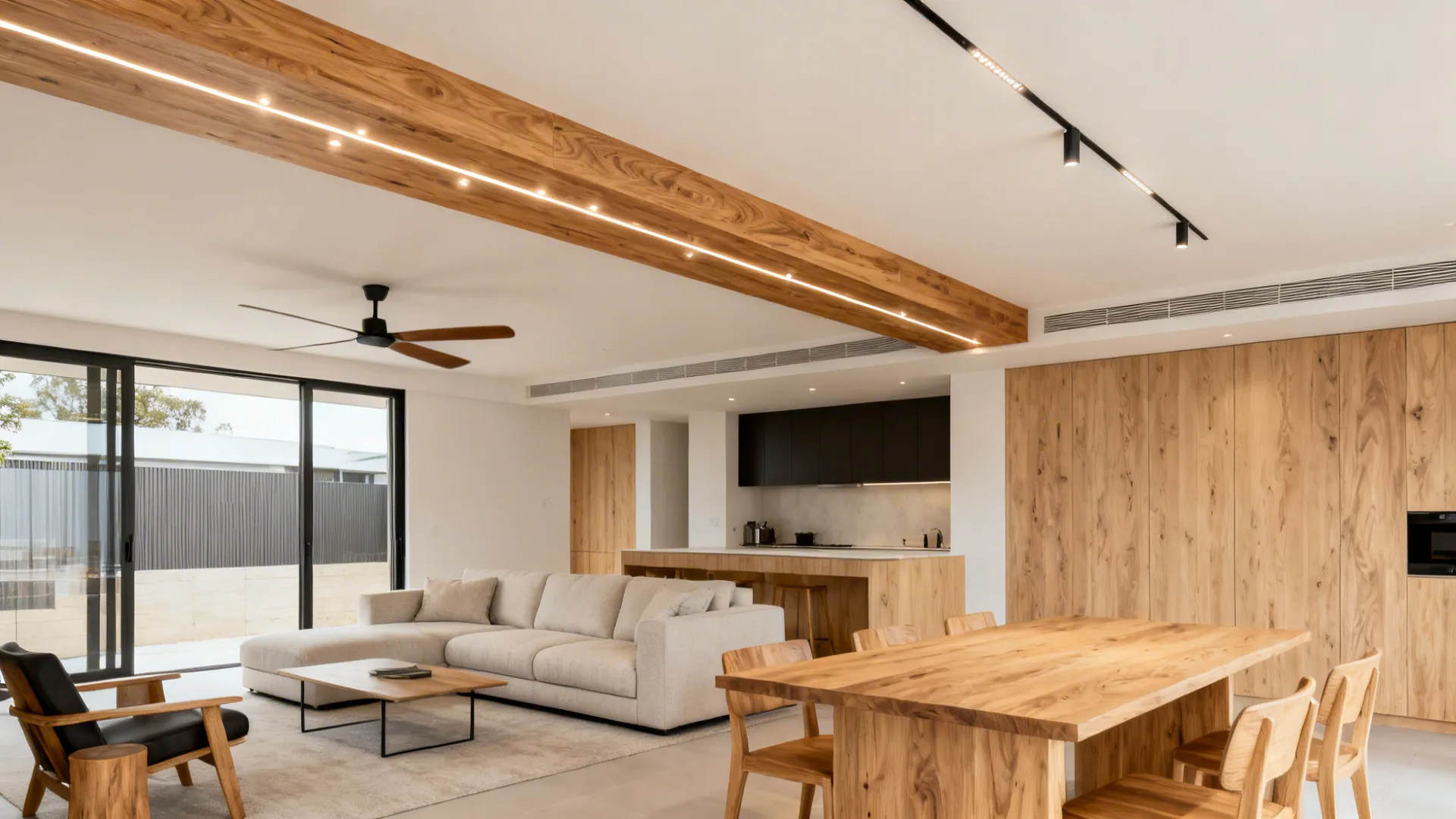

Feature Spine Ceiling with Offset Fan for Zoning

My Take: In a long living-dining combo, I ran a timber-look “spine” panel across the ceiling to define the lounge zone and offset the fan slightly from the main seating cluster. It created a clear visual boundary.

Pros: A spine adds texture and direction, helping zone open plans while an offset fan targets where people actually sit. Integrating slim downlights along the spine provides task light without hitting the blades—this is a smart false ceiling design with fan for drawing room plus dining layouts.

Cons: Overdoing wood tones can darken the space. Too much offset can push airflow away from the sofa—test with a portable fan position before committing (I do a “tissue test” to see air paths).

Tips/Cost: Use moisture-stable laminates or veneered MDF slats with concealed screw fix. Keep spine width 400–600 mm; maintain at least 300 mm from blade tips to nearest slat edge. Expect $15–$30/ft² depending on wood finish and lighting.

save pin

Engineering, Safety, and Comfort: What I Always Double-Check

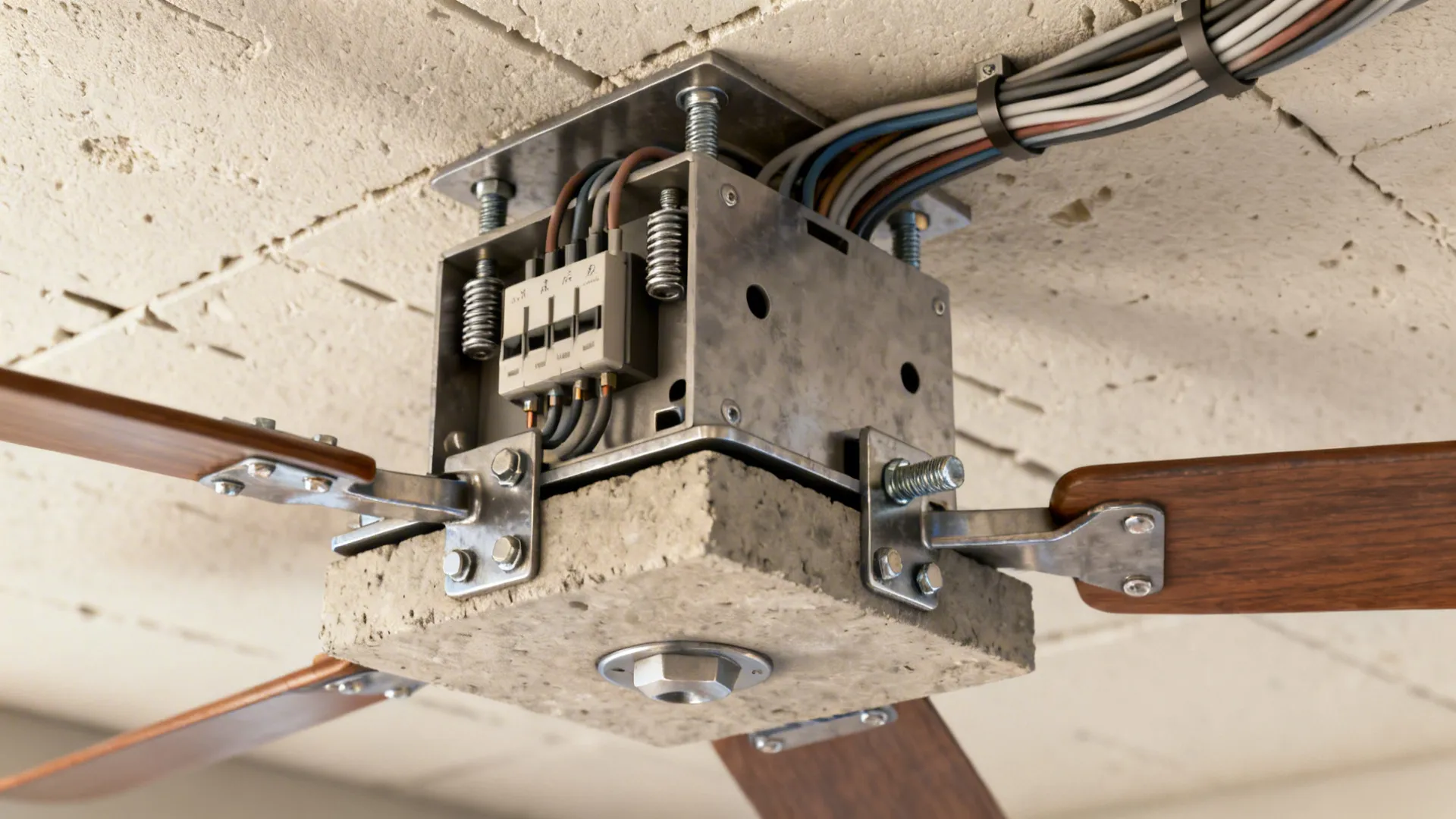

My Take: After a client’s old rental fan wobbled on a new false ceiling, I now double-check junction boxes, blade clearance, and driver placement on every project. Quiet, safe, and serviceable beats flashy every time.

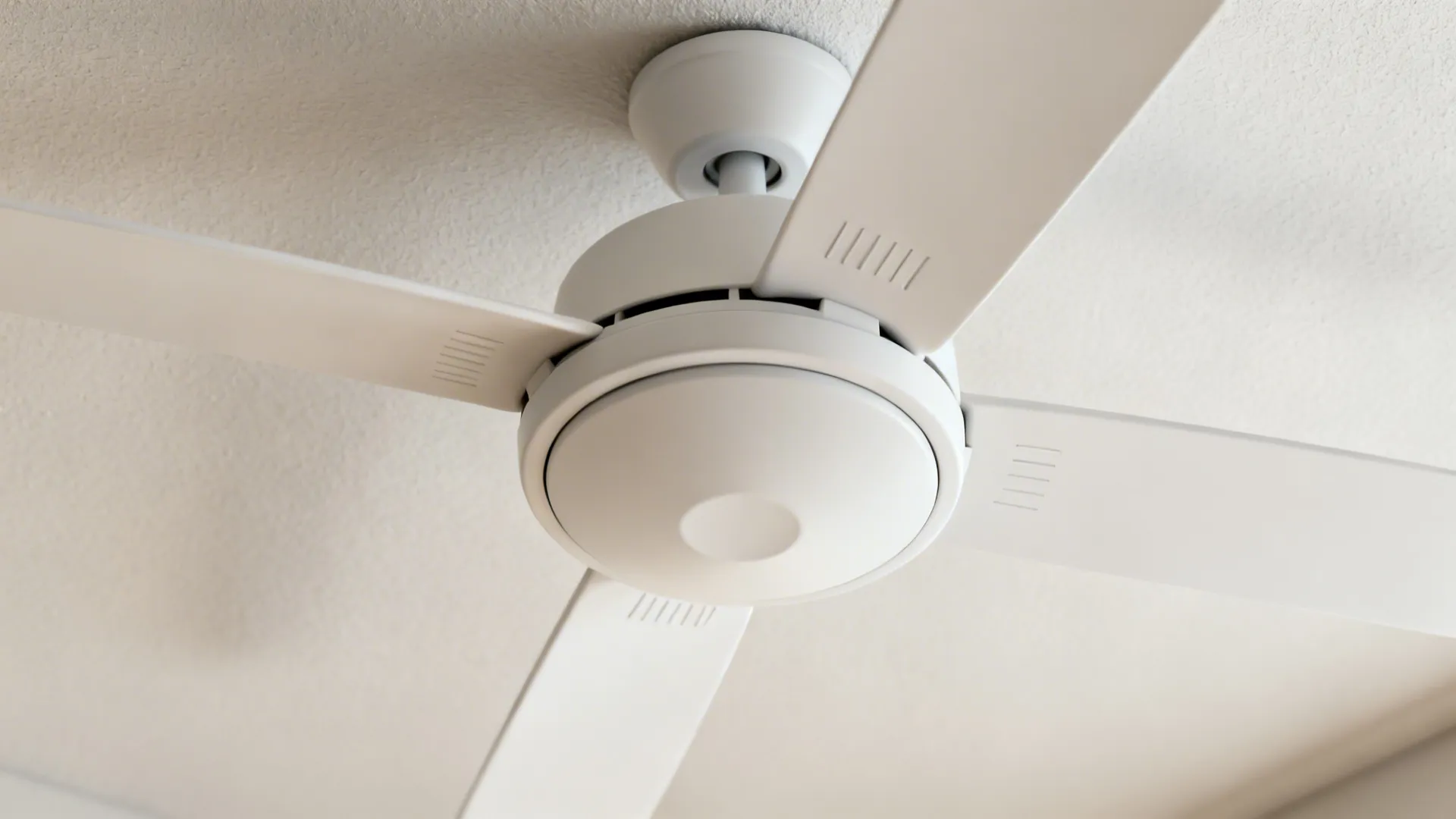

Pros: Proper fan-rated junction boxes and secure anchors protect the integrity of a false ceiling design with fan. Modern DC fans often include balanced blades and vibration dampers for smoother operation and lower noise.

Cons: Coordination takes time—contractors may grumble when you move the fan box 50 mm (I’ve bribed with coffee). Extra bracing or backer plates add a bit to labor costs, but it’s worth it.

Tips/Cost: Maintain blade tip to wall/beam clearance ≥ 300 mm; floor-to-blade clearance ≥ 2300–2400 mm. Use fan-rated boxes fixed to the structural slab or sturdy framing, not just gypsum. For complex rooms and accurate load/lighting simulations, preview configurations with resources like minimalist kitchen storage ideas—the planning discipline transfers well to ceilings, too.

save pin

Lighting and Fan Coordination: The Expert Angle

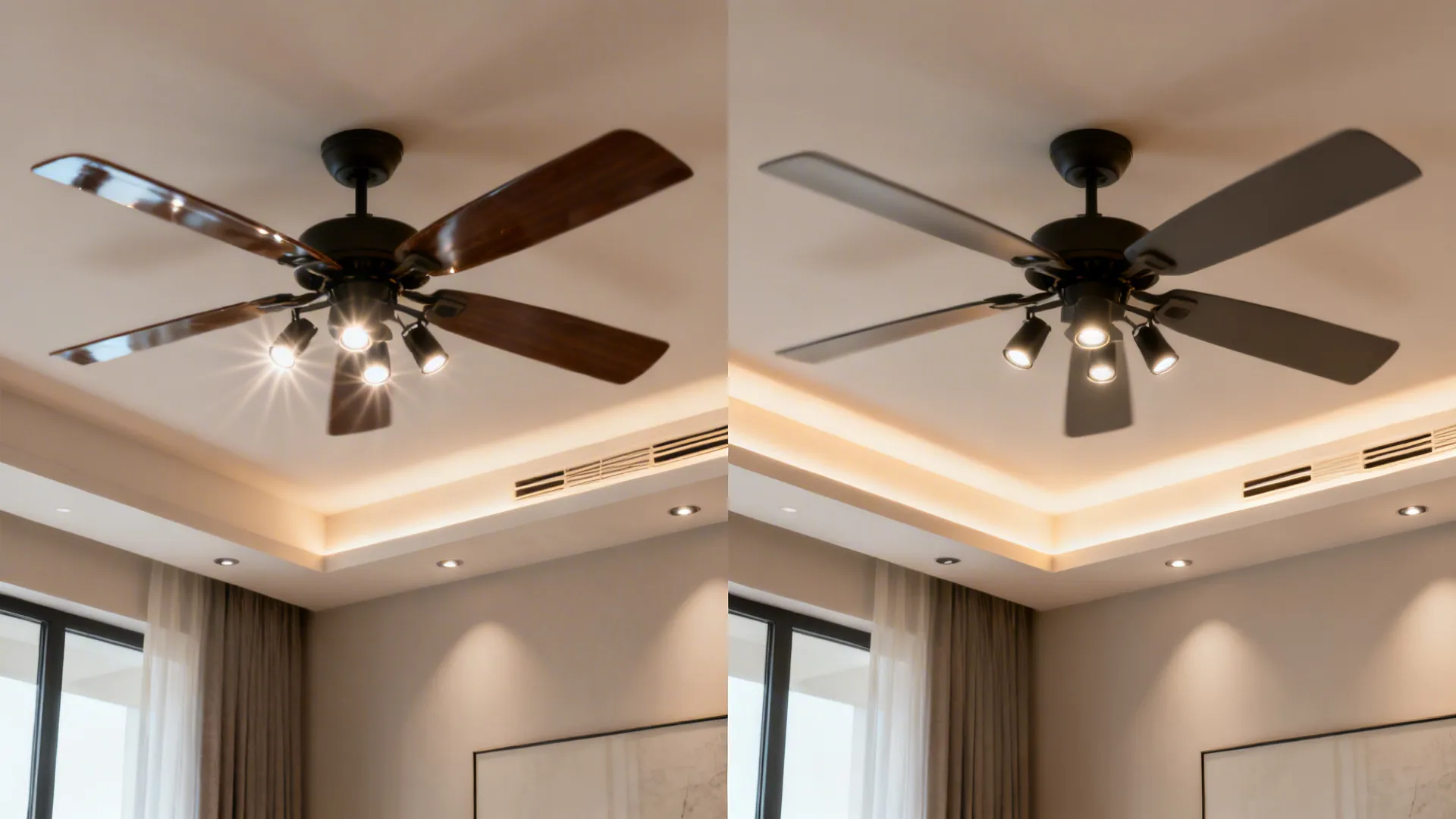

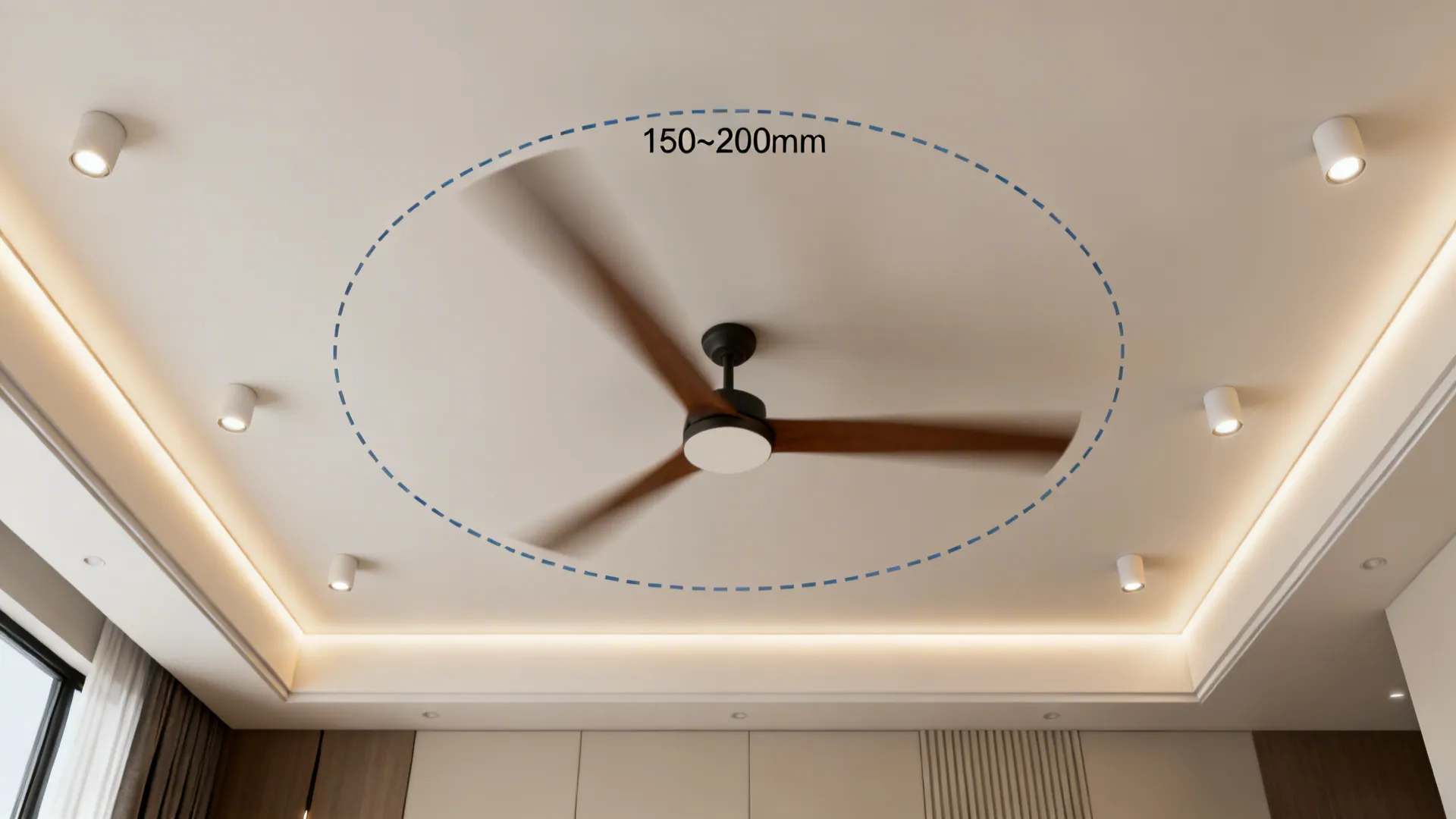

• Avoid strobing: Keep downlights at least 150–200 mm outside the blade sweep, or use indirect coves. Use matte blades and flicker-free LED drivers (high-frequency, low ripple).

• Airflow: Many manufacturers publish recommended room-to-fan sizes; in living areas up to ~20 m², a 44–48 inch fan with 8–12 degree blade pitch is a good baseline. DC motors are quieter and more efficient.

• Safety and compliance: Always mount to a fan-rated box and verify local standards for ceiling heights and clearances.

Evidence check: The U.S. Department of Energy notes that ENERGY STAR–certified ceiling fans with efficient motors can reduce cooling energy when used with raised thermostat settings, thanks to perceived cooling from air movement (energy.gov, “Ceiling Fans”). While standards vary by region, the operational principle holds universally: better airflow means more comfort at lower HVAC loads.

save pin

Putting It All Together: A Sample Small-Room Layout

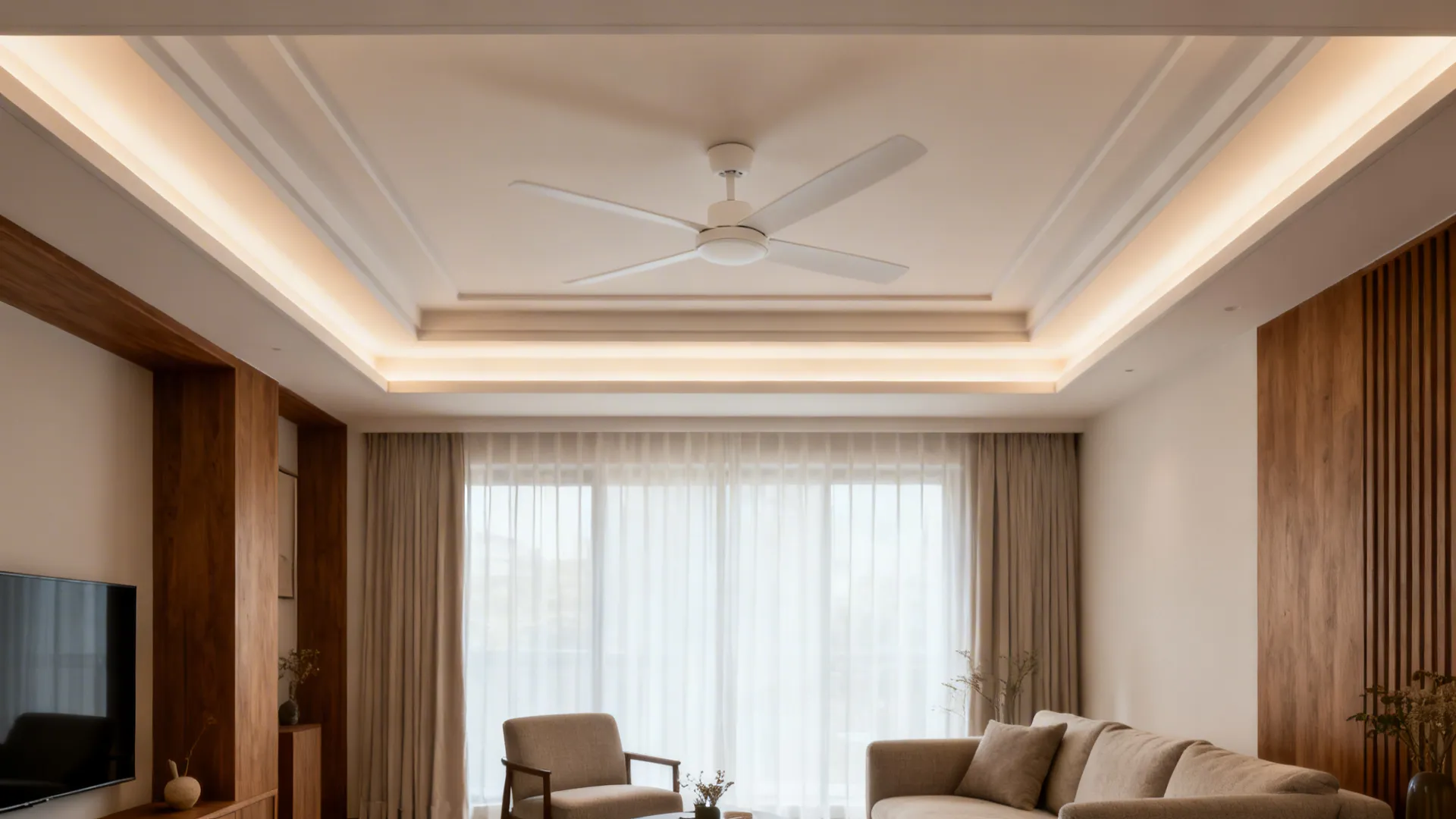

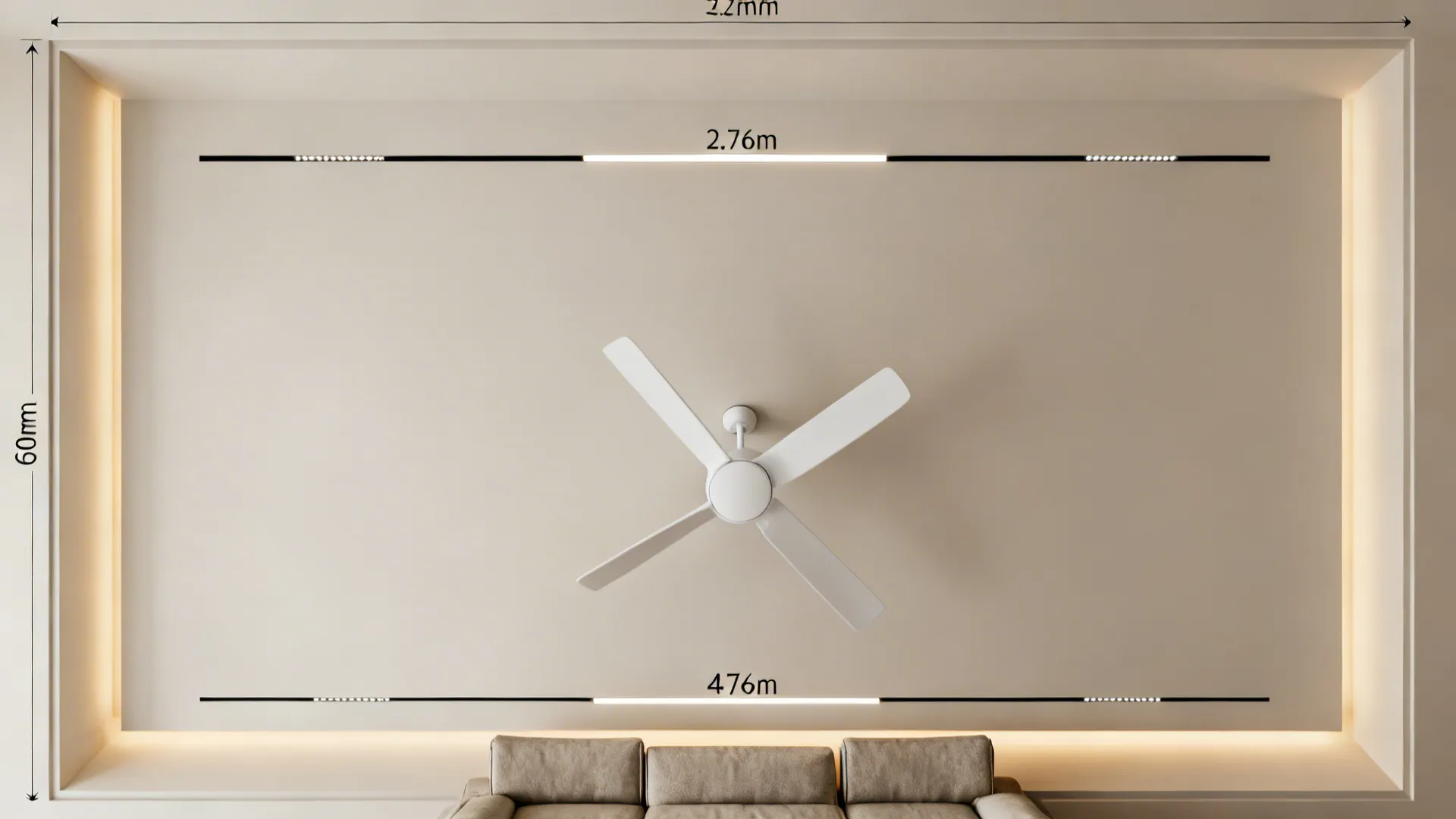

Room: 4.2 m × 3.6 m drawing room with 2.8 m structural ceiling height. Plan: 60 mm perimeter cove, center plane at 2.74 m, 44-inch DC fan centered on seating, two slot lights outside blade arc. Finish: matte white gypsum, warm-dim LEDs, minimal medallion. Result: cozy, bright, and no flicker.

Workflow I use: finalize seating plan first, choose fan size and mounting height, lock junction box position, coordinate lights, then detail coves. Mock-up blade sweep on-site with tape before cutting gypsum—saves headaches.

Maintenance: Choose dust-resistant paint (low-sheen) on false ceilings. Use accessible LED drivers (service hatch or perimeter shelf). Balance the fan at install; most DC fans include a balancing kit.

save pin

Budget Snapshot and Timeline

• Basic tray with cove light + DC fan: $800–$1,600 for a small drawing room, plus fan $150–$450.

• Coffered or spine feature with integrated lights: $1,800–$3,500+ depending on complexity and finishes.

• Timeline: 3–7 working days for fabrication and finishing in a typical apartment, assuming existing wiring is adequate.

Where to save: keep drops shallow, choose modular light strips, and pick a mid-range DC fan with good warranty. Where to splurge: dimmable, high-CRI LEDs and a silent motor—you’ll enjoy them daily.

save pin

Common Mistakes I See (and How to Dodge Them)

• Forgetting the fan sweep when placing spotlights—hello, strobe. Sketch the sweep circle first.

• Over-decorating the medallion under a minimalist scheme. Keep it consistent.

• Ignoring service access for LED drivers—future you will thank you for a small hatch.

• Mounting to non-rated boxes. Always use a fan-rated junction box anchored to structure.

• Picking glossy blades and then fighting glare. Matte or satin all the way.

save pin

Conclusion

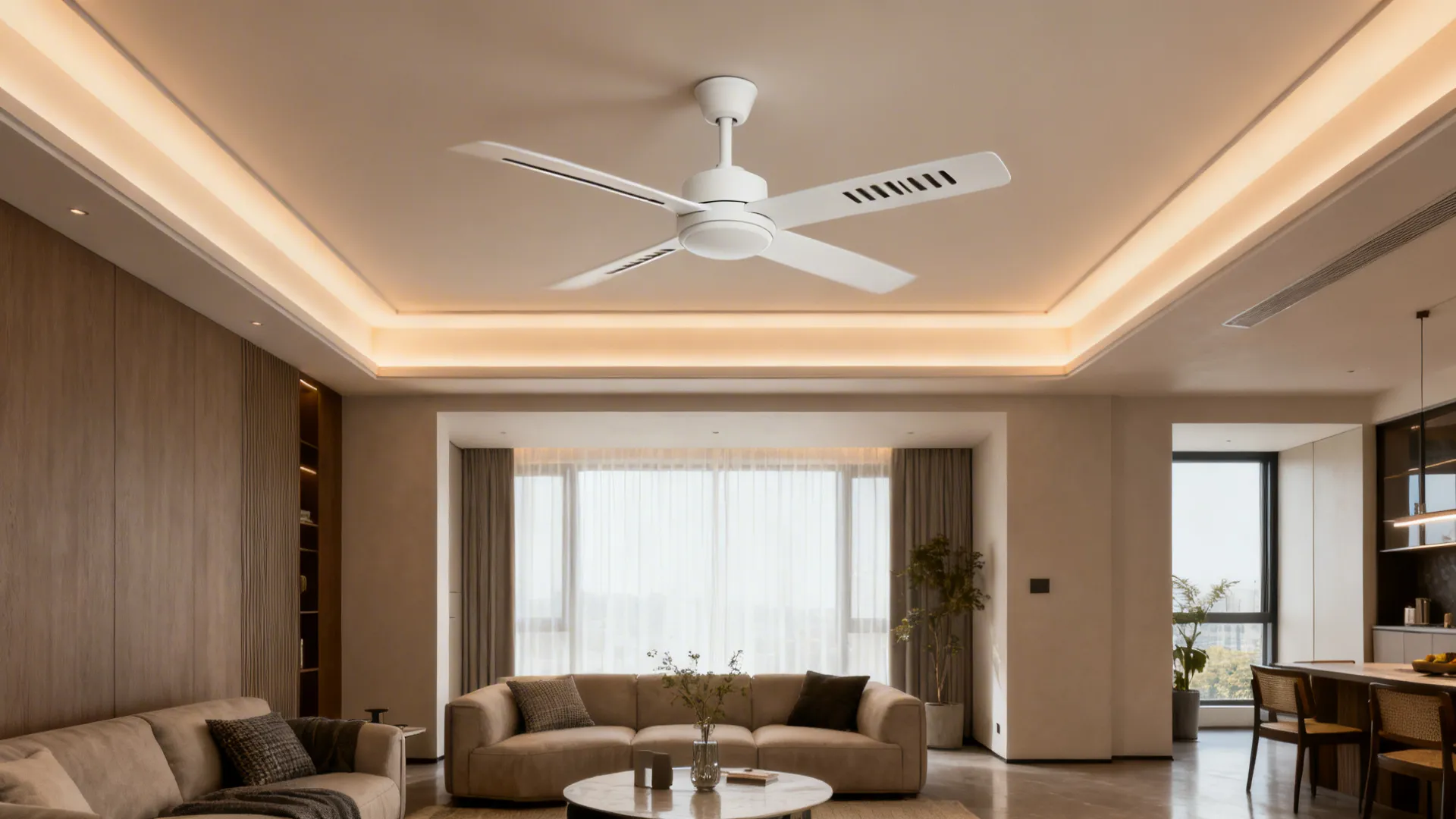

A false ceiling design with fan doesn’t limit your drawing room—it unlocks smarter, quieter, and more beautiful solutions. Small spaces push us to be intentional: shallow trays, perimeter coves, or a clean plane with slot lights can all deliver style without sacrificing airflow. As DOE guidance on ceiling fans shows, good air movement enhances comfort and can ease HVAC loads when used wisely. Which of these five ideas are you most excited to try in your own space?

save pin

FAQ

Q1: What is the best false ceiling design with fan for a small drawing room?

A1: A minimalist tray or a floating perimeter cove keeps height while centering the fan for even airflow. Choose a 44–48 inch DC fan and place lighting outside the blade sweep.

Q2: How do I avoid light flicker or strobing with a ceiling fan?

A2: Keep downlights and linear slots at least 150–200 mm outside the fan’s blade arc, use matte blades, and select flicker-free LED drivers. Indirect cove lighting is the safest bet.

Q3: What ceiling height do I need for a fan under a false ceiling?

A3: Aim for 2300–2400 mm minimum floor-to-blade clearance. For lower ceilings, use a low-profile (hugger) DC fan and keep the false ceiling drop as shallow as possible.

Q4: Are DC fans really quieter and more efficient?

A4: Yes. DC motors typically offer better efficiency, multiple speed control, and lower noise versus AC. ENERGY STAR guidance via the U.S. Department of Energy notes fans can support comfort at higher thermostat settings (energy.gov).

Q5: Can I place a fan off-center for zoning in an open plan?

A5: Absolutely—offsetting the fan toward the seating cluster improves perceived cooling where it matters. Just maintain safe clearances from walls and any ceiling features.

Q6: What materials are best for a false ceiling in a living room?

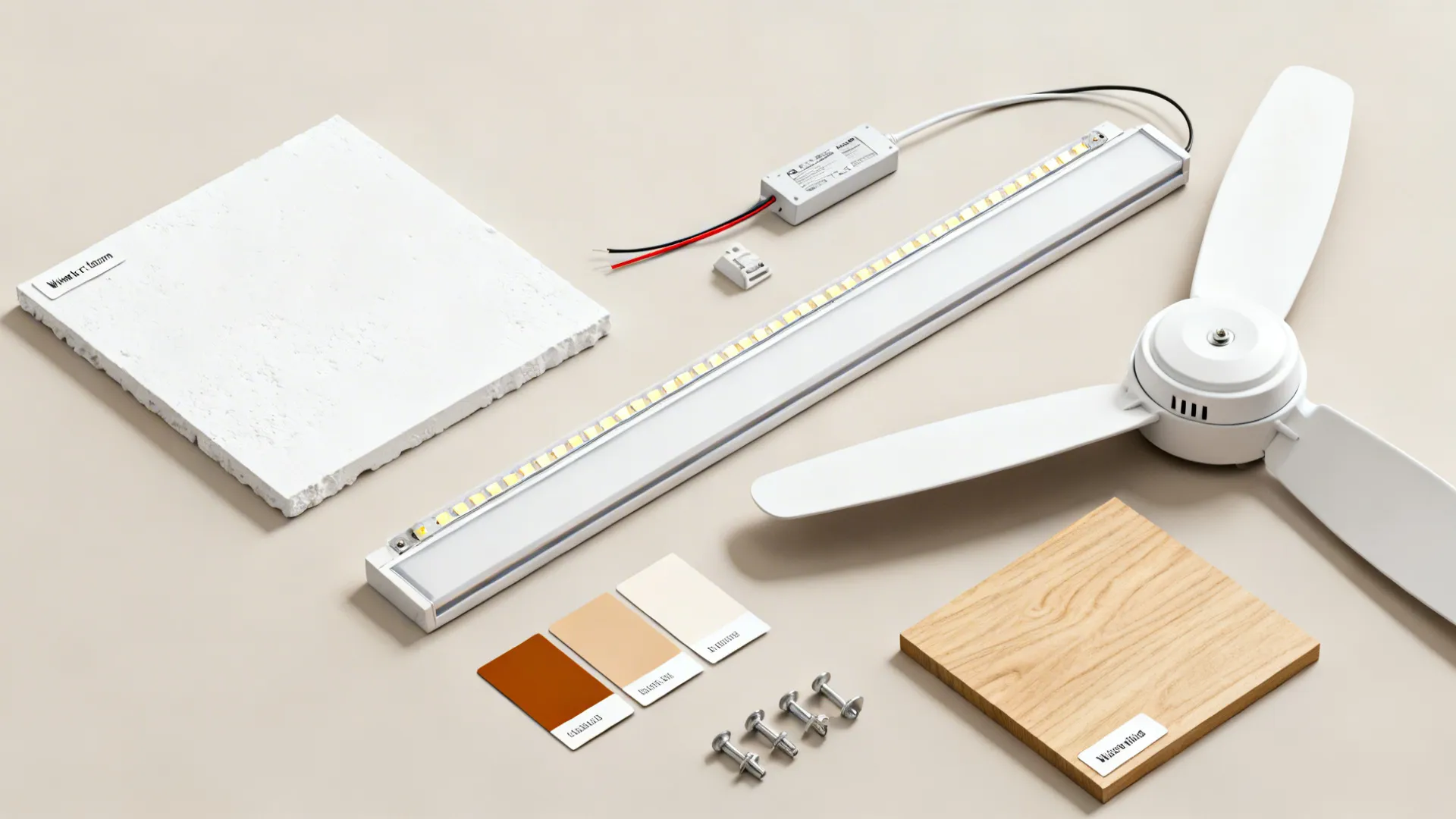

A6: Gypsum board (GKB) is common for smooth planes; MDF or lightweight beams work for decorative coffers. Use moisture-stable laminates for wood-effect spines and ensure proper framing for fan loads.

Q7: How much does a false ceiling with integrated lighting and a fan cost?

A7: For small drawing rooms, expect roughly $800–$1,600 for a basic tray and cove setup plus $150–$450 for a quality DC fan. Complex coffers or wood spines can run $1,800–$3,500+.

Q8: Can I plan the layout digitally before building?

A8: Yes—mock up fan sweep, light positions, and ceiling drops in a planning tool or with simple tape on the existing ceiling. Visual references like wood accents that add warmth can help you evaluate textures, lighting, and flow together.
