5 Fan Ideas for Tiny Kitchen Ventilation: Smart, quiet, and stylish ventilation solutions I’ve used to keep small kitchens fresh

As a residential designer who’s remodeled more tiny kitchens than I can count, I’ll say this upfront: small spaces spark big creativity. “Fan ideas for tiny kitchen” used to mean a noisy box stuck under a cabinet. Now, with better tech and smarter layouts, you can ventilate efficiently without eating up precious storage. In this guide, I’ll share 5 design inspirations—pulled from my own projects and supported by expert data—that balance airflow, noise, style, and budget.

Before we dive in, I’ve seen trends shift toward quieter, concealed ventilation, induction cooking (less grease and heat), and multi-tasking elements that do double duty. Tiny kitchens benefit most from clean lines and compact tech that doesn’t dominate. I’ll walk you through my five favorite approaches, with pros, cons, and a few budget notes from real jobs.

By the way, tiny kitchens aren’t a constraint—they’re a prompt to design smarter. And yes, the five ideas below are exactly that. If you love the look of minimal cabinetry, my earlier studio project with “minimalist kitchen storage styling” also shows how to leave breathing space around the cook zone while keeping a clean aesthetic.

Slim Ducted Range Hood Hidden in Cabinetry

My Take

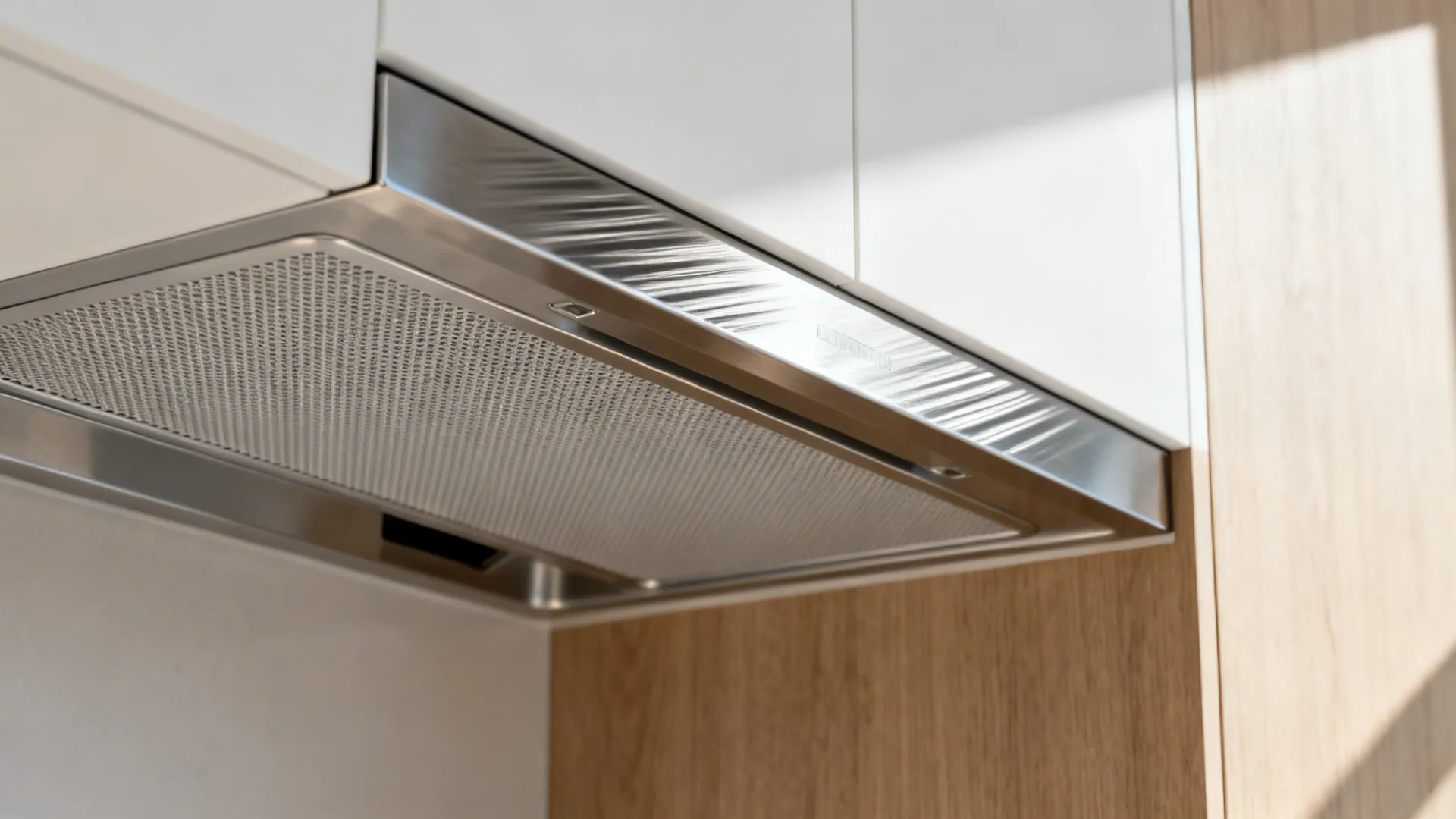

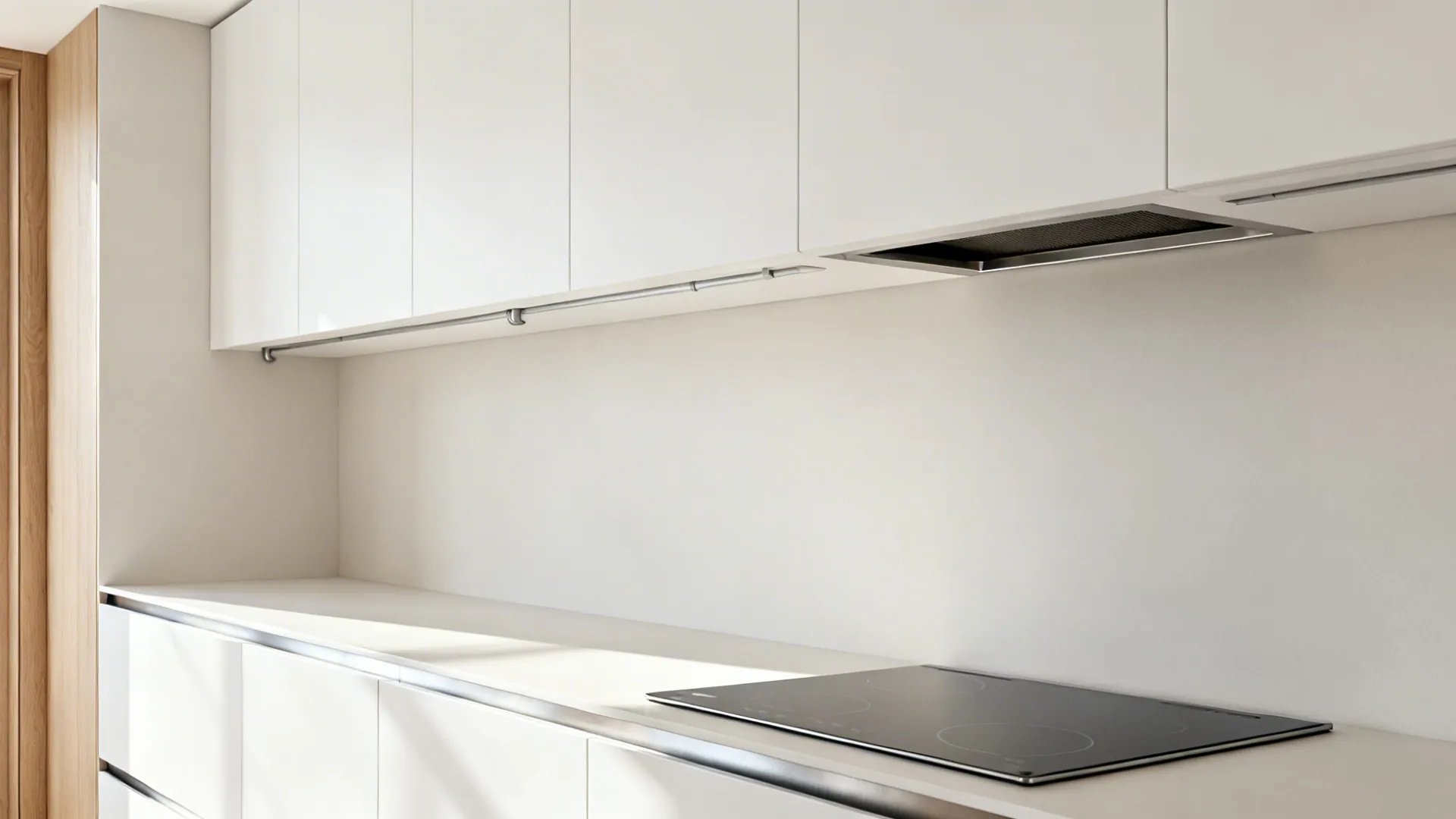

I’ve tucked slim, ducted hoods into 12–15 cm-deep valances and even into wall cabinets without sacrificing a single plate. In one 6 m² galley, we routed a flat duct along the upper cabinet run and vented through the exterior wall—neat, quiet, effective.

Pros

- Best capture efficiency for grease and steam in tiny cooking zones; with proper ducting and a tight capture area, you’ll remove odors fast. Long-tail keyword fit: “slim ducted range hood for small kitchen”.

- Allows a continuous cabinet line and minimal visual clutter; you keep the micro-kitchen feeling calm and seamless.

- With a short, straight duct run (ideally < 2 bends), static pressure is low, so you get solid airflow from a compact unit.

Cons

- Requires an exterior vent path—trickier in condos or landmark buildings; permits can slow you down.

- Poor installation (leaky joints, too many elbows) kills performance; I once had to redo a 90-degree elbow that halved the effective CFM.

- Filter cleaning is “out of sight, out of mind”—and a greasy filter is a loud, weak filter.

Tips / Cost

- Budget: $250–$800 for the hood + $200–$600 for ductwork and labor (varies by wall type).

- Aim for 100–250 CFM for tiny kitchens; focus on capture area and duct quality over raw CFM numbers.

save pin

save pin

Recirculating Hood with High-Performance Carbon Filters

My Take

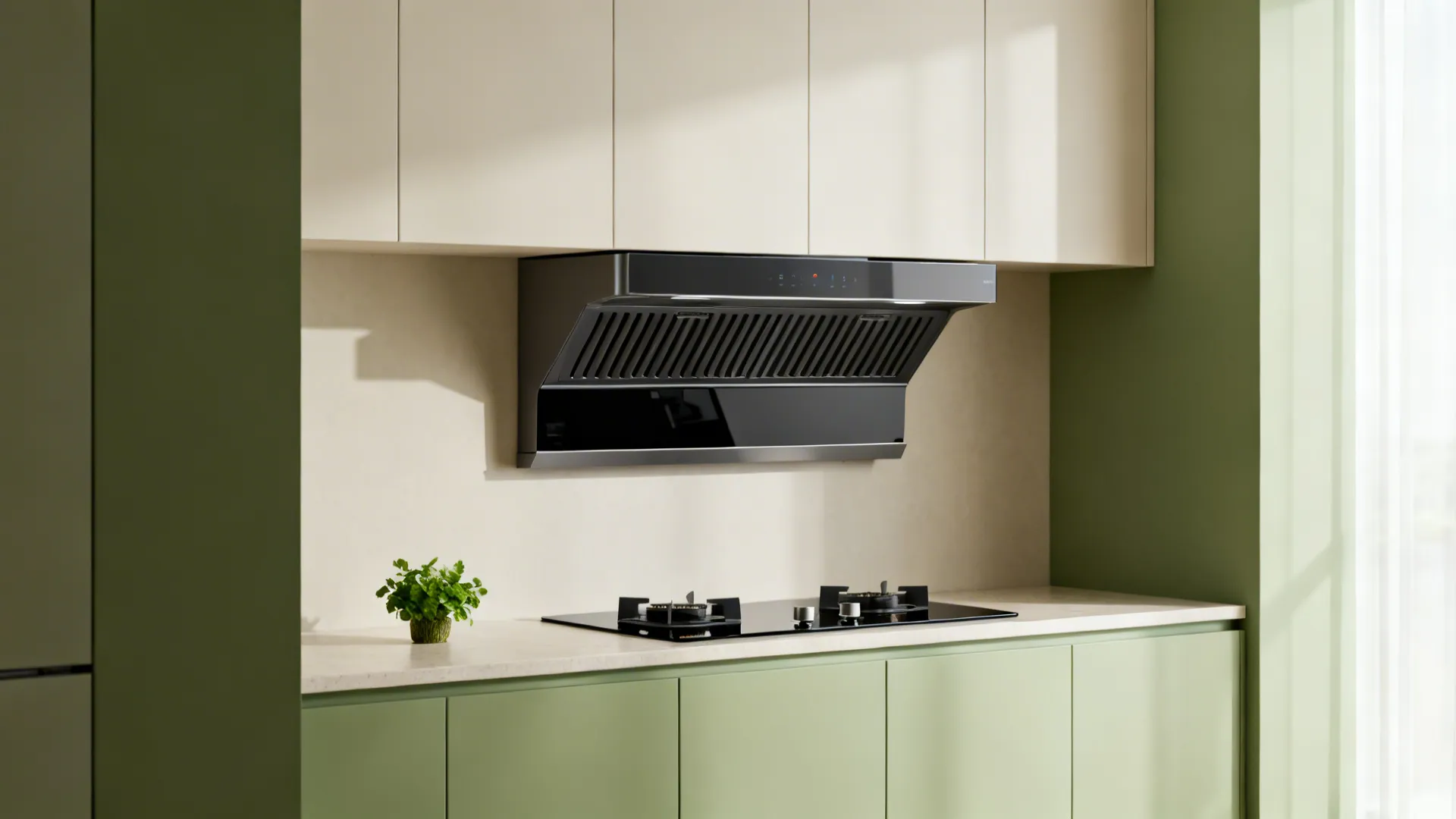

In rentals or high-rises where ducting is a no-go, I lean on recirculating hoods with upgraded carbon filters and baffle or hybrid mesh filters. One client cooks spice-heavy meals; swapping to deep-bed carbon and sealing bypass gaps made a night-and-day difference.

Pros

- No exterior duct needed; perfect for apartments. Long-tail keyword: “best recirculating range hood for small apartment kitchens”.

- Easier installation, less invasive; preserves walls, saves on construction time.

- Newer models use layered filtration to trap grease and neutralize odors more effectively.

Cons

- Odor control relies on diligent filter changes; I put a calendar reminder every 2–3 months for heavy cooking.

- Heat and moisture stay in the room; pair with a window crack or a quiet booster fan if possible.

- Not ideal for deep-frying or high-heat wok cooking without frequent maintenance.

Tips / Case

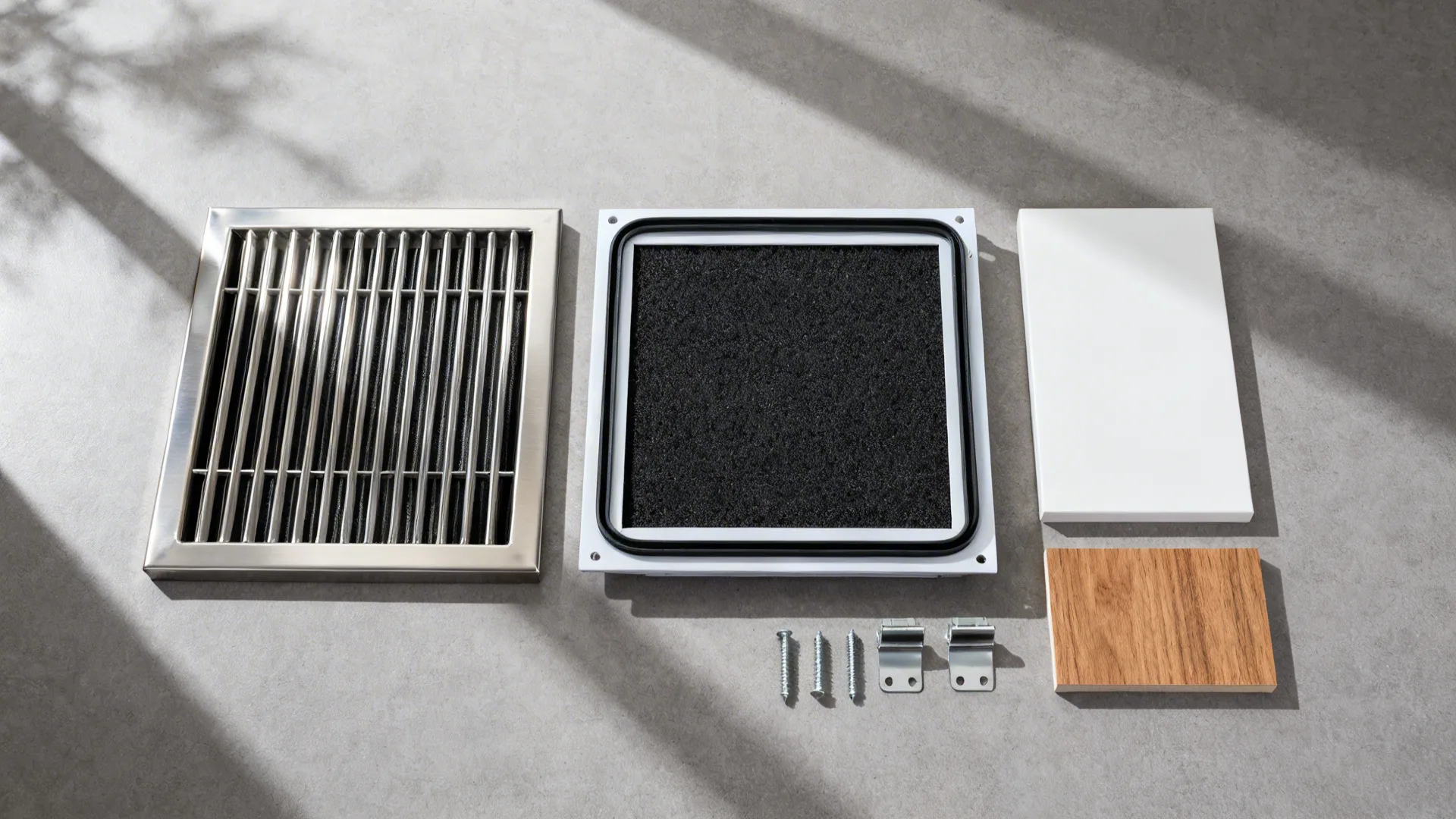

- Choose hoods with baffle-style grease filters (dishwasher-safe) and thick carbon cartridges; check for sealed filter frames to prevent air bypass.

- Combine with induction to cut airborne grease and help the recirculating system keep up.

save pin

save pin

Downdraft Vent for Peninsula or No-Headroom Setups

My Take

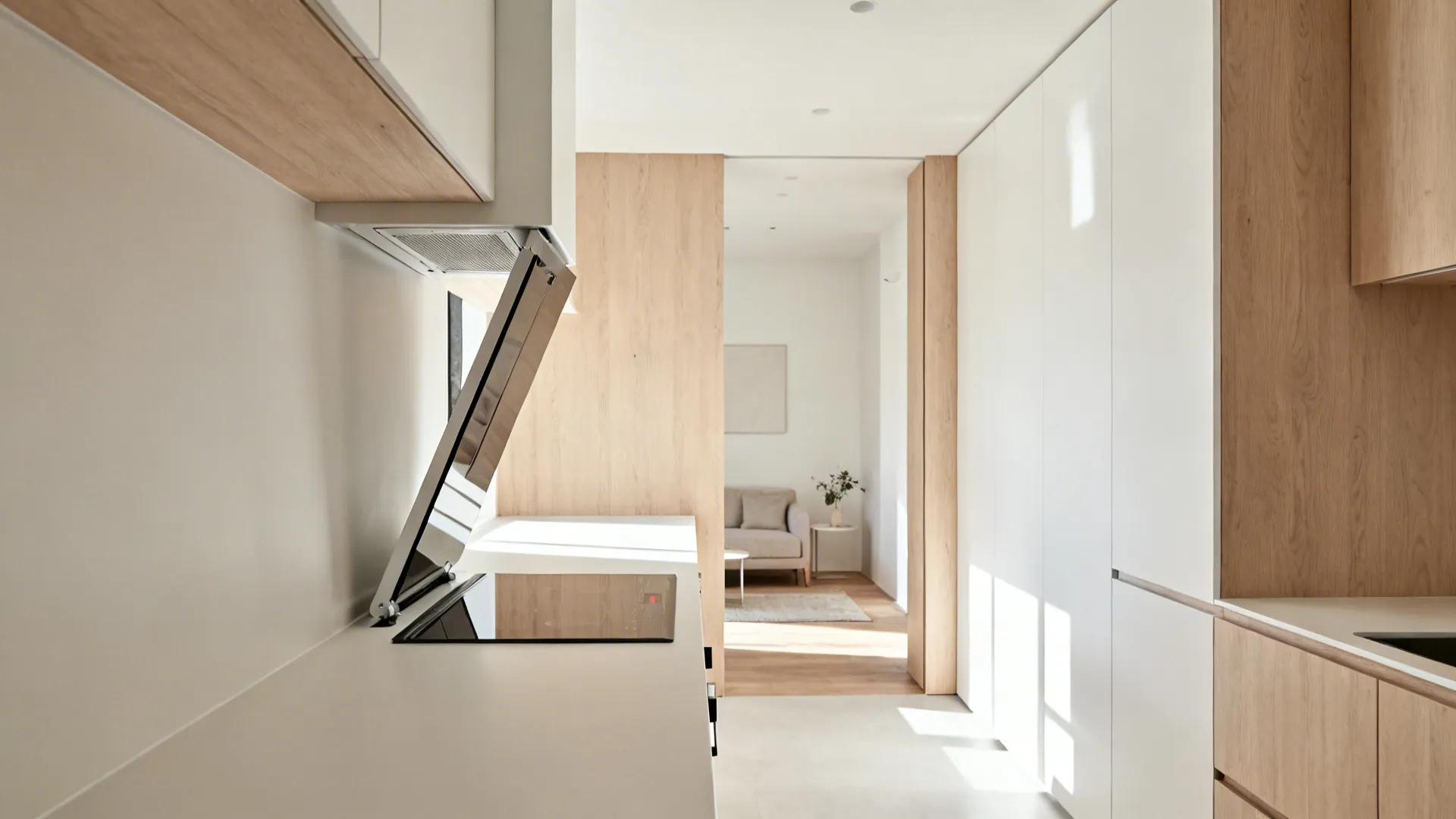

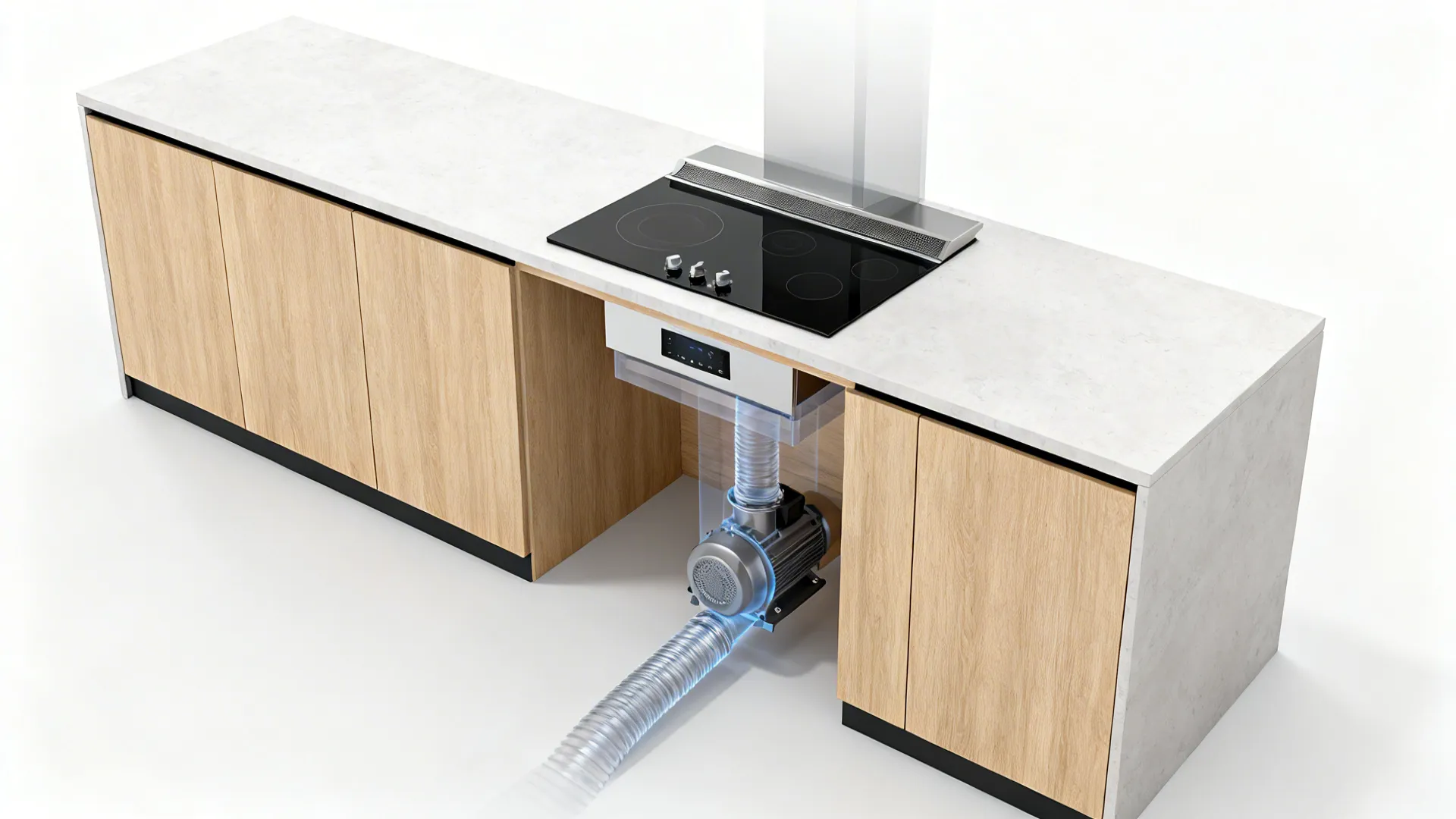

When there’s no wall cabinet or you’re cooking on an island/peninsula, a downdraft solves the “nowhere to hang a hood” problem. I’ve installed pop-up downdrafts behind narrow cooktops; they disappear when off, which small kitchens really appreciate.

Pros

- Clears the sightline and keeps the kitchen visually open; ideal for combined living-kitchen spaces. Long-tail keyword: “downdraft vent for small kitchen peninsula”.

- Good for induction or moderate-heat cooking; grease is pulled across a short path into the plenum.

- Flexible: duct out the floor or recirculate with carbon modules where ducting is impossible.

Cons

- Less efficient for tall pots or smoky stir-fries; capture is horizontal, so plume management is trickier.

- Requires planning for under-counter space (motor + duct path) which competes with drawers.

- More parts = more cost; repairs are harder once built-in.

Tips / Cost

- Budget: $900–$2,500 for the unit + install; plan the cabinet layout to preserve one deep drawer elsewhere.

- Keep cookware lids handy and choose a rear or center-rear burner for steamy tasks to aid capture.

save pin

save pin

Ceiling Cassette or Flush-Mount Exhaust with Make-Up Air Consideration

My Take

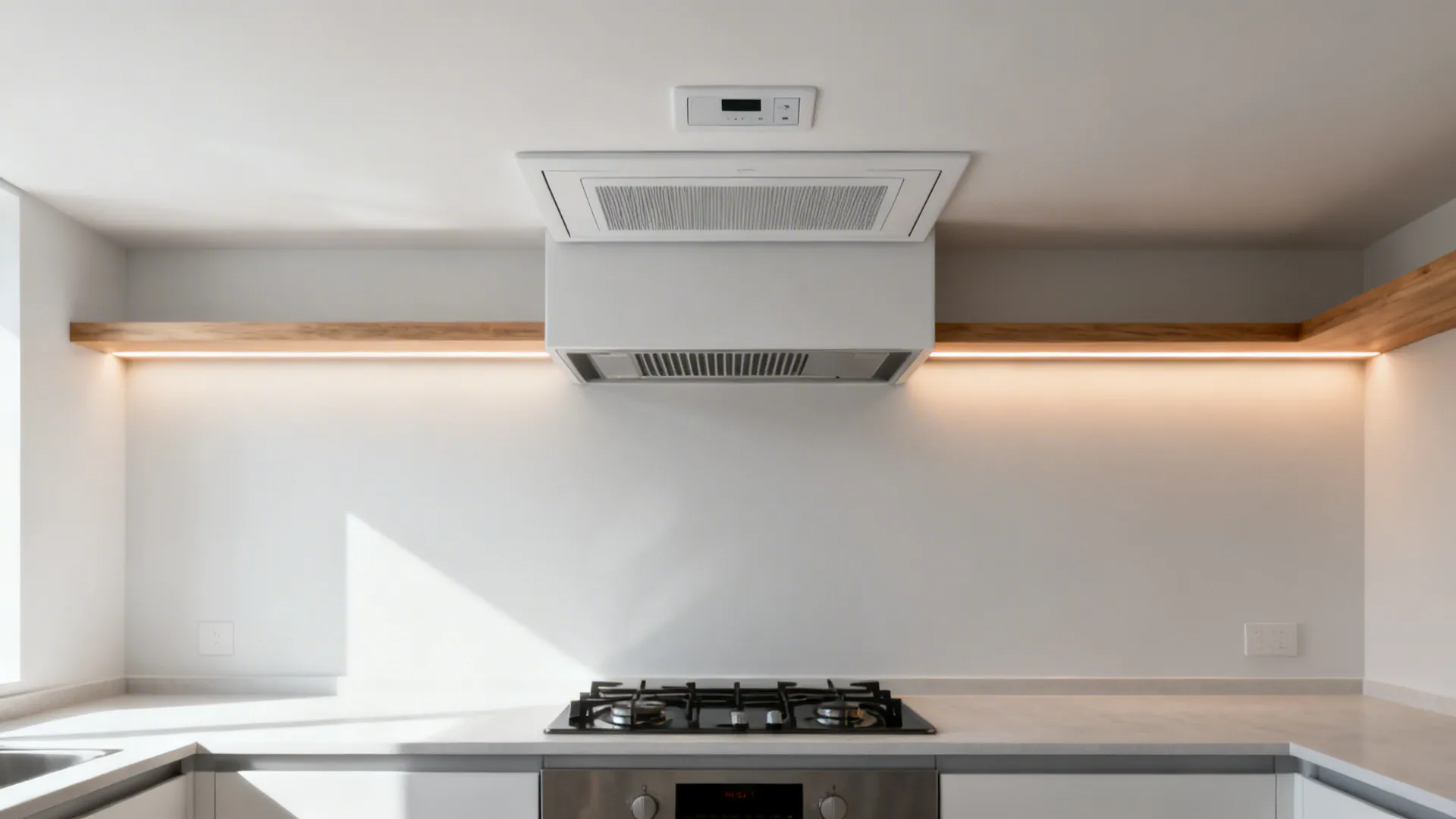

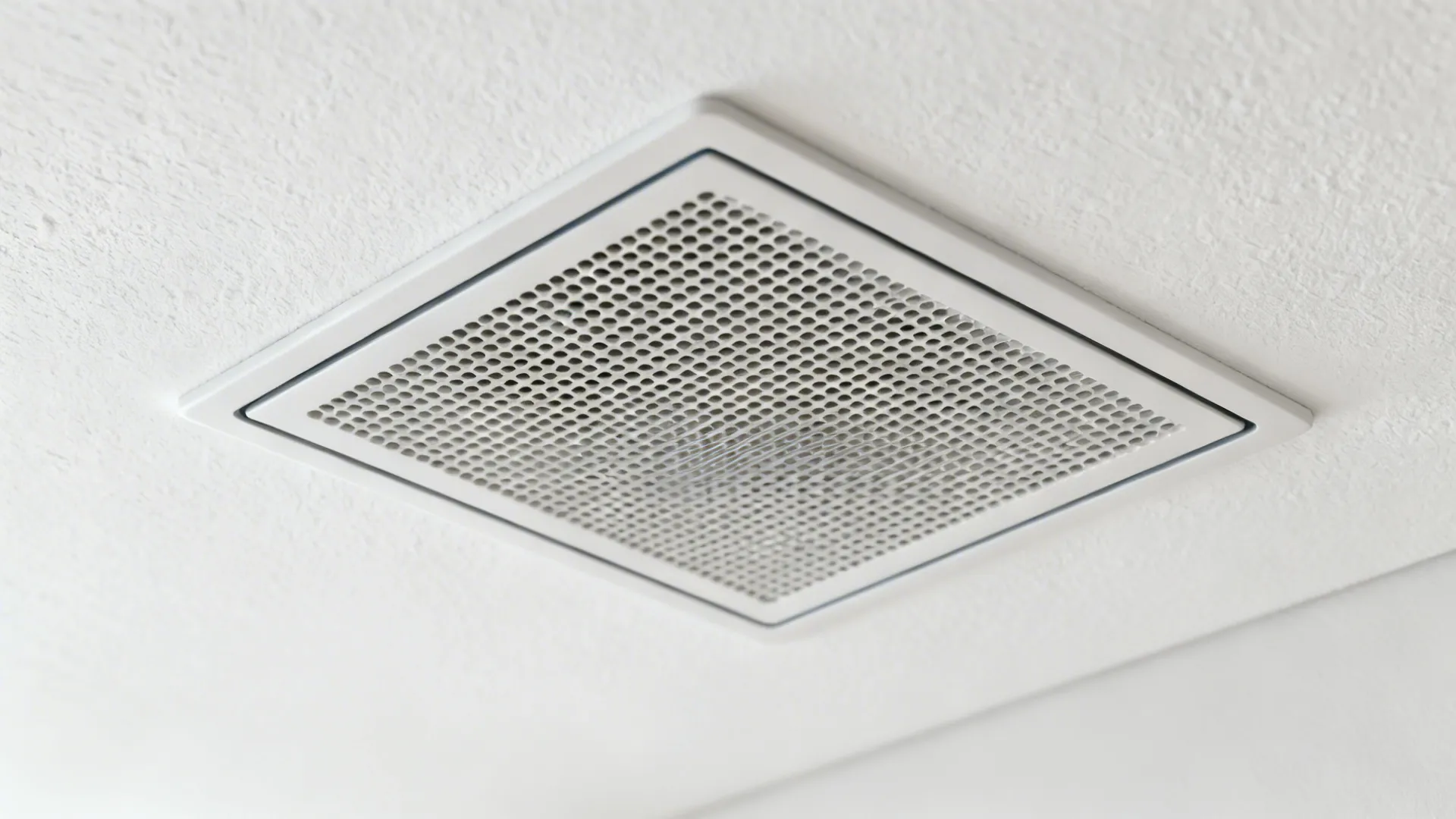

For micro-lofts with low ceilings, a flush cassette blends in and frees headspace. I’ve paired slim ceiling units with strong task lighting over the cooktop, so it feels intentional rather than “office HVAC” in your home.

Pros

- Ultra-clean look; nothing on the wall, no bulk at eye level. Long-tail keyword: “flush-mount kitchen exhaust for tiny homes”.

- Can be centrally located to serve multi-use spaces where the cooktop shifts within a compact layout.

- Some models integrate with whole-house ventilation, improving overall IAQ in small footprints.

Cons

- Needs careful placement and a defined capture zone; steam can spread before it reaches the grille.

- Installation complexity: framing, backdraft damper, and potential make-up air in tight apartments.

- Maintenance can be awkward—filters overhead mean step-stool cleaning.

Data Point

- According to the U.S. EPA (Residential Air Cleaners and IAQ guidance), source capture ventilation helps control PM2.5 and cooking pollutants; pairing local exhaust with general ventilation significantly reduces exposure compared to general ventilation alone. This supports investing in an effective, well-placed capture device in tiny kitchens.

Case / Link

At the halfway point of many remodels, I also review layout decisions. In one L-shaped micro-kitchen, switching the cooktop corner freed counter space and helped ventilation. You can see how an “L-shaped layout opens more counter area” mindset often improves airflow paths and makes capture easier.

save pin

save pin

Window-Assisted Venting with Discreet Booster Fan

My Take

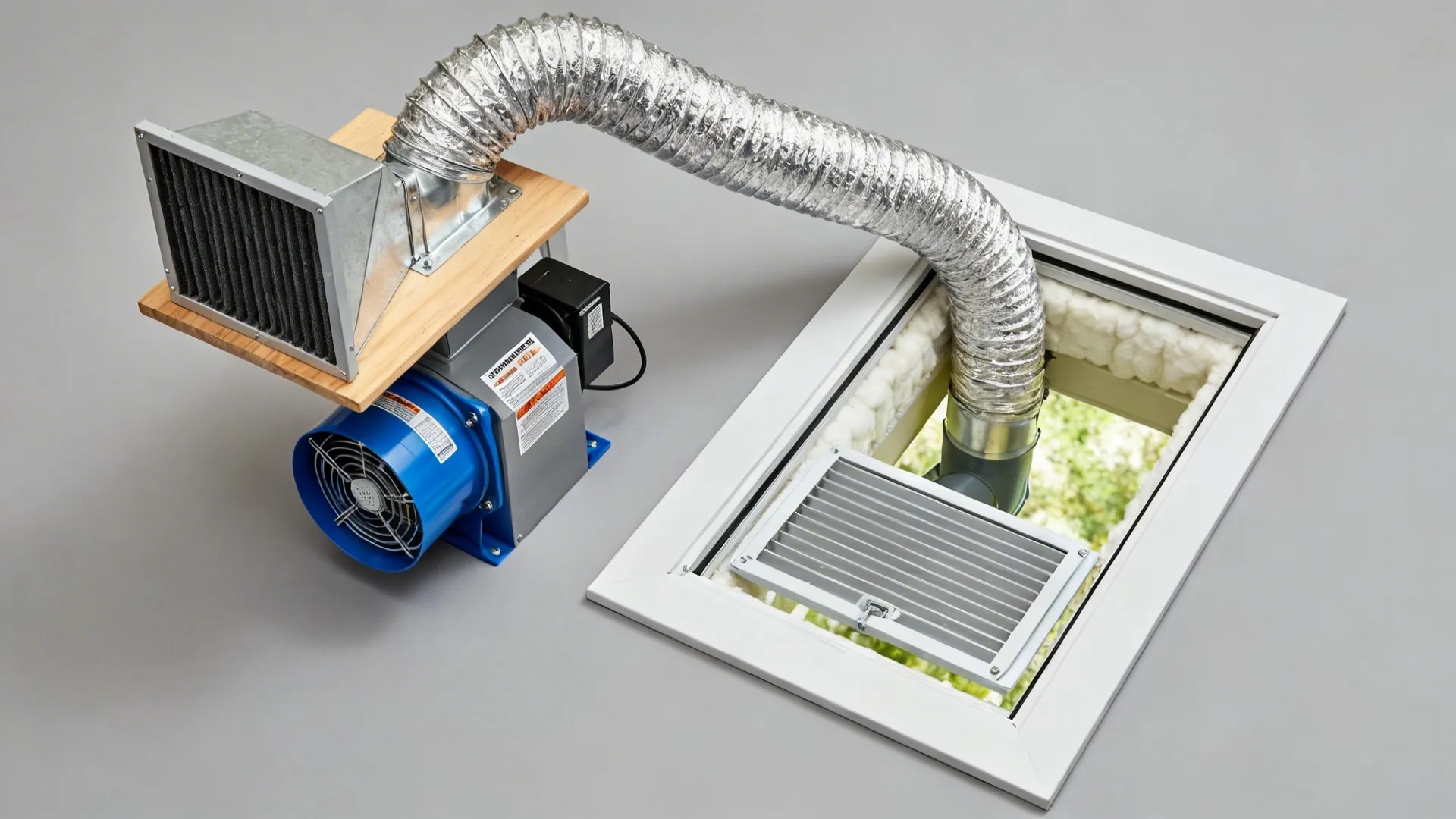

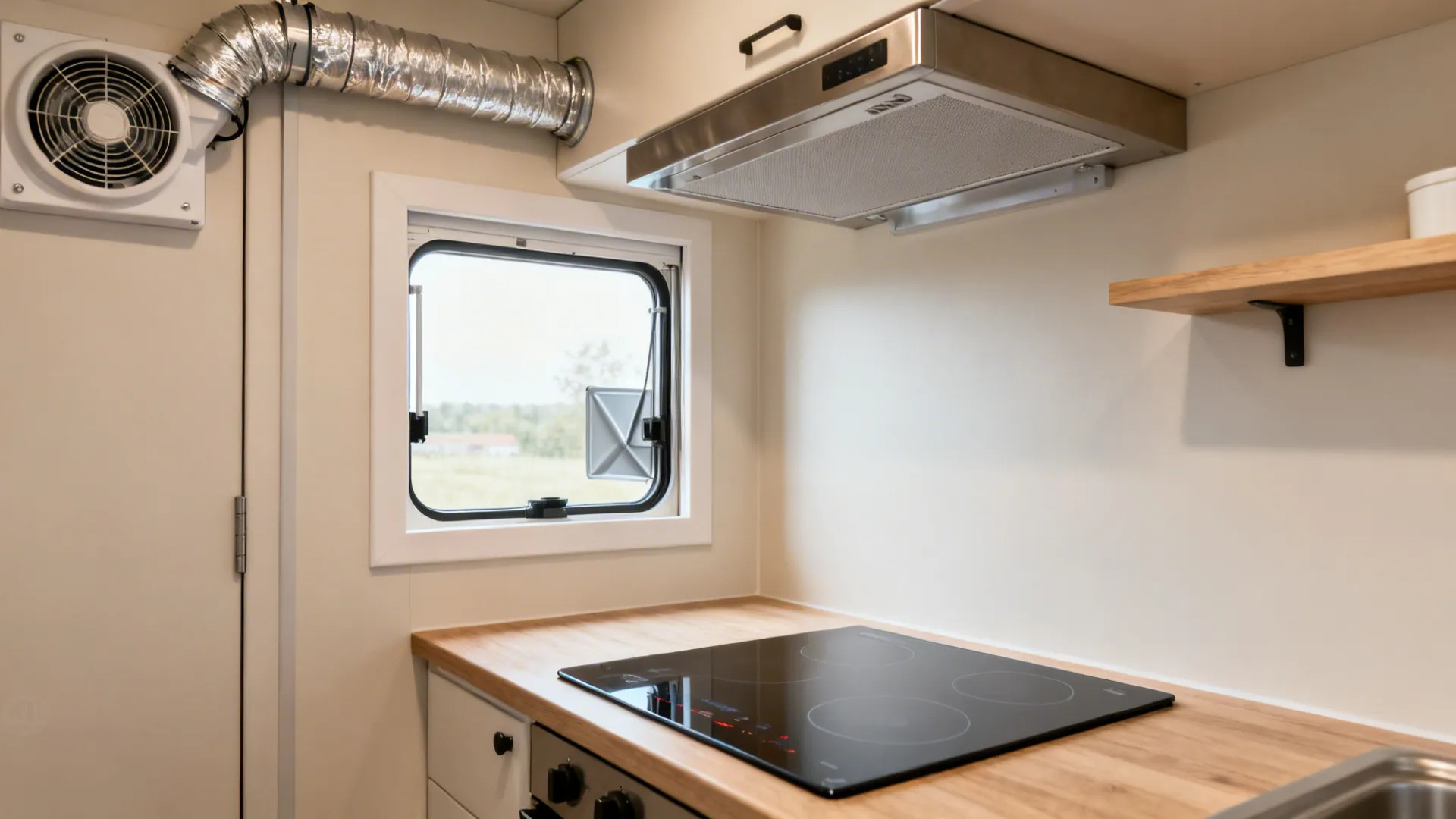

When budgets are tight, I’ve combined a quiet inline fan with a short duct to a window panel or wall sleeve, plus a simple shelf-mounted baffle filter over the cook zone. It’s the most “DIY-friendly” setup I still spec for clients who value fresh air above all.

Pros

- Affordable and flexible; you control usage and can scale the fan size to the cooking style. Long-tail keyword: “budget kitchen ventilation for small spaces”.

- Great for occasional heavy cooking—open the window slightly, run the booster fan, and odors leave fast.

- Inline fans mounted remotely (attic/closet) keep the kitchen quiet.

Cons

- Requires a bit of manual choreography (window + fan + lid); not as seamless as an automatic hood.

- Improvised panels need to be insulated and sealed to prevent drafts.

- Not ideal for strict HOA rules or buildings that restrict exterior changes.

Tips / Cost

- Budget: $150–$600 depending on fan and duct length; prioritize a good backdraft damper and insulated duct.

- Add a magnetic or slide panel insert for the window to maintain weather tightness.

save pin

save pin

Smart Controls, Noise Management, and Right-Sizing

My Take

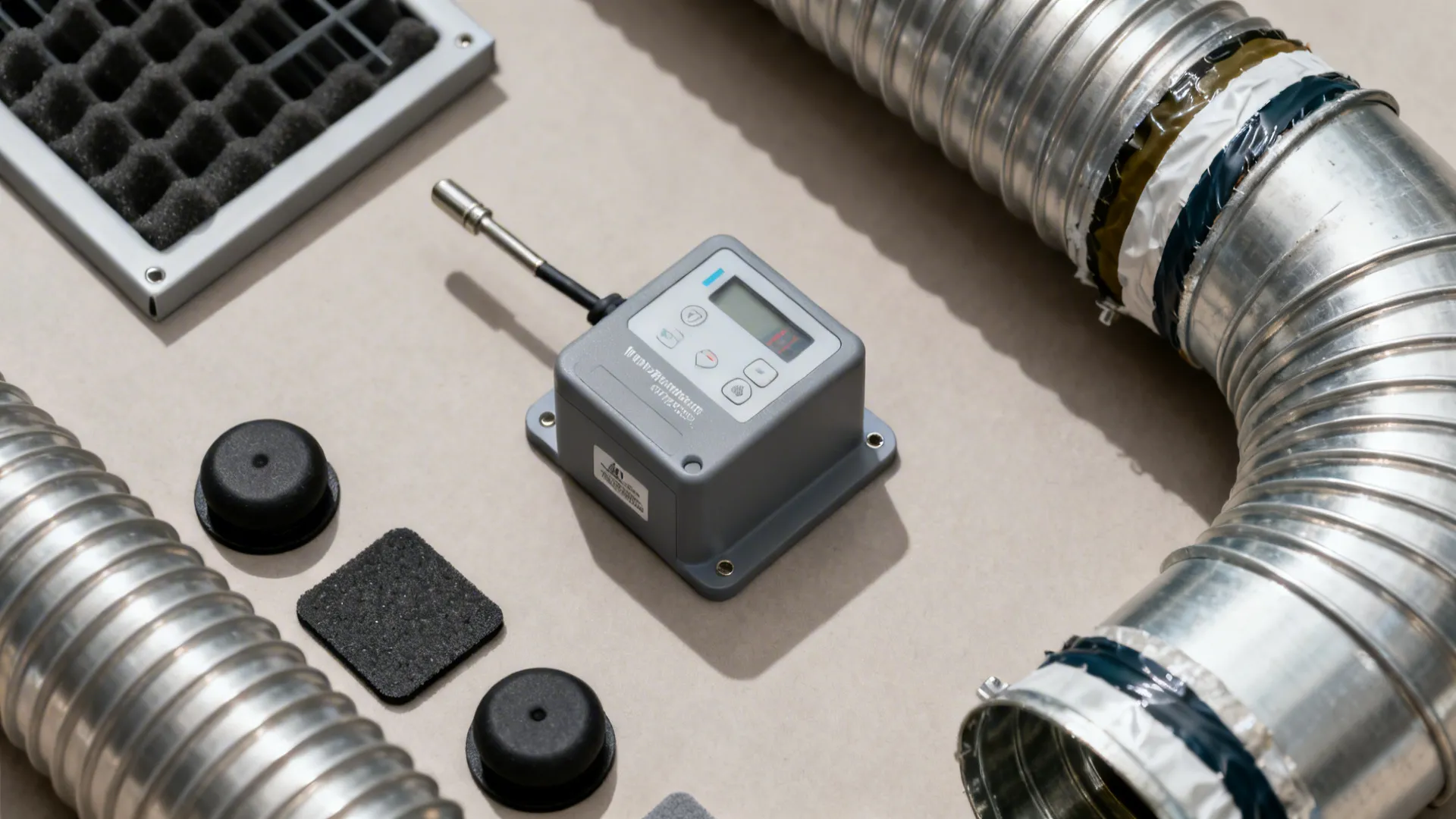

Across all fan ideas for tiny kitchen ventilation, the magic is in controls and sizing. I’ve salvaged “meh” systems just by tuning the CFM to the cooking style, adding auto-on with a temperature sensor, and isolating vibration with better mounting.

Pros

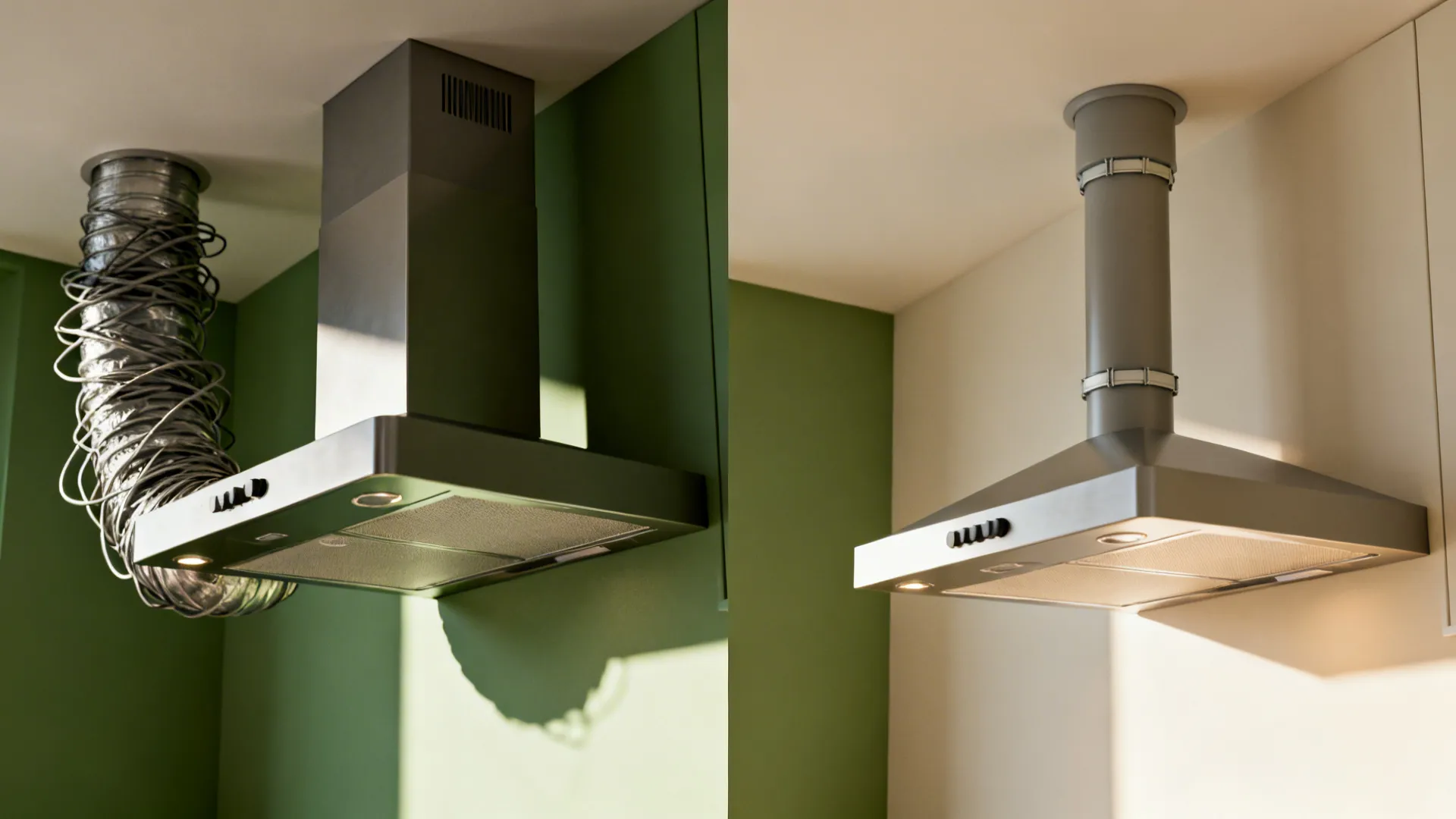

- Right-sizing (not oversizing) reduces noise and improves capture; long-tail keyword: “quiet range hood setup for small kitchens”.

- Smart triggers (heat/smoke sensors) prevent forgetting to turn on the fan, which is half the battle.

- Better duct transitions and sealed joints boost effective airflow without a bigger motor.

Cons

- Smart features can be overkill if you rarely cook; sometimes a two-speed switch is enough.

- Noise ratings (sones) aren’t standardized across brands; test before committing if you’re sensitive.

- Over-automation annoys some users—nothing like a fan kicking on mid-simmer if thresholds are set too low.

Reference

- ASHRAE 62.2 recommends local exhaust in kitchens; for capture hoods, effectiveness depends on placement and use. The principle is simple: capture at the source, vent outside when possible, filter well when not—especially important in compact spaces where pollutant concentrations rise faster.

Layout Note / Link

When I’m finalizing a small-kitchen package, I run a quick visualization to check clearances and lighting, too. Good lighting helps you see steam plumes and use the fan correctly. In my slimline projects, leveraging a “lightweight 3D layout preview” helped clients decide on the best hood position without guesswork.

save pin

save pin

Summary

Small kitchens don’t limit you—they push you toward smarter ventilation. From slim ducted hoods to recirculating units with serious carbon, from downdrafts to flush ceiling cassettes and budget-friendly window assists, there’s a tailored path for every layout. The core stays the same: capture at the source, keep noise low, and right-size to your cooking style. The “fan ideas for tiny kitchen” you choose should fit your habits first. Which of these five would you try in your space?

save pin

FAQ

1) What CFM is best for fan ideas for tiny kitchen spaces?

For most small kitchens, 100–250 CFM works if the hood has good capture and a short, straight duct. Focus on effective design and placement over chasing high CFM numbers.

2) Is a recirculating hood enough for a tiny apartment kitchen?

It can be, especially paired with induction and deep-bed carbon filters. Change carbon every 2–3 months for frequent cooking and keep grease filters clean to maintain airflow.

3) Are downdraft vents good for wok cooking?

Not ideal. Horizontal capture struggles with tall plumes. For stir-fries, a ducted wall hood with a large capture area performs better.

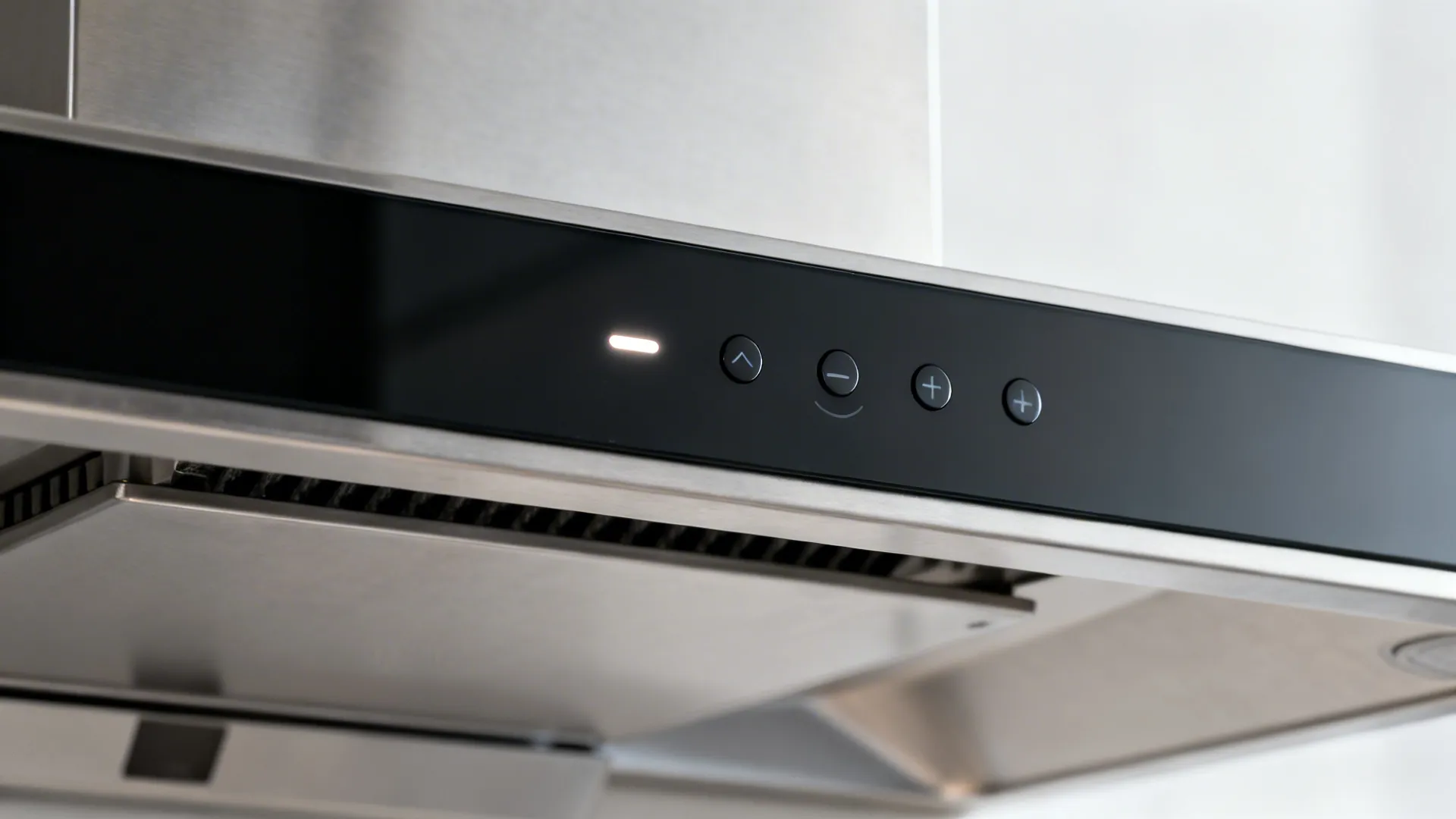

4) How loud should a quiet range hood be in a small space?

Look for 1.5–4 sones at working speeds, but take ratings with a grain of salt. Test in-store if possible, and prioritize smooth ducting to reduce noise.

5) Do I need make-up air in a studio?

If your envelope is tight and CFM is moderate-to-high, slightly opening a window can prevent negative pressure. ASHRAE 62.2 emphasizes adequate ventilation to maintain indoor air quality.

6) What’s the most budget-friendly fan idea for tiny kitchen setups?

A quiet inline booster fan ducted to a window or wall sleeve, plus a simple baffle filter over the cook zone. Keep runs short and sealed for best results.

7) Can a ceiling cassette replace a traditional hood?

It can in low-heat, low-grease cooking, but placement is crucial. Source capture closer to the cooktop is generally more effective, per EPA guidance on managing cooking emissions.

8) How do I plan layout and ventilation together?

Decide cooktop position first, then draw the shortest duct route with the fewest bends. If you’re testing configurations, a quick visual mockup like a “compact kitchen concept preview” can help you validate clearances and hood reach.
