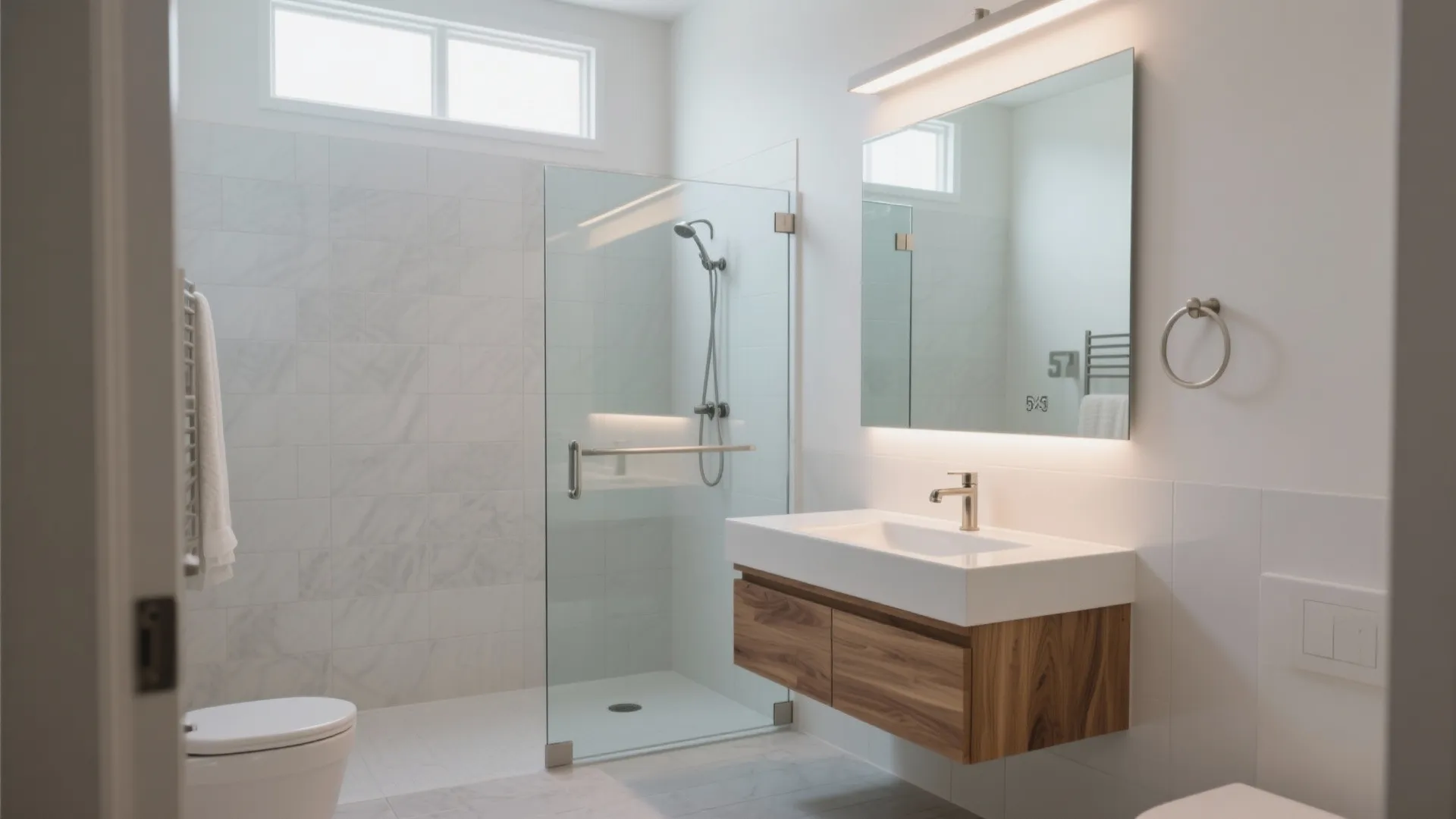

5 feet by 8 feet bathroom design: 5 Smart Ideas: A senior interior designer’s real-world strategies to make a 5x8 bath look larger, work better, and feel like a spa—without blowing your budget

[Section: Introduction]

I’ve redesigned more 5 feet by 8 feet bathroom design projects than I can count, and the trend this year is clear: cleaner lines, clever storage, and materials that brighten and expand the space without feeling cold. Small footprints are pushing bigger creativity—especially in tight hall baths and guest suites. When you only have 40 square feet, every inch has to earn its keep.

Over the years, I’ve learned that a right-sized vanity, smart lighting, and clear traffic flow can transform a 5x8 bathroom layout from cramped to calm. The finish choices matter just as much as the floor plan. Glass, large-format tile, and wall-mounted pieces create a sense of openness that feels almost like an optical illusion.

In this guide, I’ll share 5 design inspirations I’ve used in real homes, blending personal experience with expert data. I’ll walk you through what works, where the pitfalls are, and how to budget your upgrades so your 5 feet by 8 feet bathroom design becomes a daily delight.

[Section: Inspiration List]

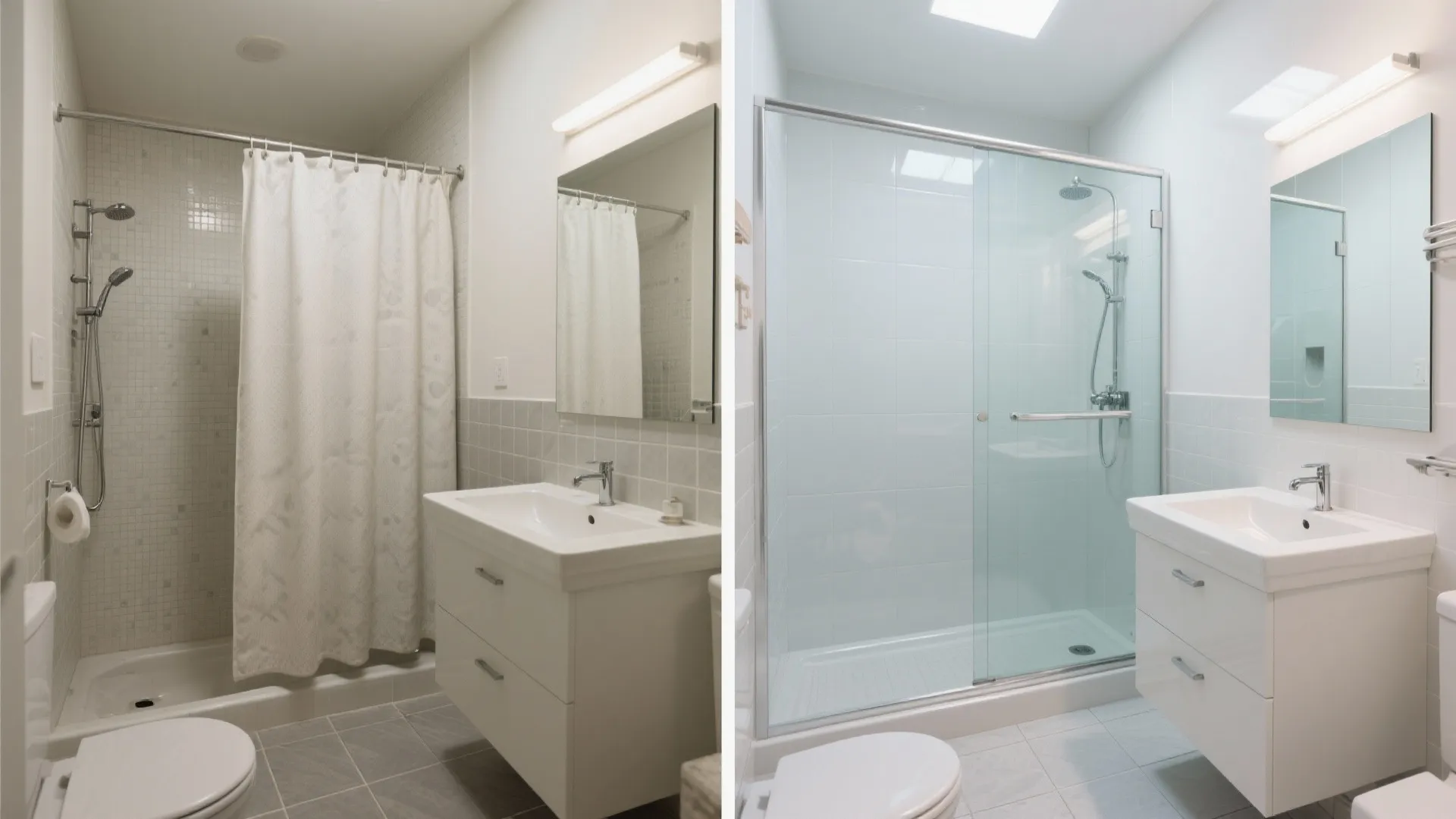

Frameless glass and reflective finishes

My Take

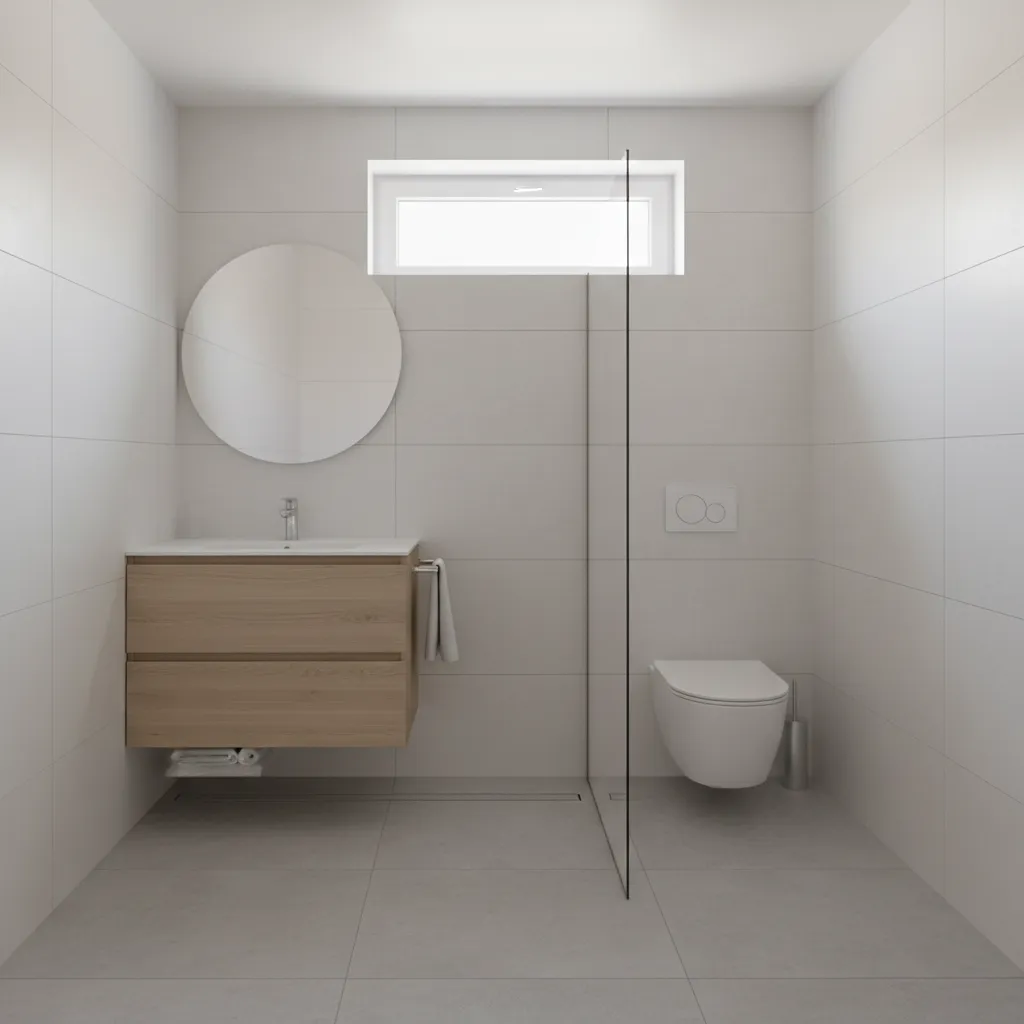

I remember a narrow 5x8 condo bath where swapping a heavy shower curtain for a frameless glass panel instantly “gave back” a foot of visual space. We finished the vanity wall with a full-height mirror and light, glossy tiles. The result? Brighter, lighter, and just a touch luxurious.

Pros

Frameless glass keeps the sightline continuous, a classic small bathroom trick that makes a compact 5x8 bathroom layout feel broader and taller. High-gloss ceramic or porcelain and a larger mirror bounce light around, ideal for a 5 feet by 8 feet bathroom design where daylight is limited. Consider a glass backsplash that opens up the bath behind the vanity to extend the reflective plane without adding clutter.

Cons

Frameless glass shows water spots, so you’ll want a quick daily squeegee routine (I do mine after brushing my teeth). Glossy tile can be slippery on floors; keep shine for walls and mirrors and choose a matte, high-traction floor tile. Also, glass panels require precise measurement—DIY misalignments become very visible.

Tips / Case / Cost

Budget $700–$1,200 for a fixed panel (not including hardware and install) and more if you prefer a hinged door. If privacy is a concern, use low-iron glass with a subtle patterned film from mid-height down. Pair with 12x24 light porcelain on walls to reduce grout lines and visually stretch the bath.

save pin

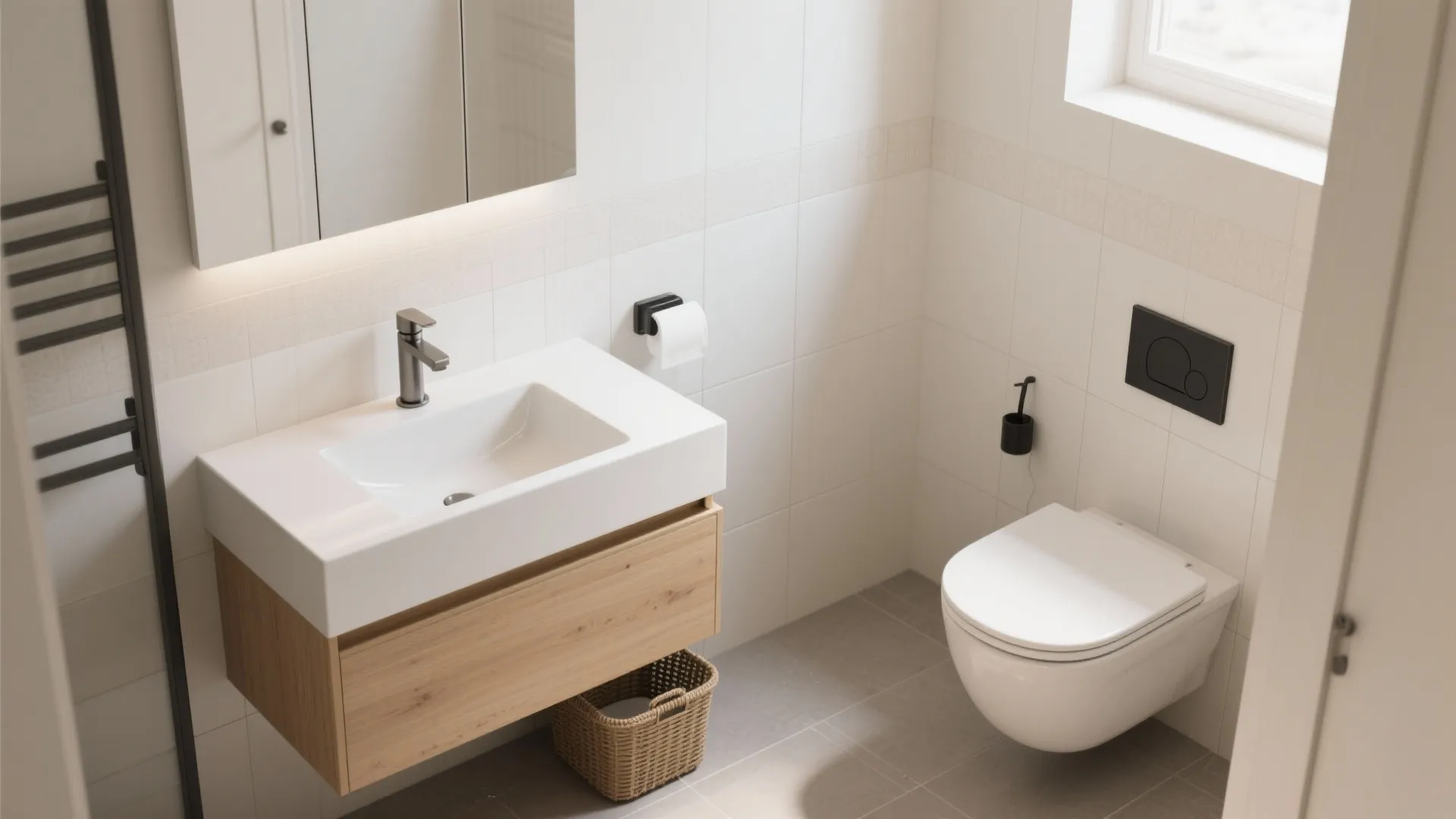

Wall-hung vanity and slim fixtures

My Take

Wall-mounting the vanity and toilet was my game-changer in a downtown rental—no square footage changed, but the floor felt bigger and cleaning was a breeze. I like a 16–18 inch deep vanity in a 5x8, especially when the door swings close to the sink.

Pros

A wall-hung vanity exposes more floor, creating an airy baseline and making small bathroom storage ideas more flexible—tuck a low basket beneath, keep the rest open. In a compact 5 feet by 8 feet bathroom design, a slim-depth vanity minimizes hip bumps while still offering a full-sized sink. A narrow-profile faucet and a single-handle mixer save precious inches and simplify the look.

Cons

Installation can be more involved—you’ll need proper blocking for both vanity and in-wall tank toilets. Wall-hung pieces also put more pressure on tile and drywall finishes; make sure your tile backer and waterproofing are on point. If you crave deep drawers, a slim vanity may limit what you can tuck away.

Tips / Case / Cost

Plan plumbing heights early; I aim for the sink rim at about 34–36 inches. A compact elongated toilet (28 inches or less in projection) preserves walking clearance in a 5x8 bathroom layout. Expect $1,200–$2,500 for a quality wall-hung vanity with top, hardware, and pro installation.

save pin

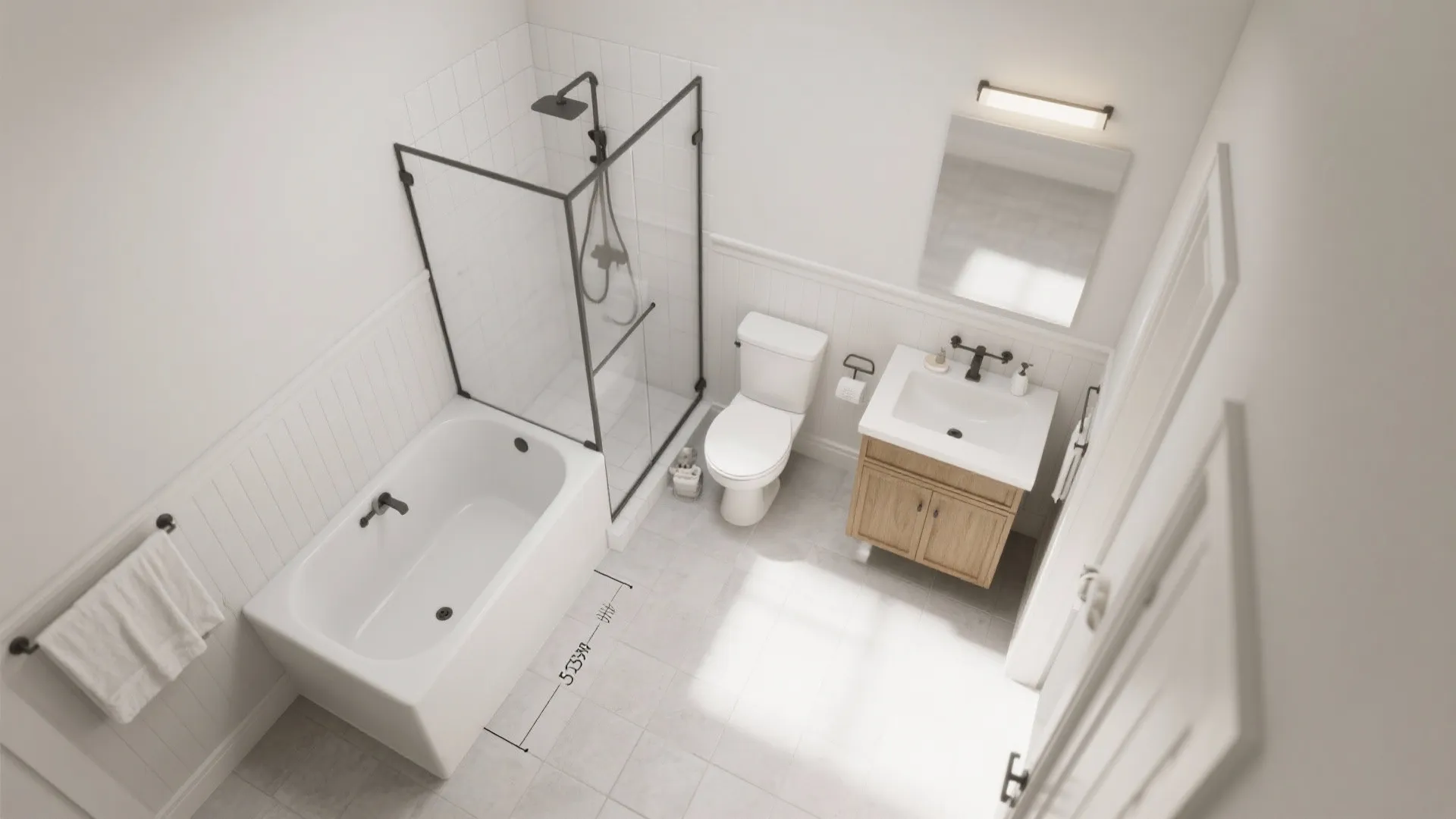

Dial-in the classic 5x8 layout (clearances matter)

My Take

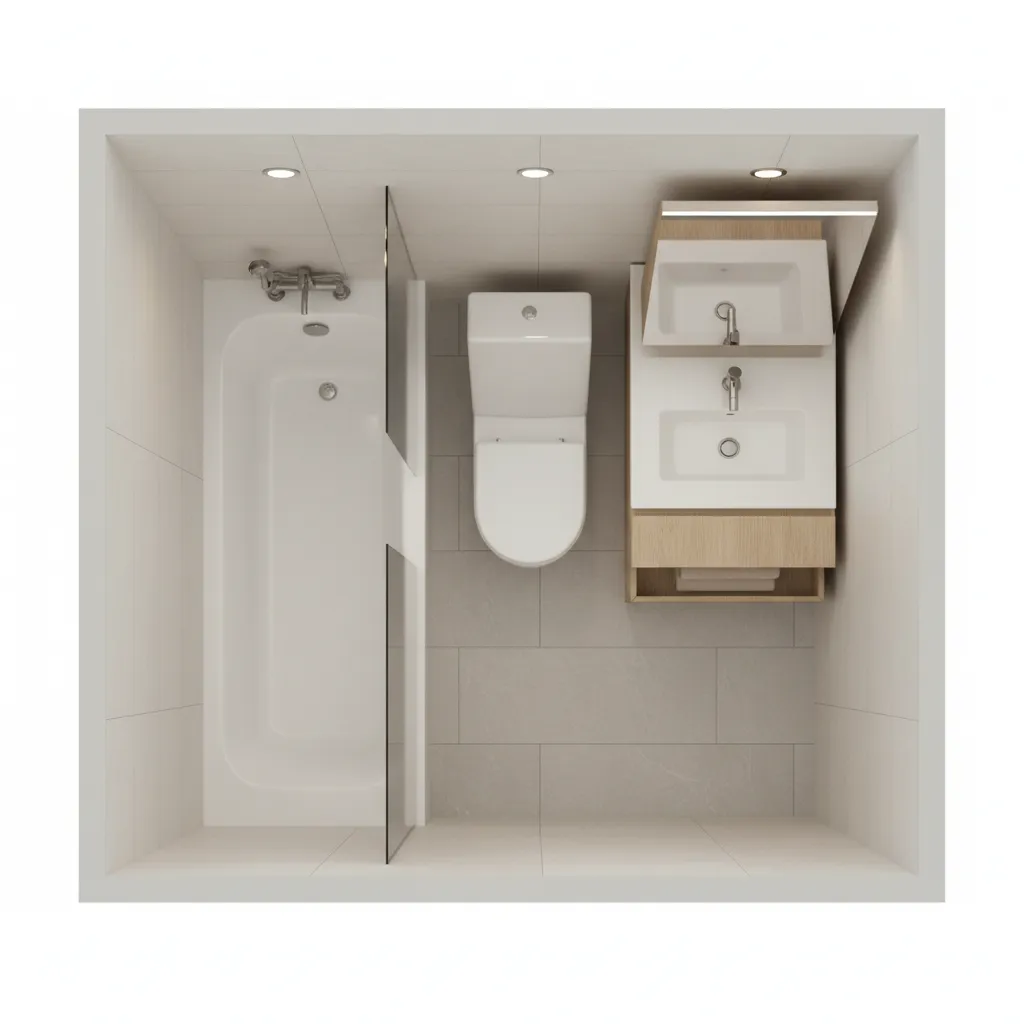

Most 5x8 bathrooms run the tub or shower along the 5-foot wall, with toilet and vanity opposite or adjacent. I’ve learned to treat clearances as non-negotiable—get those wrong and even the prettiest tile can’t save the daily experience. When in doubt, I mark the footprint with painter’s tape and “walk” the routine.

Pros

Following established guidelines keeps a 5x8 bathroom layout safe and comfortable. The NKBA (National Kitchen & Bath Association) recommends at least 21 inches of clear space in front of the toilet and sink (30 inches is more comfortable), and a 36x36 inch interior for a shower when possible (NKBA Bath Planning Guidelines). These numbers help a 5 feet by 8 feet bathroom design feel intentional, not improvised.

Cons

Older buildings sometimes force awkward placements—plumbing stacks or a low window can pinch your options. Over-customizing to “make it fit” can create hard-to-clean corners or doors that clip your knees. Don’t force a huge vanity where a modest one would keep circulation smooth.

Tips / Case / Cost

Flip the door swing to out-swing (check code) or consider a pocket door to reclaim precious inches. Keep the “wet wall” continuous (tub/shower and toilet on one wall) to minimize plumbing costs. For storage, add recessed niches between studs so everything you need is within arm’s reach without crowding the footprint. Expect $8,000–$18,000 for a mid-range 5x8 refresh depending on region and finishes.

save pin

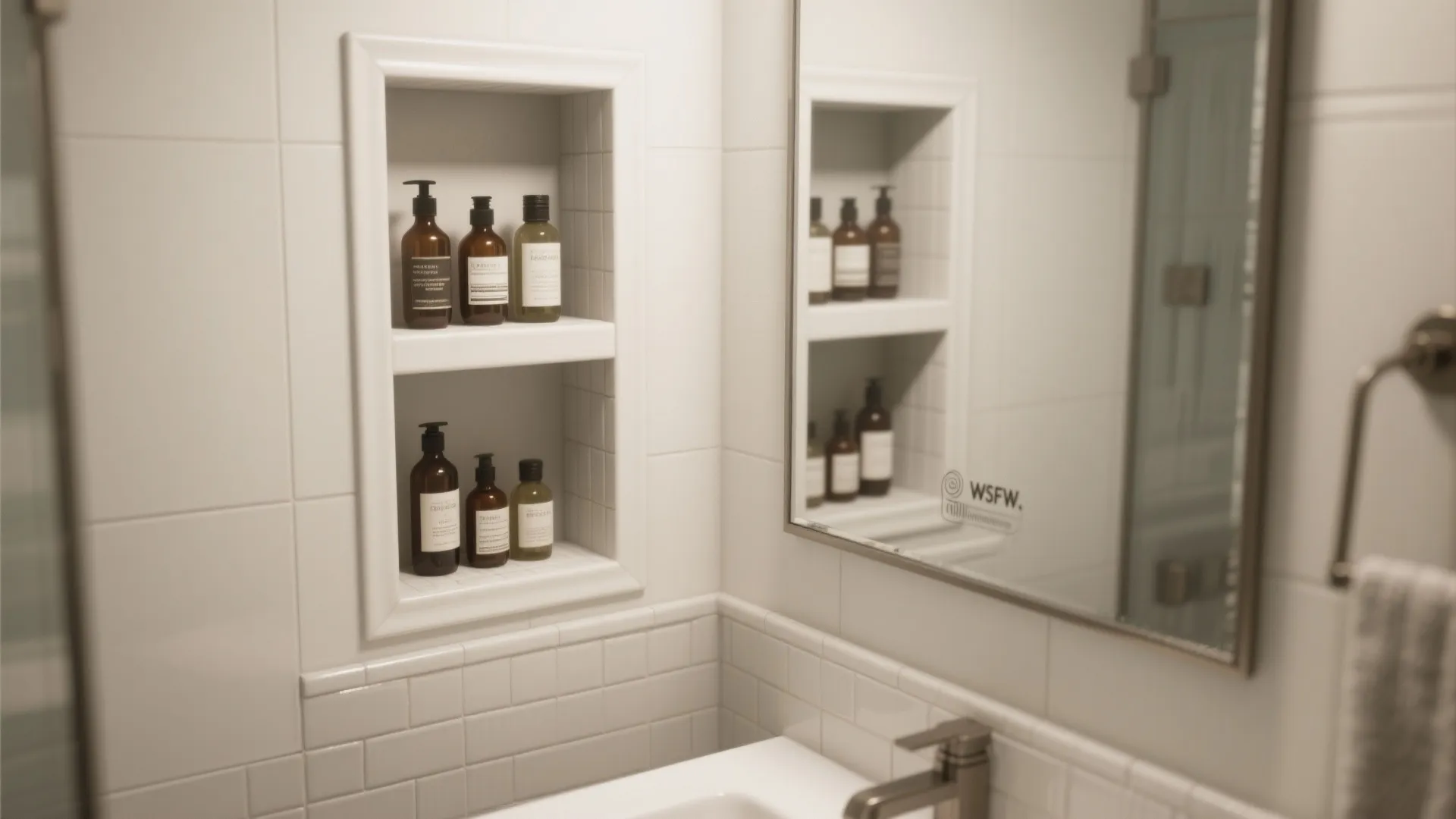

Recessed storage that disappears

My Take

In a century-old bungalow, we carved a tall niche above the toilet and a double niche in the shower—zero protrusions, tons of storage. The owner joked we found a “secret closet” in the walls. In 5x8 rooms, that feeling is pure gold.

Pros

Between-stud shelving and medicine cabinets keep essentials handy without eating into your 5x8 bathroom layout. A mirrored recessed cabinet doubles as a grooming station and light reflector, a nice win for a 5 feet by 8 feet bathroom design. Shower niches prevent bottle clutter and keep the bench or ledge free for seating or shaving.

Cons

Niches complicate waterproofing, so use a preformed niche or a membrane system and slope the sill toward the shower. In older homes, plumbing or vent stacks can block your plans; have a pro verify what’s inside the wall. Also, overfilling a niche can quickly make it look busy—edit before you install.

Tips / Case / Cost

Keep niches 12–14 inches wide for standard bottles, 24–30 inches high if you want two tiers. Above the toilet, aim the bottom shelf at 48–52 inches from the floor. A good recessed medicine cabinet runs $200–$600; niches cost less in materials but more in labor to waterproof correctly.

save pin

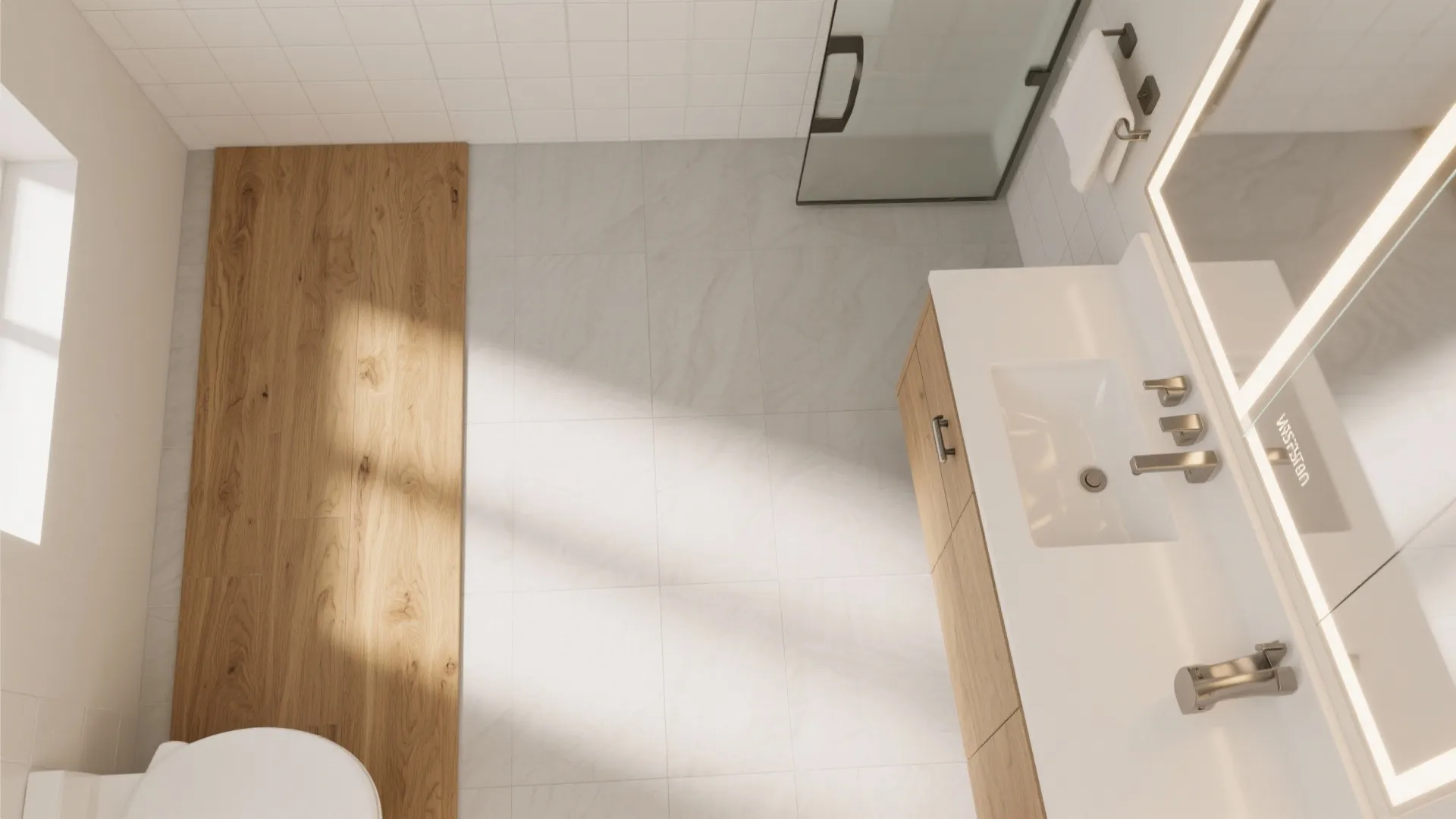

Layered lighting and warm materials

My Take

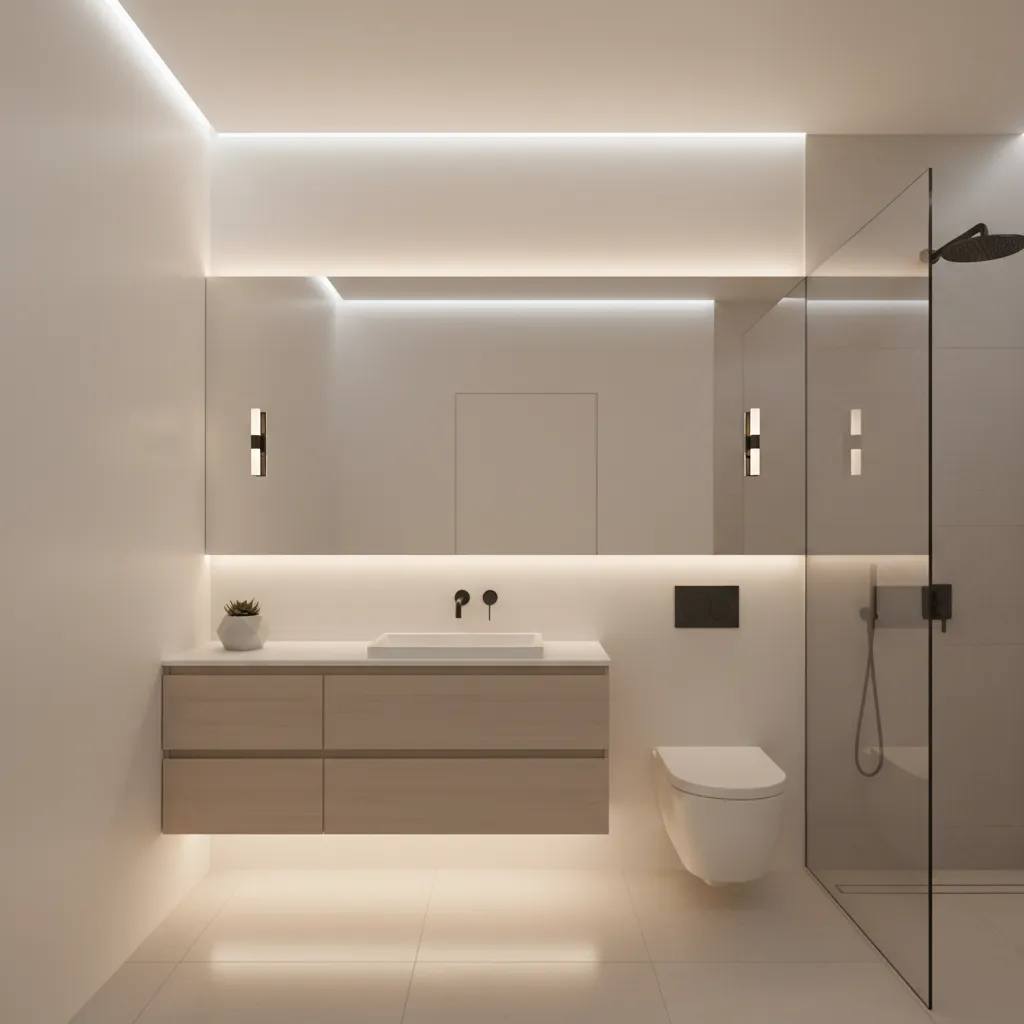

One of my favorite 5x8 transformations used a backlit mirror, a small ceiling can over the shower, and soft under-vanity LEDs to create a floating effect. We warmed it up with rift-cut oak accents in a marine-grade finish—minimalist, but not sterile.

Pros

Layered lighting solves more than ambiance—it’s functional. The Illuminating Engineering Society suggests bright, even facial illumination for grooming; flank the mirror with vertical lights or use a high-CRI backlit mirror for shadow-free faces (IES Lighting Handbook). In a 5 feet by 8 feet bathroom design, warm wood accents soften all the glass and tile, making the space feel welcoming without losing that clean, modern edge.

Cons

Too many light sources without dimming can feel harsh; add a dimmer to at least the overhead. Wood needs the right finish in wet zones; not every species loves steam. Overmixing metals, woods, and textures can clutter a small bathroom—edit your palette.

Tips / Case / Cost

Coordinate color temperature: 2700–3000K is flattering for skin tones, and 90+ CRI keeps colors true. Consider a quiet bath fan/light combo and hit ASHRAE 62.2 ventilation guidance: 50 cfm intermittent or 20 cfm continuous for bathrooms (ASHRAE 62.2). If you’re visualizing finishes, explore warm wood accents in a moisture-safe finish to preview tones and grain with your tile.

[Section: Summary]

Done right, a 5 feet by 8 feet bathroom design isn’t a limitation—it’s an invitation to design smarter. Keep sightlines clean, get the clearances right, use walls for storage, and let light do half the heavy lifting. Reference trusted guidelines (NKBA for sizing, IES for light, ASHRAE for ventilation), but don’t forget your daily routine—good design serves the way you live. Which of these five ideas are you most excited to try in your own 5x8?

[Section: FAQ]

save pin

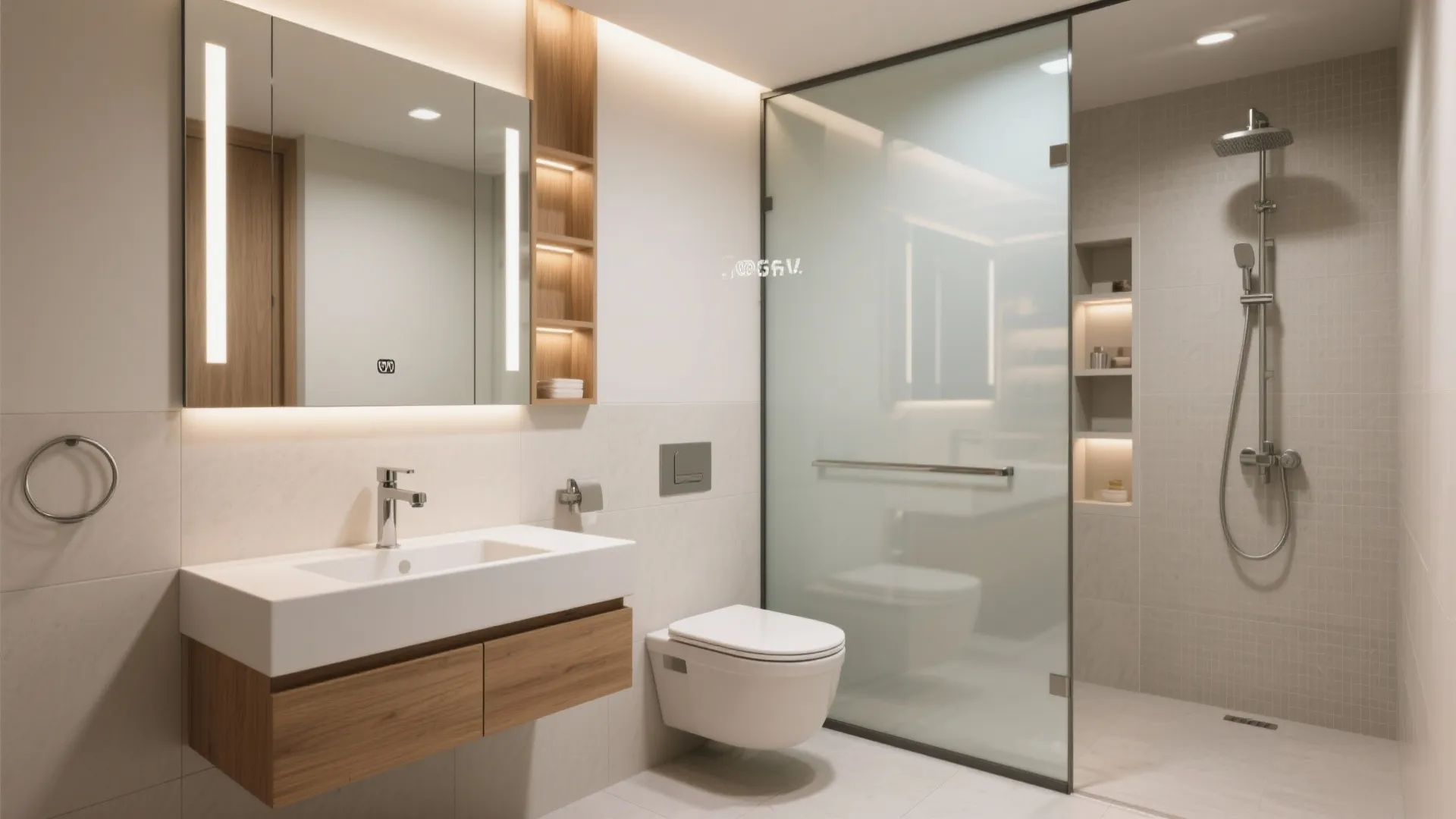

FAQ

1) What is the best 5x8 bathroom layout?

The classic setup places a tub/shower on the 5-foot wall with the toilet and vanity along the 8-foot run. It keeps plumbing consolidated and respects clearances, making the 5 feet by 8 feet bathroom design feel balanced.

2) How much space should be in front of the toilet in a 5x8 bath?

The NKBA recommends at least 21 inches of clear space (30 inches preferred) in front of the toilet and sink. Following these guidelines maintains comfort and safety in a small footprint.

3) Can I fit a double vanity in a 5x8 bathroom?

It’s possible but often tight. A single sink with a wider counter and smart storage usually works better in a 5x8 bathroom layout and keeps circulation clean.

4) What tile size works best in a 5 feet by 8 feet bathroom design?

Large-format tiles (like 12x24) reduce grout lines and visually expand the space. Use matte, slip-resistant tile on floors and save the glossy finishes for walls and backsplashes.

5) Do I need a shower door, or is a curtain okay?

A frameless panel makes the room feel larger, but a curtain can be more budget-friendly and flexible. If you stick with a curtain, choose a light color and keep the rod high to draw the eye up.

6) What’s the ideal lighting for a 5x8 bathroom?

Layered lighting is key: task (mirror), ambient (ceiling), and accent (under-vanity or niche). The IES recommends bright, even lighting at the face—vertical sconces or a quality backlit mirror help achieve that.

7) How do I add storage without crowding the room?

Recessed medicine cabinets and shower niches are your best friends. Consider floating shelves above the toilet and a slim, wall-hung vanity to keep the floor feeling open.

8) What budget should I expect for a 5x8 remodel?

Mid-range remodels often land between $8,000 and $18,000 depending on region, labor, and materials. Prioritize waterproofing and ventilation first, then invest in the finishes you’ll touch and see daily.
