I’ve spent over a decade redesigning compact kitchens, and lately I’ve seen a clear trend: more homeowners want an AutoCAD kitchen design free download workflow to sketch fast, iterate smarter, and avoid costly on-site changes. Small spaces spark big creativity, especially when your plan is dimensionally sharp. In this guide, I’ll share 5 design inspirations I rely on—combining my own projects with expert data—so you can turn a tight kitchen into a precise, livable hub.

Before we dive in, one of my recent condo projects hinged on a clean concept: L-shaped layout frees more counter space. We modeled it early, caught a clearance issue at the fridge door swing, and saved a week on-site.

[Section: 灵感列表]

Minimalist Storage, Maximum Flow

My Take

I once converted a 6.5 m² galley into a serene prep zone by stripping visual noise—flat-panel fronts, integrated pulls, and a single concealed rail for essentials. AutoCAD let me stack millimeter-accurate storage above the splash line without crowding the sightline.

Pros

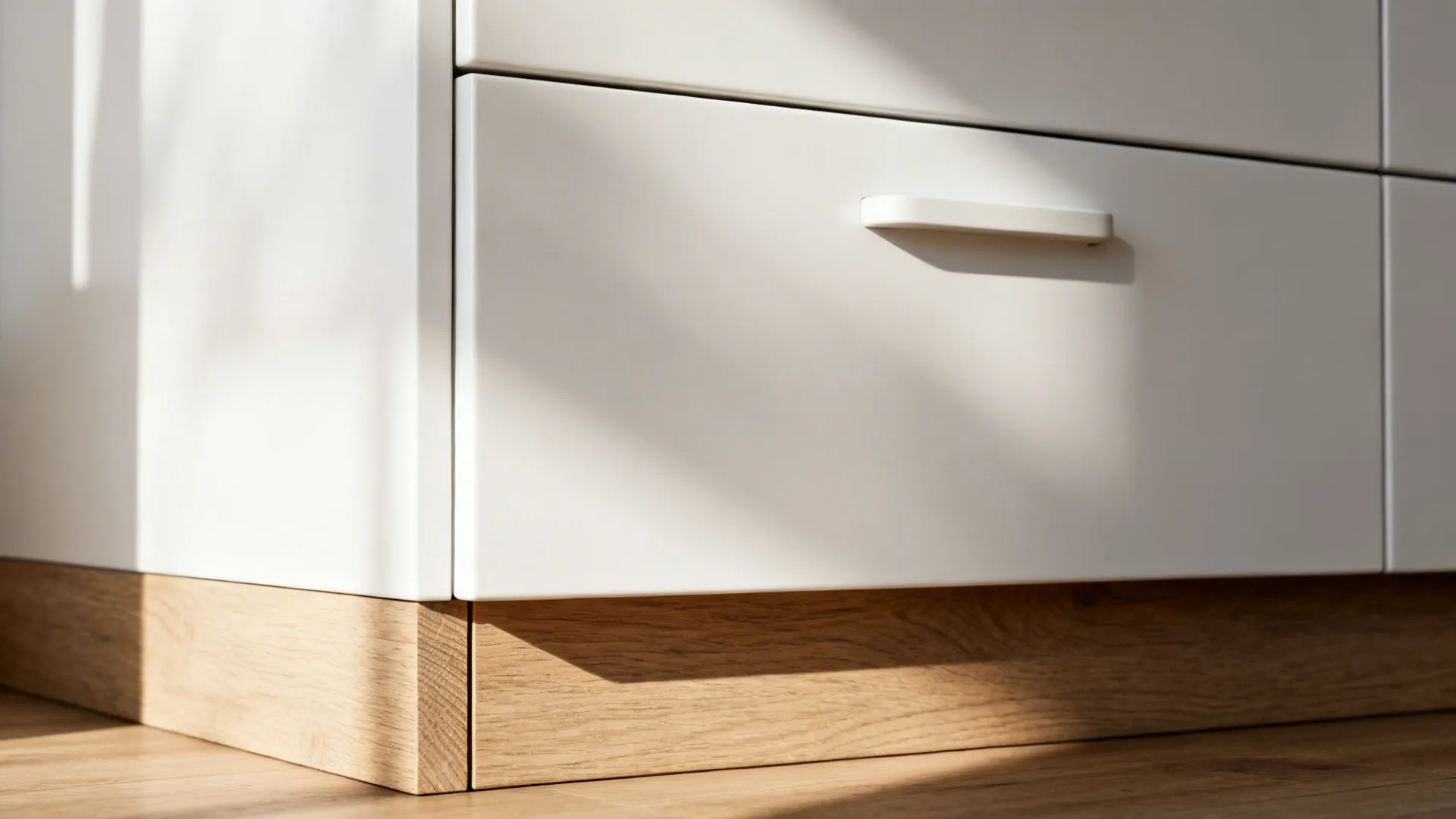

- Minimalist kitchen storage planning thrives on clean dimensions; with an AutoCAD kitchen design free download template, you can test cabinet depths and toe-kicks to keep foot traffic clear.

- Integrated handles and slim uppers reduce visual bulk, a long-tail win for small kitchen ergonomics and cleaning.

- According to the NKBA 2024 Kitchen Guidelines, maintaining a 1,200 mm minimum work aisle is ideal; drawing it early helps prevent later compromises (NKBA, 2024).

Cons

- Minimalism can read “flat” if you don’t layer texture; I’ve had clients joke their kitchen looked like a new phone—sleek, fingerprint-prone, slightly soulless.

- Handleless systems may require premium hardware; planning them in CAD is free, but the push-latch upgrades are not.

Tips / Cost

- Start with core modules: 600 mm base cabinet, 300 mm pull-out, and 450 mm drawer stacks; test door swings and dishwasher clearances early.

- Budget: expect 10–15% more for handleless hardware and soft-close systems; offset by simpler fronts.

save pin

save pin

save pin

Glass Backsplash for Light and Depth

My Take

In a north-facing rental, I swapped a busy tile patchwork for a single tempered glass panel. The change was immediate—brighter counters, no grout, and reflections that visually widened a narrow run.

Pros

- A glass backsplash increases perceived depth; in CAD, reflectance and thickness can be tested around outlets and hood clearances, a classic small kitchen design trick.

- Easy maintenance and fewer seams make it renter-friendly and hygienic—great for compact kitchens with tight cooking cycles.

- As per the IRC, tempered glass near cooking zones is a safety best practice; specifying thickness and edge treatment in the drawing reduces install risk (ICC IRC R308).

Cons

- Fingerprints can be relentless; I keep a microfiber cloth on a magnetic hook like it’s part of the mise en place.

- Reflections may emphasize clutter—so pair the splash with concealed storage above.

Tips / Case

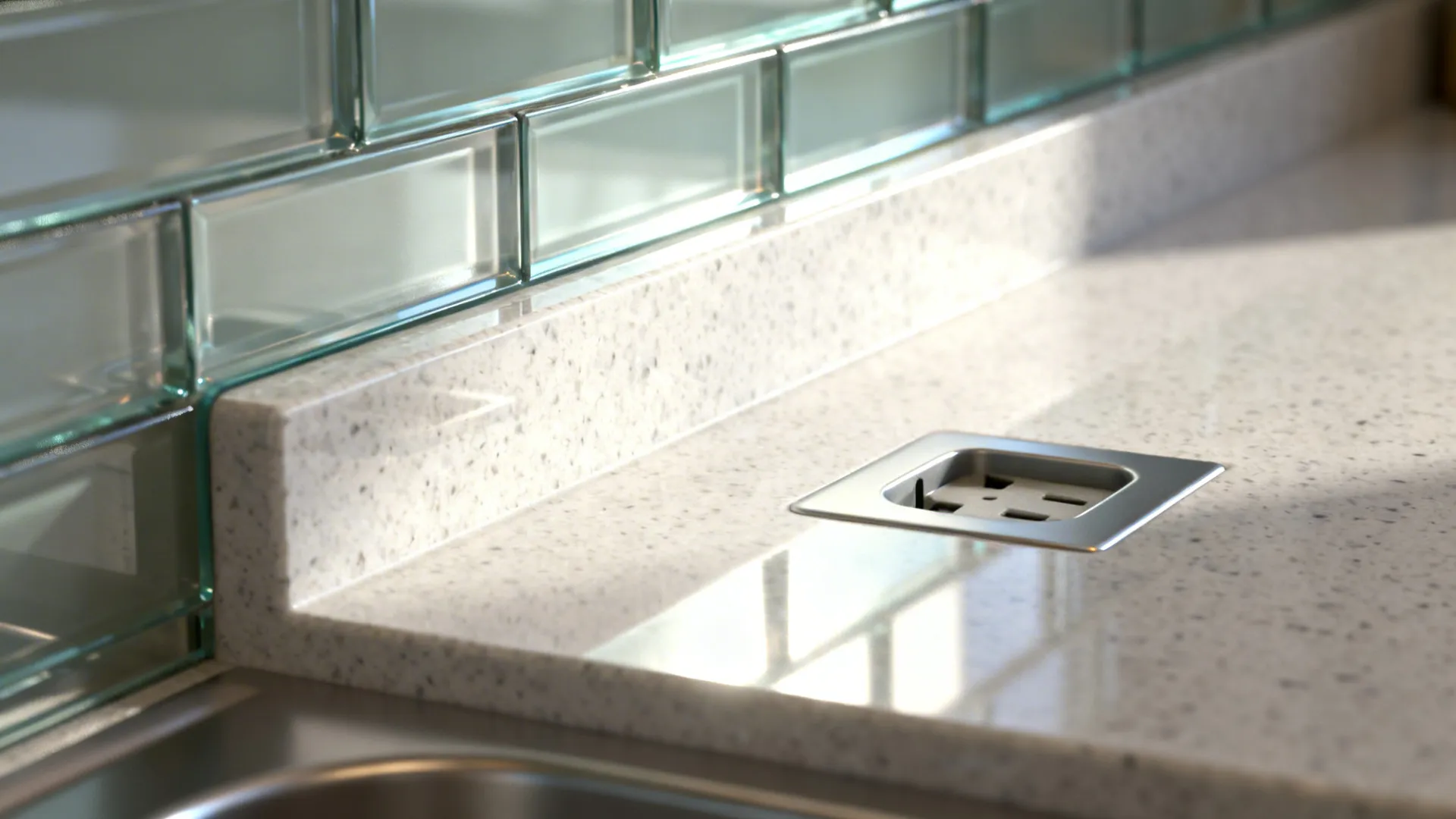

- For outlets, model cutouts precisely; 6–10 mm tempered glass with polished edges usually balances durability and cost.

- If your counter is short, a single panel minimizes seams and keeps the look calm.

save pin

save pin

save pin

Precision L-Shape in Tight Footprints

My Take

I’ve rescued many awkward corners with an L-shape: sink on one leg, hob on the other, and a clean prep triangle that doesn’t box you in. One micro-loft client got 900 mm more uninterrupted counter just by rotating appliances in CAD.

Pros

- The L-shape layout shortens reach, and with an AutoCAD kitchen plan you can place corner carousels and blind-corner pull-outs without clashing door arcs.

- Long-tail benefit: optimized corner storage increases linear prep space in small apartments and studio renovations.

- The NKBA work triangle and zone planning still hold up; aligning zones on perpendicular runs improves flow (NKBA Kitchen Planning Standards).

Cons

- Corner solutions aren’t cheap; every time I price a LeMans tray, I feel it in my coffee habit.

- If both legs are too short, you’ll end up dancing around the sink like it’s a DJ booth—check aisle widths and landing areas.

Tips / Cost

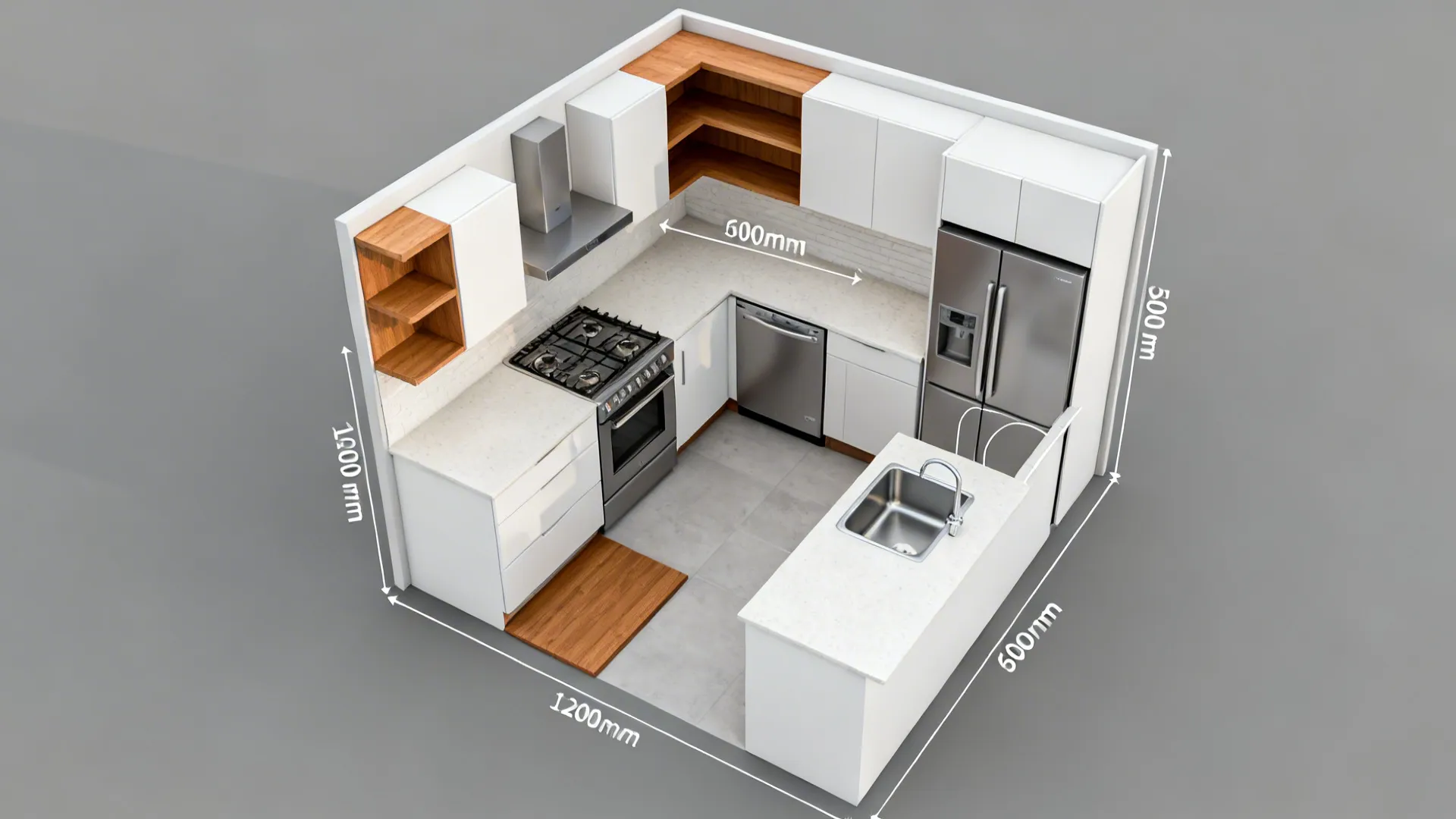

- Aim for at least 900 mm of landing next to the cooktop and 600 mm by the sink; mock door swings to avoid collisions.

- Mid-range corner hardware can add $200–$600; budget early.

At the halfway point, here’s a resource I share with clients when we test corner rotations and clearances: glass backsplash makes the kitchen feel more open. It’s a good visual of how reflected light interacts with layout.

save pin

save pin

Warmth with Wood Accents

My Take

When a minimalist kitchen risks feeling sterile, I add wood: a walnut trim rail, oak shelves, or a birch toe-kick. In tight spaces, even a 20 mm solid edge band transforms the vibe without crowding.

Pros

- Wood elements bring warmth and texture, balancing sleek cabinets; in small kitchen AutoCAD drawings, I assign real species and thickness to check clash with appliance reveals.

- Long-tail upside: wood accents with matte finishes hide micro-scuffs, a perk in high-use rental kitchens.

- FSC-certified veneers offer a sustainable route; detailing veneer wraps in CAD helps avoid exposed edges.

Cons

- Natural timber needs sealing; I once skipped a topcoat on a shelf above the kettle and learned the steam lesson the steamy way.

- Color shift over time can complicate touch-ups—order 10–15% extra veneer for future patches.

Tips / Case

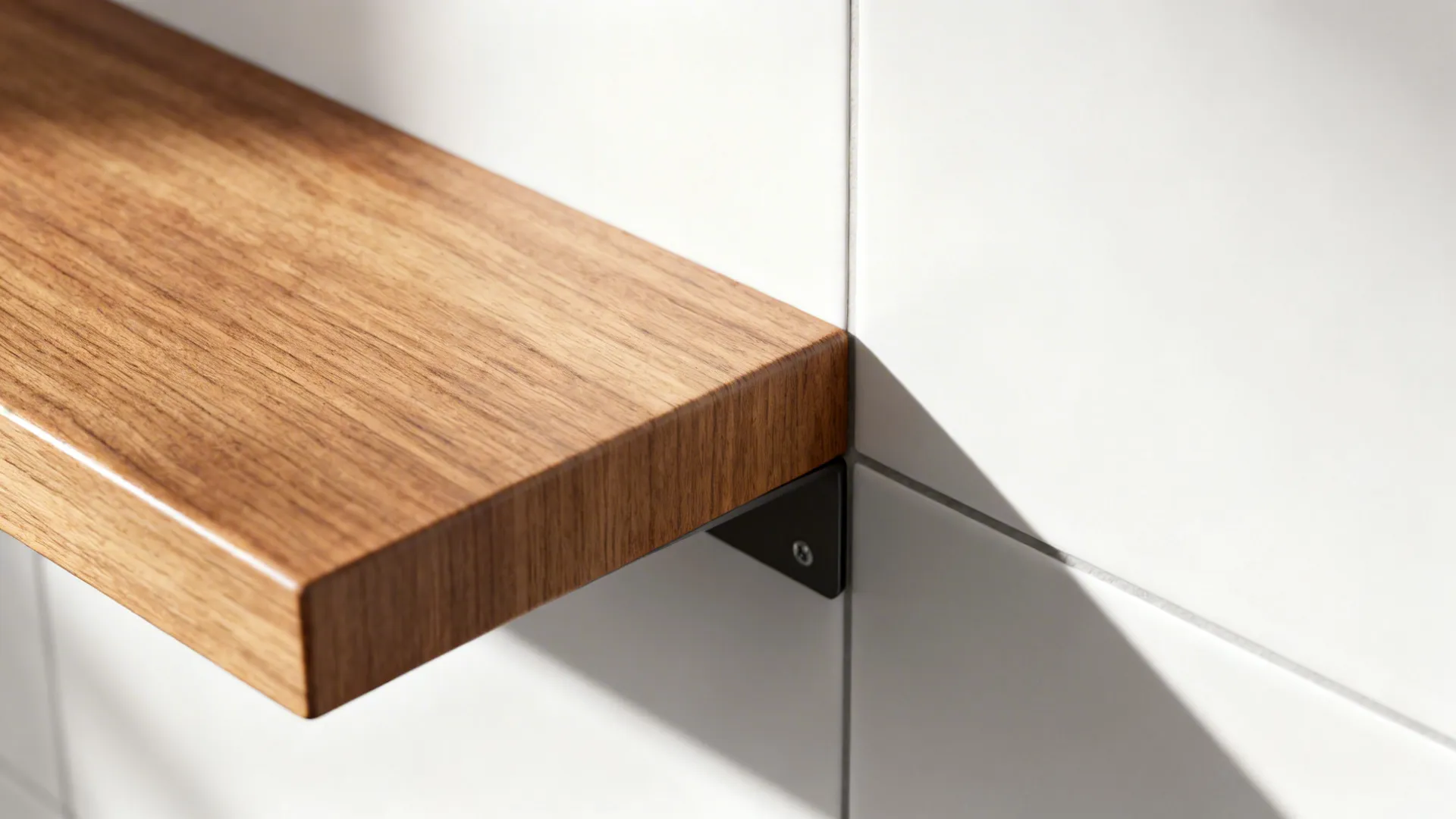

- Float slim wood shelves with concealed brackets and model load paths; keep them 250–280 mm deep to avoid head bumps.

- A 3 mm veneer on MDF is a cost-saver; allocate savings to better under-cabinet lighting.

save pin

save pin

Hardware and Lighting: Small Moves, Big Payoff

My Take

Two upgrades consistently punch above their weight: well-placed LED strips and hardware that actually fits your cooking rhythm. I once mapped a client’s favorite pot’s diameter in CAD to confirm handle clearance—saved a daily annoyance.

Pros

- Task lighting under cabinets reduces shadows and eye strain; in AutoCAD plans for small kitchens, placing drivers and returns early avoids Swiss-cheese cabinets.

- Long-tail win: soft-close hinges and full-extension drawers improve access in deep bases, especially in rental-friendly compact kitchens.

- The Illuminating Engineering Society (IES) recommends 500 lux for task surfaces; CAD helps distribute fixtures to hit targets without hot spots (IES Lighting Handbook).

Cons

- Over-lighting happens; I’ve created kitchen “runways” more than once—great for takeoff, not for dinner.

- Specialty pulls can blow budgets in a hurry; confirm center-to-center spacing in drawings before buying.

Tips / Cost

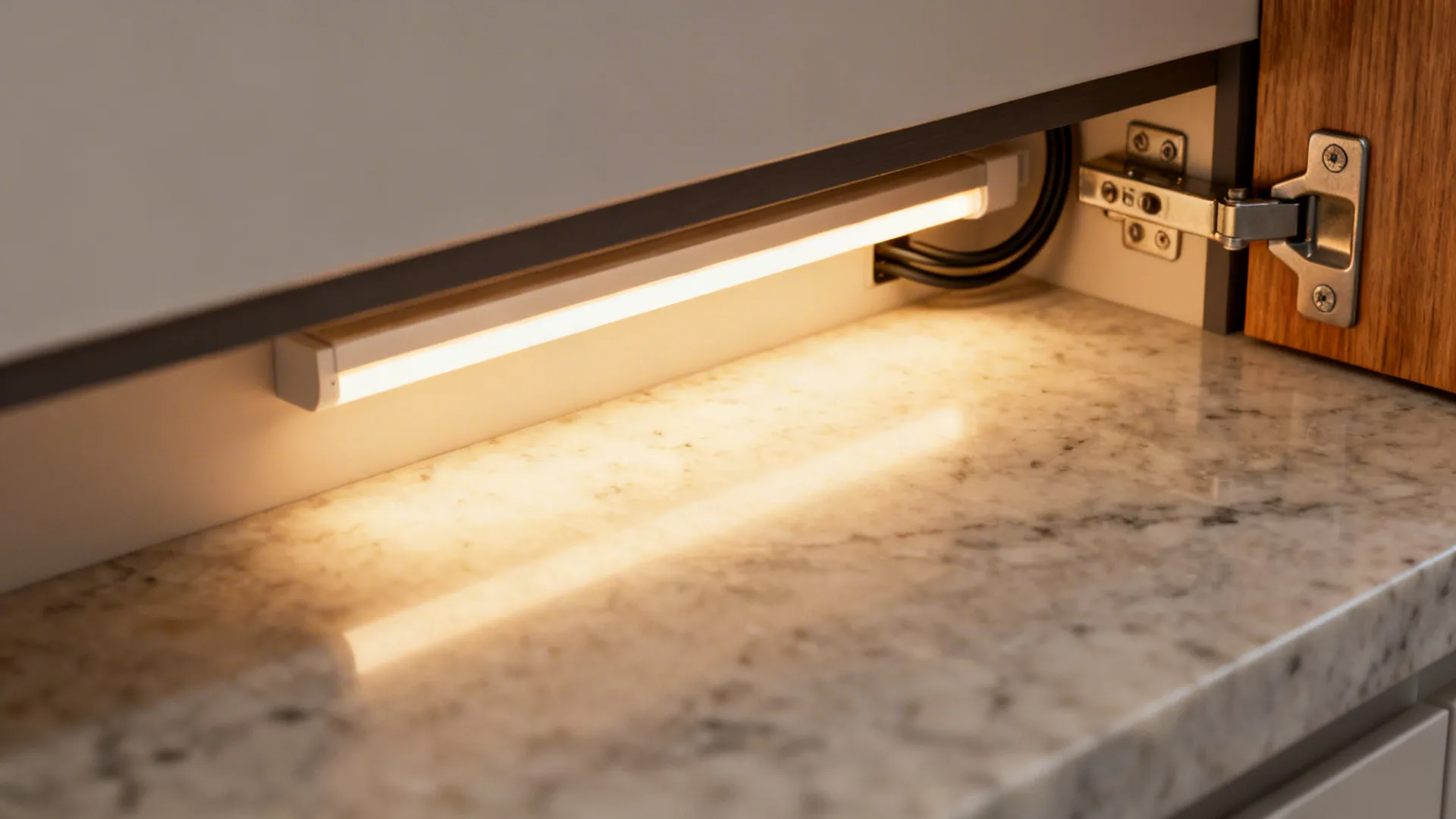

- Set LED strips 50–70 mm behind the face frame to minimize glare; specify 2700–3000K for warm food tones.

- Expect $15–$35 per linear foot for good LED strips; hardware upgrades for a small set of bases can run $200–$400.

As you refine the final layout and lighting plan, I often prototype sequences with a model; this case helped one client visualize traffic and task zones: warm wood tones create a cozy vibe. It’s a clear illustration of material balance in compact spaces.

[Section: 总结]

Here’s my bottom line: an AutoCAD kitchen design free download isn’t just about software savings—it’s about decisions made early and clearly. Small kitchens demand smarter design, not fewer ideas, and precision drawings give you the confidence to trim, shift, and optimize before you cut any wood. If you’re ready to test one of these five moves, which design inspiration are you most excited to try first?

[Section: FAQ 常见问题]

save pin

save pin

FAQ

1) What is the best way to start an AutoCAD kitchen design free download workflow?

Begin by measuring your space precisely—wall lengths, openings, utilities—and build a clean base plan in millimeters. Then create blocks for standard cabinets (300/450/600 mm modules) so you can iterate quickly without redrawing.

2) How accurate should clearances be in a small kitchen layout?

Follow NKBA guidance: target 1,200 mm work aisles where possible and ensure appliance door swings don’t collide. Even if you must compress, model every swing arc in CAD to avoid field surprises (NKBA Kitchen Planning Standards).

3) Are glass backsplashes safe behind a cooktop?

Use tempered glass with proper clearance from heat sources and confirm local code requirements. The IRC details safety glazing near hazardous locations; consult your local AHJ for specific rules (ICC IRC R308).

4) L-shape vs. galley: which is better for tiny apartments?

If you have a corner to exploit, an L-shape often yields more continuous counter space and smoother traffic. In narrow rooms without a viable corner, a galley can be superior—just keep aisles clear and task areas zoned.

5) How do I integrate wood accents without maintenance headaches?

Use sealed veneers or engineered wood for splash-adjacent areas, and reserve solid timber for drier zones. In CAD, note finish specs and edge protections to ensure installers follow through.

6) What lighting levels should I aim for on counters?

Plan for about 500 lux on work surfaces using under-cabinet LEDs at 2700–3000K for warm color. Position strips back from the face frame to reduce glare and hot spots (IES recommendations).

7) Can I rely solely on an AutoCAD kitchen design free download instead of hiring a designer?

CAD helps you validate dimensions and clearances, but an experienced eye can spot workflow and material pitfalls. Consider a hybrid: draft yourself, then book a one-hour consult to stress-test the plan.

8) What’s a quick win to improve a small kitchen without remodeling?

Upgrade task lighting and swap to full-extension drawer slides; both changes dramatically improve usability. If you’re exploring layout ideas visually, this example of a minimal storage scheme in a compact kitchen shows how small moves add up.
