5 free CAD kitchen design software picks: My pro take on 5 free CAD kitchen design software options—and how to turn a small kitchen into a big win

As a kitchen designer who loves a good CAD tool, I’ve watched the current interior design trend swing toward smarter, cleaner lines—and smarter software. Small spaces push us to be inventive, and that’s where cad kitchen design software free download shines. In this guide, I’ll share 5 design inspirations that pair real-world lessons with expert data, so you can plan a compact kitchen that feels generous in function and style. Along the way, I’ll sprinkle in stories from my projects and the free CAD workflows I rely on.

Minimalist storage that doubles as structure

My Take

I once remodeled a 6.5 m² galley where every millimeter mattered. We modeled slim, full-height cabinets in CAD, then carved out vertical niches for daily-use items. The digital mockup kept the lines clean while proving we could still stash a week’s worth of groceries.

Pros

Minimalist cabinetry reduces visual noise and improves wayfinding—perfect for long, narrow kitchens. Using long-tail strategies like “slim pantry pull-outs in small kitchens” and “frameless cabinet layouts for tight spaces” in your plan helps you script exact clearances before you buy. The National Kitchen & Bath Association (NKBA) clearances for aisles—typically 1067–1220 mm for one-cook kitchens—are a solid baseline to test directly in your CAD model.

Cons

Minimalism can hide messes too well; if you’re not disciplined, those pristine doors mask chaos. Ultra-slim hardware looks great on-screen but may flex or squeak in real life—my first install taught me that soft-close hinges can fight with very light doors. Also, frameless boxes need precise tolerances; DIYers might find the execution fussier than the render.

Tips / Case / Cost

Price a pair of tall cabinets with internal drawers up front—internal drawers cost more but can replace a separate pantry. In CAD, model the actual box thickness and hinge swing; it’s the difference between a perfect overlay and a door that kisses the wall. For a compact L, test a 600 mm deep tower at the dead end so it becomes storage + visual stop.

To see how a transparent model can clarify tall storage in tight plans, peek at “Glass backsplash makes the kitchen feel airier”—I’ve mocked similar ideas in 3D so clients instantly get the vibe: Glass backsplash makes the kitchen feel airier.

save pin

save pin

Light-reflective surfaces for visual depth

My Take

In my smallest studio kitchen (barely 2.1 m counter run), switching to a satin glass backsplash and pale quartz upped the perceived depth by a half meter—at least to the eye. In CAD, I played with reflectance values to preview glare and hotspots versus soft bounce.

Pros

Using “high-LRV materials for small kitchens” (Light Reflectance Value) can make a narrow room feel wider without adding lighting circuits. Glass, glazed tile, and pale laminates are budget-friendly; in a free CAD model, assigning higher LRV helps you test how they diffuse light across work zones. The U.S. Department of Energy notes that high-reflectance interiors reduce reliance on artificial light, especially when paired with layered task lighting.

Cons

Shiny isn’t always kind—gloss fronts show fingerprints and every splash. On screens, reflections look dreamy; in real life, they reflect your toaster, your kettle, and sometimes your laundry drying rack (ask me how I know). Highly reflective counters can also create glare under LED strips unless you specify diffusers.

Tips / Case / Cost

In CAD, drop your strip lights to 3000–3500 K, add a diffuser channel, and tilt at 30–45° toward the splash to soften bounce. If you’re on a budget, choose a satin (not mirror) glass backsplash and a matte quartz—70–80 LRV is often the sweet spot.

save pin

save pin

L-shaped layouts that free counter inches

My Take

The most forgiving small-kitchen upgrade I’ve done is migrating from a single-line to a tight L. Even a 1.8 m return can add prep space and give you better triangle flow. In CAD, I verify corner clearances, appliance swing, and whether a 400 mm base cabinet at the turn is worth the storage trade-off.

Pros

“L-shaped kitchen layout for small spaces” can unlock uninterrupted prep zones and reduce cross-traffic—huge for two-person households. With free CAD kitchen design software, you can test sink-hob-fridge spacing and verify NKBA’s recommended 610 mm minimum landing zones around cooking areas. Corner organizers and diagonal sinks sometimes shine in ultra-tight rooms where straight corners choke access.

Cons

The corner can become a black hole if you don’t spec a lazy Susan, blind pull-out, or diagonal base. I’ve lost a pasta pot in a corner cabinet for three years—true story. Also, a 600 mm dishwasher door can clip your hips at the L turn unless you place it at least 450 mm from the corner.

Tips / Case / Cost

Mock open states in CAD: add 110° door swings and 540 mm dishwasher clearance. If plumbing’s fixed, rotate the sink to the return and save the long run for prep. For a planning companion to visualize the L, I often reference case studies like “L-shaped layout frees more counter space”: L-shaped layout frees more counter space.

save pin

save pin

Warmth through wood—with durability in mind

My Take

Clients often ask for warmth without visual clutter. Wood accents—think rift oak veneers and solid timber edges—bring soul to compact kitchens. In CAD, I test the wood’s texture scale and mix it with matte painted fronts to avoid a “log cabin in a shoebox.”

Pros

“Wood accents in small kitchen design” balance the coolness of appliances and glass. Using veneers over stable cores controls cost and warping—a big lesson from my early projects. If you preview grain direction and door reveals in your CAD model, you can maintain rhythm across tiny runs that otherwise feel busy.

Cons

Natural wood around sinks hates standing water; even with marine varnish, you’ll patrol drips. Oak’s tannins can react with iron hardware—ask your software to track hardware finishes and you’ll save yourself a call-back. Faux-wood laminates can look flat if you choose low-res textures in your render.

Tips / Case / Cost

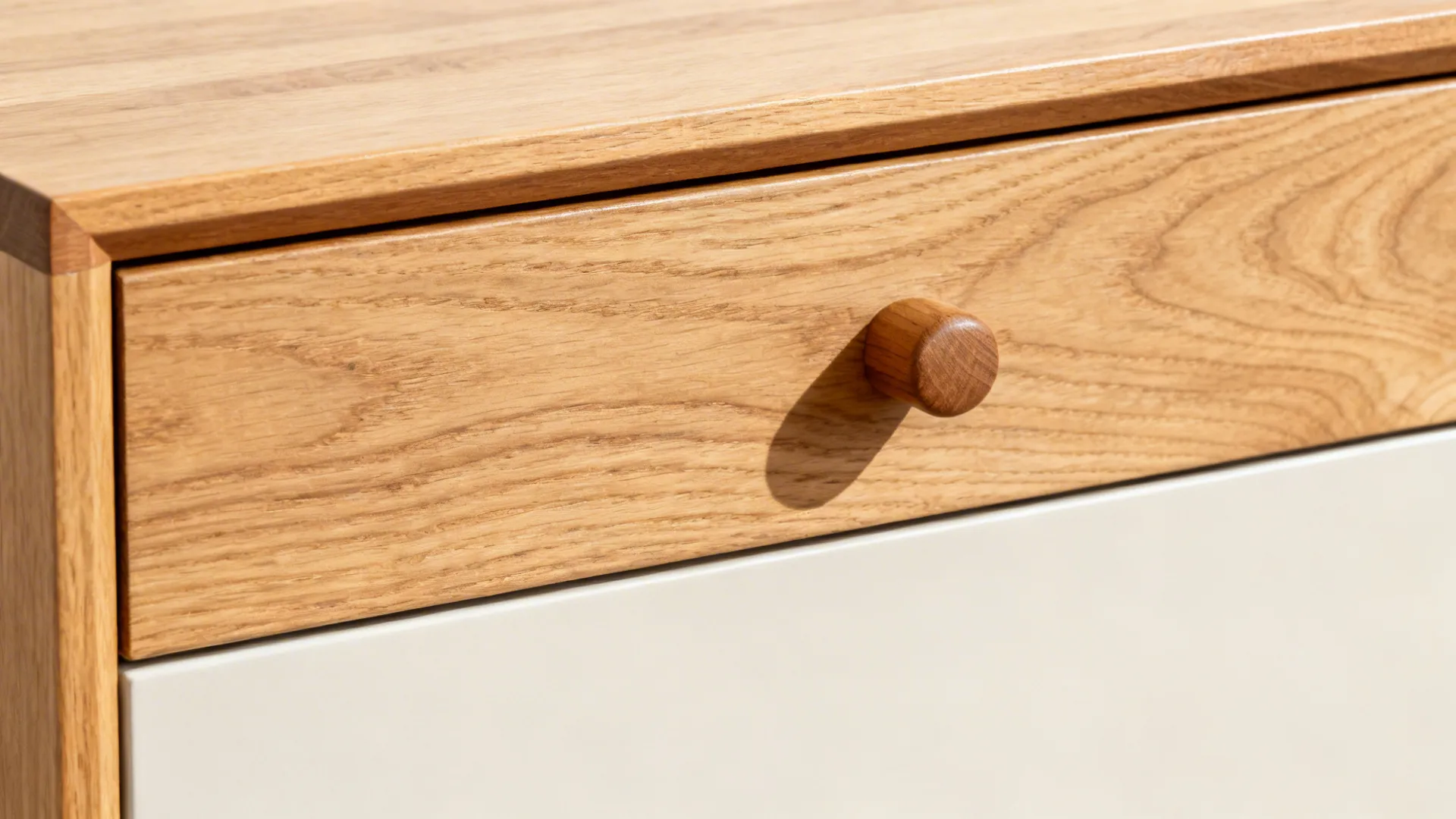

Budget hack: veneer tall panels, splurge on solid wood finger pulls. In CAD, set real panel thickness (18–20 mm) so your reveal lines match the shop drawings. Keep vertical grain on tall doors, horizontal on drawers to widen the look.

For a deep-dive into AI-driven material visualization, I’ve compared samples using “warmth from wood elements” in a smart mockup flow: warmth from wood elements.

save pin

save pin

Task-first lighting modeled before drywall

My Take

One renovation taught me that lighting can save a cramped plan. We built the whole wiring scheme in CAD first: under-cabinet strips for prep, a tight beam over the hob, and soft ambient for nights. The contractor thanked us for fewer change orders.

Pros

“Under-cabinet task lighting for small kitchens” creates usable prep zones without enlarging the room. When you model luminance and beam angles in a free CAD tool, you can avoid harsh shadows cast by tall users. The Illuminating Engineering Society (IES) recommends 300–500 lux for kitchen task planes; designing to those targets in CAD improves function and reduces guesswork.

Cons

LED color temps are a rabbit hole—3000 K feels cozy, 4000 K feels crisp; mix carelessly and your counters shift color. Drivers and dimmers need landing spots that don’t exist in a micro-kitchen unless you plan early. I’ve been that person fishing for a driver behind a drawer stack—don’t be me.

Tips / Case / Cost

Specify high-CRI (90+) strips with diffusers and a shallow aluminum channel. Model switch heights at 1050–1150 mm and test reach over a 600 mm counter. If you’re visualizing the whole room in 3D to catch shadows, try a case like “3D render shows realistic lighting before install”: 3D render shows realistic lighting before install.

save pin

save pin

FAQ

1) What is the best cad kitchen design software free download for beginners?

Start with a free, browser-based CAD planner that offers kitchen libraries and basic 3D. Look for templates that include common modules (600 mm base, 900 mm corner) and export to PDF. If it supports dimensioned plans and simple renders, it’s beginner-friendly.

2) Can free CAD tools handle L-shaped kitchen layouts well?

Yes—most free tools include corner cabinets, appliance clearances, and door-swing visualization. Ensure you can set custom cabinet widths and test the work triangle. This helps you apply the core idea behind L-shaped small kitchen design.

3) Do free CAD programs include NKBA or code references?

Some do not embed standards, but you can manually input NKBA guidelines for aisles and landing zones. The NKBA suggests 1067–1220 mm aisles for single-cook layouts—use these targets in your model to validate choices.

4) How accurate are light simulations in free kitchen CAD?

They’re getting better but are still approximations. Use them to compare scenarios (e.g., under-cabinet vs. ceiling-only). Cross-check against IES recommendations of 300–500 lux for task areas to avoid under-lighting.

5) Is it possible to model reflectance (LRV) in free software?

Some planners allow material presets with approximate reflectance. If LRV isn’t explicit, use lighter textures and test with more ambient light to simulate reflectance. High-LRV surfaces can make small kitchens feel larger.

6) Can I export my free CAD kitchen plan for contractors?

Look for tools that export dimensioned floor plans and elevations in PDF. Include cabinet IDs, appliance specs, and clearances. A clean export reduces on-site questions and change orders.

7) How do I avoid corner cabinet dead zones in an L-shaped plan?

Model a blind pull-out, diagonal sink base, or lazy Susan and validate its real swing. Ensure adjacent appliances are at least 450 mm from the corner. This prevents clashes and improves access.

8) Which free CAD feature matters most for small kitchens?

Precision in dimension editing and door/appliance swing visualization. If available, try a kitchen-specific case like “L-shaped layout frees more counter space” for inspiration: L-shaped layout frees more counter space. Accurate clearances make or break compact kitchens.
