5 Free CAD Kitchen Drawing Tips (With Pro Insights): Senior designer’s guide to finding and using free kitchen CAD drawings—5 ideas, real pros & cons, and budget-smart tips

As a kitchen designer who obsesses over space planning, I’ve seen the latest interior design trend lean toward data-backed decisions and precise planning—especially for small kitchens. Small spaces spark big creativity, and free CAD drawings for kitchens can be a powerful starting point if you know where to look and how to adapt them. In this guide, I’ll share 5 design inspirations based on my own projects and the expert data I trust, showing you how to use free kitchen CAD drawings without falling into the “generic template” trap.

Before we dive in, here’s one quick example: I once remodeled a 7.5 m² apartment kitchen using a free CAD base file, then layered custom storage modules and appliance clearances. The result wasn’t just cleaner—it was safer, quieter, and way more functional for the owner’s cooking style. I’ll show you the exact playbook.

We’ll cover five field-tested inspirations that pair free CAD assets with practical upgrades. I’ll call out pros and cons for each idea, plus where the extra time or budget is worth it. I’ll also link to a few relevant case pages that illustrate concepts like “minimalist kitchen storage,” “glass backsplash,” and “L-shaped layouts.” Check the first link right here in the intro: minimalist kitchen storage ideas can be an excellent reference when you start organizing your CAD layers and blocks.

Minimalist storage that actually fits your space

My Take: I once inherited a kitchen where the client had downloaded free wall cabinet blocks, but everything was 400 mm deep, clashing with their narrow corridor. I rebuilt the CAD with slimmer carcasses (300–330 mm) and full-height tall units with pull-outs. The space felt larger and the door swings finally cleared the fridge.

Pros: With free CAD kitchen drawings, you can quickly test slimline cabinets, tall pantry pull-outs, and under-sink organizers—classic small kitchen storage solutions. It’s fast to duplicate and mirror modules, so you can check appliance clearances and traffic flow. Referencing standardized cabinet dimensions makes future procurement simpler. According to the Kitchen Cabinet Manufacturers Association (KCMA), consistent sizing reduces installation errors and change orders.

Cons: Free blocks are often generic and assume perfect walls—your site probably isn’t. You’ll need to adjust for wonky corners, out-of-plumb walls, and skirting boards. Also, many free libraries skip hardware clearances; I’ve seen CAD doors that “open through” fridges.

Tips / Cost: Build parametric blocks for doors and drawers (even basic dynamic blocks help). Add swing arcs and dishwasher “open” footprints to avoid collisions. Budget 2–4 hours to clean a free file into your standard layer system; it will save you days later.

save pin

Glass backsplash for light and depth

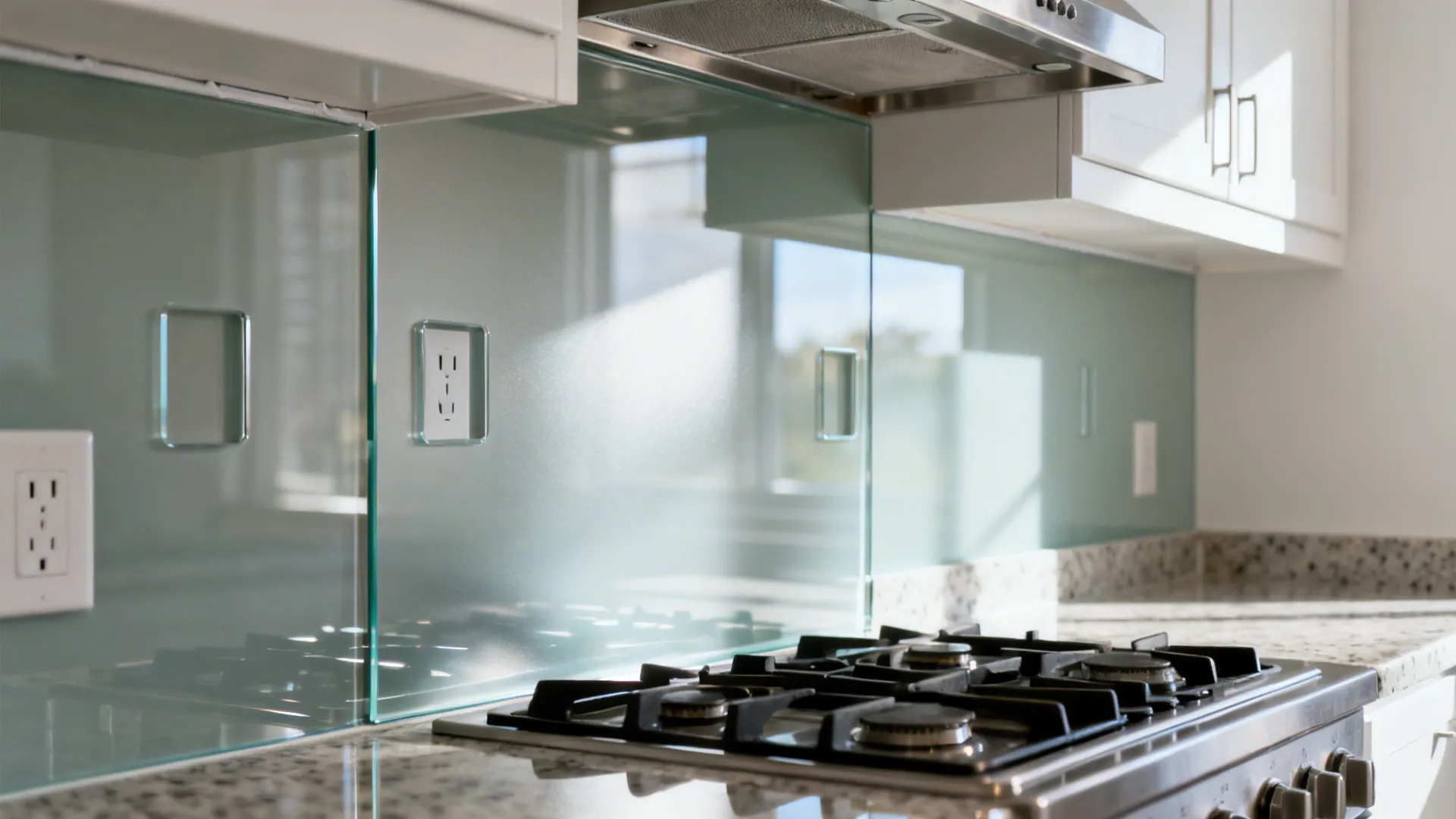

My Take: On a rental-friendly remodel, I used tempered back-painted glass behind the cooktop because the client wanted easy cleaning and a brighter feel. We mocked it in CAD, checked outlet positions, then coordinated exact cutouts so installation took under two hours.

Pros: A glass backsplash amplifies light and makes narrow kitchens feel broader—great for small galley kitchen CAD plans. Tempered or laminated glass is resistant to staining and quick to maintain. Where codes allow, you can use low-iron glass for a purer color read and less green tint.

Cons: You must detail tolerances in CAD: outlets, corners, and range hood offsets. If you skip that, your glazier will add site cut charges. And fingerprint visibility is real—if you hate daily wiping, consider a matte or acid-etched finish.

Tips / Case: For renters, consider installing on a removable substrate panel so you can take it with you. When drafting, show 2–3 mm expansion gaps and sealant lines. Around the halfway point of your planning, review a layout-focused case study—like how glass backsplash makes the kitchen feel more open when paired with light-reflective finishes and controlled upper cabinets.

save pin

L-shaped layout to unlock counter runs

My Take: I’ve converted more than a dozen broken U-shaped kitchens into L-shaped layouts to extend prep space near the cooktop. In CAD, it’s a breeze to rotate modules, check the work triangle, and increase landing zone lengths around the sink and hob.

Pros: The L-shape is ideal for small kitchen CAD drawings because it keeps circulation free and maximizes corner storage with blind or LeMans units. It’s easier to run continuous countertops for baking, coffee setups, or small appliances. The National Kitchen & Bath Association (NKBA) recommends minimum landing areas around major appliances; the L-shape makes those standards easier to hit.

Cons: Corner units are expensive and can create dead zones if poorly planned. If your kitchen is extremely narrow, the L return can pinch flow. Also, electrical planning gets trickier when you consolidate appliances along one leg.

Tips / Cost: Try reducing corner depth if door swings get tight, or swap for open shelves at the corner to save costs. Use dashed lines in CAD to audit reach zones and upper cabinet heights. Budget for one premium corner mechanism if daily access is essential.

save pin

Warmth with wood elements (without the warping)

My Take: My own apartment kitchen mixes matte white fronts with oak veneer on the tall unit bank. In CAD, I used a texture tag system to ensure all wood panels aligned in grain direction—tiny detail, big payoff in real life.

Pros: Wood accents add warmth, soften hard surfaces, and elevate modern small kitchen CAD designs. Veneer or engineered wood panels give you the look without the movement issues of solid timber. You can document grain direction, edge-banding, and panel reveals right in your CAD layers for cabinetmakers.

Cons: Real wood tones can shift with lighting; what looks balanced on screen may read red or yellow under LEDs. Veneer edges need detailing; if you forget 2 mm edge-banding in CAD, installers will improvise—and not always in your favor.

Tips / Case: Ask suppliers for large-format samples and test under your actual lighting temperature. For durability near sinks and dishwashers, spec moisture-resistant substrates. If you want to see how wood warmth pairs with clean digital planning, skim a rendering-oriented page—this example of warm wood accents in kitchen visuals shows how lighting and material schedules translate from CAD to 3D.

save pin

Precision clearances for appliances and safety

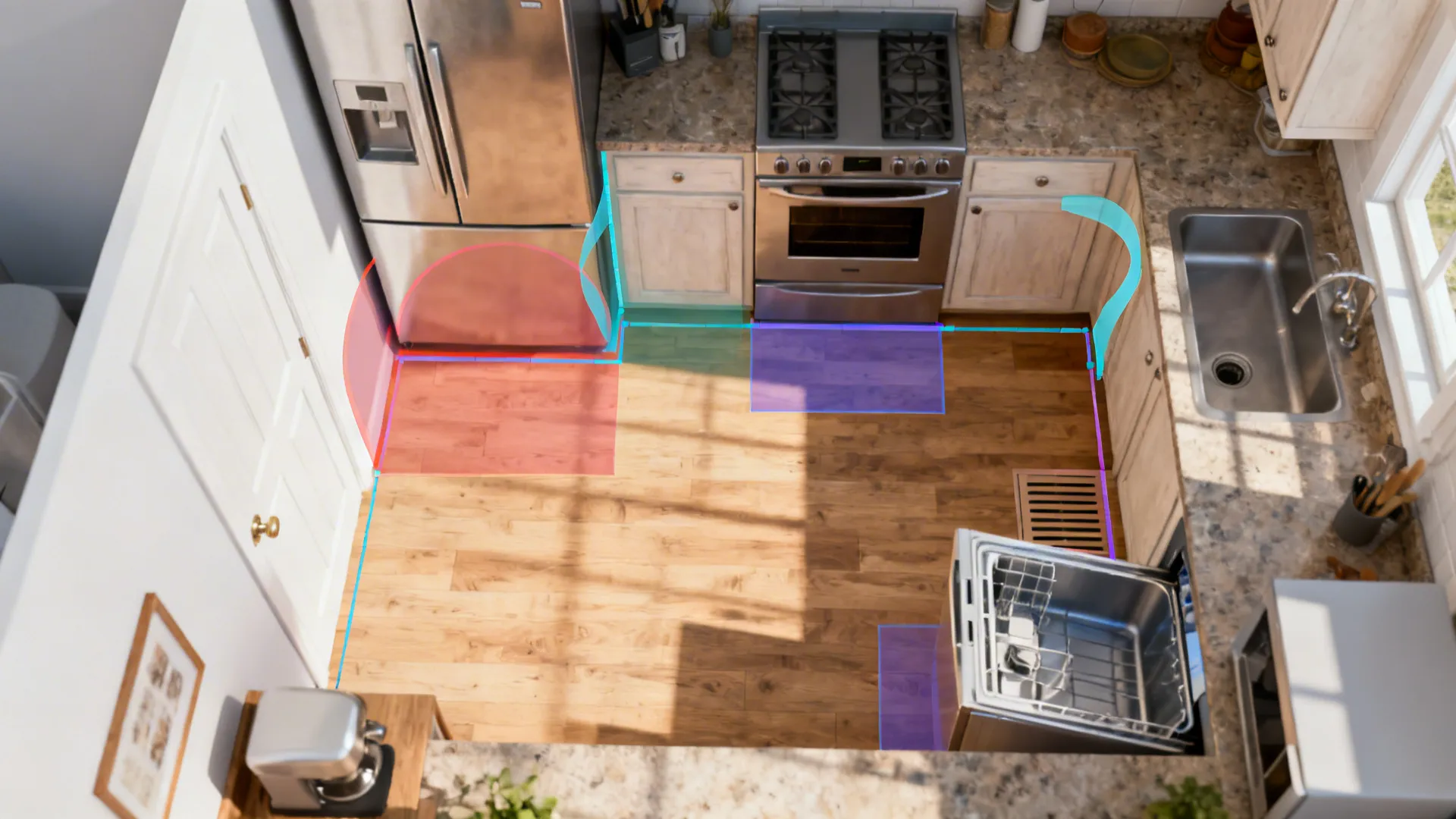

My Take: The number one failure I see in free kitchen CAD drawings is appliance clearances—ovens without vent gaps, fridges that can’t open crisper drawers, or dishwashers that conflict with sinks. On one project, a 10 mm hinge clearance adjustment saved a client from returning a brand-new fridge.

Pros: Clean CAD layering helps you track ventilation requirements, door swing arcs, and service spaces—crucial free CAD kitchen layout planning advantages. You can create “operation volumes” to ensure two doors don’t clash, even when both are open. Following manufacturer spec sheets in CAD reduces punch-list items significantly.

Cons: Hunting down accurate manufacturer DXFs or DWGs can take time, and free blocks are often approximations. If you rely on rough boxes, you’ll miss hinge protrusions, toe-kick returns, and handle depths. Also, human behavior is messy; not everyone closes a dishwasher before opening a drawer.

Tips / Source: Always attach appliance spec PDFs to your CAD file. The NKBA and manufacturer guidelines outline minimum clearances for safety and performance; cross-check oven venting and fridge hinge swing directions. Build a quick “conflict matrix” layer that shows what opens simultaneously. It’s tedious once—powerful forever.

save pin

FAQ

1) Where can I find cad drawings free download kitchens without low-quality blocks?

Start with manufacturers’ official DWGs/DXFs for appliances and hardware, then supplement with vetted libraries from design platforms or professional forums. Always clean layers, purge unused blocks, and verify dimensions against spec sheets before you commit to a layout.

2) Are free CAD kitchen drawings accurate enough for fabrication?

They’re accurate for concept and early planning, but you must replace generic blocks with manufacturer-verified components before fabrication. I cross-check clearances with NKBA recommendations and brand spec PDFs to avoid surprises on site.

3) What’s the best layout style for small kitchens using free files?

L-shaped and single-wall layouts tend to work best because they preserve circulation and simplify appliance zones. Use landing zone guidelines and verify triangle distances where possible to meet modern standards for function and safety.

4) How do I ensure appliance ventilation and door swing clearances in CAD?

Create operation volumes with arcs and dashed boxes for every movable part, including handles. Pull data from manufacturer spec sheets; the NKBA provides clear guidance on minimum clearances for common appliances and work areas.

5) Can I combine a glass backsplash with open shelves in a small kitchen?

Yes—keep shelf depths shallow (180–220 mm) and locate them clear of heat zones. In CAD, detail bracket positions and verify that the shelf underside lighting doesn’t conflict with backsplash cutouts or outlets.

6) How do I adapt free cabinet blocks to odd site conditions?

Turn base blocks into parametric units where you can tweak widths, depths, and toe-kicks. Add adjustable fillers and scribe panels in your CAD so installers have room to compensate for uneven walls and corners.

7) Do wood finishes hold up near sinks and dishwashers?

Engineered veneer on moisture-resistant cores performs well if edges are sealed and reveals are planned. Request real samples and test under your final lighting temperature to catch color shifts before ordering.

8) What’s the fastest way to turn a free CAD kitchen plan into a polished presentation?

Standardize layers, add textures and material tags, and export to a 3D pipeline for lighting tests. If you want a quick look at how CAD intent reads in visuals, a rendering case that shows warm wood accents and lighting interplay can help, though always keep your CAD as the fabrication truth.

Summary: Small kitchens aren’t limitations—they’re invitations to design smarter. Free CAD kitchen drawings give you a head start, but the magic is in customizing clearances, materials, and storage to your real life. Use verified manufacturer specs and NKBA guidelines as your north star, and treat every generic block as a prompt, not a rule. Which of these five ideas are you most excited to try in your own kitchen?
