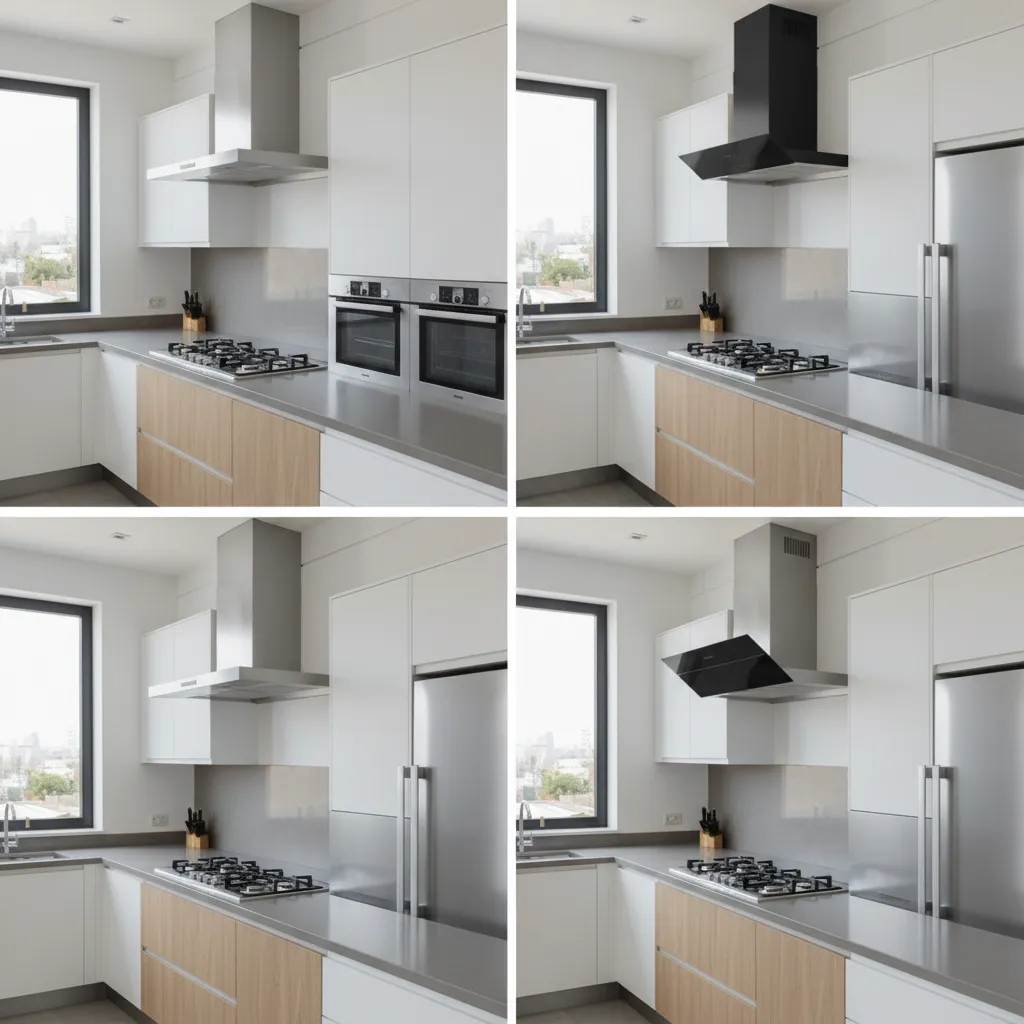

Box Design vs Inclined Design Kitchen Chimneys Which One Fits Your Kitchen: Understand the real differences between box and inclined kitchen chimneys so you can choose the right design for your cooking style and kitchen layout

Direct Answer

Box design and inclined design kitchen chimneys differ mainly in structure, suction efficiency, and kitchen ergonomics. Box chimneys are traditional, powerful, and ideal for heavy cooking, while inclined chimneys improve headroom and capture smoke more efficiently in compact modern kitchens.

Choosing between them depends on how often you cook, the layout of your stove area, and how much maintenance you want to handle.

Quick Takeaways

1. Box chimneys handle heavy Indian cooking better due to wider suction coverage.
2. Inclined chimneys improve headroom and reduce the chance of bumping your head.
3. Inclined models usually collect smoke faster because of angled airflow.
4. Box designs are often cheaper and easier to service.
5. Modern modular kitchens visually pair better with inclined chimneys.

Introduction

After designing dozens of modern kitchens across apartments and independent homes, one question comes up constantly during appliance selection: box design vs inclined design kitchen chimneys. On paper the difference looks simple, but in real kitchens the choice affects cooking comfort, cleaning effort, and even how well smoke actually leaves the room.

Many homeowners assume inclined chimneys are automatically better because they look modern. That is not always true. In homes where frying, tadka, or deep cooking happens daily, the older box style sometimes performs better.

In this guide I will break down how these two chimney types actually behave in real kitchens, where each design works best, and the mistakes people often discover only after installation.

save pin

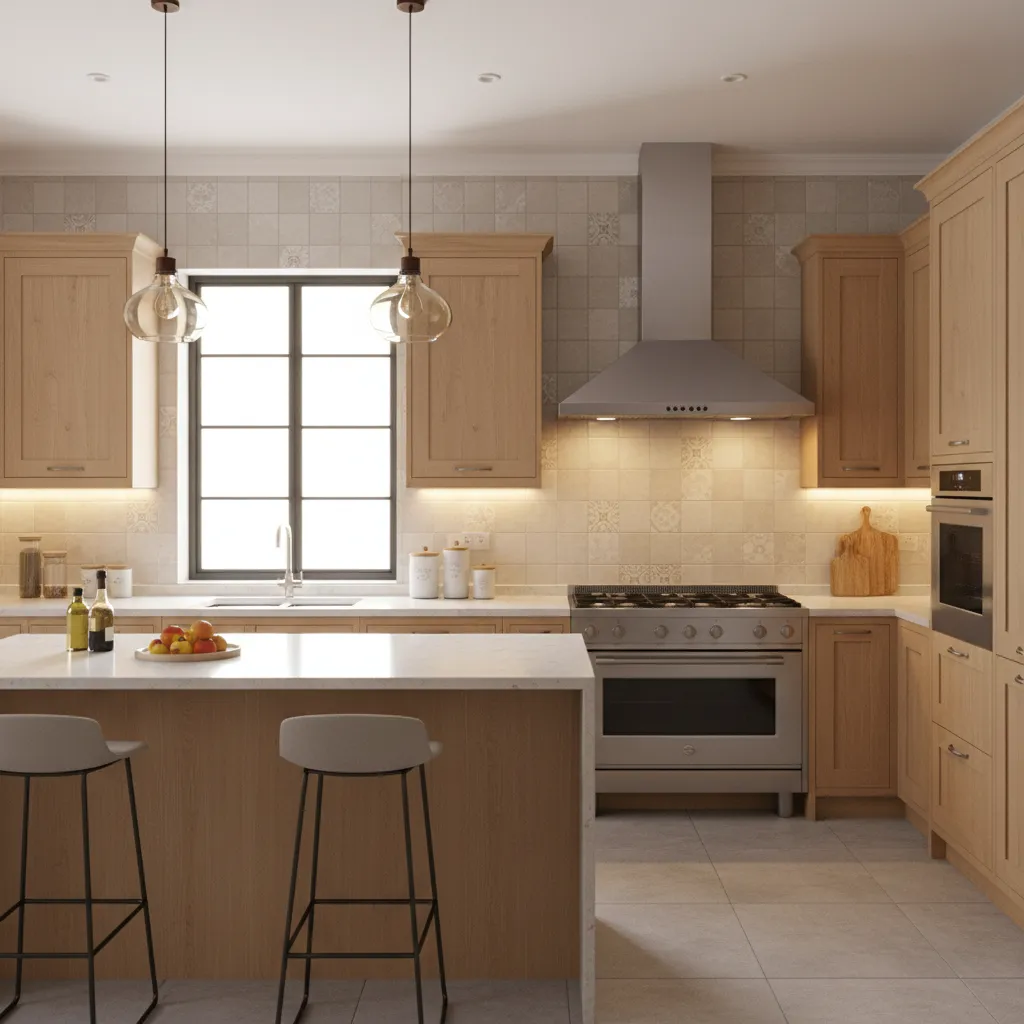

What Is a Box Design Kitchen Chimney

Key Insight: Box chimneys prioritize suction coverage and durability rather than visual design.

A box chimney is the traditional rectangular chimney mounted parallel above the stove. The suction panel sits flat and wide, allowing smoke, oil vapor, and heat to rise directly into the filter area.

In projects where families cook three meals daily with lots of frying, I still recommend this design because the coverage area is larger.

Typical characteristics

1. Flat rectangular structure
2. Mounted directly above cooktop
3. Large filter surface area
4. Usually lower purchase cost

Where box chimneys work best

1. Heavy oil cooking households
2. Large 3–5 burner cooktops
3. Traditional kitchens with overhead cabinets
4. Homes prioritizing performance over appearance

Service technicians also prefer this design because internal parts are easier to access, which reduces maintenance cost over time.

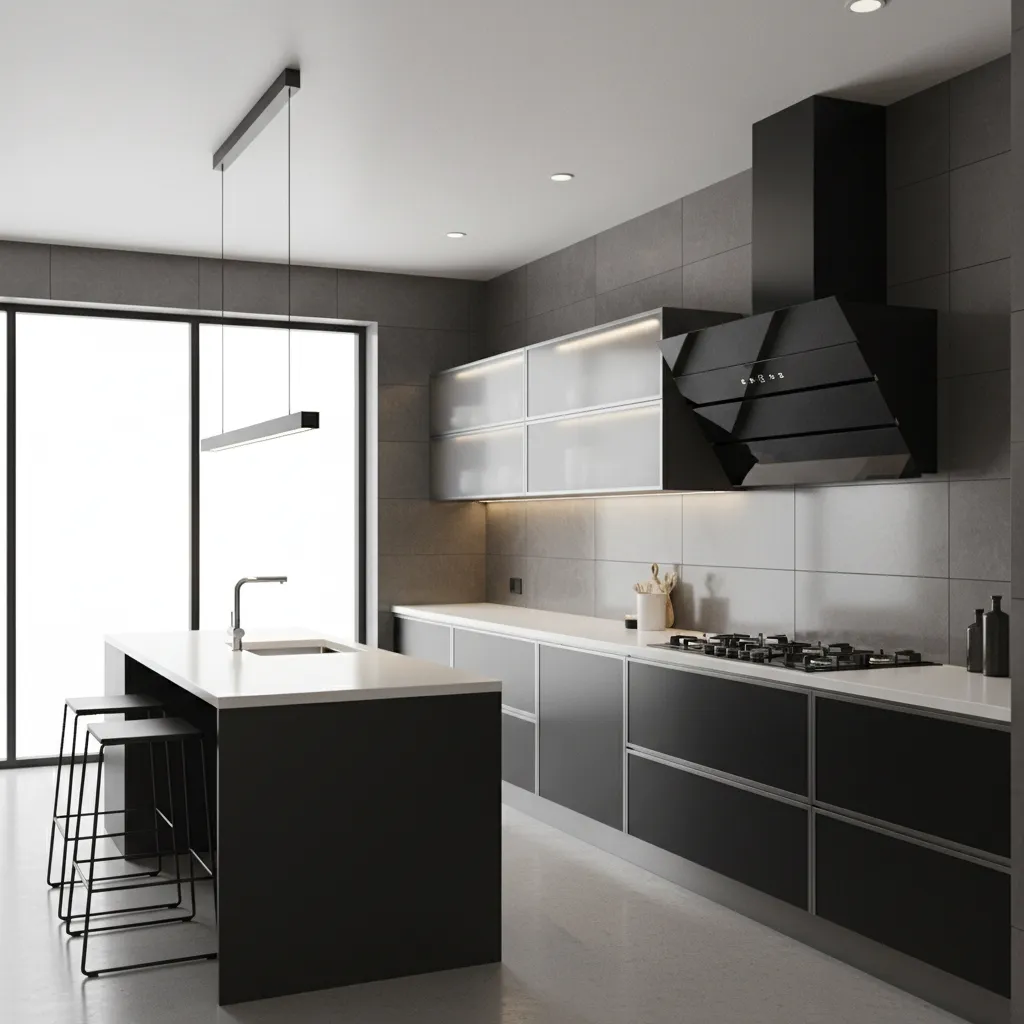

What Is an Inclined Design Kitchen Chimney

Key Insight:Inclined chimneys improve ergonomics and smoke capture by using an angled suction panel.

An inclined chimney places the suction panel at a forward angle instead of flat above the stove. This design pulls smoke diagonally rather than vertically.

From my experience designing compact urban kitchens, this angled design solves one annoying everyday problem: people hitting their head on the chimney.

save pin

Main design features

1. Angled glass or steel front panel
2. Motor located behind the panel
3. Better headroom while cooking
4. Modern visual style

Advantages many homeowners notice

1. Smoke gets captured earlier before spreading
2. Cooking area feels more open
3. Matches modular kitchen aesthetics
4. Often includes touch controls and auto clean features

However, the suction width is slightly smaller than traditional box chimneys, which matters for larger stoves.

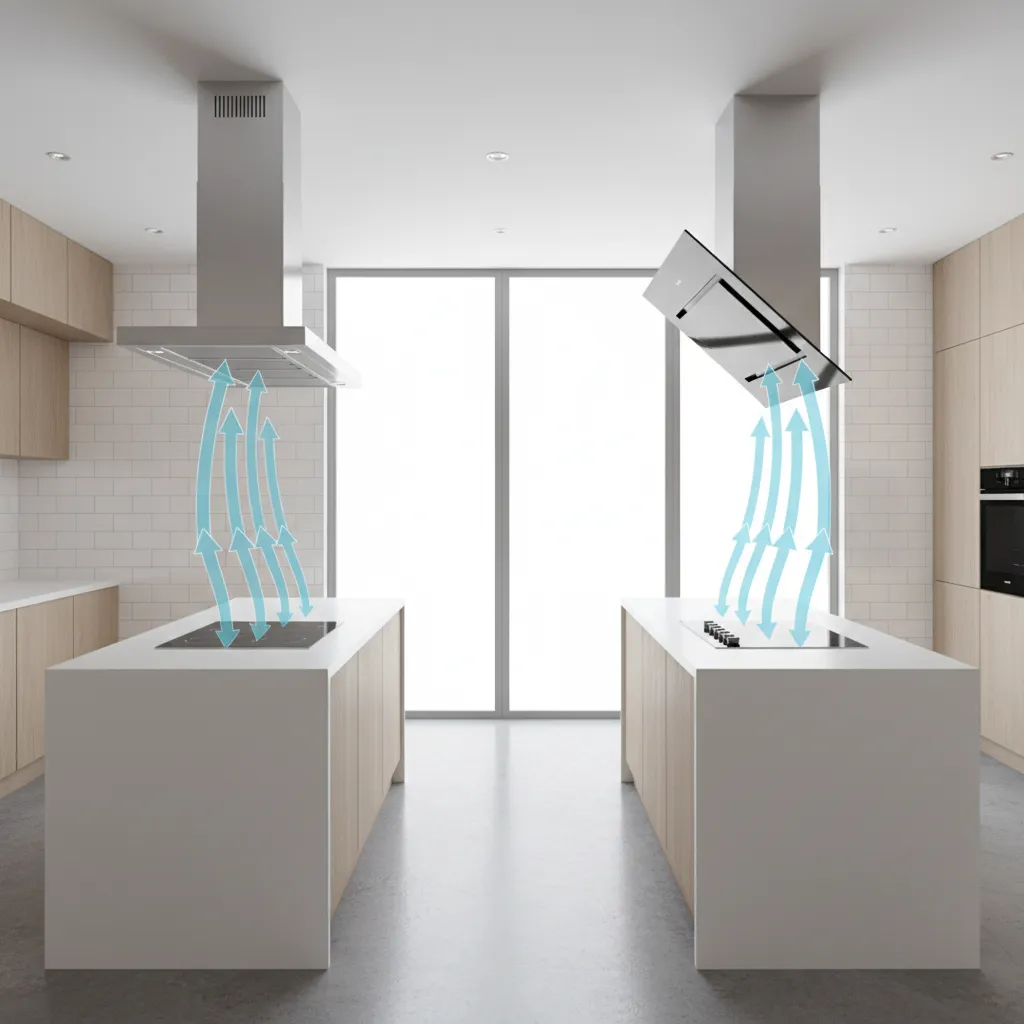

Box Design vs Inclined Design Kitchen Chimneys Comparison

Key Insight: The real difference is not looks but airflow behavior, cooking intensity support, and kitchen ergonomics.

Here is the practical comparison I usually explain to clients before finalizing appliances.

1. Suction Coverage Box chimneys cover a wider vertical area.
2. Smoke Capture Speed Inclined chimneys catch smoke earlier due to angled airflow.
3. Headroom Inclined chimneys clearly win.
4. Maintenance Box chimneys are easier and cheaper to repair.
5. Visual Appeal Inclined designs look more modern.
6. Best Cooking Style Box chimneys suit heavy frying and oily cooking.

In homes where four burners run simultaneously, I often advise staying with the box design simply because the suction footprint is bigger.

save pin

Which Chimney Works Better for Heavy Cooking

Key Insight: For frequent frying, grilling, or high heat cooking, box chimneys usually perform more consistently.

In many Indian households, cooking involves strong spices, deep frying, and high flame. These conditions produce thick oil vapor and smoke that rises rapidly.

A flat suction panel directly above the stove captures this vertical smoke more reliably.

Cooking scenarios where box chimneys perform better

1. Daily frying and tadka
2. Large family cooking
3. Multiple burners used simultaneously
4. Commercial style cooking at home

Inclined chimneys still work well, but their suction zone is slightly narrower, which means smoke from the outer burners can escape if the chimney width is not matched correctly.

Hidden Design Mistakes People Make When Choosing a Chimney

Key Insight:Most performance problems come from installation and sizing mistakes rather than chimney design.

After multiple kitchen remodel projects, I have noticed several recurring issues homeowners discover only after installation.

save pin

Common mistakes

1. Choosing a chimney narrower than the cooktop
2. Installing the chimney too high above the stove
3. Ignoring duct length restrictions
4. Buying only based on appearance
5. Underestimating suction power requirements

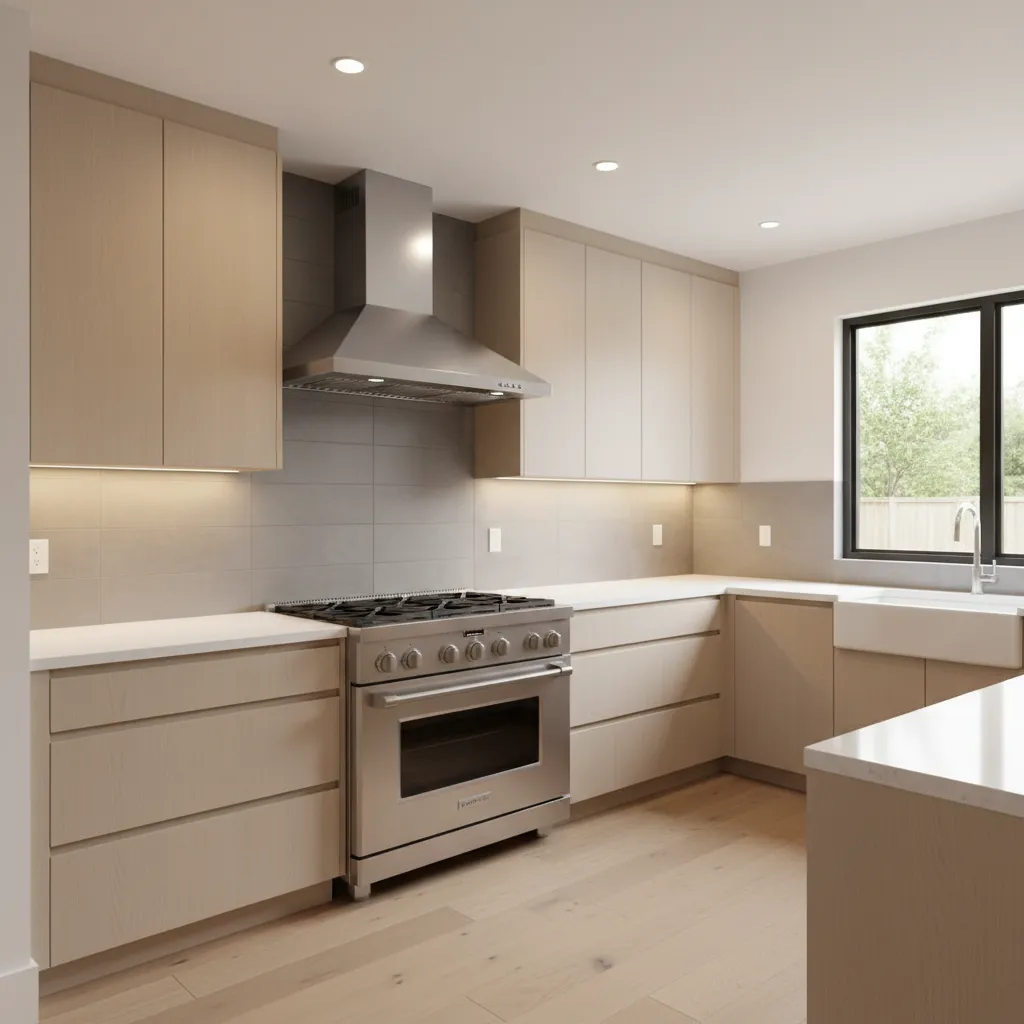

As a rule I follow in most designs:

1. Chimney width should match or exceed cooktop width
2. Ideal height from stove is 24 to 30 inches
3. Shorter ducts improve suction efficiency

These installation details often matter more than the box vs inclined design debate.

Answer Box

The best choice between box design vs inclined design kitchen chimneys depends on cooking intensity and kitchen layout. Box chimneys deliver stronger coverage for heavy cooking, while inclined chimneys improve comfort and aesthetics in compact modern kitchens.

How to Choose the Right Chimney for Your Kitchen Layout

Key Insight: The correct chimney is the one that matches both your cooking behavior and cabinet layout.

When I design kitchens, I evaluate three factors before recommending a chimney type.

Step 1. Evaluate cooking intensity

1. Light cooking → inclined chimney works well
2. Heavy frying → box chimney recommended

Step 2. Measure cooktop width

1. 60 cm cooktop → 60 or 75 cm chimney
2. 90 cm cooktop → 90 cm chimney minimum

Step 3. Check cabinet space

1. Tight upper cabinets → inclined chimney fits better
2. Open wall area → box chimney works perfectly

In compact apartments under 120 square feet kitchen area, inclined chimneys usually improve movement and visibility.

Final Summary

1. Box chimneys provide stronger suction coverage for heavy cooking.
2. Inclined chimneys improve headroom and modern kitchen aesthetics.
3. Kitchen layout and stove width should guide the final choice.
4. Installation height and duct design affect performance significantly.
5. The best chimney balances suction power, ergonomics, and maintenance.

FAQ

Which is better box design vs inclined design kitchen chimneys?

Box chimneys are better for heavy cooking, while inclined chimneys are better for comfort and modern kitchen layouts.

Do inclined chimneys have strong suction?

Yes. Many inclined chimneys offer suction power above 1200 m3 per hour, which is sufficient for most home kitchens.

Why do people choose inclined chimneys?

They prevent head bumps, look modern, and capture smoke earlier due to the angled suction panel.

Are box chimneys cheaper?

Generally yes. Box design kitchen chimneys usually cost less and have simpler internal components.

Which chimney is best for Indian cooking?

Box chimneys often perform better for intense Indian cooking because they provide wider suction coverage.

Do inclined chimneys need more maintenance?

Not necessarily. Many models include auto clean technology, but glass panels may require frequent wiping.

What chimney size should I choose?

Your chimney should be at least the same width as your cooktop. A wider chimney improves smoke capture.

Can inclined chimneys replace box chimneys?

Yes for most modern kitchens, but households with heavy frying may still benefit from the traditional box chimney design.
