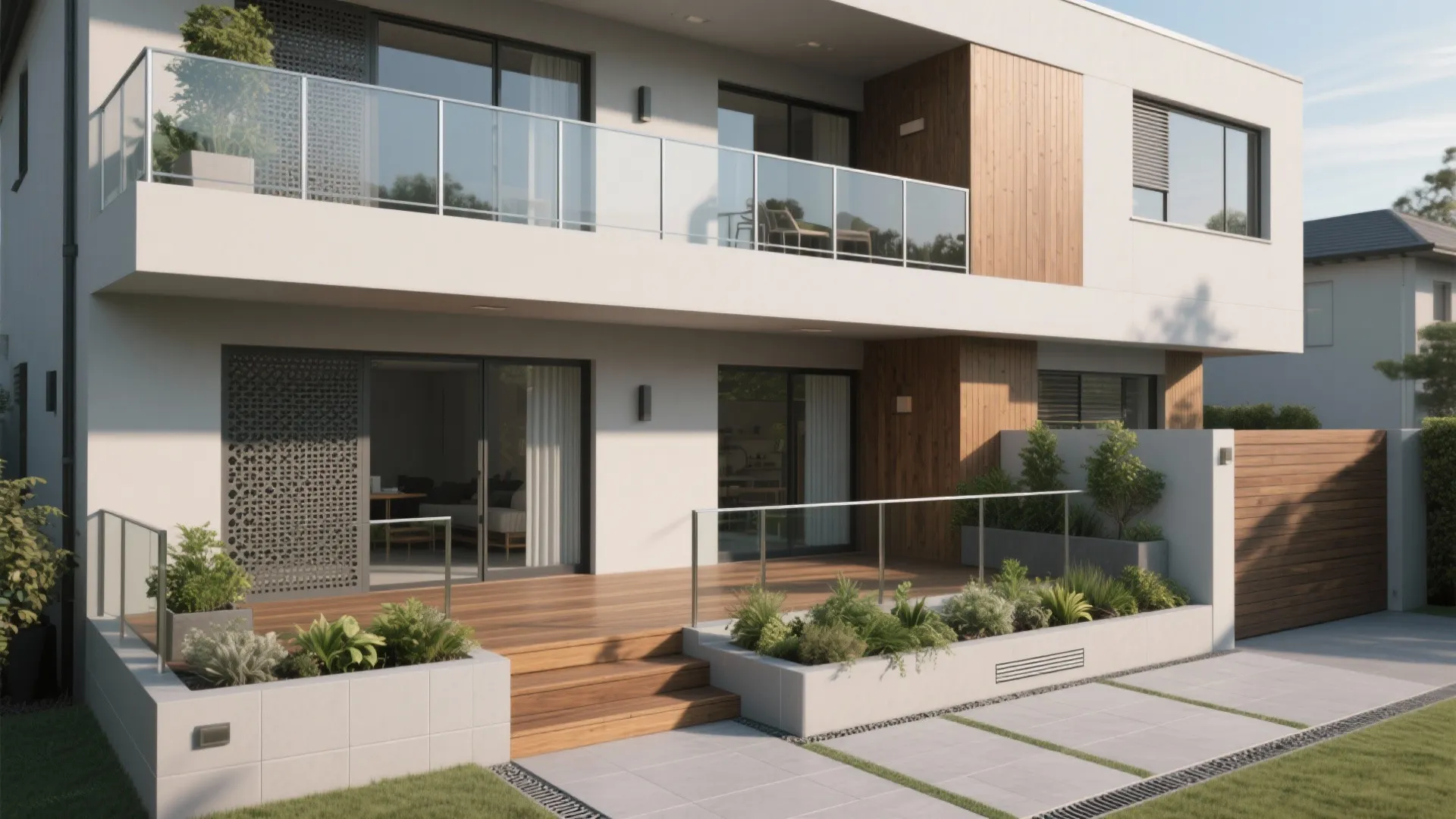

5 Ideas for 2 Floor Balcony Blueprint Design: A senior designer’s practical guide to planning two-story balconies that are safe, stylish, and buildable

[Section: 引言]

Two-story outdoor living is trending hard, and I’ve been sketching more 2 floor balcony blueprint design packages in the past two years than in the previous five combined. In my projects, a quick 3D balcony render that clarifies structure often helps clients “see” the massing before we finalize details. Small spaces still spark big creativity—especially when we stack them—and today I’ll share 5 buildable ideas grounded in my site experience and expert data.

I’ll keep it real: from guard heights to drainage slopes, details make or break a balcony. Below are five design inspirations I use to shape two-story layouts that actually work, with stories from the field and a couple of code references. Let’s get your blueprint from concept to construction-ready.

[Section: 灵感列表]

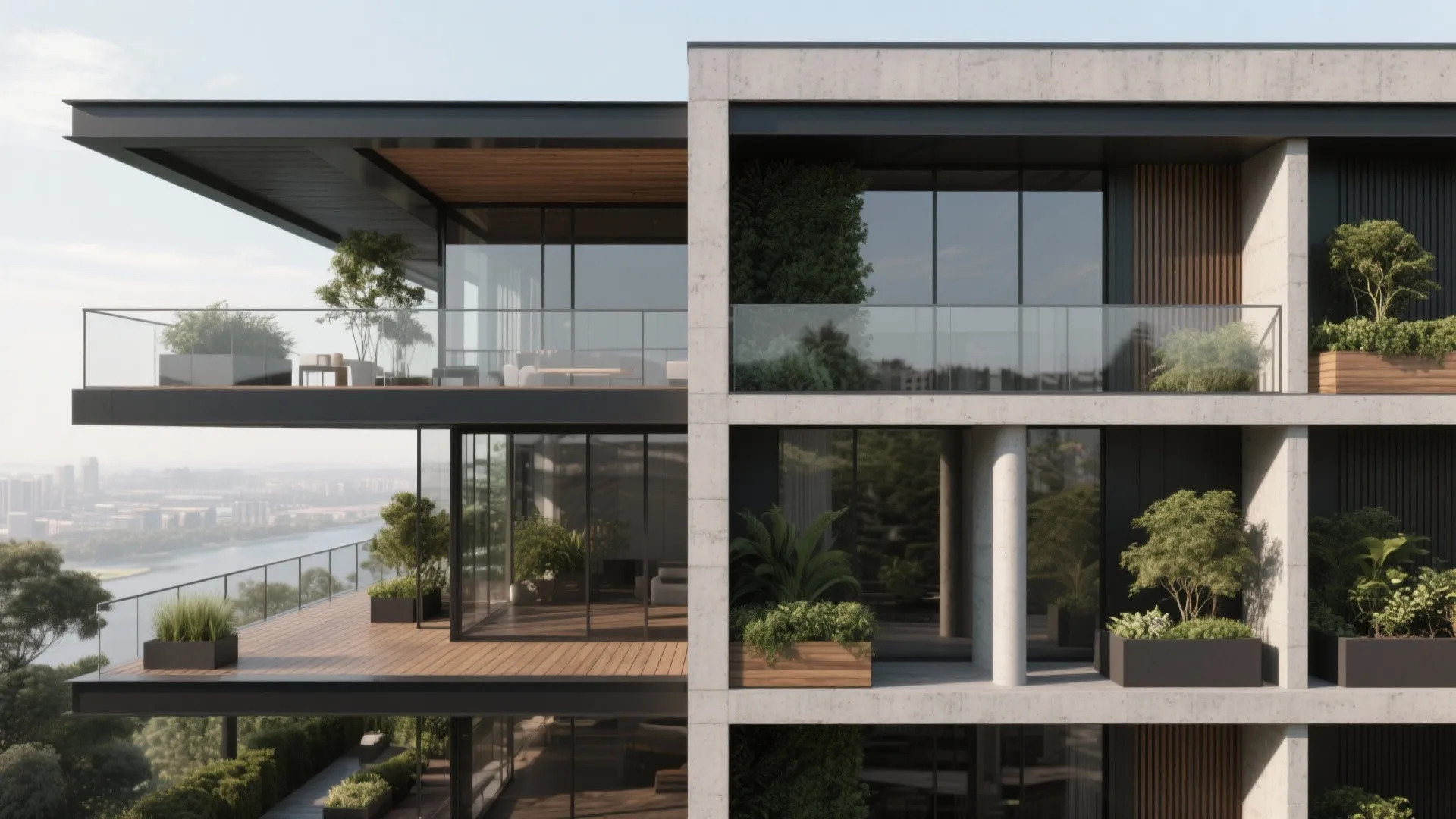

Cantilevered vs Column-Supported Stacks

My Take

Whenever a client asks for a sleek, floating look, we talk about cantilevers. I’ve engineered both: steel cantilevers for urban duplexes and discreet columns tucked into planters for coastal homes where wind rules the day. The right choice comes down to span, loads, and your appetite for structural depth in the floor build-up.

Pros

Cantilevers create a clean facade, perfect for a modern two-story balcony layout with uninterrupted views. For longer spans or heavier “outdoor room” programs (grill, planter boxes, small spa), columns provide more economical structure and easier compliance with two-story balcony structural load requirements. In climates with higher wind loads (per ASCE 7-16), posts can reduce steel size and deflection, helping your 2 floor balcony blueprint design stay lighter upstream.

Cons

Cantilevers demand meticulous coordination: moment connections, insulation at the thermal break, and a thicker floor build-up that can complicate door thresholds. Columns can visually clutter if not integrated into rail rhythm or planter lines, and they introduce footings that may conflict with utilities or waterproofing.

Tips / Cost

As a rule of thumb, I limit cantilevers to 4–6 feet unless we’re ready for serious steel and detailing. If columns are on the table, align them to a facade grid so they read intentional. For code, remember residential balcony live load requirements commonly start at 60 psf in many jurisdictions (check local adoption of IBC/IRC and ASCE 7). Bring a structural engineer in early; that hour can save weeks later.

save pin

Wraparound L-Shape to Maximize Usable Area

My Take

I love an L-shape on two levels because it unlocks circulation and distinct zones: coffee nook off the bedroom and grilling near the kitchen. I once wrapped a second-floor balcony around a corner to capture sunset views; the downstairs mirrored it with a shaded reading bench.

Pros

An L-shaped layout can increase apparent square footage without deepening the cantilever, a smart move for two-story balcony plans where structural depth is tight. It naturally creates micro-zones—dining, lounge, herbs—supporting outdoor living without crowding. In blueprint design, it also improves facade articulation and cross-ventilation when paired with operable doors.

Cons

More corners mean more waterproofing transitions and more railing terminations to detail. Wind can accelerate at corners, so furniture needs anchoring or heavier bases. If not planned, door swings can collide with seating or planters.

Tips / Case

On plans, I block out 36–42 inches minimum clear walking paths and keep at least a 60-inch diameter for any small dining area so chairs can scoot. If privacy is a concern on one wing, introduce screens or tall planters to “soften” sightlines without blocking airflow. Place lighting at the inner leg of the L to avoid glare toward neighbors.

save pin

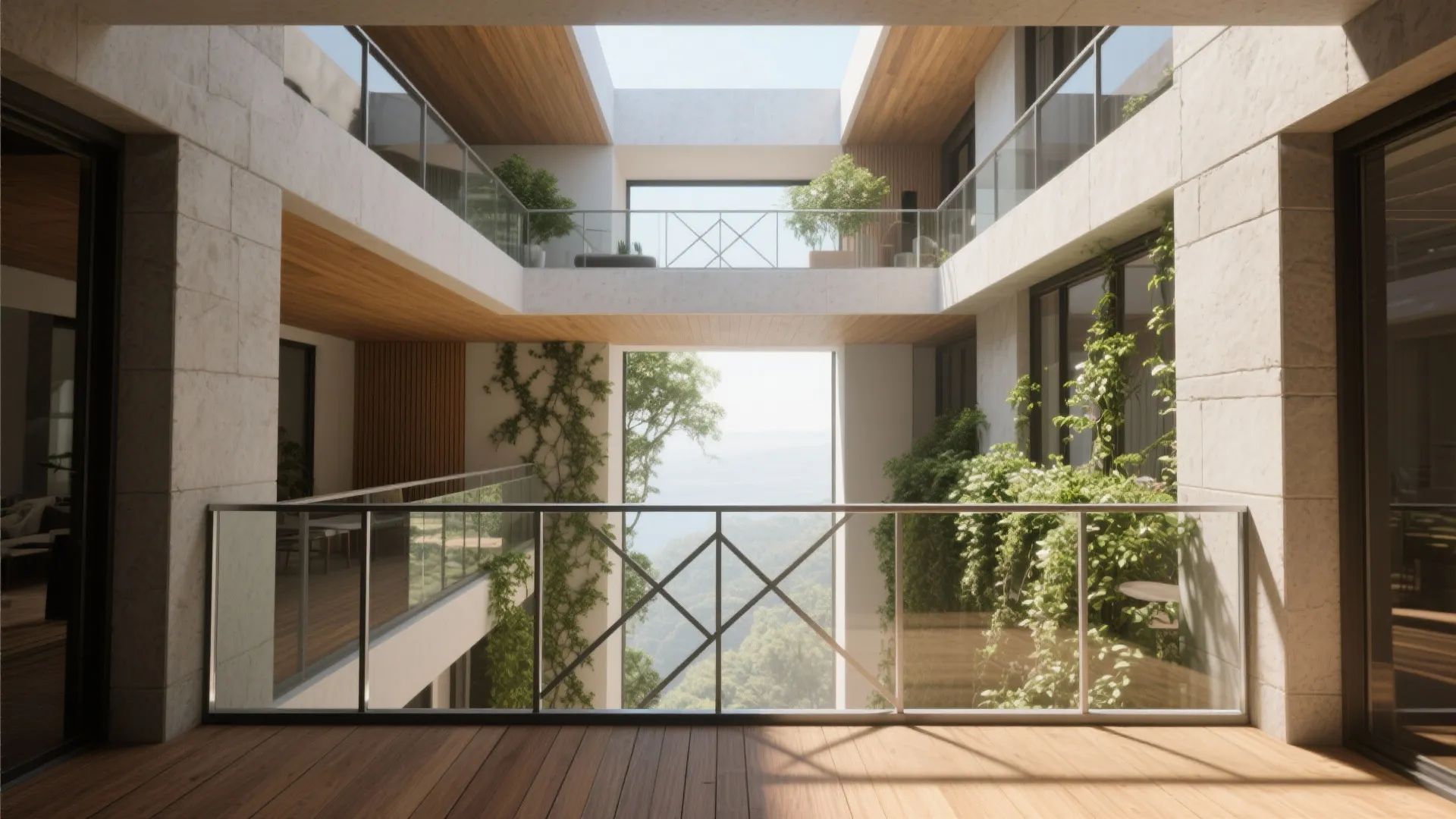

Double-Height Void and Visual Connection

My Take

Some of my favorite two-story balcony schemes punch a double-height void between levels to pull light deep into the home. I did this in a narrow townhouse: the upper balcony floated above, and the lower tucked under with a skylit cut that made the living room glow.

Pros

A double-height opening brings daylight and drama, enhancing two-story balcony blueprint design without adding square footage. It improves stack-effect ventilation when paired with high/low operable openings. Acoustically, it can separate social zones while keeping visual connection intact—great for families.

Cons

Avoid overexposing the lower level to rain by planning an upper deck overhang or a metal/wood canopy where needed. Sound can travel more freely through a vertical void, so place soft furnishings below. More edges mean more guardrails and careful attention to guard height.

Authority Note

For guard safety, the 2021 IRC R312 calls for a minimum 36-inch guard height for one- and two-family dwellings (many local codes or multifamily conditions require 42 inches—verify with your AHJ). Keep infill spacing under 4 inches to prevent sphere passage—critical in family homes.

Tips

Plan lighting at both levels to “stack” illumination and avoid dark pockets. If you want planting across the opening, integrate steel trellis crossbars that double as vine support and subtle fall protection. Midway through design, I often test an L-shaped balcony that creates dual zones across a void to see how circulation feels in 3D.

save pin

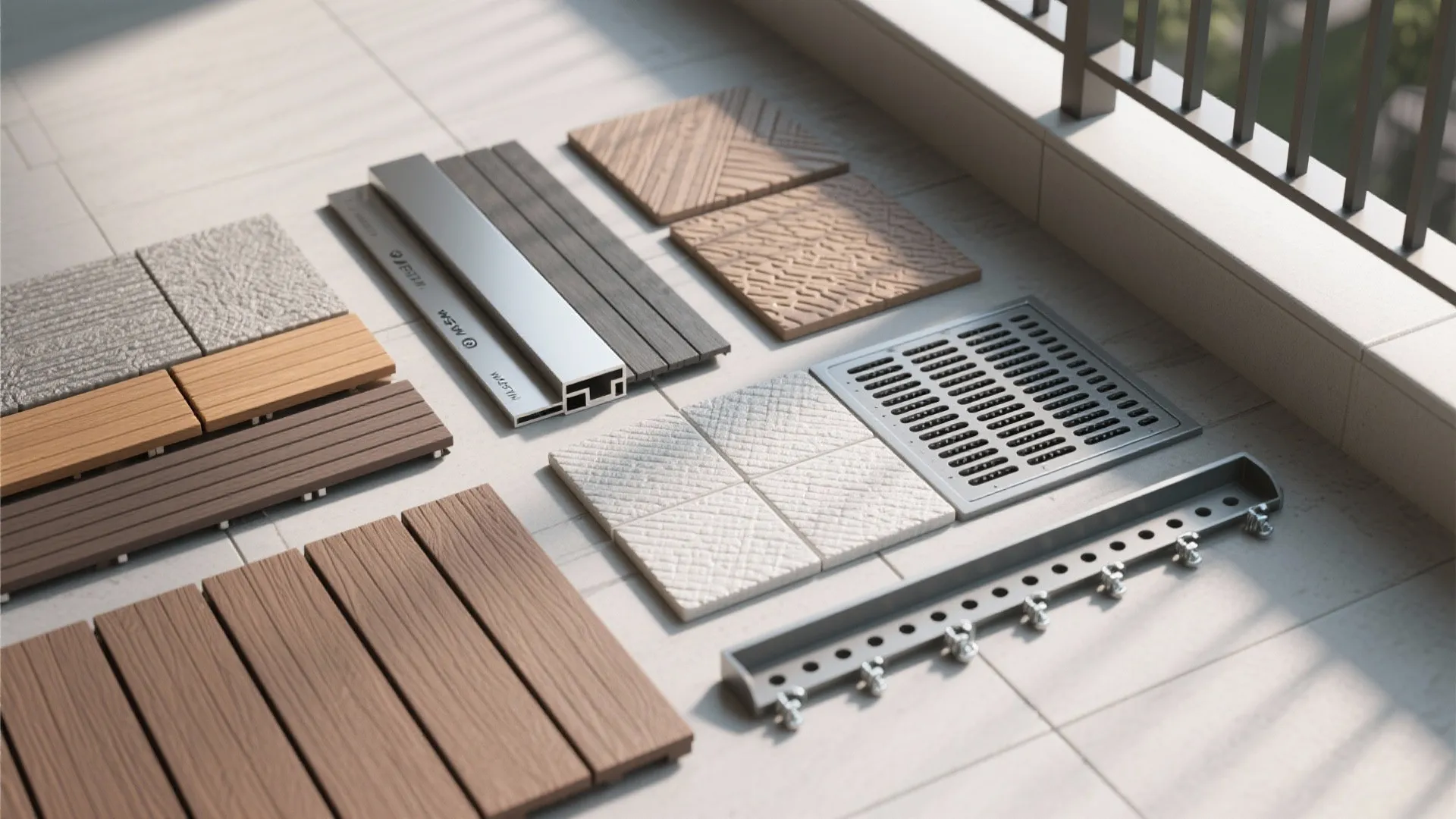

Materials That Last: Porcelain, Composite, and Micro-Drainage

My Take

I’m picky with balcony materials because I’ve seen too many fail. Porcelain pavers on adjustable pedestals, composite decking with hidden fasteners, and aluminum framing have been my go-tos. Add a micro-drainage mat and you increase lifespan dramatically.

Pros

Porcelain pavers give a refined look and allow easy access to waterproofing for maintenance—ideal for long-term two-story balcony maintenance planning. Composites reduce slip-and-swell issues and keep weight down, supporting cantilever efficiency. A micro-drainage mat and 1–2% slope prevent ponding and extend waterproofing life, a must-have in any 2 floor balcony blueprint design.

Cons

Porcelain needs good edge restraint so pavers don’t migrate, especially on windy sites. Composite can look “too perfect” unless you mix widths or tones. Pedestal systems require a dead-flat substrate and a seasoned installer—DIY can go sideways fast.

Authority Note

For slip resistance, the Tile Council of North America references ANSI A326.3 DCOF testing; for exterior wet areas, many specifiers target ≥0.60 wet DCOF with textured finishes. That small spec line prevents big headaches when it rains.

Tips / Cost

Budget roughly: porcelain on pedestals $18–$38/sq ft installed, composite decking $15–$30/sq ft depending on concealed fastening and framing. Don’t forget drip edges, scuppers, and an overflow path—your waterproofing consultant will thank you. I also run a quick lifecycle cost comparison so clients see why better materials save money over 10 years.

save pin

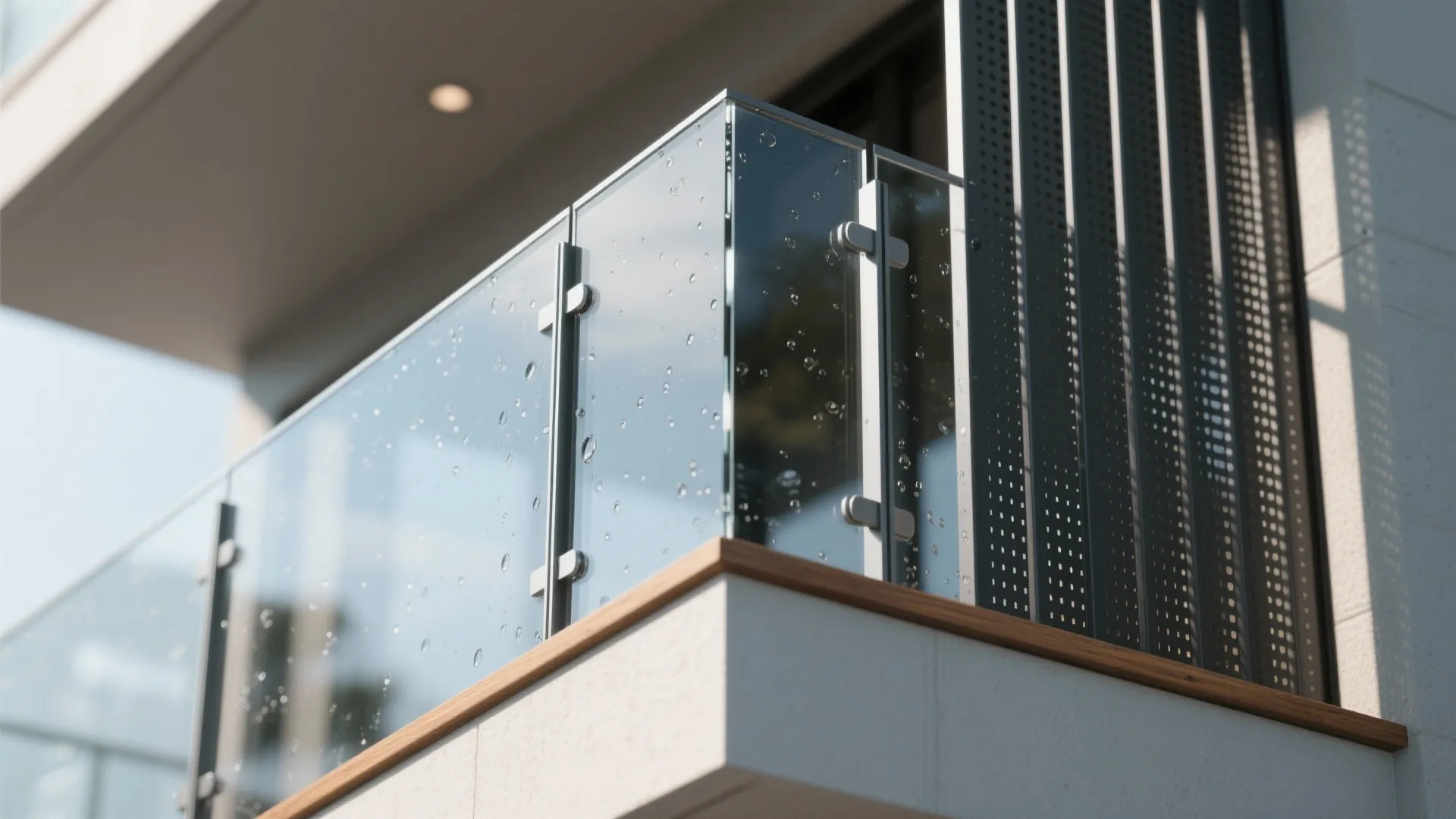

Railings and Screens for Safety, Privacy, and Wind

My Take

Nothing finishes a two-story balcony like the right guardrail. I’ve alternated between slim steel pickets for a graphic shadow line and laminated glass for an unobstructed view. Add screened corners to tame gusts and instantly improve comfort.

Pros

Glass keeps views intact and reduces perceived bulk—excellent for modern elevations. Vertical steel pickets are classic, easy to maintain, and naturally discourage climbing. Integrated screens or fins along one edge create wind and privacy control without heavy walls, which is crucial in dense neighborhoods.

Cons

Glass shows water spots and needs occasional squeegee days. Horizontal cables look sleek but can invite climbing for kids; check local interpretations of “ladder effect.” Dark metal heats up in direct sun—use a lighter finish if you lean on rails.

Authority Note

Beyond guard height, confirm concentrated load criteria for guards (commonly 200 lb at top rail in IBC contexts, see IBC/ASCE 7) and wind design pressures for elevated locations. These numbers drive post spacing, glass thickness, and attachment detailing in a two-story balcony blueprint.

Tips / Case

Mix materials: glass along the view side and perforated metal at the neighbor side. Add up-lights at the base of pickets for a beautiful nighttime gradient. For a crisp contemporary look, I often spec a glass balustrade for a lighter facade paired with timber decking to warm the palette.

[Section: 总结]

A great 2 floor balcony blueprint design isn’t about size; it’s about smart moves: structural clarity, clean drainage, and railings that balance safety with style. Small footprints can still deliver big living when the details sing. As the IRC/IBC remind us, codes set the baseline—good design makes it delightful.

Which of these five ideas would you try first on your home—sleek cantilever, L-shaped wrap, airy void, upgraded materials, or refined railings?

[Section: FAQ 常见问题]

save pin

FAQ

1) What is the first step in a 2 floor balcony blueprint design?

Start with structure and loads: span, support strategy (cantilever vs columns), and connections to existing framing. A schematic elevation plus a simple plan for both levels will guide door placement, drainage, and railing runs.

2) How deep should a two-story balcony be?

For dining, I aim for 6–8 feet clear depth; for lounge only, 4–6 feet can work with a love seat and side table. Deeper balconies increase loads and wind exposure, so coordinate with your engineer early.

3) What guard height is required?

In many one- and two-family homes, the IRC sets a minimum 36-inch guard height; multifamily or certain jurisdictions require 42 inches. Always confirm with your local authority having jurisdiction (AHJ) because local amendments may differ.

4) How do I prevent water problems on stacked balconies?

Specify a 1–2% slope away from the building, integrate scuppers or drains, and keep a continuous waterproofing membrane with upturns at walls. Porcelain on pedestals or composite systems with micro-drainage mats help keep the assembly dry and serviceable.

5) Which materials last longest outdoors?

Porcelain pavers, composite decking, aluminum or stainless rail components, and marine-grade fasteners hold up very well. Choose exterior-rated finishes and confirm slip resistance per ANSI A326.3 for wet areas.

6) Do I need an engineer for a two-story balcony?

Yes. Elevated structures carry significant live, dead, and wind loads that must be calculated per ASCE 7. An engineer sizes members, connections, and anchors; this is non-negotiable for safety and permitting.

7) How can I add privacy without losing light?

Use perforated metal panels, vertical fins, or staggered planters at one or two edges. These break sightlines, soften wind, and keep your facade light, especially when combined with glass along the view side.

8) What live load should balconies be designed for?

Many codes use 60 psf for residential balconies, with additional criteria for guards (e.g., 200 lb concentrated load) per IBC/ASCE 7. Check your locally adopted code version to confirm exact figures before finalizing drawings.
