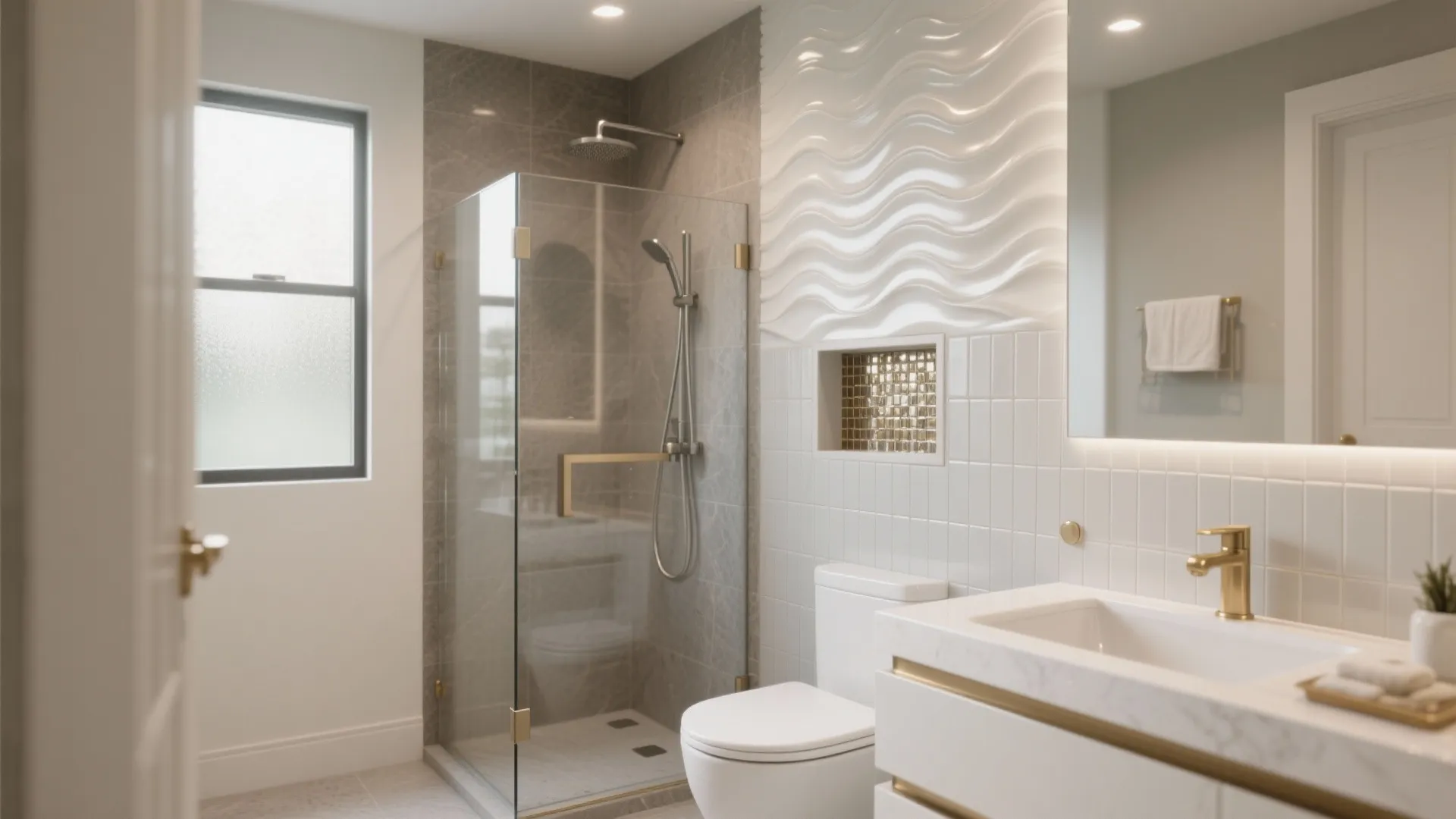

5 Ideas for 3D Bathroom Wall Tiles in Small Spaces: A senior interior designer’s practical playbook for small bathrooms: how to choose, place, light, and maintain 3D bathroom wall tiles without busting your budget.

[Section: Introduction]

Three-dimensional tile is having a real moment. From sculpted ceramic waves to softly chiseled stone looks, 3D bathroom wall tiles are one of the biggest texture trends I’m using right now. After more than a decade designing compact homes, I’ve learned that small spaces spark the biggest creativity—especially when you use light and relief to trick the eye.

Today, I’ll share 5 ideas I actually use with clients, combining what’s worked in my projects with expert data and standards. Whether your bath is under 40 square feet or just feels tight, these approaches help you dial up depth without clutter.

[Section: Inspiration List]

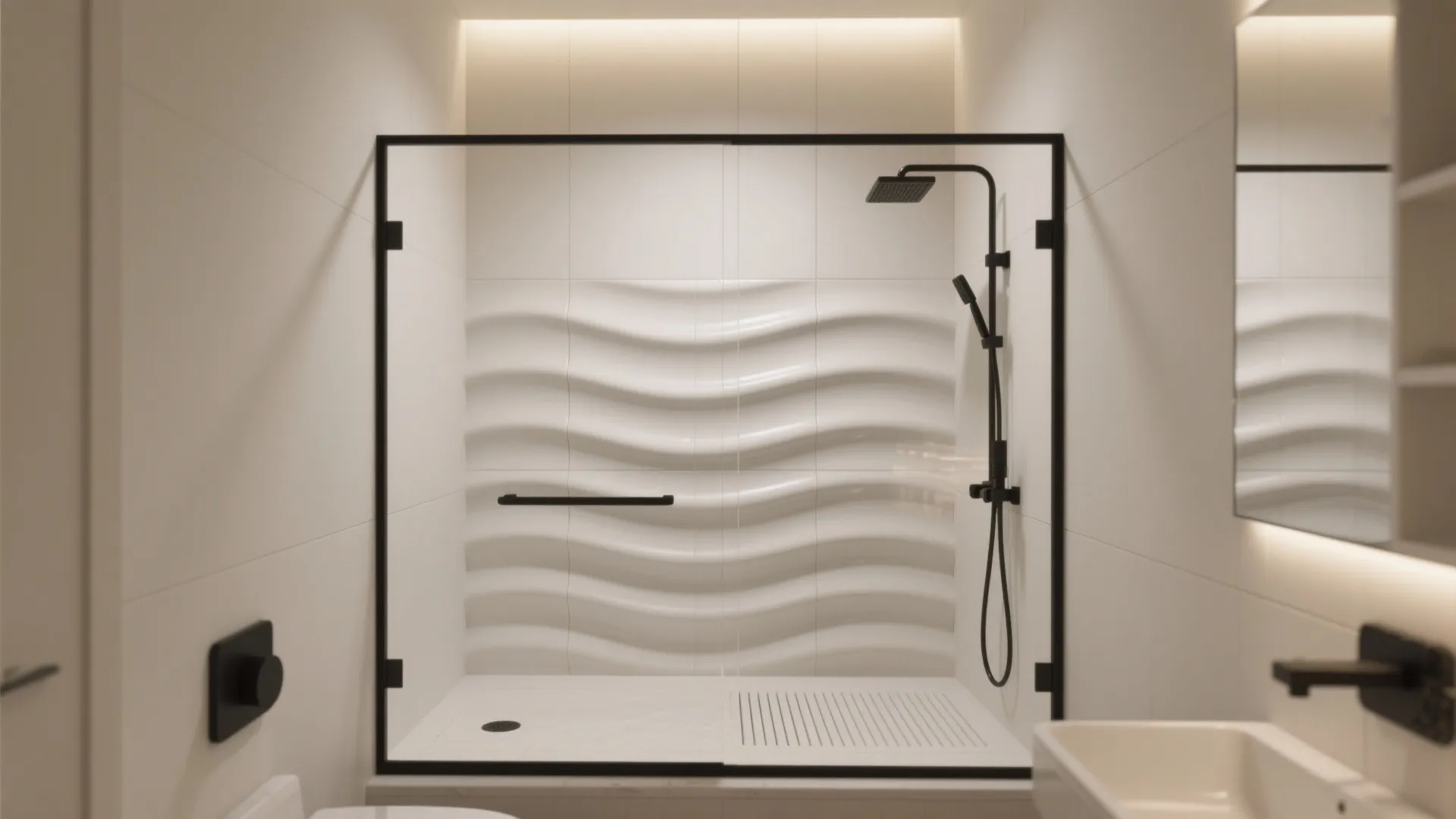

Sculpted Ceramic Waves in the Shower

My Take: In one 3 m² apartment bath, a single wall of sculpted ceramic turned a boxy shower into a gentle, light-catching focal point. I sketched the layout, then mocked up a textured ceramic wave pattern to see how the curves would bounce light across the day—an instant calm-maker.

Pros: 3D ceramic wall tiles in showers create visual depth that makes small bathrooms feel wider, and the gentle undulation hides minor substrate imperfections. If you choose impervious porcelain or low-absorption ceramic, you’ll get strong water resistance (porcelain has ≤0.5% water absorption per ANSI A137.1, summarized by the Tile Council of North America’s Why Tile site: https://whytile.com/types-of-tile/porcelain-tile/). Glazed “wave” tiles also reflect light softly, so you can reduce glare while still feeling bright.

Cons: Deeper relief can collect soap residue if the shower head sprays directly on it, so plan a quick soft-brush wipe during weekly cleanups. You’ll also need a bit more attention to pattern alignment; waves that drift at corners are noticeable. And if your ceiling is low, vertical waves can compress the height—go horizontal to stretch the room.

Tips/Case/Cost: I like 300 × 600 mm tiles for balance—fewer grout lines, but still easy to cut around niches. Specify an epoxy or stain-resistant grout in a tint that matches the glaze to keep the surface calm. Budget-wise, expect $8–$22 per sq ft for sculpted ceramics, plus a little extra waste (5–8%) for pattern matching.

save pin

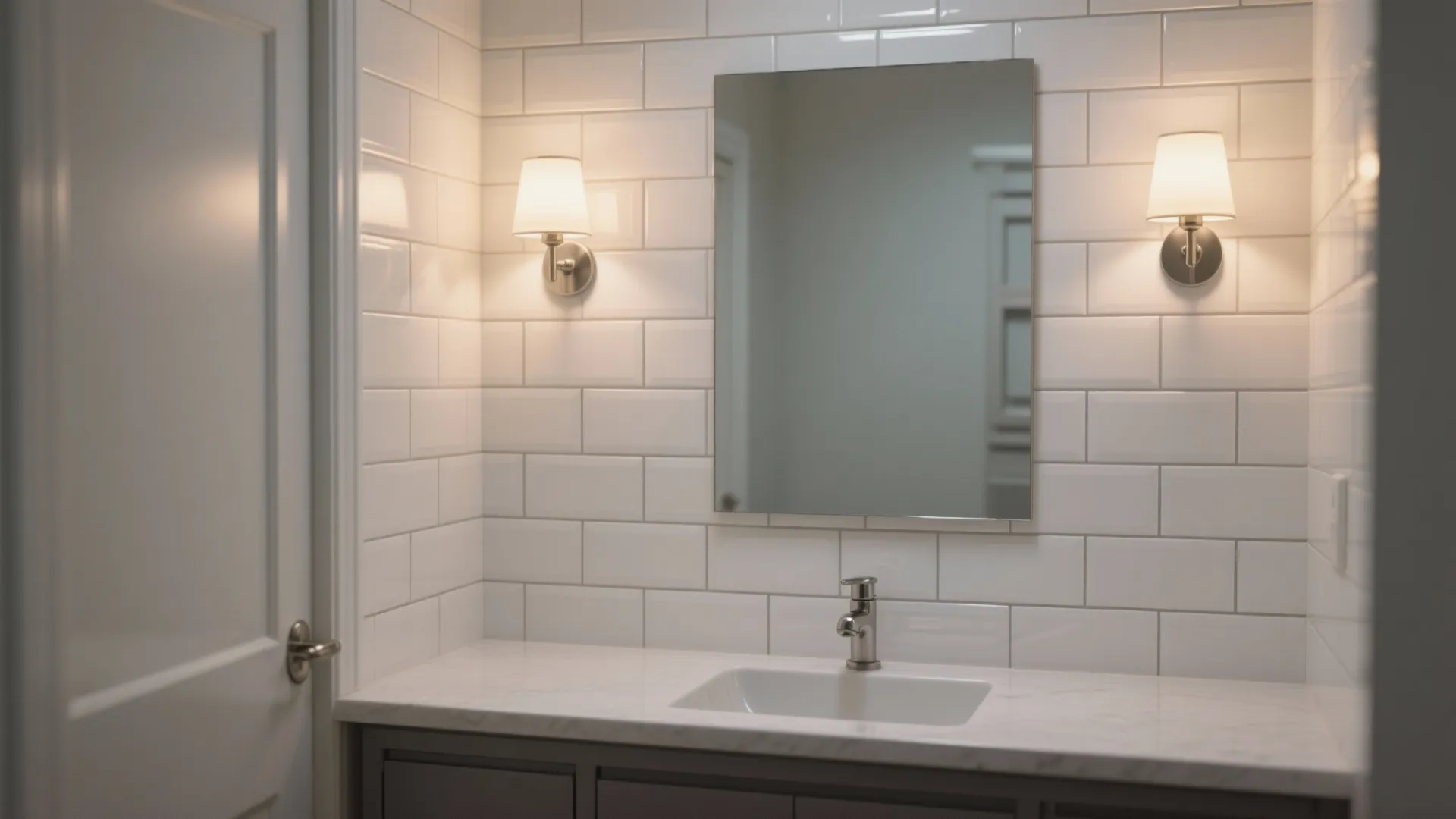

3D Beveled Subway Around the Vanity

My Take: A beveled, 3D subway tile is my secret for rental refreshes because it looks crisp under vanity lights and keeps splashes off paint. In a recent micro-bath, we ran beveled tile to mirror height and used a soft gray grout to highlight the subtle shadow lines without going full contrast.

Pros: 3D ceramic subway tiles with dark grout add graphic definition without overwhelming a small room. The beveled edge throws micro-shadows that pop in photos and real life, and the classic format means easy sourcing and lower labor. In splash zones, glazed ceramic is low maintenance and easy to wipe clean.

Cons: High-contrast grout lines can accentuate lippage if your wall isn’t dead flat, so invest in proper prep. The bevel can complicate mirror or shelf mounting—make sure mounting hardware clears the raised edges. And if your lighting is harsh, the bevel may cast sharper lines than you’d like; dimming solves it.

Tips/Case/Cost: Keep grout 1.5–2 mm to reduce cleaning and preserve the tile’s 3D effect. I often run the pattern horizontally to visually widen a narrow vanity wall. Price ranges from $4–$12 per sq ft for ceramic; glass or handmade versions can climb to $30+ per sq ft.

save pin

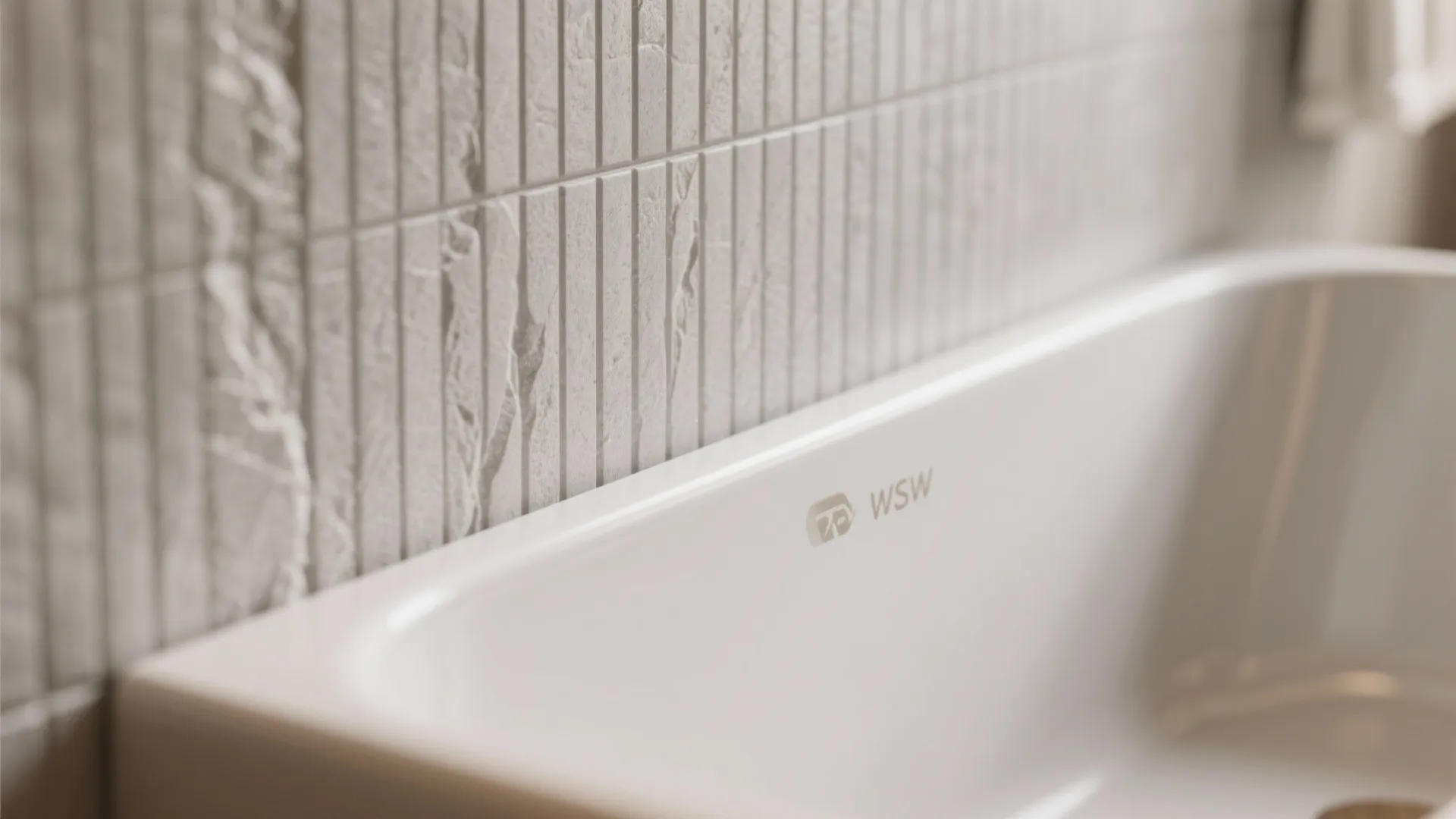

Matte Stone-Look Relief for a Calm Spa

My Take: When clients say “spa,” I hear “muted, matte, tactile.” A light gray stone-look porcelain with subtle relief adds warmth and gentleness that glossy finishes sometimes miss. I’ll often combine a softly raised linear pattern on one wall with flatter mates elsewhere for balance.

Pros: Matte stone-look bathroom tiles reduce glare and hide water spots, perfect for vanity splash zones or behind a freestanding tub. The tactile relief adds depth without loud reflections, ideal when you want quiet sophistication in small bathrooms. If you’re extending the same tile onto the floor, look for a wet-area slip rating per ANSI A326.3 DCOF (for floors only; walls don’t use DCOF), and keep the wall tile matte to visually connect the surfaces (TCNA DCOF guidance: https://www.tcnatile.com/technical-services/dcof).

Cons: Relief plus matte can trap soap film more than a high-gloss glaze, so plan a quick weekly rinse and a soft-bristle brush for grooves. Some stone-look glazes skew cool under daylight LEDs—test with your actual bulbs. And very deep textures can be unforgiving if your wall isn’t well-plumbed.

Tips/Case/Cost: Ask for factory lappato (semi-polish) samples if you want a hint of sheen without losing texture. I run a vertical relief behind the tub to make low ceilings feel taller. Before committing, I like to view a photoreal 3D tile render to confirm how light plays across the relief at different hours. photoreal 3D tile render. Expect $6–$18 per sq ft for textured porcelain; sustainably sourced versions can be more.

save pin

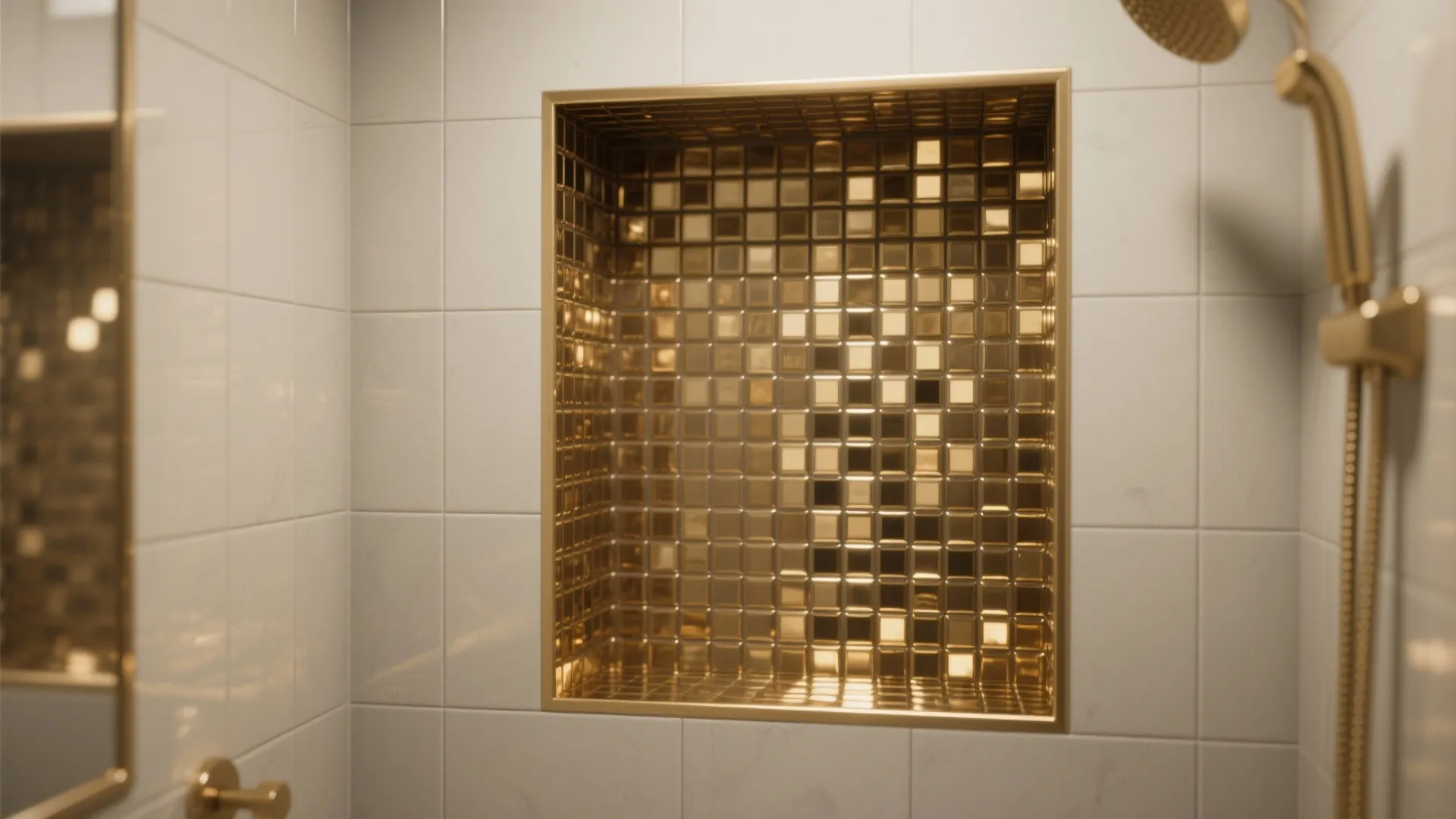

Metallic or High-Gloss 3D Mosaic Accent

My Take: If you crave a bit of glam, a slender accent rail or a niche lined with 3D metallic mosaic delivers impact without dominating the room. I like using a 75–100 mm strip at eye level, especially when the rest of the walls are quiet and matte.

Pros: A small run of 3D mosaic accent tiles in bathrooms creates sparkle where it counts and reflects available light—great in windowless spaces. You can coordinate metals with fixtures (brushed nickel with cool grays, warm brass with taupe or cream). Because you’re using less square footage, it’s budget-friendly luxe.

Cons: High-gloss and metallic finishes show fingerprints and water spots more readily, so place them away from high-touch areas. In very hard-water locations, mineral buildup dulls the shine—use a gentle, non-acidic cleaner. Also, direct overhead lighting can glare on glossy relief; diffuse the light with a frosted lens or wall sconces.

Tips/Case/Cost: Keep accent lines continuous—don’t step them up and down across fixtures unless you’re intentionally creating a motif. In niches, combine a glossy back with matte side walls to avoid mirror-in-a-mirror reflections. Expect $12–$40 per sheet depending on material (glass, glazed ceramic, or real metal inlays).

save pin

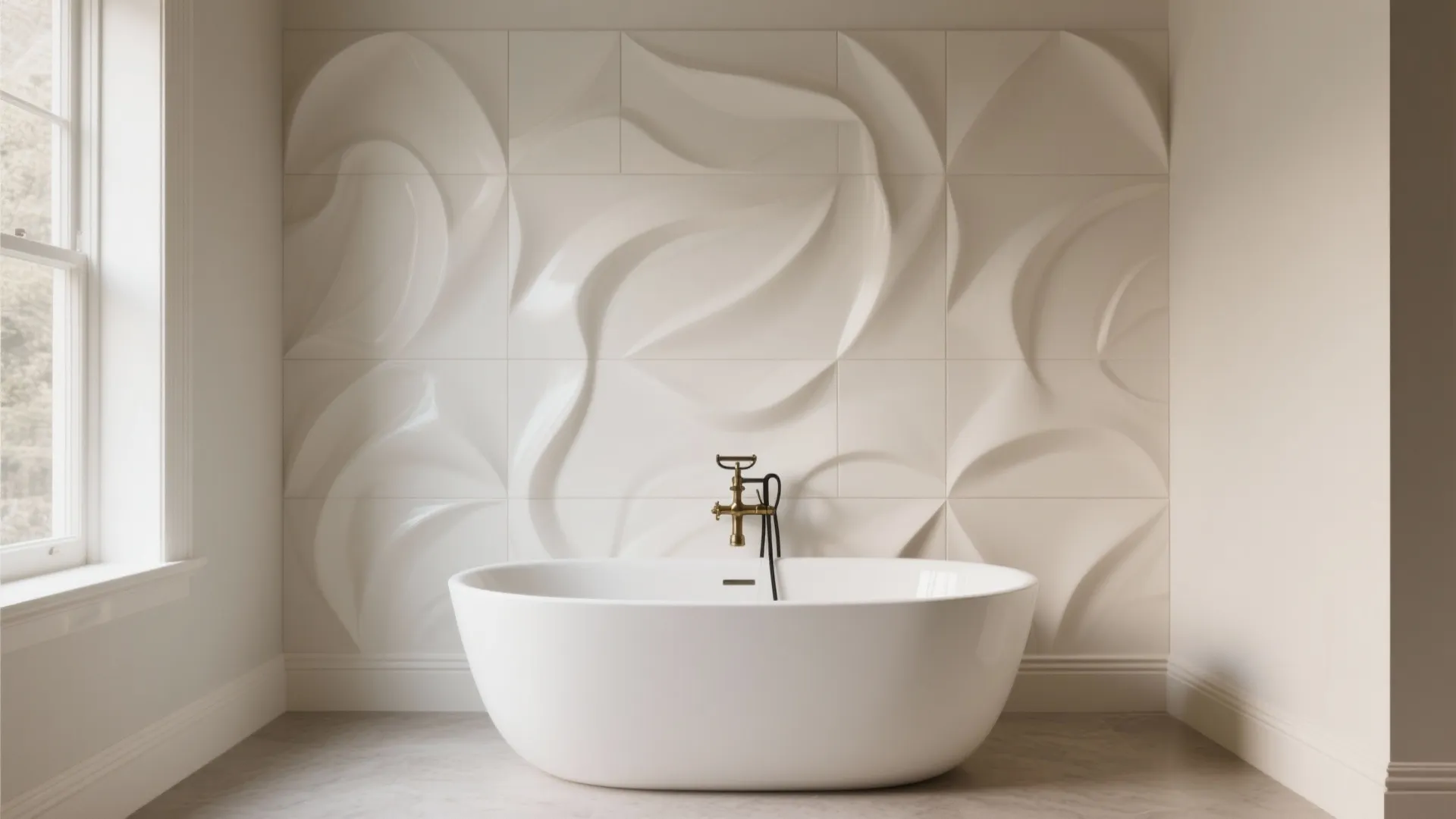

Large-Format 3D Panels Behind the Tub or WC

My Take: Outside direct spray zones, lightweight 3D wall panels (gypsum or PVC) can create a fast, dramatic feature with minimal grout. I’ve used them behind freestanding tubs and behind the toilet to add depth on a tight timeline, then sealed and painted to match trim.

Pros: Lightweight 3D wall panels for bathrooms (outside wet zones) go up quickly, cover unevenness, and give you the depth you want without lots of grout maintenance. They’re ideal when you need a quick weekend bathroom accent wall and your plumbing layout limits tile cuts. With the right primer and paint, you can recolor later without demolition.

Cons: These panels aren’t for direct water exposure—avoid the shower interior and anywhere a handheld sprayer reaches. Low-quality PVC can yellow under strong light, and gypsum needs proper sealing to avoid moisture issues. Seams may be more visible than you expect; fill and sand carefully.

Tips/Case/Cost: Keep at least 600 mm from the tub spout or any constant splash source, and always seal per manufacturer guidelines. Building best practices limit water-resistant gypsum in constant-wet areas; rely on tile or cement board inside showers (Gypsum Association GA‑216 guidance: https://www.gypsum.org/ga-216-application-and-finishing-of-gypsum-panel-products/). If you prefer pattern over relief, a bold herringbone feature wall can deliver movement with simpler maintenance. Budget around $4–$10 per sq ft for panels, plus paint.

[Section: Summary]

In my experience, small bathrooms don’t limit you—they demand smarter moves. With 3D bathroom wall tiles, you can shape light, stretch sightlines, and express personality without adding clutter. Choose materials fit for wet areas, test lighting, and commit to manageable maintenance, and you’ll get big results in a compact footprint.

If you’re weighing finishes, remember that porcelain’s low absorption makes it a reliable hero for showers, and matte relief is your friend when you want serenity. Which of these five ideas are you most excited to try first?

[Section: FAQ]

save pin

FAQ

Q1: Are 3D bathroom wall tiles good for small bathrooms?

A1: Yes—relief and shadow add perceived depth, so walls feel farther apart. Keep palettes light-to-mid and limit the bold texture to one feature wall to avoid visual clutter.

Q2: Can I use 3D tiles inside a shower?

A2: Absolutely, if the material suits wet areas. Impervious porcelain or low-absorption ceramic is ideal for showers; look for porcelain with ≤0.5% water absorption per ANSI A137.1 (summary via TCNA’s Why Tile: https://whytile.com/types-of-tile/porcelain-tile/).

Q3: Do matte or glossy 3D tiles work better?

A3: Matte gives a soft, spa-like look and hides water spots, while glossy reflects more light and feels brighter. In tiny baths, pairing a matte field with a small glossy accent balances calm and sparkle.

Q4: What grout is best with 3D bathroom wall tiles?

A4: For showers, stain-resistant or epoxy grout helps with longevity and cleaning. Match grout to the tile for a seamless look, or choose a gentle contrast to emphasize 3D geometry.

Q5: How do I clean 3D relief without damaging it?

A5: Use a soft brush or microfiber cloth with a pH-neutral cleaner. Avoid harsh abrasives on glazed surfaces, and rinse grooves to prevent buildup on wave or chiseled textures.

Q6: Will 3D tiles make my bathroom look busy?

A6: Not if you control scale and placement. Restrict strong relief to a single wall or niche, keep adjacent walls flatter, and stick to a cohesive color story.

Q7: Are there safety considerations for floors vs. walls?

A7: Yes—DCOF slip resistance testing (ANSI A326.3) applies to floors only, not walls. If you’re continuing the same tile to the floor, confirm floor-rated slip resistance; walls can be chosen solely for the look you love (TCNA DCOF: https://www.tcnatile.com/technical-services/dcof).

Q8: What’s a realistic budget for 3D bathroom wall tiles?

A8: Most textured ceramics run $6–$20 per sq ft, with specialty mosaics higher. Don’t forget surface prep, trims, and 5–10% overage for layout and pattern alignment.
