5 Ideas for 5 Feet by 8 Feet Bathroom Design: A senior designer’s field-tested playbook to make a 5x8 bath feel bigger, brighter, and easier to live in—without blowing the budget

[Section: Introduction]

I’ve remodeled more 5 feet by 8 feet bathroom design projects than I can count, and the trend I’m still loving is transparency and light. Swapping a tub for a Frameless glass shower to open sightlines has been a game-changer in several recent condos—suddenly the entire footprint reads as one volume instead of chopped-up zones.

Small spaces truly spark big creativity. When every inch counts, the details you choose work harder, from the grout line you can’t see to the mirror that quietly doubles your light. I’ve learned to edit, layer, and plan with a laser focus on function.

In this guide, I’ll share 5 design ideas tailored to a 5 feet by 8 feet bathroom design. You’ll get my firsthand take, pros and cons, and pragmatic tips backed by expert guidance where it matters most.

[Section: Inspiration List]

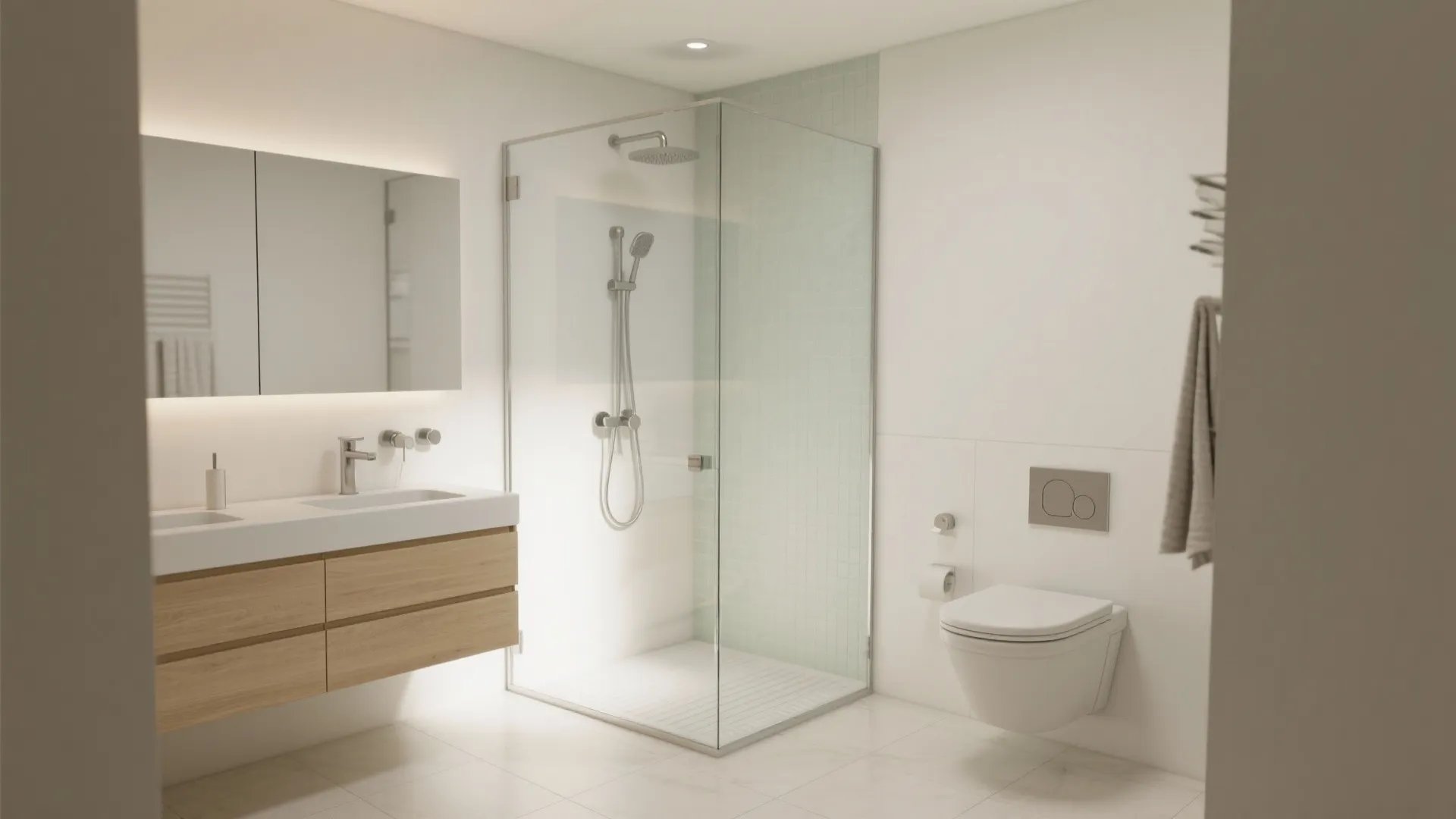

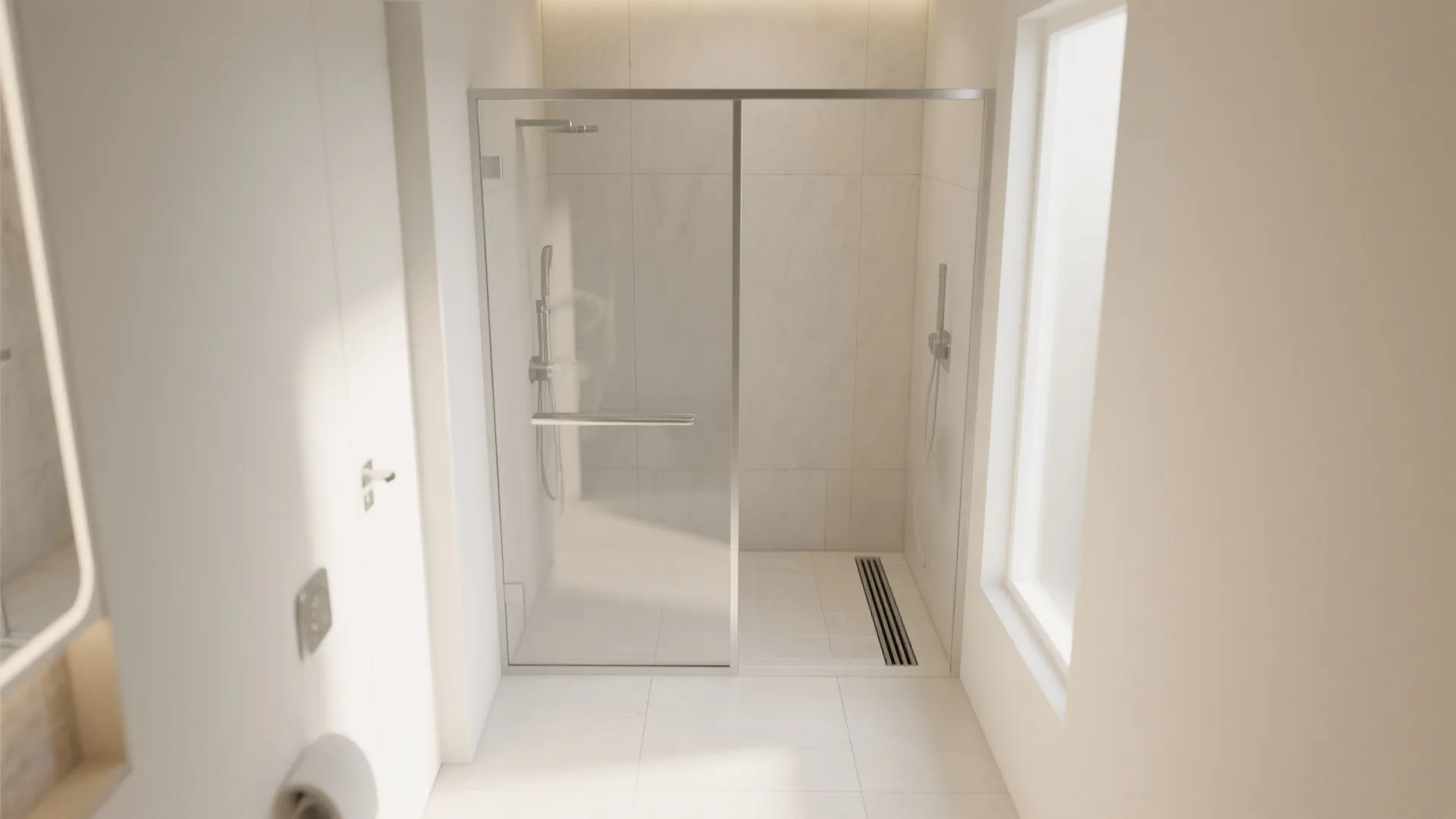

Frameless Shower + Linear Drain: Make the Room Feel Continuous

My Take: In a narrow 5x8, I often convert tubs to curbless walk-in showers with a linear drain along the back wall. One client’s dated alcove tub became a seamless shower, and the bath instantly felt a foot wider—without moving a wall.

Pros: A frameless panel removes visual breaks, so a 5x8 bathroom layout reads as larger and brighter. Curbless entry improves accessibility and makes cleaning easier, while a linear drain allows subtle floor slope and a single plane of large-format tile. Light reflects deeper with fewer partitions, supporting a more open small bathroom design.

Cons: Waterproofing must be meticulous, especially around the transition and drain housing—this is not the corner to cut. Curbless showers need proper subfloor recess or a slight step-up, which can add labor in older buildings. Frameless glass shows water spots if you skip a daily squeegee—part of the minimalism contract.

Tips/Case/Cost: If your plumbing stack is fixed, keep the shower in the original “wet zone” to contain costs. For a 5 feet by 8 feet bathroom design, I aim for a 36-inch wide shower clear space; a 32-inch panel can still feel generous in tight sites. Choose a single fixed panel and a minimal channel; budget roughly mid-to-high three figures for glass, plus waterproofing and tile labor.

save pin

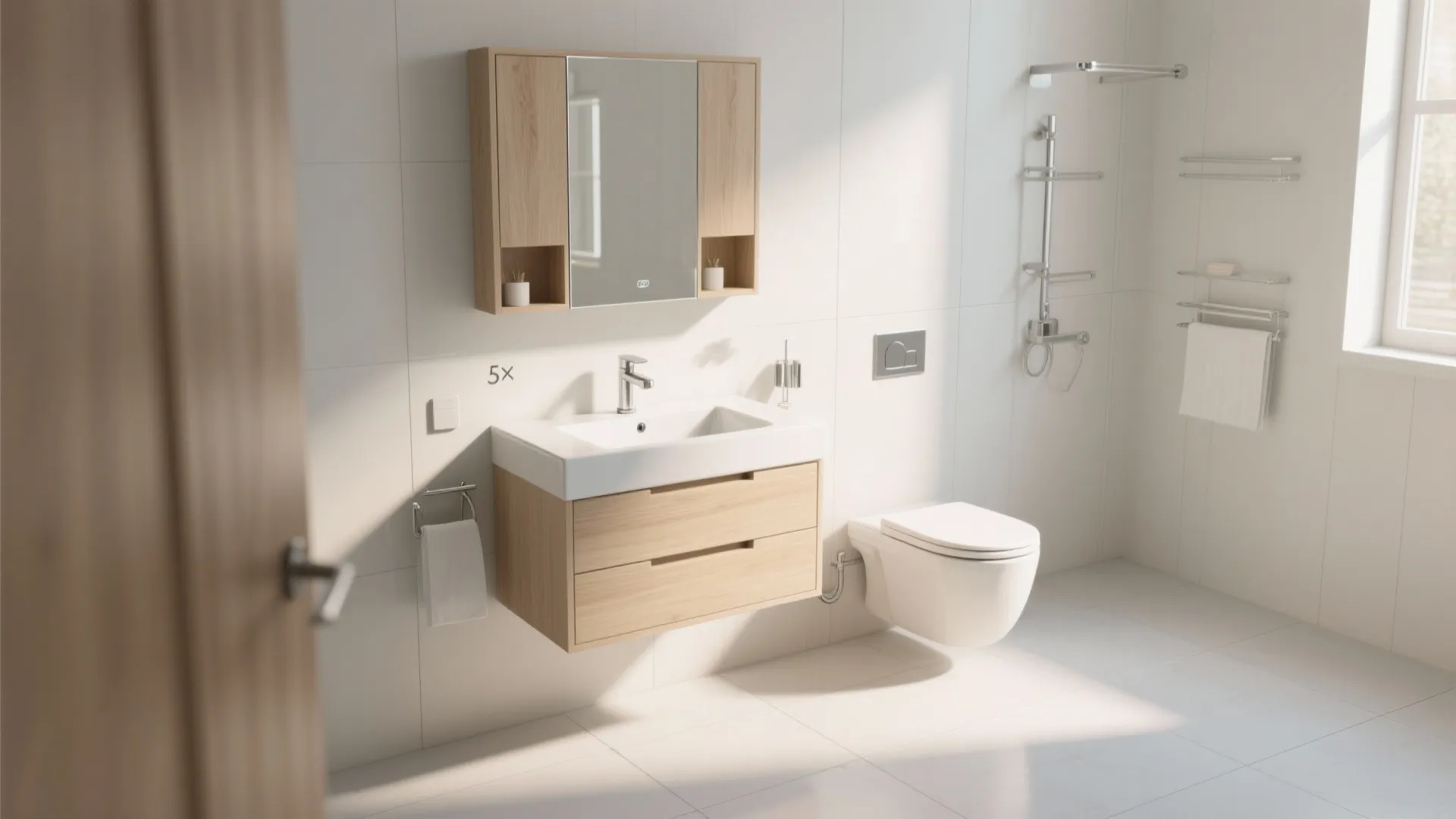

Float It: Wall-Hung Vanity and Toilet to Free the Floor

My Take: The first time I installed both a wall-hung vanity and a concealed-cistern toilet in a 5x8, the floor suddenly read like a continuous surface. Clients literally say, “It feels bigger—what did you do?” Floating pieces create that effect without sacrificing function.

Pros: A wall-hung vanity in a small bathroom reveals more of the floor, which visually expands the footprint. Shallow drawers keep daily-use items within reach and can be customized for tall bottles or hair tools. A wall-hung toilet makes cleaning faster and can be set at a custom height—handy for accessibility or tall clients.

Cons: You’ll need sturdy blocking and often an in-wall carrier for the toilet, which adds early-stage carpentry and plumbing costs. Some floating vanities have less deep storage compared to full-depth vanities, so you must curate. Repairs to in-wall systems are more involved—choose reputable brands with serviceable parts.

Tips/Case/Cost: In a standard 5x8, a 24–30 inch wall-hung vanity with integrated sink fits beautifully. Opt for a shallow profile (18–19 inches) to keep circulation paths comfortable. Pair drawers with a mirrored cabinet above to store everyday items; the combo handles most small bathroom storage solutions elegantly.

save pin

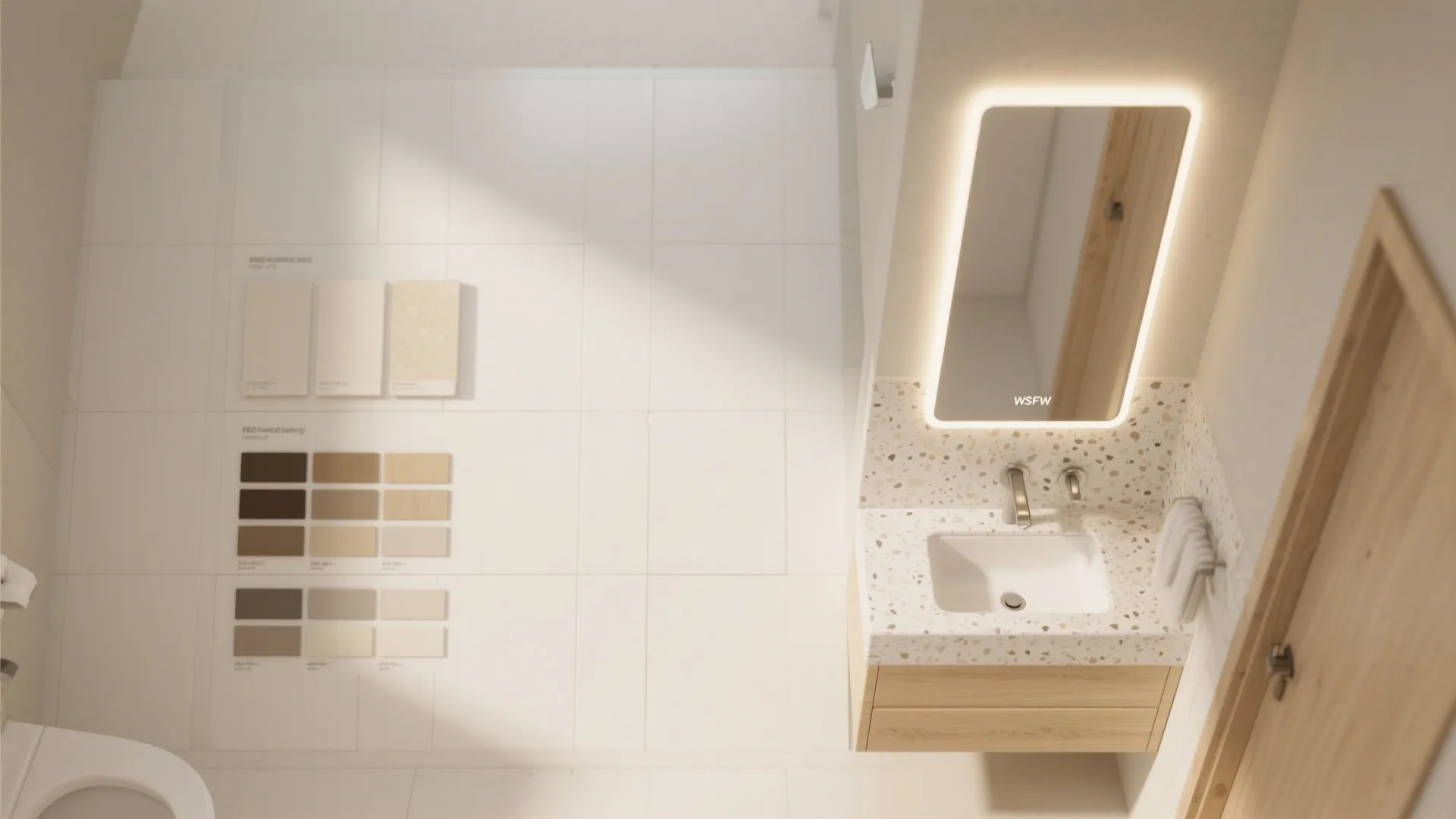

Light, Tile, and Mirror: Stretch the Sightlines

My Take: When I’m chasing spaciousness, I think in continuous planes. Light-toned, large-format porcelain on the floor, a color-matched grout, and a tall mirror over the vanity can turn a 5x8 into a calm little gallery.

Pros: Large-format tiles reduce grout lines, minimizing visual clutter in a 5x8 bathroom layout. A high-LRV (light reflectance value) palette bounces light around—pair with a backlit mirror for gentle, shadow-free grooming. Running the same tile from the floor into the shower, or a single wainscot height on all walls, creates strong horizontal continuity.

Cons: Bigger tiles need flat substrates; uneven floors or walls require prep and can increase labor. High-gloss finishes can show water spots more easily, and very light grout can stain if not sealed or maintained. Mirrors opposite a toilet might feel visually “busy” for some—choose placement intentionally.

Tips/Case/Cost: Aim for 12x24 inch porcelain or larger; staggered joints or a simple grid both work. Combine an anti-fog mirror with 3000–3500K LED lighting for flattering skin tones. When clients ask how to visualize combinations, I point them to mood boards and a test render—imagining a Wall-hung vanity to free floor space against a pale terrazzo-look tile makes choices faster and more confident.

save pin

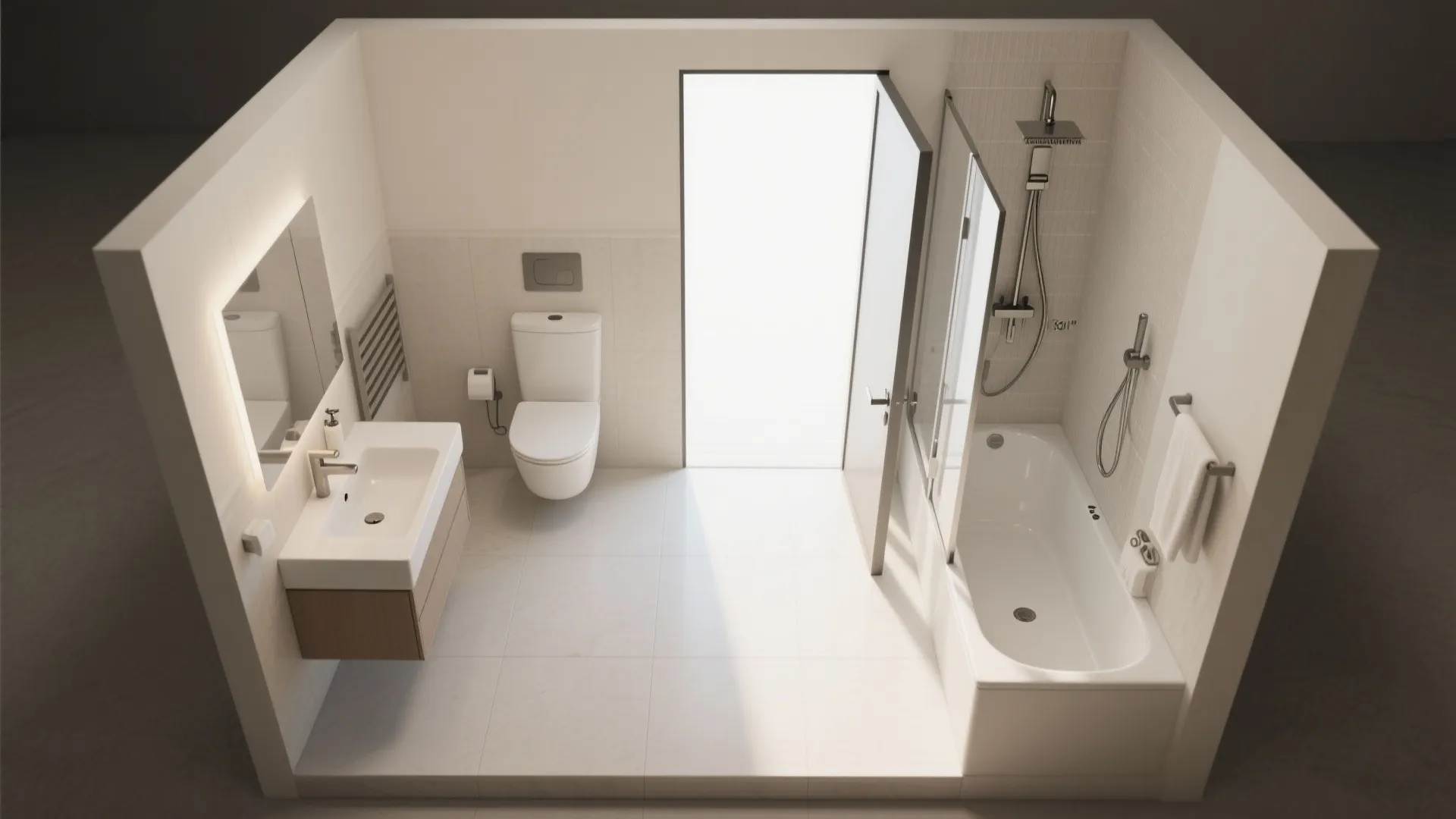

Smart Layout and Door Strategy: Earn Back Inches

My Take: Two moves repeatedly unlock a 5 feet by 8 feet bathroom design: stack the wet zone along one wall and rethink the door. A pocket or out-swing door often frees the circulation path and keeps the center of the room clear.

Pros: Wet-wall stacking reduces plumbing runs and preserves budget for finishes. A pocket door or out-swing prevents clashes with the vanity and allows a slimmer fixture package. According to the NKBA Bathroom Planning Guidelines, a 30-inch recommended clearance in front of fixtures (24 inches minimum) improves comfort and safety—suddenly, a tight room feels manageable when doors don’t intrude.

Cons: Pocket doors require a clean wall cavity, so you’ll lose that spot for deep recessed storage. Not all buildings or codes allow out-swing doors into hallways; check early. Tight-turn condos may still dictate a standard in-swing, so you’ll tune your fixture depths even more carefully.

Tips/Case/Cost: In a classic 5x8, I like a left-to-right sequence of vanity, toilet, shower along one wall, with a 24–30 inch vanity and a 60-inch shower footprint replacing the tub. If a pocket door isn’t feasible, use minimal door hardware and a shallow vanity to keep the entry path clean. Always confirm local code clearances and ventilation requirements before finalizing layout.

save pin

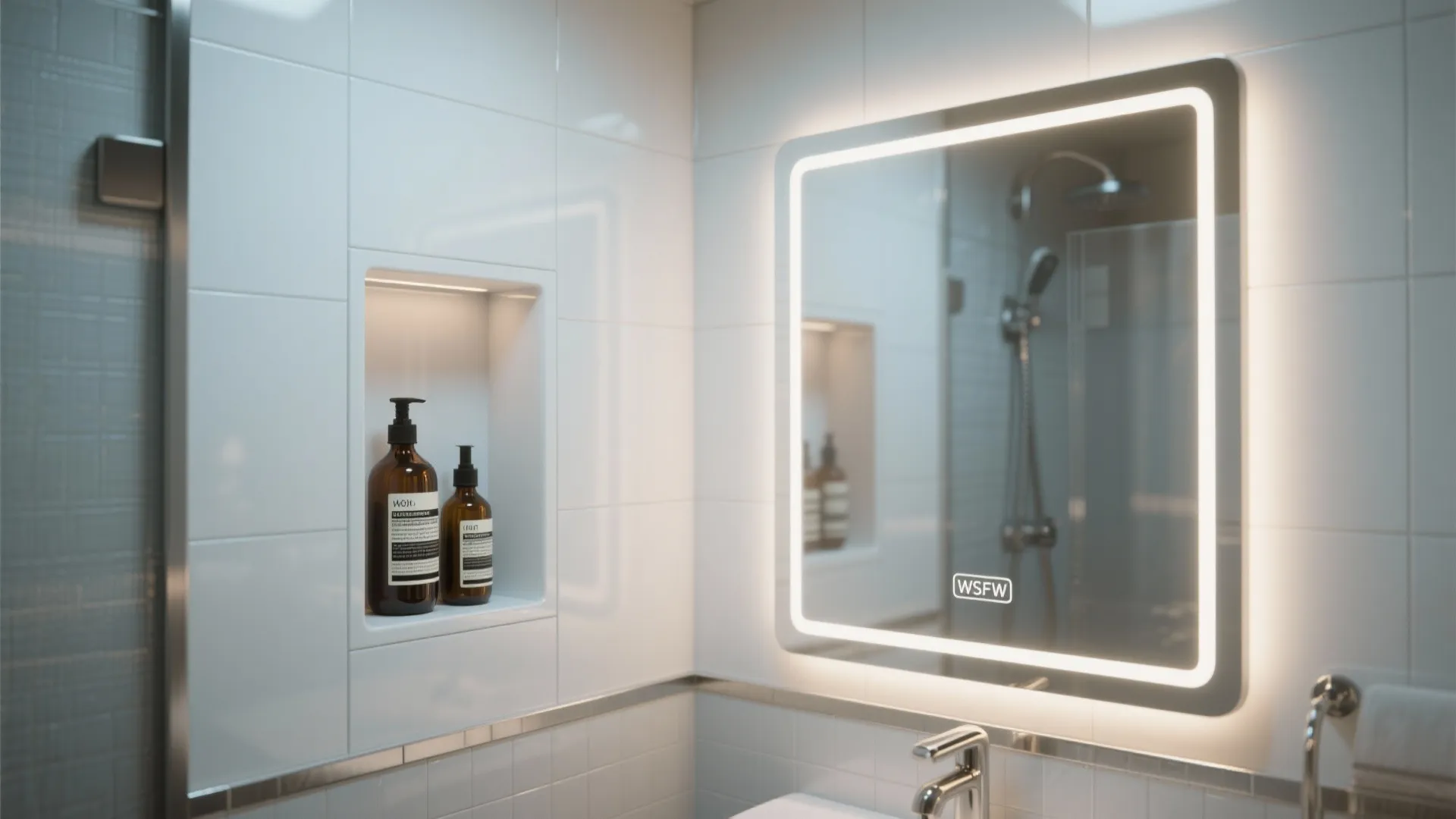

Recessed Storage + Layered Lighting and Ventilation

My Take: In a 5x8, the walls are your secret storage—and the air is your comfort. Recessed niches, between-stud cabinets, and a quiet fan on a timer make a small bath feel gracious day after day.

Pros: Recessed medicine cabinets and shower niches keep essentials handy without stealing floor area—a big win for small bathroom storage solutions. Layered lighting (ambient, task, and accent) minimizes shadows and makes a compact room feel more premium. A humidity-sensing fan protects finishes and keeps mirrors clear after showers.

Cons: Between-stud storage is shallow, so bulky items still need a home—consider an over-door shelf for extra towels. Misplaced niches can create water traps; locate them away from direct spray or waterproof meticulously. Cheap fans are noisy and ineffective—spend a little more for quiet performance.

Tips/Case/Cost: I love a 4-inch deep recessed cabinet over the vanity and a tall shower niche that suits bottles without looking cluttered. Add a dimmable backlight behind the mirror for nighttime trips. In one renovation, specifying a Recessed niche keeps shower clutter-free plus a soft perimeter cove made the room feel styled, not squeezed. For ventilation, look for 80–110 CFM with low sones in a 5x8; tie it to a timer or humidity sensor so it actually runs long enough.

[Section: Summary]

A 5 feet by 8 feet bathroom design isn’t a limitation—it’s an invitation to design smarter. By opening sightlines, floating key fixtures, minimizing visual breaks, respecting clearances, and hiding storage in the walls, you elevate both function and feel.

In my projects, the best results come from an edited palette, reliable waterproofing, and a few well-placed upgrades that work every single day. Start with the layout, then lock in surfaces and lighting that make the room feel calm and continuous.

Which of these five ideas would you try first in your 5 feet by 8 feet bathroom design?

[Section: FAQ]

save pin

FAQ

Q1: What is the best layout for a 5 feet by 8 feet bathroom design?

A1: A classic approach is lining up the vanity, toilet, and a 60-inch shower or tub along one wall to simplify plumbing. It keeps circulation clear and maximizes usable counter and storage space.

Q2: Can a walk-in shower fit in a 5x8 bathroom layout?

A2: Yes, a 60x32–36 inch walk-in shower fits most 5x8 rooms when replacing a standard tub. Use a frameless panel and linear drain to maintain an open, continuous floor look.

Q3: How do I make a small 5 feet by 8 feet bathroom feel bigger?

A3: Minimize visual clutter with large-format tile, color-matched grout, and a continuous palette. Float the vanity, use a large mirror or mirrored cabinet, and keep the shower enclosure frameless.

Q4: What clearances should I respect in a small bath?

A4: The NKBA recommends about 30 inches of clear space in front of fixtures, with 24 inches as a minimum. Keeping door swings from intruding into that area makes a noticeable difference in a 5x8.

Q5: Is a wall-hung toilet worth it in a 5x8?

A5: If you can add in-wall support, yes—freeing the floor visually expands the room and makes cleaning easier. It also allows a customizable seat height in tight spaces.

Q6: What tile size works best in a 5 feet by 8 feet bathroom design?

A6: 12x24 inch porcelain or larger reduces grout lines and helps a small room feel calmer. Ensure your floor is prepped flat so large tiles set cleanly.

Q7: How should I light a 5x8 bathroom?

A7: Combine ambient ceiling light with a backlit or side-lit mirror for flattering, shadow-free task lighting. Keep color temperature around 3000–3500K for a warm, natural look.

Q8: What ventilation is recommended for a 5x8?

A8: Aim for an 80–110 CFM, low-sone fan on a timer or humidity sensor to control moisture and protect finishes. The U.S. EPA’s WaterSense program also recommends efficient fixtures to reduce water use while maintaining performance.
