5 Ideas for Small Bathroom with Washing Machine: Practical, code-savvy and cozy design moves that make a mini bath + laundry combo actually work

[Section: Introduction]

When clients ask me to design a small bathroom with washing machine, I smile—because small spaces force big creativity. Over the past decade, I’ve tucked washers under vanities, slid dryers behind mirrors, and even turned a shower wall into a stealth laundry tower.

The latest interior design trend I’m seeing is smarter zoning: clear “wet” and “dry” areas, understated storage, and multi-function fittings that let you do more in less space. Materials are quieter, lines cleaner, and every inch earns its keep.

In this guide, I’ll share 5 design inspirations I’ve tested in real homes. You’ll get my personal take, pros and cons with long-tail tips, and a few code- and cost-savvy notes from trusted sources. Let’s make your compact bathroom-laundry feel intentional, not improvised.

[Section: Inspiration List]

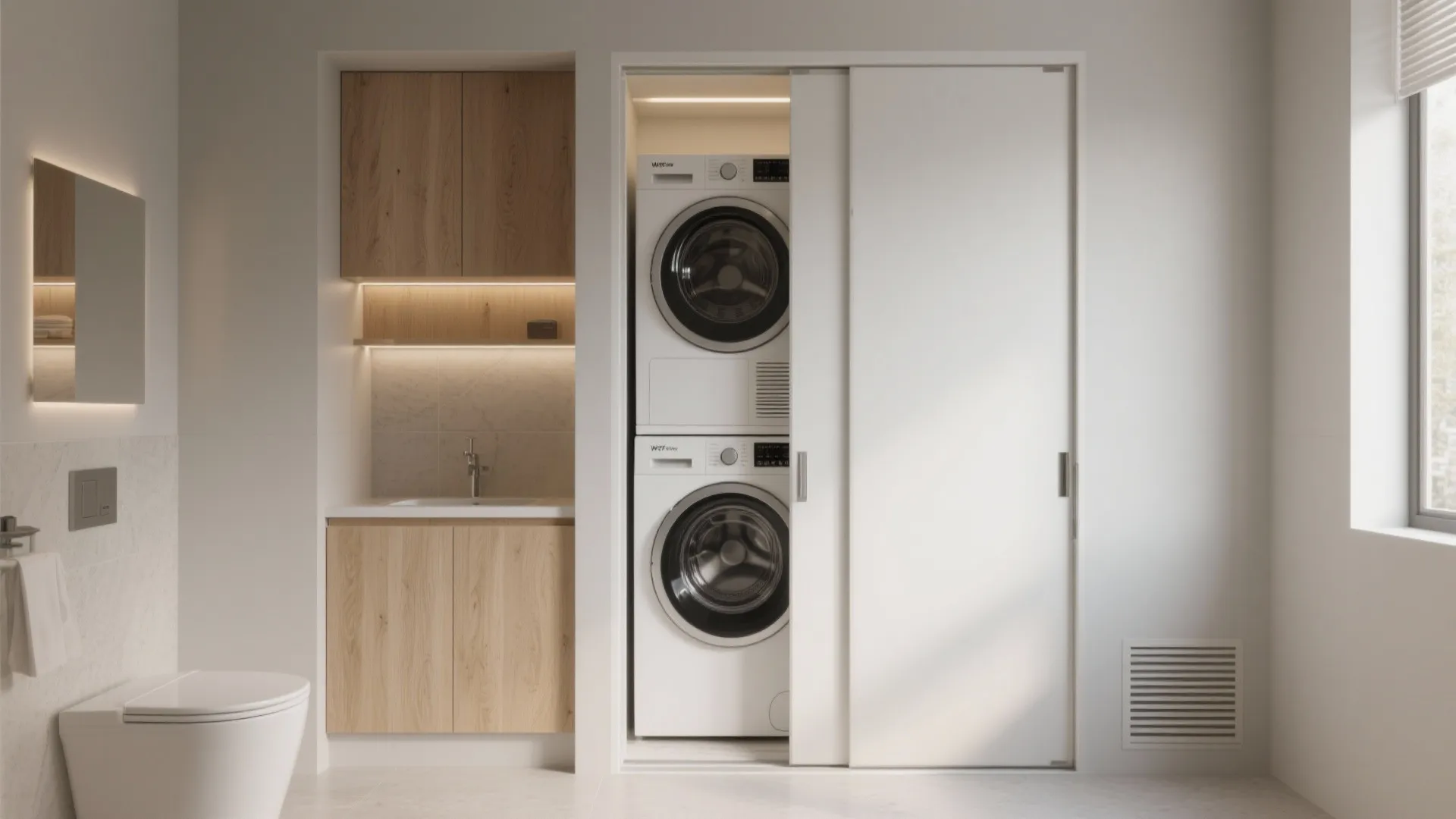

Stacked Laundry Tower with Sliding or Pocket Doors

My Take

When floor space is tight, I often stack a compact washer and a ventless dryer in a wall niche and hide them with slim sliding or pocket doors. I did this in a 3.6 m² condo bath; the doors kept the look serene and the laundry fully accessible.

Pros

Stacking frees floor area for a wider vanity or a roomier shower—ideal for a small bathroom with washing machine layout. Ventless heat-pump dryers or condensing units mean you don’t need to punch a vent through the façade, a common condo constraint. With a 600 mm x 600 mm footprint, a Euro-style pair can disappear into a 650–700 mm deep cavity.

Door fronts let you echo the main finishes—matte white or light wood—to keep visual calm. Add an auto-on LED strip and it becomes a tiny laundry “room” inside your bathroom.

Cons

Heat and humidity build-up is real. If you skip ventilation, towels may stay damp and your machines will work harder. Pocket doors also steal some wall thickness; if you’re short on depth, go for sleek surface sliders instead.

Tips / Cost

Allow 25–50 mm clearance at sides and rear for hoses and vibration, plus a drip pan and floor drain if your region allows. Expect cabinetry and doors to add $900–$2,000 to the appliance cost, depending on finishes. For a visual, think about a stacked washer-dryer behind sliding doors—an approach I rely on when hall closets are not an option: stacked washer-dryer behind sliding doors.

save pin

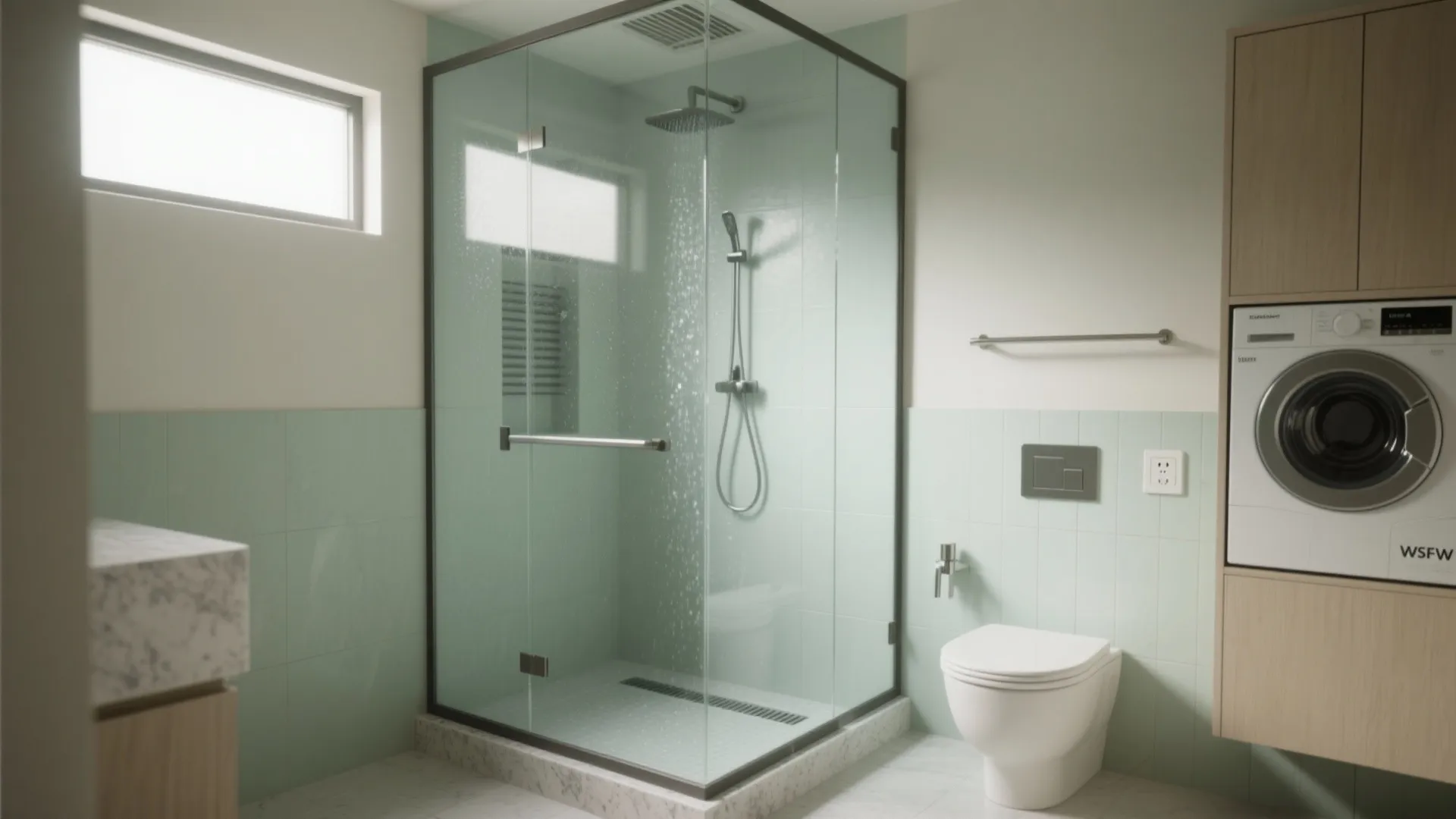

Wet Room Glass Partition to Separate Splash and Storage

My Take

Turning the shower and tub area into a “wet room” with a fixed glass panel lets me keep the laundry on the dry side. I first did this for a family who air-dried clothes on a fold-down rack; the glass kept the spray where it belonged.

Pros

A frameless panel preserves the airy feel while protecting laundry cabinets and power outlets—essential for combined bathroom laundry design. A low curb or linear drain makes cleanup easy and reduces trip hazards for multi-generational homes.

Ventilation gets more efficient when steam is contained. Pair a good exhaust fan with a humidity sensor to maintain comfort without constantly running the unit.

Cons

Glass needs regular squeegeeing or water spots will show, especially on dark tiles. If you have very limited width, swinging shower doors can clash with appliance doors—fixed glass is better than hinged in tight rooms.

Authority Note

ASHRAE 62.2 recommends at least 50 cfm of intermittent exhaust for bathrooms to control moisture; in practice, I size up to 80–110 cfm for a bathroom-laundry hybrid, especially with ventless dryers. Source: ASHRAE Standard 62.2-2019.

save pin

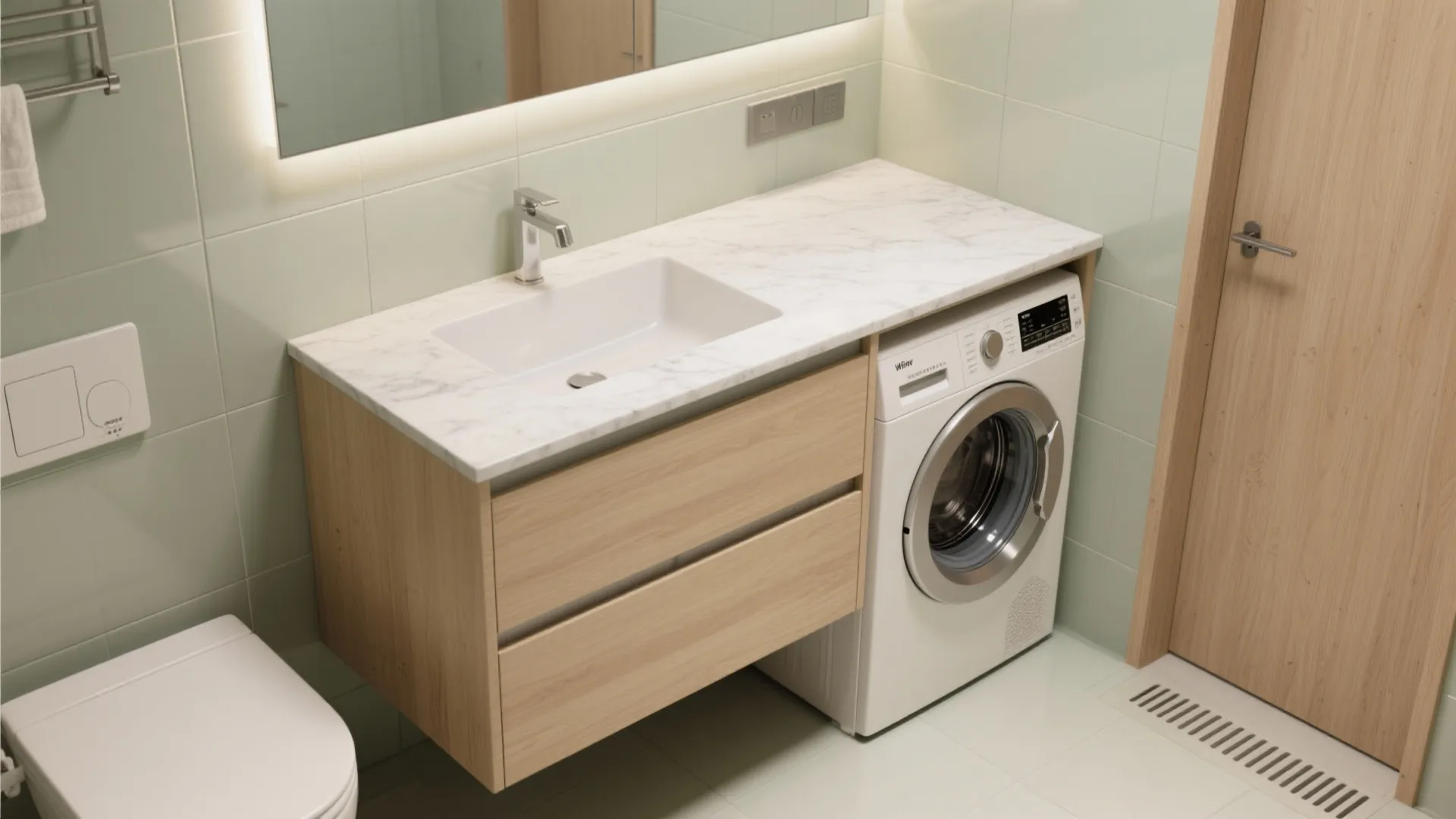

Under-Counter Washer with a Longer, Integrated Vanity

My Take

I love slipping a compact front-loader under an extended vanity counter, then running the countertop right over it for a continuous, custom look. In a studio I remodeled, that single slab made the room feel twice as wide.

Pros

Visually, the long counter reduces clutter lines, perfect for a small bathroom with washing machine design that still feels spa-like. Functionally, the extra landing space is gold for sorting clothes, folding towels, or setting toiletries.

You also gain a deeper sink base, allowing a larger basin and real drawer storage beside the machine. With good insulation, noise is surprisingly manageable.

Cons

Standard vanities are 450–510 mm deep; most washers are 550–600 mm. You’ll need a custom depth or a bump-out, which can steal a bit of walkway. S-traps, hoses, and power cords require careful routing to avoid pinches and vibration.

Tips / Case

Opt for a 24-inch class washer (about 60 cm wide) with quiet cycles and anti-vibration, and line the vanity side panels with acoustic mat. If you like how a single counter visually stretches the room, this example phrase mirrors the effect: glass partition keeps the wet zone contained—think similar visual lightness for your vanity run.

save pin

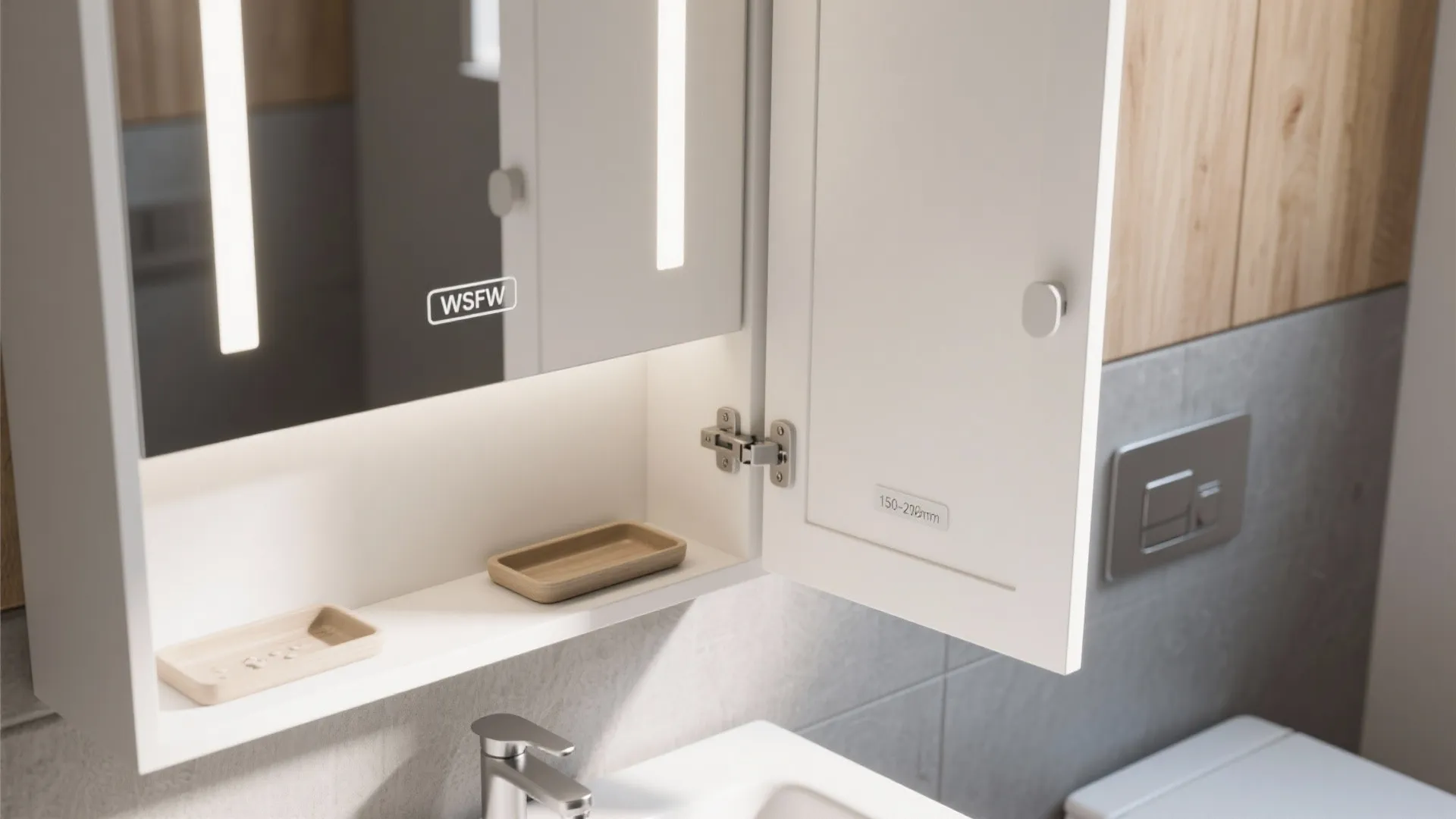

Vertical Storage: Over-Toilet Cabinetry and Recessed Mirrors

My Take

In small bathrooms, the wall above the toilet is prime real estate. I build shallow cabinets there and recess a mirrored cabinet above the sink to hide detergents, dryer sheets, and stain sticks.

Pros

You keep the floor uncluttered, which matters when the washing machine door swings out. Mirrored cabinets bounce light around and make even a tiny bathroom with washer-dryer combo feel brighter.

Shallow shelves (150–200 mm) are perfect for bottles without crowding your head space. Line the lowest shelf with a small tray to catch drips from wet items.

Cons

Recessing a cabinet requires checking for studs, plumbing vents, and wiring. Above a toilet, doors that swing out too far can bump your forehead—go with soft-close hinges or sliders.

Authority Note

Keep relative humidity below 60% (ideally 30–50%) to discourage mold growth, especially with laundry in a bath. Source: U.S. EPA, “An Introduction to Indoor Air Quality: Mold.” Pair your storage plan with a dehumidifier mode on the fan.

Tip / Link

Use magnetic labels on the inside of the mirror door to keep cycles and stain-removal notes handy. If you’re integrating laundry into vanity storage, this phrasing mirrors the built-in aesthetic: under-counter washer integrated into the vanity.

save pin

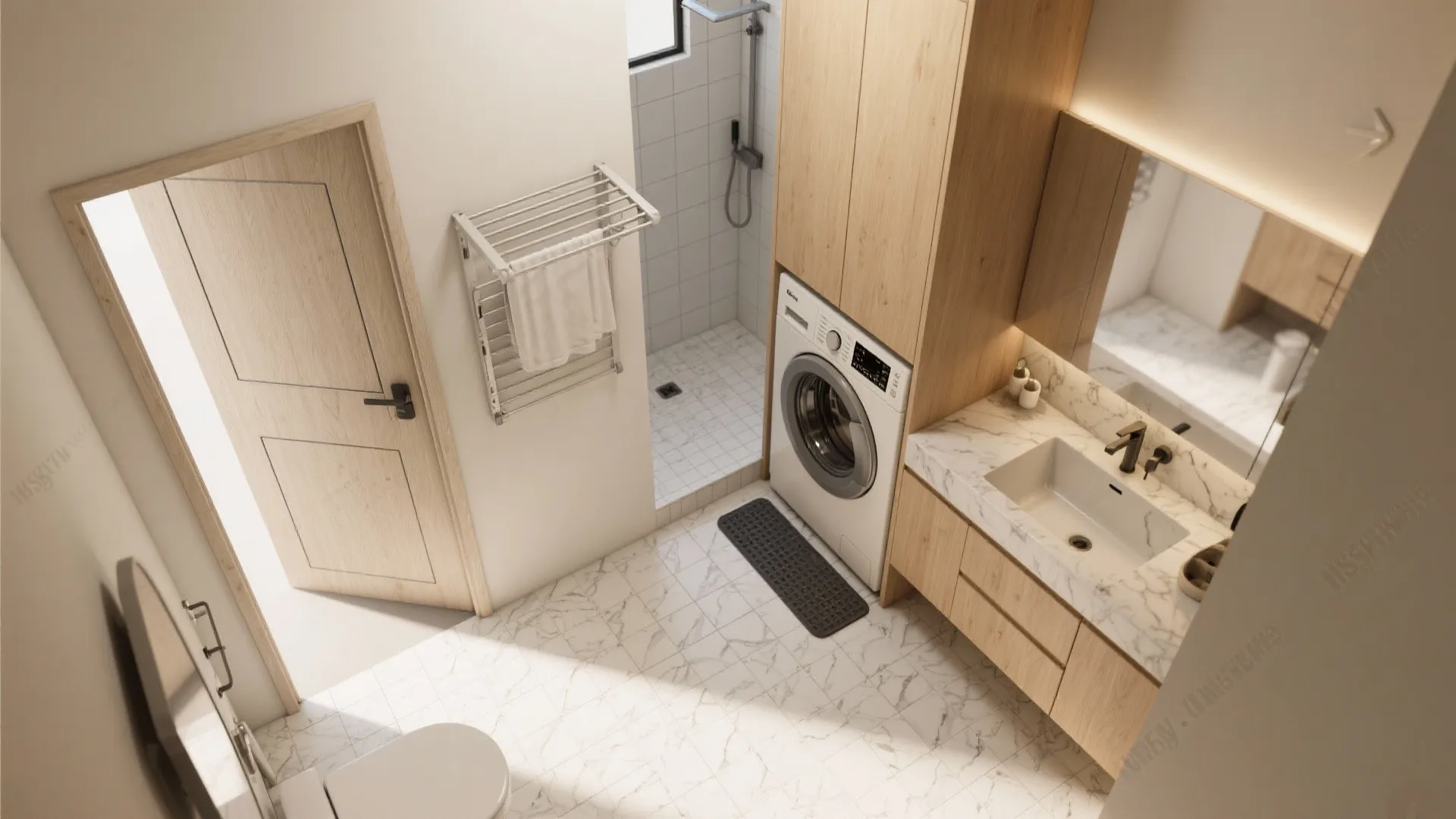

Smart Doors, Drying, and Noise Control

My Take

Door swing is the biggest hidden space-hog I see. Pocket doors, barn-style sliders with proper seals, and bi-fold shower screens open up the circulation so laundry becomes easier to manage.

Pros

A pocket entry door can free 0.5–0.7 m² of floor area, enough for a pull-out hamper or a slim linen tower. Fold-down drying racks above the wet zone let delicates drip without monopolizing the room, a classic tiny bathroom washer dryer idea.

Acoustic upgrades—rubber feet for the washer, anti-vibration pads, and a solid-core door—dampen spin-cycle noise so late-night laundry won’t wake your household.

Cons

Pocket doors need a straight wall without major wiring or plumbing. Barn-style doors look great but need careful sealing for humidity and odor control; they’re not ideal if your exhaust fan is underpowered.

Code & Cost Note

In the U.S., GFCI protection is required for laundry area receptacles, including 125–250V in dwellings (NEC 210.8(A)(10), 2020). Budget $250–$600 for a solid-core door and $80–$120 for quality anti-vibration pads. For drying efficiency, aim a fan toward a heated towel rail during winter to speed things up without overheating the room.

[Section: Summary]

A small bathroom with washing machine isn’t a compromise; it’s an invitation to design smarter. By stacking vertically, zoning moisture with glass, extending the vanity for under-counter machines, claiming vertical storage, and optimizing doors and drying, you can turn a tight room into a calm, hardworking space.

I lean on ASHRAE ventilation guidance and EPA humidity targets to keep comfort and durability high. Now I’m curious: which of these five ideas would you try first in your home?

save pin

FAQ

[Section: FAQ]

1) What size washer fits a small bathroom with washing machine layout?

Look for 24-inch class (about 60 cm wide) compact front-loaders. Depth varies from 53–60 cm; measure the door swing and allow 2–5 cm behind for hoses.

2) Do I need a special exhaust fan if I add laundry to my bathroom?

Yes. Bathrooms with laundry create more moisture and heat. ASHRAE 62.2 calls for at least 50 cfm intermittent exhaust; I often specify 80–110 cfm and a humidity sensor for real-world conditions.

3) Can I use a ventless dryer in a combined bathroom laundry design?

Absolutely. Heat-pump or condenser dryers work well in condos and tight spaces. They add moisture and heat, so pair them with a capable fan and open the cabinet doors during cycles.

4) How do I waterproof around the washer area?

Use a metal or ABS drain pan with a dedicated drain if local code allows, plus a shutoff valve you can reach quickly. Seal the niche with cement board and a liquid waterproofing membrane, just like a shower surround.

5) What about electrical safety in a small bathroom with washing machine?

Follow local code. In the U.S., laundry area receptacles require GFCI protection (NEC 210.8(A)(10), 2020). Keep outlets on the dry side of a glass partition, at least 600 mm from the shower where possible.

6) Can I put the washer under the vanity?

Yes, if you customize depth and manage plumbing. Choose a front-loader, route the trap and hoses to avoid kinks, and add ventilation slots in the cabinet toe-kick to dissipate heat.

7) How do I reduce noise from a washer-dryer in a tiny bathroom?

Level the machine, add anti-vibration pads, and use rubber isolation grommets on cabinetry. A solid-core entry door with perimeter seals cuts airborne sound during the spin cycle.

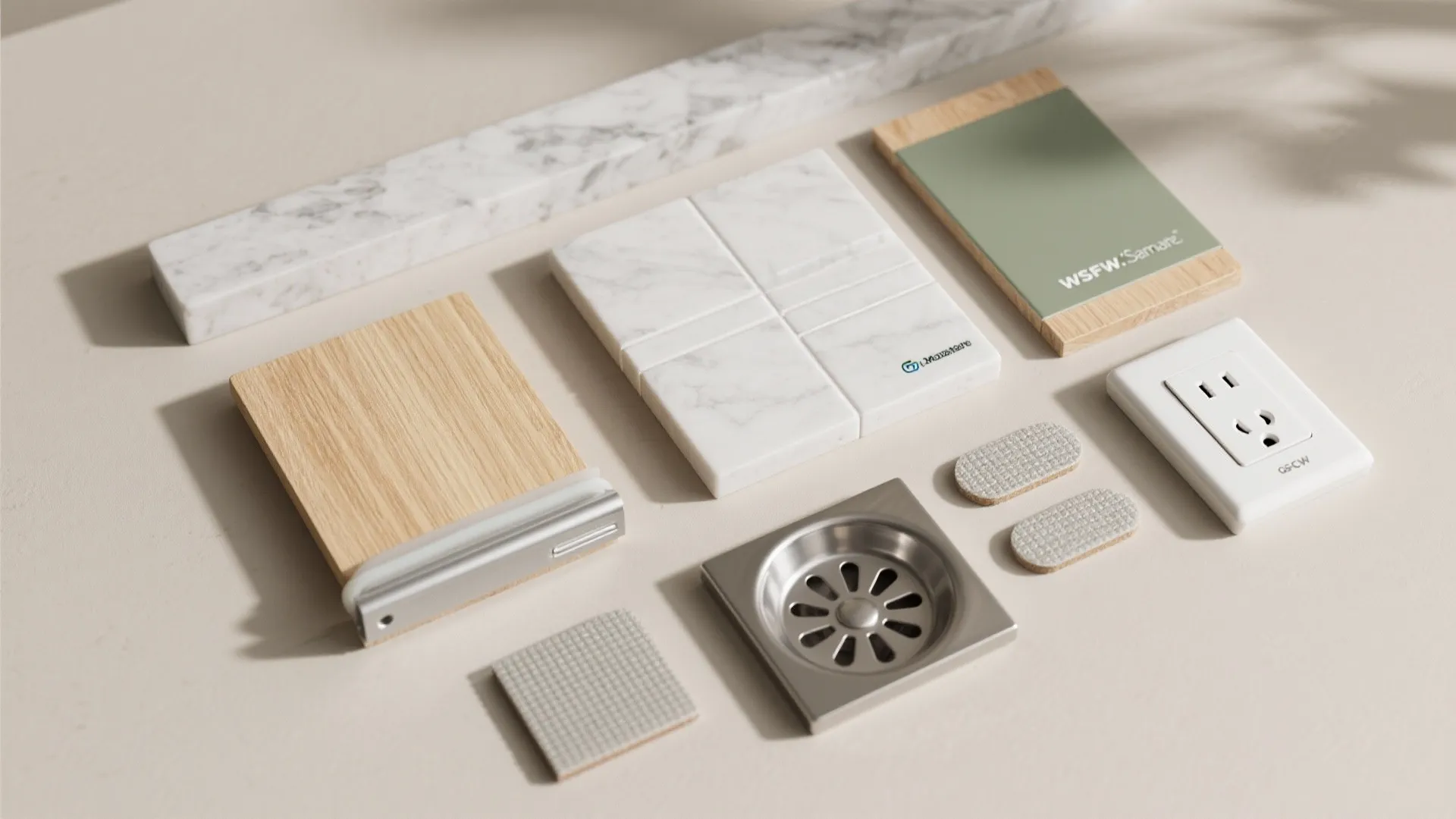

8) What materials work best for a steamy bathroom-laundry?

Moisture-resistant MDF or marine-grade plywood for cabinets, porcelain tile or quartz for counters, and silicone-sealed aluminum trims. Keep indoor RH under 60% (EPA guidance) and you’ll extend finish life.
