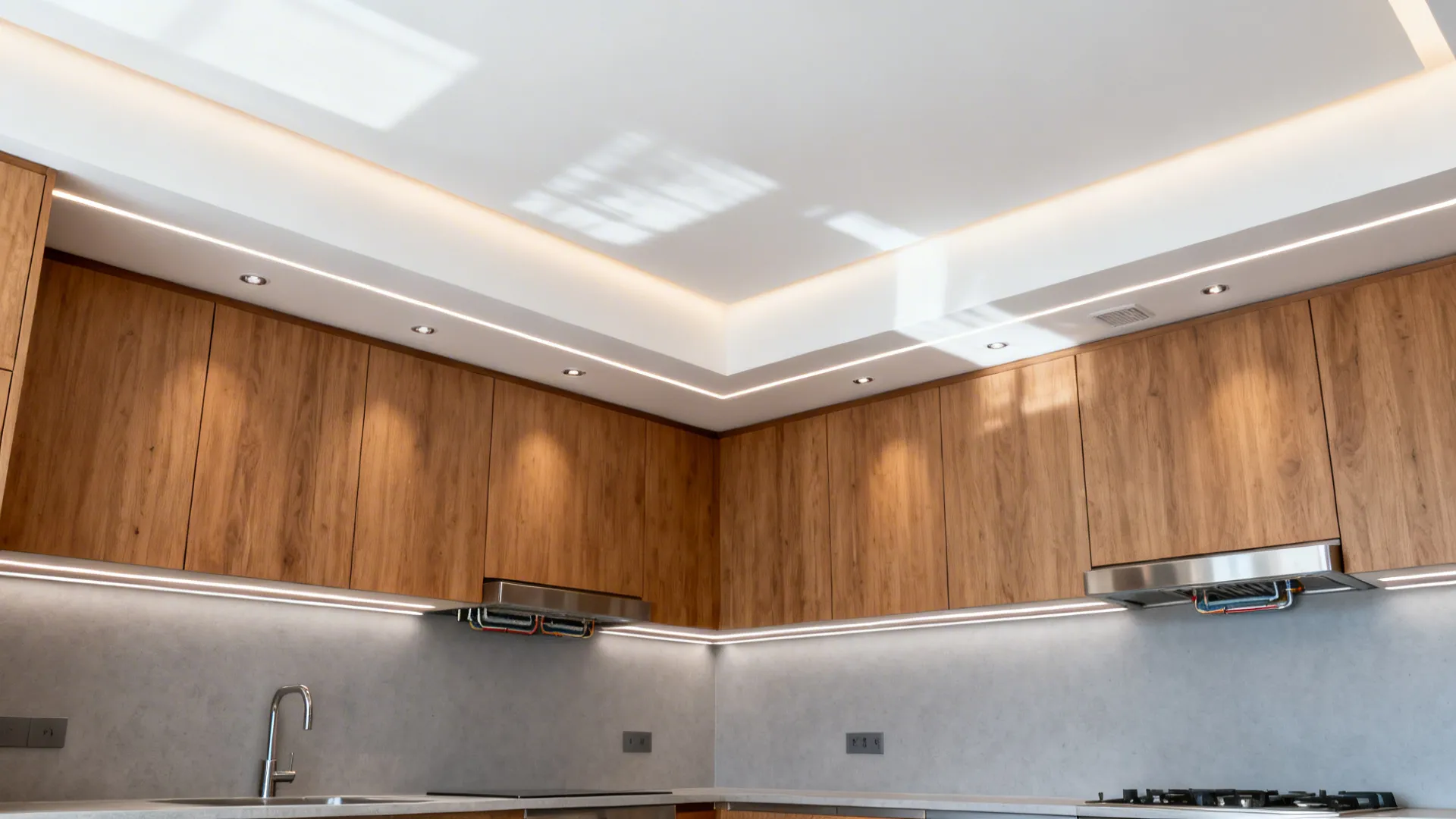

5 Interior Design Kitchen 2D Drawings for Ceilings: My pro-tested ceiling ideas that turn small kitchens into big experiences, plus the 2D plan tricks to nail them

As an interior designer who's revamped more than a few tiny kitchens, I’ve learned that ceiling planning in interior design kitchen 2D drawings can change everything. Small spaces spark big creativity, and the ceiling is your secret fifth wall. In this guide, I’ll share 5 ceiling-focused design ideas I’ve used in real projects—backed by pro data—so you can visualize them clearly in 2D and execute beautifully in 3D.

We’ll map finishes, lighting, and heights directly on plan and reflected ceiling plans (RCPs). You’ll see how I annotate junctions, show lighting layers, and avoid clash points with ducts and cabinets. Here are 5 inspirations I rely on when a compact kitchen needs presence without losing practicality.

Early on, I always place a ceiling grid and lighting circuits in the RCP to coordinate with cabinetry lines. When I trialed a minimal cove in a 7.8 m² galley, it instantly made the counters feel wider. Stick with me—these are ideas you can lift straight from 2D into your build.

Before we dive in, here’s a detailed case walkthrough of L shaped counters free more counter space where I matched ceiling lines to base cabinet runs. It shows how the reflected ceiling plan ties to work zones and lighting in the first pass.

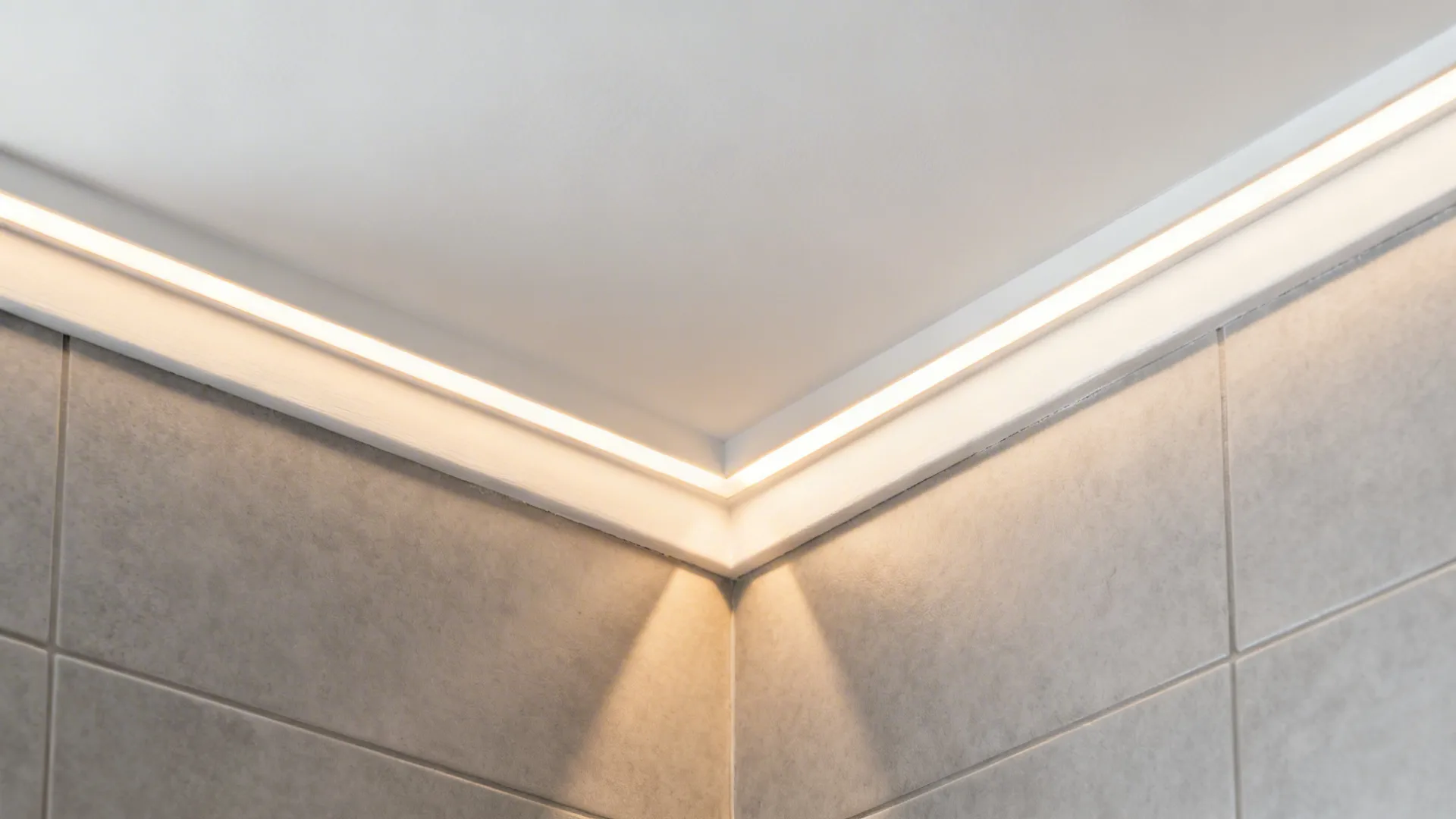

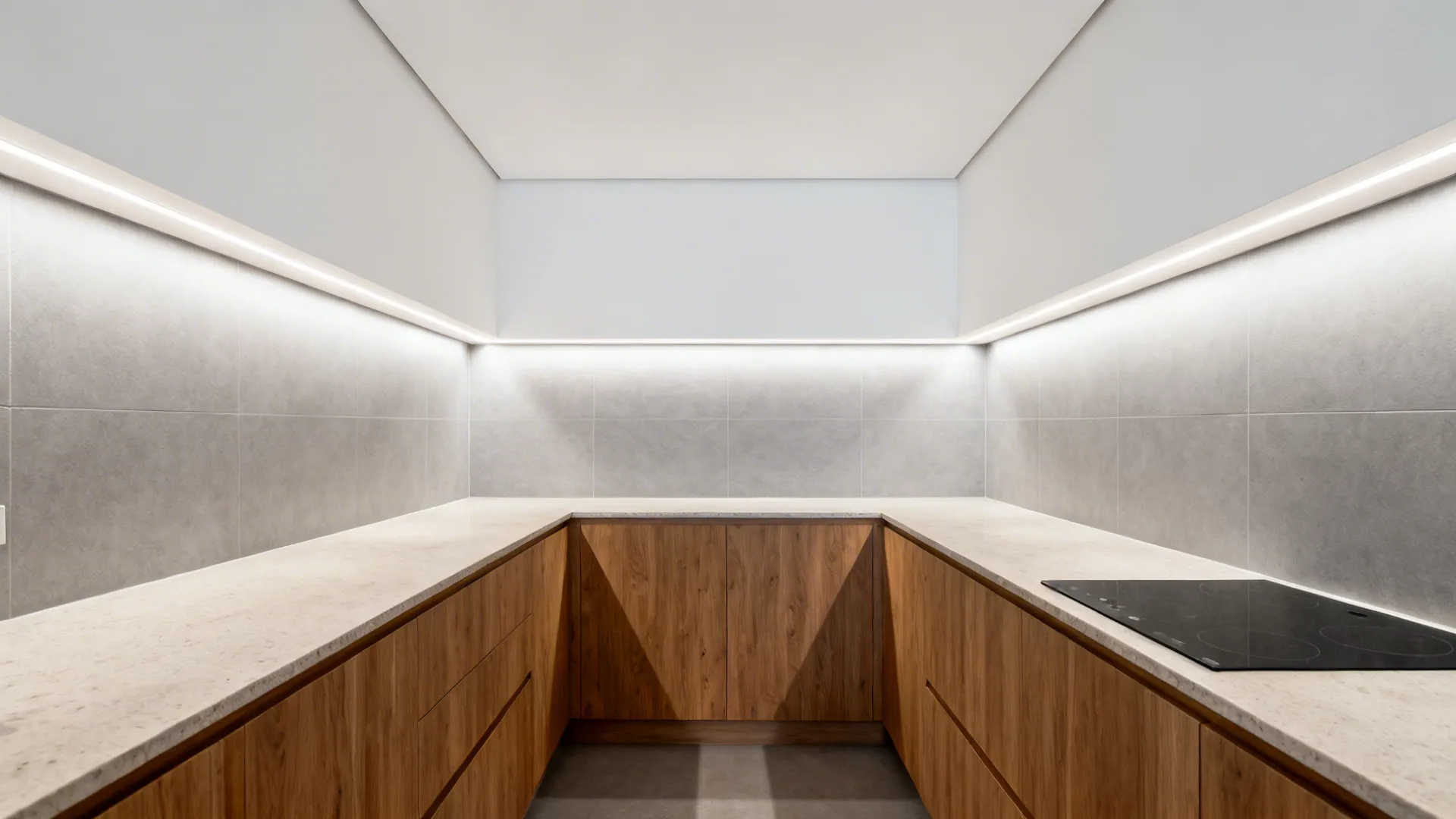

Minimalist Cove Lighting RCP

My Take: I’m a big believer that a small cove can do more than a big pendant in a tight kitchen. In one micro-reno, a simple perimeter cove softened a low ceiling and made the backsplash gleam—no visual clutter.

Pros: Perimeter coves wash walls evenly and reduce glare, a long-tail win for “small kitchen indirect lighting layouts.” They also reduce task shadows at the counter when paired with under-cabinet LEDs. The IES recommends layered lighting for work surfaces, and indirect sources help with uniformity in compact rooms (IES Lighting Handbook).

Cons: You need a clean plenum for drivers and a consistent distance from walls; in older apartments, misaligned walls can kink the light line—I’ve spent an afternoon correcting a 10 mm bow. Also, maintenance on hidden drivers can be annoying if access hatches aren’t planned in the 2D details.

Tips / Cost: In your RCP, draw a 50–80 mm recess line with turning radii noted at corners and mark driver access above a tall cabinet bay. Budget mid-range LED tape and a quality diffuser; avoid color shift by specifying 90+ CRI.

save pin

save pin

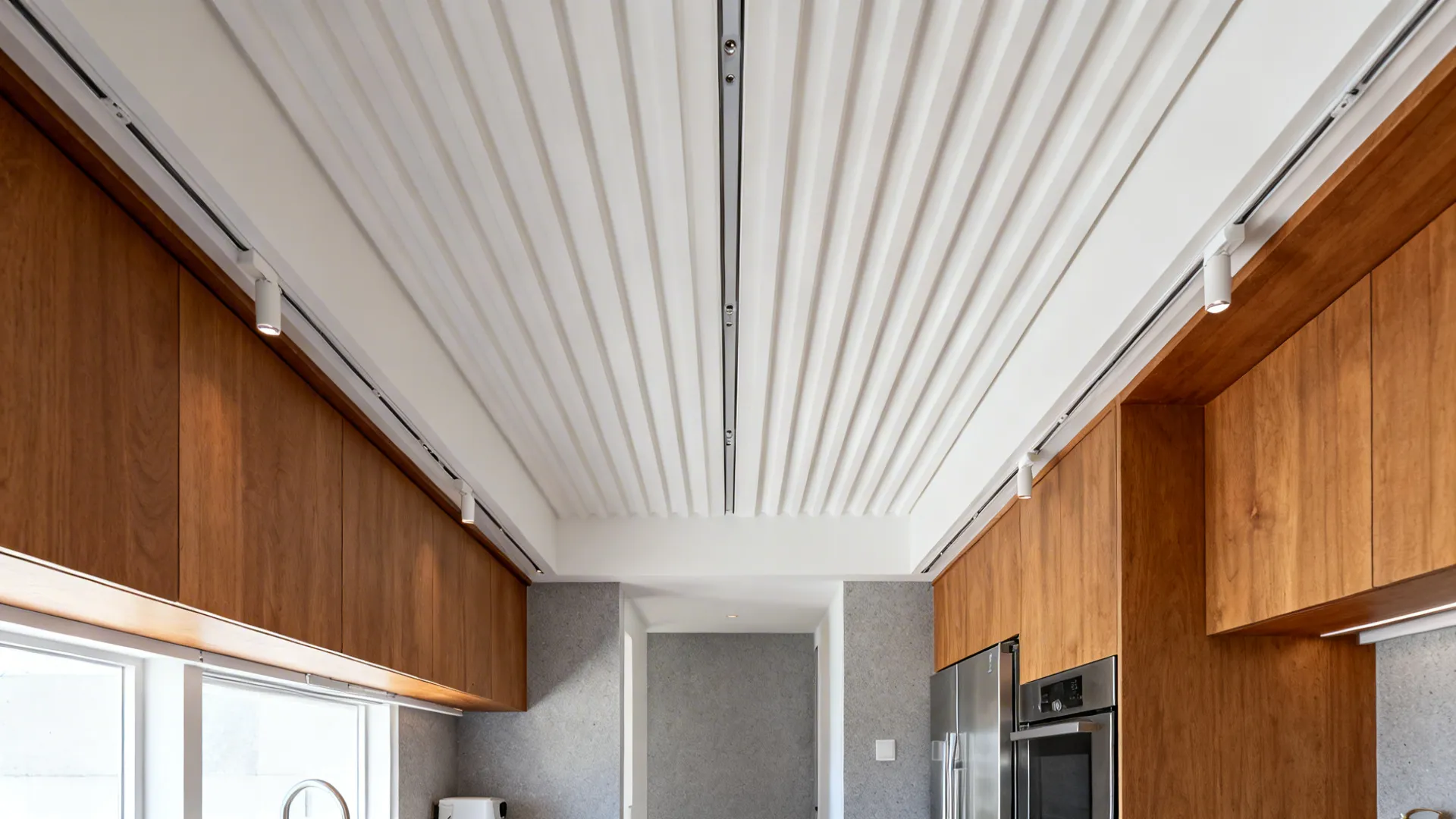

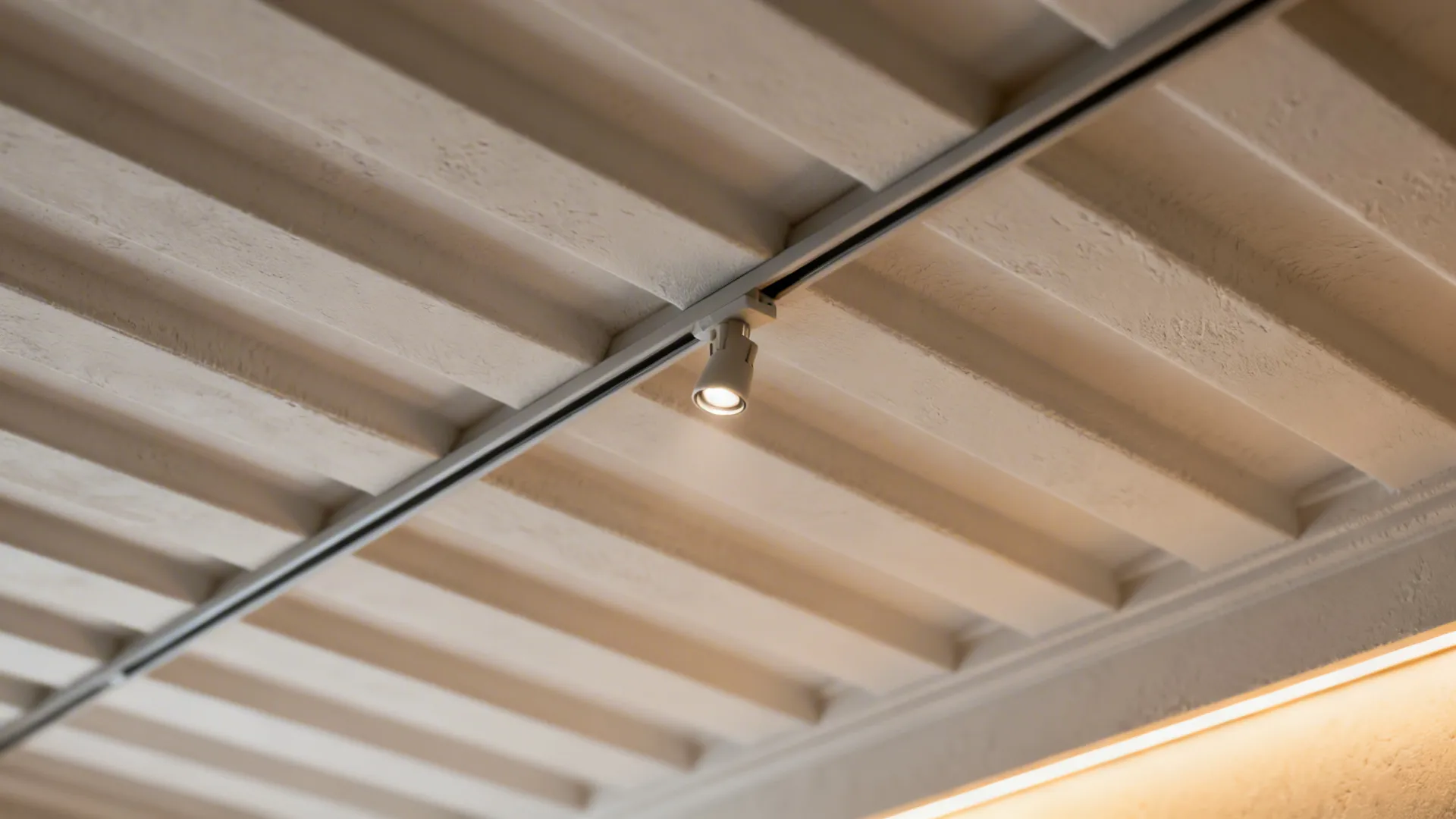

Textured Gypsum Panels with Integrated Tracks

My Take: When my client wanted a warm, tactile ceiling but hated pendant bulk, I used shallow ribbed gypsum panels with a recessed track light. The texture added rhythm without lowering the room too much.

Pros: Linear texture helps with “narrow kitchen ceiling design ideas” by drawing the eye along the long axis. Integrated tracks keep fixtures flexible—great for swapping beam angles as cooking zones evolve.

Cons: Dust can settle in grooves; I joke that your ceiling will tell on your frying habits. Also, tight screw spacing is vital—miss that in your 2D fastener spacing notes and you’ll get micro-waves after painting.

Tips / Case: In 2D elevations, align rib modules with cabinet doors so joints vanish. If you want to see how plan and RCP coordinate in a compact scheme, this mid-article walkthrough on wood accents create a warmer feel shows how ceiling textures harmonize with finishes below around the project midpoint.

save pin

save pin

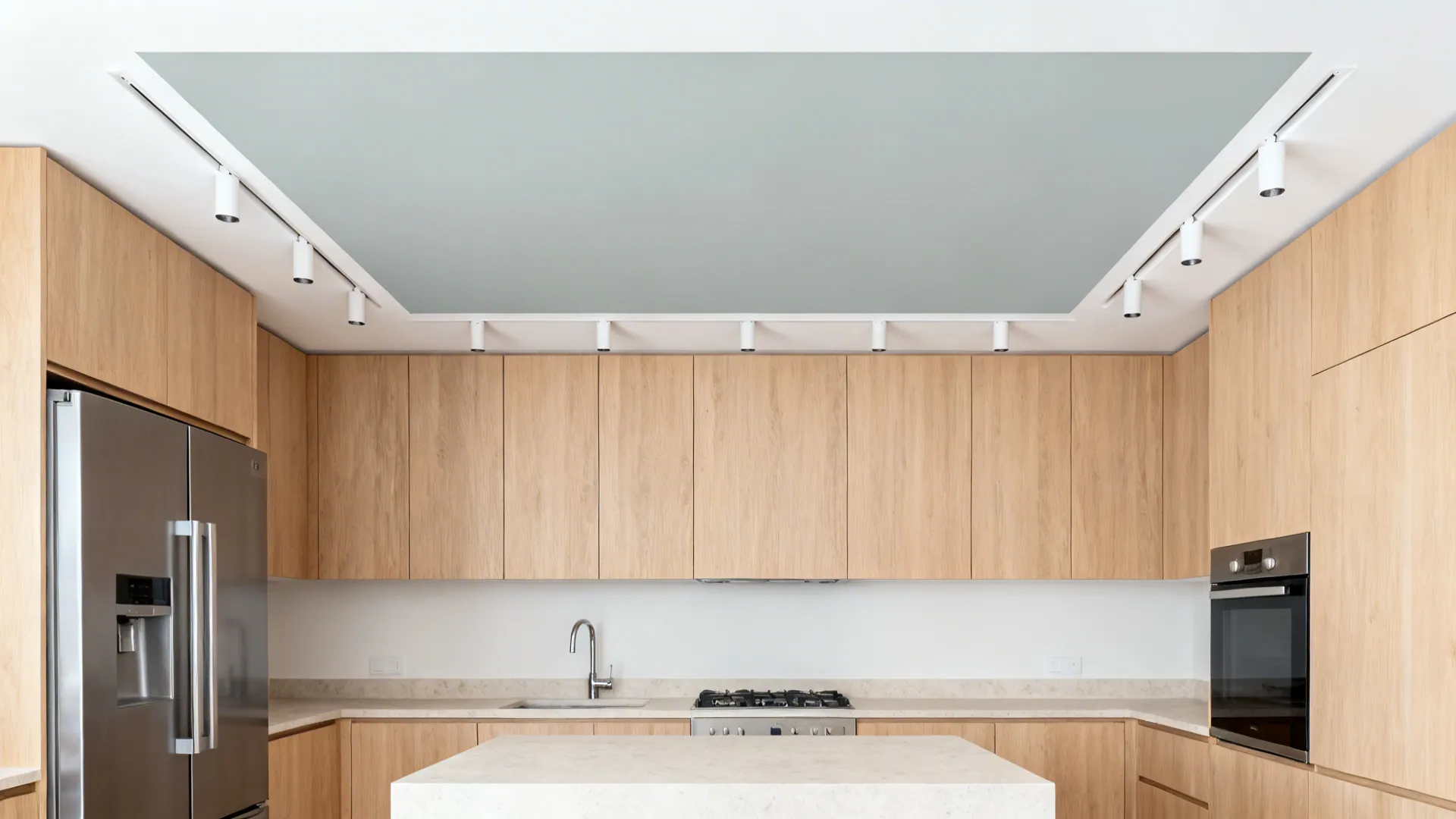

Painted Ceiling Zone for Work Triangle

My Take: Color zoning is my go-to in rentals and budget fits. I once corralled a fridge-sink-hob triangle with a soft gray rectangle on the ceiling—suddenly the layout read as intentional, even in 2D.

Pros: A painted zone is low-cost and fast, ideal for “kitchen 2D ceiling layout on a budget.” It also guides lighting placement: I align downlights to the color edge so the zone feels architectural without any build-down.

Cons: Color can close in a low ceiling if it’s too dark—test samples at night and day. If you freehand edges, you’ll regret it; tape and a laser line are your best friends.

Tips / Budget: In the RCP, draw the paint boundary with exact dimensions and tie it to centerlines of counters. Choose a washable matte to hide roller marks and grease micro-splatters.

save pin

save pin

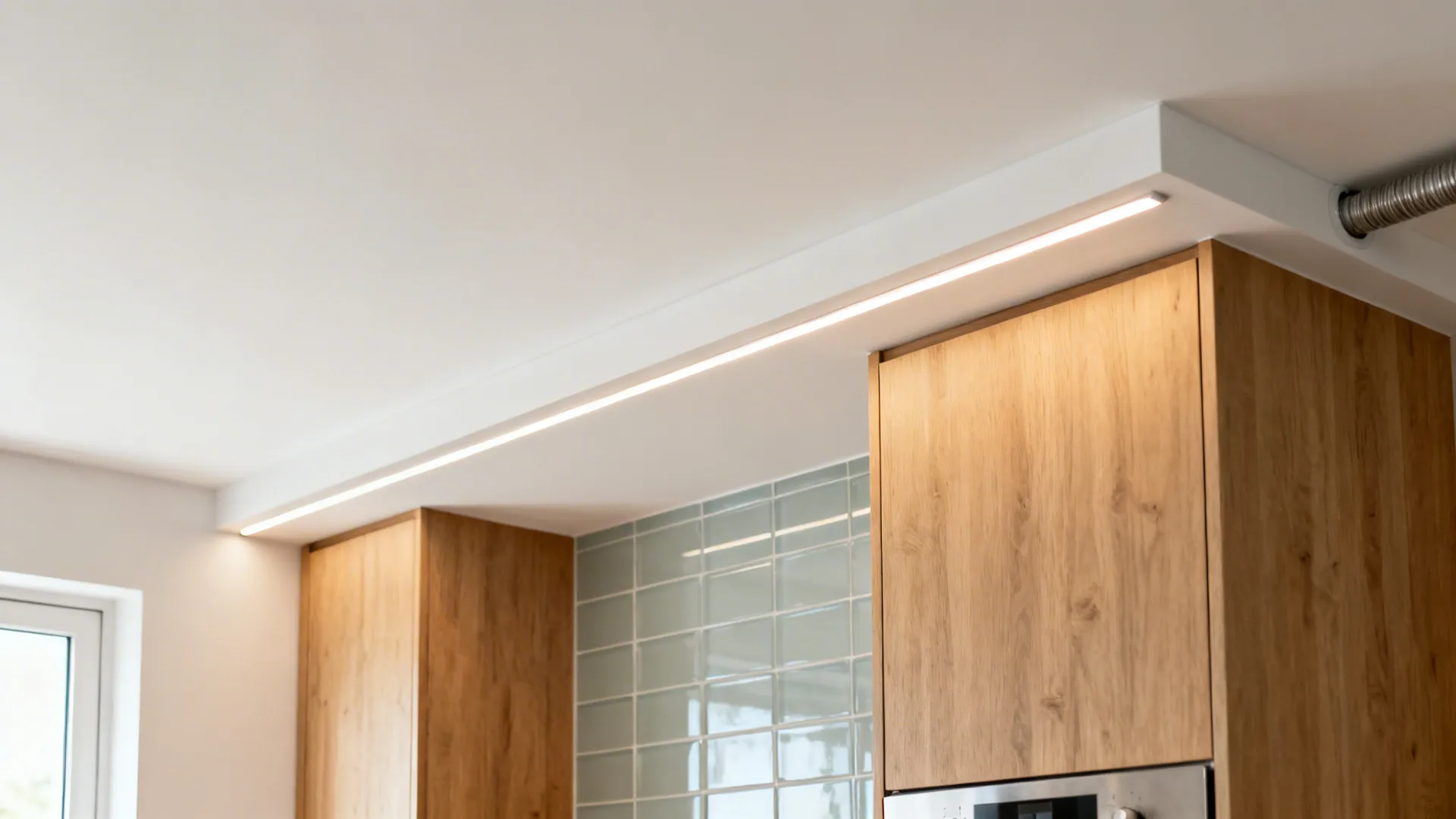

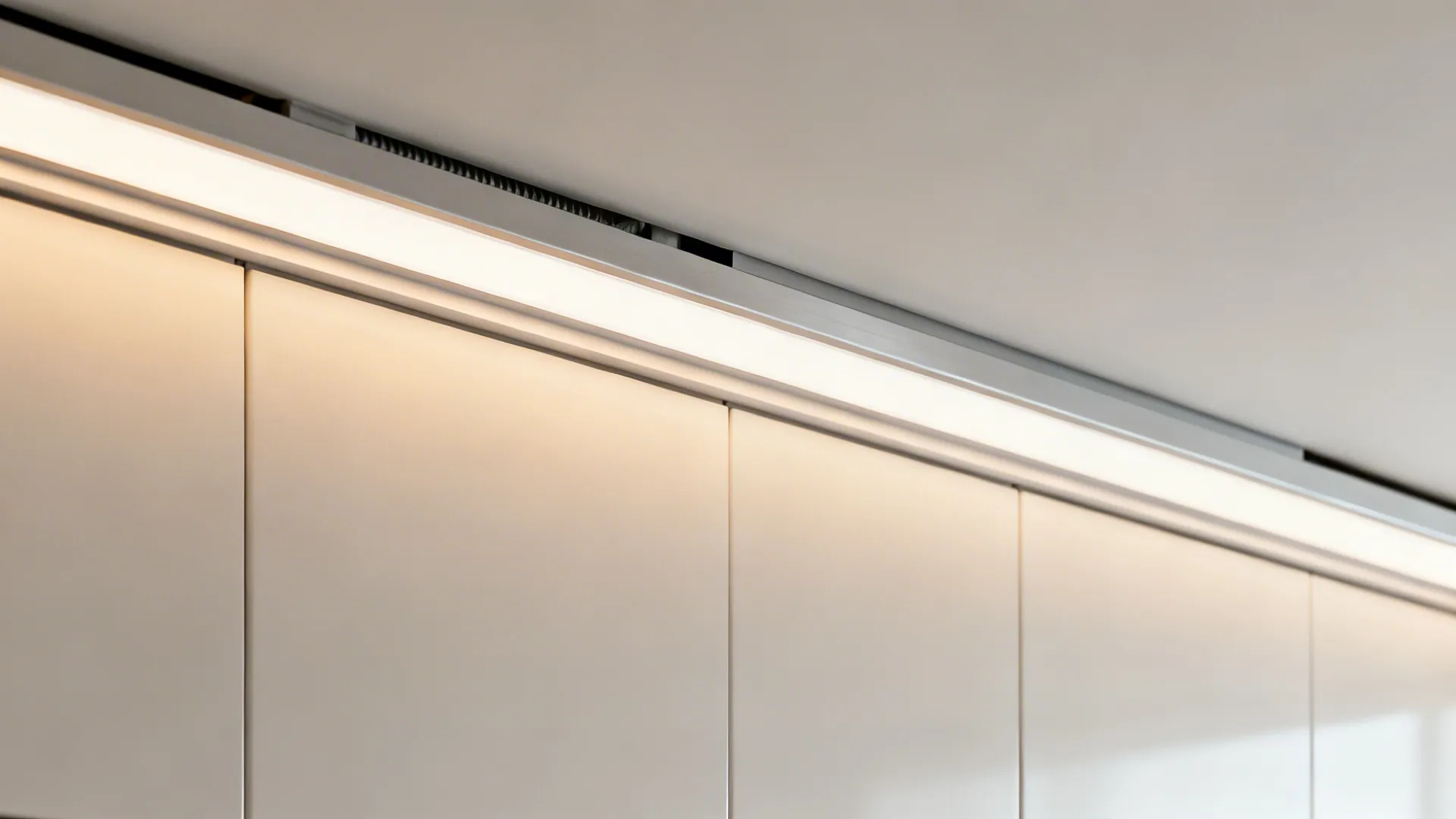

Shallow Drop with Hidden Duct and Linear Task Light

My Take: In older buildings I often inherit quirky duct runs. Rather than fight them, I conceal them in a 70–90 mm drop and tuck a linear task light along the counter edge. It reads intentional, not “oh-no-a-duct.”

Pros: This solves “low-profile kitchen ceiling with ventilation” by combining a function chase with light. It also reduces reflected glare on glossy counters when the linear is aimed slightly toward the backsplash; the CIBSE LG7 principle of balancing task and ambient light applies well here (CIBSE LG7).

Cons: You’ll sacrifice a bit of height at the perimeter. I’ve had tall clients notice it above 2.0 m clearance, so I keep drops as shallow as the duct allows and step the edges to soften the transition.

Tips / Coordination: In your 2D, show the duct centerline and diffuser location, and annotate the LED channel’s offset from cabinet faces. Confirm service access—future you will thank you.

save pin

save pin

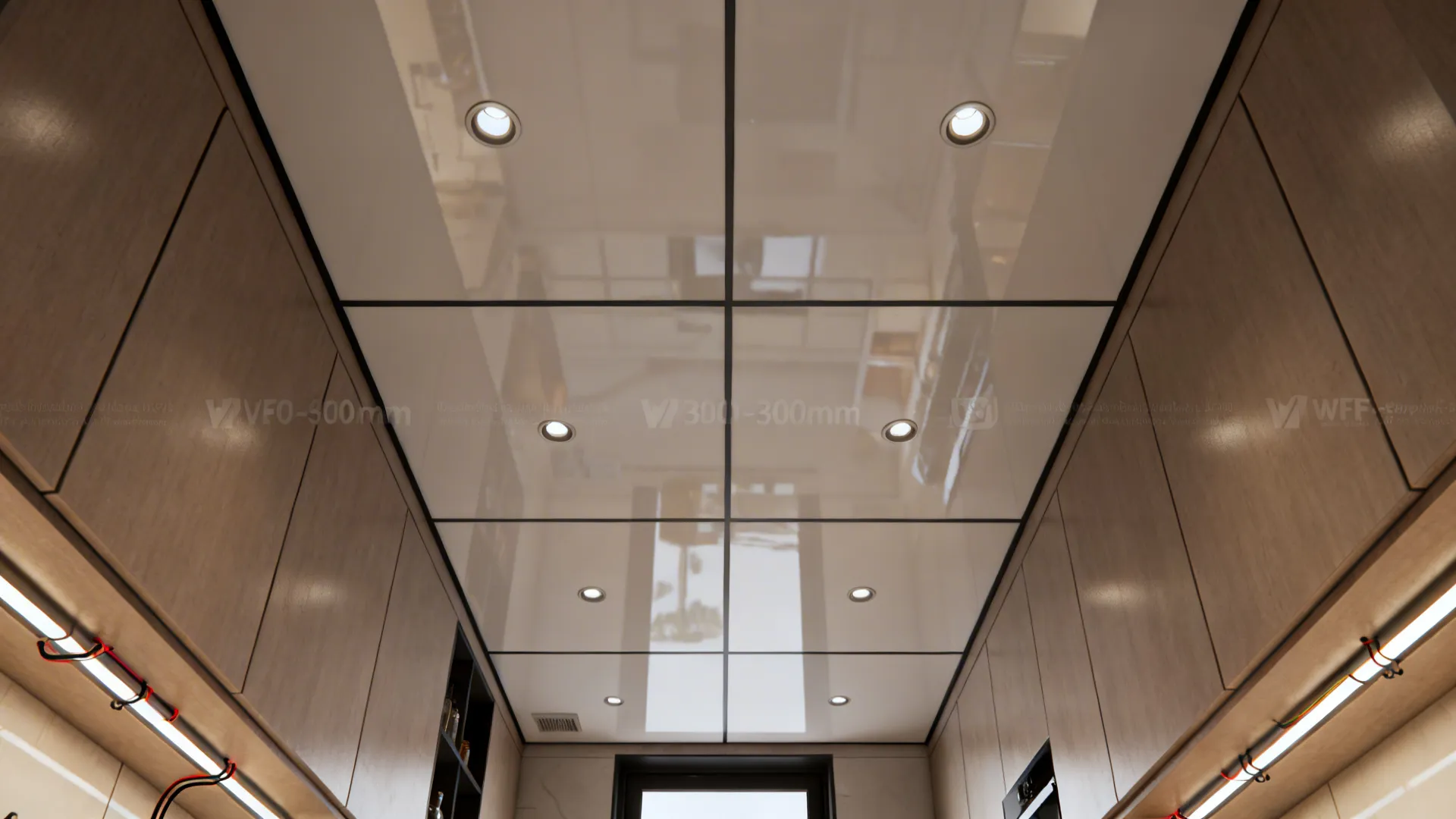

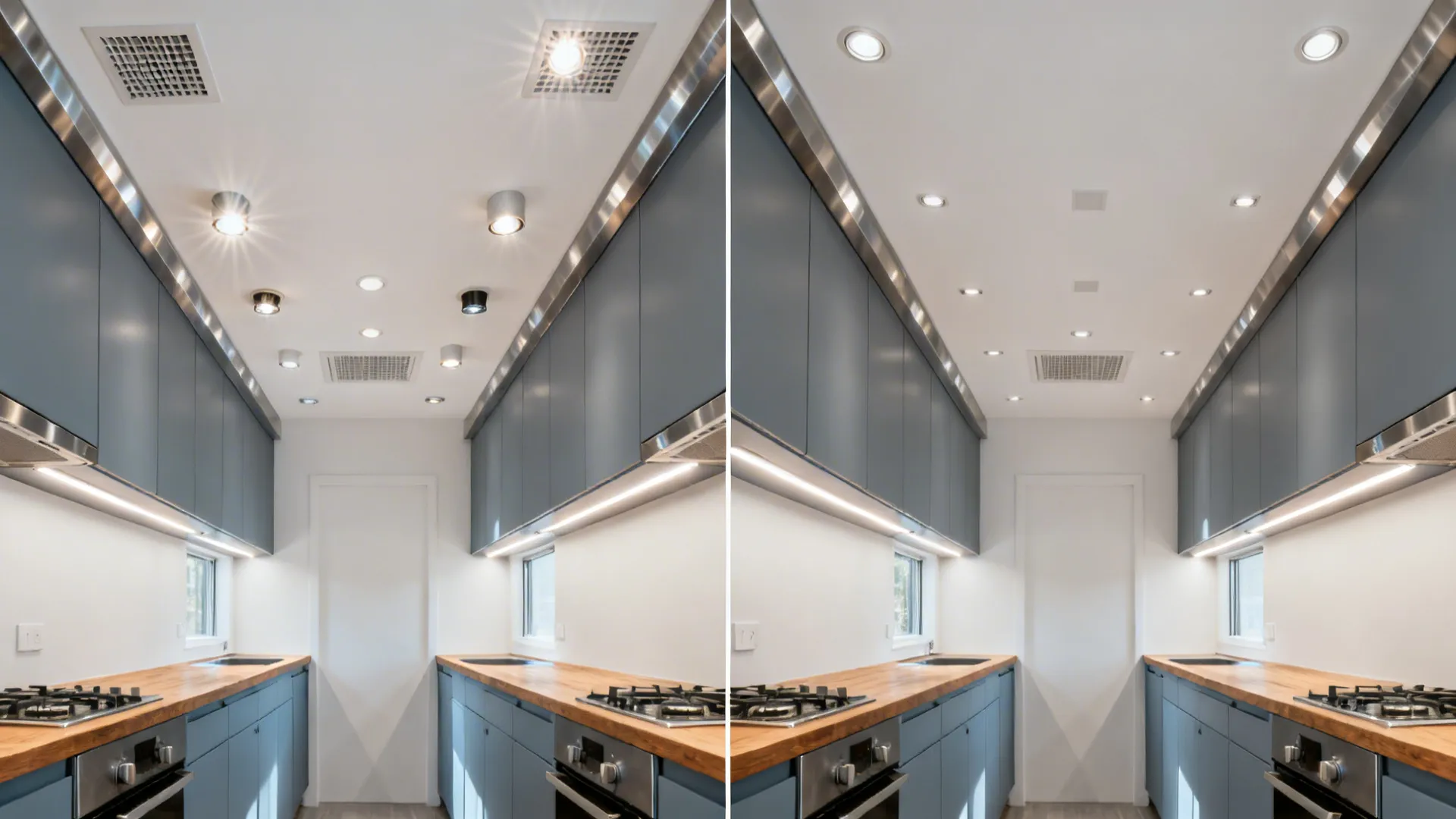

Micro-Grid Ceiling with Spot-Plus-Strip Layers

My Take: For galley kitchens, I model a micro-grid on the RCP: a simple 300–600 mm matrix that aligns recessed spots with strip runs under cabinets. It keeps the diagram tidy and the build predictable.

Pros: Grids simplify “small kitchen lighting circuit planning” and make contractor QA easier—every fixture lands on a gridline. The U.S. Department of Energy notes that LEDs with proper placement can cut energy use while improving visual comfort when layered well (DOE Solid-State Lighting).

Cons: If you overdo the grid, it can look like an office. I keep the spot count lean and lean on under-cabinet strips for task work. Also, too many circuits complicate dimming; group wisely.

Tips / Example: In 2D, lock your grid to the room centerline and cabinet modules. At the 80% mark of your planning, I like to simulate renders to test glare—this case shows how glass backsplash feels more open when spots are offset to avoid harsh reflections.

save pin

save pin

Summary

Small kitchens demand smarter design, not compromises. Interior design kitchen 2D drawings—especially a clear reflected ceiling plan—let you coordinate lighting, ventilation, and finishes so the space feels larger and works harder. As the IES and CIBSE both emphasize, layered light and careful placement are crucial in compact rooms.

Which ceiling idea would you try first in your own kitchen—cove, painted zoning, or that shallow duct drop? I’m happy to help you sketch the RCP and callouts if you’re unsure where to start.

FAQ

1) What is an RCP in kitchen interior design?

An RCP (reflected ceiling plan) is a 2D drawing that shows ceiling elements like lights, coves, ducts, and heights. It’s the ceiling counterpart to your floor plan and is essential for laying out circuits and fixtures in small kitchens.

2) How do I choose ceiling lights for a small kitchen?

Use layers: indirect cove for ambient, under-cabinet strips for task, and a few recessed spots for accent. The IES suggests task surfaces need higher illuminance and good uniformity; layer accordingly (IES Lighting Handbook).

3) Can color on the ceiling make a kitchen feel bigger?

Yes—lighter tones expand and darker tones add focus. A soft, warm white ceiling enhances vertical perception, while a pale gray zone can define your work triangle without lowering the perceived height.

4) What’s the best 2D workflow for ceiling planning?

Start with cabinet and appliance centerlines, add a ceiling grid, then place lighting aligned to those lines. Keep notes for mounting heights, driver access, and circuit numbers directly on the RCP.

5) How do I coordinate ventilation with a low ceiling?

Model the duct path in plan and section, then integrate a shallow perimeter drop that hides it and houses a linear light. Confirm access panels in the 2D details so maintenance is painless.

6) Are track lights a good idea in compact kitchens?

Yes, especially low-profile recessed tracks. They let you shift heads as layouts evolve, making them ideal for “narrow kitchen lighting” when cabinetry changes later.

7) What color temperature should I pick?

For most kitchens, 2700–3000K keeps food looking appealing and feels cozy; ensure 90+ CRI for natural color rendering. Mix with a slightly cooler under-cabinet strip if you prefer crisp task lighting.

8) Where should I place downlights to avoid backsplash glare?

Offset the cans 200–300 mm from the wall or align to the front edge of the countertop to wash the surface softly. If you want a visual example, this case illustrates how “glass backsplash feels more open” when lighting is offset: glass backsplash feels more open.
