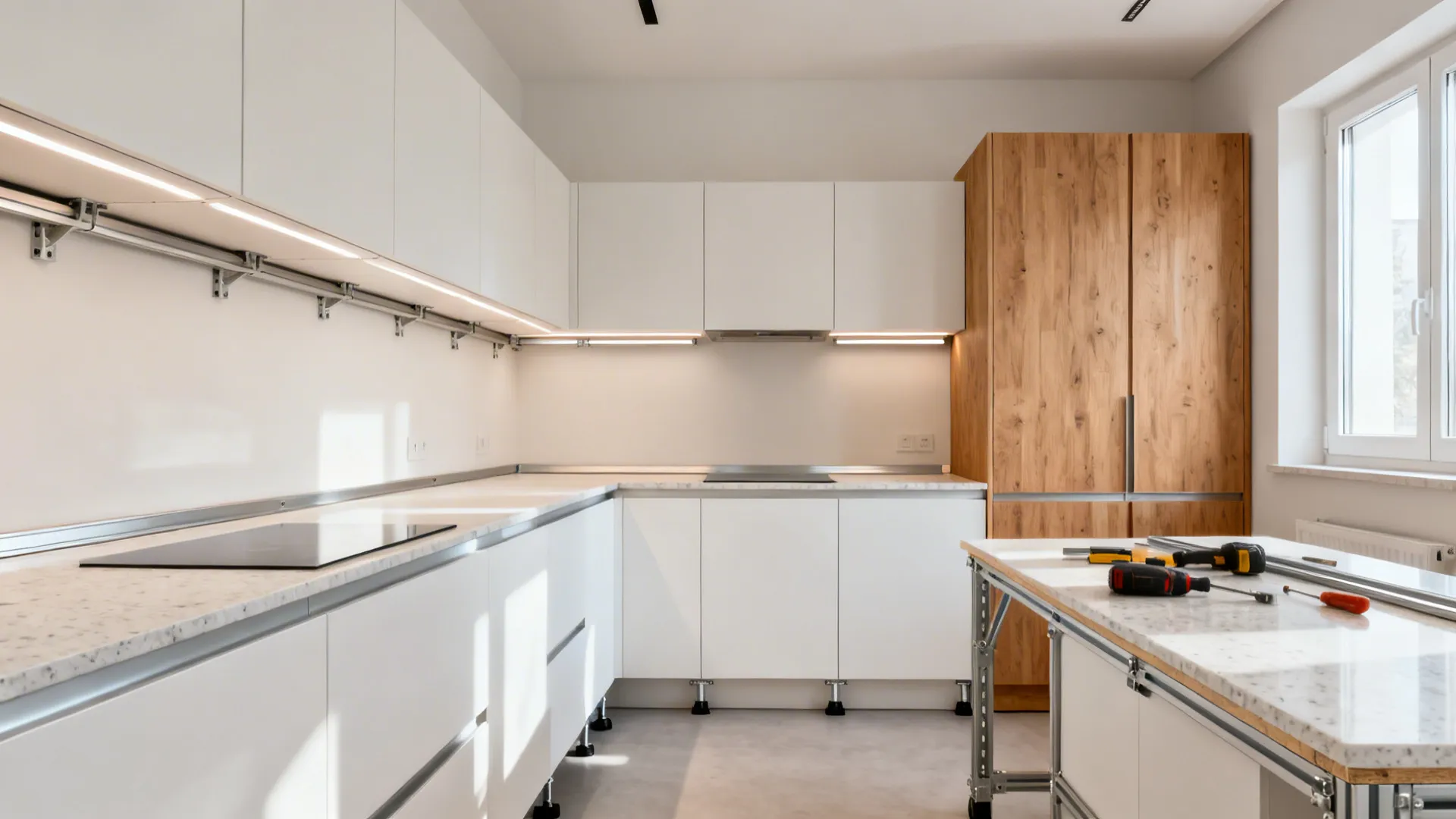

5 kitchen cabinet fixing details I use in small spaces: Real-world drawings, fixes, and pro tips for smarter small kitchen cabinets

I’ve spent over a decade designing and remodeling small kitchens, and kitchen cabinet fixing details drawings have become my secret weapon. Right now, clean lines, concealed hardware, and multi-functional storage are trending, but in tight footprints, these aren’t just aesthetics—they’re engineering decisions. Small spaces spark big creativity, and in this guide I’ll share 5 cabinet fixing inspirations, blending my field notes with expert data, plus the drawings and hardware choices that have saved me on real jobs.

Before we dive in, one quick story: in a 6.5-square-meter galley, a client wanted wall cabinets that felt weightless. The solution wasn’t just a pretty render—it was a precise fixing detail: ledger strips, reinforced stud locations, and correct fastener specs. That’s why drawings matter. Below are the five ideas I lean on, with pros, cons, and practical tips you can take to site.

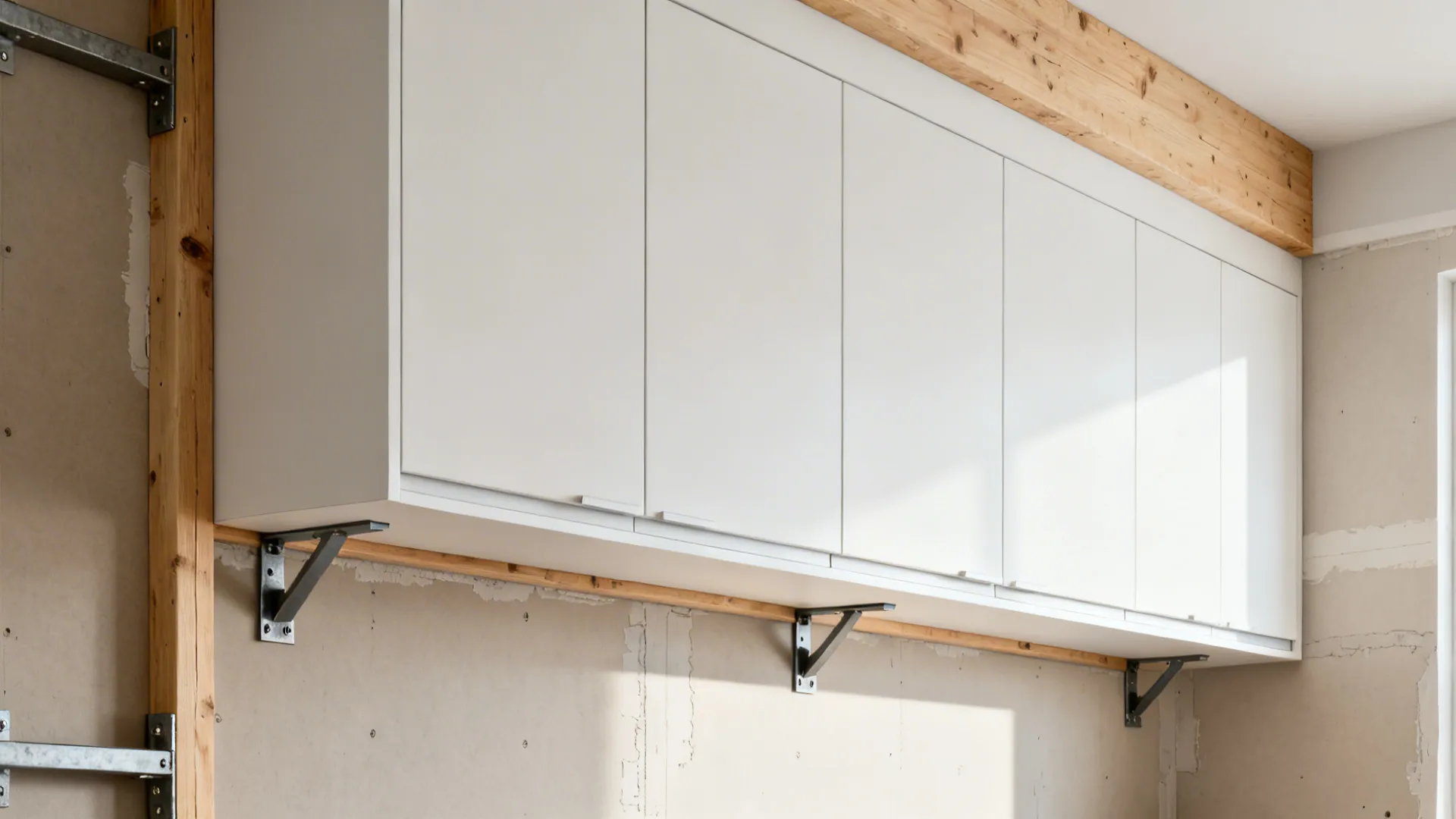

Floating wall cabinet brackets with ledger support

My Take: I love combining concealed steel brackets with a timber ledger strip when the wall is less than perfect. In older apartments, I’ve used a 25–30 mm thick ledger aligned with studs, then hidden by the cabinet back. It gives installers a forgiving tolerance while keeping the floating look.

Pros: Using concealed brackets plus a ledger increases load capacity and reduces racking—great for small kitchen cabinets fixing details drawings because you can specify bracket spacing, stud positions, and screw types. It’s ideal for long wall runs where uniformity matters; concealed hardware supports clean lines and modern minimalism. For safety, the ledger distributes weight across multiple studs, improving pull-out resistance.

Cons: You’ll need precise wall mapping; if the studs are off-center, bracket alignment can be fussy. Ledger strips add a step and paint touch-ups. In rental buildings, drilling into masonry may require anchors and approvals—plan for dust and noise.

Tips / Cost: I typically spec 6 mm diameter structural screws into studs at 400 mm centers; in masonry, use sleeve anchors rated above 120 kg per bracket. Prime and paint the ledger before mounting to save time later. At roughly $80–120 per linear meter (brackets + timber + fasteners), it’s cost-effective for long runs.

As you refine a floating cabinet plan, I often mock up the elevation and fixings to visualize spacing. If you’re exploring layout impacts, see “L shaped layout frees more counter space” to understand how support lines align under corner cabinets.

save pin

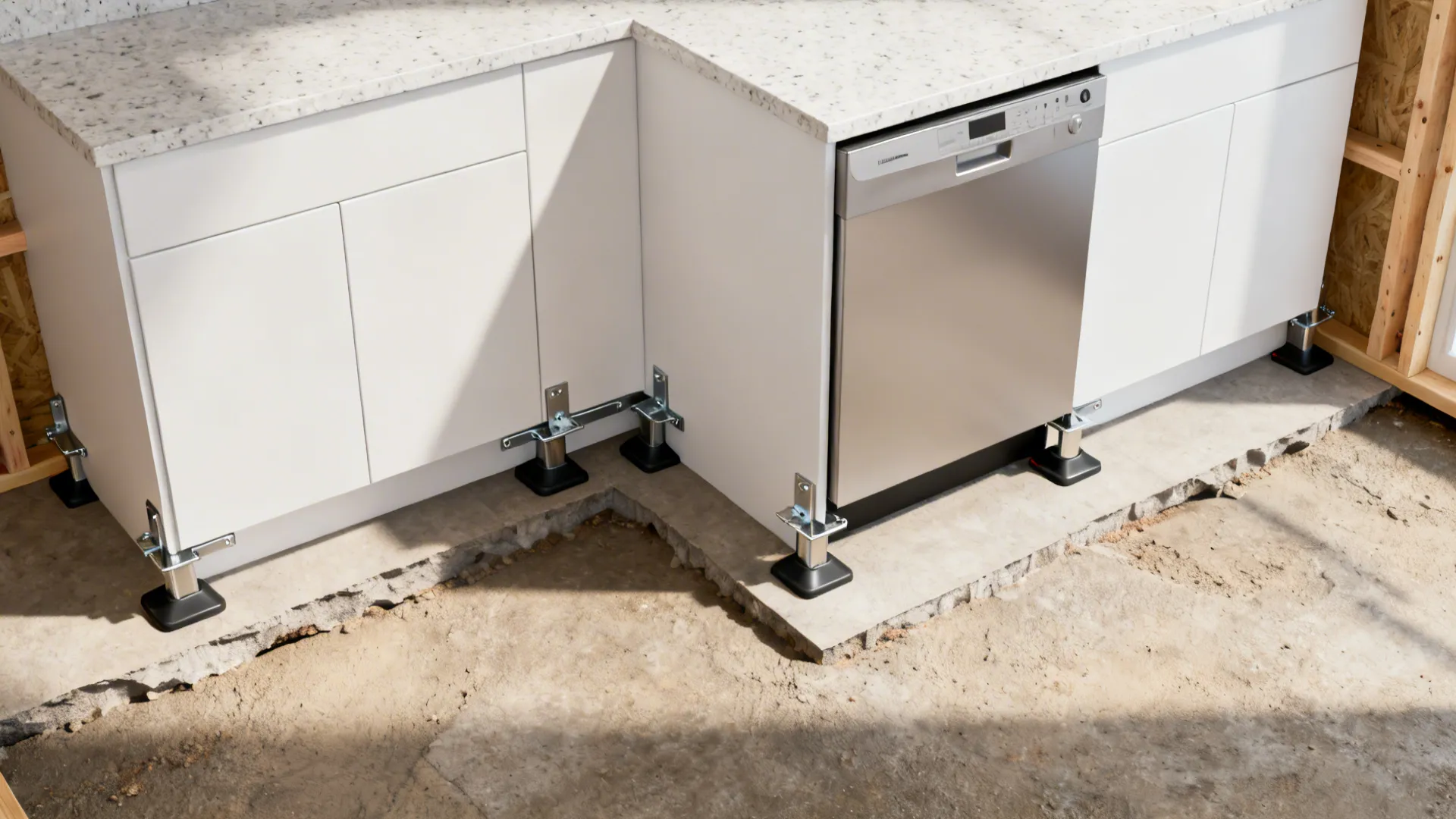

Base cabinet leveling feet and anti-tip anchors

My Take: Uneven floors are the norm, not the exception. I rely on adjustable polymer or metal feet with a wide base and then add discreet anti-tip brackets at the back rail. On one beachside project, a sink base shifted after a heavy quartz install; anti-tip anchors saved the day.

Pros: Leveling feet let you dial in plinth height and toe-kick alignment—perfect for small kitchen cabinets fixing details drawings because you can dimension foot positions and the anti-tip bracket locations. They improve dishwasher fit and allow precise counter install tolerances. Anti-tip anchors meet manufacturer guidance for heavy stone tops and reduce settlement over time.

Cons: Feet can transmit point loads on soft floors; spreaders or plates may be needed. If access panels are tight, adjustments post-install are annoying. Anti-tip brackets mean more drilling—coordinate with plumbing and electrical to avoid conflicts.

Tips / Case: For a 20 mm quartz top, I spec rear anti-tip brackets at 600–800 mm intervals with 6 mm lag screws into studs or blocking. Keep the front feet 20–30 mm inboard from the cabinet sides to avoid interference with doors. Document all foot heights in your drawing set for faster punch lists.

save pin

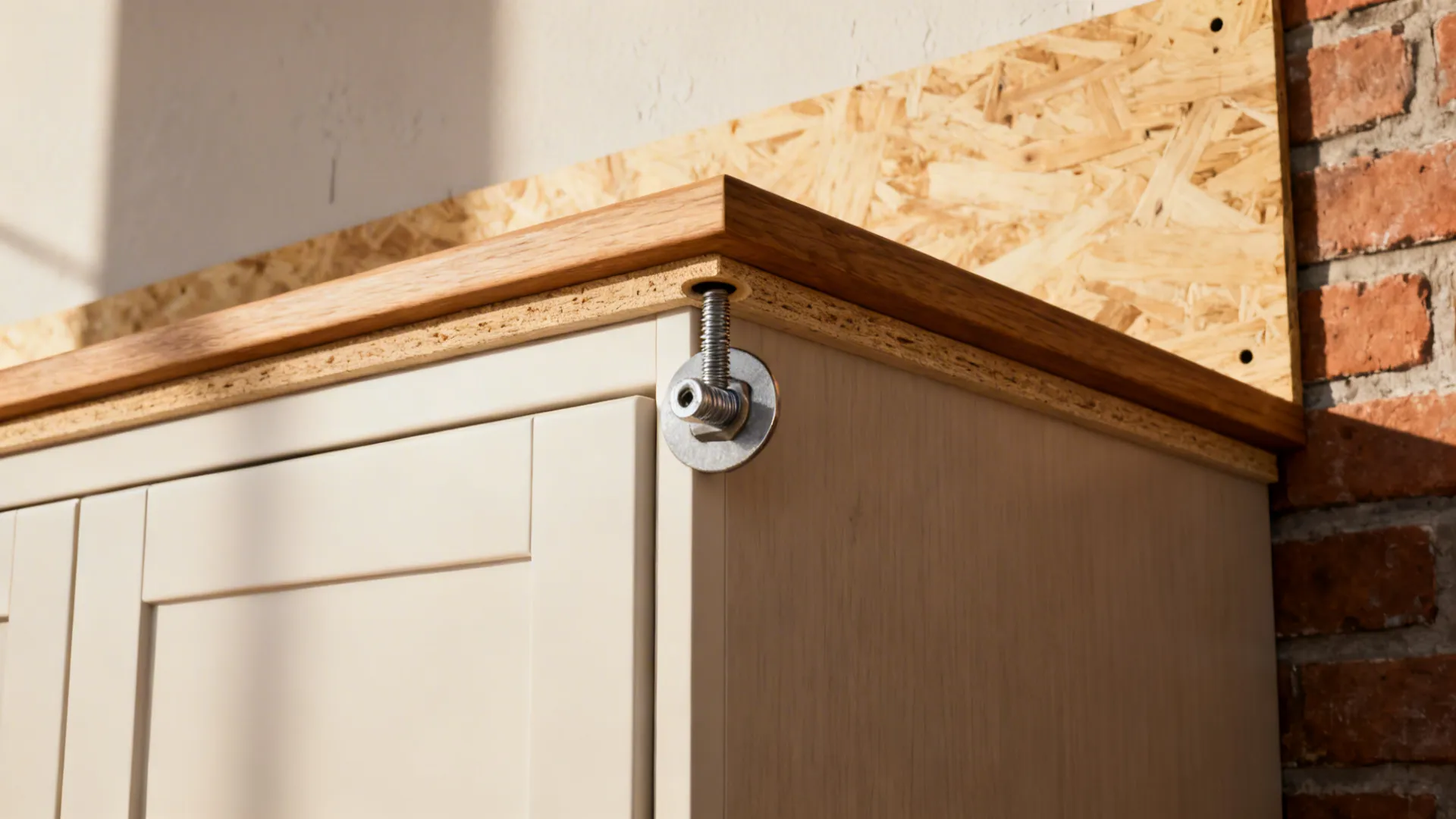

Through-bolted pantry frames and backer boards

My Take: Tall pantry cabinets are leverage machines. In narrow kitchens, I reinforce them with through-bolts at the top rail into a continuous backer board or structural blocking. In an old brick walk-up, I paired backer plywood with sleeve anchors—rock solid and invisible once trimmed.

Pros: Through-bolting provides superior shear and pull-out resistance, which is crucial when doors are tall and heavy. In kitchen cabinet fixing details drawings, you can specify bolt diameter, washer sizes, and backer board thickness, ensuring consistent install quality. This approach keeps reveals tight and prevents creaking under load.

Cons: Requires pre-planning before drywall; retrofits can be messy. If you miss the blocking, you’ll spend time chasing anchors. In multi-family buildings, noise and vibration might be limited during certain hours—factor in schedule.

Authority note: The International Residential Code (IRC) encourages fastening into structural members for cabinets and shelves; while it doesn’t prescribe exact bolt sizes, local code amendments often reference anchoring into studs or approved masonry anchors. Always check your jurisdiction and manufacturer instructions.

Tips / Cost: I favor M6–M8 bolts with large fender washers, plus 18 mm plywood backers behind drywall. Budget around $150–250 per tall unit for hardware and labor.

When tall storage meets compact layouts, visuals help. For precise elevation views and reinforcement notes, I’ll generate and annotate a 3D draft—try mapping “glass backsplash brings openness” to see how tall cabinetry interfaces with reflective surfaces and light.

save pin

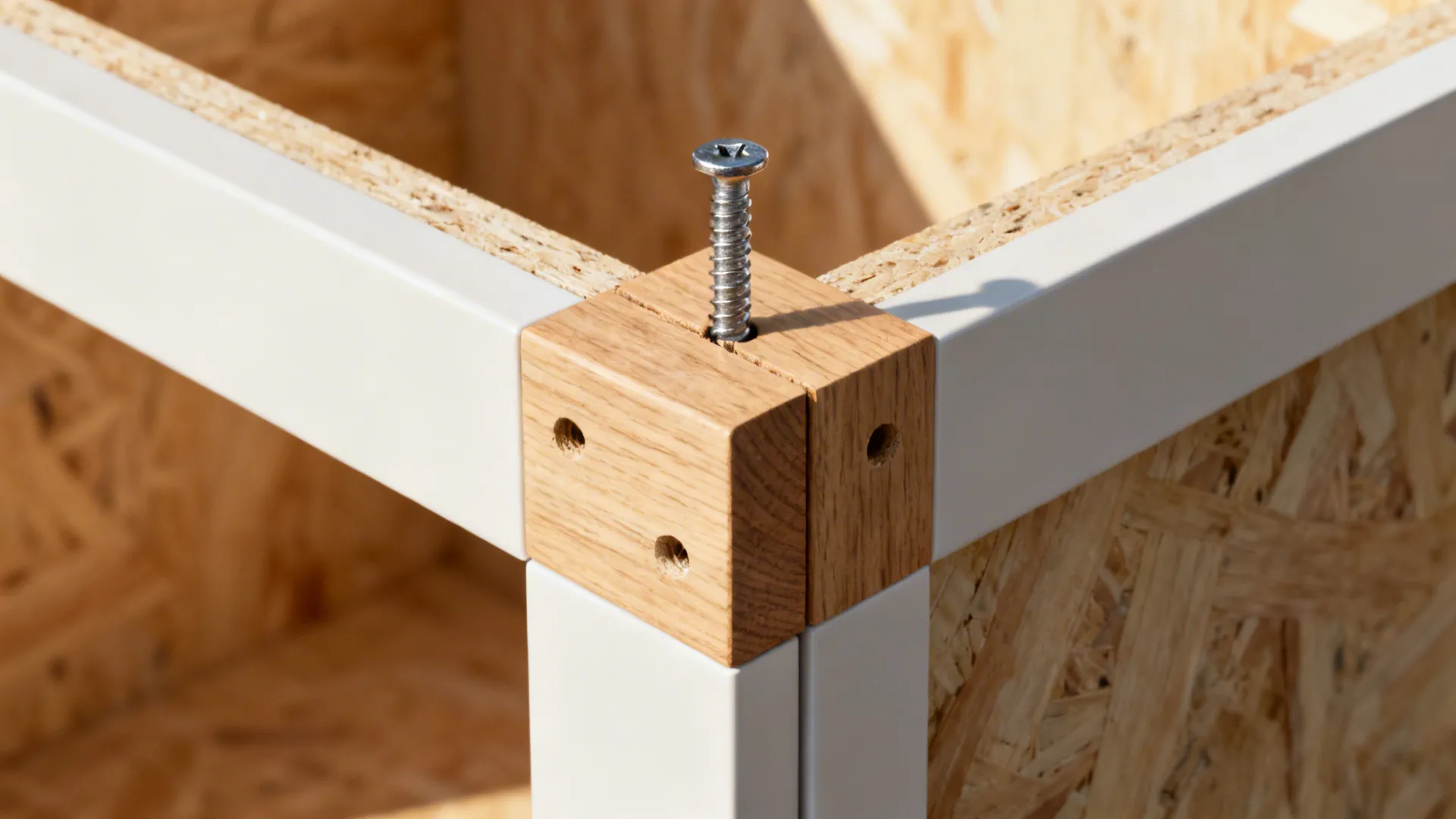

Face-frame to carcass screws and corner blocks

My Take: On framed cabinetry, I’ve solved door misalignment by adding hidden corner blocks and pilot-drilled screws that tie face frames to carcasses. It’s old-school carpentry meeting modern accuracy, especially helpful after transport or a humid week.

Pros: Corner blocks stiffen joints and reduce racking, improving hinge alignment and soft-close performance. In kitchen cabinet fixing details drawings, call out pilot hole diameters (e.g., 2.5–3 mm for #8 screws) and block dimensions so installers don’t split timber. This technique is cheap and fast, perfect for small budget upgrades.

Cons: Extra screws mean more holes; finish carpenters may grumble. If blocks are too large, they can interfere with internal pull-outs. Over-tightening risks telegraphing through thin veneers—watch your torque.

Authority note: Blum and Hettich hinge spec sheets often include guidance on door weights, screw sizes, and mounting plate tolerances; following these manufacturer documents keeps your fixing details aligned with tested hardware performance.

Tips / Case: I use hardwood corner blocks 30×30×20 mm, glued and screwed with #8 x 25 mm screws. Pre-finish the blocks to match interiors. For face-frame cabinets set side-by-side, clamp and pocket-screw stiles together for a clean seam.

save pin

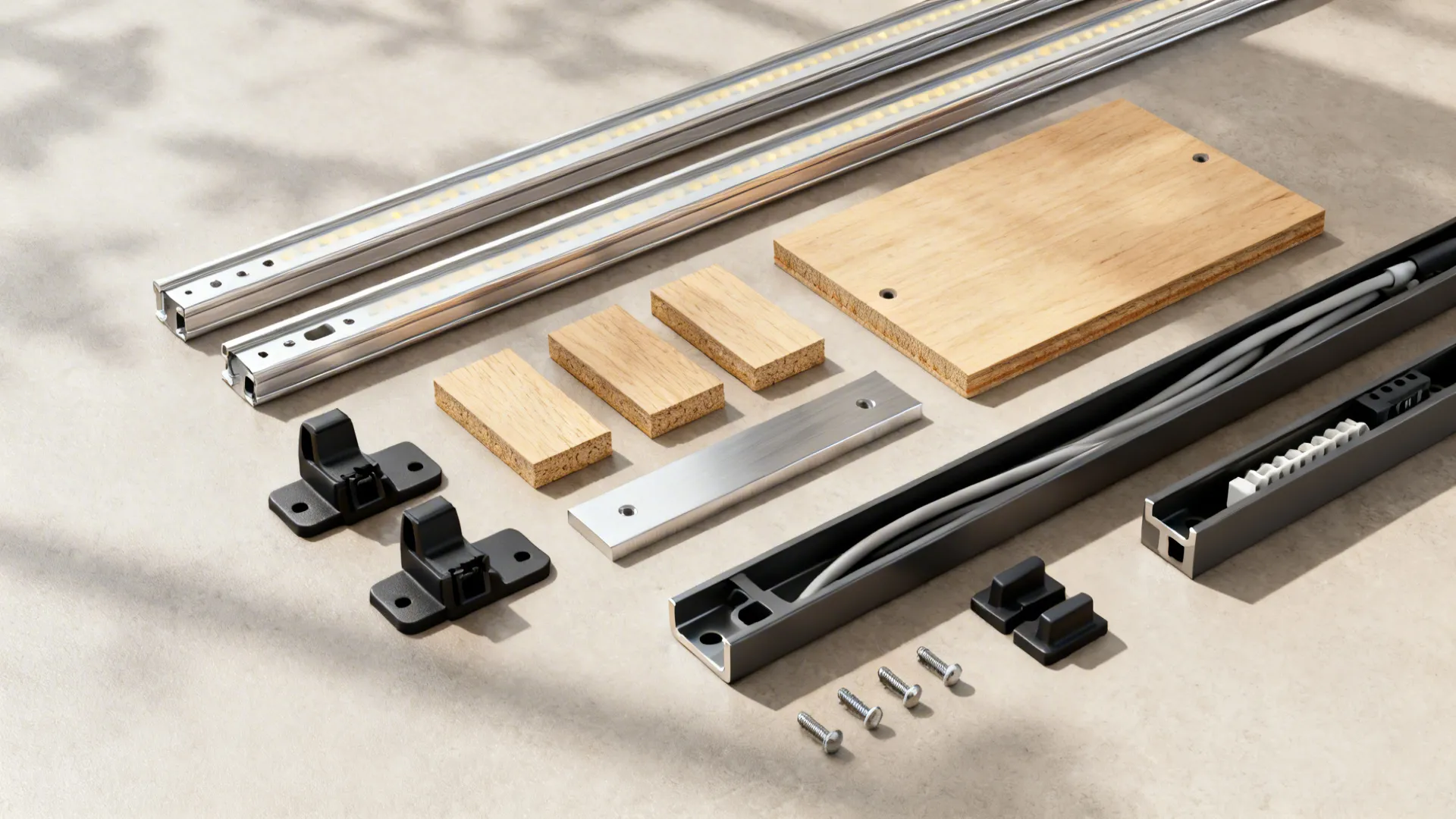

Under-cabinet rails, cleats, and service access

My Take: In micro kitchens, under-cabinet space is gold. I design rails or cleats that both support fixtures (lighting, hooks) and provide a removable service panel. On a rental retrofit, a simple cleat detail meant the electrician could swap LED strips without dismantling cabinets.

Pros: Rails provide consistent fixing points for accessories and cable management—great for compact kitchen cabinet fixing details drawings with clear routing paths. Service panels reduce maintenance costs and downtime in busy households. The result is cleaner lines and fewer visible fasteners.

Cons: More parts mean more coordination; if trades don’t read drawings, panels get sealed accidentally. Slim rails can flex if loaded improperly; choose profiles that match accessory weight.

Tips / Cost: I like aluminum T-rails for lighting and 12–15 mm plywood cleats for hooks. Mark cable channels at 50–75 mm from the wall line and use quick-release clips. Expect $60–120 per run depending on accessories.

Planning service access is where drawings shine. If you want to simulate shadows, cable routes, and clearances in a compact footprint, explore a case study like “warmth from subtle wood accents” to understand how material choices pair with under-cabinet systems.

save pin

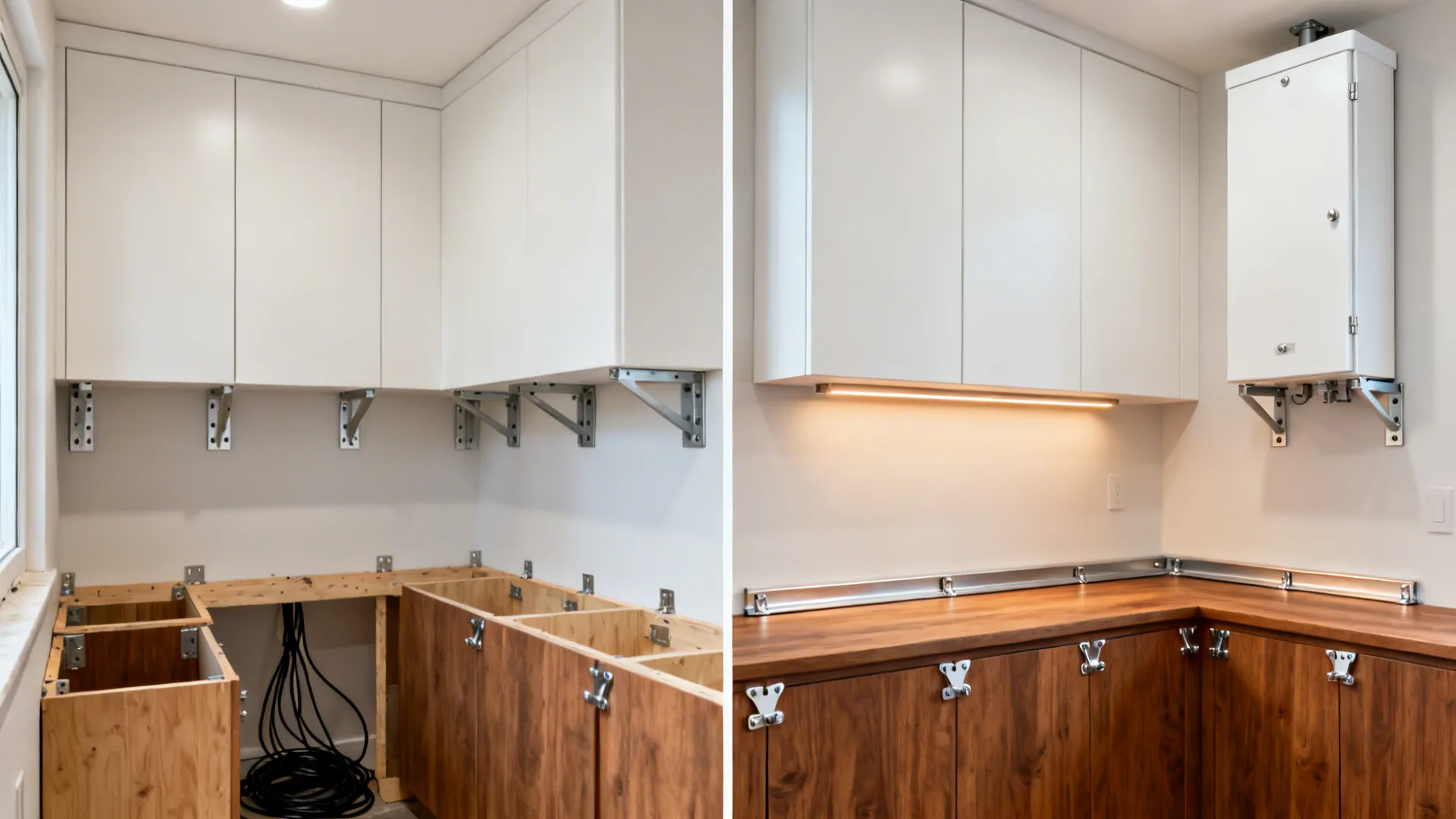

Summary

Small kitchens don’t limit you—they demand smarter cabinet fixing details. With clean concealed brackets, sturdy backers, thoughtful anchors, and service-friendly rails, you can achieve both safety and elegance. Codes and manufacturer specs exist for a reason; blending them with field-tested tricks keeps projects on track. Which of these five cabinet fixing strategies are you most excited to try in your space?

save pin

FAQ

1) What are the essential fasteners for kitchen cabinet fixing? For wall cabinets: structural screws into studs or sleeve anchors in masonry; for base cabinets: anti-tip brackets and leveling feet. Match screw gauges to manufacturer specs for best results.

2) How do I confirm stud locations before mounting? Use a stud finder plus pilot holes to confirm; in older buildings, verify by measurement from corners and electrical outlets. Mark everything in your kitchen cabinet fixing details drawings so installers don’t guess.

3) Can floating wall cabinets hold heavy dinnerware? Yes, if you use concealed brackets rated appropriately and a ledger strip distributing load across multiple studs. Always check bracket load ratings and install spacing.

4) What’s the minimum backer thickness behind drywall for tall cabinets? I specify 18 mm plywood backers. It balances screw bite and weight; confirm with your local code and cabinet manufacturer.

5) Do I need anti-tip anchors under stone countertops? For quartz or granite, I add rear anti-tip brackets at 600–800 mm intervals. Manufacturers like Caesarstone recommend proper support; follow their installation literature for safety.

6) How do I plan for service access under cabinets? Include removable panels and cable channels in drawings. Quick-release clips and labeled routes help electricians and reduce future disruptions.

7) Are there code requirements for cabinet mounting? Building codes (such as IRC) emphasize fastening into structural members and using approved anchors in masonry. Always consult local amendments and the cabinet’s installation manual.

8) Can I mix face-frame and frameless cabinets? Yes—just document joint alignment, fastener types, and hinge plates. In tight kitchens, mixing styles can improve storage while keeping a clean look.
