5 Kitchen Cabinet Inside Detail Ideas That Truly Work: My real-world playbook for kitchen cabinet inside detail drawings—5 inspirations, pros/cons, budgets, and expert tips

[Section: 引言]

When clients ask me about kitchen cabinet inside detail drawing, I smile—because small kitchens have a way of sparking big creativity. Over the past decade, I’ve renovated tight city apartments and family homes, and the real magic often hides behind the cabinet doors. In this guide, I’ll share 5 design inspirations I’ve refined through real projects and backed by expert data, so you can turn every inch into performance.

One more thing: for visualization, I often map out millimeter-accurate cabinet internals early, from hinging direction to pull-out clearances. It saves money and headaches down the line—and it’s exactly where smart small-space planning shines.

[Section: 灵感列表]

1) Minimalist Pull-Out Pantry With Full-Height Guides

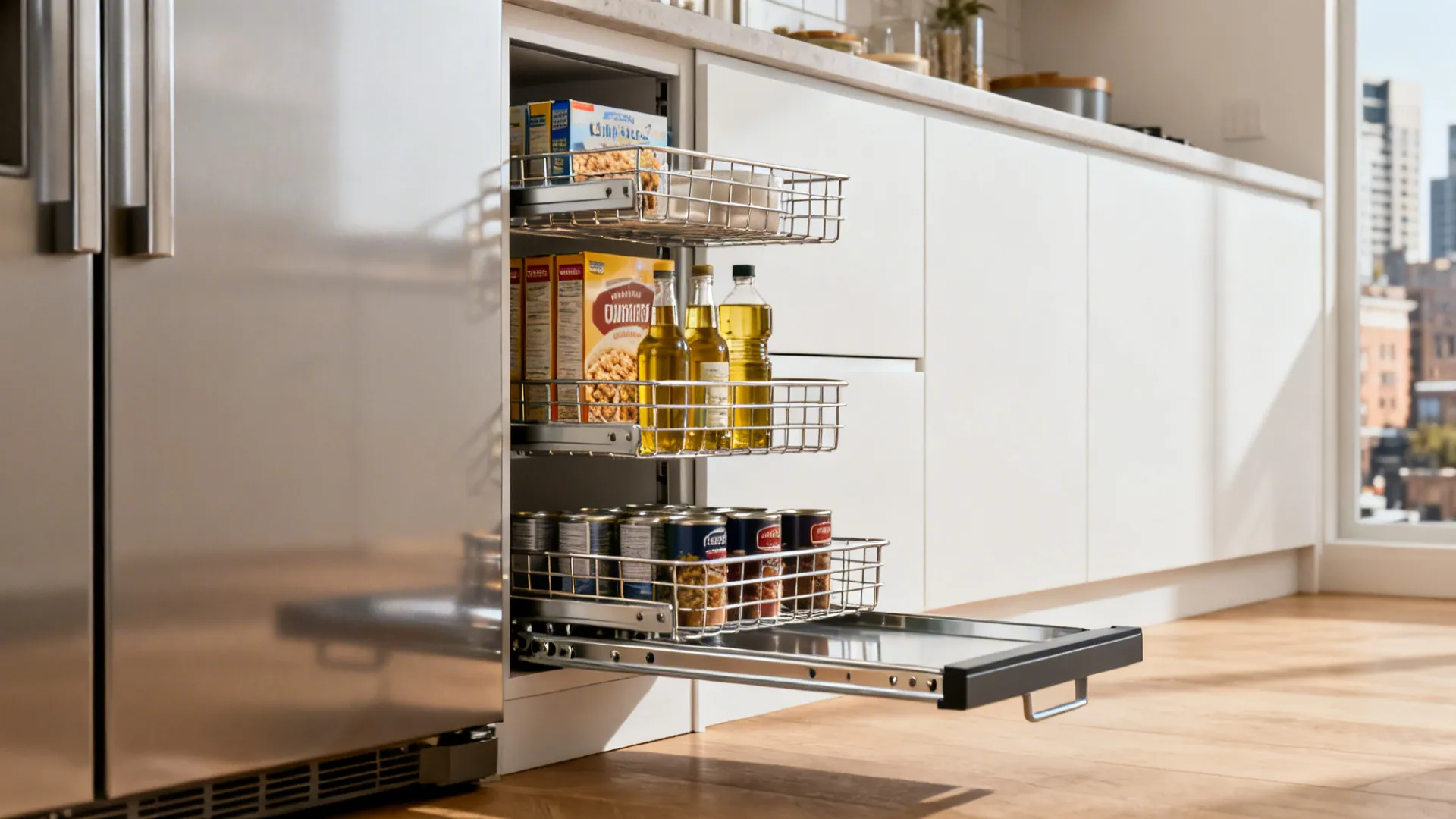

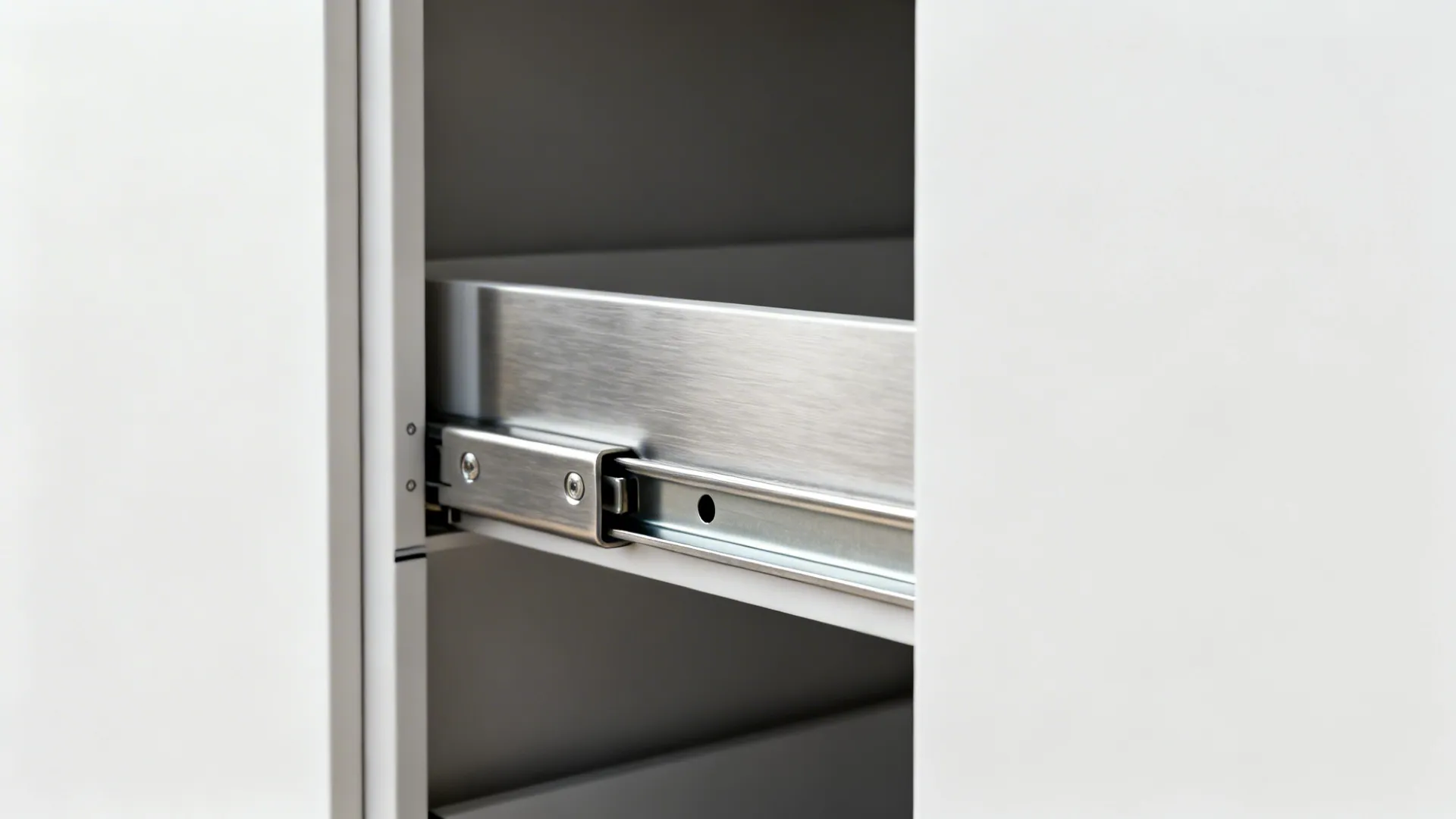

My Take: In studio kitchens, I rely on slim pull-out pantries (150–300 mm wide) paired with full-height soft-close guides. I once fit a week’s worth of dry goods into a 200 mm gap beside the fridge—no visual clutter, just quiet efficiency.

Pros: Maximizes vertical storage while keeping items visible—great for small kitchen storage solutions. Full-extension slides let you reach the back without bending, reducing “dead-zone” space. With a detailed cabinet interior drawing, you can set exact basket spacing for cereal boxes and oil bottles.

Cons: Narrow pull-outs can rack if overloaded; invest in quality slides or you’ll hear wobbles. Tall cavities can become top-heavy without proper anchoring—your installer will thank you for specifying fixing points in the detail.

Tip/Cost: Budget mid-range: quality slides and baskets add up. Specify 3D tolerances (2–3 mm per side) and toe-kick clearance for smooth operation.

In one micro-kitchen, mapping hinge swing and adjacent clearances early helped us plan an L shaped counter that unlocked more prep space without widening the aisle.

save pin

save pin

2) Glass Backs, LED Channels, and Adjustable Shelves

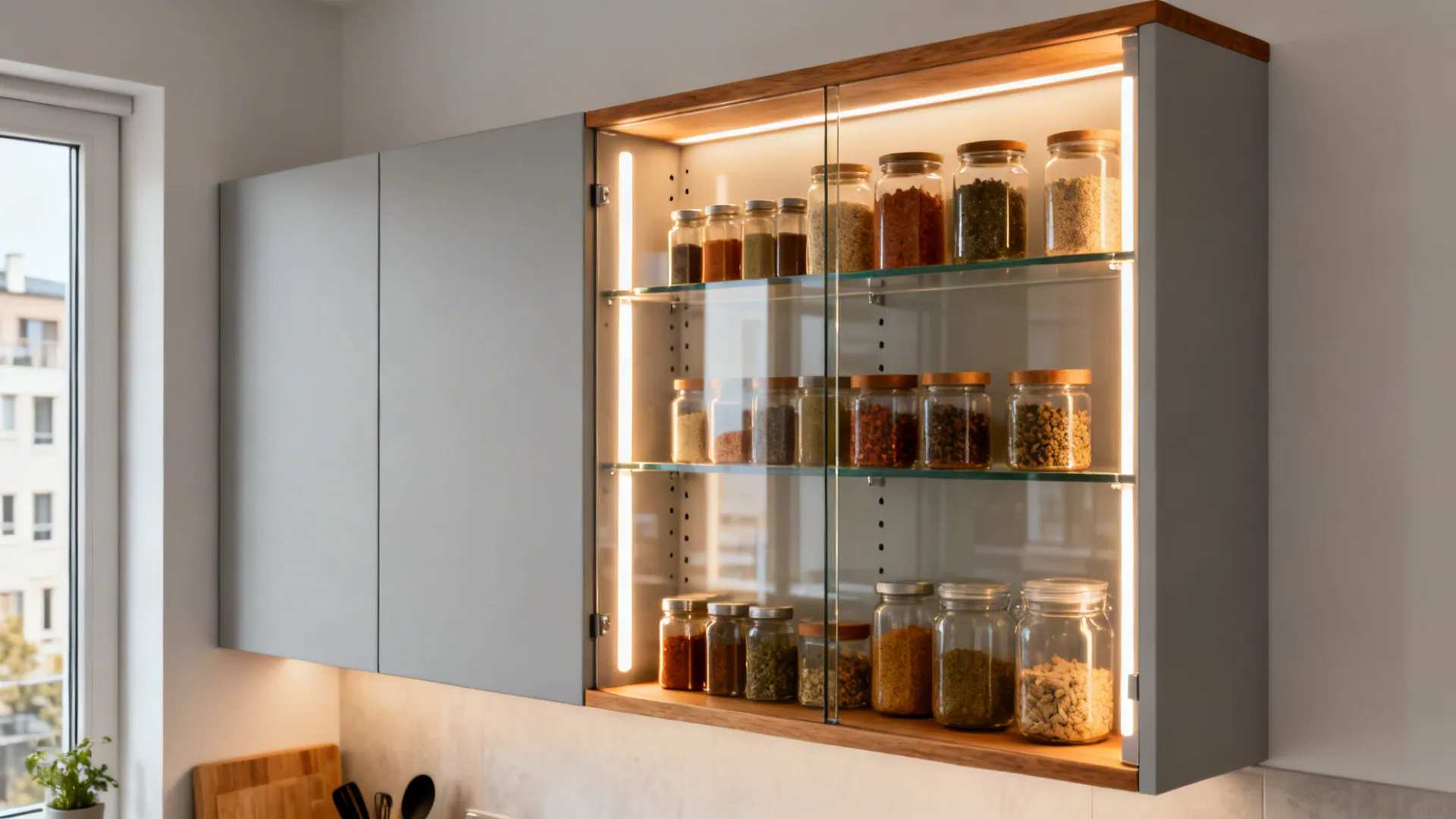

My Take: I’m a fan of low-iron glass backs inside wall cabinets paired with dimmable LED channels. On a recent condo remodel, the combination bounced light deep into shelves, making spices and jars pop without a lighting strip glaring at you.

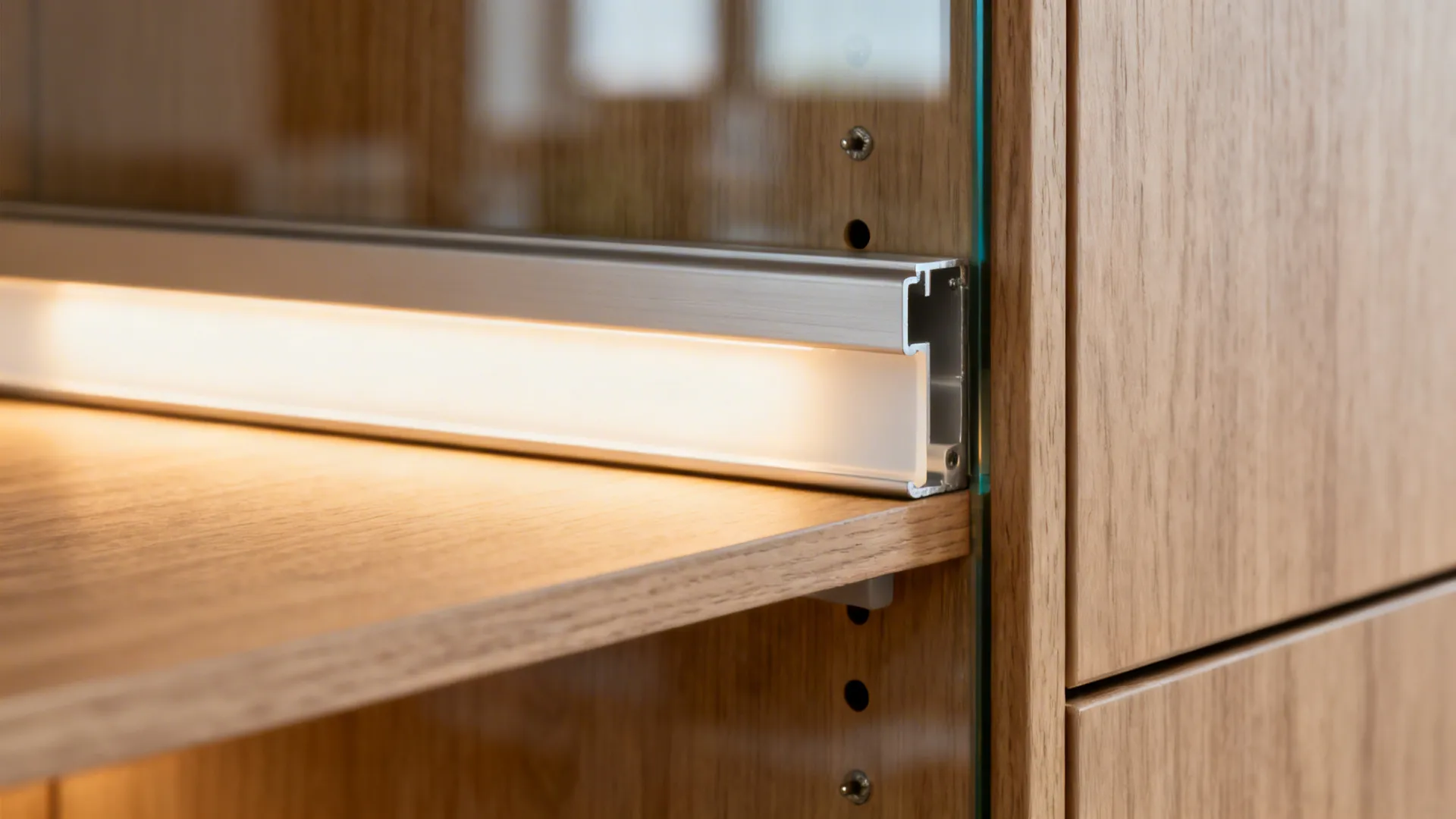

Pros: LED-integrated shelves improve task visibility and reduce search time—a small kitchen organization idea that pays off daily. Adjustable 32-mm system holes offer flexible heights for tall bottles. According to the Illuminating Engineering Society (IES), well-placed task lighting can cut visual strain and improve accuracy in food prep.

Cons: Glass backs show smudges; be ready for a quick weekly wipe. LED drivers need ventilation access—note service panels in your cabinet inside detail drawing or future you will curse past you.

Tip/Cost: Use diffusers to avoid LED hotspots. Specify CRI 90+ LEDs for true food colors; drivers typically require 25–40 mm recess depth behind the back panel.

save pin

save pin

3) Deep Drawer Systems With Pegs and Dividers

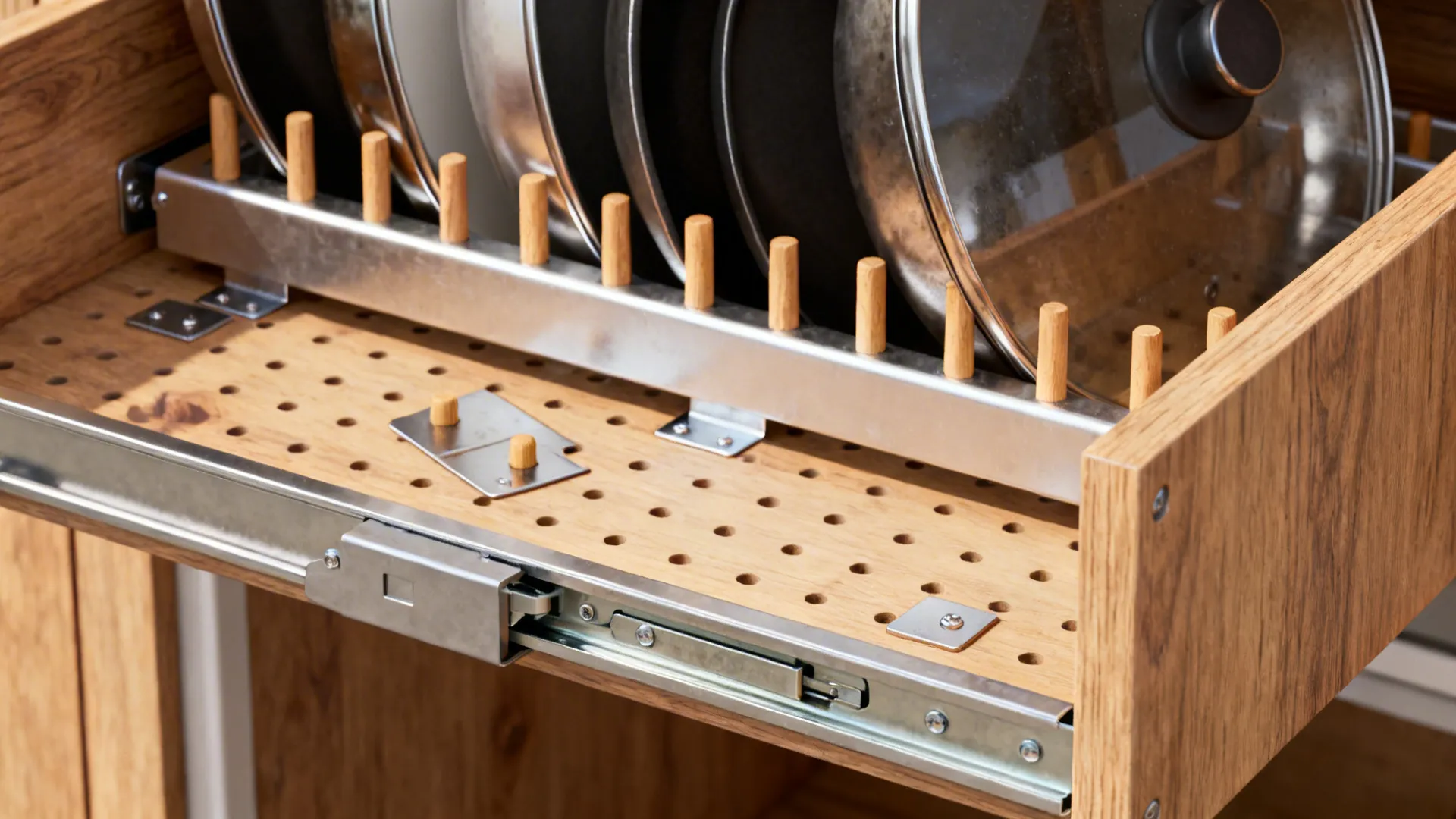

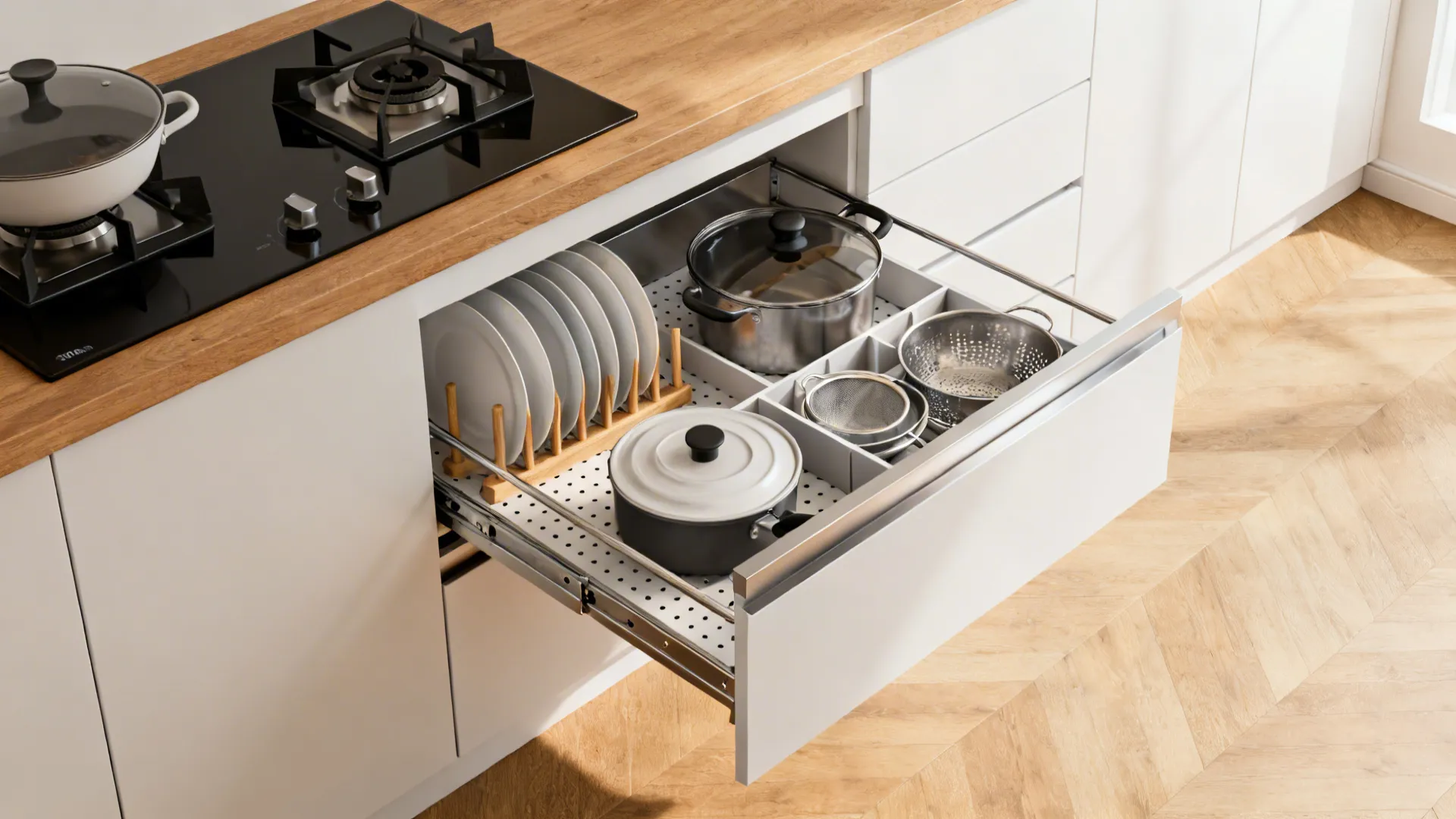

My Take: If I could change one thing in most kitchens, I’d swap base cabinets for deep drawers. With pegboard bases and adjustable dividers, even heavy pots behave. A family client told me their 8-year-old started putting dishes away correctly—organization that teaches itself.

Pros: Full-extension, soft-close drawers improve ergonomics—reducing stooping and making this a standout small kitchen ergonomic upgrade. Drawer pegs protect plates and stop pot-lid chaos. Detailed internal elevations let you define pot heights, rail positions, and slide loads (45–65 kg) upfront.

Cons: Premium drawer hardware isn’t cheap, especially with high load ratings. If dimensions aren’t coordinated with appliances, you can end up with clashing handles or drawers blocked by oven doors—double-check reveals in your drawing.

Tip/Cost: I budget one wide 900 mm drawer stack near the cooktop for pots, lids, and strainers; it replaces two or three mediocre cupboards. Include a 3–4 mm reveal per face for seasonal movement.

For a rental-grade upgrade, we prototyped layouts using a compact 3D mockup to test drawer clearances and corner swing before ordering hardware.

save pin

save pin

4) Hidden Utility Tower: Brooms, Bin Pull-Outs, and Charging Nook

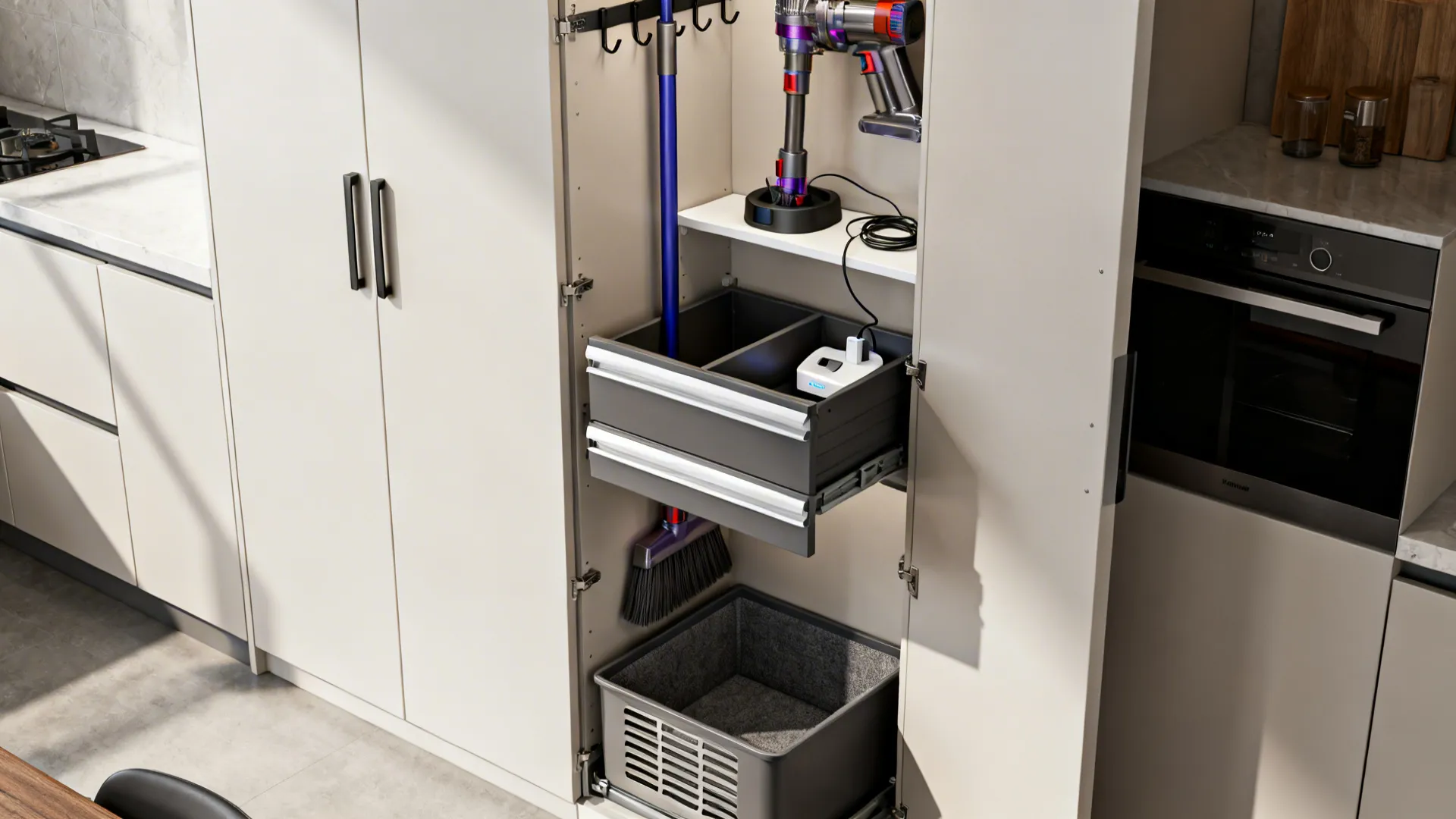

My Take: I love disguising the messy bits. A 450–600 mm utility tower can hide broom hooks, a dual-bin pull-out, and a charging shelf for cordless vacs. In one narrow galley, this tower replaced a random open shelf and instantly felt bespoke.

Pros: Keeps cleaning tools and waste segregated from food zones—an undervalued kitchen hygiene upgrade. A bin pull-out with soft seals reduces odors, and a dedicated charger shelf declutters counters. Detail drawings clarify ventilation slots and cable routing for safety.

Cons: Vertical towers can eat precious width; plan around door swing and aisle clearance. If you forget ventilation for chargers, heat buildup can shorten battery life—mark louvered sections in the elevation.

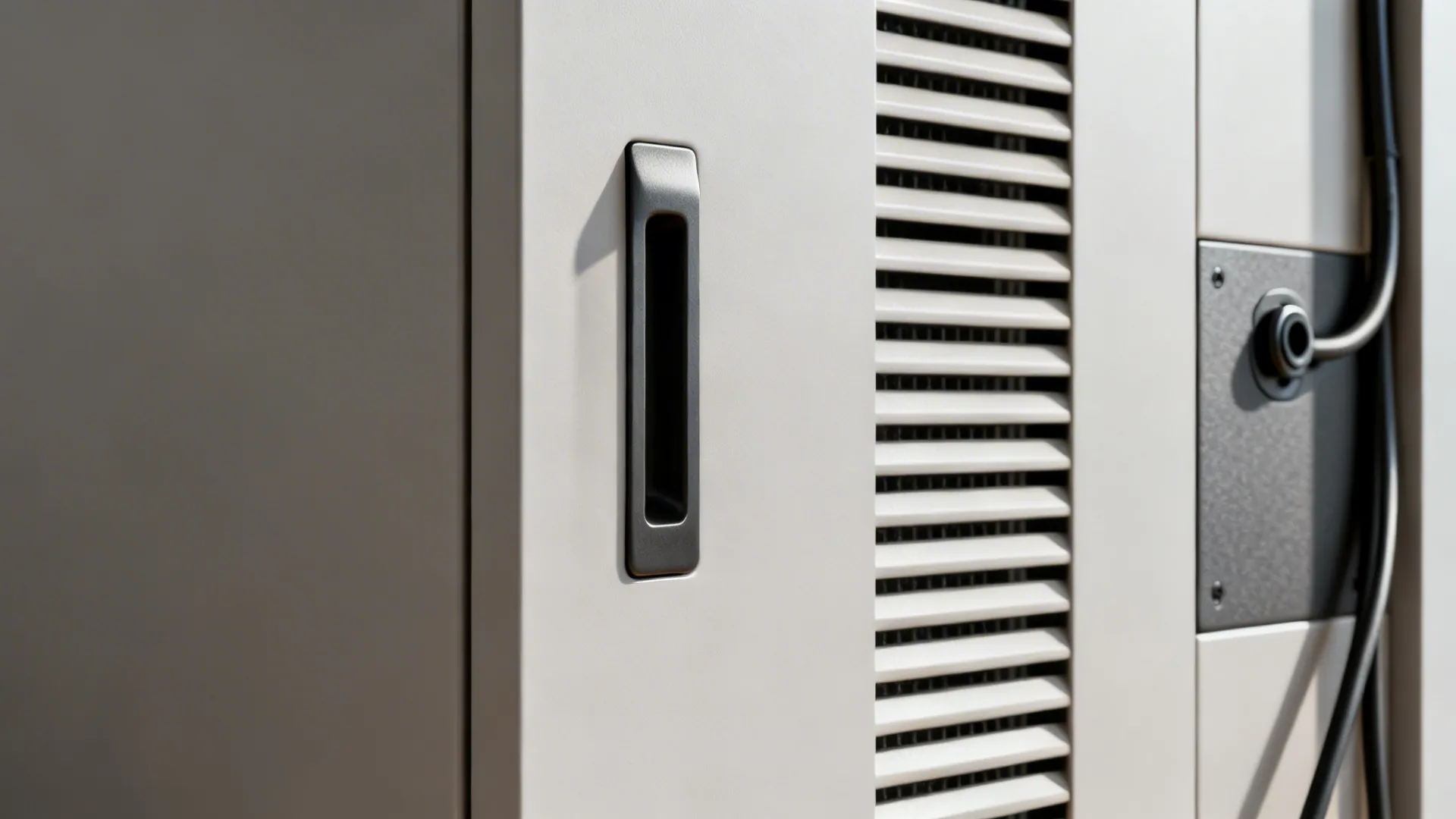

Tip/Cost: Add a 20–30 mm recessed handle to avoid snags in tight aisles. I specify moisture-resistant boards for bin compartments and a drip tray under cleaners.

save pin

save pin

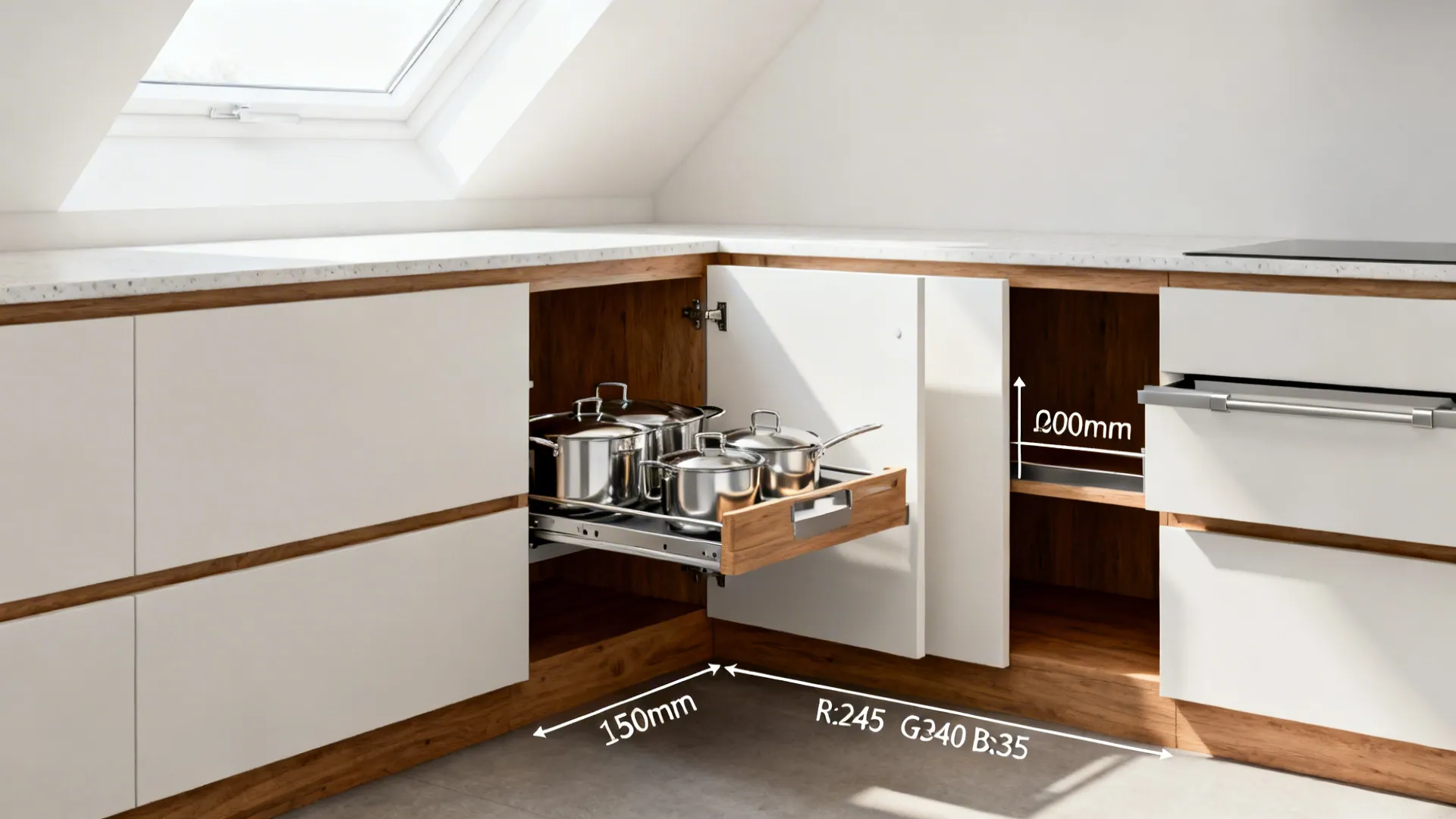

5) Corner Intelligence: Diagonals, Lemans, or Blind Pulls

My Take: Corners are where space goes to hide. I choose diagonals for compact counters, Lemans trays when clients love cookware, and blind-corner pull-outs for budget builds. The right pick depends on what you actually store.

Pros: Lemans or blind pull-outs convert dead corners into high-access areas—ideal for small kitchen corner solutions. With precise cabinet inside detail drawings, you can set tray heights to clear pan handles and hinges. The National Kitchen & Bath Association (NKBA) recommends maintaining minimum 900 mm aisle clearance in many layouts, so coordinating swing paths is critical.

Cons: Corner hardware can be pricey and sometimes squeaky if under-lubricated. Diagonal cabinets look sleek but may reduce adjacent drawer widths—mock it up before committing.

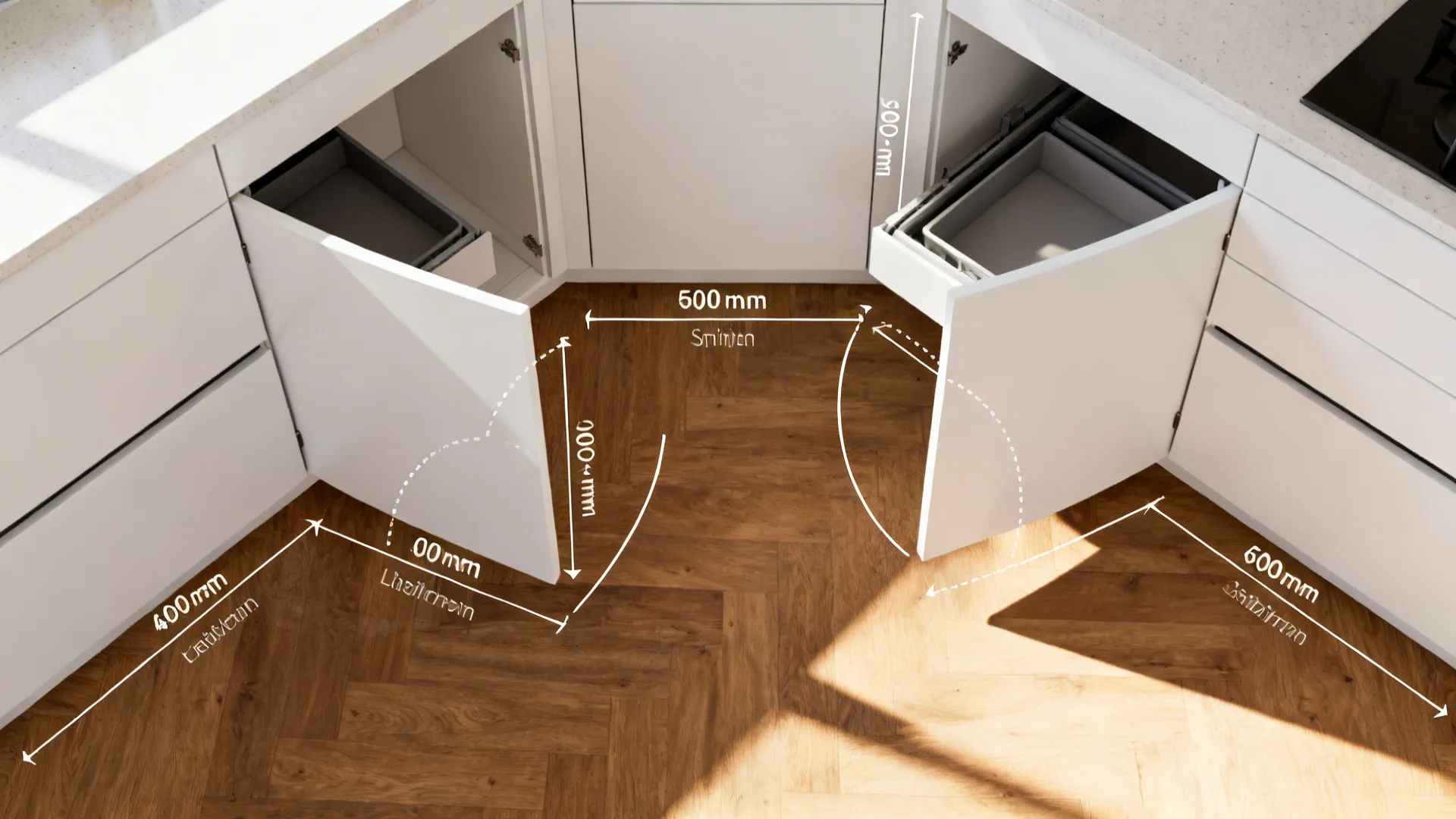

Tip/Cost: Note hinge overlay, tray radius, and handle interference lines on plan and elevation. In one U-shaped space, plotting tray arcs early allowed us to keep a slim wine drawer untouched.

When I test tricky blind-corner mechanics, I sometimes pre-visualize with realistic motion paths in a quick scene to verify swing and reach before hardware orders.

[Section: 总结]

Small kitchens don’t limit design—they demand smarter design. With a clear kitchen cabinet inside detail drawing, you can capture millimeters that add up to real daily ease. From full-height pull-outs to ergonomic drawers and corner intelligence, planning inside the box makes life outside it smoother. According to NKBA planning guidelines, right-sizing clearances and reach zones is fundamental to usability—no matter the square footage. Which of these five ideas are you most excited to try in your own cabinet interiors?

[Section: FAQ 常见问题]

save pin

save pin

FAQ

1) What is a kitchen cabinet inside detail drawing?

It’s a millimeter-accurate plan/elevation/section set showing shelves, drawers, hardware, clearances, and service access inside each cabinet. For small kitchens, it ensures every inch serves a purpose.

2) How detailed should measurements be?

Note overall, internal clear widths, slide setbacks, hinge overlays, and tolerances (often 2–3 mm side clearance for slides). Include appliance specs and door swing arcs to prevent collisions.

3) What hardware loads do I specify for deep drawers?

For pots and pans, I typically use 45–65 kg rated slides. If you store cast iron or stacks of plates, lean higher and check manufacturer specs for dynamic loads.

4) How do I plan lighting inside wall cabinets?

Use CRI 90+ LED strips with diffusers, and place channels at the front underside or vertical sides. Provide access to drivers and ventilation in the detail drawing for safer maintenance.

5) What’s the best approach to corner cabinets?

Choose based on contents: Lemans for cookware, blind pull-outs for mixed items, diagonal for clean lines. Mock up tray swing and handle interference; a simple 3D test can help verify clearances.

6) Are there guidelines for ergonomic heights?

Yes. NKBA recommends keeping primary storage within comfortable reach zones; maintaining about 900 mm aisles is common in many layouts. Refer to NKBA Kitchen Planning Guidelines for precise dimensions.

7) How can I avoid moisture damage near sink cabinets?

Specify moisture-resistant boards, seal cutouts for plumbing, and add drip trays. Note silicone seals and ventilation gaps in your interior details to manage humidity.

8) Can I prototype layouts before fabrication?

Absolutely. Many designers build quick digital mockups to test drawer and door interference. For complex corners or tight aisles, a simple scene with corner motion and clearance checks can save change orders.
