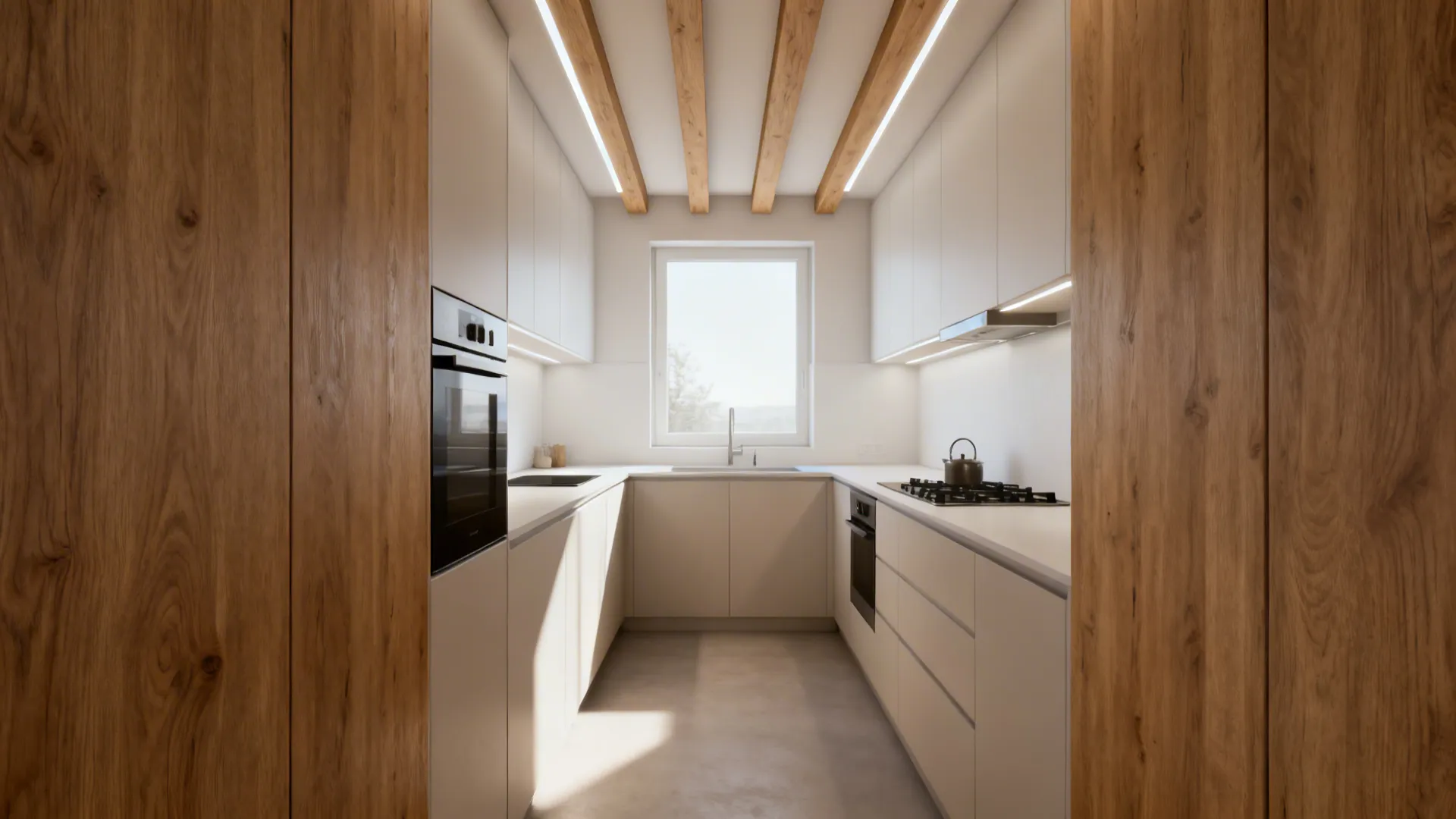

5 Kitchen Ceiling Designs with Beams That Transform Small Spaces: My pro-tested beam ideas for kitchens: smart layouts, warm materials, and small-space magic

As an interior designer who’s rebuilt more kitchens than I can count, I’ve watched kitchen ceiling designs with beams go from rustic afterthought to a focal point. Trends are leaning toward textural ceilings, softer woods, and slimmer profiles—especially in compact homes. Small spaces spark big creativity, and in this guide, I’ll share 5 beam-driven design ideas I’ve used in real projects, with pros and cons grounded in experience and expert data.

Before we dive in, one quick example: a 9-foot galley I did last year used low-profile oak beams to visually widen the room. The ceiling felt taller, the lighting got better, and we still had clearance for tall clients. If you’re curious how different layouts influence sightlines, this gallery of L-shaped counters that free more prep space shows why beam orientation and counter runs should be planned together.

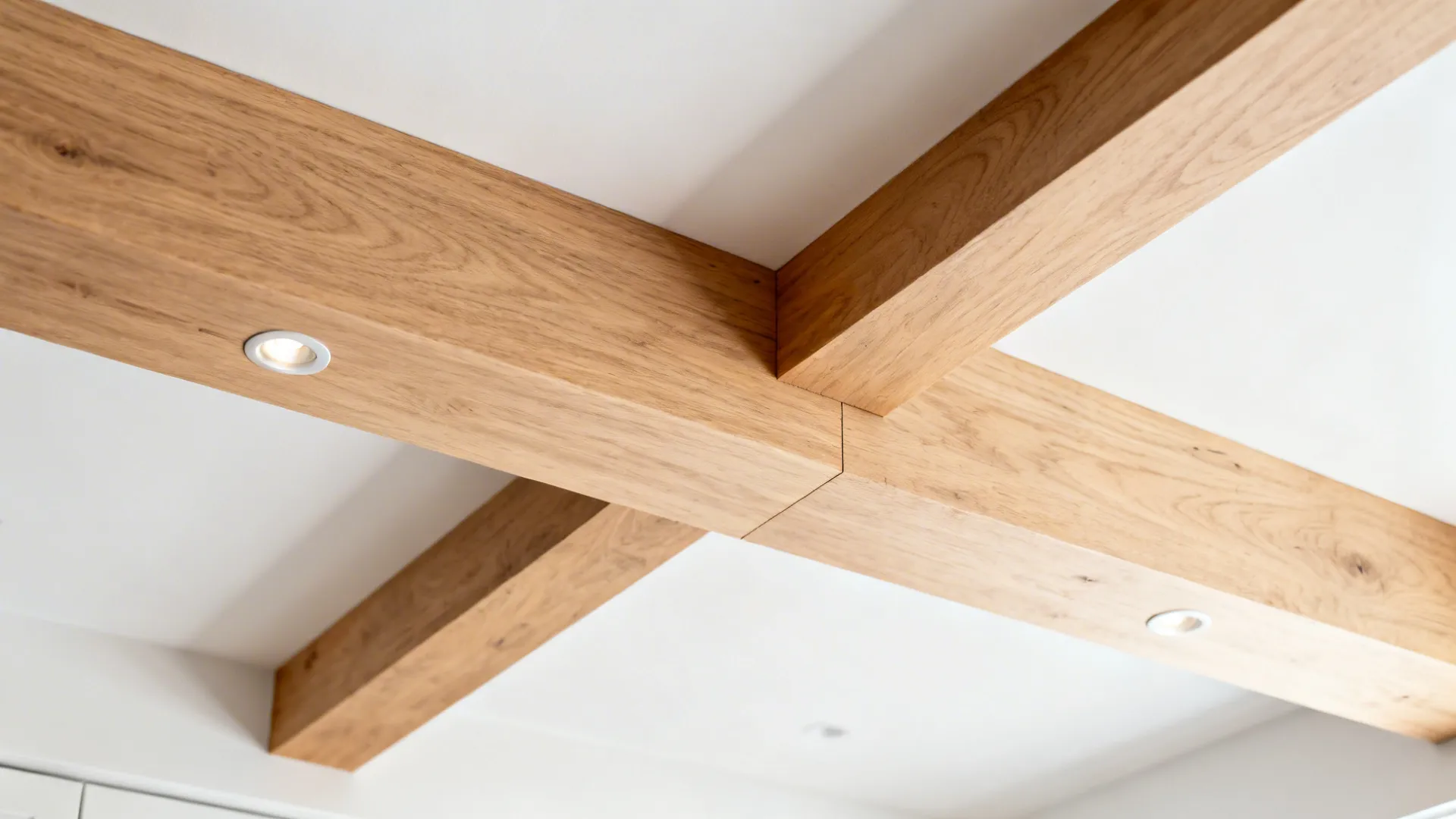

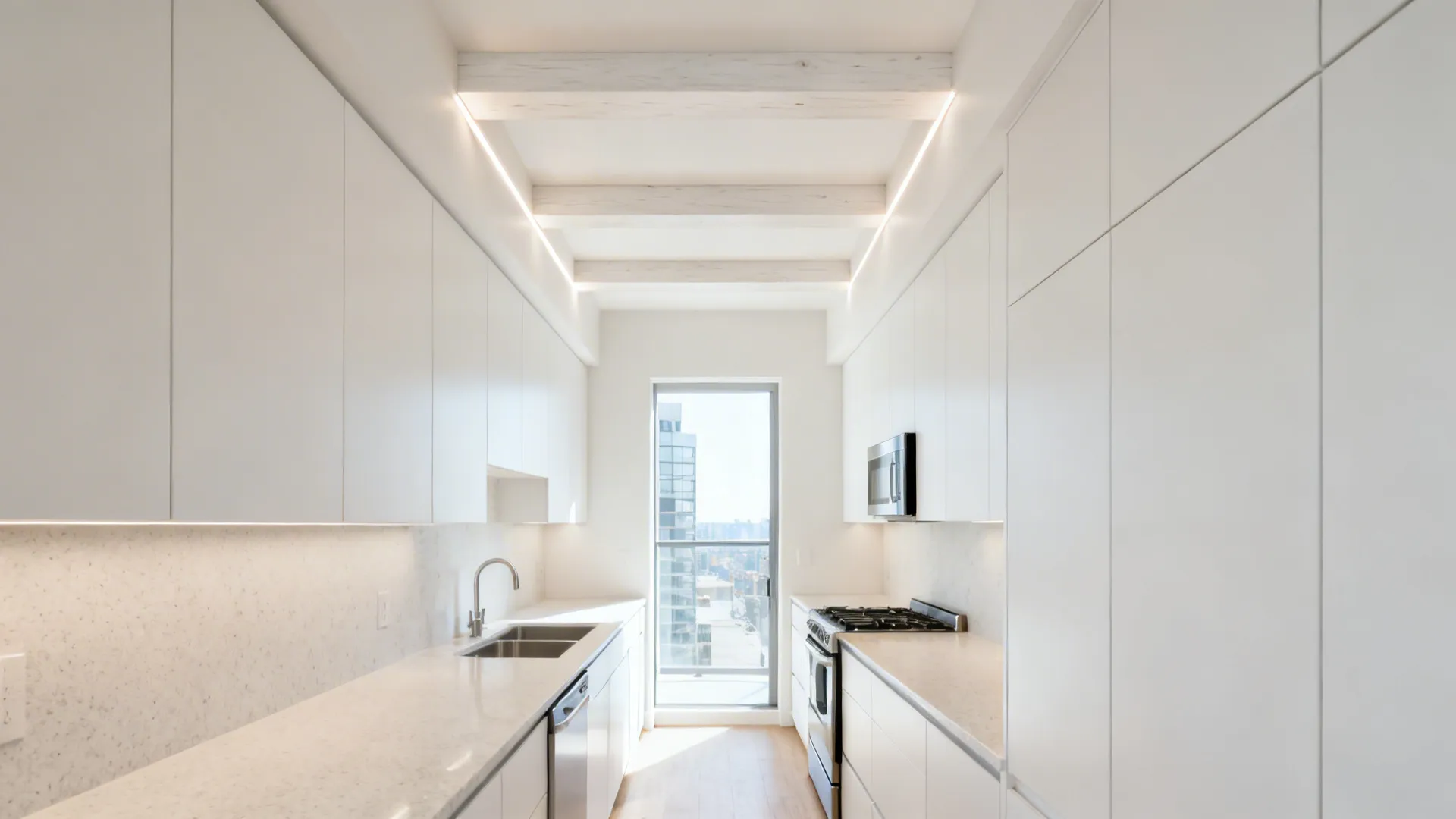

Exposed Slim Beams for Subtle Texture

My Take

I love starting small, especially in low-ceiling kitchens. In one condo renovation with an 8'2" ceiling, we milled white oak into 2" x 3" beams and ran three across the short span. It added just enough texture without making the room feel heavy.

Pros

- Low-profile beams preserve headroom and are ideal for small kitchens; this long-tail approach—“slim ceiling beams in low-height kitchens”—keeps the vertical plane open.

- Easy to integrate with recessed micro-downlights or linear LEDs for task zones.

- Lightweight species like pine or poplar reduce load; prefinished veneers further cut weight, ideal for older buildings where added structural load is a concern.

Cons

- Slim beams won’t hide large ducts or wiring, so you’ll need precise routing or a shallow channel. I’ve had to shave 1/8" off fixtures more than once.

- If the ceiling is uneven, thin beams can highlight the imperfection rather than mask it.

Tips / Cost

- Material: $12–$25/linear foot for solid oak; $6–$12 for veneered poplar. Labor varies, but a 3-beam install in a 10' kitchen typically fits a single-day schedule.

save pin

save pin

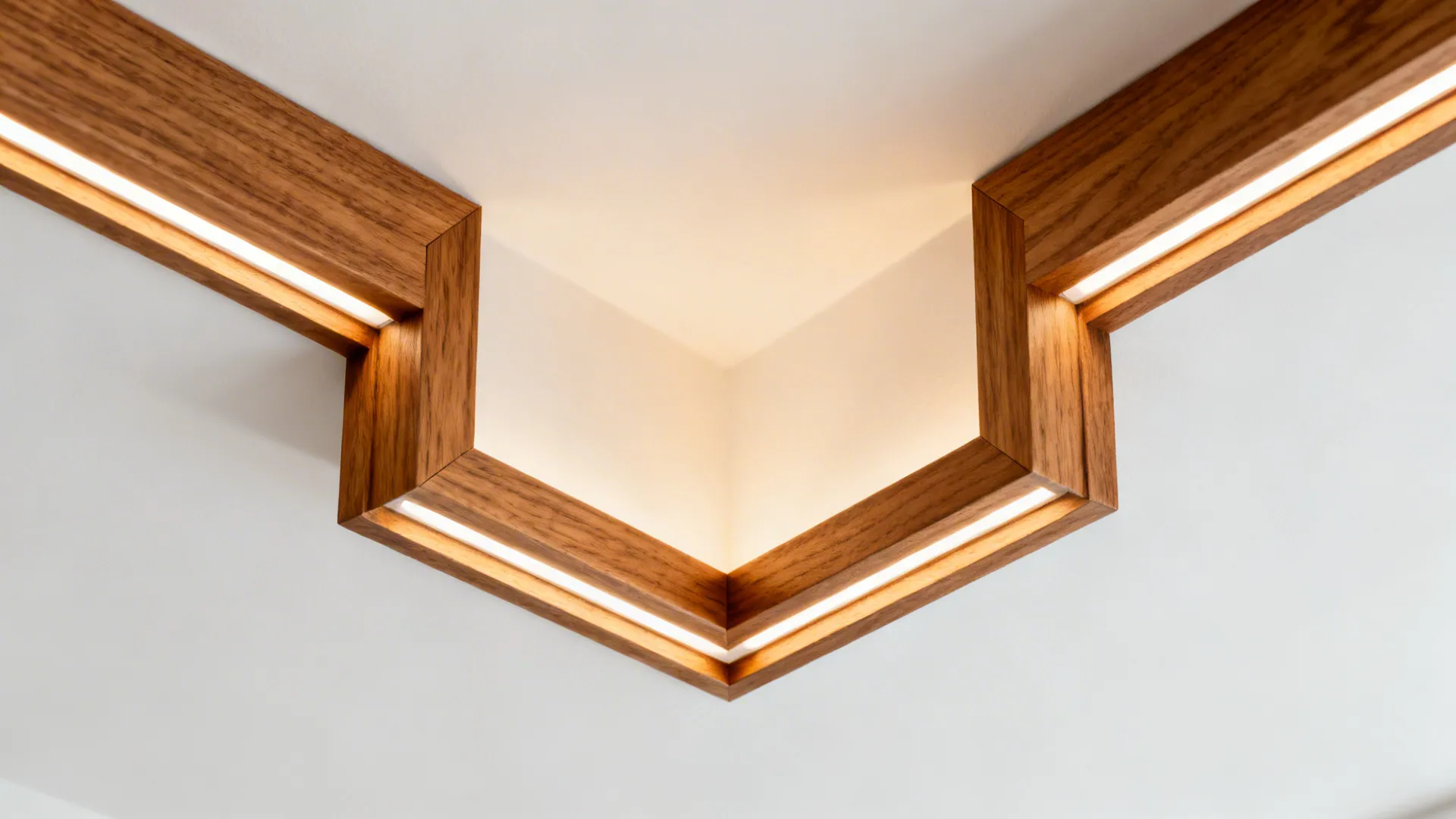

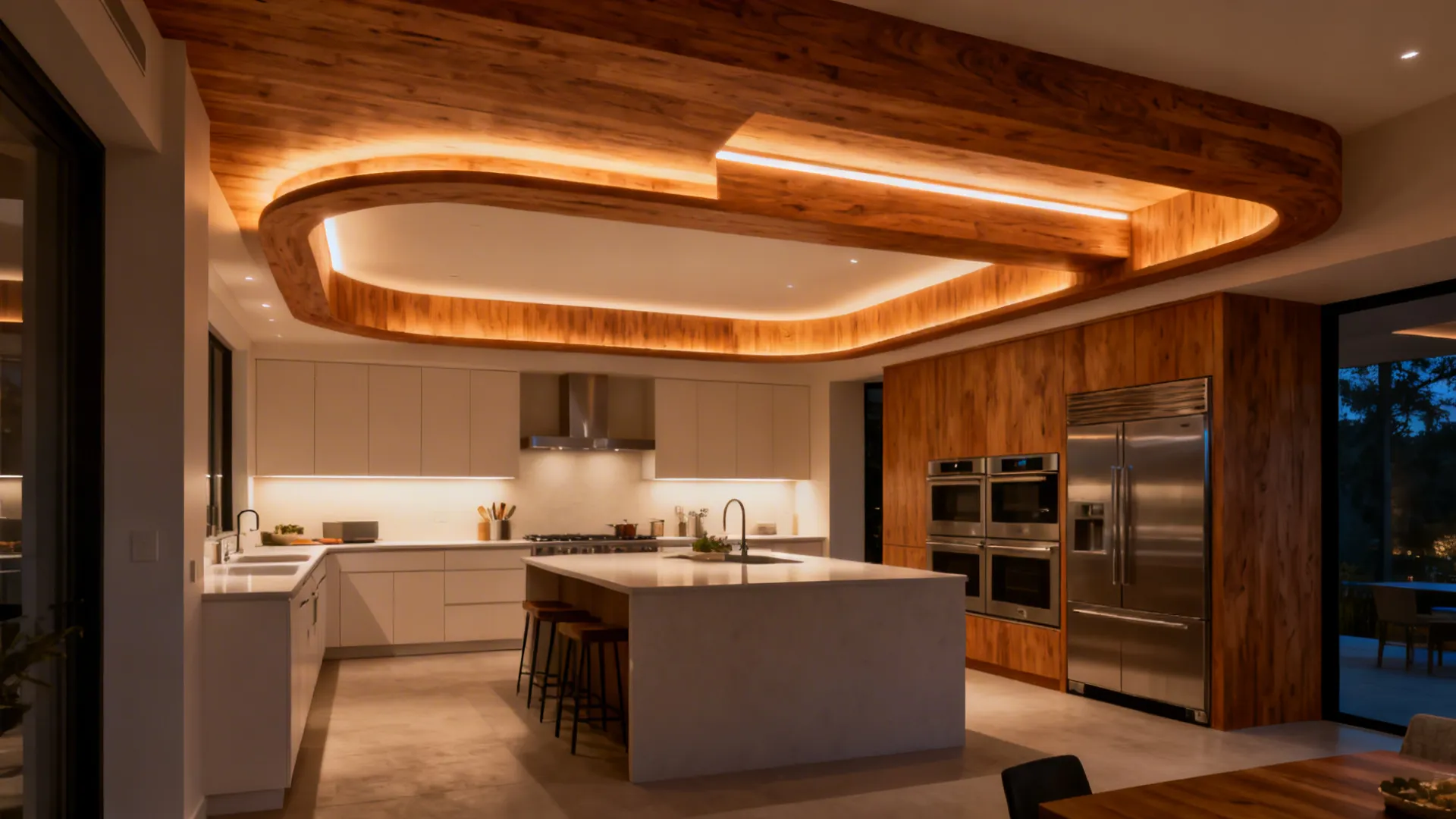

Boxed Faux Beams with Integrated Lighting

My Take

When clients want drama without the weight, I build hollow U-shaped beams. In a 1930s bungalow, we used MDF-clad faux beams with a warm oak veneer and tucked LED strips on the inside faces. The glow washed the ceiling and made the space feel taller at night.

Pros

- Great for cable management; “faux beams with hidden LED wiring” is a long-tail strategy that keeps the ceiling clean.

- Dimmable LEDs create layered light: task illumination over the island, ambient glow for evenings.

- Easy maintenance and access compared with solid timbers; panels can be unscrewed for future upgrades.

Cons

- Poorly sealed MDF can swell near vent hoods; I always specify a high-quality veneer and edge sealing.

- If beam proportions are too chunky in a small kitchen, they visually compress the room—measure twice, mock up once.

Tips / Case

- Keep beam depth between 4"–6" for ceilings under 9'. Use 2700K–3000K LEDs for warmth that flatters wood tones.

save pin

save pin

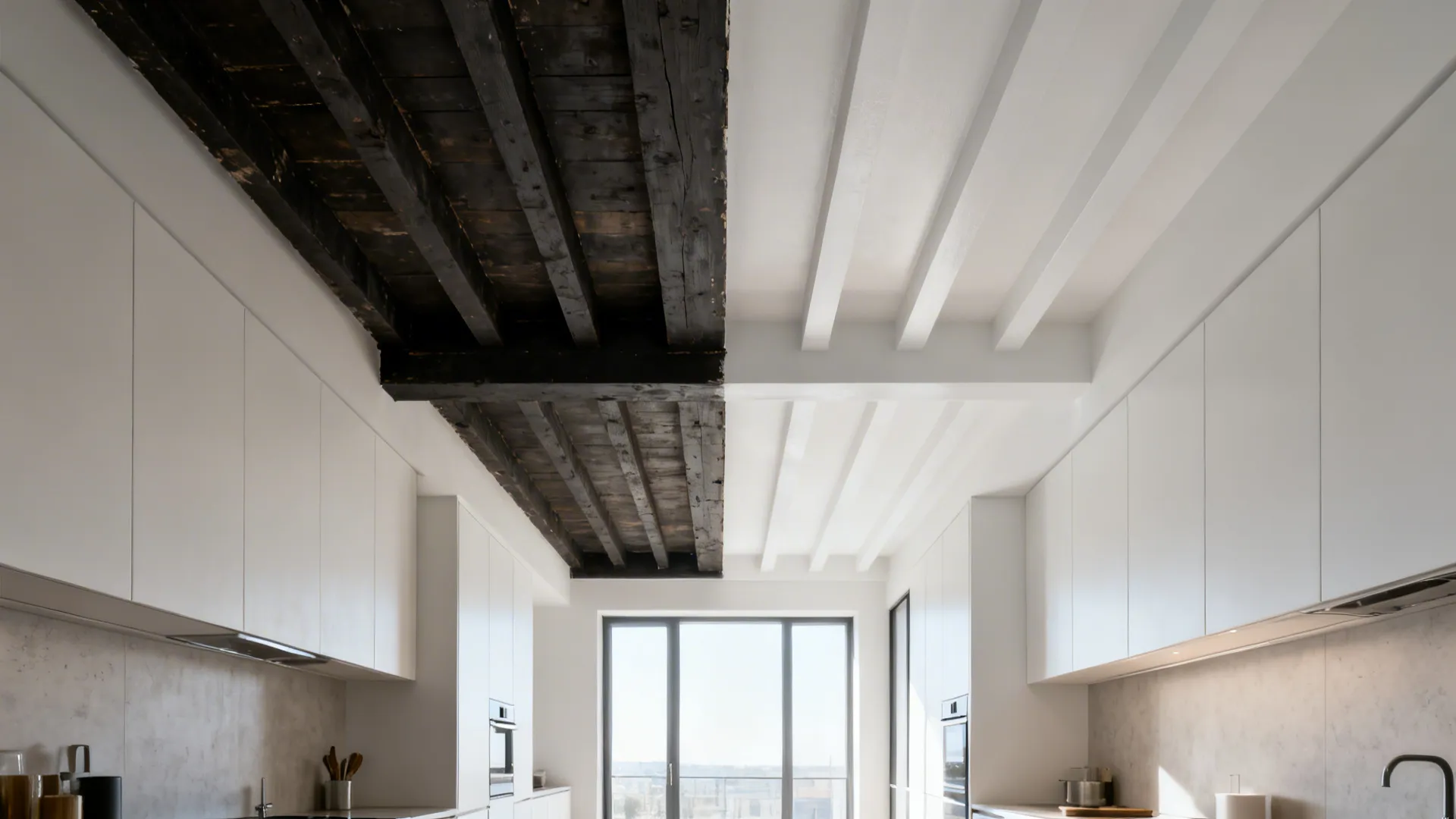

Painted Beams to Match the Ceiling

My Take

When a client wants beams but fears “too rustic,” I paint them the same color as the ceiling. In a narrow apartment kitchen, we used satin white beams to bridge two soffits. The rhythm remained, but the ceiling stayed airy.

Pros

- “Color-matched beams on white ceilings” reflect light and keep the room bright—ideal for north-facing kitchens.

- Hides mixed materials (wood, MDF, drywall) under a unified finish; touch-ups are easy over time.

- Works beautifully with minimalist cabinetry and slab backsplashes where texture needs to be subtle.

Cons

- Painted beams can read flat if the sheen is too low; I prefer satin to catch just a hint of light.

- White-on-white can show cooking residue; plan for a washable paint rated for kitchens.

Tips / Cost

- Use high-quality primers to prevent tannin bleed on oak or cedar. Expect $3–$5/sq ft for spraying in place with masking.

save pin

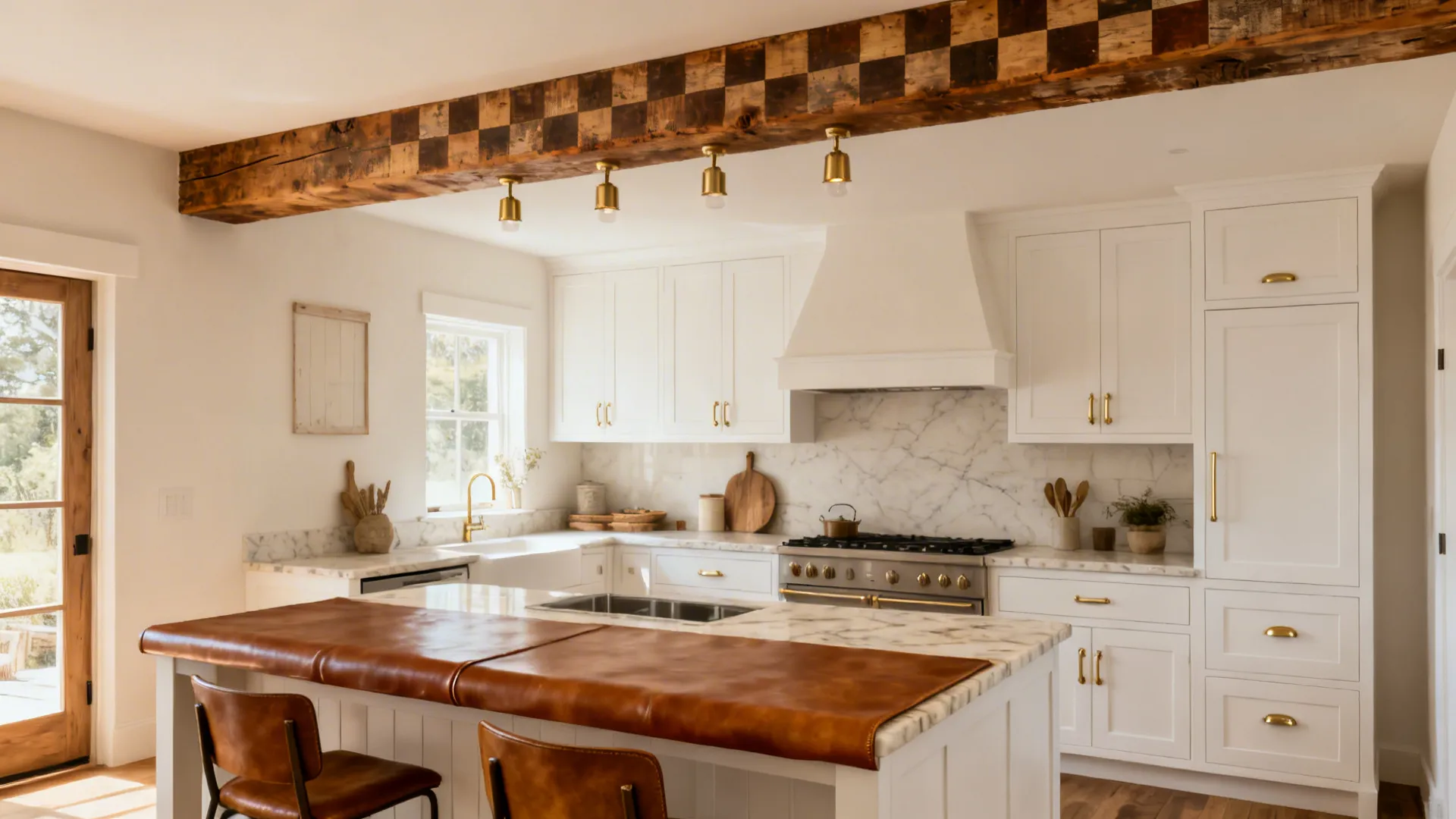

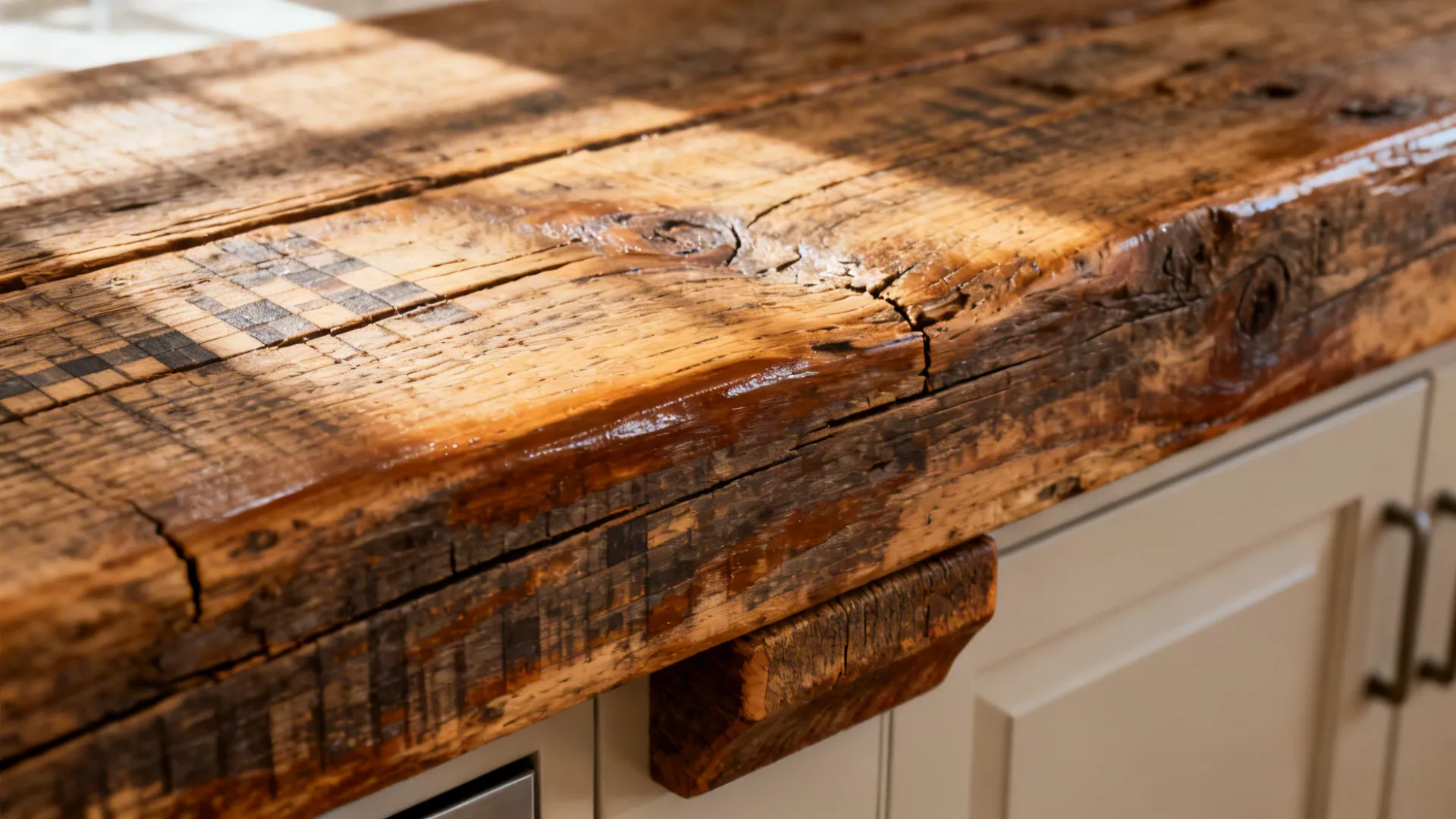

Rustic Reclaimed Wood Beams for Warmth

My Take

In a cottage remodel, we installed a single reclaimed beam over the island, not for structure but for soul. It brought warmth and a lived-in feel that the matte countertops needed. The key was sealing for kitchen use without losing texture.

Pros

- Reclaimed timbers add a “natural texture ceiling beam” vibe that instantly warms modern kitchens.

- If sealed properly, the patina holds up in busy spaces; I like waterborne poly with low VOCs.

- Sustainability win: reusing lumber reduces embodied carbon. The Journal of Cleaner Production reports that salvaged wood typically carries lower lifecycle impacts than virgin lumber of similar species (Micklewright et al., 2020).

Cons

- Weight and handling: even a small beam can require reinforcement; check joist capacity and consult a structural engineer when in doubt.

- Inconsistent dimensions and checks (cracks) may complicate lighting integration; plan grommets and steel brackets in advance.

Tips / Case

- Seal with two to three coats of matte waterborne finish; spot-fill deep checks to limit dust. For layout planning around beams and islands, I often review galleries like open-concept visuals that clarify sightlines to ensure the beam doesn’t cut through pendant groupings.

save pin

save pin

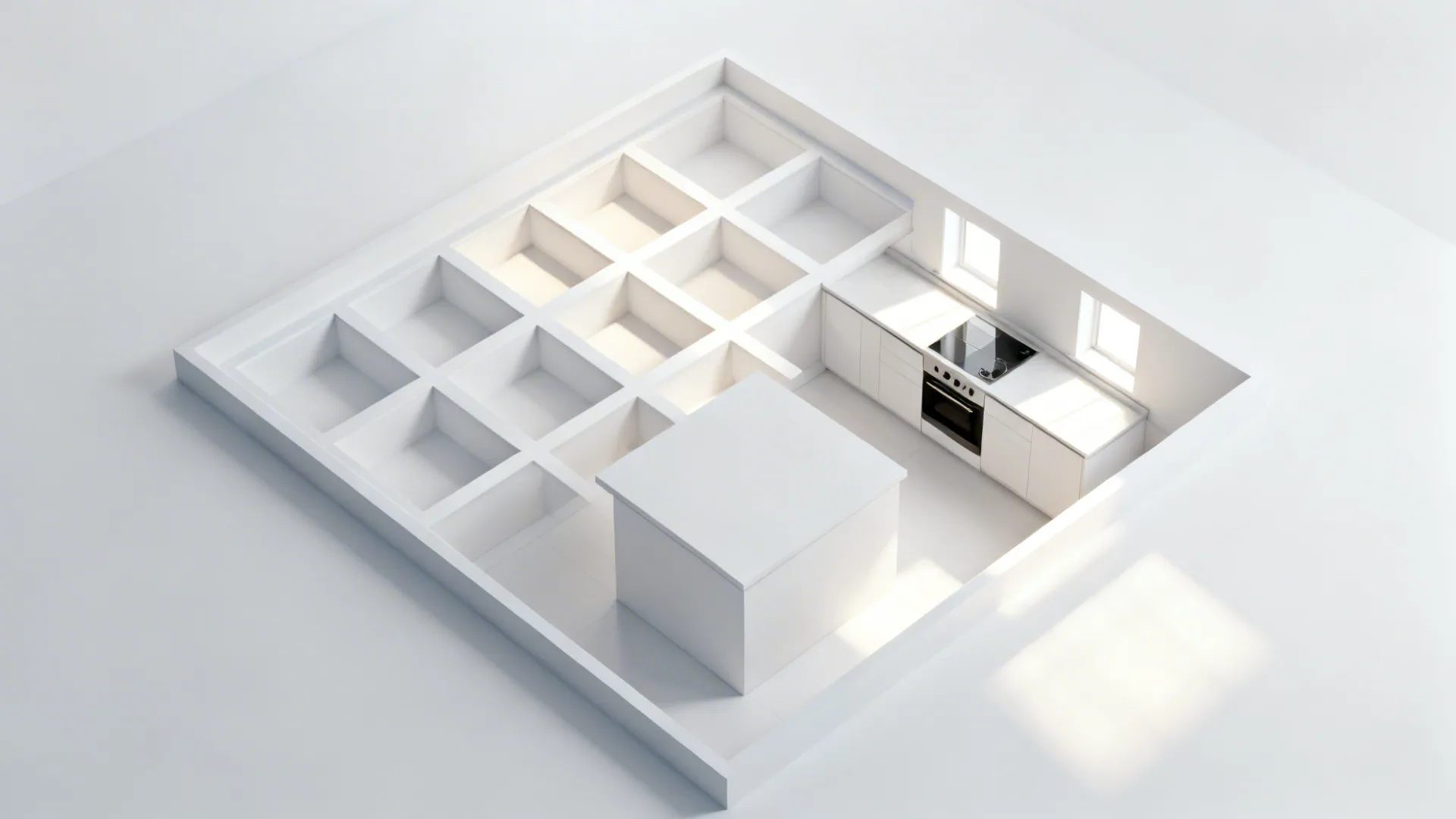

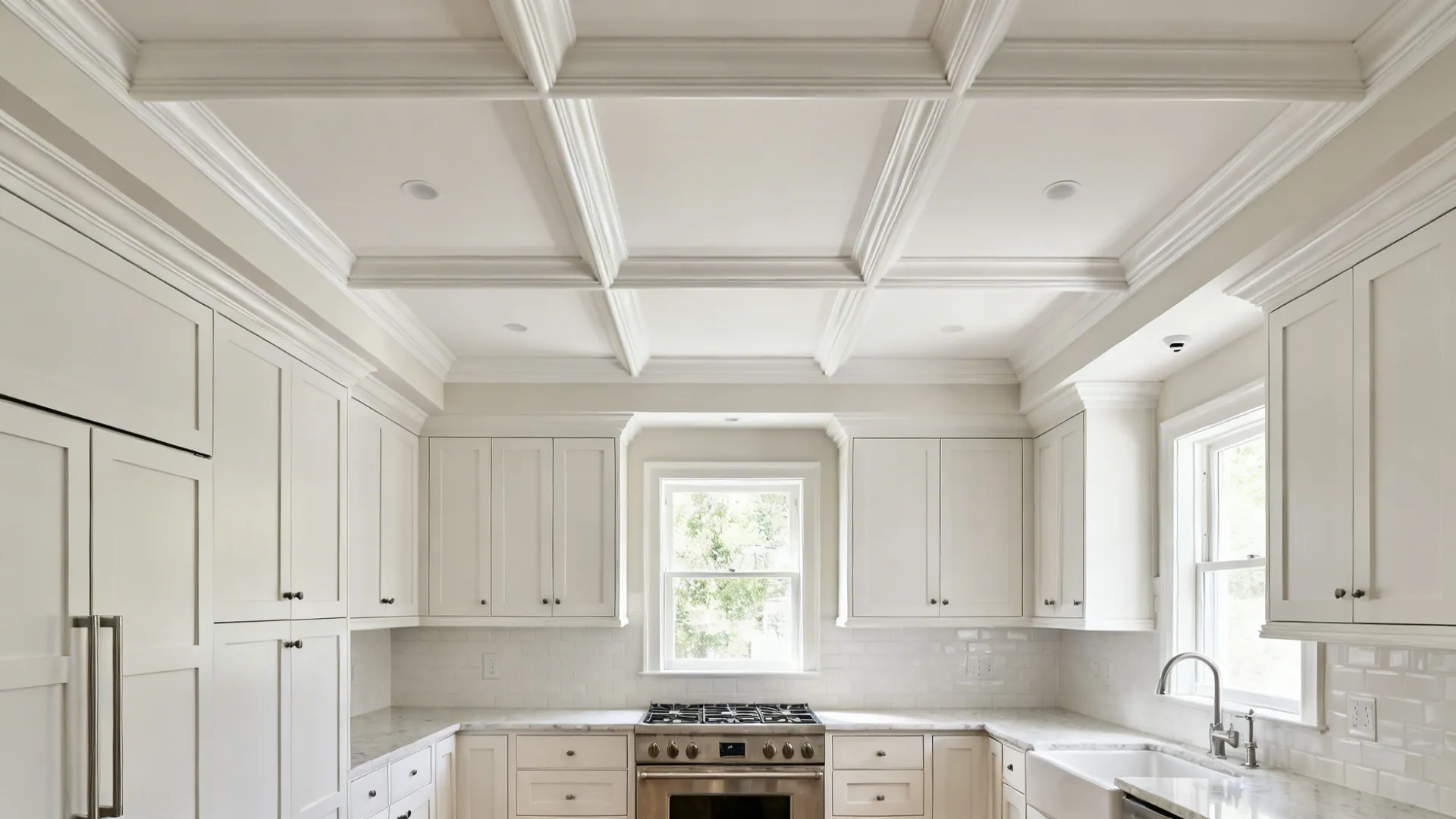

Cofered Grid with Shallow Beams

My Take

A shallow coffered grid can be a game-changer in small kitchens. In a 10' x 10' space, a 3x3 grid with 3" drops added architectural interest and cleverly concealed a sprinkler pipe.

Pros

- “Shallow coffered ceiling for small kitchens” introduces structure without overwhelming height.

- Great for routing low-voltage lines or hiding minor unevenness across ceiling planes.

- Looks intentional in transitional and classic interiors; pairs well with shaker cabinetry and crown molding.

Cons

- Grids demand precise layout; off-center boxes with the range or sink will annoy you daily. I’ve redone one too many misaligned coffers.

- More labor than running a few beams; corners and miters add time.

Tips / Cost

- Map the grid to existing studs or use reliable anchors; prime all cuts before installation to reduce seasonal gaps. Budget $18–$35/sq ft depending on trim complexity.

save pin

save pin

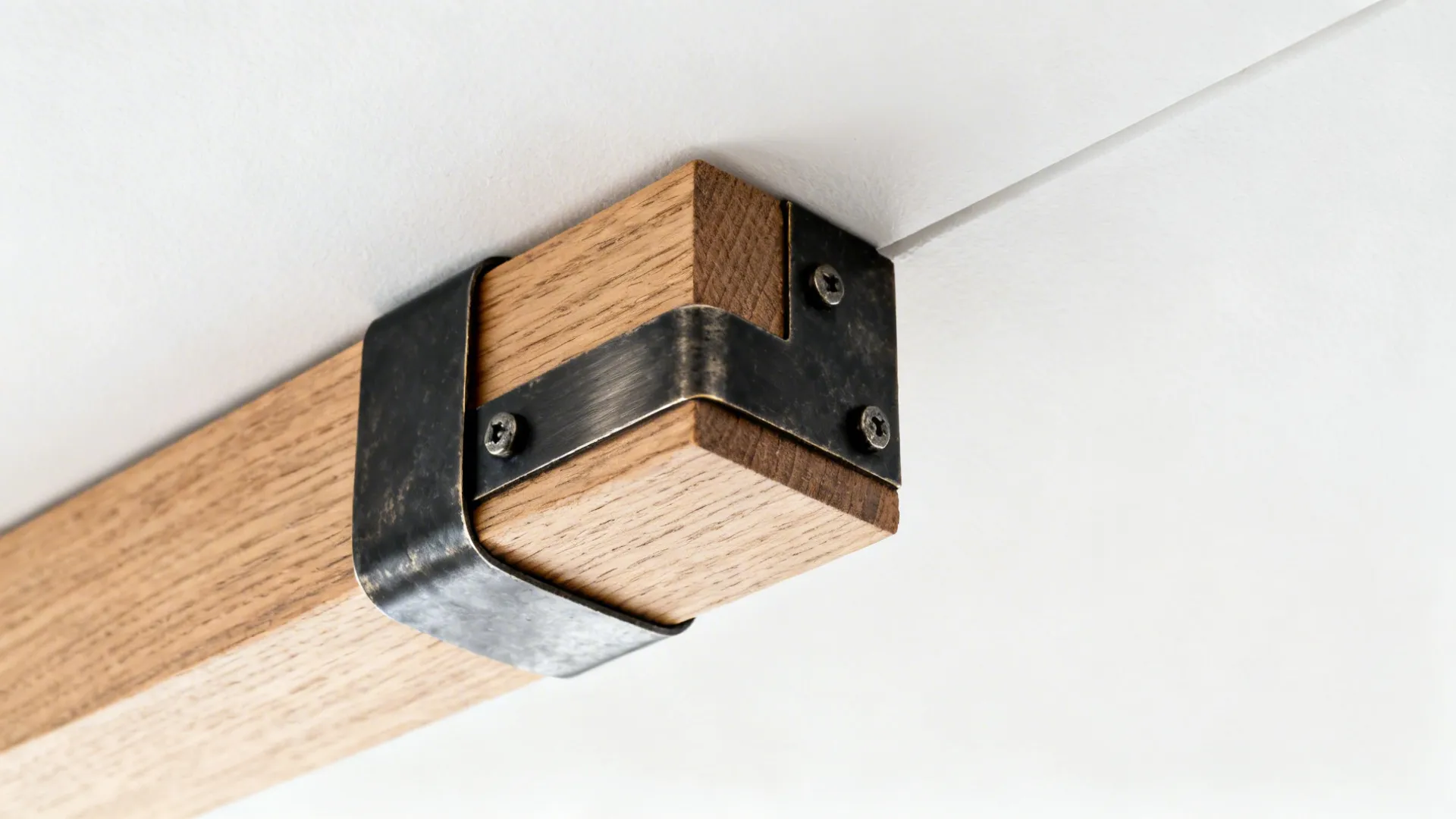

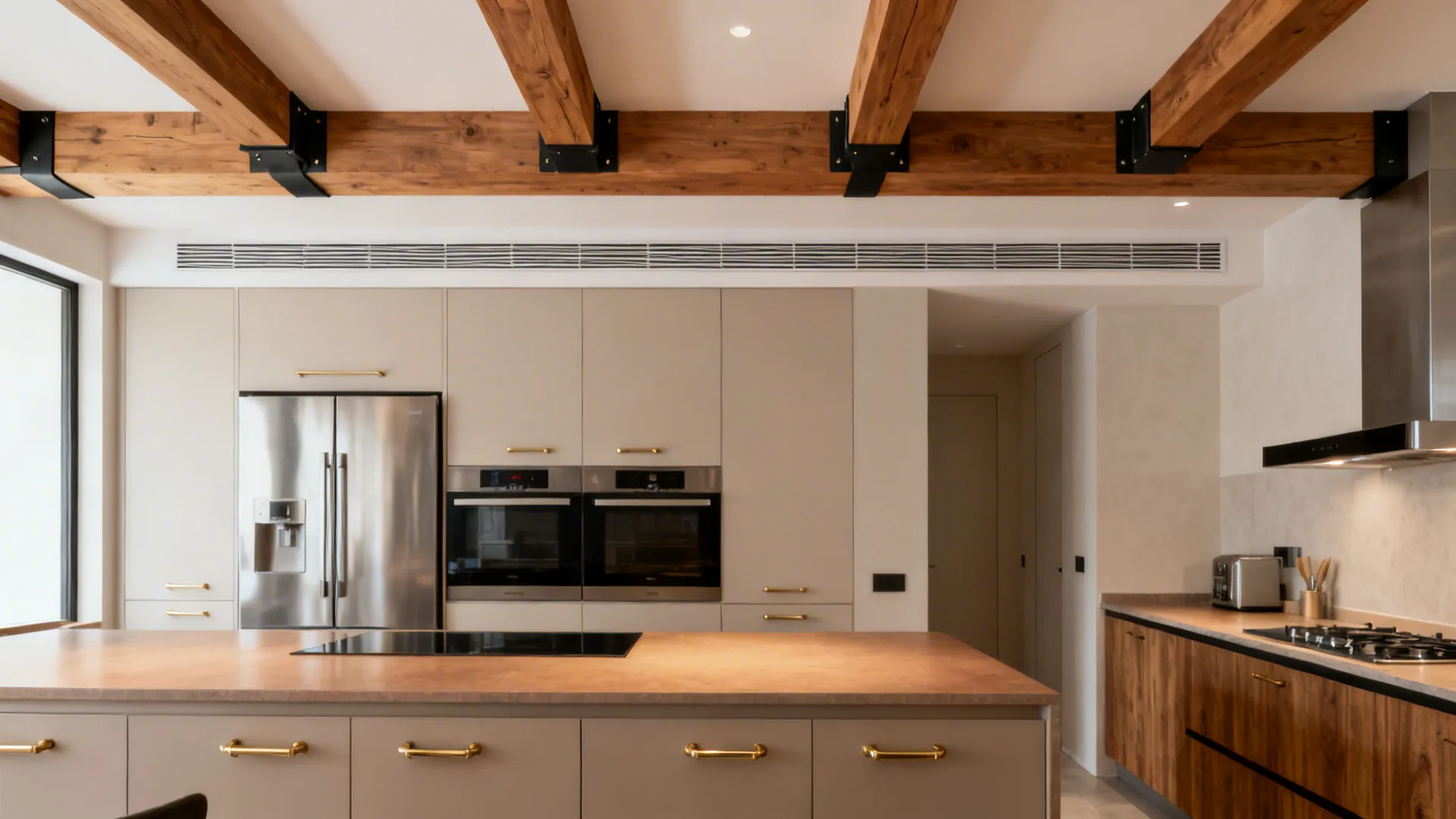

Mixed-Material Beams: Wood + Metal Accents

My Take

When a client wants a modern edge, I wrap slim wood beams with blackened steel straps at the ends. It brings a subtle industrial note without turning the kitchen into a loft cosplay. We balanced it with warm countertops and soft brass pulls.

Pros

- “Wood beams with metal strapping” creates a tailored, contemporary feel that plays nicely with stainless appliances.

- Metal accents can hide seams in long runs or reinforce faux beams at joints.

- Works nicely with linear slot diffusers or minimalist venting, keeping the ceiling crisp.

Cons

- Metal adds weight quickly; plan attachment points and consider aluminum lookalikes if the ceiling is delicate.

- Too many materials overhead can get busy; echo the metal tone in just one or two other places (hardware, stools).

Tips / Case

- Keep straps to 1"–1.5" widths for small kitchens. If you’re testing layouts and lighting positions together, I often prototype with rendered mockups that visualize beam-light interactions before drilling into anything.

save pin

save pin

Planning Essentials: Heights, Loads, and Finishes

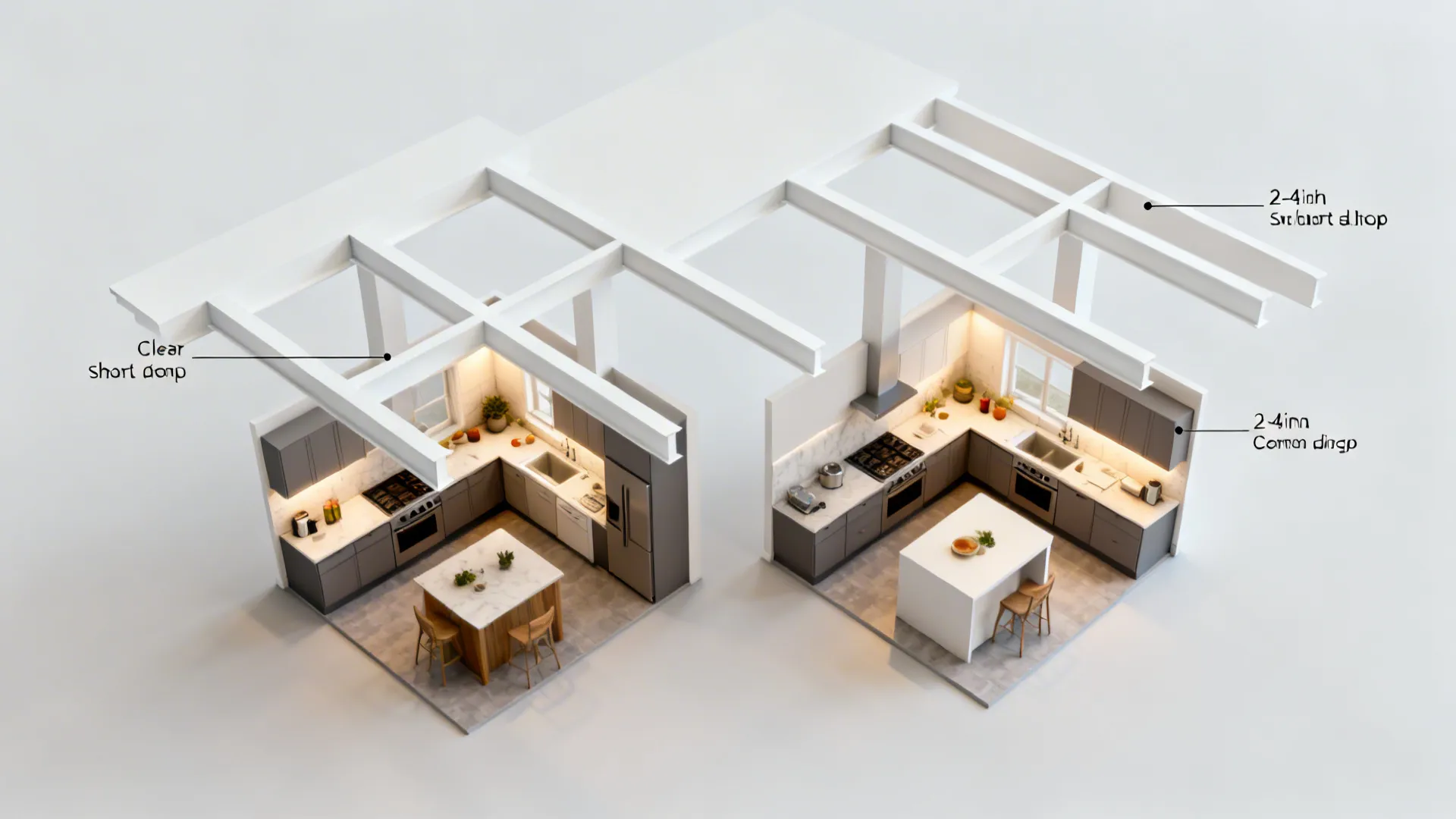

Ceiling Height & Proportions

- Under 8'6": keep beam drops to 2"–4" and widths to 2"–4"; run across the shorter span to widen the room.

- 8'6"–9'6": 3"–6" drops work if spacing is generous (4'–6' on center). Taller rooms can handle deeper faux boxes.

Structure & Safety

- Always verify joist direction and load capacity. For heavy or reclaimed beams, I consult a structural engineer; the International Residential Code (IRC) requires proper fastening and, when applicable, fire separation near mechanicals.

Lighting & Ventilation

- Pair beams with layered lighting: task (under-cabinet or recessed), ambient (cove or beam-wash LEDs), accent (pendants). Keep clearances from range hoods and sprinklers per local code.

Moisture & Finishes

- Use moisture-tolerant finishes in kitchens: waterborne polyurethane, hardwax oil with food-safe certification, or catalyzed varnishes where appropriate. Avoid raw beams near cooktops.

Acoustics

- Beams and textured ceilings help break up sound reflections. Soft furnishings and rugs (if open to dining) further tame clatter.

save pin

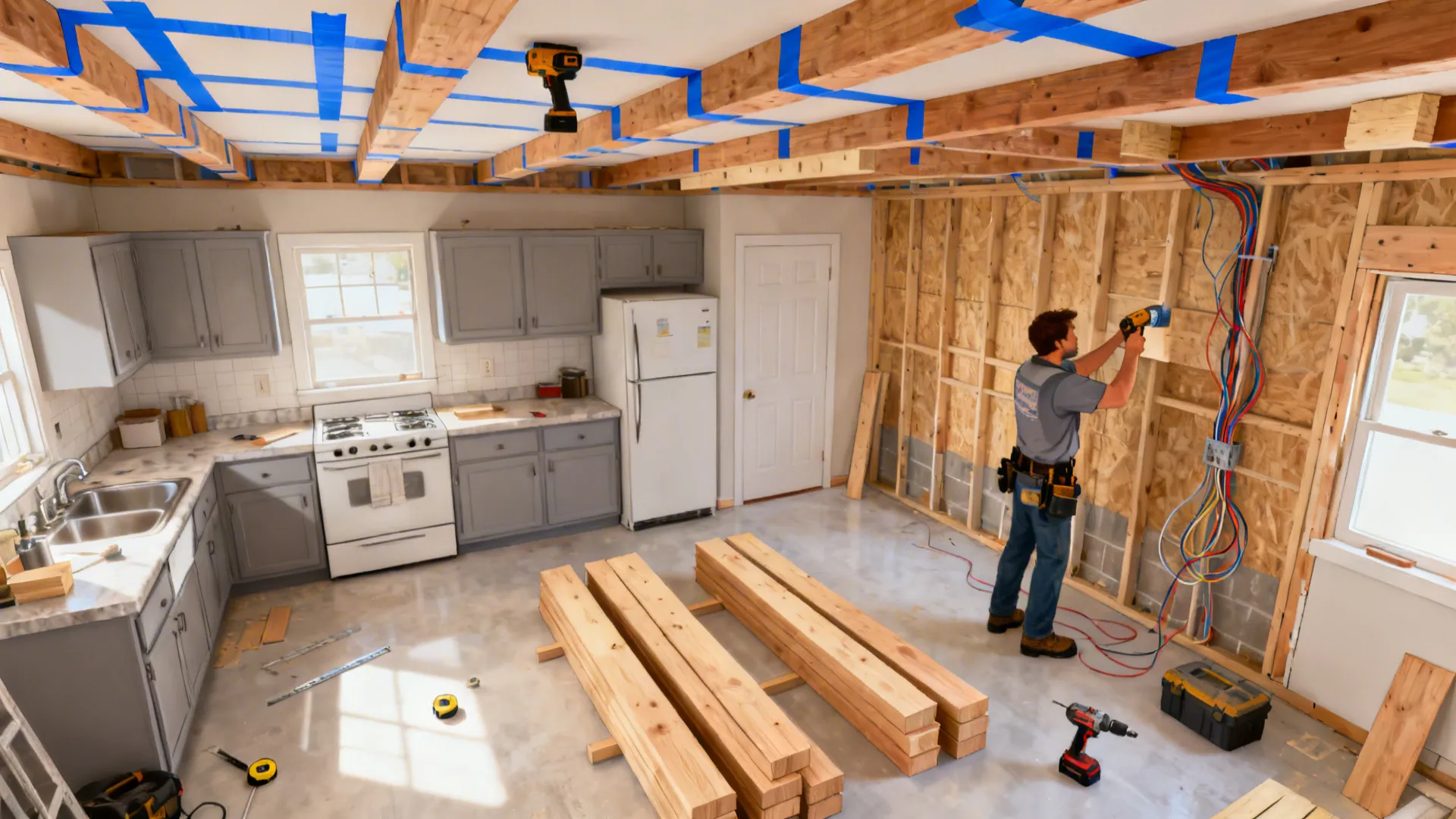

Installation Playbook: What I Do on Site

- Mock-up first: blue tape the beam widths and drops; hang a temporary pendant to test sightlines.

- Find solid backing: I locate joists with a high-quality finder and add blocking where needed. Toggle bolts are last resort.

- Pre-finish: I finish beams in the shop to save mess; touch up on-site after cutting.

- Sequence with trades: Electrician rough-in goes before boxes close; painter follows last for clean lines.

save pin

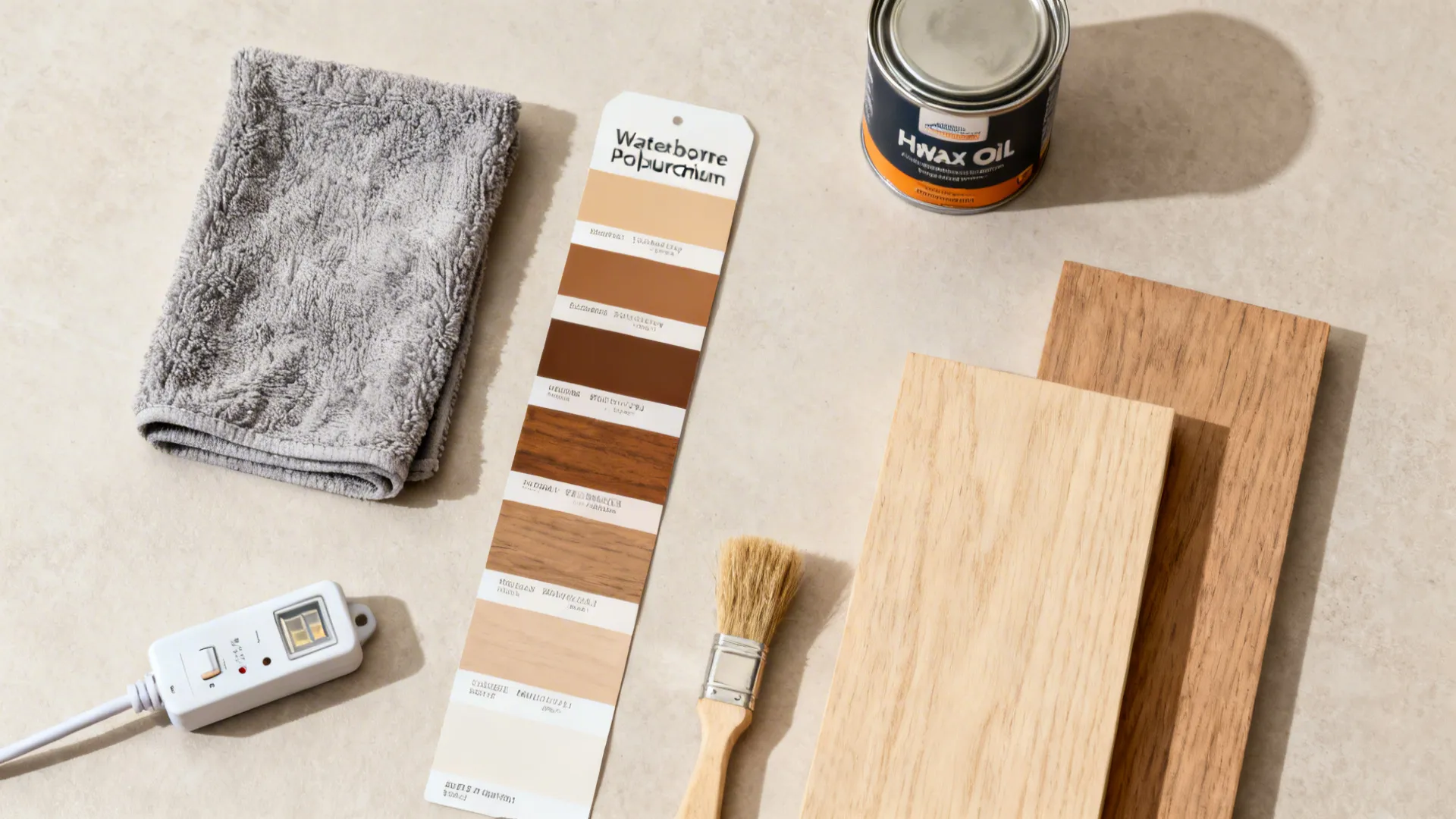

Maintenance and Longevity

- Quarterly wipe-downs with a barely damp microfiber keep grease at bay. Avoid aggressive cleaners that dull finishes.

- Re-oil or refresh hardwax finishes every 18–24 months, especially near cooking zones.

- LEDs in faux beams: expect driver replacements every 5–7 years depending on quality and heat management.

save pin

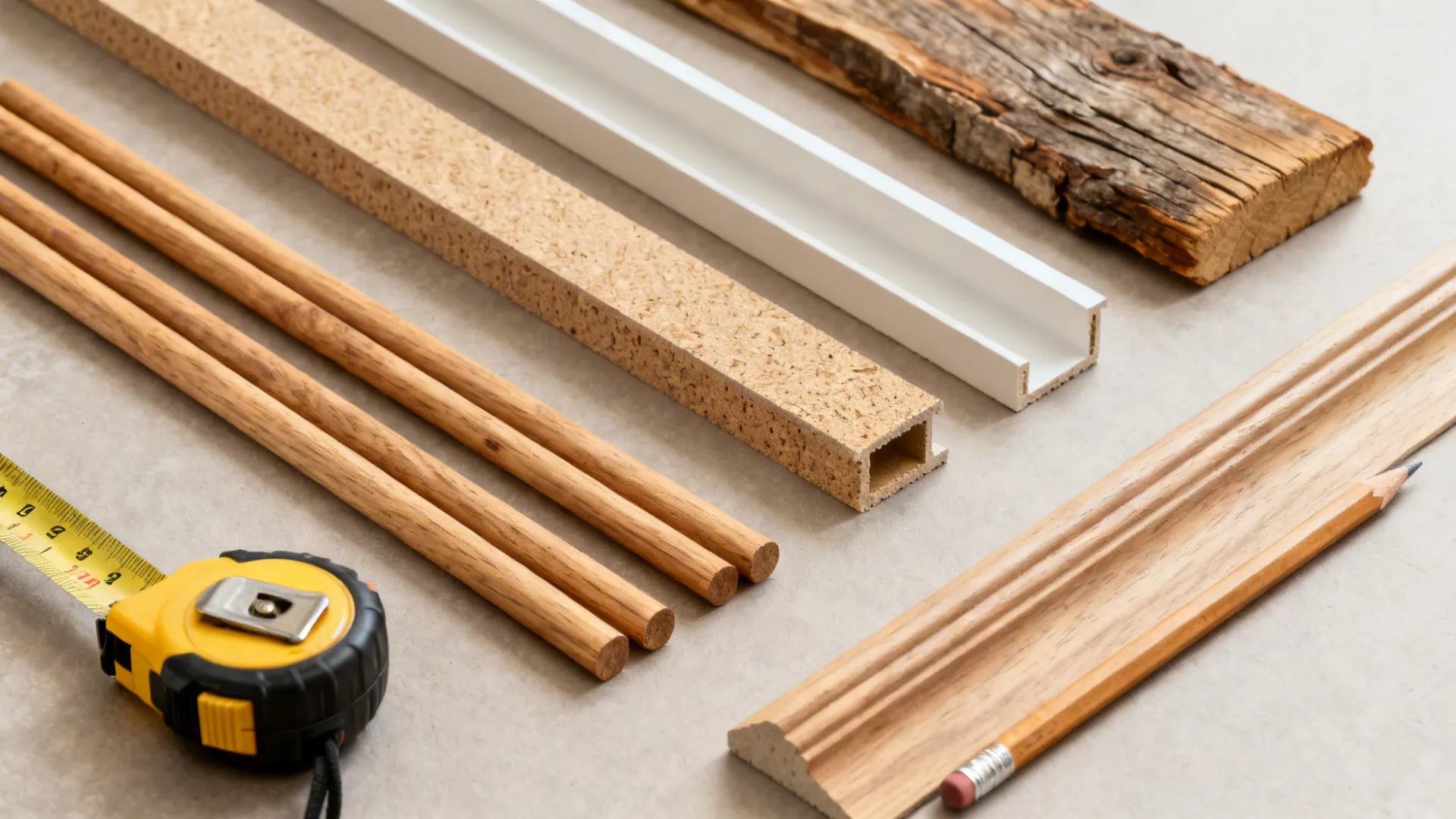

Budget Snapshot

- Slim solid wood beams: $300–$800 for a small kitchen, plus $400–$1,000 labor.

- Faux box beams with LEDs: $1,200–$3,500 depending on linear footage and lighting spec.

- Reclaimed single feature beam: $900–$2,500 including prep and mounting hardware.

- Shallow coffered grid: $2,000–$6,000 based on trim detail and paint.

save pin

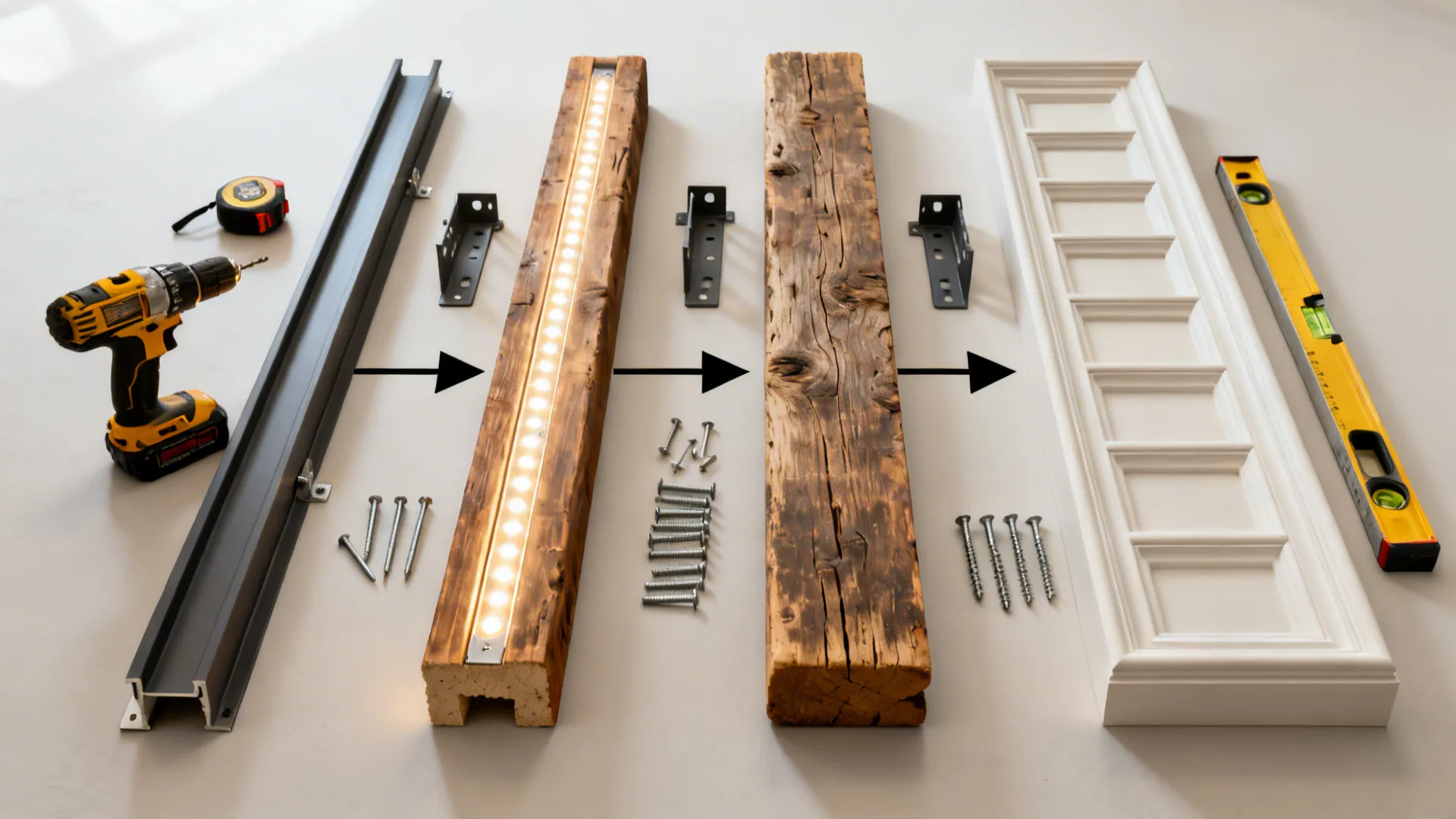

Timeline & Disruption

- Slim beams: 1 day install, 1 day paint/finish touch-up.

- Faux beams with lighting: 2–3 days including electrical.

- Reclaimed feature beam: 1–2 days with reinforcement.

- Coffered grid: 3–5 days, more if crown and complex caulking required.

save pin

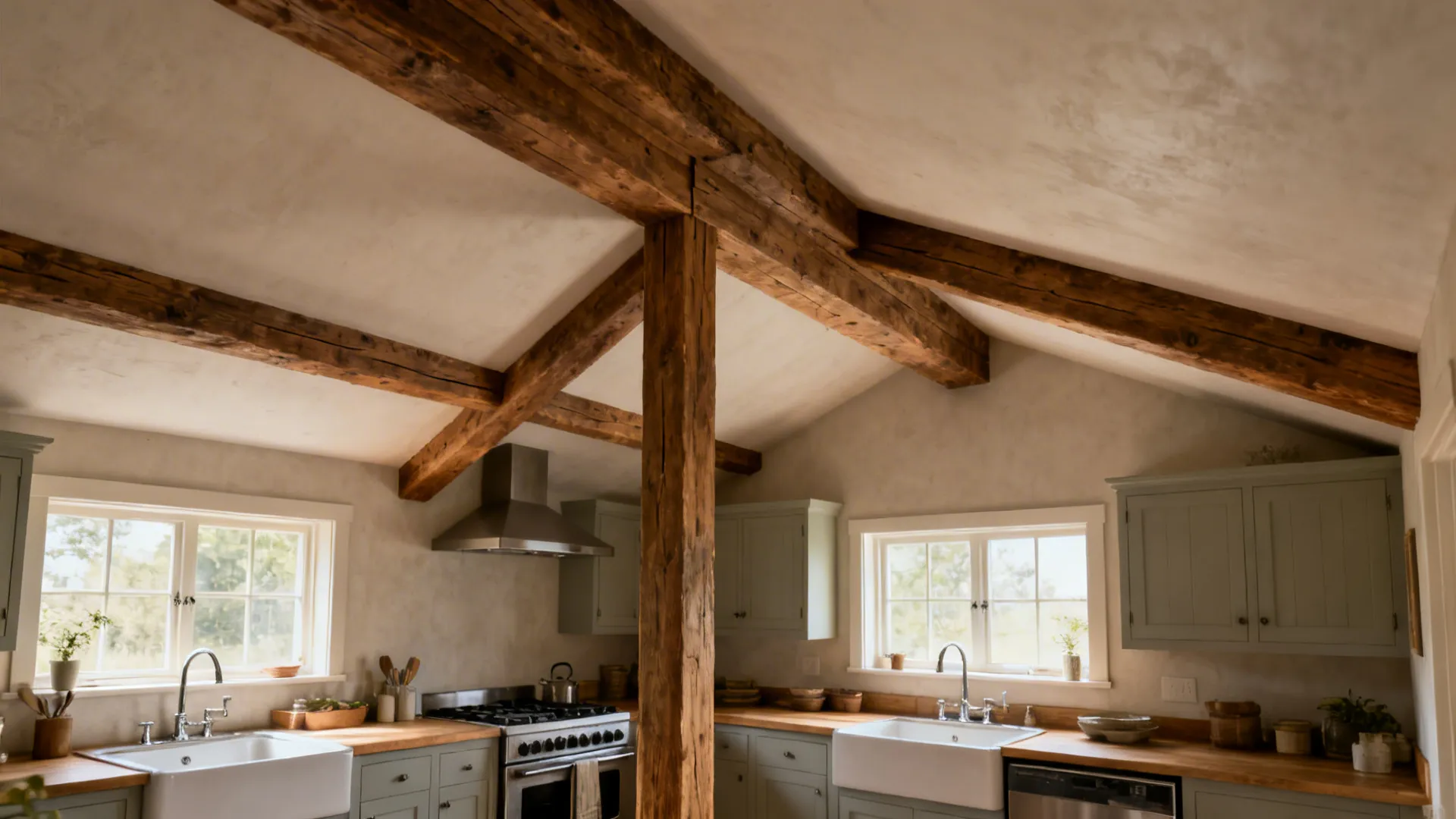

Common Mistakes I See

- Oversizing beams in low rooms; start smaller, you can always add depth.

- Ignoring appliance clearances; check the range hood spec for minimum distances.

- Misalignment with kitchen axis; beams should reinforce the room’s main line (often sink-to-range or island-to-fridge pathways).

save pin

Summary

Kitchen ceiling designs with beams aren’t about filling space—they’re about shaping it. In small kitchens especially, beams turn limitations into smarter design: hiding wires, shaping light, and adding warmth without sacrificing headroom. As the American Institute of Architects has noted in home design trend surveys, texture and warmer materials continue to rise year over year, a great sign for tasteful beam work. Which of these five ideas are you most tempted to try in your kitchen?

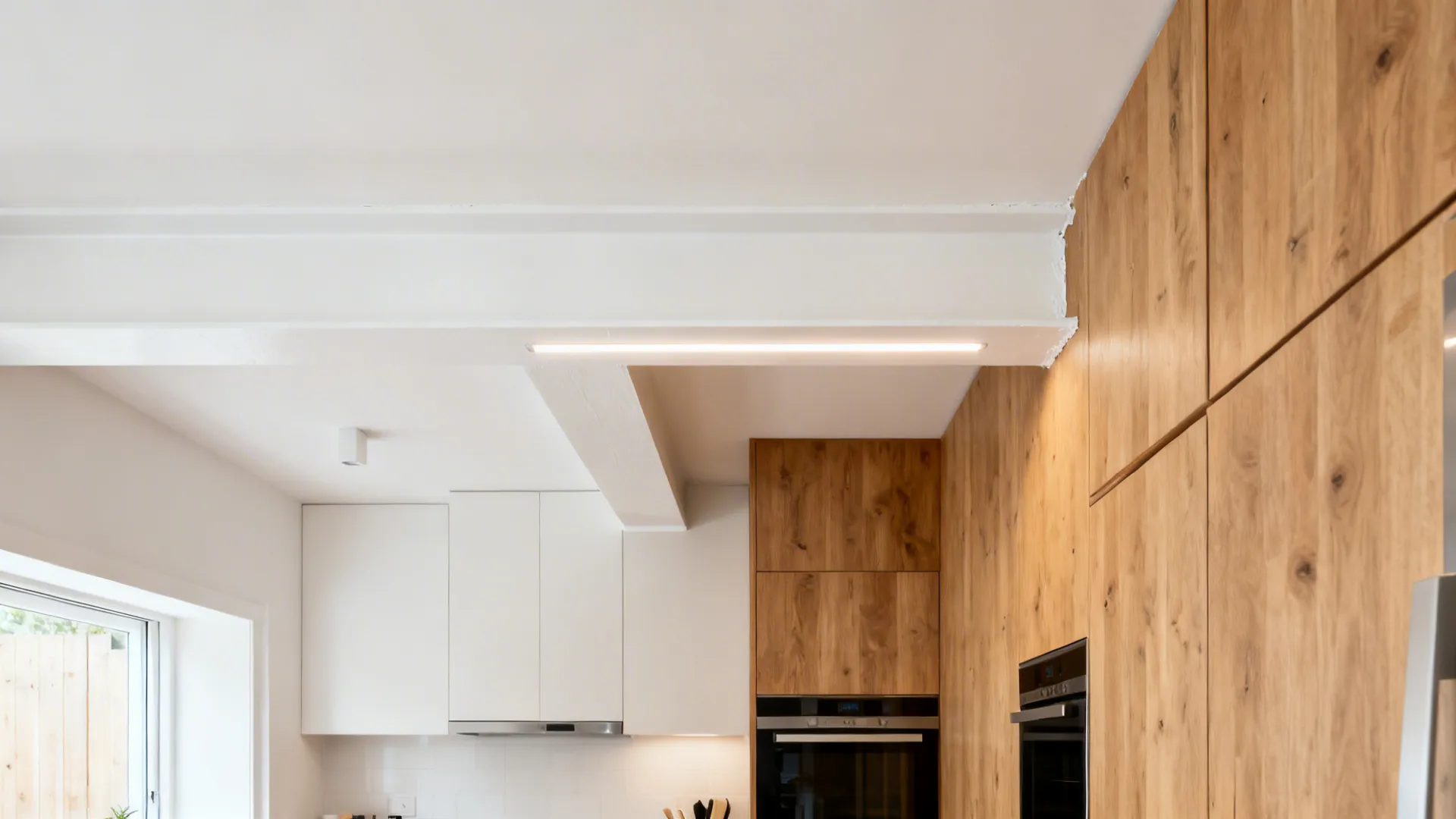

FAQ

1) Are kitchen ceiling designs with beams suitable for low ceilings?

Yes—choose slim profiles (2"–4" drop) and run them across the short axis to visually widen the room. Painted or veneered faux beams keep things light.

2) How do I integrate lighting with beams in a small kitchen?

Use low-profile LEDs: tape lights tucked into faux beam channels for ambient glow, and micro-recessed spots for task. Plan wire runs before closing the boxes.

3) Will reclaimed wood beams warp in a kitchen?

Properly kiln-dried and sealed reclaimed beams perform well. Apply matte waterborne poly or hardwax oil and recoat periodically to resist moisture and grease.

4) Do beams make a small kitchen look smaller?

Not if scaled correctly. Slim beams, light finishes, and thoughtful spacing can make the ceiling feel taller and the room more intentional.

5) What’s the cost range for kitchen ceiling beams?

From a few hundred dollars for slim wood accents to several thousand for faux box beams with integrated lighting. Labor and electrical complexity are the big variables.

6) Can I DIY faux beams?

Yes for basic boxes if you’re comfortable with carpentry and a miter saw. Leave structural beams, heavy timbers, or electrical integration to pros.

7) Are there building codes to consider?

Yes—follow local codes and the International Residential Code for fastening, clearances near mechanicals, and fire safety. When weight is significant, consult a structural engineer.

8) How do beams affect open-concept kitchens?

They’re great zone-makers. Align beams with cabinet runs or islands to define cooking and dining zones; visualization tools, like glass backsplash ideas that add airy reflections, help you see how beams interact with materials and sightlines.
