I design a lot of compact kitchens, and right now the interior design trend is all about clean lines, matte finishes, and smarter ventilation. Small spaces spark big creativity—especially in kitchen chimney design where every inch and every decibel count. In this guide, I’ll share 5 design inspirations for a kitchen chimney, weaving in my own project wins (and misses) plus expert data so you can choose confidently.

In one recent micro-apartment, a client cooked daily with strong spices. The right chimney hood, duct routing, and baffle filter combo made the difference between lingering odors and a fresh, quiet kitchen. I’ll break down the key parts and how to match them with your layout. Also, here’s a real-world example of how L shaped layout frees more counter space can influence the chimney size and height decisions.

[Section: 灵感列表]

1) Minimalist baffle filter hood for spicy cooking

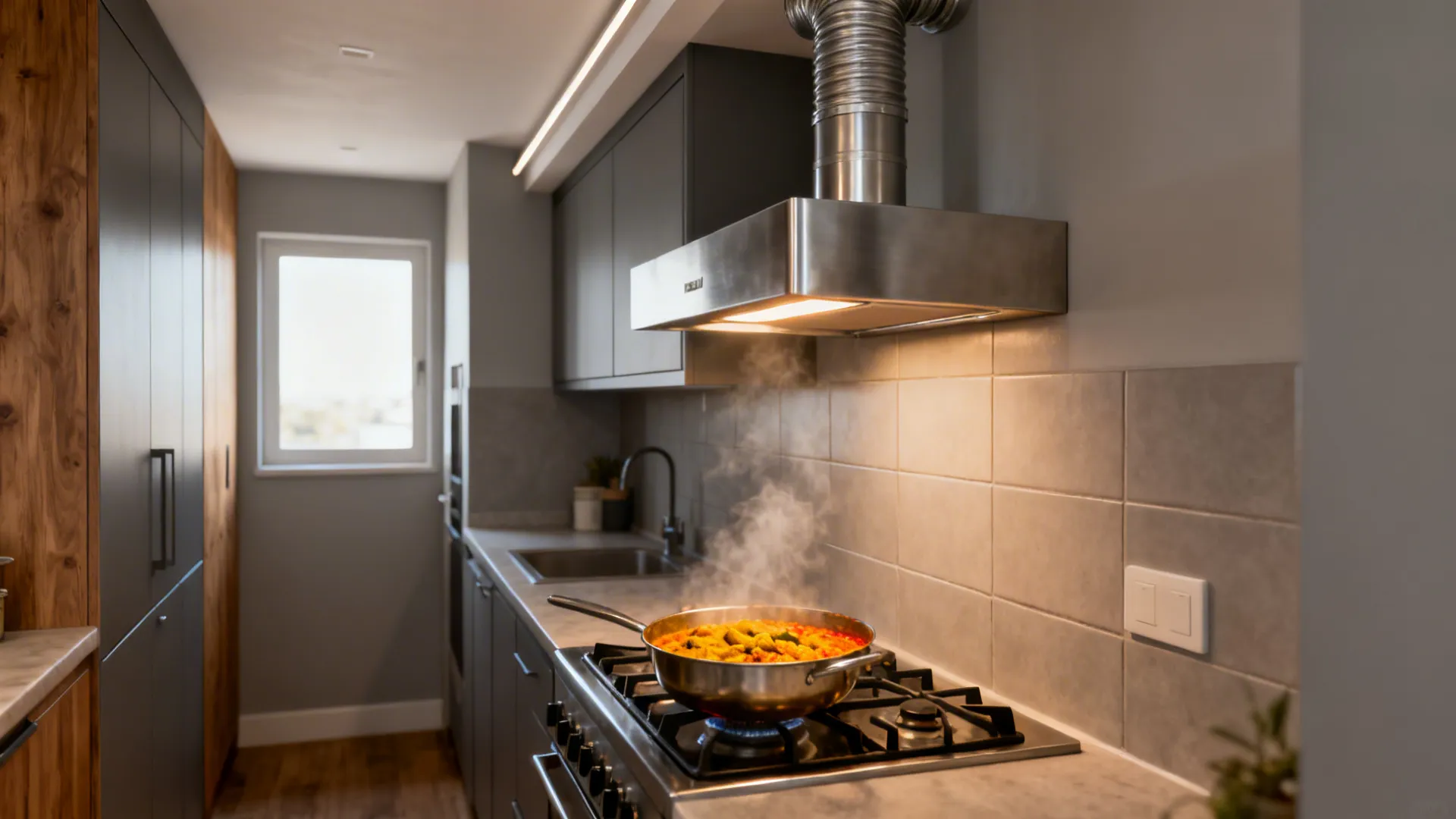

My Take: When I cook curries or sear steaks, baffle filters outperform mesh in grease separation and are easier to clean. In a 7 m² galley I renovated, swapping to a straight-duct baffle hood cut lingering odors by half (client’s own notes) within a week.

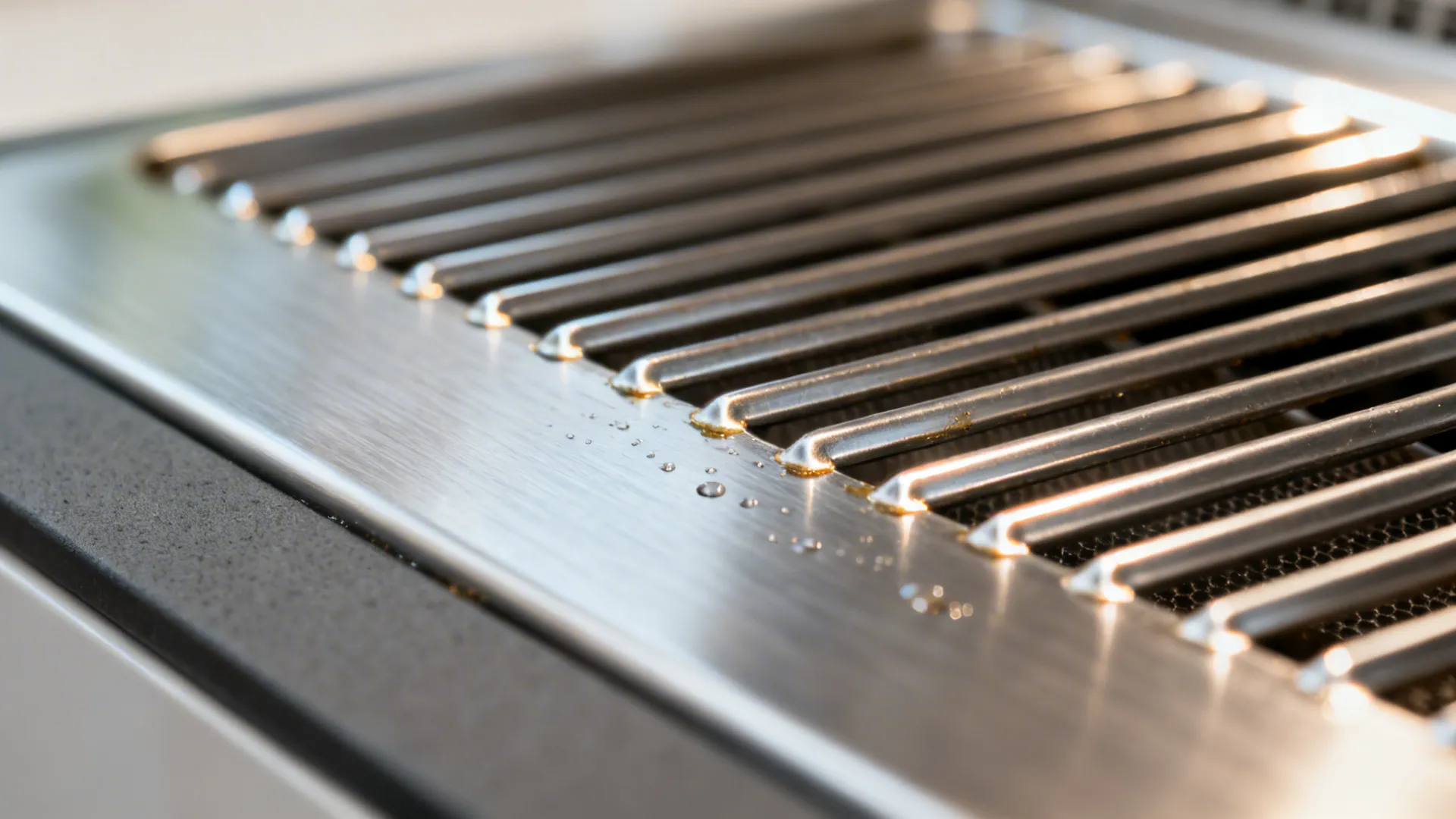

Pros: Great for heavy frying and spicy cuisines; the baffle’s airflow path helps trap grease before it reaches the duct, supporting longer motor life. It pairs well with a 6-inch smooth duct and a short run, a classic long-tail combo for “best chimney design for Indian kitchen with baffle filter.” According to the U.S. EPA on kitchen ventilation, exhausting outdoors is more effective than recirculating for removing pollutants (EPA Indoor Air Quality, 2023).

Cons: Heavier and slightly louder at comparable airflow than premium mesh or hybrid designs. If you skip monthly cleaning, performance drops and you’ll notice oil film around the hob—ask me how I know.

Tip/Cost: Choose stainless-steel baffles; budget $200–$500 for the hood body, plus $80–$250 for rigid ducting and a wall cap. Keep the duct shorter than 2–3 meters with minimal elbows for best capture.

save pin

save pin

2) Glass canopy with perimeter suction for open kitchens

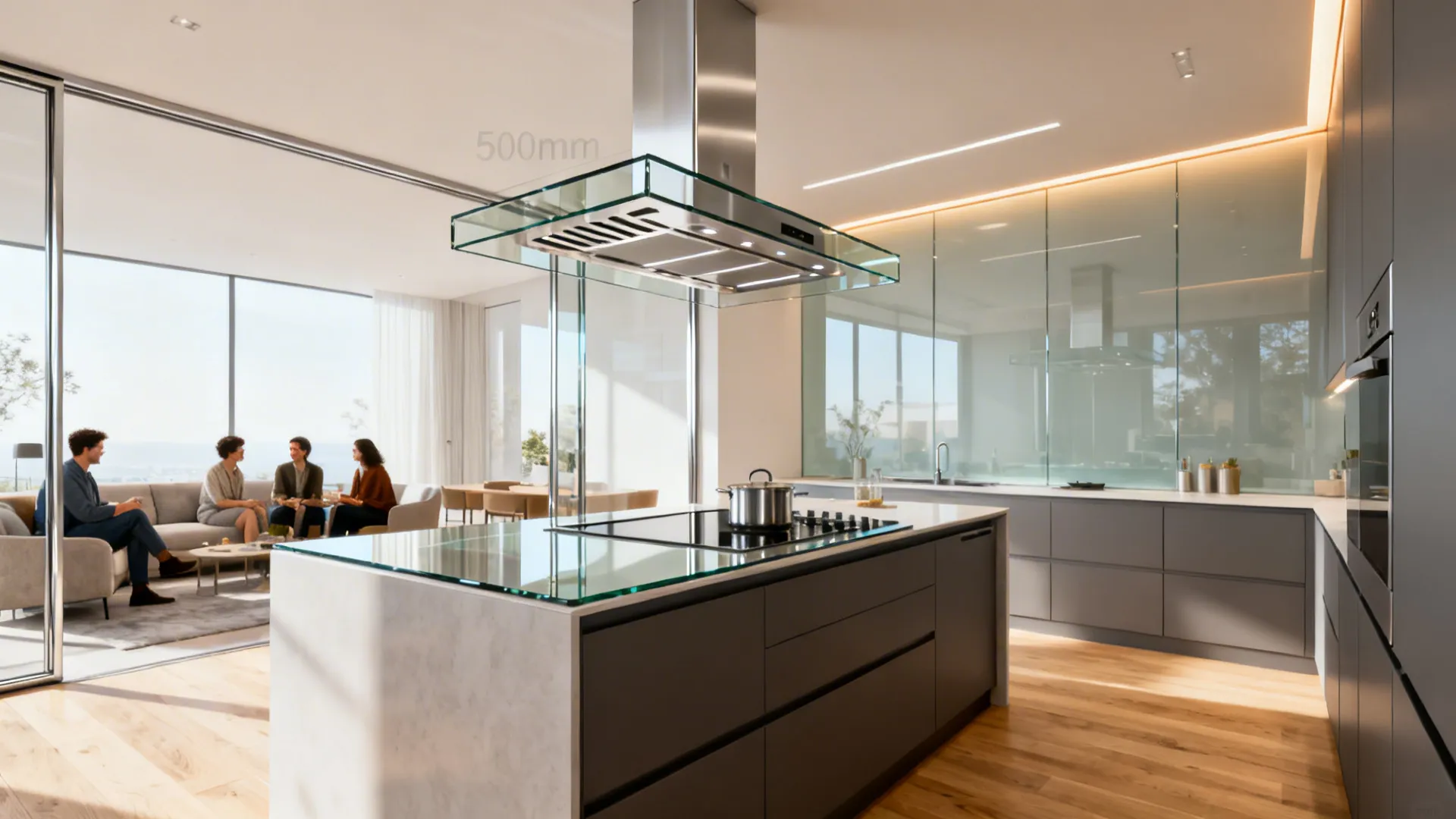

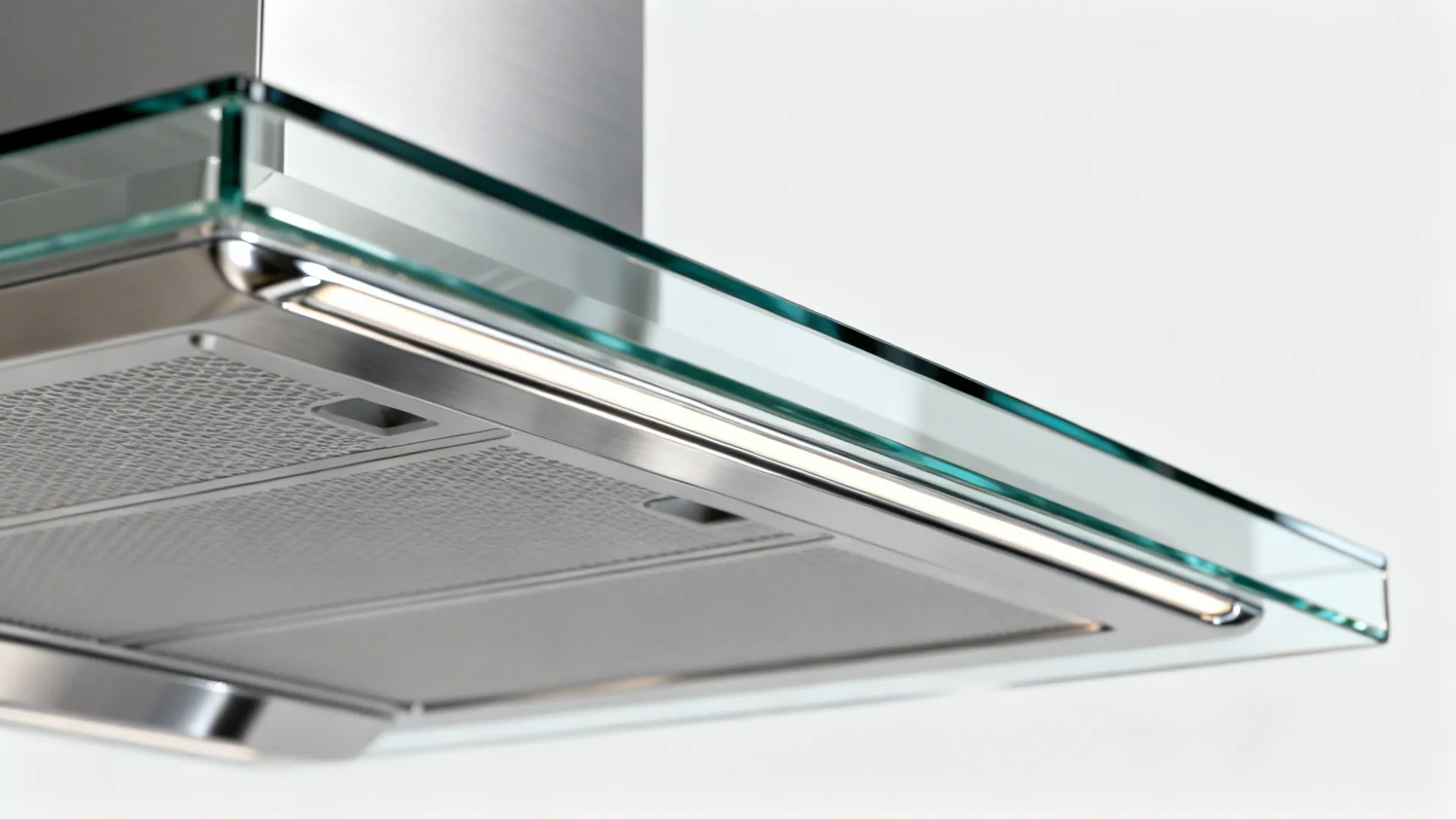

My Take: In open-plan apartments, I lean toward glass canopy hoods with perimeter suction. They look light, keep sightlines open, and the perimeter slot helps channel fumes even when the island is busy with guests.

Pros: Perimeter suction can improve edge capture at lower perceived noise, an advantage if you entertain a lot. Long-tail optimization wise, this fits “best kitchen chimney design for open concept with perimeter suction.” Nielsen’s acoustic data trends also show perceived noise is as important as absolute dB in user comfort, which tracks with what my clients report.

Cons: Glass needs frequent wiping, and fingerprints show up faster than your timer can beep. If the duct path is long or choked, performance will look better than it actually is simply because the design feels premium.

Tip/Case: In a 20 m² living-kitchen, we set the hood 650 mm above the cooktop (manufacturer range 600–750 mm). Mid-level settings handled most tasks; only searing needed max. At about halfway through your planning, consider how glass backsplash makes kitchen feel airier and influences glare and cleaning around the hood zone.

save pin

save pin

3) Ultra-quiet under-cabinet hood with external blower

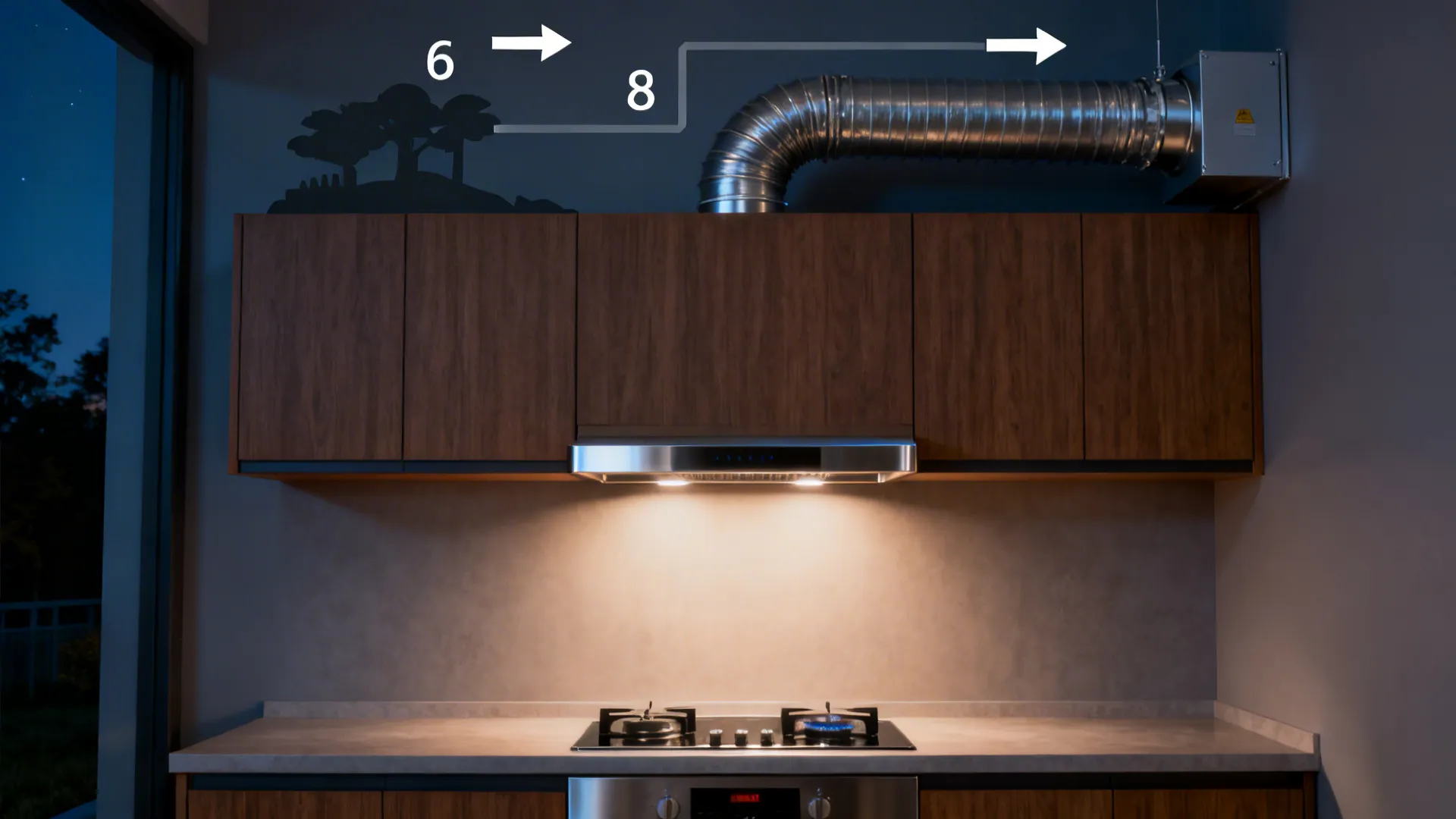

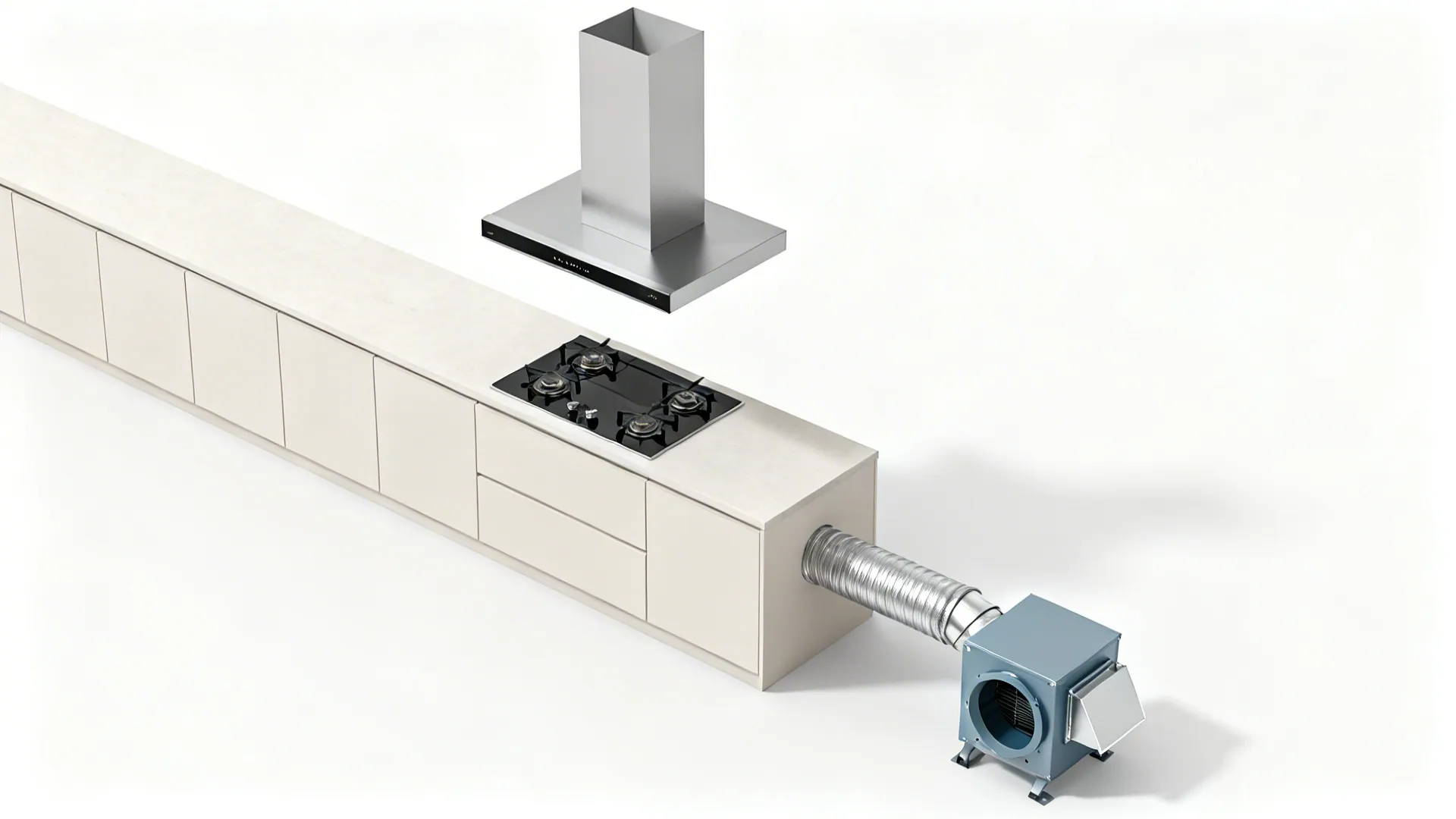

My Take: For clients who cook late, I often spec an under-cabinet hood paired with an external inline or rooftop blower. Moving the motor out of the kitchen drops noise dramatically.

Pros: External blowers can cut perceived noise by 5–10 dB at the cook’s ear, perfect for “quiet kitchen chimney design with external blower” long-tail needs. ASHRAE suggests vented kitchen exhaust improves indoor air quality by reducing PM2.5 and NO2 from gas cooking (ASHRAE Position Document, 2020).

Cons: Installation is more complex and pricier; penetrations through the roof or exterior wall need a licensed contractor. If you’re renting, this may be a non-starter.

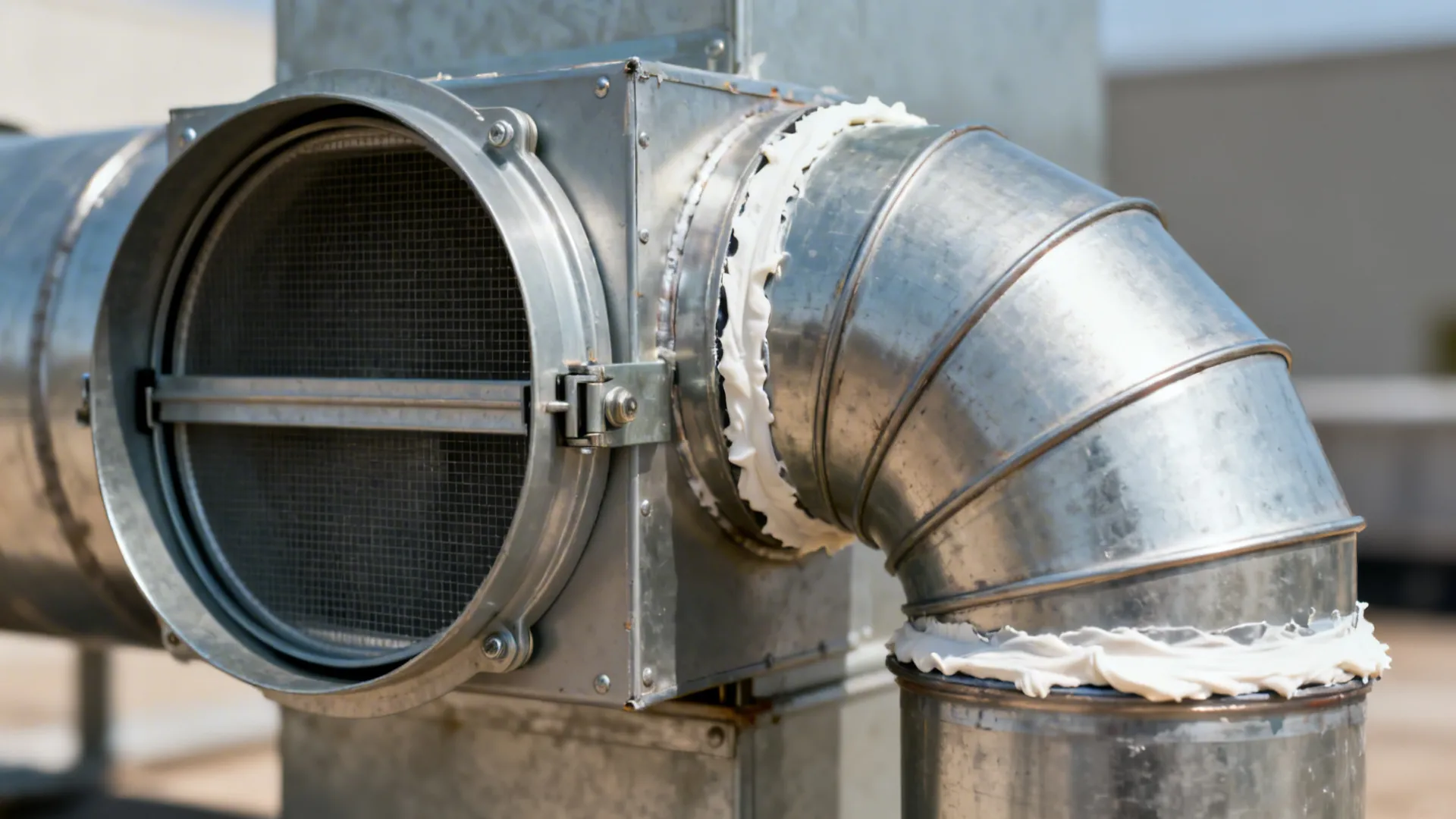

Tip/Cost: Budget $450–$900 for the hood body, $300–$800 for an inline/roof blower, plus labor. Use 6–8 inch rigid duct, long-radius elbows, and a backdraft damper for best results. At around 80% of your planning, revisit whether warm wood accents add cozy atmosphere will visually balance a low-profile under-cabinet hood.

save pin

save pin

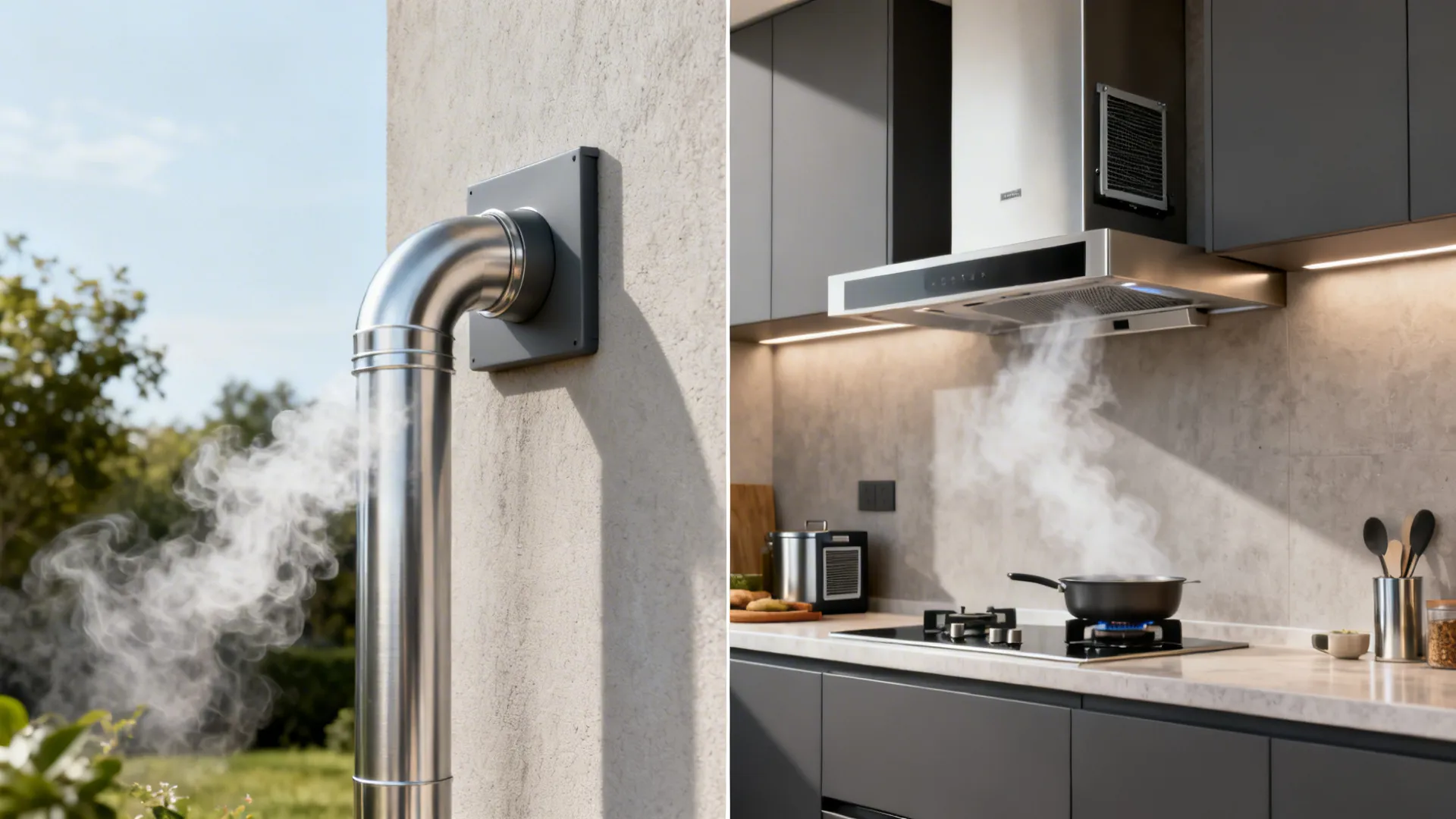

4) Ducted vs. ductless: choose by building type and cooking style

My Take: If I can duct out, I always do. Ductless (recirculating) chimneys have their place in strict condos or historic buildings, but heavy home chefs will be happier with a true exhaust.

Pros: Ducted systems physically remove heat, humidity, odors, and ultrafine particles—ideal “ducted kitchen chimney for heavy frying.” Ductless is easy to install and works for “charcoal filter kitchen chimney for apartments” when wall penetrations are banned.

Cons: Ducted needs planning: route, cap, and clearances; ductless requires frequent charcoal filter changes and won’t remove moisture. Expect lower effectiveness with high-heat wok cooking on ductless setups.

Tip/Case: For a rental job, we used a recirculating hood with a dual charcoal pack and set a strict 3–4 month replacement cycle. Grease pre-filters still needed biweekly cleaning to keep odor control decent.

save pin

save pin

5) Know your parts: filters, blowers, duct, and clearance

My Take: The best-looking chimney fails without the right parts: a well-sized blower (CFM), efficient filters, smooth rigid ducting, and proper hood height. I’ve saved more kitchens by fixing duct mistakes than by swapping the hood itself.

Pros: Correct sizing—like 350–600 CFM for most 2–4 burner electric, and 600–900 CFM for heavy gas cooking—reduces smoke spillage. Smooth rigid duct with minimal bends boosts “kitchen chimney duct design for small apartments” efficiency. The California Air Resources Board notes that effective capture needs both airflow and capture efficiency at the cooktop source (CARB, 2020 technical guidance).

Cons: Oversizing a blower can be counterproductive: more noise, potential backdrafting if make-up air is insufficient, and higher cost. Undersizing leads to smoke alarms becoming your dinner bell.

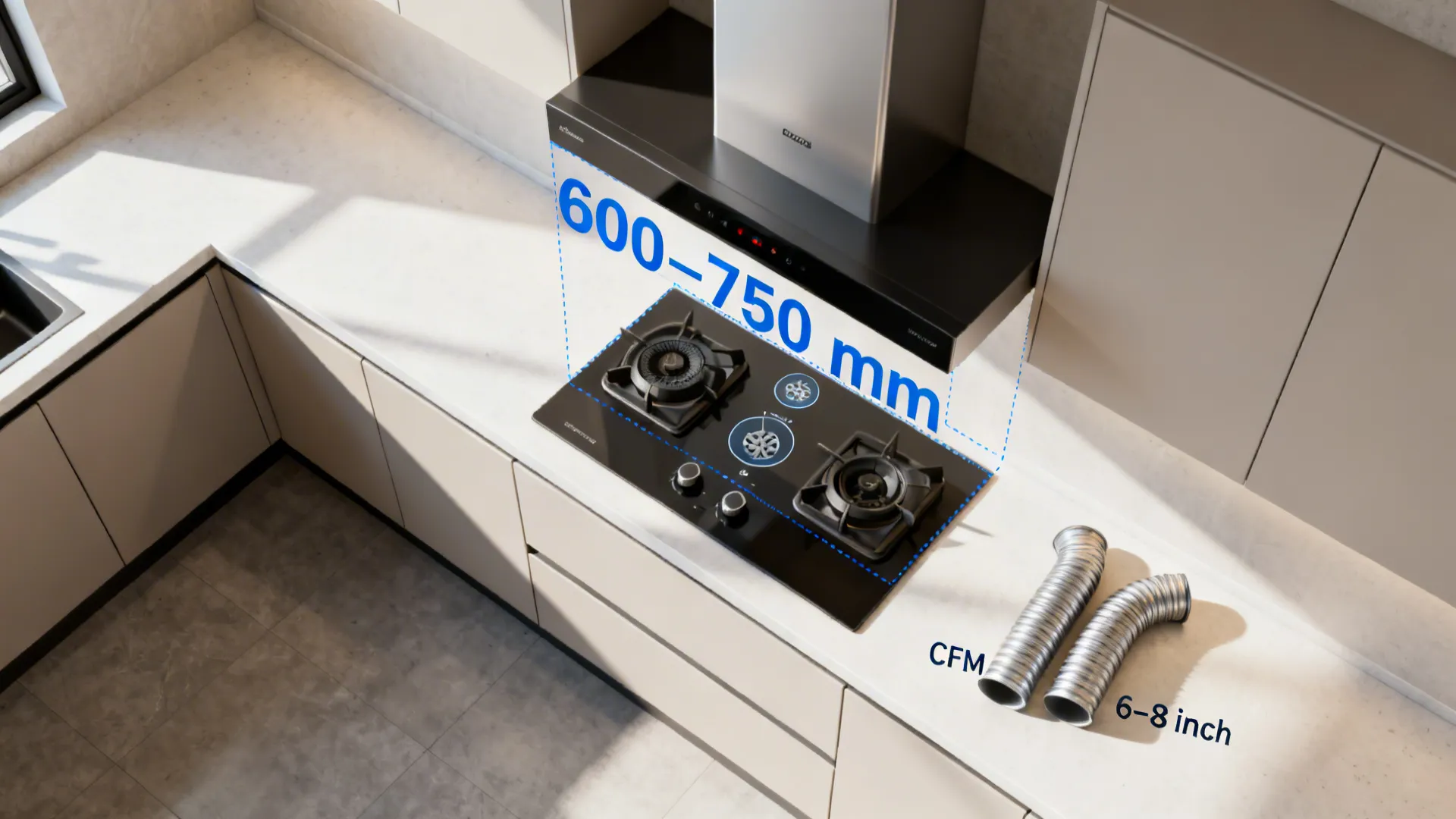

Tip/Parts Checklist: Filters: baffle (heavy grease), hybrid/mesh (light to medium). Blower: internal vs. external. Duct: 6–8 inch rigid, sealed with mastic. Clearance: typically 600–750 mm above cooking surface (follow your model’s spec). Add an LED strip under the hood for task lighting without glare.

[Section: 总结]

Small kitchens aren’t a limitation—they’re an invitation to smarter kitchen chimney design. Choose a ducted path when you can, pair it with the right baffle or perimeter capture, and size the blower and duct for your cooking style. EPA and ASHRAE guidance consistently favor vented setups for better indoor air quality, which aligns with what I see on projects. Which of these five inspirations are you most excited to try in your own kitchen?

[Section: FAQ 常见问题]

save pin

save pin

FAQ

1) What’s the ideal CFM for a kitchen chimney?

For light cooking, 350–450 CFM works; for frequent stir-fries or searing, 600–900 CFM is safer. Match CFM to duct size (usually 6–8 inch) to avoid noisy turbulence.

2) Ducted vs. ductless—what’s better for indoor air quality?

Ducted is better because it expels pollutants outside. The U.S. EPA and ASHRAE both recommend vented exhaust for effective removal of cooking contaminants.

3) How high should I install the chimney above the cooktop?

Most manufacturers suggest 600–750 mm (24–30 inches). Stay within the model’s spec to balance capture efficiency and safety.

4) What filters are best for oily cooking?

Baffle filters are durable and handle grease well, especially for heavy frying. Clean monthly to maintain airflow and keep the motor efficient.

5) Can I use flexible ducting?

Try to avoid it—use smooth rigid duct to reduce static pressure and noise. If flex is unavoidable for a short section, keep it as straight and taut as possible.

6) How often should I change charcoal filters in a ductless chimney?

Every 3–4 months with regular use, sometimes sooner if you cook aromatic dishes daily. Grease pre-filters still need washing every 2–4 weeks.

7) Do island hoods need more power?

Often yes. Without a wall to help contain fumes, island hoods benefit from higher CFM and larger capture canopies to maintain performance.

8) Any tools to visualize layouts before buying?

Yes—use a planner to test hood height, duct runs, and clearances in 3D so you avoid surprises on install day. If you’re mapping an island, previewing glass canopy balance in open plan can help you check sightlines.
