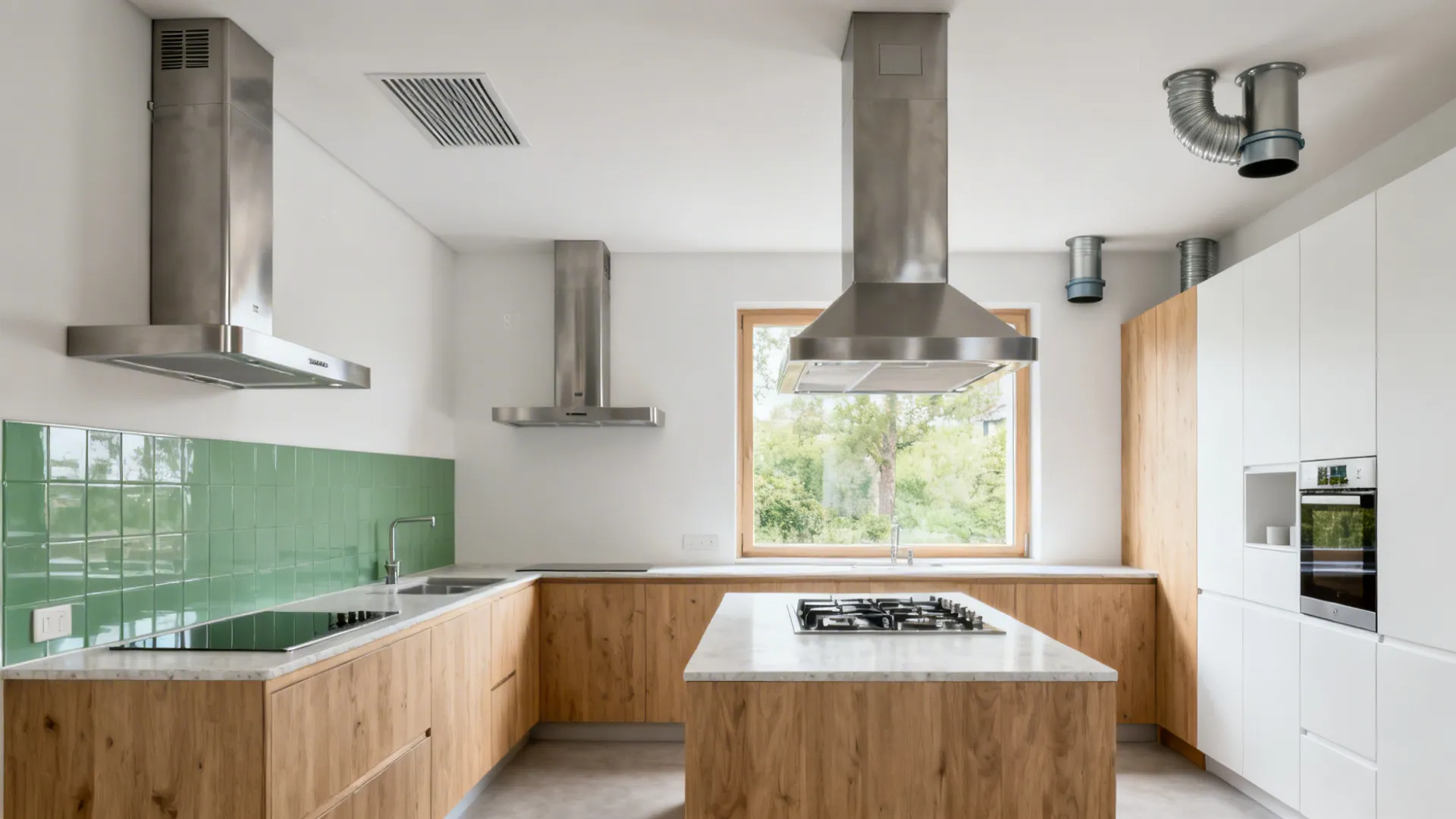

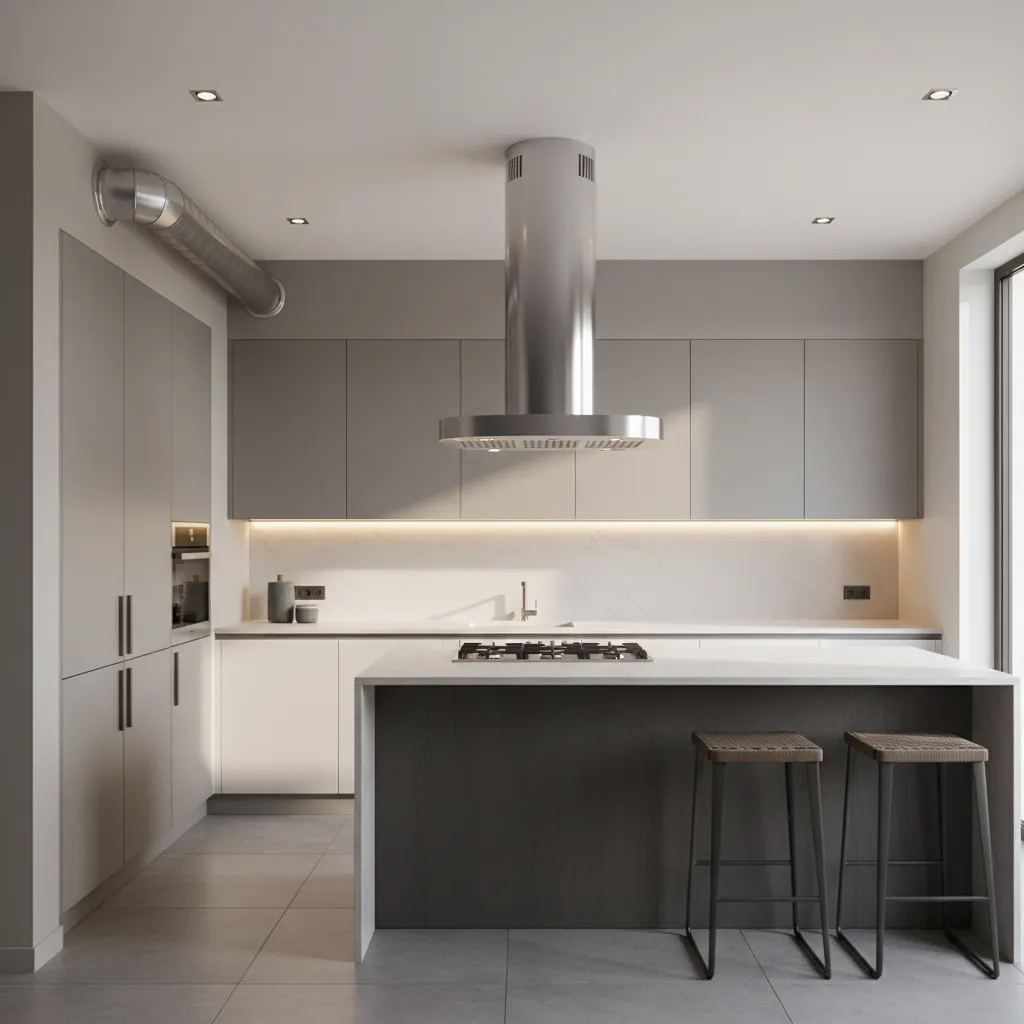

5 Kitchen Chimney Designs That Vent Outside: My proven playbook for safe, quiet, and good‑looking kitchen chimney design that actually vents outdoors

[Section: Meta 信息] Meta Title: 5 Kitchen Chimney Designs That Vent Outside Meta Description: Explore 5 practical kitchen chimney designs that vent outside. Real tips, pros and cons, costs, and expert guidance for small kitchens. Meta Keywords: kitchen chimney design vent outside, ducted range hood, kitchen ventilation design, small kitchen chimney ideas, outside venting, makeup air, quiet range hood, grease management [Section: 引言] I’ve designed dozens of compact kitchens where a proper kitchen chimney design that vents outside made the difference between “it smells like last night’s stir‑fry” and “fresh, clean air.” Trends are clear in 2025: quieter, ducted ventilation, better capture efficiency, and smarter makeup‑air planning. Small spaces push big creativity, because every inch—and every decibel—counts. In this guide, I’ll share 5 design inspirations I use for outside‑vented chimneys, blending my field notes with expert data. We’ll cover duct routes, noise control, capture metrics, and finish choices—so you can decide what’s right for your kitchen and cooking style. And yes, small spaces absolutely spark big ideas. [Section: 灵感列表]

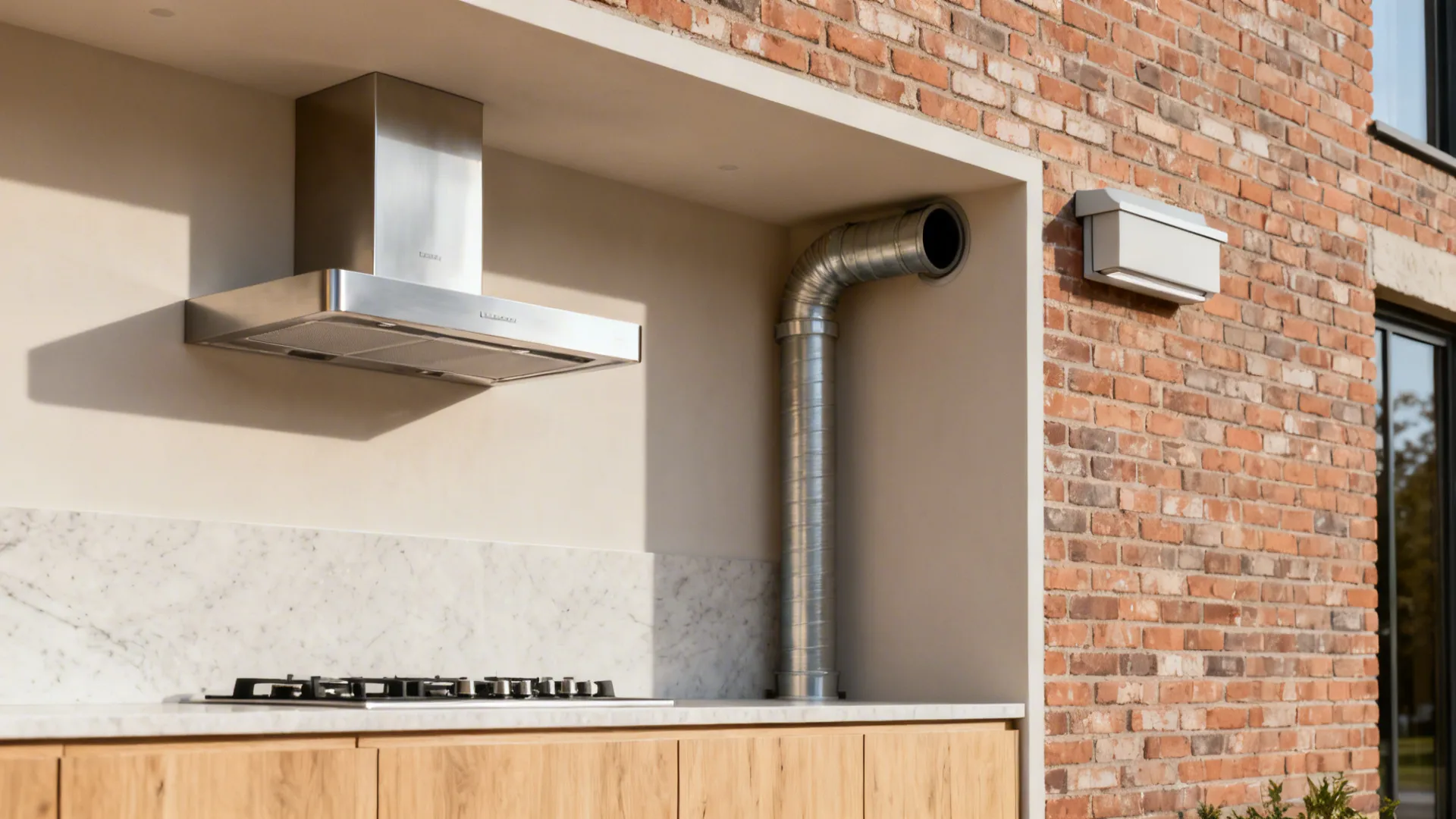

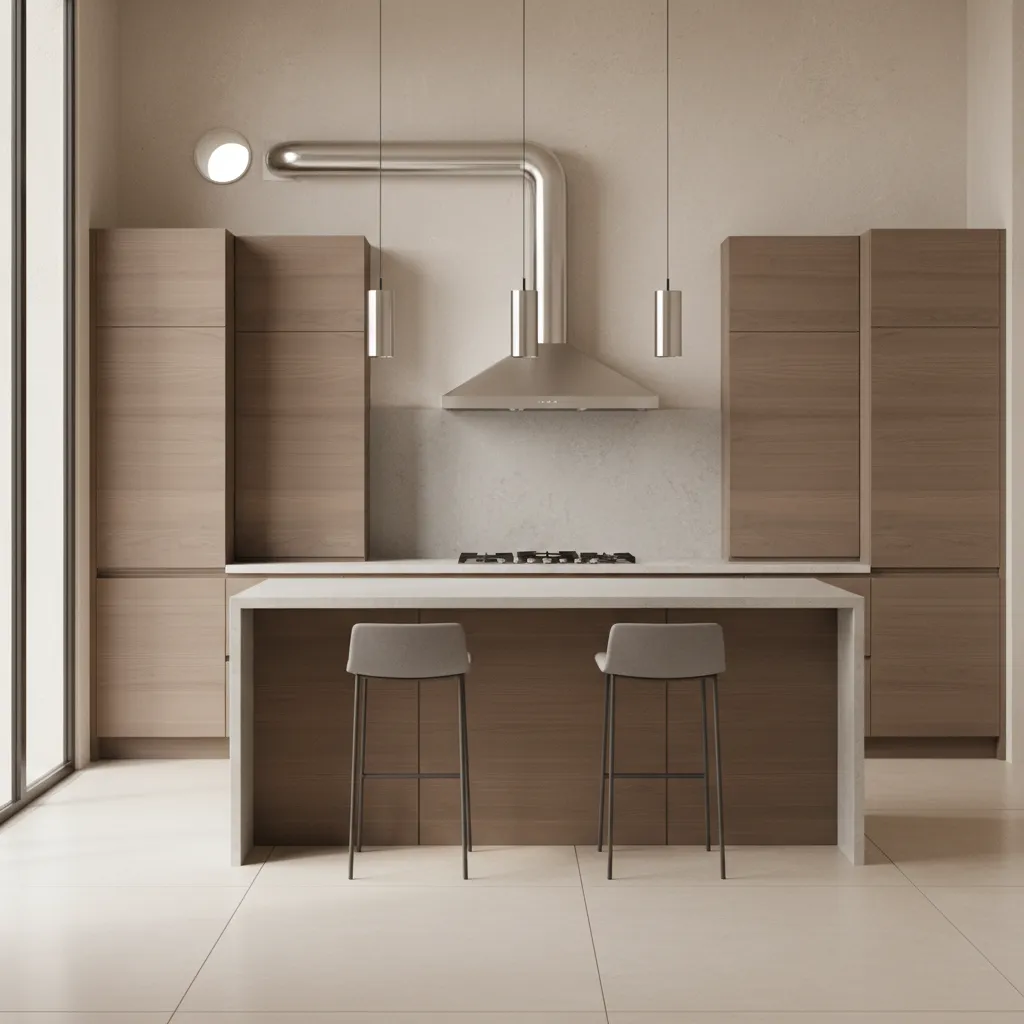

1) Minimalist Wall‑Mount Hood, Ducted Straight Out

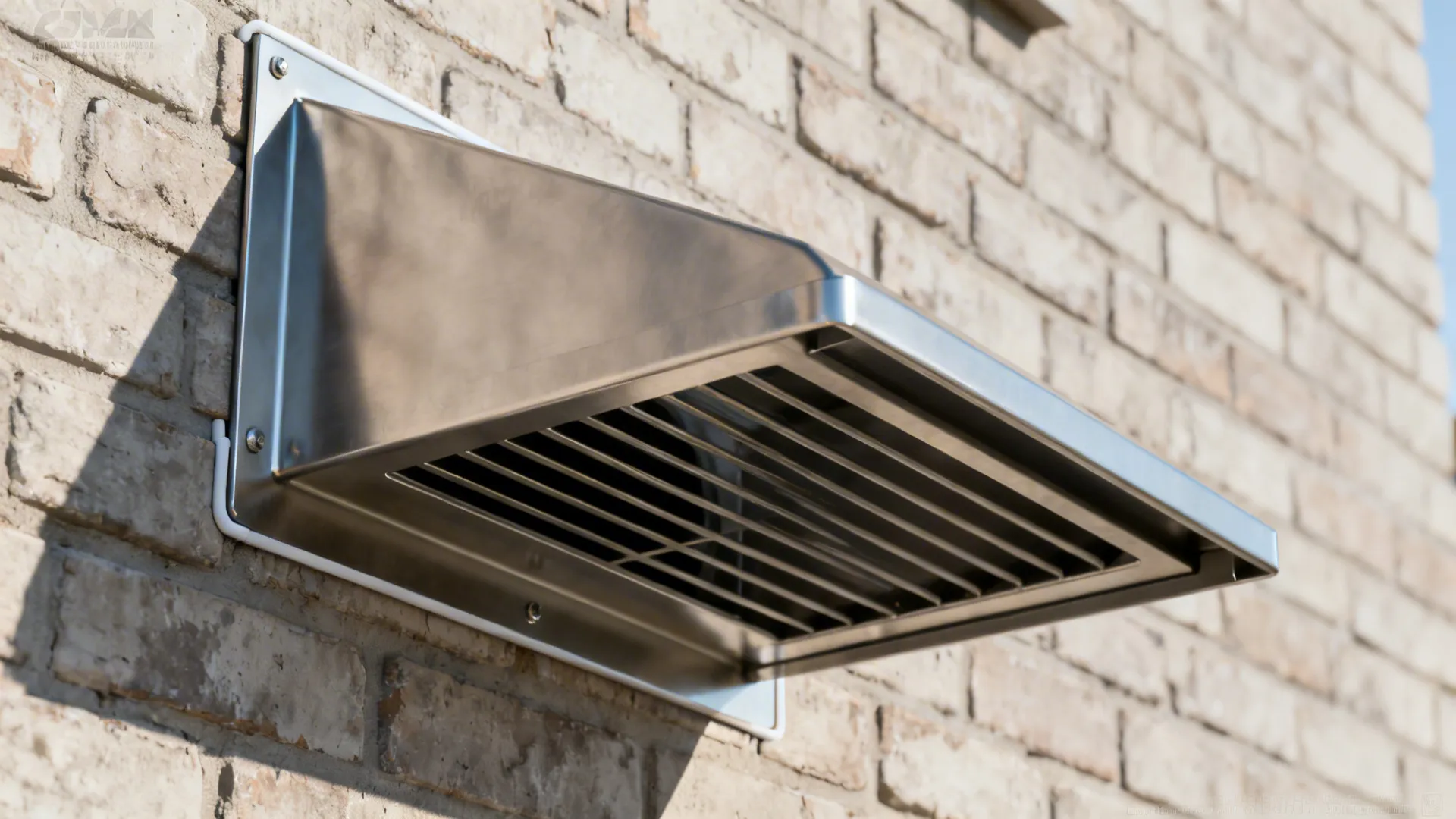

My Take When I can place a cooktop on an exterior wall, I almost always choose a slim, ducted wall‑mount hood with a short, straight run to the outside. In my own 62 m² apartment, this move cut install time and kept the façade clean with a low‑profile vent cap. Pros - Short, straight duct runs maximize airflow and reduce static pressure—ideal for a kitchen chimney design that vents outside. - Ducted range hood designs with 6" or 8" round ducting usually hit better capture at lower fan speeds, reducing noise. - Per the Home Ventilating Institute (HVI), certified ratings help you match CFM to your cooktop and cooking style (hvi.org). Cons - Exterior wall penetrations can be tricky in brick or historic façades; permits and scaffolds may add cost. - If your cooktop isn’t on an outside wall, rerouting cabinetry and power can snowball the budget. - A sleek wall hood can still feel prominent in very narrow galleys. Tips / Case / Cost - Aim for 30"–36" hood width over a 30" cooktop; maintain 24"–30" mounting height unless the manufacturer specifies otherwise. - Use a back‑draft damper and a quality wall cap to prevent wind noise and pests. - Typical costs (US): $450–$1,200 for a good ducted hood + $300–$900 for duct/vent cap and labor. Internal link (20%): If you’re visualizing clearances and line work, this gallery of L‑shapes shows how “L 型布局释放更多台面空间” in small kitchens: L 型布局释放更多台面空间

save pin

save pin

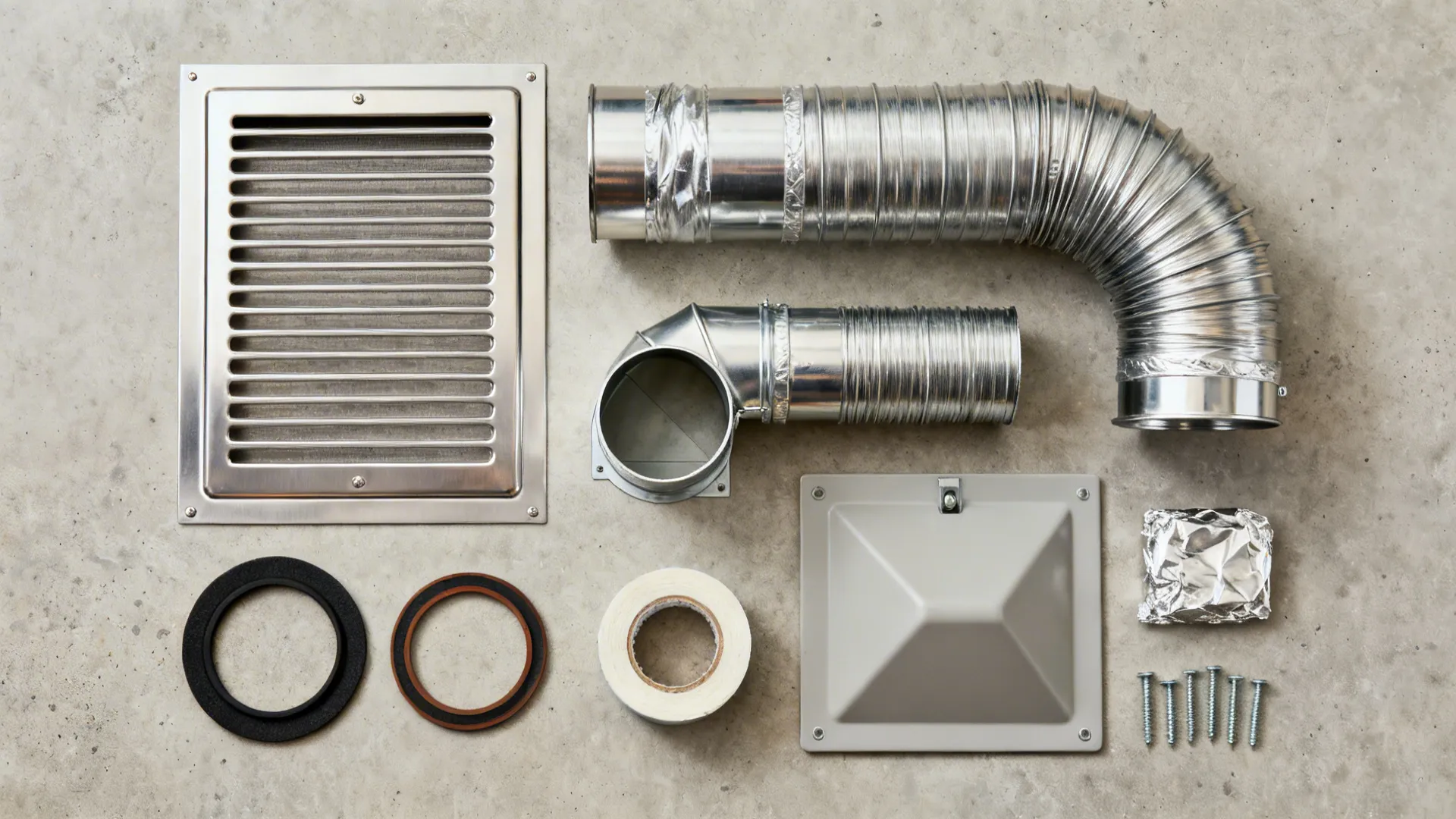

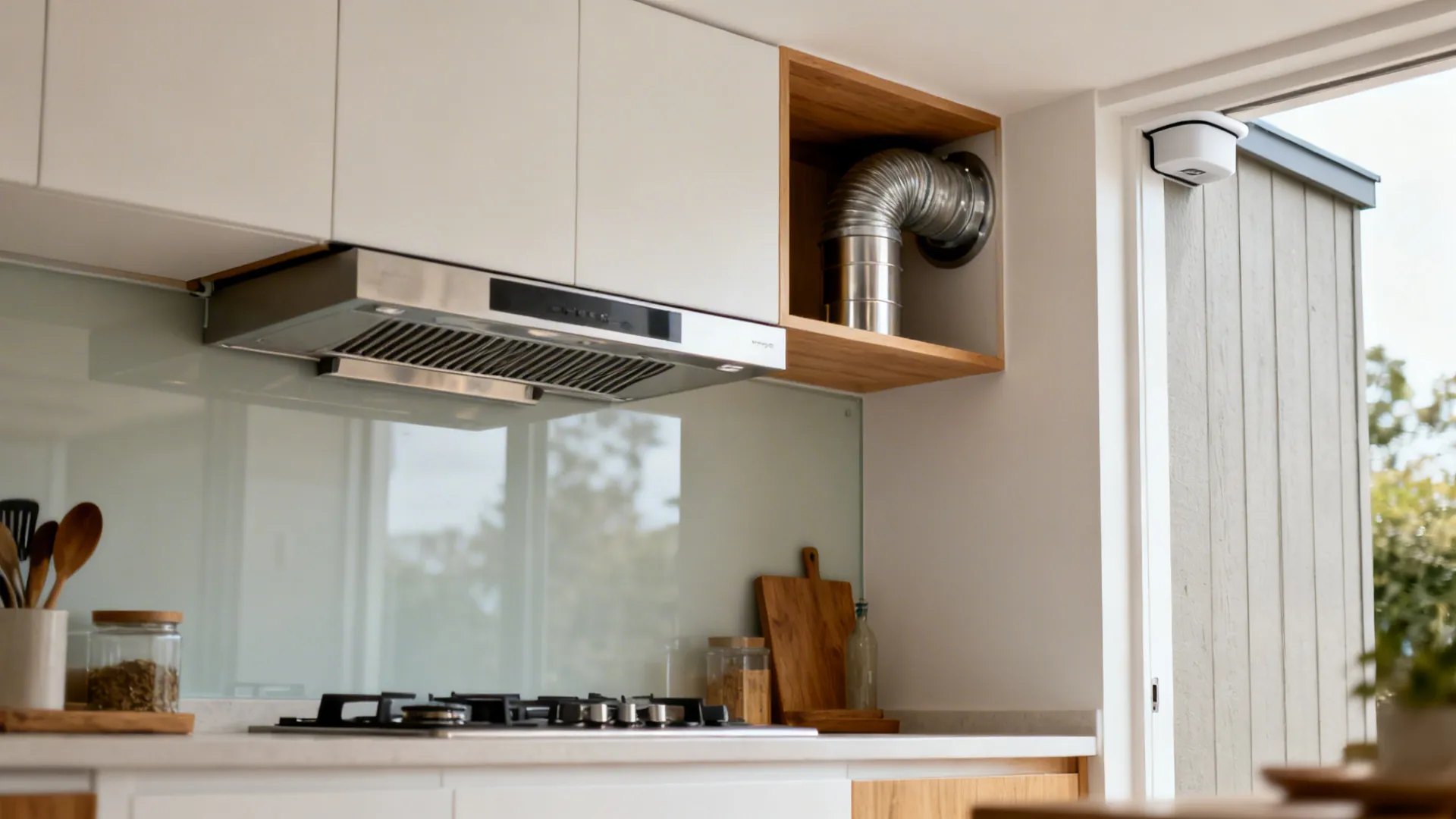

2) Under‑Cabinet Chimney With Rear Duct Exit

My Take In rentals and tiny kitchens, I’ve tucked a ducted under‑cabinet hood beneath shallow uppers and punched the duct straight through the wall behind it. It keeps storage above while still venting outdoors—perfect when vertical space is premium. Pros - Keeps the profile compact while achieving outside venting with a short rear discharge. - Long‑tail win: under‑cabinet ducted range hood designs often integrate baffle filters for better grease control and easier cleaning. - Great for small kitchen chimney ideas that prioritize storage continuity and a tidy sightline. Cons - Rear discharge grill placement must avoid studs, wiring, and plumbing—layout coordination is key. - Shallower cabinets can limit hood depth, reducing capture efficiency for front burners. - The wall cap can be quite visible on some elevations; paint‑matched caps help. Tips / Case / Cost - Prioritize models with >300 CFM for light cooking; 500–600 CFM for wok, searing, or heavy sauté. - Keep duct length under 6–8 feet with minimal 90° elbows to preserve rated CFM. - Budget: $350–$900 for the hood; $250–$700 install depending on wall construction. Internal link (50%): For a before‑and‑after that shows how “glass backsplash makes the kitchen feel more open,” see: glass backsplash makes the kitchen feel more open

save pin

save pin

3) Remote In‑Line Blower for Super‑Quiet Operation

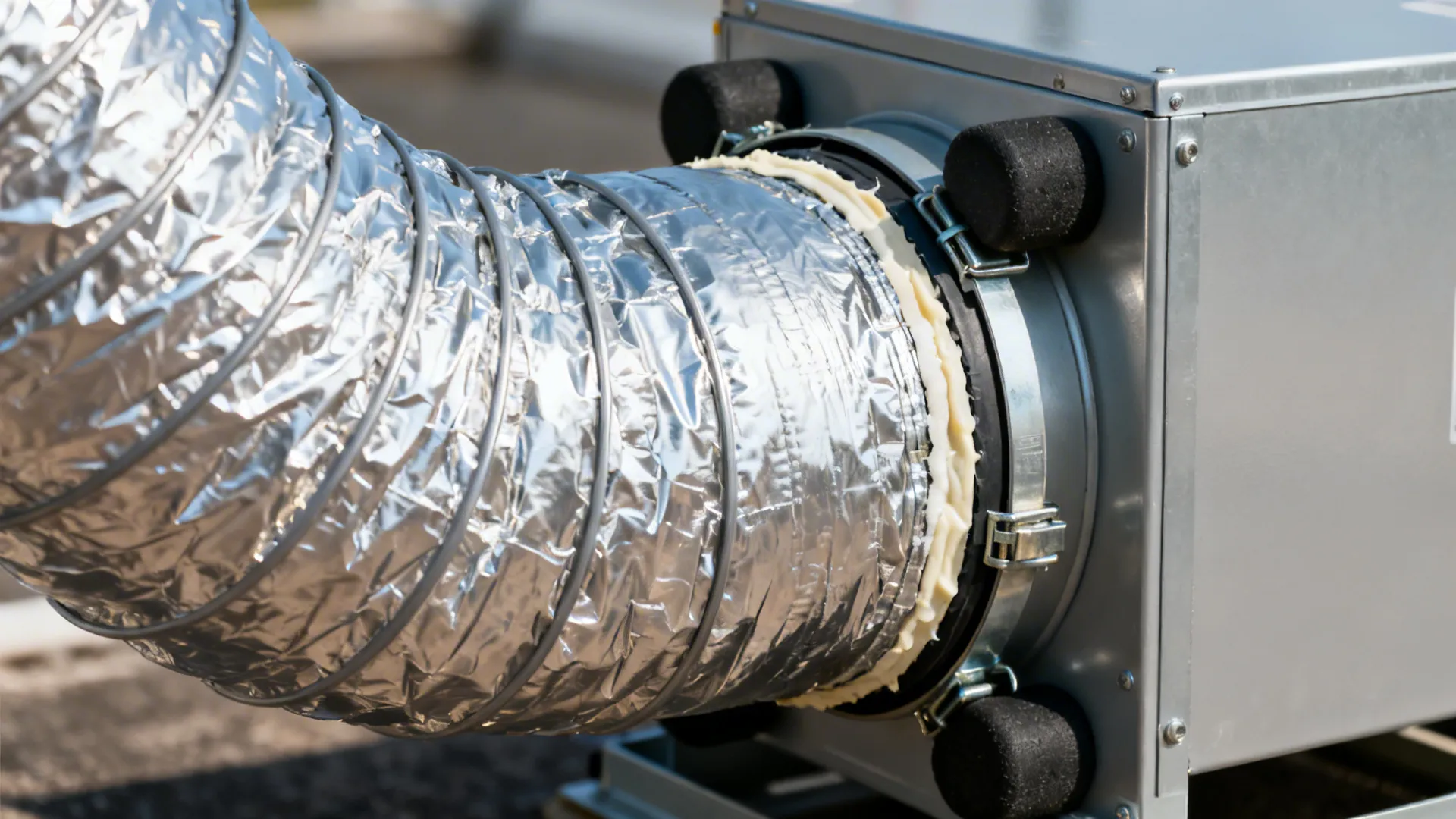

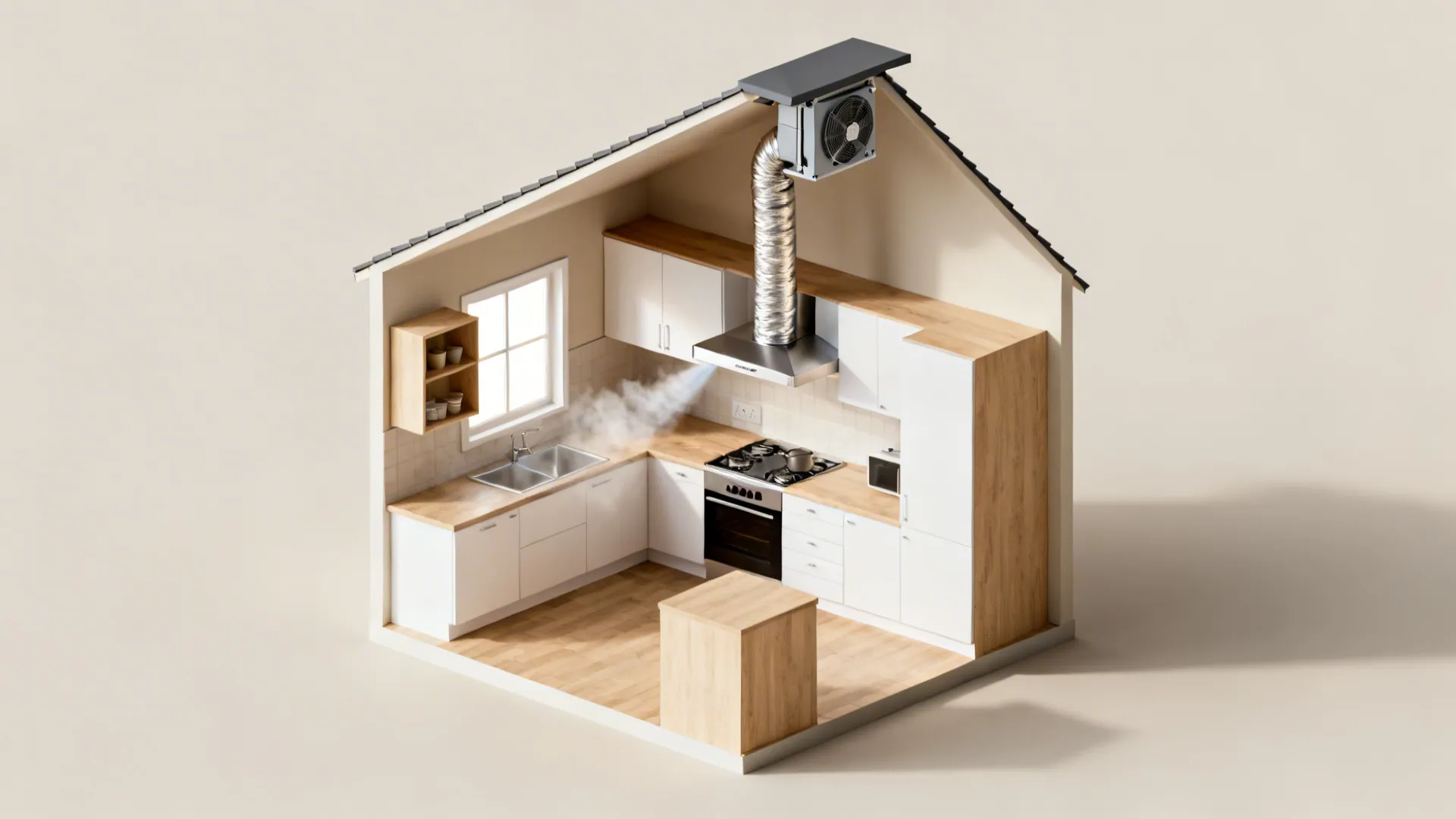

My Take Noise is the number‑one complaint I hear. On a chef’s loft we completed last winter, we used an in‑line blower in the attic with a short exterior roof termination. The cook can now simmer at low fan speeds and talk without shouting. Pros - Moving the motor out of the hood dramatically cuts sound at the cooktop—great for open‑plan apartments. - With a proper kitchen ventilation design, longer runs are possible while maintaining outside venting. - HVI and ENERGY STAR guidance note that quieter systems encourage consistent use, improving indoor air quality (energystar.gov; hvi.org). Cons - In‑line or remote blowers increase upfront cost and require attic or roof access. - More components (fan, controller, roof cap) mean more coordination and potential points of failure. - Service later may require attic access; plan a clear path and safe platform. Tips / Case / Cost - Use insulated duct to reduce vibration and condensation; seal with mastic (not just tape). - Keep roof caps low‑profile and code‑compliant; avoid shared vents with bathroom fans. - Expect $900–$2,500 for the blower/hood system plus $800–$2,000 for installation depending on run length.

save pin

save pin

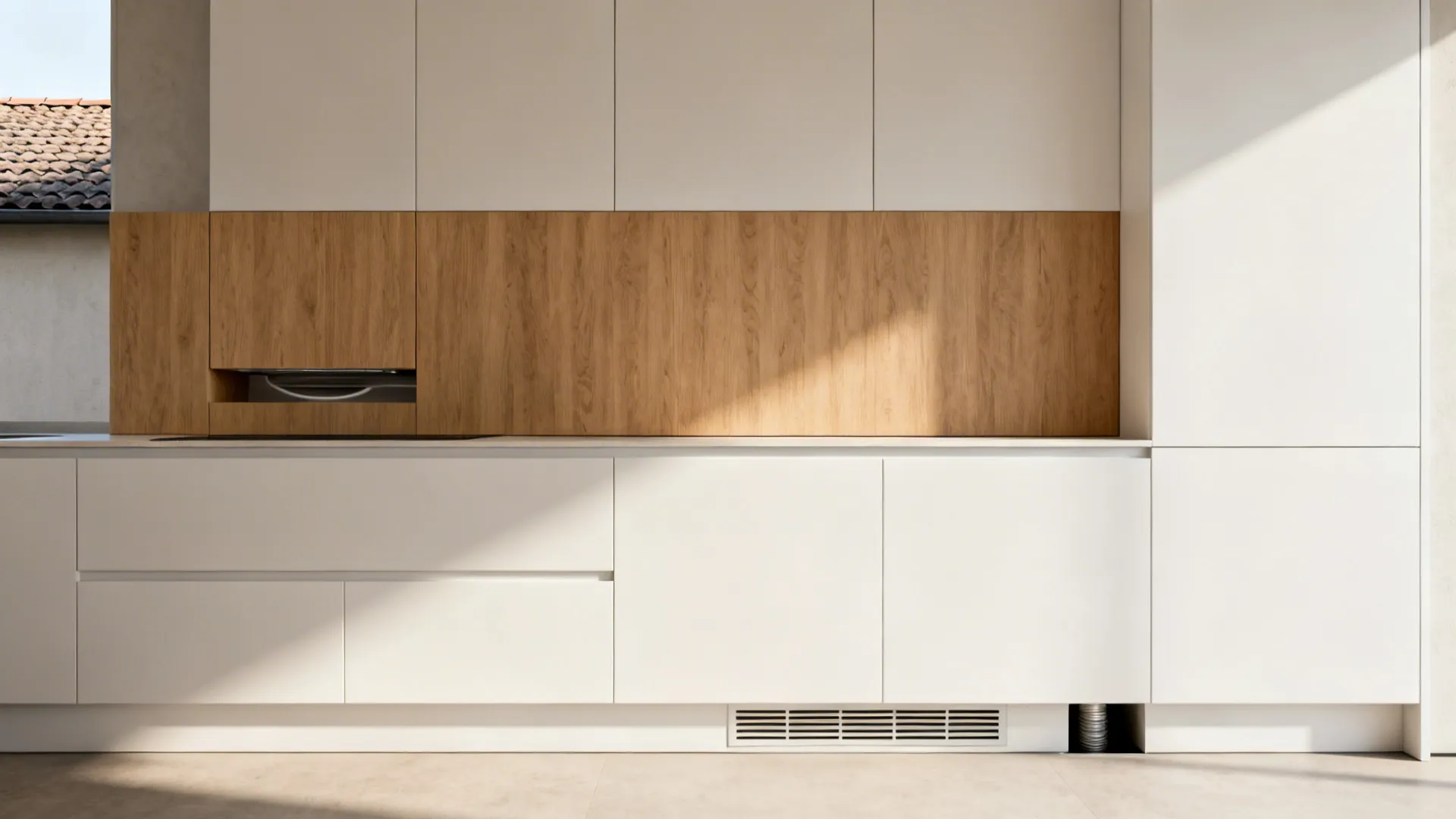

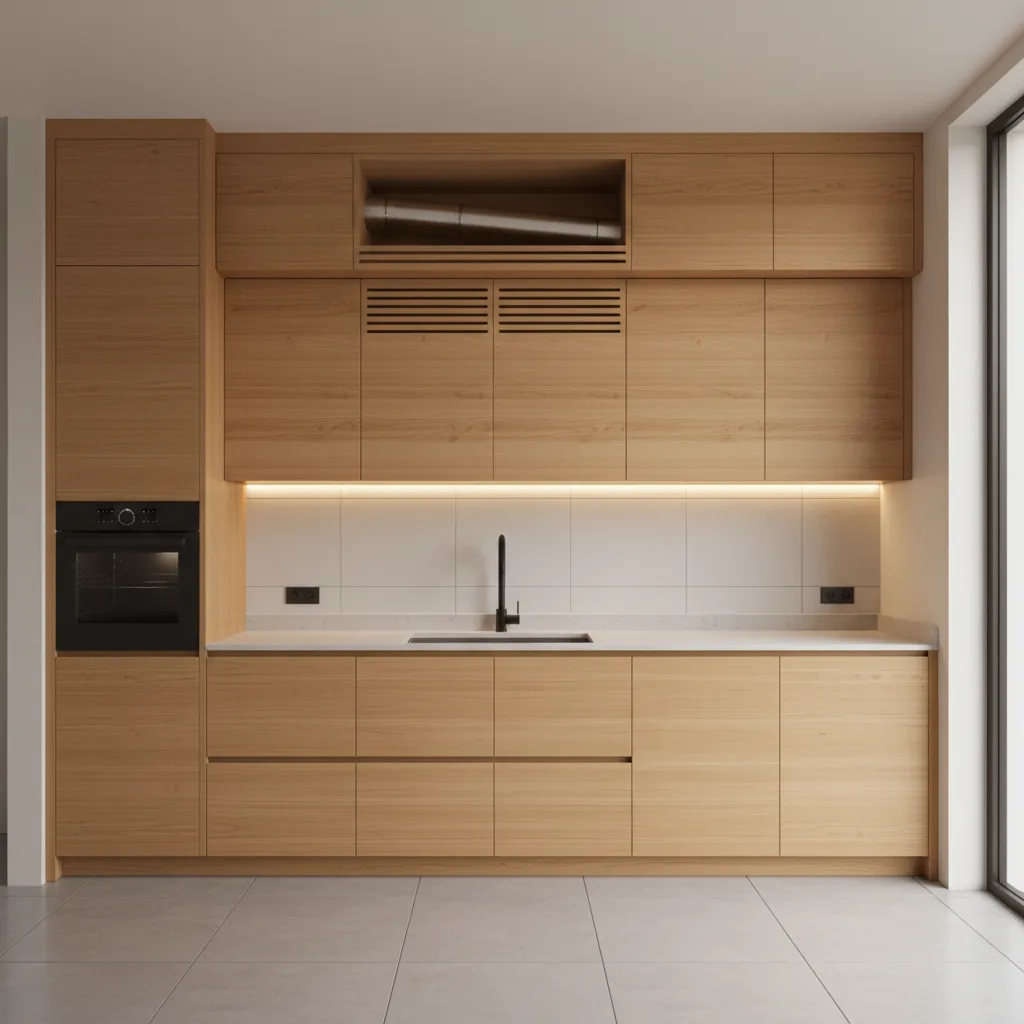

4) Bespoke Cabinet‑Integrated Chimney With Make‑Up Air

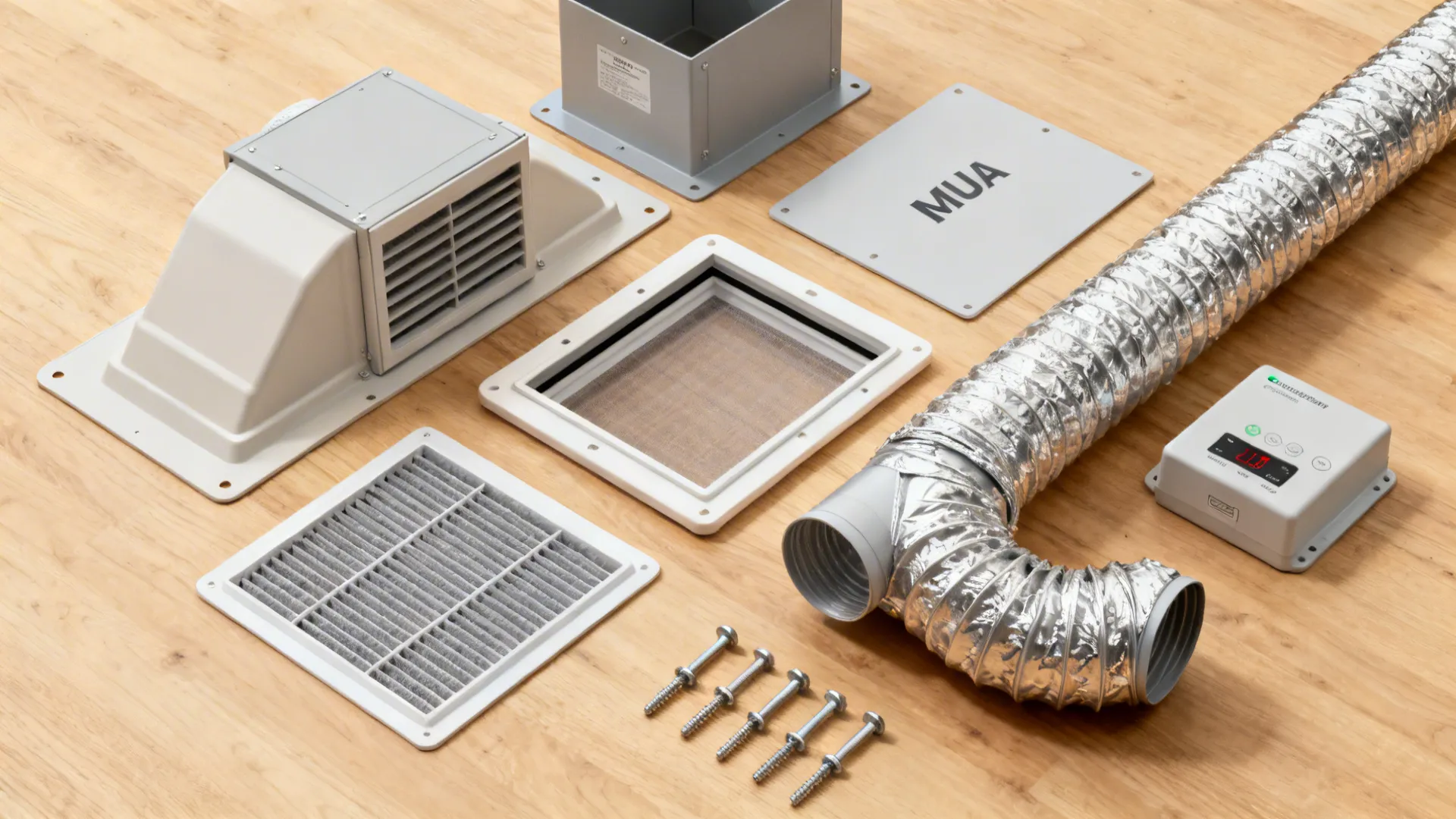

My Take In colder regions, I design cabinet‑integrated hoods that look invisible from the room, paired with a make‑up air (MUA) solution that tempers incoming air. A tight condo once had negative pressure tripping a fireplace sensor—MUA fixed it overnight. Pros - Integrating the chimney preserves a minimalist look while venting outside, aligning with modern interior design trends. - Proper make‑up air prevents back‑drafting of gas appliances and maintains stable pressure—a crucial long‑tail safety keyword many overlook. - The International Residential Code (IRC M1503.4) requires make‑up air for kitchen exhaust systems ≥400 CFM in many jurisdictions; check your local code. Cons - MUA adds cost and complexity; tempered units need power and controls. - If not sized right, MUA can feel drafty or noisy; balancing with the hood is key. - Cabinet modifications for a concealed insert may reduce interior shelf space. Tips / Case / Cost - Balance CFM: a 600 CFM hood often pairs with 4"–6" MUA ducts, but confirm with your HVAC pro. - Choose easy‑clean baffle filters; schedule quarterly degreasing for heavy use. - Budget: $1,200–$3,500 for hood insert + $800–$2,500 for MUA and carpentry. Internal link (80%): See how a calm palette highlights “wood tones that bring warmth” in compact kitchens: wood tones that bring warmth

save pin

save pin

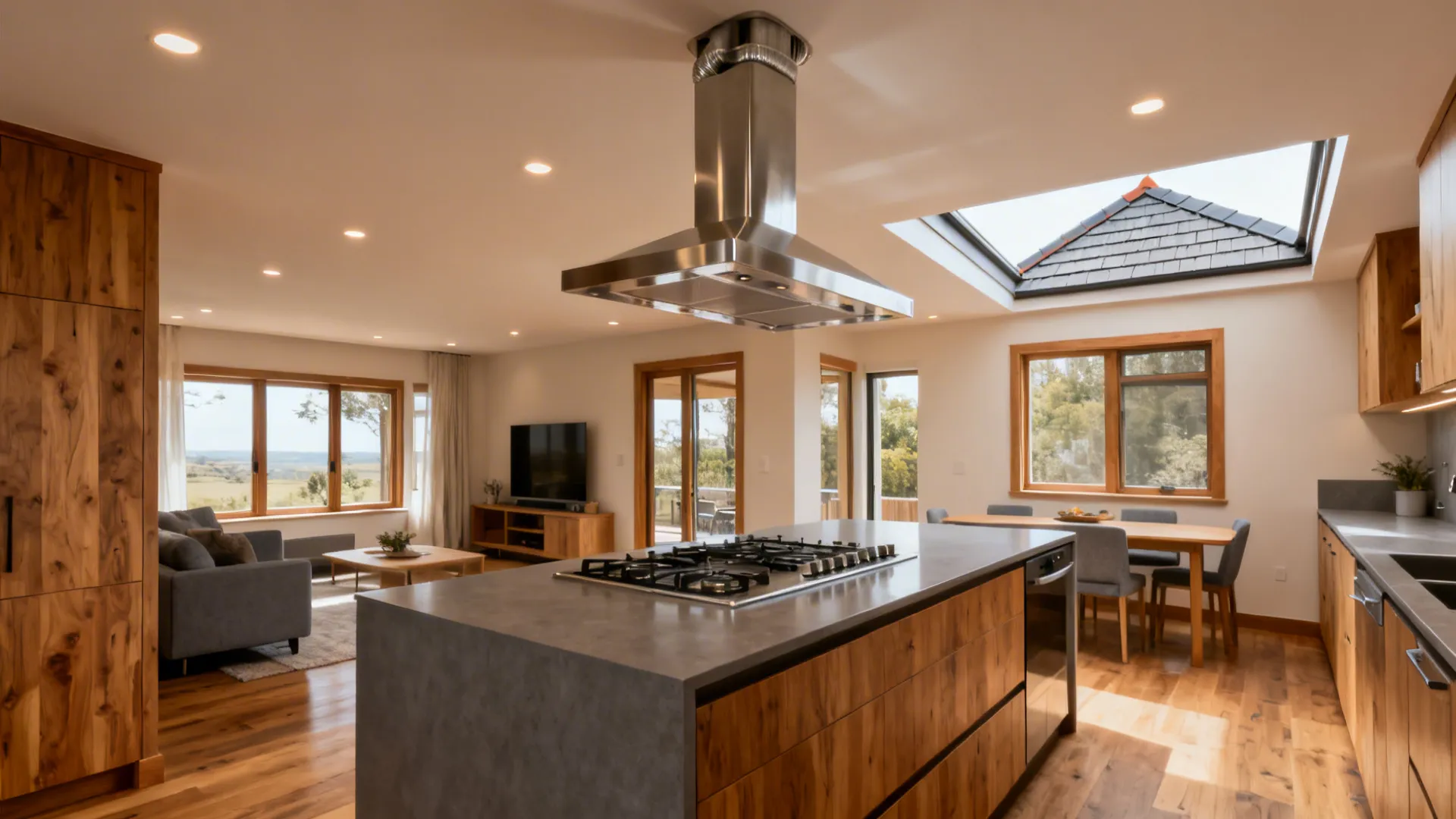

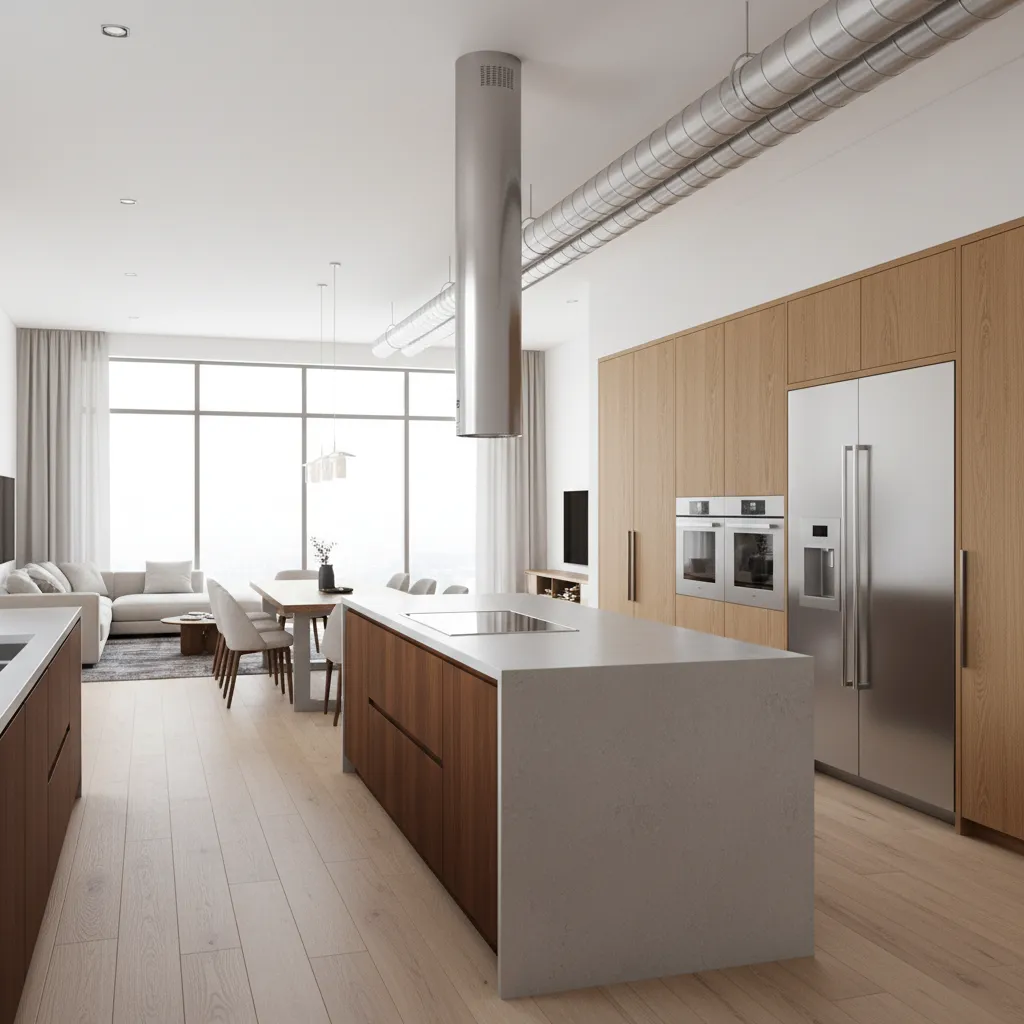

5) Ceiling‑Mounted Hood for Islands, Vented Through Roof

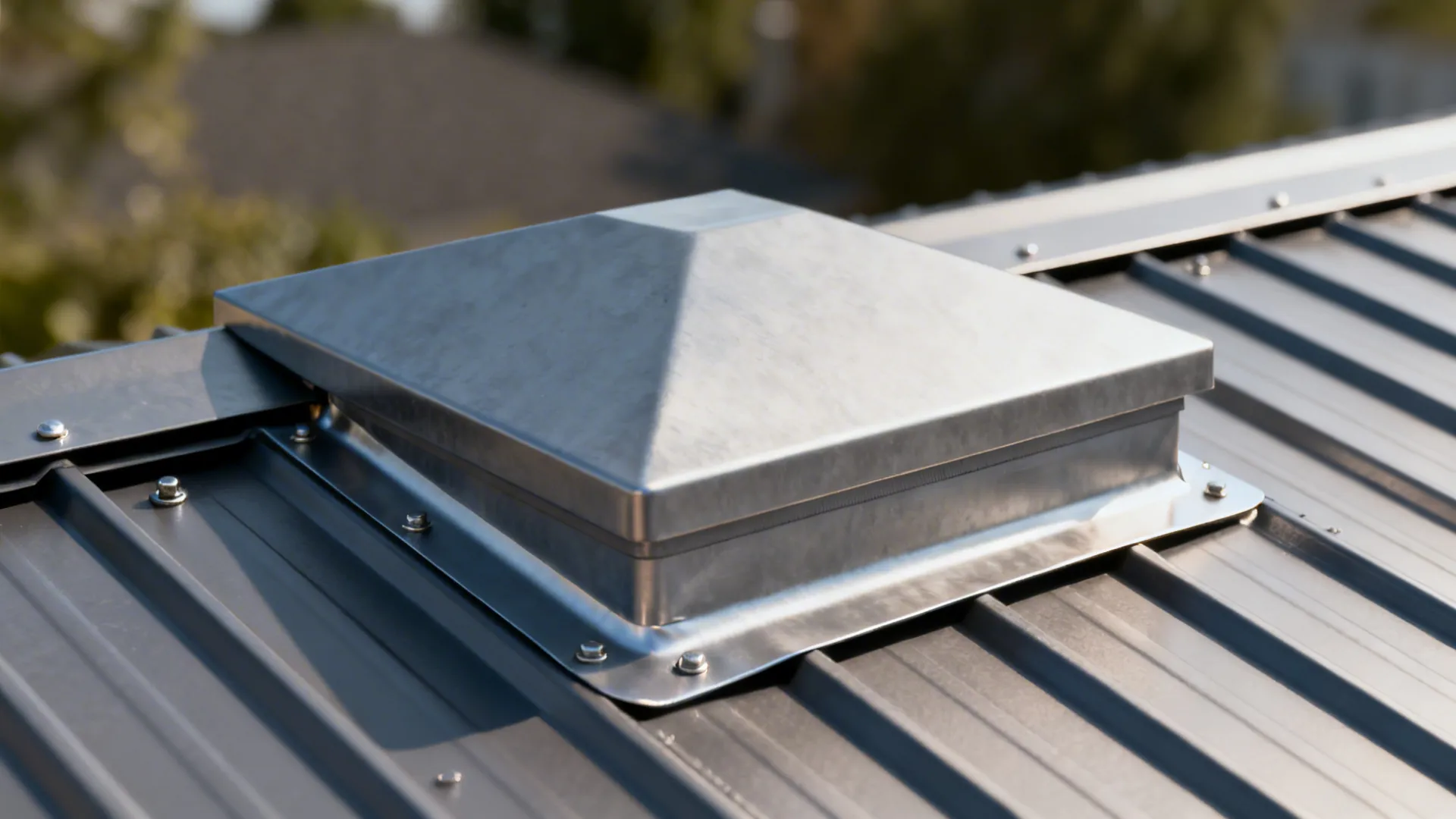

My Take For island cooktops, ceiling‑mounted hoods with straight‑up roof ducts are my go‑to. In a 28 m² studio, we used a low‑profile canopy with an 8" duct and an in‑line fan—now the client sautés without perfuming the sofa. Pros - Direct vertical ducting minimizes bends and static pressure, improving capture in an island setup. - Wider canopies (as much as cooktop + 3" per side) help contain plumes in open plans—key for effective kitchen chimney design vented outside. - With proper make‑up air and canopy sizing, you can run lower speeds for the same capture. Cons - Islands are exposed; a bulky hood can dominate the sightline—choose proportions carefully. - Roof penetrations need flashing and weatherproofing; hire a roofer if needed. - Hanging and leveling from joists can be labor‑intensive in old buildings. Tips / Case / Cost - Aim for 600–900 CFM for high‑heat cooking; pair with an in‑line or remote blower for quiet. - Add task lighting with warm 3000K LEDs to avoid a “surgical” vibe. - Typical install ranges $1,000–$3,500 depending on ceiling height and roof work. [Section: 总结] A small kitchen doesn’t limit you—if anything, it demands smarter choices. A kitchen chimney design that vents outside is one of the highest‑impact upgrades for comfort, safety, and resale. HVI certification and IRC‑compliant make‑up air are the two checkpoints I never skip. Which of these five ideas fits your layout and cooking style—straight‑out wall vent, rear discharge, remote blower, cabinet insert with MUA, or roof‑vented island? [Section: FAQ 常见问题] 1) What CFM do I need for a kitchen chimney design that vents outside? - Light cooking: ~250–350 CFM; heavy searing or wok: 500–900 CFM. Match capture to cooktop width and canopy depth. HVI ratings help you compare apples to apples (hvi.org). 2) Is a ducted range hood better than a recirculating one? - Yes for pollutant removal. Ducted systems expel moisture, grease, and odors; recirculating filters reduce some odors but don’t remove humidity. For indoor air quality, outside venting wins. 3) How loud should my hood be? - Look for ≤1–2 sones on low and ≤6–7 sones on high for comfort. Remote or in‑line blowers can reduce perceived noise at the cooktop. 4) Do I need make‑up air (MUA)? - Many codes require MUA for hoods ≥400 CFM (e.g., IRC M1503.4). It stabilizes pressure and prevents back‑drafting of gas appliances. An HVAC tech can size and temper it. 5) What duct size is best? - Follow the manufacturer, often 6" for 300–400 CFM and 8" for 600–900 CFM. Bigger, smoother, shorter ducts with fewer bends preserve airflow and reduce noise. 6) Can I vent through the roof in a snowy climate? - Yes, with a roof cap rated for snow and wind, proper flashing, and back‑draft damper. Insulated ducting helps prevent condensation drips in winter. 7) How high should the hood be mounted? - Typically 24"–30" above the cooking surface for most ranges. Always check the manufacturer’s specs, especially for high‑BTU or induction setups. 8) How often should I clean filters and ducts? - Wash baffle or mesh filters every 4–8 weeks depending on use; deep‑clean ducts every 3–5 years. Consistent maintenance keeps capture strong and reduces fire risk.
