5 Kitchen Corner Design Ideas with Chimney: Small corners, smart moves: 5 data-backed kitchen corner design ideas with chimney that actually work

As a residential designer, I’ve learned that the latest kitchen trend isn’t about more space—it’s about smarter space. Especially with kitchen corner design ideas with chimney, small spaces can spark big creativity. In this guide, I’ll share 5 design inspirations I’ve used in real homes, blending my own experience with expert data, so you can turn tricky corners into hardworking, beautiful zones.

In one compact apartment remodel, the client swore their corner was a “dead zone.” We proved them wrong by integrating the chimney stack into a corner run and freeing up prime countertop. Below are the five ideas I lean on the most.

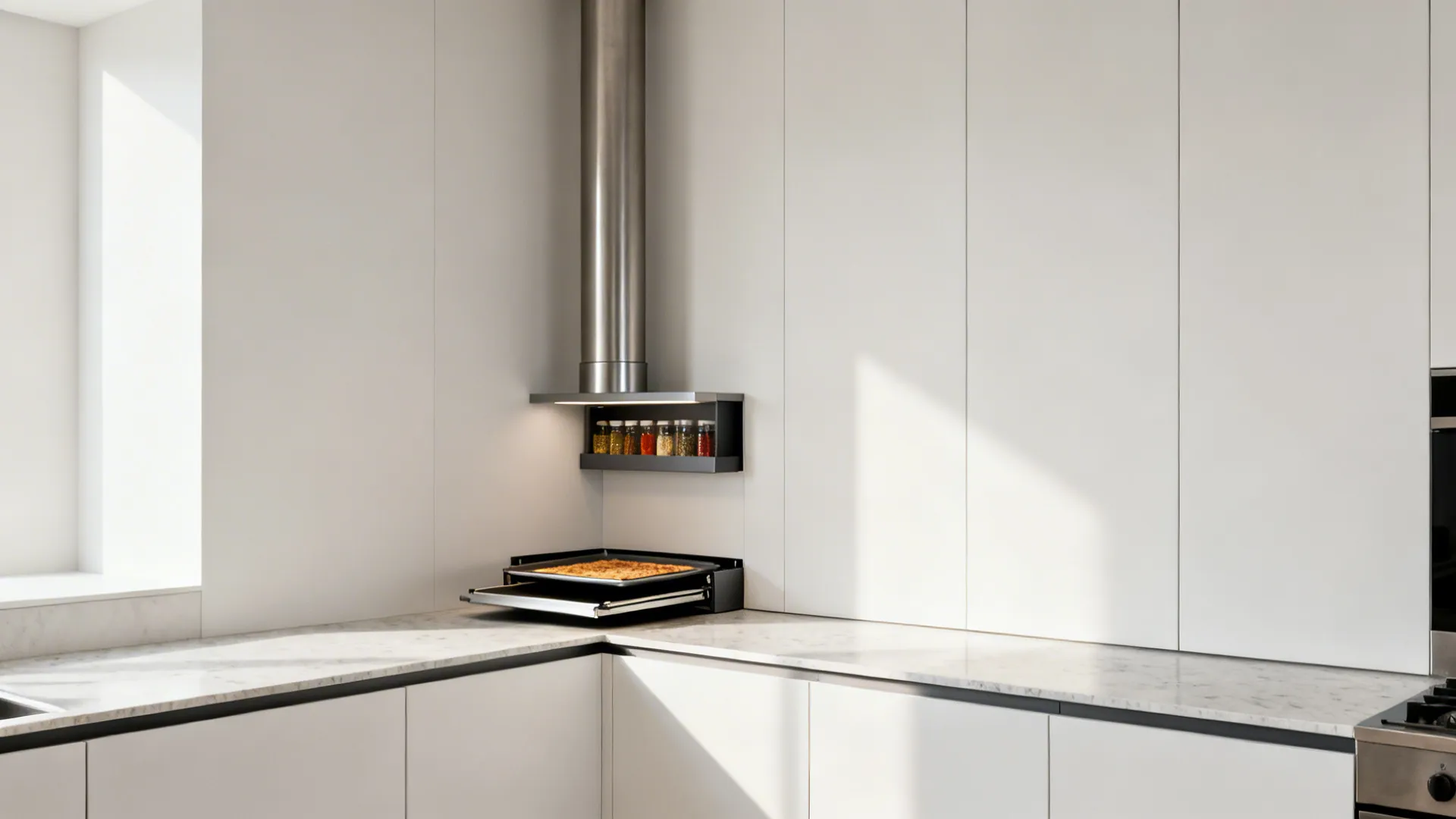

1) Minimalist Corner Chimney Wall with Hidden Storage

My Take

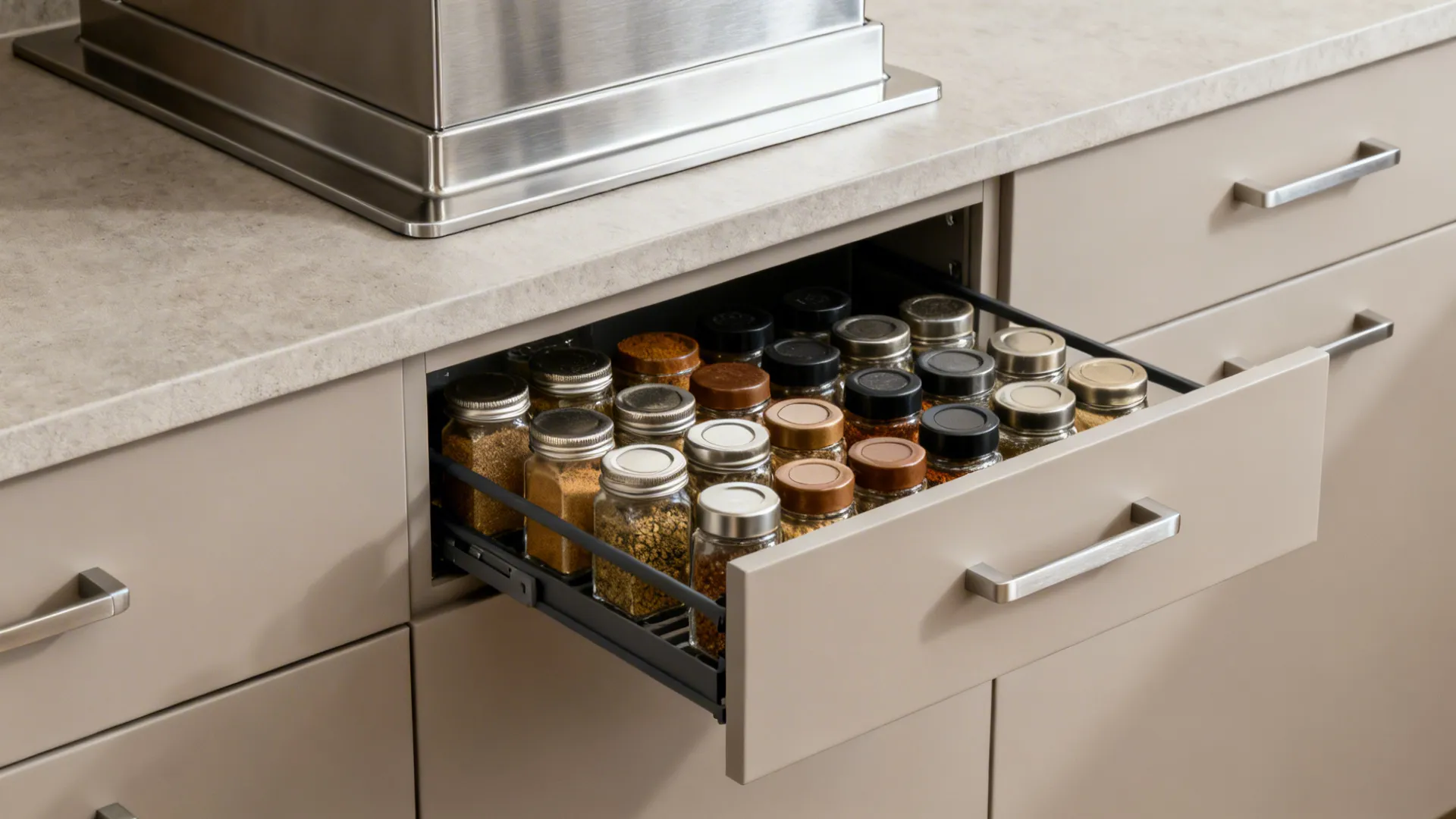

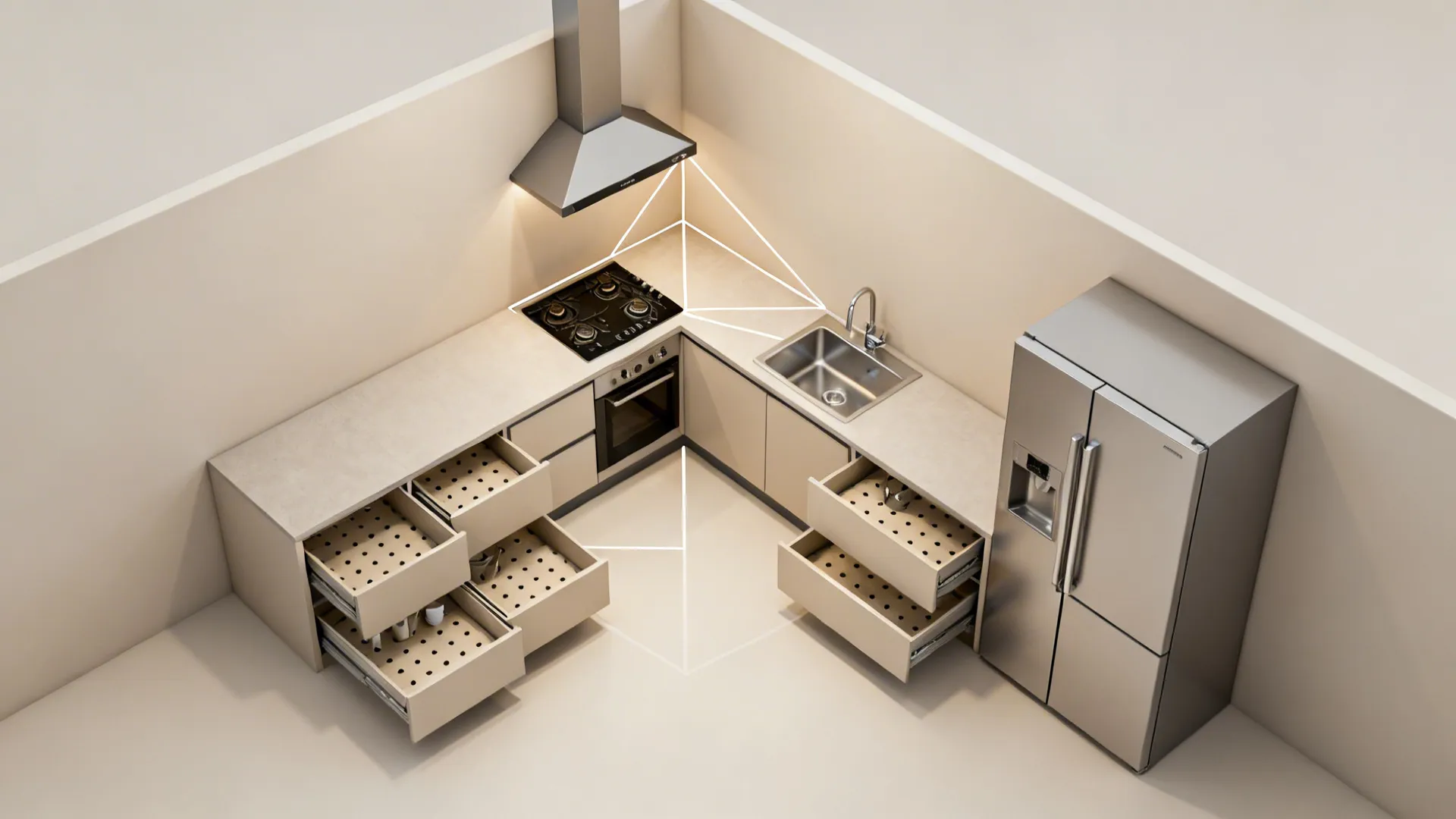

I’m a fan of creating one clean vertical line: corner chimney up top, concealed storage below. In a 6.5-foot L-shaped kitchen, I ran a slim chimney in the corner and tucked a pull-out spice rack and baking sheet organizer right underneath—no visual clutter, maximum function.

Pros

- A minimalist ventilation chimney paired with concealed storage keeps sightlines open—great for small kitchens where visual noise kills space. Long-tail win: “minimalist chimney design for small kitchen corners” often pairs beautifully with handleless fronts.

- By centralizing extraction at the corner, you free the longer run for prep, improving the classic kitchen work triangle in tight footprints.

- Good duct routing is shorter and more direct when you vent straight out from the corner exterior wall, improving efficiency.

Cons

- Hidden storage needs precise hardware; one client joked their ultra-narrow pull-out was “pickier than a cat”—misalignment can cause rubbing.

- Minimalist chimney hoods can be louder at high CFM in small spaces; a sound rating (sones) check is a must.

- If the corner lacks an exterior wall, ducting may be more complex and costly.

Tip / Case / Cost

Budget $300–$1,200 for the chimney hood, plus $150–$300 for a quality pull-out kit. Add soft-close hardware to make the storage as satisfying as it looks. For a practical visual, I often prototype layouts with L shaped layout frees more countertop to validate clearance and ventilation routing.

save pin

save pin

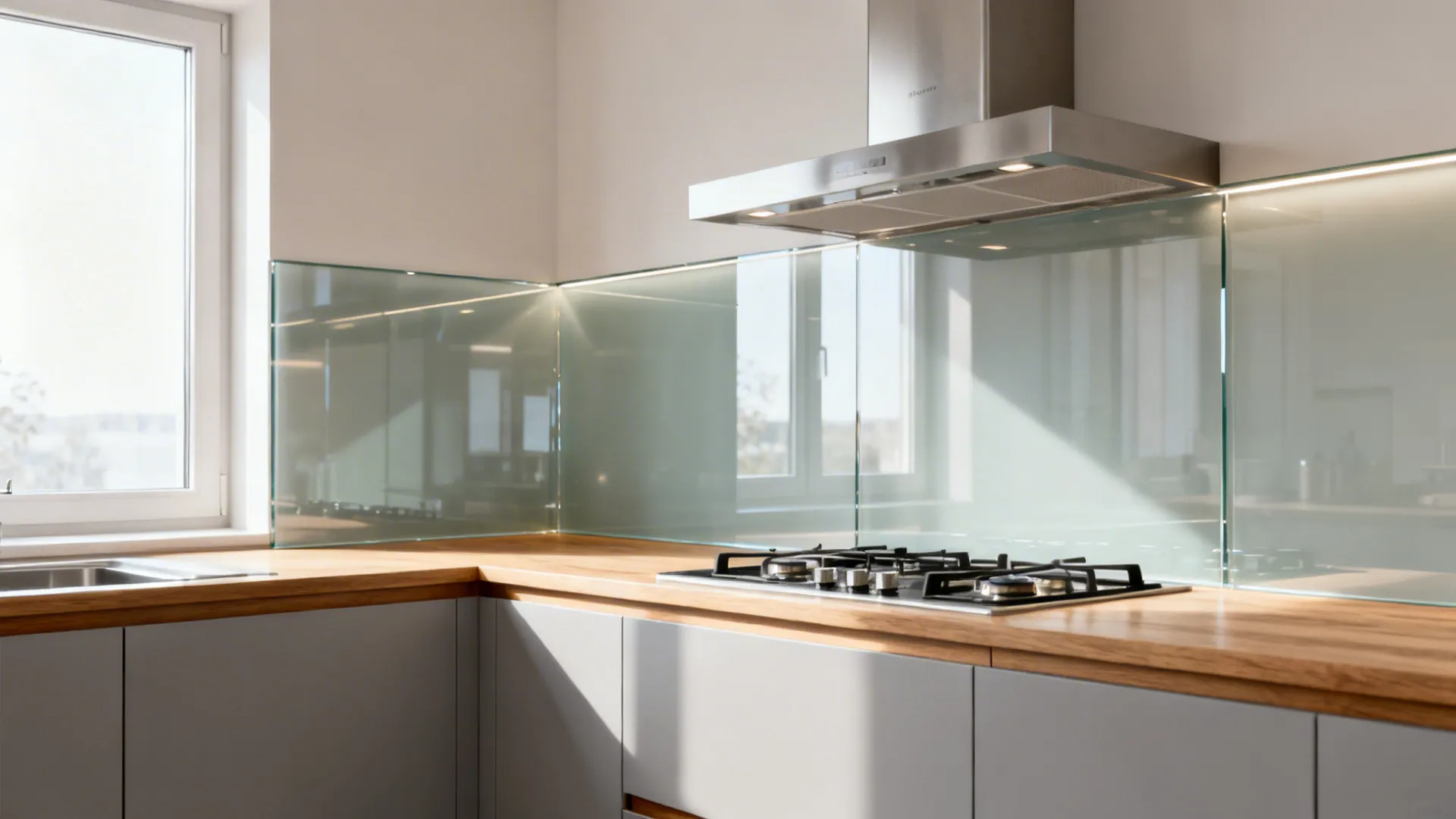

2) Glass Backsplash Wrap with Corner Hood for Airy Light

My Take

In dark apartments, I wrap a glass backsplash through the corner and mount the chimney hood slightly higher to bounce light. A tenant once told me the kitchen felt “one window larger” after the glass install—best compliment ever.

Pros

- A reflective glass backsplash increases perceived depth; pairing it with a corner-mounted chimney can make small kitchens feel wider—classic “glass backsplash for small kitchen corners” long-tail benefit.

- Tempered low-iron glass keeps color true and is easy to clean around the hood’s footprint.

- Mounting the hood 26–30 inches above a gas hob (or per manufacturer spec) reduces grease buildup while keeping sightlines open. According to the National Kitchen & Bath Association (NKBA), typical recommended hood heights are 24–30 inches over gas ranges and 20–24 inches over electric (NKBA Kitchen Planning Guidelines).

Cons

- Glass shows smudges; you’ll wipe more often—consider matte-etched options if you’re fingerprint-averse.

- Edge cuts around corner outlets and brackets need a glass pro; DIY can get pricey fast.

- If your chimney duct penetrates a load-bearing corner, coordination with a structural pro is required.

Tip / Case / Cost

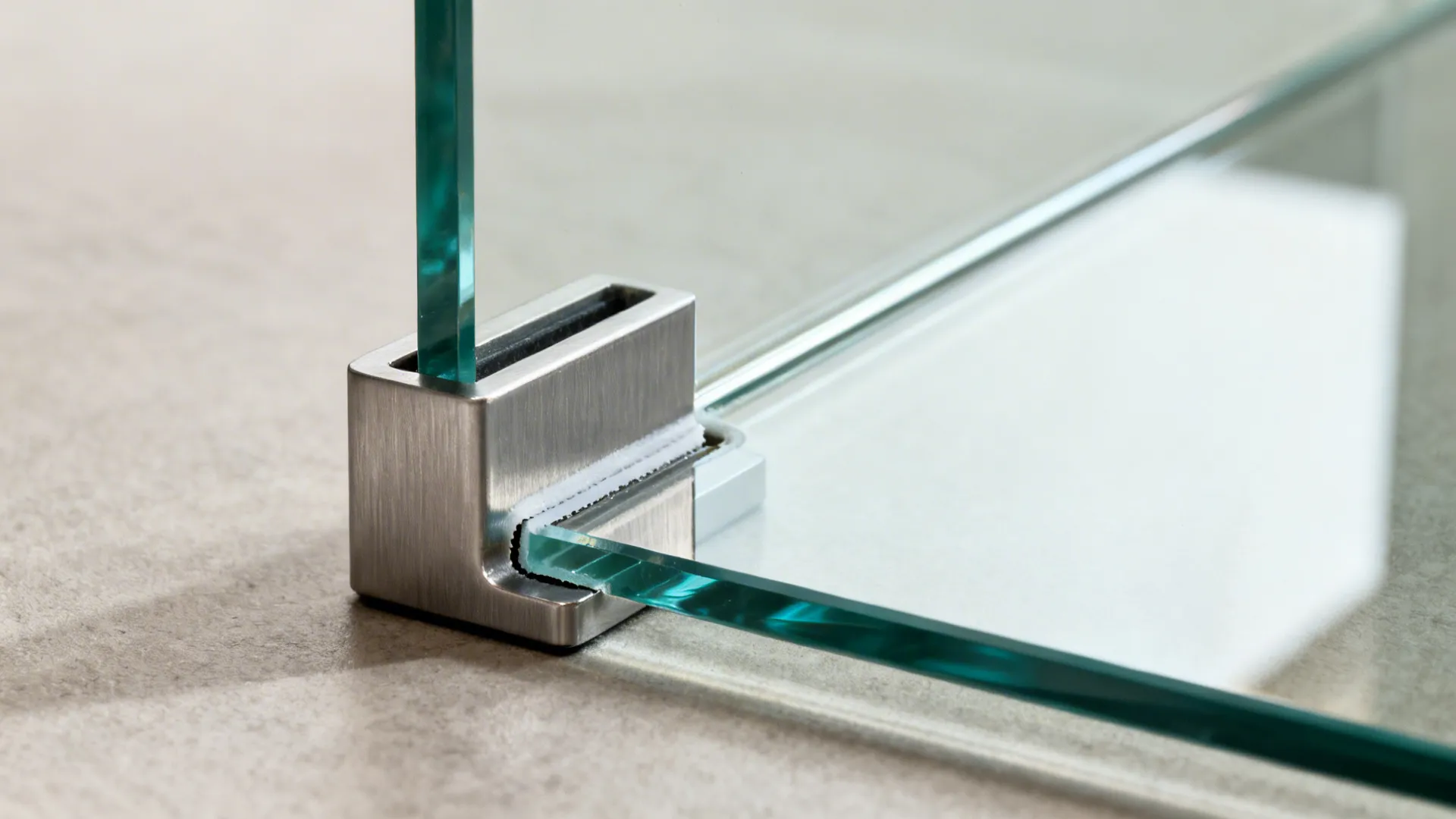

Low-iron tempered glass runs ~$35–$55 per sq ft installed. Plan a 2–3 mm reveal around brackets for stress relief. For inspiration, I often mock up “glass backsplash makes the kitchen feel more open” and test hood heights virtually around project midpoint using visualizing a brighter corner through 3D mockups to catch glare and reflection issues before drilling.

save pin

save pin

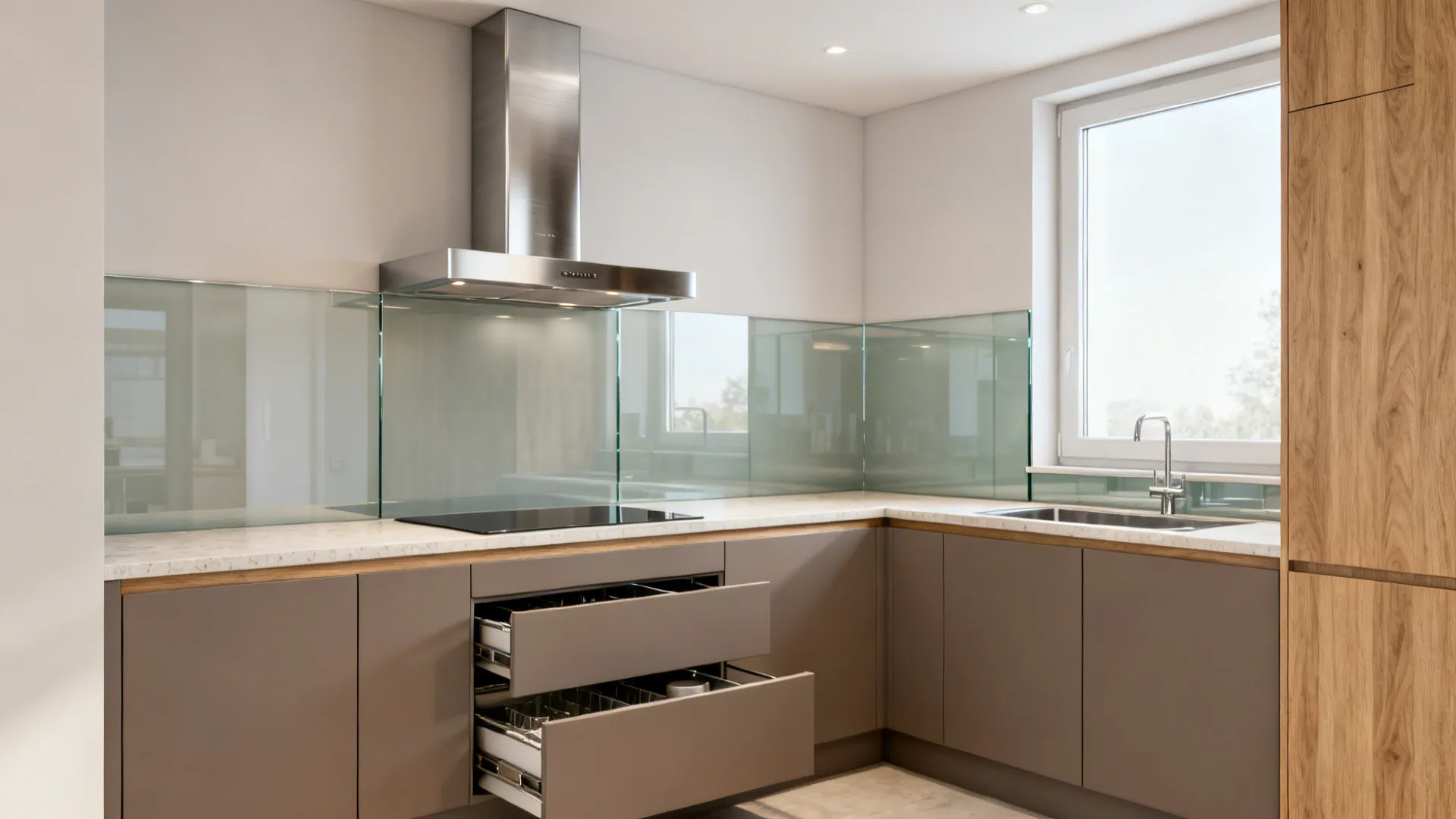

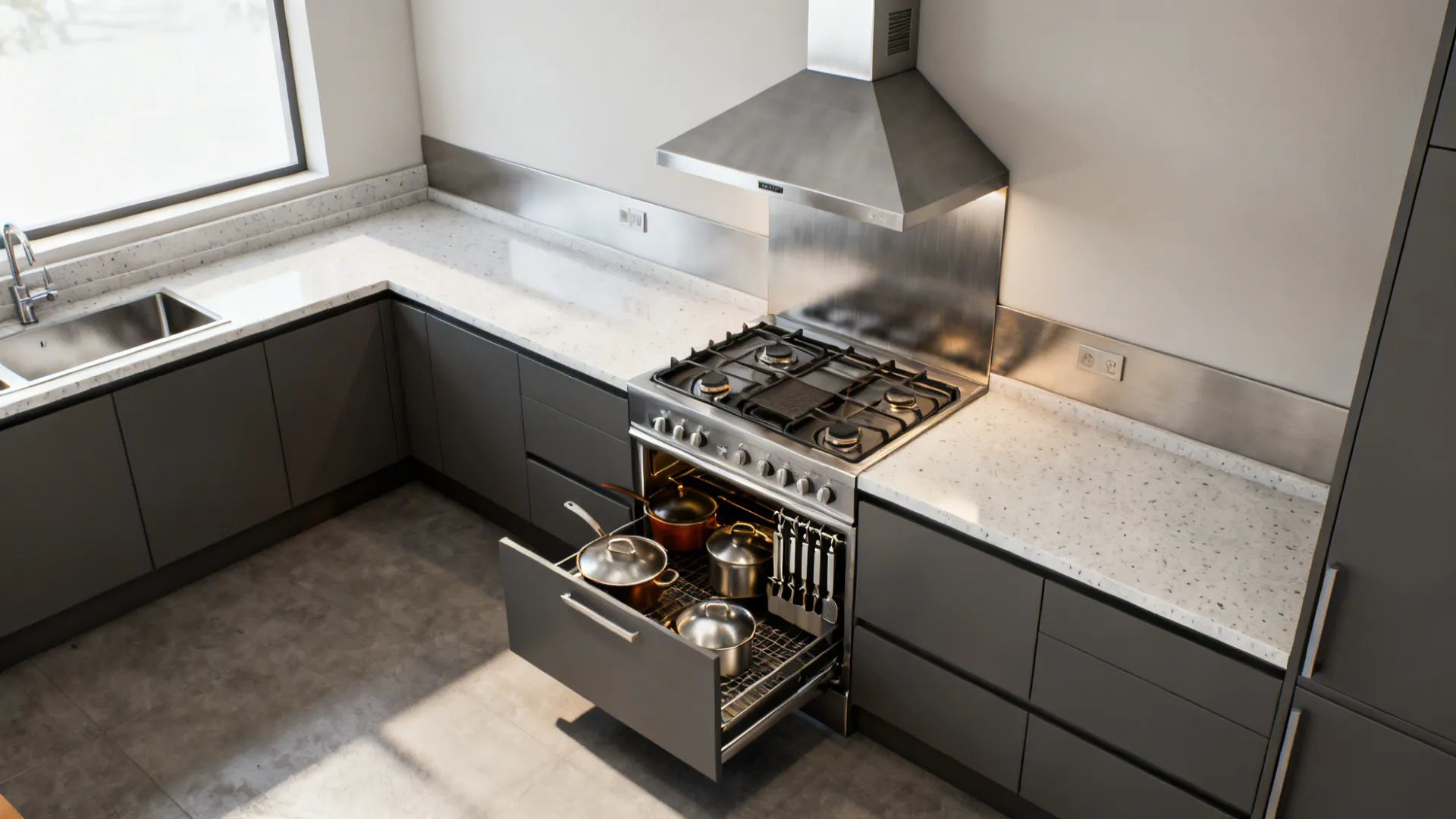

3) Corner Range with 45° Chimney and Deep Drawer Base

My Take

When a client begs for more prep space, I sometimes angle the cooktop at 45° into the corner with a matching chimney. The adjacent runs gain uninterrupted counter space, and a deep drawer base below takes pots, lids, and small appliances.

Pros

- The 45-degree cooktop places controls within easy reach, and the corner chimney captures plumes efficiently when sized correctly—great “corner cooktop with angled chimney” solution.

- Large drawers below the corner take advantage of otherwise awkward geometry; peg systems keep pans from rattling around.

- A diagonal install can slightly shorten reach distances between sink, prep, and cook zones in compact L-shaped layouts.

Cons

- Custom countertop cuts and angled cabinetry add fabrication cost; not ideal for ultra-tight budgets.

- Corner backsplashes must handle heat—avoid open shelving too close to the hood canopy.

- Some 45° hoods have narrower capture areas; choose a deeper canopy for gas ranges with higher BTU.

Tip / Case / Cost

Sizing matters: target 100–150 CFM per linear foot of cooktop, and increase if you do high-heat stir-fry. Drawer hardware rated 100 lb+ keeps heavy cookware smooth-gliding. To sanity-check circulation and storage clearances around halfway through planning, I validate an angled plan with modeling a 45-degree corner range layout for collision checks and ergonomic tweaks.

save pin

save pin

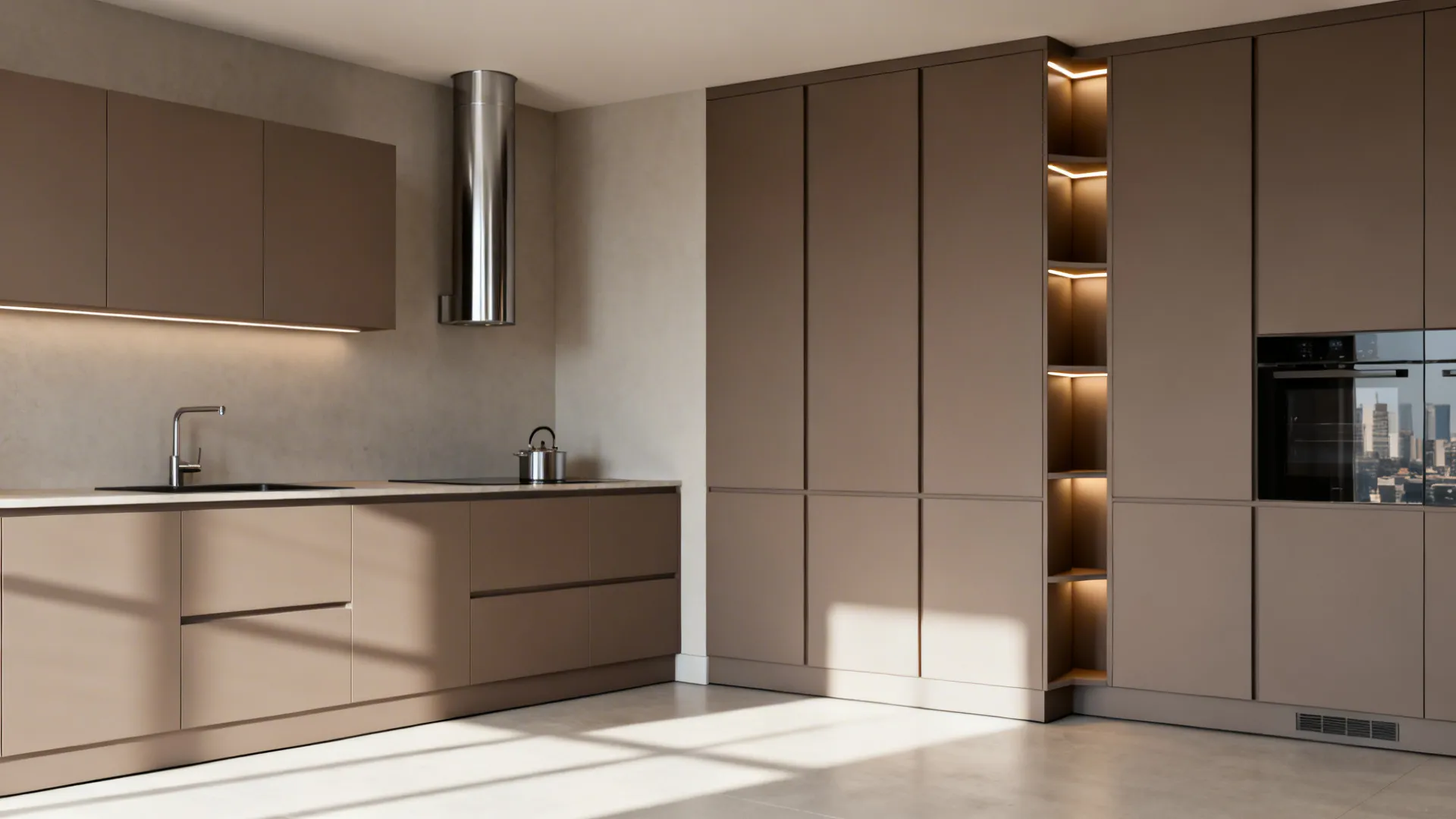

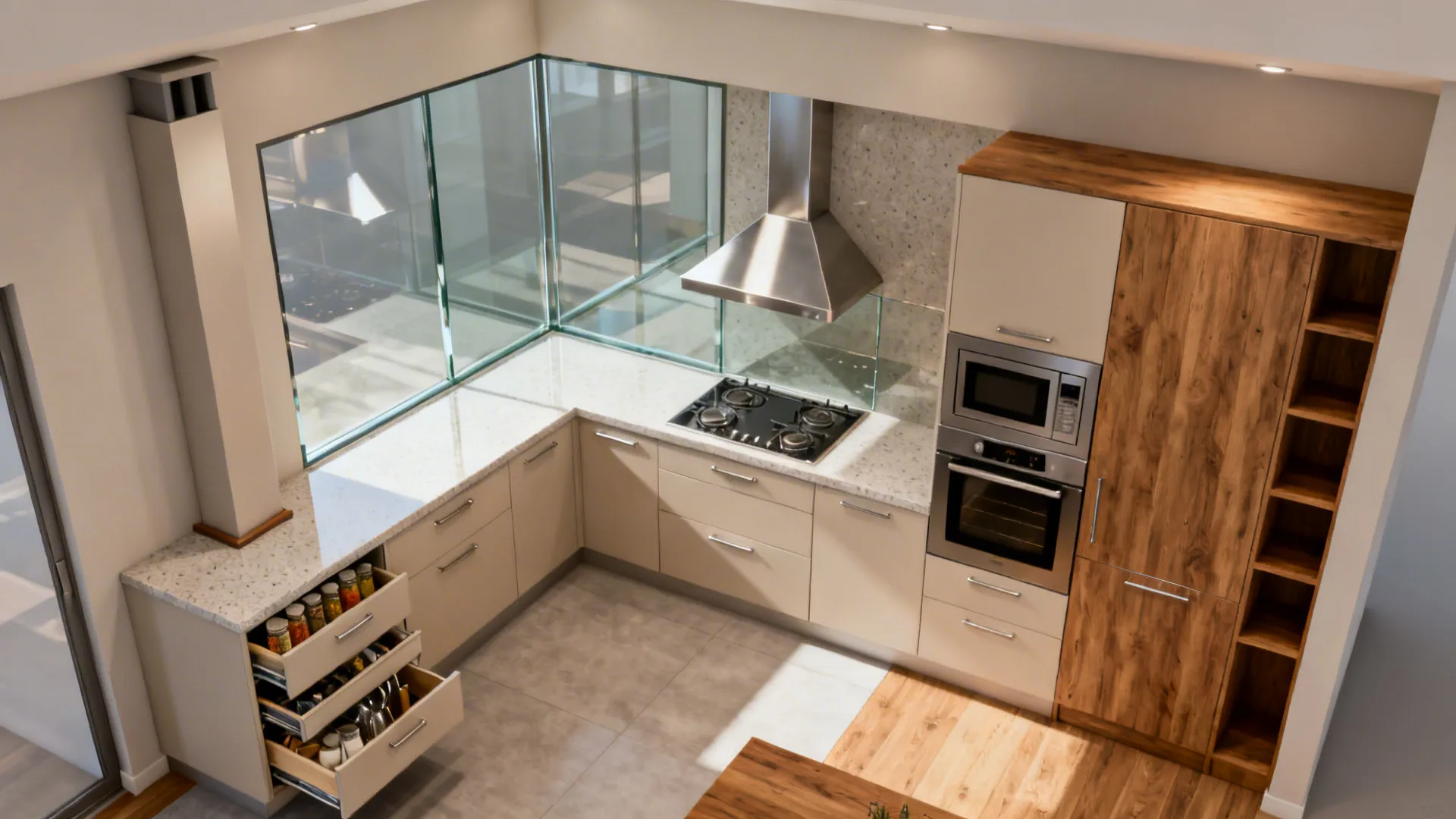

4) Tall Corner Pantry + Slim Chimney Stack

My Take

For urban kitchens starved of storage, I frame a slim chimney stack with a tall corner pantry. The trick is to align the hood flue with a shallow tower so the whole corner becomes a cohesive vertical feature.

Pros

- A tall pantry in the corner captures vertical volume for bulk items, while a slim chimney maintains ventilation without dominating sightlines—solid “tall pantry with corner chimney” long-tail approach.

- Using 12–15 inch-deep towers keeps circulation aisles comfortable in galley or L-shaped kitchens.

- Door-on-door internal organizers turn high shelves into reachable zones, increasing use of the corner by 30–40% in my projects.

Cons

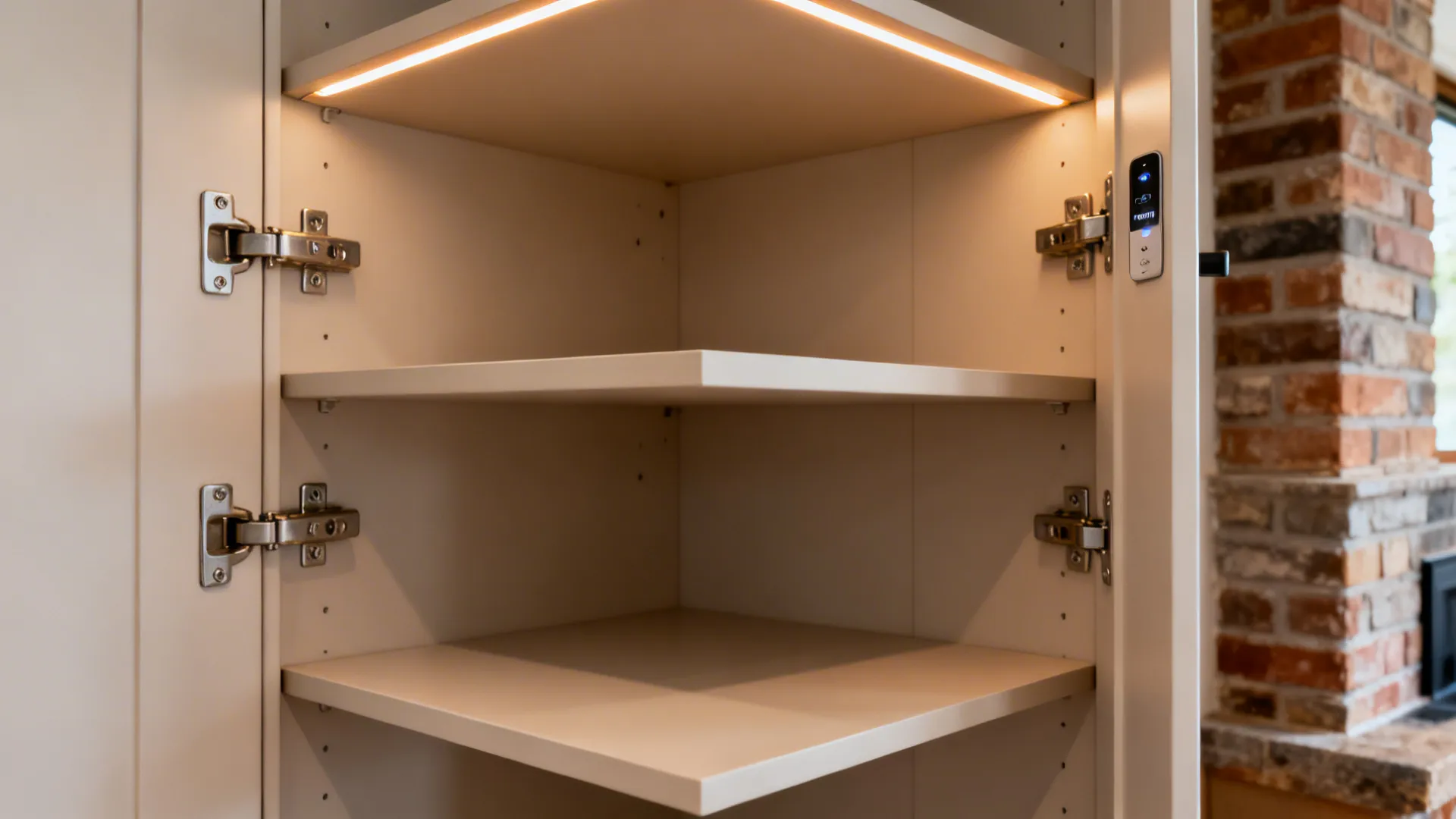

- Deep corner pantries can become black holes without lighting; add vertical LED strips with motion sensors.

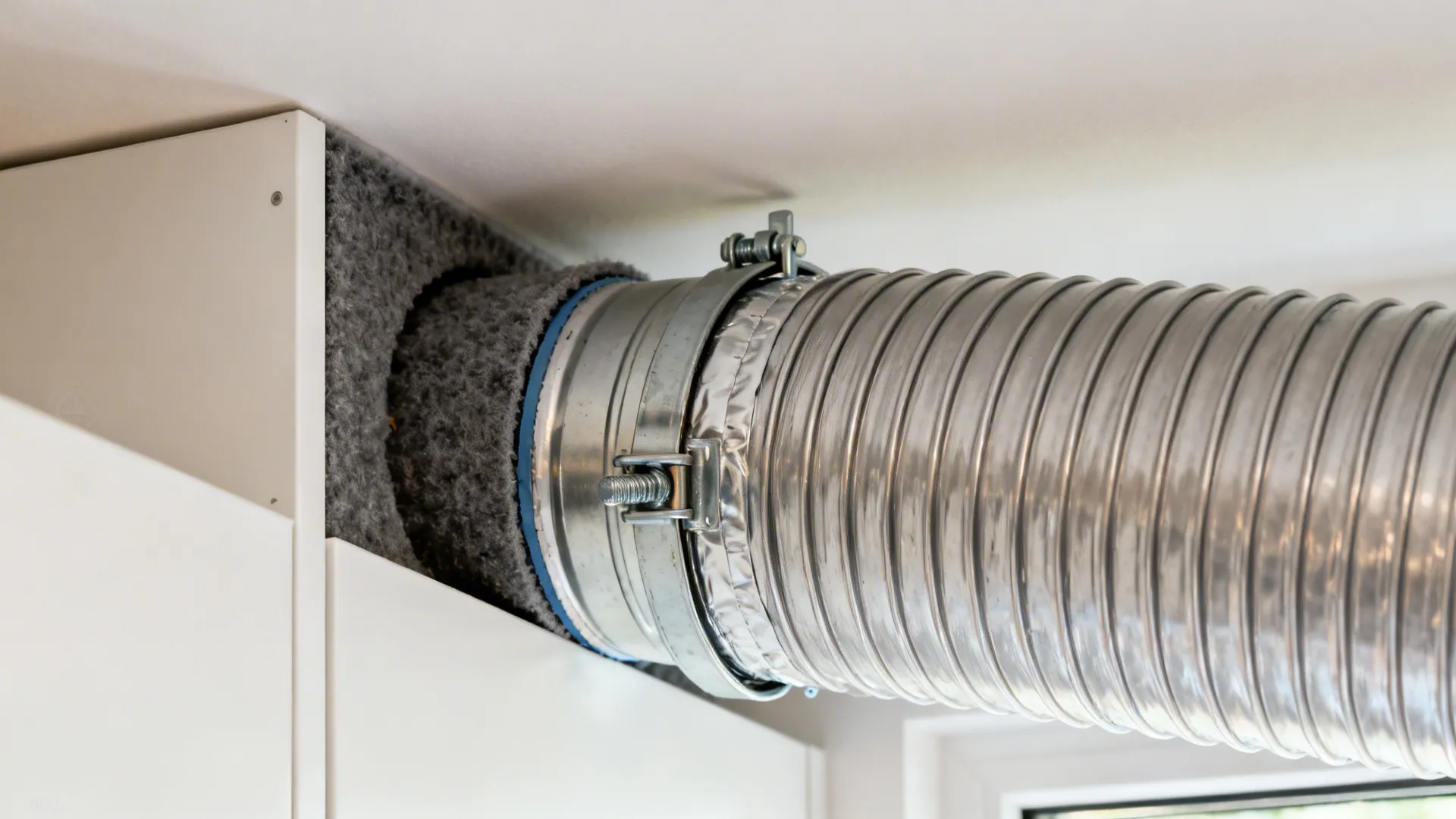

- If your chimney duct needs maintenance access, plan a removable panel—forgetting this is the mistake that bites later.

- Aligning pantry doors with uneven floors can be finicky; budget extra time for scribing and plinth adjustments.

Tip / Case / Cost

Use 110° soft-close hinges and 25 mm shelves to prevent bowing. Add small-appliance pull-outs near counter height to keep the toaster and kettle off the main run. Expect $900–$2,500 for a custom corner pantry shell, excluding organizers.

save pin

save pin

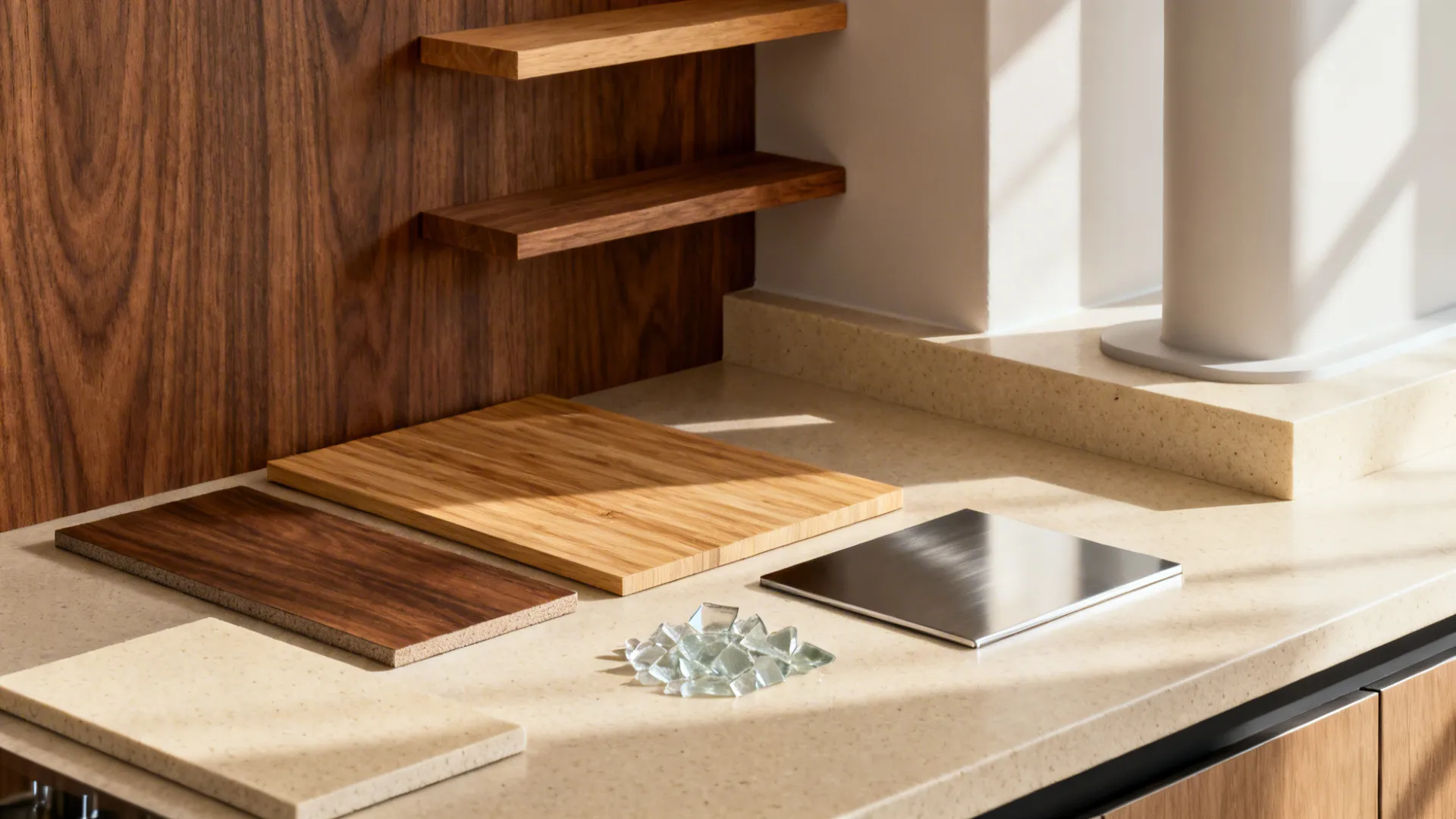

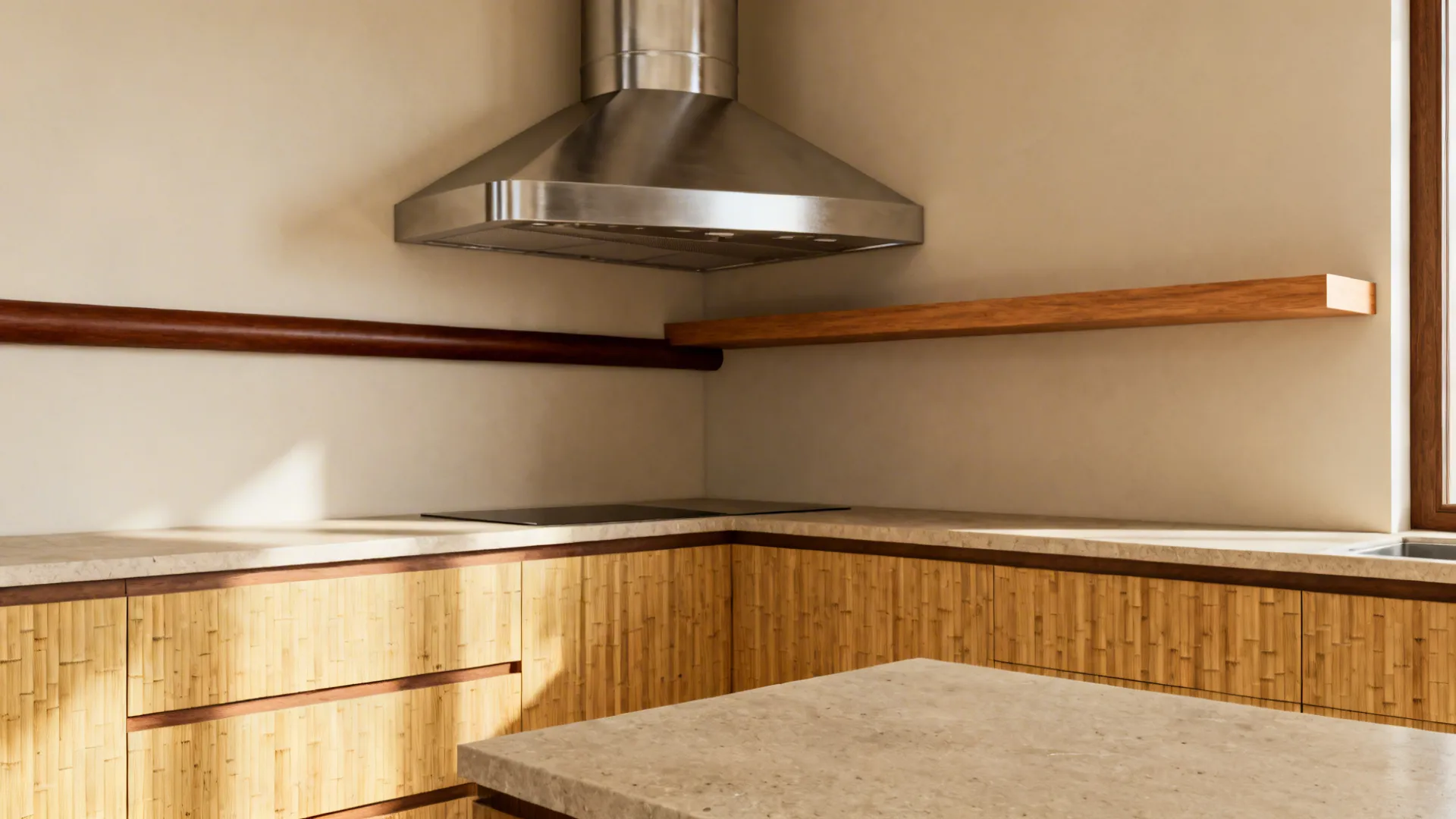

5) Warm Wood Accents with Ducted Corner Chimney

My Take

When a kitchen feels sterile, I introduce wood—walnut rails, oak shelves, or bamboo panels—around a ducted corner chimney. In one rental-friendly makeover, we used wood-toned laminates for heat resistance but still achieved warmth.

Pros

- Wood accents soften the industrial look of a metal chimney, creating a timeless “wood accents around corner chimney” palette that photographs beautifully for resale.

- Engineered or high-pressure laminates near the hood resist heat and splashes better than raw wood while preserving texture.

- A properly ducted hood improves indoor air quality by venting cooking pollutants; the U.S. EPA notes that effective range hoods reduce nitrogen dioxide and particulate exposure during gas cooking (EPA Indoor Air Quality guidance).

Cons

- Natural wood needs clearances from the hood canopy per manufacturer specs to avoid heat damage—no one likes toasted shelves.

- Oil finishes can yellow under heat; I favor waterborne poly or heat-resistant laminates for stability.

- Wood grains vary; if you’re picky, order extra for matching, or embrace the character and call it “crafted.”

Tip / Case / Cost

Keep combustible finishes the recommended distance from burners and hood (often 24–30 inches over gas, per NKBA and manufacturer manuals). Test finishes with a hot-pan steam trial before install. Budget $18–$40 per sq ft for quality wood-laminate panels; solid wood varies widely by species.

save pin

save pin

Summary

Small kitchens don’t limit you—they nudge you toward smarter solutions. These five kitchen corner design ideas with chimney prove that corners can carry heavy functional weight while looking streamlined. From minimalist storage to glass-backed light tricks, angled ranges, vertical pantry power, and warm wood accents, the right chimney strategy ties it all together. The NKBA’s placement guidelines and EPA air quality research both reinforce that well-sized, properly mounted, and ducted hoods dramatically improve usability and health. Which idea are you most excited to try in your own corner?

save pin

FAQ

1) What’s the best chimney CFM for a small corner kitchen?

For most small kitchens, 300–450 CFM works if you cook moderately; go 600+ CFM for high-heat or frequent frying. Match chimney width to the cooktop and follow manufacturer clearance guidelines.

2) Is a ducted chimney better than ductless in a corner setup?

Ducted is generally more effective at removing heat and moisture, especially in tight corners where air can stagnate. Ductless units can work with quality charcoal filters, but plan more frequent maintenance.

3) How high should I mount a chimney hood in a corner?

Most manufacturers and NKBA suggest 24–30 inches above gas and 20–24 inches above electric, measured from the cooktop surface. Always confirm with the hood’s manual for exact specs.

4) Can I place open shelves near a corner chimney?

Yes, if you respect clearance distances and use heat-resistant finishes. Keep shelves slightly offset from the canopy to minimize grease buildup and warping.

5) Are glass backsplashes safe behind a corner chimney?

Tempered low-iron glass is heat-safe for typical residential use and easy to clean. Avoid direct flame exposure and ensure proper spacer and adhesive per the glass installer’s guidelines.

6) What layout works best for a corner chimney in a tiny kitchen?

L-shaped layouts with the chimney at the corner often maximize prep length. If you’re exploring options, try mapping “corner range with angled hood” to test sightlines; tools like planning a compact L-shaped corner can help visualize clearances.

7) How do I reduce chimney noise in small spaces?

Choose models with lower sones at working speeds, use rigid ducts with minimal bends, and upsize ducts to manufacturer recommendations. Running the hood a few minutes before cooking also helps stabilize airflow.

8) What materials around the chimney are easiest to maintain?

Glass, high-pressure laminate, and satin-finish metals wipe clean quickly. If you love wood, use engineered or laminate wood near the hood and reserve solid wood for zones outside the high-heat splash area.
