5 Kitchen Countertop Detail Drawing Ideas That Work: My pro tips for smarter kitchen countertop detail drawings—5 ideas with real-world pros, cons, and cost cues

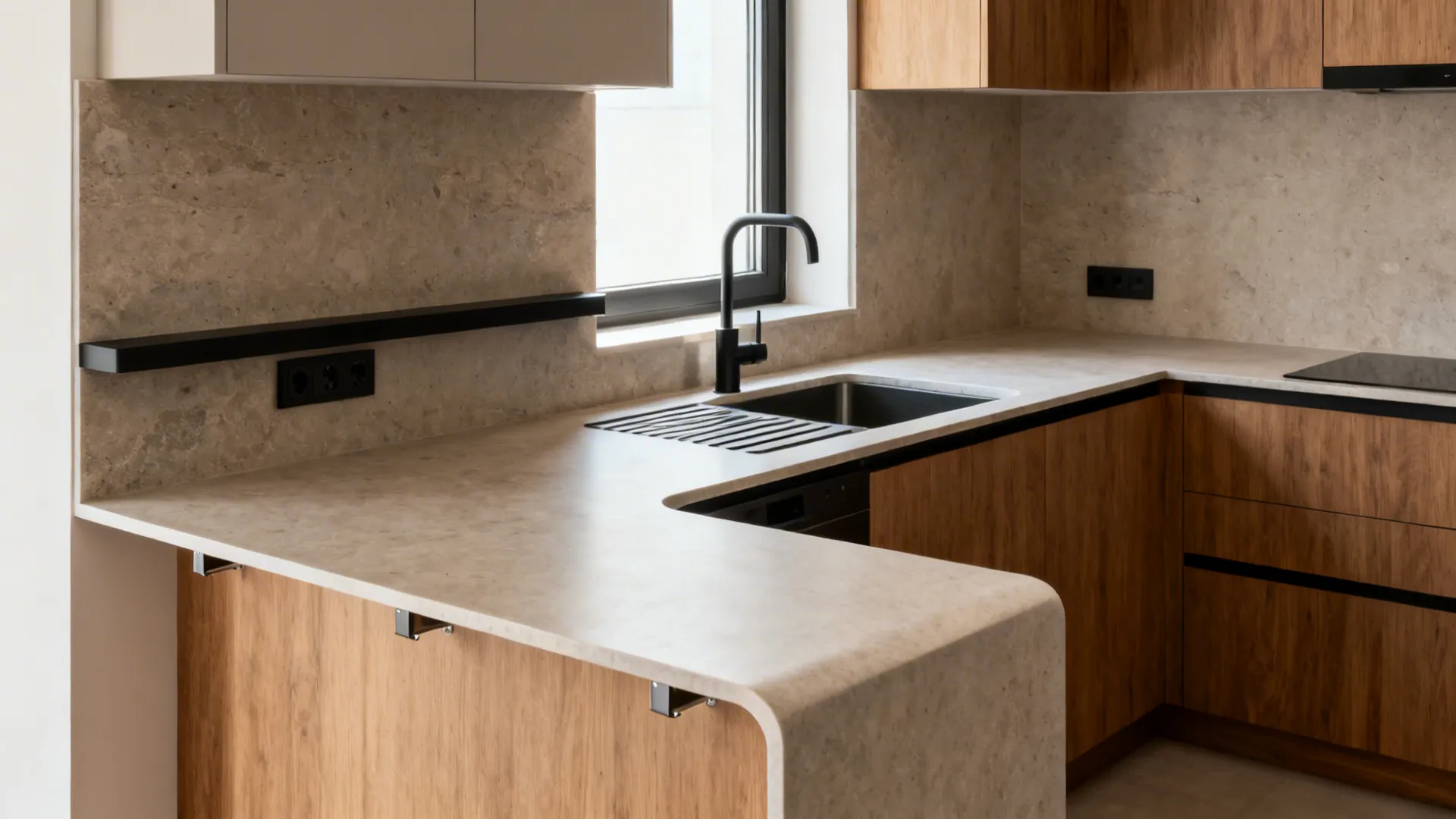

As a designer who’s drawn more kitchen countertop detail drawings than I can count, I’ve seen how current interior design trends lean toward clean lines, durable materials, and efficient detailing that saves both space and budget. Small kitchens, especially, push us to innovate: small space sparks big ideas. In this guide, I’ll share 5 kitchen countertop detail drawing inspirations grounded in my projects and expert data—each with my take, real pros and cons, and practical tips. To see how minimal detailing meets storage, check this example of L 型布局释放更多台面空间 I’ve referenced in compact kitchens.

Waterfall Edge Details with Hidden Returns

My Take

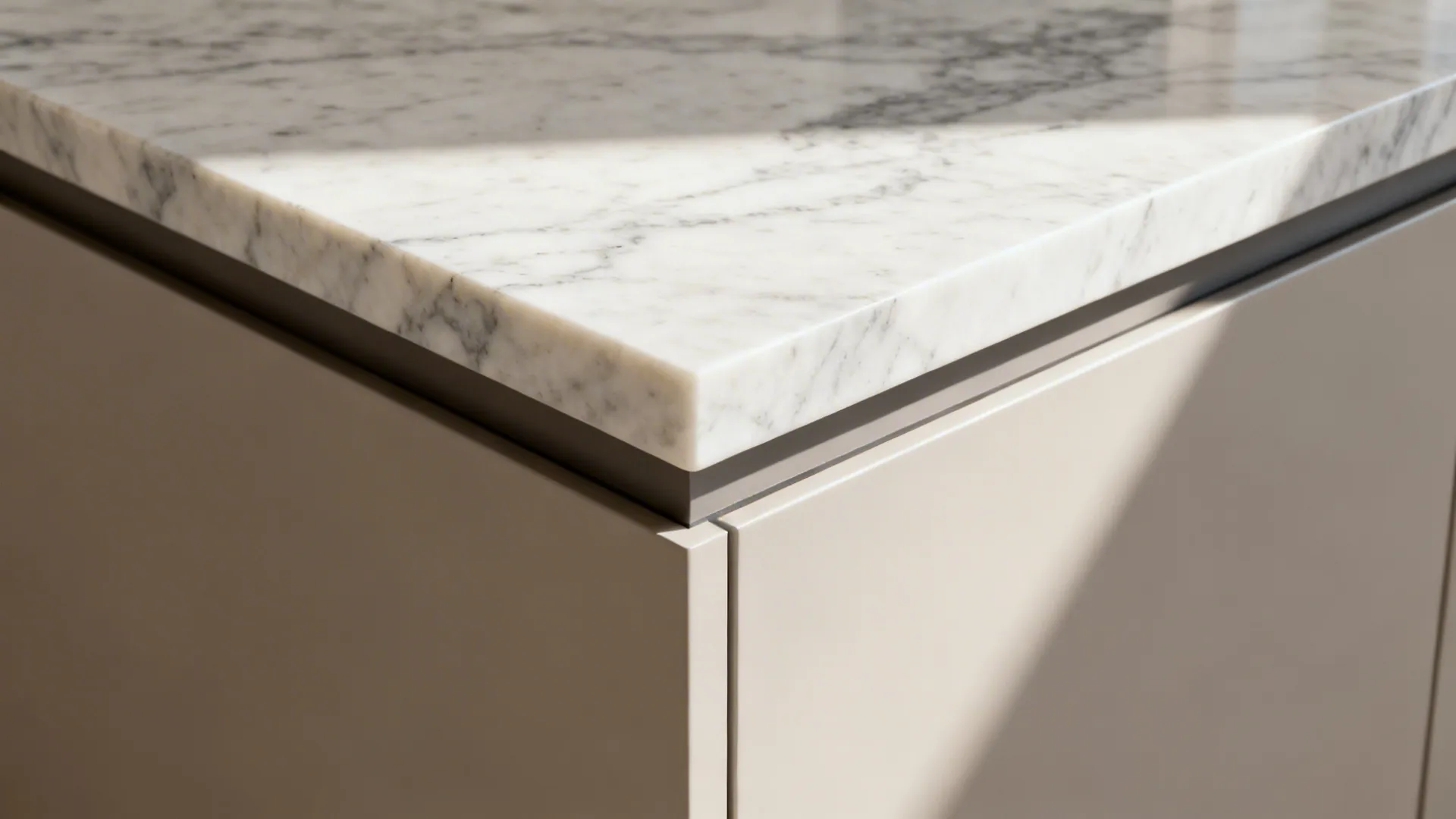

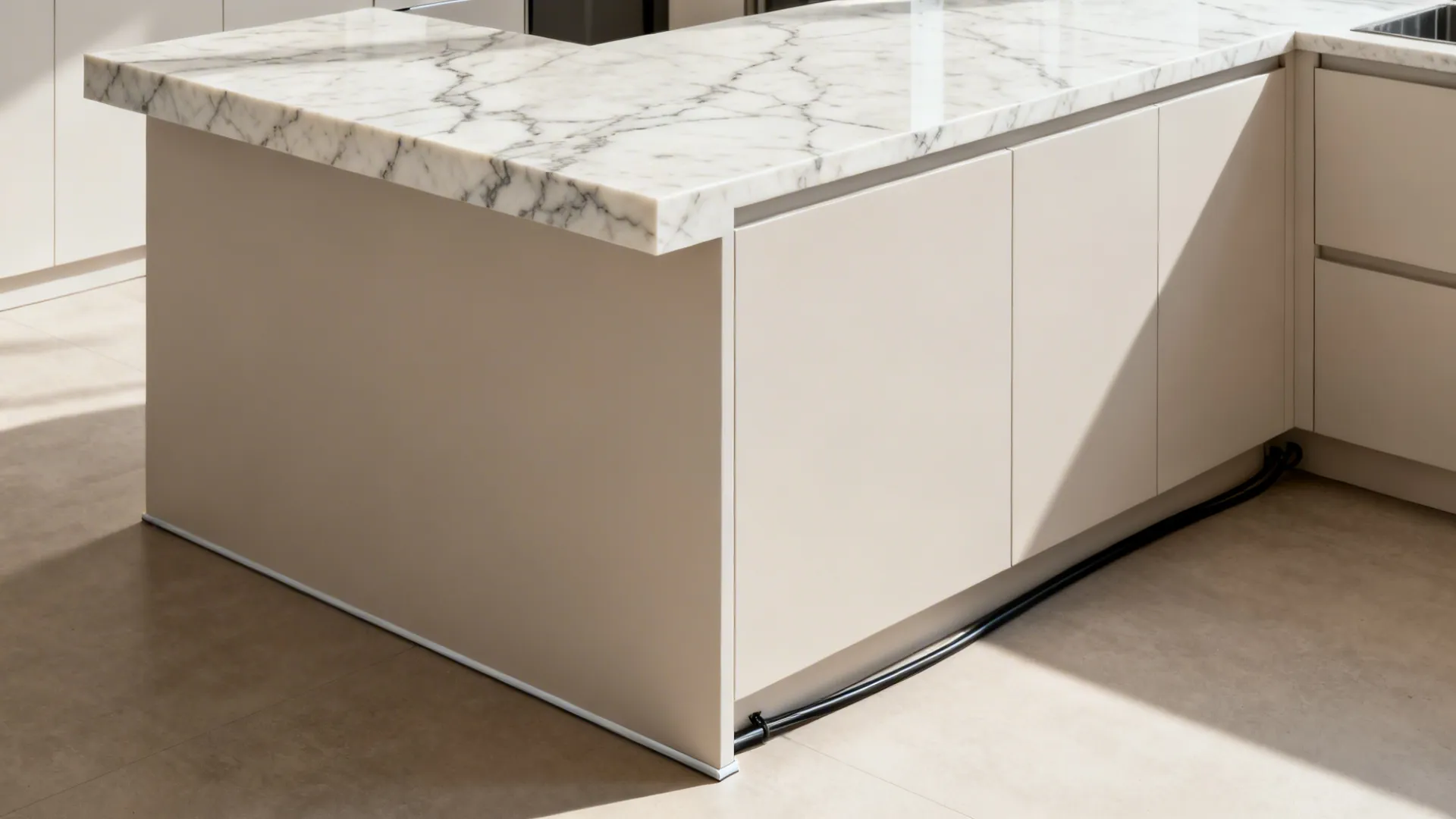

I still remember a 7 m² apartment renovation where a waterfall edge instantly made the kitchen look tailored and premium. In drawings, I detailed a 20 mm miter with a 3–5 mm chamfer and a concealed return panel to hide the cabinet base—sleek, easy to clean, and rental-friendly.

Pros

- Enhances perceived quality and continuity; a waterfall edge visually elongates surfaces—a proven way to make small kitchens feel more cohesive (a long-tail win for “kitchen countertop detail drawing for small spaces”).

- Allows tidy cable routing and toe-kick concealment; with 10–15 mm service gaps noted in sections, installers can run LED leads or appliance cords cleanly.

- According to NKBA guidance on counter ergonomics (clearances and overhangs), a consistent 25–38 mm overhang improves spill control and comfort.

Cons

- Mitered joints demand perfection; if your slab has heavy veining, pattern matching can eat time and budget.

- The waterfall reduces lateral access to base cabinets; I once had to redesign a corner pullout because the waterfall blocked a hinge throw—live and learn.

Tips / Cost

- For quartz, specify factory mitering and vein match elevations; site cuts risk chipping. Allow 8–12% overage for pattern alignment.

- In drawings: call out edge build-up (e.g., 20 + 20 mm), adhesive type, and a 2–3 mm shadow line at the cabinet interface to mask micro-tolerances.

save pin

save pin

Thin-Profile Countertops with Reinforced Substrates

My Take

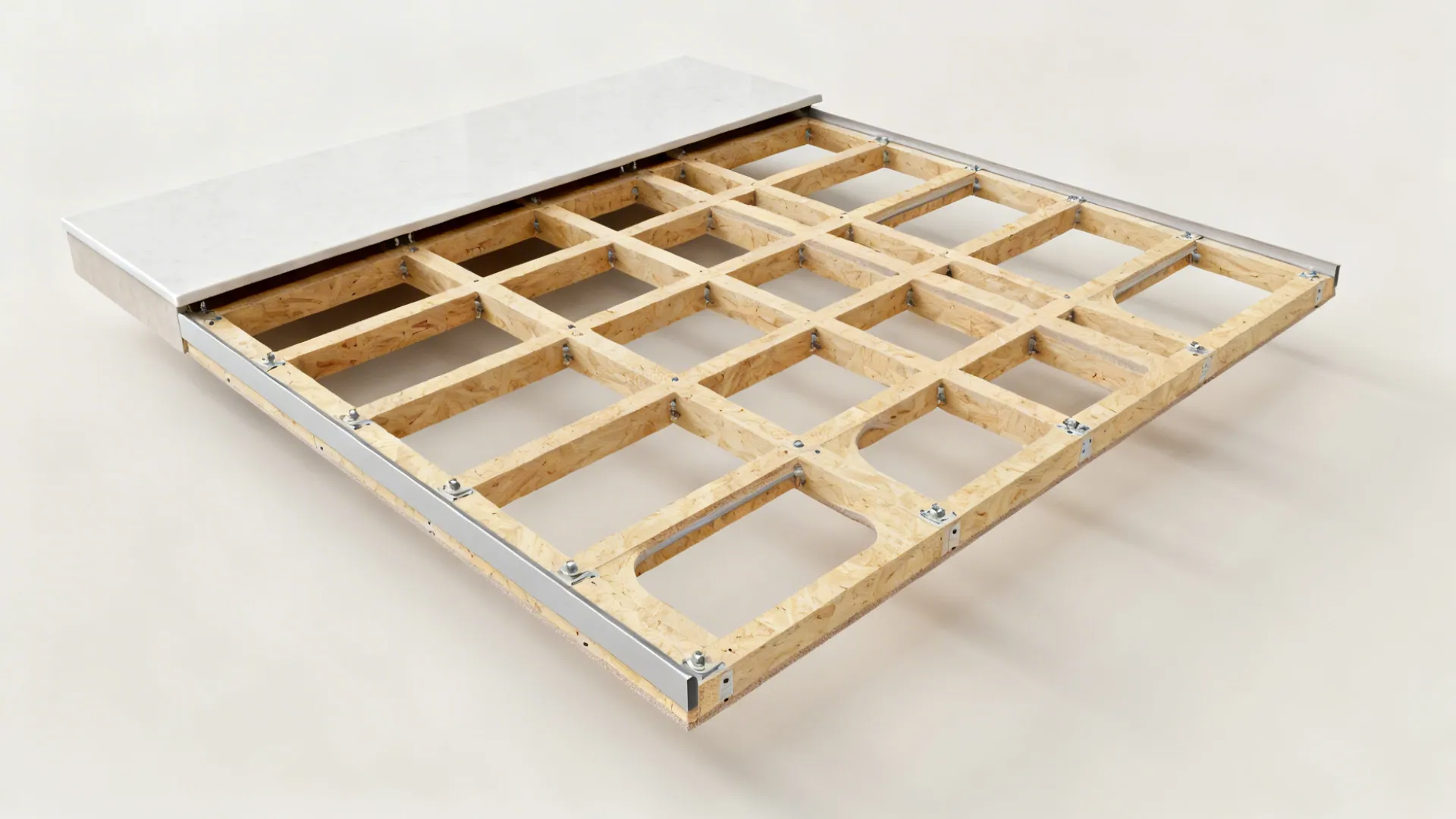

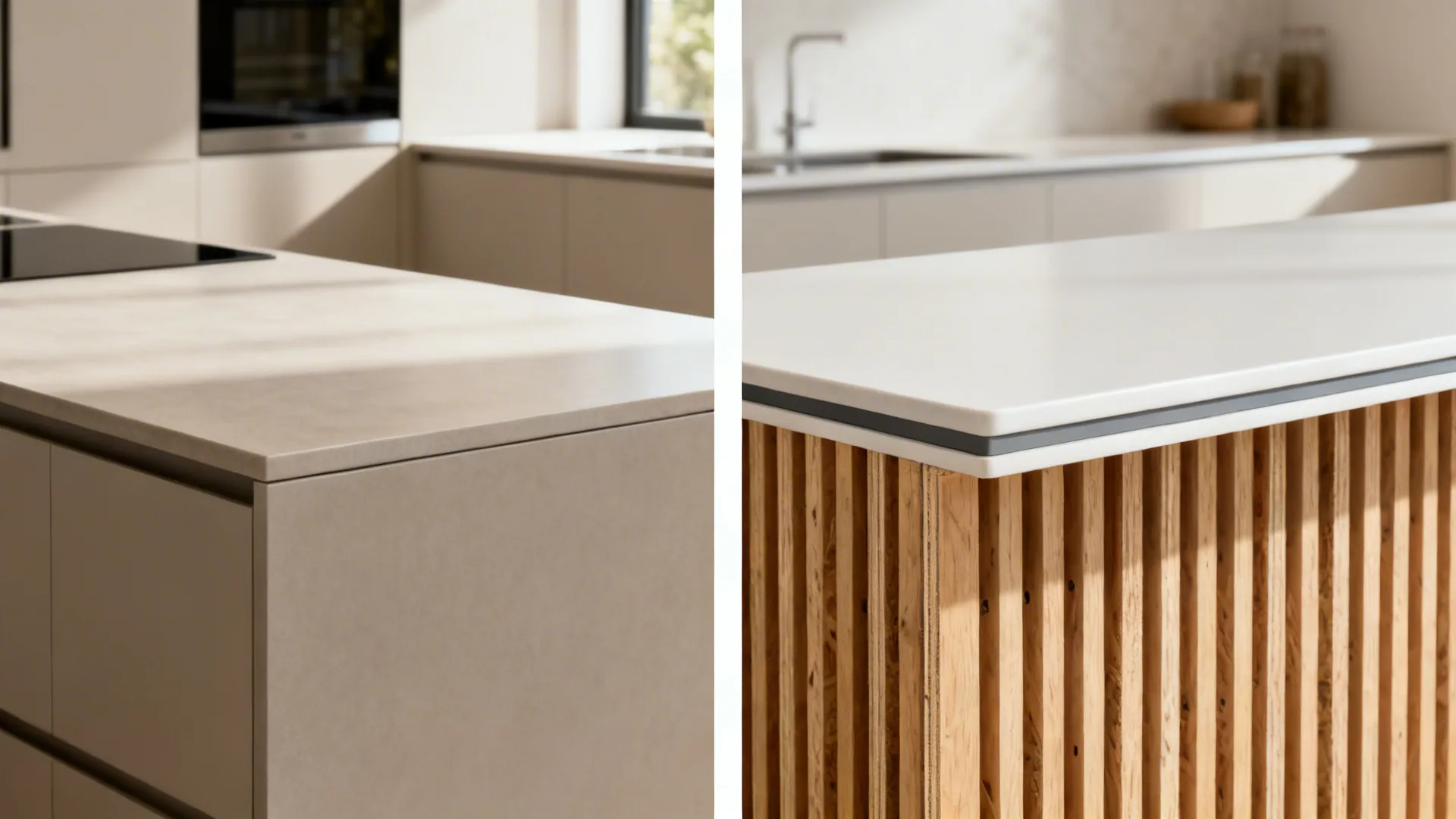

When clients crave a featherlight look, I’ve detailed 12 mm porcelain or 13 mm compact laminate over reinforced plywood ribs. The trick is in the section: show the rib grid, fasteners, and a discrete edging strip so it looks thin but feels solid.

Pros

- A slim profile modernizes the kitchen instantly; “kitchen countertop detail drawing with thin edge” is a high-impact, low-visual-weight approach.

- Reinforced substrates reduce drumming and flex; my best results came with 18 mm marine ply ribs at 250–300 mm centers.

- Porcelain and sintered stone resist heat and staining; research from manufacturers like Laminam/Neolith indicates high Mohs ratings and chemical resistance, ideal for heavy-use zones.

Cons

- Edge chips show faster on ultra-thin faces; I specify a micro-bevel (0.5–1 mm) to reduce chipping visibility.

- Compact laminates need carbide tools; installers without experience may slow the schedule.

Tips / Case

- In drawings, include a live load note (≥ 2.4 kPa for residential counters) and a span check around cutouts—especially dishwashers.

- If you want to visualize how a thin profile pairs with storage rhythms, I’ve sketched variations alongside 极简风的厨房收纳设计 scenarios for clients who are undecided on thickness.

save pin

save pin

Integrated Draining Grooves and Sloped Recess

My Take

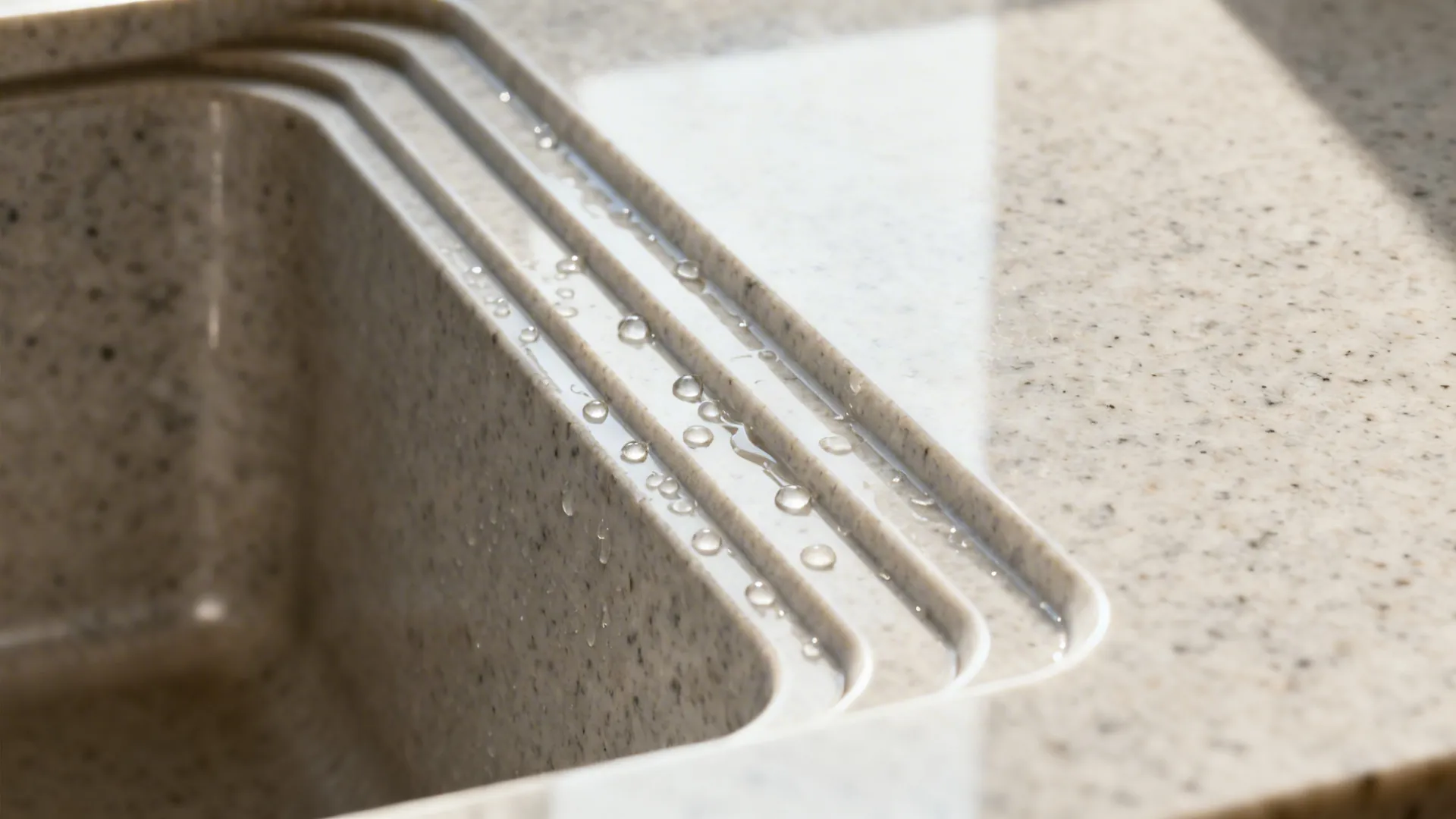

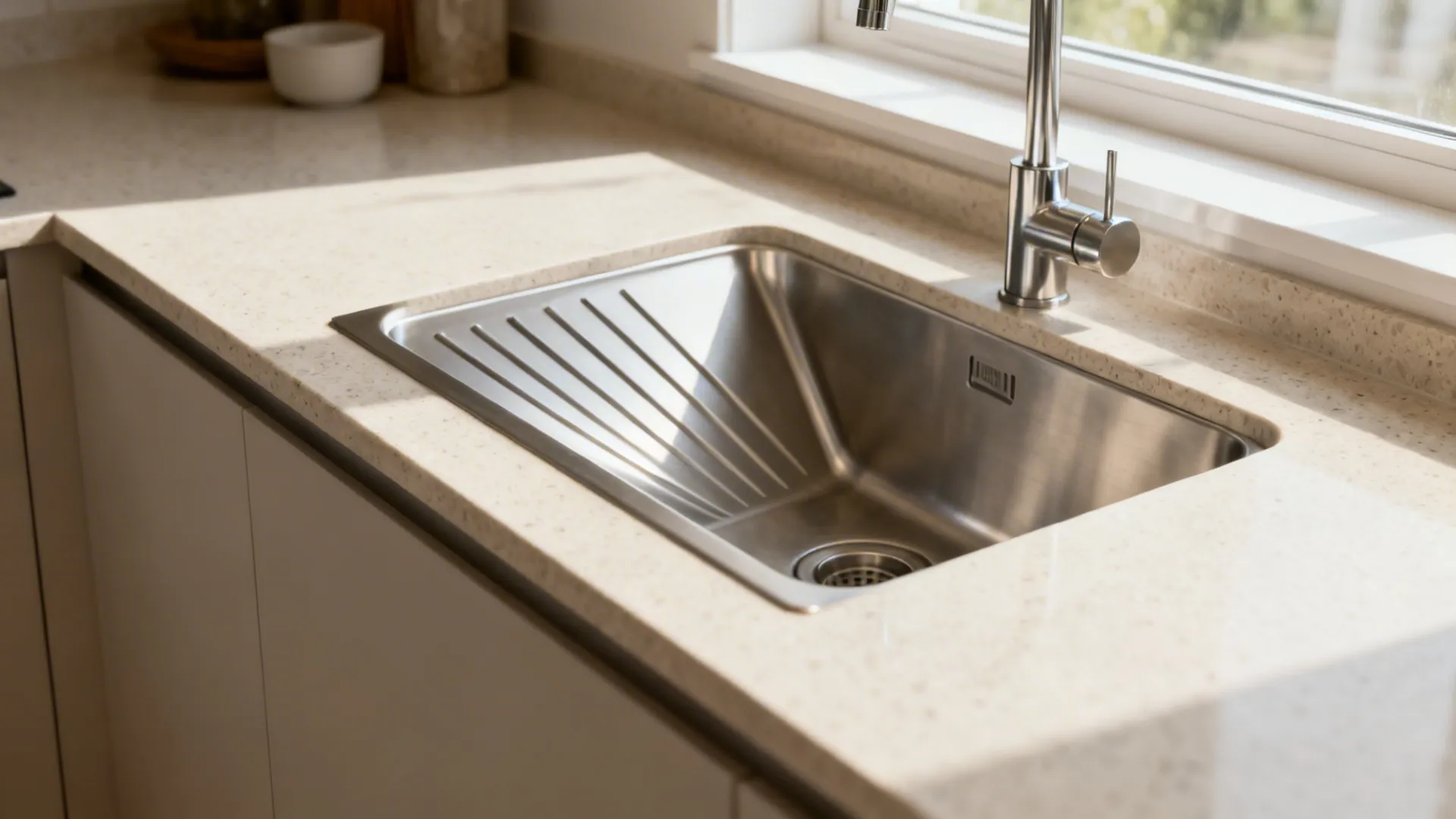

For avid home cooks, I love detailing a sloped dish-drying recess beside the sink with 3–5 draining grooves. A 1.5–2% fall to the sink keeps water moving without feeling obvious under hand.

Pros

- Boosts function without new hardware; “kitchen countertop detail drawing with integrated draining grooves” keeps your worktop clear and hygienic.

- In quartz or granite, grooves are milled post-finish; the result is durable and easy to clean for most households.

- The UK’s HSE guidance on slips emphasizes drainage and surface water management—good detailing directly reduces standing water.

Cons

- Grooves can darken over time with tea/coffee stains; I recommend a sealing schedule in the O&M sheet.

- In tight kitchens, dedicating 300–400 mm to a draining zone can reduce prep space; trade-offs are real.

Tips / Cost

- In drawings, call out groove width/depth (e.g., 6–8 mm wide, 3–5 mm deep), spacing (12–15 mm), and finish radius to prevent sharp edges.

- Budget: expect an extra 5–10% fabrication cost for milling; porcelain slabs may require waterjetting and longer lead time.

save pin

save pin

Backsplash-Integrated Counter Ledge

My Take

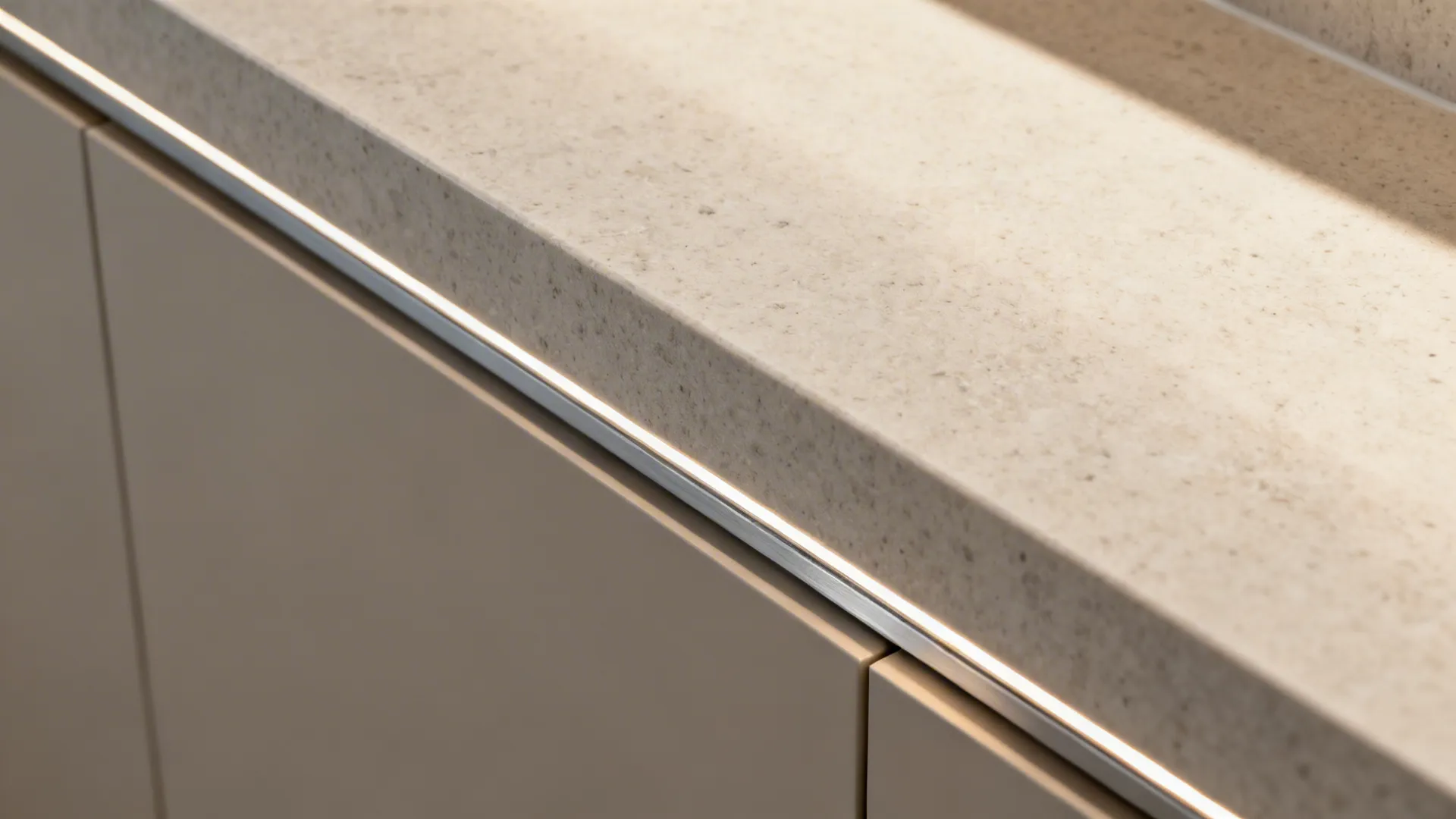

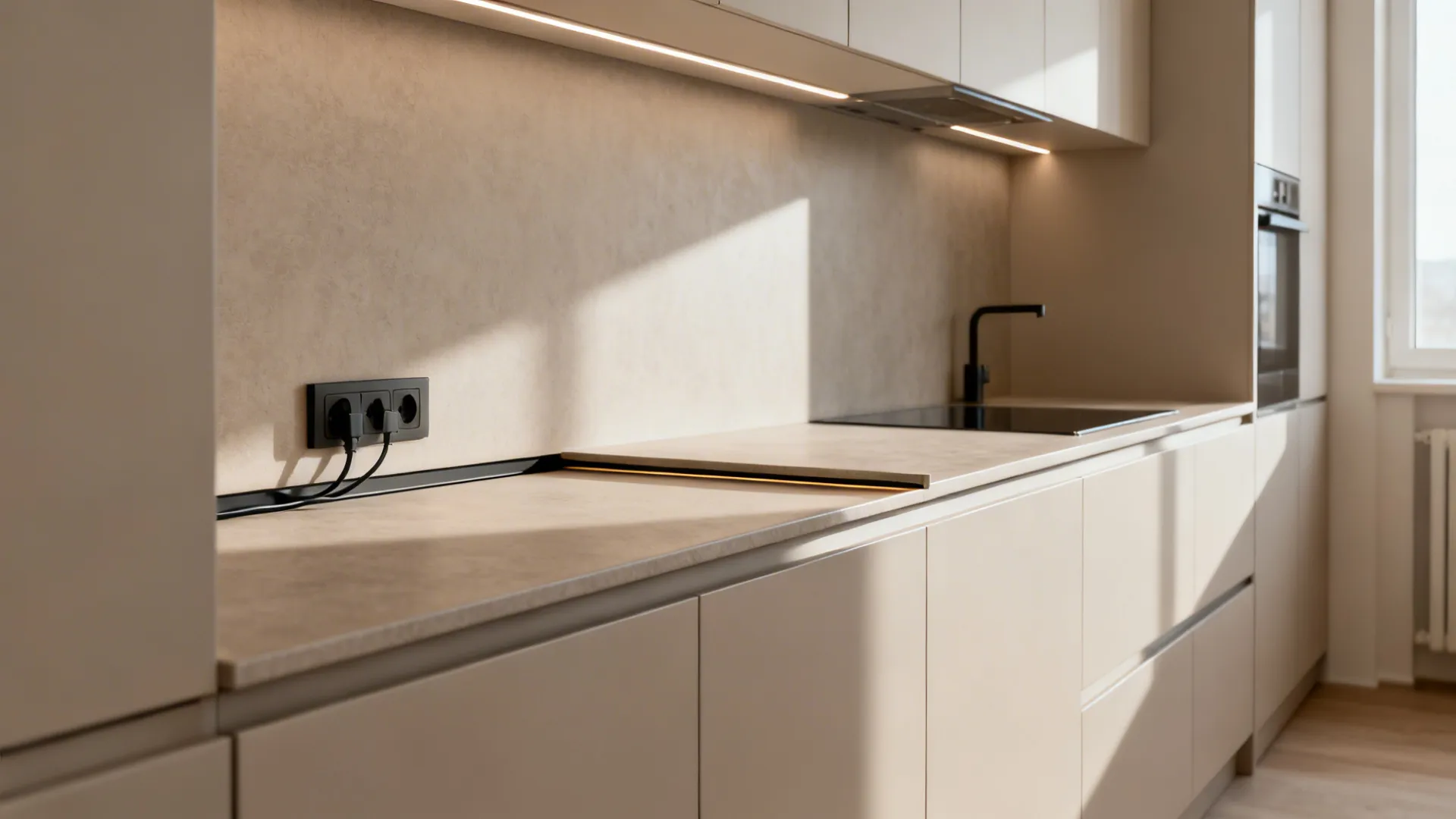

One of my favorite details is a 30–50 mm high counter ledge that transitions into the backsplash. I used this in a micro loft to keep splashes off limewash walls and to hide a power strip—clean and clever.

Pros

- Provides a discreet channel for LED tape, outlets, and smart plugs; “kitchen countertop detail drawing with integrated backsplash ledge” simplifies cabling.

- Visually, the ledge creates a shadow line that makes counters feel deeper—great for galley kitchens.

- The NKBA recommends maintaining safe distances from water for receptacles; an integrated ledge helps you meet clearances while keeping access comfortable.

Cons

- Adds a fabrication step; scribing the ledge to uneven walls takes patience (and a steady installer). - If too tall, it can fight with windowsills; I limit ledges to under 50 mm where glazing runs low.

Tips / Case

- Section details should show silicone color, expansion joints (2–3 mm), and any aluminum heat spreader if LEDs are continuous.

- If you’re considering how this plays with appliance zones, browse a project flow like 玻璃背板让厨房更通透 to see ledges meeting reflective surfaces without visual clutter.

save pin

save pin

Overhangs with Rounded Corners and Support Brackets

My Take

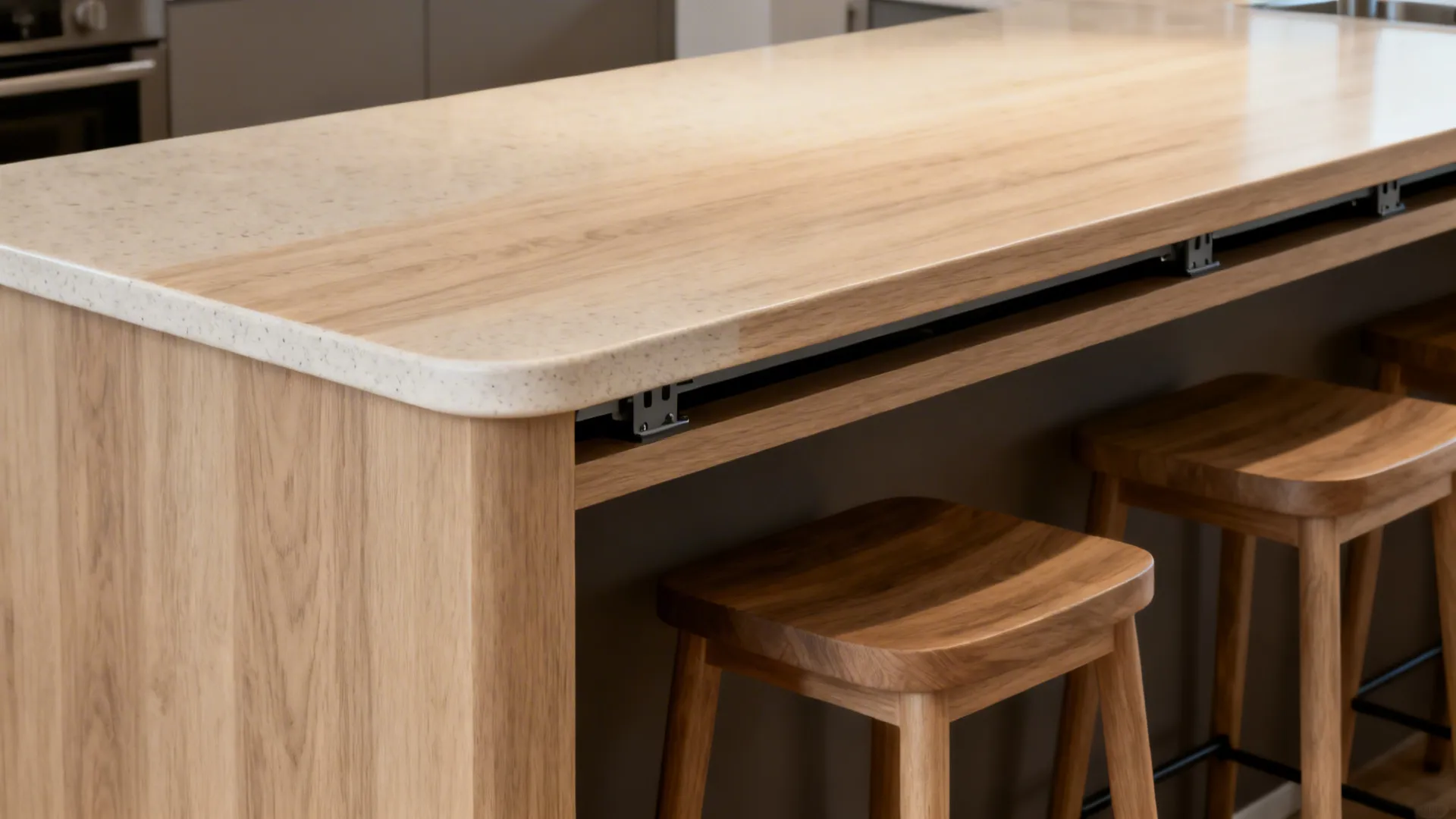

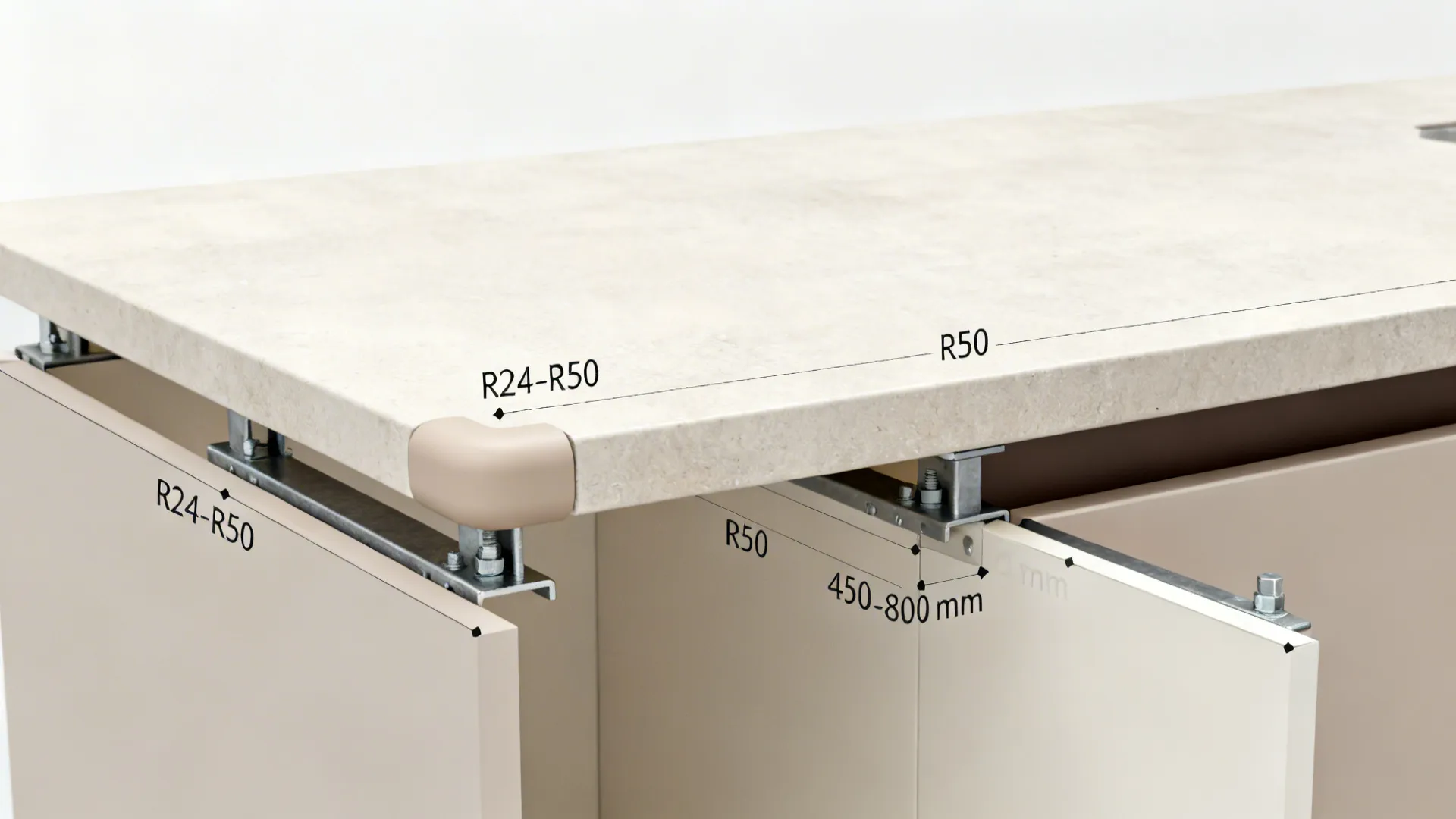

Breakfast bars are often where mistakes happen. I now detail rounded corners (R25–R50) and concealed brackets rated for ≥ 136 kg to make cantilevers safer for kids and knees—learned after a client’s teenager slid into a sharp corner during a party.

Pros

- A 250–300 mm overhang creates usable seating; “kitchen countertop detail drawing for cantilever overhang” balances comfort and clearance.

- Rounded radii reduce injury risk and chipping; the finish holds up better against stools and bag hardware.

- Support brackets distribute point loads; when specified at 450–600 mm centers, I’ve had zero service calls for sagging.

Cons

- Hidden brackets need solid backing; retrofits can involve opening walls or adding blocking—messy but doable.

- Stone overhangs amplify deflection if spans are too long; stick to manufacturer limits to avoid hairline cracks.

Tips / Cost

- In drawings, show bracket model, load rating, fastener type, and substrate (e.g., double-stud or steel plate). Note maximum unsupported spans per material data sheet.

- For families, specify a soft radius and a 2 mm eased edge elsewhere so the entire counter feels consistent and easy on the forearms.

save pin

save pin

FAQ

1) What is a kitchen countertop detail drawing?

A kitchen countertop detail drawing is a scaled technical document that shows edges, build-ups, cutouts, substrates, braces, and joints. It clarifies dimensions, materials, and tolerances so fabricators and installers deliver exactly what the design intends.

2) What thickness should I specify in my kitchen countertop detail drawing?

Common solid-surface and quartz slabs are 20 mm or 30 mm; porcelain and compact laminates can be 12–13 mm. If you want a thin visual, detail a build-up or ribbed substrate so structural performance matches daily loads.

3) How much overhang is ideal?

For working edges, 25–38 mm helps contain spills; for seating, 250–300 mm is typical when supported appropriately. Always reference the slab manufacturer’s maximum cantilever limits to avoid cracks.

4) Do I need reinforcing under thin countertops?

Yes, especially near sinks and cooktops. Detail rib locations (250–300 mm centers), moisture-resistant plywood or metal framing, and fasteners to prevent drumming or flex.

5) Are draining grooves worth it?

They’re great for frequent cooks and small kitchens where a dish rack eats space. Specify groove depth/width, slope (1.5–2%), and sealing; natural stones benefit from periodic resealing.

6) What edge profile is best for safety and cleaning?

Eased edges (2 mm) or small radii (R3–R5) are comfortable and chip-resistant. For breakfast bars, larger radii (R25–R50) reduce bumps and bruises without looking bulky.

7) How do codes affect outlet placement near the countertop?

Follow local code and NKBA guidance for spacing and GFCI protection near water. An integrated backsplash ledge can help keep outlets accessible while maintaining safe distances.

8) Can I preview these details in 3D before fabrication?

Absolutely—building a quick concept with a room plan and clear sections helps catch conflicts early; I often test relationships between counters and storage while exploring 木质元素带来的温暖氛围 options to ensure finishes and edges read correctly under real lighting.
