5 Kitchen Design Classic CAD Blocks Ideas: My field-tested guide to using classic CAD blocks for smarter small-kitchen design

As a designer who’s remodeled dozens of compact kitchens, I’ve learned that current interior trends favor clean lines, timeless details, and layouts that work as hard as they look. Small spaces spark big creativity—especially when we start with kitchen design classic CAD blocks that preserve classic proportions and function. In this guide, I’ll share 5 design inspirations drawn from my projects and expert data, so you can plan faster, avoid costly mistakes, and keep that classic charm intact. I’ll also show how choices like L shaped layout frees more counter space translate from CAD to your real kitchen.

Classic Work Triangle with Period Details

My Take: I still begin many small kitchens by laying in the classic work triangle with CAD blocks—range, sink, and fridge—then layering in period-accurate details like shaker fronts and a farmhouse sink. When the geometry is right on screen, installation tends to go smoother on site.

Pros: A well-drawn work triangle using kitchen design classic CAD blocks reduces steps and keeps traffic clear—especially vital in galley footprints. It also helps you test long-tail layouts like “compact galley kitchen with work triangle” before buying appliances. The National Kitchen & Bath Association (NKBA) still validates work triangle logic for usability when adapted to today’s zones.

Cons: In tiny apartments, strict triangle rules can cramp counter space or force awkward appliance sizes. I’ve also had clients fixate on perfect symmetry in CAD, only to discover quirky site conditions knock things 10 mm off.

Tips / Cost: Use CAD block dimensions from actual manufacturers whenever possible; tolerances matter. Leave at least 1.2–1.5 m of aisle width where feasible; in ultra-small kitchens, 1.0–1.1 m is workable with slim appliances.

save pin

save pin

Shaker Cabinetry Meets Integrated Appliances

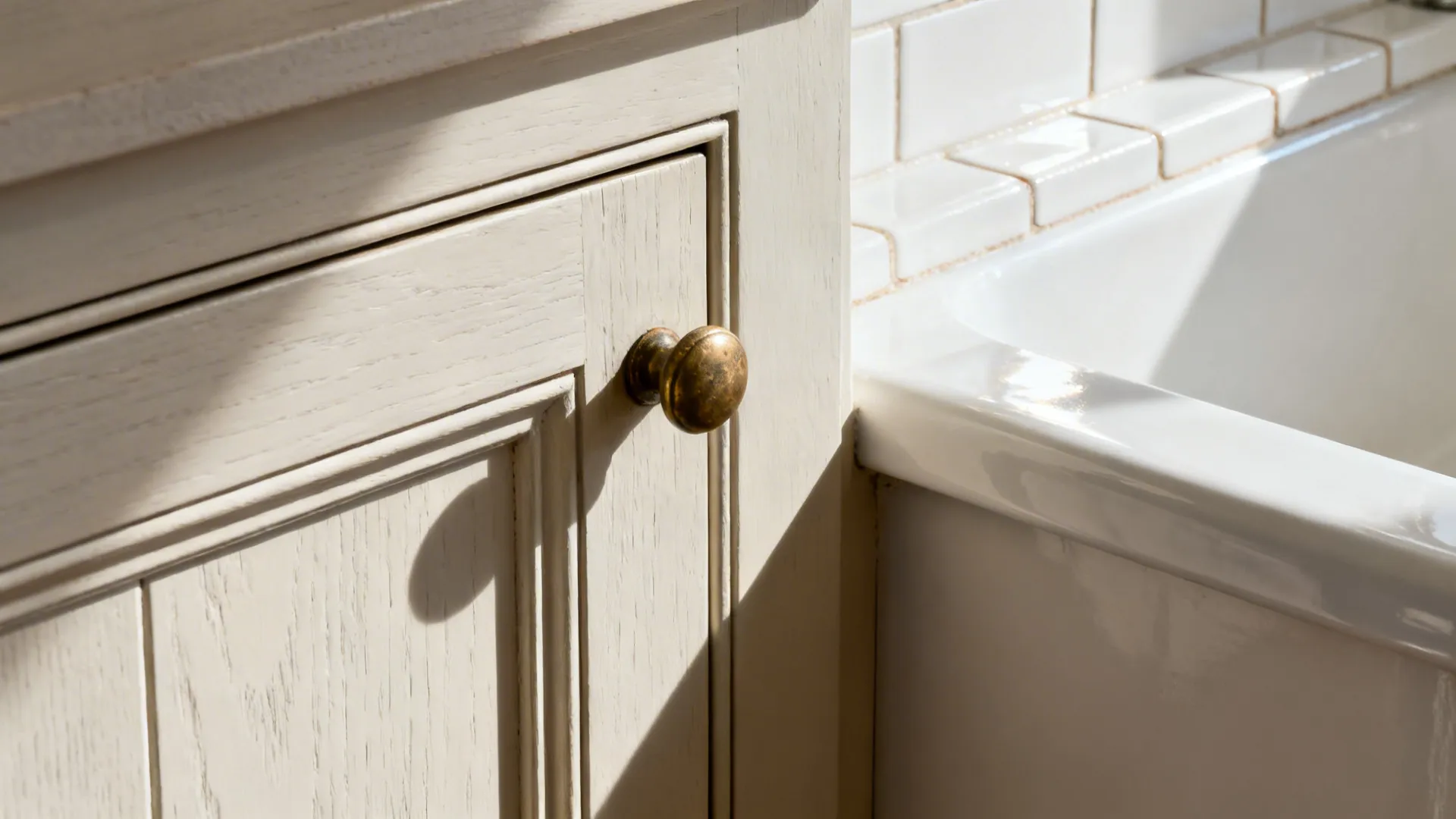

My Take: I love pairing classic shaker cabinet CAD blocks with integrated appliance blocks—paneled dishwasher, counter-depth fridge—so the kitchen reads as one calm plane. In CAD, I test stile widths and rail proportions until the fronts feel timeless, not trend-chasing.

Pros: Shaker profiles are forgiving in small spaces and read “classic” without feeling heavy. Using CAD blocks to simulate “integrated dishwasher in shaker kitchen” lets you ensure handle clearance, hinge swing, and toe-kick alignment before ordering. This approach subtly improves resale value because it looks cohesive.

Cons: Panel-ready appliances cost more and require precise millwork; in old buildings, walls can be far from plumb. If your CAD block library isn’t accurate to the brand’s specs, your door reveals may not line up in real life.

Tips / Case: In a 7 m² kitchen, I reduced visual clutter by aligning rail heights with the oven handle bar; in CAD this takes minutes, but in the shop drawings it saves hours. Consider a slimline 450 mm dishwasher to retain a drawer stack.

save pin

save pin

Subway Tile Backsplash with Open Shelving Rhythm

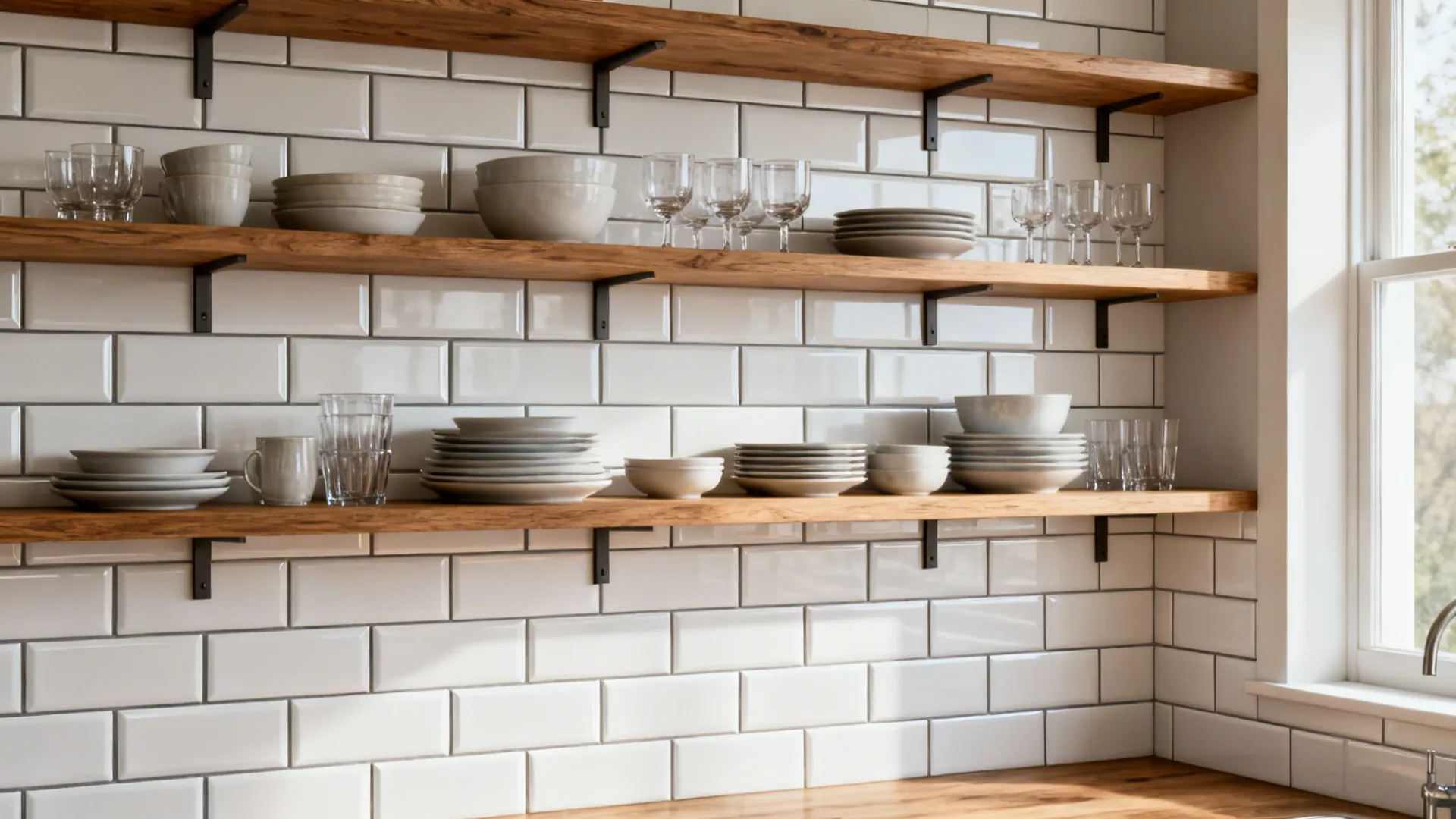

My Take: The classic 75×150 mm subway tile grid has a soothing beat; I place shelves in CAD with the grout lines to keep everything harmonious. On one turn-of-the-century flat, aligning shelf brackets to tile joints made the whole wall feel intentional.

Pros: CAD blocks for shelves, brackets, and dishware let you simulate “open shelving over subway tile” and test visual load. You’ll know whether two 900 mm shelves or three 600 mm shelves suit your storage needs without overwhelming a small kitchen. A controlled shelf-to-tile rhythm helps light bounce and keeps the classic look crisp.

Cons: Open shelves demand discipline—dust and mismatched mugs show. If your CAD library includes only standard bracket depths, you might under-allow for oversized bowls, causing a last-minute rethink.

Tips / Cost: Budget for deeper shelves (250–300 mm) if you actually store dinner plates; draw plate diameters into your CAD blocks. Seal grout with a high-quality sealer to cut down on maintenance and keep that timeless white bright.

save pin

save pin

Butcher Block Warmth with Stone Durability

My Take: I often split counters—stone at the wet/heat zones and oiled wood for prep. In CAD, I draw two counter materials so clients feel the tactile shift. The wood warms up a classic palette without losing durability where it counts.

Pros: Using kitchen design classic CAD blocks for “mixed countertop materials” helps you validate seam locations, overhangs, and clearances for slide-in ranges. Stone near the sink/cooktop gives heat and stain resistance; butcher block by the window adds a cozy, heritage vibe. A 2019 NKBA trend report showed mixed surfaces as a practical, popular approach in small kitchens.

Cons: Two materials mean two maintenance schedules—oil the wood, seal the stone. If you don’t draw the exact thicknesses in CAD, adjacent surfaces can misalign, creating annoying height lips.

Tips / Case: Keep wood away from undermount sinks unless you’re diligent with sealing. I once gained 30 mm of prep by easing a radius corner in CAD to clear a radiator pipe, then mirroring that curve in the butcher block cut.

save pin

save pin

Classic Lighting: Pendant, Sconce, and Task Triad

My Take: Classic doesn’t mean dim. I place ceiling pendants, wall sconces, and under-cabinet strips as layered CAD blocks to test beam spreads and avoid shadows on the cutting board. In a 1930s kitchen, switching to a small-fabric pendant softened the geometry instantly.

Pros: A layered “small kitchen lighting layout” in CAD reveals where shadows fall on counters and backsplashes. Classic shades—schoolhouse globes, fluted glass—give character while modern strips keep tasks bright. The Illuminating Engineering Society (IES) recommends task lighting levels around 300–500 lux for kitchen work zones, which you can approximate in planning.

Cons: Over-lighting can flatten a classic palette; I’ve had pendants look theatrical on install day. If you don’t model switch locations, you may end up with an awkward reach across the room with wet hands.

Tips / Cost: Dimmer compatibility saves dinners and moods; verify driver specs in advance. For tiny kitchens, 2700–3000K warmth anchors classic finishes while keeping food colors true.

At the halfway mark of planning, I like to test storage density and aisle widths in 3D from the same CAD baseline—seeing volumes in context avoids surprises. One of my favorite references for circulation comes from translating 2D blocks into 3D to validate proportions like an L shaped layout releases more countertop before cabinetry is ordered.

As projects move into detailing, I double-check appliance clearances, especially for ovens and fridges, and re-run a quick layout simulation. I’ve had great success confirming hinge swing and corner cabinet collisions after pushing the classic CAD setup into a fast 3D test—particularly when a client insists on a wine fridge near a corner. That’s when verifying with a realistic plan like how glass backsplash makes the kitchen airier can reveal reflection and clearance issues you don’t see in wireframe.

save pin

save pin

Summary

Small kitchens aren’t a limit—they’re an invitation to think smarter. Kitchen design classic CAD blocks give you a head start on proportions, clearances, and timeless details you can trust. From the work triangle to lighting and mixed materials, drawing it right once means building it right once; the NKBA’s principles and IES lighting guidance back what I see daily on site. Which one of these five classic CAD-based ideas are you most excited to try?

save pin

FAQ

1) What are kitchen design classic CAD blocks, and why use them?

They’re pre-drawn 2D/3D symbols for cabinets, appliances, fixtures, and details with classic proportions. They speed up planning, help test small-kitchen layouts, and reduce measuring mistakes before you buy anything.

2) How do CAD blocks help in a small apartment kitchen?

They let you simulate clearances, aisle widths, and storage density in tight rooms. With accurate blocks, you’ll spot conflicts between doors, drawers, and appliances early—saving budget and stress.

3) Are the classic work triangle rules still relevant?

Yes, adapted to modern zones. The NKBA’s planning guidelines remain a solid baseline; your cooking habits may shift triangle lengths, but the logic still improves flow in compact spaces.

4) What’s a good starting aisle width in tiny kitchens?

Try 1.0–1.1 m minimum when space is tight; 1.2–1.5 m is more comfortable. Always validate with your exact appliance CAD blocks, including door swing and handle depth.

5) Can I mix butcher block and stone and still look classic?

Absolutely. Use stone in wet/heat zones and wood in prep areas. In CAD, model thickness and edge profiles so surfaces align; it looks intentional and wears well.

6) How do I handle lighting planning with CAD blocks?

Layer pendants, sconces, and under-cabinet strips, then check beam spreads and task zones. The IES suggests 300–500 lux for tasks—use manufacturer photometrics when available.

7) Where do I find accurate dimensions for my CAD blocks?

Pull DWG/DXF files from the manufacturer’s site for appliances and sinks; verify cutout specs against the latest product sheets. For cabinets, use your fabricator’s standard module sizes to keep shop drawings consistent.

8) What’s the fastest way to test a classic L-shape with integrated appliances?

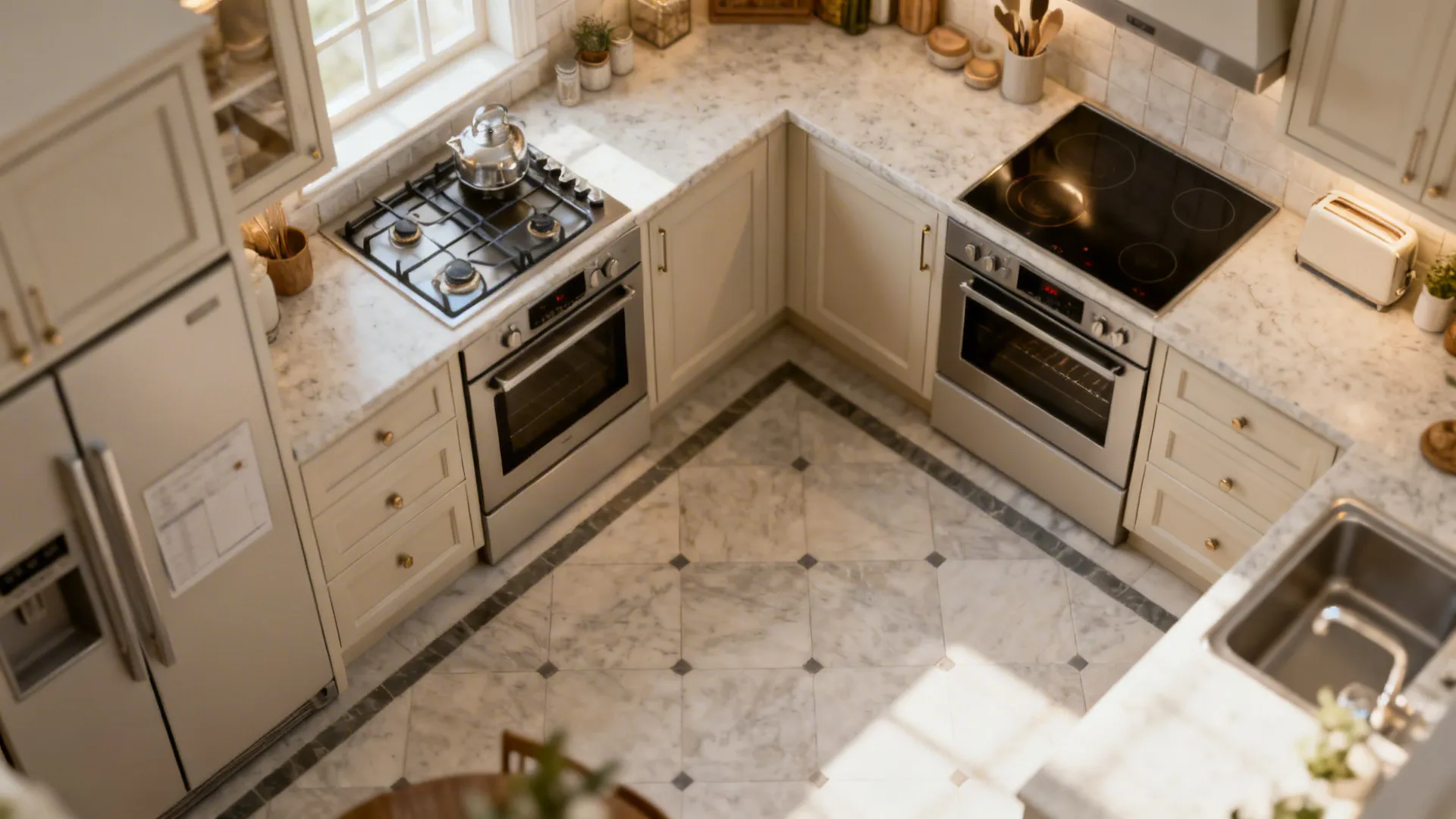

Start with a base CAD set, then move into a quick 3D check for clearances and sightlines; that’s how I catch corner conflicts early. If you need a reference workflow, studying how an L shaped layout frees more countertop space is a great way to visualize proportions before committing.
