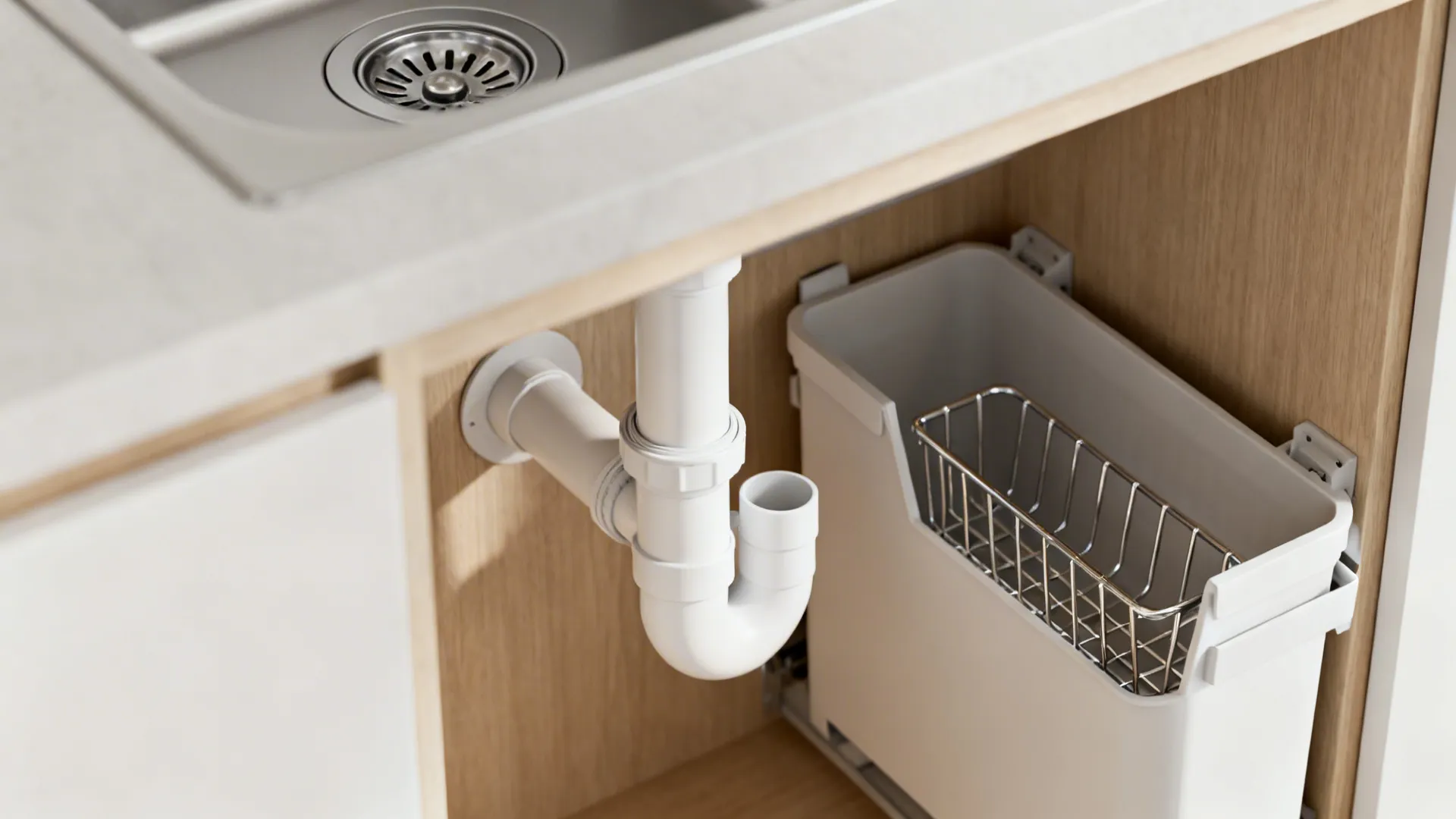

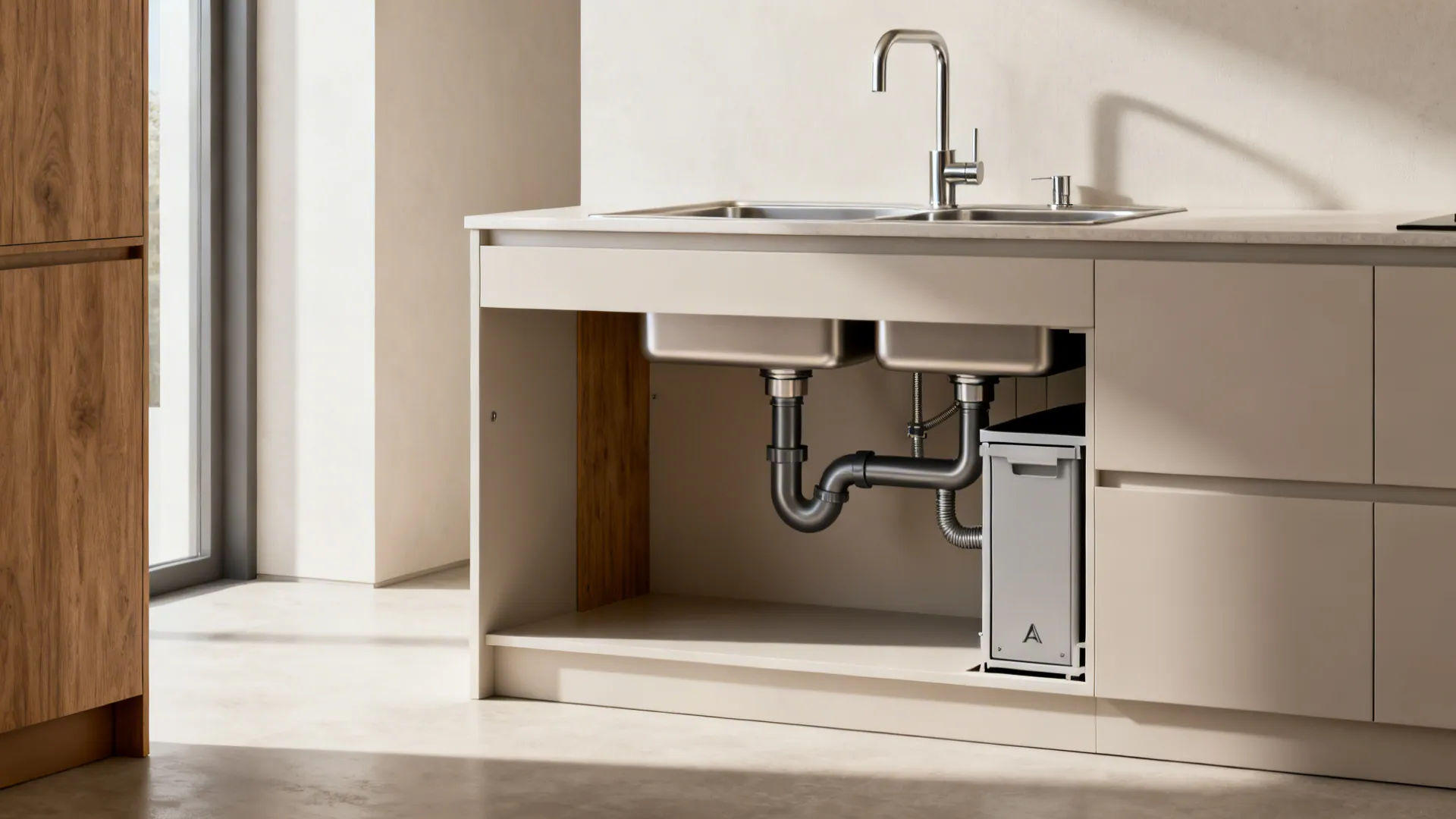

Idea 1: Compact P-Trap + High-Rise Waste for Cabinet Space

My Take

I first tried a compact, code-compliant P-trap paired with a high-rise waste on a 6m² galley kitchen where every centimeter mattered. The homeowner had struggled to fit a pull-out bin—this configuration instantly cleared the base cabinet for usable storage. It also made future maintenance straightforward.

Pros

- A compact P-trap reduces the footprint under the sink, improving under-sink organization and airflow; it’s a reliable, clog-resistant shape for the main kitchen drain pipe design.

- A high-rise waste (tall tailpiece) lifts the trap closer to the basin, minimizing horizontal piping that can collect debris—great for long-term hygiene and smell control.

- Shorter pipe runs support gravity drainage and proper slope, reducing the need for aggressive chemical maintenance and aligning with common plumbing codes (e.g., IPC and UPC slope guidance at 1/4" per foot).

Cons

- Compact traps can be pricier and may require precise alignment; not all off-the-shelf kits fit every sink thickness or drain height.

- In very low-sill sinks, squeezing in a high-rise waste under a thick countertop can be fiddly, leading to extra labor time.

- If you later add a garbage disposer, you might need to rework trap height and lateral clearance.

Tip / Cost

On a typical retrofit, expect $80–$200 in parts for a quality compact P-trap and high-rise kit, plus 1–2 hours of labor. Always dry-fit before sealing to confirm the exact height of the trap and the door swing clearance for bins or filters.

save pin

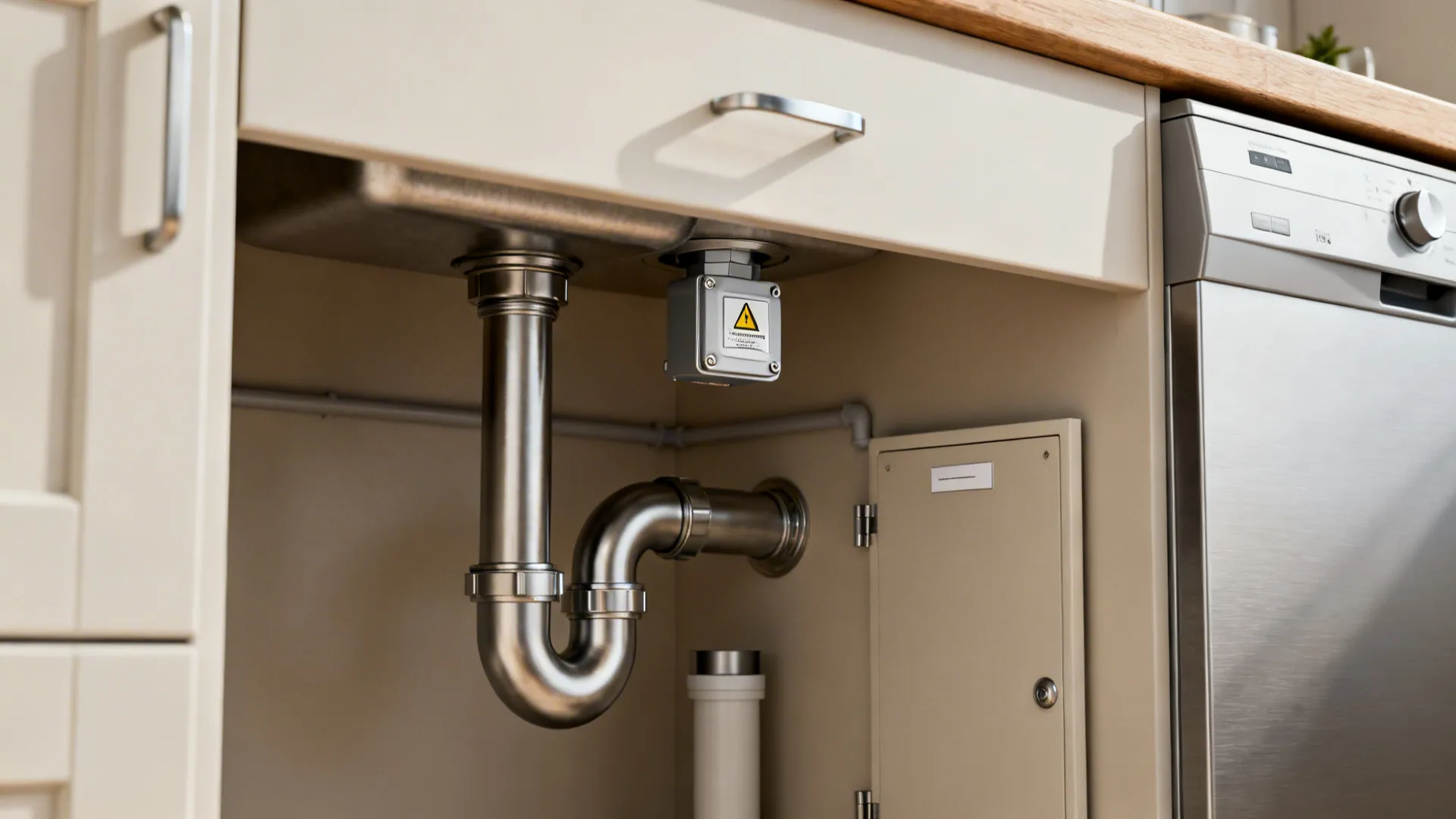

Idea 2: Dedicated Venting or Air Admittance Valve (AAV) for Smoother Flow

My Take

One of my trickiest clients cooked daily and ran a powerful dishwasher; the sink gurgled after every cycle. We solved it with a properly placed AAV (where allowed) to stabilize pressure. The difference in drainage speed and noise was immediate.

Pros

- Adequate venting keeps the P-trap’s water seal intact, avoiding sewer gas and slow drainage—vital for any kitchen drain pipe installation in small apartments.

- AAVs offer a compact alternative when adding a new vertical vent is costly or impractical; they can be hidden neatly inside the cabinet with access for inspection.

- By maintaining pressure balance, venting helps prevent cross-suction when the dishwasher or disposer discharges, improving overall system reliability. According to the International Association of Plumbing and Mechanical Officials (IAPMO), proper venting protects trap seals and supports fixture performance.

Cons

- AAVs aren’t legal everywhere and must be installed per local code; check permits before planning.

- They are mechanical devices with a finite lifespan; periodic replacement (often 5–10 years) may be needed.

- Poor placement—too low or without required clearance—can negate benefits and lead to persistent gurgling.

Tip / Case

In a 1950s building with limited wall access, we added an AAV 4 inches above the trap arm, with accessible paneling. Noise dropped, and trap seals held even during high-flow dishwasher cycles. For mid-project layout checks, I sketch drain-lines alongside cabinet modules and sanity-check runs with glass backsplashes that keep kitchens feeling open to ensure utilities don’t clash with finishes.

save pin

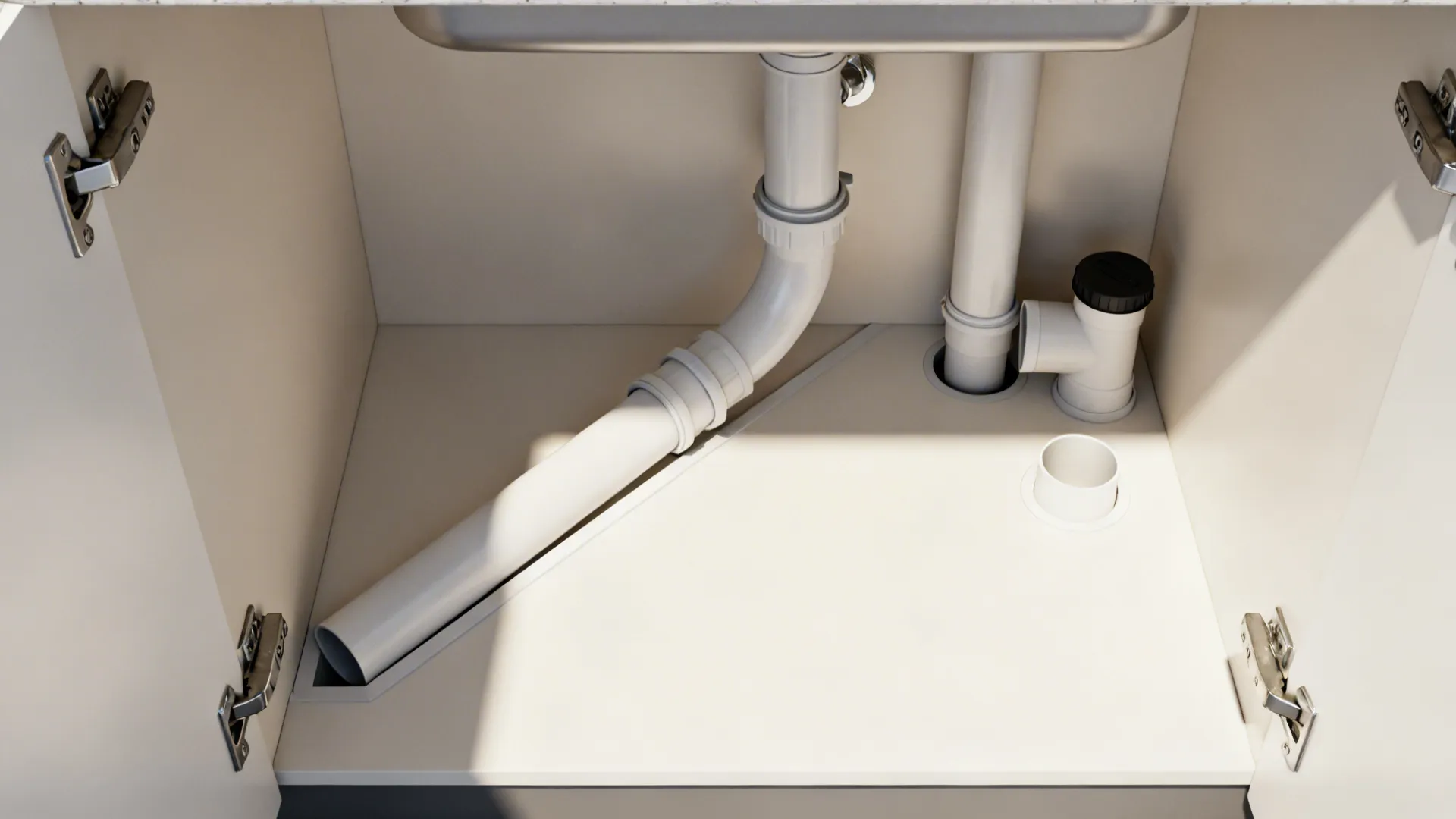

Idea 3: Short, Sloped Trap Arm with Cleanout for Easy Maintenance

My Take

Clogs love horizontal runs. In my own studio kitchen, I reworked the trap arm to the shortest possible length with a consistent 1/4" per foot slope and added a cleanout. That little cleanout saved me two service calls in three years.

Pros

- A short, correctly sloped trap arm supports gravity flow and reduces biofilm buildup—ideal for long-term kitchen drain pipe maintenance and fewer backups.

- Including a cleanout (either on the trap or immediately downstream) gives fast access for snaking, keeping service costs down and downtime minimal.

- Clear access makes it easier to integrate appliances like a dishwasher tailpiece while maintaining proper fall and vent distance.

Cons

- In ultra-tight cabinets, finding room for both a cleanout and neat trap geometry can be a Tetris challenge.

- Visible cleanout caps may bother minimalists unless aligned to the back corner or painted to match the cabinet interior.

- If the branch drain in the wall is off-height, you might need a coupler or a new stub-out, adding labor.

Tip / Cost

Budget $30–$60 for a cleanout tee and caps, plus 1 hour labor. Always confirm the trap arm’s distance to vent in accordance with your code. A simple bubble level and a ruler ensure you preserve slope even when cabinetry tolerances are tight.

save pin

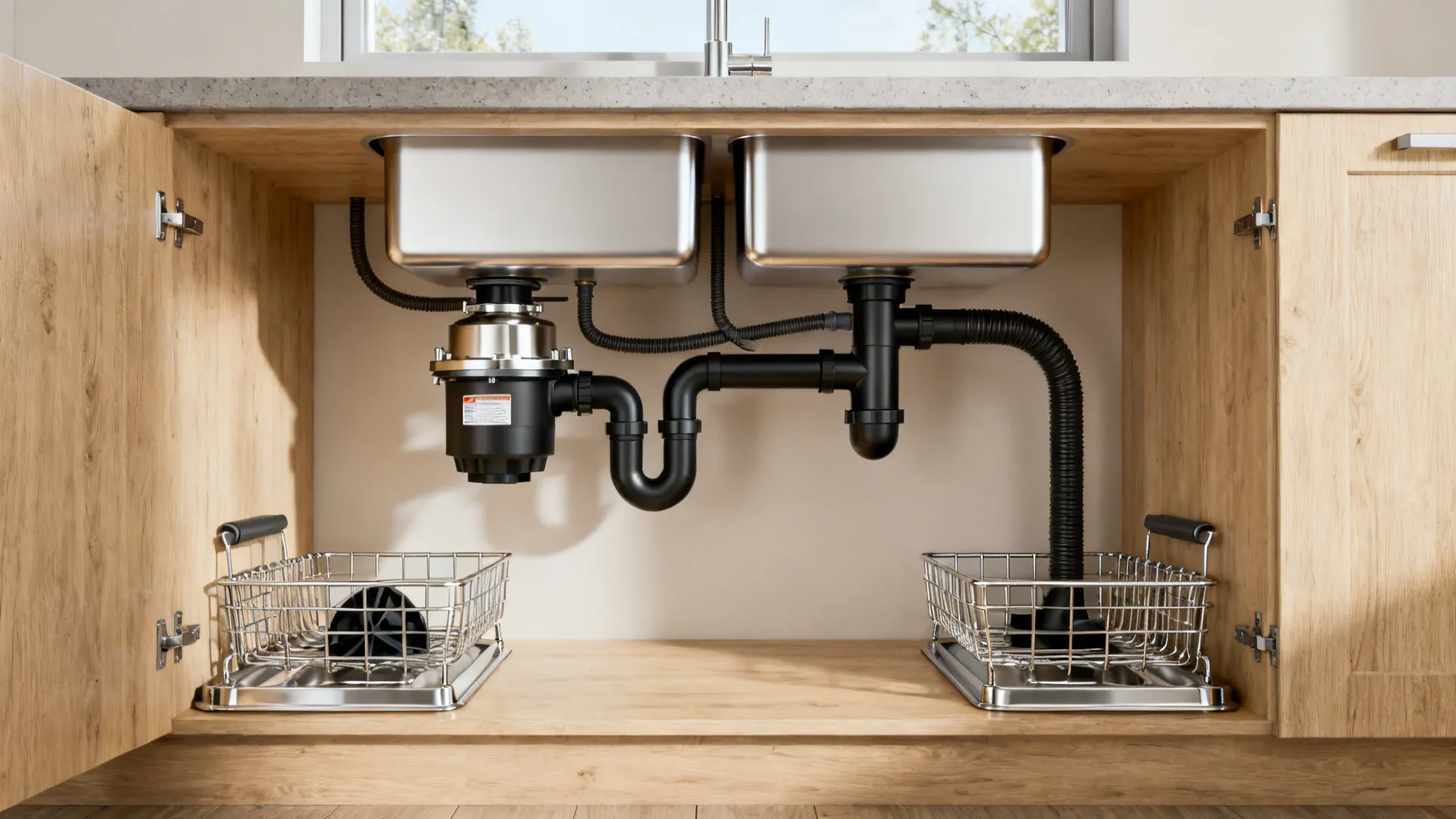

Idea 4: Dual-Basin Waste Kit with Disposer Baffle to Reduce Noise

My Take

In open kitchens, sound carries. For a client who took calls from the dining table, we used a dual-basin kit with a disposer on one side and a baffle tee to reduce water hammer and splash noise. Her comment: “I can finally run dishes during meetings.”

Pros

- A dual-basin waste kit consolidates connections elegantly, reducing unnecessary elbows and simplifying the under-sink footprint for the kitchen drain pipe system.

- A baffle (or directional tee) helps control turbulence when the disposer runs, aiding trap seal retention and keeping smells in check.

- With fewer sharp turns, flow is smoother, which supports lower maintenance for households that cook often and rinse solids.

Cons

- Kits vary widely in quality; thin-wall plastics can flex and loosen over time under disposer vibration.

- Initial setup is fussier—aligning both baskets, disposer outlet height, and trap centerline takes patience.

- If you later swap a sink with different depths, you may need to reconfigure the waste assembly.

Tip / Case

Use a reinforced, thick-wall kit and add vibration-damping gaskets for disposer connections. I also specify a braided dishwasher drain hose with a high loop or air gap as required. When I prototype sink centers and appliance clearances, I reference past models like warm wood accents that soften utility areas to keep the cabinet interior coherent with the rest of the kitchen.

save pin

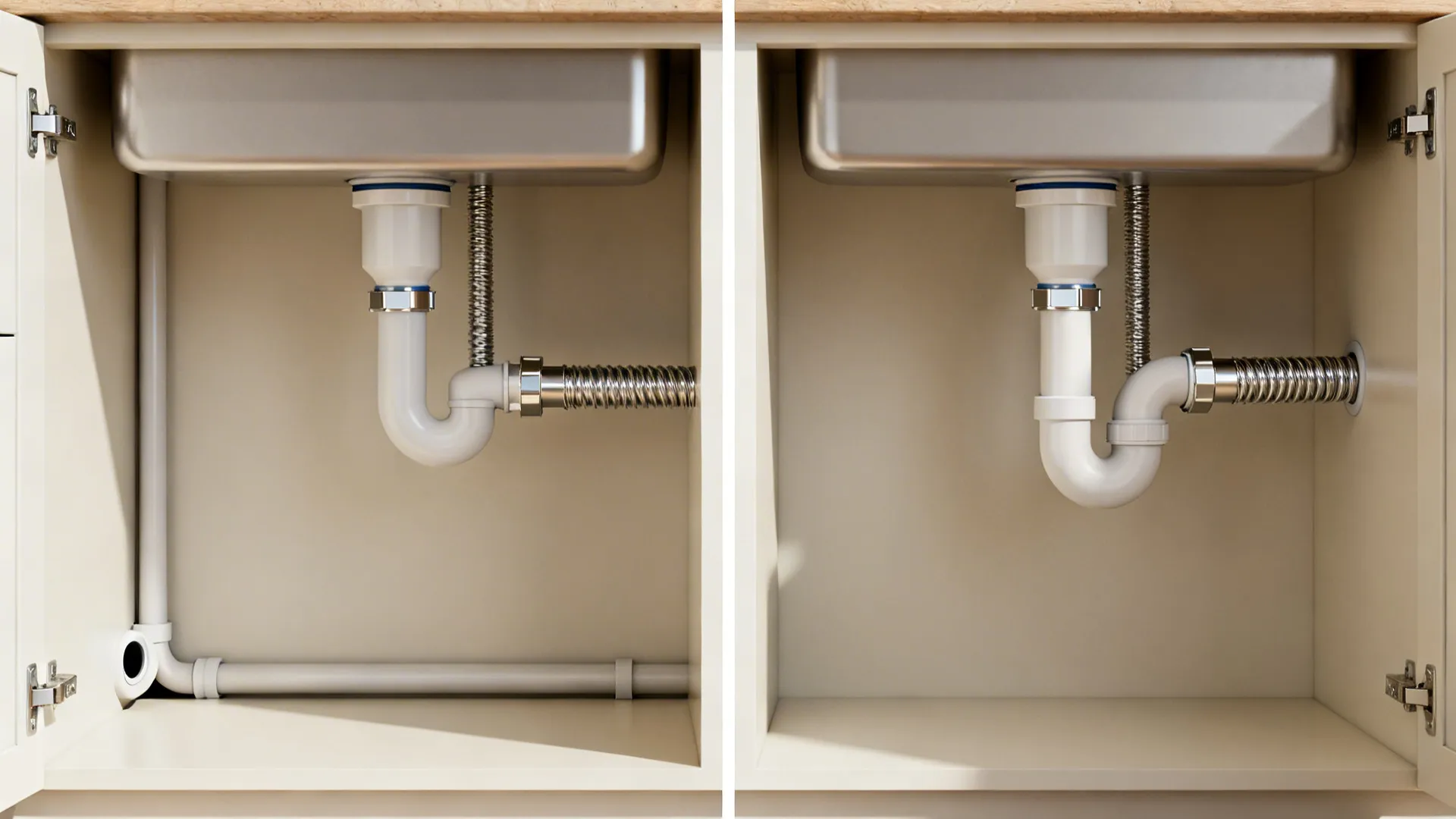

Idea 5: Wall-Mounted Stub-Out at the Right Height (and Material Choices)

My Take

Too many under-sink headaches come from a poorly placed wall stub-out. In a rental upgrade, we moved the drain to sit just above the base shelf line and centered it to the main bowl. It transformed install time and alignment—and tenants stopped complaining about leaks.

Pros

- Proper stub-out height (often 16–18 inches to center, verify locally) aligns the trap naturally and keeps the kitchen drain pipe path clean, reducing strain on joints.

- Centering the stub-out behind the primary basin minimizes lateral runs and the chance of standing water, which supports better hygiene and fewer odors.

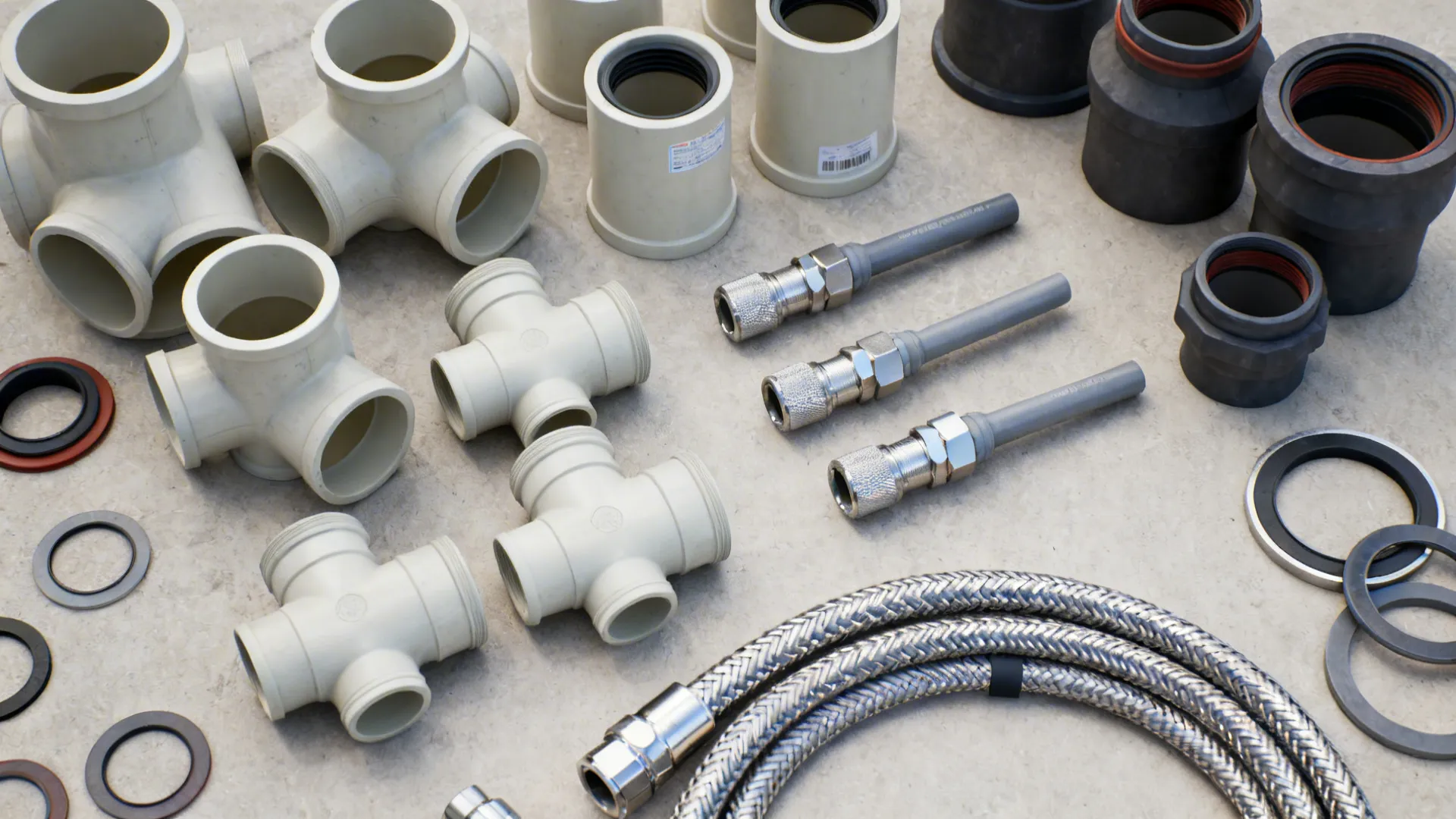

- Material choice matters: solvent-welded PVC is cost-effective and smooth inside; ABS is lightweight and easy to work; stainless-braided connectors and high-quality gaskets reduce call-backs. The U.S. EPA’s WaterSense and CDC guidance emphasize sanitation and backflow considerations around sinks, underscoring correct physical layouts and materials for health.

Cons

- Moving a stub-out in finished walls can mean patching tile or drywall and coordinating with other services—budget and schedule can creep.

- In older buildings with cast-iron stacks, transitions to PVC/ABS require the right couplings and may need a permit and inspection.

- If you change sink models later (deeper bowl or offset drain), even a good stub-out might need tweaks.

Tip / Cost

Repositioning a stub-out in drywall typically runs $250–$600 plus finish repairs; tiled backsplashes or exterior walls cost more. Always photograph the final setup with measurements for the home file so future swaps are predictable.

save pin

save pin

FAQ

Q1: What is the ideal slope for a kitchen drain pipe?

A1: Most codes recommend 1/4 inch per foot (about 2%) for a 2-inch or smaller pipe to maintain self-cleansing velocity without outrunning the water. Always confirm with your local code authority.

Q2: Do I need a vent or can I use an air admittance valve?

A2: Proper venting is required; an AAV may be permitted as an alternative in some jurisdictions. IAPMO and local codes dictate placement and height—check what’s allowed where you live.

Q3: How high should the wall drain stub-out be?

A3: A common centerline is roughly 16–18 inches above the finished floor for standard sinks, but verify against your specific sink depth, disposer, and trap geometry. Remodels may need adjustments.

Q4: Is PVC better than ABS for kitchen drains?

A4: Both are widely used: PVC is smooth and often solvent-welded for strong joints; ABS is lighter and can be easier to cut in tight spaces. Follow local code and use high-quality fittings and cement.

Q5: How do I stop kitchen drain odors?

A5: Ensure the P-trap retains water, maintain proper venting, and keep horizontal runs short and sloped. Regularly flush with hot water and avoid pouring fats; a cleanout simplifies maintenance.

Q6: Can I connect a dishwasher and disposer to the same drain?

A6: Yes, with the correct tee and a dishwasher tailpiece or disposer inlet, plus a high loop or air gap as required. Ensure the trap remains directly downstream to preserve the seal and slope.

Q7: Are there health guidelines for sink drainage?

A7: The CDC emphasizes preventing cross-contamination and backflow near food prep areas. Proper trap seals, venting, and, where needed, air gaps help maintain sanitary conditions (CDC Food Safety, plumbing cross-connection guidance).

Q8: How can I plan pipe layout in a tight kitchen?

A8: Start with the sink centerline, then trace shortest, sloped routes to the wall. Mock up cabinet clearances and appliance heights; digital planning tools with accurate dimensions help visualize conflicts.
