5 Kitchen Drawing Tips in CATIA from a Senior Designer: My real-world workflow for accurate, build-ready kitchen drawings in CATIA—5 ideas that balance precision, style, and small-space optimization

As someone who’s redesigned more small kitchens than I can count, I’ve learned that the best kitchen drawing in CATIA starts with clarity and ends with construction-ready detail. Small spaces spark big creativity—especially when you translate design intent into precise geometry, constraints, and annotated drawings. Today, I’ll share 5 practical design inspirations anchored in my own projects and expert practices to help you create professional kitchen drawings in CATIA that actually build well.

On a recent tiny-apartment remodel, I refined my CATIA workflow to fit a full-function L-shaped kitchen into 6.5 square meters without compromising appliance clearances or storage. In this guide, I’ll walk you through five ideas—from planning and parametric modeling to section details—that I use to go from concept to shop drawings with fewer revisions and more confidence.

We’ll cover the essentials I wish I’d known a decade ago, plus a few tricks for better visibility, constraints, and annotation standards. And yes, small kitchens are not a limitation—they’re an invitation to design smarter.

First, if you’re exploring layout options, this real-world reference on L 型布局释放更多台面空间 mirrors the kind of planning logic I bring into CATIA before modeling. I use similar spacing and work-triangle checks to avoid rework later.

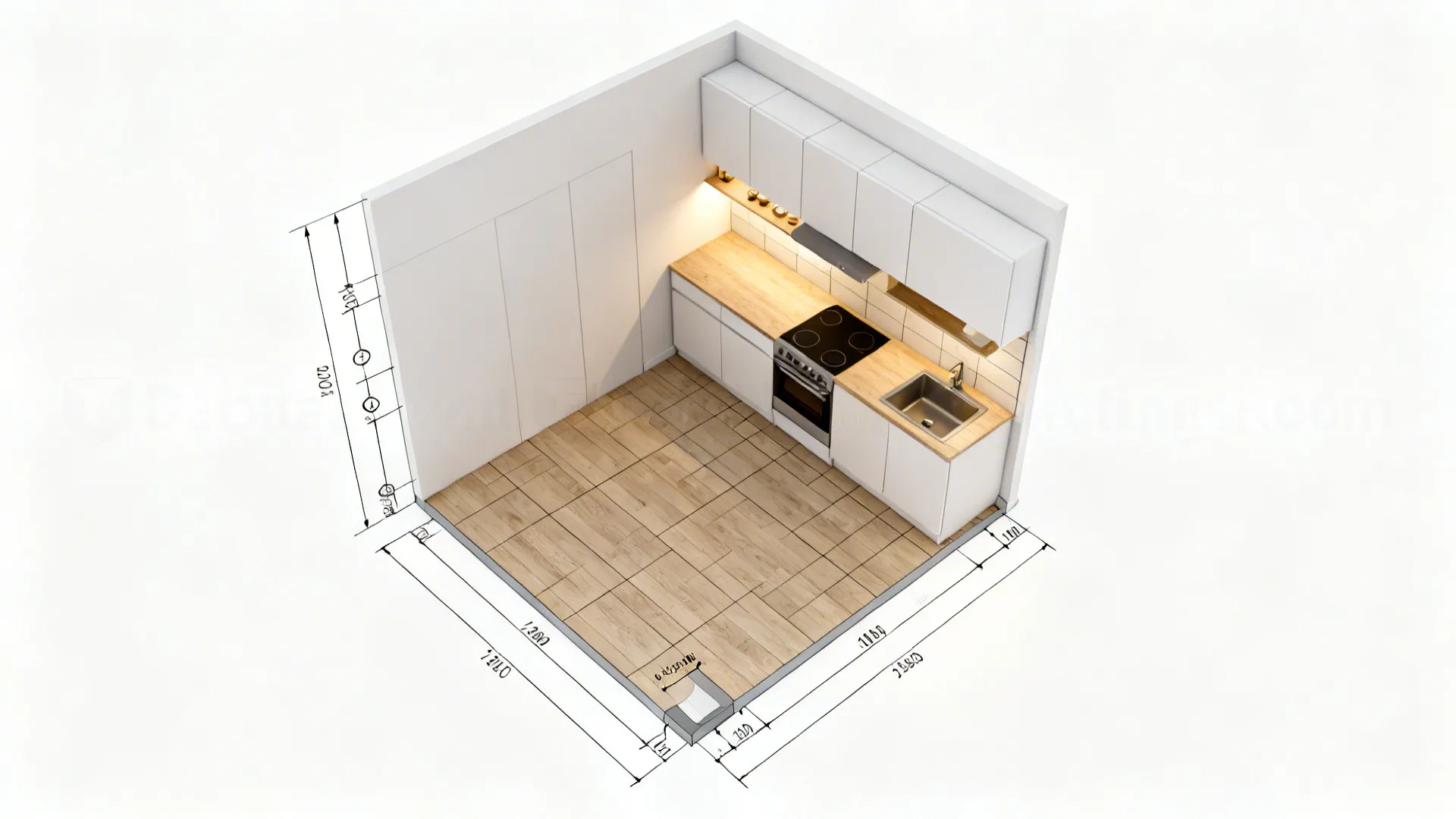

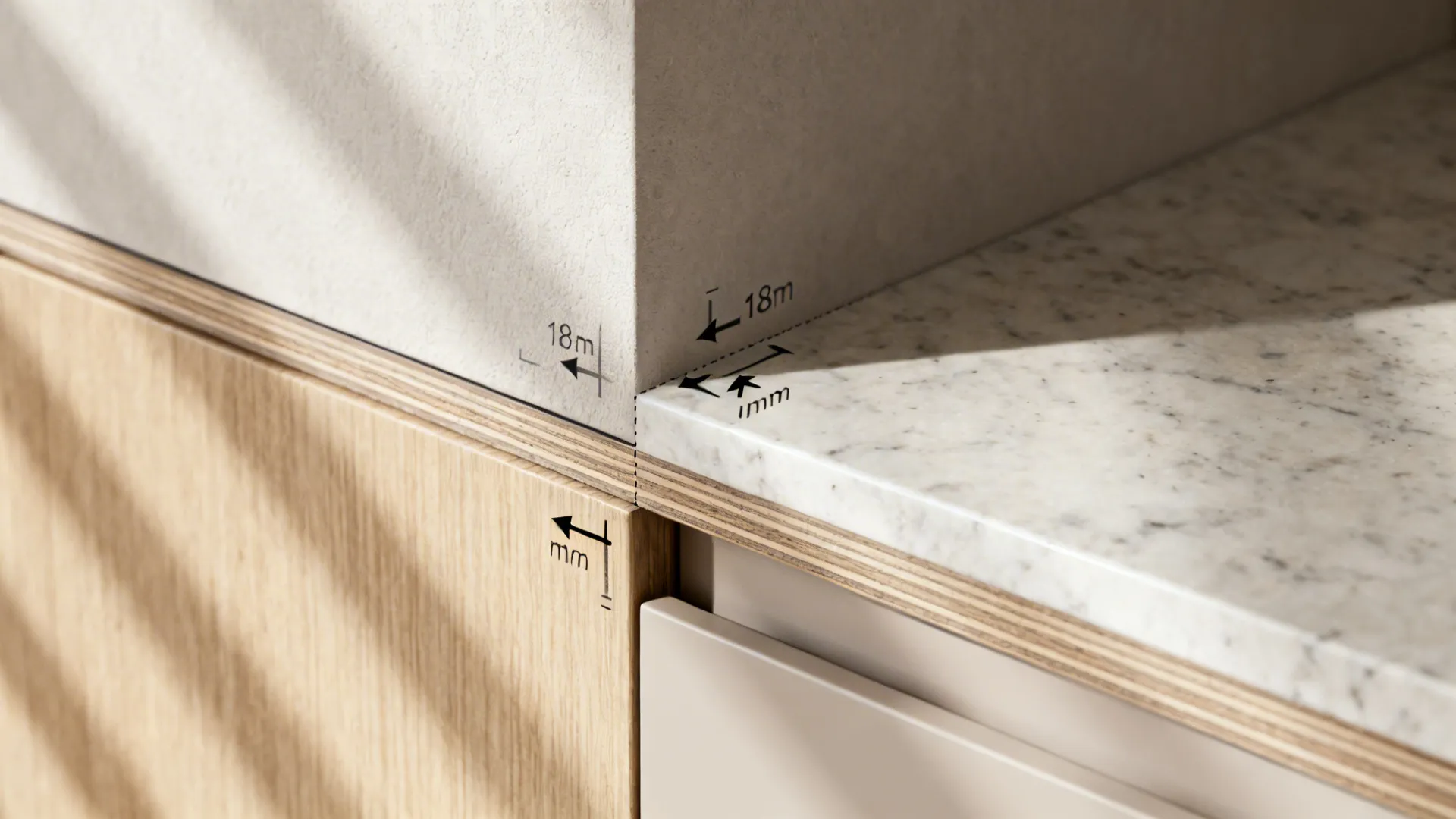

Parametric Kitchen Grid and Constraints

My Take

I start every kitchen drawing in CATIA with a parametric grid: room envelope, datum lines, and key references for counter height, toe-kick, backsplash, and overhead cabinets. In one studio apartment, a 5 mm tolerance issue in the wall geometry ballooned into misaligned cabinets—since then, dimensional constraints are my north star.

Pros

- With a parametric kitchen model, changing wall length or appliance size updates base, tall, and wall units consistently, aligning with long-tail needs like “parametric cabinet sizing for small kitchens.”

- Constraints preserve critical ergonomics—counter height (typically 860–920 mm), aisle width (900–1050 mm), and door swing clearance—so your CATIA drawings stay buildable even after late-stage revisions.

- According to ISO 286 and standard practice for tolerancing in joinery, modeling with clear dimensional baselines reduces cumulative error across assemblies.

Cons

- Over-constraining can cause solver hiccups; I’ve spent late nights chasing a stubborn coincident constraint locking my entire base cabinet sketch. Keep relationships logical and minimal.

- Parametric setups demand discipline with naming conventions; if you’re casual early, you’ll be confused later. I’ve learned to prefix parameters (e.g., ct_top_thk) to avoid chaos.

Tips / Case / Cost

- Define master parameters: room_length, room_width, plinth_height, ctr_thk, door_clearance, appliance_widths.

- Use construction geometry for centerlines and alignment; reserve dimensions for real build variables.

- Save a master template per kitchen type (galley, L-shape, U-shape) to cut future setup time by half.

save pin

save pin

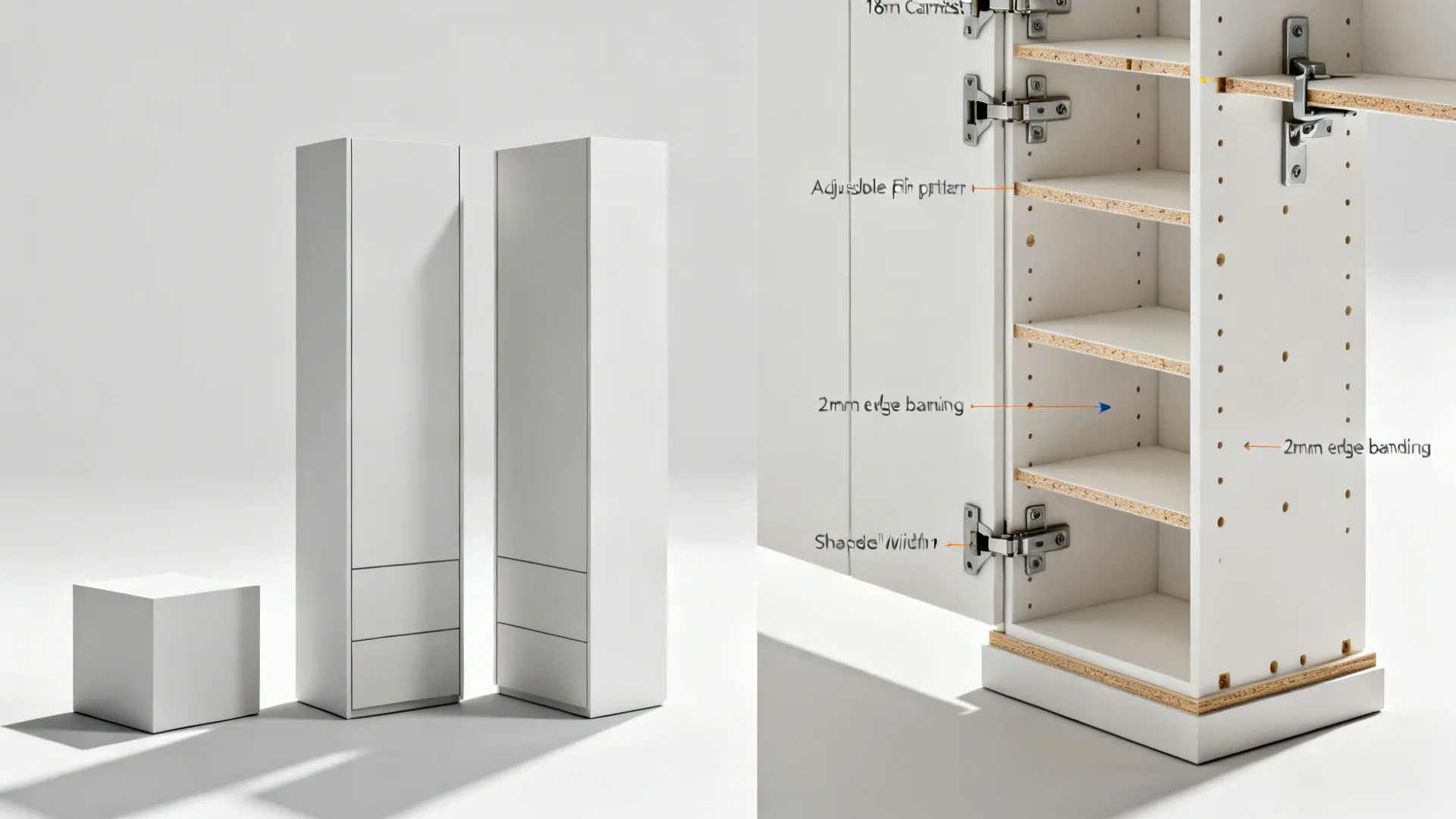

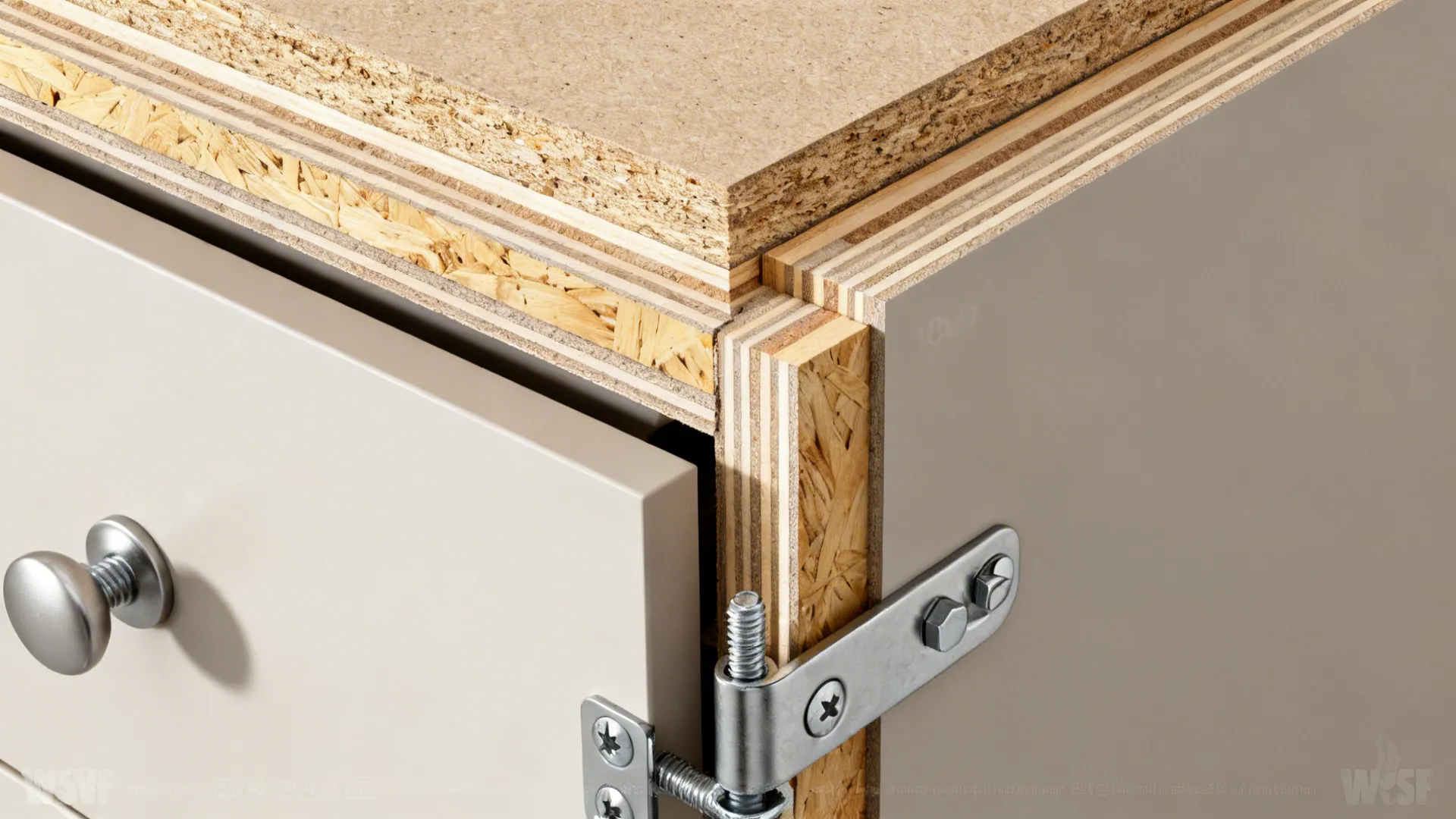

Cabinet Families and Joinery Details (Base, Tall, Wall)

My Take

I build cabinet “families” in CATIA: carcass, fronts, hinges, runners, adjustable shelves—all with shared parameters. In a recent rental renovation, a single 600 mm base unit variant generated six cabinet widths without redrawing, and the workshop loved the consistency.

Pros

- Reusable parametric cabinet families streamline long-tail tasks like “modular base cabinet drawings in CATIA,” improving drawing consistency and BOM accuracy.

- Standardized joinery—like 18 mm carcass panels, 2 mm edge banding, and 100 mm plinth—makes cut lists and section details (dado vs. confirmat screws) repeatable.

- The Wood Handbook and common cabinetry standards suggest consistent material thickness and edge treatments to reduce fabrication error and chipping.

Cons

- Highly detailed hardware (hinges, slides) can slow large assemblies. I substitute simplified blocks for global layout, and swap in detailed parts only for key sections.

- Too many family variants can become a library you never update. Curate ruthlessly—keep the winners, archive the rest.

Tips / Case / Cost

- Model adjustable shelf pin holes as patterns driven by a “shelf_pitch” parameter.

- Use configurations for door styles: slab, shaker, frame—switchable in drawings without rebuilding.

- For budget builds, try a shared plinth and adjustable leg system to absorb floor irregularities.

save pin

save pin

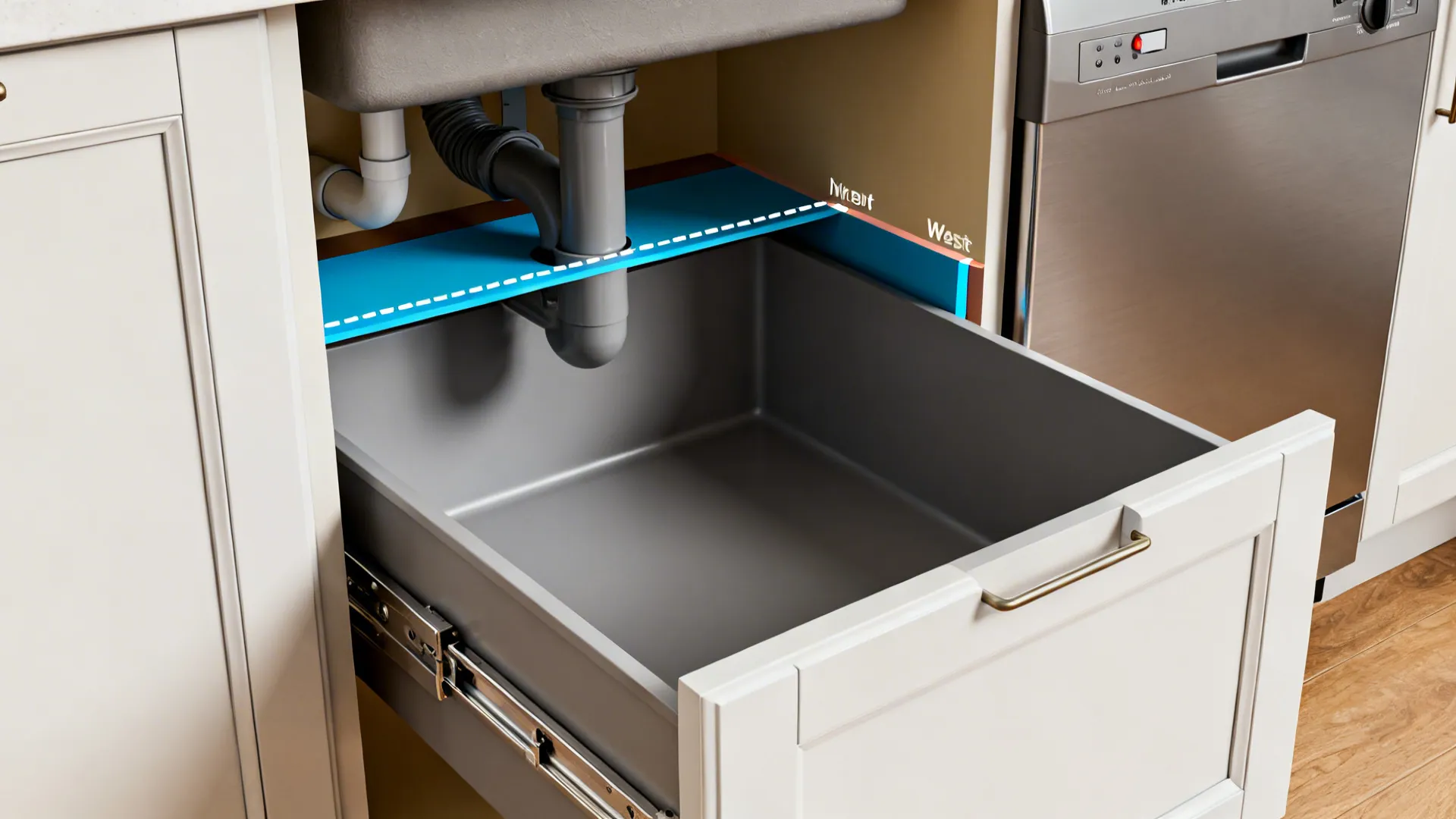

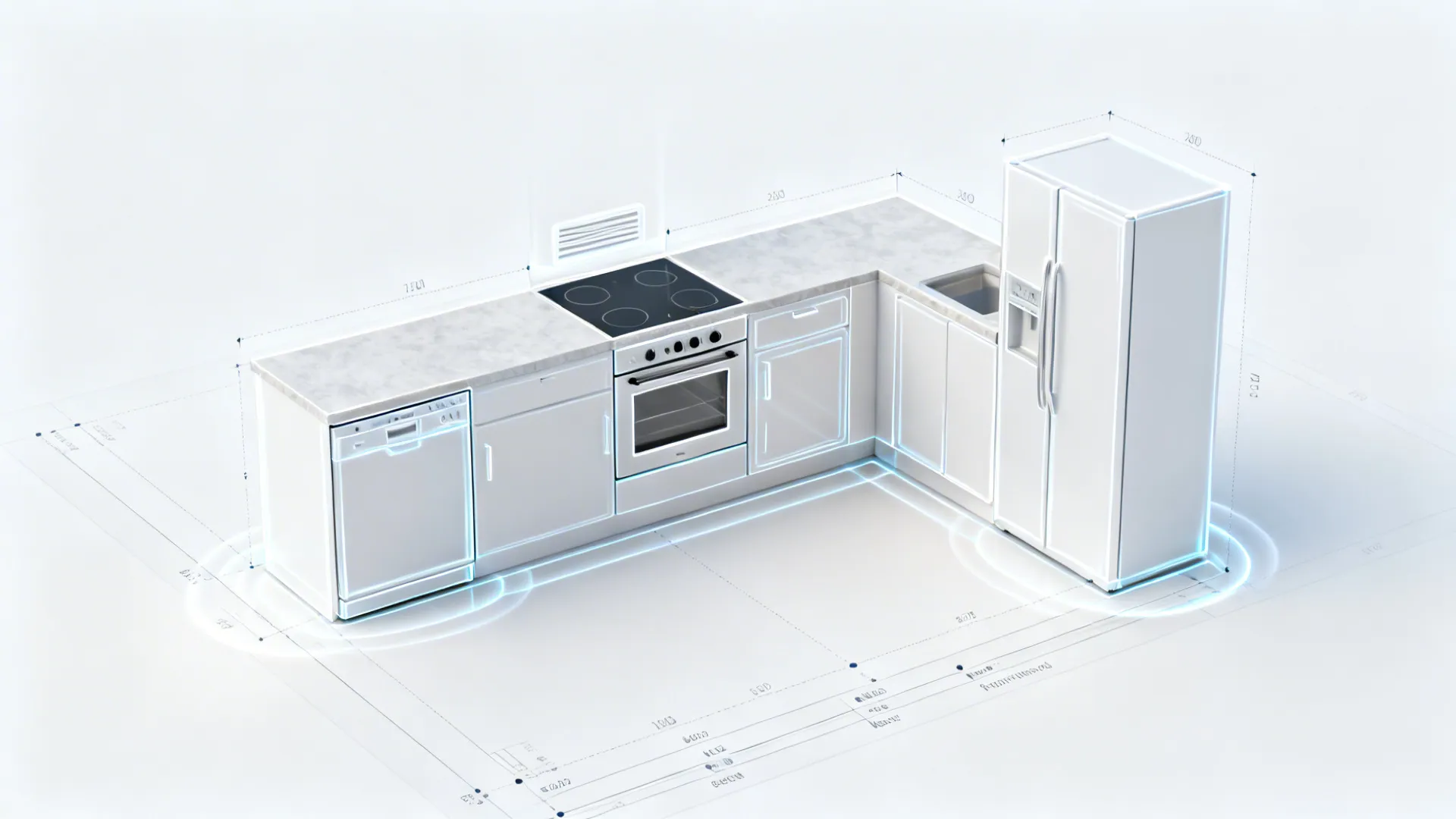

Appliance and Services Coordination (Plan, Elevation, Sections)

My Take

Nothing derails a kitchen install like misaligned services. I always coordinate appliance envelopes and rough-ins in CATIA—venting, water, gas, electrical—before I finalize cabinetry. On a compact L-kitchen, shifting a dishwasher supply by 40 mm saved a day of site rework.

Pros

- Detailed appliance clearances and MEP reference points support the long-tail need “kitchen appliance rough-in drawings in CATIA,” preventing clashes in tight footprints.

- Sections through sink areas and cooktops catch interference between drawers and siphons; these early checks reduce change orders.

- Per the NKBA Kitchen Planning Guidelines (2015, widely cited), keeping work zones and clearances (e.g., 610 mm landing areas around cooking) improves functionality and safety.

Cons

- Manufacturer models vary; I often abstract appliances to clean bounding boxes to keep the parametric model snappy.

- Venting and gas details can be jurisdiction-specific; treat code assumptions as placeholders until you confirm with the local inspector.

Tips / Case / Cost

- Build a “services layer” with datum points: water inlet/outlet, waste centerline, gas cock location, power outlet height—then project them into elevations.

- Maintain a library of common appliance envelopes (600, 450, 900 mm widths) with min door clearance and ventilation gaps.

save pin

save pin

Drawing Production: Views, Dimensions, and Annotations

My Take

Great models still fail if drawings confuse the fabricator. I create a plan, at least two elevations, and two sections for each kitchen. In one coastal project, a single exploded detail of the sink cabinet (with siphon and drawer runners) eliminated a string of workshop phone calls.

Pros

- Clear view hierarchy—plan, elevations by wall, and detail sections—supports long-tail workflows like “shop drawing set for small kitchen in CATIA,” translating design intent into cut lists.

- Annotation standards (dimension styles, leader types, material tags) make multi-designer teams faster and reduce RFIs.

- Referencing ISO 129-1 for technical product documentation, consistent dimensioning and notation improves interpretability downstream.

Cons

- Over-annotating turns drawings into word salads. I keep general notes simple and push specifics into keyed details.

- Rendering pretty elevations can eat time; send crisp line drawings to fabricators and reserve visuals for clients.

Tips / Case / Cost

- Use layer conventions: K-PLAN, K-ELEV-A, K-SEC-01, K-DETAIL-SINK; turn layers on/off per sheet.

- Keep a material legend with codes: CARC-18P (18 mm plywood carcass), FRONT-20MDF, TOP-12QTZ.

- Midway through a project, I often sanity-check layouts against real-world references like 玻璃背板让厨房更通透—if the reflective surface or backsplash alignment works in 3D, I know my elevations will read clean.

save pin

save pin

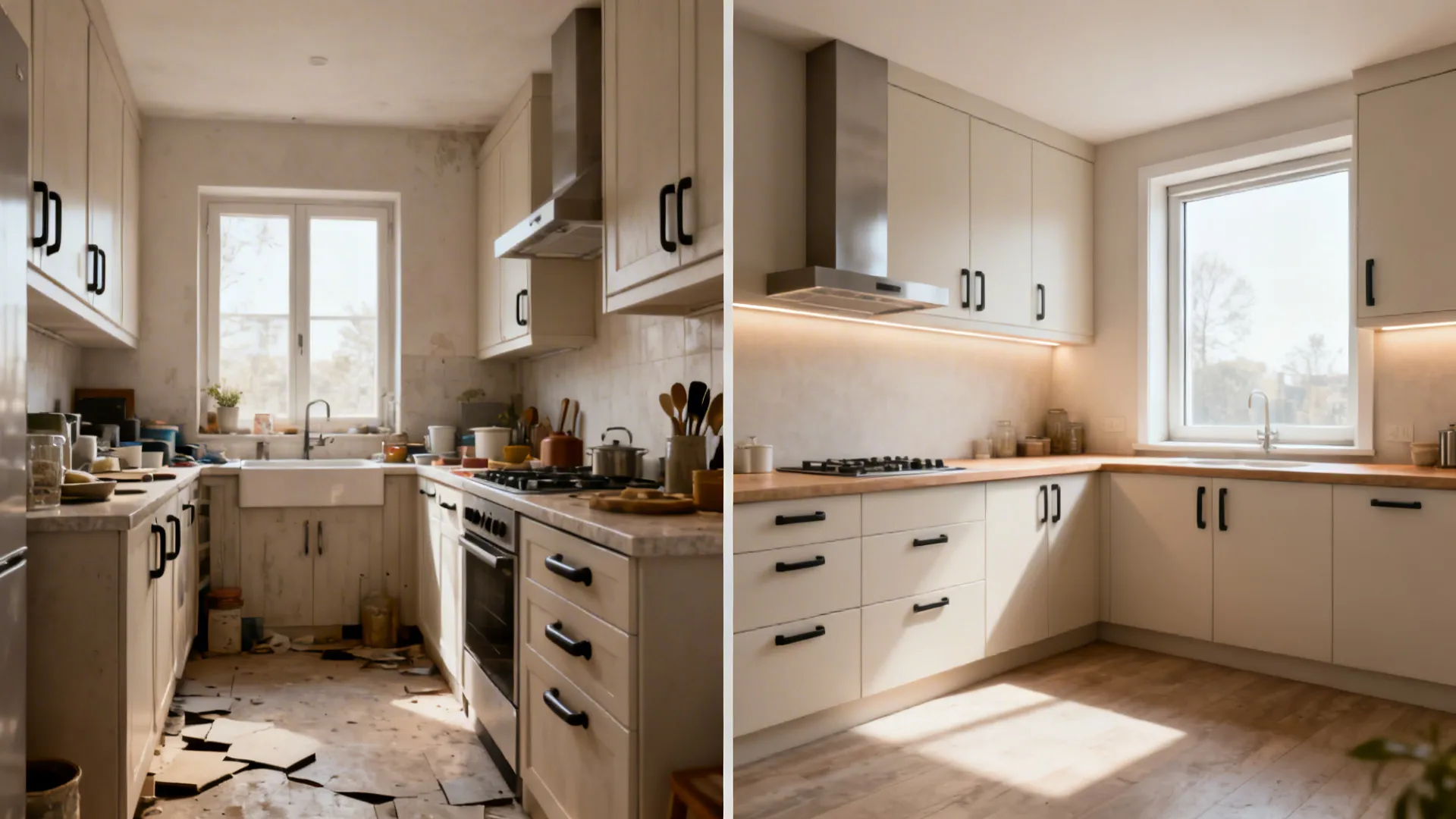

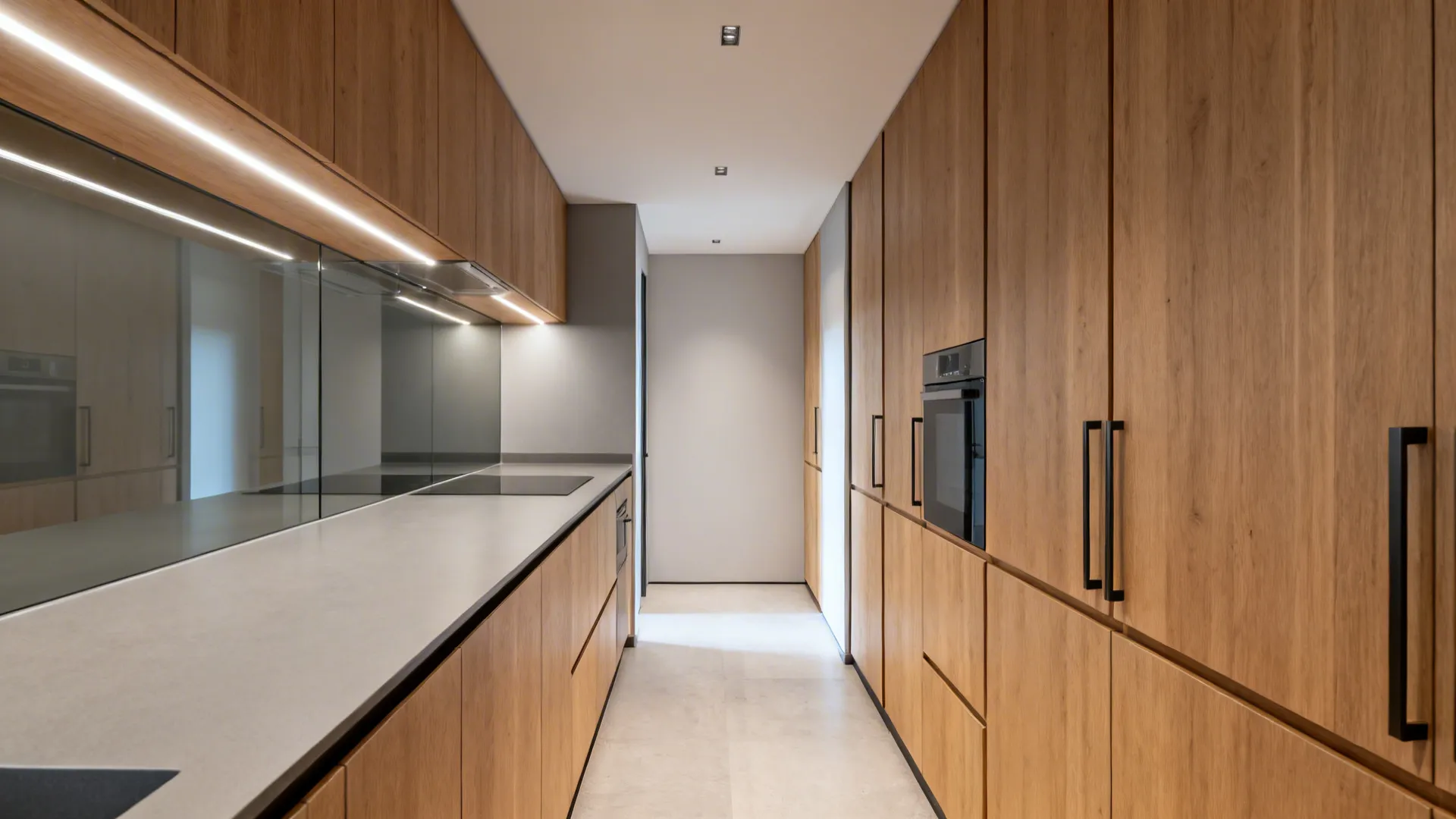

Small-Space Strategies: Layouts, Clearances, and Visual Tricks

My Take

Small kitchens reward precision and restraint. I’ve leaned on L-shapes, narrow galley layouts, and open shelves to preserve counter length and visual breathing room. One 5.8 m² kitchen felt bigger simply by extending the countertop into the window reveal and aligning upper cabinets with the hood line.

Pros

- For “small kitchen layout in CATIA,” aligning appliance centers, widening sightlines, and using reflective backsplashes amplify perceived space.

- Shallow wall units (300–350 mm) and uninterrupted counter runs maximize prep area without crowding circulation.

- Evidence from human factors research (DIN/EN ergonomics guidelines) supports eye-height storage and reduced reach ranges for comfort in compact kitchens.

Cons

- Open shelves look airy but demand discipline; I’ve had clients who love them on day one and regret the dust by day thirty.

- Narrow galleys can feel tight; without under-cabinet lighting and bright surfaces, they read as corridors rather than kitchens.

Tips / Case / Cost

- Consider a 20 mm thinner countertop at window returns to improve light; detail the substrate to maintain stiffness.

- In narrow spaces, switch to integrated handles or J-pull fronts to avoid knuckle-bashing clearances.

- When I prototype traffic flow, I compare variants against real project references like 极简风的厨房收纳设计 to sanity-check storage density, lighting, and material contrast before locking drawings.

save pin

save pin

Workflow: From Sketch to Shop Drawing in CATIA

My Take

My end-to-end workflow: sketch the layout and room envelope, set parameters and constraints, build cabinet families, insert appliances and services, then produce drawings with consistent layers and legends. On fast-turnaround renovations, this flow trims days off coordination.

Pros

- A stepwise method supports “how to do kitchen drawing in CATIA for beginners,” reducing backtracking and change orders.

- Library-driven modeling (carcasses, doors, shelves, hardware) cuts repetitive work by 30–40% across projects.

- Version control with named parameters and configurations simplifies client revisions and BOM updates.

Cons

- The discipline can feel heavy at first. I’ve watched juniors want to place pretty doors before setting the plinth—resist the urge; order matters.

- If you inherit messy legacy files, cleaning parameters and re-linking references can be a slog.

Tips / Case / Cost

- Create a startup checklist: parameters, room envelope, datum, cabinet families, appliances, services, drawing sheets.

- Automate bill of materials extraction by tagging parts with material and thickness attributes early.

- Keep a “redline” folder with PDFs so site teams can mark up changes without touching models.

save pin

save pin

FAQ

1) What’s the best starting point for a kitchen drawing in CATIA?

Begin with the room envelope, set up master parameters (room dimensions, plinth height, counter thickness), then block in appliances as bounding boxes. Establish constraints before adding cabinet details. This keeps later changes controlled and consistent.

2) How do I model cabinets efficiently?

Create parametric cabinet families with shared variables for width, depth, height, and material thickness. Use patterns for shelf holes and hinge placements. Switch door styles via configurations rather than rebuilding geometry.

3) How do I handle appliance and service coordination?

Use a services layer with datum points for water, waste, power, and gas. Insert appliance envelopes with minimum clearances and ventilation gaps. Add sections through sinks and cooktops to check interferences before finalizing drawings.

4) Which standards should I follow for dimensions and annotations?

Use consistent dimensioning per ISO 129-1 and tolerancing principles aligned with ISO 286. Many shops also accept NKBA planning guidance for ergonomic clearances. Include a material legend and keyed details to reduce ambiguity.

5) How can I optimize a very small kitchen?

Favor L-shapes or narrow galley layouts with continuous counters, shallow wall units, and integrated lighting. Reflective backsplashes and aligned upper cabinet lines help space feel larger. Keep aisle widths practical—around 900–1050 mm.

6) What’s a simple workflow I can reuse for multiple projects?

Template the entire process: parameters, datum layers, cabinet families, appliance blocks, services points, sheet sets, and legends. Reuse and refine. Library-driven modeling reduces redraw time by 30–40% on repeat unit types.

7) Do I need highly detailed hardware models?

Not for the overall layout. Use simplified hinge and runner blocks for performance, then swap detailed parts into key sections. This keeps assemblies responsive while preserving critical joinery information in drawings.

8) Where can I sanity-check layout ideas before I finalize in CATIA?

Reference real projects and layout planners to validate circulation and storage. For example, studying an L-shape with smart work zones—like the logic behind L 型布局释放更多台面空间—can highlight clearance wins you’ll want to bake into your CATIA model.
