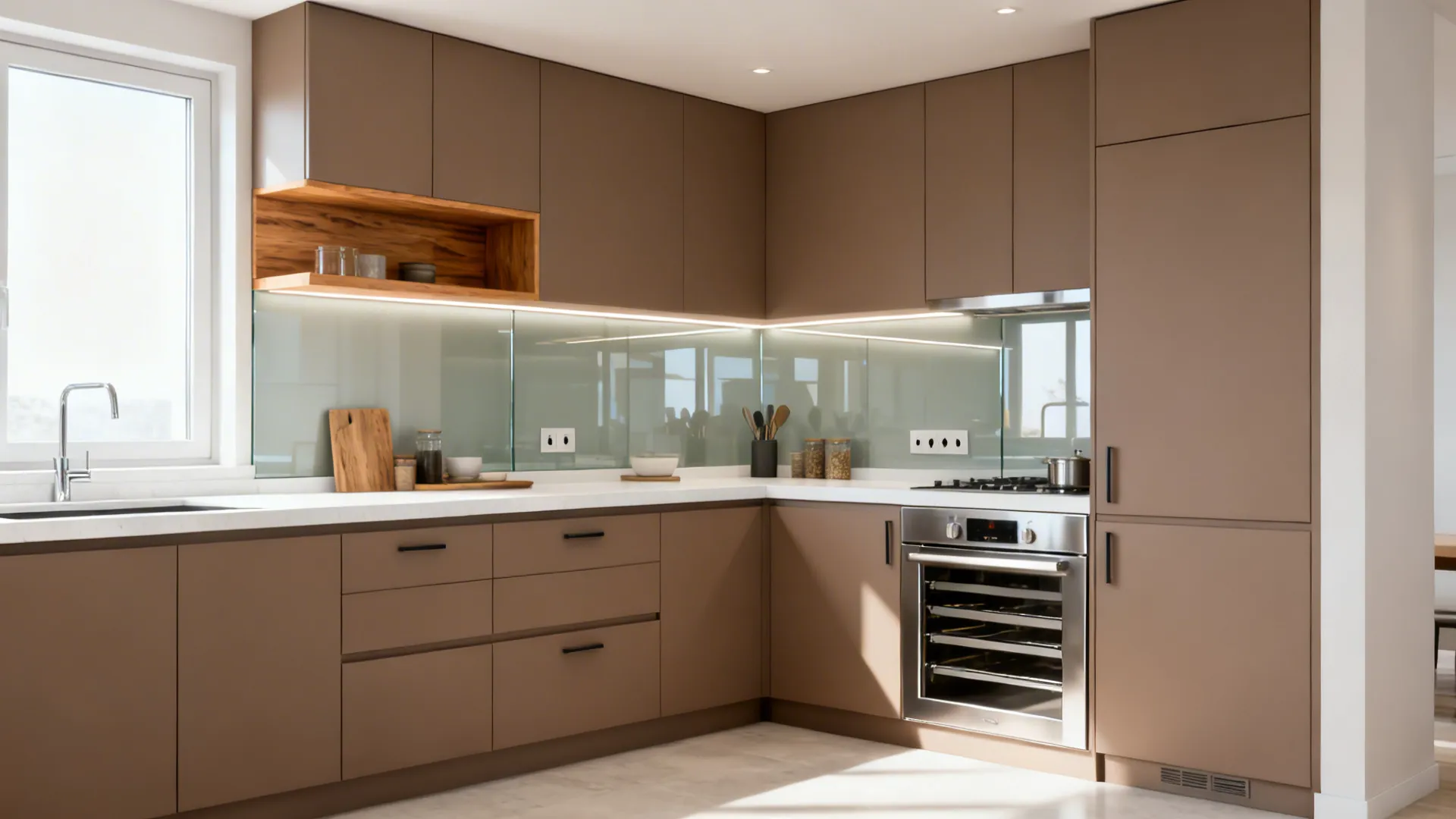

5 Kitchen Interior Design Drawings in AutoCAD That Actually Work: My field-tested approach to kitchen interior design drawings in AutoCAD—5 smart ideas for small spaces that punch above their weight

[Section: Meta 信息] [Section: 引言]

I’ve spent the past decade remodeling compact homes where every centimeter counts, and lately I’m seeing a clear trend: clean-lined kitchens that merge function with calm, plus CAD-driven planning that reduces build surprises. Small spaces spark big creativity—especially when we translate ideas into precise kitchen interior design drawings in AutoCAD. In this guide, I’ll share 5 field-tested design inspirations, backed by my own projects and expert data, to help you craft smarter drawings and a better kitchen.

Before we dive in, I often start clients with a vision exercise and a simple CAD block layout. It clarifies priorities quickly. If you want a visual benchmark, this case of L 型布局释放更多台面空间 mirrors what I draw in early schematic plans—tight corner turns, ample prep, and intuitive flow.

[Section: 灵感列表]

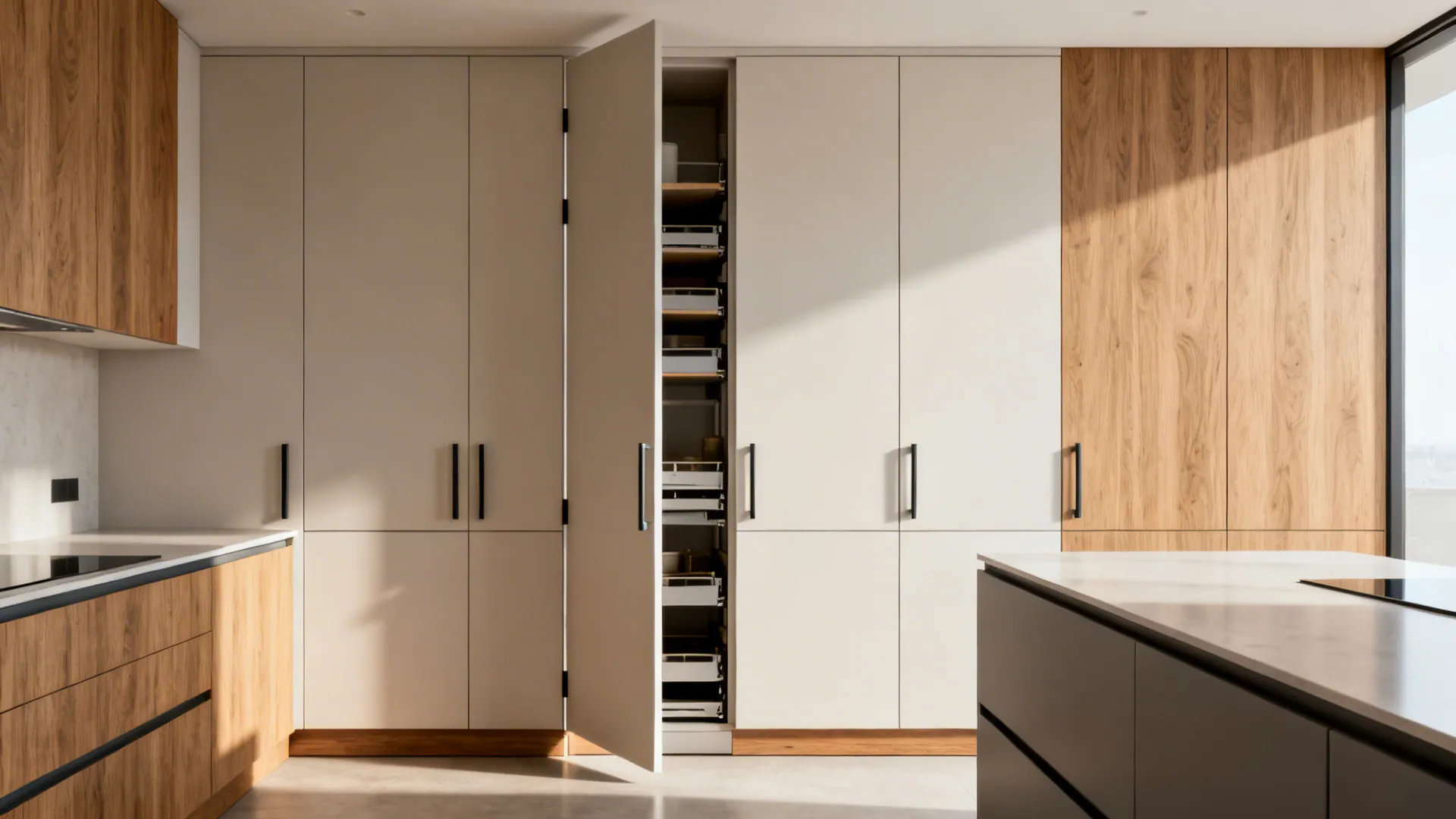

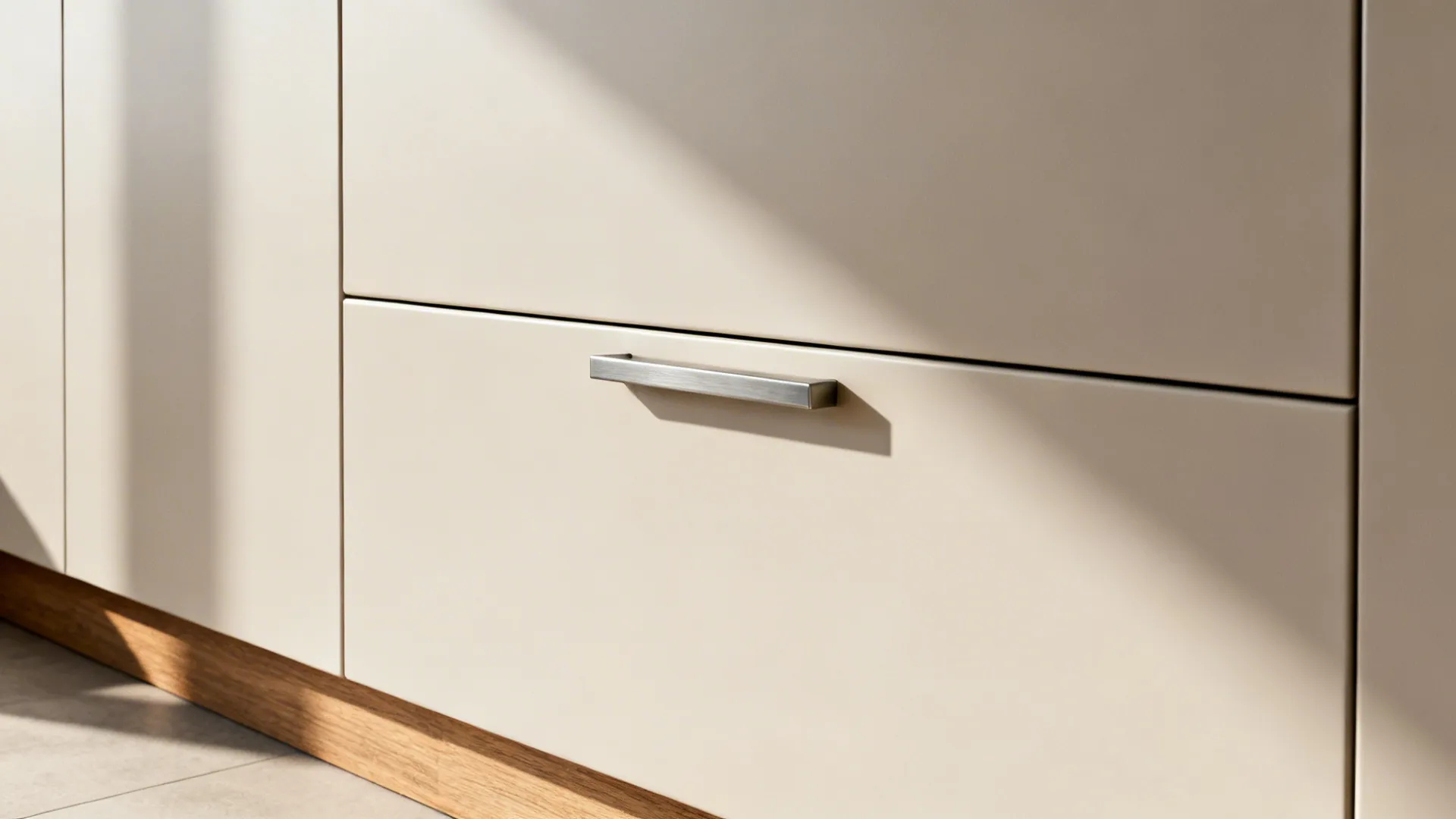

Minimalist storage that stays flexible

My Take: In small kitchens, I’ve learned that less cabinetry “noise” creates more mental clarity. On two recent projects, I used slim framed uppers, pull-out pantries, and a single, continuous toe-kick in the drawings to clean up the sightline—and the builders thanked me for the straightforward sections.

Pros: Streamlined AutoCAD kitchen plans make it easier to coordinate elevations and hardware lines, improving build accuracy for minimalist kitchen storage. Long-tail wins: when your kitchen interior design drawings in AutoCAD specify consistent reveals and handle placement, installers spend less time guessing. A Harvard JCHS brief notes that well-planned storage can extend functional life and reduce later retrofits (JCHS, 2023).

Cons: Minimalist storage can backfire if the family has bulk-purchase habits; your perfect linework won’t change their Costco runs. Also, too few open shelves may force clutter onto counters—something I’ve learned the hard way when a client’s mug collection multiplied like rabbits.

Tips/Costs: In AutoCAD, create parametric blocks for shelf heights (e.g., 240/280/320 mm) and standardize door clearances in your cabinet schedule. Budget-wise, clean fronts with quality hardware cost more up front but reduce future adjustments.

save pin

save pin

save pin

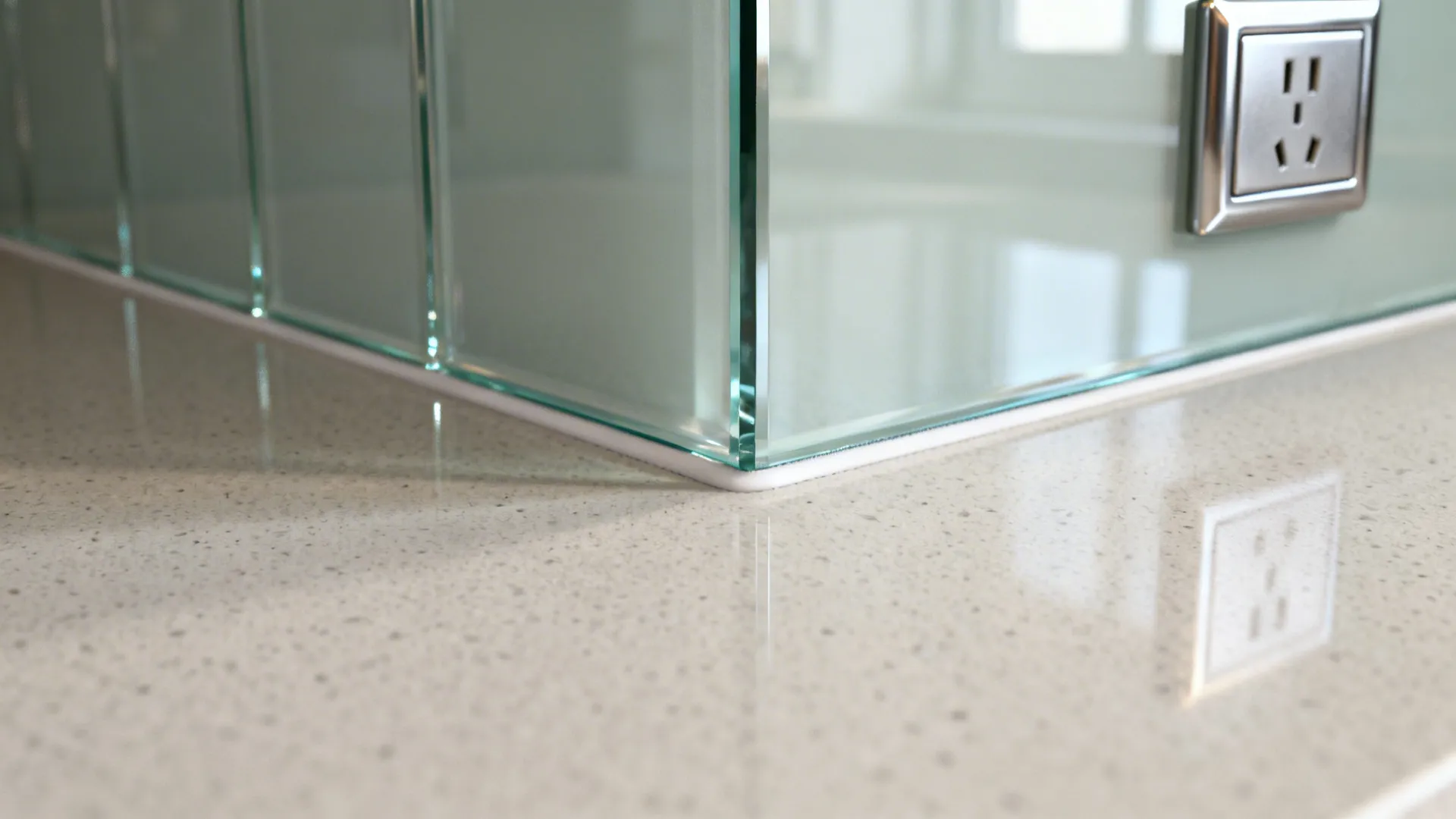

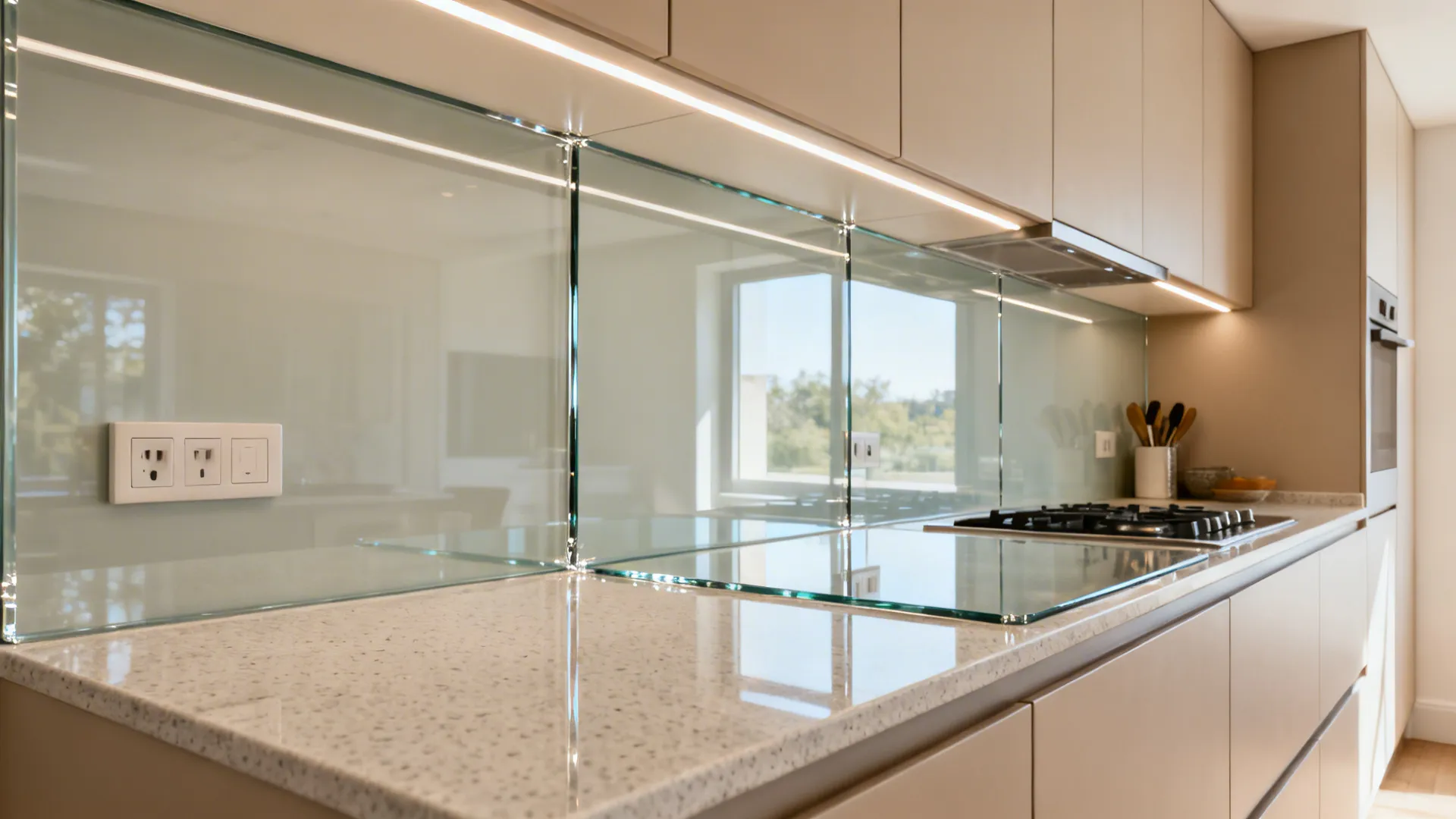

Glass backsplash for light and depth

My Take: I once replaced a dark, textured tile with low-iron glass and watched the whole room “exhale.” In drawings, specifying exact glass thickness, mounting channels, and outlet cutouts in plan and elevation avoids on-site improvisation.

Pros: A glass backsplash reflects ambient and task lighting, making small kitchens feel bigger—great for compact kitchen AutoCAD elevations that emphasize vertical openness. When kitchen interior design drawings in AutoCAD call out outlet boxes flush with glass, electricians coordinate earlier, reducing patchwork. The WELL Building Standard emphasizes glare control and reflectance balance; glass can help when paired with matte counters (IWBI, WELL v2).

Cons: Fingerprints are the glass tax—be ready for regular wipes. Also, if you skip exact dimensions in your detail drawings, fabricators will default to larger gaps at edges, and you’ll see shadow lines you didn’t plan for.

Tips/Costs: In your CAD details, specify edge distance (≥3 mm), sealant type (neutral cure silicone), and backsplash height (commonly 450–600 mm). Include a reflected ceiling plan to coordinate task light angles. Mid-range pricing varies but tends to be slightly higher than tile; precision saves rework.

save pin

save pin

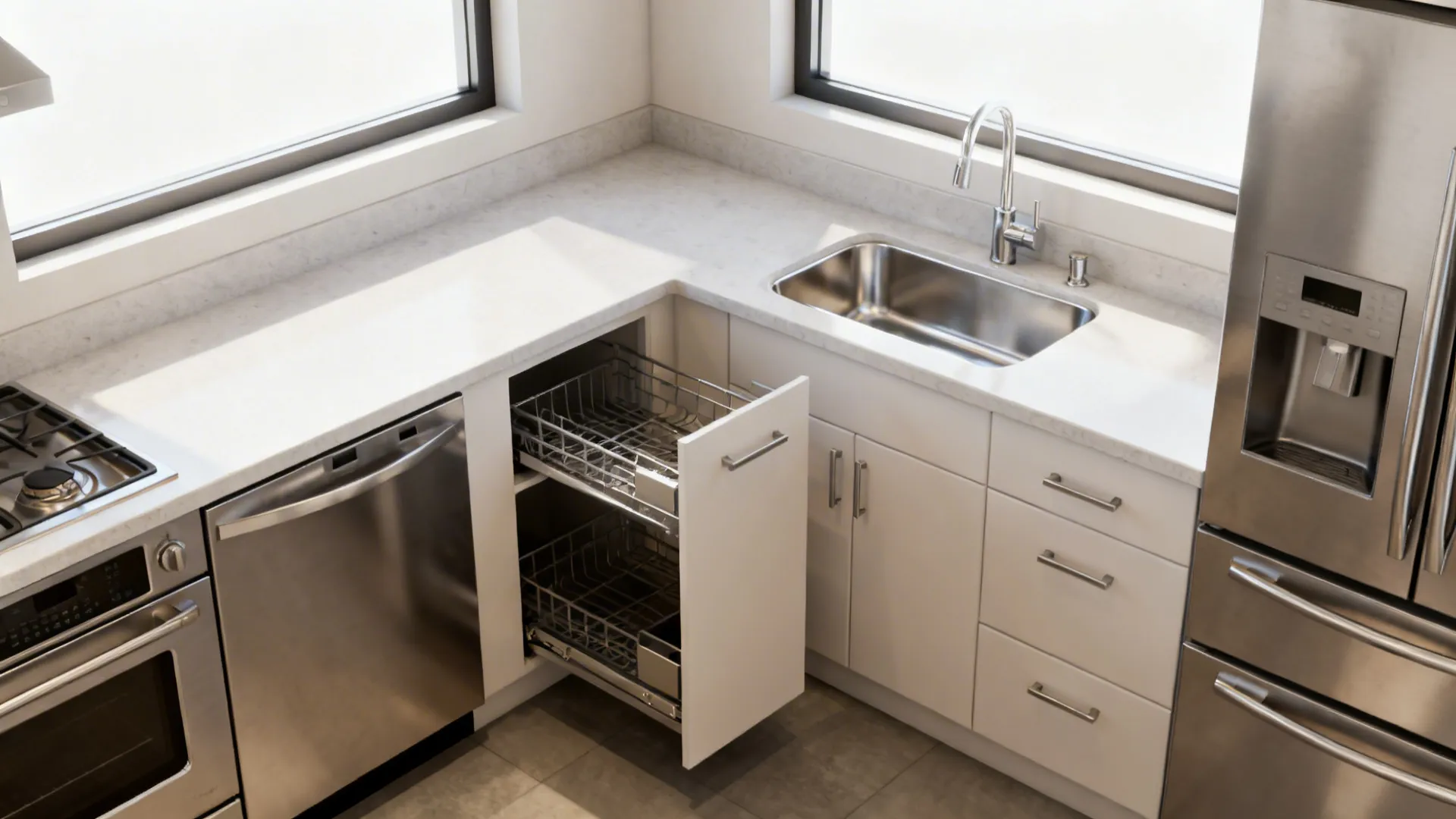

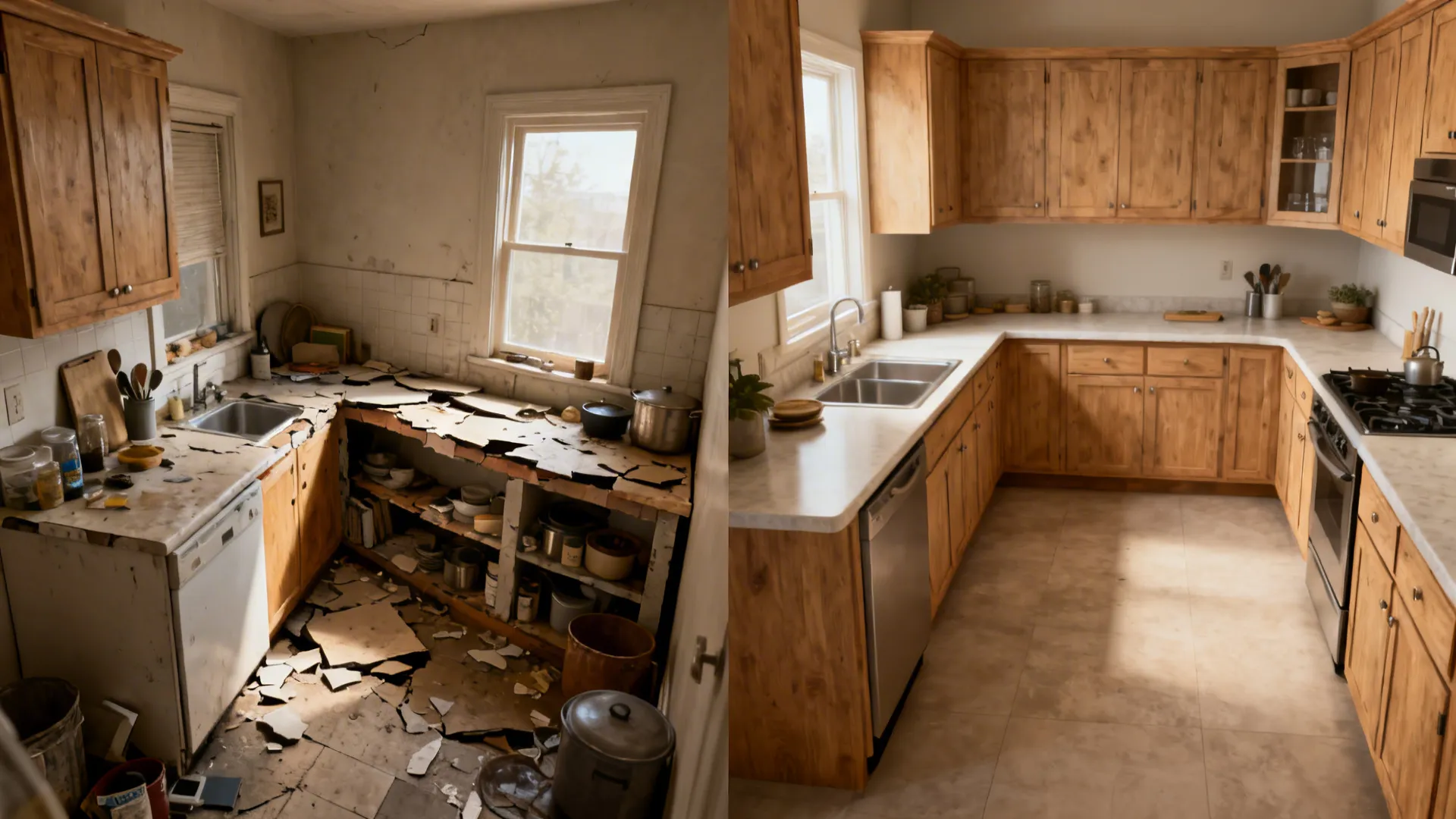

L-shaped layouts that maximize counters

My Take: For apartments under 8–9 m² kitchens, the L is my go-to. I’ve drawn countless L-shaped work triangles in AutoCAD, and the trick is corner clarity: will you use a void, a LeMans, or a diagonal sink base? Each has different clearances and hardware notes.

Pros: L-shapes compress circulation while expanding prep surface—great for small kitchen layout AutoCAD drawings that need a clean triangle. Precise corner modules in your kitchen interior design drawings in AutoCAD reduce change orders. The National Kitchen & Bath Association (NKBA) work triangle and clearances guideline remains a practical benchmark for appliance spacing and landing zones (NKBA Kitchen Planning Guidelines).

Cons: Corner solutions are a budget magnet. Deep fittings or custom carcasses quickly stack costs. And if your L is too tight, two cooks will learn the “kitchen tango,” which is charming once and annoying forever.

Tips/Costs: In plan, dimension the corner to the centerline of pull-outs and note hinge swing arcs. Always add a 100–150 mm filler if handles clash. For inspiration on flow, see this case on 玻璃背板让厨房更通透—I often translate such spatial moves into my 2D CAD with matching elevation tags.

save pin

save pin

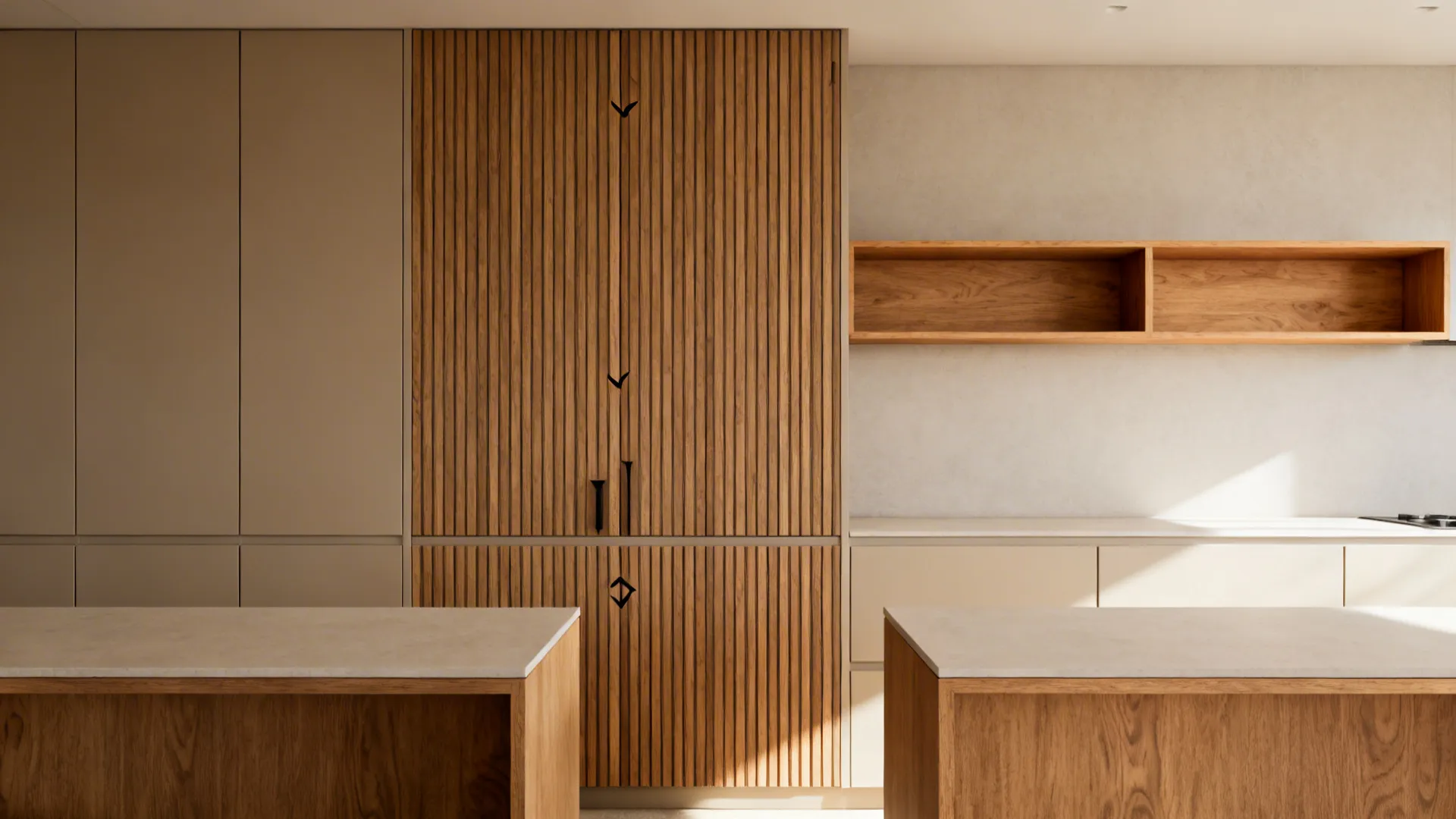

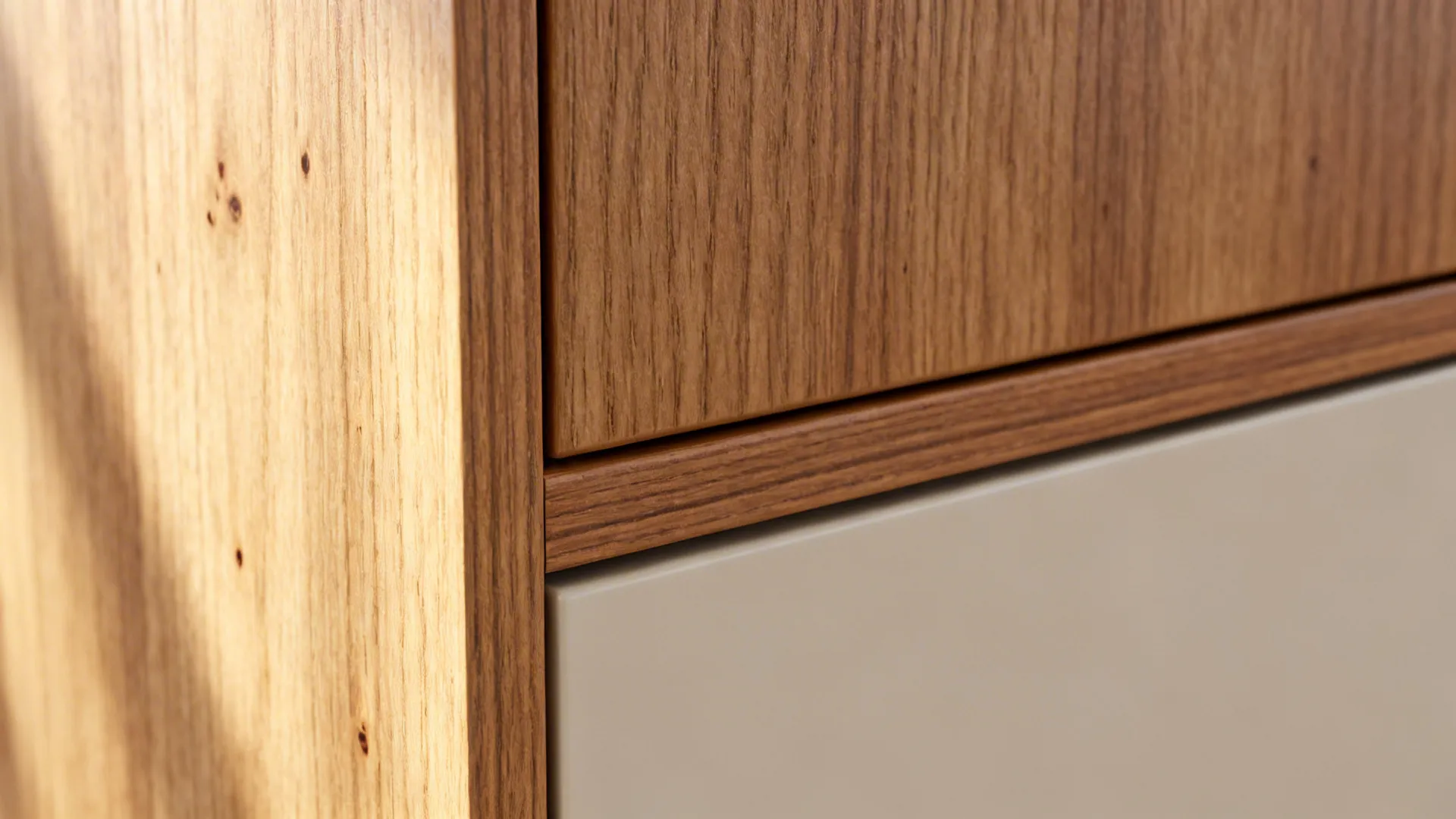

Warmth through wood (with discipline)

My Take: After a decade tailoring small homes, I’ve learned wood is the great softener. In AutoCAD, I specify veneer direction arrows and edge tape notes so the final look matches the design intent. It’s the difference between warm and “wood-ish.”

Pros: Introducing wood accents in kitchen AutoCAD elevations adds human-scale texture without visual clutter. When your kitchen interior design drawings in AutoCAD clarify veneer species, grain match, and panel sequence, fabricators deliver consistent warmth. Research from the University of British Columbia links wood surfaces with perceived well-being and reduced stress in interiors.

Cons: Wood is honest—it shows wear. If clients are splash-happy, unsealed edges will tell the tale. Also, specifying complex grain matching raises fabrication time and quotes; I’ve had to trim ambitions to keep the budget friendly.

Tips/Costs: Note moisture-resistant substrates near sinks, and specify a matte finish to hide micro-scratches. If budget is tight, limit wood to two vertical planes—say, open shelf and tall pantry face—to control cost while keeping the vibe.

save pin

save pin

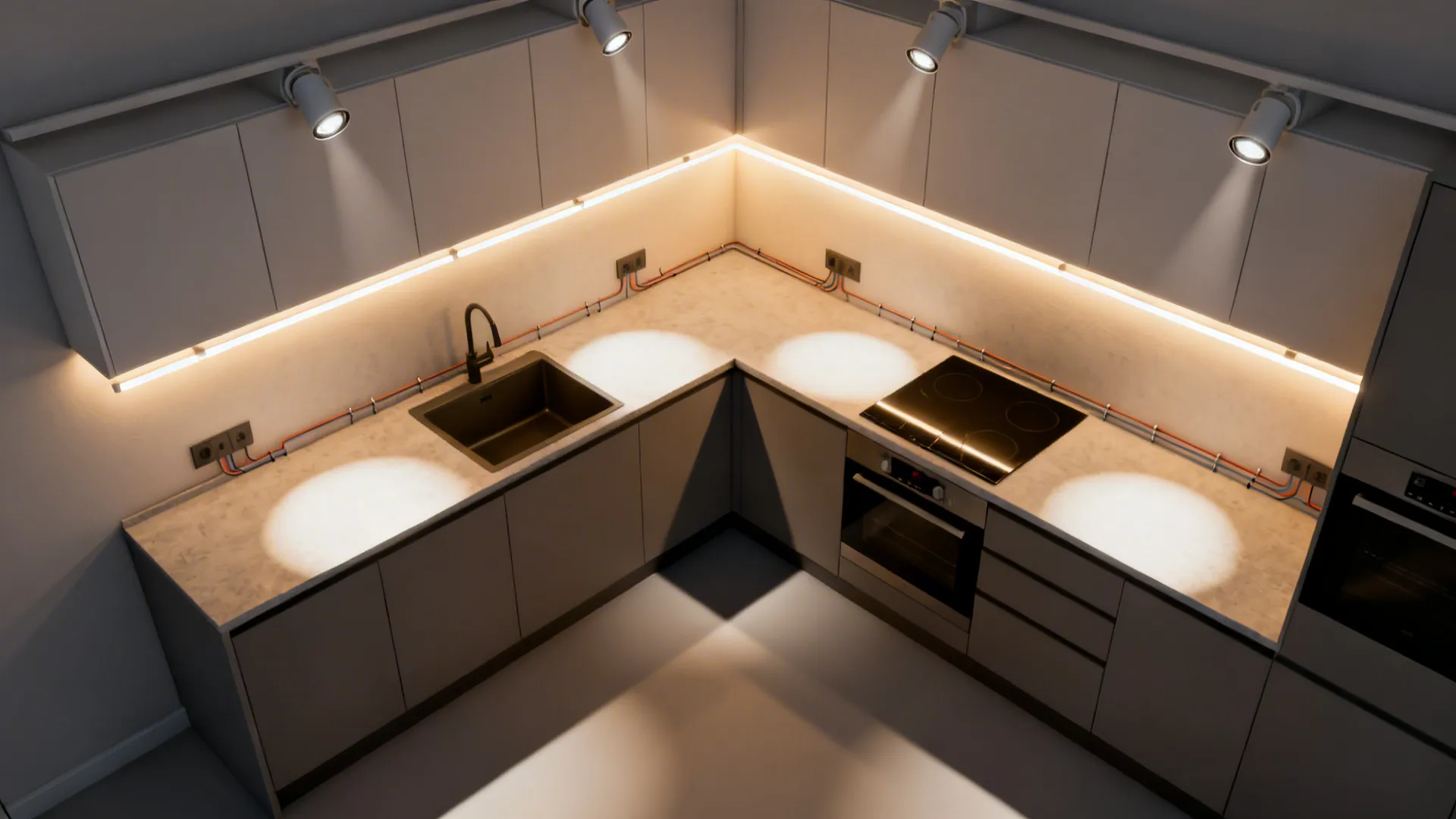

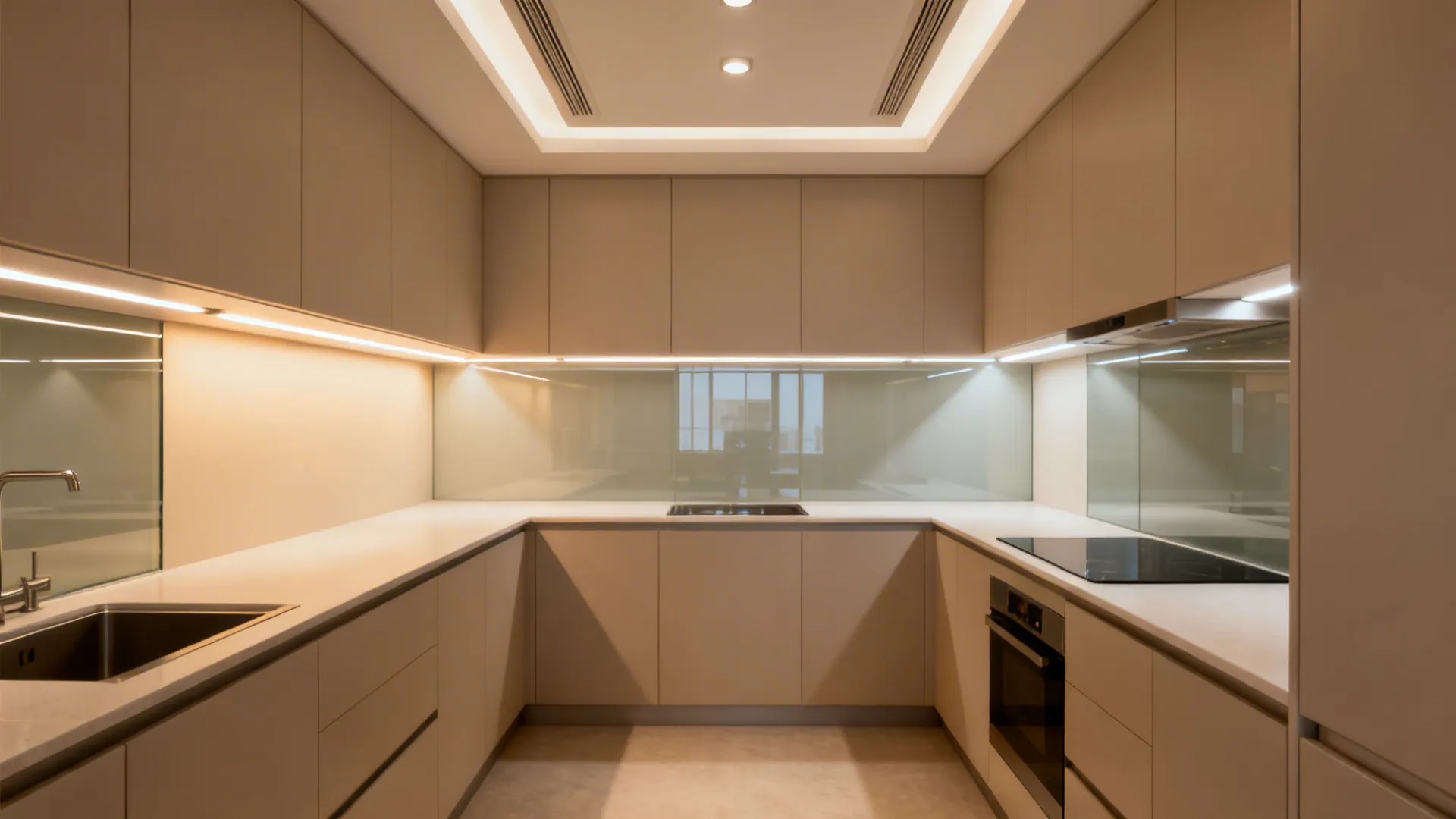

Precision lighting plans, not guesswork

My Take: The best small kitchens have lighting that works as hard as the layout. I detail 3 circuits in CAD: task under-cabinet, ambient ceiling, and accent wall-wash. A simple layer system—LGT-TASK, LGT-AMB, LGT-ACC—keeps everyone synced.

Pros: Coordinated lighting in kitchen AutoCAD reflected ceiling plans prevents shadows at chop zones and glare on glossy backsplashes. When your kitchen interior design drawings in AutoCAD specify beam angles and setback distances, you’ll get consistent countertop luminance. The Illuminating Engineering Society (IES) recommends 300–500 lux for kitchen task areas; planning this in CAD avoids underlit prep.

Cons: Too many dimmers and color temps can create “decision fatigue.” I once delivered a client five CCT options and got a 2 a.m. text begging for mercy. Keep the palette tight.

Tips/Costs: Add a lux note to task zones (e.g., 400 lux at counter) and a standard mounting height for strips. Mid-range LED strips plus drivers add upfront cost but save on energy and replacement down the line. For a spatial walkthrough approach I often pair with CAD, browse this case on 木质元素带来的温暖氛围—it’s helpful to translate atmospheric goals back into precise lighting notes.

[Section: 进阶绘图要点]

Layering and standards: Use a consistent layer naming system: CAB-BASE, CAB-TALL, APP-REF, ELEC-OUT, PLM-WTR, LGT-TASK, and detail lineweights. Publish a one-page CAD legend so GCs don’t guess.

Modules and blocks: Build dynamic blocks for appliances with swing arcs, service clearances, and centerline labels. Your kitchen interior design drawings in AutoCAD will read faster and coordinate better with MEP.

Dimensions that matter: Note countertop height, toe-kick recess, appliance service space, and minimum walkway widths (NKBA suggests 915 mm for work aisles, more for two cooks). Add typicals to reduce repetitive notes.

Schedules and tags: Link elevation tags to a cabinet schedule with code names (B600-1DR, T600-SHLV, P450-PULL). Clear schedules are the unsung heroes of a smooth install.

[Section: 实战流程与沟通]

Start with a bubble plan, translate to a dimensioned AutoCAD plan, then generate elevations and a reflected ceiling plan. I always hold a 30-minute trade review to walk through corner details, outlet placements, and lighting circuits. One missed outlet can cost more than an hour of coordination.

During site measure, verify walls, plumbing stack positions, and floor level variations. I add a redlined as-built layer in CAD so any deviation is documented. Builders appreciate this rigor—and so does your future self.

[Section: 成本与时间控制]

Set a drawing scope by phases: concept (plan options), DD (locking dimensions and major specs), CD (fully detailed elevations, schedules, lighting, and notes). On small kitchens, I budget 18–28 designer hours to reach CDs if the client decides quickly; more if there’s scope creep.

Cost control lives in corners, hardware, and lighting. If the budget needs trimming, I first simplify corner fittings, then adjust veneer specs, and finally scale back accent lighting while protecting task light and storage function.

[Section: 常见错误清单]

- Forgetting appliance service clearances in AutoCAD sections—techs will make you move cabinets after install.

- Mixing 2700K and 4000K lamps—your backsplash will look confused. Choose a tight CCT range.

- Over-relying on overlays without showing true wall thickness or fur-outs—especially important near risers and ducts.

- Ignoring ergonomic heights for frequent-use storage—upper shelves at 1800 mm+ become museum shelves.

[Section: 示例标注模板片段]- Backsplash: 10 mm low-iron glass, polished edges, neutral cure silicone, outlets flush; height 550 mm. See Elev. E3.

- Base cabinet: B600-1DR, H=720, toe=80, finish: matte lacquer, pull: 160 mm c/c; see Cab. Schedule.

- Lighting: LED strip, 3000K, 400–500 lux at counter, diffuser continuous; driver in adjacent tall unit; see RCP.

[Section: 参考与数据]- NKBA Kitchen Planning Guidelines: clearances and landing zones.

- IES Lighting Recommendations: task illuminance for kitchens.

- WELL Building Standard v2: glare control and light quality.

- Harvard JCHS remodeling briefs: storage planning and lifecycle considerations.

[Section: 总结]

A small kitchen isn’t a limitation—it’s an invitation to design smarter. With thoughtful kitchen interior design drawings in AutoCAD, you can lock in clear storage, reflective surfaces, ergonomic layouts, warm materials, and layered lighting before anyone picks up a saw. As NKBA guidance and IES recommendations show, good planning beats good luck every time. Which of these five design inspirations are you most excited to test in your next CAD set?

[Section: FAQ 常见问题]

save pin

save pin

FAQ

1) What is the best workflow for kitchen interior design drawings in AutoCAD?

Start with a dimensioned plan, then draft elevations, sections, a reflected ceiling plan, and cabinet schedules. Lock key dimensions early and hold a trade review so MEP, millwork, and electrical align.

2) How wide should kitchen aisles be in small layouts?

For one cook, 915 mm is a common target; for two cooks, plan 1065–1220 mm when possible. The NKBA Kitchen Planning Guidelines are a reliable reference for clearances and landing zones.

3) How do I show lighting properly in AutoCAD kitchen drawings?

Create a reflected ceiling plan with layers for ambient, task, and accent lights. Note beam angles, setbacks from wall cabinets, and target 300–500 lux at the countertop per IES task recommendations.

4) What’s the easiest way to model corner cabinets in AutoCAD?

Use dynamic blocks with swing arcs and centerlines, and dimension to hardware centerpoints. Add fillers in the plan to prevent handle collisions and clarify internal pull-out clearances.

5) Are glass backsplashes worth it for small kitchens?

Yes, they amplify light and add depth, especially when paired with controlled glare and matte counters. Detail edges, outlets, and sealants in your drawings to avoid fabrication surprises.

6) How can I keep minimalist storage practical?

Combine clean fronts with a pull-out pantry, internal dividers, and a few open shelves. In your kitchen interior design drawings in AutoCAD, standardize shelf heights and show accessory locations so the build matches intent.

7) What file setup improves coordination with contractors?

Use a simple layer naming convention (e.g., CAB-BASE, ELEC-OUT, LGT-TASK), publish a one-page legend, and issue PDFs with bookmarked sheets. A linked cabinet schedule reduces field questions.

8) Where can I see layout ideas before drafting?

Case galleries help you visualize flow and finishes; for example, this example of 极简风的厨房收纳设计 can inspire how you translate storage concepts into your CAD elevations. Always convert inspiration into precise dimensions and notes.
