5 kitchen layout ideas on graph paper (pro designer’s guide): My 5 field-tested ways to draw a kitchen layout on graph paper—accurate, fast, and renovation-ready

[Section: 引言]

I’ve drawn more than a hundred small-kitchen plans on graph paper, and the trend I keep seeing in 2025 is clear lines, compact zones, and storage that works harder than ever. Small spaces spark big creativity—especially when you sketch first. In this guide, I’ll share 5 kitchen layout ideas you can draw on graph paper, combining my hands-on experience with expert-backed data.

Before we dive in, grab a pencil, an eraser, a ruler, and 1/4" graph paper. We’ll translate real measurements into clean, buildable sketches, and I’ll show you how I sanity-check my drawings with “scale blocks” for appliances.

[Section: 灵感列表]

Minimalist storage that actually fits

My Take

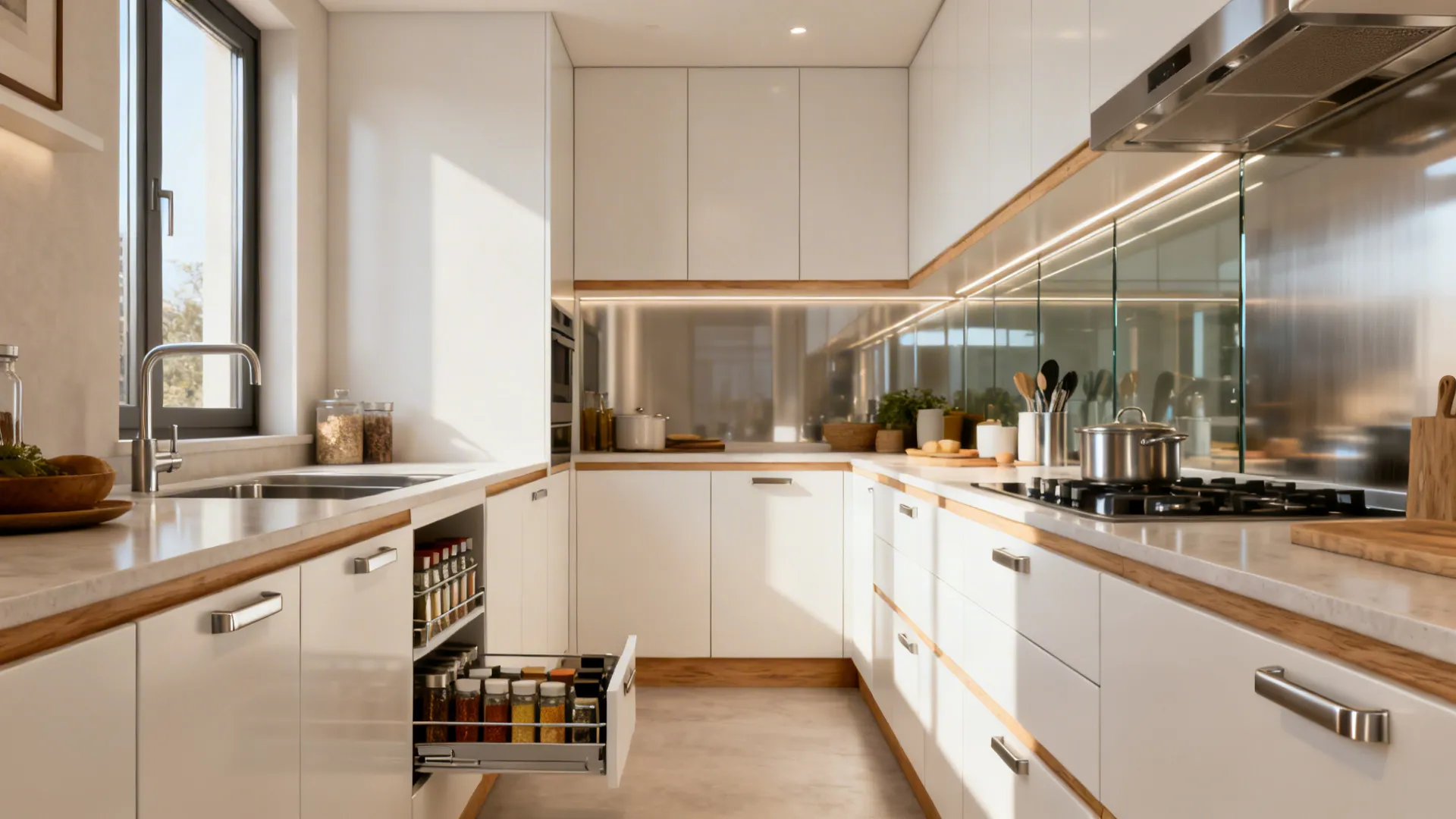

I once helped a couple in a 6.5 ft × 9 ft galley—every inch mattered. On graph paper, I started by tracing only what they used daily, then mapped slim pull-outs and a shallow pantry. The plan looked sparse at first, but it performed beautifully.

Pros

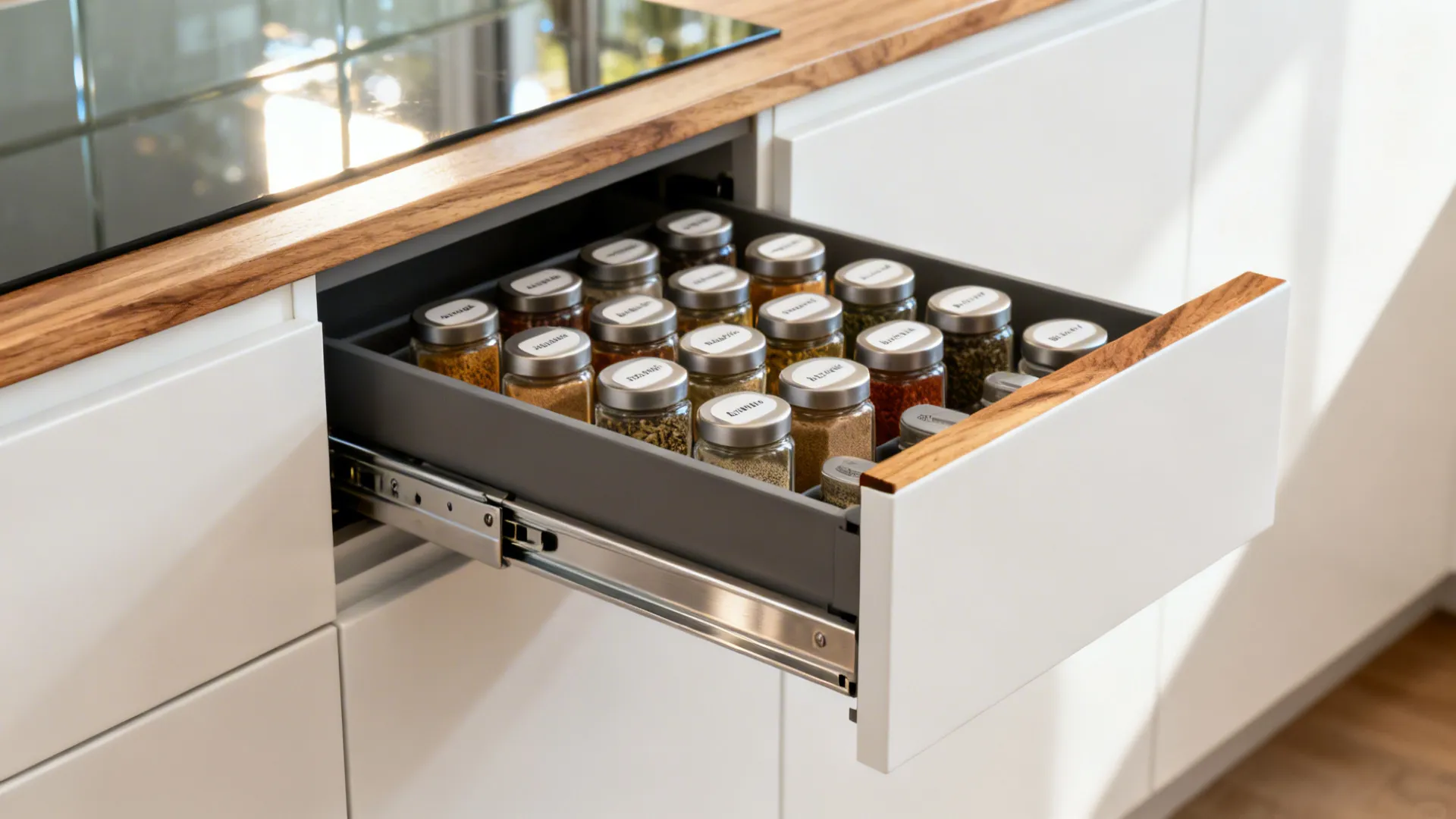

Decluttering at the planning stage means you design only for essentials, a core minimalist kitchen strategy that keeps lines clean and traffic clear. On graph paper you can layer zones and test micro-storage—like 6-inch spice pull-outs—before buying hardware, a practical long-tail approach to small kitchen organization.

Cons

Minimalism can feel cold if you strip too much; I’ve had clients miss their “junk drawer” after demo. Also, ultra-slim cabinets cost more per inch, so your budget may feel it even though you’re designing less.

Tip / Cost

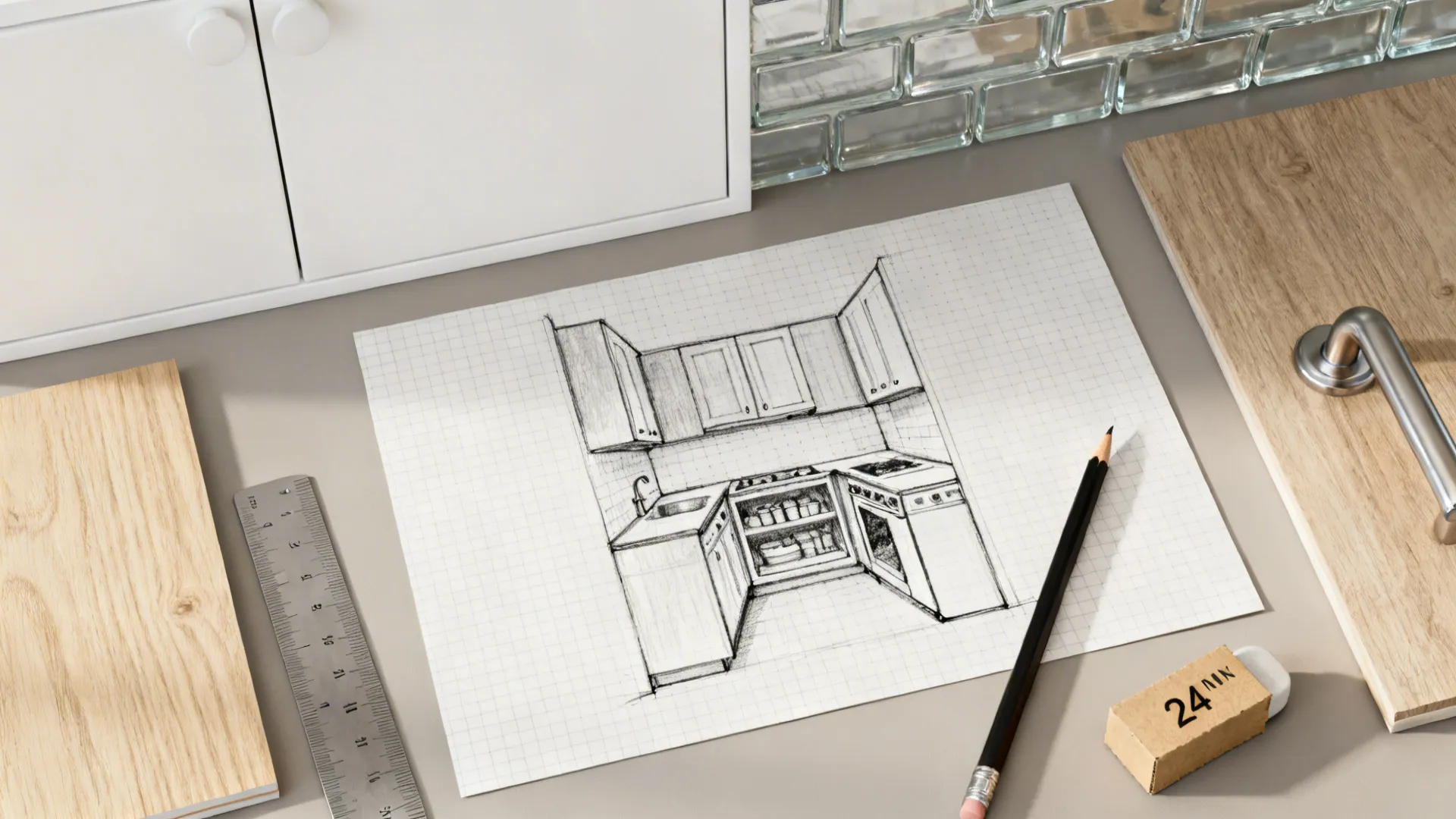

Use scale: 1 square = 6 inches. Create cardboard “blocks” for a 24" cooktop, 24" oven, and 24–30" fridge, then shuffle them on the paper until the workflow clicks. For visual lightness and planning reference, check how glass backsplash opens up a compact kitchen—I often note reflective surfaces on my sketch to keep the room feeling bigger.

save pin

save pin

save pin

U-shaped layout for efficient triangles

My Take

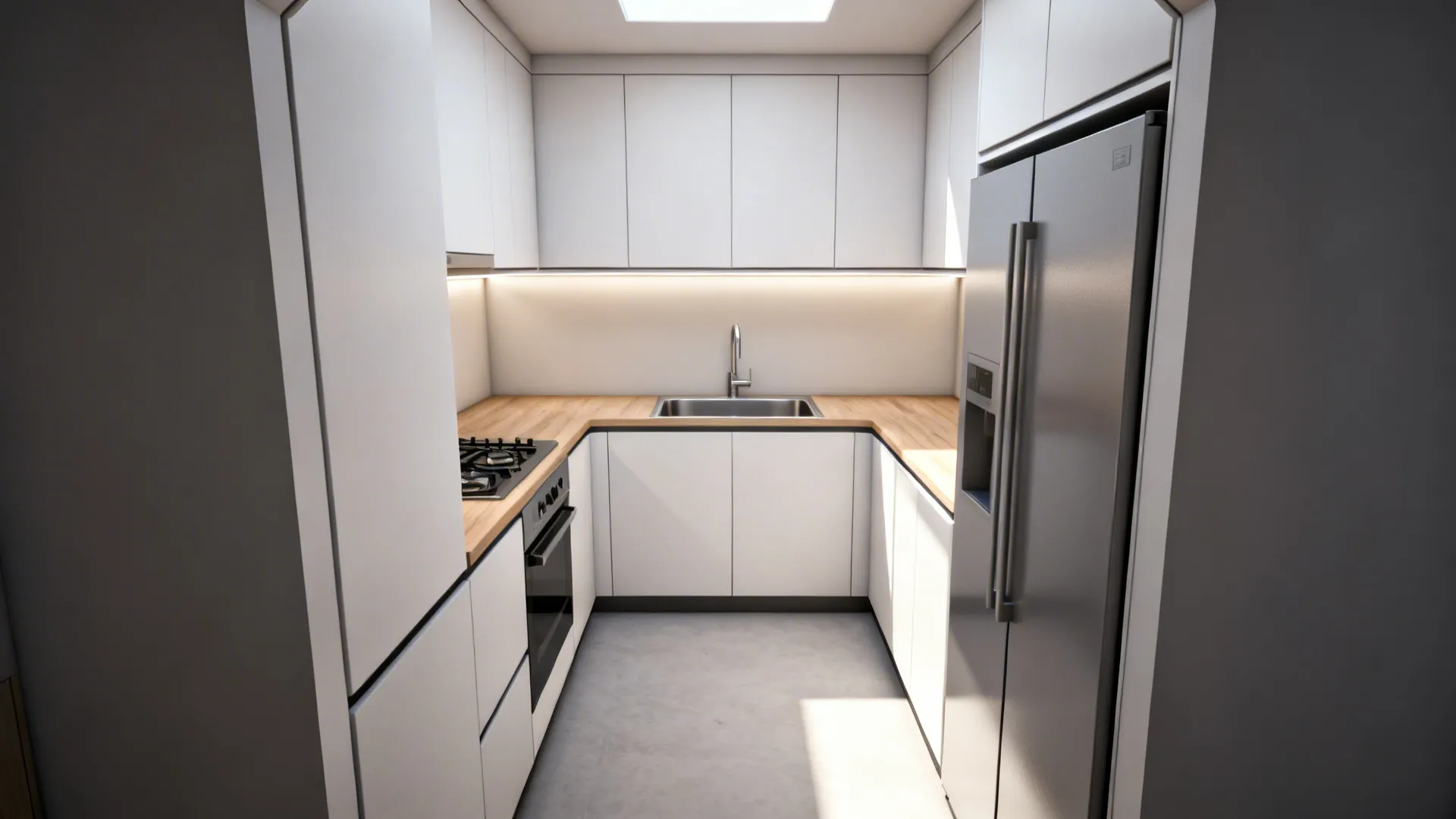

In a 7 ft × 10 ft rental upgrade, I sketched a U to tighten the work triangle—sink on the base of the U, cooktop and fridge at the legs. On paper, I left a 40-inch inner aisle to avoid elbow wars—learned that one the hard way.

Pros

Short, direct paths between sink, cooktop, and fridge improve prep speed; the work triangle guideline still holds if adapted. According to the NKBA, recommended aisle width in work zones is 42 inches for one cook and 48 inches for two; when drawing to scale on graph paper you can verify clearances and ensure your kitchen workflow for small spaces meets those aisle standards (NKBA Kitchen Planning Guidelines).

Cons

U-shapes can feel boxed in if the inner aisle drops under 36 inches. Corners need special hardware—lazy Susans or blind-corner pull-outs—which adds complexity and cost to an otherwise simple drawing.

Tip / Case

Sketch corners first; block a 36" lazy Susan and mark door swings. If your room is under 6.5 ft wide, consider switching to a G-shape peninsula for seating. Mid-article check: when I verify a U’s efficiency, I sometimes simulate it in 3D after the sketch—see how an L-shaped plan frees more counter space and compare the traffic lines to your U before you commit.

save pin

save pin

L-shaped plan to unlock counter length

My Take

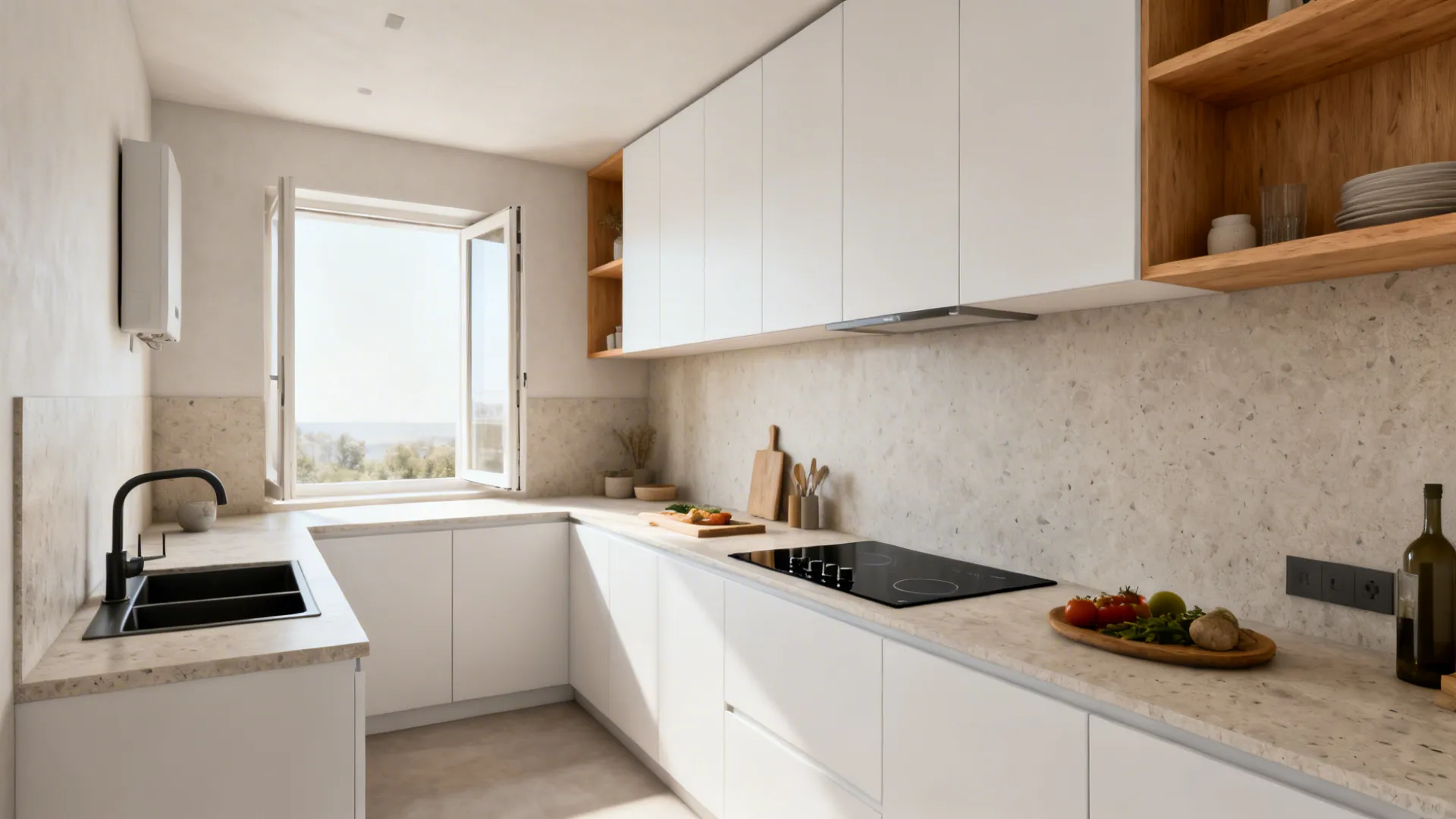

For a studio client, the L-shape was a quiet hero: sink on the short leg, induction and prep on the long run. On paper, I pushed uppers to one wall only to keep the other side light and open.

Pros

The L creates one long uninterrupted prep zone, great for baking or batch cooking. It’s flexible for small kitchen layout planning with island add-ons later—your drawing can evolve from L to L + cart without redoing utilities, a scalable long-tail strategy for growing households.

Cons

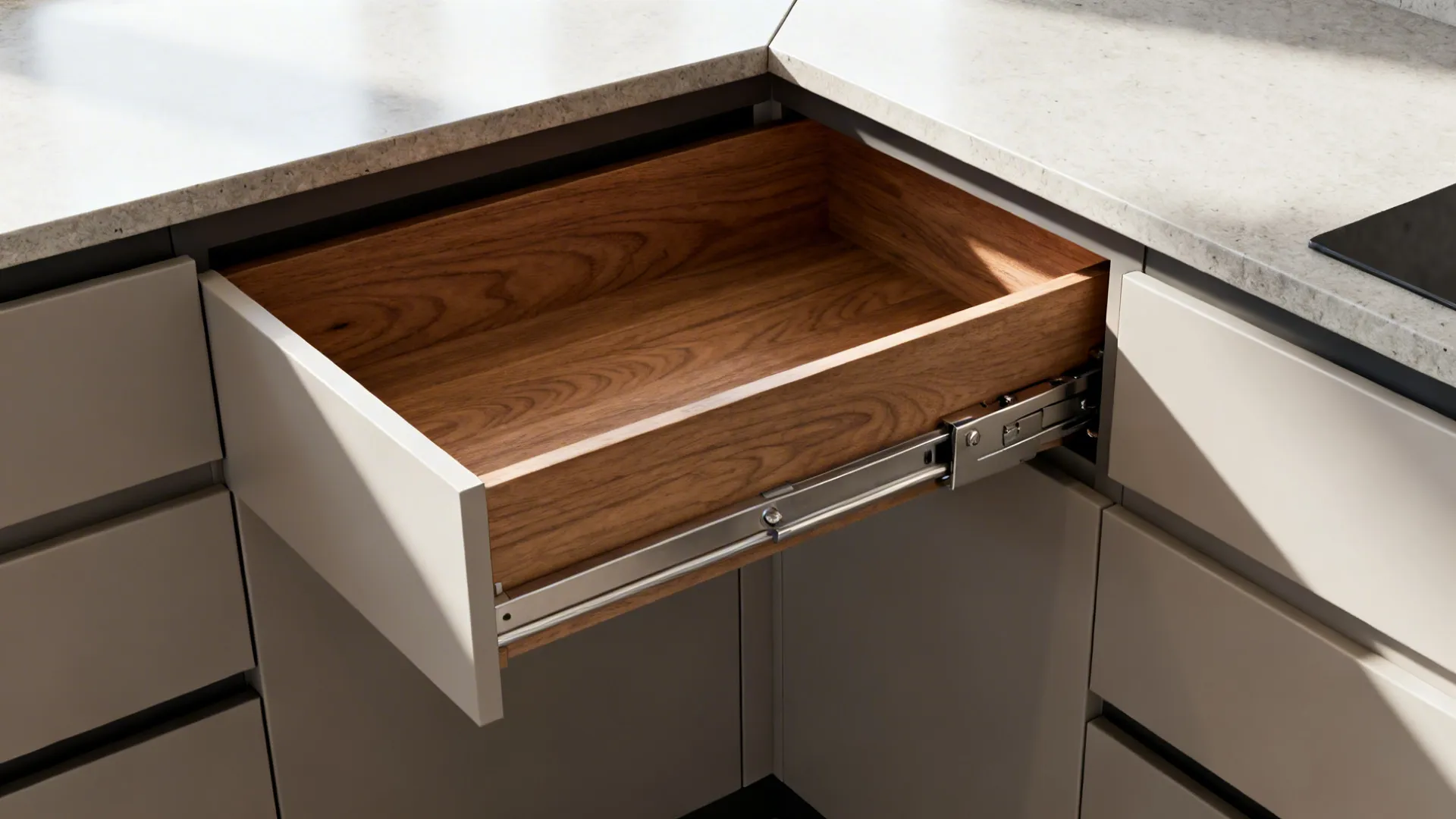

Corner management is still a thing; without planning, you’ll lose a black hole of storage. Also, people tend to overextend the long leg; if it runs past 10–11 ft without a landing zone, you’ll walk extra miles fetching tools.

Tip / Scale

On graph paper, lock a 24" landing zone on both sides of the cooktop and at least 18" near the sink. Want to visualize reflectivity and counter continuity? Compare with a rendering that shows how wood accents add warmth without visually shrinking the room; I annotate material cues directly on my grid so installers get the intent.

save pin

save pin

Galley layout with smart aisles

My Take

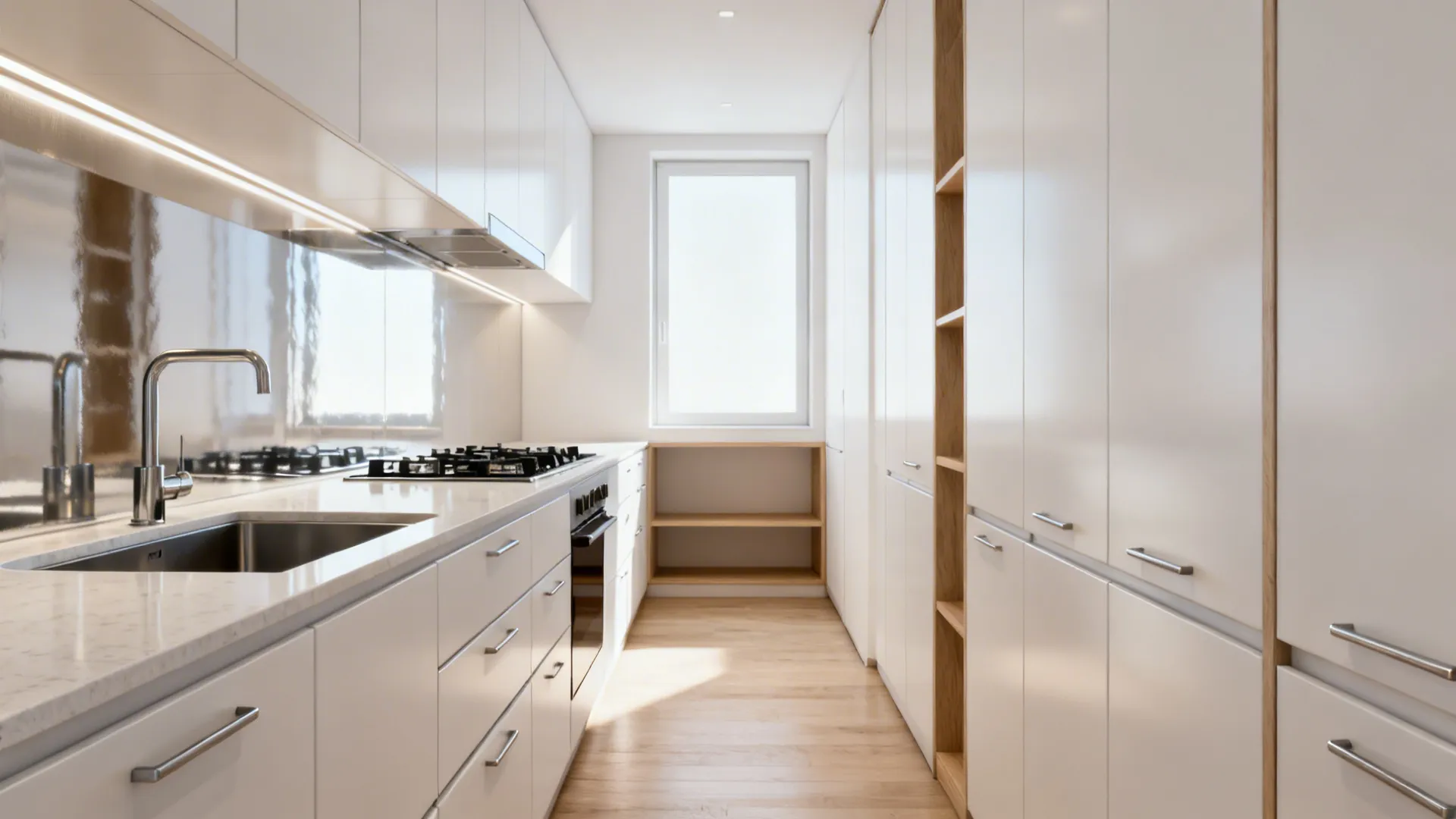

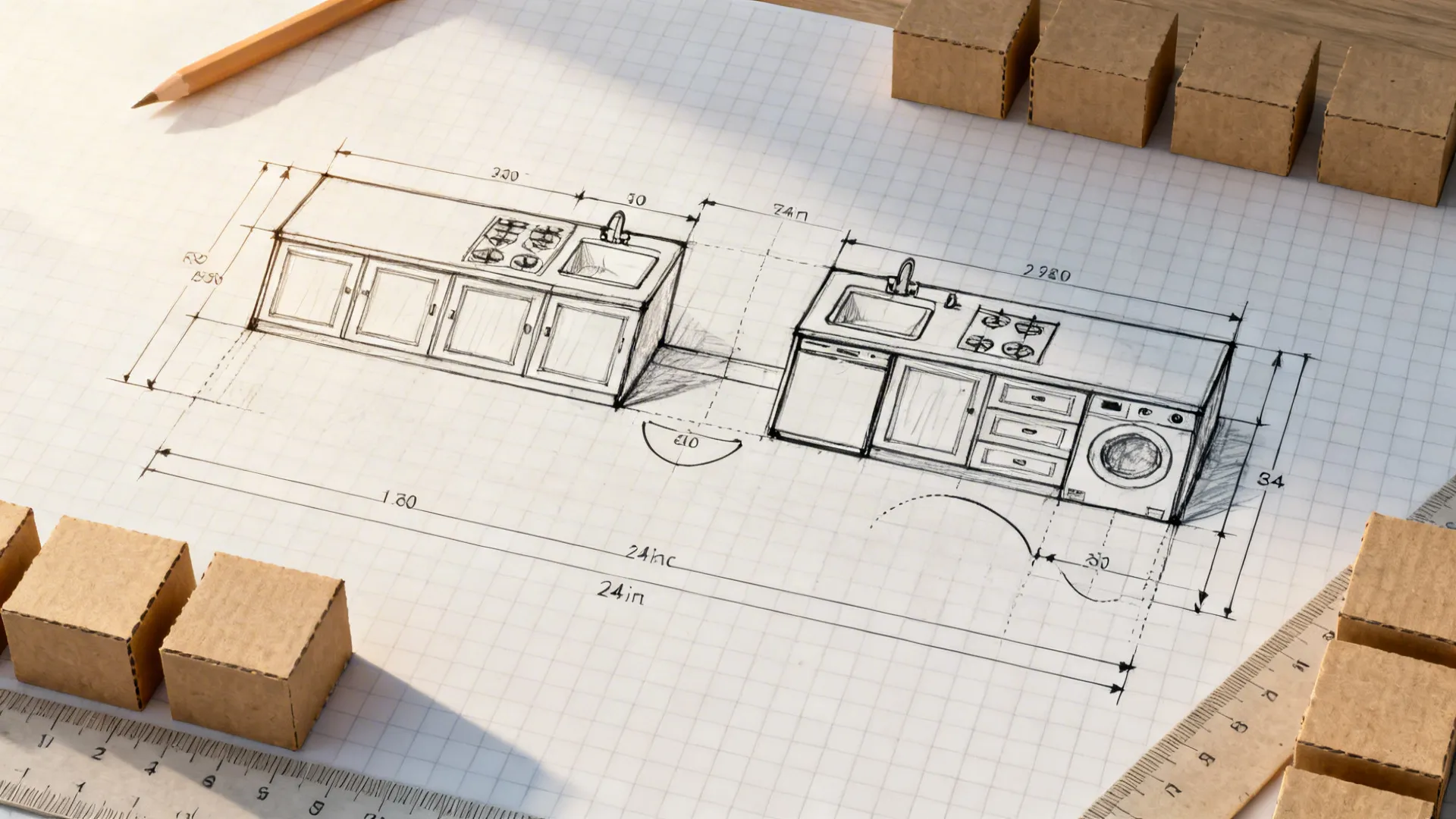

Galleys are my go-to for narrow apartments. I once reworked a 5 ft 10 in wide room by offsetting the sink and cooktop on opposite runs, drawn precisely on 1/4" grid so drawers never collided.

Pros

Parallel runs maximize linear storage and keep steps minimal—ideal for small kitchen workflow optimization. With graph paper you can place appliance “no-fly zones” (door arcs) to guarantee drawers and ovens open cleanly, a precise clearance-planning method for tight kitchens.

Cons

Two-cook scenarios get cramped fast, especially if the aisle is under 40 inches. Also, galley ends can feel abrupt; without an open shelf or glass panel, the eye stops hard at the wall.

Tip / Data

Mark door swings: a 24" dishwasher needs about 27–28" for full open plus toe room. The CDC notes that slips and trips increase in congested work areas; planning clear walkways on paper helps reduce collision points (CDC, Home Safety). For brightness, I sketch a reflective backsplash opposite the window to bounce light along the aisle.

save pin

save pin

One-wall kitchen with a stealth pantry

My Take

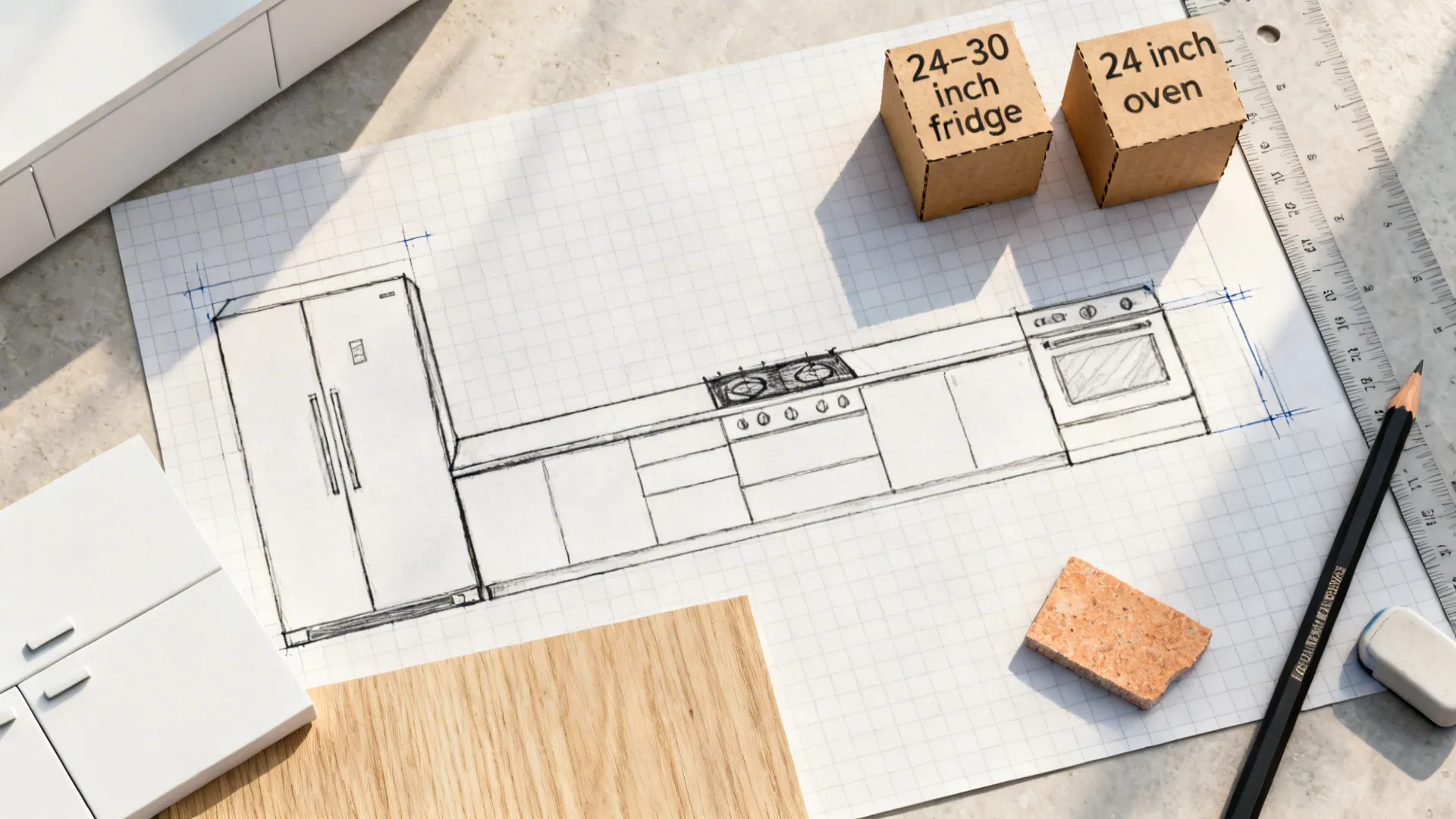

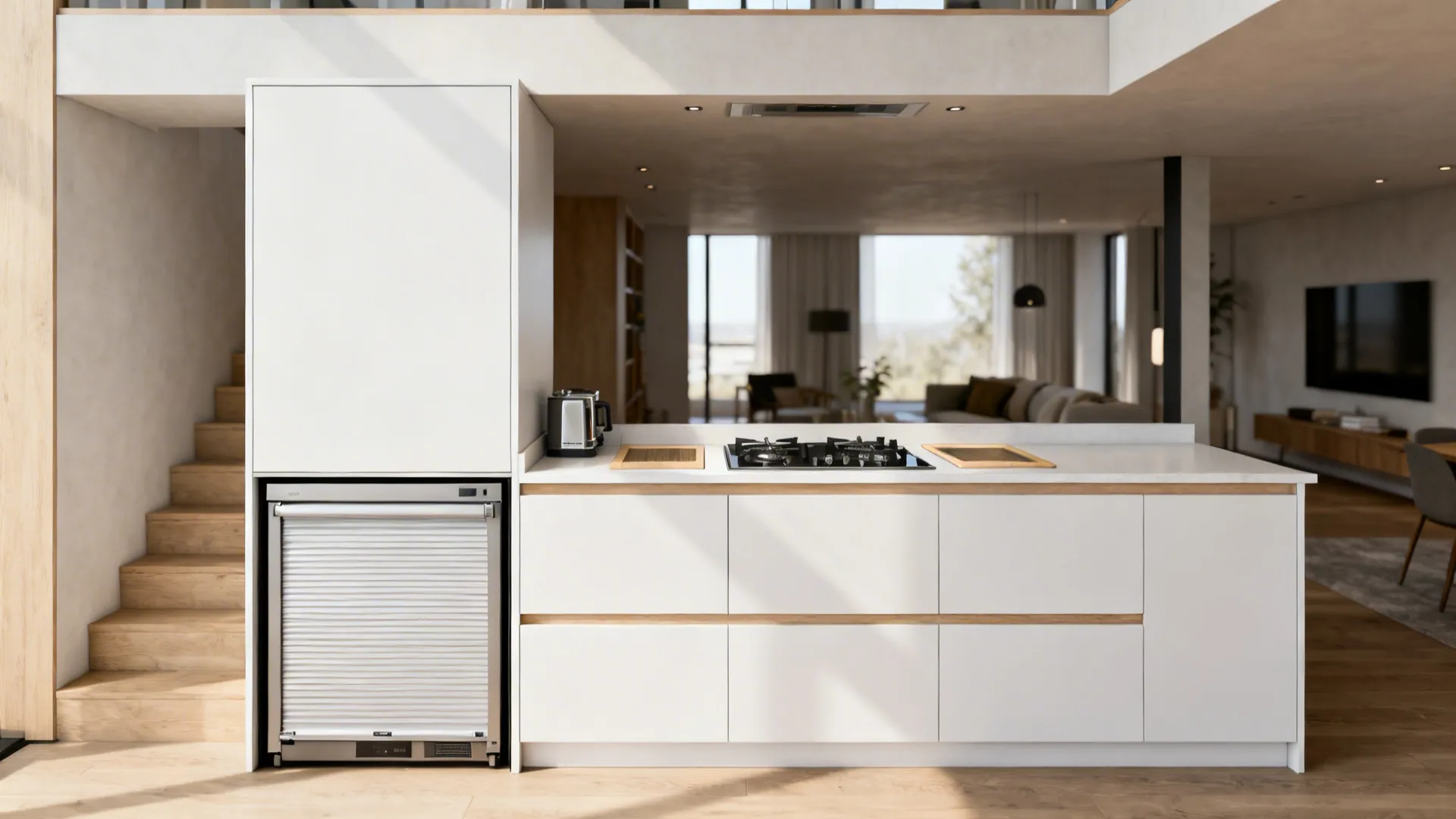

In micro-lofts, I draft a single run with integrated tall storage at one end—what I call the “stealth pantry.” On graph paper, I keep the cooktop central with 24" landings; it feels intentional, not like an afterthought.

Pros

One walls are budget-friendly and renter-proof; utilities stack neatly, and you can pre-label outlets on your sketch for easy coordination. It’s a strong approach to small kitchen layout on graph paper when you need clean lines for living-dining flow.

Cons

Limited counter space is the trade-off; chopping and plating can compete. If the fridge lands at the room edge, door clearance against a wall can be tight—measure twice, draw once.

Tip / Budget

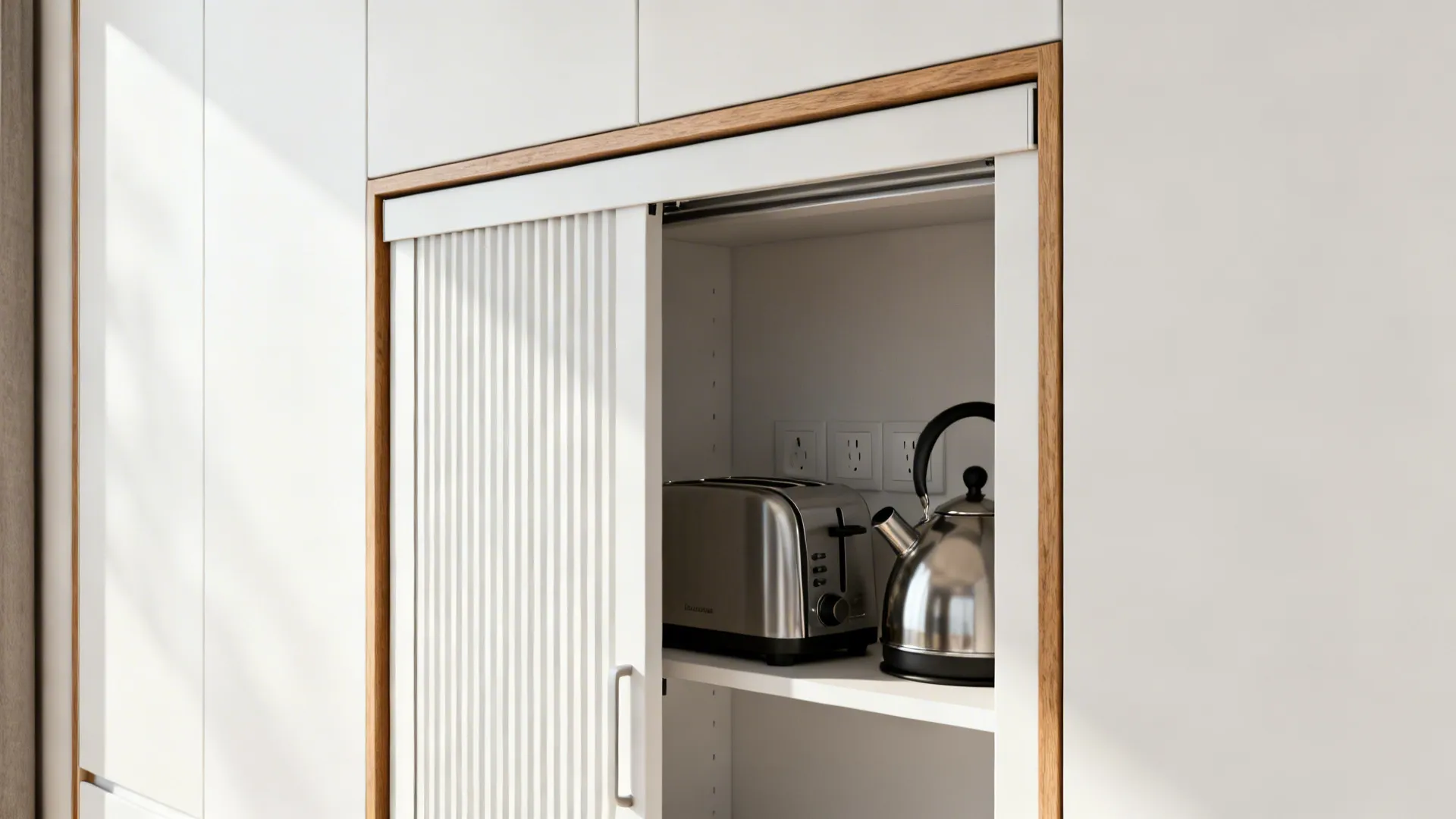

Draw an appliance garage (24–30" wide) beside the pantry to hide the toaster and kettle—big calm for little money. If you pivot later to a peninsula, keep the run symmetric so you can attach seating without moving the sink. For further paper-to-digital checks, I sometimes compare with a quick layout tool that excels at planning peninsulas—look at peninsula seating that still keeps clearances and mirror those dimensions on your grid.

[Section: 总结]

Small kitchens call for smarter design, not compromise. When you draw a kitchen layout on graph paper, you see clearances, landings, and door arcs before a single cabinet is ordered—an old-school step that saves modern budgets. NKBA’s spacing guidelines and real-world traffic notes make your sketch build-worthy. Which of these five ideas are you most excited to try on your own grid?

[Section: FAQ 常见问题]

save pin

save pin

save pin

FAQ

1) What scale should I use to draw a kitchen layout on graph paper?

For most rooms, 1 square = 6 inches on 1/4" graph paper works well. If your kitchen is very small, use 1 square = 3 inches for finer detail.

2) How do I place the work triangle on graph paper?

Plot sink, cooktop, and fridge first, then measure triangle legs. Keep each leg roughly 4–9 ft and total 13–26 ft; adjust to your room while honoring clearances.

3) What aisle width should I draw for a one-cook kitchen?

The NKBA recommends about 42 inches for one cook and 48 inches for two. Draw the aisles on your grid and simulate door swings to confirm real clearance (NKBA Kitchen Planning Guidelines).

4) How do I account for appliance door swings?

Trace the full arc: fridges often need 2–4 inches beyond cabinet lines, and dishwashers need about 27–28 inches to open comfortably. Add toe space for safer movement.

5) Can I test materials while drawing on paper?

Yes—mark finishes where they influence light. For instance, note a reflective backsplash opposite a window to boost brightness in a galley.

6) What’s the best small kitchen layout on graph paper?

There’s no single best. L-shapes unlock counters, galleys maximize storage, and U-shapes tighten workflow. Choose based on room width, doors, and windows.

7) How do I ensure accurate measurements?

Measure walls, ceiling height, windows, and outlets; double-check diagonals for squareness. Transfer to graph paper immediately so you don’t forget small offsets.

8) Can I validate my sketch digitally after drawing?

Absolutely. I sometimes compare paper sketches with a quick digital check—looking at examples of L-shape continuity and counter spacing can help you sanity-check dimensions before ordering.
