5 Kitchen Slab Design Ideas in Revit (Pro Tips Inside): Small spaces spark big ideas—here are my 5 battle‑tested ways to design kitchen slabs in Revit with clean models, smart families, and build‑ready details.

As an interior designer who’s remodeled more small kitchens than I can count, I’ve learned that a smart kitchen slab in Revit isn’t just a model—it’s your countertop’s build manual. Right now, clean lines, durable surfaces, and integrated lighting are the trends I keep seeing in compact homes. Small spaces spark big ideas, and in this guide I’ll share 5 design inspirations for how to design kitchen slab in Revit, blending my field experience with expert references and practical modeling steps. You’ll find pros, cons, and the exact long‑tail tips I use in client projects.

Before we dive in, if you want a quick visual case reference for planning a compact kitchen, this gallery on L-shaped countertop layouts aligns well with the first idea below.

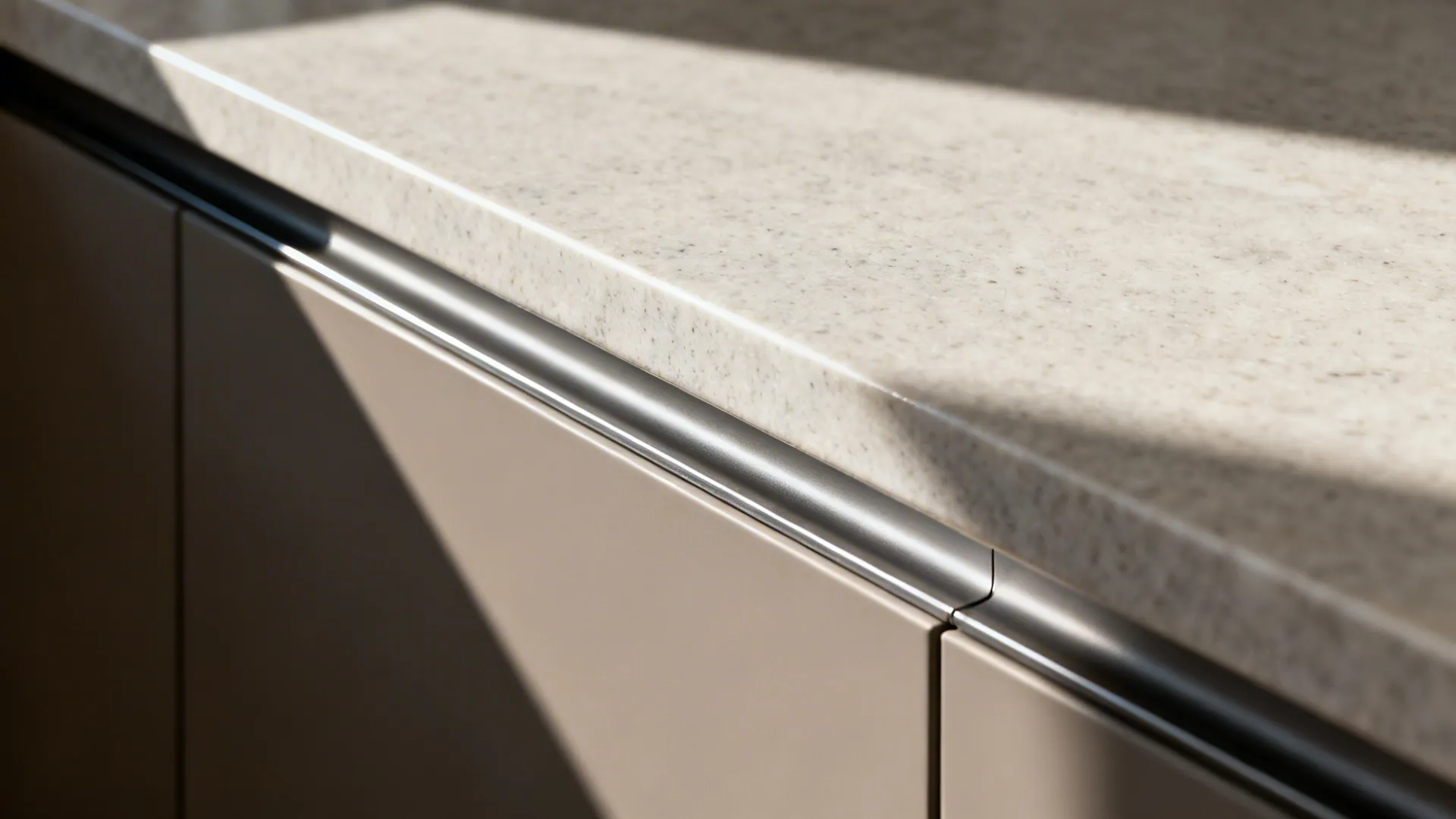

Minimalist slab with integrated storage reveal

My Take: In many 6–8 m² kitchens I’ve remodeled, a minimalist slab with a slim shadow reveal above base cabinets keeps the profile light and the usability high. In Revit, I model the slab as a dedicated family with parametric thickness and an offset void for that clean reveal line, so it reads crisp in both plans and sections.

Pros: A minimalist kitchen slab design in Revit is fast to document—your detail sections can pull directly from the family. Using a parametric countertop thickness in Revit (e.g., 18–40 mm) helps test stone vs. compact laminate without redrawing. This long-tail approach—“parametric kitchen countertop modeling in Revit”—makes scheduling and material swaps painless.

Cons: Too much minimalism can look sterile; I once had a client say their kitchen felt like a lab until we warmed up the finishes. Very thin edges modeled without proper support can mislead contractors—keep the core accurate or add a shop-edge detail.

Tips / Case / Cost: I keep a detail item for hidden aluminum profile pulls that aligns with the slab reveal; it speeds up consistent documentation. Cost-wise, slim quartz trims look light but require careful edge finishing—budget a small premium for mitered returns.

save pin

save pin

Back-painted glass backsplash and slab continuity

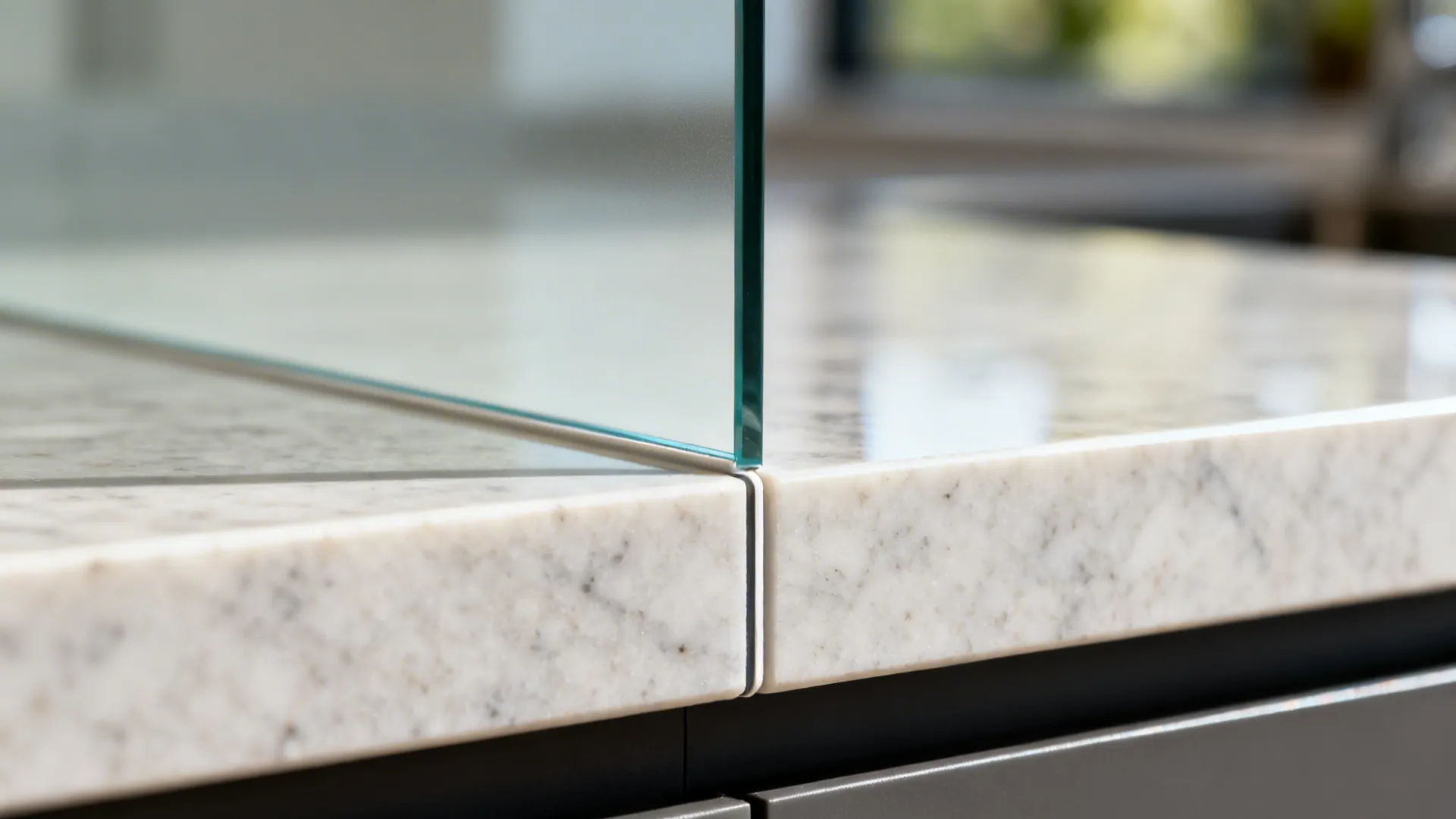

My Take: A continuous countertop with a 50–100 mm upstand that meets a back-painted glass panel is my go-to in tight kitchens. In Revit, I model the slab as a host-based countertop and the glass as a wall finish with a material parameter for color so client changes take seconds.

Pros: It’s hygienic and easy to clean; smooth surfaces reduce grout lines. In Revit, “glass backsplash material scheduling” lets you quantify square meters quickly for procurement. For credibility, the NKBA Kitchen & Bath Planning Guidelines emphasize cleanable, nonabsorbent splash zones, aligning with this detail.

Cons: Fingerprints—especially on deep colors—are real; I joke that dark glass is a ‘daily mindfulness exercise’ with a microfiber cloth. You also need precise measurements; any out-of-plumb wall becomes obvious with reflective glass.

Tips / Case / Cost: In families, set a small tolerance joint (2–3 mm) between slab upstand and glass; it helps contractors and avoids clashes. Tempered glass or low-iron options cost more—flag this early in your budget sheet.

save pin

save pin

L-shaped slab to maximize counter run

My Take: In small apartments, I repeatedly return to an L-shaped slab: it unlocks more prep surface and better triangle flow between sink, hob, and fridge. In Revit, I use a parametric L-shaped counter family with adjustable leg lengths and corner radii for safe circulation.

Pros: The long-tail technique—“L-shaped kitchen slab modeling in Revit”—improves appliance clearances and keeps corner cabinets workable. Parametric corner cutouts for sinks or hobs help fit standard modules without remaking the family.

Cons: Corner seams in stone can be tricky; you’ll want to detail the joint and grain direction. In tiny spaces, the L can crowd dining— test clearances in Revit with a 3D section box to avoid knee bumps later.

Tips / Case / Cost: I often align the inner L angle with a clipped 45° in Revit to soften workflow around the corner. Mid-tier quartz with reinforced L-joints offers better durability than budget laminates if clients cook daily. Around halfway through your planning, it’s helpful to skim a compact gallery like optimized corner transitions in small kitchens to stress-test the turn and clearances before locking specs.

save pin

save pin

Warm wood edge accents on a stone slab

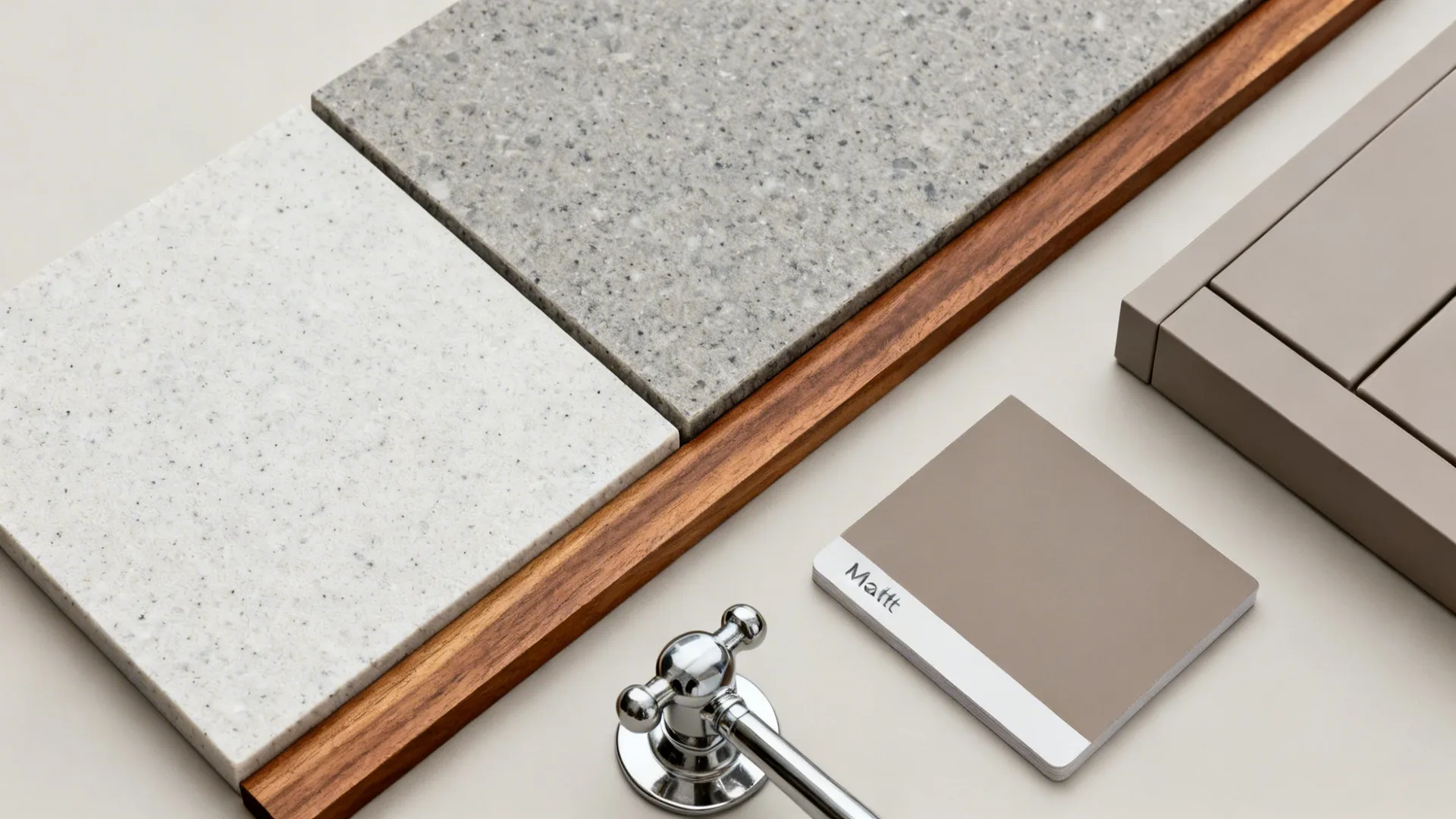

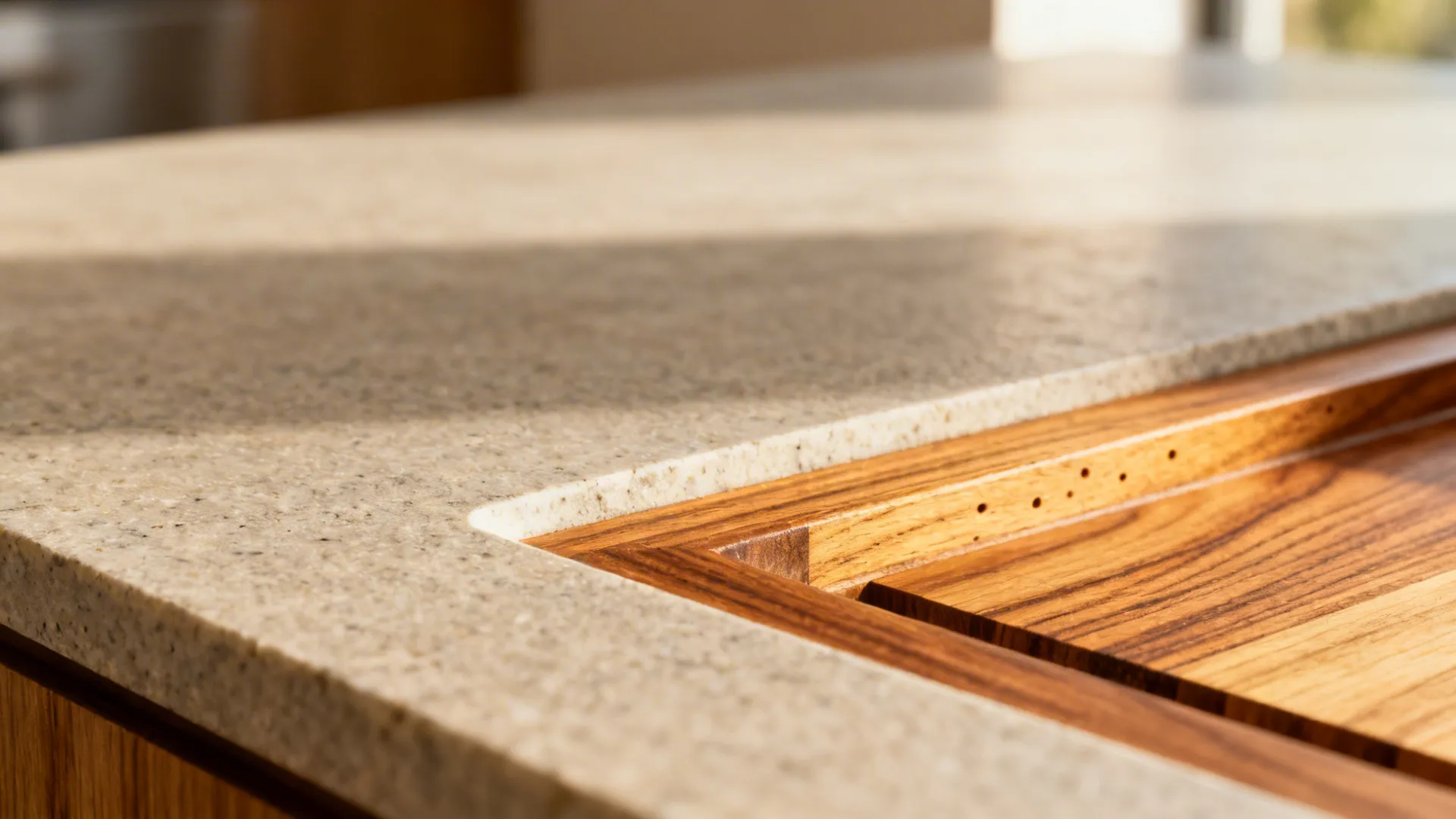

My Take: A stone slab with a slim wood edge or butcher-block insert adds warmth without sacrificing durability. In Revit, I create a nested family: primary stone with a subcategory for “Edge Accent,” so materials and tags remain clear in schedules.

Pros: This long-tail detail—“hybrid stone-and-wood countertop family in Revit”—allows separate material parameters for precise cost tracking. The tactile contrast looks rich in renders and helps small kitchens feel homey without visual clutter.

Cons: Wood demands maintenance near wet zones; I advise clients to reseal periodically. If you don’t constrain the nested geometry, the wood edge can misalign after length changes—lock reference planes and test types.

Tips / Case / Cost: Keep the wood return 10–20 mm and stop at the sink apron to reduce splash wear. In spec sheets, call out grain direction explicitly—installers will thank you. Expect a moderate cost bump for quality hardwoods.

save pin

save pin

Under-slab lighting and service routing

My Take: One of my favorite ‘wow with function’ moves is an LED strip under the slab lip for task and ambient light. In Revit, I add a light family nested into the slab edge with shared parameters for lumen output and color temperature—great for realistic render studies.

Pros: “Under-cabinet LED lighting in Revit” makes night prep easier and enhances perceived space. According to the IES Lighting Handbook, task lighting at counters improves visual comfort and safety—matching what I see in client satisfaction.

Cons: Over-bright LEDs can wash the backsplash; dimmable drivers help. Service voids need planning—forgetting a cable path is a classic rookie mistake (I’ve made it once and only once!).

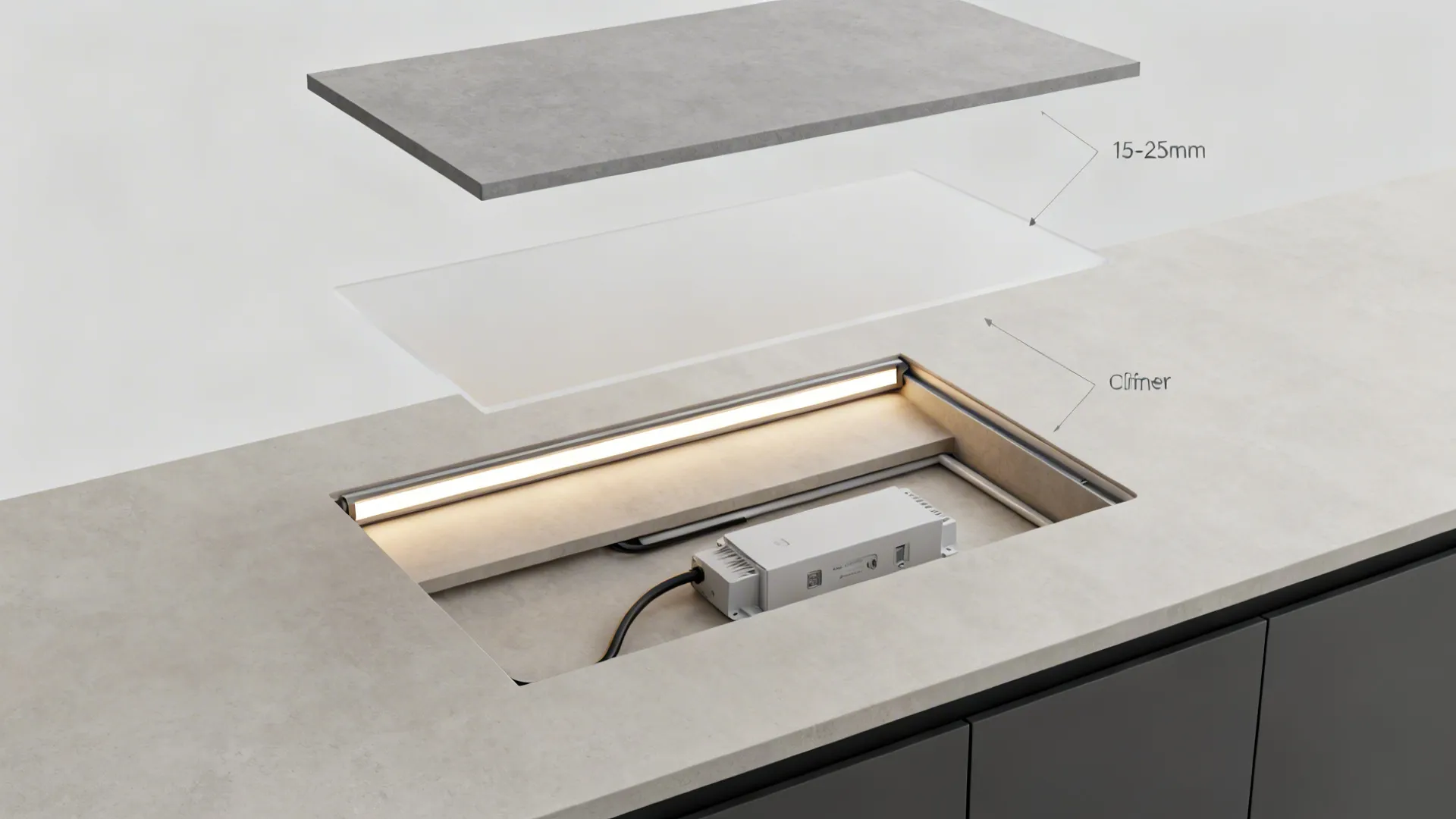

Tips / Case / Cost: Model a 15–25 mm recess in the slab underside for a tidy LED channel and diffuser. Drivers need ventilation; allocate a hidden bay in adjoining cabinets. As you finalize MEP coordination, check examples of lighting-integrated countertop details for inspiration on clean routing and panel placement.

save pin

save pin

How to model a kitchen slab in Revit: my step-by-step basics

I promised practical modeling advice, so here’s the condensed workflow I use for how to design kitchen slab in Revit:

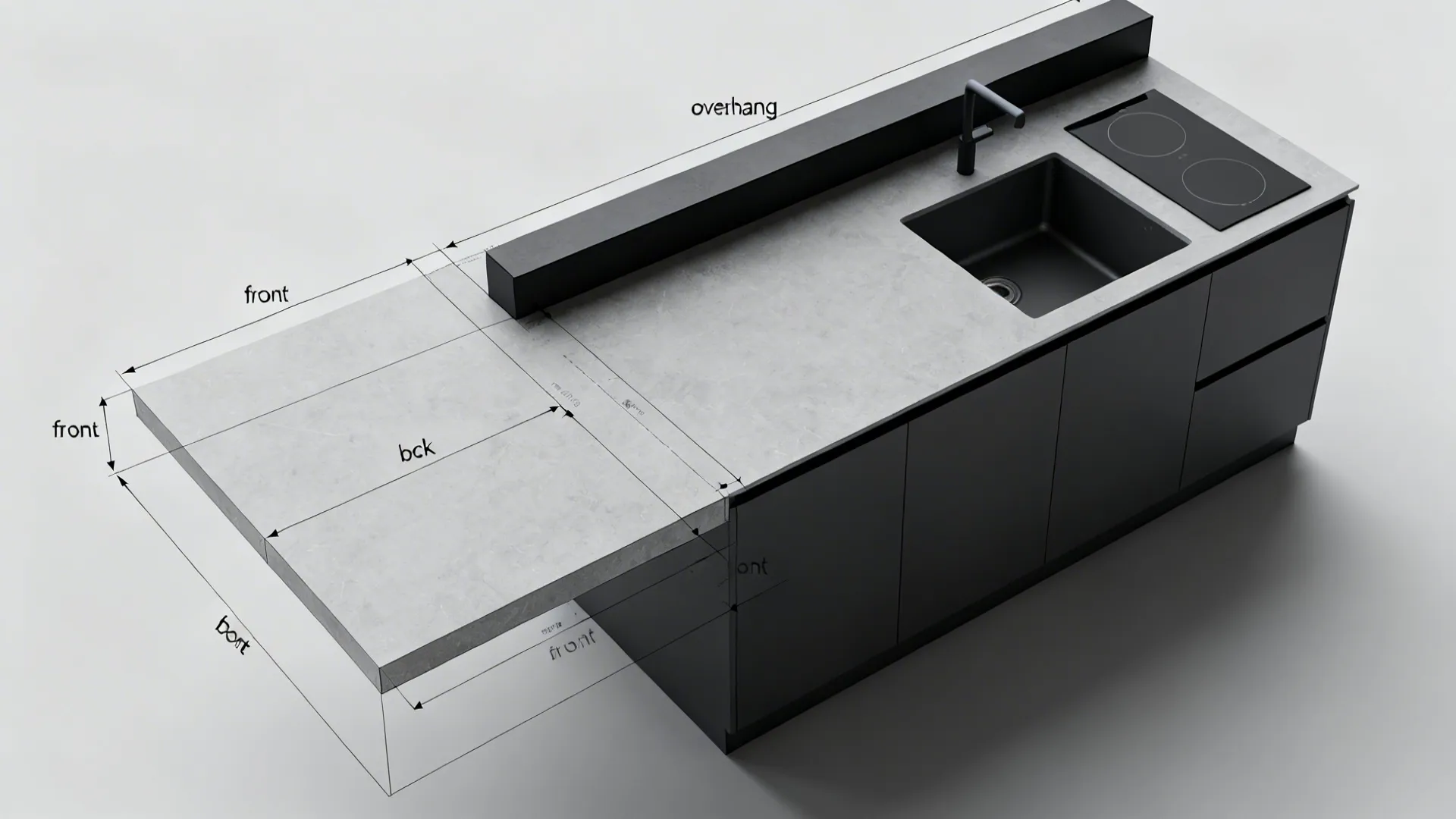

1) Start with reference planes. Name your front, back, and overhang planes; lock widths and depths to instance parameters. Keep “Slab_Thickness” as a type parameter for material changes.

2) Build a flexible family. Use a Generic Model face-based family or a Casework family if you want native scheduling. Sketch the countertop extrusion with parametric dimensions. Add “Overhang”, “Backsplash_Height”, and “Edge_Profile” parameters.

3) Add voids for sinks and hobs. Create nested void families or parametric profiles to subtract clean openings. Include “Setout_From_Left” and “Setout_From_Front” instance parameters for precise alignment.

4) Material parameters. Assign separate material parameters for “Counter_Material”, “Edge_Material”, and “Upstand_Material”. This enables accurate quantity takeoff and render swaps in minutes.

5) Edges and profiles. Use swept blends or profiles for ogee, pencil, or arris edges. Keep realistic radii—what you draw must be buildable.

6) Host and placement. Load your family into the project and host to casework or place as free-standing. Test multiple types (900 mm height vs. 920 mm) to fit appliance specs and local standards.

7) Detail views. Create 1:5 or 1:10 callouts for edge conditions, backsplash joints, and wall returns. Use detail components for fixings and brackets to keep the model lean but the drawings clear.

8) Schedules and tags. Tag materials, lengths, and edge types. Set up a countertop schedule that pulls instance parameters for procurement. Long-tail: “Revit countertop schedule with material and length parameters”.

9) Coordination. Clash-check sink bowls, traps, and hob cutouts with MEP. Keep minimum clearances and ventilation paths. Align with appliance manuals embedded as PDFs or linked sheets.

10) Documentation set. Export coordinated plans, sections, 3D views, and a finish sheet. I include a legend with edge profiles and lighting details to keep contractors aligned.

save pin

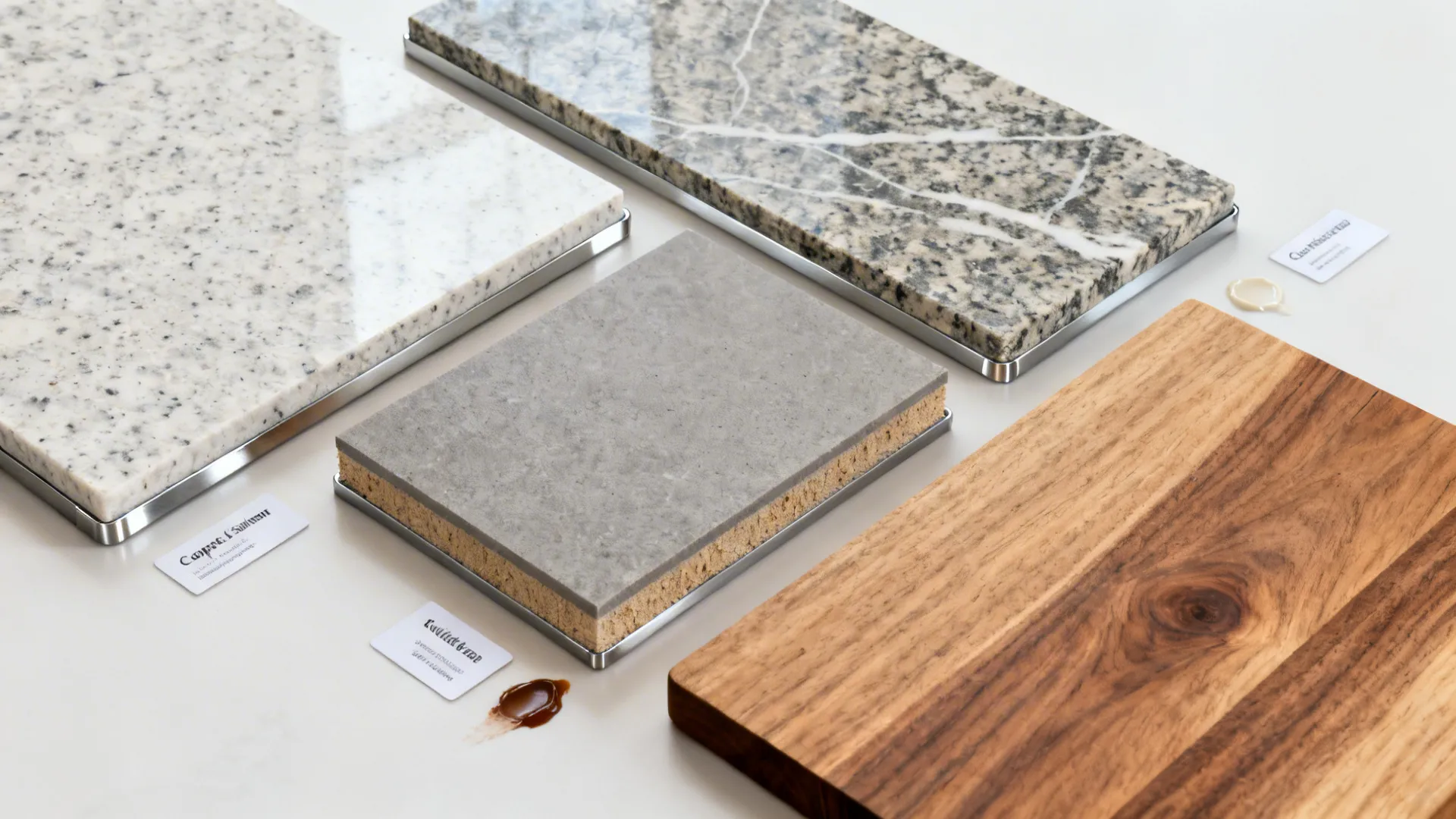

Material choices: picking what you’ll actually build

When I present options, I filter by use patterns first. Daily cooking? I default to quartz or sintered stone for durability. Light use or budget-sensitive? High-pressure laminate with smart edge treatments can still look sharp.

- Quartz and sintered stone: Tough, consistent, and great for fabricated L-joints. In Revit, keep realistic textures and scale; clients notice repeating patterns in renders.

- Granite: Unique veining, needs sealing. Model vein direction via material orientation so installers can follow grain across seams.

- Compact laminate / HPL: Affordable and thin. Model the core and face layers if you’re producing fabrication drawings.

- Solid wood / butcher block: Warm, needs care near wet zones. I call out oil vs. varnish finish in the spec note and add a maintenance line item.

As with all finishes, I mirror my Revit materials to a spec sheet so there’s no naming mismatch between drawings and procurement.

save pin

Ergonomics and clearances that matter in small kitchens

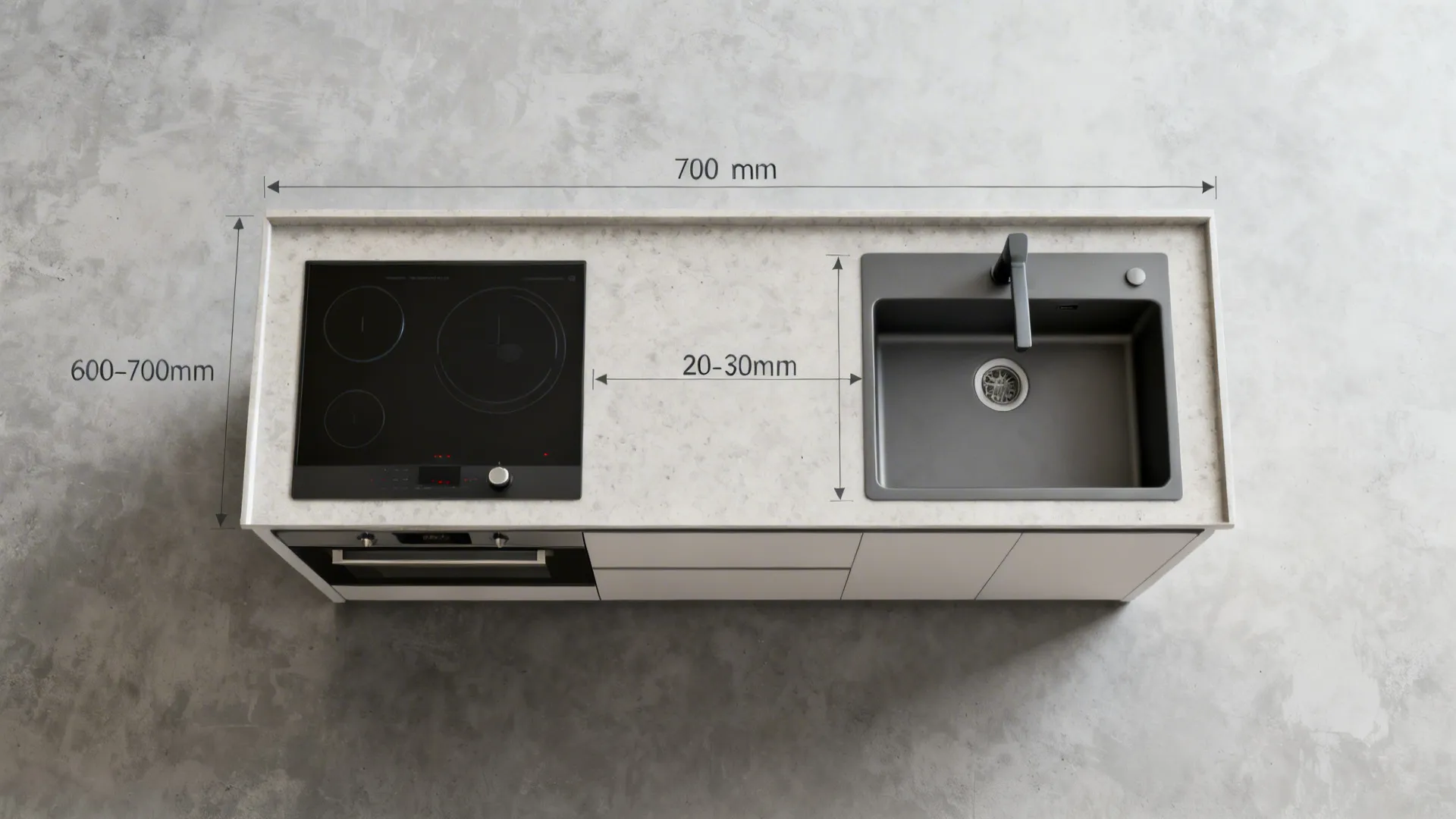

Good modeling follows good ergonomics. I keep 600 mm clear counter depth as a base, 650–700 mm where appliances protrude. Overhangs around 20–30 mm protect doors below and create a graceful line.

Working triangle aside, I double-check: 400 mm minimum landing space near the hob, 300–400 mm beside the sink for drying, and safe distances from verticals. The NKBA recommends accessible and cleanable surfaces; I translate that into real dimensions in my families.

save pin

Document it so the contractor nods, not squints

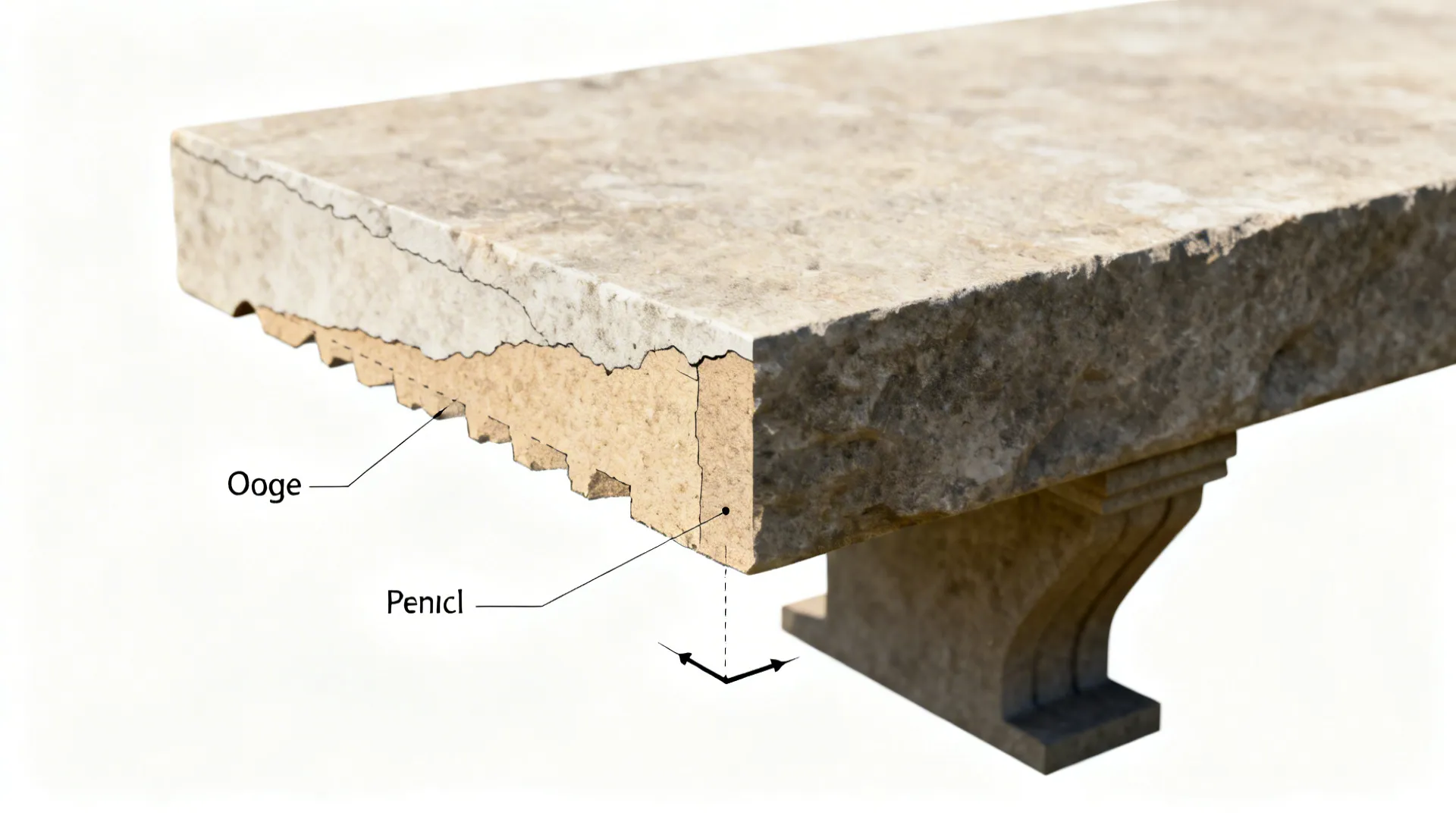

On site, the best compliment is no phone calls. I include: 1:10 edge details, sectioned corner joints, appliance cutout diagrams with tolerances, and a sheet legend of profiles. If the slab is heavy, I add bracket spacing and substrate notes for load paths.

In Revit, I keep annotation families standardized—edge tags, material keys, and a countertop schedule template. That consistency reduces errors and speeds up revisions when clients inevitably switch from a light quartz to “that gorgeous charcoal”.

save pin

Rendering and client buy-in

Clients buy what they understand. I render one daylight view and one evening view with under-slab lights on, then a sectioned 3D of the sink cutout. Keep the slab material roughness realistic—too glossy looks fake. A neutral HDRI and a simple color study for the backsplash color usually seals the decision.

save pin

Common pitfalls when designing kitchen slabs in Revit

- Over-modeling tiny bevels that bloat the file but don’t print. Use detail components in callouts instead.

- Forgetting appliance tolerances: leave manufacturer-recommended expansion gaps around sinks and hobs.

- Misaligned material orientation on L-joints: set a consistent reference and lock it with a construction view.

- No service voids for LEDs or power: plan early, route deliberately.

- Unrealistic slab thicknesses: coordinate with your fabricator; what looks sleek on-screen must be cut and carried.

save pin

A quick checklist before you publish drawings

- Are slab thickness, edge type, and material all parameterized?

- Do sink/hob voids have adjustable setouts?

- Is the backsplash height consistent across types?

- Are material names synced with the specification?

- Do schedules report lengths and materials correctly?

- Have you tagged all instances with consistent families?

- Did you consider lighting recesses and cable paths?

save pin

Summary

Small kitchens aren’t limitations—they demand smarter design. If you’re asking how to design kitchen slab in Revit, start with clean parametric families, thoughtful materials, and build-ready details, and everything else flows. From minimalist reveals to L-shaped runs and under-slab lighting, these approaches scale with space and budget while keeping your drawings contractor-friendly. According to NKBA and IES guidance on cleanable surfaces and task lighting, the fundamentals back up what we see in practice. Which slab idea are you most excited to try first?

save pin

FAQ

1) What is the best thickness for a kitchen slab in Revit models?

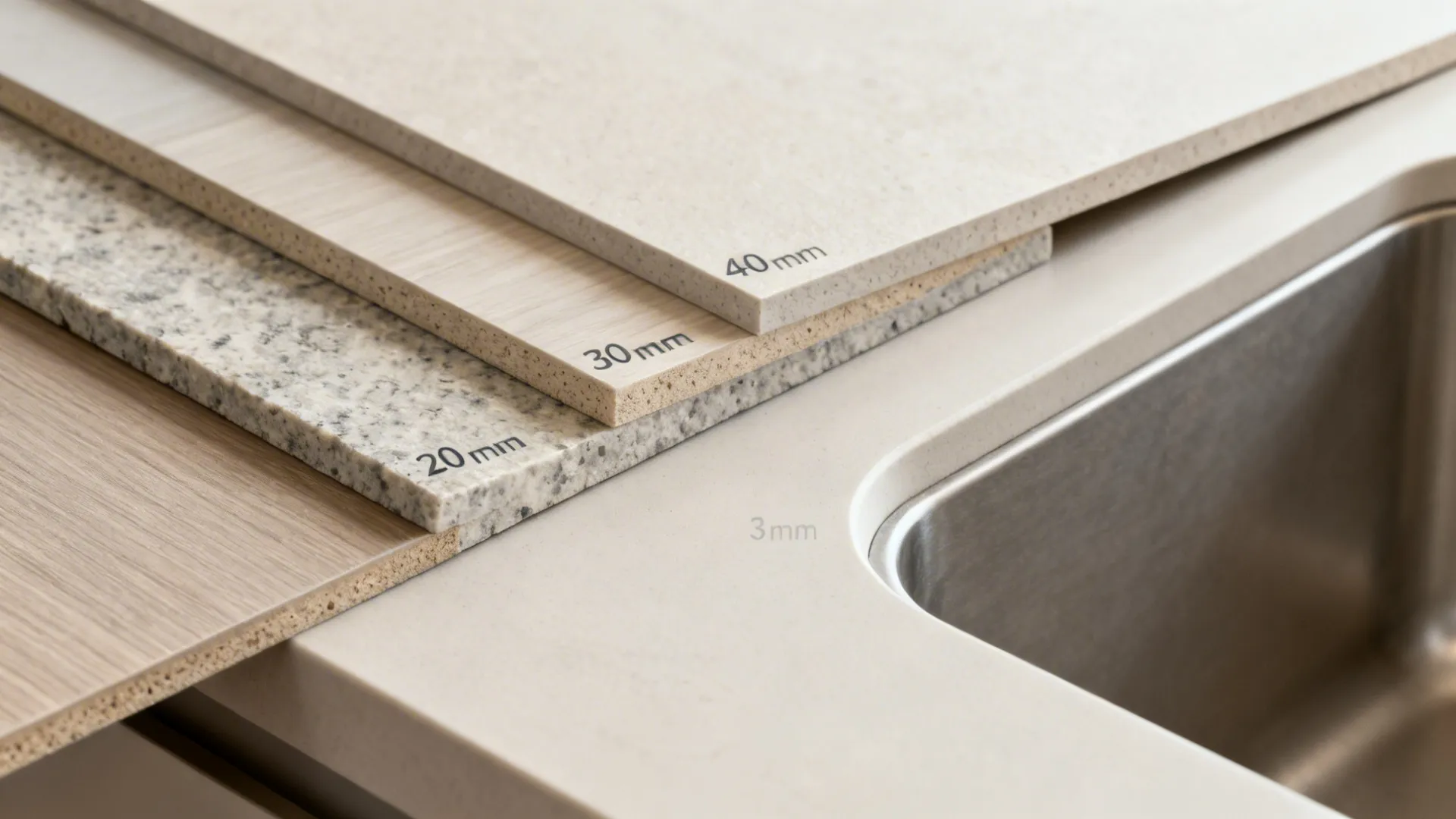

Most real builds are 20–40 mm for stone and 12–20 mm for compact laminates. I keep “Slab_Thickness” as a type parameter and create types at 20, 30, and 40 mm to cover most specs.
