5 Kitchen Waste Drawing Ideas That Actually Work: As a senior interior designer and SEO writer, here are 5 smart, small-space–friendly ways to draw and visualize kitchen waste for better planning and cleaner kitchens.

As kitchens trend toward compact, multi-functional spaces, I’ve found that illustrating kitchen waste streams (organic, recyclables, landfill, and sometimes compostable packaging) is a surprisingly powerful design move. Small spaces force big creativity, and drawing kitchen waste zones helps me plan storage, traffic, and hygiene with precision. In this guide, I’ll share 5 design inspirations for how to draw kitchen waste—based on my projects and supported by expert data—so you can visualize and implement a cleaner, smarter system.

On studio projects, a simple waste diagram clarifies volumes, bin placement, and how users move from prep to disposal. I’ll walk you through five approaches I use in real kitchens, from minimalist zoning diagrams to material-informed sections. We’ll talk pros and cons, costs, and quick wins—and I’ll show you how these sketches translate into layouts you can build.

To ground this with a practical example, I often start with a simple plan view sketch and refine into a layout with labeled bin stations. When I explore a L-shaped layout that frees more counter space, I place the primary organic waste bin under the prep zone, and recycling near the exit to reduce backtracking.

Minimalist zoning diagram

My Take

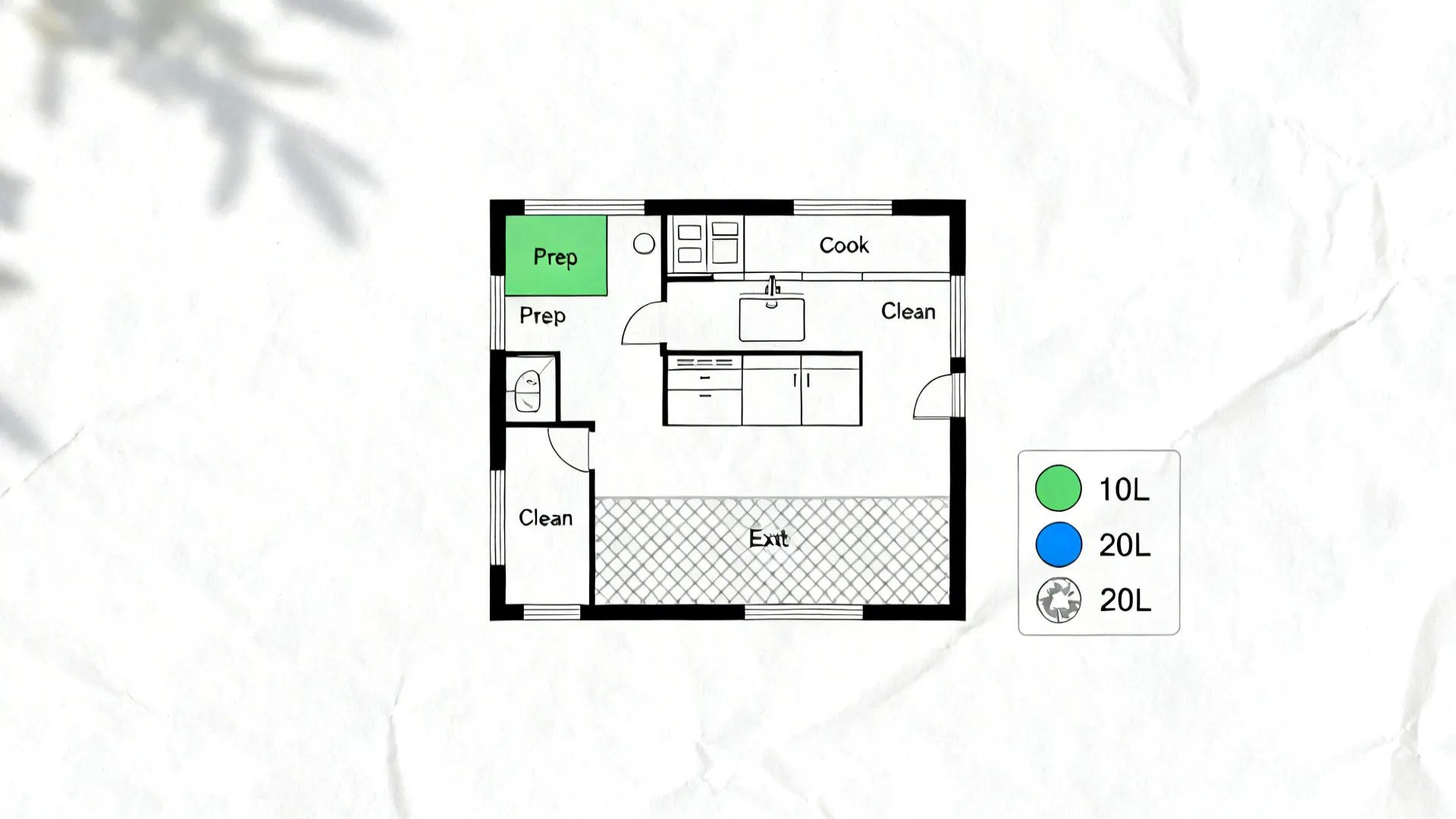

I begin with a clean plan view that divides the kitchen into prep, cook, clean, and exit zones. Then I add color-coded circles for organic, recycling, and landfill waste. The point isn’t detail—it’s clarity, so everyone understands where waste belongs at a glance.

Pros

- A quick-start way to draw kitchen waste that clarifies flow with a simple legend and long-tail keywords like “kitchen waste zoning in small kitchens.”

- Helps reduce cross-traffic and contamination by placing organic bins closer to prep and recyclables near the exit. The Food Standards Agency guidance aligns with zoning for food safety and cleanliness (FSA, UK).

- Scales well from studio apartments to family kitchens; a single A4 sheet can capture the big idea.

Cons

- Too simple for contractor-level detail; you’ll still need dimensions and specs. I’ve had contractors ask, “Great, but what’s the bin width?”

- Color reliance can fail in black-and-white prints unless you add clear hatching or labels.

- If your space is highly irregular, circles may oversimplify pinch points.

Tips / Cost

- Use three colors plus a distinct hatch for landfill; label volumes in liters (e.g., 10L organics, 20L recycling).

- Time: 20–30 minutes for a studio kitchen; cost: free if you sketch or use lightweight CAD.

save pin

Process-flow arrows from prep to disposal

My Take

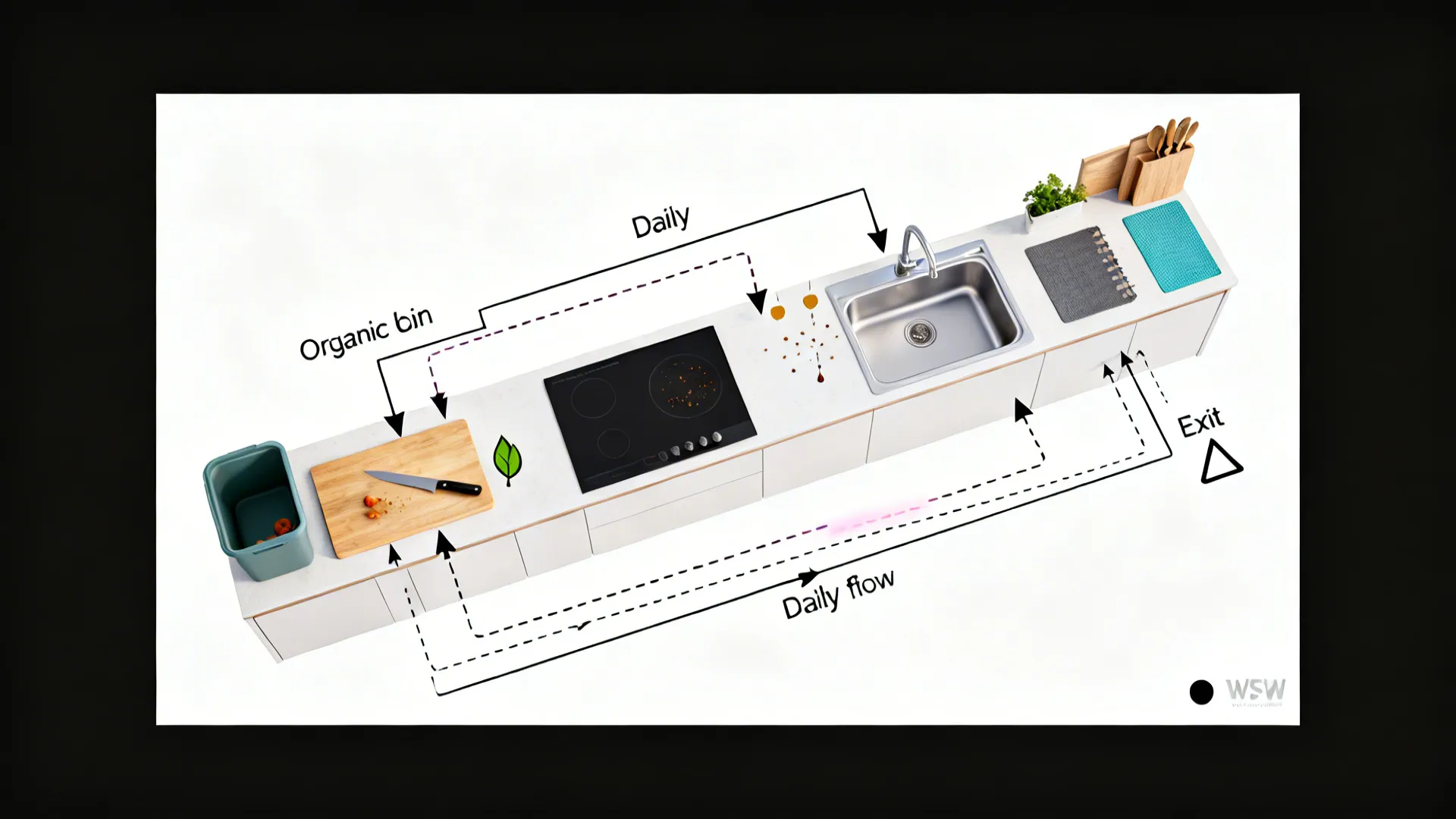

On renovations, I sketch arrowed paths that track how scraps move from cutting board to bin, then to the door. I mark where drips or crumbs tend to fall—this helps place mats and select easy-clean finishes. It’s a reality check: waste is movement.

Pros

- Visualizes sequence—prep → bin → sink → exit—so you can shorten steps. Long-tail keywords fit naturally here: “kitchen waste process flow diagram.”

- Reduces mess by placing organics within one reach of the prep zone; supports hygienic design recommended by the World Health Organization for food-handling environments (WHO, Food Safety Basics).

- Great for households with kids; arrows make rules visible.

Cons

- Can look busy if you map every to-and-fro; I limit arrows to primary flows.

- Requires observation or user interviews; otherwise the drawing reflects ideal behavior, not real habits.

- Might bias you toward one layout prematurely.

Tips / Case

- Track morning and dinner routines separately; they often differ (e.g., coffee grounds vs. peels).

- Use dashed lines for occasional flows, solid for daily routes.

save pin

Scaled bin blocks and clearances

My Take

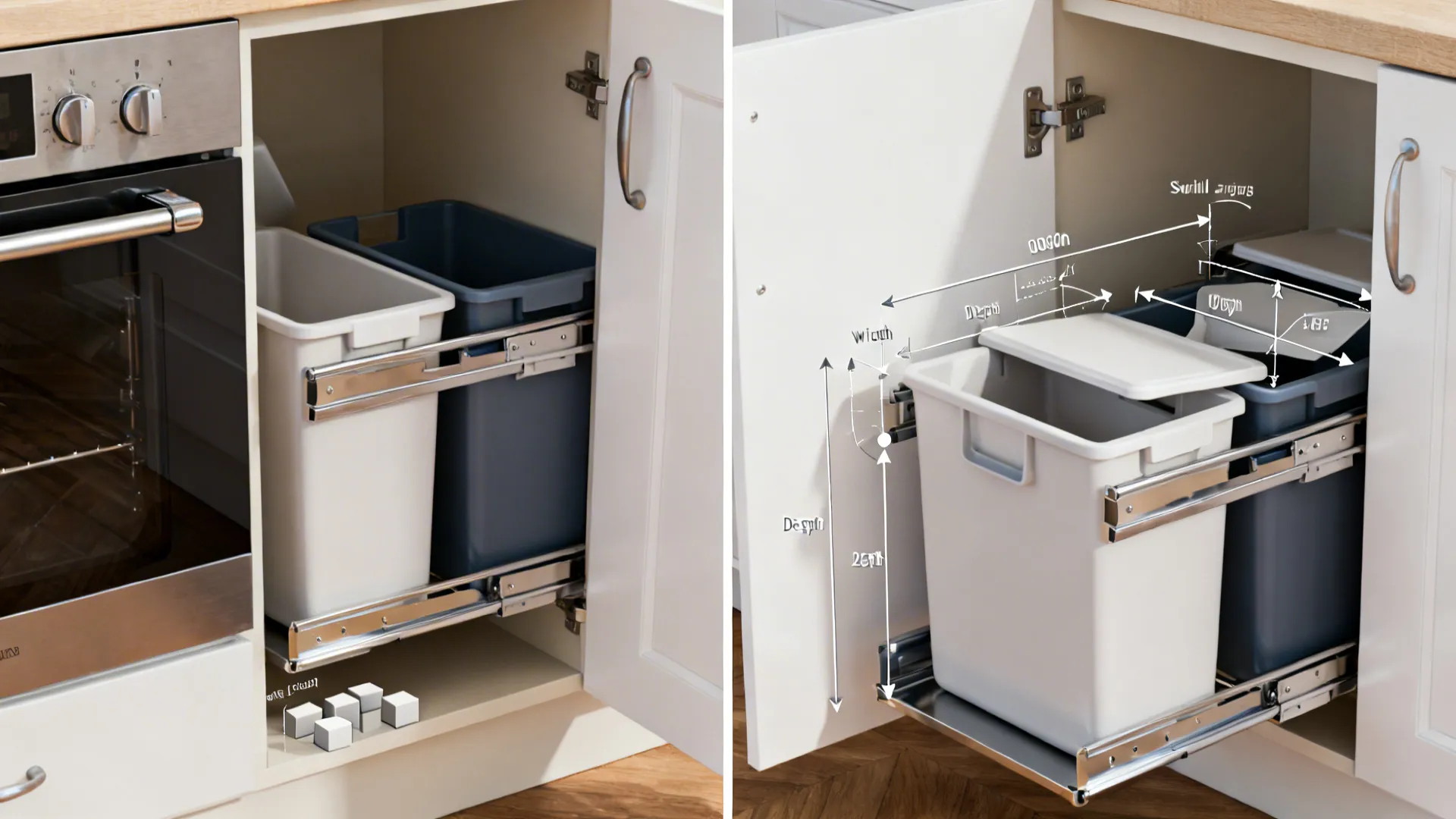

Once zoning is set, I draw bins to scale—width, depth, lid swing, and pull-out clearance. I’ve saved more than one client from a beautiful-but-useless pull-out that hits the oven handle. This is the drawing contractors thank me for.

Pros

- Prevents clashes: hinges, plumbing, and bin height are reconciled on paper. It’s a practical long-tail angle like “dimensioned kitchen waste bin layout.”

- Makes budgeting easier; you can compare a 10L duo-bin vs. a 20L tri-sorter and know if it fits.

- Minimizes odors and spills by ensuring full extension and clearance for liners.

Cons

- Takes more time; you’ll need cabinet interior dimensions and hardware specs.

- Brands vary widely; a swap from a 300mm to 350mm carcass can break your fit.

- If you’re hand-sketching, precision can slip—keep a scale ruler nearby.

Tips / Cost

- Note hinge side, lid height, and bag removal path; draw a 600mm standing radius to ensure you can open without knee bumping.

- Budget: $60–$300 per pull-out; time: 45–90 minutes to detail and check clashes.

At this halfway point of design development, I usually translate my scaled blocks into a clean visual. When I rendered a compact galley with stacked sorters, a 3D render of the home layout helped the owners “feel” the clearances and see how lids and doors interact in real use.

save pin

Material-informed sections and elevations

My Take

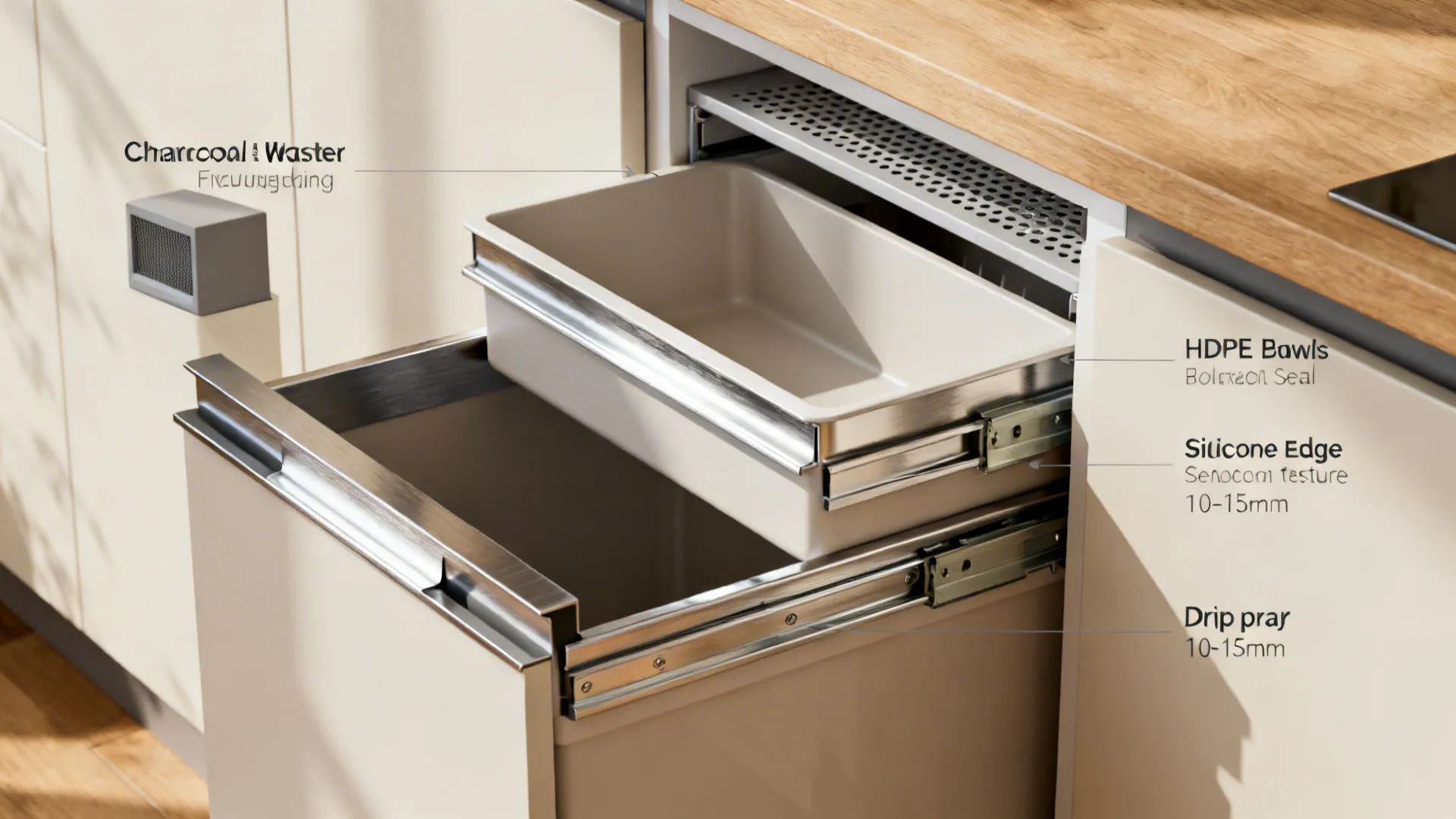

I slice the cabinet in section to show liners, venting gaps, and drip trays. I label materials—HDPE bins, stainless slide-outs, melamine carcass—because waste is wet, and materials matter. This is where drawing meets durability.

Pros

- Supports long-tail needs like “kitchen waste cabinet section with ventilation.”

- Details splash zones and easy-clean surfaces, aligning with NSF/ANSI cleanliness principles referenced by commercial kitchen standards (NSF International).

- Helps clients choose finishes that won’t warp or smell after a summer of melon rinds.

Cons

- Extra drafting effort; you’ll need to know joinery and fixings.

- Overkill for very small retrofits where freestanding bins live in open corners.

- Can intimidate DIYers—keep labels friendly and avoid jargon.

Tips / Case

- Add a 10–15mm airflow gap and show a perforated panel; note silicone edge seals to contain leaks.

- If you compost, indicate a charcoal filter housing in elevation.

save pin

Behavior-led labeling and iconography

My Take

I finish with a legend and icons—leaf for organics, looped triangle for recycling, dot for landfill. I place small stickers on the drawing and, later, inside the cabinet. In one rental project, icons alone cut contamination by half within a week.

Pros

- Makes the drawing immediately usable by the whole household; supports “behavioral kitchen waste sorting for small apartments.”

- Ideal for guests and kids—no more “where does this go?”

- Scales across languages; icons beat text in busy kitchens.

Cons

- Sticker clutter is real; I keep icons small and monochrome in refined spaces.

- Requires periodic refresh when bins or rules change.

- Not a substitute for good placement; a poorly located bin still gets ignored.

Tips / Cost

- Print the legend right on the drawing; mirror it on a cabinet door.

- Cost: $5–$15 for waterproof labels; time: 10 minutes to apply.

When these drawings mature into a compact plan, I sometimes test multiple configurations quickly. For a studio client embracing a bright, airy galley, mapping glass backsplash for a more open feel along with waste zones helped the space look bigger while keeping the trash routine efficient.

save pin

Summary

Small kitchens don’t limit you; they push you to design smarter. Drawing kitchen waste—zoning, flows, scaled blocks, sections, and icons—turns a messy afterthought into a clean, efficient system that fits your life. As WHO food-handling guidance reminds us, workflow and cleanliness are inseparable; the right drawing sets both up for success. Which of these five ideas will you try first in your own kitchen?

save pin
