5 L-Shaped Living Room False Ceiling Designs That Work: My field-tested ideas to zone, brighten, and visually balance L-shaped living rooms with smart false ceiling designs

As a designer who lives and breathes small-space problem solving, I’ve found L-shaped living room false ceiling designs are a quiet superpower. They help zone open plans, balance odd angles, and tuck in lighting without stealing headroom. Small spaces spark big creativity, and in this guide I’ll share 5 design ideas I’ve actually applied on projects—what worked, what didn’t, and how to keep it budget-smart. I’ll lean on expert data where it matters and weave in my own stories along the way. First up, a personal favorite that blends minimalism with layered light—and yes, I’ll show you how I plan these details visually with tools and case studies like minimalist kitchen storage ideas that inspire clean lines across adjacent zones.

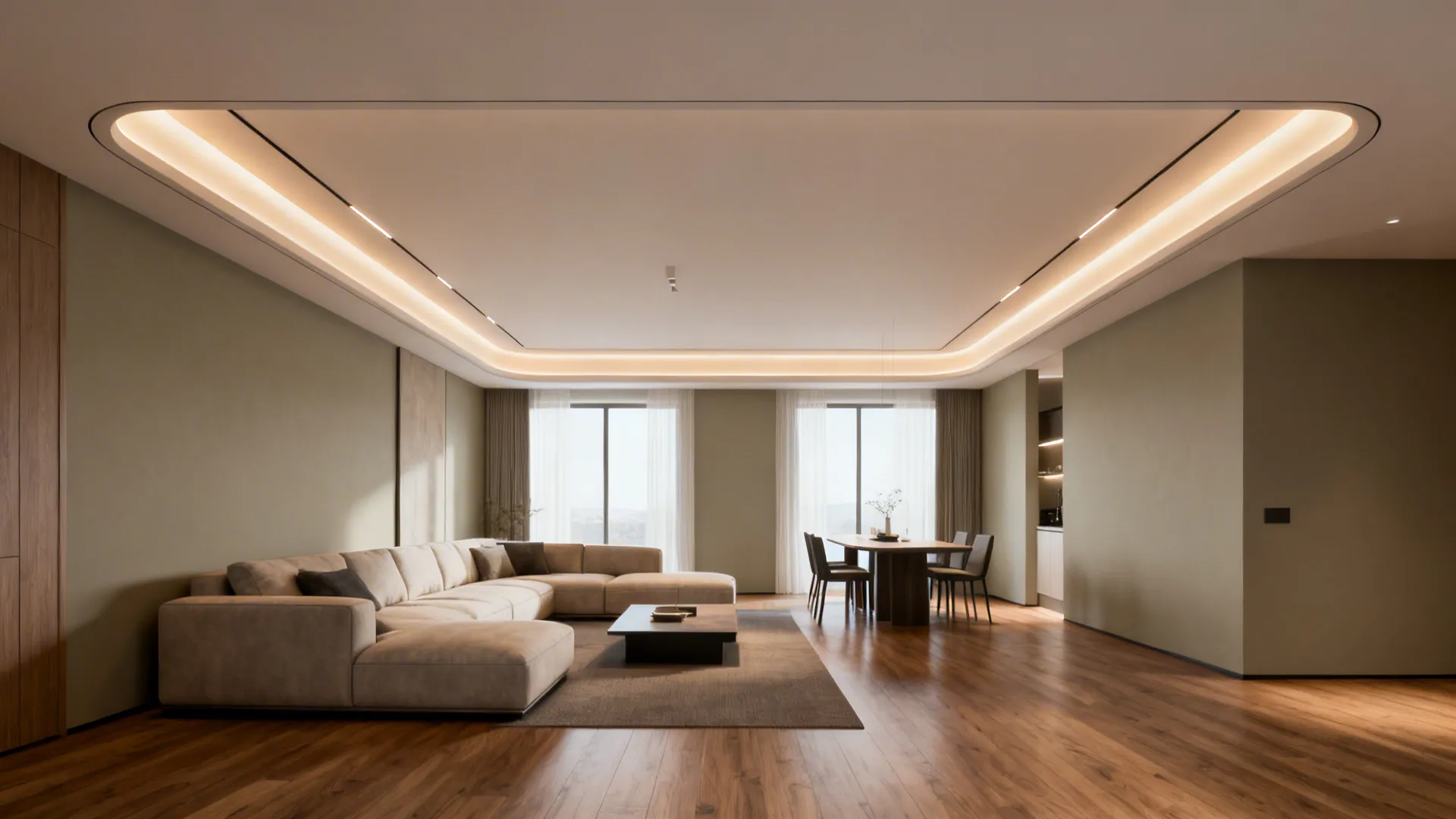

Tiered peripheral cove for zoning and flow

My Take

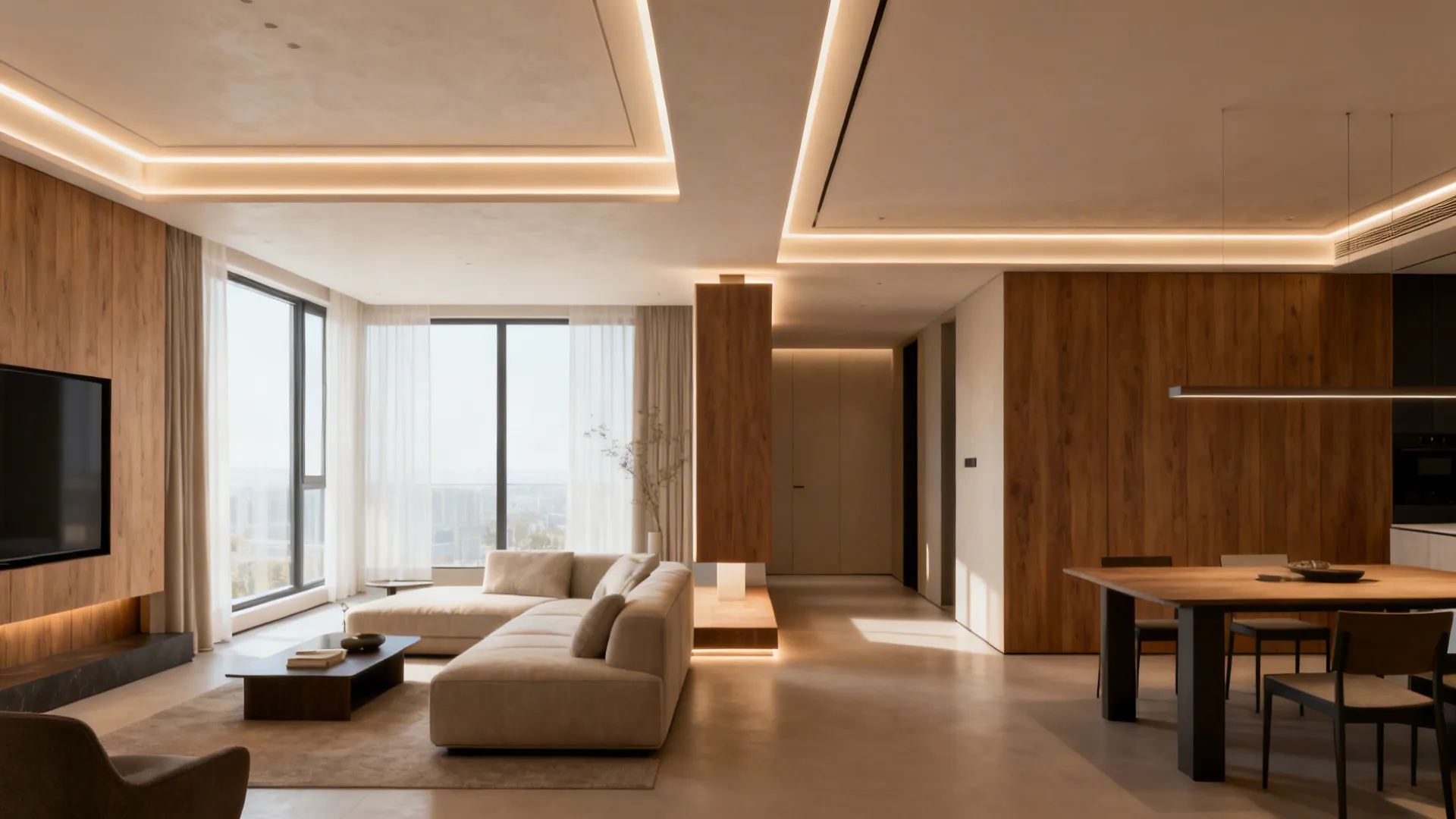

I started using a tiered peripheral cove when a client’s L-shaped living room bled into a dining nook with no walls to help. A slim 2-step border traced the living perimeter and dropped one extra step over the sofa area. It instantly defined conversation space, but kept sightlines open—guests always remark the room feels bigger, not smaller.

Pros

• A continuous cove line naturally guides circulation and separates lounge from dining without partitions—great for l shaped living room false ceiling designs where flow matters.

• Indirect LED strips soften corners and visually “square up” the L, reducing corner shadows; dimmable drivers let you set a warm 2700–3000K glow for evenings.

• ASHRAE lighting guidelines note layered lighting supports comfort and task needs; a peripheral cove contributes ambient layers that lower glare and boost perceived spaciousness (ASHRAE 90.1 context, layered approach).

Cons

• If your ceiling height is under 2.5 m, even a shallow soffit can feel heavy—don’t overstep the drop; I learned the hard way on a micro-loft and had to shave 15 mm off the design.

• Long coves demand disciplined LED installation—cheap strips can show scalloping; nothing haunts me like a wavy light line during movie night.

Tips / Costs

• Keep the first step at 60–80 mm drop with 100–120 mm width; the second step can drop an additional 30–40 mm only where you want stronger zoning.

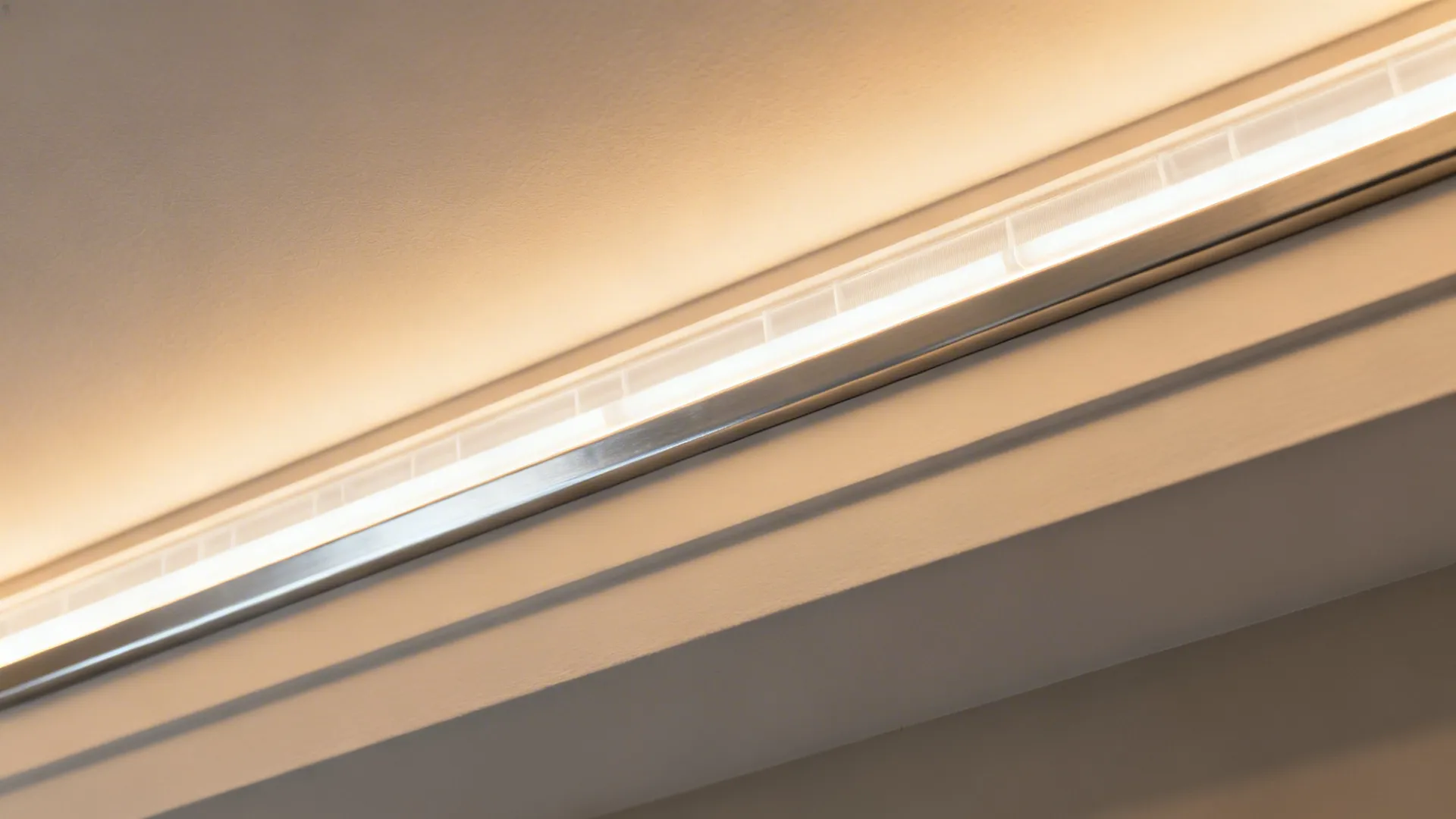

• Use high CRI (≥90) LED tape at 10–14 W/m with an aluminum channel and diffuser to avoid hotspots; expect mid-range costs of $18–35 per meter for quality tape plus drivers.

save pin

save pin

Asymmetric T-beam tray to balance the long leg

My Take

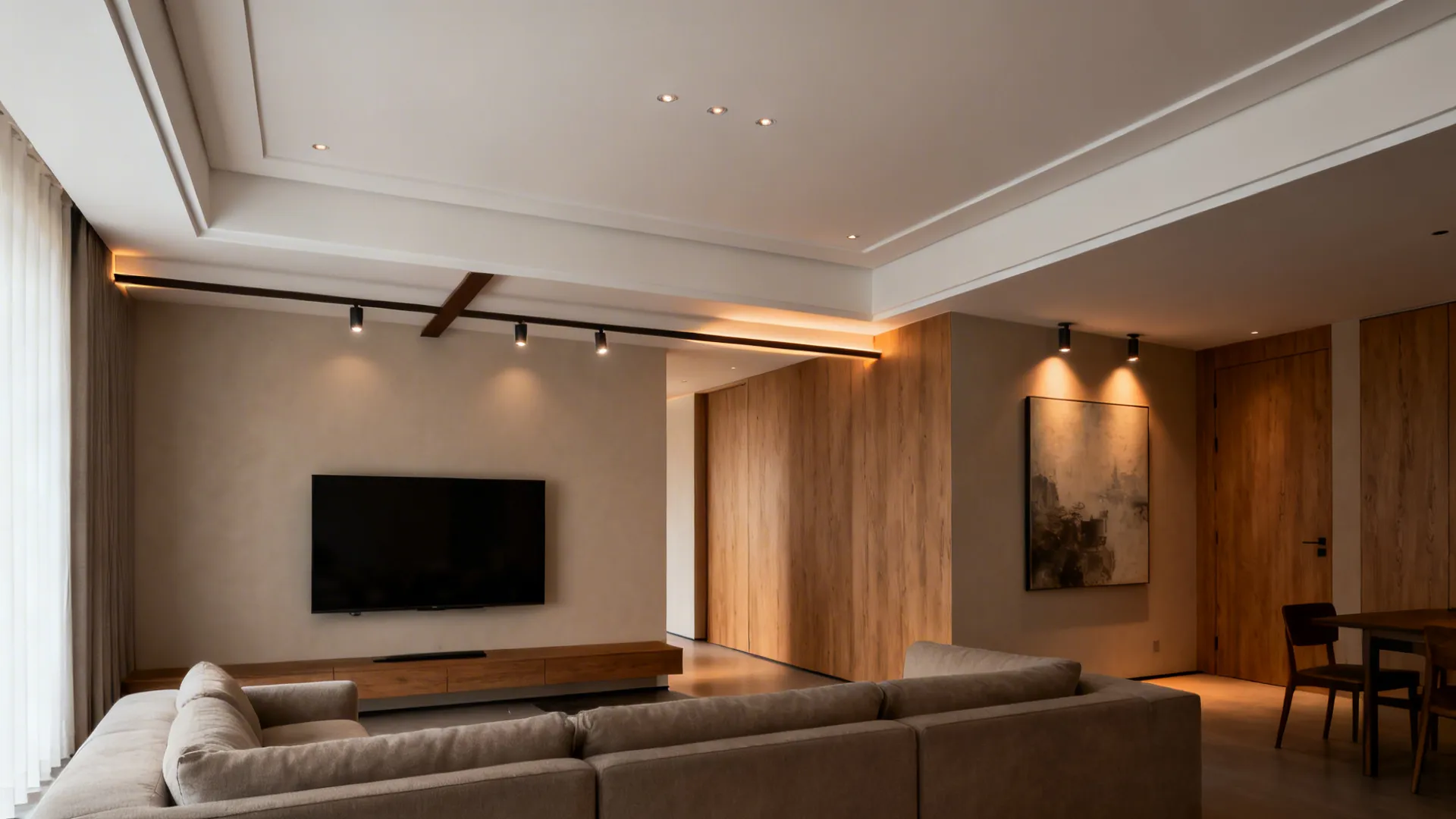

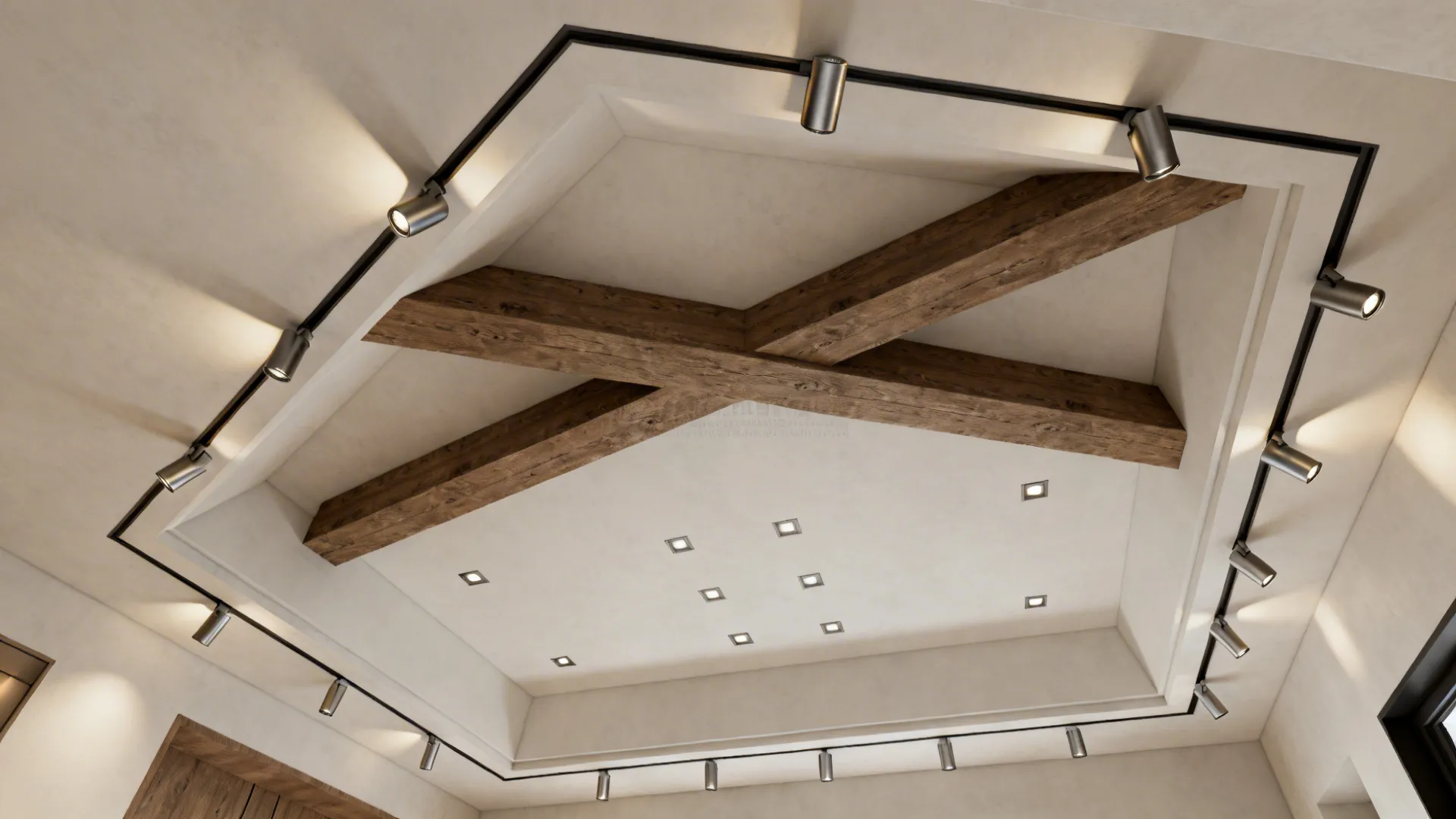

In classic L-shaped rooms, one leg is always the “overachiever”—longer, brighter, hogging attention. I fix that with an asymmetric T-beam tray: a shallow central tray plus a bolder cross-bar over the shorter leg. It rebalances the visual weight and quietly leads your eye to the TV wall or fireplace without shouting.

Pros

• The cross-bar portion adds presence where the room is short, creating a focal alignment—perfect for L-shaped living room false ceiling ideas that need visual symmetry.

• The tray allows recessed downlights for task zones (reading chair, console), while the cross-bar can hide linear grazers or small gimbal spots for art.

• According to the IES Lighting Handbook (Illuminating Engineering Society), combining ambient and accent layers improves visual hierarchy and reduces eye strain in multi-use spaces.

Cons

• A heavy cross-bar can feel like a low beam—keep it slim and paint the vertical faces in the same color as the ceiling to reduce visual bulk.

• Coordination with HVAC and sprinklers can get tricky; I’ve had to redesign a beam profile more than once to clear duct routes.

Tips / Costs

• Aim for a 30–50 mm recess for the central tray; the cross-bar can drop 60–80 mm but stay under 120 mm depth in low ceilings.

• Use narrow-beam (15–24°) gimbals for art, 60° for general downlights; mid-market fixtures run $35–80 each, plus drivers and dimmers.

save pin

save pin

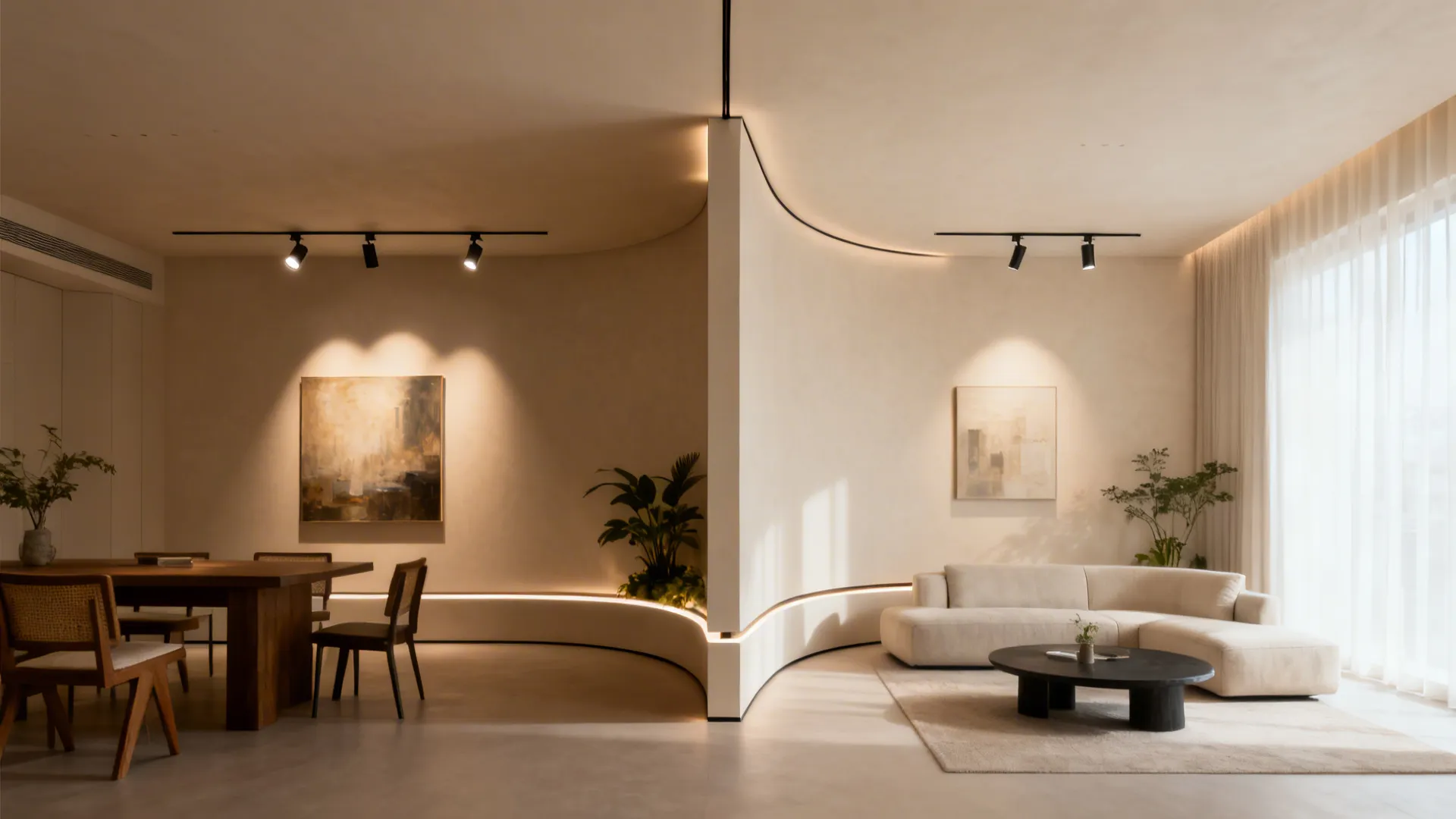

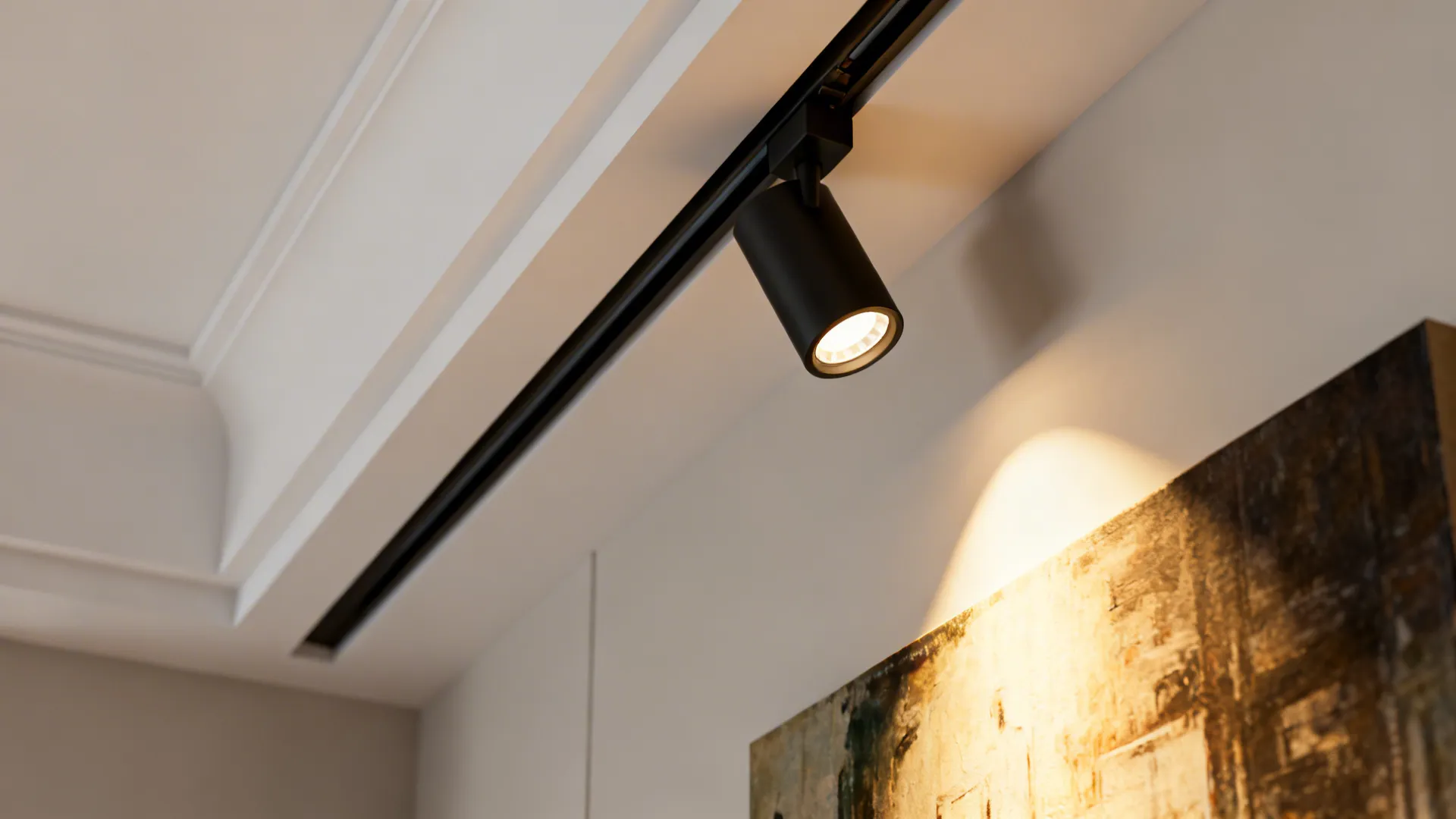

Floating spine with concealed track lighting

My Take

When a client wanted gallery-level flexibility for family art and seasonal decor, I designed a floating spine—essentially a narrow central panel with concealed tracks. It runs from the entry of the long leg into the living area, then “bends” with a soft radius to the short leg. You barely see it, but it delivers incredible control.

Pros

• Great for renters or frequent rearrangers—track heads slide and swivel to spotlight art, plants, or shelving; it’s a dynamic choice for long-tail needs like adjustable living room accent lighting.

• The spine acts like a wayfinding line from entry to sofa, ideal for L-shaped living room false ceiling designs in open floor plans.

• Energy-efficient LED track heads (8–12 W each) provide targeted illumination with lower overall power density, aligning with IES recommendations for task-specific lighting.

Cons

• Tracks need precise alignment—if the spine wobbles a few millimeters, you’ll notice; I’ve pulled more late-night string lines on ceilings than I care to admit.

• If your ceiling is textured, recessing tracks cleanly is harder; you may need a skim-coat for a crisp finish.

Tips / Case

• Keep the spine 300–400 mm wide, floating 25–30 mm below the main ceiling with shadow gaps; choose magnetic track systems for tool-free head changes.

• For planning the bend and sightlines, I often test angles in a 3D mock; seeing how L-shaped layouts free more counter space has actually inspired me to mimic that “release” with a spine that frees circulation lines in living rooms.

save pin

save pin

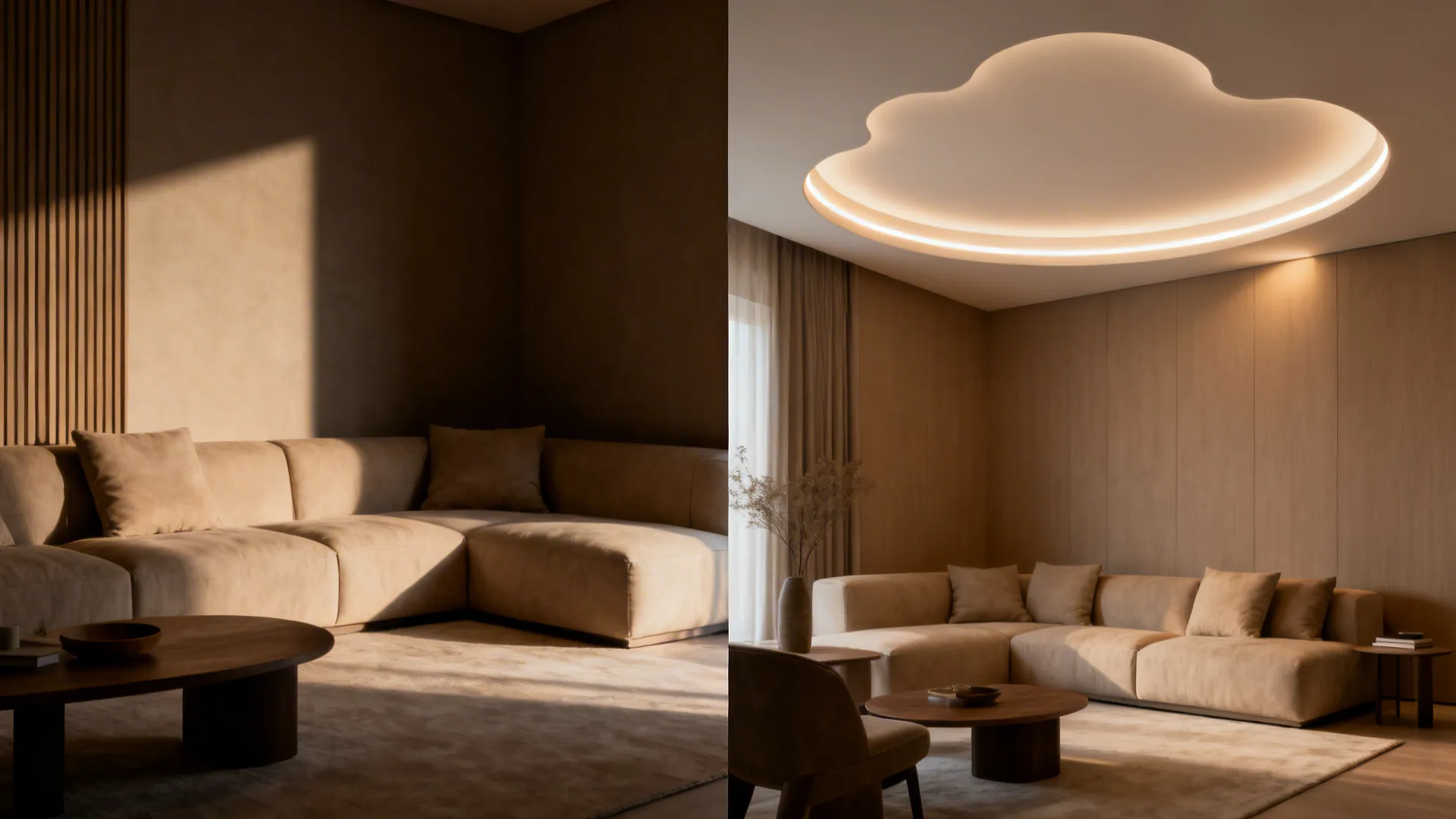

Curved corner cloud to soften the L-joint

My Take

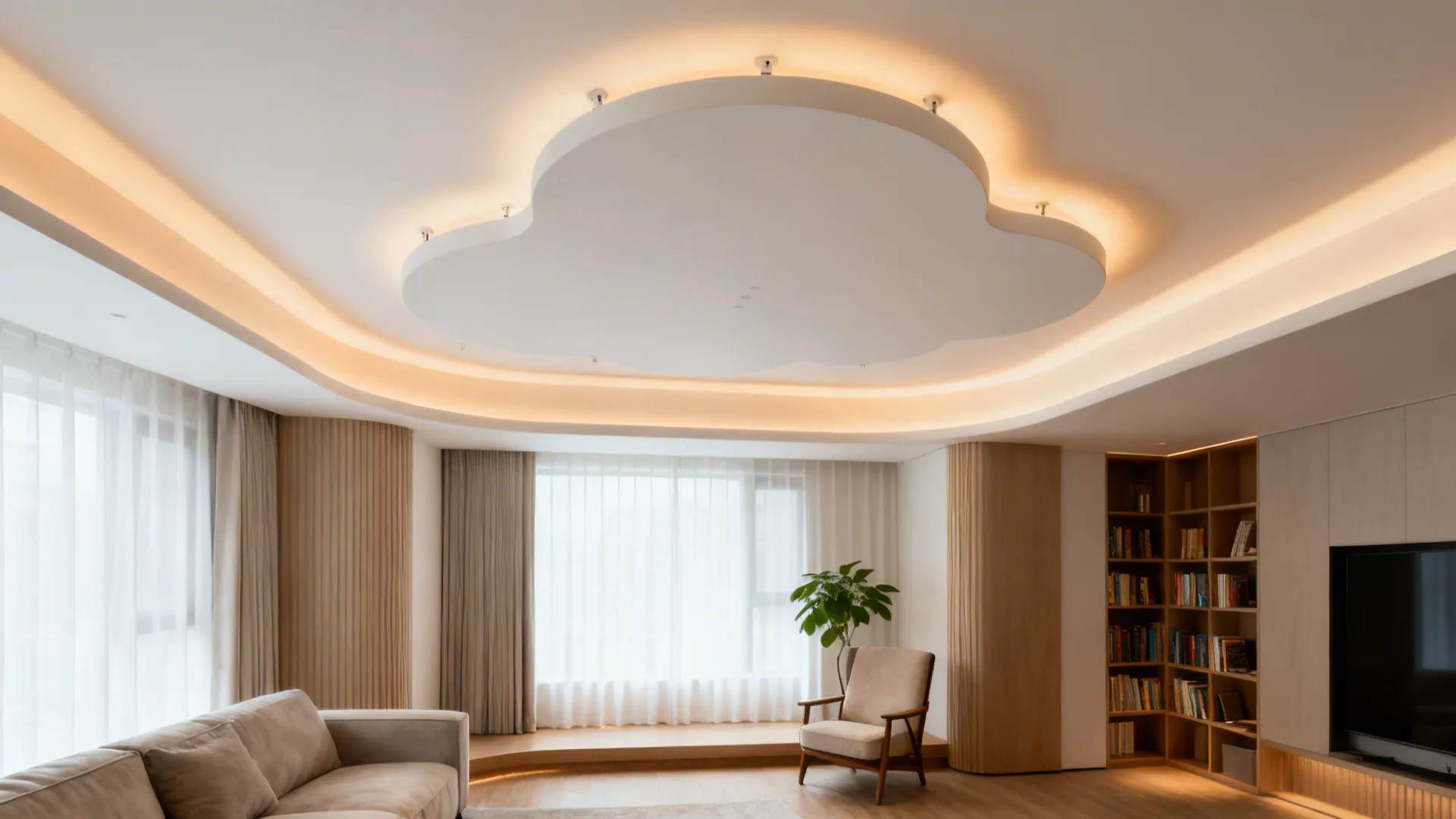

One of my favorite before-and-afters used a cloud-shaped panel right at the elbow of the L. We designed a gentle radius that overlaps both legs and washes the joint with soft light. Suddenly, the corner wasn’t a dead angle—it became the coziest reading nook in the house.

Pros

• Curves soften the hard joint and blend the two legs visually—perfect for small living rooms seeking organic flow in l shaped living room false ceiling designs.

• Indirect backlighting behind the cloud panel creates a halo that reduces corner shadows and pulls the eye inward.

• Research on wayfinding and interior ergonomics suggests curved transitions reduce perceived clutter and improve movement comfort in constrained spaces (citing environmental psychology findings from peer-reviewed design research).

Cons

• Custom curves can be pricier; CNC-cut panels and flexible LED channels add up.

• Get the radius wrong and it feels like a speech bubble hovering above your sofa—test full-scale templates with kraft paper before committing.

Tips / Costs

• Ideal radius: 600–900 mm for apartments, 1,200–1,500 mm for larger rooms; mount the cloud on 25–40 mm standoffs with LED strips facing the wall for a glow effect.

• Budget $1,200–2,800 for materials and labor on a mid-size cloud, depending on finish (paint-grade MDF vs. acoustic felt).

save pin

save pin

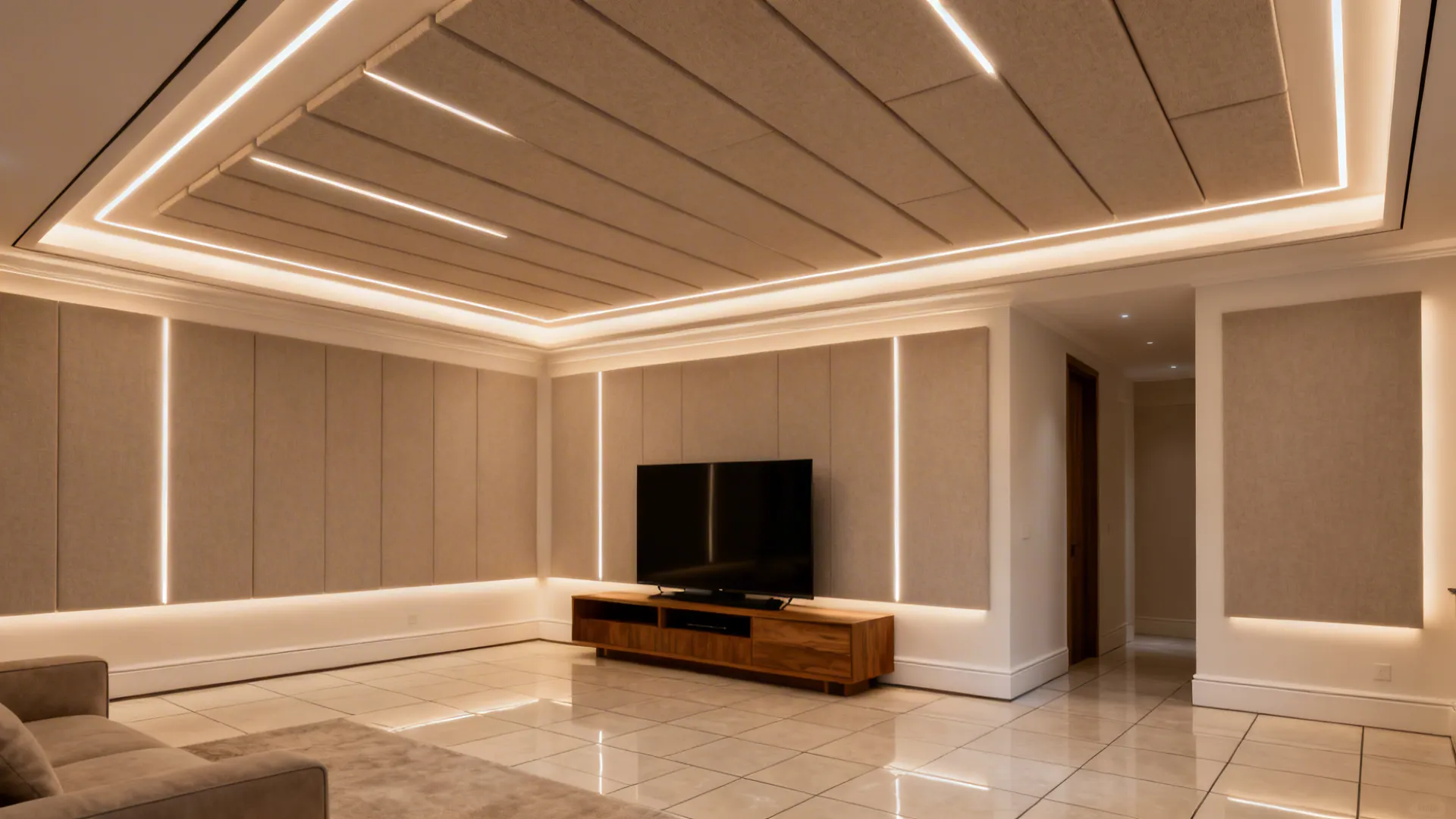

Perimeter micro-coves with acoustic panels

My Take

In a music-loving household, the TV area had lively echoes. We combined slim micro-coves (think 25–35 mm reveals) with acoustic panels disguised as ceiling tiles. It sharpened dialogue clarity and made late-night jazz sessions sound buttery smooth.

Pros

• Micro-coves add a contemporary, almost invisible light line—ideal for subtle l shaped living room false ceiling ideas that don’t reduce height.

• Acoustic panels (NRC 0.7–0.9) attenuate flutter echoes between the L legs; paired with cove light, you get ambiance and clarity.

• The WELL Building Standard and IES both recognize acoustic comfort and proper lighting layers as key to occupant wellbeing; addressing both is a high ROI move in small homes.

Cons

• Installing reveals demands precision drywall or millwork—any wavy line is instantly visible.

• Panels add thickness and weight; confirm ceiling anchors and assess existing joist capacity.

Tips / Case

• Use 3000–3500 K LEDs for balanced white, dim-to-warm for evening. Alternate 600 mm acoustic tiles with plain tiles to control cost while maintaining pattern rhythm.

• When presenting material palettes to clients, I show photorealistic visuals; seeing how warm timber accents feel in renders helps finalize ceiling-light color temperature combos quickly.

save pin

save pin

Planning, materials, and install game plan

Step-by-step

1) Map zones: mark lounge, dining, entry, and TV sightlines. Use tape on the floor; what feels right underfoot often reads right overhead.

2) Heights: measure slab-to-floor and clearances; in apartments with 2.6 m ceilings, keep total drops under 100 mm in main areas.

3) Wiring: plan switch circuits for ambient, task, and accent; add smart dimmers so scenes can shift from dinner to movie night effortlessly.

4) Materials: pick lightweight framing (aluminum channels, gypsum board), fire-rated where code requires; integrate access panels for drivers.

5) Mockups: test light color (CCT) and intensity; 5 minutes of trial in a dark room can save 5 years of “why is this so blue?”

6) Execution: laser lines, check for joists and services, pre-drill for anchors, dry-fit miters on coves before finish.

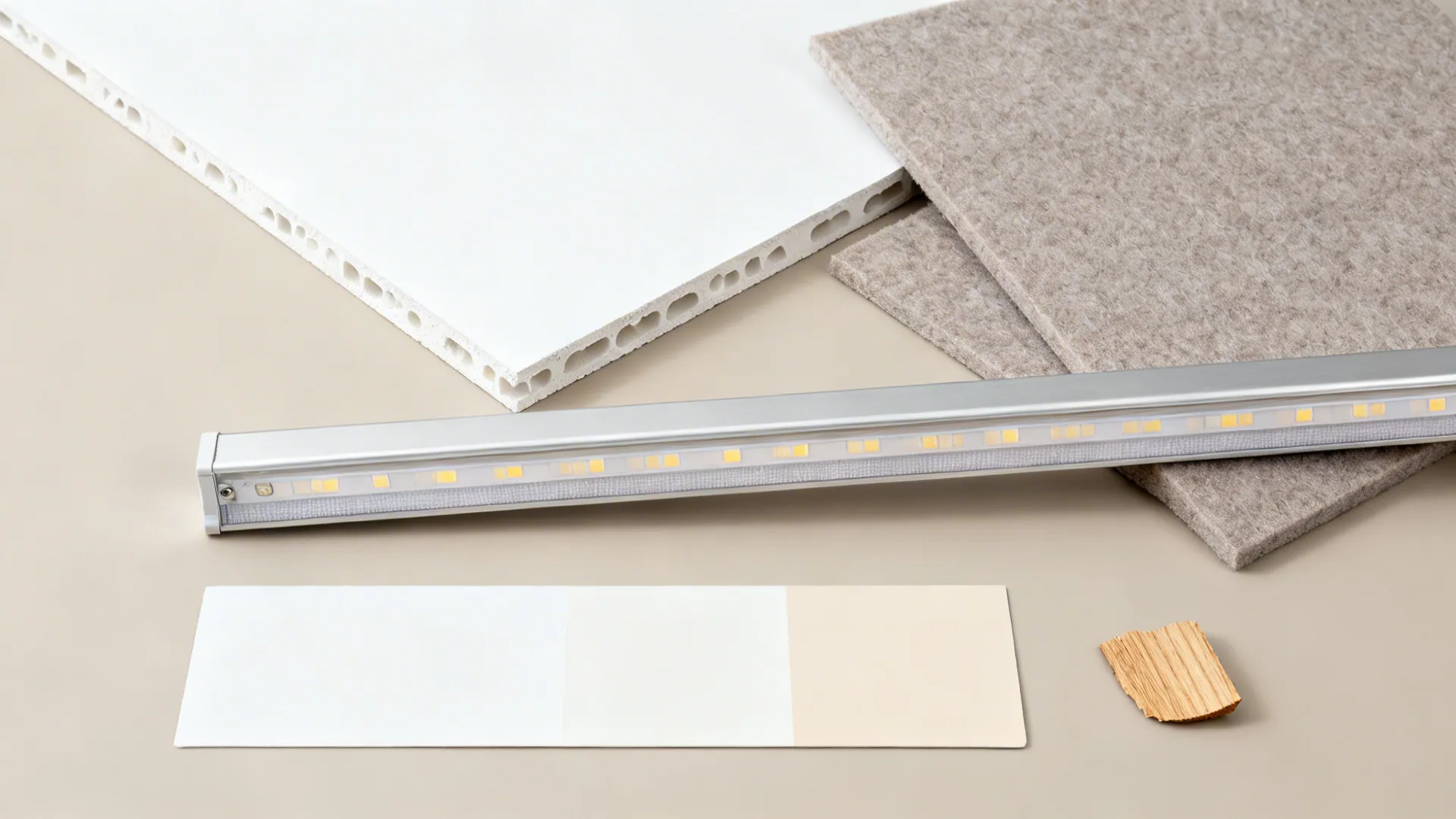

Material notes

• Gypsum board 12–15 mm for most drops; MDF only where humidity is low. Use scrim tape and two coats of joint compound for invisible seams.

• Paint in dead-flat white for ceiling planes; semi-matte for features to retain subtle shadow play.

• LED drivers: look for flicker-free, 1–10V or DALI compatible; pair with high CRI strips and quality diffusers to avoid pixelation.

Safety and code

• Keep clearances from sprinklers (per NFPA 13, avoid obstructions under 18 in/457 mm below deflectors without compliant baffles).

• For condos, verify slab drilling rules and soundproofing requirements; always coordinate with building management.

How I choose between concepts

• Low ceilings: micro-coves or a floating spine with minimal drop.

• Need strong zoning: tiered peripheral cove or asymmetric T-beam tray.

• Kids/art/home theater: floating spine with tracks and acoustic panels.

• Organic vibe: curved corner cloud.

Budget ranges

• Simple micro-cove perimeter: $1,200–2,000 (small room).

• Peripheral 2-step cove: $2,000–3,800.

• Floating spine with track: $2,500–4,500.

• Curved cloud feature: $1,200–2,800.

• Acoustic panel integration: $1,800–3,500.

Costs vary by region, finish, and electrician rates.

Common mistakes I avoid

• Over-lighting with too many downlights—use layered light, not a grid of glare.

• Ignoring furniture plan—ceiling should mirror life on the floor.

• Forgetting maintenance—provide access to drivers and junction boxes.

• Mismatched CCT—keep consistent 2700–3000K for cozy living rooms unless you’re after a gallery feel.

Real-world checklist

• Confirm stud/joist layout before framing.

• Order 10–15% extra LED strip and diffusers for cuts and corners.

• Test dimming compatibility (avoid flicker with low-load dimmers).

• Take night-time photos during mockups—your eye adapts, the camera doesn’t; it reveals hot spots and shadows.

Final thought

In an L-shaped living room, the ceiling is your map. Use it to lead, soften, and clarify. Small spaces don’t limit design—they reward the clever choices that make daily life feel easier and more beautiful.

save pin

Summary

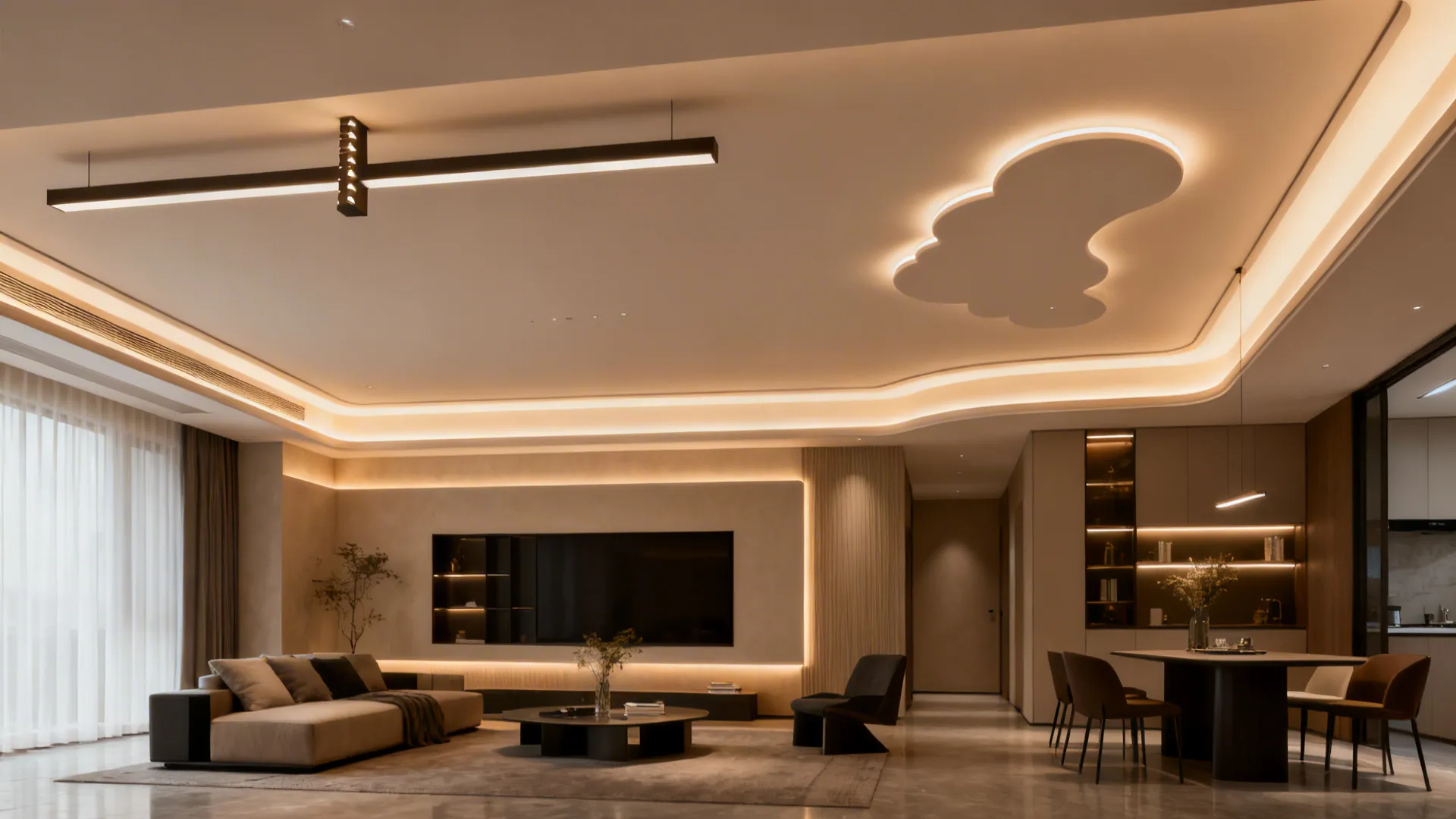

L shaped living room false ceiling designs aren’t about hiding imperfections—they’re about smarter zoning, better light, and calmer acoustics. From a tiered peripheral cove to a curved corner cloud, the right approach turns the awkward “L” into a fluid, cozy home. The IES lighting principles on layering back up what I see in client homes every week: ambient, task, and accent layers make small rooms feel bigger and more usable. Which idea are you most excited to test in your own space?

save pin

FAQ

1) What’s the best false ceiling for an L-shaped living room?

Go for a design that aids zoning without heavy drops—peripheral coves or a floating spine work well. Start with ambient layers and add adjustable accent lights near art or shelves.

2) How low can I drop the ceiling without making it feel cramped?

In 2.5–2.6 m spaces, keep drops under 80–100 mm for main areas. Use micro-coves or shallow trays, reserving deeper features only where you need visual emphasis.

3) Are false ceilings energy efficient?

Yes—integrated LED strips or track heads (8–14 W) provide ample light with low power density. Dimmers and scenes reduce energy while improving comfort.

4) How do I light both legs of the “L” evenly?

Run continuous coves for ambient light, then add targeted downlights or track heads on the shorter leg to balance brightness. Test at night with mockups to catch shadows.

5) Can I install a false ceiling in a rental?

Consider a floating spine with surface-mounted tracks that minimizes drilling into the slab. Always get landlord approval and use reversible fixings when possible.

6) What materials are best for durability?

Use gypsum board on aluminum channels for most builds; MDF is fine in dry zones. Choose high CRI LEDs with aluminum profiles and diffusers for longevity and even light.

7) Any authoritative guidance on layered lighting?

The Illuminating Engineering Society (IES) emphasizes layered lighting—ambient, task, accent—for visual comfort in multi-use spaces. Their Lighting Handbook provides design methods and recommended practices.

8) How can I visualize the design before building?

Create a quick 3D mockup and test lighting scenes. Seeing examples like warm wood-inspired renders can help lock in color temperature and finish choices before you commit.
