5 Main Gate Side Wall Design Ideas: Practical, stylish, and space-smart strategies for your entry boundary wall

As someone who has spent over a decade designing tight urban frontages and compact homes, I’ve watched a clear trend unfold: entryways are becoming curated, minimalist showcases—where materials, light, and micro greenery do the storytelling. Small space really does spark big creativity, especially with main gate side wall design. To help you unlock that curb appeal, I’ll share 5 design inspirations backed by hands-on experience and expert data—starting with a quick reality check rendered via photo-realistic facade rendering so you can visualize before committing.

My goal is to help you turn constraints—narrow setbacks, tight sidewalks, exposure to weather—into design advantages. Whether you’re refreshing an older boundary wall or building new, these ideas scale with budget and work for modern, transitional, or traditional homes.

We’ll go step by step through materials, lighting, privacy, micro storage, and signage. I’ll share what’s worked for my clients, the pros and cons, and a few tips on cost, durability, and compliance. By the end, you’ll have five modular ways to elevate main gate side wall design without bloating the footprint.

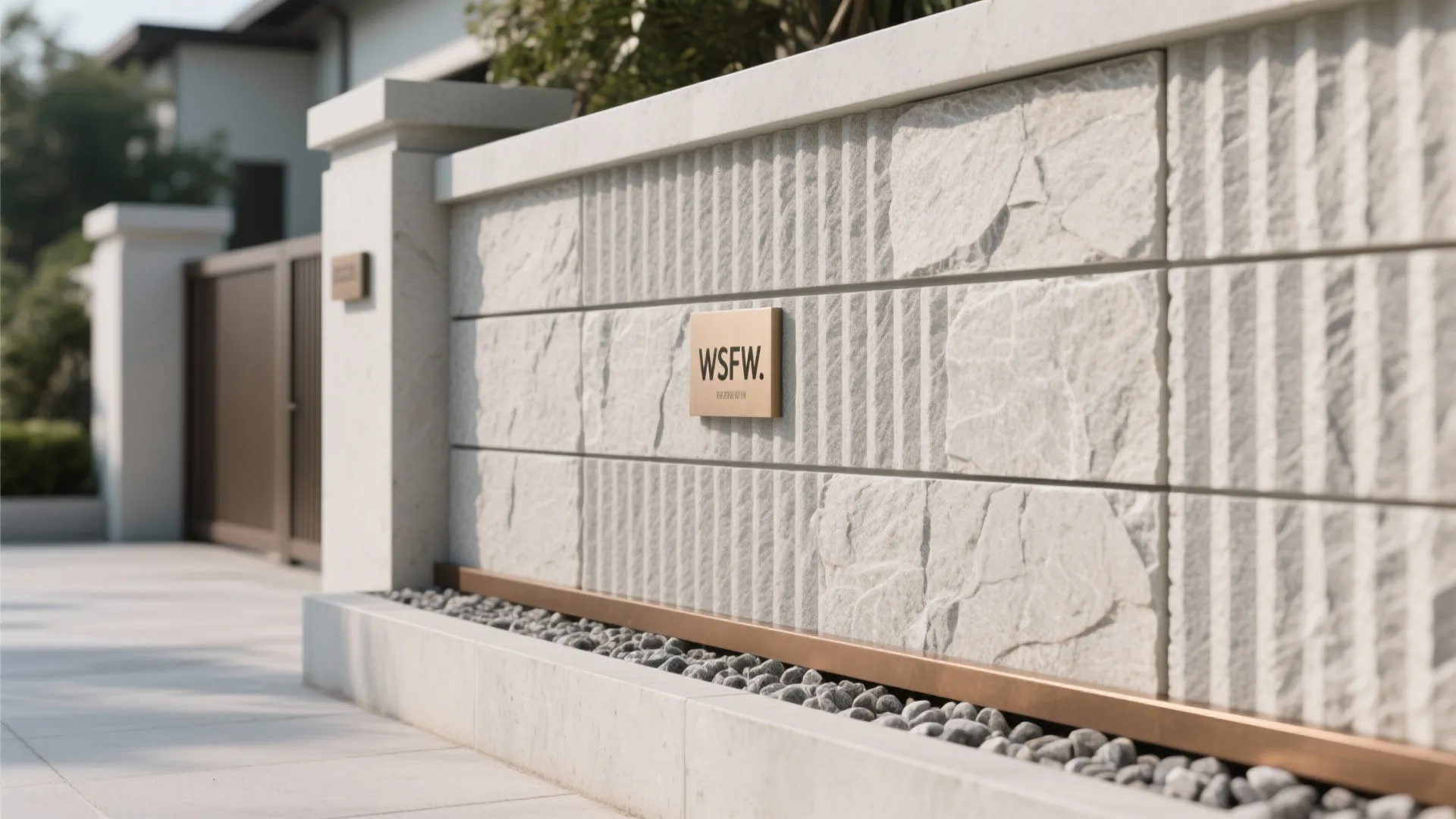

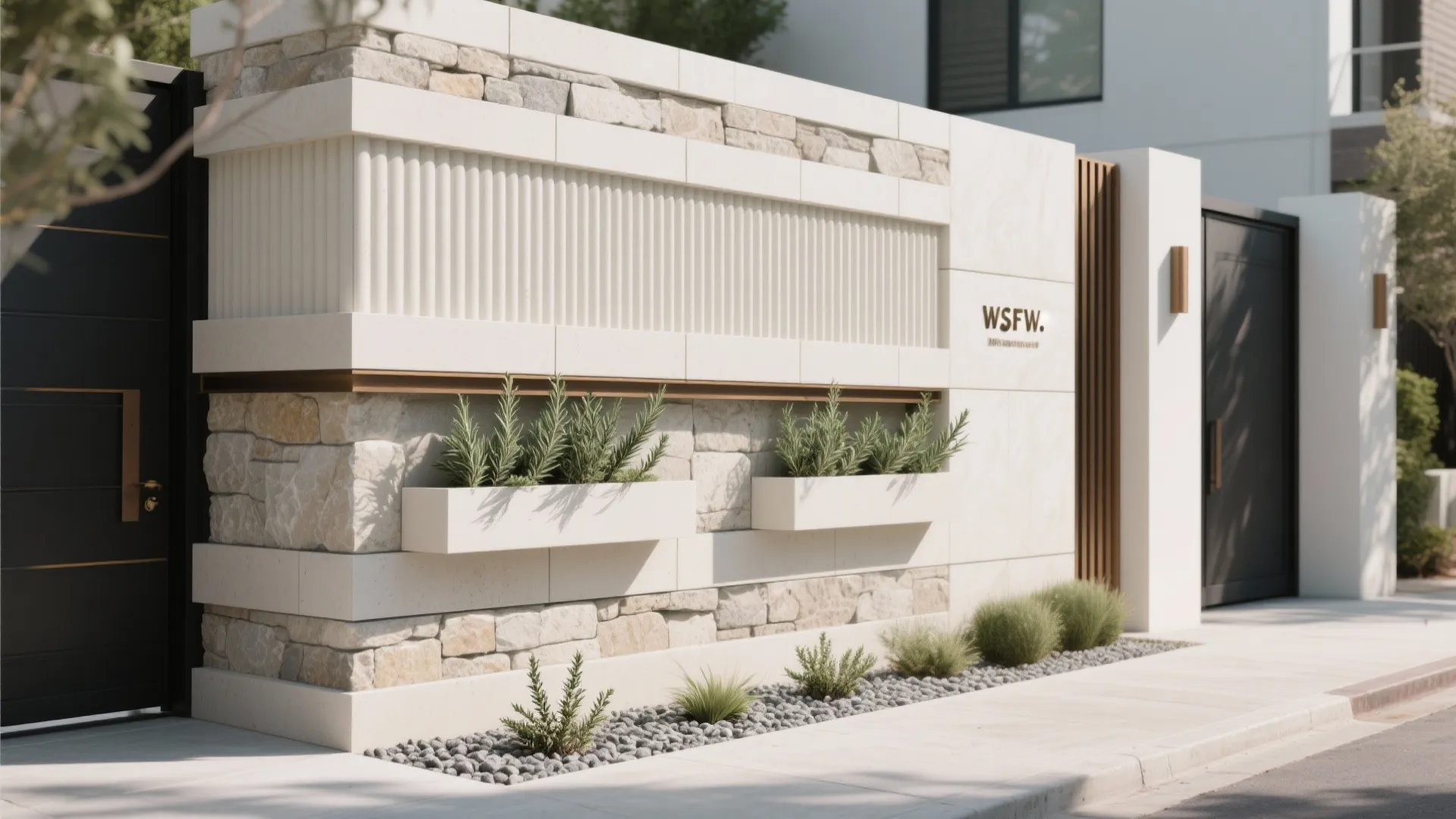

Layered textured cladding with slim planters

My Take

I’ve had great success using a layered facade—think ribbed stone, architectural concrete, or fluted composite—paired with slim planter pockets. One client’s 1.2-meter gate wall transformed after we echoed the home’s interior palette outside and added a low-maintenance green strip.

Pros

The biggest win is depth: textured stone cladding for gate walls creates shadow play and a premium feel without protruding too far into the sidewalk. With drought-tolerant species, low-maintenance vertical planters bring biophilic calm and soften hard edges in a modern main gate side wall design. Adding permeable gravel at the base helps drainage and keeps the entry cleaner.

There’s also thermal performance to consider. Lighter-toned cladding reflects heat, and even a small amount of greenery can cool surfaces and mitigate glare; the U.S. EPA’s Heat Island Reduction Program has repeatedly documented the temperature benefits of vegetated surfaces in cities.

Cons

Some textured materials can trap dust and pollution—especially near busy roads—so you’ll need a seasonal rinse. If you go for natural stone, expect variation and occasional replacement; cheaper composites may weather faster in high UV zones. And be realistic about irrigation; tiny planters on a gate side wall do better with drip lines than manual watering in summer.

Tips / Case / Cost

Match mortar or seam colors to your facade for a seamless look. For low budgets, use fluted fiber-cement panels and a single linear planter with hardy species like jade or rosemary. Typical materials might range from $25–$65 per sq ft for cladding, plus $150–$400 for slim planters and irrigation.

save pin

save pin

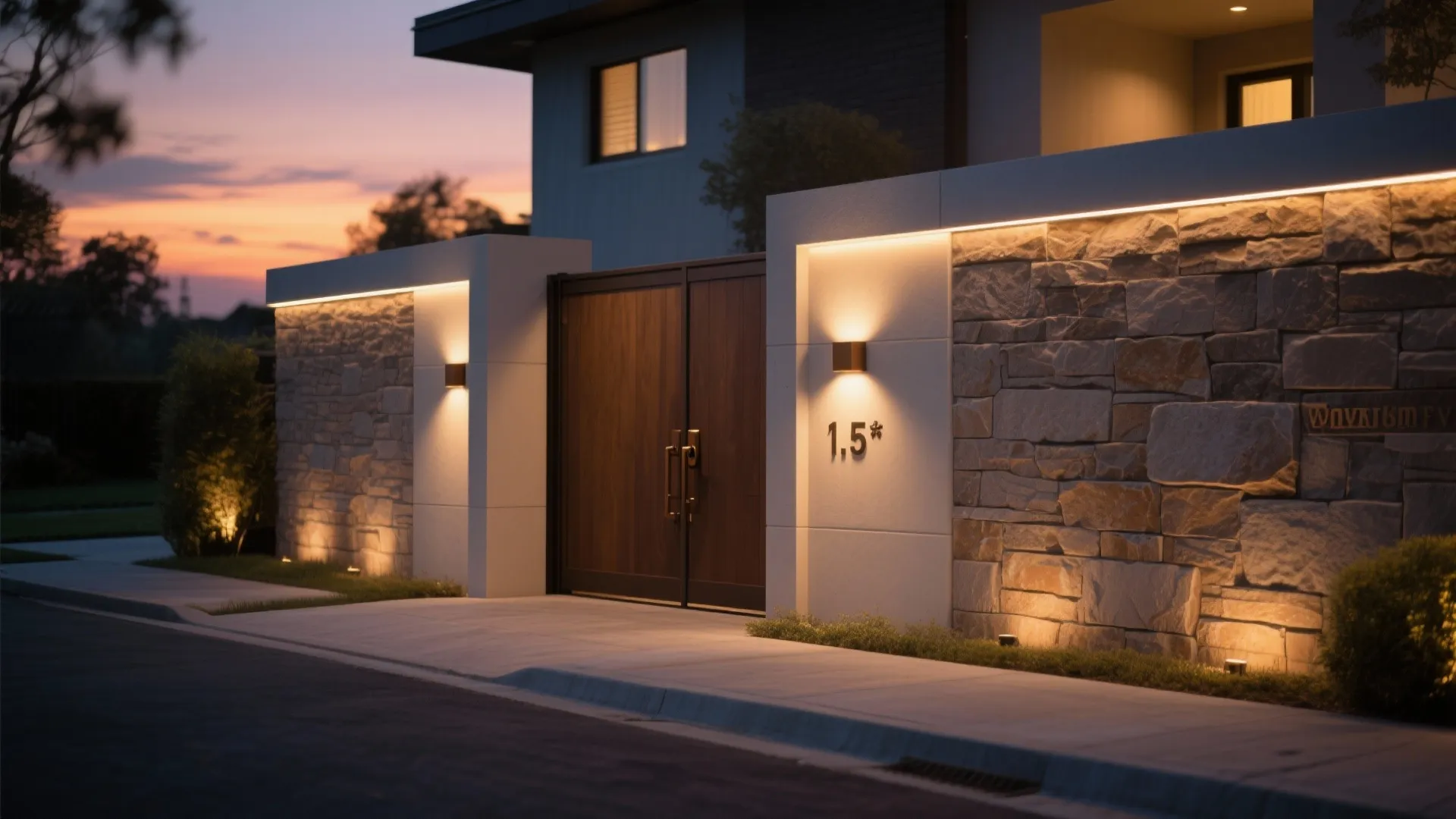

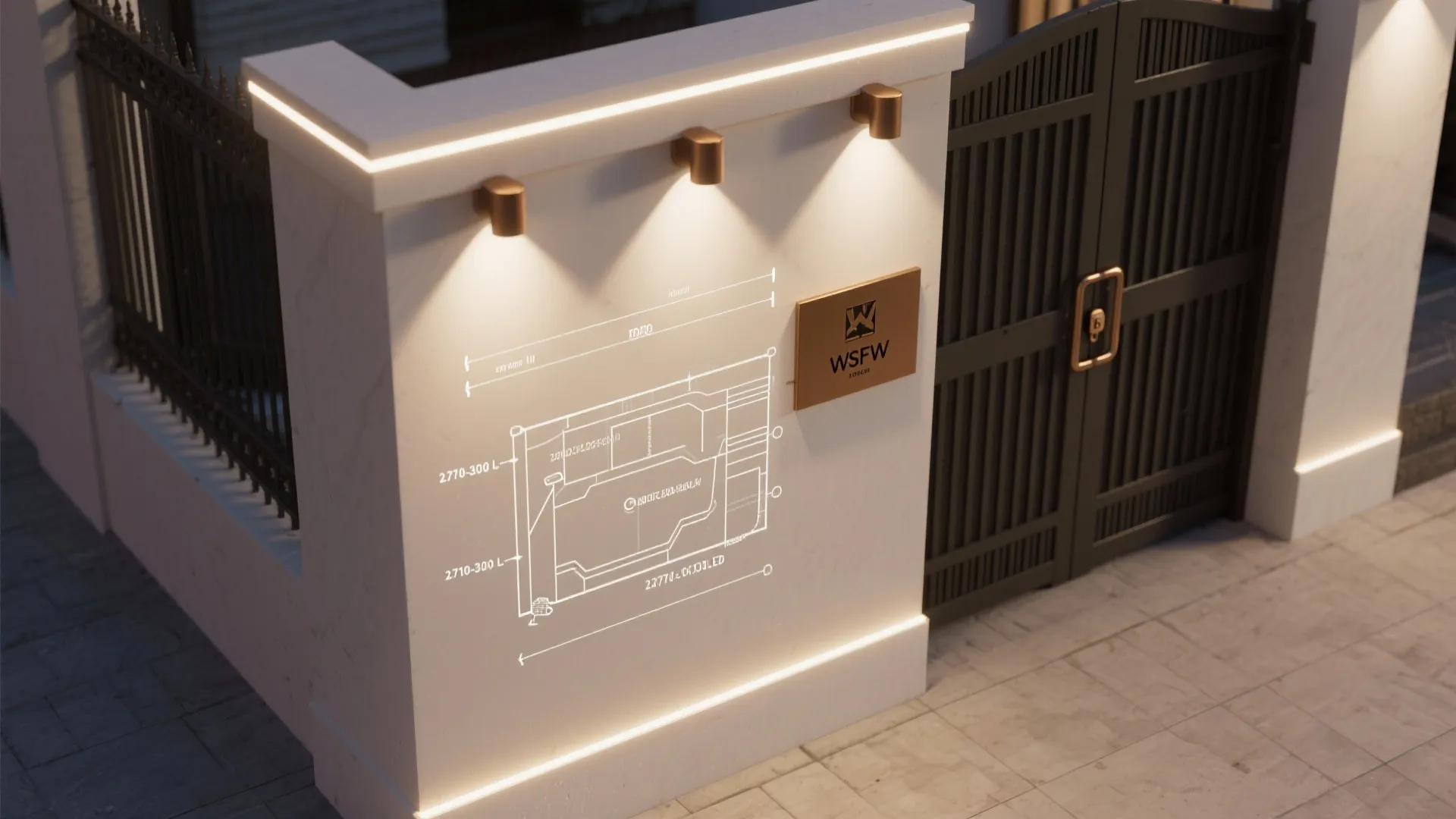

Linear lighting for safety and drama

My Take

I’m a big believer in lighting that works just as hard for safety as it does for mood. A simple LED strip tucked beneath a coping, a small spotlight grazing the texture, or downlights set to warm white can turn a plain gate wall into nighttime poetry.

Pros

Thoughtful main gate wall lighting ideas improve navigation and identify the entry from the street. Per IES (Illuminating Engineering Society) recommendations for residential exteriors, aim for consistent illumination with minimal glare—often in the range of about 1–5 footcandles—so faces are visible and steps are safe. Warm CCT (2700–3000K) makes materials look richer and skin tones friendly.

Lighting also defines rhythm: wash the textured cladding, highlight a number plaque, and mark the gate latch so guests intuitively reach for the right spot. LED strips with good CRI (90+) will make natural stone and wood pop in modern main gate side wall design.

Cons

Overlighting is a common mistake; a wall that glows like a stadium can annoy neighbors and wash out material texture. Power and conduits need planning: retrofits on older boundary walls can be tricky. And cheap fixtures with poor IP ratings may fail quickly in rain or coastal air.

Tips / Case / Cost

Use shielded fixtures and glare baffles; test aiming at night with temporary clamps before drilling. Pick IP65+ for strips and IP54+ for covered downlights. Expect $180–$600 for basic LED runs and $120–$450 per fixture for quality spots. Include a photocell or smart timer so your lights behave when you forget.

save pin

save pin

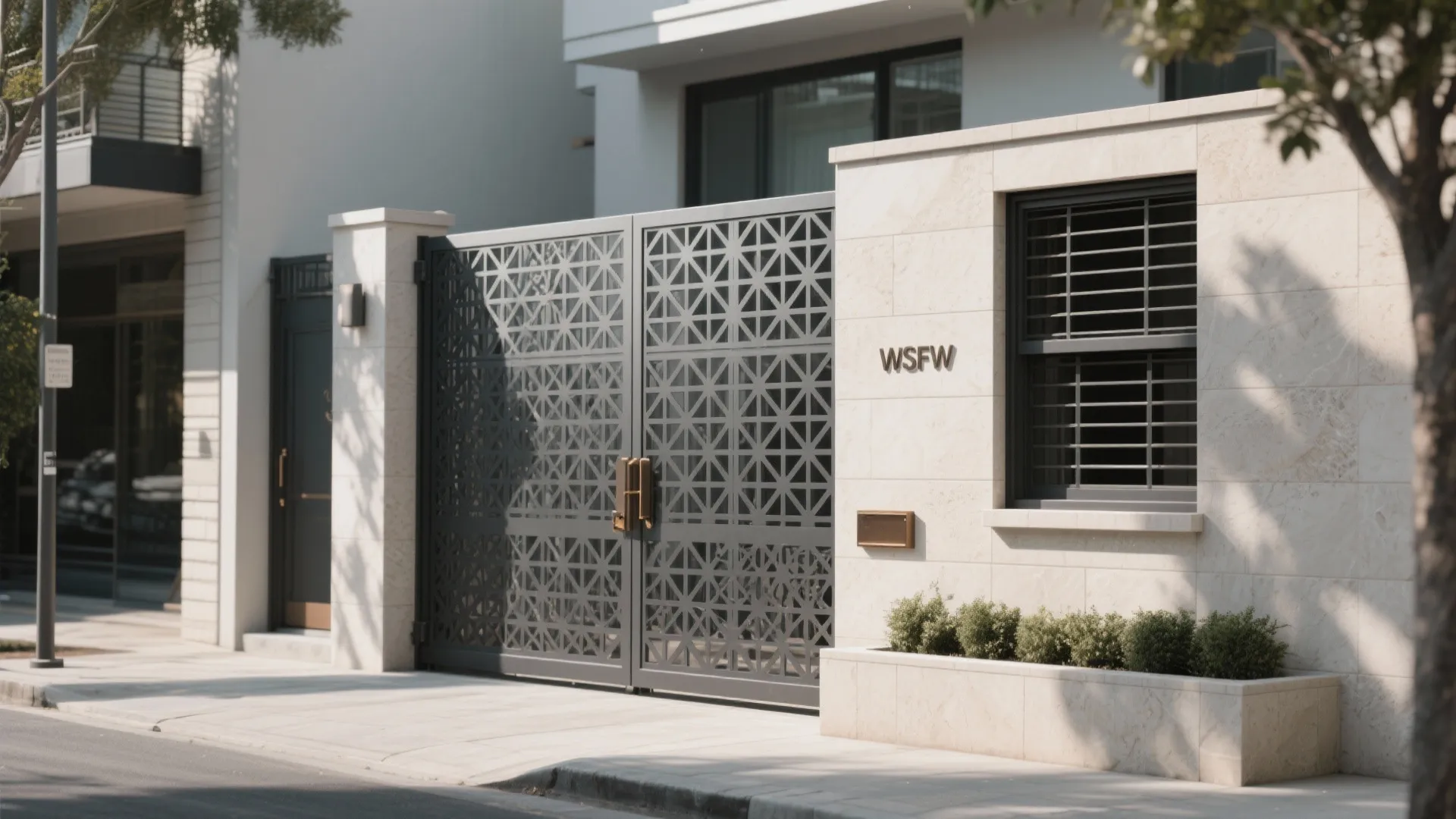

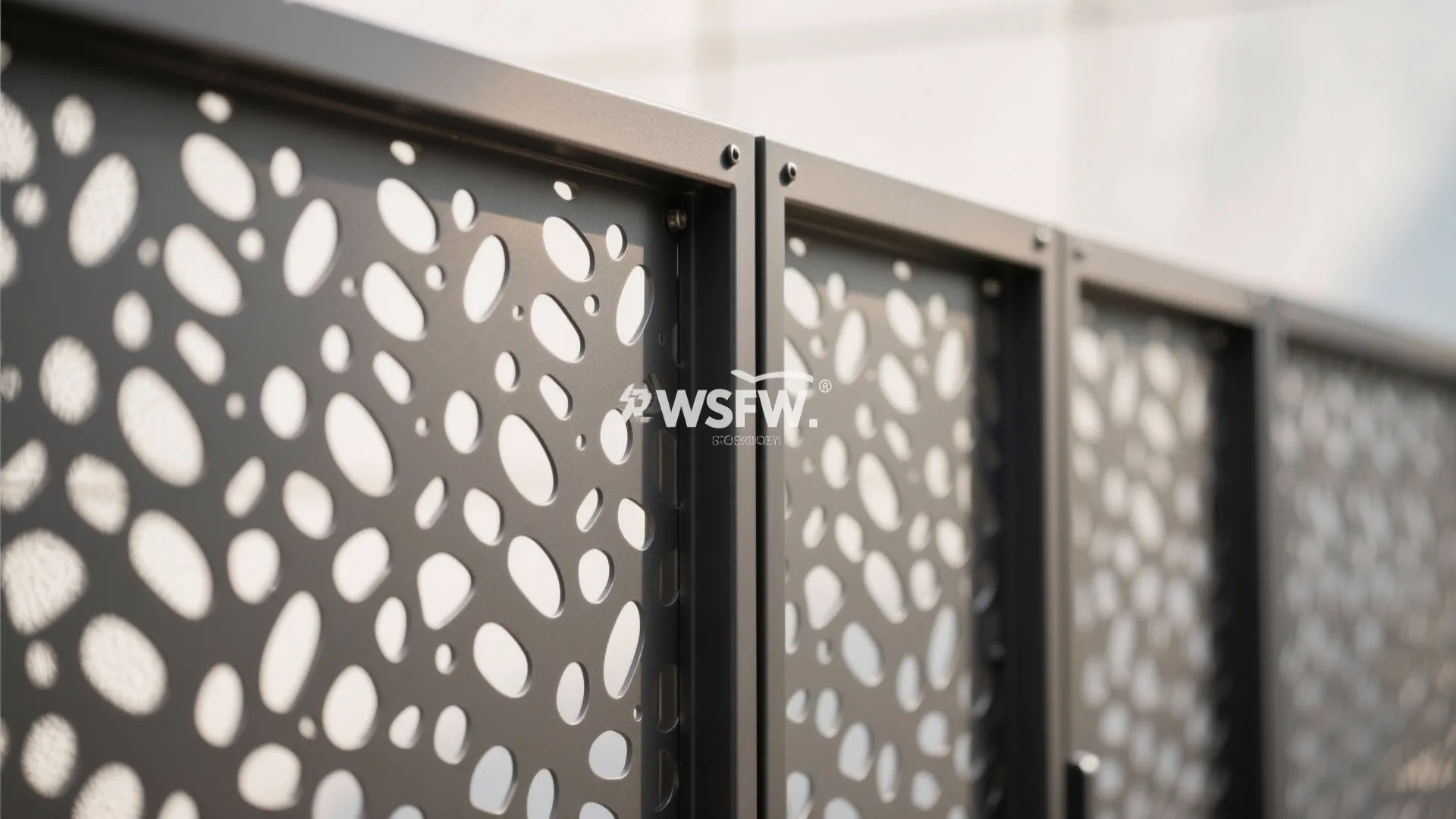

Patterned metal screens for privacy and airflow

My Take

When clients ask for privacy without bulk, perforated metal screens or laser-cut aluminum panels are my go‑to. We’ve used geometric patterns that echo the home’s window grills, and leaf motifs when the architecture is softer.

Pros

A perforated metal privacy screen for gate walls lets air pass, offers visual cover, and casts incredible shadows at night. From a safety standpoint, balanced visibility aligns with CPTED principles (Crime Prevention Through Environmental Design) backed by the International CPTED Association—maintaining sightlines toward the street helps natural surveillance.

Customization is a plus: pick a pattern density to control privacy, and powder-coat finishes to match the door hardware. This is especially powerful in tight plots where a high masonry wall would feel imposing; a lighter screen adds refinement to modern main gate side wall design.

Cons

Metal can ring or rattle if the panels aren’t well-braced—wind on corner lots exaggerates this. Coastal areas need vigilant finish specs; cheap coatings will chalk and peel. And if the pattern is too busy, it can clash with the home’s lines or read as fussy from the curb.

Tips / Case / Cost

Use concealed angles or a stiff frame to keep panels quiet. Powder-coat in matte finishes to hide fingerprints and dust. Typical costs range widely: $35–$95 per sq ft for off-the-shelf screens; custom laser cuts and thicker gauges can push $120+ per sq ft. For design visualization, I often iterate an entrance concept with perforated metal privacy screen references to nail pattern scale before fabrication.

save pin

save pin

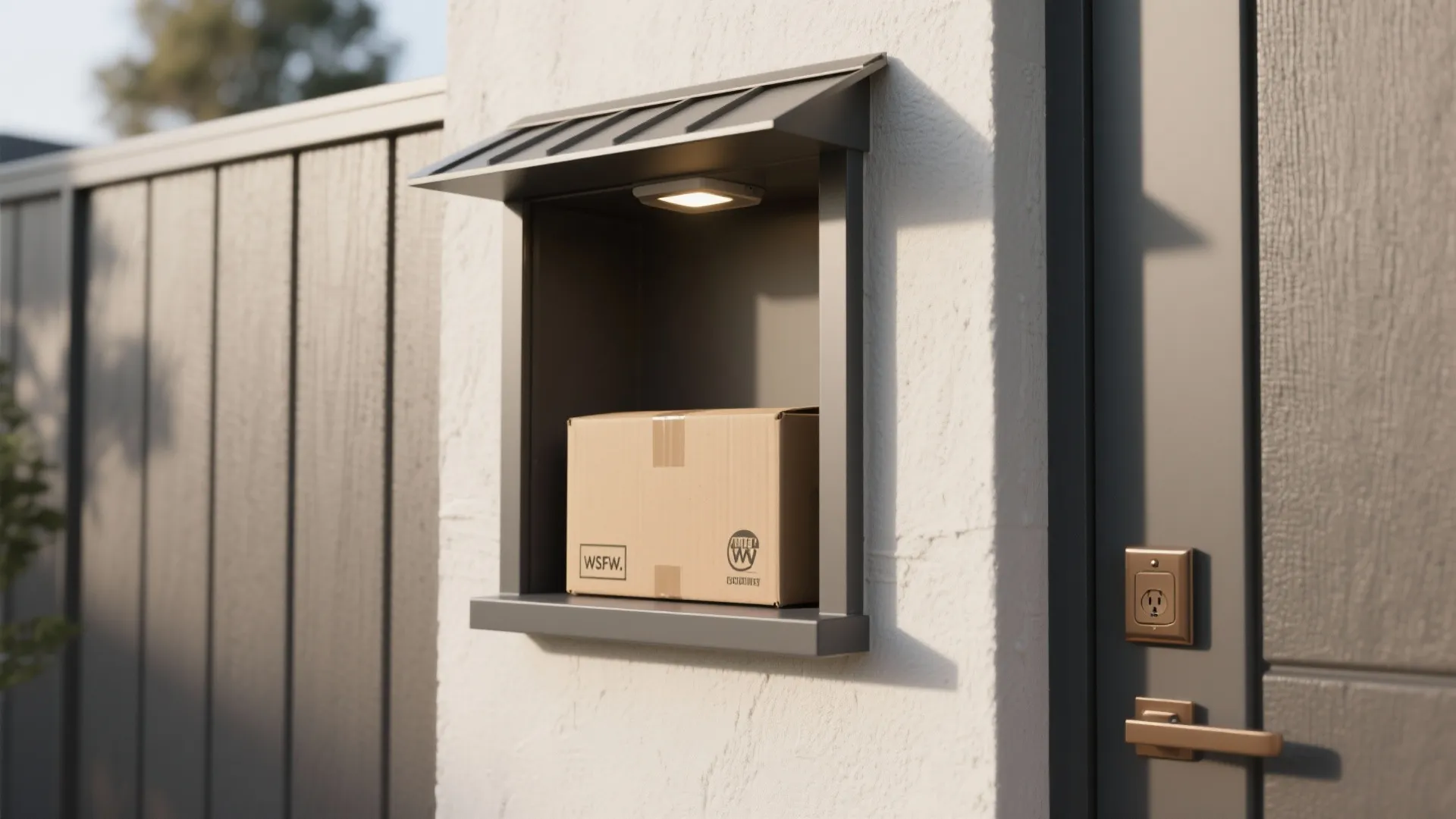

Built-in niche: parcels, umbrellas, and small utilities

My Take

Small gate walls do big jobs. I like slipping in a shallow niche for parcels, a hook for umbrellas, or even a covered socket for garden tools. A client in a rainy city finally stopped soaking deliveries by adding a 120mm recess with a mini overhang.

Pros

A slim parcel drop niche improves day-to-day life without ruining the line of the wall. Integrated storage on a main gate side wall design can hide intercoms, water meters, and key safes, keeping the facade clean. With a small motion sensor light and drip edge, deliveries stay dry and visible.

It’s also a wonderful way to reduce clutter inside. When the entry boundary wall does some of the work—holding umbrellas or gloves—you keep the foyer lighter and more minimal.

Cons

Cutting a niche means extra flashing details, and poor execution leads to water ingress. You’ll need to plan door swing and latch clearance so packages don’t interfere. And if you live on a very public street, consider a lockable parcel box; open niches can be tempting.

Tips / Case / Cost

Use sloped sills and concealed gutters; pair with a 3000K downlight on a timer. For finish continuity, line the recess with the same material as the cladding, or choose a darker contrasting insert so it reads intentional. Budget $250–$700 for a basic niche, more for lockable parcel systems.

save pin

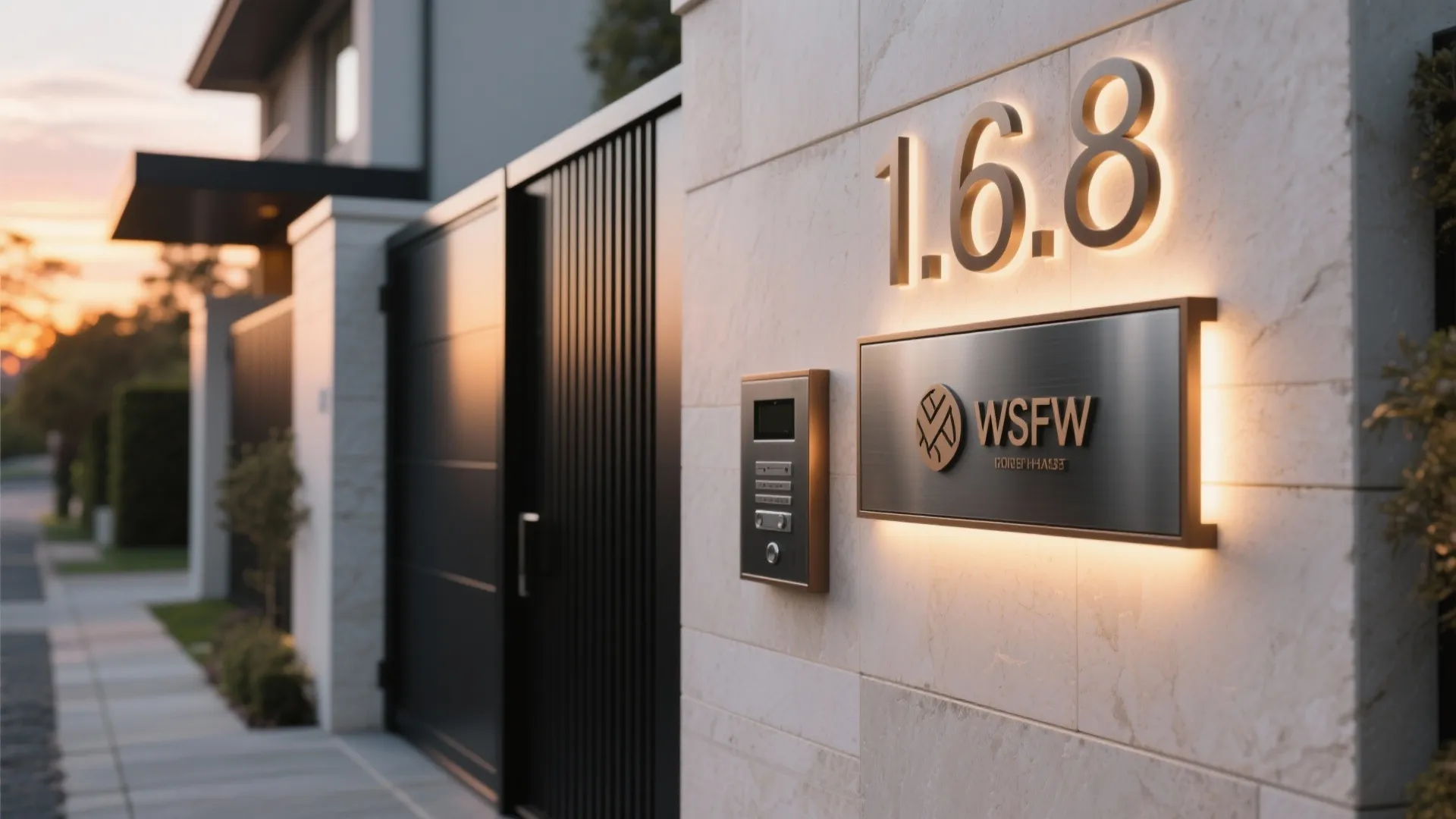

Signage that earns its spot: numbers, nameplates, and intercoms

My Take

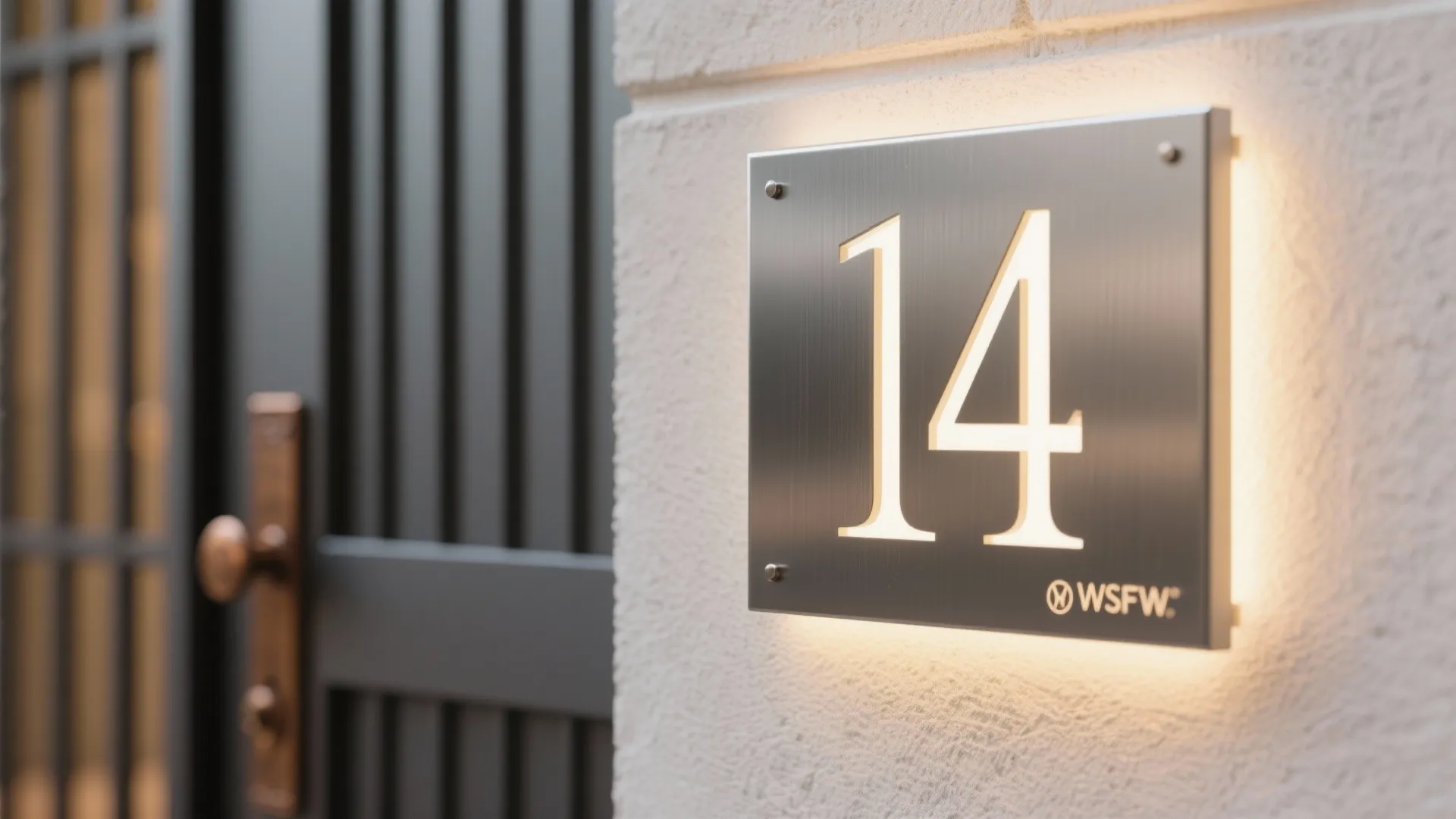

House numbers and nameplates can be the jewelry of a gate side wall. I often integrate a metal plaque with a subtle backlight, setting it on the eye-line where visitors naturally look.

Pros

Clear, contrasting house numbers on the gate wall help first responders and deliveries; the International Fire Code (IFC) Section 505 requires address identification that’s plainly visible from the street. In practice, that means size, color contrast, and illumination matter—especially at night.

Beyond compliance, this is branding for your home. Typeface and finish (brushed stainless, blackened steel, or bronze) can echo your door hardware and modern main gate side wall design, tying the entry together. Backlighting numbers avoids harsh glare while making them legible from a distance.

Cons

Numbers placed too low get lost behind parked cars or garden planters. Glossy acrylic can scratch and look tired fast. And overdecorated plaques sometimes fight with the wall’s texture—simplicity usually wins.

Tips / Case / Cost

Mount numbers at about 1.5–1.8 meters high for visibility; test sightlines from the street and driveway. Use high-contrast colors (dark on light, or light on dark) with dimmable backlighting. Quality plaques range $90–$350, custom cut numbers with lighting $250–$700. When planning, I sometimes mock up contrasting house numbers variations to confirm sizing before final fabrication.

save pin

save pin

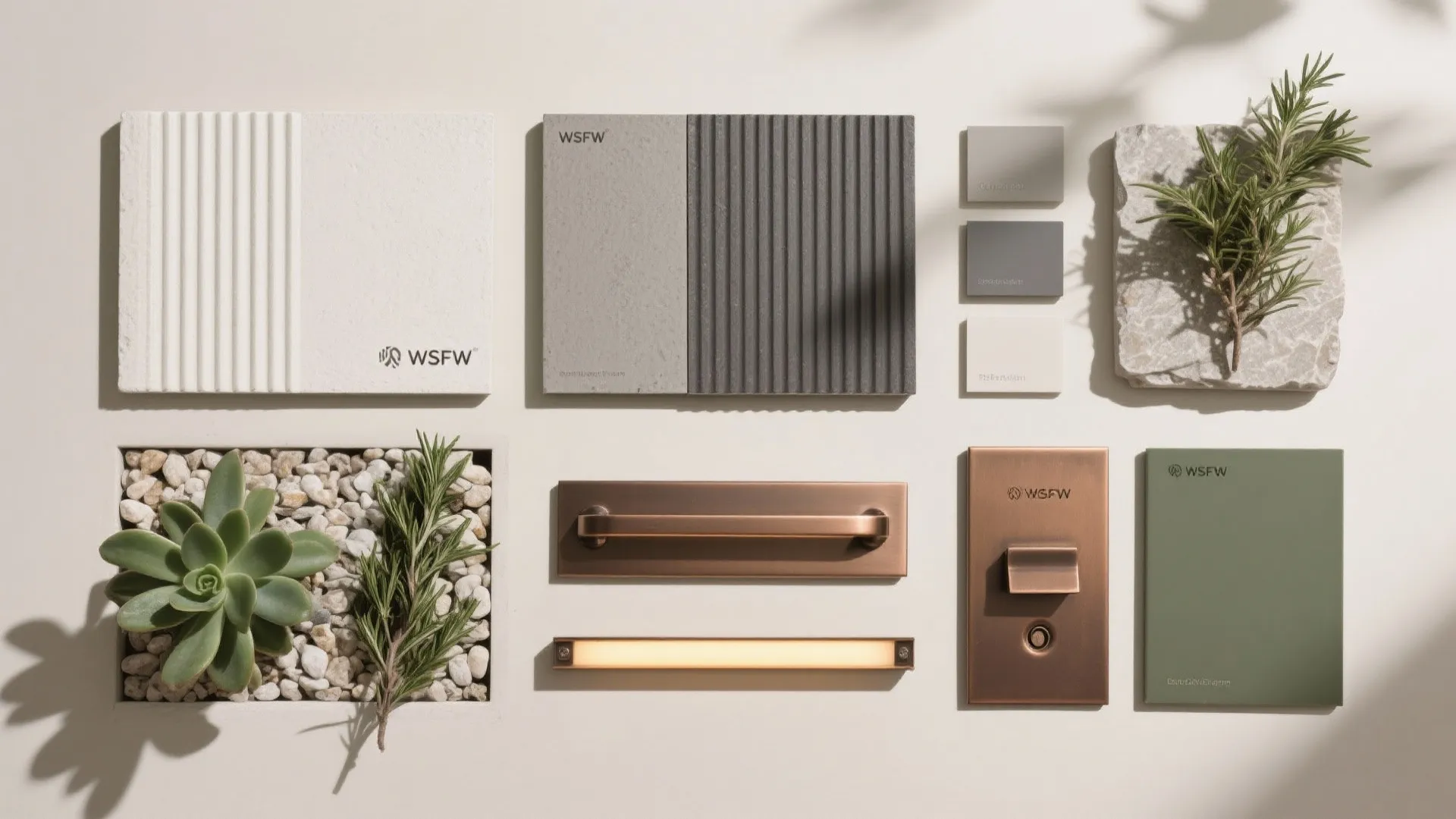

Summary

If there’s one takeaway, it’s this: a small frontage isn’t a limitation—it’s an invitation to design smarter. With layered materials, thoughtful lighting, breathable privacy, micro storage, and crisp signage, main gate side wall design can be both practical and poetic.

Lean on standards where helpful—IES for illumination levels and IFC for address visibility—and let your home’s architecture guide finish choices. Which of these five ideas would you try first on your entry wall?

save pin

FAQ

1) What makes a good main gate side wall design for small plots?

Choose slim-profile cladding, integrated lighting, and micro storage niches. Keep sightlines open and use breathable privacy screens to avoid a fortress feel.

2) How bright should my gate wall lighting be?

For residential exteriors, consistent low-level lighting (around 1–5 footcandles) is typical. Follow IES guidance to minimize glare while keeping paths and numbers readable.

3) Are perforated metal screens durable near the coast?

Yes, with proper specs: use marine-grade aluminum or stainless steel and high-quality powder coating. Rinse salt periodically and check fixings to prevent corrosion.

4) What size should house numbers be on the gate side wall?

Follow local code; the International Fire Code Section 505 requires visible address identification from the street. Practically, 100–150mm numbers with strong contrast and lighting work well.

5) Can I add a parcel niche without major construction?

In many cases, yes—if your wall has enough depth and you handle waterproofing with flashing and a drip edge. Consider a lockable box if your street has heavy foot traffic.

6) What materials are best for low-maintenance cladding?

Fiber-cement, architectural concrete, and well-sealed natural stone are reliable. Choose textures that hide minor dust, and use lighter tones to reduce heat absorption.

7) How do I plan wiring for gate wall lighting?

Run conduits before finishing, use IP-rated fixtures, and include a photocell or smart timer. If retrofitting, test temporary placements at night to avoid drilling mistakes.

8) Does greenery really help on a small gate wall?

Even a slim planter adds visual warmth and can modestly cool sun-exposed surfaces. The U.S. EPA’s Heat Island Reduction research supports temperature benefits from vegetated areas.
