5 MDF wall panels designs for small spaces: An interior designer’s playbook: 5 proven MDF wall panel ideas that add texture, storage, and calm to compact homes—backed by real projects and expert data

[Section: Introduction]

Over the last few years, I’ve seen a surge in MDF wall panels designs as clients lean into tactile walls, calm color blocking, and clever storage. In small homes especially, panels do double duty—adding character while hiding seams, cables, and scuffs. I usually start with quick, photorealistic 3D room renders to test scale and lighting before we cut a single sheet.

Small spaces spark big creativity, and that’s where MDF shines. It’s smooth, stable, takes paint beautifully, and can be routed into almost any profile. In this guide I’m sharing 5 design ideas I’ve refined in real apartments and compact houses, mixing personal lessons learned with expert data so you can plan with confidence.

Here’s the plan: five inspirations, each with my take, pros and cons, and a few practical tips—so you can go from Pinterest save to weekend project without surprises.

[Section: Inspirations]

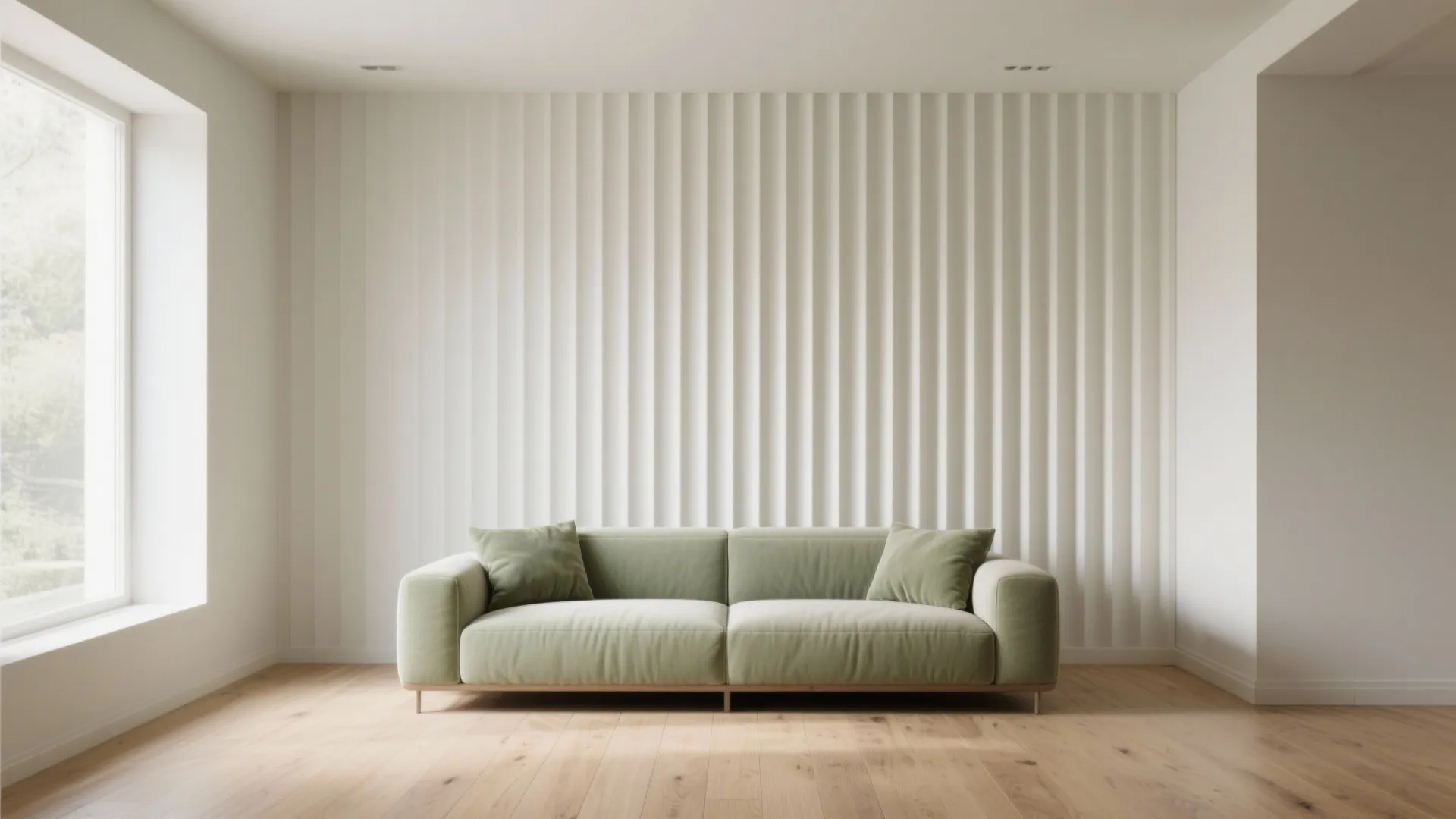

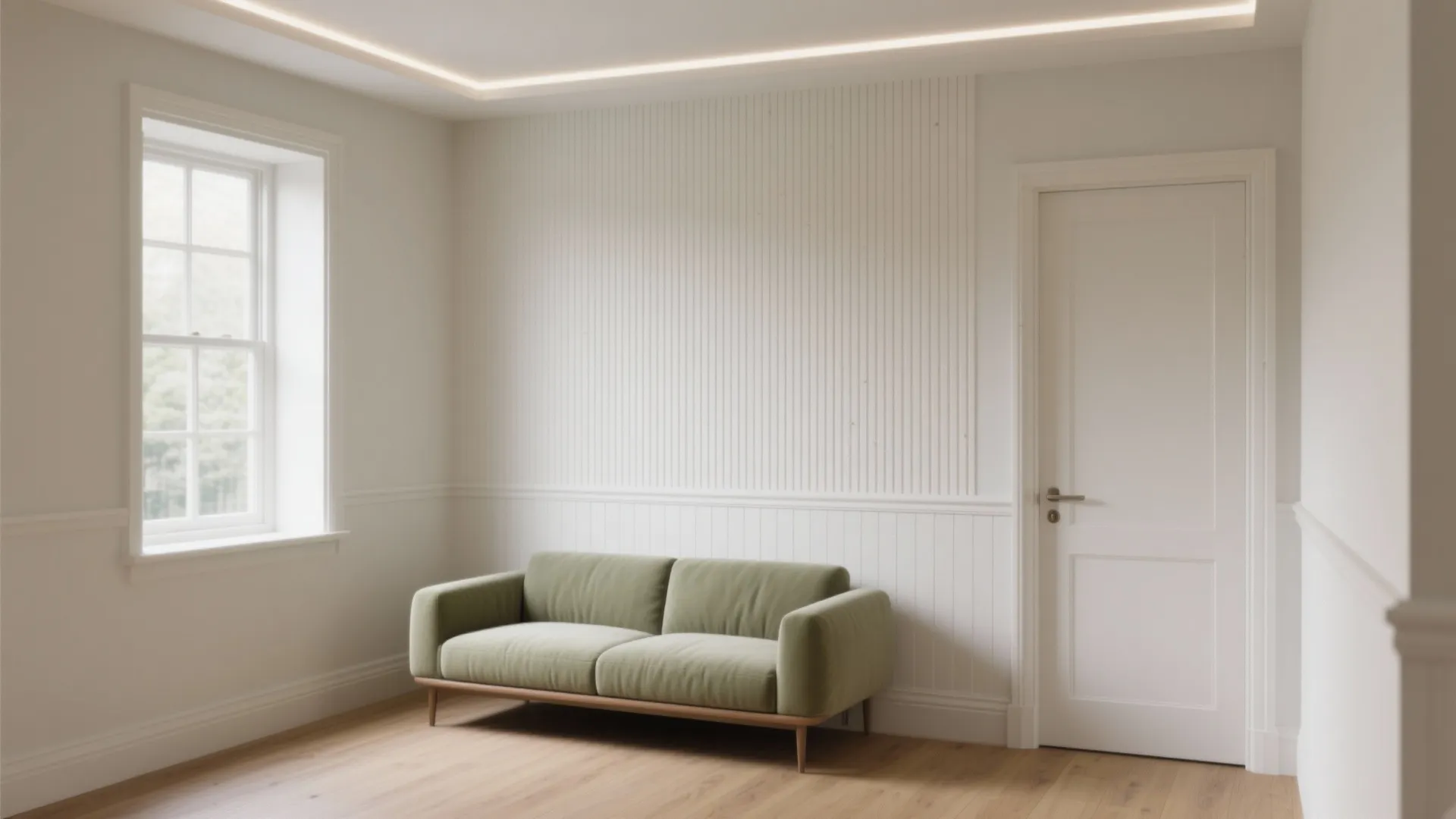

Fluted MDF panels for taller, calmer rooms

My Take: I still remember a 28 m² studio where a simple fluted panel behind the sofa visually stretched the ceiling. I routed shallow 20 mm flutes into 12 mm MDF and painted it the same color as the walls—suddenly the room felt composed, not cramped. In another micro-dining nook, a narrow fluted band doubled as an acoustic softener.

Pros: Fluted MDF wall panels create strong vertical lines that make ceilings feel higher, a small-space trick that never gets old. They’re budget-friendly compared with solid wood slats, and MDF routes cleanly for consistent spacing—perfect for MDF slat wall ideas in living rooms or behind TVs. If you add a thin acoustic backing, fluting can slightly reduce echo, making conversations less tinny.

Cons: Dust loves grooves—no way around it. I keep a soft brush attachment handy, or I’ll use a makeup fan brush when I’m in a pinch. Repairs require repainting a larger area for a uniform sheen; spot touch-ups can flash under grazing light, especially with satin finishes.

Tips/Case/Cost: Try 15–25 mm flute spacing and test one sample board in your actual lighting—grazing light will exaggerate every ridge. Prime routed edges with a high-adhesion primer and sand lightly before paint. I budget roughly 25–45 USD per m² for basic fluted MDF wall panels (excluding labor), more if we add concealed cable channels.

save pin

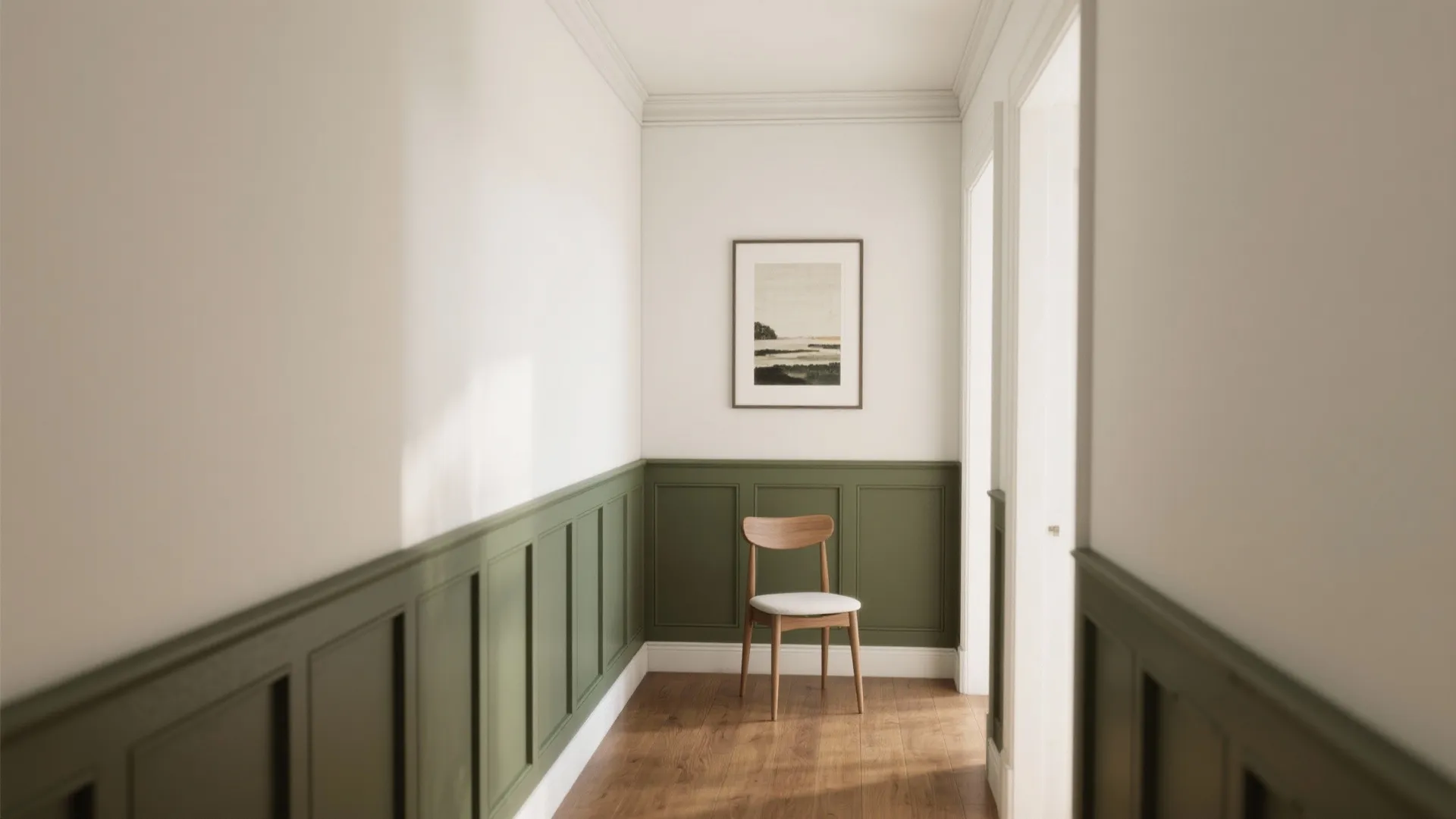

Painted wainscoting and color-block panelling

My Take: My go-to for hallways and dining corners is painted MDF wall panelling at about one-third of the wall height. It protects from bag scuffs and chair backs, and it frames art beautifully. I’ve even used a deep olive wainscot in a north-facing bedroom to add warmth without shrinking the room.

Pros: Painted MDF wall panelling is a durable, wipeable shield in high-traffic zones, and it’s easier to repaint than skim-coated plaster. Color blocking can zone an open-plan studio—think warm wainscot in the lounge, crisp off-white above to bounce light. With moisture-resistant MDF wall panels in entries or near kitchens, you’ll get added stability in humid days.

Cons: Standard MDF dislikes moisture; near sinks or exterior doors, use MR MDF and seal all cut edges. Wall waviness can telegraph through long rails—shim and scribe carefully. And yes, if you pick a trendy hue, you may want a refresh in a couple of years (I’ve repainted my own hallway twice—no regrets).

Tips/Case/Cost: Keep proportions classic: 900–1000 mm high in standard 2.6–2.8 m rooms, and carry the top rail around corners for continuity. Caulk seams before priming to avoid hairline cracks. Satin or semi-matte paints handle touch-ups better than full gloss while still being easy-clean.

save pin

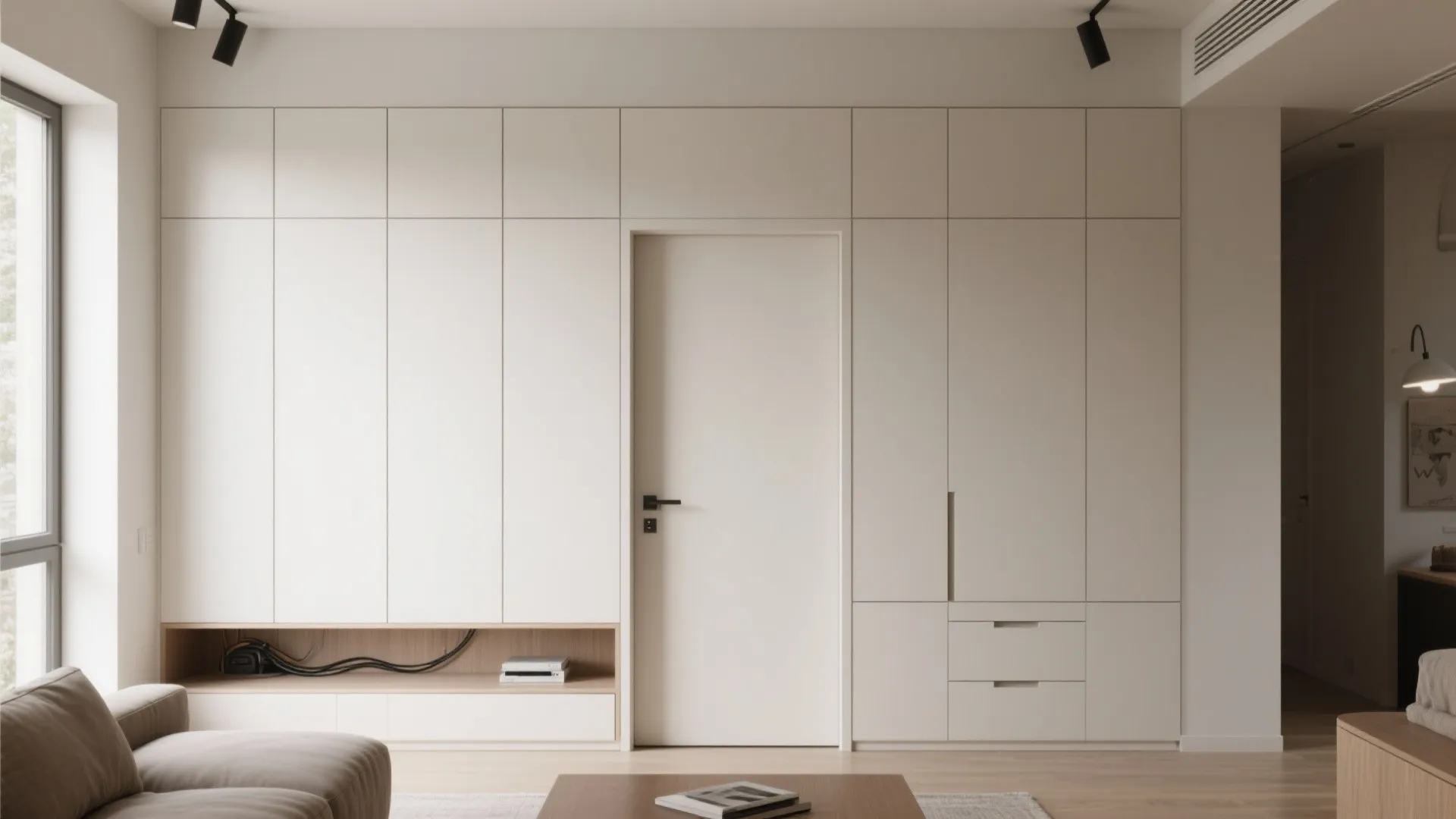

Hidden storage and integrated doors

My Take: In a 36 m² loft, we wrapped an entire wall in MDF panels, hiding a full-height storage bay and a pocket door behind the same rhythm. Guests can’t find the door until I give it away. Clean lines, fewer handles, and zero visual clutter—everything I love about compact living.

Pros: MDF wall panels with hidden storage keep small rooms visually calm while packing in function—perfect for built-in media walls and narrow hallways. Continuous reveals let you manage cables, router hubs, and even a fold-down desk without visual noise. With push latches, you can keep the façade completely handleless.

Cons: Precision is non-negotiable—hinge pockets, door clearances, and panel reveals must be dialed in, or doors will rub. Expect a bit more cost for better hinges and magnetic latches. Also: practice opening the door before guests arrive unless you want to turn your living room into an escape room.

Tips/Case/Cost: Use 18 mm MR MDF for doors and carcasses, and leave ventilation gaps for AV gear or modem heat. Concealed SOSS-style hinges look great but need exact routing. I often budget 600–1,200 USD for a simple integrated door paneling wall, more if we add LED reveals or curved edges. For visual inspiration and layout logic, I’ve documented how I approach concealed door paneling in small apartments—the key is aligning seams with storage widths you’ll actually use.

save pin

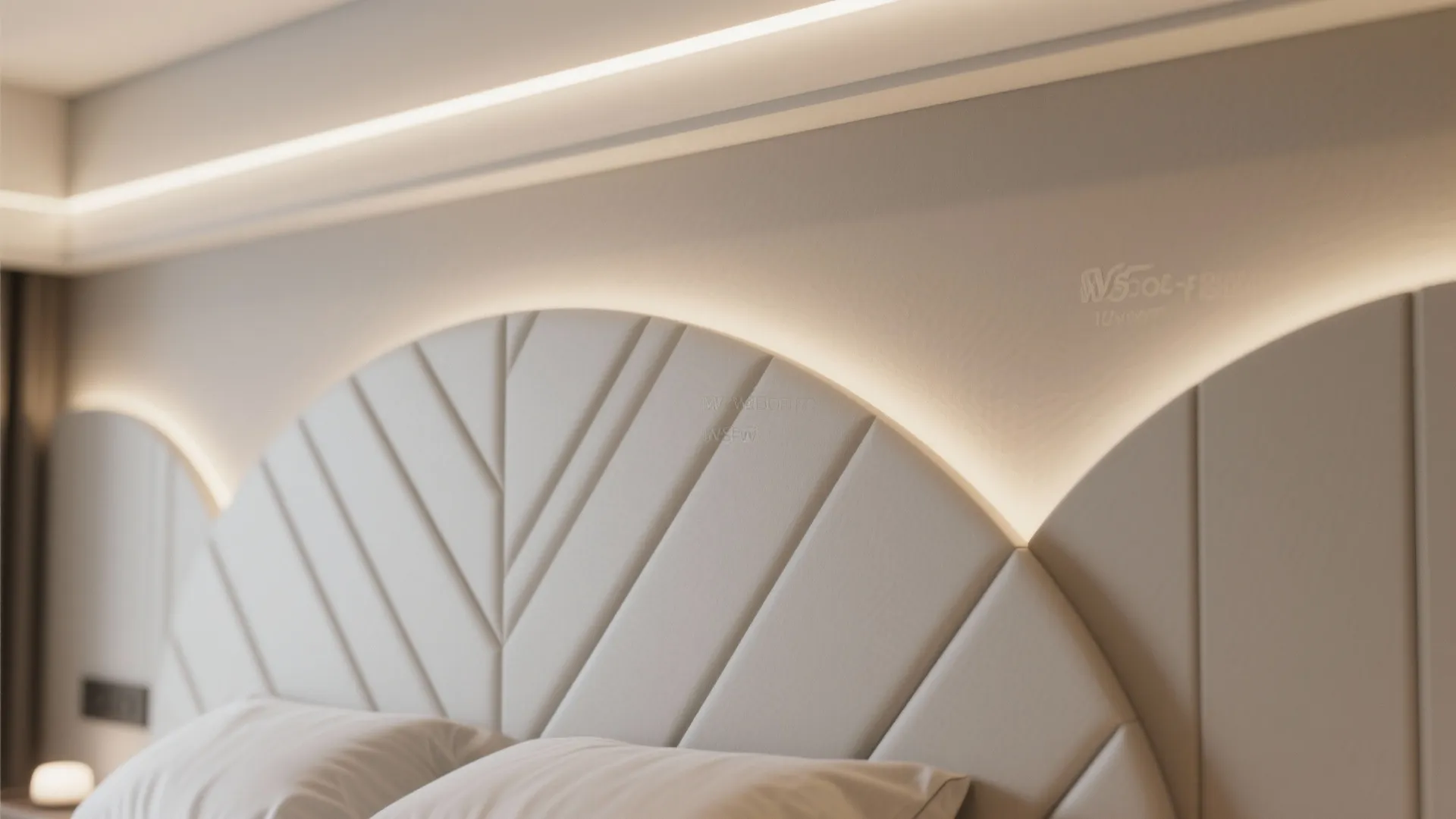

CNC-routed geometric feature walls

My Take: When a headboard wall needs personality but space is tight, I’ll route arcs, chevrons, or soft square patterns into MDF and paint everything one tone. With a subtle LED graze from the ceiling, the texture reads sophisticated and hotel-like without feeling busy.

Pros: CNC MDF wall panel designs let you scale patterns exactly to your room—larger modules for calm, tighter repeats for energy. MDF’s uniform core routes smoothly, which makes intricate 3D MDF wall panel designs viable on a budget. If indoor air quality is a concern, select low-formaldehyde options that comply with U.S. EPA TSCA Title VI and CARB Phase 2 emissions limits (EPA TSCA Title VI; California Air Resources Board ATCM 93120).

Cons: Deep routing thins the board—plan for battens or a backer if you’re removing lots of material. Edge fuzz can show under paint; expect to sand and prime twice. If you’re DIY-ing, dust extraction is your best friend (and your vacuum’s biggest challenge).

Tips/Case/Cost: Start with 12–18 mm boards; avoid routing deeper than half the thickness for structural stability. A small radius on inside corners prevents chip-out. I usually test three paint sheens under grazing light before committing—eggshell often wins for texture clarity without glare.

save pin

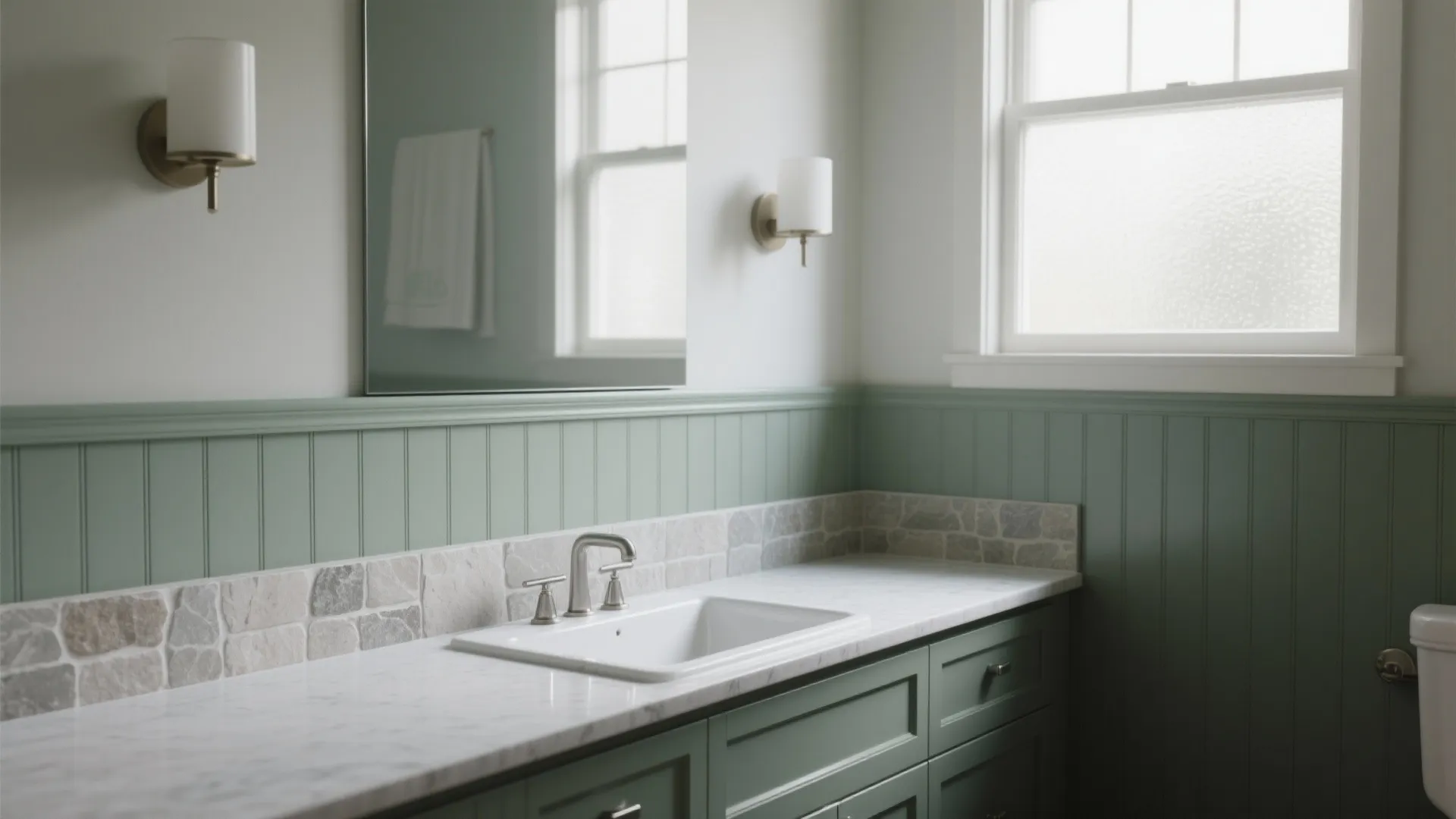

Moisture-smart panels for kitchens and baths

My Take: MDF in wet rooms is a “yes, but”—as in yes, but use MR MDF, seal every edge, and keep it out of splash zones. I love a half-height paneled wall behind a vanity with a stone or tile splash at the sink line; you get warmth without risking swelling.

Pros: Moisture-resistant MDF wall panels work in powder rooms, laundry nooks, and kitchens if they’re properly sealed and not exposed to standing water. Pairing MDF wainscot with tile at wet areas gives you a balanced, budget-savvy finish. For indoor air quality, choose low-emitting MDF; EPA notes that compliant composite wood products must meet strict formaldehyde emission standards under TSCA Title VI, which helps keep indoor levels in check (U.S. EPA, TSCA Title VI).

Cons: No panel is invincible—unsealed cut edges are MDF’s Achilles’ heel and can swell. Avoid shower enclosures and areas of constant splashing. Also note that standard MDF is typically not fire-rated; where code requires, specify fire-retardant MDF and verify ASTM E84 or EN 13501-1 classifications.

Tips/Case/Cost: Use MR MDF (often green-tinted core) and seal all cuts with polyurethane or a high-build primer, then topcoat with a durable enamel. Run a tiny drip edge where panels meet counters to stop water from wicking. I’ll often show clients options for moisture-safe panel detailing in bathrooms before we order materials—seeing profiles and edge seals at scale helps avoid costly rework.

[Section: Summary]

Small kitchens, tight hallways, compact bedrooms—none of these are limitations. They’re invitations to design smarter. The five MDF wall panels designs above prove that with the right routing, paint, and planning, you can add texture, storage, and character without crowding the room. For health and safety, I always confirm low-emission MDF certified to TSCA Title VI or CARB Phase 2 and check fire classifications where relevant. Which idea are you most excited to try at home?

[Section: FAQ]

save pin

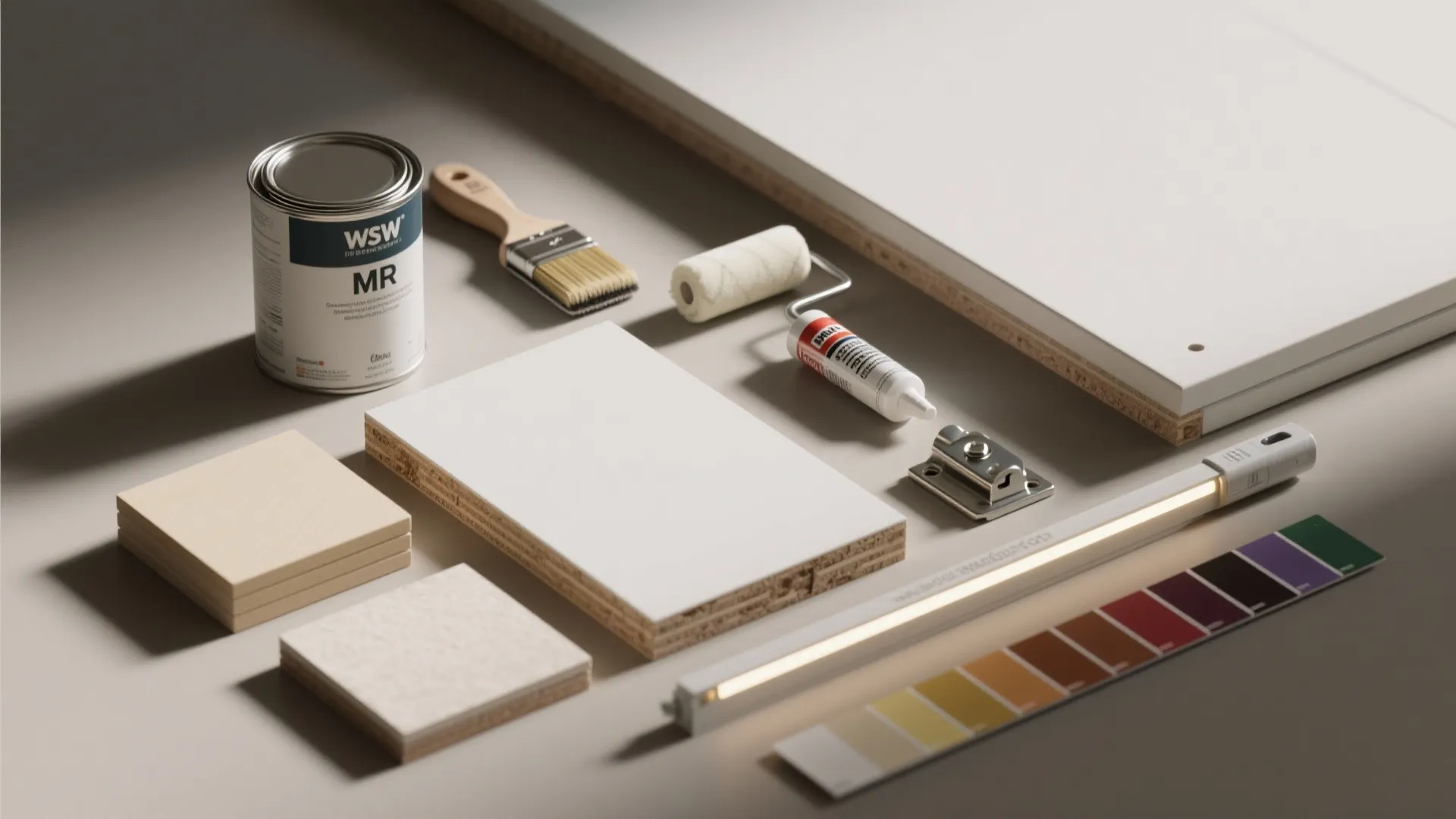

FAQ

1) What are the best MDF wall panels designs for small rooms?

Fluted profiles and painted wainscoting are top picks because vertical lines add height and color blocking defines zones. Hidden storage panels also keep visual clutter low while adding function.

2) Is MDF safe for indoor use?

Yes when you specify low-emitting products that meet U.S. EPA TSCA Title VI and CARB Phase 2 formaldehyde emission standards. Proper ventilation and sealing edges further improve indoor air quality.

3) Can I use MDF wall panels in bathrooms?

Use moisture-resistant (MR) MDF away from direct splash zones and seal every cut edge. For shower enclosures or constant wetting, opt for tile or solid-surface materials instead.

4) How do fluted MDF panels compare to wood slats?

Fluted MDF is generally more budget-friendly and consistent, and it paints to a flawless finish. Real wood adds warmth and can be refinished but costs more and varies in grain and color.

5) What paint works best on MDF paneling?

Use a high-adhesion primer first, then an enamel or durable acrylic in eggshell to satin for easy cleaning. Sand lightly between coats, especially on routed edges, for a uniform finish.

6) Do MDF panels help with acoustics?

Textured faces like fluted or 3D routed panels can slightly reduce flutter echo, especially with a thin acoustic backing. They won’t replace full acoustic treatments but can make small rooms feel calmer.

7) Are there code considerations for MDF?

Check local fire requirements; standard MDF is usually Class C under ASTM E84, while fire-retardant MDF can reach higher ratings. Always verify certificates and use appropriate products near heat sources.

8) What’s a typical cost for MDF wall panels designs?

Basic painted wainscoting can start around 20–35 USD per m² for materials, while custom fluted or CNC-routed panels may run 25–60 USD per m² or more. Labor, primer, and paint add to the total, especially with integrated doors.

[Section: Notes]

Authority references used above: U.S. Environmental Protection Agency (TSCA Title VI—Formaldehyde Emission Standards for Composite Wood Products); California Air Resources Board (ATCM 93120—Phase 2). Always confirm current local codes and manufacturer datasheets before building.
