5 Mini Split AC Ideas for Small Room Comfort: A designer’s guide to sizing, placing, and styling a mini split AC for small room comfort—backed by real projects and expert data

[Section: Introduction]

When clients ask me about a mini split AC for small room projects, I smile—because this is exactly where thoughtful design shines. Compact rooms are trending toward multi-use and quiet, low-energy comfort, and ductless systems fit right in. In my practice, small spaces always spark big creativity.

In this guide, I’ll share 5 design ideas I use on real renovations—how to size, place, and quiet a mini split, plus ways to keep air clean and the look cohesive. I’ll fold in my own experiences and pull from trusted sources where it matters. Let’s make your small room cool, calm, and beautifully balanced.

[Section: Inspiration List]

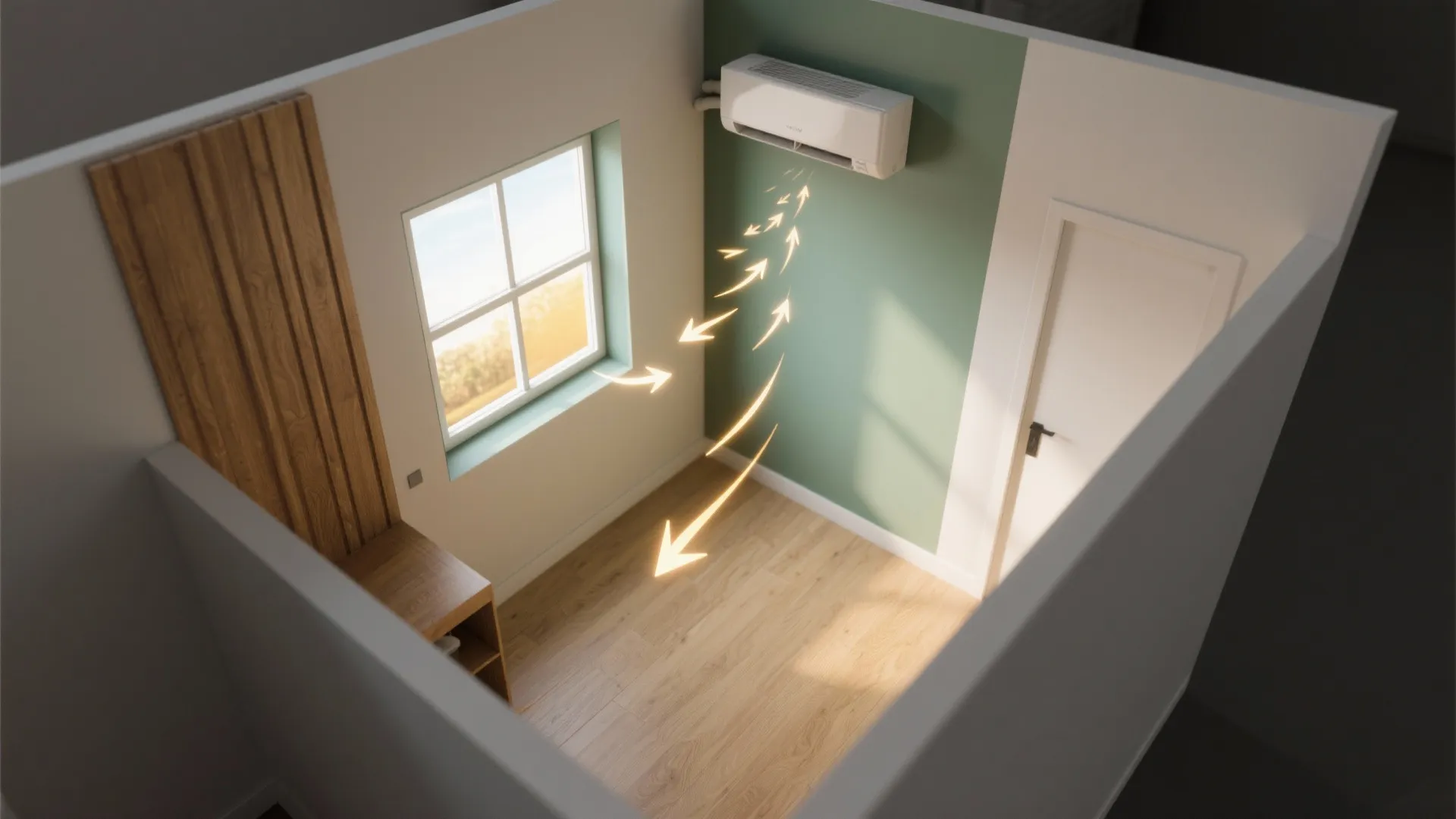

1) Right-size the system: BTU and efficiency that fit

My Take

Over the years, I’ve learned that getting the capacity right is everything. I once fixed a client’s 120 sq ft bedroom that was freezing in minutes and clammy afterward—their unit was simply oversized. We recalculated load, swapped to a smaller, higher-SEER2 model, and comfort snapped into place.

Pros

Correct sizing prevents short-cycling and humidity issues, which is crucial if you want the best mini split AC for a small room that stays comfortable, not cold-and-damp. ENERGY STAR notes that sizing by a proper load calculation (not just square footage) supports optimal SEER2 performance and lower operating costs (see ENERGY STAR and ACCA Manual J guidance). Matching capacity to envelope quality (insulation, windows) also lets you consider a higher-efficiency, low-ambient heat pump for year-round comfort.

Cons

Doing it right can take time and sometimes a professional assessment; rules of thumb like “6,000 BTU for 200 sq ft” ignore sun load and air leakage. Undersizing can make the unit run constantly during heat waves, and oversizing leads to short cycles and poor dehumidification. If you have a west-facing room with big glass, expect to size up modestly.

Tips / Case / Cost

Ask a pro for a Manual J or use a calculator that factors orientation, insulation, and infiltration. Check SEER2 ratings and HSPF2 if you’ll use heating—higher numbers reduce bills over time. Budget-wise, expect a premium for better efficiency, but the payback in a small, frequently used room is real.

save pin

2) Place the indoor head to ride the room’s natural airflow

My Take

Placement is your silent MVP. In my own studio, mounting the head high on the longest interior wall avoided blasting the bed and encouraged a gentle, room-wide drift of cool air. I also nudged the bed 6 inches off the corner to keep a clean airway from the unit to the door.

Pros

High, central placement helps a mini split AC for small room layouts distribute air more evenly, especially if you open the door for cross-flow. Locating it away from directly facing the seating or headboard avoids that “cold face, warm feet” effect. Avoiding heat sources and direct sun keeps the thermostat honest, supporting steady performance and whisper-level operation.

Cons

Sometimes the perfect spot competes with your art wall or shelves—design is a trade-off. Low ceilings limit throw angle flexibility, so vane adjustment matters more. If your only viable wall faces the bed, you’ll need to fine-tune fan speed and vane direction for comfort.

Tips / Case / Cost

Consider how partitions and doors steer air. A light divider can carry daylight while encouraging cross-ventilation; a glass partition to improve light flow also helps you visualize throw paths before drilling. Keep 6–12 inches of clearance above and around the head for service and airflow. If you must use an exterior wall, confirm line-set routing and condensate drain slope at the planning stage.

save pin

3) Let the layout do the work: zoning without ducts

My Take

In compact rooms, furniture placement is like gentle ducting. I learned this while reworking a 10×12 home office/guest room—by sliding the sofa bed to the leeward side and keeping the desk within the head’s primary throw, the room felt evenly cool even on low fan.

Pros

Thoughtful zoning lets you run at lower fan speeds, making a mini split for a small room feel quieter and more efficient. Use the head’s vanes to focus the work zone in the day and the sleep zone at night; many remotes make these tweaks easy. A light rug and low-profile storage reduce turbulence and keep pathways open for smoother airflow.

Cons

Multi-use spaces can be fickle—you might lose an ideal airflow route on guest nights. Big bookcases perpendicular to airflow can shadow-cool zones you actually use. Don’t over-clutter the “first bounce” area in front of the unit; it defeats the purpose.

Tips / Case / Cost

Use your corners wisely. A compact corner desk or chaise that respects the unit’s throw can create a micro-zone that feels custom. If you’re rearranging, test with painter’s tape on the floor to mark the air path. For visual planning, I love mocking up a quick 2D/3D scheme—an L-shaped layout frees more floor space and preserves a clean airway to doors and windows.

save pin

4) Make it whisper-quiet—and make it look intentional

My Take

Noise matters most in bedrooms and studios. I’ve had great luck specifying heads that dip below 20 dB(A) on quiet mode. Visually, I treat the unit like a wall element: align it with trim lines, conceal the line-set gracefully, and echo its color in nearby shelves so it feels designed, not just installed.

Pros

Choosing a quiet mini split for a bedroom under 20–24 dB(A) can be the difference between “library hush” and “constant hum.” Better compressors and inverter control smooth out cycling, so sleep stays deep and steady. Concealed line-set channels, color-matched trunking, and coordinated millwork turn a tech object into part of the architecture.

Cons

Ultra-quiet models often cost more, and sound ratings can vary by fan speed and distance—read the spec sheets carefully. Night mode sometimes softens fan noise but also reduces dehumidification; in humid climates, you may prefer low fan over silent. Over-decorating around the unit (thick shelves, tall plants) can trap sound and disrupt airflow.

Tips / Case / Cost

Ask for decibel ratings at multiple fan speeds and confirm how they were measured. If your line-set runs inside, route it through a slim baseboard chase or a vertical wood slat panel; warm wood accents for a calmer vibe can hide trunking while improving acoustics. Keep a soft, matte backdrop; glossy walls bounce noise more readily than eggshell finishes.

save pin

5) Air quality, humidity, and maintenance: small room, big payoff

My Take

Clients often think cooling is the whole story, but small rooms amplify humidity and pollutant build-up. On one project, switching to a head with a good filter and using Dry mode on muggy days cut that sticky feeling instantly. We paired it with a simple cleaning routine and the space felt fresher all year.

Pros

Many ductless systems offer multi-stage filtration and a dehumidification (Dry) mode that keeps relative humidity around the recommended 30–50% range; the U.S. EPA notes this zone curbs dust mites and mold while protecting finishes. Good maintenance—washable filters every 2–4 weeks in peak season—helps a mini split AC for small room applications stay efficient and quiet. Consistent RH also protects wood furniture and musical instruments in tight spaces.

Cons

Relying on Dry mode alone won’t solve severe humidity in leaky envelopes—you may still need air sealing or a dedicated dehumidifier. Some premium filters increase static resistance and can reduce airflow if you forget to clean them. In tiny rooms, odors build up quickly; you’ll still want to crack a window or run a small ERV if feasible.

Tips / Case / Cost

Set a calendar reminder to clean filters and wipe the coil inlet. If your climate swings wildly, look for models with a coil-dry or self-clean function to reduce mildew. For allergies, check the unit’s filter rating and consider portable HEPA support; combine it with regular RH checks to keep that sweet spot. For reference, see U.S. EPA guidance on indoor humidity and pollutants.

[Section: Summary]

A mini split AC for small room comfort isn’t a compromise—it’s an invitation to design smarter. When you right-size the capacity, place the head with airflow in mind, zone with your layout, minimize noise, and mind humidity and filtration, a compact room becomes a calm, efficient retreat. ENERGY STAR and EPA guidance both point to the same truth: the details you choose today pay you back in comfort and cost over time.

Which idea are you most excited to try first—fine-tuning the placement, or dialing in that whisper-quiet bedroom?

save pin

FAQ

1) What size mini split AC for a small room, like 150–200 sq ft?

Capacity depends on insulation, sun exposure, and air leakage, but many rooms in this range land around 6,000–9,000 BTU. A Manual J style load calculation yields the best answer, and aligning capacity with SEER2 efficiency will help keep energy bills down.

2) Is a mini split AC for small room use quiet enough for bedrooms?

Yes—many heads run at 19–24 dB(A) on low or night mode, which is close to a whisper. Choose models with inverter compressors and review sound ratings at multiple fan speeds for a realistic sense of nighttime noise.

3) Where should I place the indoor unit in a small room?

High on a central wall usually distributes air most evenly. Avoid blasting the headboard or sofa directly; use vane adjustments to steer airflow to the active zone without drafts.

4) Can a mini split also heat a small room well?

Modern ductless heat pumps can heat efficiently, even in cooler climates, if you choose a cold-climate model and check HSPF2 ratings. For small spaces, the quick response and zoning are excellent for shoulder seasons.

5) How often should I clean the filters in a small room?

Every 2–4 weeks during peak season is a good rule of thumb, since small rooms load filters faster. Regular cleaning maintains airflow, reduces noise, and supports efficient dehumidification.

6) What humidity level should I aim for?

Keep relative humidity around 30–50%. The U.S. EPA recommends this range to minimize mold and dust mites and to protect furnishings; using Dry mode during muggy periods can help maintain it.

7) What efficiency ratings matter for a mini split?

Look for SEER2 (cooling) and HSPF2 (heating) ratings; higher numbers indicate better efficiency. ENERGY STAR-certified models typically meet strong performance criteria and can qualify for incentives in some regions.

8) Will a mini split look bulky in a tiny room?

Not if you plan it with the interior in mind. Align the head with existing lines, conceal the line-set with trim or a slim millwork chase, and coordinate colors—small design moves make it feel intentional.
