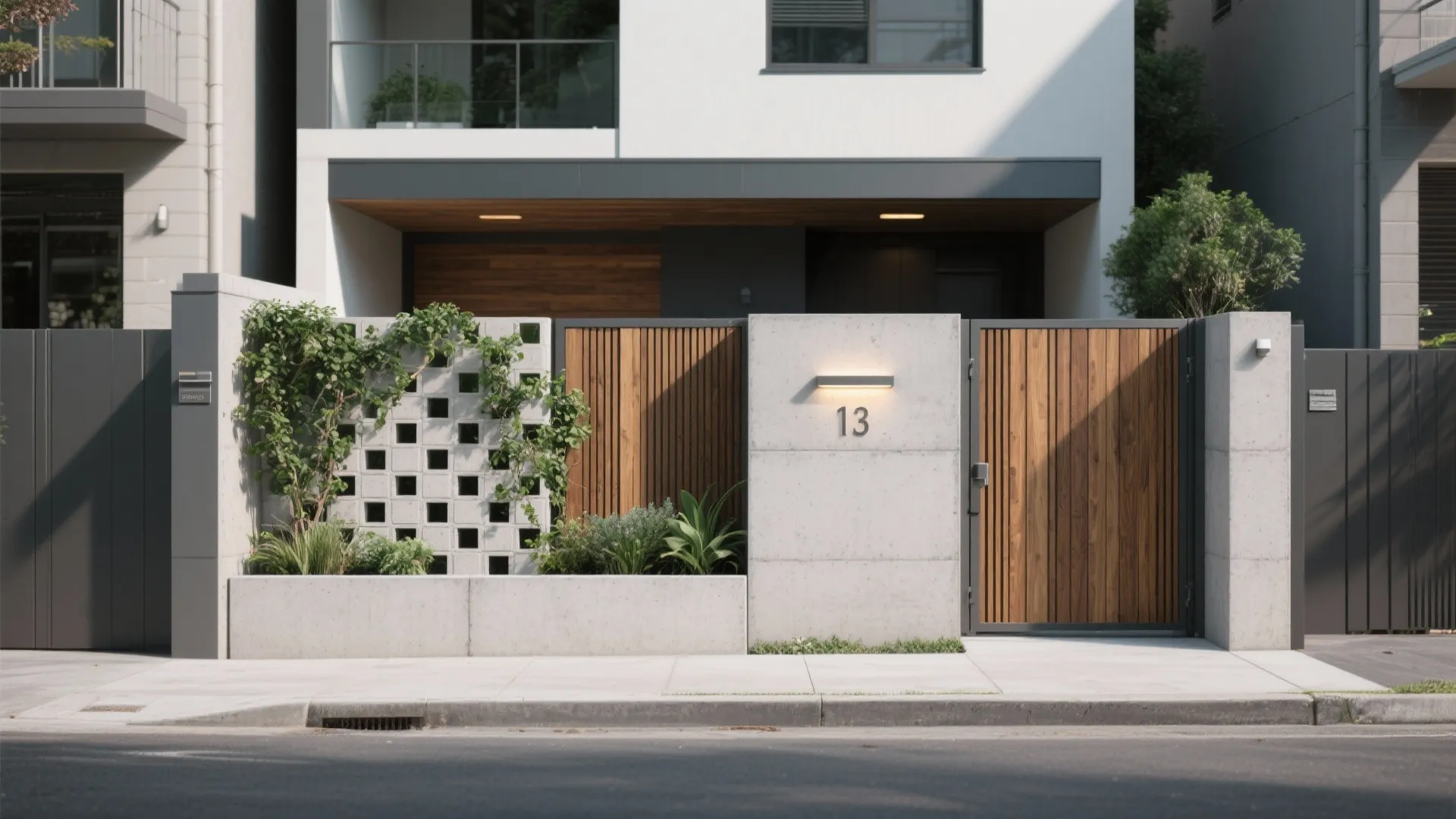

5 Modern Boundary Wall Design Ideas You’ll Love: Real-world tips, pros and cons, and expert-backed guidance for modern boundary walls—especially when space is tight

[Section: Introduction]

I’ve designed boundary walls for tight urban plots and sprawling villas, and the trend I keep seeing is clear: modern boundary wall design is moving toward clean lines, layered privacy, and low-maintenance materials. When setbacks shrink, the wall isn’t just a fence—it becomes the home’s first impression and a working backdrop for light, plants, and security.

Small spaces spark big ideas. I’ve learned that a 6–8 meter frontage can feel generous when the boundary does more than one job: screening, sound-softening, and even seating. In this guide, I’ll share 5 ideas drawn from my own projects and backed by expert data where it matters.

We’ll talk materials, lighting, greenery, and smart details—all through the lens of modern boundary wall design. I’ll note realistic pros and cons, and add tips I use on site to get a polished, durable result.

[Section: Inspiration List]

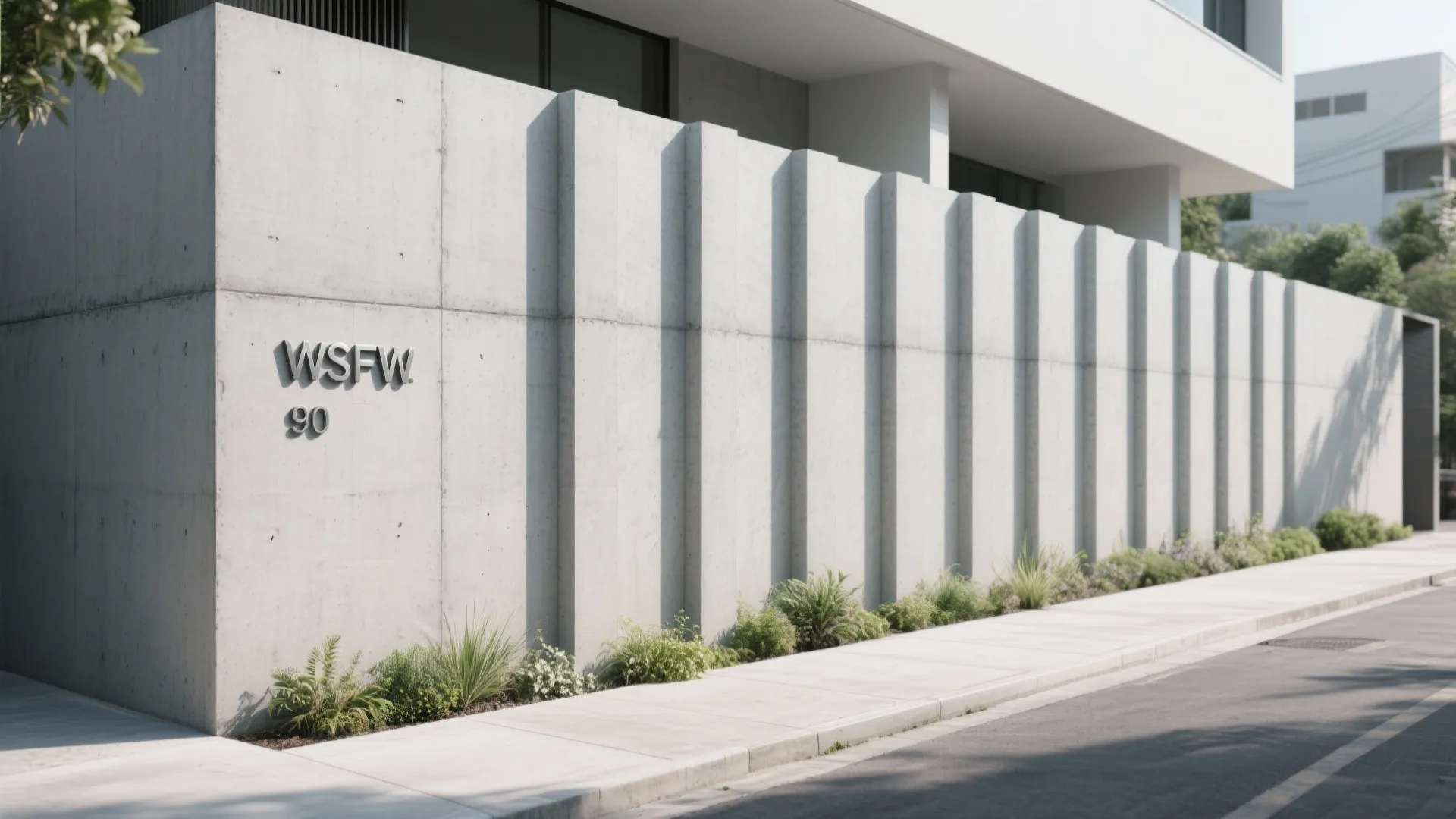

Minimalist Concrete with Shadow Lines

My Take: When clients ask for a timeless, modern edge, I often propose a minimalist concrete wall with clean reveals (shadow lines) that break up mass and catch light beautifully. On a narrow plot in Shanghai, we used 90 mm-deep vertical reveals to create rhythm without ornament, and it still looks fresh five years later.

Pros: A monolithic concrete boundary feels secure and reads instantly modern, especially with subtle scoring and a matte sealer. It pairs well with long-tail choices like “minimalist concrete boundary wall finishes” and “low-maintenance exterior wall textures.” The mass also helps with street noise and wind, making small forecourts more usable.

Cons: Concrete quality is unforgiving—poor formwork or rushed curing equals hairline cracks and blotchy color. Repairs tend to be visible, and in coastal zones you’ll want stainless reinforcement and a breathable sealer to resist salt and moisture. If you’re after warmth, bare concrete can feel austere without softening elements.

Tips / Case / Cost: Specify a 25–32 MPa mix with clean, oiled formwork and consistent pour times to minimize color banding. I like a light sandblast or micro-trowel finish to reduce glare and fingerprints. Budget-wise, concrete can cost more upfront than block-and-render but ages better—think of it as a long-term investment in stability and style. To help clients visualize scale and rhythm before pouring, I often mock up one bay with temporary timber forms; it’s a low-cost way to validate joint spacing and reveal depths. If you’re matching house tones, test sealers on off-cuts; even “clear” sealers can deepen color.

For a quick visualization of a minimalist courtyard boundary with proportionate reveals, I like to prototype in 3D so the massing reads true—see how we showcase a similar vibe in minimalist courtyard boundary.

save pin

Patterned Porosity: Breeze Blocks and Perforated Metal

My Take: In hot climates or busy urban streets, a porous section in the boundary can unlock airflow while keeping prying eyes at bay. I’ve used breeze blocks for a mid-century nod in Bangkok and perforated aluminum screens in Shenzhen; both added texture and a dynamic light pattern at dusk.

Pros: Breeze blocks and perforated panels let you tune privacy and ventilation—great for “modern boundary wall with airflow” and “light-filtering privacy screens” long-tail needs. You can create gradients of privacy by stacking solid and porous bays, or by changing hole density closer to seating zones. Metal panels powder-coated in neutral tones stay crisp with minimal upkeep.

Cons: Porous walls won’t mute noise as effectively as solid mass; you may need a solid base or acoustic planting on the street side. Breeze blocks can trap dust and require occasional rinsing; perforated metal can oil-can (ripple) if not properly stiffened. Also, wildlife and wind-blown litter can occasionally sneak through larger apertures.

Tips / Case / Cost: Consider a 600–900 mm solid plinth to block headlight glare, then a porous upper band for air and light. With metal, specify 3–4 mm aluminum with stiffening folds and concealed fasteners for a taut, refined face. If your climate is dusty, choose larger, easy-to-rinse apertures and a satin powder coat that hides smudges better than gloss. Keep joints clean with a reveal or shadow-gap channel to frame panels like artwork.

save pin

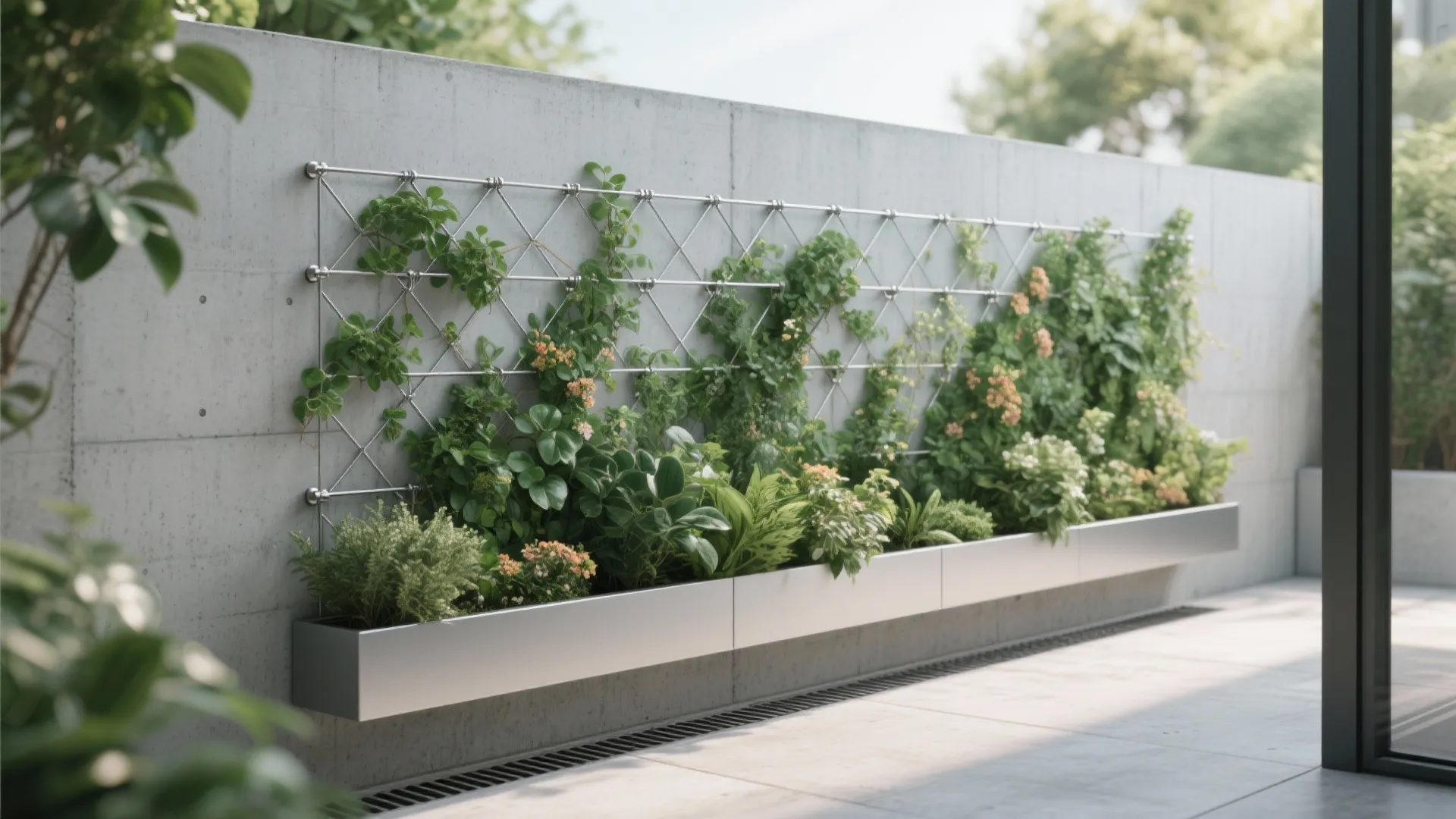

Green and Living Boundaries

My Take: When a client wants softness without giving up privacy, I reach for climbers, hedging, or planter-integrated walls. On a compact Singapore terrace, we ran a slim concrete wall with a continuous planter and stainless trellis; within six months, the bougainvillea turned the boundary into a living mural.

Pros: A planted edge can cool the microclimate, filter dust, and deliver “sustainable boundary wall with greenery” wins. Evergreens give year-round coverage, and flowering climbers add seasonal surprise. A living boundary also helps psychologically—hard edges feel less severe in tight spaces.

Cons: Plants need water, pruning, and pest care—no getting around it. Irrigation leaks can stain concrete if you don’t install drip lines and backflow preventers correctly. In very dry or very cold climates, plant performance may be inconsistent; choose species and substrates carefully.

Tips / Case / Cost: I design planters at least 300–400 mm wide for root health and include a discreet cleanout. Drip irrigation with a smart timer keeps maintenance reasonable, and a simple French drain prevents splash-back. If space is razor-thin, fix stainless wire trellis on stand-offs (30–50 mm) to allow air behind vines and reduce mildew. For an ultra-sleek hybrid, combine a low concrete plinth with a light trellis—privacy below, softness above. And if you plan to pair lush planting with a neighboring hardscape, try visualizing how the foliage plays against a textured concrete wall with timber slats before you commit to materials.

save pin

Layered Privacy and Noise Control

My Take: On streets with persistent traffic or footfall, I like a double-skin strategy: a solid inner wall for mass, and a lighter outer screen (timber slats or metal) to break sightlines and add depth. In one Jakarta project, a 150 mm concrete inner leaf plus offset timber battens cut perceived noise and delivered a warm, modern façade.

Pros: From an acoustics standpoint, barrier mass and height are your friends; a break in line-of-sight helps too. The FHWA Noise Barrier Design Handbook notes that effectiveness improves with larger, continuous mass and minimal gaps—your “acoustic boundary wall for busy streets” is essentially a carefully sealed, tall barrier with strategic layering. A double-skin also hides wiring for lights and cameras without clutter.

Cons: It costs more than a single wall—two skins mean more material and labor. If you over-layer without spacing, it can trap moisture; you’ll want well-detailed weep paths and durable finishes on concealed faces. And remember, plants alone don’t significantly cut dB levels; they improve perceived comfort but don’t replace mass.

Tips / Case / Cost: Aim for 2.0–2.4 m height where local code allows, and keep gaps sealed at the base. I like timber slats with 10–15 mm gaps for visual softness while protecting privacy; align slat spacing with reveal joints on the solid wall for coherence. If budget is tight, layer only near seating or bedrooms and keep the rest monolithic. Where wind is strong, use stainless fixings and avoid excessive screen span to prevent rattle. For long-term looks, oil exterior timber or choose thermally modified wood to reduce maintenance.

save pin

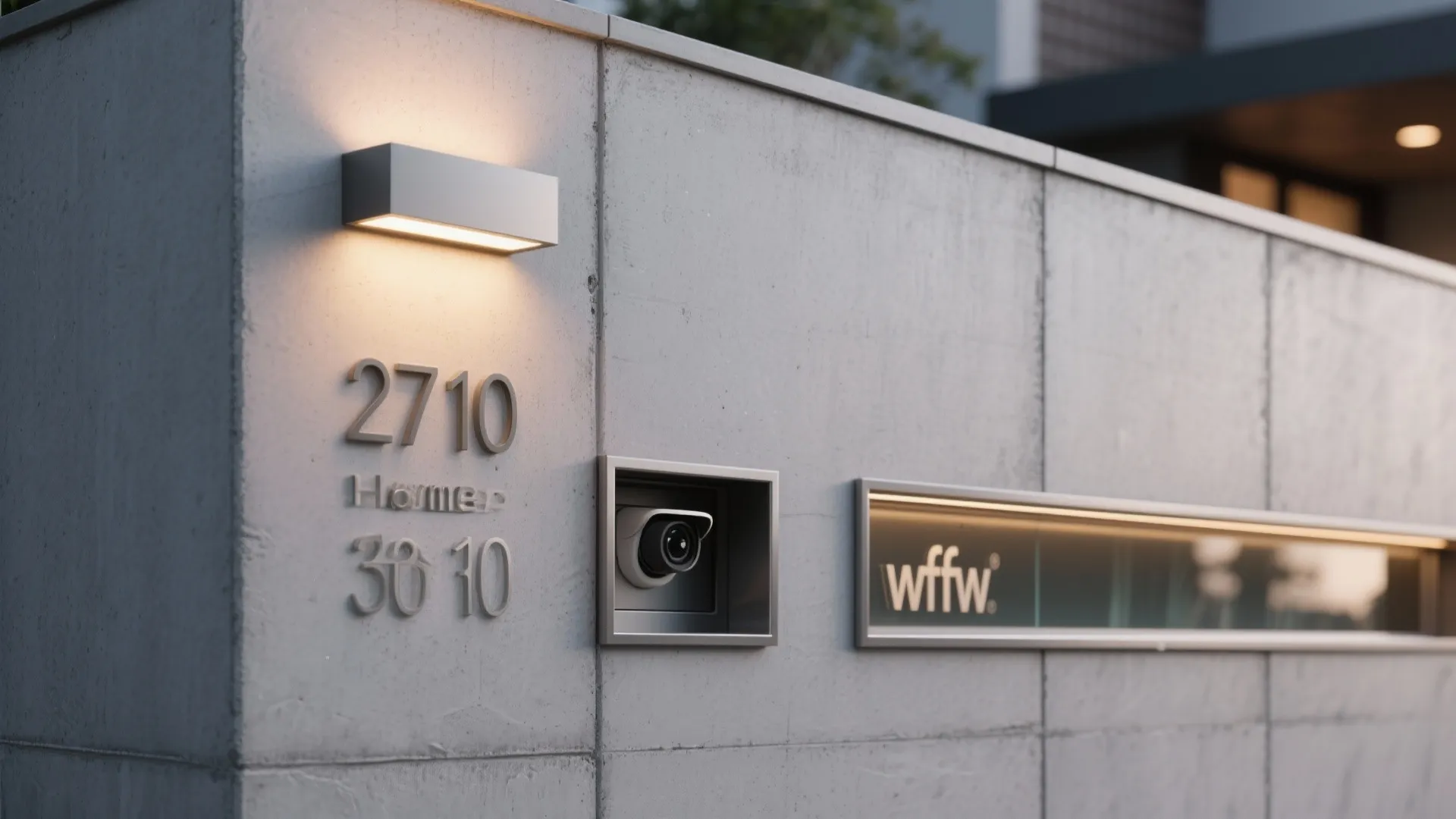

Integrated Lighting and Smart Details

My Take: The right lighting transforms a wall from backdrop to experience. On my last townhouse project, we used low-glare wall-wash lighting, discreet house numbers, and a hidden camera niche—at night, the boundary felt like a calm gallery wall, not a barricade.

Pros: Thoughtful lighting supports safety and curb appeal—ideal for “boundary wall lighting design” and “low-glare outdoor lighting” long-tail searches. The Illuminating Engineering Society (IES) recommends limiting glare, using shielded fixtures, and maintaining reasonable uniformity so you see faces, not flares. Smart extras—integrated parcel slot, keyless gate, concealed conduit—keep the face clean and future-ready.

Cons: Over-lighting is a common mistake: too bright, wrong color temperature, and harsh hot spots. Cheap fixtures can fail early in rain or coastal conditions; I specify IP65 or higher and marine-grade finishes near salt air. If you chase cables after the wall is built, you’ll scar the finish—plan early.

Tips / Case / Cost: Target 2700–3000K warm-white along residential edges and use asymmetric wall grazers to avoid glare. Run a continuous conduit path mid-wall height so you can add lights or sensors later without damage. If security cameras are needed, recess small pockets with power and data ready; a slim trim covers them by day. For addressing, edge-lit numbers set to 10–20% brightness are readable without shouting. To preview how light plays on material texture, I like to render quick nighttime wall lighting effects and adjust fixture tilt and spacing before we drill.

[Section: Summary]

Modern boundary wall design isn’t a limitation—it’s an invitation to design smarter. A small frontage can become layered, calm, and secure with the right mix of mass, porosity, greenery, and lighting. The IES guidance on glare and uniformity, paired with mass-first acoustic principles from FHWA, gives you a reliable backbone, and your personal taste fills in the texture.

Which of these five ideas would you try first—cool concrete, patterned porosity, green softness, layered privacy, or the glow of integrated lighting?

[Section: FAQ]

save pin

FAQ

Q1: What is the best modern boundary wall design for a small plot?

A: Go minimalist with a solid lower band and lighter upper treatment—concrete base plus slim slats or a trellis. It balances privacy, airflow, and a slimmer visual profile, ideal when space is tight.

Q2: How tall should a modern boundary wall be?

A: Most residential walls range from 1.8–2.4 m, but local codes govern height and street frontage rules. Start with the maximum allowed on your street and scale design details—like reveal spacing or slat rhythm—to that height.

Q3: Does a green boundary wall really help with heat and dust?

A: Yes, vegetated edges can shade surfaces and trap particulates, especially with dense climbers. Choose drought-tolerant species and drip irrigation so you get benefits without heavy maintenance.

Q4: What lighting is best for modern boundary walls?

A: Use shielded, low-glare fixtures (IP65+) and warm-white color temperatures around 2700–3000K. The IES Lighting Handbook supports minimizing glare and creating even illumination so faces are visible without harsh hot spots.

Q5: How can I reduce street noise with a boundary wall?

A: Prioritize mass and height, then seal gaps at the base and sides; break line-of-sight where possible. FHWA’s Noise Barrier Design principles emphasize continuous, tall, sealed barriers for better attenuation.

Q6: Is concrete the only modern material that looks good?

A: Not at all. Perforated aluminum, fiber-cement, thermally modified timber, and brick in modern bonds all read contemporary. The trick is restraint: consistent module, tight detailing, and a limited palette.

Q7: What’s a realistic budget range for a modern boundary wall?

A: Costs vary widely by region and finish, but as a ballpark, a simple rendered block wall might start lower, while cast-in-place concrete, perforated metal screens, and integrated lighting push higher. Prioritize where it matters—entry bay, seating zones, and corners.

Q8: Can I plan a modern boundary wall without an architect?

A: Yes, if you keep the design simple, confirm local code, and coordinate drainage, lighting, and conduit early. For complex layering or tight urban sites, a designer or engineer helps you avoid costly rework and ensures the modern boundary wall design meets safety and durability standards.
