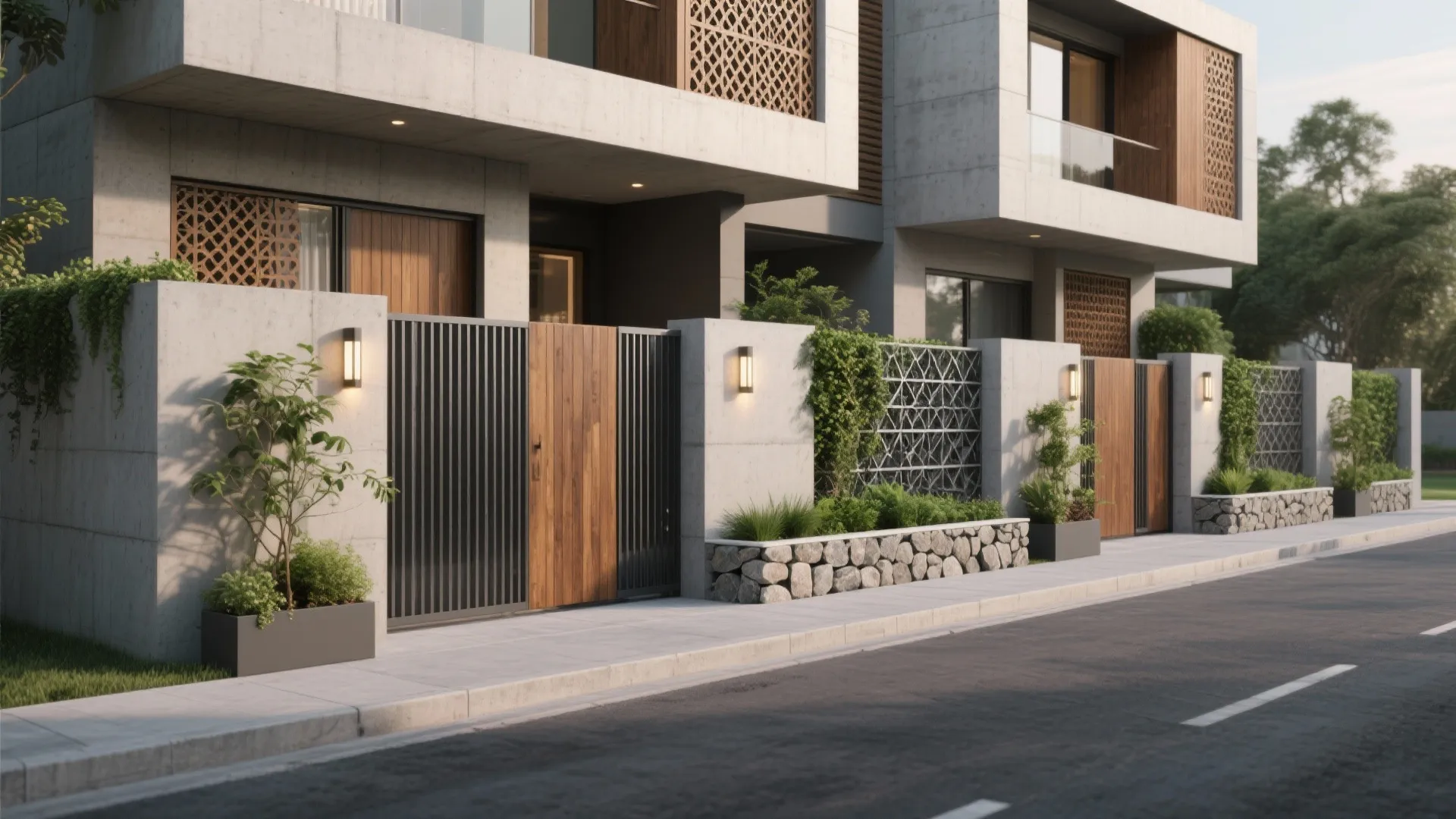

5 Modern Compound Wall Design Ideas: From sleek concrete to breezy screens, here’s how I approach modern compound walls that look refined, feel secure, and make even a narrow frontage stand out.

A client once told me, “I want a fortress my dog can see through.” We laughed, then built a wall that kept prying eyes out while letting his Labrador watch the street. That little chaos taught me this: constraints breed clever design—and small plots or tight setbacks are where a modern compound wall can quietly steal the show. Before we even laid the first course, I sketched options and did a quick 3D mockup so they could feel the massing and light play.

Today I’m sharing five ideas I use on real projects. They balance privacy, security, and curb appeal—without turning your home into a bunker. Let’s make the boundary do more with less.

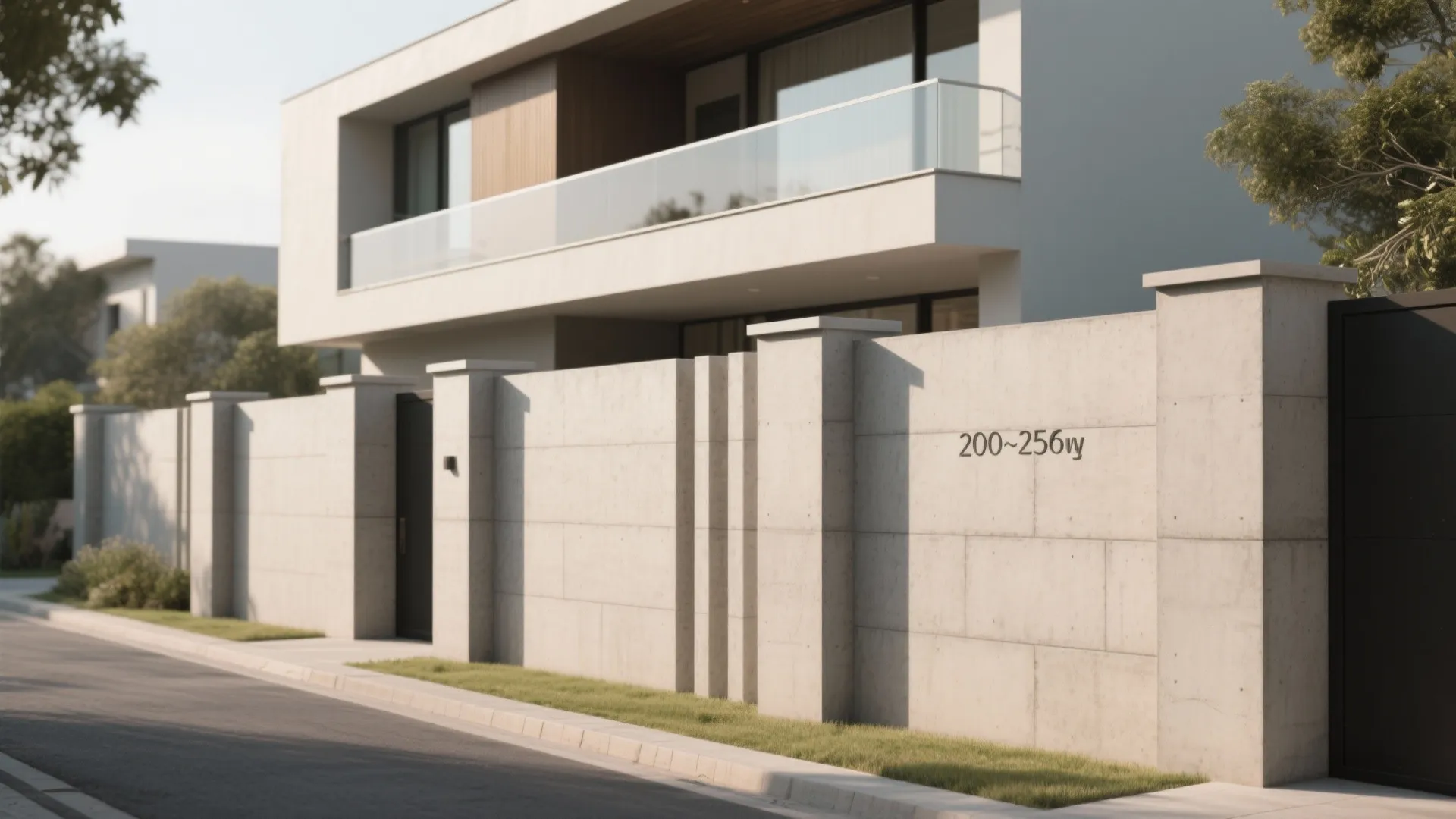

1) Sculpted Concrete with Shadow Lines

When I need a clean, timeless look, cast-in-place or fair-faced concrete with crisp control joints is my go-to. A 200–250 mm thick wall with rhythmic pilasters and a thin coping creates those delicious shadow lines that feel premium.

It’s durable and low-maintenance, but formwork and finishing demand good contractors. I spec water-repellent admixtures, plan control joints every 2.4–3 m, and add drip edges under the coping to fight stains. If you’re in a hot climate, keep the lower portion solid and introduce a light, see-through band above for breeze.

save pin

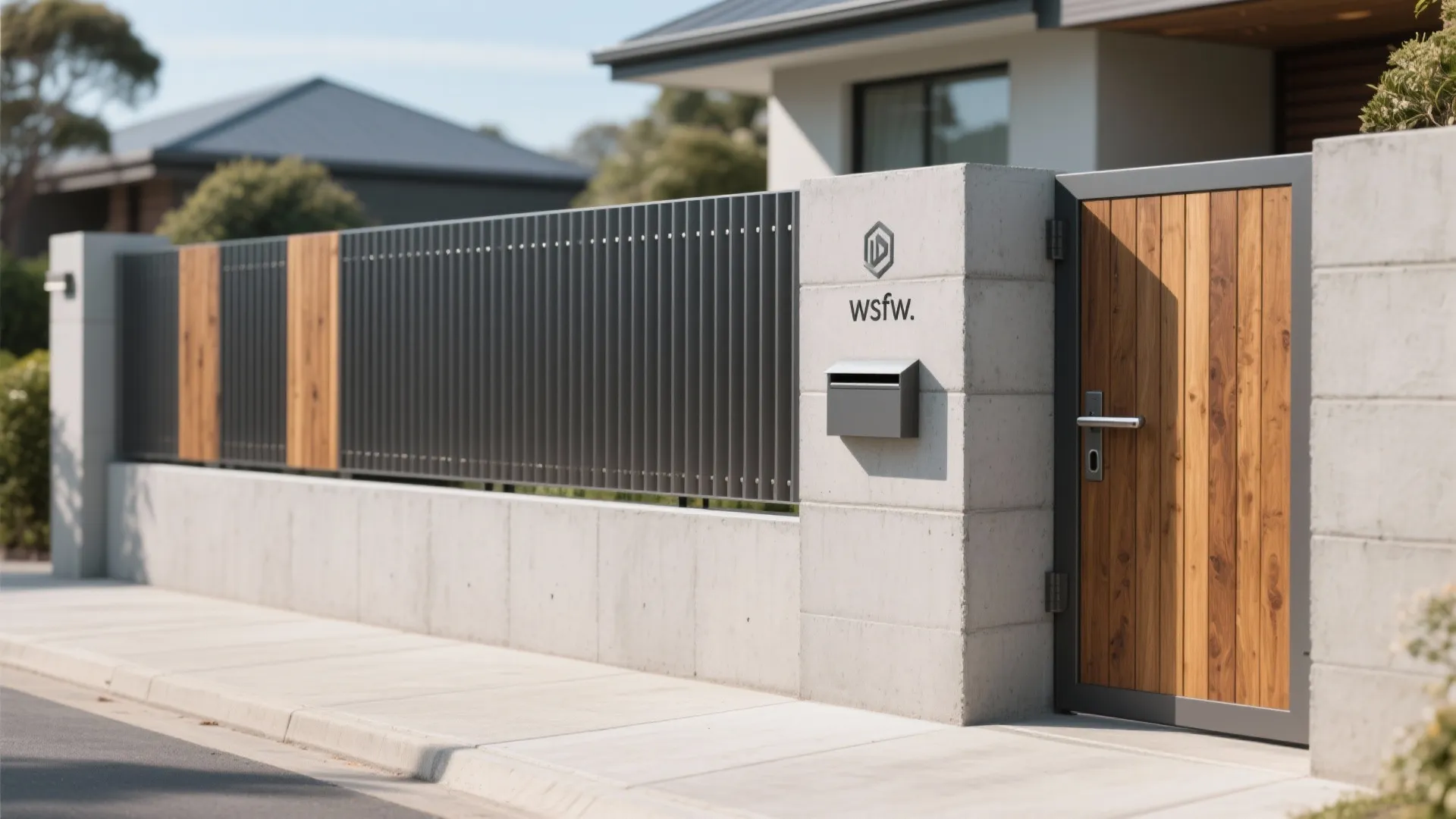

2) Mixed Material Rhythm: Concrete + Metal + Timber

Pair a solid masonry base with powder-coated aluminum or steel slats, and add warm timber accents where the hand touches—like the gate handle or a mailbox niche. The contrast reads modern and allows sightlines while keeping the street at bay.

I mind slat spacing so it isn’t climbable, and I use hidden fasteners for a cleaner face. Powder-coated aluminum resists rust better than mild steel near coastal air; if you love timber, try thermally modified ash for lower upkeep. Before foundations, I like to plan the footprint precisely so gates, pillars, and services land where they should—no jackhammering later.

save pin

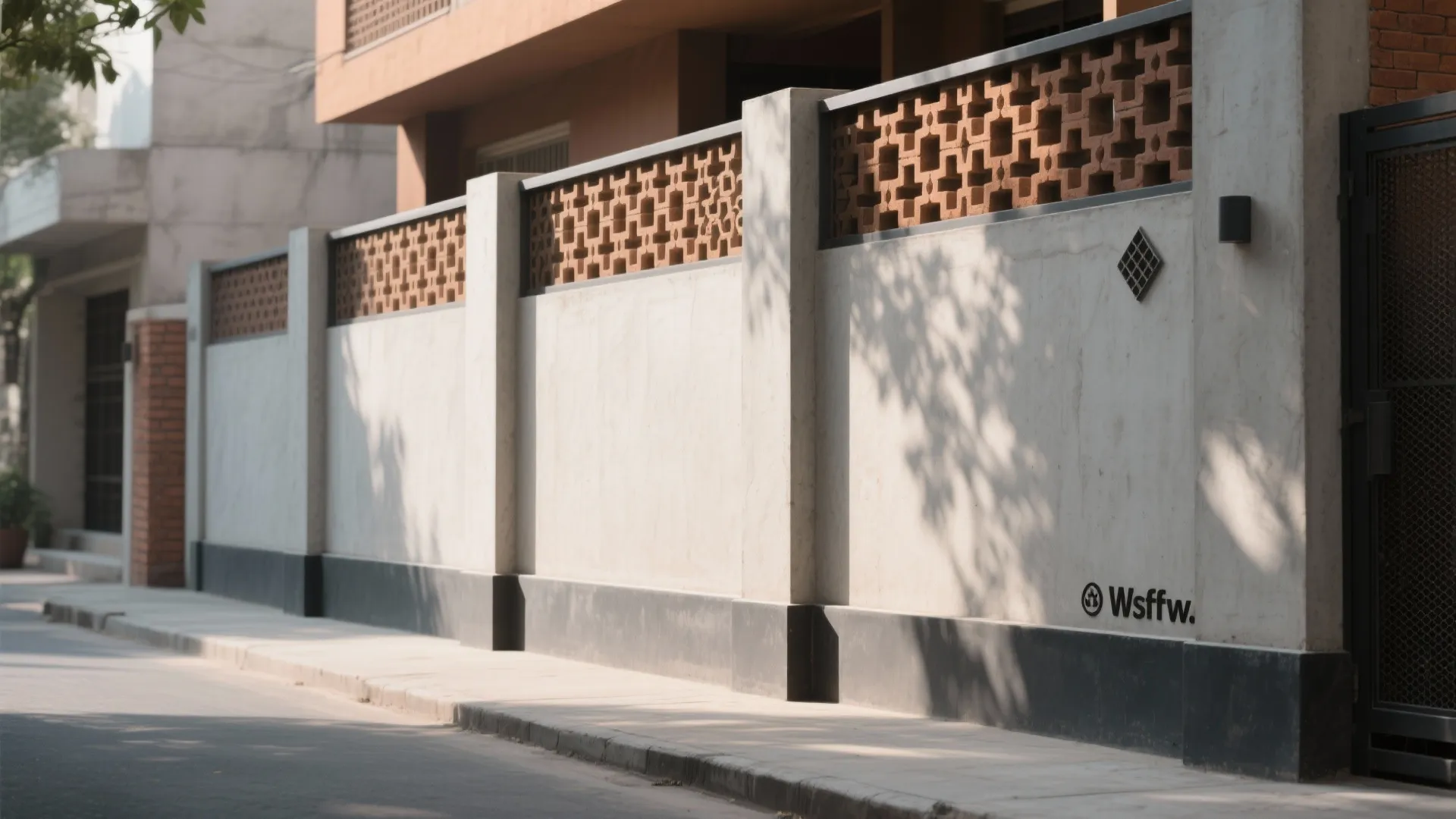

3) Perforated Screens and Jali Blocks

Laser-cut metal screens, GRC panels, or clay jali blocks soften a wall without sacrificing privacy. The micro-openings invite wind and dappled light—great for hot, dusty streets where a solid slab would feel heavy.

I often keep the first 900 mm solid for privacy, then use a patterned band above. Custom patterns elevate the façade but mind cleaning access (dust loves perforations). If security is a concern, double up: a see-through outer screen and a setback inner mesh do wonders.

save pin

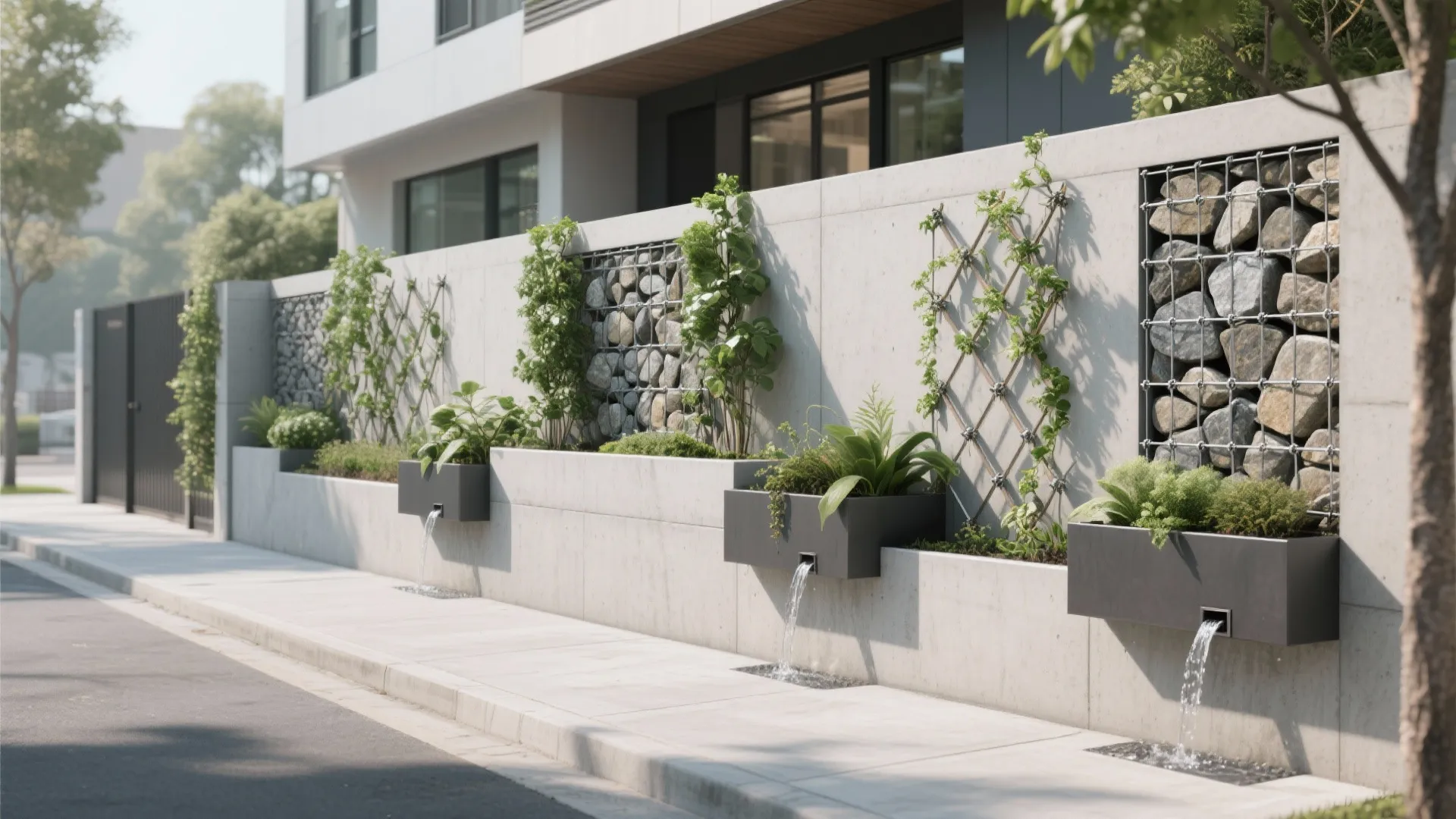

4) Green Boundaries: Planters, Climbers, and Gabions

Nothing modernizes a wall like living texture. I’ve built shallow planter ledges into the inside face and trained climbers up trellises; from the street you get a soft, ever-changing canvas, while inside it feels cooler by a couple degrees.

Details matter: waterproof the planter, include overflow spouts, and set up drip irrigation. Gabion segments (wire cages with local stone) add sculptural heft and drain well, but specify heavy-gauge, galvanized mesh. To align palettes fast, I sometimes start with AI-generated mood boards to test textures and plant tones before committing.

save pin

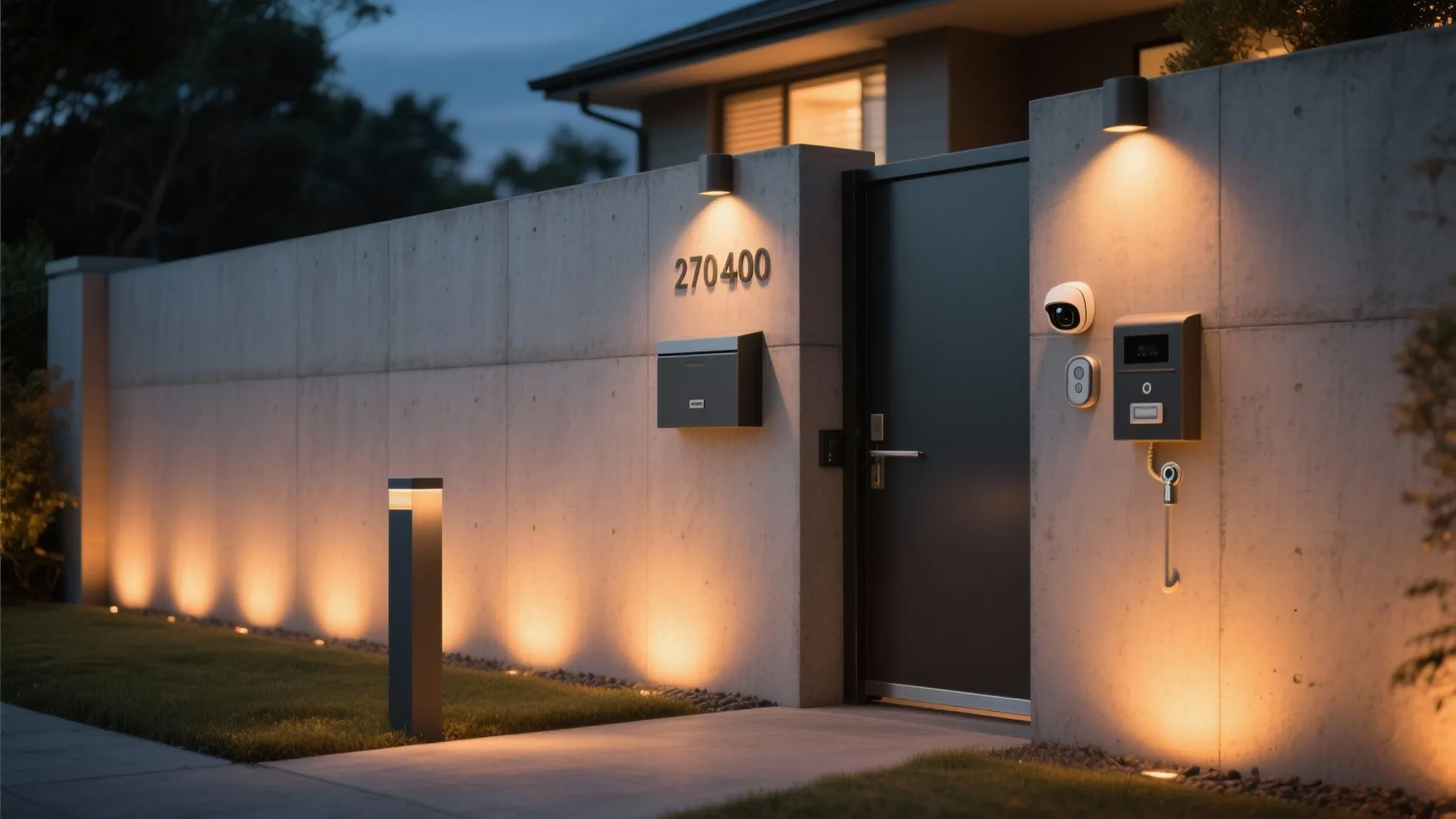

5) Light and Smart Details that Work at Night

Modern walls come alive after dusk. I tuck 2700–3000K LED grazers under copings to wash textures, spotlight house numbers, and add a bollard by the pedestrian gate for safety. Conceal conduits early so you’re not chiseling channels later.

Think integration: a flush parcel box, camera, doorbell, and key drop keep the face sleek. Use IP65 fixtures and non-corrosive hardware; cheap fittings age fast outdoors. The trick is restraint—light the texture, not the neighborhood.

save pin

FAQ

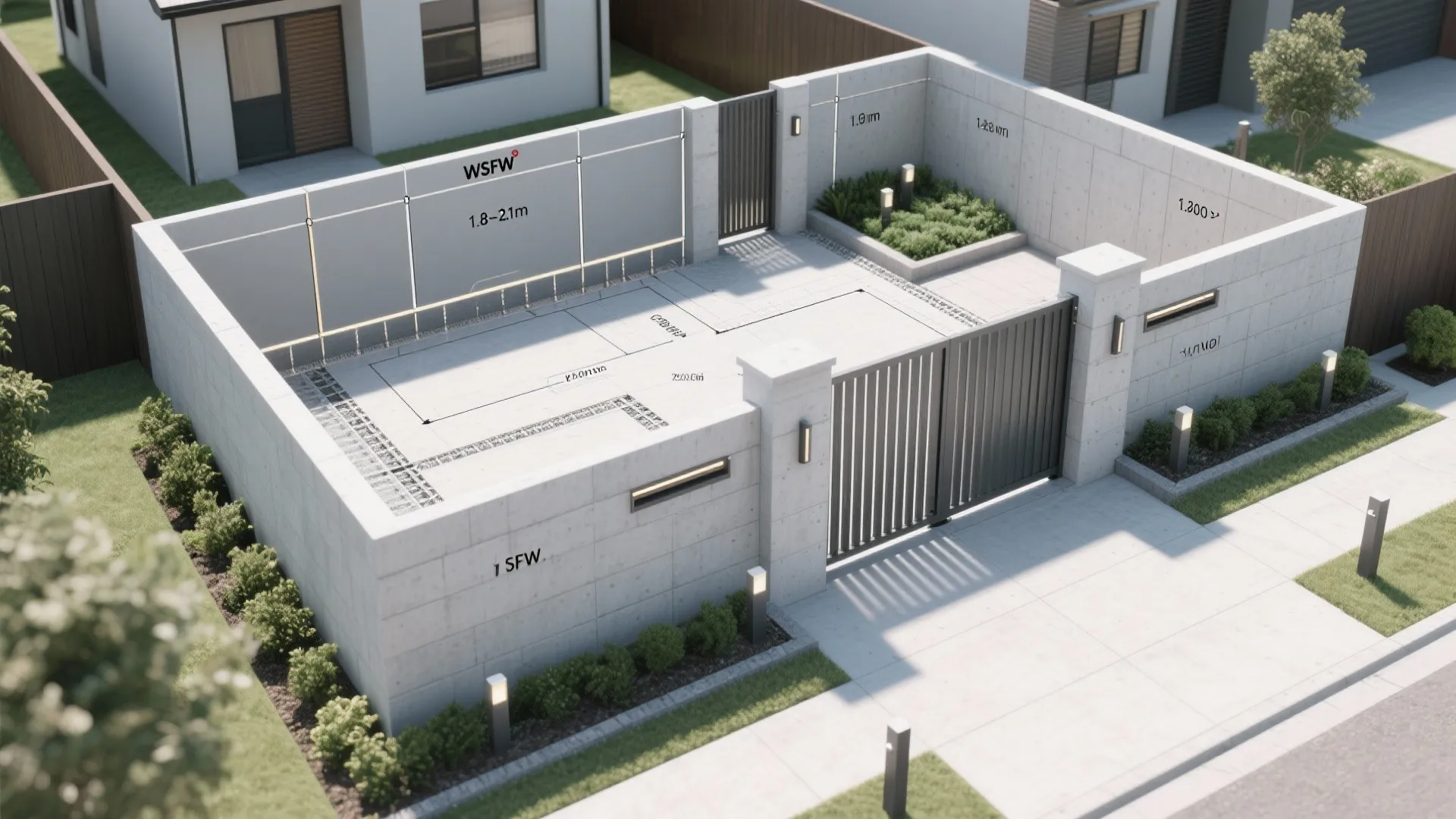

1) What’s the ideal height for a modern compound wall?

Most homes feel balanced at 1.8–2.1 m (6–7 ft), sometimes with a semi-open top band. Always check local bylaws for street-facing height limits and corner visibility rules.

2) Which materials are lowest maintenance?

Fair-faced concrete with a breathable sealer, powder-coated aluminum, and stone coping are reliable. Avoid untreated mild steel near the coast and choose UV-stable finishes to keep colors true.

3) Do I need a permit for my boundary wall?

Often, yes—especially over certain heights or near intersections. According to the 2021 International Building Code, Section 105.2, fences not over 7 ft typically don’t require a permit, but local amendments can change this; confirm with your authority having jurisdiction.

4) How do I prevent cracks and damp stains?

Provide control joints at regular intervals, a proper footing, and a damp-proof course. Add drip edges under copings and use breathable sealers; keep sprinklers from wetting the street face.

5) What about footing depth?

Design for your soil and frost line; sandy or expansive soils need special attention. I coordinate with a structural engineer for rebar sizing, footing width, and tie-beams at gate piers.

6) Can I integrate a sliding gate seamlessly?

Yes—plan level thresholds, power points, and clearance for a cantilever track or in-ground rail. I keep the visual rhythm consistent so the gate disappears into the wall when closed.

7) How much should I budget?

Prices swing widely with material, labor, and length. Mixed-material walls with lighting cost more than plain masonry; get a line-item estimate for footings, finishes, gates, and electrical.

8) Is outdoor lighting safe on a boundary wall?

Absolutely—use IP65 fixtures, weatherproof junctions, and, where appropriate, low-voltage (12/24V) systems. Stainless or powder-coated fittings last longer and keep maintenance down.
