5 Modern Dining Room Ceiling Design Ideas: Small space, big impact: my top 5 modern dining room ceiling design ideas with real-world tips, costs, and sources

I’ve redesigned more dining rooms than I can count, and modern dining room ceiling design is where small spaces spark big creativity. Trends like quiet luxury, warm minimalism, and sculptural lighting are pushing ceilings from background to centerpiece. In this guide, I’ll share 5 design inspirations I’ve used in real projects—practical, stylish, and supported by expert data—so you can craft a modern dining room ceiling that feels tailored and timeless.

Here’s the plan: five ideas, my hands-on take, pros and cons (no fluff), and quick tips with budget and timeline notes. Small rooms can do big things—especially overhead.

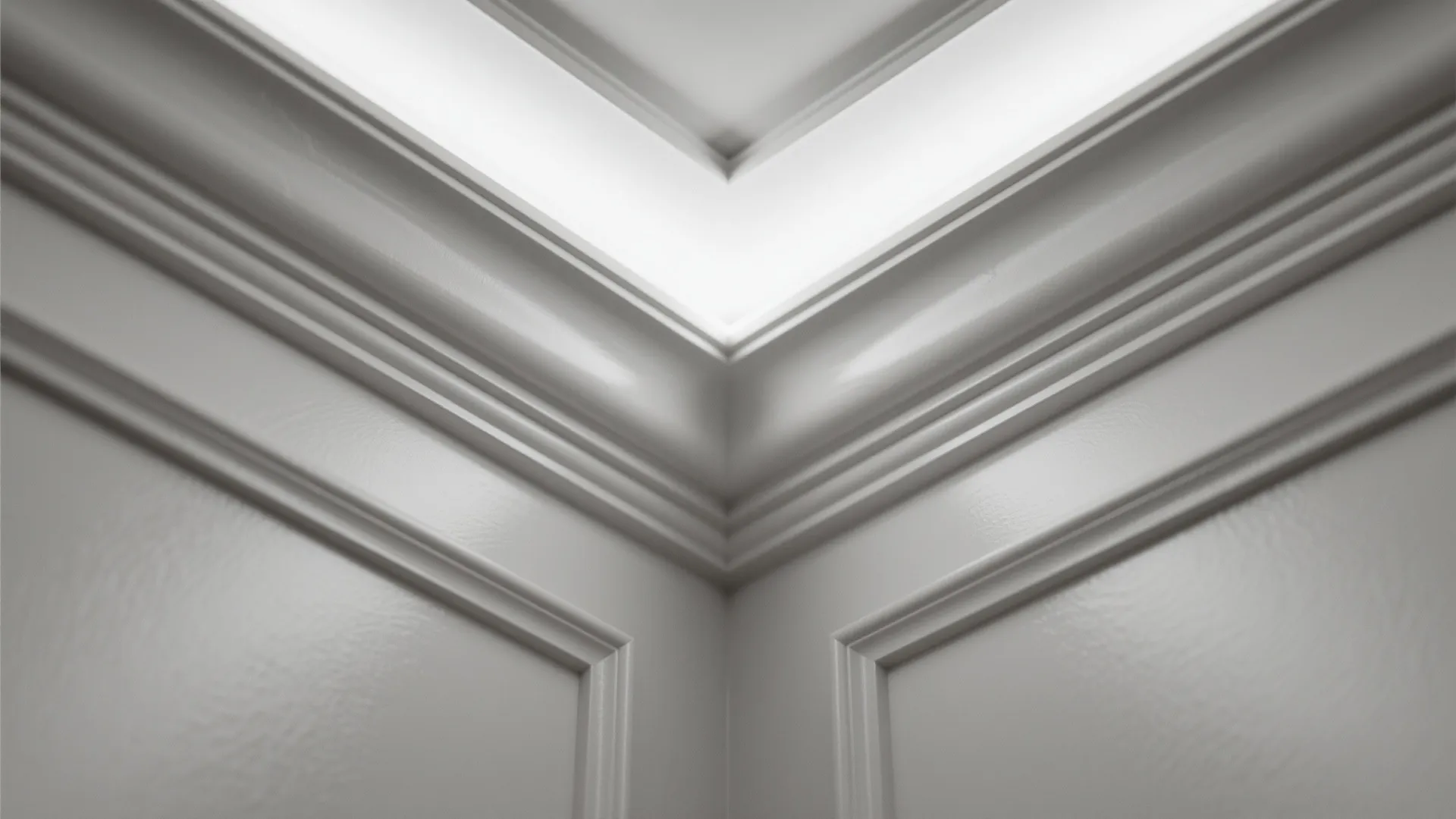

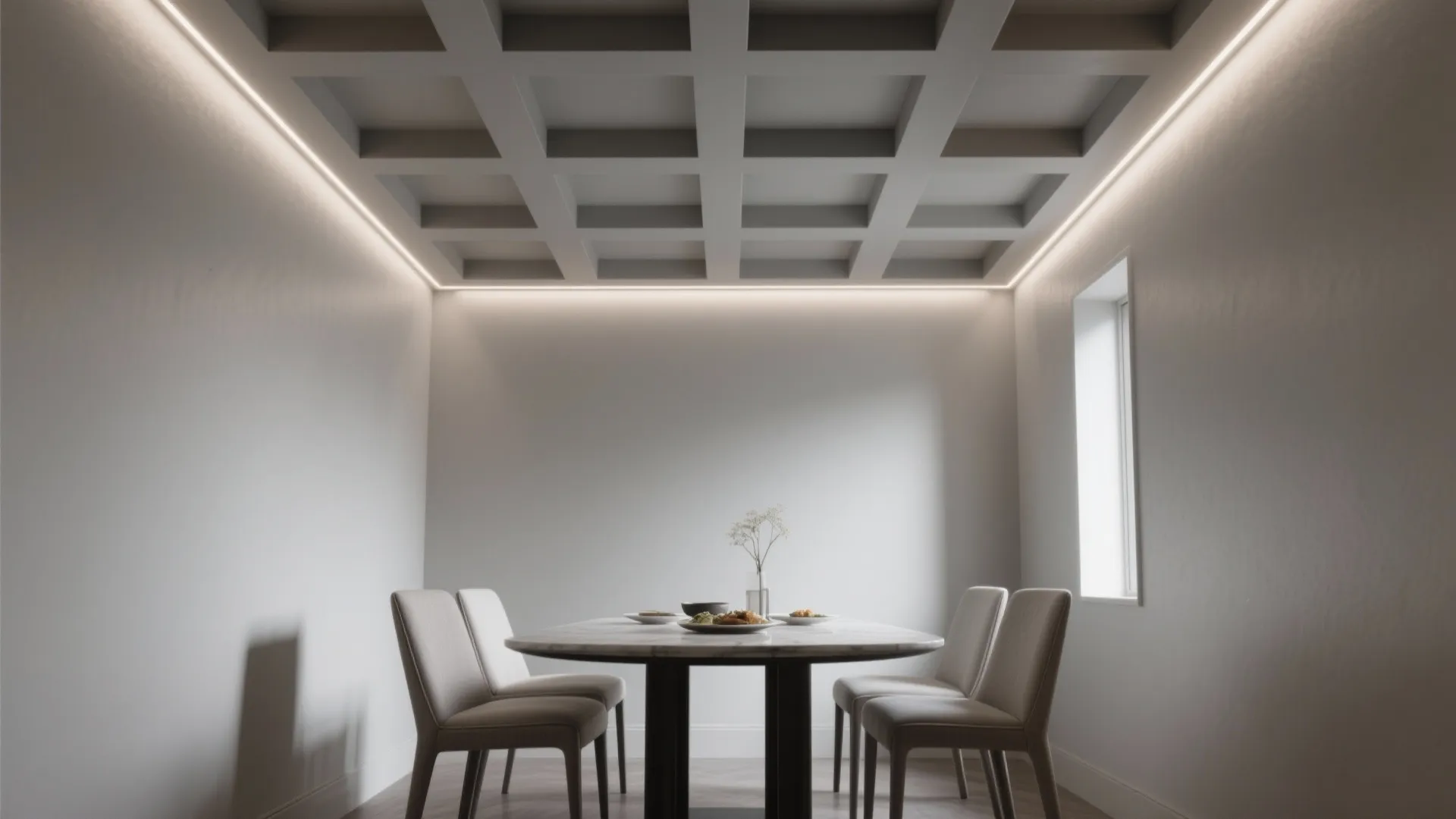

Monochrome Coffered Ceiling With Hidden Lighting

My Take

I recently refreshed a 10 m² dining nook with shallow coffered beams painted the same tone as the walls. We tucked in perimeter LED strips, and the ceiling suddenly felt taller—without stealing headroom. It’s my go-to when clients want modern refinement without visual noise.

Pros

The monochrome coffer reads calm and contemporary, aligning with modern dining room ceiling design while adding shadow play and depth. Slim coffers (30–50 mm) paired with dimmable indirect LEDs create a soft, restaurant-grade glow that flatters skin tones and food. According to the WELL Building Standard’s guidance on visual comfort, layered lighting and reduced glare improve perceived comfort and focus.

Cons

Precision matters—uneven grid lines will show, especially in daylight. And if your ceiling isn’t perfectly level, framing and skim-coating add time and cost. Maintenance is low, but you’ll need an access point for drivers if the LED power supply ever needs attention.

Tips / Cost

Keep beam depth minimal in low ceilings; paint beams and infill the same satin finish for a seamless look. Budget: $25–$55/sq ft depending on carpentry and lighting quality. Timeline: 3–6 days including finish coats and electrical.

In compact plans, I often test proportions and sightlines with quick layouts first—see how an L-shaped dining zone feels under a coffered grid before you commit.

save pin

save pin

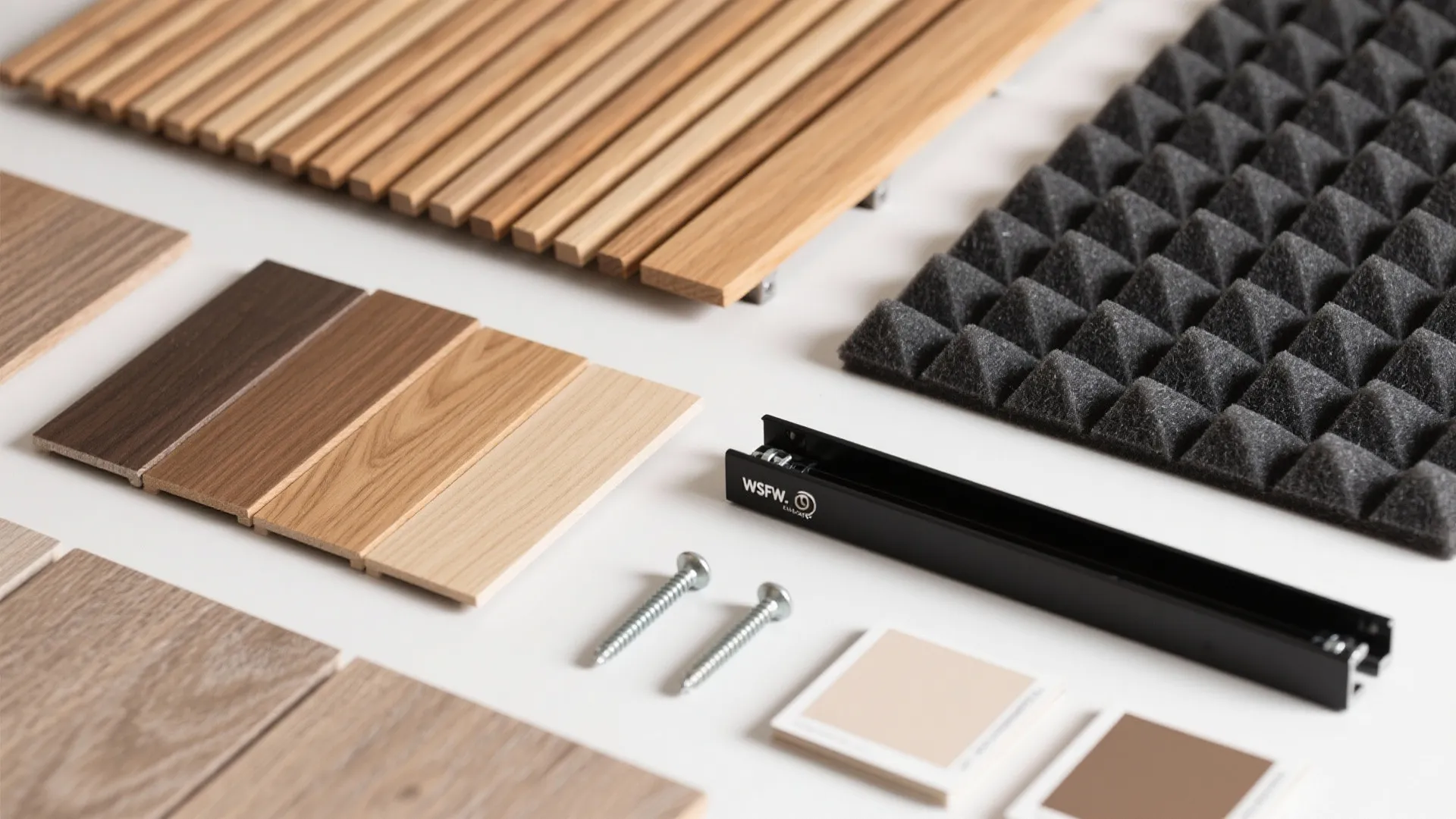

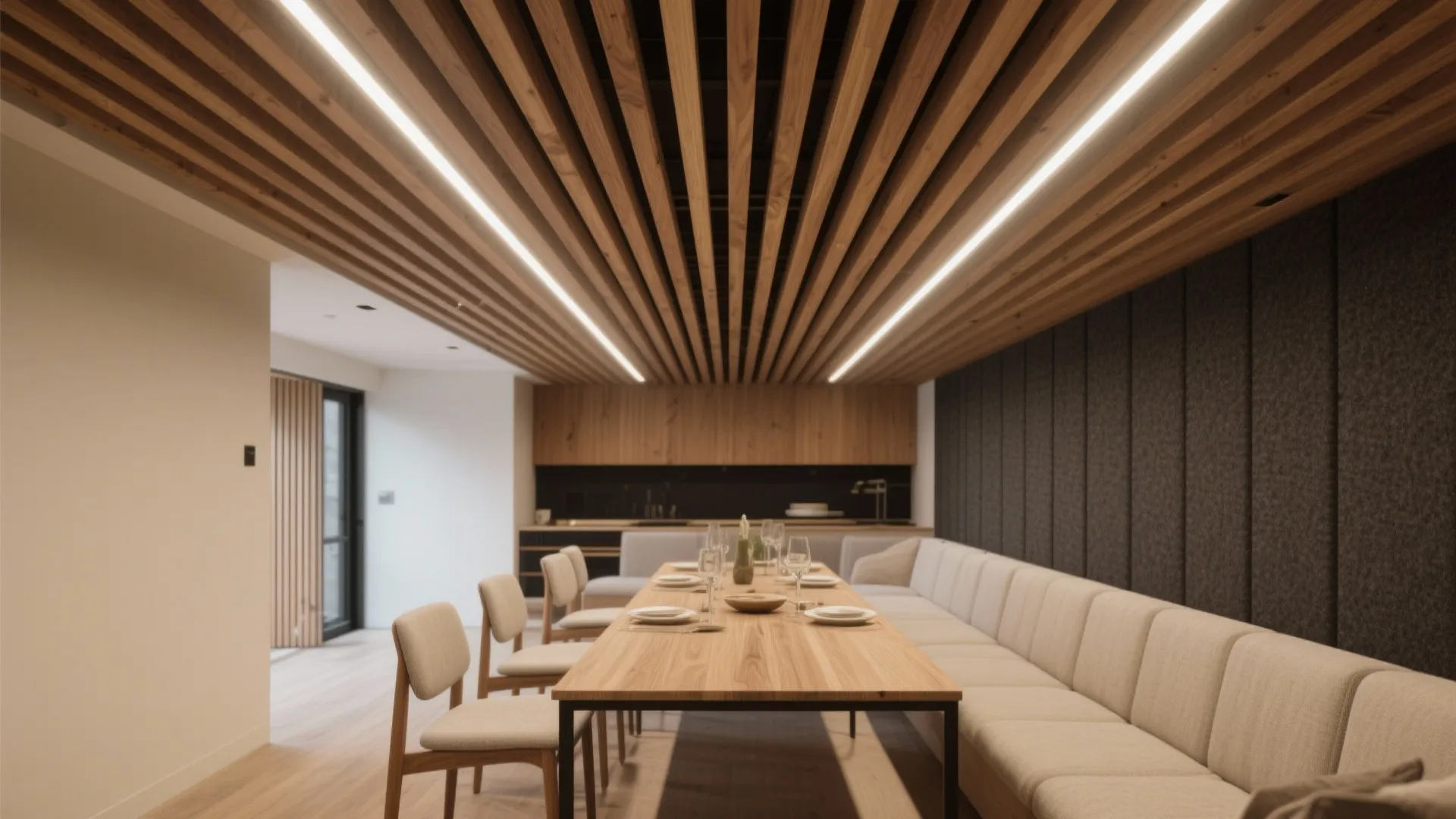

Flush Wood Slat Ceiling With Acoustic Core

My Take

When a family complained their open-plan dining area was echoey during dinners, I installed oak slats with a felt acoustic backing. The space warmed up visually and acoustically—clinking plates stopped competing with conversation.

Pros

Linear slats add texture and a modern Scandinavian note while improving speech clarity—a boon for hard-surface apartments. Long-run slats visually elongate the room, a clever small-space trick in modern dining room ceiling design. Adding integrated linear LEDs between slats delivers even, glare-free task and ambient lighting.

Cons

Wood can move with humidity; proper acclimation is non-negotiable. Dusting slats is an occasional chore, and cheap veneers can chip at cut edges—don’t skimp on finishing strips.

Tips / Cost

Use 15–30 mm spacing; dark felt backing hides wiring and boosts absorption (NRC ~0.65–0.85 typical). Budget: $40–$90/sq ft depending on wood species and acoustic substrate. For rentals, consider modular panels that can be removed intact.

save pin

save pin

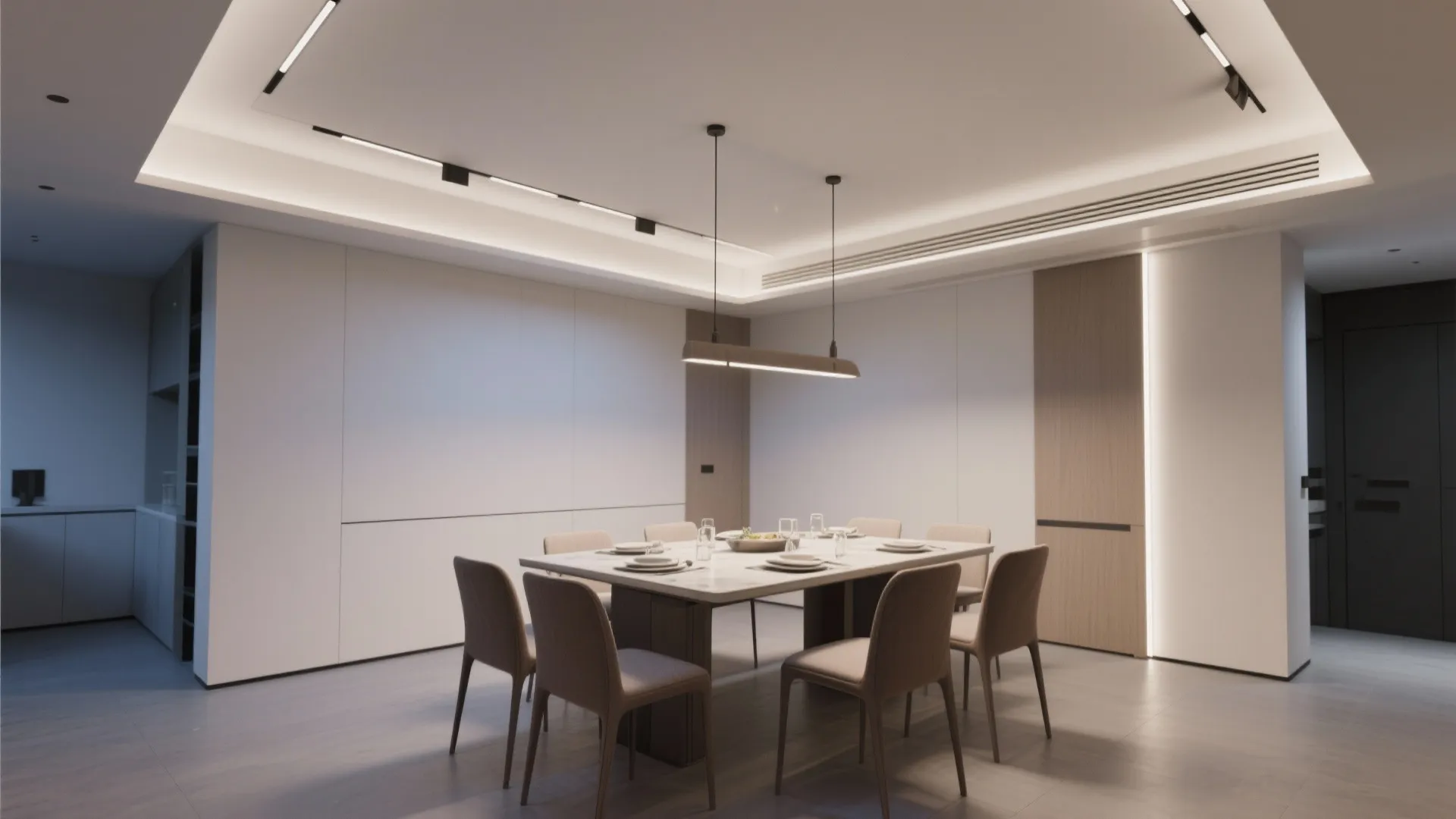

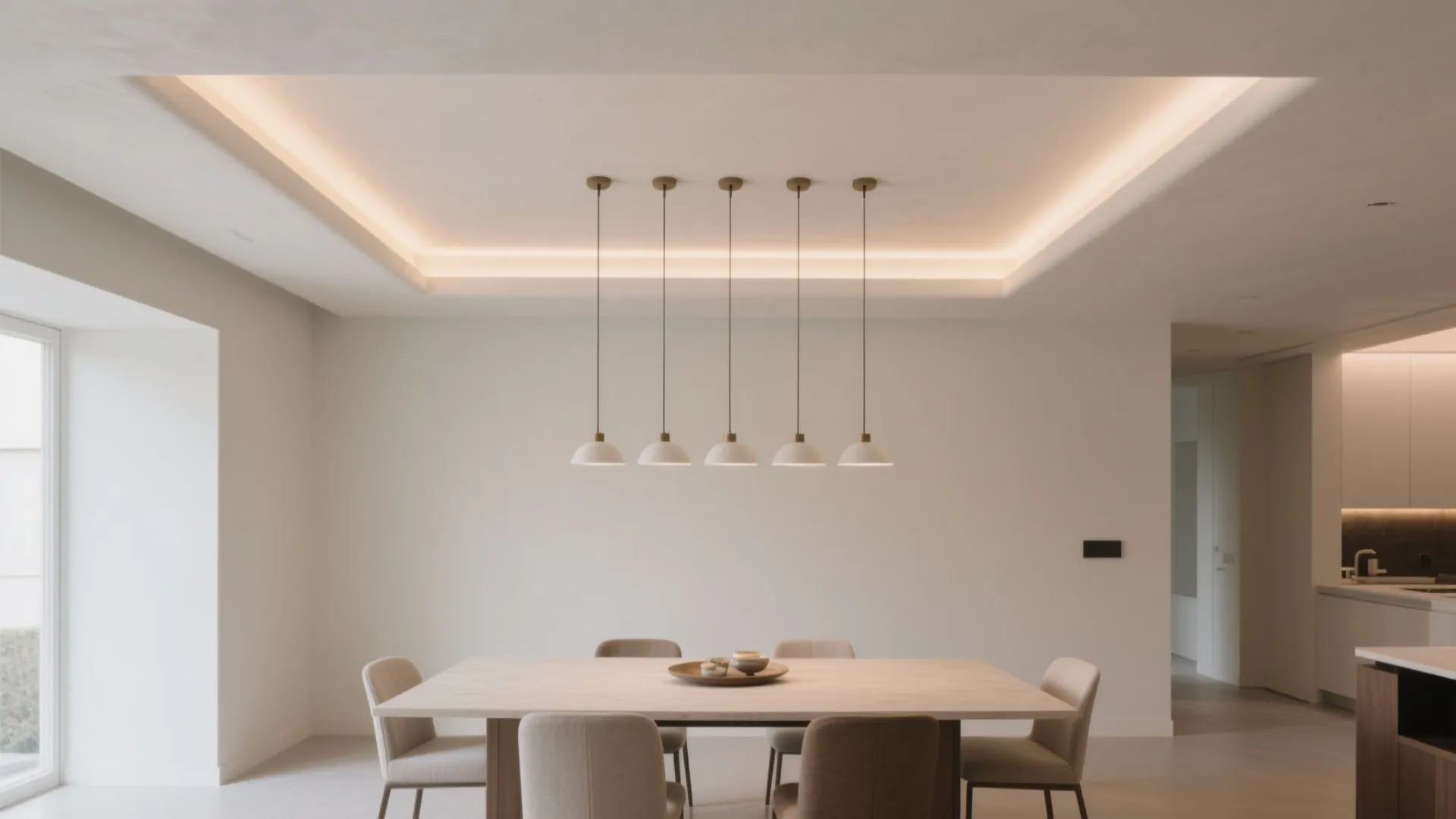

Sculptural Ceiling Plane With Integrated Pendant Zone

My Take

One of my favorite small-dining tricks is a subtle, dropped plaster plane centered over the table. It frames a pendant cluster and hides junction boxes, so the table can shift slightly without leaving off-centered scars in the ceiling.

Pros

A defined plane anchors the dining zone in open layouts, which aligns with space zoning best practices in modern dining room ceiling design. Integrating a junction rail or multi-port canopy allows flexible pendant placement—perfect for seasonal tablescapes. The plane’s shadow gap adds a crisp architectural line without heavy molding.

Cons

Any drop reduces headroom—keep it to 25–40 mm in low spaces. Plastering overhead is messy and requires a skilled finisher; DIY can lead to waves you’ll notice every evening.

Tips / Cost

Use a 10–12 mm LED channel around the plane for halo lighting; pick 2700–3000K to flatter dining settings. Budget: $18–$40/sq ft for the plane; pendants extra. Before committing, I like to simulate pendant spread and sightlines—a quick pass with a 3D lighting mockup for pendant spread helps avoid glare on nearby TV screens or artwork.

save pin

save pin

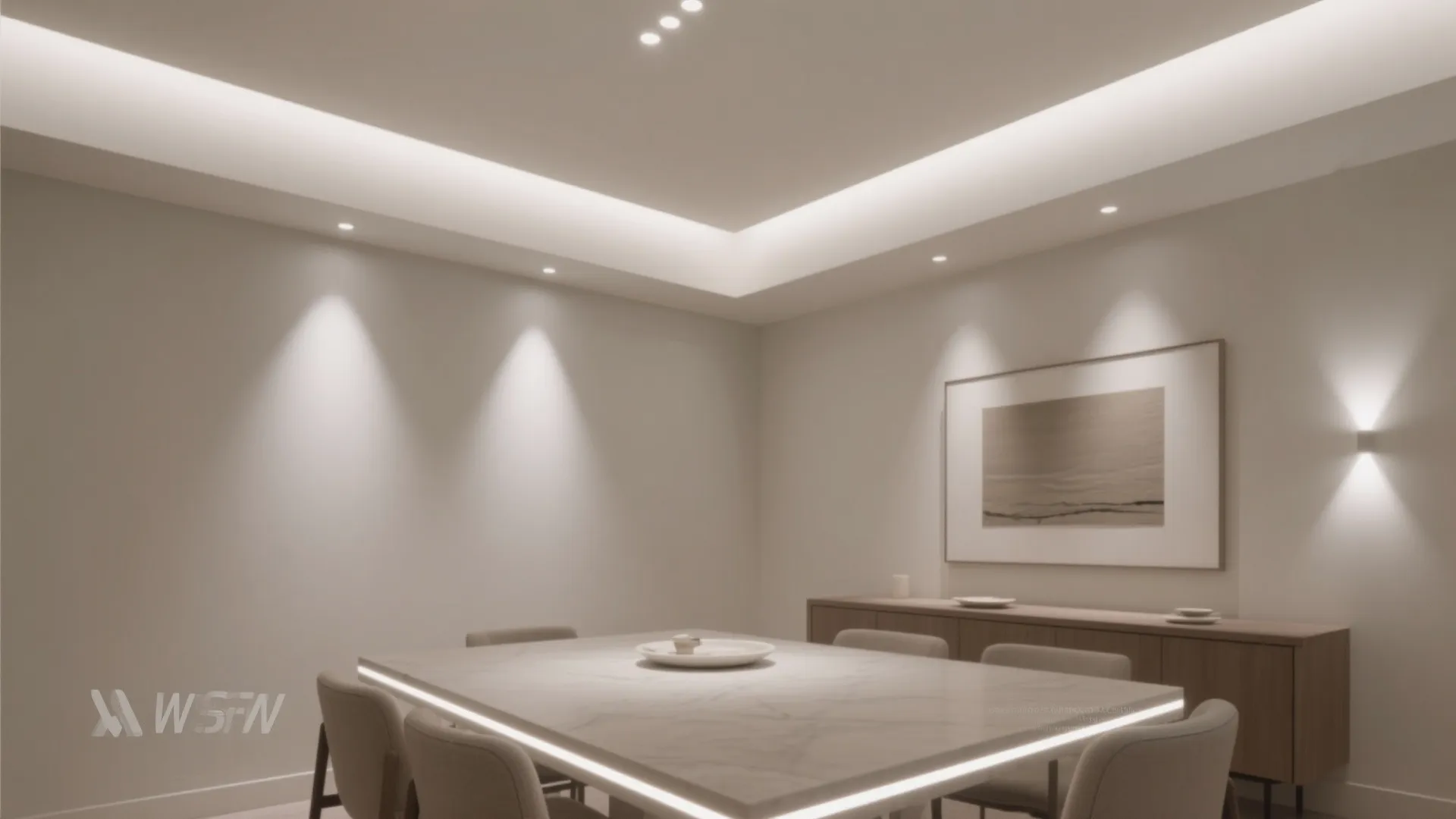

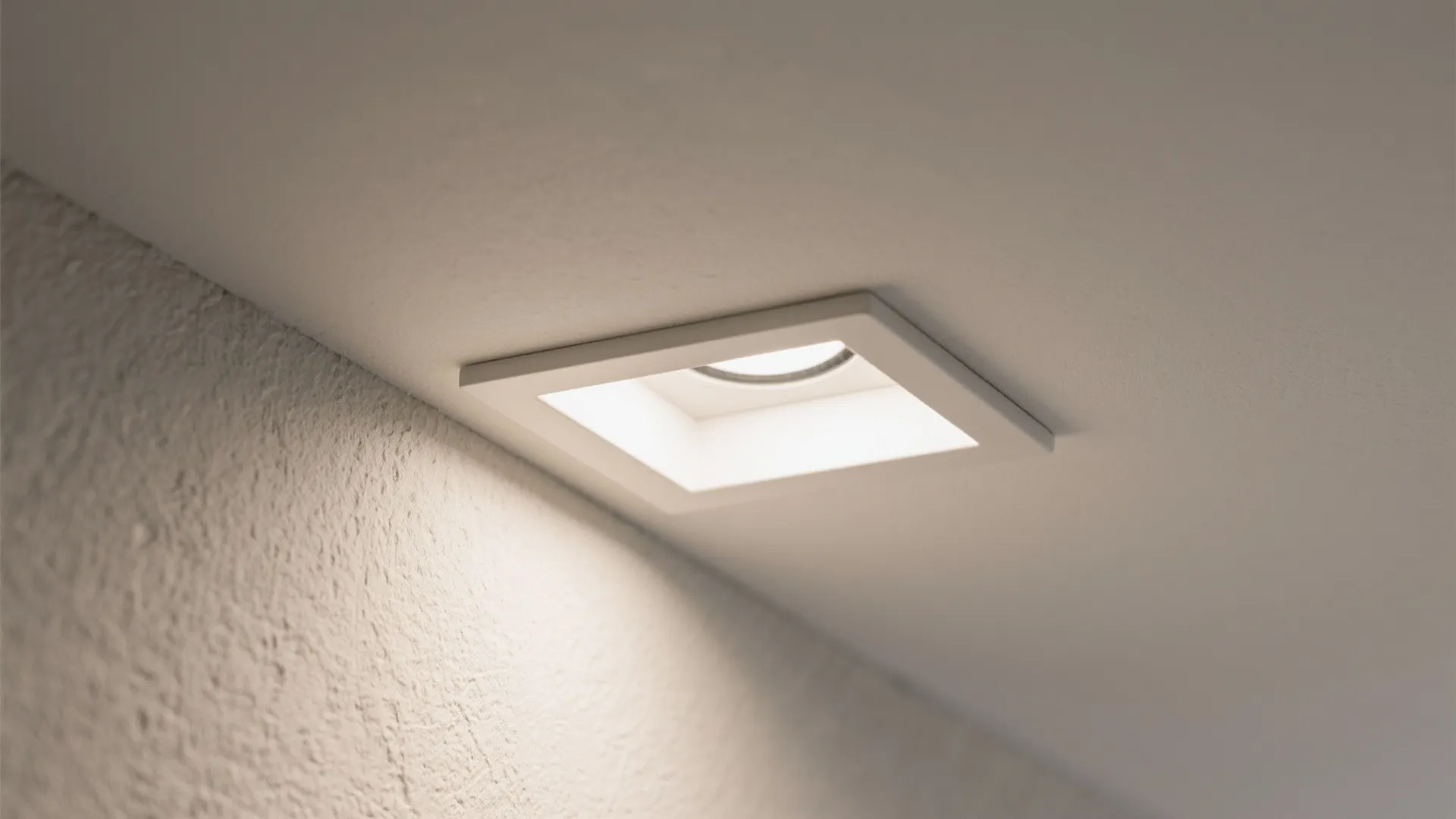

Minimalist Gypsum Ceiling With Recessed Trimless Spots

My Take

In a compact condo, we opted for a clean gypsum ceiling and trimless downlights aimed at the table edge, not straight down. The result looked gallery-sharp—no starry ceiling, just intentional beams enhancing plates and textures.

Pros

Trimless fixtures feel high-end and blend into a minimal envelope—perfect for quiet luxury interiors. A layered plan—narrow beams for the table, wall-wash for art, and dimmable ambient—supports visual hierarchy, a cornerstone of modern dining room ceiling design. The IES Lighting Handbook recommends glare control and vertical illumination for visual comfort; aiming and beam spread matter more than fixture count.

Cons

Cutting and skimming for trimless heads is slow; patching later is harder than with flanged fixtures. Fixed-beam spots can create hot spots on glossy tables—test finishes and beam angles first.

Tips / Cost

Start with 15–20° beam for accents, 30–40° for general; CRI 90+ for food and wood tones. Budget: $350–$700 per high-quality trimless downlight installed. Keep circuits separate for dimming scenes: dine, task, and late-night glow.

save pin

save pin

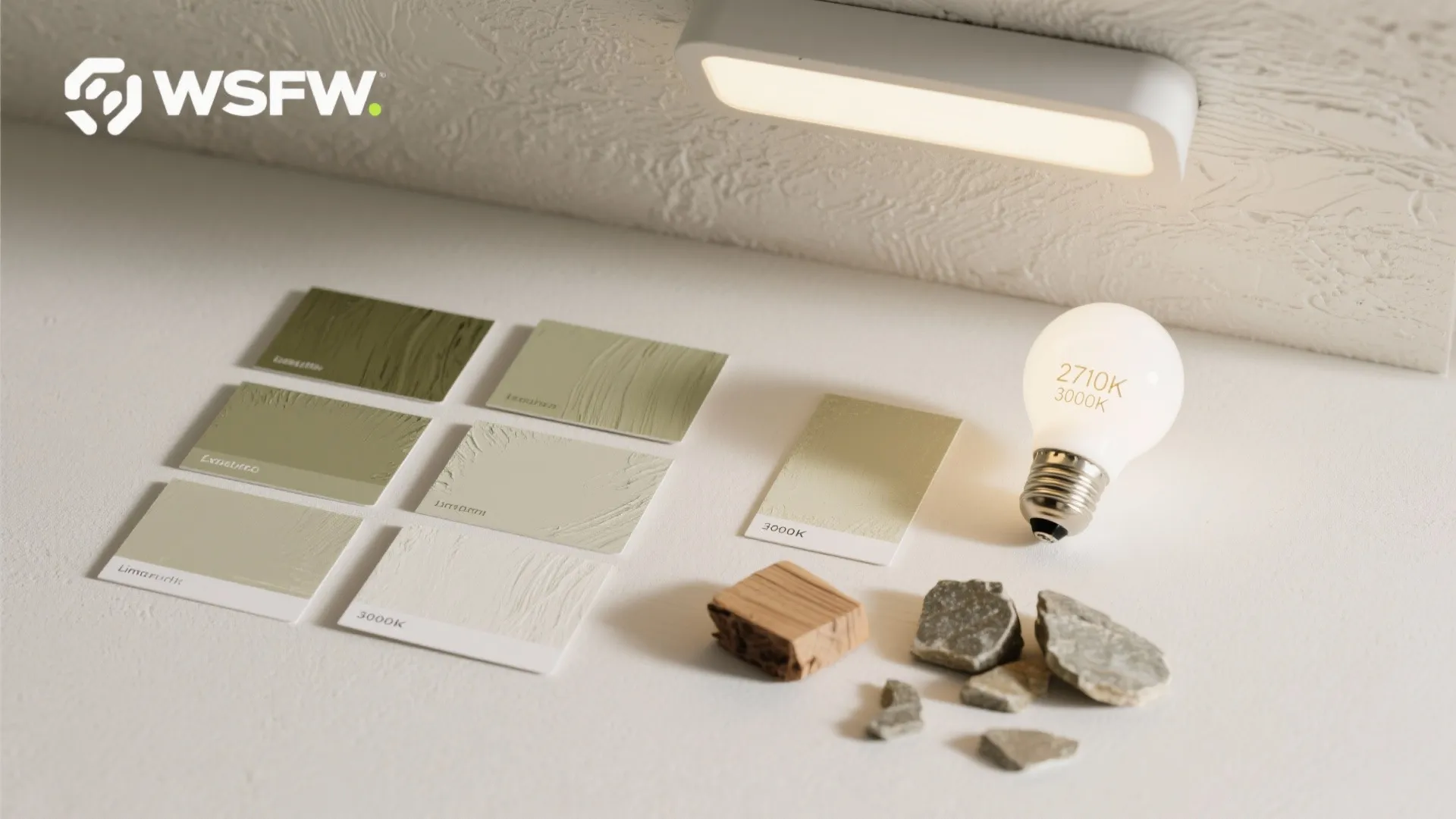

Statement Ceiling Color With Micro-Texture

My Take

Color on the ceiling can be transformative in small dining rooms. I recently used a desaturated olive with a soft limewash texture—suddenly, the table felt cocooned and intimate, without cluttering the walls.

Pros

A colored ceiling draws the eye up, creating a designed moment with minimal build. Mid-to-dark tones paired with warm 2700K lighting deliver a cozy, restaurant-like vibe—ideal for intimate dinners. Limewash and mineral paints offer gentle micro-texture that hides minor imperfections, an under-sung advantage in modern dining room ceiling design.

Cons

Color can shift under different light temperatures; always sample with your actual bulbs. Dark ceilings may visually lower height—balance with lighter walls or glossy tabletops to bounce light.

Tips / Cost

Test swatches across morning and evening light; aim for LRV 10–30 for moody dining, 40–60 for airy comfort. DIYable: $2–$5/sq ft for paint, $6–$12/sq ft for limewash pro finish. If you’re coordinating a kitchen-dining space, preview how two-tone cabinetry meets a colored ceiling so finishes feel cohesive across zones.

save pin

save pin

FAQ

1) What defines a modern dining room ceiling design?

Clean lines, integrated lighting, restrained materials, and purposeful zoning. Think trimless fixtures, subtle forms, and textures like wood slats or limewash—less ornament, more atmosphere.

2) How high should a dropped dining ceiling be?

Keep drops minimal in low rooms—about 25–40 mm. Maintain at least 2400 mm clear height where possible; test visually with painter’s tape before construction.

3) What color temperature is best for dining?

Warm white 2700–3000K flatters food and skin tones. For mixed-use spaces, use tunable fixtures or separate circuits to switch between 2700K dining and 3000–3500K task scenes.

4) How do I reduce dining room echo without heavy panels?

Use a wood slat ceiling with acoustic backing, fabric dining chairs, and a rug under the table. Slatted ceilings with felt cores can reach NRC ~0.65–0.85, noticeably improving speech clarity.

5) Are recessed downlights enough for a dining room?

Often not. Layer with a pendant for focal light and wall-wash for vertical illumination. The IES Lighting Handbook emphasizes balanced vertical and horizontal light for comfort and perception.

6) Will a dark ceiling make my room feel smaller?

It can lower perceived height, but pairing dark ceilings with lighter walls, reflective tables, and perimeter lighting keeps the space intimate, not cramped. Always sample paint with your actual bulbs.

7) What’s a realistic budget for a modern ceiling refresh?

Paint or limewash: $2–$12/sq ft. Trimless lighting and gypsum work: $18–$55/sq ft plus $350–$700 per premium fixture installed. Wood slats with acoustic backing: $40–$90/sq ft.

8) How can I plan lighting positions before construction?

Map beams, pendants, and wall-wash on scale drawings and run a quick 3D test to check glare angles and spread; a simple AI-aided room visualization can save costly rework by catching conflicts early.

In summary, a modern dining room ceiling design isn’t a constraint—it’s a smart canvas. With the right mix of subtle structure, lighting layers, and texture, small spaces feel curated, not compromised. As the WELL Standard and IES guidance suggest, comfort comes from glare control, balanced layers, and thoughtful material choices. Which of these five ideas would you try first for your own dining room?
