I’ve been designing small bathrooms for over a decade, and the trend that keeps proving its worth is modular bathroom tiles design—smart, repeatable patterns that look custom but install fast. Small spaces really do spark big creativity, and tile modules are my favorite way to turn constraints into character. If you’re mapping a modular tile layout for small bathrooms, this guide will share 5 design inspirations, grounded in my projects and backed by expert data.

From large-format porcelain to playful hex modules, I’ll walk you through what’s worked in real makeovers, what to watch out for, and how to balance budget with performance. I’ll keep the language practical, the tips honest, and the outcomes replicable in tight footprints.

[Section: 灵感列表]

Grid-Based Modular Tile Layout (Clean Lines, Calm Space)

My Take: In a 4.5 m² powder room I remodeled last spring, a simple 300×600 mm ceramic grid instantly made the room feel ordered and larger. I kept grout lines aligned from wall to floor, and the visual rhythm set a calm tone around a busy morning routine.

Pros: A modular grid is easy to plan and maintains a consistent small bathroom tile layout across planes, which visually expands the space. The repeatable module reduces cutting waste, and standardized formats (like 300×600 mm) speed up installation. With lighter grout and light-reflective glaze, you also get better perceived brightness in windowless baths.

Cons: Grids show imperfections; if walls aren’t plumb or floors aren’t level, misalignments can be obvious. In older buildings, expect extra prep for substrate corrections, which can add time and cost. Also, very light grout can discolor faster if ventilation is poor.

Tips / Case / Cost: I usually budget a 10–15% overage on tiles for small bathrooms to accommodate cuts and spares. If you’re unsure about alignment, dry-lay the first two rows and mark center lines—this helps avoid visible slivers at the edges. A matte wall tile above 120 cm height can reduce glare if your lighting runs cool (4000–5000K).

save pin

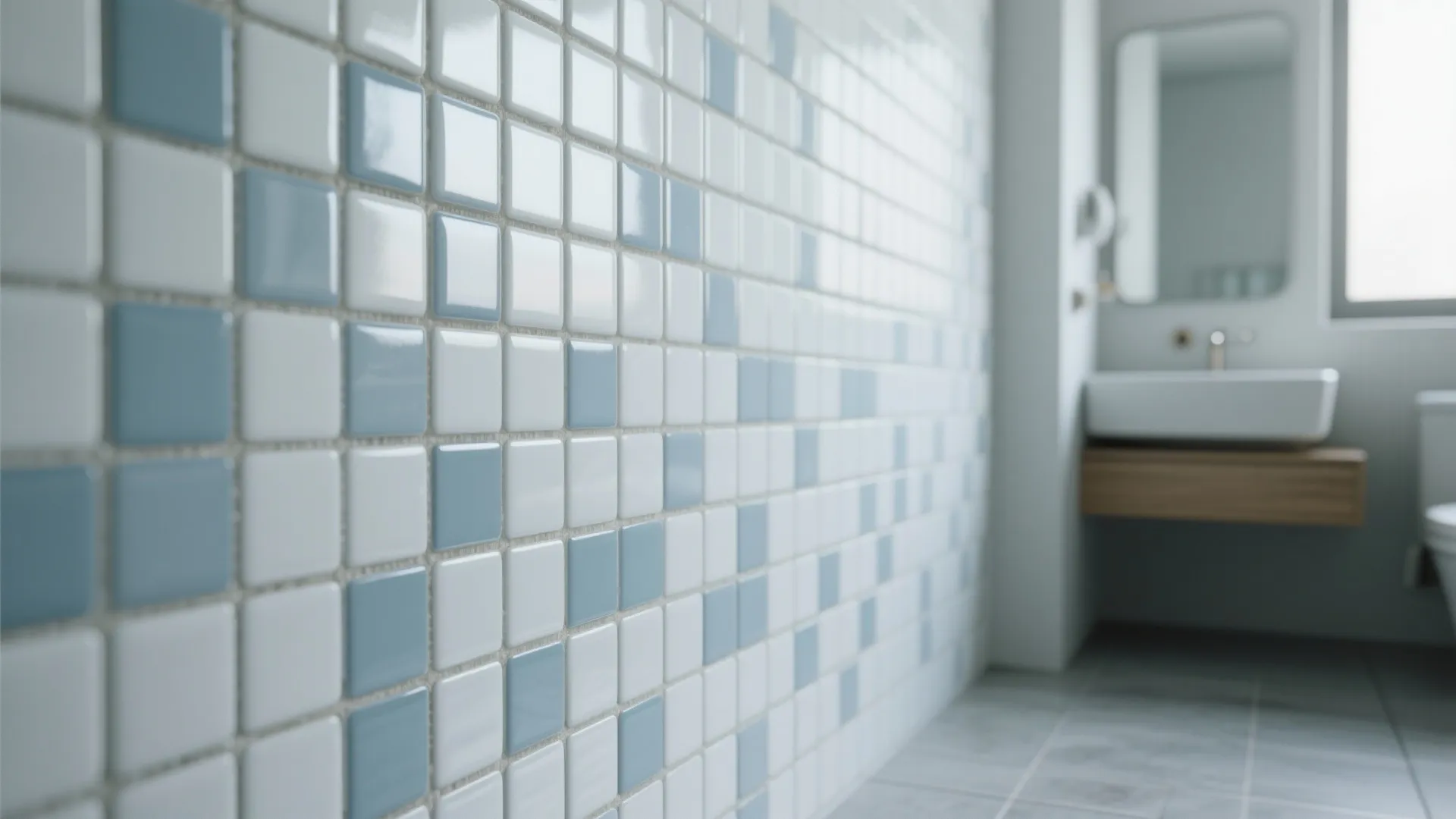

Glossy Mosaic Modules to Bounce Light (Best for Walls)

My Take: In a tight ensuite with no natural light, I used a 25×25 mm glossy mosaic on the vanity wall. It was like adding a subtle mirror; the small modules caught light beautifully without feeling flashy.

Pros: Reflective mosaic modules enhance brightness, ideal for small bathroom tile designs that need lift. Because mosaics are on mesh sheets, they adapt to curves and niches, making modular bathroom tiles design flexible around mirrors and storage recesses. They also add texture and detail without overwhelming a compact footprint.

Cons: Glossy finishes on floors can be slippery when wet, so I reserve them for walls or dry areas. Grout maintenance is more noticeable due to the number of joints, and with high-sheen tiles you’ll notice lippage and unevenness quickly if the substrate isn’t perfect.

Tips / Case / Cost: Balance a glossy wall mosaic with a matte, slip-resistant floor to keep the look intentional. If you want visual continuity, choose a wall mosaic and a floor tile from the same color family and shift only the finish. For busy households, epoxy grout can help resist stains, though it adds to labor cost.

save pin

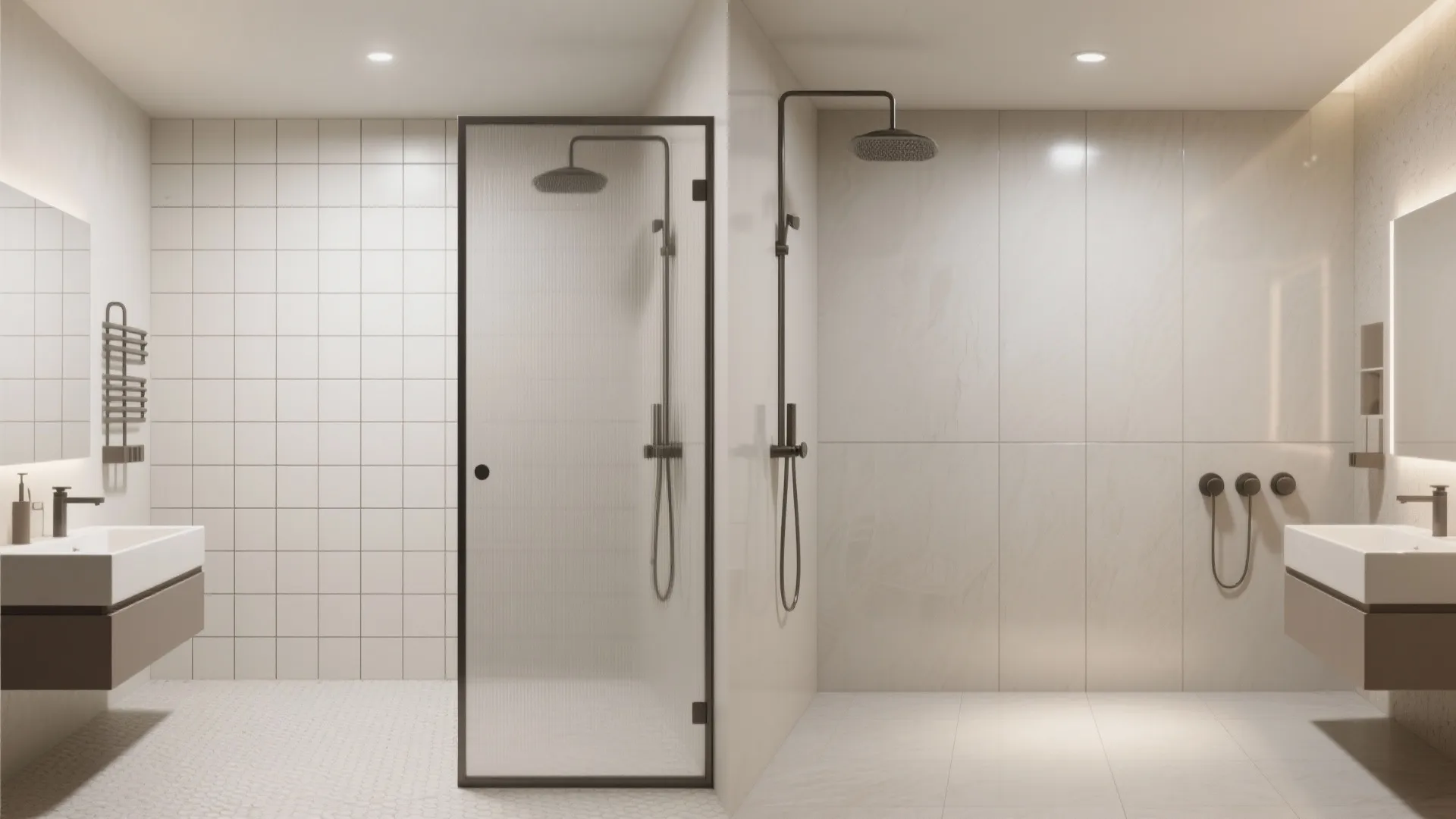

Large-Format Porcelain Panels (Fewer Grout Lines, Easy Clean)

My Take: One of my favorite small-bath transformations used 900×1800 mm porcelain panels in a shower. With just a handful of grout joints, cleaning time dropped dramatically—and clients loved the seamless look.

Pros: Large-format porcelain reduces joints, which means fewer places for mildew and faster wipe-downs—perfect for low-maintenance modular bathroom tiles design. The continuous surface makes compact rooms feel more expansive. For visualization, I often mock up how large-format porcelain panels reduce grout lines in a 3D render so homeowners can compare joint maps before ordering.

Cons: Big panels are heavy and need precise handling; delivery through tight stairwells can be tricky. Cutting around outlets and niches takes skill and may require a specialist installer, raising costs. If your walls aren’t flat, the panel edges can highlight unevenness—plan for wall prep.

Authority Note: The Tile Council of North America (TCNA) recommends evaluating the tile’s DCOF (Dynamic Coefficient of Friction) for wet areas; for level interior spaces, ANSI A137.1 sets a DCOF ≥ 0.42 as a commonly cited threshold. Choose matte or textured finishes for shower floors to meet slip-resistance needs.

Tips / Case / Cost: Expect a higher upfront budget for panels, but calculate the savings in maintenance and longevity. I’ve seen panels pay off in rentals where turnover cleaning is frequent. If you love stone, consider porcelain stone-look panels; they offer the vibe without the sealing routine.

save pin

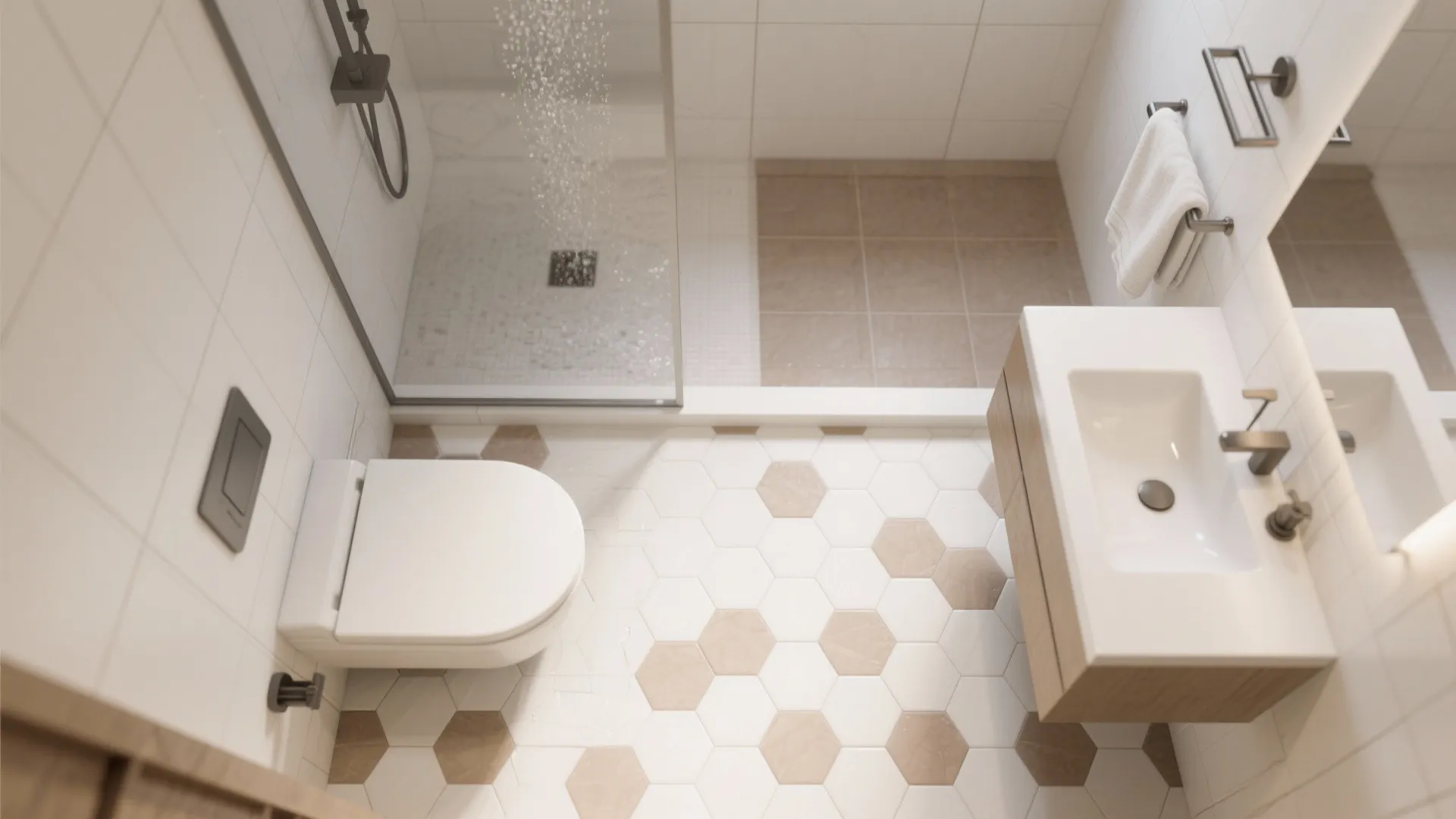

Hex Modules for Zoning (Playful Pattern, Practical Grip)

My Take: In a 5 m² guest bath, I used 100 mm hex mosaics to define a “wet zone” around the shower and a “dry zone” near the vanity. The subtle shift in pattern made the floor feel considered and safe.

Pros: Hexagonal modules let you create functional zones in small bathroom tile layouts, guiding traffic where water pools. Smaller modules mean more grout joints, which can improve traction—handy for slip-resistant bathroom tile modules. TCNA’s DCOF guidance and textured finishes help you dial in safety while keeping the design cheerful.

Cons: Pattern play can go from charming to chaotic if you mix too many colors or outlines. Hex sheets can telegraph misalignments; a slightly skewed line will be visible, so take extra time on the first few rows. More grout also means more maintenance, especially in homes with hard water.

Tips / Case / Cost: Keep the palette tight—one base color, one accent, and a finish contrast. If you want subtle zoning, vary only the finish (matte in the wet zone, satin in the dry zone). I like to pair the hex floor with a simple stacked wall tile to avoid visual competition.

Planning Aid: When laying out “wet/dry” boundaries, map the shower splash radius and towel-drop area to create slip-resistant zones around the shower that feel natural rather than arbitrary.

save pin

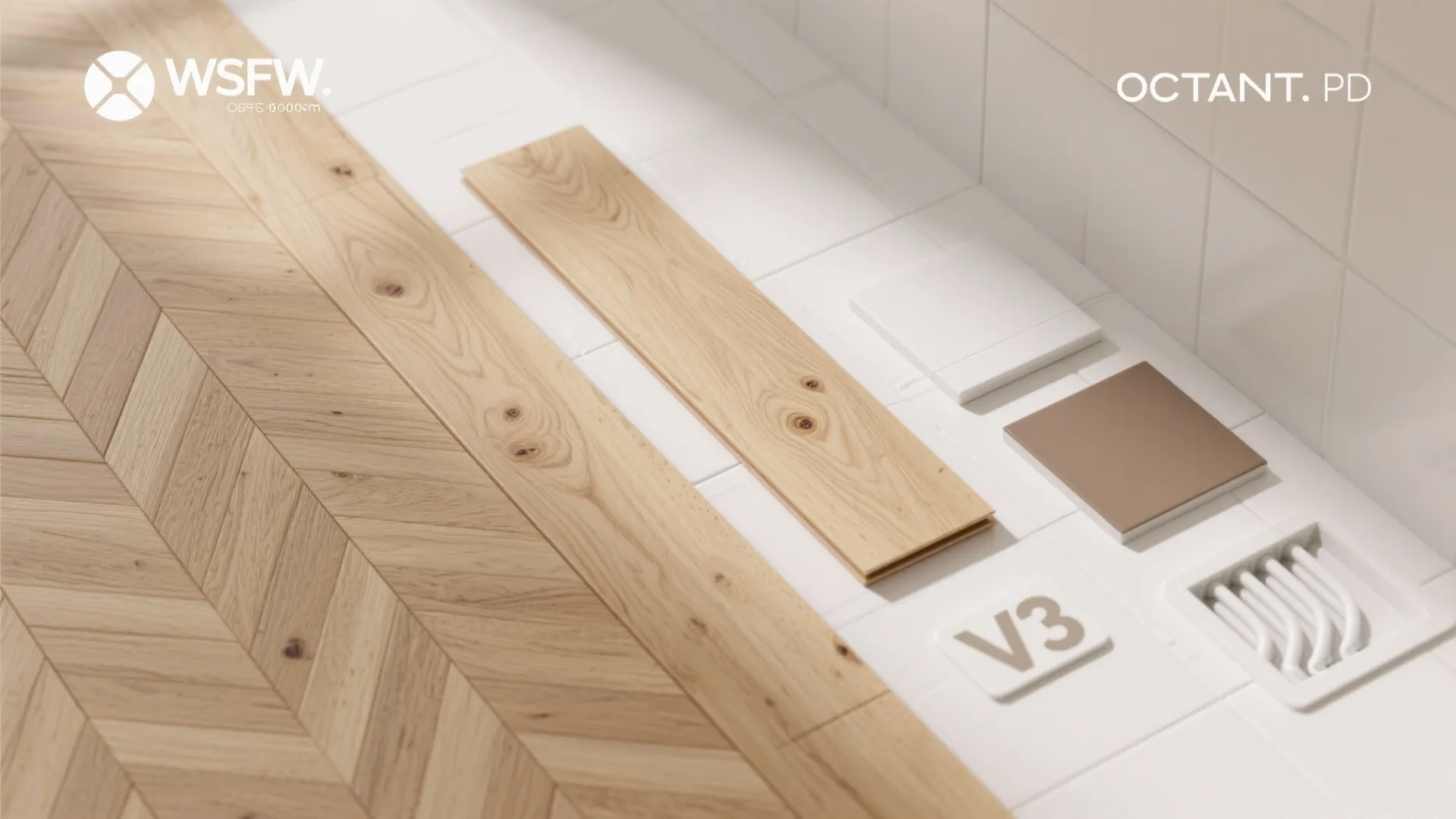

Wood-Look Porcelain Planks (Warmth Without Worry)

My Take: Clients love the spa vibe of wood, but real timber in bathrooms is high-maintenance. Wood-look porcelain planks give you the organic warmth in modular formats, and they pair beautifully with matte white wall tiles.

Pros: Porcelain planks resist moisture and are easy to clean, delivering the cozy look with the performance small bathrooms need. Modular lengths (like 150×900 mm) make herringbone or chevron patterns doable in tight spaces, adding movement to compact footprints. With underfloor heating, porcelain is thermally stable, making it a comfort upgrade.

Cons: Printed wood patterns vary; repeating “knots” can look artificial if you don’t mix cartons. Dark wood tones can make very small rooms feel tighter, so balance with light walls and good lighting. Edge-lippage is easier to spot in plank formats—request a skilled installer for leveling systems.

Authority Note: NKBA’s Bathroom Planning Guidelines emphasize durable, easy-clean surfaces for high-moisture spaces; porcelain checks both boxes while offering style flexibility. Confirm your grout joint and offset recommendations for plank tiles to minimize warping effects (often a third-offset is recommended to reduce lippage).

Tips / Case / Cost: A soft-contrast grout (taupe with honey oak tones) keeps the look natural. Budget-wise, mid-tier porcelain planks often deliver better print variation than entry-level options—ask for at least a “V3” variation rating for a believable wood effect. For a calm finish, run planks parallel to the long wall to visually stretch the room.

[Section: 总结]

Small kitchens taught me this first, but it applies even more in baths: tiny footprints reward smart choices. Modular bathroom tiles design isn’t a constraint—it’s a strategy for cleaner lines, safer floors, and faster installs. If you prioritize DCOF for wet zones, plan your grout thoughtfully, and choose modules that fit your layout, you’ll get style and performance in one go.

Your turn: which of these five ideas would you try first—seamless panels or playful hex zones?

[Section: FAQ 常见问题]

save pin

FAQ

1) What is modular bathroom tiles design?

It’s a planning approach that uses standardized tile sizes and repeatable patterns to create flexible, efficient layouts. In small bathrooms, it speeds installation, controls waste, and delivers a clean, cohesive look.

2) Which tile finishes are best for shower floors?

Choose matte or textured tiles with adequate slip resistance. The Tile Council of North America (TCNA) references ANSI A137.1, where a DCOF ≥ 0.42 is commonly cited for level interior spaces; showers benefit from texture and smaller modules for grip.

3) Are large-format porcelain panels suitable for small bathrooms?

Yes—fewer grout lines make rooms feel larger and simplify cleaning. Confirm wall flatness and plan logistics for moving panels through tight hallways.

4) Do mosaics work on bathroom floors?

Mosaics can be great for slip resistance due to more grout joints. Use matte or textured finishes and verify DCOF; glossy mosaics are best reserved for walls.

5) How do I choose grout color for modular layouts?

For expansion, match grout to tile for a seamless look; for definition, contrast lightly to outline modules. In wet zones, consider epoxy grout for stain resistance.

6) Can wood-look porcelain handle underfloor heating?

Yes, porcelain is thermally stable and pairs well with radiant systems. Check manufacturer specs for max temperature and suitable adhesives.

7) What’s the most budget-friendly modular option?

Standard ceramic in 300×600 mm with a simple grid is cost-effective and versatile. Balance the savings by investing in good prep and quality grout for longevity.

8) How do I plan wet/dry zoning in a small bath?

Map the shower splash area and towel-drop zone, then shift format or finish to cue function. Hex modules or a change in tile texture are subtle ways to define zones without visual clutter.
