5 Modular Kitchen Designs With Dimensions That Actually Work: Practical layouts and real kitchen measurements that help you design a modular kitchen that fits and functions beautifully

Direct Answer

Modular kitchen designs with dimensions typically follow proven layout standards such as L‑shaped, U‑shaped, parallel, island, and straight kitchens. Most functional kitchens maintain a 36 inch counter height, 24 inch base cabinet depth, and 40–48 inches of circulation space for comfortable movement and workflow.

Choosing the right layout depends on room size, workflow, and storage needs more than visual style.

Quick Takeaways

1. Most modular kitchens work best with 40 to 48 inches of walking clearance.
2. Base cabinets are typically 24 inches deep and 34.5 inches high before countertop installation.
3. L shaped layouts are the most flexible design for small and medium homes.
4. Parallel kitchens maximize storage in narrow apartments.
5. Island kitchens require at least 10 feet of room width to function properly.

Introduction

After designing dozens of residential kitchens over the last decade, I can say one thing clearly: most kitchen problems are not style problems. They are dimension problems. People search for modular kitchen designs with dimensions because they want something that actually fits their space, not just a pretty Pinterest layout.

I have walked into countless homes where cabinets looked great but drawers collided, appliances felt cramped, or walkways were too tight. Those mistakes almost always come down to ignoring real kitchen measurements. In this guide I will break down five modular kitchen layouts I regularly recommend to clients and the dimensions that make them work in real homes.

save pin

What Standard Dimensions Should Every Modular Kitchen Follow

Key Insight: Good kitchen design starts with ergonomic standards that prevent cramped movement and inefficient workflows.

Regardless of layout, almost every successful modular kitchen follows a set of base measurements developed through decades of ergonomic research. Organizations like the National Kitchen and Bath Association emphasize these guidelines because they consistently improve usability.

Essential modular kitchen dimensions

1. Countertop height: 36 inches (91 cm)
2. Base cabinet depth: 24 inches (61 cm)
3. Wall cabinet depth: 12 to 15 inches
4. Backsplash height: 18 to 24 inches
5. Walkway clearance: 40 to 48 inches
6. Island clearance: minimum 42 inches on each side

One mistake I see constantly is oversized cabinetry. Deeper cabinets seem attractive for storage, but once depth exceeds about 24 inches, items get buried and accessibility drops dramatically.

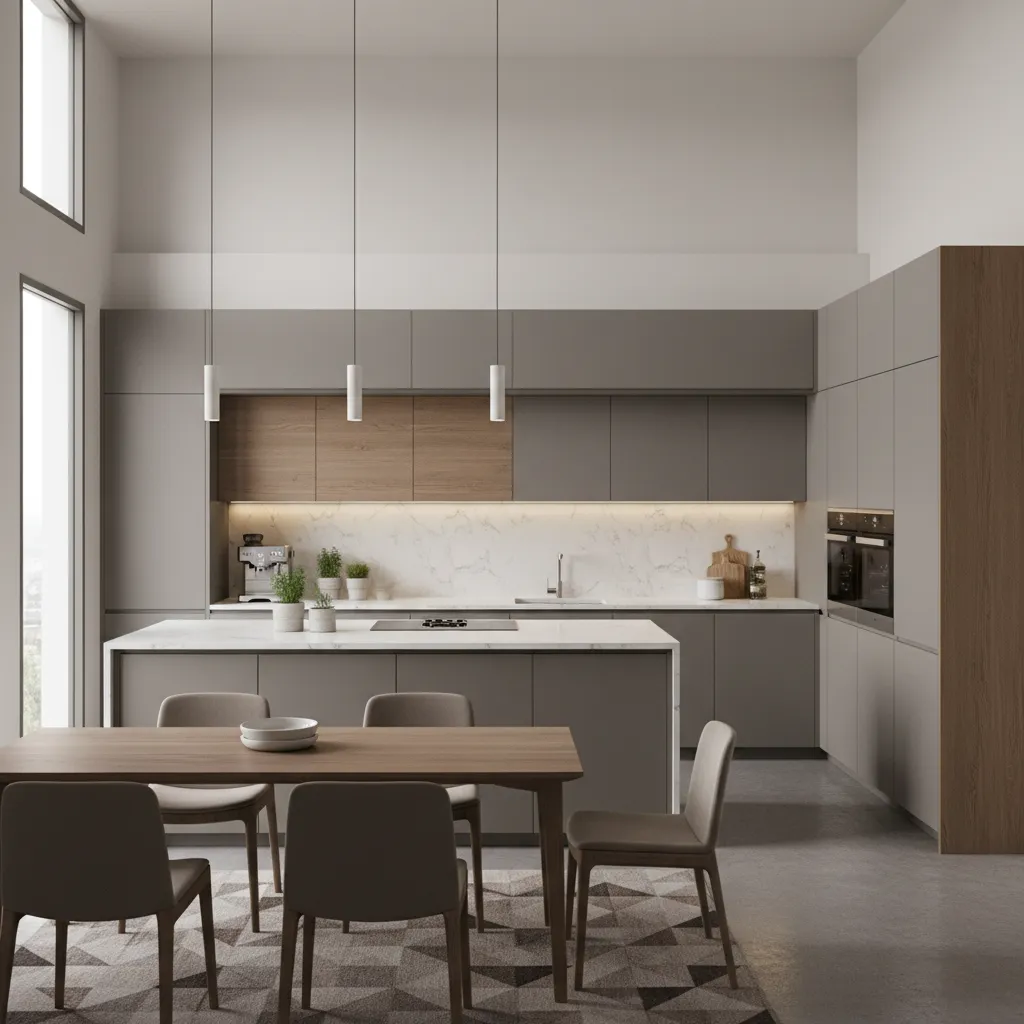

Why L Shaped Modular Kitchen Designs Work in Most Homes

Key Insight:The L shaped modular kitchen is the most adaptable layout because it balances storage, movement, and open space.

In real residential projects, the L shaped layout solves more problems than almost any other design. It fits comfortably into small apartments but can also scale into larger homes.

save pin

Typical L shaped kitchen dimensions

1. Minimum room size: 8 x 10 feet
2. Counter run length: 6 to 10 feet per wall
3. Corner cabinet space: 36 x 36 inches
4. Working triangle distance: 13 to 26 feet total

Why homeowners prefer this layout

1. Creates natural workflow between stove, sink, and fridge
2. Leaves open floor area for dining or movement
3. Works well in open plan living spaces

In my projects, L shaped kitchens are often paired with a small peninsula rather than a full island. That trick adds prep space without demanding the large clearances an island requires.

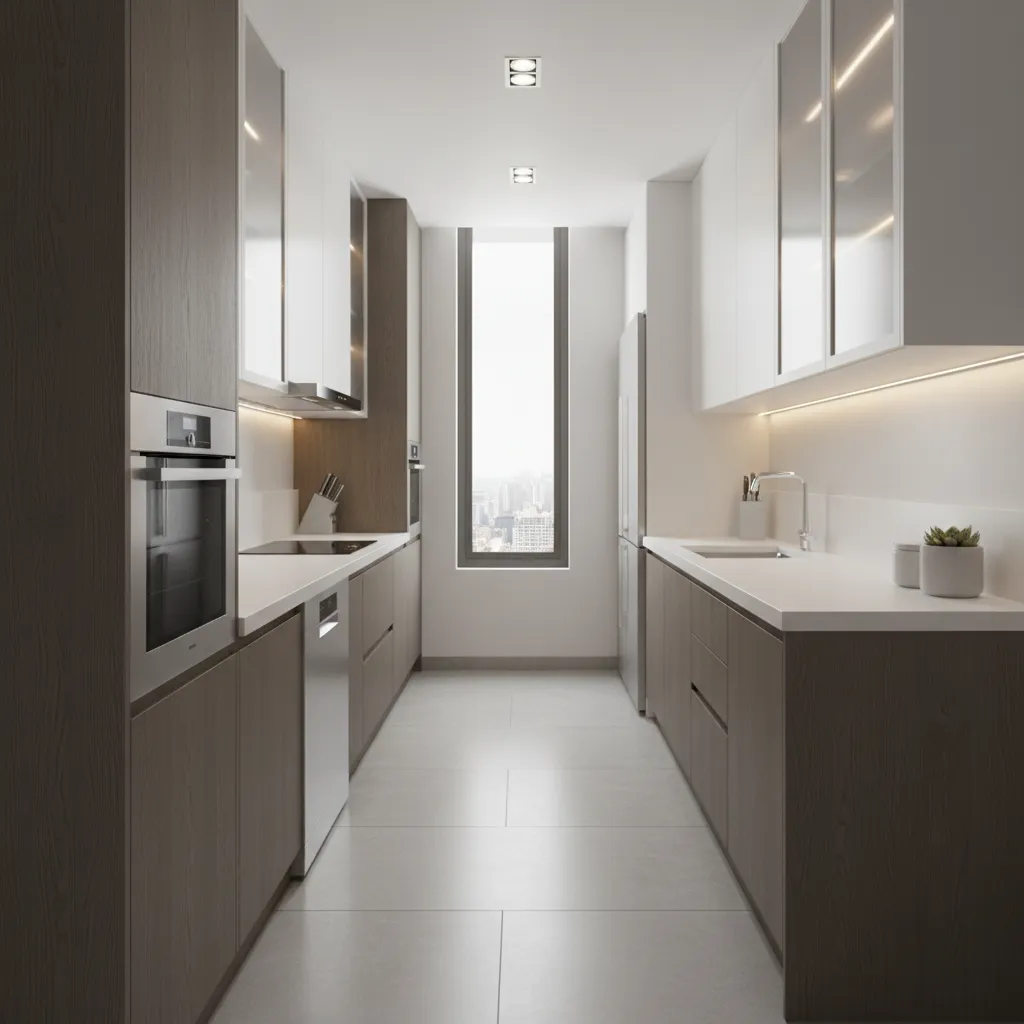

How Much Space Does a Parallel Modular Kitchen Need

Key Insight:Parallel kitchens maximize efficiency in narrow spaces but require careful walkway planning.

Parallel kitchens, sometimes called galley kitchens, are extremely common in urban apartments. When designed correctly they are one of the most efficient kitchen formats.

save pin

Recommended dimensions for a parallel kitchen

1. Minimum room width: 7 to 8 feet
2. Cabinet depth on each side: 24 inches
3. Walkway between counters: 40 to 48 inches
4. Typical counter length: 8 to 12 feet

Hidden mistake many homeowners make

They shrink the aisle to squeeze more cabinetry. Once the aisle drops below about 36 inches, opening appliances and drawers becomes frustrating.

Professional kitchen designers usually prioritize walkway comfort over adding extra cabinets.

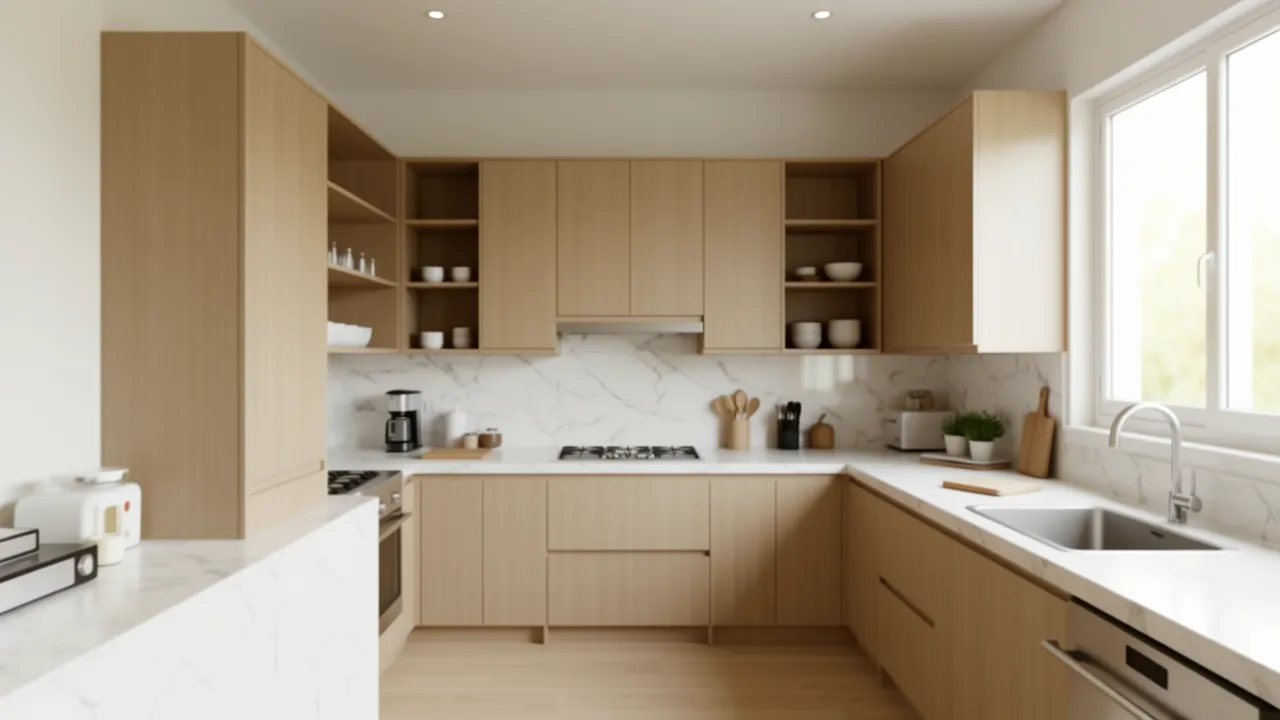

Is a U Shaped Modular Kitchen Better for Storage

Key Insight: U shaped kitchens deliver the highest storage capacity but require enough room width to avoid feeling boxed in.

A U shaped modular kitchen wraps cabinets along three walls. When the room allows it, this design offers exceptional storage and continuous counter space.

Typical U shaped kitchen dimensions

1. Minimum room width: 10 feet
2. Counter depth: 24 inches
3. Center aisle clearance: 42 to 48 inches
4. Ideal counter run per wall: 8 to 12 feet

Advantages

1. Maximum storage capacity
2. Excellent cooking workflow
3. Dedicated zones for prep, cooking, and cleaning

Tradeoff many articles ignore

If the room is under 9 feet wide, a U shaped kitchen can feel cramped. In those situations I often convert one side into open shelving or a peninsula to restore breathing space.

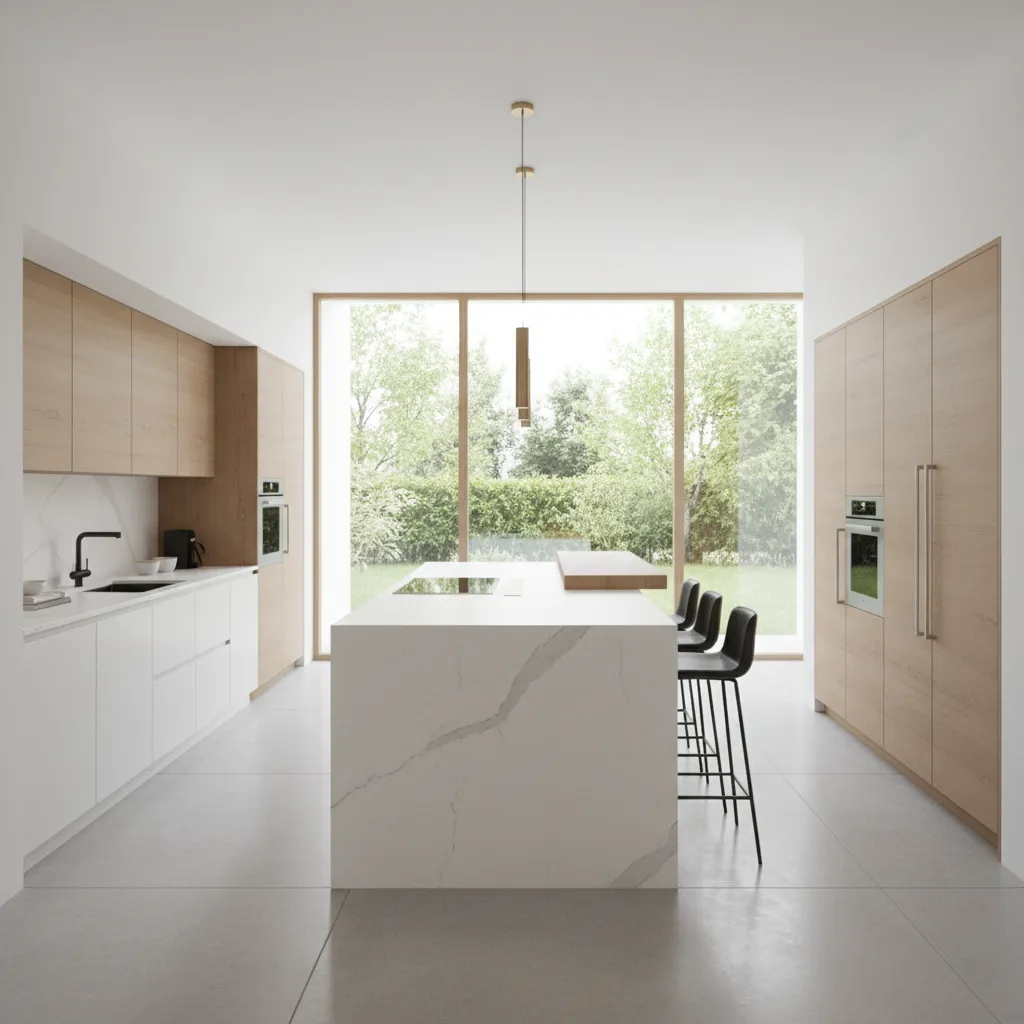

When Does an Island Kitchen Actually Make Sense

Key Insight:A kitchen island works only when circulation space is generous enough to keep movement comfortable.

Kitchen islands look impressive in magazines, but they are frequently forced into rooms that are too small. In my projects I only recommend an island when the room can comfortably support it.

save pin

Minimum dimensions for island kitchens

1. Room width: 10 to 12 feet minimum
2. Island width: 30 to 36 inches
3. Island length: 4 to 7 feet
4. Clearance around island: 42 to 48 inches

Common hidden cost

Island kitchens often require electrical and plumbing floor work. That infrastructure cost is something many homeowners overlook during early planning.

What Is the Best Modular Kitchen Layout for Small Spaces

Key Insight: In small homes, a straight or L shaped modular kitchen usually performs better than complex layouts.

When space drops below about 70 square feet, simplicity becomes your best design strategy.

Recommended small kitchen layouts

1. Straight kitchen along one wall
2. Compact L shaped kitchen
3. Narrow parallel kitchen for apartments

Typical dimensions for a straight kitchen

1. Minimum wall length: 8 feet
2. Base cabinet depth: 24 inches
3. Upper cabinet height: 18 inches above counter
4. Total working zone: 8 to 10 feet

One overlooked design trick is using tall pantry cabinets. Vertical storage dramatically increases capacity without expanding the footprint.

Answer Box

The most functional modular kitchen designs combine proven layouts with correct ergonomic dimensions. L shaped and parallel kitchens work best in smaller homes, while U shaped and island kitchens require wider rooms to maintain proper movement clearance.

Final Summary

1. Most modular kitchens follow a 36 inch counter height standard.
2. L shaped kitchens offer the best balance of flexibility and space efficiency.
3. Parallel kitchens are ideal for narrow apartments.
4. Kitchen islands require at least 42 inches of clearance around them.
5. Small kitchens perform best with simple layouts and vertical storage.

FAQ

What are standard modular kitchen dimensions?

Standard modular kitchen dimensions include a 36 inch counter height, 24 inch base cabinet depth, and 40 to 48 inches of walkway clearance.

Which modular kitchen design is best for small homes?

L shaped and straight modular kitchen designs are usually best for small homes because they maintain open floor space.

How wide should a modular kitchen walkway be?

Most designers recommend 40 to 48 inches between counters for comfortable movement.

What is the minimum size for a kitchen island?

A functional island is typically 30 to 36 inches wide and at least 4 feet long.

Are parallel modular kitchens good for apartments?

Yes. Parallel modular kitchen designs maximize storage and workflow in narrow spaces.

How deep are modular kitchen cabinets?

Base cabinets are usually 24 inches deep while wall cabinets range from 12 to 15 inches.

What is the best modular kitchen layout?

The best modular kitchen layout depends on room size, but L shaped designs are the most versatile.

Can modular kitchen designs include islands?

Yes, but the room should be at least 10 to 12 feet wide to accommodate proper island clearance.
