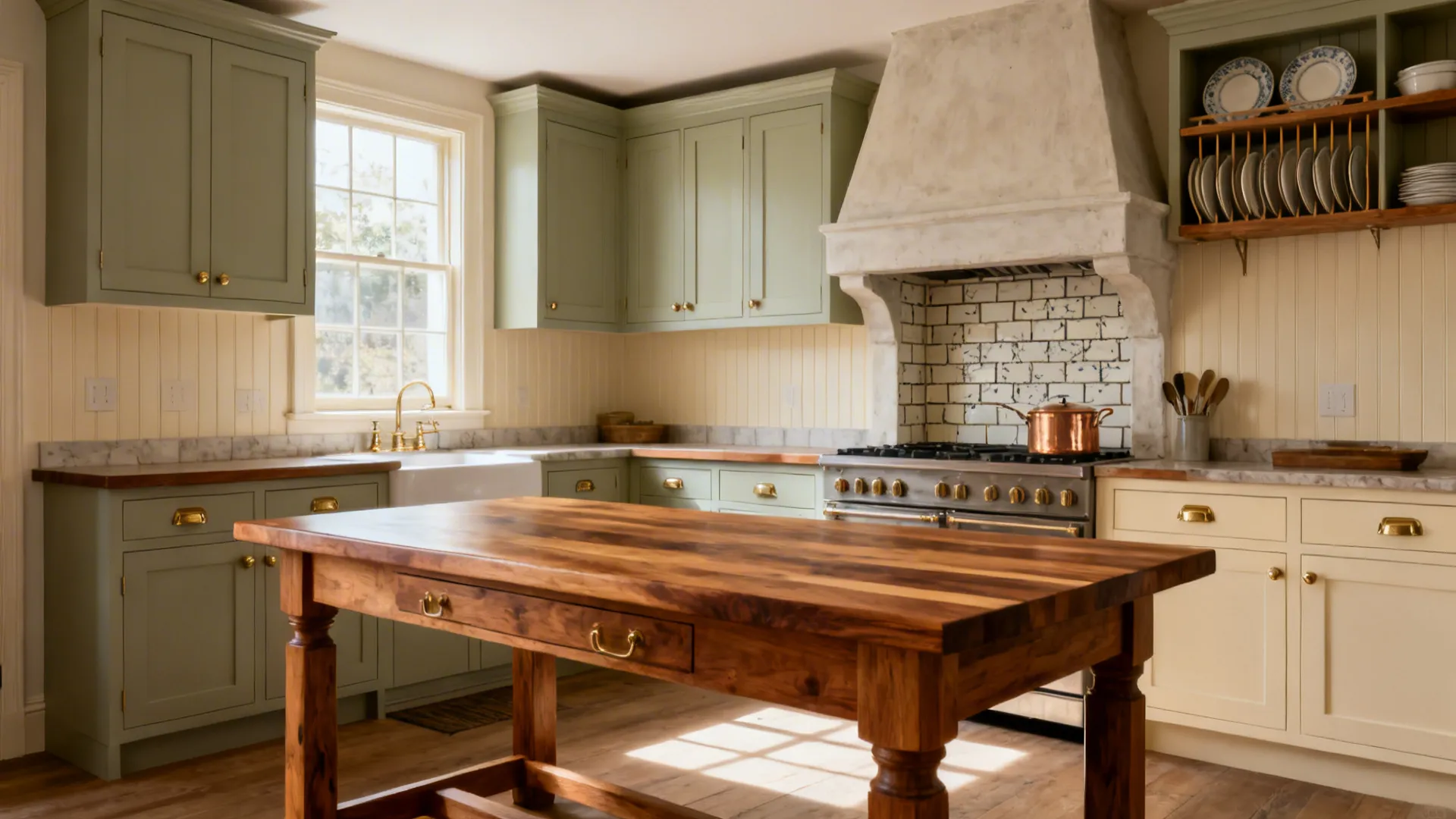

5 Olden Days Kitchen Ideas: Small Space, Big Impact: My 10-year interior designer take on drawing and designing an old-fashioned kitchen—5 practical, small-space ideas with real pros & cons

As someone who’s redesigned more small kitchens than I can count, I’ve noticed a lovely trend: olden days kitchen charm is back, but smarter. When I draw or plan a vintage-inspired kitchen, I mix period details with modern function, because small spaces can spark big creativity. In this guide, I’ll share 5 design inspirations—rooted in my projects and supported by expert data—so you can draw an old-fashioned kitchen that feels authentic, efficient, and warm.

Before we dive in, a quick note on method: when I say “draw,” I’m talking both about hand-sketching layouts and elevations (to capture proportion and detail) and building a measured plan so everything fits. I usually start with primary zones—the range, sink, and prep—then layer storage, textures, and era-appropriate details like beadboard, shaker fronts, and open shelves. The goal? A kitchen that looks old-world, but lives comfortably today.

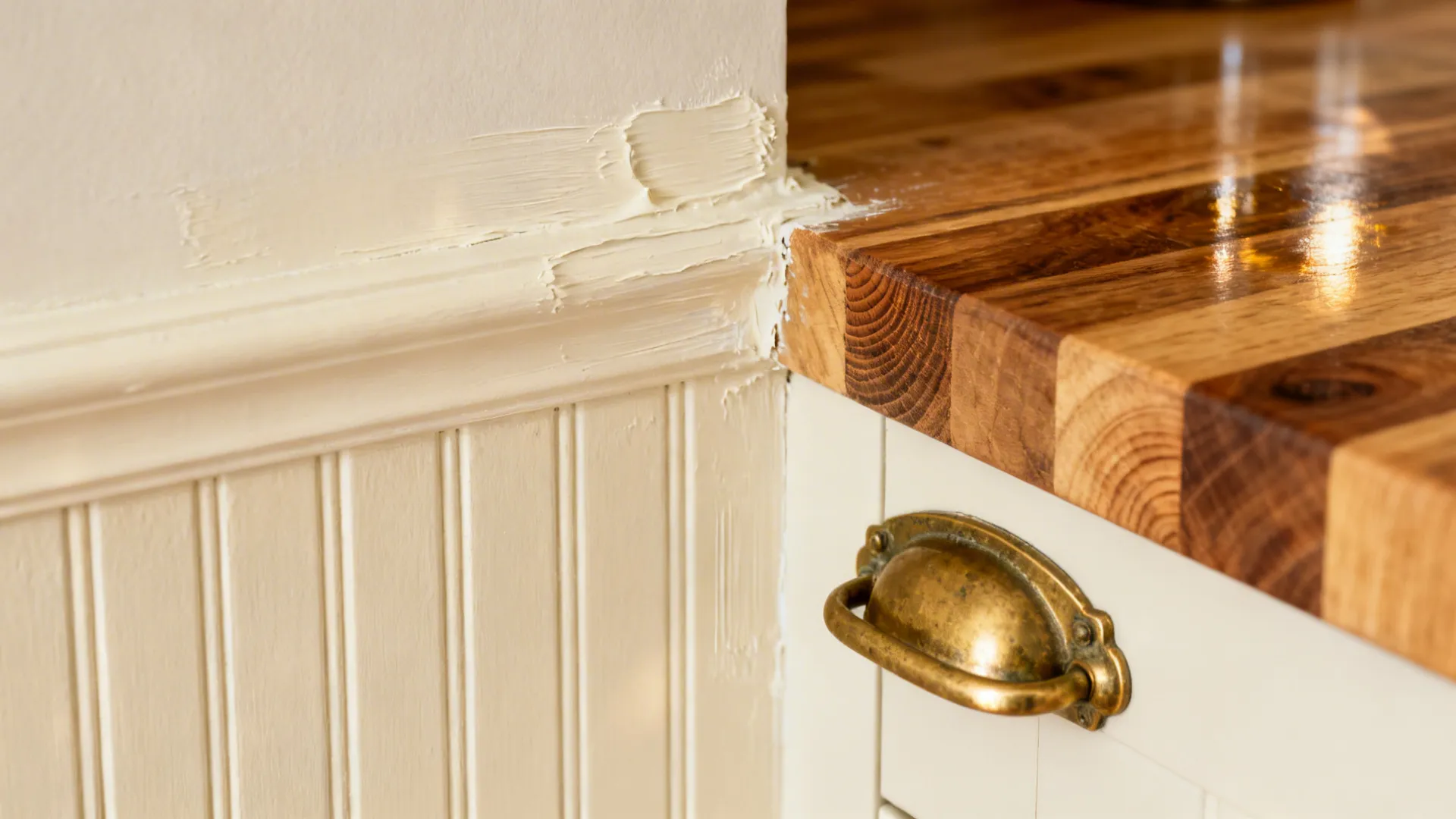

1) Shaker Cabinets and Beadboard Wainscot

My Take: I grew up in a home with creaky floors and painted beadboard, and I’ve brought that texture into many compact kitchens. When I draw the elevation, I use simple Shaker doors, exposed hinges, and a 36–42 inch beadboard wainscot to anchor the room without visually shrinking it.

Pros: Shaker doors are timeless and the clean lines make small kitchens feel calm; pairing them with beadboard adds authentic olden days kitchen texture. Long-tail tip: painted shaker cabinets in muted tones (sage, cream, or putty) pair beautifully with butcher block and antique brass. Beadboard is durable, easy to repaint, and historically accurate for early 20th-century kitchens.

Cons: Deep beadboard grooves can collect grease in high-splash zones; you’ll be wiping more than with a flat panel. True inset doors and exposed hardware look great but may require finer carpentry and occasional hinge adjustments—don’t be surprised if a door needs a seasonal tweak.

Tips / Case / Cost: If your sink wall is small, run beadboard only to the window stool and switch to a smooth backsplash inside the splash zone. Hand-sketch your stiles and rails with consistent proportions (2–2.5 inch rails read most period-correct in compact spaces). For budget: MDF beadboard panels are cost-effective; solid wood tongue-and-groove is pricier but richer.

To visualize proportions before you commit, I often mock up elevations and test colors against lighting; it’s why I lean on references like L shaped layout frees more counter space for early layout thinking and counter run planning.

save pin

save pin

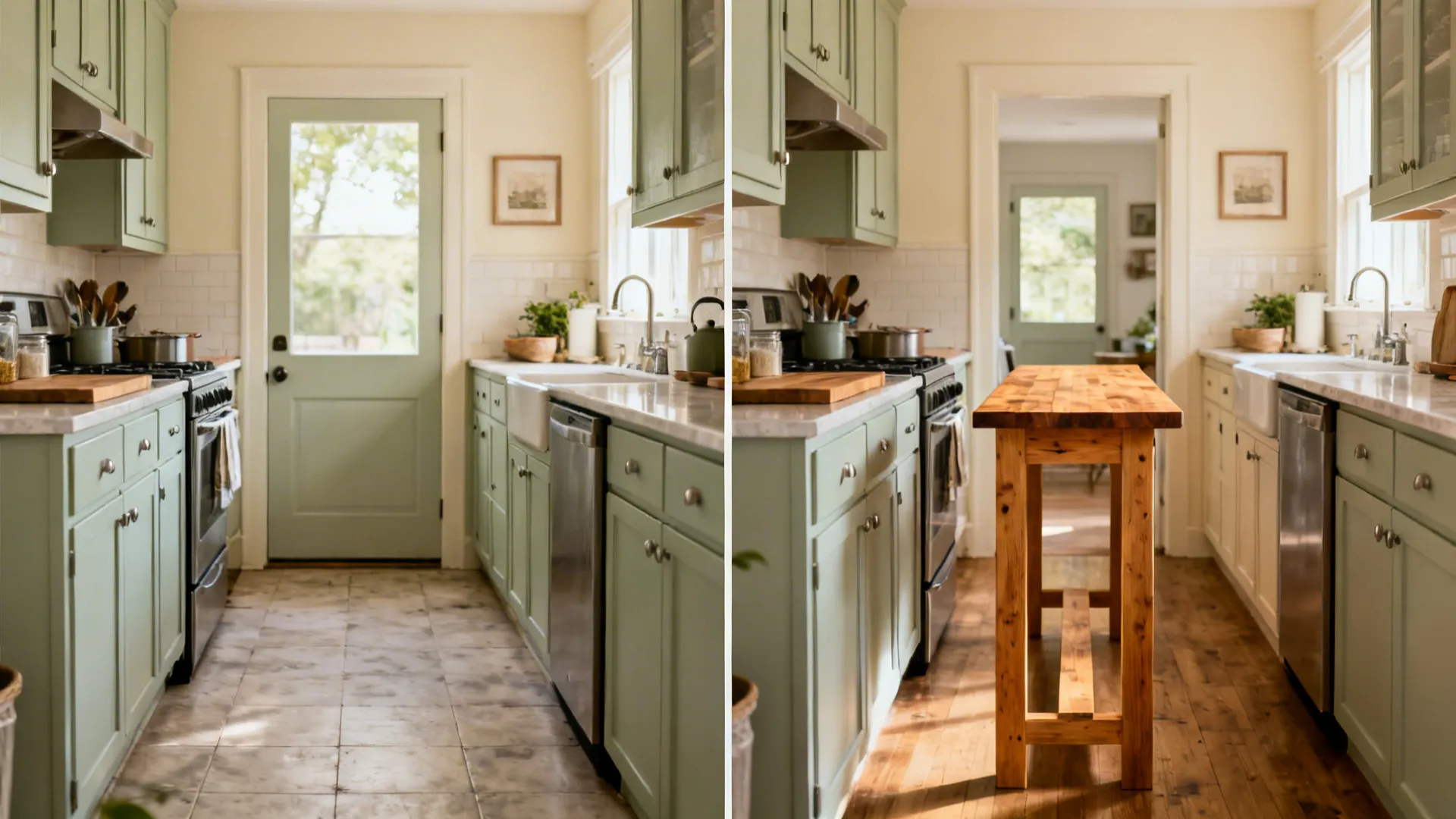

2) Freestanding Furniture: Tables, Hutches, and Workbenches

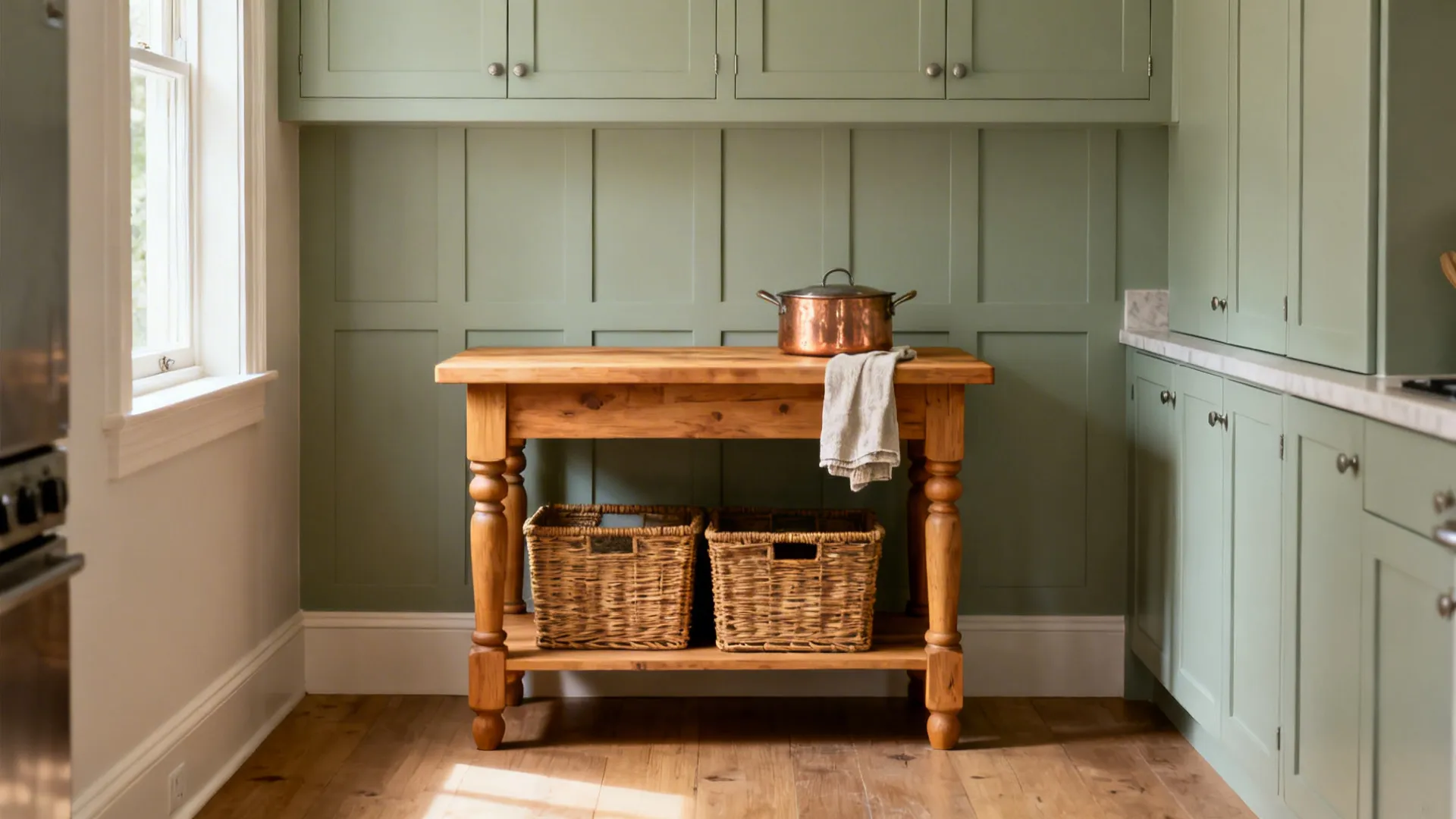

My Take: Old kitchens weren’t crowded with built-ins. I love sketching a freestanding worktable in lieu of an island—a narrow 24–27 inch deep piece with turned legs and a lower shelf for baskets. In one 65-square-foot galley, a petite pine table created prep space without blocking flow.

Pros: Freestanding pieces feel truly vintage and are flexible; you can slide a table for baking day or hosting. Long-tail tip: a freestanding kitchen worktable with open storage keeps sightlines airy and helps tiny kitchens feel bigger. According to the National Kitchen & Bath Association (NKBA) space guidelines, maintaining at least 36 inches of clearance improves function even in small rooms (NKBA Kitchen Planning Guidelines, 2023).

Cons: Not all tables are the right height or stiffness for daily chopping; you may need to add a butcher block top or cross-bracing. Hutches can dominate a short wall; go narrow, or you’ll fight shadows and squeeze circulation.

Tips / Case / Cost: When drawing, dimension clearance first, then pick a table length that leaves walking room. I’ve had success with 30–32 inch tall antique tables shimmed to 34–36 inches for comfort. A secondhand hutch with glass doors is a great display—just edit down the contents.

save pin

save pin

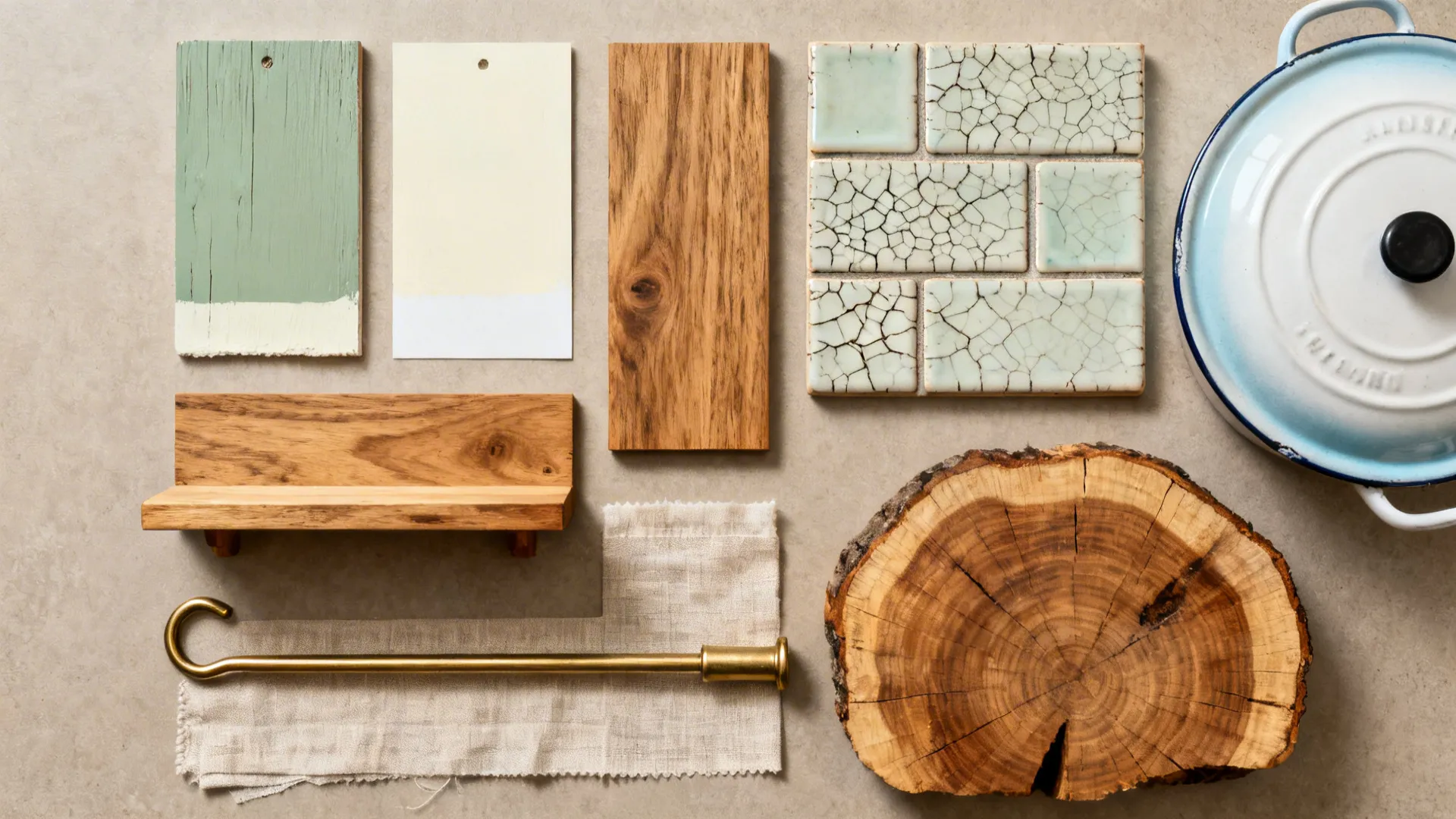

3) Open Shelves, Plate Racks, and Rail Systems

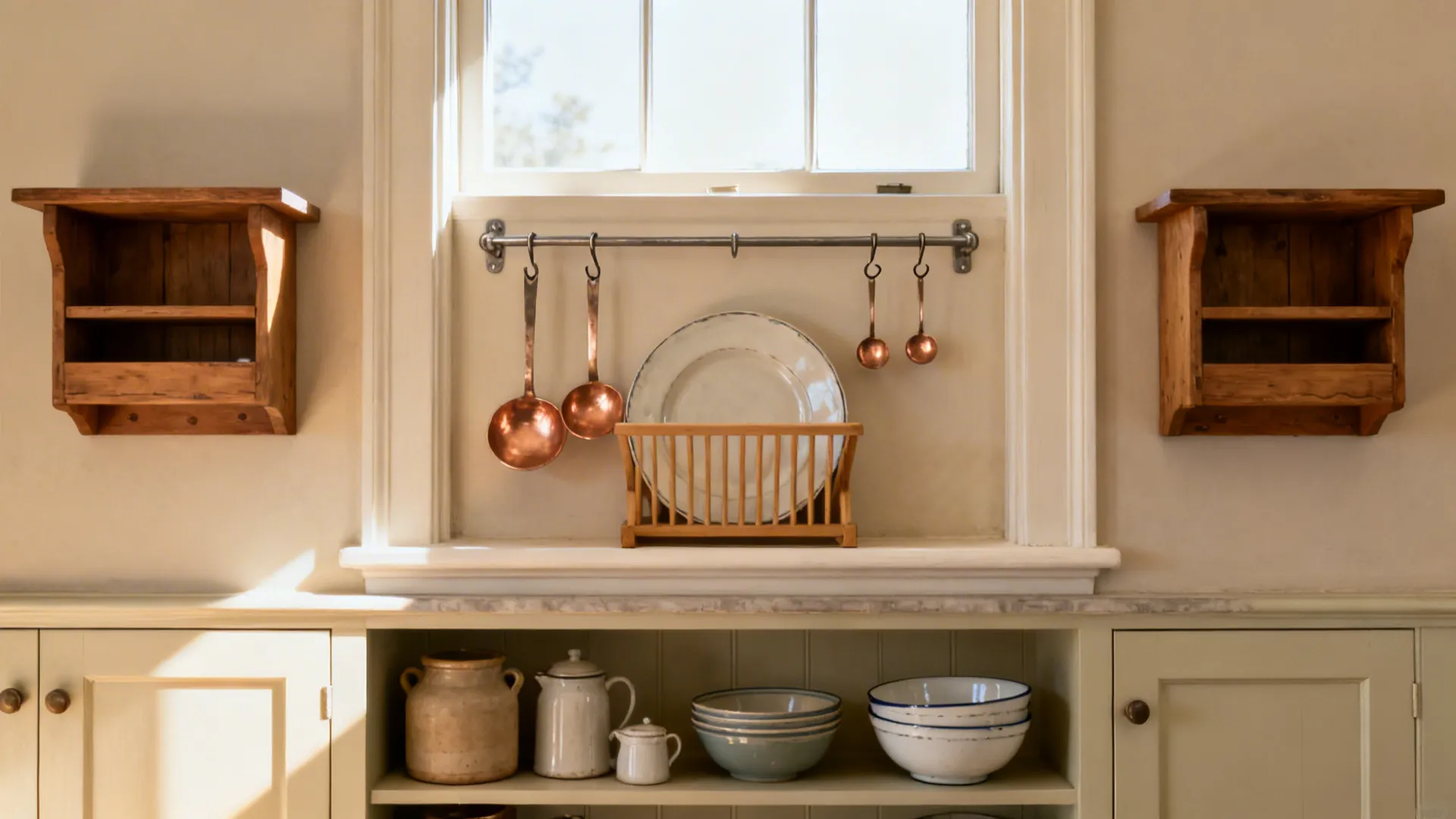

My Take: In almost every old-fashioned kitchen I draw, a plate rack or open shelf makes the wall feel friendly. I’ll sketch two 8–10 inch deep shelves flanking a window, and add a simple rail with S-hooks for ladles and copper pans.

Pros: Open storage is inexpensive, accessible, and period-appropriate. Long-tail tip: open shelves for vintage-inspired kitchens let you showcase stoneware, enamel, and canisters while keeping daily items within reach. A plate rack dries and stores dishes without hogging cabinet depth.

Cons: Dust is real; if you’re not editing regularly, you’ll display clutter. In small spaces, too many open shelves can compete with sightlines—choose one or two zones and keep the rest closed.

Tips / Case / Cost: Keep shelves under 36 inches long if wall studs are uncertain; use thick brackets and screw into studs. If you cook daily, reserve the lower shelf for bowls and stacks used constantly—nothing sits long enough to dust. For a balanced look, align shelf edges with window trim.

Midway check-in: when clients ask how to map heights and spans, I share drawings plus a 3D test. If you want to preview how glass backsplash creates a more airy kitchen beside open shelves, a quick model helps fine-tune reflectivity and color balance.

save pin

save pin

4) Range Alcoves, Tile, and Classic Backsplashes

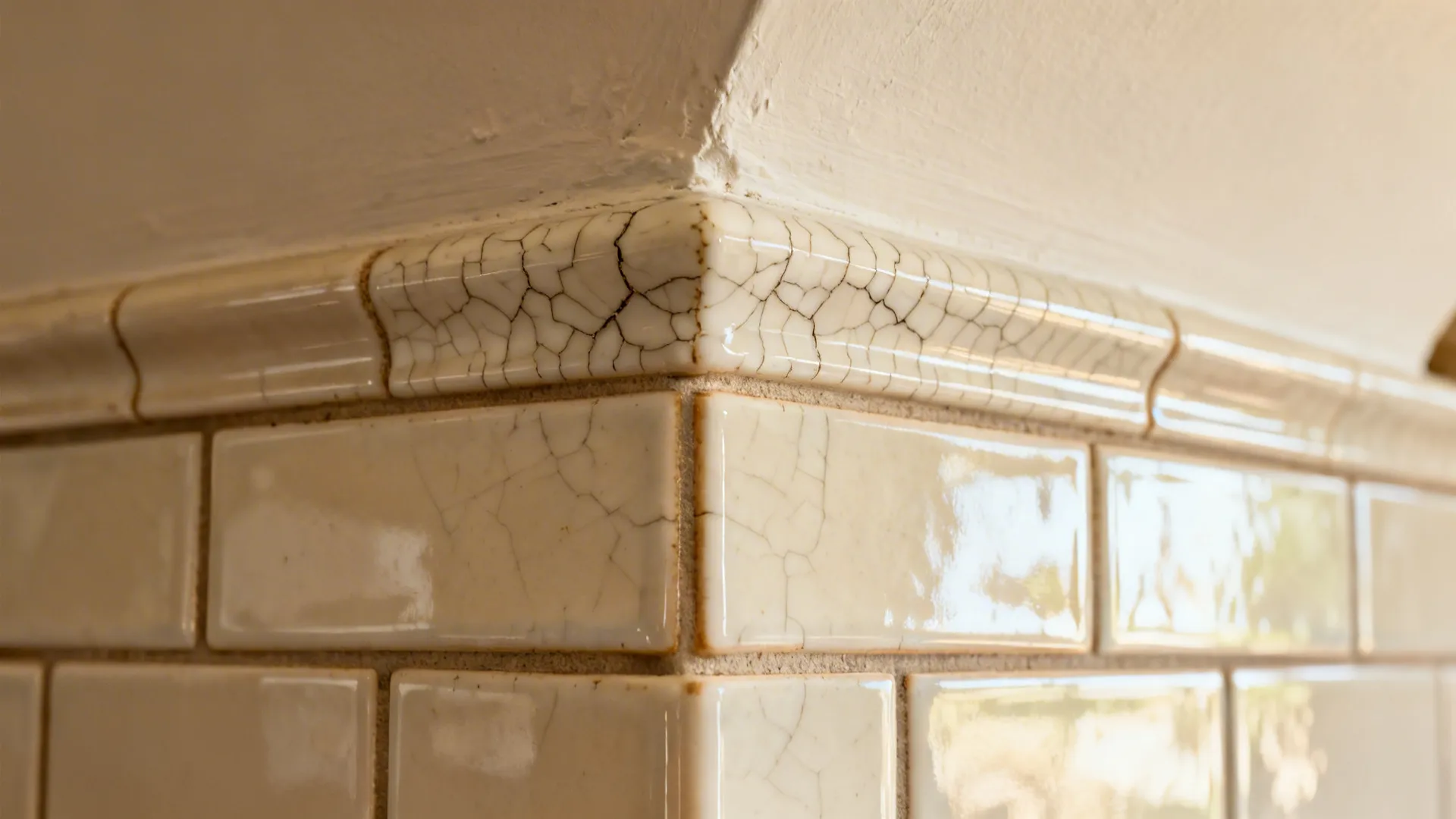

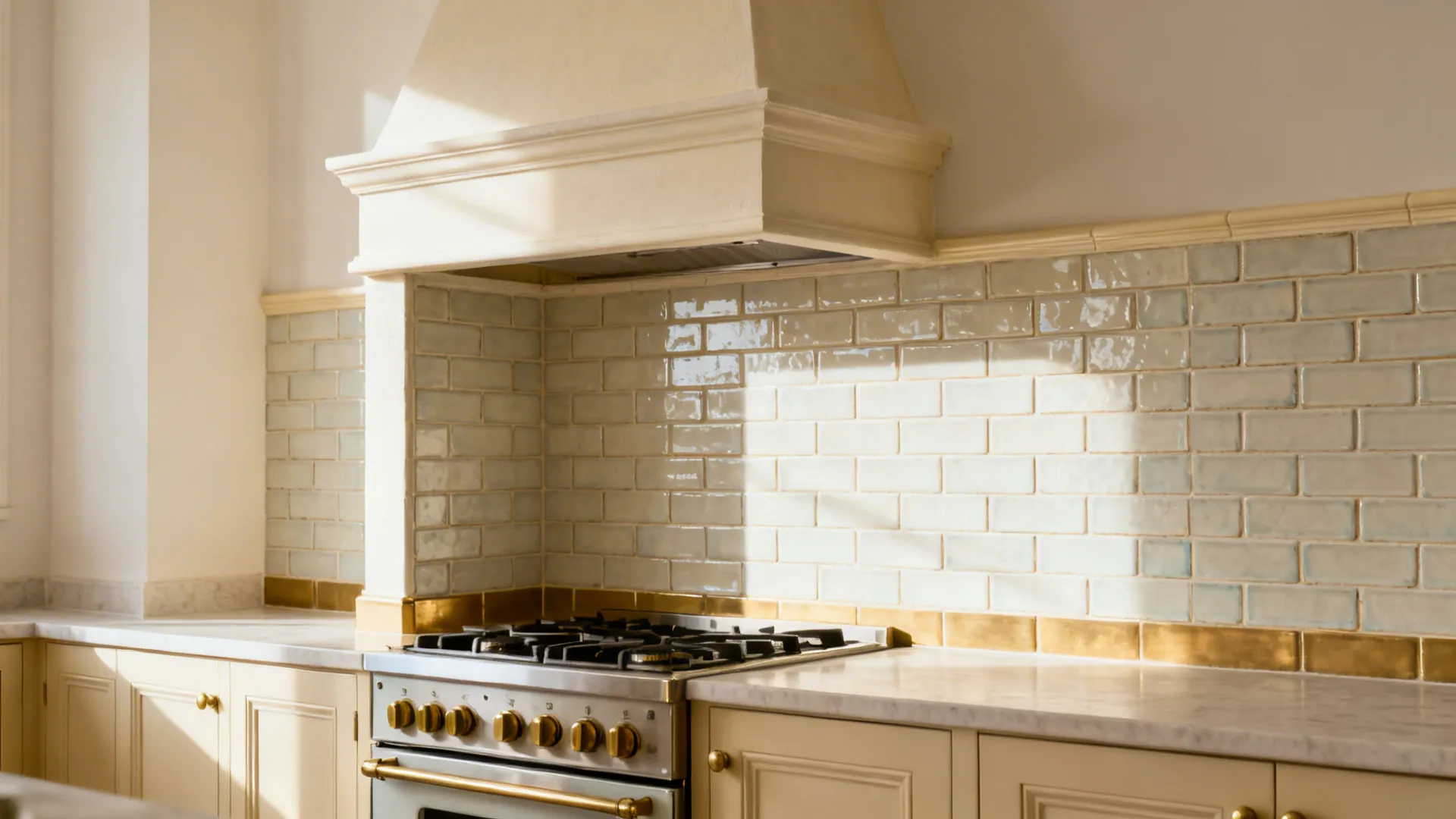

My Take: One of my favorite old-world moves is sketching a shallow range alcove with a simple arch or boxed hood, then finishing the space with small-format tile—think 2x6 subway with a crackle glaze. In one remodel, a soft-cream tile bounced light around a north-facing kitchen.

Pros: Small tiles and an alcove read instantly vintage. Long-tail tip: a subway tile backsplash with traditional proportions adds texture without crowding a tiny kitchen, and a simple plaster hood or wood box frame feels authentic. The British Standard by Plain English ethos—quiet, proportionate details—has influenced many compact vintage kitchens.

Cons: Alcoves can eat depth if you draw them too deep; keep the niche minimal in a tight room. Crackle glazes are gorgeous but can require sealing, and the surface may stain if neglected—charming but high-maintenance.

Tips / Case / Cost: When drawing, proportion the hood width to be slightly wider than the range (usually +1–2 inches each side). For tile, a simple soldier course or a two-row picture rail adds period flavor without getting fussy. If budget is tight, use ceramic field tile and spend on a special trim line.

save pin

save pin

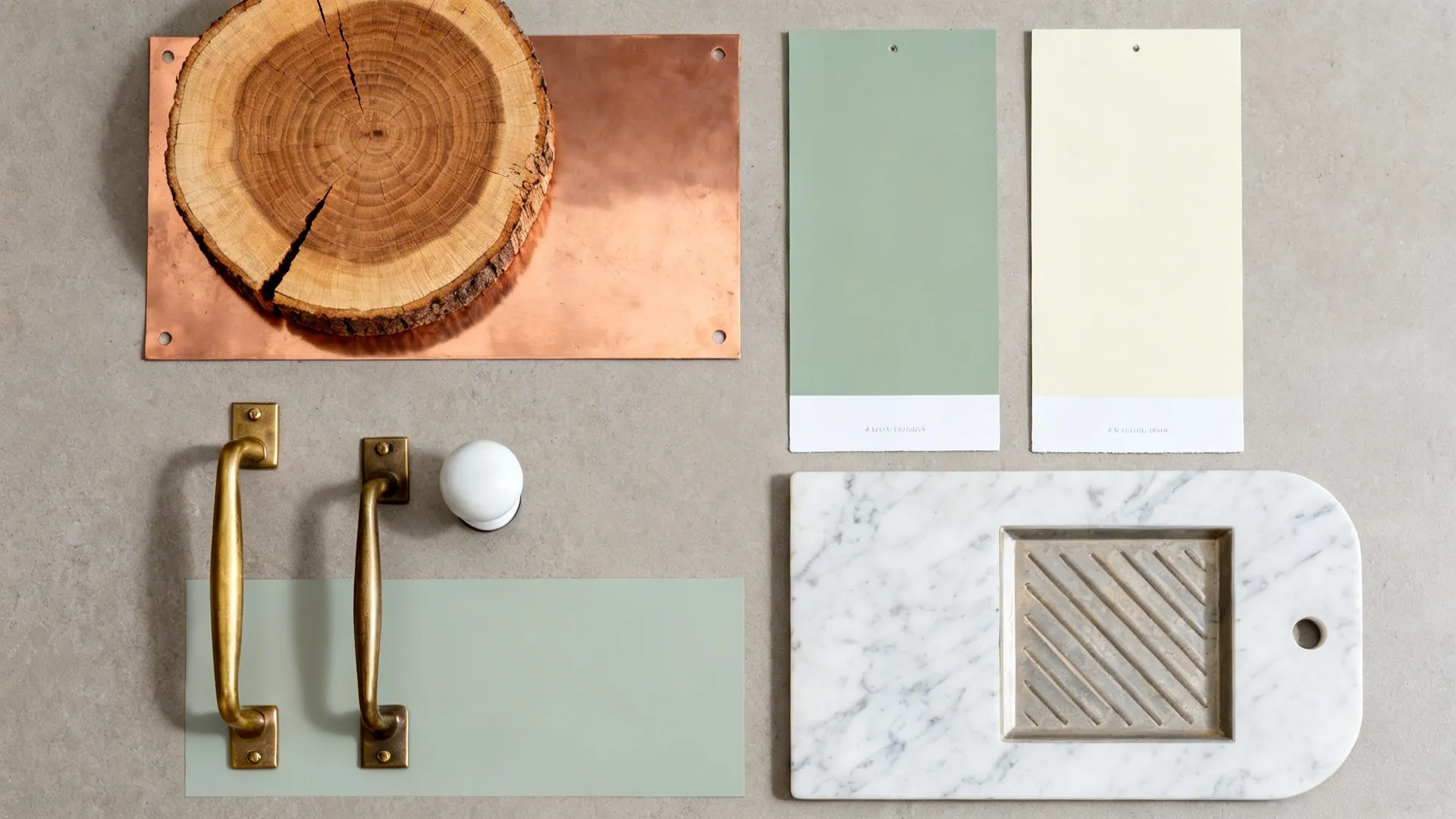

5) Warm Materials: Wood, Butcher Block, and Patina Metals

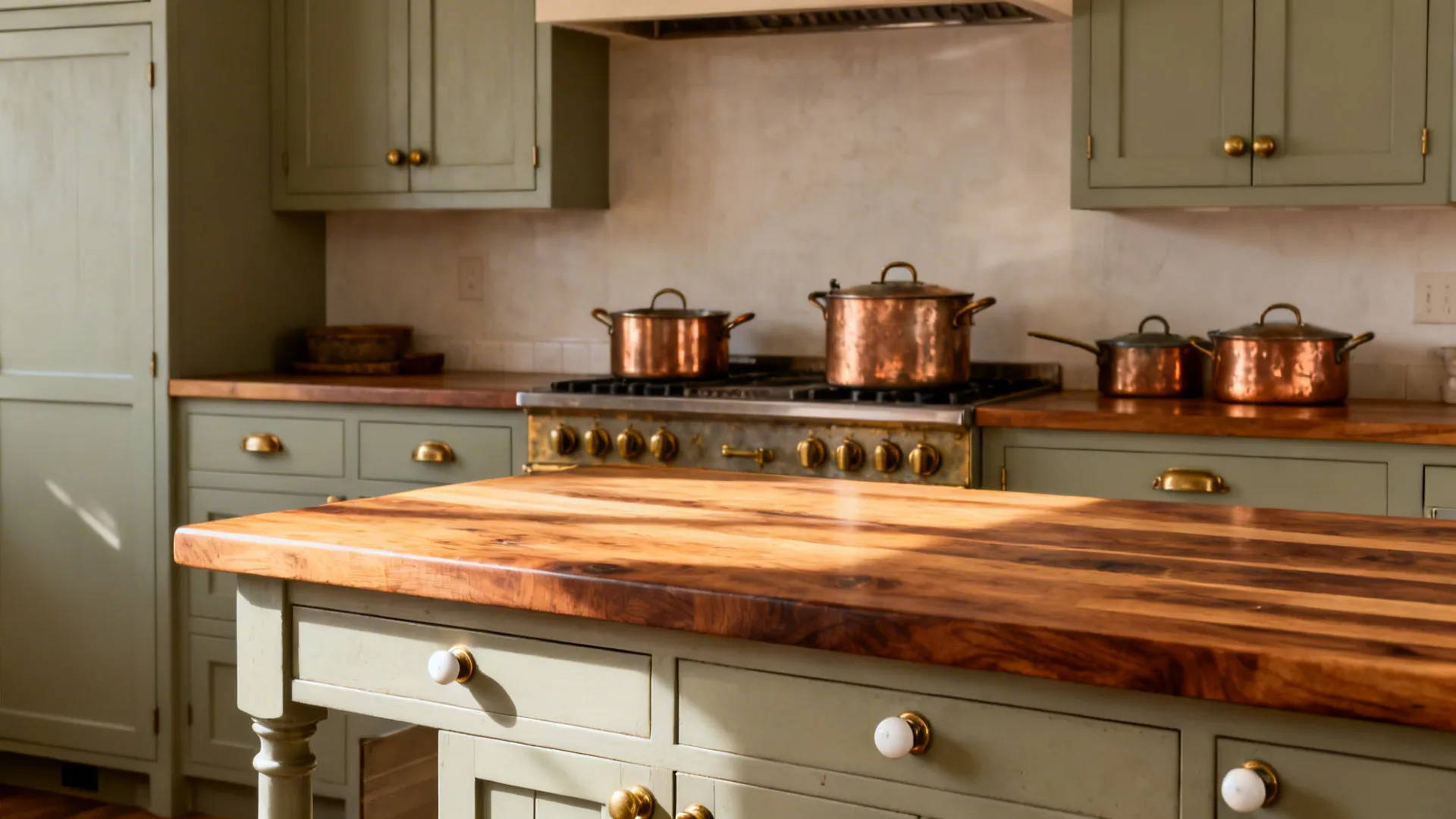

My Take: Nothing says olden days kitchen like honest materials—oiled wood counters, copper accents, and unlacquered brass that slowly tarnishes. I love sketching a wood-topped worktable and mixing oil-rubbed hardware with porcelain knobs.

Pros: Warm wood adds comfort and hides wear, perfect for tight kitchens that see daily action. Long-tail tip: butcher block counters in small kitchens are easy to cut to size and repair, and unlacquered brass hardware ages into a soft, lived-in finish. Research from the USDA notes that wood cutting boards, when properly cleaned and dried, can be hygienic for food prep (USDA Food Safety and Inspection Service, Cutting Boards and Food Safety, 2020).

Cons: Wood needs routine oiling and can scorch—keep a trivet handy. Living finishes aren’t for neat freaks; fingerprints and water marks are part of the story. If you want “perfect,” choose a sealed surface instead.

Tips / Case / Cost: For smaller budgets, combine a wood island top with a durable perimeter countertop (like laminate or quartz) for a balanced look. If you do heavy baking, consider a marble pastry board insert for rolling dough—and keep it movable.

Before we wrap up, one last visualization trick: I often overlay line drawings with light material swatches, then run a simple 3D check to make sure circulation and sightlines are right. If you’re testing how minimalist kitchen storage design pairs with warmer metals and wood, modeling a narrow aisle can prevent surprises on install day.

save pin

save pin

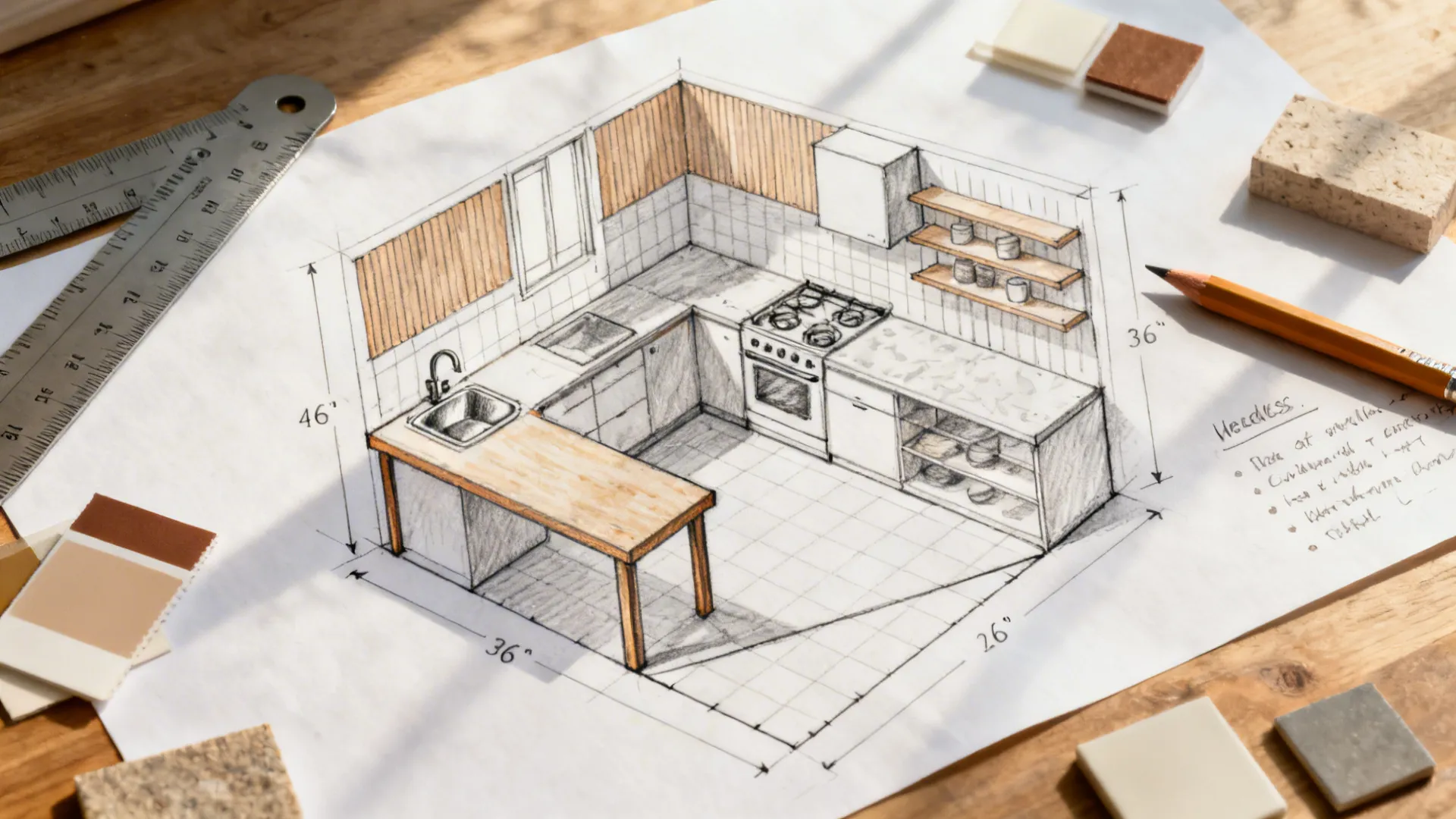

How I Draw an Olden Days Kitchen: Step-by-Step

1) Measure and sketch: Start with the shell—wall lengths, window/door locations, sill heights, ceiling height. Draw a plan to scale (1/2 inch = 1 foot is friendly for hand work) and rough appliances.

2) Decide the era flavor: Late 19th-century farmhouse (beadboard and freestanding table), 1920s utility kitchen (subway tile, plate racks), or mid-century cottage (simple frames, warm woods). Pick one to guide details.

3) Layout first: Triangle still matters in compact kitchens. Aim for a short, efficient run with sink near daylight, prep between sink and range, and fridge tucked but accessible. Keep clearances at 36 inches if possible (NKBA, 2023).

4) Elevations: Draw cabinet heights (commonly 32–34 inch bases in older homes—modern comfort is 34.5–36 inches). Add authentic door profiles, beadboard, and open shelves. Keep upper shelves 16–18 inches above counters for reach.

5) Materials and finishes: Choose a tight palette—two cabinet colors max, warm metals, natural woods. If you crave color, paint the beadboard or the hutch, not every surface.

6) Lighting: Layered light reads historic and practical—one pendant over the table, a schoolhouse flush mount, and simple wall sconces. Add under-shelf LED strips for task lighting without spoiling the look.

7) Hardware and fixtures: Porcelain knobs, bin pulls, bridge faucets, and apron-front sinks all feel period-correct. Draw them into elevations so proportions stay honest.

8) Styling with utility: Crocks, enamelware, wooden spoons, and linen runners. Limit décor to tools you actually use—the most authentic detail in an old-fashioned kitchen is life.

save pin

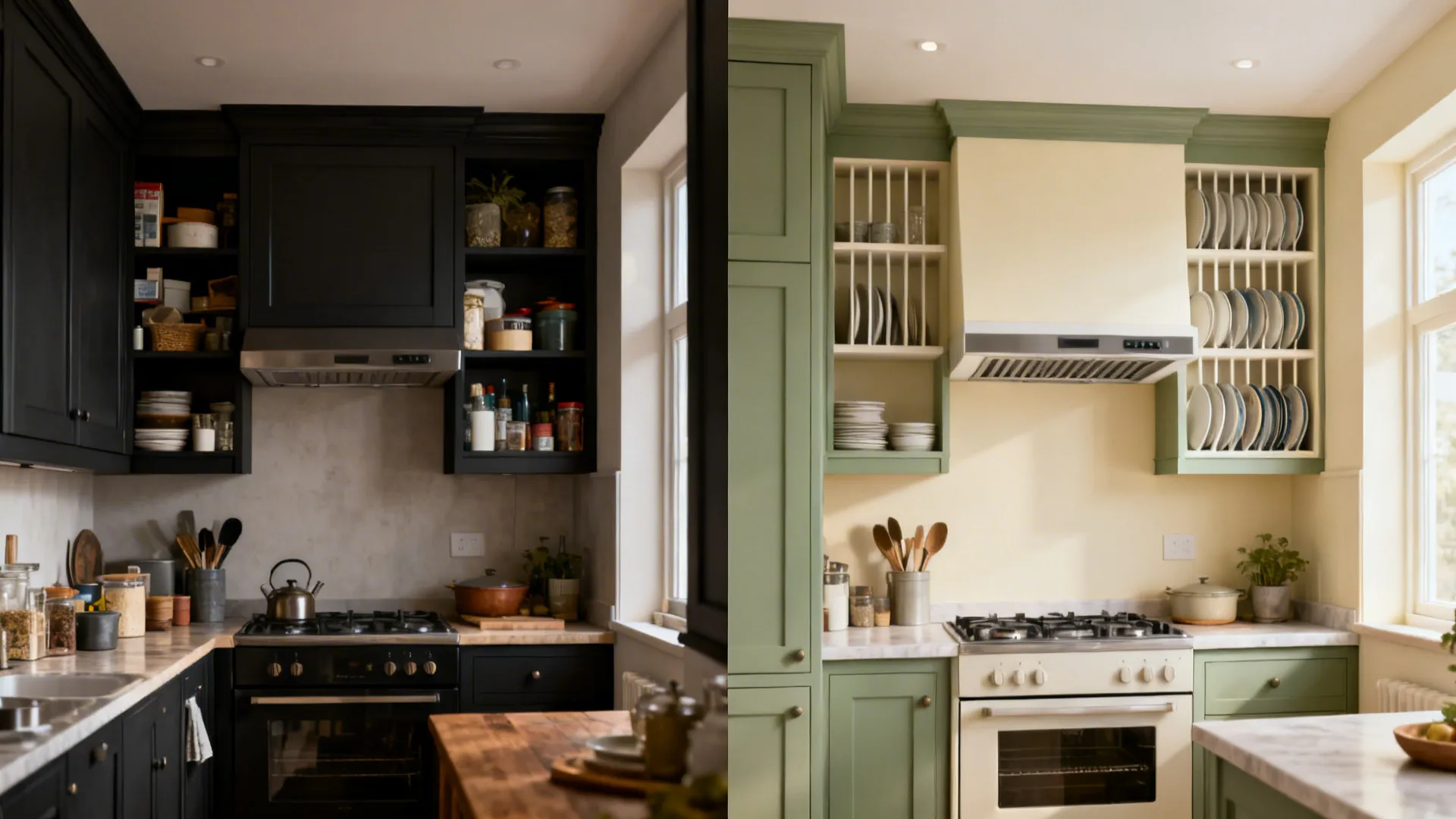

Common Mistakes I See (and How to Avoid Them)

- Over-styling: Too many “vintage” pieces in a tight room feel like a movie set. Choose 2–3 hero details and let the rest recede.

- Ignoring ventilation: A period-look hood still needs a proper insert. In small rooms, venting is comfort, not luxury.

- Dark overload: Deep colors can be lovely, but draw your surfaces around windows and test paint in real light. Keep ceilings light to expand volume.

- Heavy upper cabinets: If your ceiling is low, swap some uppers for shelves or plate racks to keep things airy.

save pin

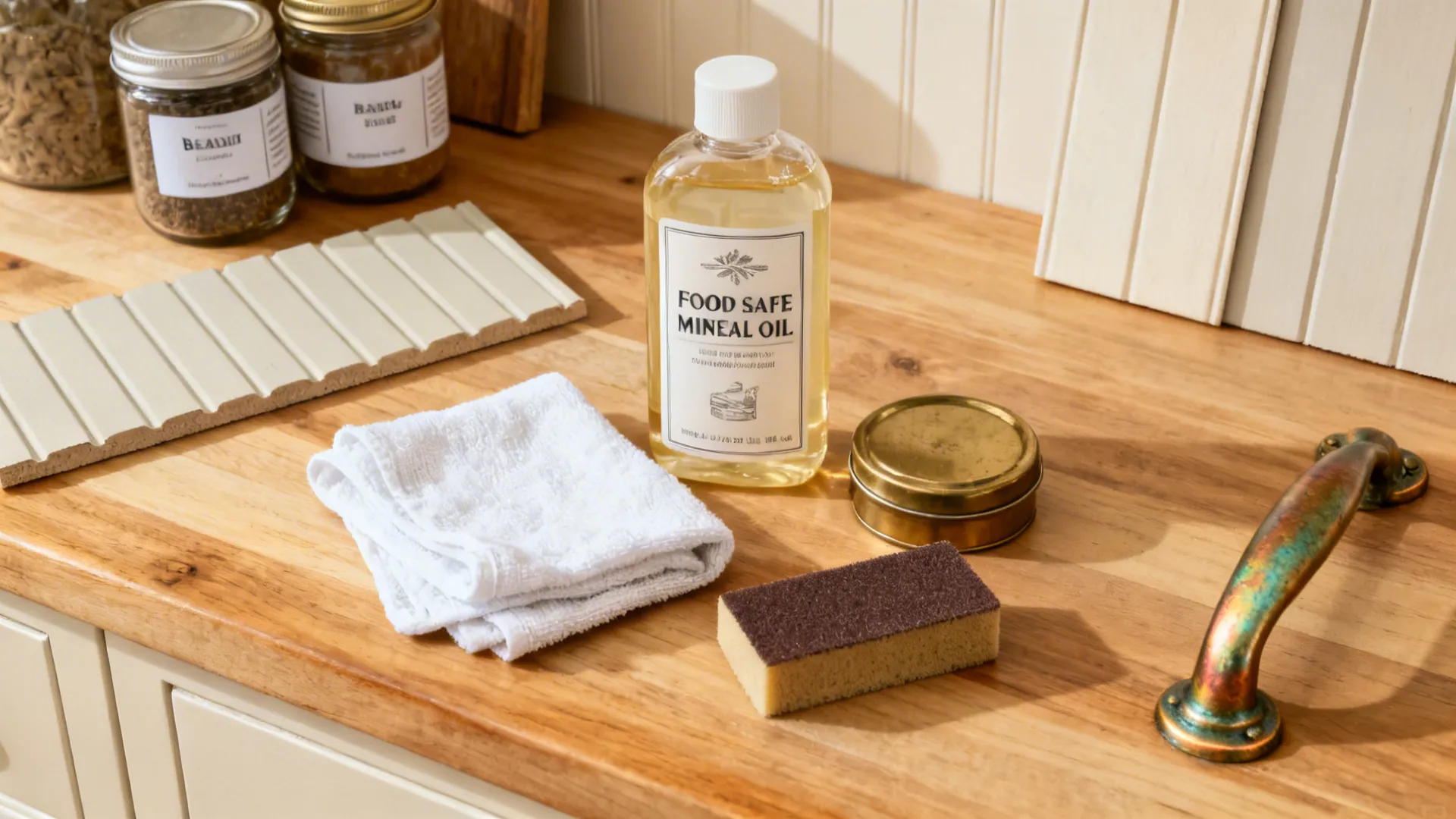

Maintenance for Authentic Materials

- Wood counters: Oil monthly for the first quarter, then quarterly. Spot-sand scratches and re-oil—imperfections look right at home.

- Unlacquered brass: Expect patina; polish only if you prefer gleam. Wipe water spots around the sink edge.

- Beadboard: Use a scrubbable satin or semi-gloss finish near splash zones; in dry zones, eggshell gives a soft period sheen.

- Open shelves: Keep everyday items low so they rotate frequently—less dusting, more cooking.

save pin

Budgeting and Phasing

If you’re drawing plans for a DIY-friendly project, phase the build. Start with layout and one focal piece (a worktable or new backsplash), then add beadboard and hardware. Save the range alcove or new hood for later, when the bones are right.

For quick wins: paint cabinets in a period tone, add a rail system, replace knobs with bin pulls, and hang a schoolhouse pendant. Small moves, big soul.

save pin

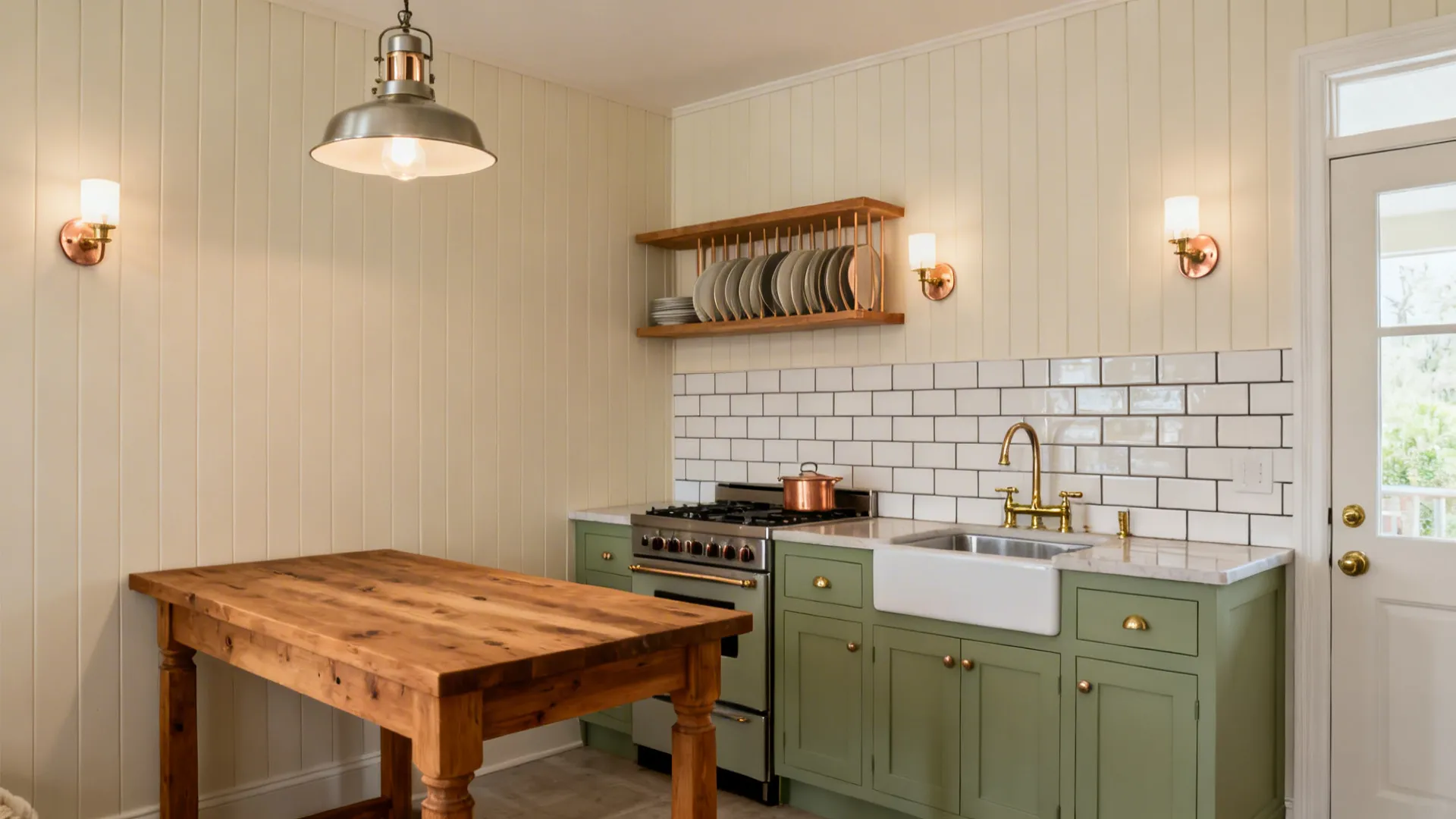

Summary

In the end, an olden days kitchen isn’t about pretending; it’s about honest materials, simpler forms, and daily rituals. A small kitchen doesn’t limit you—it asks you to design smarter. NKBA’s pragmatic clearances and USDA’s guidance on material hygiene both remind me: beauty and function can coexist. Which of these five inspirations are you most excited to try in your own old-fashioned kitchen?

save pin

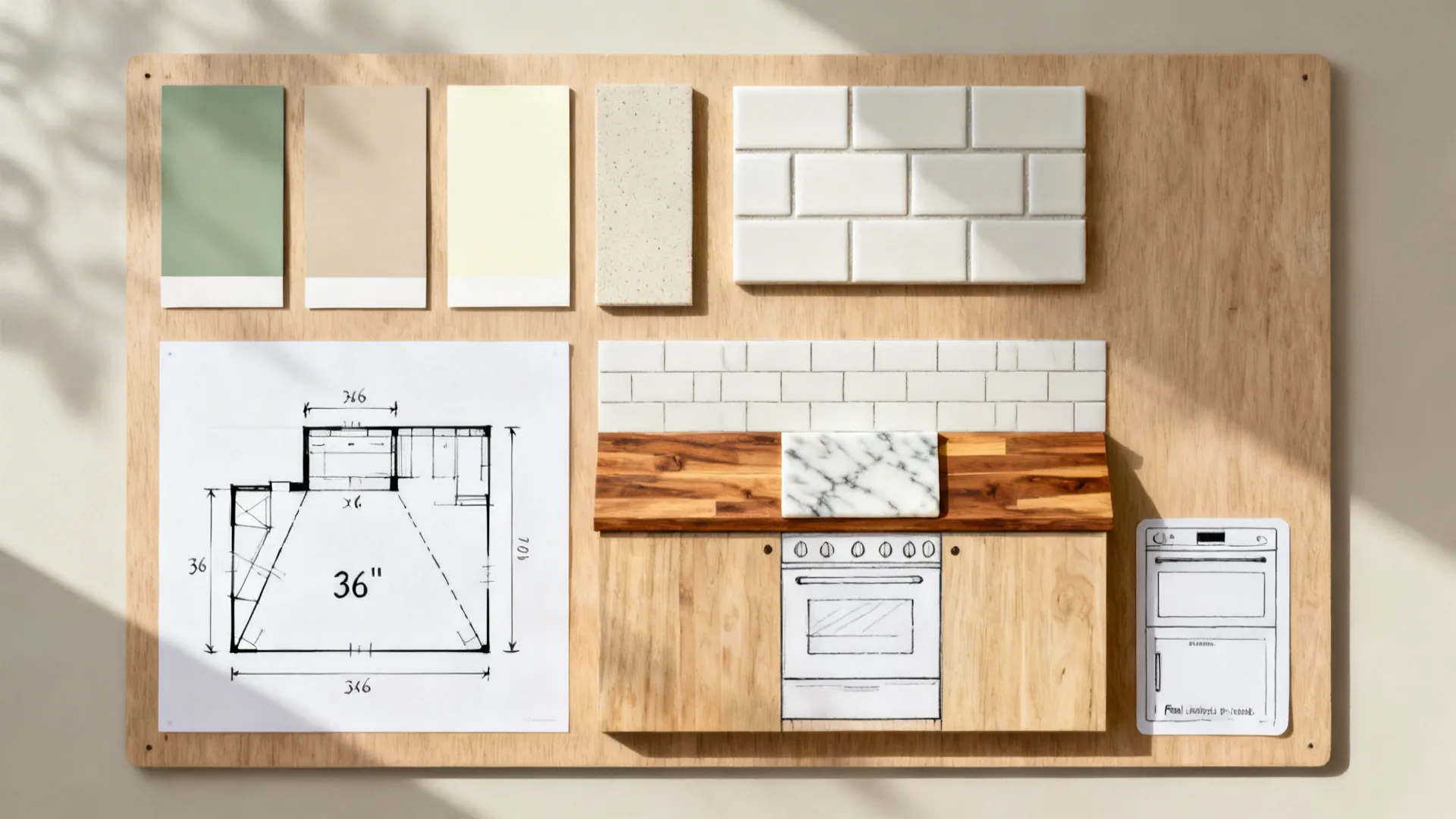

FAQ

1) What is the core layout for an olden days kitchen?

Keep a compact work triangle with 36 inches of clearance when possible. A short, efficient run with a worktable or narrow hutch maintains vintage character without sacrificing function.

2) How do I choose period-correct colors?

Muted paints—sage, putty, cream, and pale blues—read historically accurate and flatter small kitchens. Test swatches in morning and evening light to avoid surprises.

3) Are butcher block counters practical in small kitchens?

Yes, if you oil them regularly and use trivets for hot pots. The USDA notes wood cutting boards can be safe when cleaned properly (USDA FSIS, Cutting Boards and Food Safety, 2020).

4) What backsplash works best for an old-fashioned look?

Classic 2x6 or 3x6 subway tile with a simple pencil trim is reliable. If you prefer fewer grout lines, run beadboard outside the splash zone and tile only behind the range and sink.

5) Can I mix modern appliances in an olden days kitchen?

Absolutely—panel-ready fridges and simple ranges blend well. Keep lines clean and avoid overly futuristic handles to preserve the period feel.

6) How do I draw accurate cabinet elevations?

Measure the room precisely, then sketch to scale with stile and rail widths noted. If you want a digital check on clearances, try modeling a simple plan and test how minimalist kitchen storage design interacts with your chosen hardware and shelves.

7) Is open shelving too messy for a tiny kitchen?

It can be if you overload it. Limit open shelves to everyday dishes and keep occasional items behind doors to reduce dust and visual noise.

8) What’s the most budget-friendly way to get the look?

Paint existing cabinets in a heritage color, add beadboard panels, swap to bin pulls and porcelain knobs, and hang a schoolhouse light. A secondhand table can stand in as a movable island.
