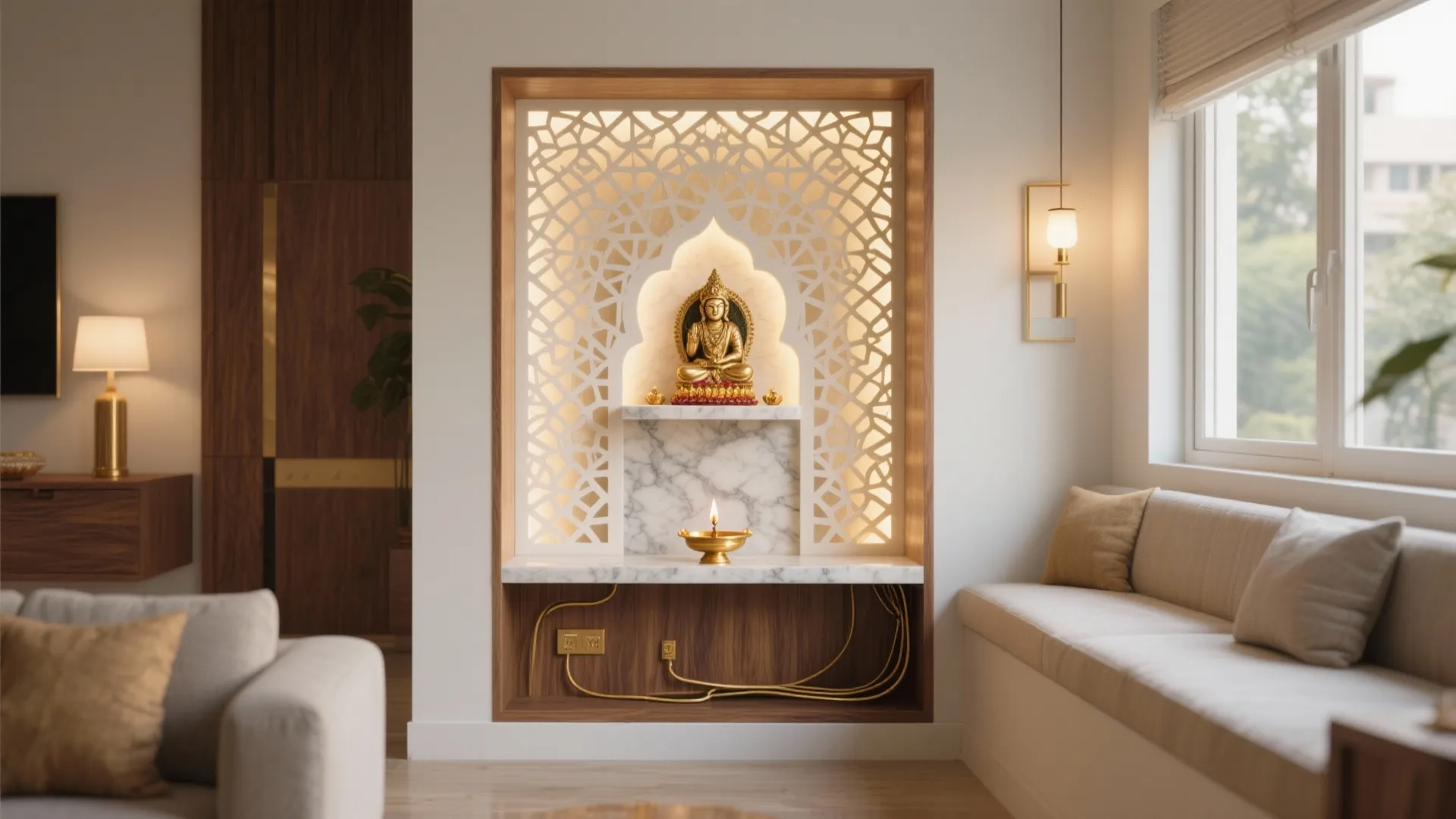

5 pooja cnc design ideas for small spaces: 5 expert-backed pooja CNC design ideas that make tiny corners feel sacred, serene, and surprisingly spacious—drawn from my 10+ years of small-home remodels.

[Section: Introduction]

I’ve seen pooja corners thrive in the unlikeliest spaces—under a stair, squeezed beside a window seat, even in a hallway niche. One trend that keeps winning in 2024 is the artful use of CNC-cut panels: they add pattern, light play, and a sense of reverence without swallowing square footage. And yes, small spaces can spark big creativity—especially with pooja cnc design that balances tradition and modern life.

In this guide, I’ll share 5 design ideas I actually use with clients, blending personal lessons and expert data. You’ll find what works (and what to avoid), with real-world tips on budgets, materials, and maintenance so you can plan with confidence.

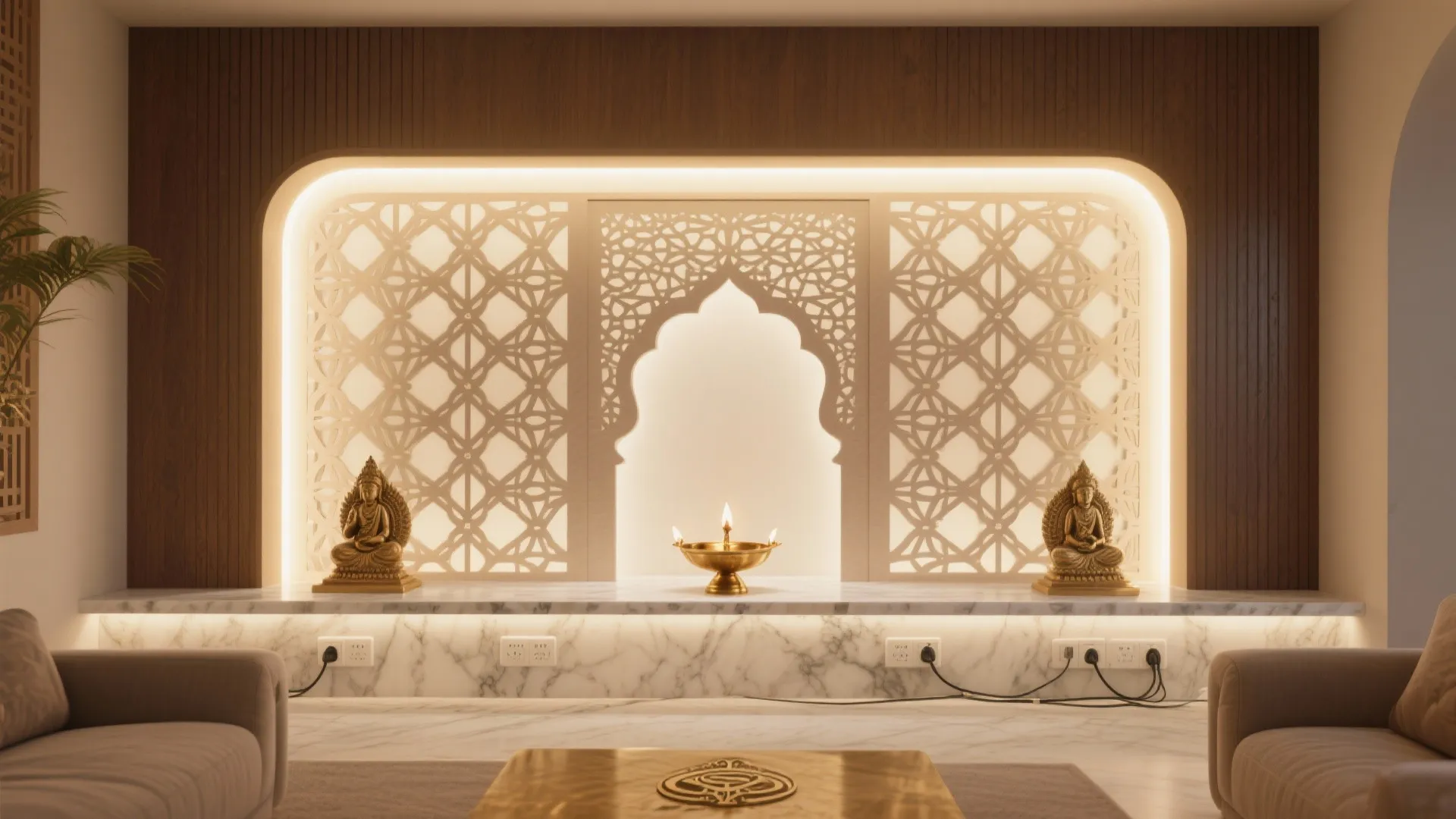

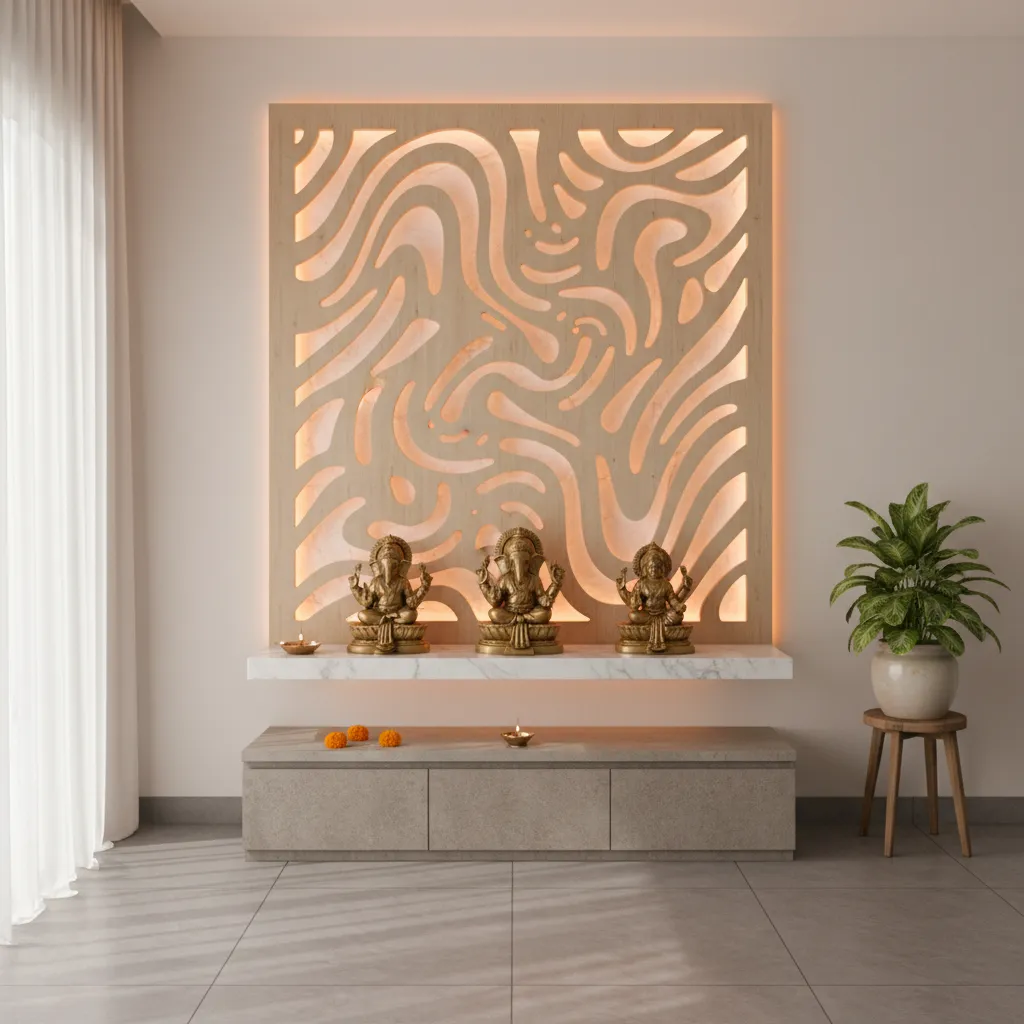

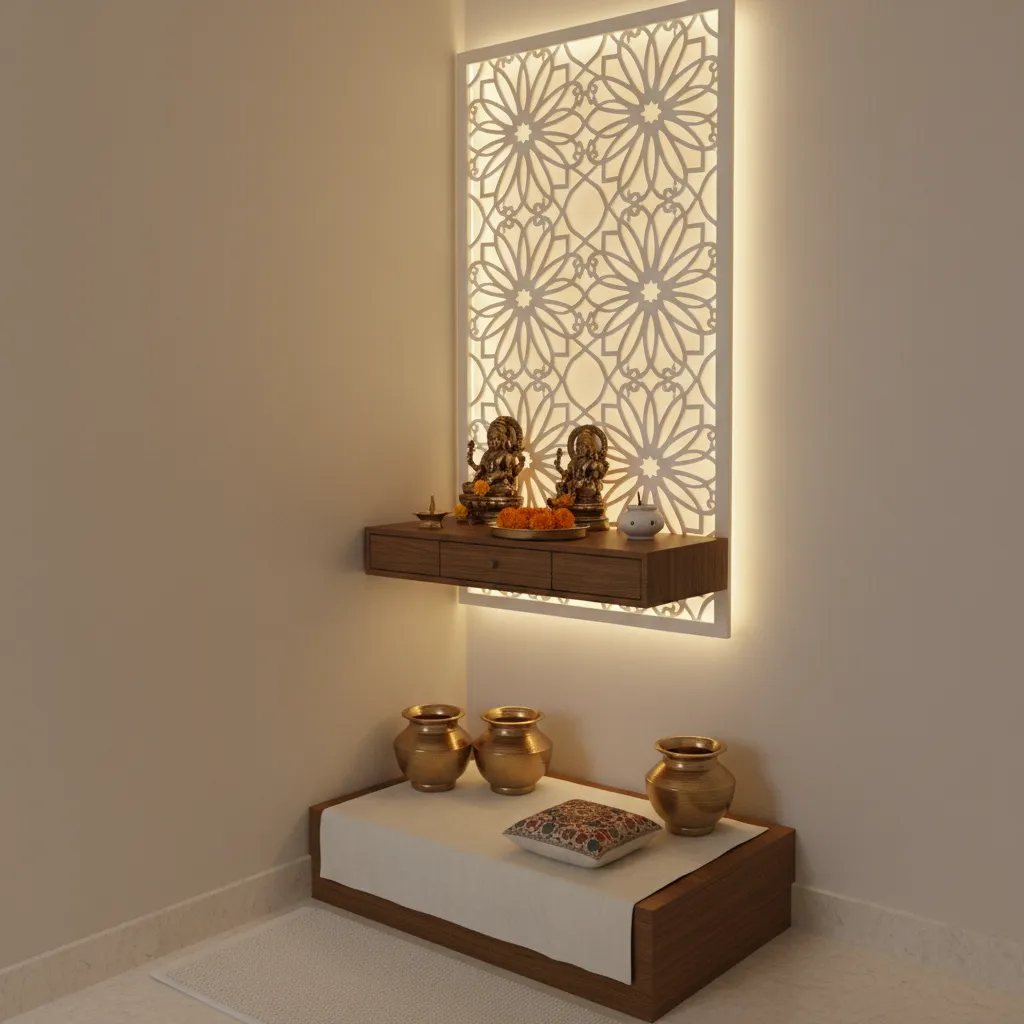

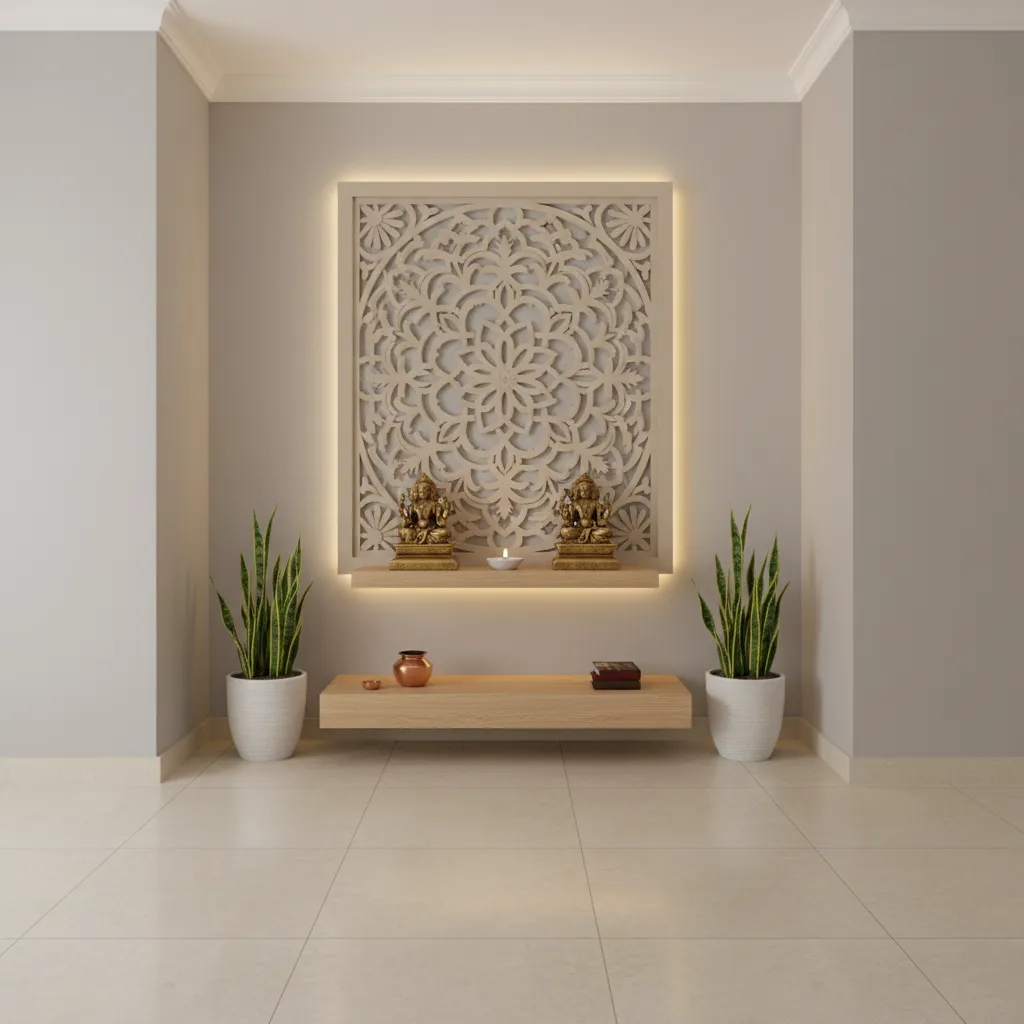

Backlit CNC Jaali as a Pooja Backdrop

[My Take] In a 6-foot living room niche, I layered a laser-cut MDF panel over an acrylic diffuser and tucked in warm LED strips. It instantly gave the mandir depth and glow without bulky cabinetry. I still remember the client’s reaction when we flicked the switch—pure serenity.

For inspiration, I often mock up a backlit CNC jaali for pooja unit to test how patterns breathe with light before we build.

[Pros]

1. Creates a halo effect that feels sacred and expansive—perfect for a small pooja wall. With a backlit CNC jaali, the negative space doubles as ventilation for incense.
2. Hides wires and LED drivers neatly behind the panel; this pooja cnc design trick keeps the front pristine. For comfort, I aim for 2700–3000K LEDs—residential-friendly warmth supported by IES Lighting Handbook guidance for ambient settings (IES, 10th ed.).
3. Easy to personalize: floral, geometric, or a subtle Om motif. Long-tail perk: a laser-cut MDF pooja panel pairs beautifully with a marble shelf, even in micro apartments.

[Cons]

1. Intricate patterns collect dust. If you’re sensitive, pick slightly larger cutouts or a simpler motif and keep a soft brush handy.
2. LED hotspots can show if the diffuser is too thin or spacing is tight—it kills the magic. Test a sample lit from behind before finalizing.
3. DIY wiring is tempting, but risky. Poor ventilation around drivers can shorten lifespan or cause overheating.

[Tips / Case / Cost]

1. Spec 10–12 mm opal acrylic as a diffuser and leave a 15–20 mm air gap for cable management.
2. Use UL/CE-listed LED strips with dimmers; 12–14 W/m is usually enough for a soft glow.
3. Budget: MDF + veneer + LED + acrylic can start around $220–$450 for a compact niche; metal or natural wood costs more.

save pin

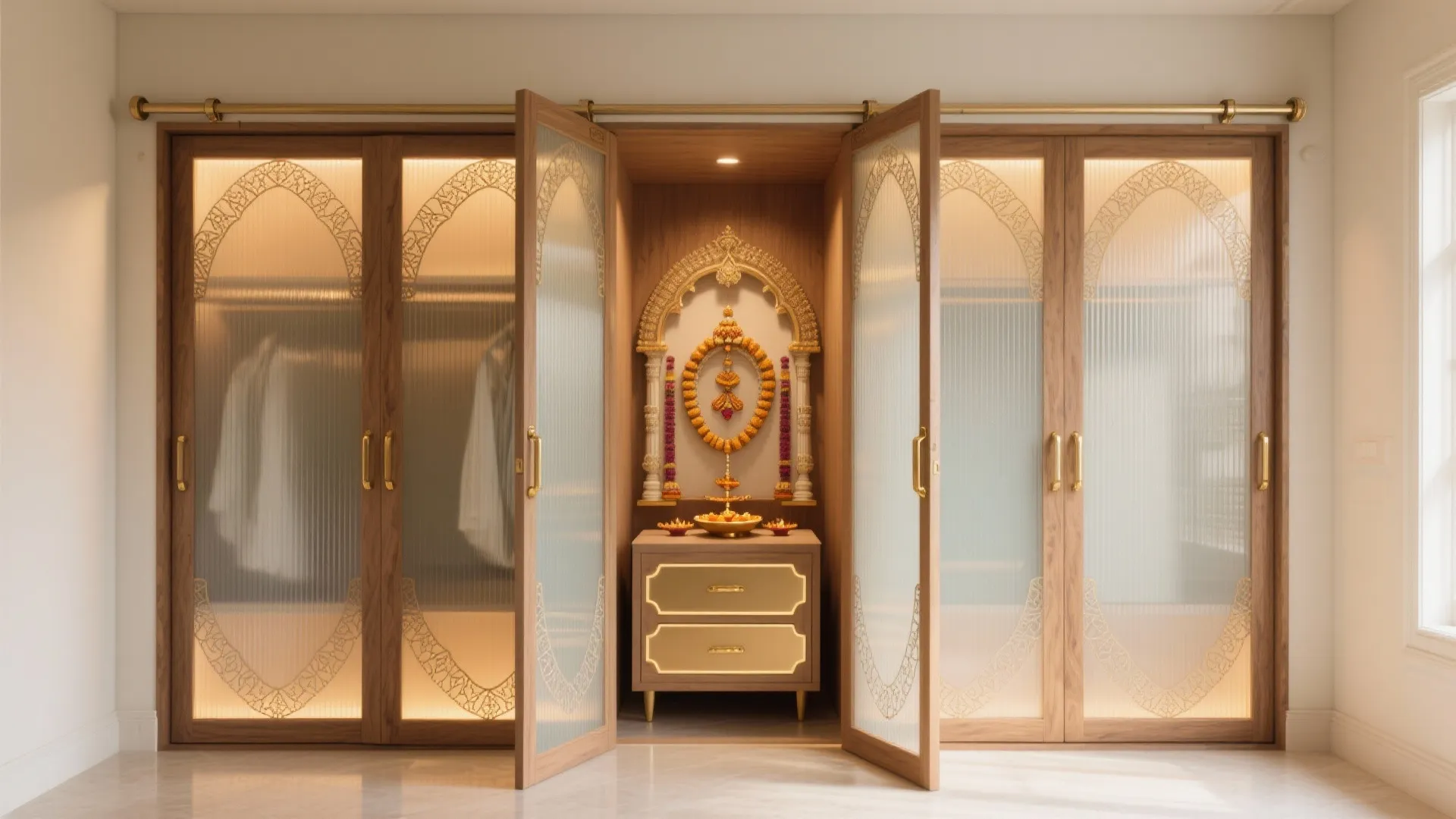

Sliding or Folding CNC Doors for a Hidden Mandir

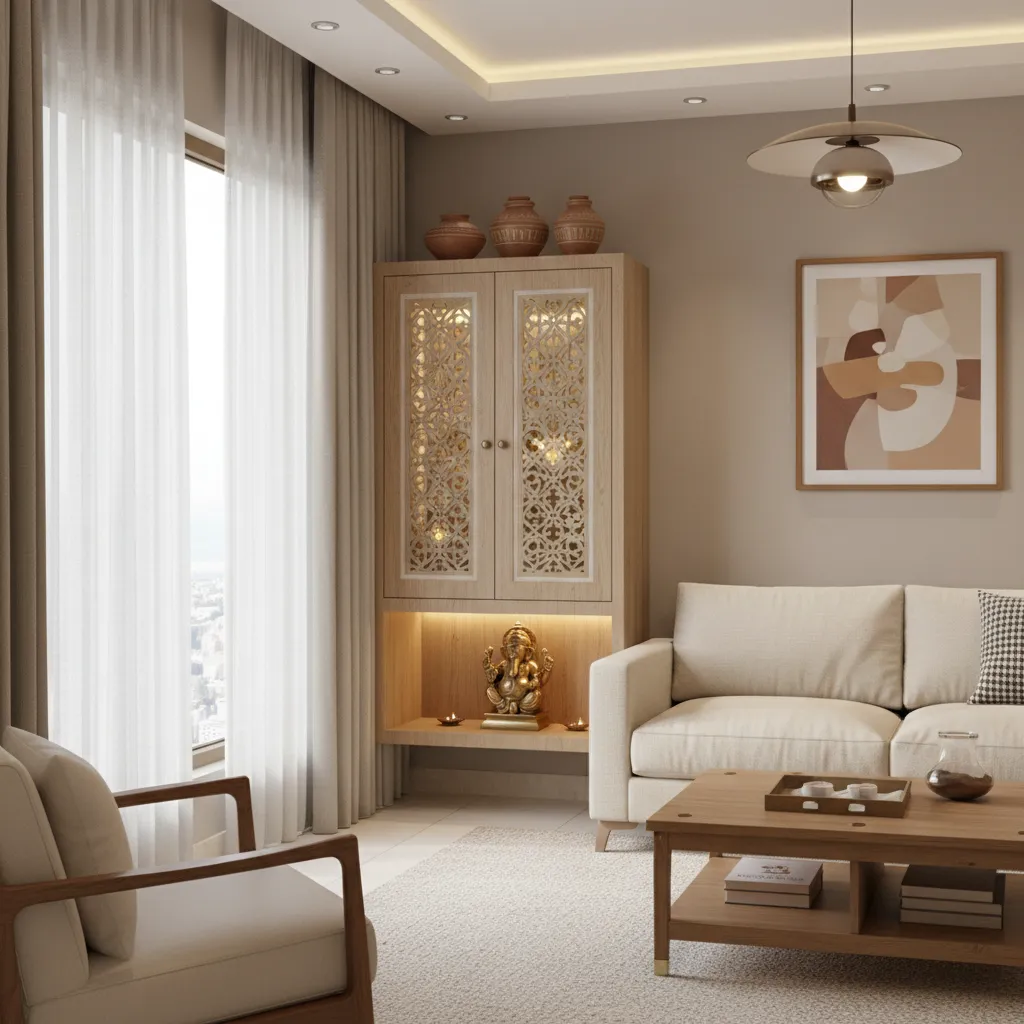

[My Take] In a studio apartment, we tucked a compact pooja unit into a wardrobe bay and fronted it with bi-fold doors: reeded glass outside and a fine CNC overlay inside. The client could close it for a tidy look, then open a full shrine for morning rituals.

[Pros]

1. Transforms a cabinet into a dignified pooja space while preserving living room calm. Folding pooja doors with CNC pattern add texture and privacy without feeling heavy.
2. Ideal for rented homes—no structural changes, just a smart façade. You can carry the doors to your next home.
3. Light bleed-through keeps the unit from feeling boxy, especially with backlit CNC details.

[Cons]

1. Tracks and hinges need regular cleaning—incense residue and dust can cause sticking.
2. Bi-folds can pinch fingers if kids play around them; soft-close hardware helps.
3. If the space is under-ventilated, smoke can mark the door’s inner face. A slim vent slot at the top helps.

[Tips / Case / Cost]

1. Top-hung tracks reduce threshold clutter; specify 18–20 mm door thickness for stability.
2. Keep 14–18 inches of internal depth for idol placement and a small aarti drawer.
3. Budget: $350–$800 depending on materials (MDF veneer vs. solid wood, and hardware grade).

save pin

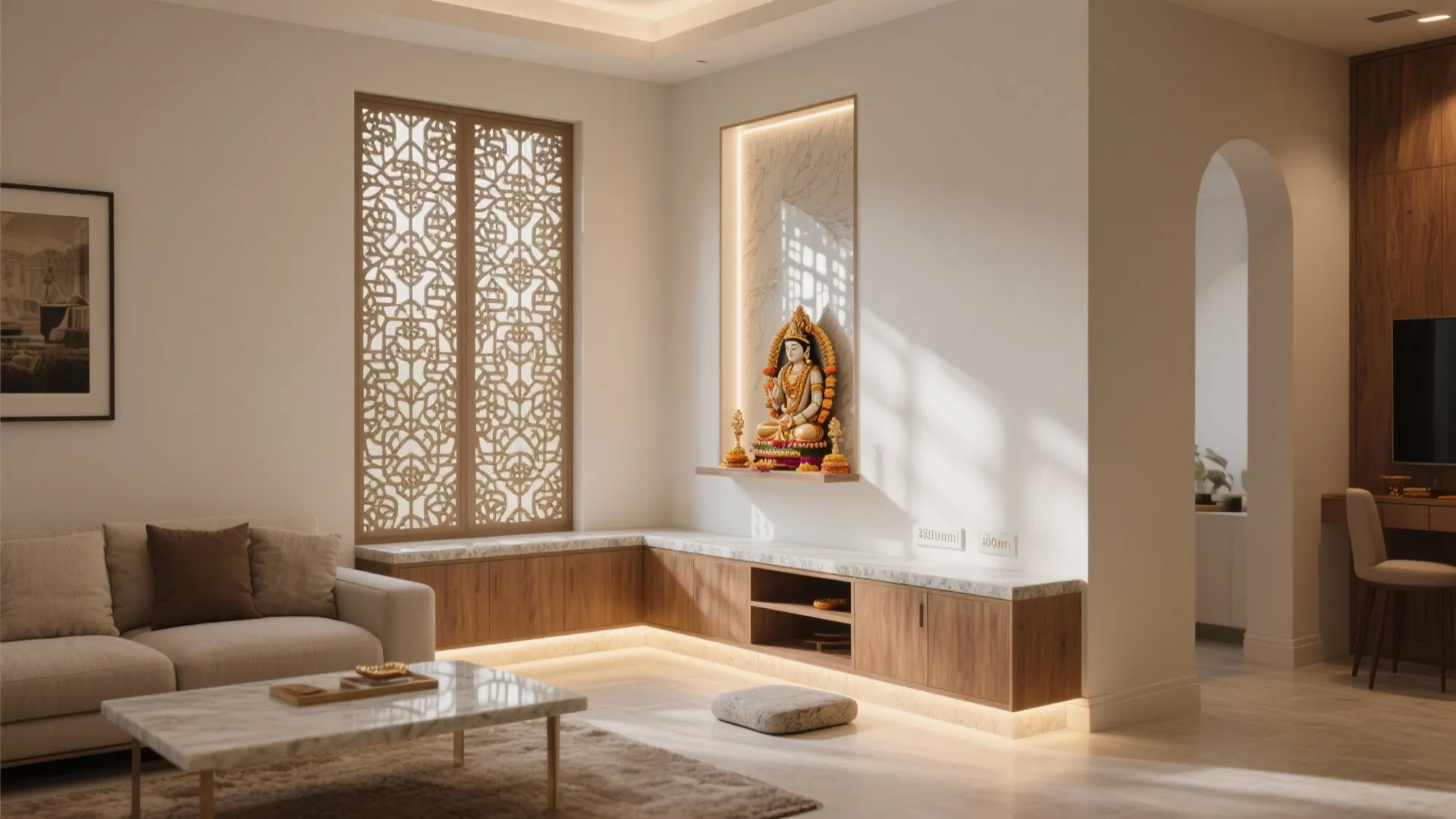

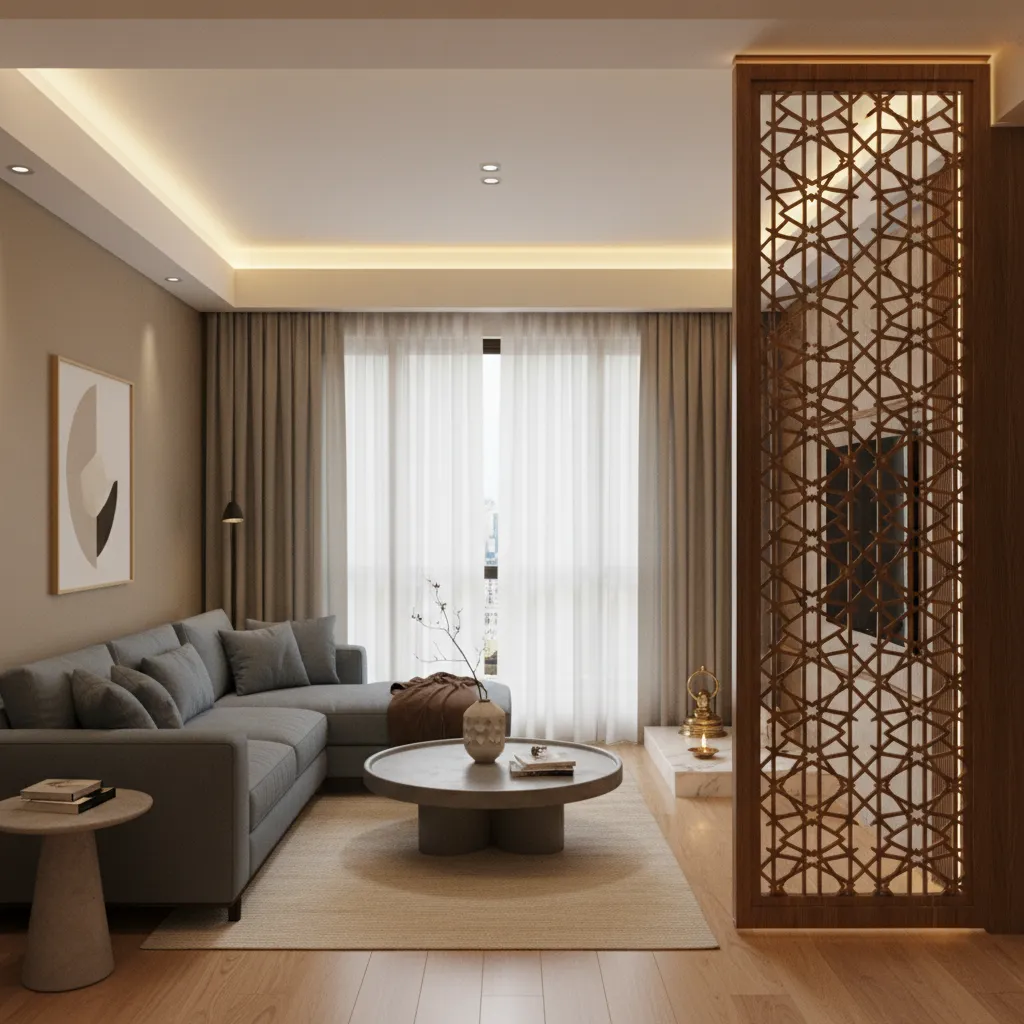

Corner Pooja with CNC Partition Zoning

[My Take] For a couple who kneels to pray, we carved a quiet corner out of the living room using a half-height CNC partition. A 900 mm base cabinet housed essentials; the jaali created a visual pause without blocking light or airflow.

[Pros]

1. A corner pooja layout is space-efficient and intimate. The CNC partition for a temple corner subtly zones without building a wall.
2. With a slim stone top and a laser-cut divider, you get a compact pooja unit with storage that feels tailored, not temporary.
3. Great for rentals—freestanding screens can work when you can’t fix to walls.

[Cons]

1. Shadows can form in tight corners. Add a small downlight or reflective back panel to keep idols well-lit.
2. If people walk behind the partition, jostling can rattle a lightweight screen—choose sturdy framing.
3. Kneeling in a tight corner is awkward without leg room; plan a clear 24 inches in front.

[Tips / Case / Cost]

1. Keep circulation clear—aim for at least 36 inches of path when the partition is near an entryway.
2. Try a triangular altar depth (12–16 inches) to maximize front clearance in micro spaces.
3. Budget: $280–$700 depending on the partition material (MDF vs. metal vs. hardwood).

When space is tight, I often test a compact pooja layout that saves floor space before committing to carpentry—seeing flow lines and clearances at scale avoids costly changes later.

save pin

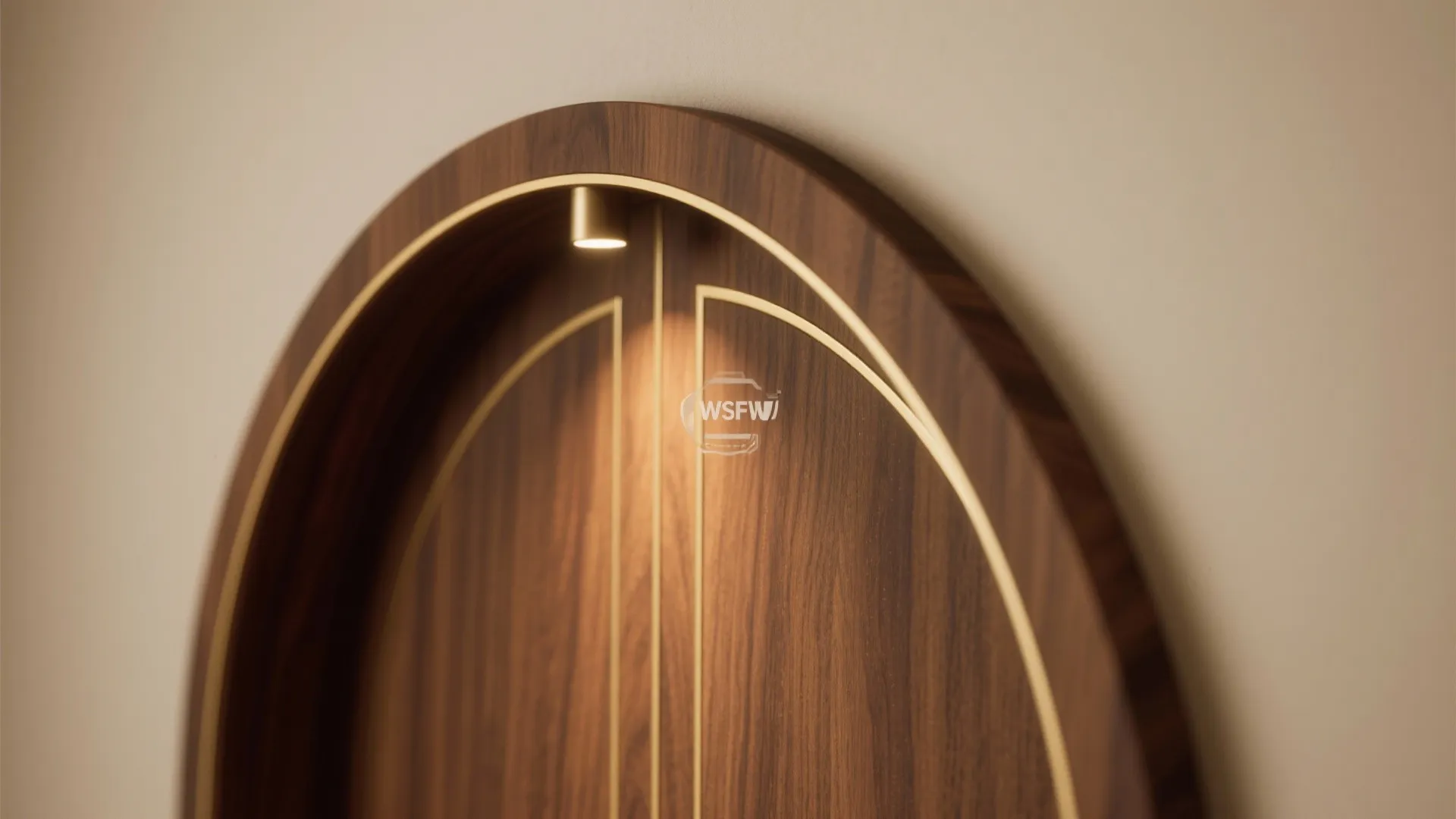

Warm Minimalism: CNC Carved Wood with Brass Accents

[My Take] A Jaipur client wanted warmth without clutter, so we CNC-carved a gentle arch in teak veneer, added thin brass inlays, and lit the idol with a tiny spot. It felt calm, modern, and rooted—no heavy ornamentation required.

[Pros]

1. Brass jaali pooja screen details gleam in warm light and develop a natural patina—timeless when paired with matte wood.
2. Warm minimalist pooja decor reduces visual noise, which makes small rooms feel larger. Subtle grain and fine lines elevate even a 2-foot niche.
3. Low-VOC finishes make the ritual space healthier; look for Greenguard Gold or equivalent certifications on coatings (UL Solutions program).

[Cons]

1. Brass will tarnish; a soft cloth and non-abrasive metal polish are part of the upkeep rhythm.
2. Wood moves with humidity—tiny reveals around panels are normal and help avoid warping.
3. Material costs can climb; veneers and brass inlays require careful fabrication.

[Tips / Case / Cost]

1. Choose waterborne lacquer to keep odors low, especially in tight apartments.
2. Edge-band CNC-cut panels to hide core layers; it looks premium and lasts longer.
3. Budget: $450–$1,200 depending on species, inlay complexity, and finish system.

To preview the glow, I render test scenes and tweak lamp warmth until the brass sings; it’s a fast way to lock the mood before fabrication. A brass-and-wood pooja mood with warm lighting mockup usually convinces even the skeptics.

save pin

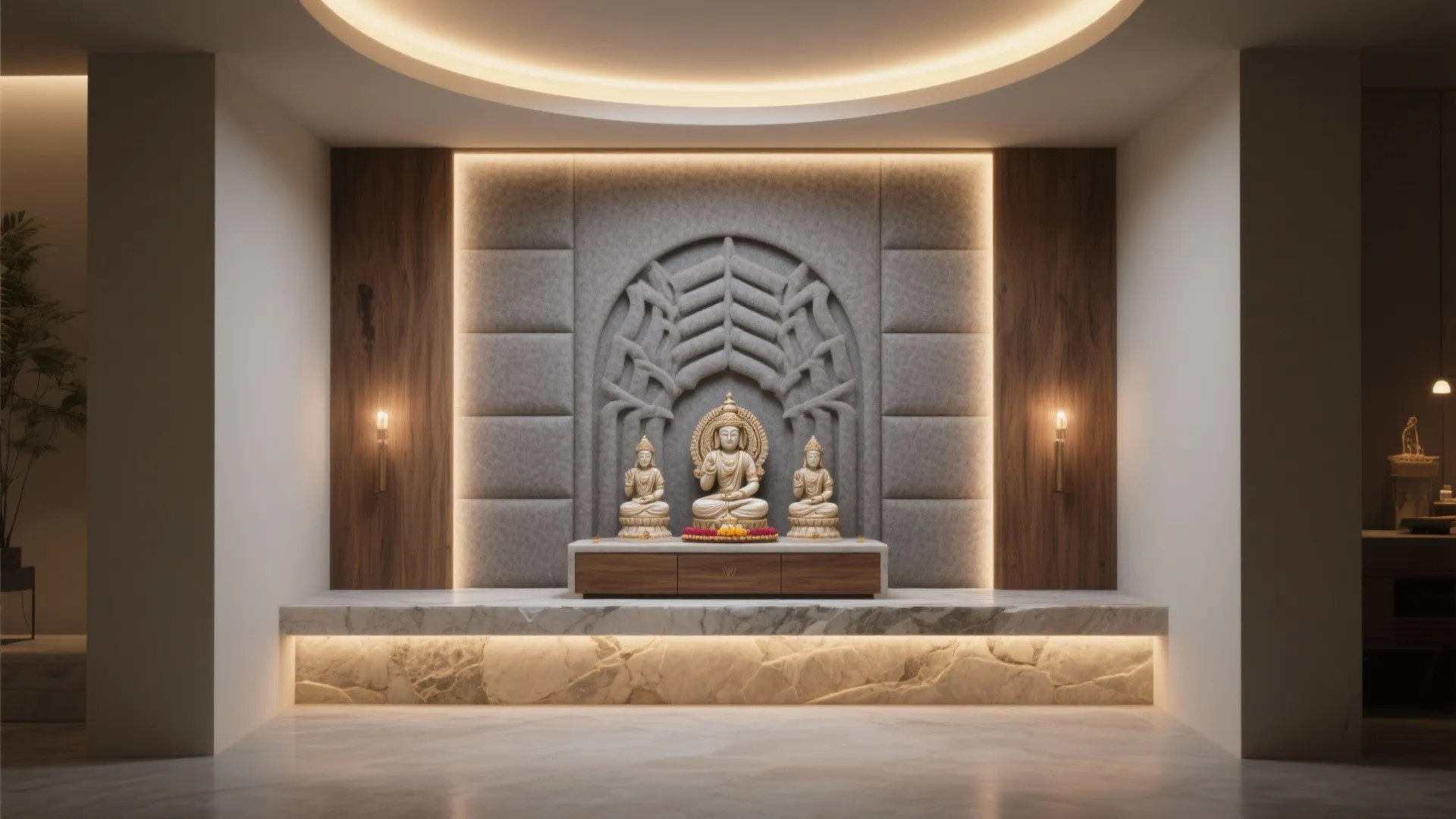

Acoustic Calm: PET Felt CNC Panel + Stone Base

[My Take] One client loved chanting, but the living room echoed. We swapped a hard laminate back for a CNC-cut PET felt acoustic panel and added a slim stone plinth. The sound mellowed immediately, and the look stayed contemporary.

[Pros]

1. An acoustic CNC panel for pooja absorbs reflections, keeping the chant intimate. Typical 9 mm PET felt panels can reach NRC around 0.75–0.85 (per common ASTM C423 tested manufacturer data).
2. The felt surface feels soft and diffuses light beautifully when paired with a concealed LED cove.
3. Stone at the base resists soot and oil; it’s practical and still ceremonial.

[Cons]

1. Patterns are less intricate than hardwood or metal; the felt’s thickness limits fine detail.
2. Felt can pill if you scrub it hard—stick to vacuuming with a brush attachment.
3. Stone adds weight; check floor load limits if you’re planning a large plinth in older buildings.

[Tips / Case / Cost]

1. Pick a mid-tone felt (not jet black) so dust doesn’t show; consider laser-etched icons instead of tiny cutouts.
2. Use warm 2700–3000K LED strips and a soft spot for idols; keep contrast gentle to avoid glare.
3. Budget: $320–$900 depending on felt grade, CNC time, and stone selection.

[Section: Summary]

Small pooja corners don’t limit you—they nudge you toward smarter choices. From backlit jaali to acoustic calm, pooja cnc design shines when you balance light, material, and scale. If you love data as much as design, note that warm color temperatures (around 2700–3000K) consistently prove both flattering and soothing in homes (IES guidance). Which idea would you try first in your space?

save pin

FAQ

1) What is pooja cnc design?

It’s the use of CNC-cut panels, doors, or accents to shape a pooja unit—precise patterns in MDF, wood, metal, or PET felt. Think airy jaalis, glowing backdrops, and tidy wire concealment, all tailored to small spaces.

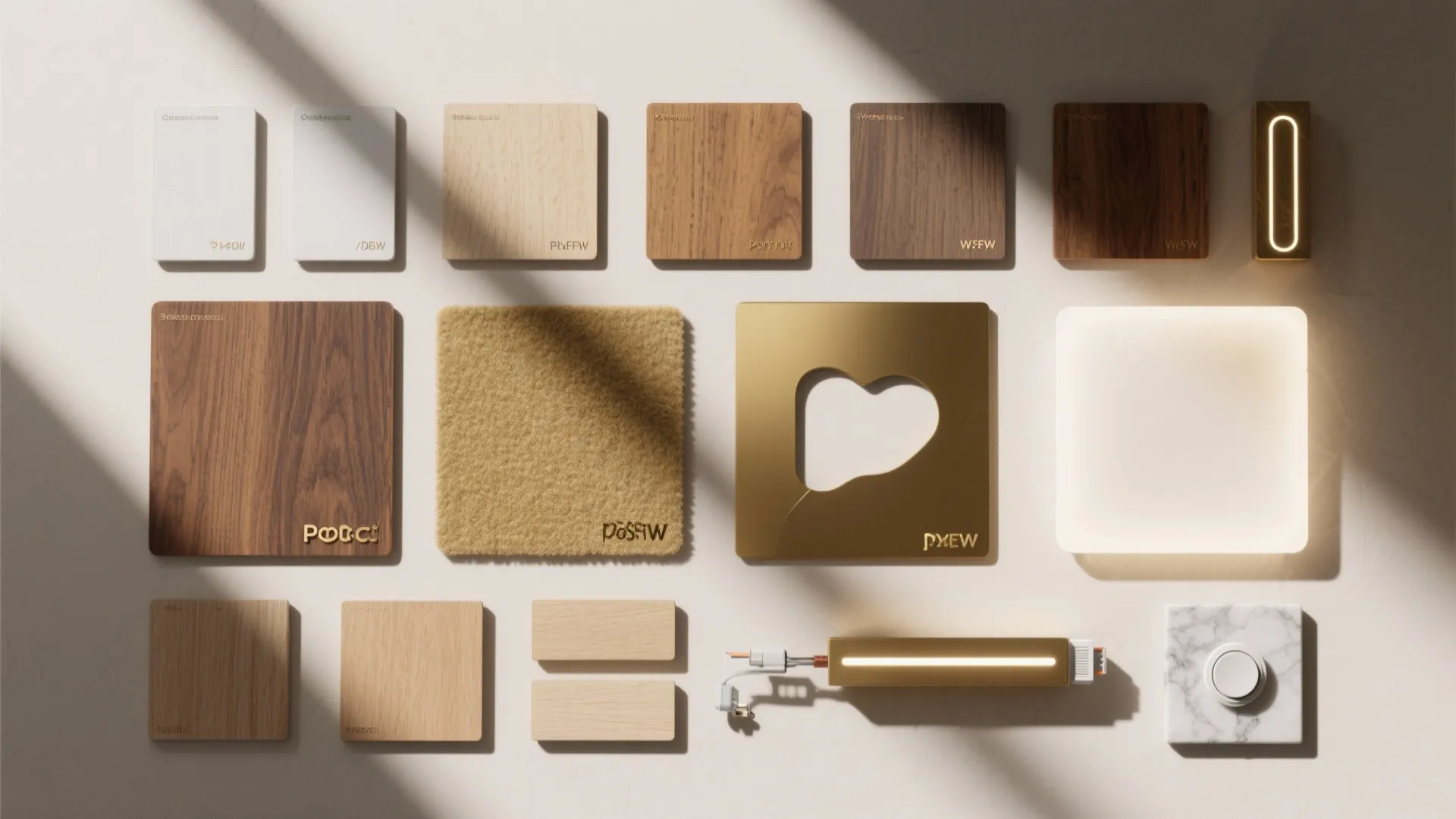

2) Which materials work best for CNC pooja panels?

MDF/HDF is cost-effective and easy to finish; hardwood veneers feel premium; metal (brass/SS) is durable; PET felt adds acoustic comfort. For a laser-cut MDF pooja panel, use high-quality primer and low-VOC topcoat to keep odors down.

3) Is backlit CNC safe for a pooja unit?

Yes, if you use certified LED strips, drivers with ventilation, and an appropriate diffuser. Aim for 2700–3000K to keep it warm and restful; the IES Lighting Handbook supports warm CCTs for residential ambience. Always keep incense away from wiring and leave an air gap behind panels.

4) How do I clean intricate CNC jaali?

Use a soft brush or microfiber duster weekly; vacuum with a brush attachment for deeper clean. Avoid wet mopping on raw edges—seal cuts properly to prevent swelling, especially on MDF.

5) What’s a reasonable budget for a small pooja CNC setup?

For a compact niche: MDF + veneer + backlight might be $220–$450; hardwood/brass can reach $800–$1,200. PET felt acoustic backdrops with a stone base often land around $320–$900. Labor and region will shift numbers.

6) Can I create a pooja CNC partition in a rental?

Yes—use a freestanding screen or a cabinet-based mandir with CNC doors. Keep fixings minimal and choose removable LED strips so you can take everything with you.

7) How do I choose patterns for a small pooja space?

Scale matters: finer motifs for tiny niches, bolder geometry for statement corners. Consider iconography that resonates (lotus, peepal, or a subtle Om) and keep cutout density moderate for easier cleaning.

8) What size works for small apartments?

For wall units, 24–30 inches wide and 10–14 inches deep fits most spaces; leave 24 inches clear in front for kneeling. If you burn incense often, crack a window or use a small fan—good ventilation keeps surfaces cleaner and the air fresh.
