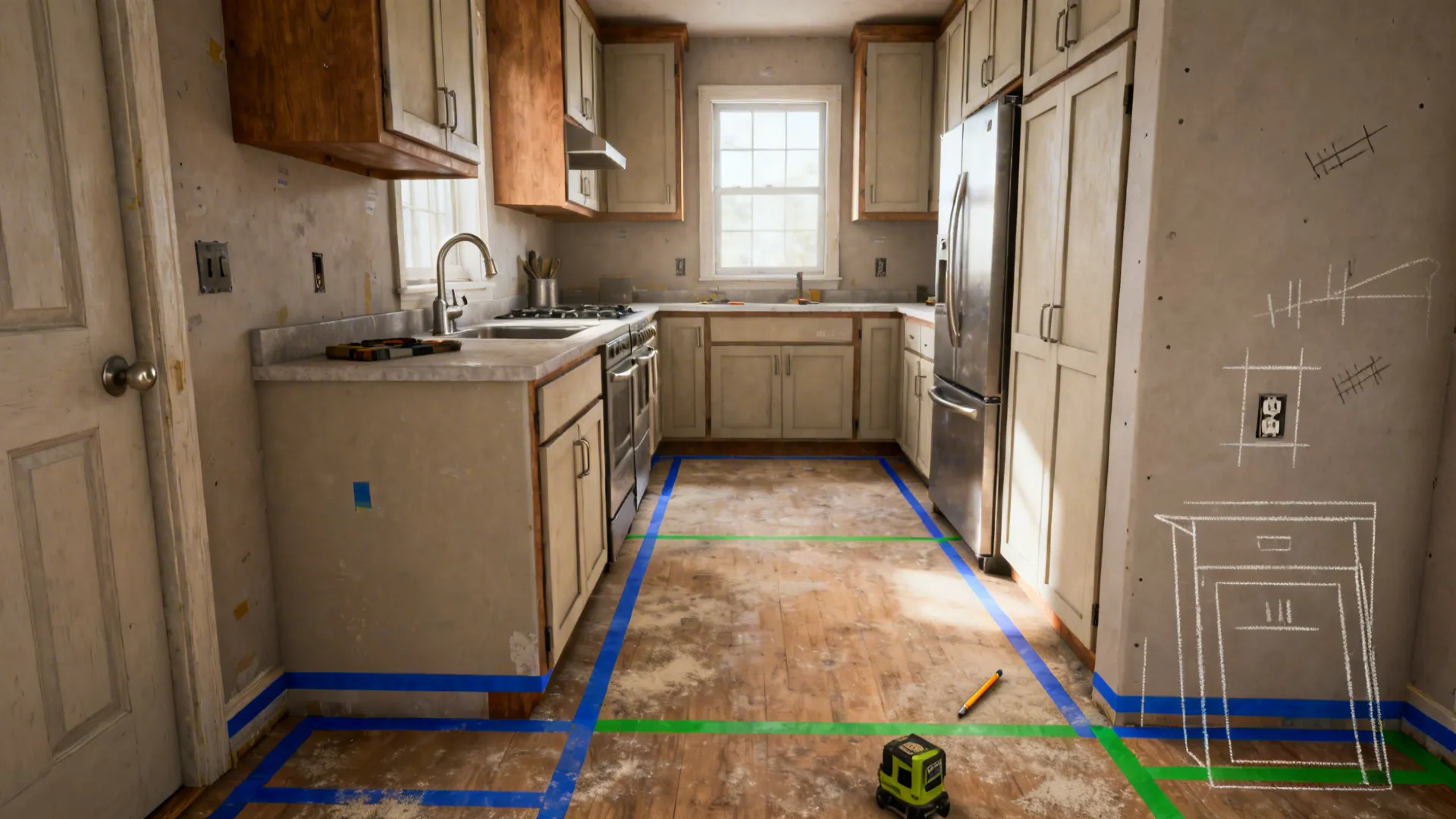

As a kitchen designer who spends a lot of time on dusty job sites, I’ve learned that drawing a kitchen on site is the fastest way to spot problems before they become costly. Small spaces push big creativity—tight galley kitchens and compact L-shaped corners have taught me to make every centimeter count. In this guide, I’ll share 5 design inspirations that double as practical, on-site drawing techniques, blending my hands-on experience with expert data so you can plan smarter and build smoother.

Before we dive in, here’s one early nugget: when I sketch in the field, I always start with walls and services (plumbing, power) and leave finishes for last. That way, my layout logic stays clear while I improvise details right on the subfloor or wall.

[Section: 灵感列表]

Minimalist Storage Mapping On Floor

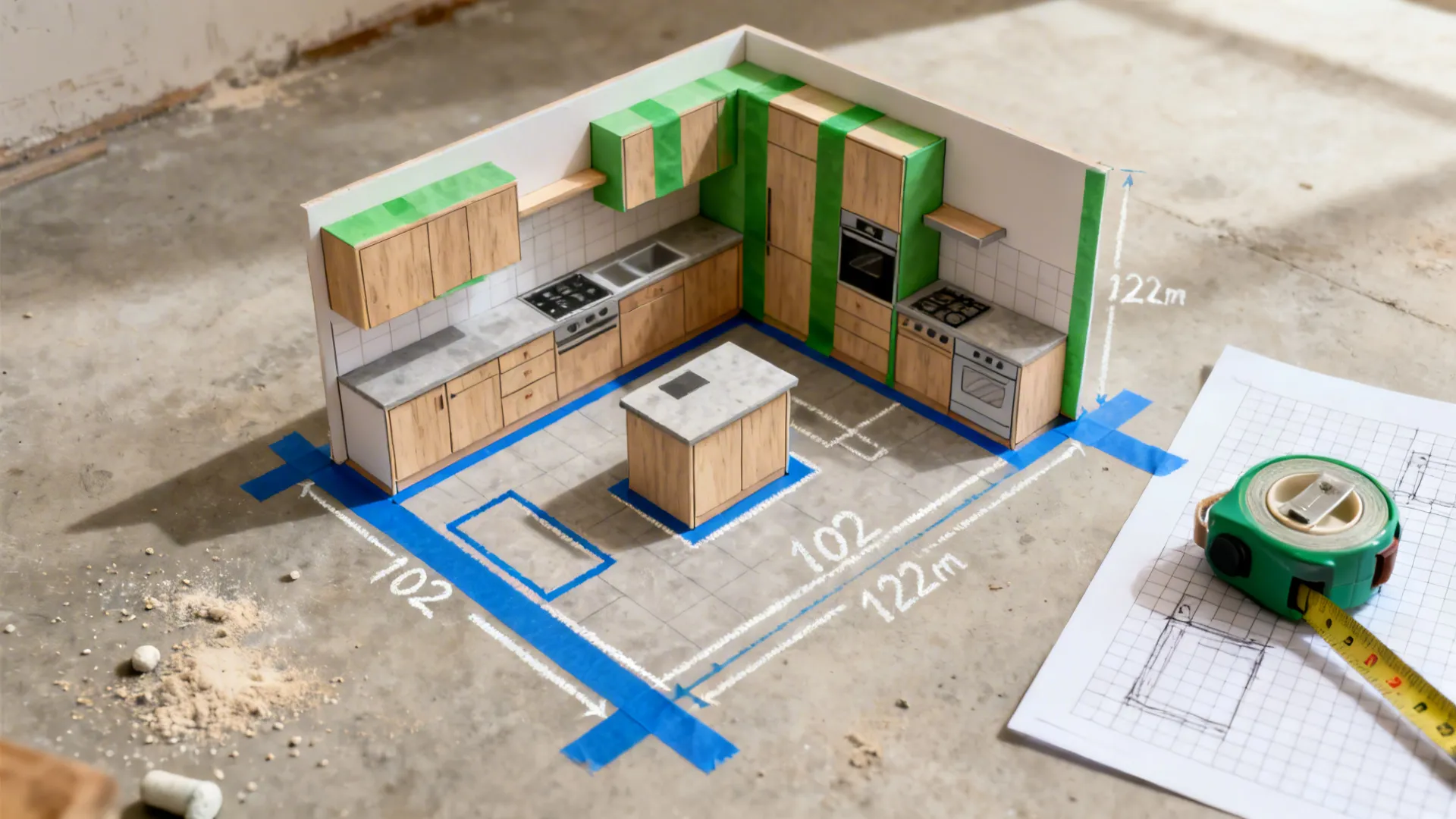

My Take: I often tape out base cabinets and appliance footprints directly on the floor—simple painter’s tape and a chalk line. The first time I tried this in a 6.5 m² micro-kitchen, the homeowner finally “felt” the aisle clearance and agreed to shrink an island that would’ve choked circulation.

Pros: Floor-taped storage zones make it easier to validate the working triangle long-tail keywords like “small kitchen layout for efficiency” and “kitchen aisle clearance standards.” It prevents over-ordering cabinetry and reduces site-change surprises. According to the National Kitchen & Bath Association (NKBA) guidelines, a 40–48 inch (about 102–122 cm) aisle range improves movement and safety for two users.

Cons: Tape can curl on dusty concrete and give false edges—I’ve had a fridge door swing right into my “perfect” tape arc. Also, homeowners sometimes get attached to tape positions, forgetting wall finishes will eat 10–20 mm.

Tips / Cost: Use contrasting tapes (blue for base cabinets, green for tall units). If you’re budget-limited, a chalk reel is cheap and fast for long runs. For visual learners, sketch a quick plan on grid paper to mirror what’s taped on the floor—clients love the analog-to-real sync.

To see how professionals test sightlines and space with renderings after on-site tapes, check a case with L-shaped layout frees more counter space—it mirrors the floor-tape process with quick 3D validation.

save pin

Glass Backsplash Sightline Test

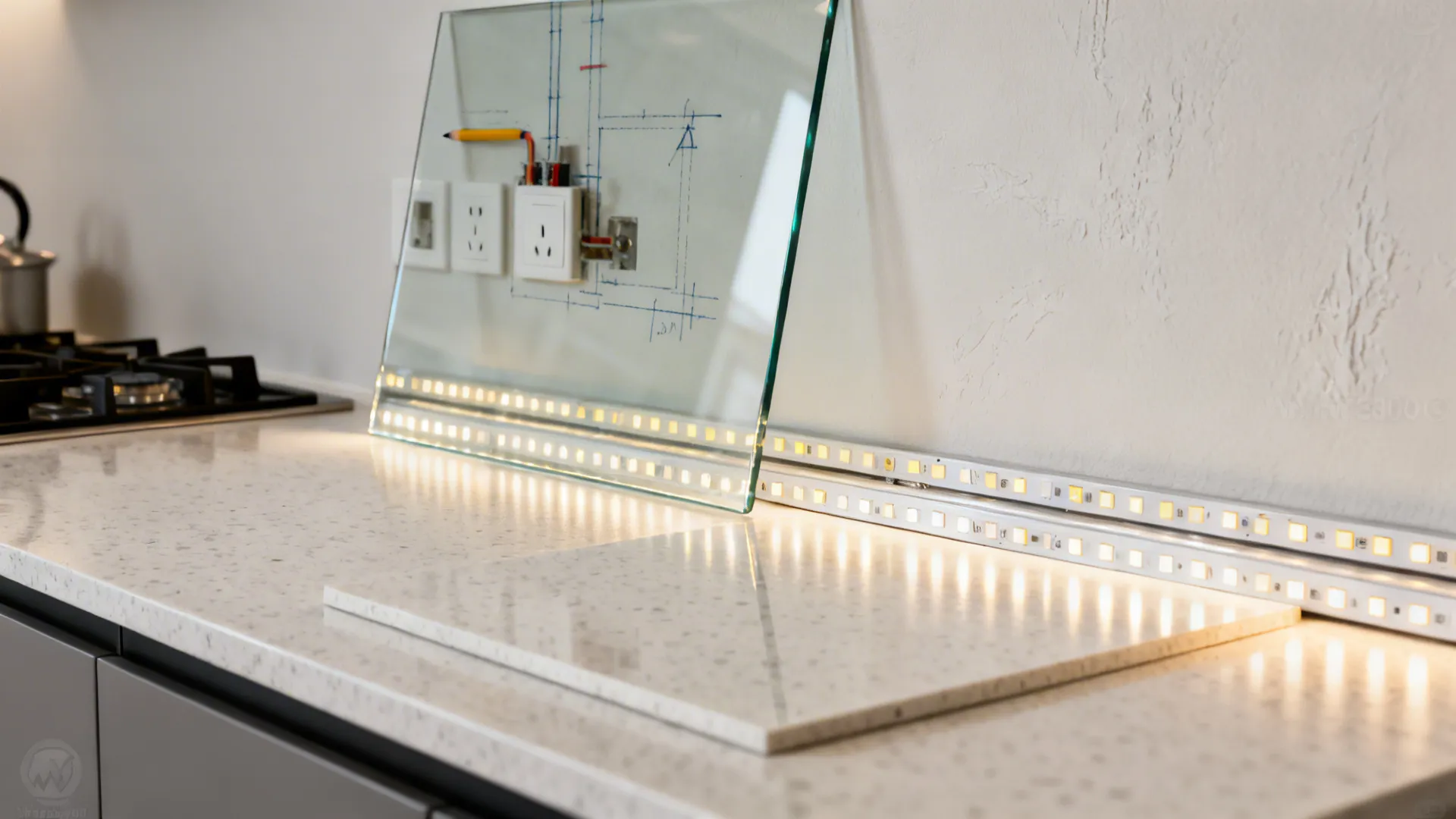

My Take: When measuring and drawing a kitchen on site, I use a clear acrylic board (or even a large transparent cutting mat) to simulate a glass backsplash. Placing it against the wall helps me draw power outlet positions and see how light bounces across the counter.

Pros: Testing a reflective surface improves “small kitchen lighting design” and “open visual flow in compact kitchens.” It helps plan task lighting and reduces glare points. Research from the Illuminating Engineering Society (IES) notes task surfaces around 300–500 lux improve prep safety without harsh contrast.

Cons: Acrylic is lighter than glass—so reflectivity and color shift can be a little optimistic. I once approved a dimmer under-cabinet strip that looked fine on acrylic but disappeared behind low-iron glass.

Tips / Case: If the budget allows, bring a 3000K and 4000K LED strip for on-site mockups; warm light flatters wood, 4000K bumps clarity on white quartz. Mark conduit and junction boxes directly on the wall with pencil before tiling. For extended visualization beyond the wall test, see how a brighter kitchen feels with a glass backsplash through iterative daylight layouts.

save pin

Ergonomic Heights You Can Sketch

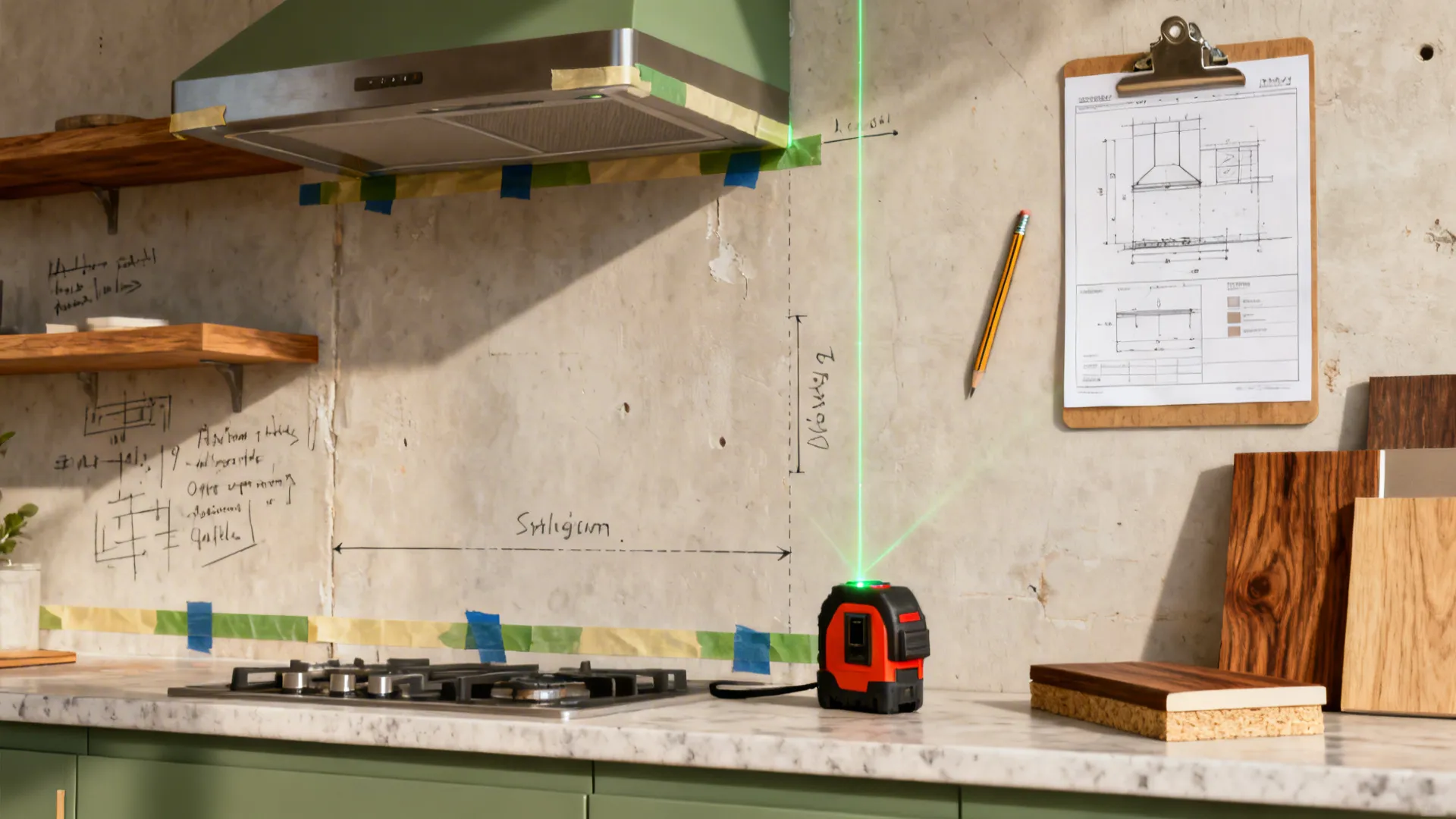

My Take: I carry a laser measure and a carpenter’s pencil. On site, I mark counter heights, hob clearance, and hood reach on the wall—clients stand next to the marks so we choose heights that match their bodies, not just catalog standards.

Pros: Customizing counter and shelf heights supports “ergonomic kitchen measurements for short or tall users” and “ADA-conscious clearances in home kitchens.” The CDC and ergonomic studies consistently show that reducing awkward reach lowers fatigue and injury risk over time; NKBA suggests 24–27 inches (61–69 cm) for microwave centerline when feasible.

Cons: It’s easy to forget flooring buildup; one time my perfect 900 mm counter became 915 mm after tile and underlayment. Also, range hoods often specify minimum distance—don’t pencil too low in the excitement.

Tips / Cost: Bring blue painter’s tape for height bands (counter, backsplash, upper shelf). If you’re DIY-ing, a basic laser level saves hours and costs about the price of one wrong cut. Halfway through your planning, cross-check with a printable elevation and update your on-wall marks accordingly; it keeps the build honest and the sketch accurate.

save pin

Appliance Doors and Swing Arcs

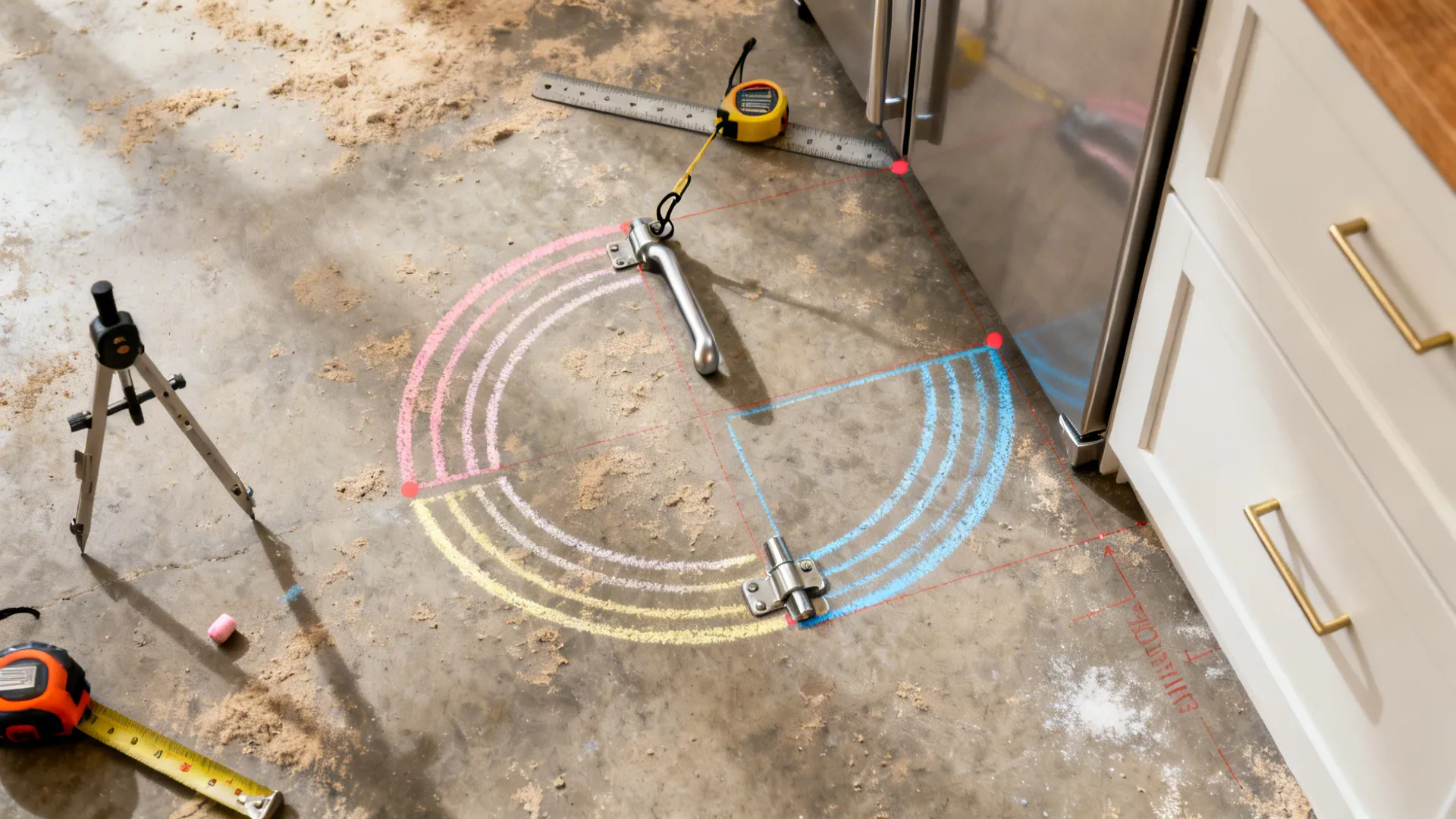

My Take: Nothing ruins a good drawing like a fridge that blocks the pantry. On site, I draw appliance doors as full arcs with a chalk compass: hook the tape at the hinge center, swing a radius equal to the door width, then add handle depth.

Pros: Real-time swing arcs validate “appliance clearance for small kitchens” and “corner door interference fixes.” You’ll catch collisions with handles, adjacent drawers, and light switches before they’re built. I’ve saved at least three projects by switching to counter-depth fridges after this test.

Cons: Some brands publish hinge clearances differently—my chalk arcs once underestimated a French-door fridge protrusion by 12 mm. Dusty floors can also hide your marks after an hour of trades walking through.

Tips / Case: Use contrasting chalk for each appliance; photograph every arc with a ruler in frame. If your layout is flexible, rotate or flip the hinge side on site and redraw immediately. When you get to the project midpoint and need a fast sanity check, validate the drawing flow with glass backsplash makes the kitchen more airy—it’s a different visual lens that still pressure-tests door clearance in 3D.

save pin

Modular Zones: Sink–Prep–Cook Loop

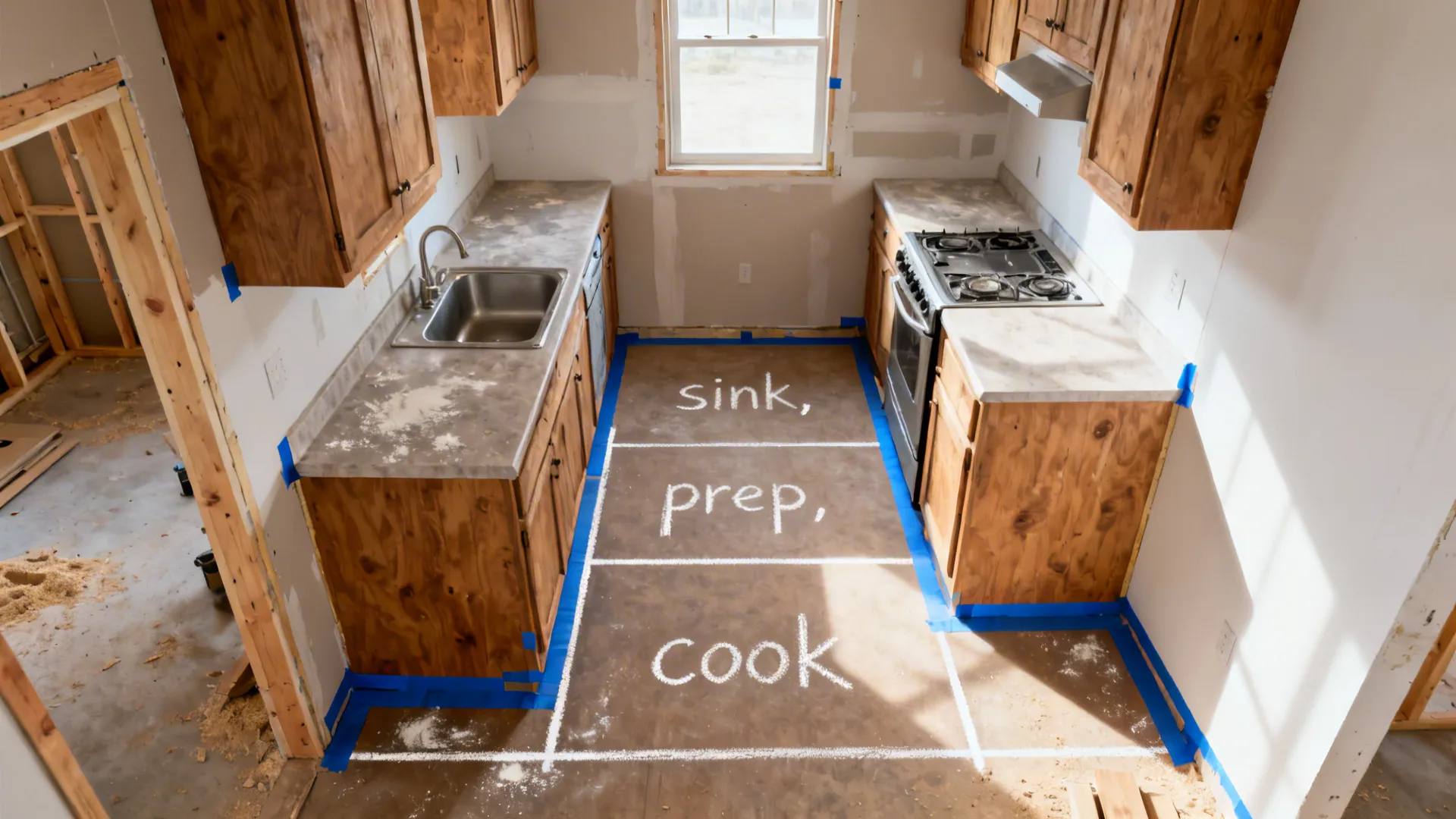

My Take: The best kitchens I’ve drawn on site follow a loop: sink for rinse, prep directly beside, and cook within one or two steps. I chalk these zones on subfloor, then layer cabinet widths and gaps on top. It’s a visual checklist that survives the chaos of construction.

Pros: Clear zoning supports “efficient small kitchen workflow” and “work triangle vs. work zones in tiny apartments.” Studies from NKBA and industry surveys show that separating wet and hot zones improves safety and reduces backtracking time during cooking, especially in narrow galley kitchens.

Cons: Real sites fight back—columns, vents, and doors often break the perfect loop. I’ve had to shrink a pull-out trash to 300 mm just to keep the prep lane sacred. Also, zoning can feel rigid if the household cooks collaboratively in bursts.

Tips / Cost: If you’re budgeting, prioritize drawers in the prep zone first—they pay back daily in usability. Pencil in landing zones: 300–450 mm of counter beside the cooktop and sink. At about 80% of your planning process, translate your chalked zones to a test render and pressure-test countertop runs with warmth from wood accents in the model; it helps you see if the loop still feels natural once materials are richer.

[Section: 总结]

Drawing a kitchen on site isn’t just sketching—it’s problem-solving with your feet on the ground. Small kitchens demand smarter design, not compromise, and on-site marks give you the confidence to adjust before money meets materials. As NKBA guidelines remind us, consistent clearances and workable zones are the backbone of great kitchens. Which of these five on-site techniques are you most excited to try first?

[Section: FAQ 常见问题]

save pin

FAQ

1) What’s the first step to draw a kitchen on site?

Start with accurate wall-to-wall measurements and mark fixed services (plumbing, power, vents). Sketch the outer shell first, then place appliances and cabinets so clearances are easy to verify on the floor.

2) How wide should a kitchen aisle be in a small space?

For compact kitchens, NKBA suggests about 40–48 inches (102–122 cm) for two-user comfort; solo users can go narrower, but 36 inches (91 cm) is often the practical minimum for safe movement.

3) How do I plan ergonomic heights on site?

Mark counter height, upper shelf reach, and hood clearance on the wall with tape. Tailor heights to the primary user and remember to add finished floor and countertop thickness before finalizing.

4) What tools do I need to draw a kitchen on site?

Laser measure, tape measure, chalk line, painter’s tape, pencil, laser level, and a straightedge. A tablet or clipboard with grid paper helps sync site sketches with scaled drawings later.

5) How do I avoid appliance door collisions?

Draw full swing arcs from the hinge center—including handle depth—and test adjacent drawers. If space is tight, consider counter-depth appliances or change hinge sides where possible.

6) How do lighting tests fit into on-site drawing?

Mock backsplash reflectivity with a clear panel and test 3000K vs. 4000K under-cabinet LEDs. IES recommends roughly 300–500 lux at prep surfaces for safe, comfortable task lighting.

7) Is the work triangle still relevant in small kitchens?

Yes, but work zones often work better for tight layouts. Keep sink–prep–cook within one or two steps and maintain small landing spaces beside sink and cooktop for safe transfers.

8) Where can I visualize my on-site sketch quickly?

After taping and chalking, translate measurements into a simple model to stress-test clearances; for example, preview how minimalist storage planning changes the flow in a scaled environment.
