5 Precast Wall Design Ideas for Small Spaces: How I turn precast walls from “can’t touch this” into clever, cozy, and code-smart interiors

Once, in a precast condo, my stud finder screamed like a smoke alarm the second I touched the wall—hello, rebar. I backed off, pulled up my early room planning sketches, and redesigned the whole storage plan without a single risky hole. That day taught me a humbling truth: small spaces and precast walls can feel limiting, but they also force sharp, elegant solutions.

Small footprints spark big creativity. So today I’m sharing five ideas I use on real projects to make precast wall design work hard—without fighting the structure or your budget.

1) Cast-in niches and rails: storage without bulk

When I’m lucky enough to get involved before fabrication, I ask the producer for foam blockouts to form niches—think shower shelves, headboard cubbies, or a spice recess by the cooktop. It’s sleek, space-saving, and you gain storage without dragging in more furniture.

The catch? You must coordinate early so rebar cover and strand paths stay happy. I also love specifying slim T-slot rails cast into the panel; later you can clip in shelves, hooks, or art without guessing where to drill. If you’re post-occupancy, surface rails on a thin batten wall can mimic the effect with minimal depth.

save pin

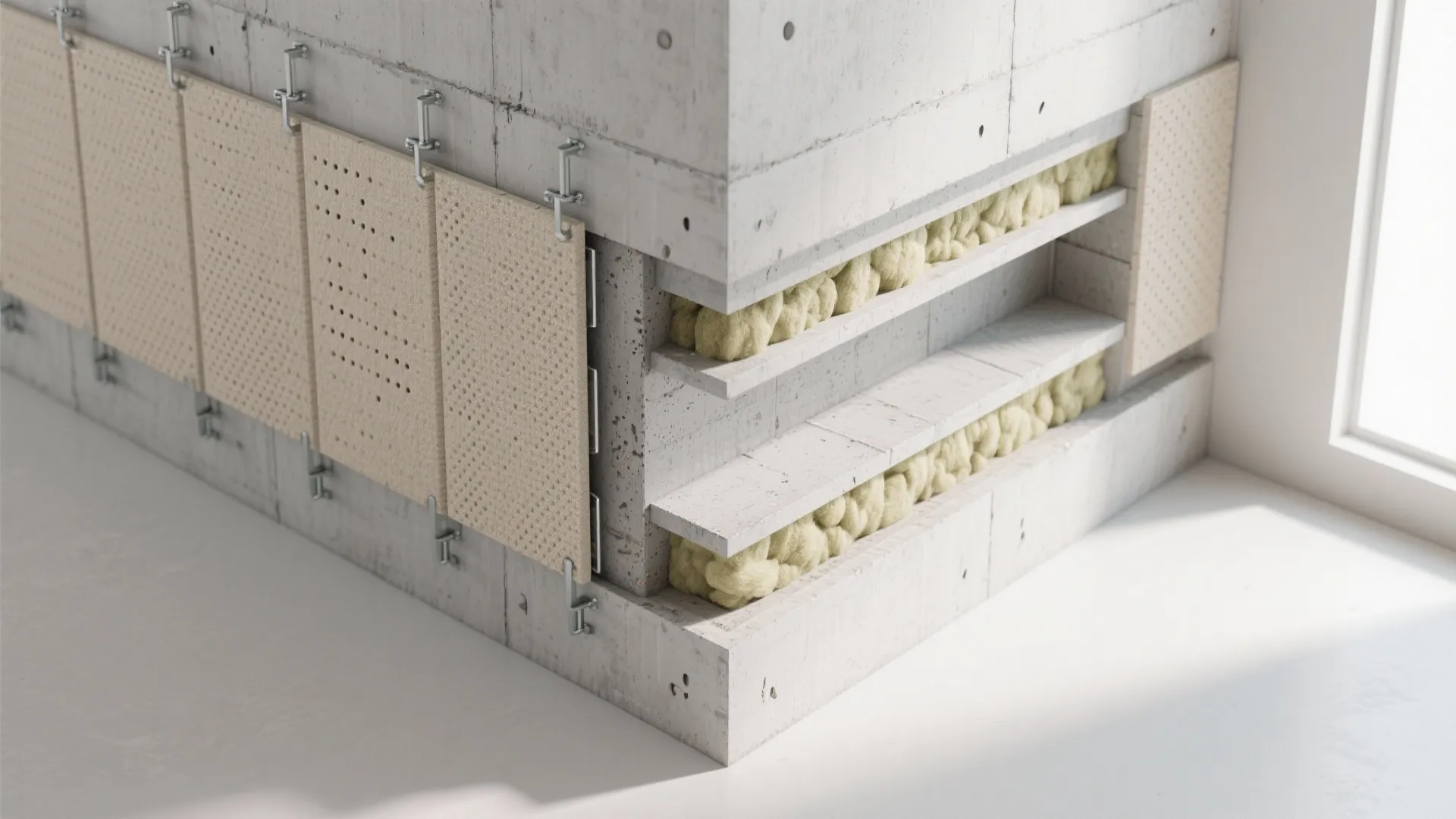

2) Quiet and comfy: tune acoustics and thermal mass

Precast is great at blocking noise, but it can be lively inside the room. I layer acoustic panels on hidden clips, add a small air gap, and keep the concrete’s thermal mass exposed where it helps regulate temperature. That way, the space feels calm without losing energy performance.

Beware interior insulation over concrete in humid climates—it can push the dew point into your wall. I use breathable finishes (limewash, clay paint) and, if needed, a smart vapor retarder behind furring. It’s a comfort upgrade that still respects the wall’s physics.

save pin

3) Stack wet zones on shared precast walls

In tight apartments, I align kitchen and bath along one precast wall so the plumber can use pre-approved sleeves and cast-in conduits. You’ll spend less on runs, reduce penetrations, and keep structure-adjacent services tidy. The tradeoff is less freedom later, so decide early where appliances and fixtures live.

I map the kitchen layout constraints next to the bathroom riser, then reserve panel zones for vents and water lines—no surprises at install. Do confirm clearances with the precast shop drawings; their strand diagrams are your north star.

save pin

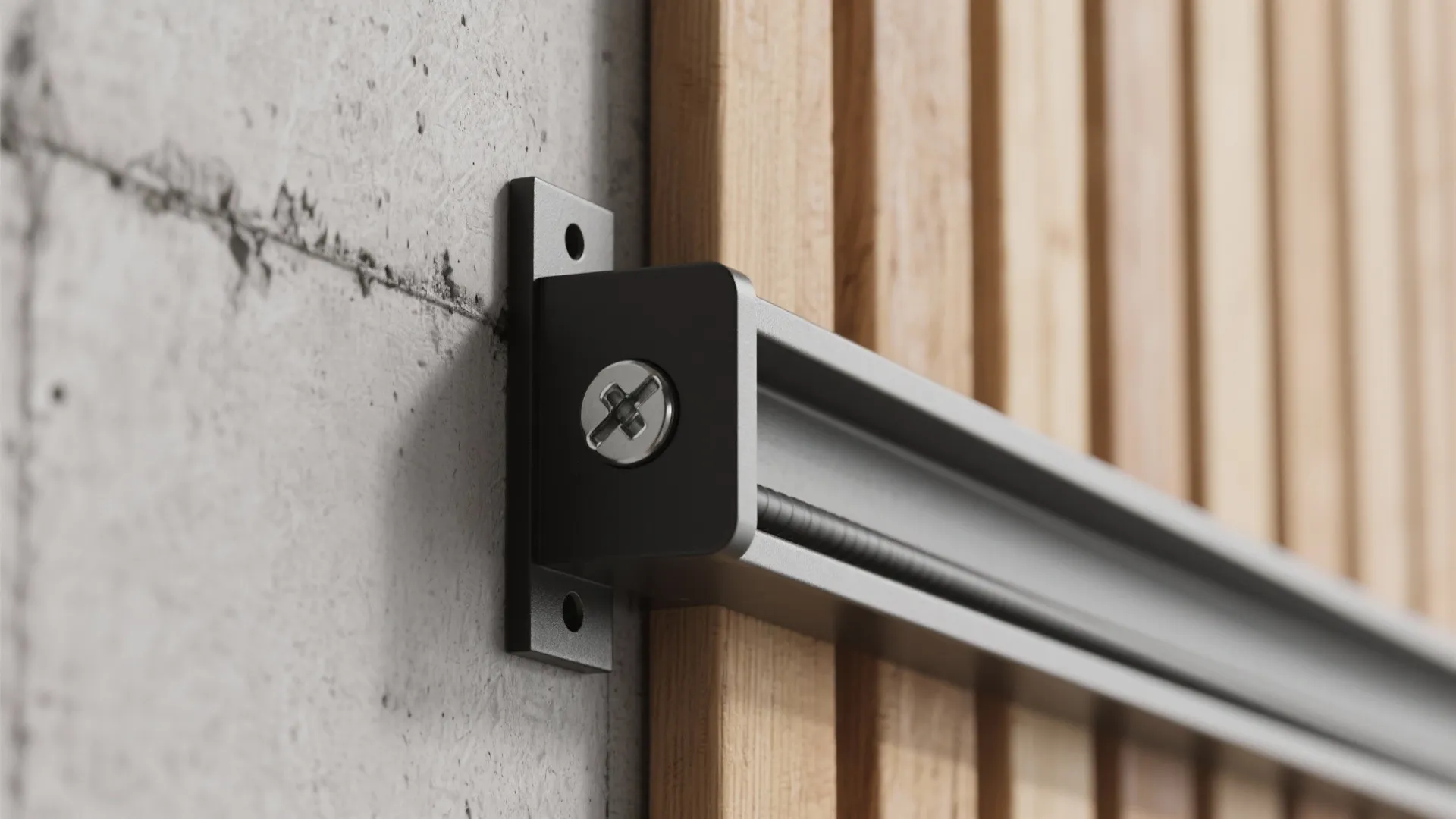

4) Don’t drill blind: go surface-first, anchor smarter

My drill and I are not heroes. I scan walls before any drilling, and I prefer surface systems: French cleats, track rails, and batten walls that carry loads without piercing strands. For heavy cabinets, I either hit embedded inserts or use tested post-installed anchors—with a structural engineer’s blessing.

Chasing for wires is a big no unless the producer marks safe zones. Surface raceways can be discreet, paintable, and totally reversible. It’s safer, faster, and usually cheaper than repairing a wall you’ve, ahem, “disagreed” with.

save pin

5) Finish strategies that love concrete

Concrete loves tactile finishes and light play. I’ll limewash for soft movement, run microcement for a continuous, patch-friendly look, or add thin timber slats to warm things up while hiding slim LED channels and cable routes. Little shadow reveals at junctions make it feel bespoke, not bulky.

Before committing, I make a quick 3D render to test texture + lighting combos—especially how day-to-night transitions hit the wall. Budget-wise, paint + strategic paneling usually beats full-depth millwork, and it keeps your concrete breathing easy.

save pin

FAQ

1) What is precast wall design in a small apartment?

It’s planning interiors around factory-made concrete panels—respecting their structure while adding storage, services, and finishes. The goal is to maximize function without unsafe cuts or costly rework.

2) Can I cut or chase into a precast wall?

Generally, no—especially with prestressed strands. According to the PCI Design Handbook (8th ed., Sec. 6), field cutting tendons/strands is prohibited; always consult the producer and a structural engineer before any drilling or slots.

3) How do I hang heavy cabinets on precast?

Use embedded inserts if available, or engineer-approved post-installed anchors. I also spread loads with a continuous cleat or batten so fewer penetrations carry more safely.

4) What about acoustic performance?

Precast has good mass but can reflect sound. I add acoustic panels on clips, a small air gap, and soft furnishings; this combo improves clarity without thick build-ups or complex framing.

5) Will interior insulation cause moisture issues?

It can, if you trap vapor on the wrong side. I favor breathable finishes and, where needed, a smart vapor retarder; ASHRAE’s guidance on dew point control supports modeling your specific climate before insulating.

6) How do I coordinate MEP with precast panels?

Share a detailed layout early—plumbing groups, sleeve sizes, and outlet heights—so the plant can cast in conduits and sleeves. Always verify against the producer’s shop drawings and strand maps.

7) Are cast-in niches expensive?

They add cost for blockouts, rebar adjustments, and finishing, but they can replace bulky cabinetry. On tight budgets, surface-mounted rails or shallow built-outs mimic the function for less.

8) What fire rating do precast walls provide?

Many precast walls achieve 1–2 hours or more depending on thickness and aggregate. Confirm with the wall’s tested assembly and local code requirements before selecting finishes and penetrations.
