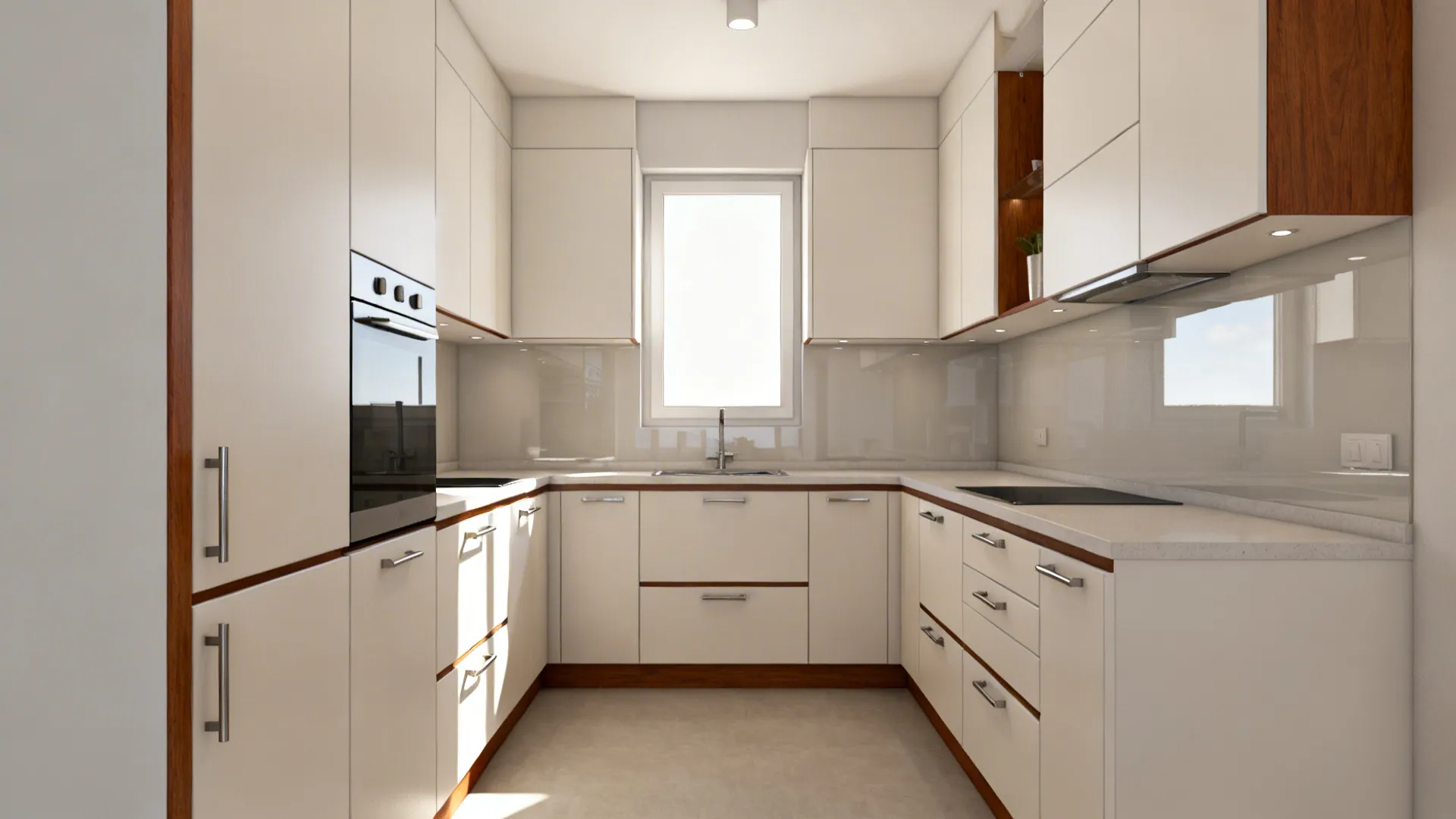

5 pro tips to design kitchen cabinets in SketchUp: My field-tested workflow, mistakes to avoid, and 5 design inspirations for small kitchens

[Section: 引言]

I’ve been designing compact kitchens for over a decade, and the current interior trend is clear: slimmer profiles, smart vertical storage, and clean lines that photograph beautifully in 3D. Small spaces spark big creativity—especially when you’re figuring out how to design kitchen cabinets in SketchUp without sacrificing function. In this guide, I’ll share 5 design inspirations I use in real projects, blending my experience with expert data so you can model confidently and build smarter.

Before we dive in, here’s how I approach any SketchUp cabinet project: I start with accurate room dimensions, set units to millimeters for precision, draw a base rectangle for the footprint, then build cabinets as components with parametric thinking—face frames, carcass, toe-kick, door gaps, hardware clearances. I always model one perfect module first, then copy with consistent increments. It keeps the file light and the design consistent.

Pro tip: Set a simple naming convention (e.g., B30_drawer, W18_shelf) and organize layers/tags early. It saves hours later when clients ask for quick changes.

[Section: 灵感列表]

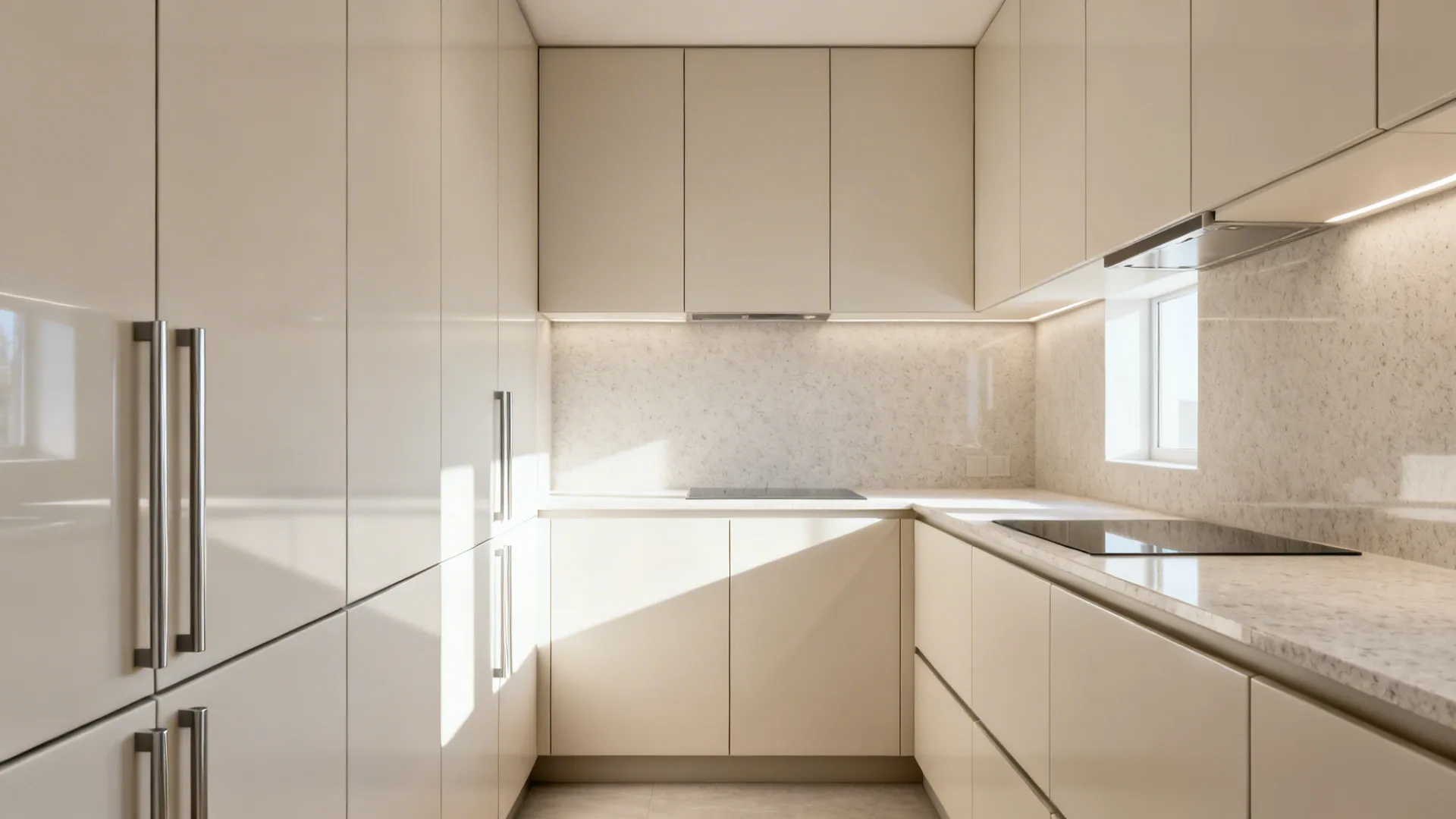

Minimalist cabinet storage that hides the mess

My Take: In small kitchens, I love how flat-panel doors with integrated pulls reduce visual noise. I once remodeled a 7-square-meter galley where minimalist fronts and tight reveals made the entire room feel one meter wider on camera—and yes, in real life too.

Pros: Seamless fronts are perfect for a small kitchen cabinet design in SketchUp because fewer profiles mean fewer edges to model, speeding up the workflow. Flush panels also reflect light better, which pairs nicely with a neutral material library and a simple PBR texture set. According to NKBA, lighter finishes can improve perceived brightness and reduce task-lighting needs near prep zones.

Cons: Fingerprints show more on flat, glossy doors—your render looks pristine, but daily life, not so much. Also, ultra-thin pulls may be unfriendly for folks with larger hands; I tweak the pull geometry to 8–10 mm depth to balance comfort and the minimalist look.

Tip: In SketchUp, model one 600 mm base module with a 2 mm reveal between doors; make it a component. Copy it along your run in 300/450/600 increments to maintain rhythmic spacing and easy edits.

See how an L shaped layout creates more prep surface when combined with flat-panel modules—this pairing is my go-to for renters and first-time renovations.

save pin

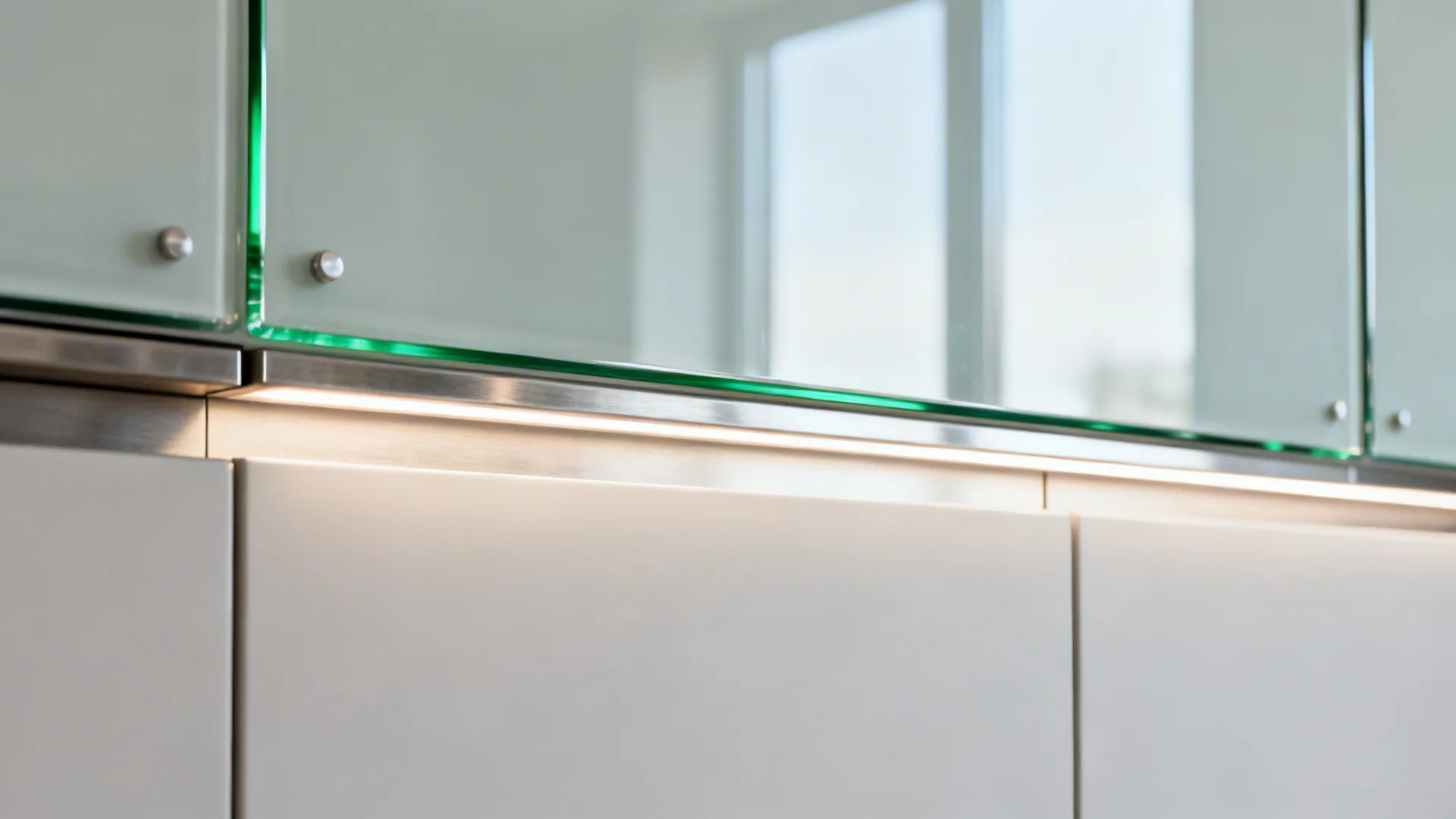

Glass backsplash for depth and bounce

My Take: A back-painted glass backsplash behind minimalist cabinets adds depth without clutter. In a micro-loft project, the glass caught under-cabinet LEDs and doubled the visual space in evening scenes.

Pros: In SketchUp and rendering, high-gloss materials create compelling light behavior; a glass backsplash can uplift a small kitchen visualization with minimal geometry. It’s also easy to clean in real life, which clients appreciate. Research on daylighting from the Illuminating Engineering Society notes that high reflectance surfaces improve vertical luminance—a fancy way of saying it looks brighter and clearer to the eye.

Cons: Real-world install needs perfect wall prep; glass highlights every bump. In 3D, if you skip IOR and roughness tweaks in your renderer, glass can look fake—so do a quick material test scene.

Tip: In SketchUp, keep the glass as a single plane 6–8 mm thick with a subtle green tint on edges; add a 2–3 mm offset from the wall so shadows read correctly in renderings.

save pin

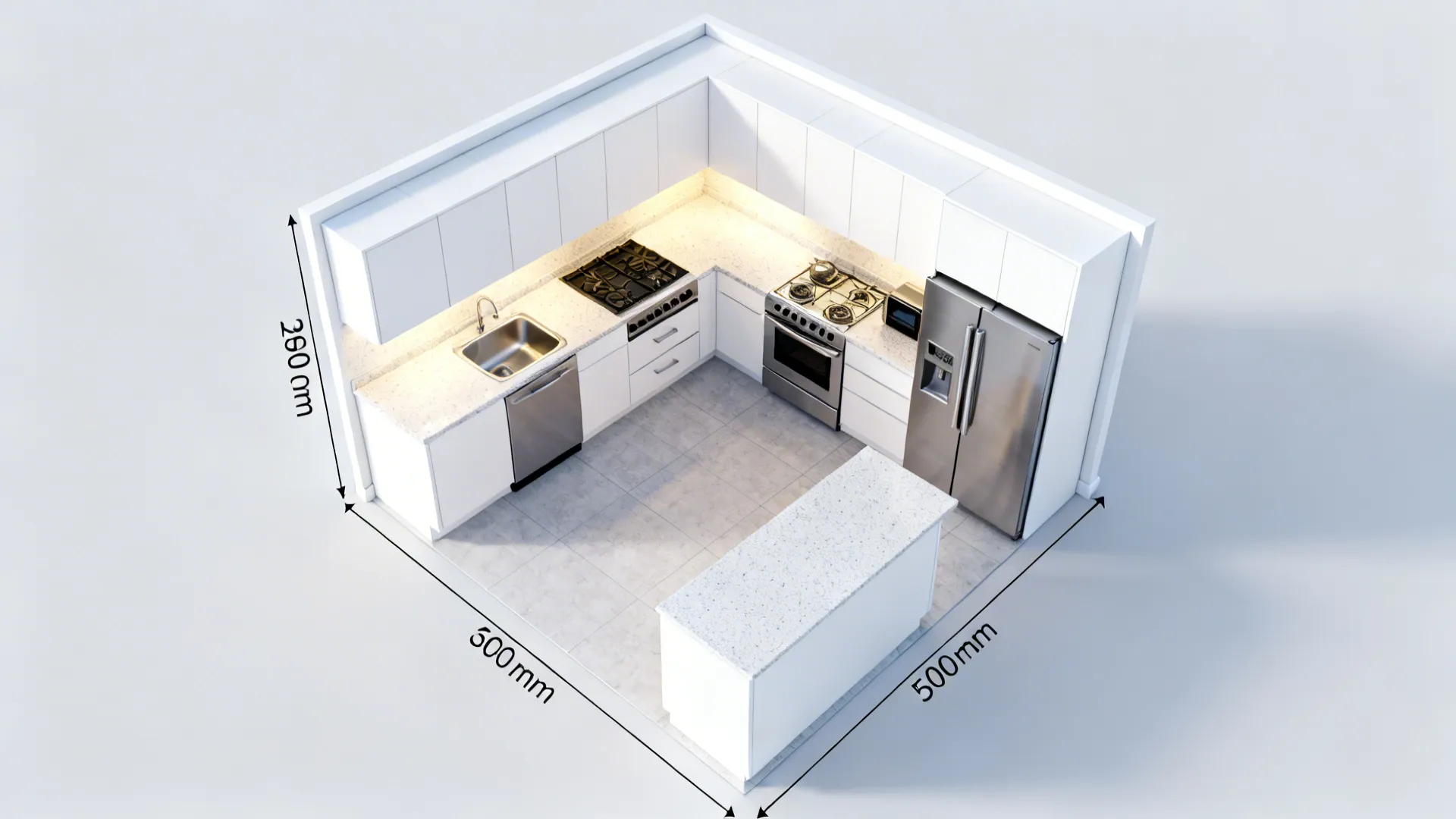

U-shaped micro kitchen with a smart work triangle

My Take: For tight apartments, I often choose a compact U because it compresses steps between sink, cooktop, and fridge. I once cut meal prep time for a busy couple simply by tightening the triangle and adding drawers near the stove.

Pros: A U-shape makes it easy to design modular base cabinets in SketchUp with consistent depths and corner solutions. It also supports more drawers, which are proven to increase usable storage compared to shelves; Blum’s internal studies show drawers improve access in lower cabinets by up to 55% versus doors with shelves.

Cons: Corners can become dead space or overly complex if you chase perfect clearance. In tiny rooms, a U can feel cramped if the walkway drops below 900 mm—your 3D will warn you, but clients might not notice until move-in.

Case & Cost: Corner units cost more hardware-wise. If budget is tight, I’ll block off one dead corner and shift storage elsewhere; in SketchUp that means a simple blind panel and a deeper drawer bank on the opposite run.

For a live example of U-shape zoning in small apartments, study how modules align with circulation paths—then apply the same spacing rules in your model.

save pin

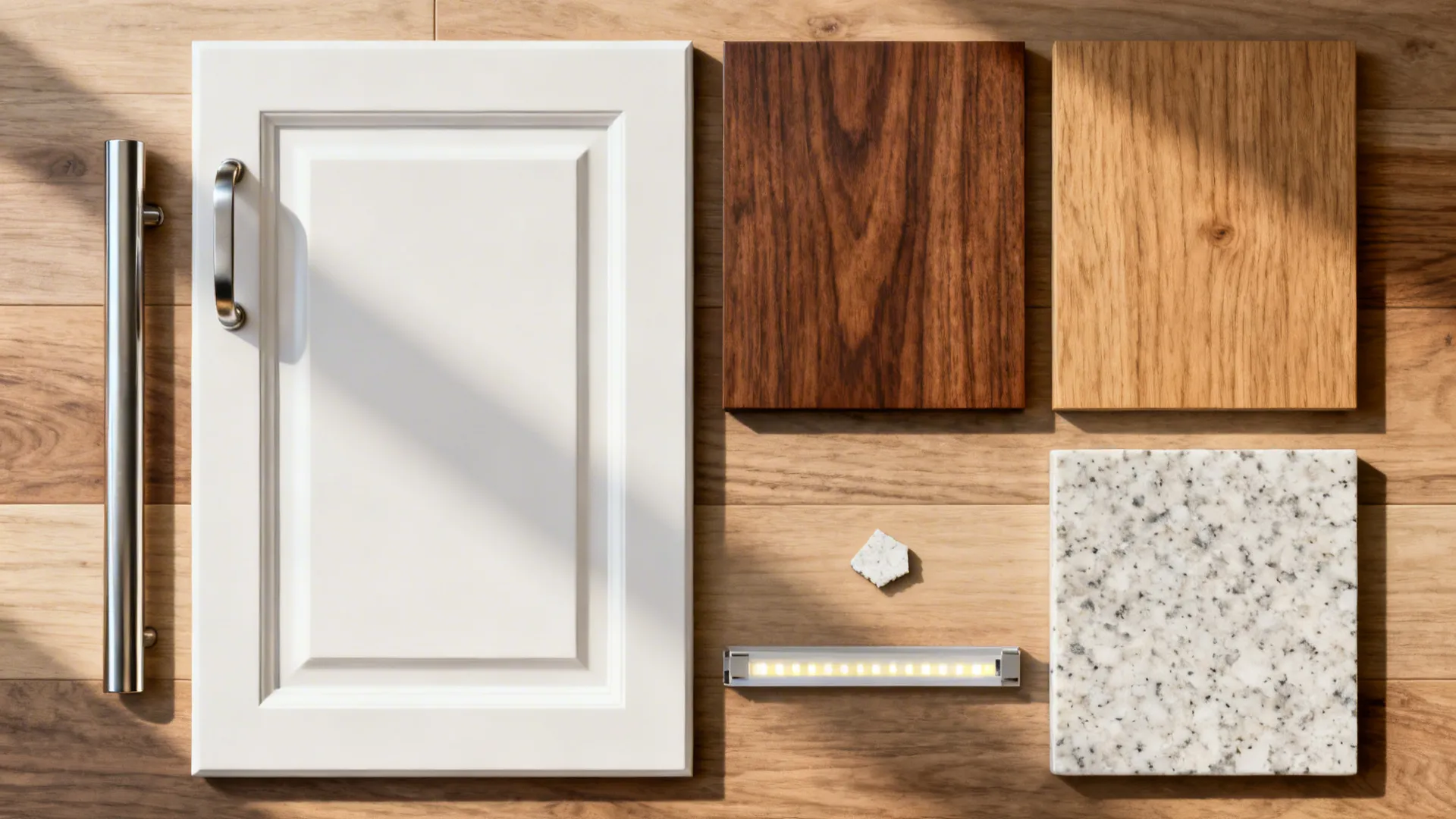

Warm wood accents that ground the space

My Take: I’m a fan of mixing flat white doors with a walnut or oak frame at the open shelves. It warms the palette and gives your camera something to love—especially in mid-morning or golden-hour renders.

Pros: Wood textures read beautifully in SketchUp renders and add a tactile cue without heavy geometry. Using wood on handles, trims, or a single vertical bay delivers that warm, modern vibe and supports the long-tail approach of “small kitchen cabinet ideas with wood accents” in your portfolio pages.

Cons: Real timber needs maintenance; in rentals I often swap to textured melamine or veneer. In 3D, low-res wood maps can tile obviously—invest in 4K textures and set the scale to match your modeled components.

Tip: Keep wood to 15–25% of visible surfaces so it accents rather than dominates. In SketchUp, group the accent shelf and export its material ID for quick look-dev swaps later.

Notice how warm wood elements soften modern cabinetry without crowding the scene—great for client buy-in when they fear a “too sterile” kitchen.

save pin

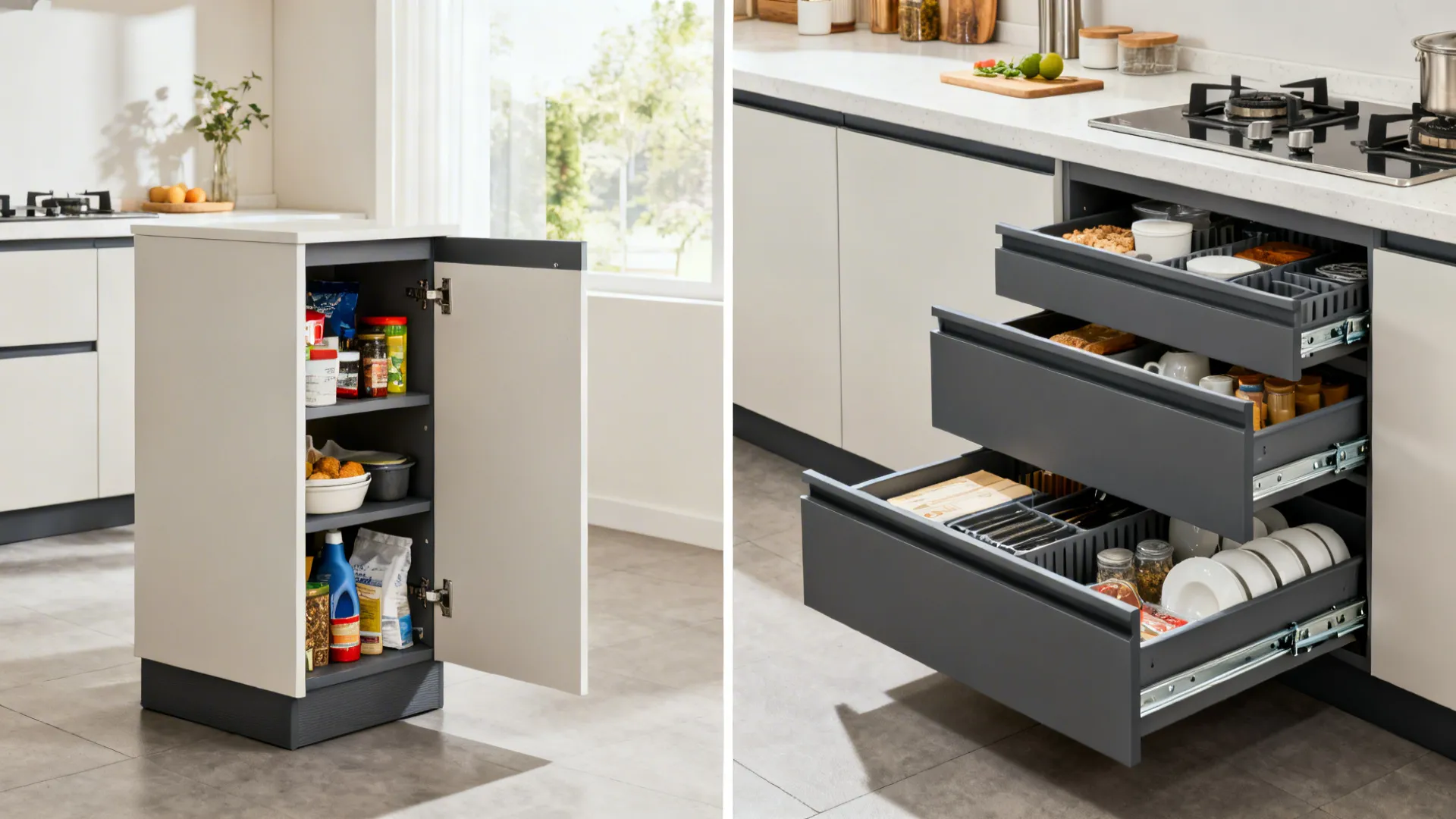

Drawer-first base cabinets for real storage gains

My Take: After dozens of remodels, I now default to deep drawers over doors in base cabinets. Clients actually use the back of a drawer; the back of a shelf? Not so much.

Pros: In SketchUp, modeling drawers as nested components (front, box, slide clearance) speeds up duplication and helps you check interference with appliances. Long-tail searches like “how to design kitchen drawers in SketchUp” pair well with this approach because it’s practical and scalable. A 2021 NKBA report notes drawers are the top-requested storage upgrade in small kitchens for accessibility and ergonomics.

Cons: More hardware equals higher cost; budget wisely by mixing one deep pot drawer with a standard shelf base where it matters less. Also, remember to leave 2–3 mm vertical reveals between fronts—tight gaps look good in renders but will bind in reality.

Build Tip: Standardize on a 720 mm carcass height, 150 mm toe-kick, and 20 mm countertop; in SketchUp, lock these as guides. For drawers, use 500–550 mm depth where possible, but check the plumbing wall before committing.

[Section: 技术工作流与实操细节]

Now, let’s translate inspiration into a clean SketchUp workflow for kitchen cabinets. I’m keeping this friendly and field-tested—what I actually do on paid projects.

1) Set up the file smartly: Units to mm; make a “Cabinets” tag for all carcasses, “Fronts” for doors/drawers, “Hardware” for pulls/hinges. Save a template so you’re not reinventing the wheel.

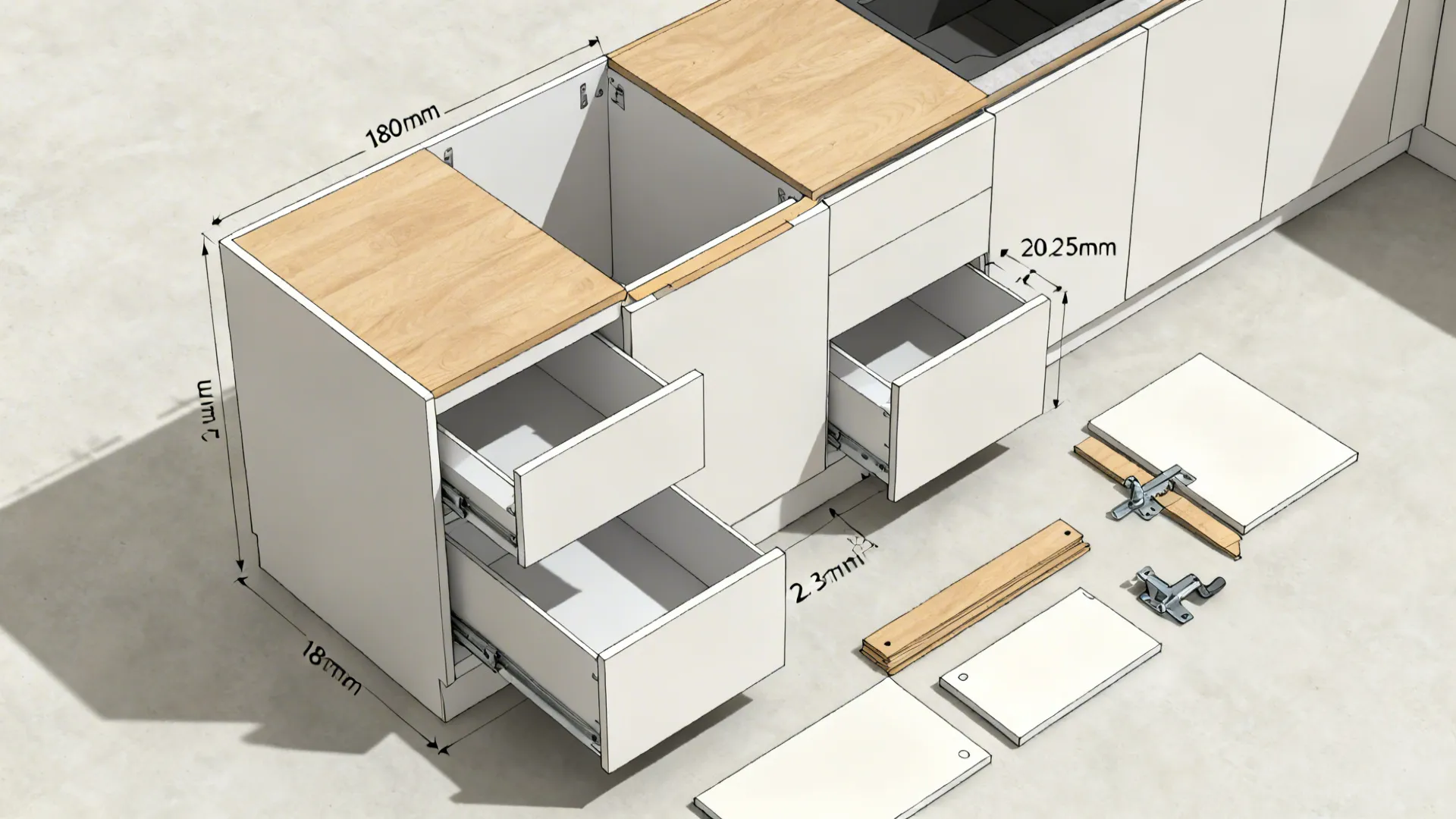

2) Parametric mindset with components: Model a 600 mm base carcass: 18 mm sides/top/bottom, 72 mm toe-kick, back panel at 9 mm. Make the whole cabinet a component, then make each subpart a component too. You’ll thank yourself when you change thickness once and it updates everywhere.

3) Reveals and tolerances: Keep 2 mm vertical reveals between drawer fronts and 2–3 mm side reveals to appliance gables. Add 20–25 mm scribe fillers near walls to absorb construction variance.

4) Doors vs. drawers: For doors, add a 35 mm hinge cup recess and a 3–5 mm opening clearance. For drawers, leave 12–13 mm total slide clearance depending on the system you’re simulating; even in 3D, faking realistic gaps boosts credibility.

5) Corner logic: In U or L kitchens, choose blind corners or lazy susan carousels early. In SketchUp, a simple 100 mm blind panel avoids handle collisions and keeps countertop seams rational.

6) Upper cabinet proportions: Keep uppers at 320–400 mm depth; mount bottoms 500–600 mm above the counter for comfortable reach. If the ceiling is low, stop 150–200 mm short and use a light cove to avoid claustrophobia.

7) Island and overhangs: If space allows, model a 250–300 mm seating overhang with steel brackets and verify knee clearance. In small spaces, a 450 mm deep peninsula can replace an island entirely.

8) Materials and UVs: Use consistent PBR materials with correct scale—oak at 180–220 mm plank width feels natural. Test one material sphere scene before committing across the kitchen.

9) Render sanity check: Always create a neutral lighting scene (no heavy color cast) and a “real camera” height at 1450–1550 mm. In small kitchens, a 24–28 mm equivalent lens keeps lines honest.

10) Export for stakeholders: Save scenes with layer visibility toggled (Carcass only, With fronts, With appliances). Clients follow the story better, and fabricators spot mistakes earlier.

[Section: 误区与避坑]

Common mistakes I still see—and sometimes still make when I rush:

- Over-detailing early: Don’t model hinge screws on day one. Block masses first, then refine. - Ignoring appliance clearances: Leave 50–75 mm behind fridges for ventilation and account for oven door swing. - Unrealistic gaps: Remember, the shop needs tolerances. Your perfect 0 mm reveal will bite you at install. - Texture repetition: Vary wood map rotation subtly on adjacent fronts to avoid the “copy-paste” look.

[Section: 总结]

Designing kitchen cabinets in SketchUp isn’t about fancy tricks; it’s about smart constraints. A small kitchen doesn’t limit you—it demands better decisions, from module sizing to lighting and materials. With these five inspirations and a practical workflow, you can model faster and build smarter. As NKBA guidelines often remind us, good layout trumps pure aesthetics when space is tight. Which idea are you most excited to try first?

[Section: FAQ 常见问题]

save pin

FAQ

1) What’s the best starting point for how to design kitchen cabinets in SketchUp?

Begin with accurate room measurements, set units to millimeters, and model a single 600 mm base cabinet as a master component. Duplicate and adjust widths (300/450/600) to keep the system consistent.

2) How thick should I model cabinet panels?

18 mm is a common carcass thickness; doors range 18–22 mm. Always confirm with your fabricator’s spec so your model aligns with real-world materials.

3) What are ideal reveals between doors and drawers?

Plan 2–3 mm between fronts and 2–3 mm to adjacent panels or appliances. It looks crisp in renders and gives installers the tolerance they need.

4) How do I handle corner cabinets in SketchUp?

Pick a strategy early: blind corner with a 100 mm panel, or a carousel solution. Model the plan footprint first, then add doors/drawers to avoid handle clashes.

5) Should I use drawers or doors for base cabinets?

For small kitchens, drawers win for access and storage efficiency. NKBA trend data supports drawer-heavy bases for better ergonomics and organization.

6) How can I make small kitchens look bigger in renders?

Use flat-panel fronts, lighter finishes, and add a glass or high-reflectance backsplash. Keep camera height around 1500 mm and avoid extreme wide-angle distortion.

7) What’s a good workflow for materials and textures?

Test materials in a separate scene first and ensure wood textures are 4K with correct scale. Rotate adjacent fronts slightly to prevent repetitive patterns.

8) Any tools to help plan layouts before modeling detail?

If you want quick zoning before deep modeling, study examples of AI-driven small-space layouts to inspire cabinet module placement; then bring the concept into SketchUp with precise components.
